MULTIFUNCTION Switch

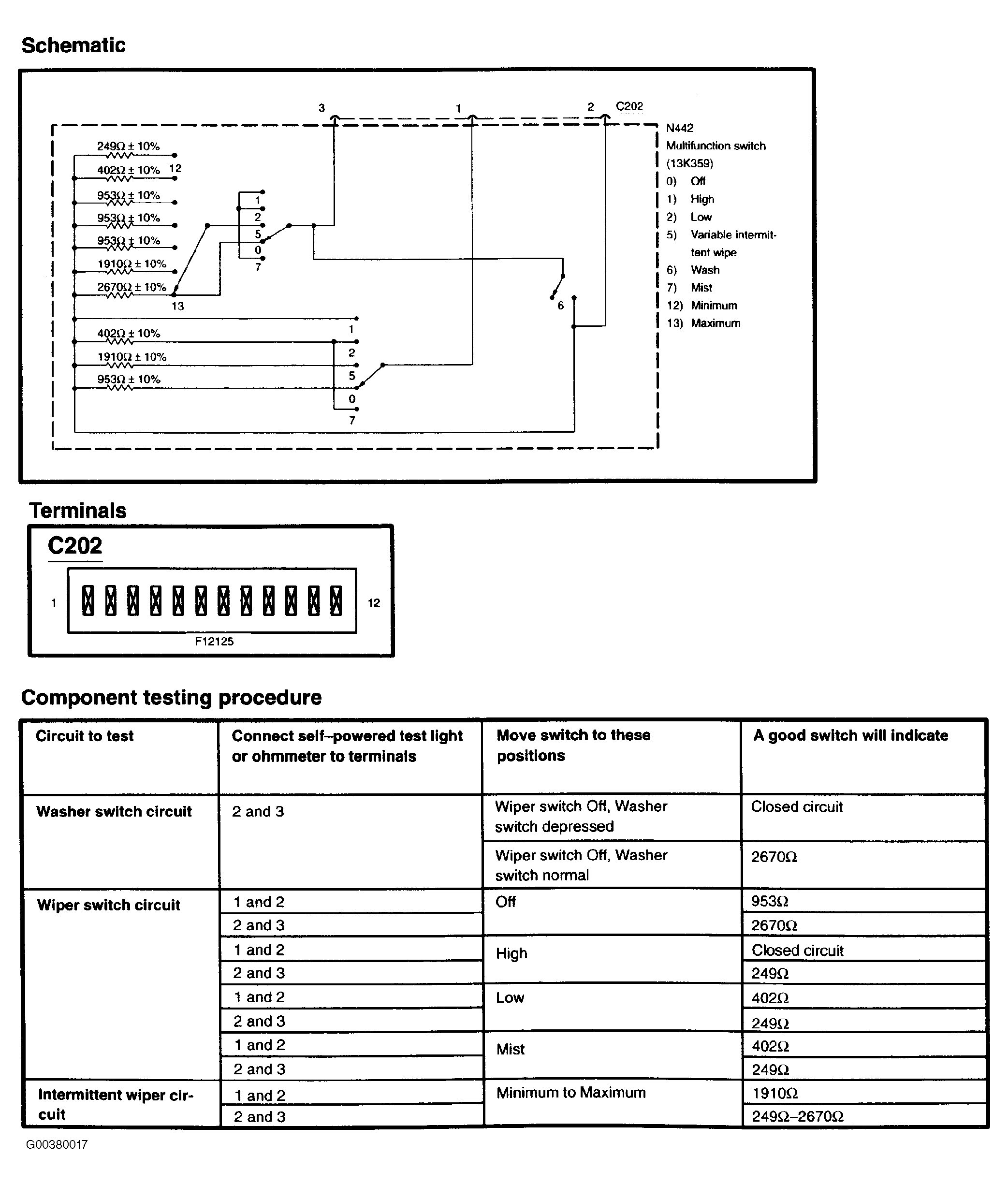

Fig 1: Testing Multifunction Switch - Wiper/Washer Portion
G00380017Courtesy of FORD MOTOR CO.

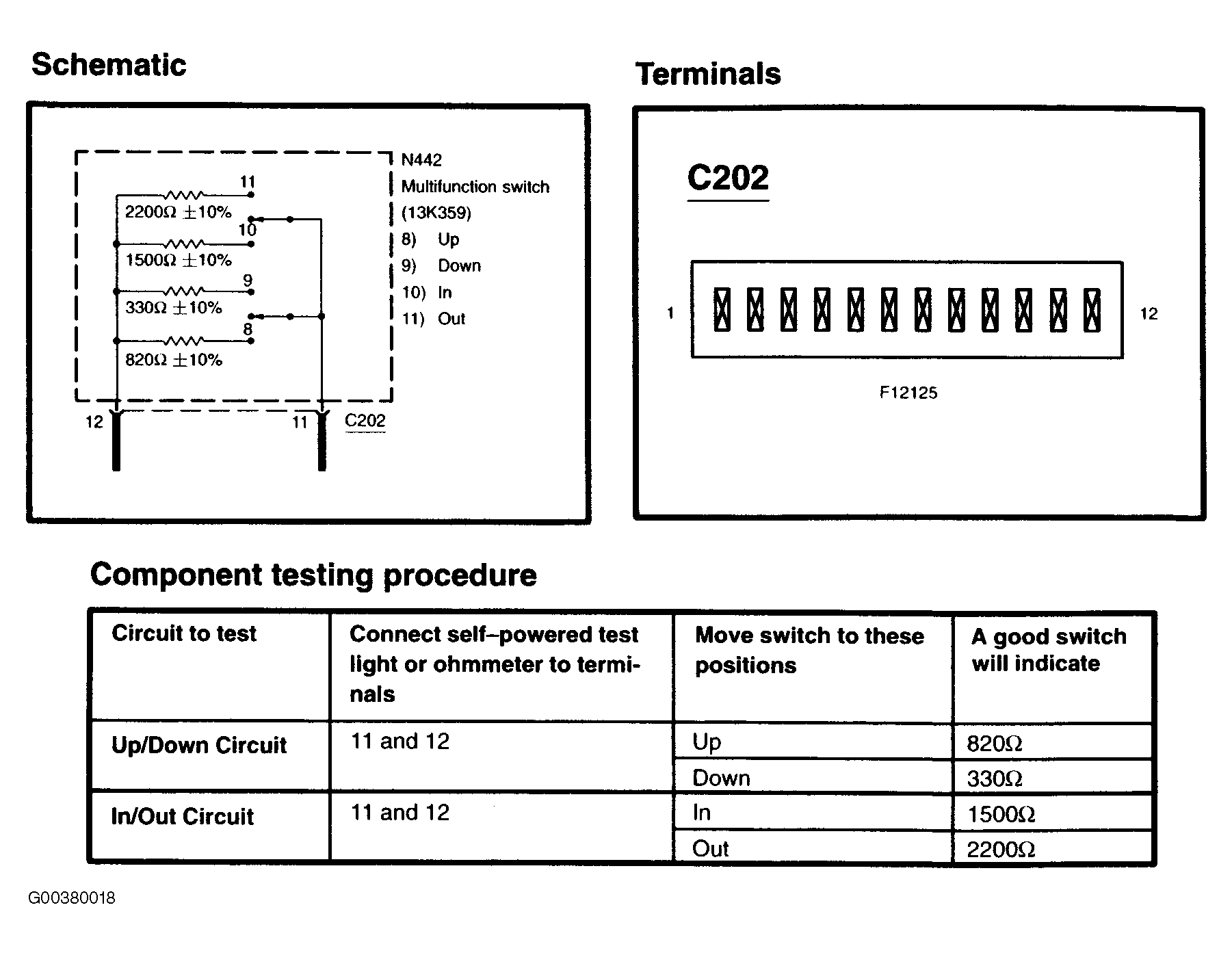

Fig 2: Testing Multifunction Switch - Telescoping Steering Column Control Section
G00380018Courtesy of FORD MOTOR CO.

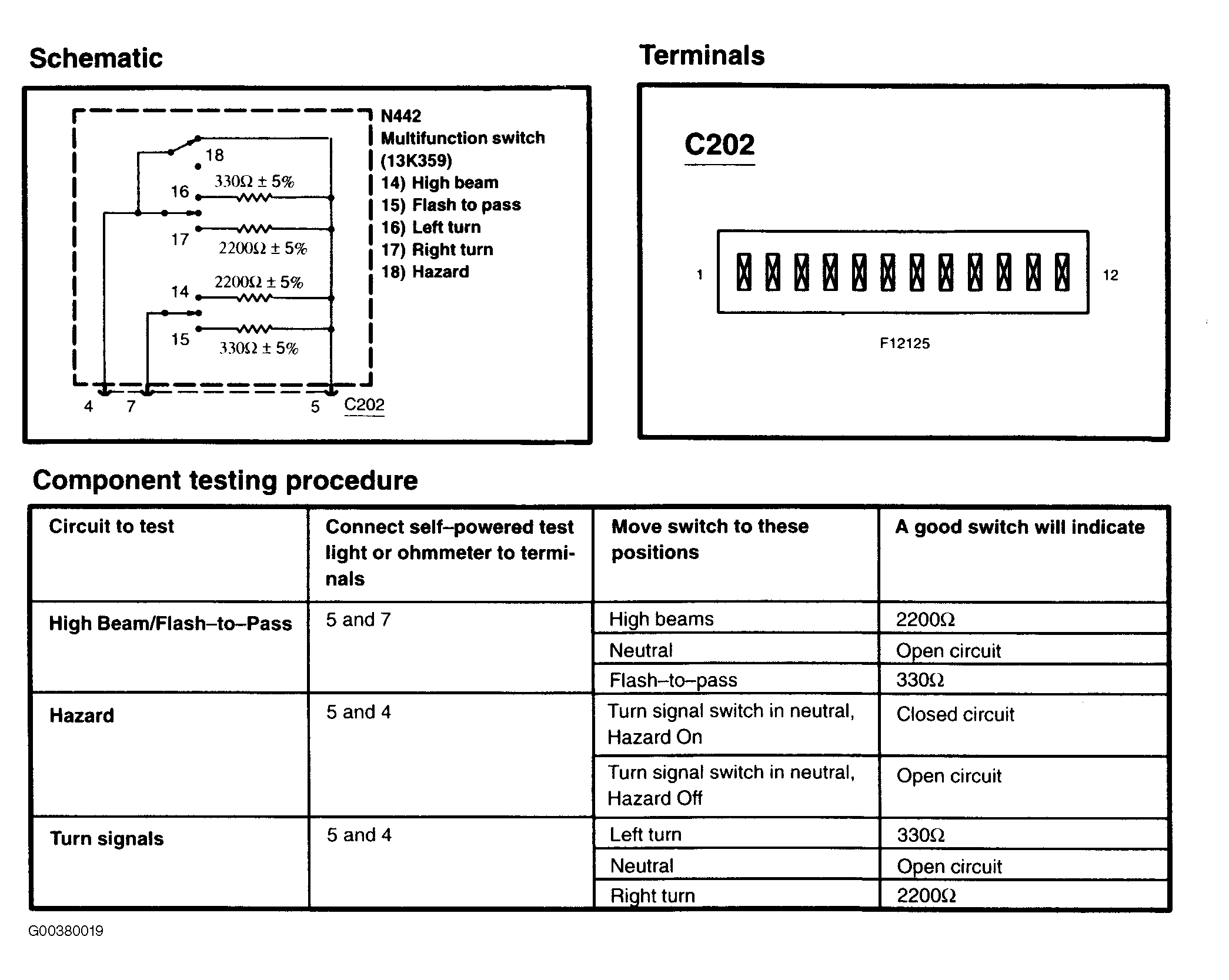

Fig 3: Testing Multifunction Switch - Lamp Portion
G00380019Courtesy of FORD MOTOR CO.
