Main Control Valve Body: Disassembly

    NOTE: The valve body separator plate has a bonded gasket.

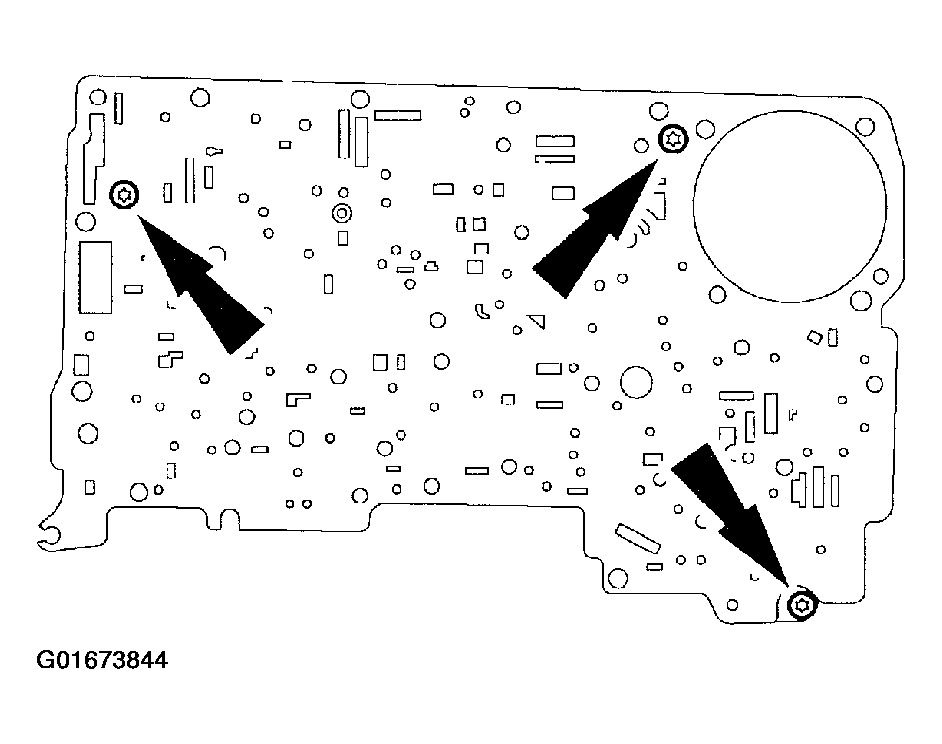

    Fig 1: Removing Valve Body Separator Plate
    G01673844Courtesy of FORD MOTOR CO.
  1. Remove the valve body separator plate.
  2. Remove the pressure control limit relief valve and spring.

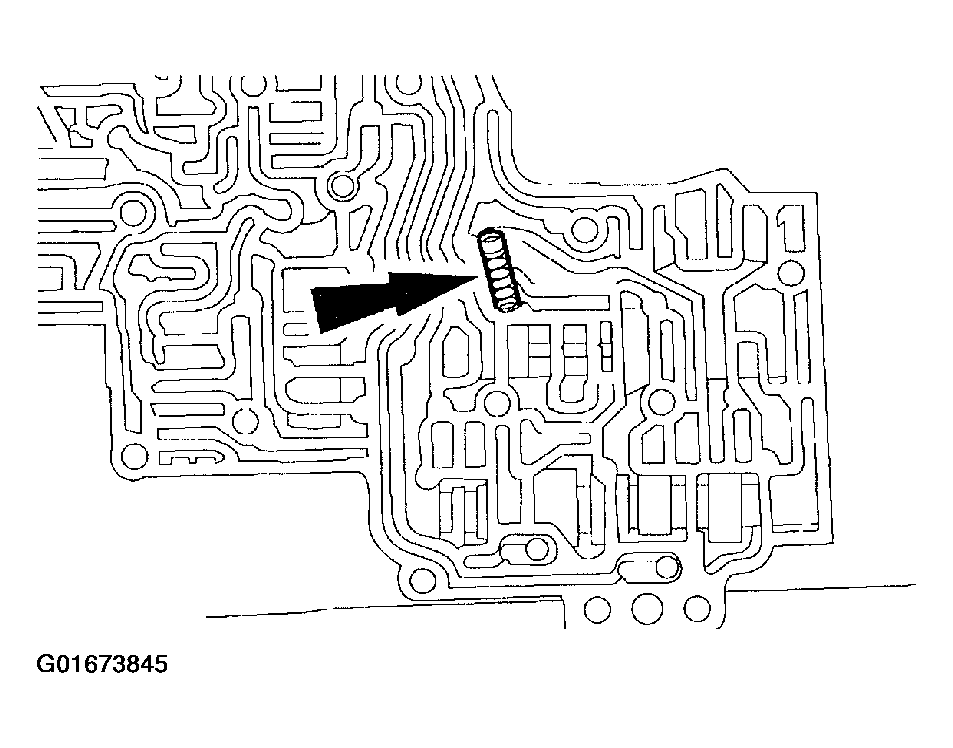

    Fig 2: Removing Pressure Control Limit Relief Valve & Spring
    G01673845Courtesy of FORD MOTOR CO.
  3. Remove the check balls.

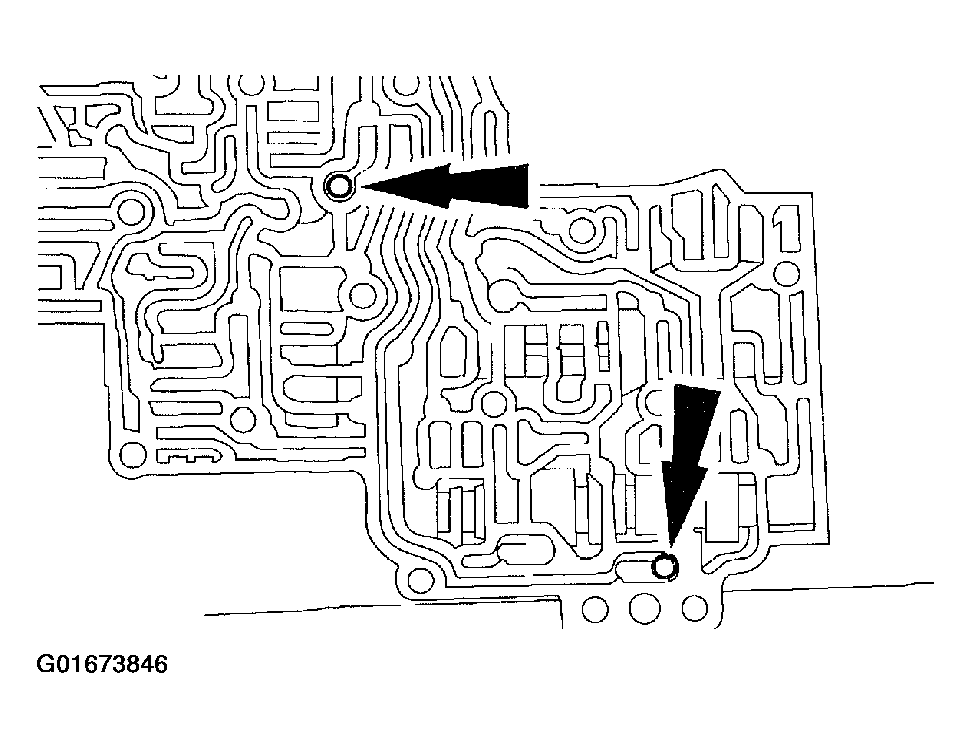

    Fig 3: Removing Check Balls
    G01673846Courtesy of FORD MOTOR CO.
  4. Disassemble the main control valve body.
