Automatic Trans: Overhaul: Specifications

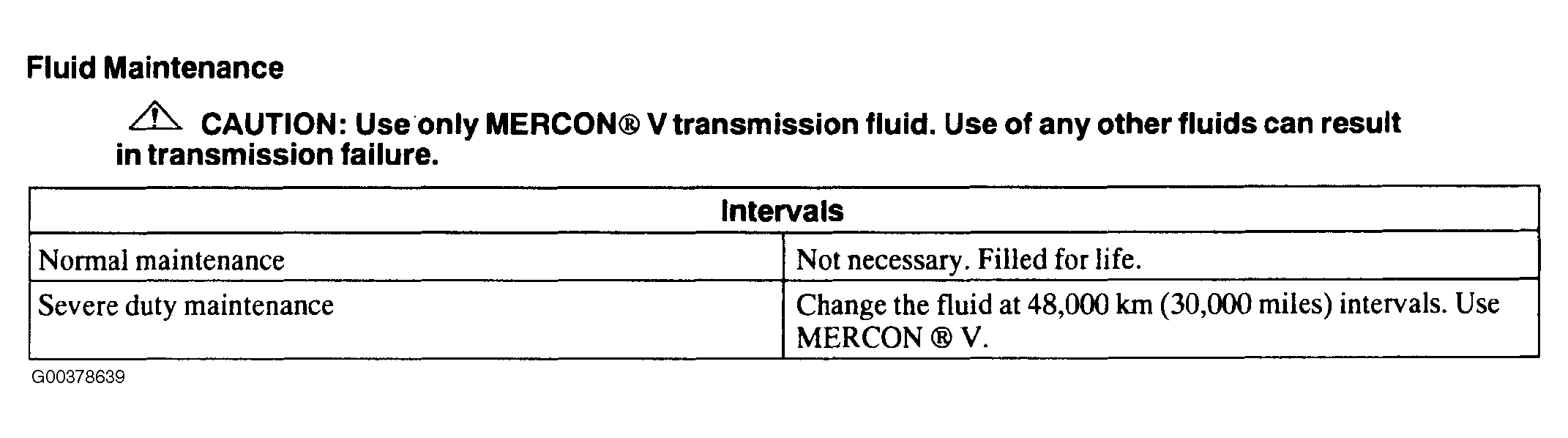

Fig 1: Fluid Maintenance Specification

Courtesy of FORD MOTOR CO.

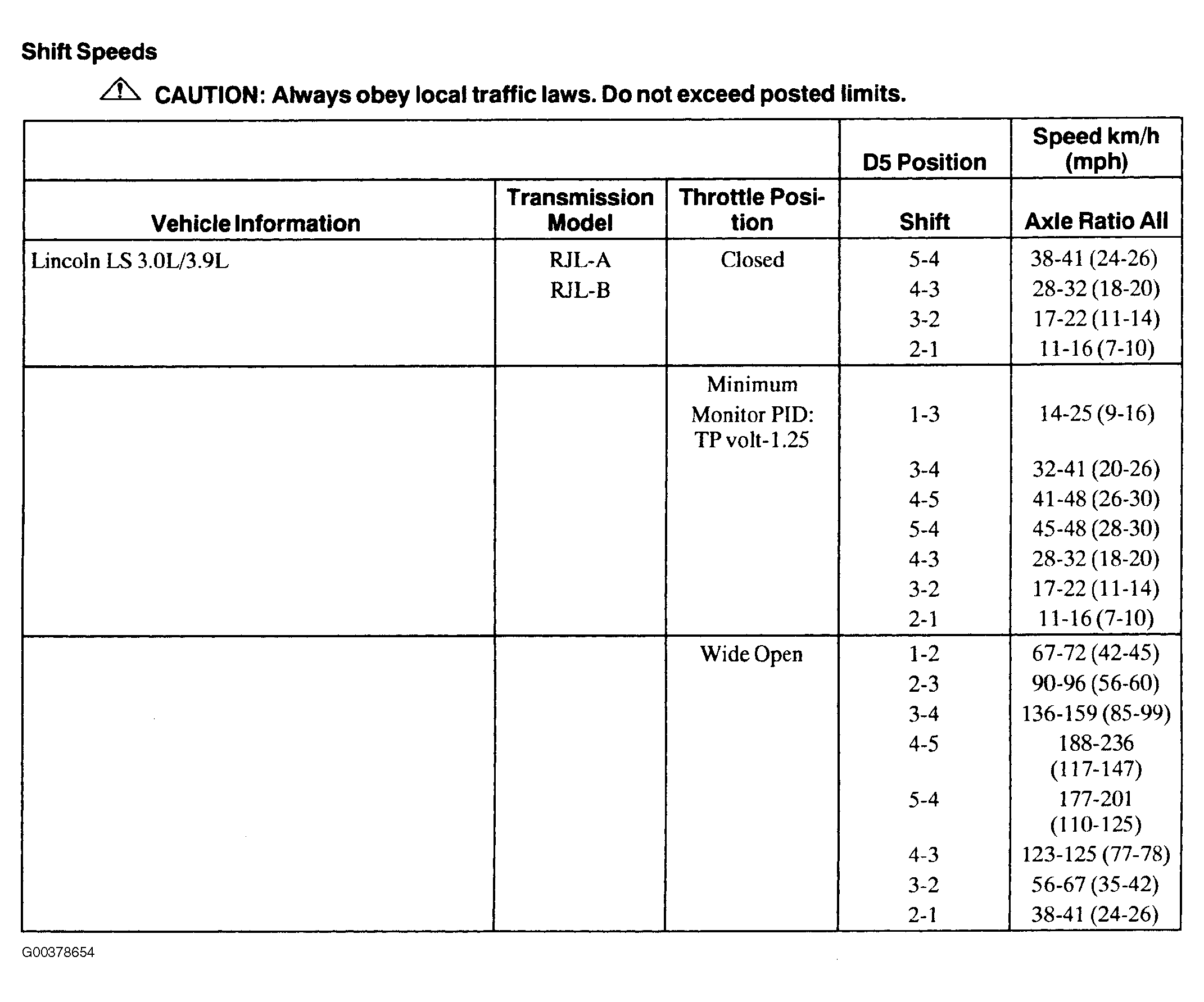

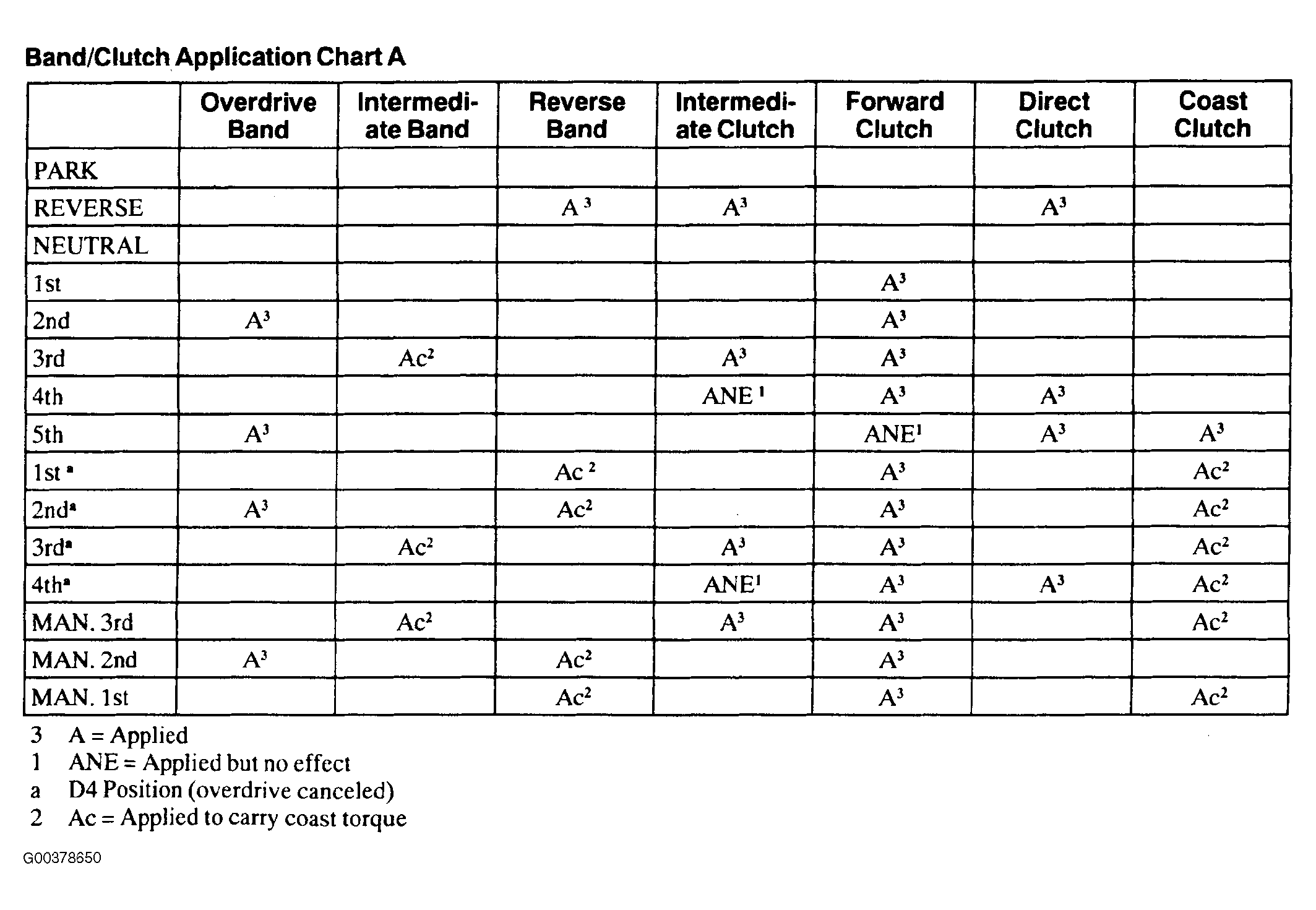

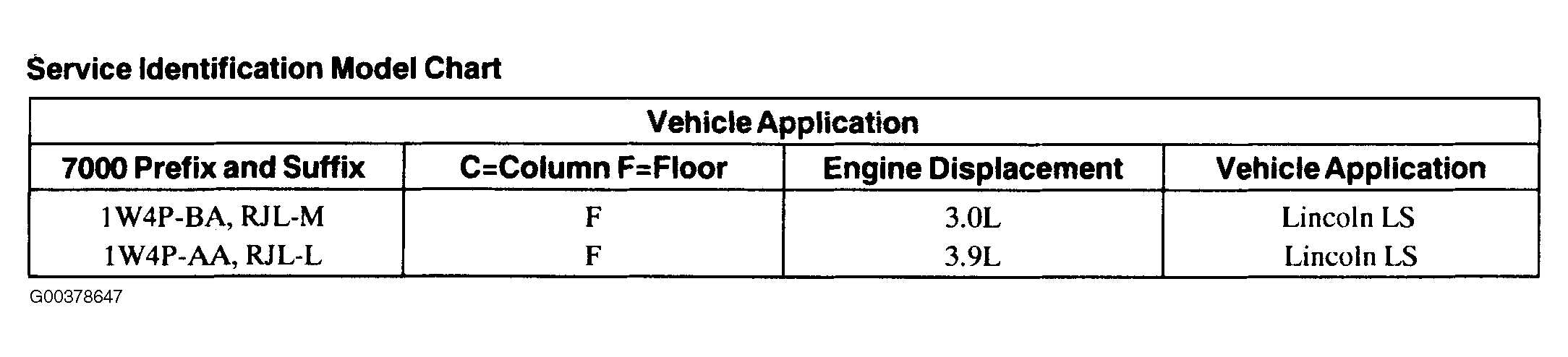

General Specifications (1 Of 2)

Vehicle

Engine

Approximate Liters

Refill Capacity⁽¹⁾ U.S. Quarts

Fluid Type

Lincoln LS-5R55N

3.0L, 3.9L

11.2

11.9

MERCON ®V XT-5-QM

⁽¹⁾

1 Approximate dry capacity, includes cooler and tubes. Fluid level procedures in this section should be used to determine actual fluid requirements and fluid specification. DO NOT OVERFILL. If it is necessary to add or change fluid, use only fluid that has been certified by the supplier as meeting the Ford Motor Company specification shown.

General Specifications (2 Of 2)

Item	Specification
Fluid
Motorcraft MERCON ® V Automatic Transmission Fluid XT-5-QM	MERCON ® V
Fluid Filter
Inline Transmission Fluid Filter Kit	XC3Z-7B155-AA
Inline Transmission Fluid Filter	XC3Z-7B155-BA
Lubricant
Ford Multi-Purpose Grease D0AZ-19584-AA	ESB-M1C93-B
Premium Long Life Grease XG-1-C	ESA-M1C75-B
Sealant
Threadlock 262 E2FZ-19554-B	WSK-M2G351-A6

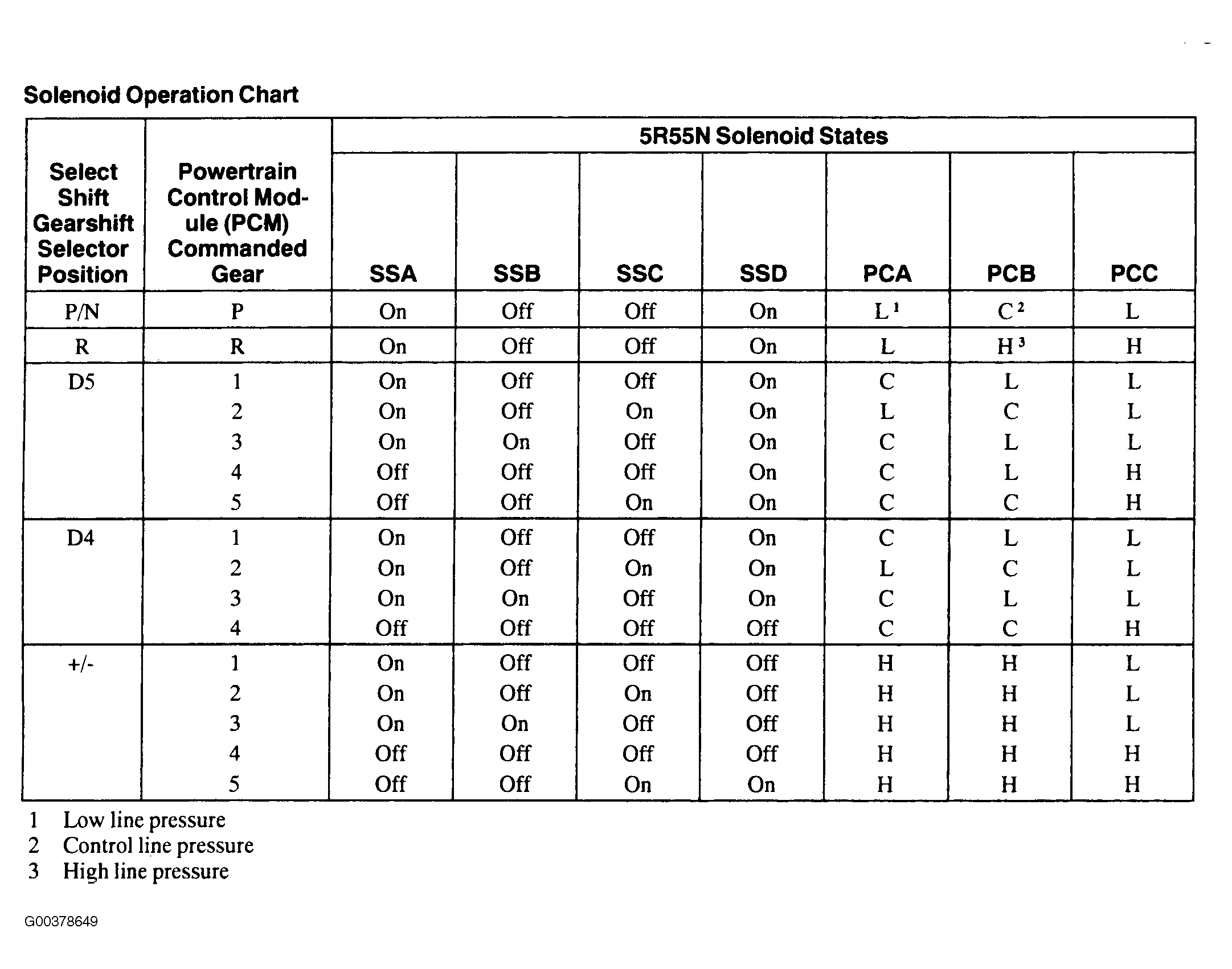

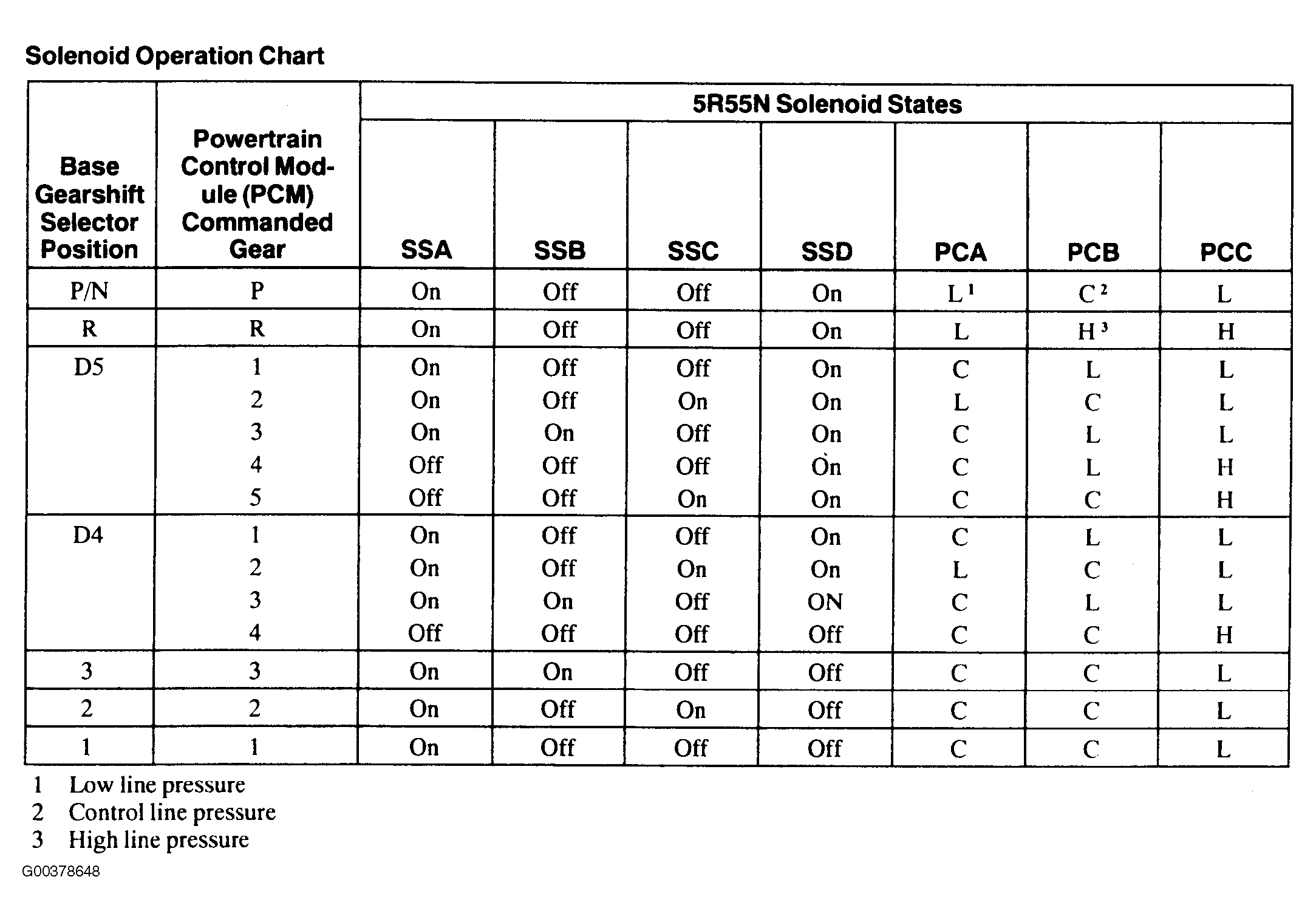

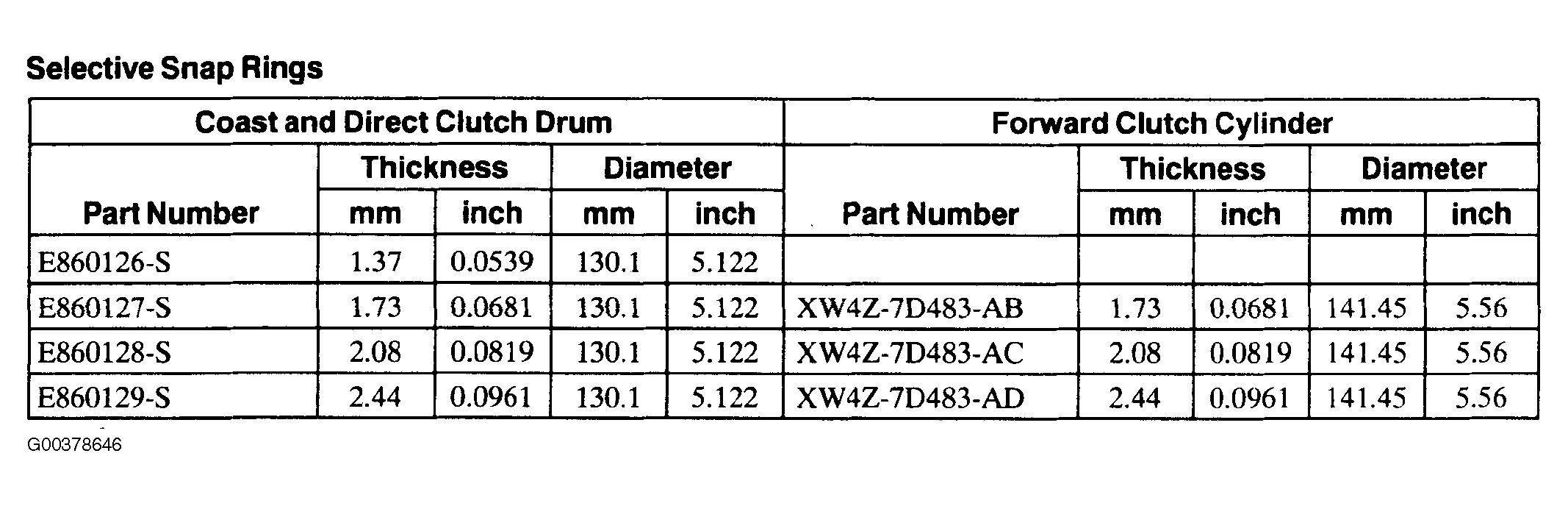

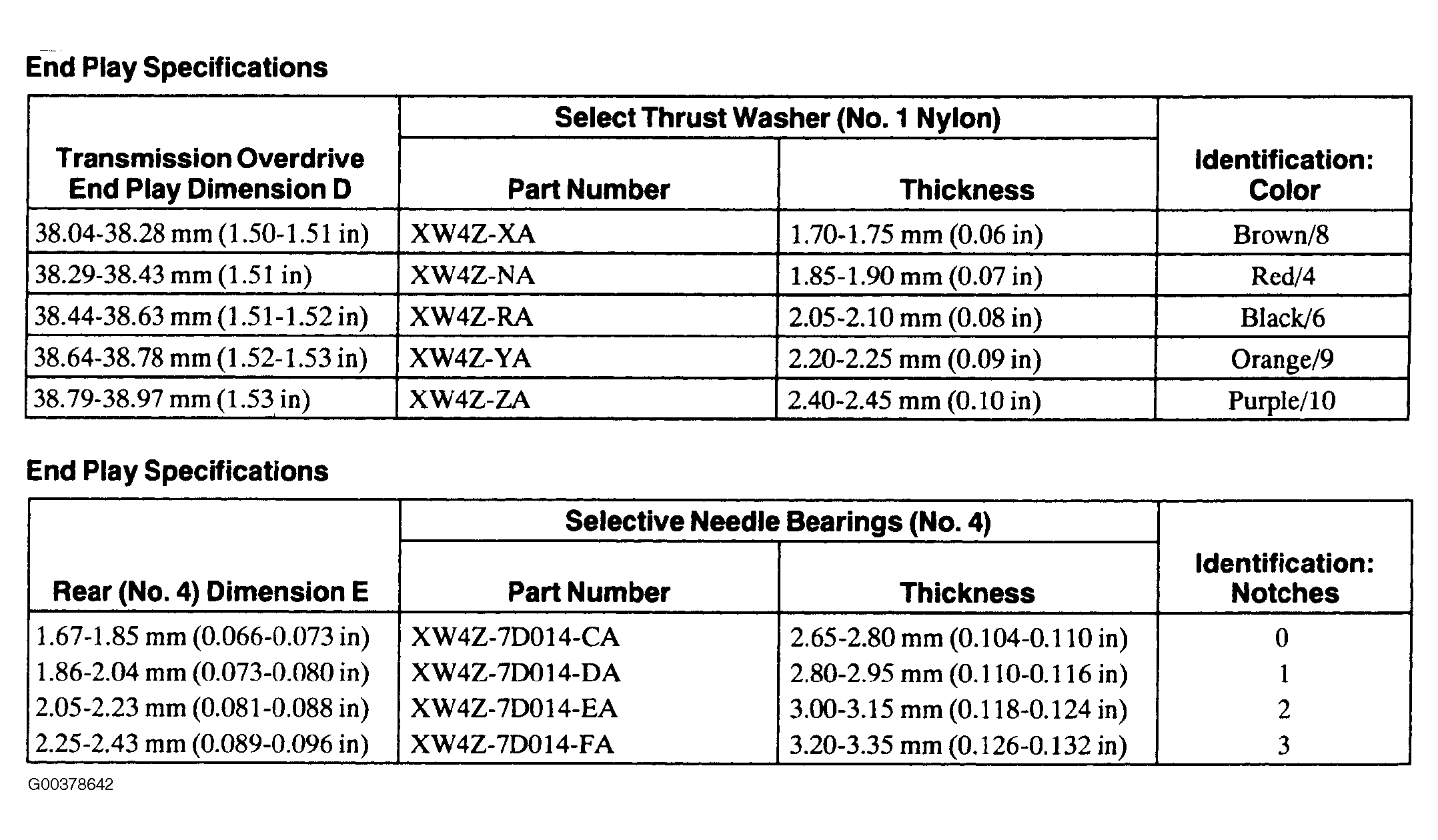

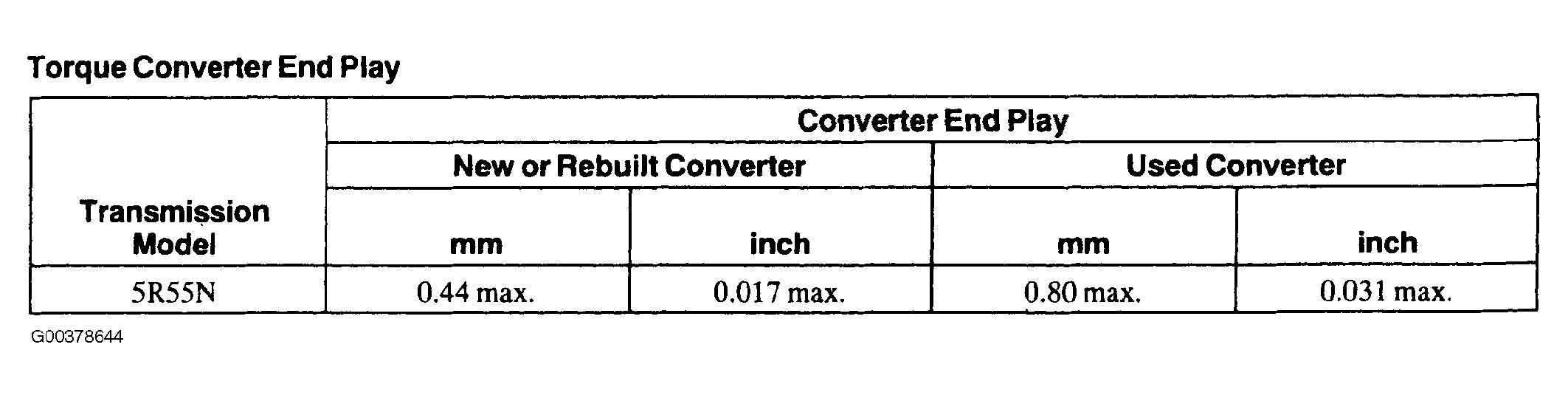

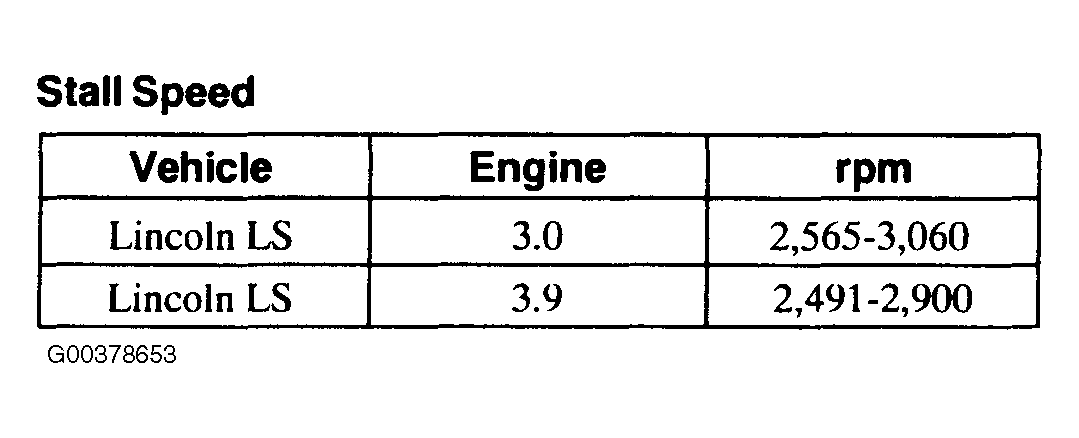

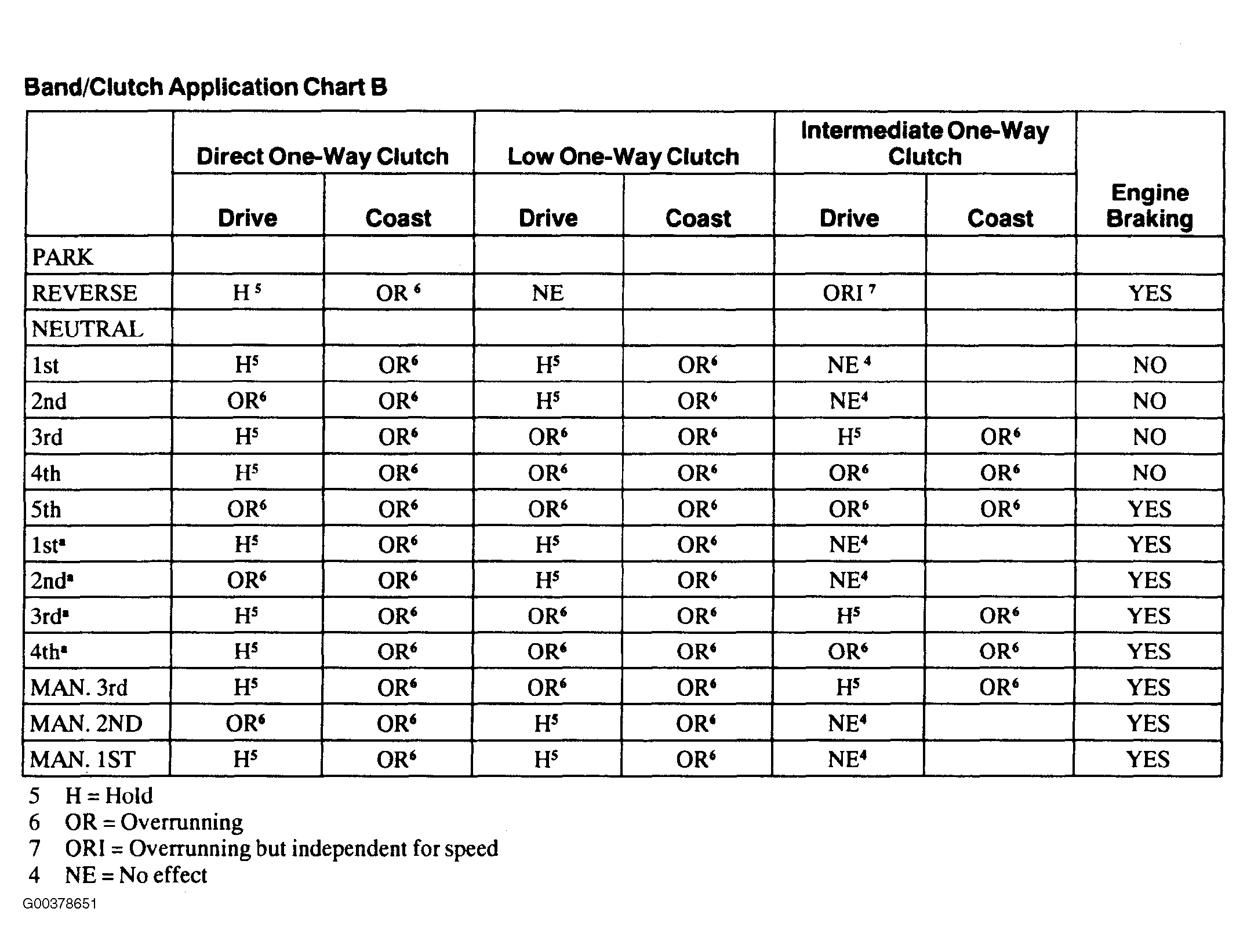

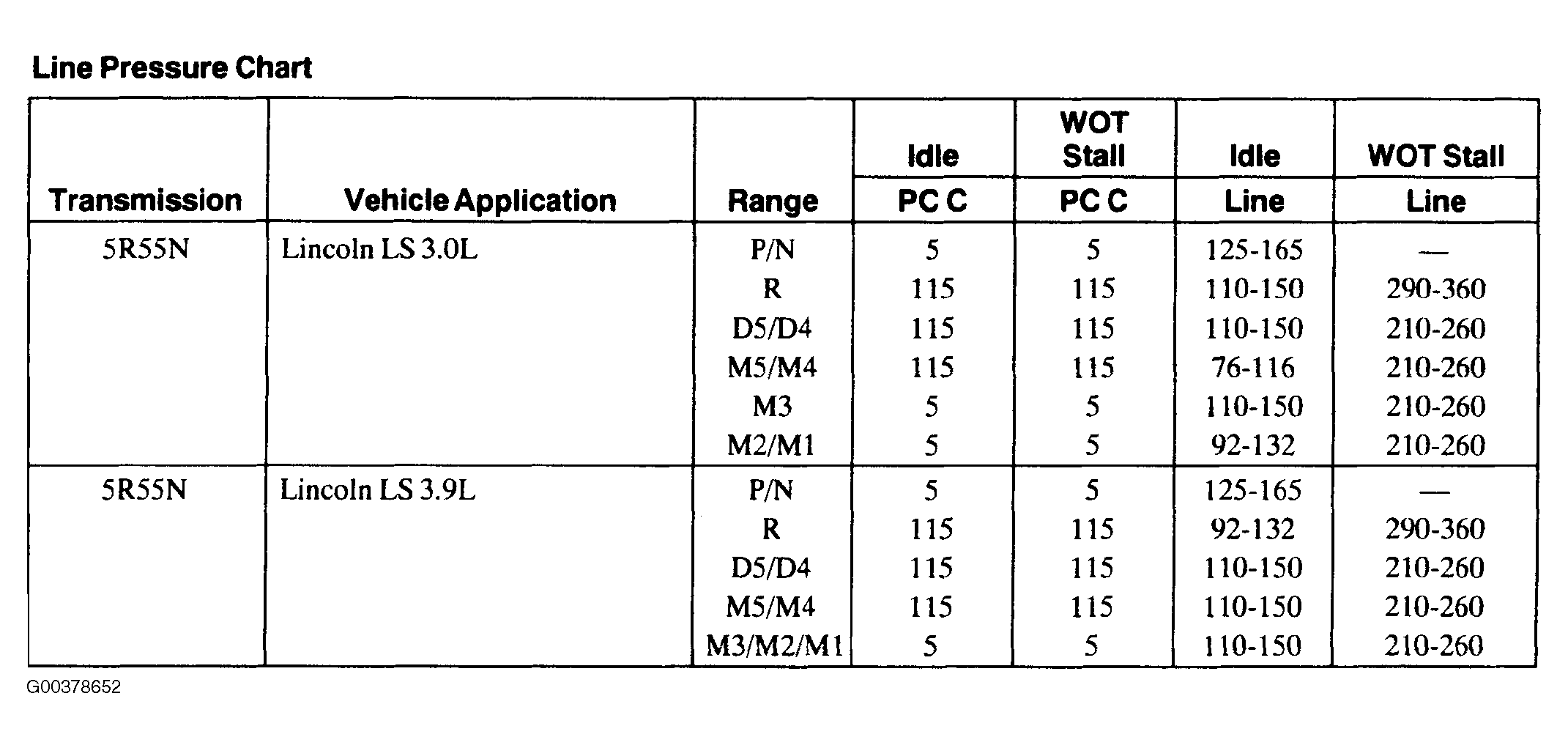

TORQUE SPECIFICATIONS

Description	Nm	Lb-Ft	Lb-In
Case-to-center support screw	11	8	-
Converter drain plug	10	-	89
Digital transmission range (TR) sensor-to-case screws	10	-	89
Driveshaft bolts and nuts	81	60	-
Extension housing screws and studs	39	29	-
Fill plug to extension housing	20	15	-
Fluid level indicator plug-to-drain pipe assembly	10	-	89
Fluid pan drain plug	26	19	-
Fluid pump housing screws	25	18	-
Heat shield screws	10	-	89

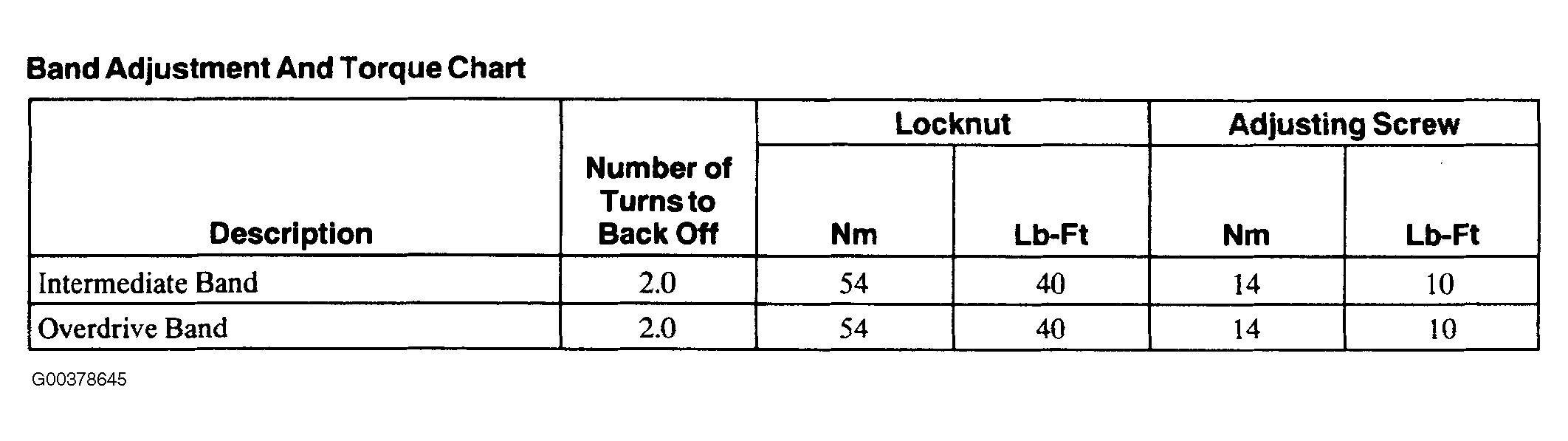

Locknut for band adjustment	54	40	-
Main control-to-case bolts	10	-	89
Manual control valve detent spring-to-case bolt	10	-	89
Manual control lever shaft nut	48	35	-
Output shaft-to-flange nut	131	97	-
Overdrive band adjustment screw	14	10	-
Pressure tap plug to case	13	10	-
Pump assembly-to-case screws	24	18	-
Reverse servo assembly-to-case bolts	10	-	89
Separator to main control bolts	10	-	89
Shift cable bracket bolts	25	18	-
Solenoid body-to-case bolts	8	-	71
Speed sensor-to-case screws	10	-	89
Torque converter adapter plate nuts to converter	44	33	-
Torque converter adapter plate-to-flexplate nut	38	28	-
Transmission cooler fitting to case	47	35	-
Transmission cooler line bracket nut (V6 application)	10	-	89
Transmission cooler line bracket nut (V8 application)	18	13	-
Transmission cooler tube nut to case fitting	40	30	-
Transmission fluid filter-to-case bolts	10	-	89
Transmission fluid pan-to-case screws	11	8	-
Transmission mount-to-extension housing center screw	40	30	-
Transmission mount-to-extension housing screws	50	37	-
Transmission mount-to-floor pan bolts	55	41	-
Transmission-to-engine bolts	47	35	-
Vehicle harness-to-solenoid body screw	5	-	44
