Disassembly And Assembly Of Subassemblies: Piston: Assembly

    NOTE: Connecting rod must be installed into piston with identification markings toward front.

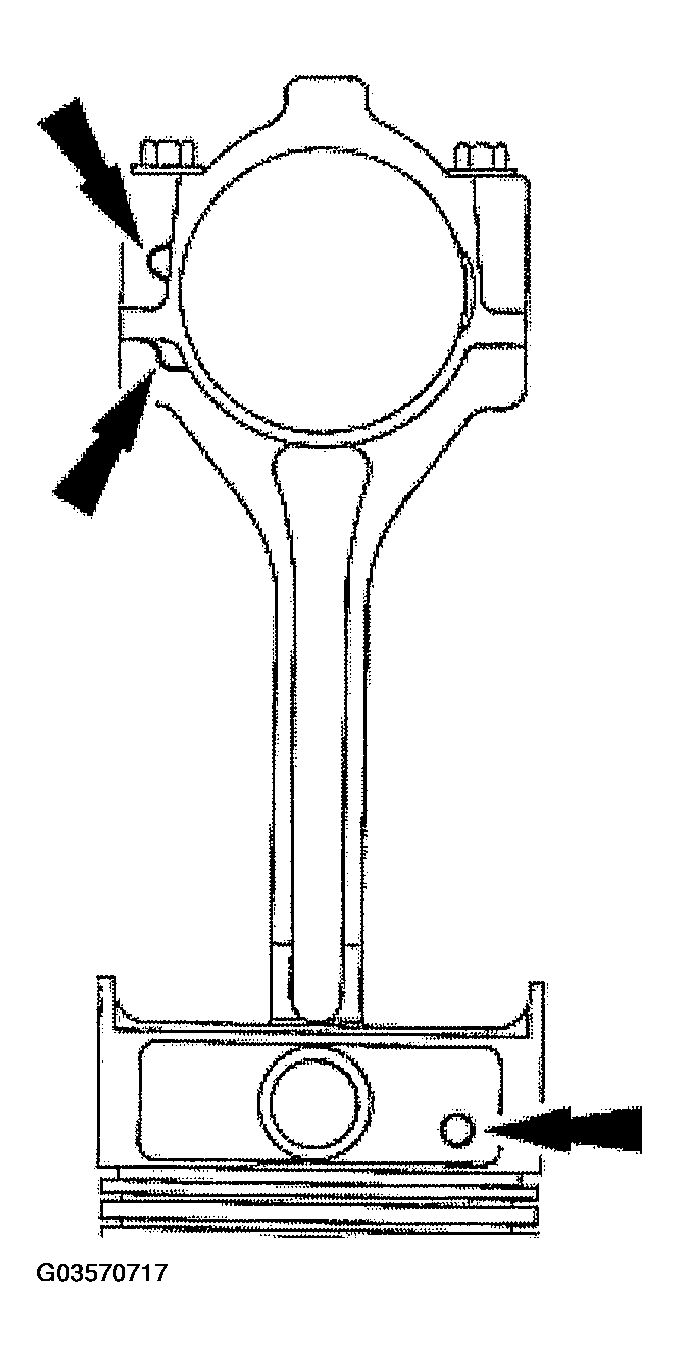

    Fig 1: Positioning Connecting Rod In Piston
    G03570717Courtesy of FORD MOTOR CO.
  1. Position the connecting rod in the piston.
  2. Lubricate the piston pin and pin bore with clean engine oil.

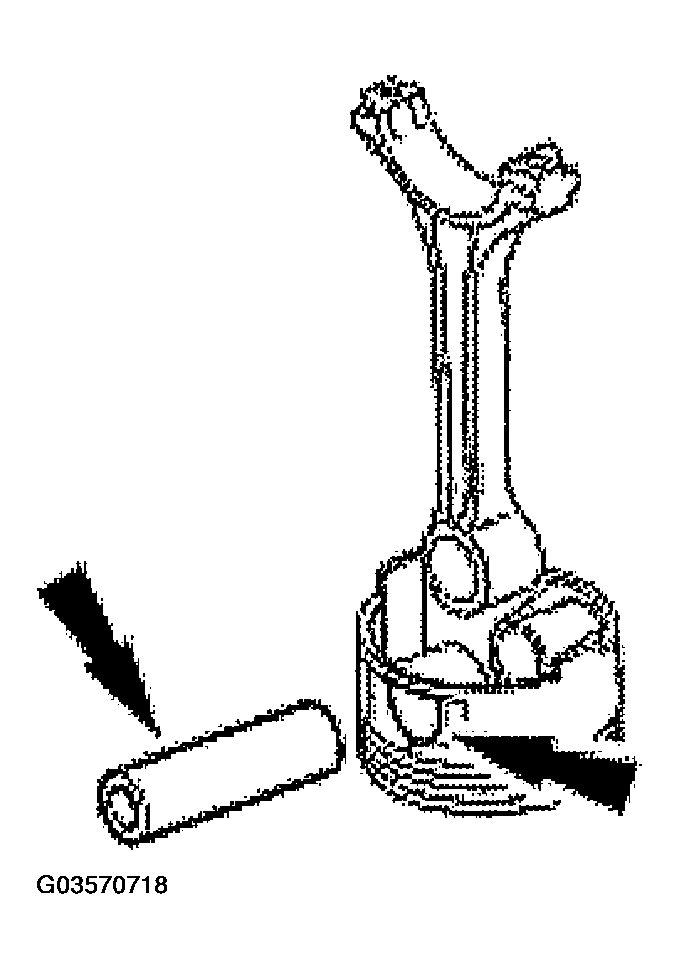

    Fig 2: Lubricating Piston Pin And Pin Bore
    G03570718Courtesy of FORD MOTOR CO.
  3. Install the piston pin in the piston and connecting rod assembly.

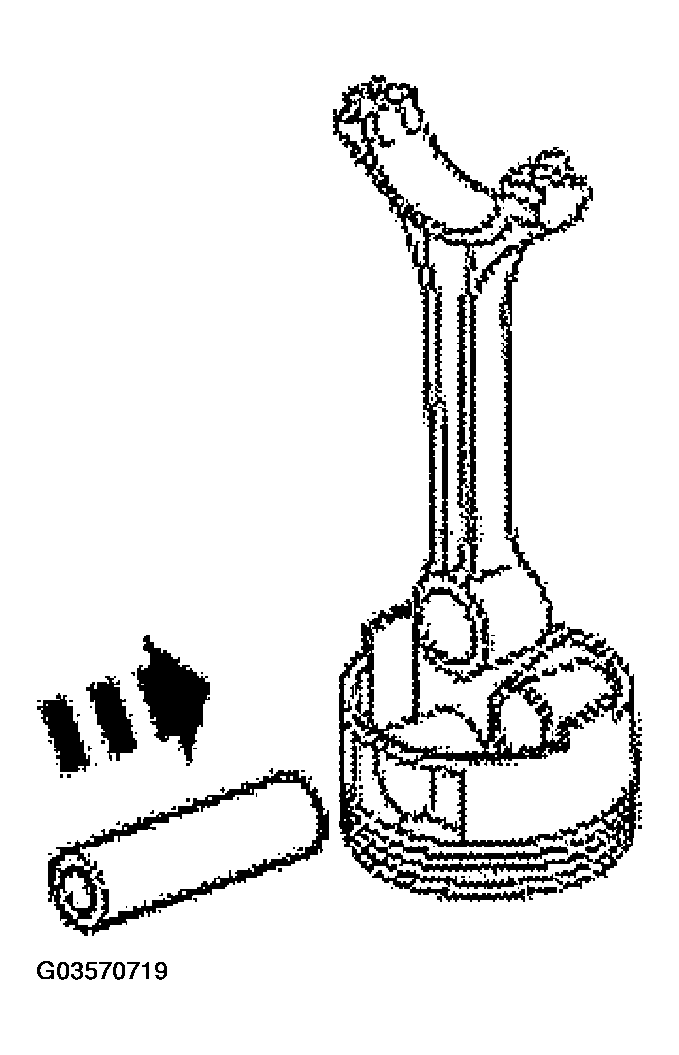

    Fig 3: Installing Piston Pin In Piston And Connecting Rod Assembly
    G03570719Courtesy of FORD MOTOR CO.
  4. Install the piston pin retaining clips in the piston.

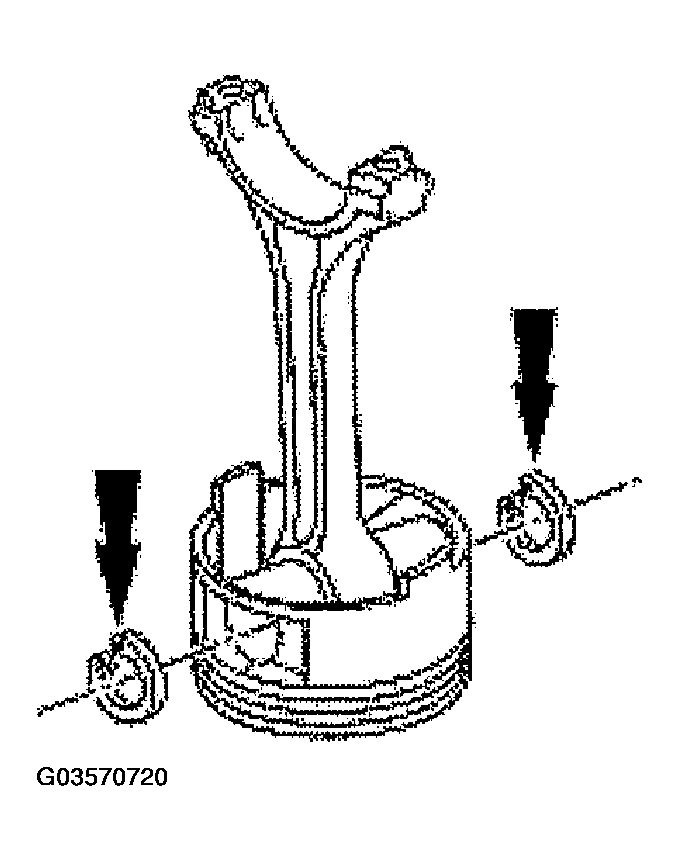

    Fig 4: Installing Piston Pin Retaining Clips In Piston
    G03570720Courtesy of FORD MOTOR CO.
