Disassembly And Assembly Of Subassemblies: Piston: Disassembly

    NOTE: Connecting rods and rod caps are a matched set and cannot be interchanged.

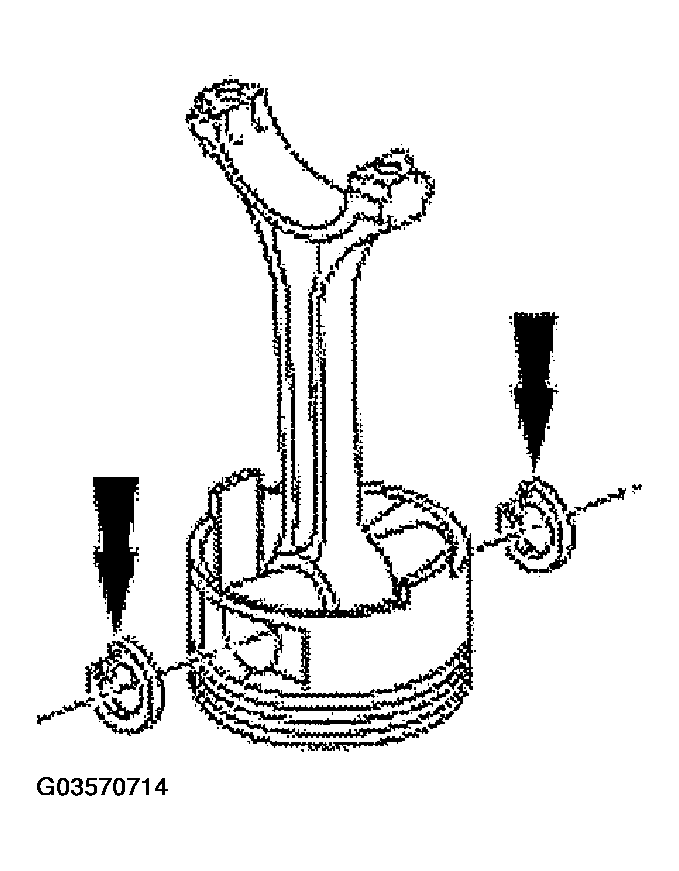

    Fig 1: Removing Clips
    G03570714Courtesy of FORD MOTOR CO.
  1. Remove the clips.
  2. Remove the piston pin (6135) from the piston (6108) and connecting rod assembly.

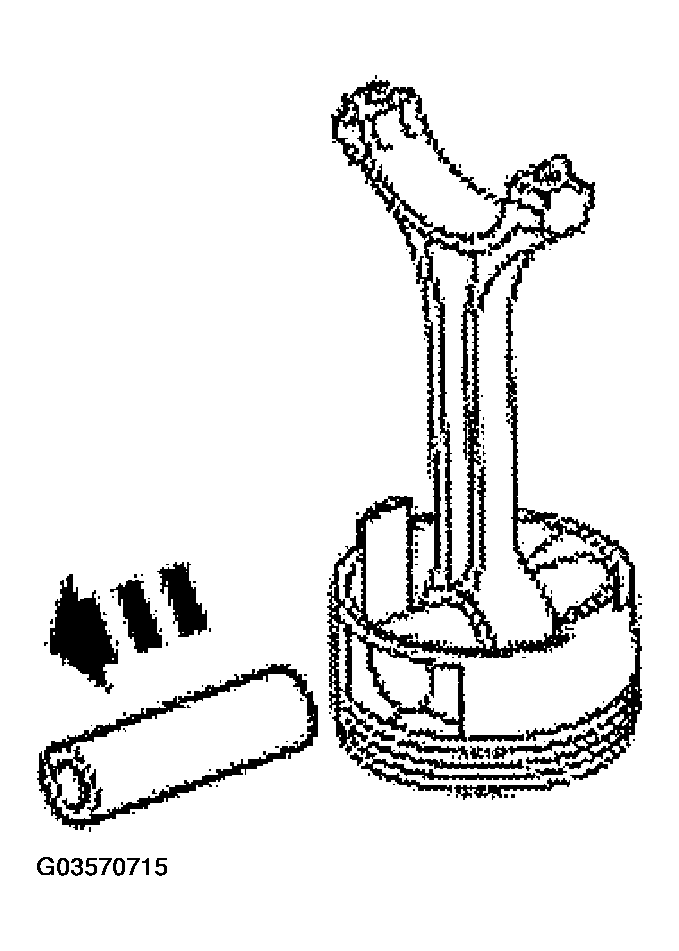

    Fig 2: Removing Piston Pin From Piston
    G03570715Courtesy of FORD MOTOR CO.
  3. Remove the connecting rod (6200) from the piston.

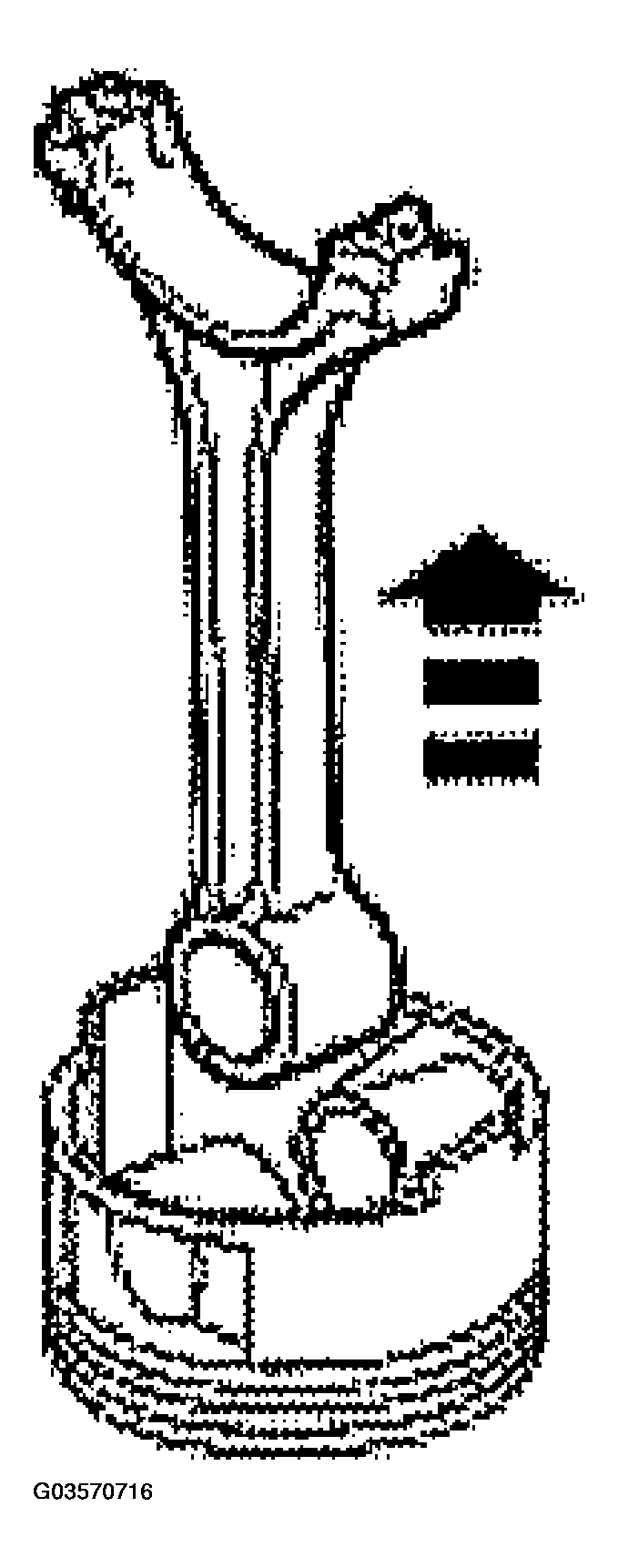

    Fig 3: Removing Connecting Rod From Piston
    G03570716Courtesy of FORD MOTOR CO.
  4. Clean and inspect the piston and connecting rod. For additional information, refer to ENGINE SYSTEM-GENERAL INFORMATION .
