Home >> Lincoln >> 2002 >> Navigator RWD >> Repair and Diagnosis >> Engine Mechanical >> Mechanical >> Engine 5.4L >> In-Vehicle Repair >> FLEXPLATE >> Installation

In-Vehicle Repair: FLEXPLATE: Installation

  1. Position the flexplate and install the bolts in the sequence shown.

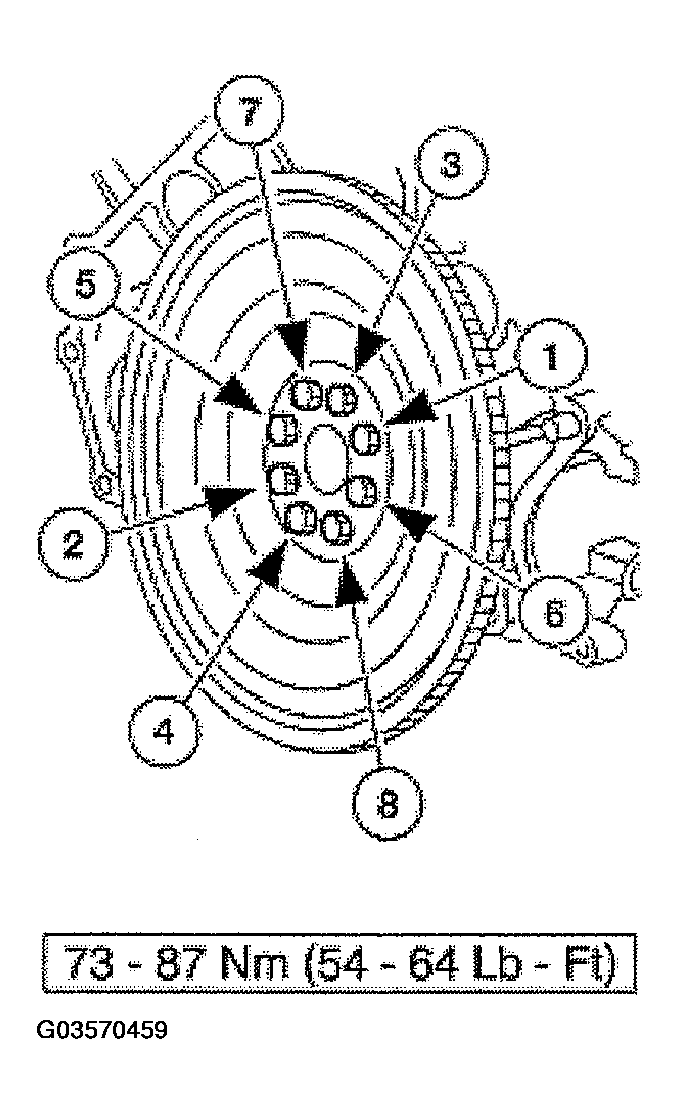

    Fig 1: Installing Flexplate Bolts In Sequence
    G03570459Courtesy of FORD MOTOR CO.
  2. Install the transmission. For additional information, refer to AUTOMATIC TRANSMISSION - 4R100 .
