In-Vehicle Repair: FLEXPLATE: Removal

  1. Remove the transmission. For additional information, refer to AUTOMATIC TRANSMISSION - 4R100 .
  2. Remove the bolts and the flexplate (6375).

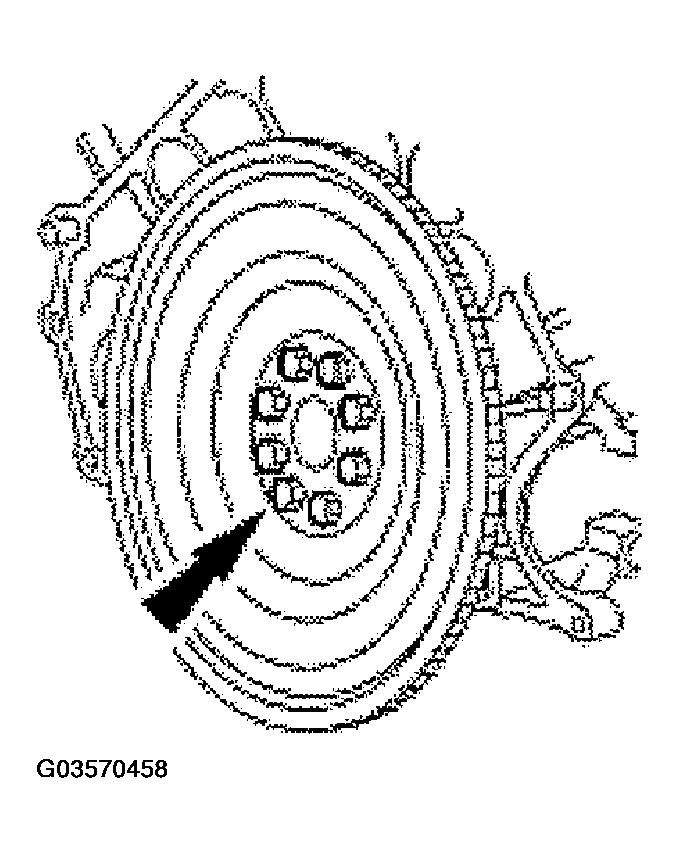

    Fig 1: Removing Flexplate Bolts
    G03570458Courtesy of FORD MOTOR CO.
