In-Vehicle Repair: Installation

  1. To install, reverse the removal procedure.
    • Install a new gasket.
      Fig 1: Installing Gasket
      G03570482Courtesy of FORD MOTOR CO.

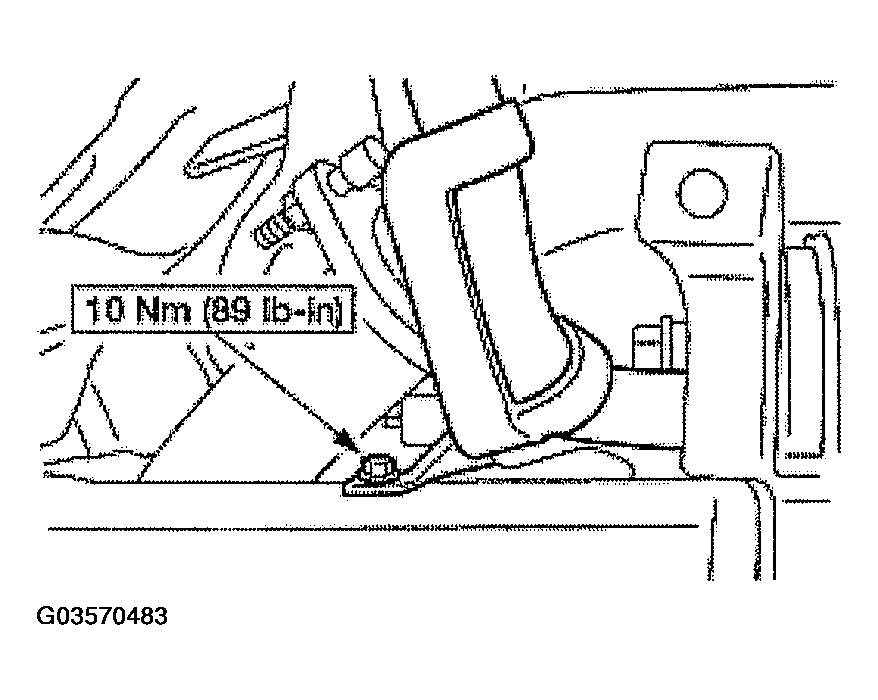

      Fig 2: Installing Exhaust Manifold
      G03570483Courtesy of FORD MOTOR CO.
