Front Case Bushings: Assembly

    NOTE: The front case bushing has three lube grooves. The rear case bushing has one lube groove.

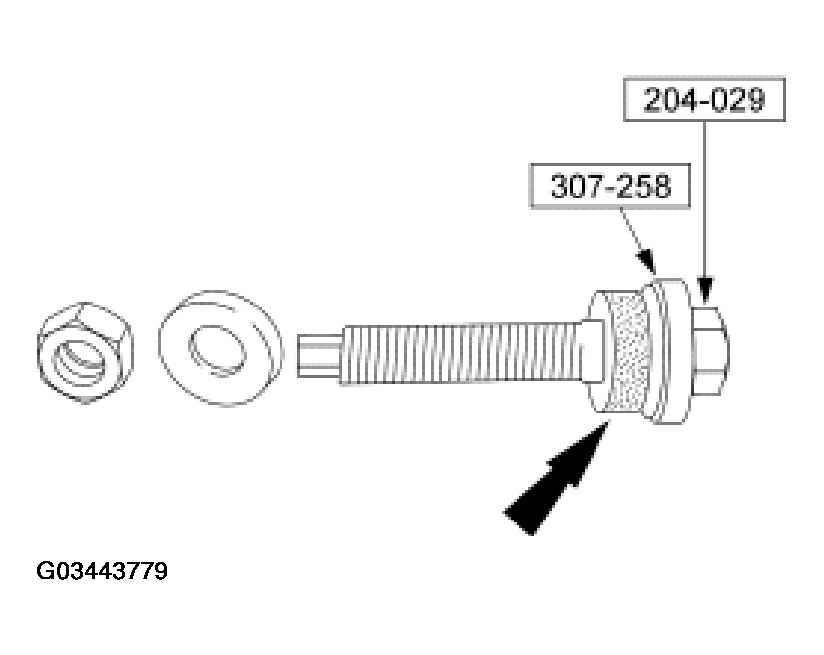

    Fig 1: Installing Front Case Bushing Onto Special Tool
    G03443779Courtesy of FORD MOTOR CO.
  1. Install the front case bushing onto the special tool.
  2. Place the special tool with the front case bushing through the case and into the rear case bushing.

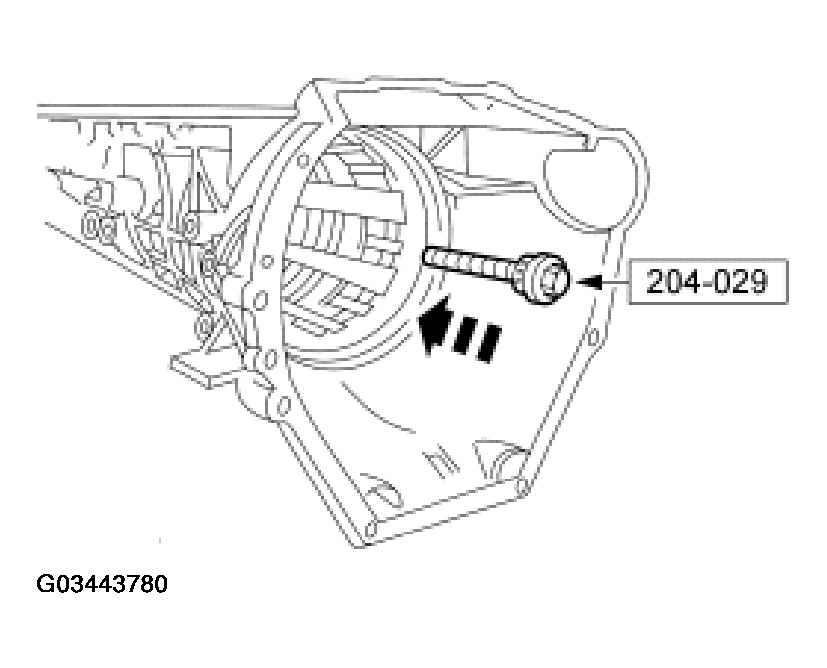

    Fig 2: Placing Special Tool With Front Case Bushing Through Case
    G03443780Courtesy of FORD MOTOR CO.
    3. CAUTION: Make sure the bushing and tool are centered in the bore.

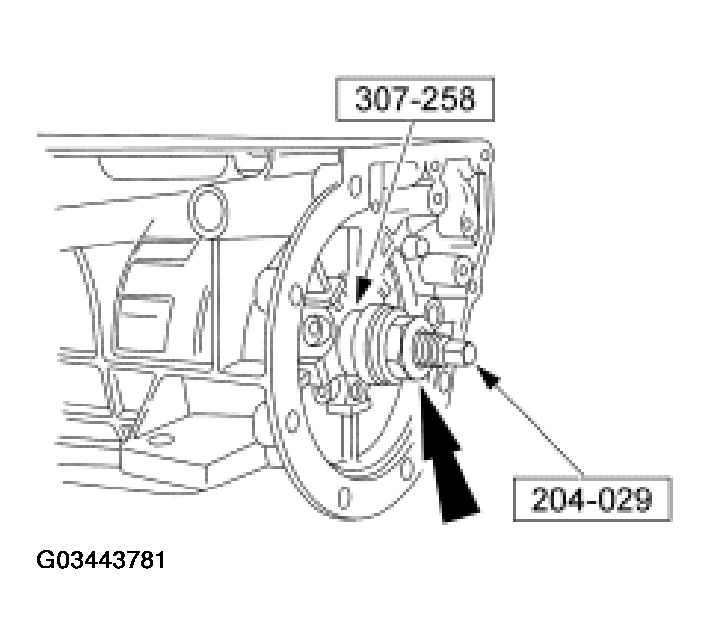

    Fig 3: Installing Washer & Nut
    G03443781Courtesy of FORD MOTOR CO.
  3. Install the special tool then, install the washer and the nut hand-tight.
  4. Hold the special tool while turning the nut until the front case bushing is fully seated. Remove the tools.

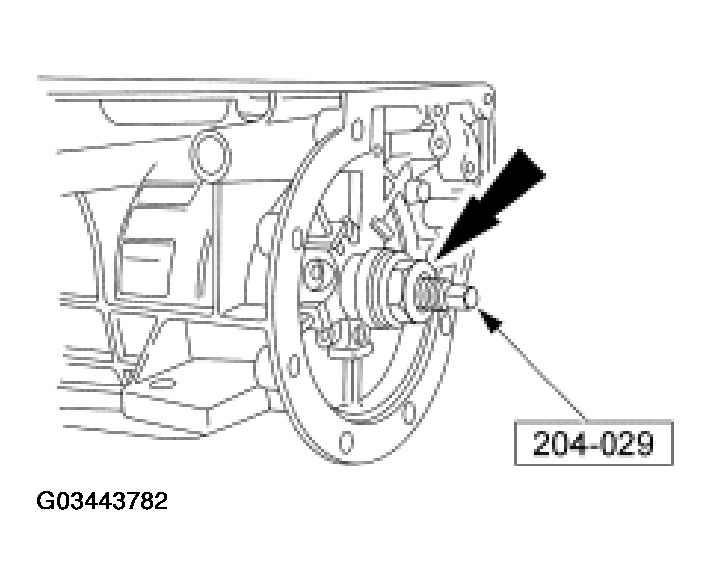

    Fig 4: Holding Special Tool While Turning Nut Until Front Case Bushing Is Fully Seated
    G03443782Courtesy of FORD MOTOR CO.
