Park System: Installation

    NOTE: If the park gear replacement is required; refer to OUTPUT SHAFT - CHECK  in this article.
    Fig 1: Installing Park Pawl, Shaft & Return Spring
    G03443638Courtesy of FORD MOTOR CO.
  1. Install the park pawl shaft.
    1. Install the park pawl shaft.
    2. Install the park pawl.
    3. Install the park pawl return spring.
  2. Install the parking rod guide plate.
    1. Install the parking rod guide plate.
    2. Install the bolts.

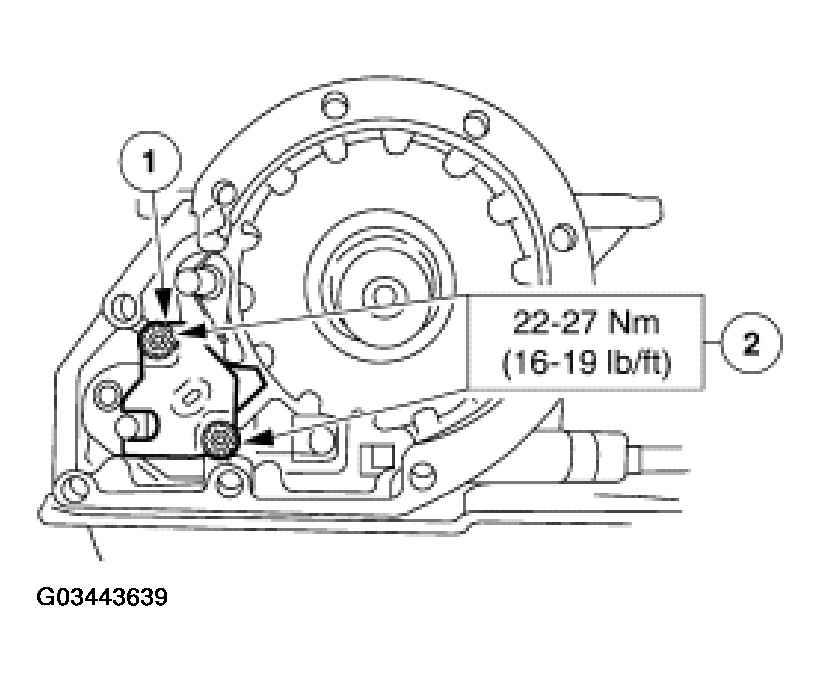

    Fig 2: Installing Parking Rod Guide Plate & Bolts
    G03443639Courtesy of FORD MOTOR CO.
  3. Install the extension housing gasket and the extension housing.
