Disassembly And Assembly Of Subassemblies: Piston: Assembly

    NOTE: Connecting rod must be installed into piston with identification markings toward front.

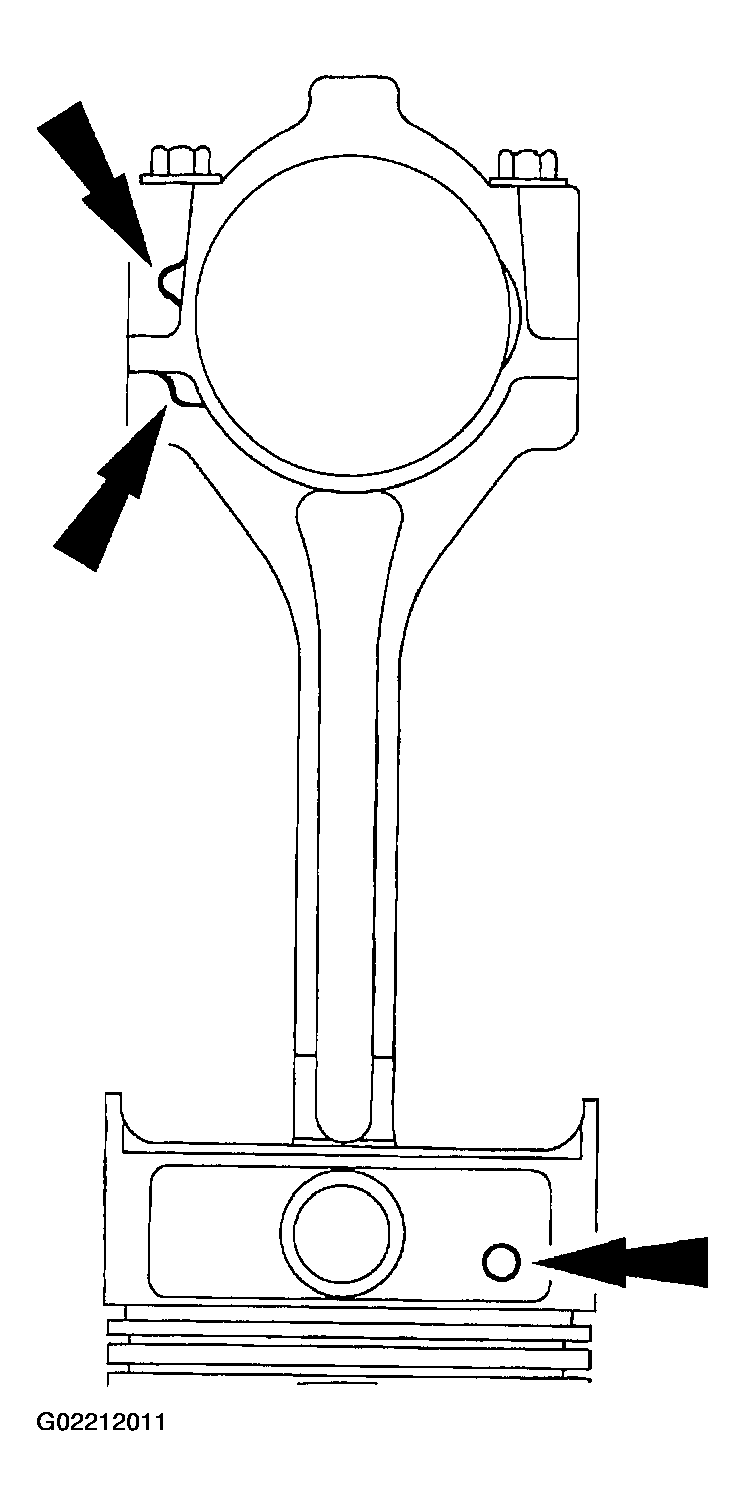

    Fig 1: Positioning Connecting Rod In Piston
    G02212011Courtesy of FORD MOTOR CO.
  1. Position the connecting rod in the piston.
  2. Lubricate the piston pin and pin bore with clean engine oil.

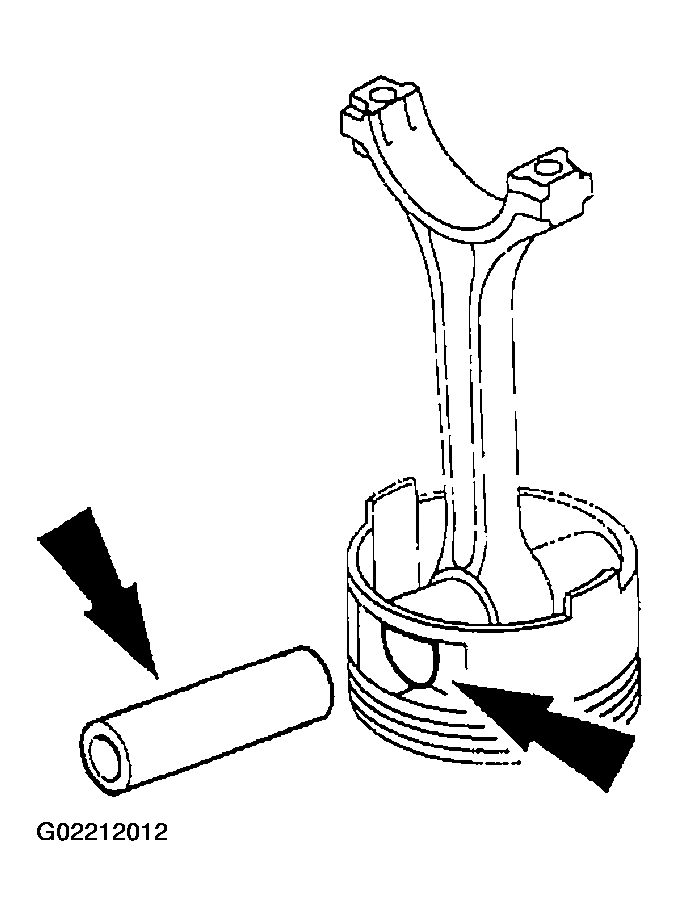

    Fig 2: Locating Piston Pin And Pin Bore Lubricating Surface
    G02212012Courtesy of FORD MOTOR CO.
  3. Install the piston pin in the piston and connecting rod assembly.

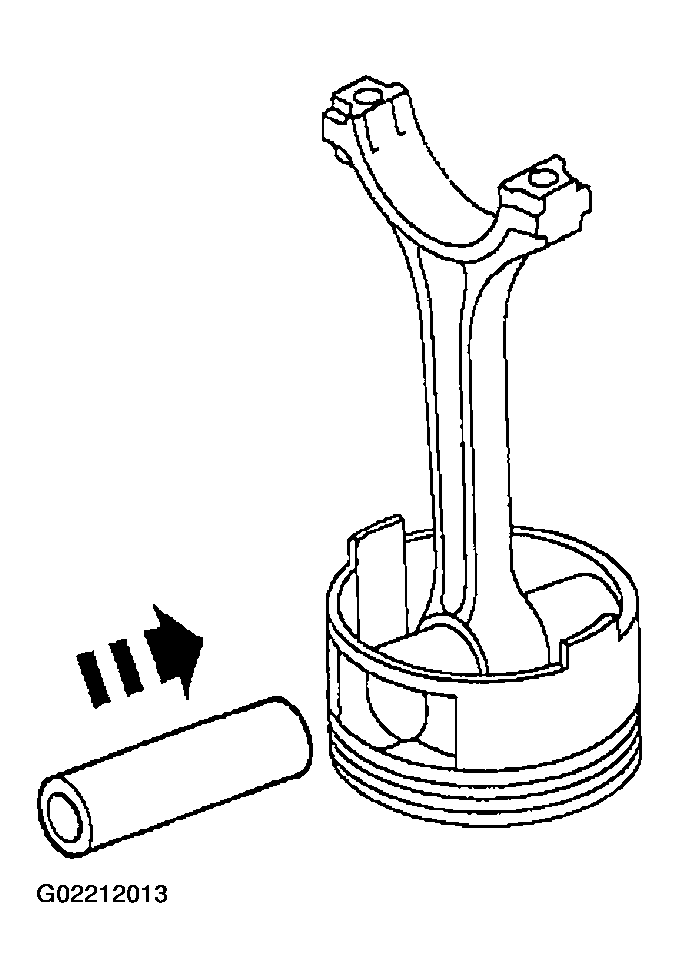

    Fig 3: Installing Piston Pin In Piston And Connecting Rod Assembly
    G02212013Courtesy of FORD MOTOR CO.
