Disassembly And Assembly Of Subassemblies: Piston: Disassembly

  1. Remove the piston pin (6135) from the piston (6108) and connecting rod assembly.

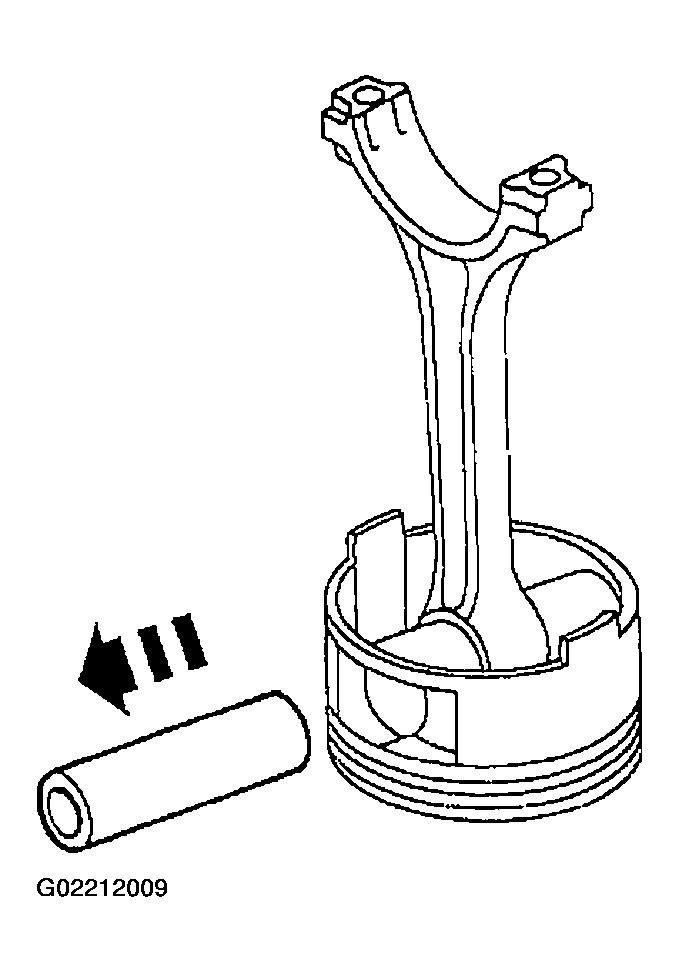

    Fig 1: Removing Piston Pin From Piston And Connecting Rod Assembly
    G02212009Courtesy of FORD MOTOR CO.
  2. Remove the connecting rod (6200) from the piston.

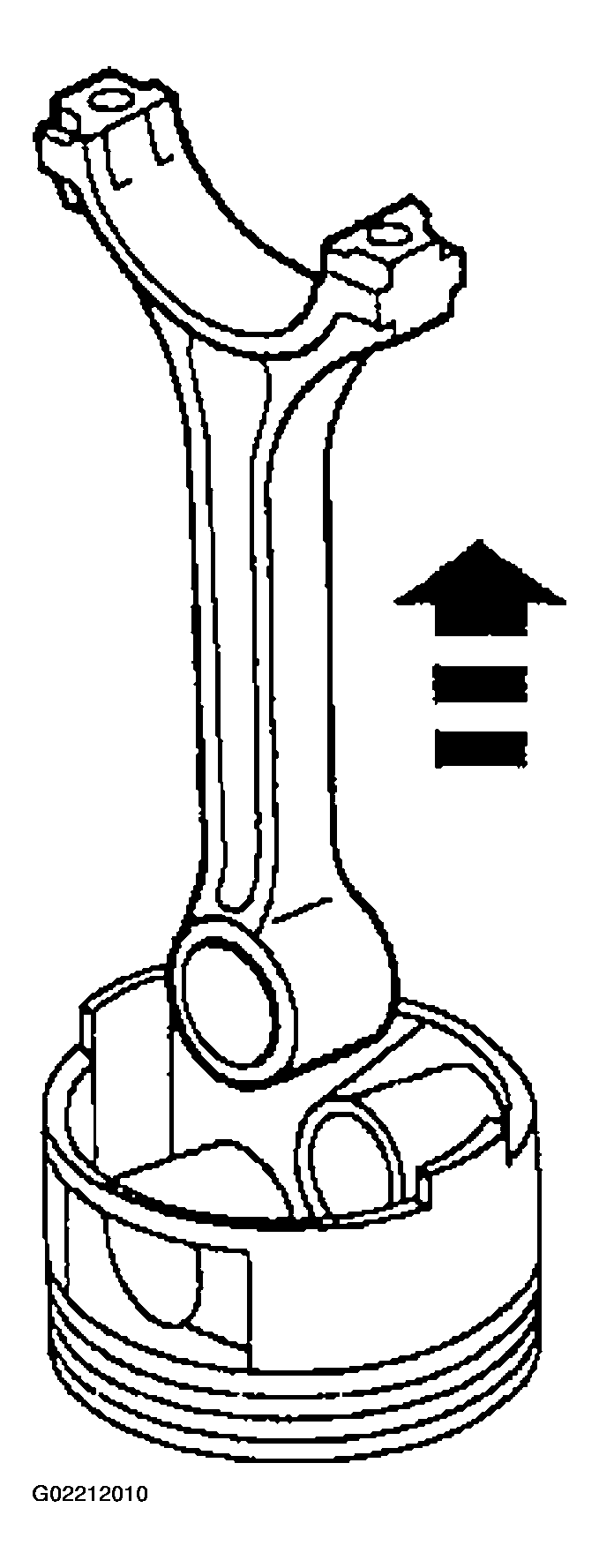

    Fig 2: Removing Connecting Rod From Piston
    G02212010Courtesy of FORD MOTOR CO.
  3. Clean and inspect the piston and connecting rod. For additional information, refer to ENGINE SYSTEM - GENERAL INFORMATION .
