Window Control Switch

  1. Remove the components in the order indicated in the following illustration.
  2. To install, reverse the removal procedure.

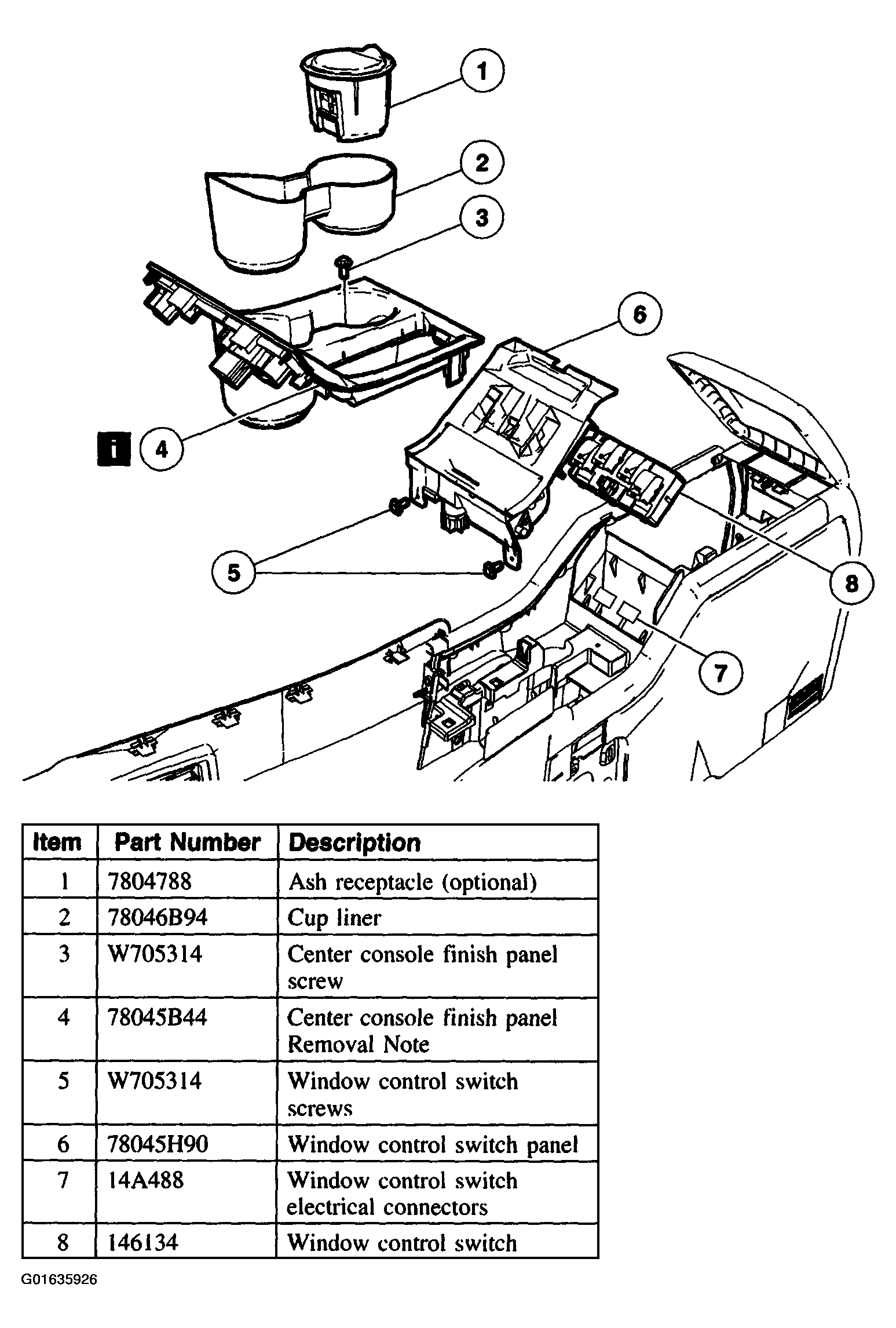

    Fig 1: Window Control Switch Removal Procedure
    G01635926Courtesy of FORD MOTOR CO.

Item 4: Center Console Finish Panel Removal Note

  1. Position aside the center console finish panel to access the window control switch panel screws.
