Aviator AWD
>>
Repair and Diagnosis
>>
Electrical
>>
Body Electrical
>>
Connector End Views
>>
Connector Views
Connector Views

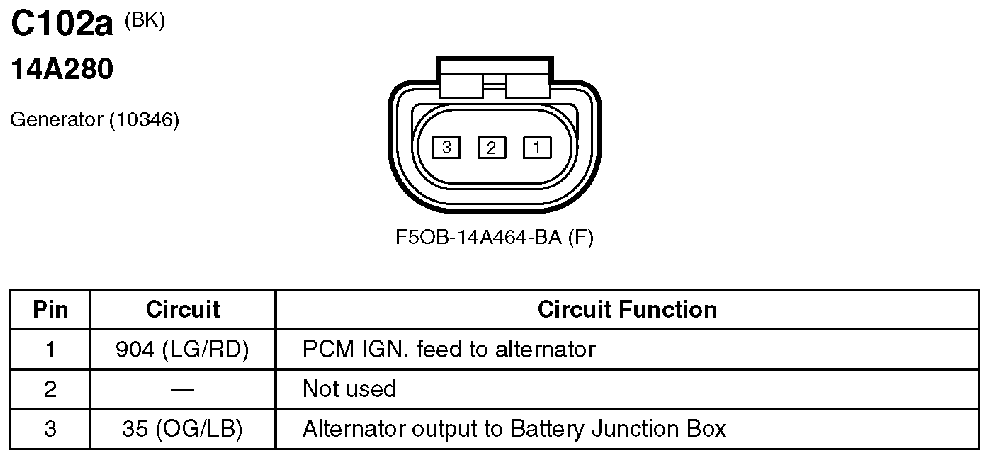

Fig 1: Generator Connector End View (C102a)
Courtesy of FORD MOTOR CO.

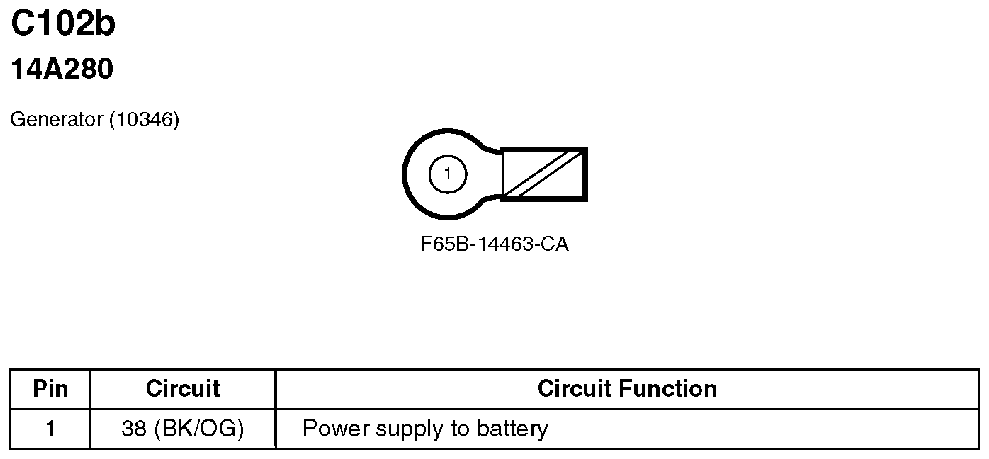

Fig 2: Generator Connector End View (C102b)
Courtesy of FORD MOTOR CO.

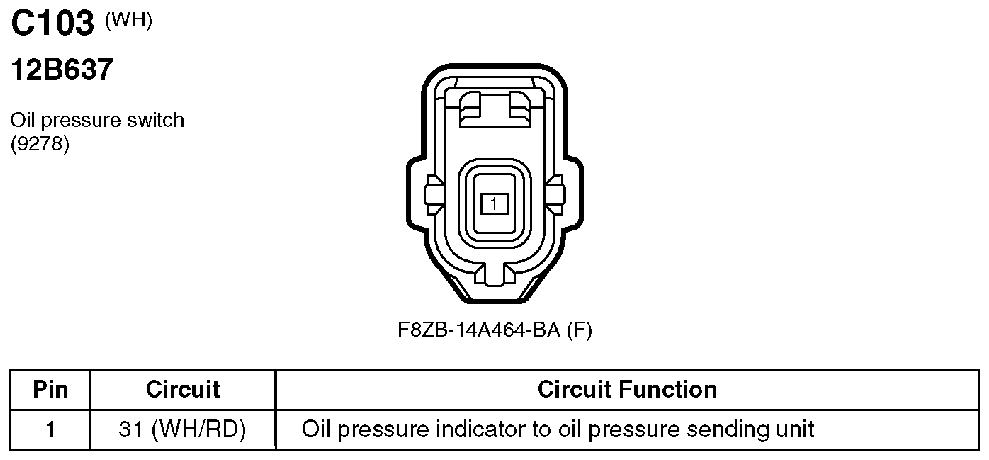

Fig 3: Oil Pressure Switch Connector End View (C103)
Courtesy of FORD MOTOR CO.

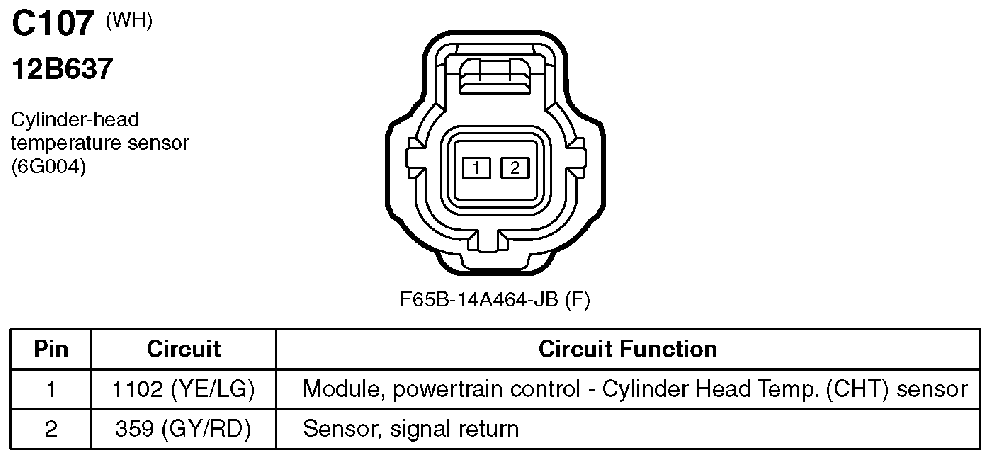

Fig 4: Cylinder-Head Temperature Sensor Connector End View (C107)
Courtesy of FORD MOTOR CO.

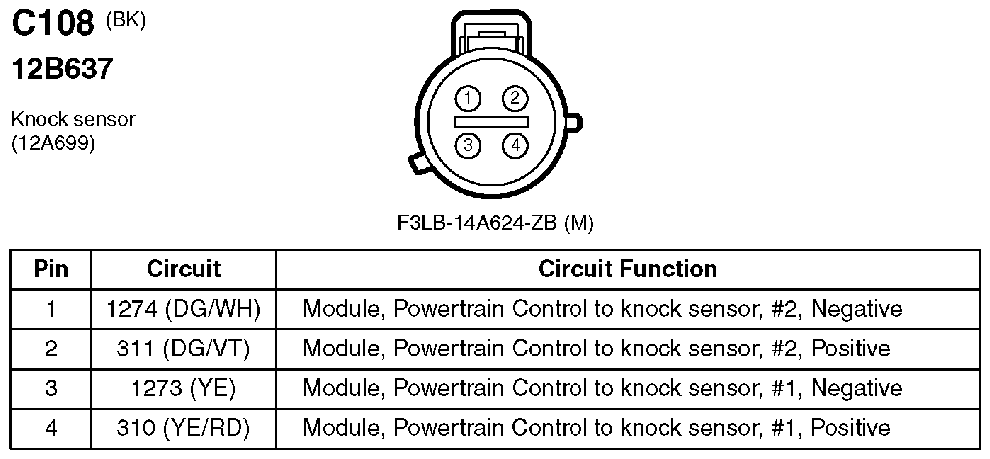

Fig 5: Knock Sensor Connector End View (C108)
Courtesy of FORD MOTOR CO.

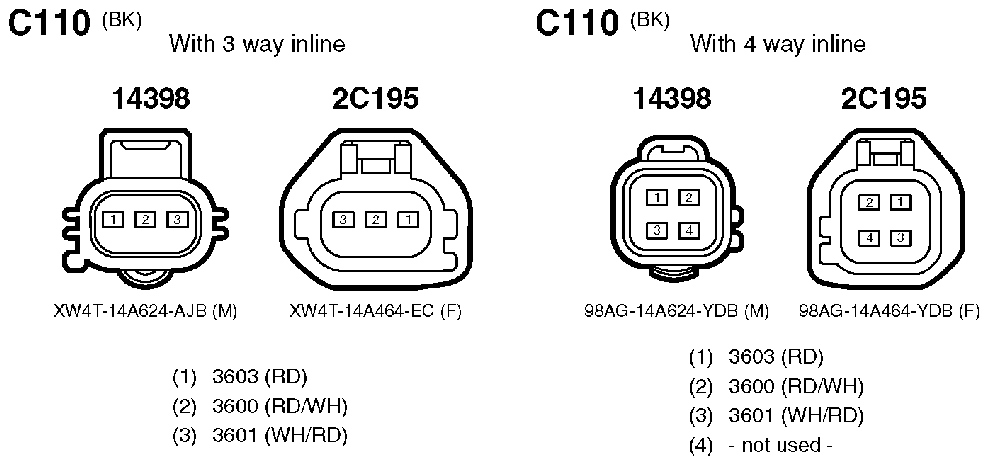

Fig 6: Inline Connector End View (C110)
Courtesy of FORD MOTOR CO.

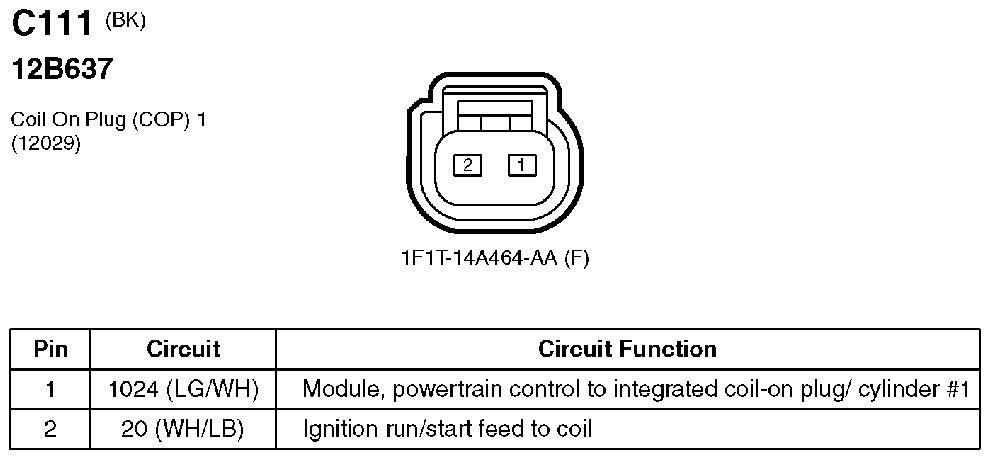

Fig 7: Coil On Plug (COP) 1 Connector End View (C111)
Courtesy of FORD MOTOR CO.
Fig 8: Coil On Plug (COP) 2 Connector End View (C112)
Courtesy of FORD MOTOR CO.

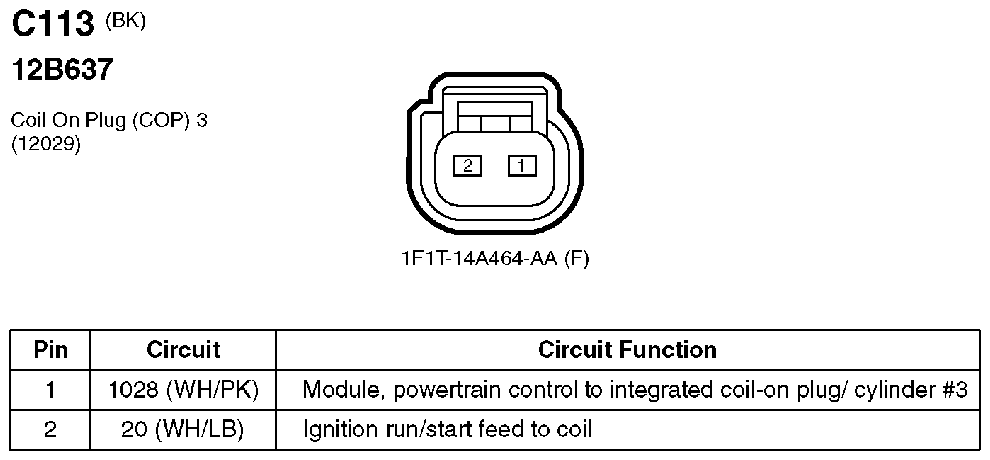

Fig 9: Coil On Plug (COP) 3 Connector End View (C113)
Courtesy of FORD MOTOR CO.

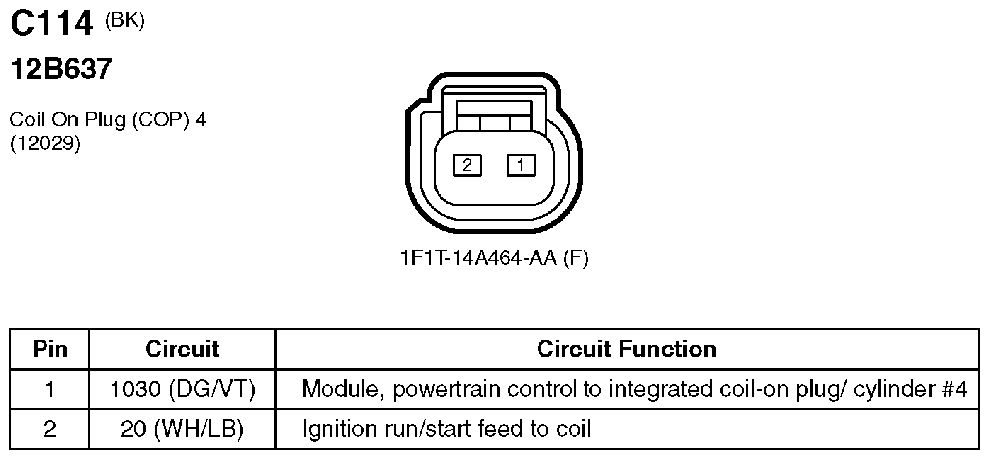

Fig 10: Coil On Plug (COP) 4 Connector End View (C114)
Courtesy of FORD MOTOR CO.

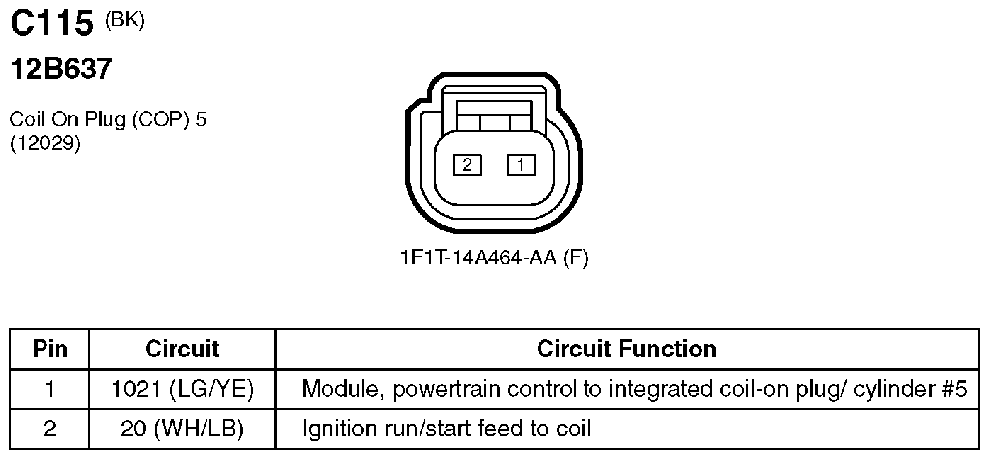

Fig 11: Coil On Plug (COP) 5 Connector End View (C115)
Courtesy of FORD MOTOR CO.
Fig 12: Coil On Plug (COP) 6 Connector End View (C116)
Courtesy of FORD MOTOR CO.

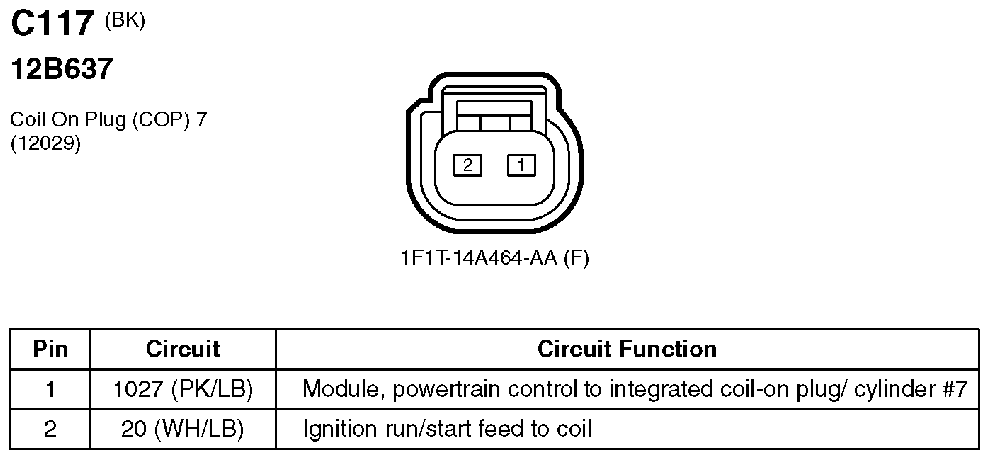

Fig 13: Coil On Plug (COP) 7 Connector End View (C117)
Courtesy of FORD MOTOR CO.
Fig 14: Coil On Plug (COP) 8 Connector End View (C118)
Courtesy of FORD MOTOR CO.

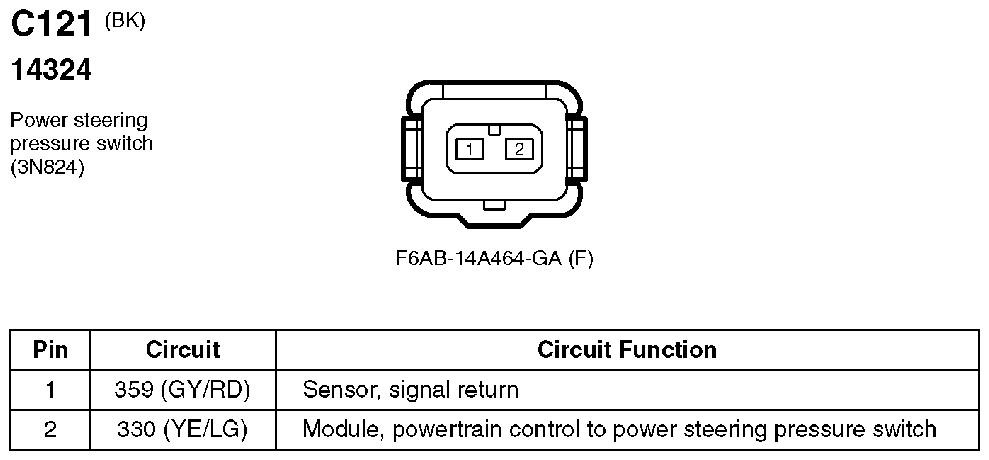

Fig 15: Power Steering Pressure Switch Connector End View (C121)
Courtesy of FORD MOTOR CO.

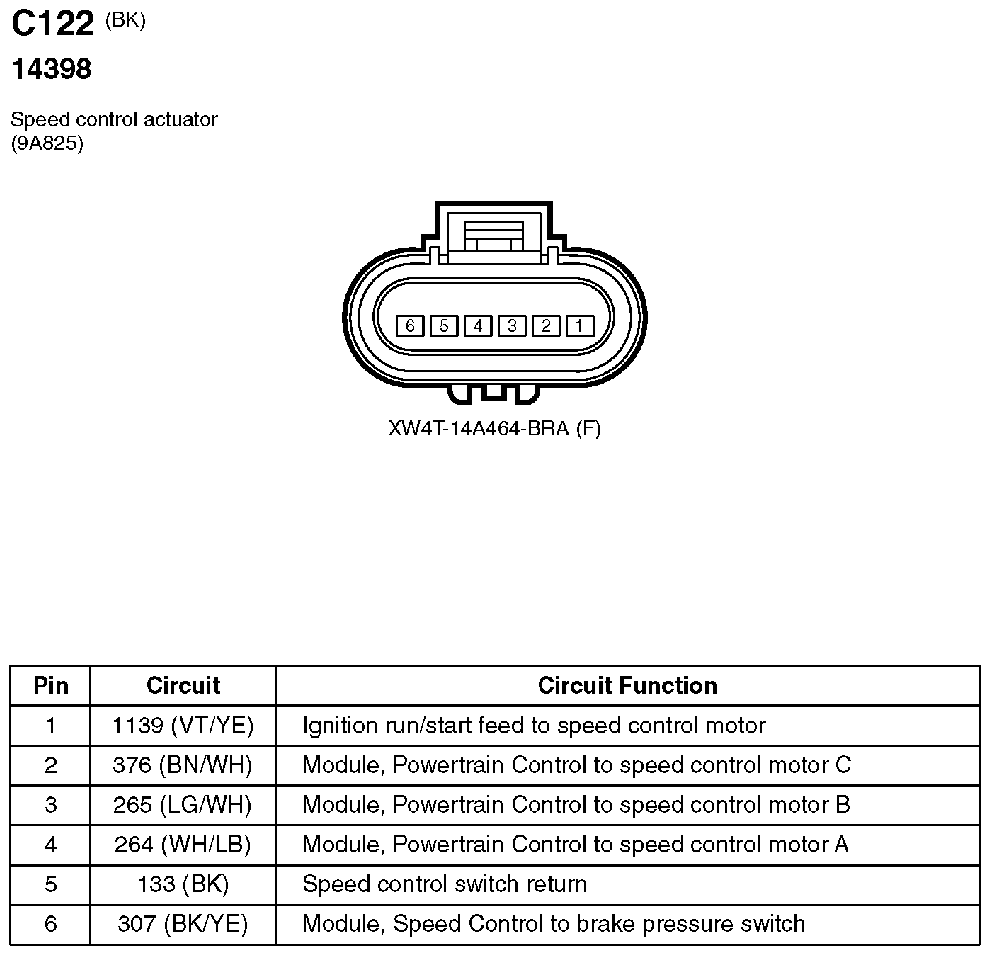

Fig 16: Speed Control Actuator Connector End View (C122)
Courtesy of FORD MOTOR CO.

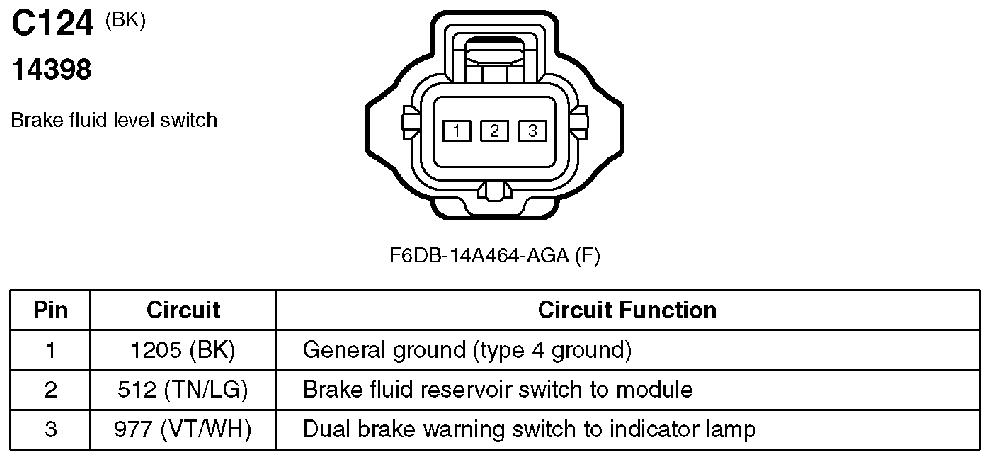

Fig 17: Brake Fluid Level Switch Connector End View (C124)
Courtesy of FORD MOTOR CO.

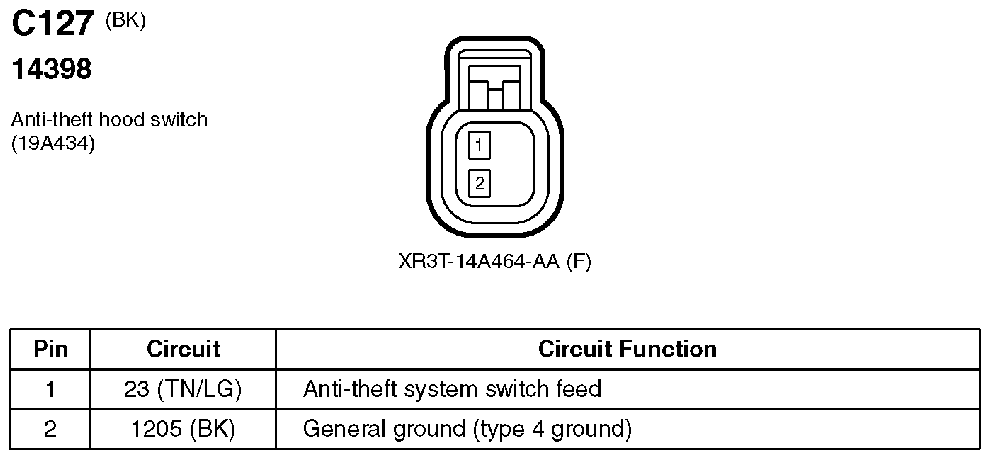

Fig 18: Anti-Theft Hood Switch Connector End View (C127)
Courtesy of FORD MOTOR CO.

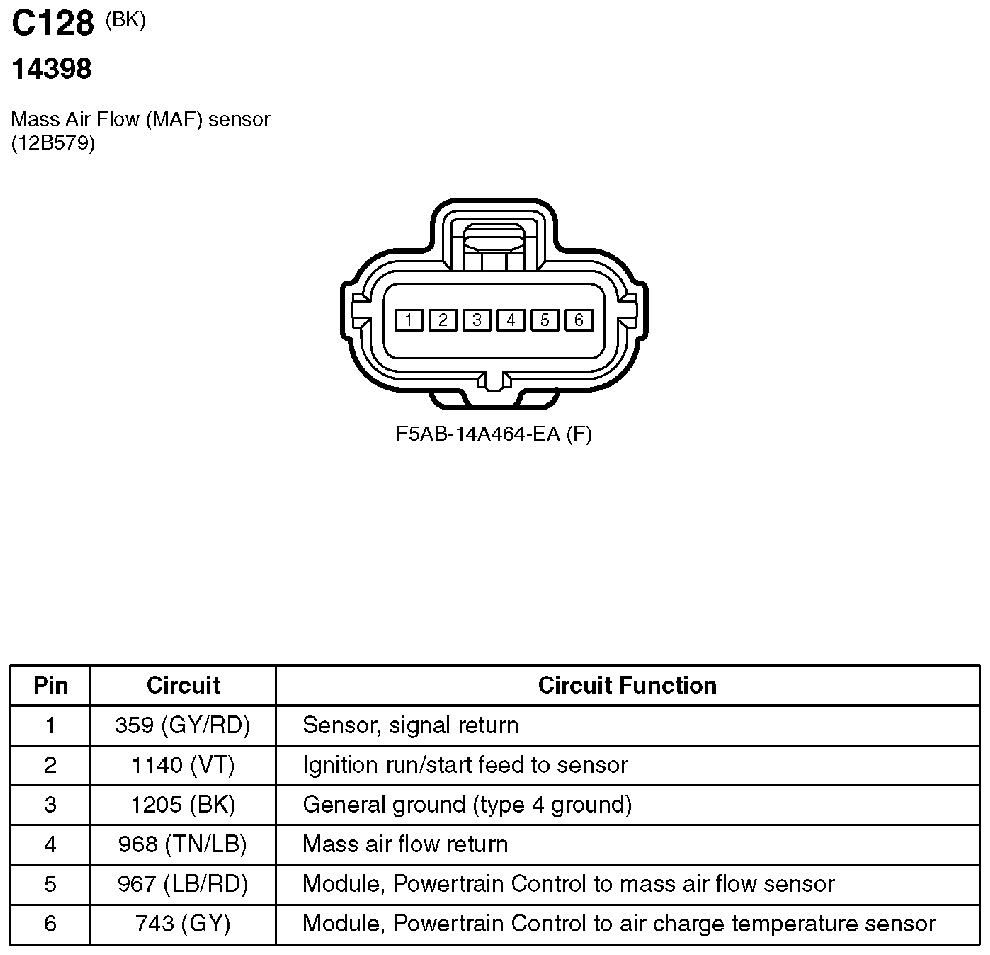

Fig 19: Mass Air Flow (MAF) Sensor Connector End View (C128)
Courtesy of FORD MOTOR CO.

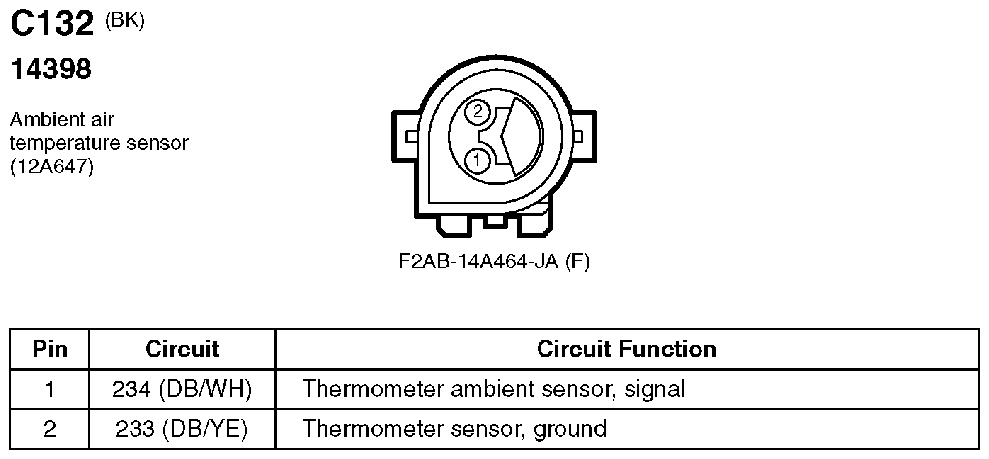

Fig 20: Ambient Air Temperature Sensor Connector End View (C132)
Courtesy of FORD MOTOR CO.

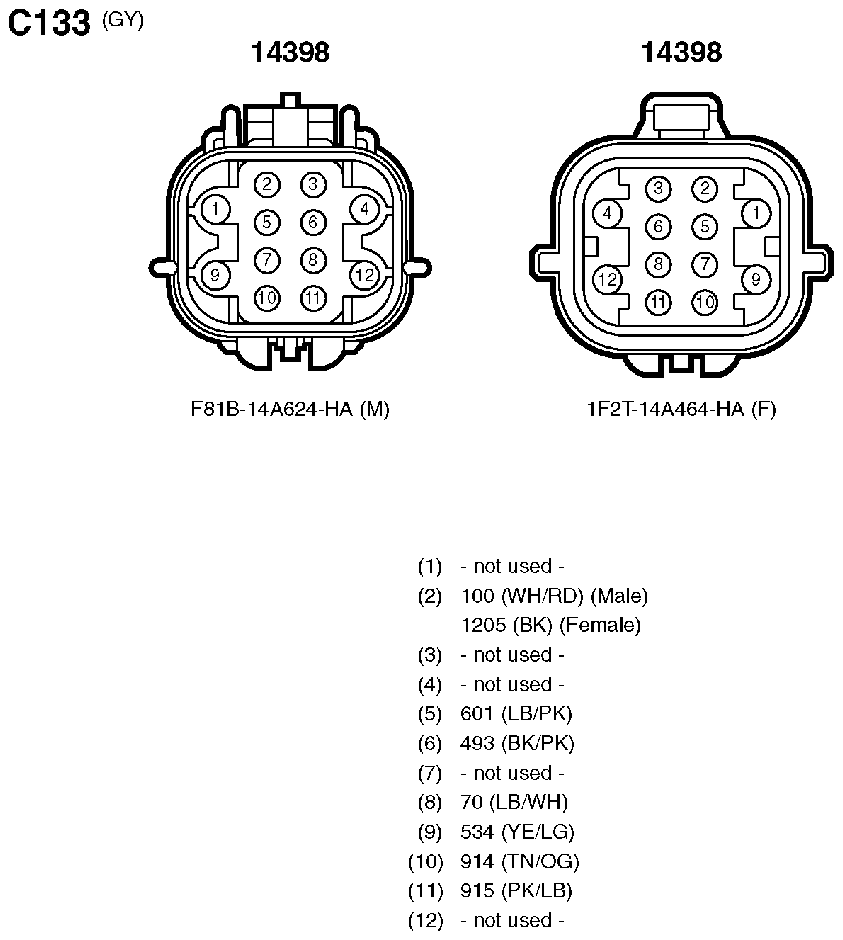

Fig 21: Inline Connector End View (C133)
Courtesy of FORD MOTOR CO.

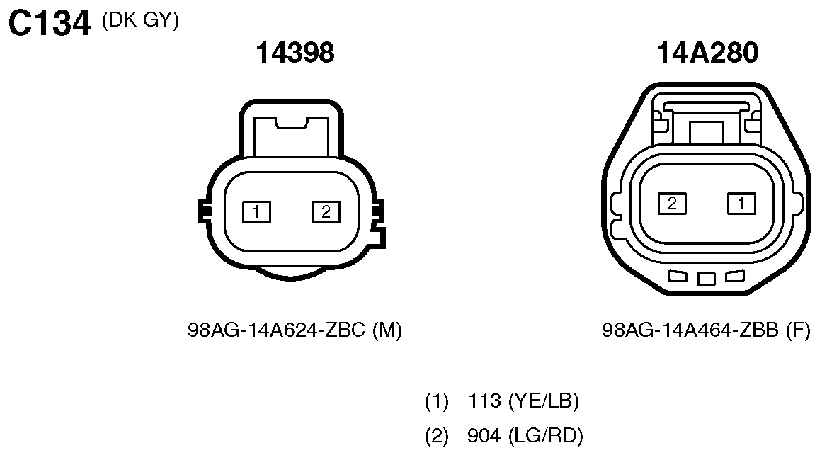

Fig 22: Inline Connector End View (C134)
Courtesy of FORD MOTOR CO.

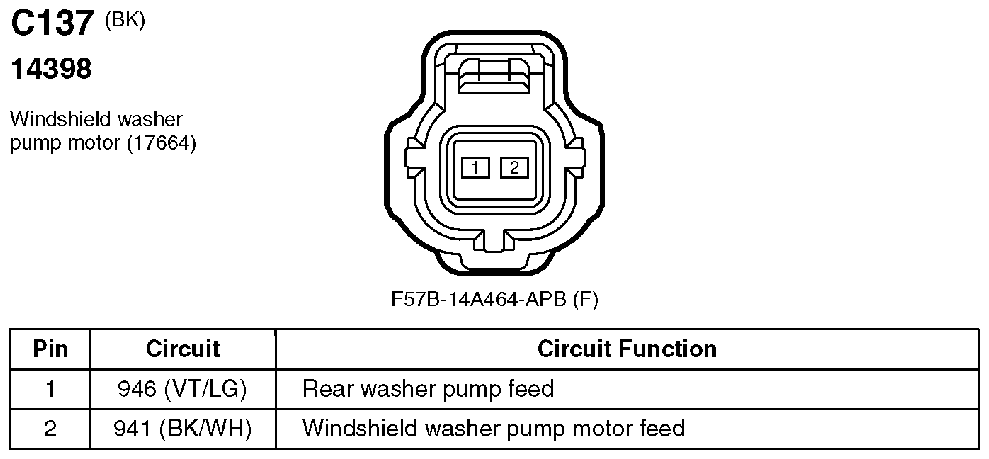

Fig 23: Windshield Washer Pump Motor Connector End View (C137)
Courtesy of FORD MOTOR CO.

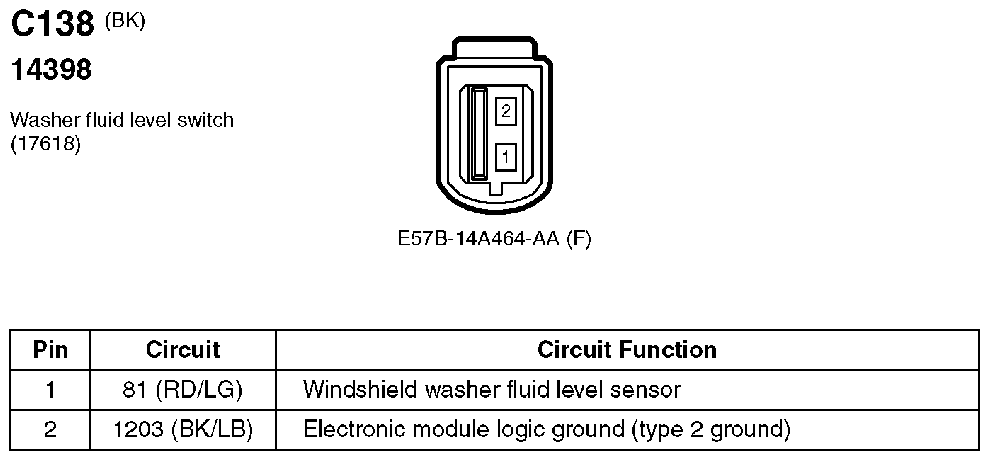

Fig 24: Washer Fluid Level Switch Connector End View (C138)
Courtesy of FORD MOTOR CO.

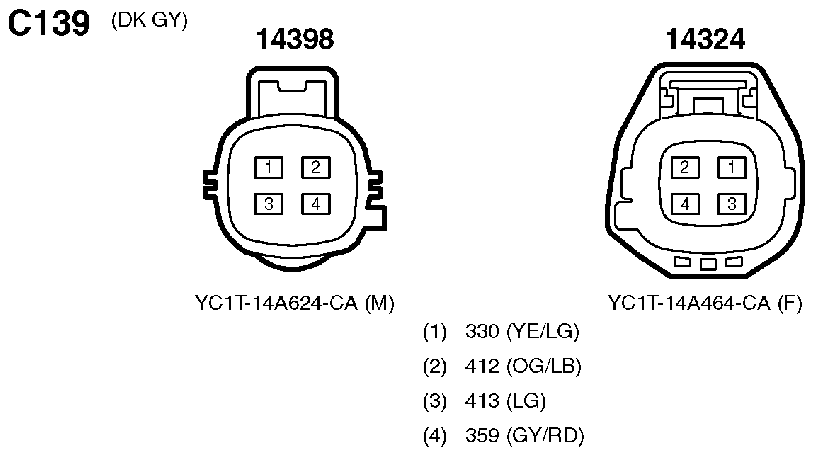

Fig 25: Inline Connector End View (C139)
Courtesy of FORD MOTOR CO.

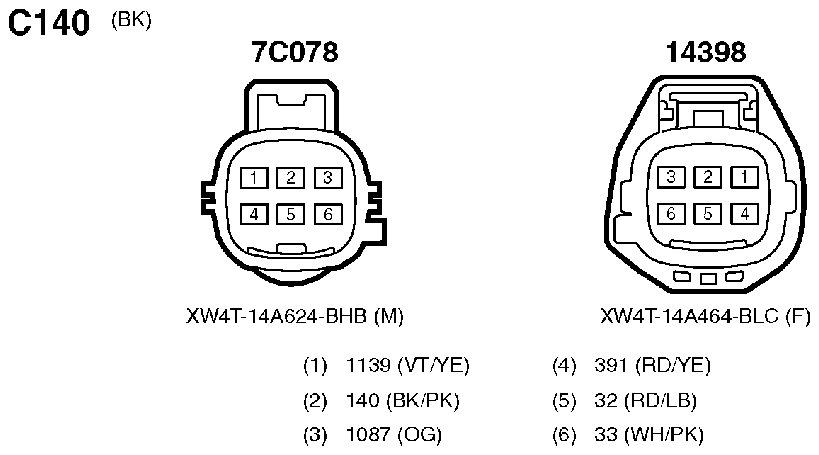

Fig 26: Inline Connector End View (C140)
Courtesy of FORD MOTOR CO.
Fig 27: Heated Oxygen Sensor (HO2S) #22 Connector End View (C141)
Courtesy of FORD MOTOR CO.

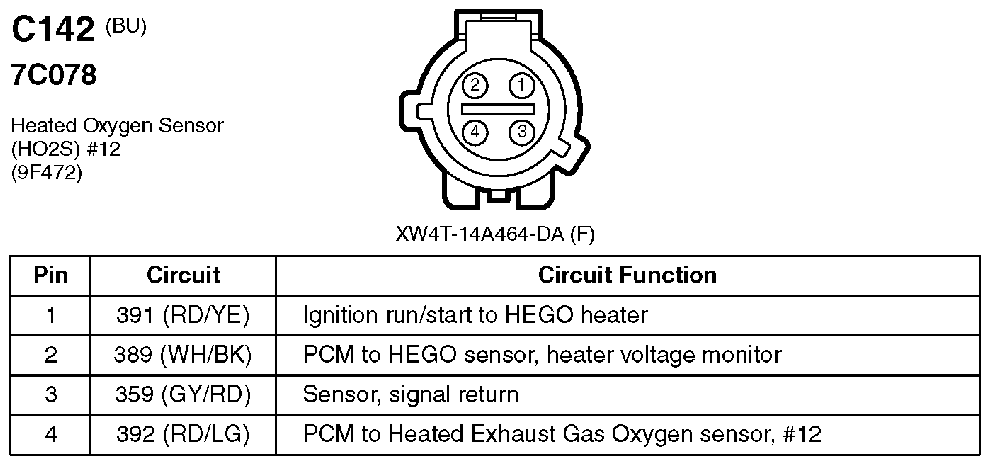

Fig 28: Heated Oxygen Sensor (HO2S) #12 Connector End View (C142)
Courtesy of FORD MOTOR CO.

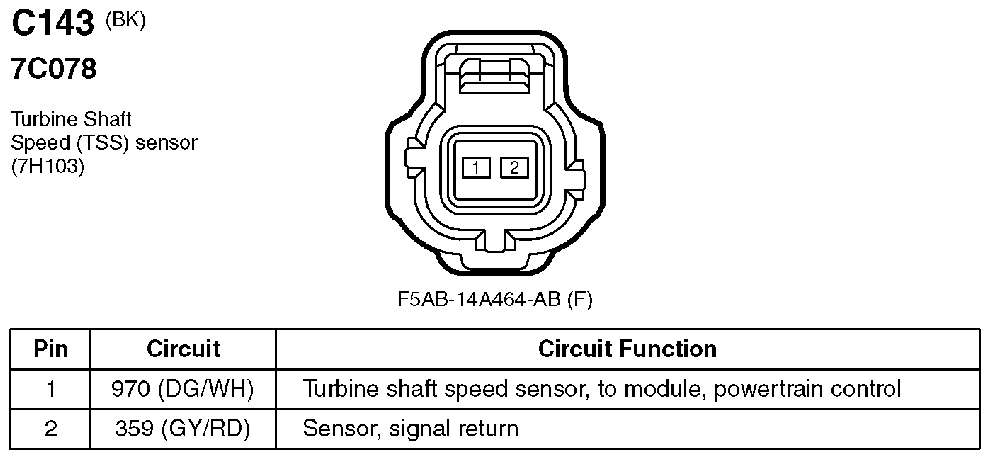

Fig 29: Turbine Shaft Speed (TSS) Sensor Connector End View (C143)
Courtesy of FORD MOTOR CO.

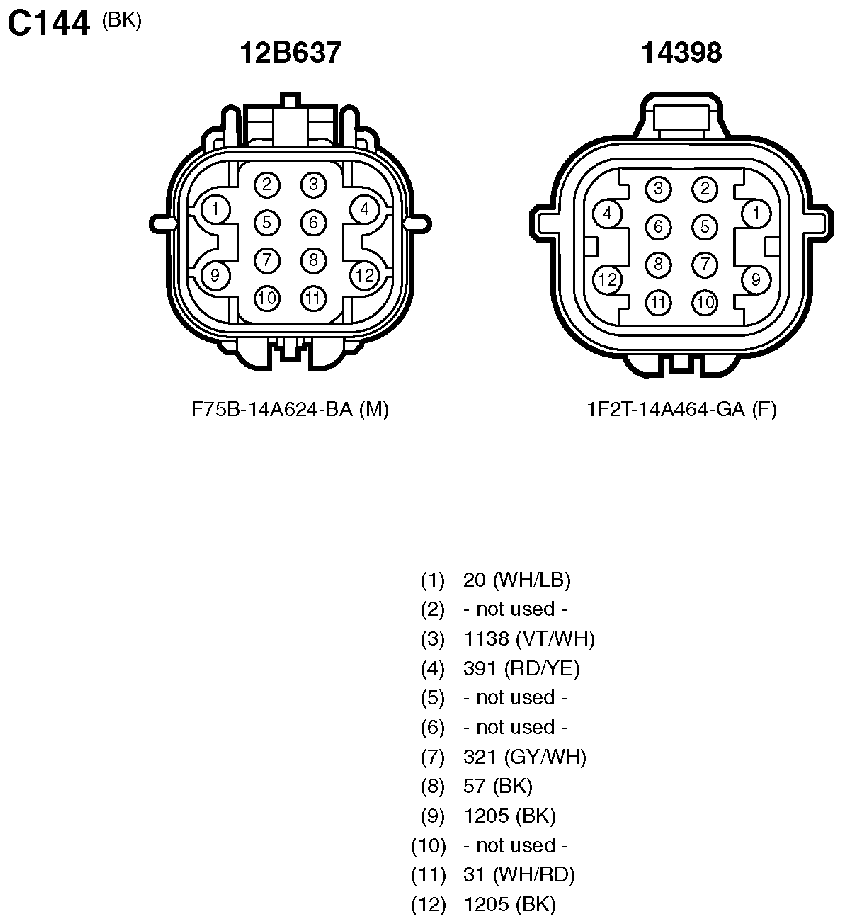

Fig 30: Inline Connector End View (C144)
Courtesy of FORD MOTOR CO.

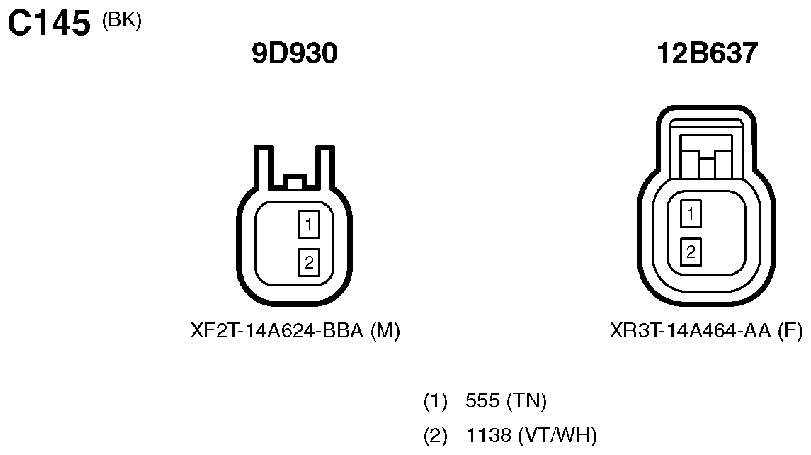

Fig 31: Inline Connector End View (C145)
Courtesy of FORD MOTOR CO.

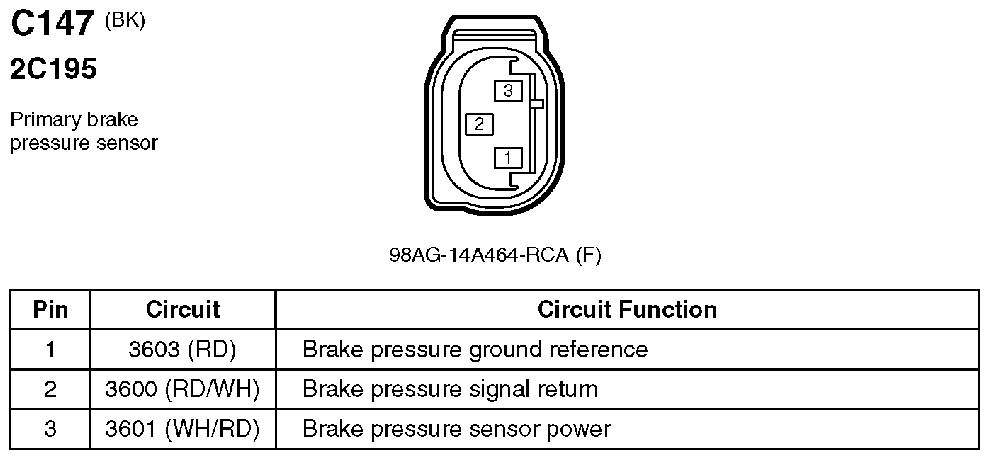

Fig 32: Primary Brake Pressure Sensor Connector End View (C147)
Courtesy of FORD MOTOR CO.

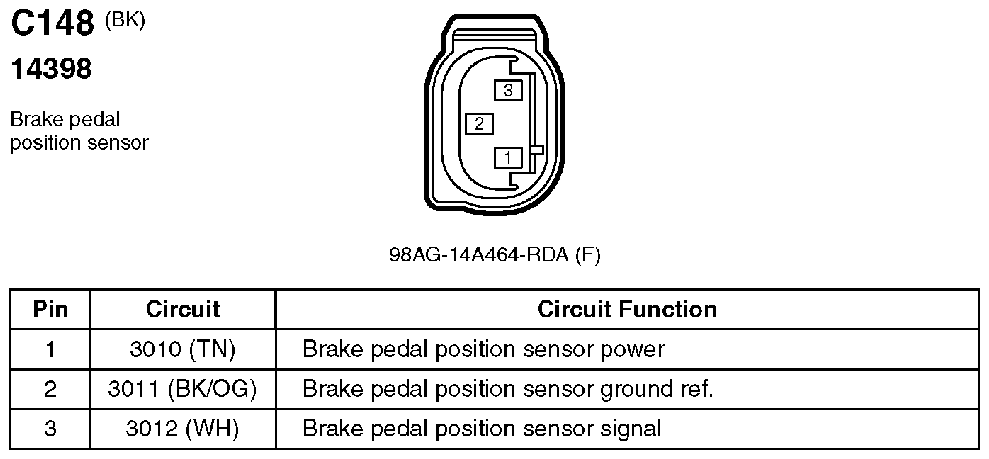

Fig 33: Brake Pedal Position Sensor Connector End View (C148)
Courtesy of FORD MOTOR CO.

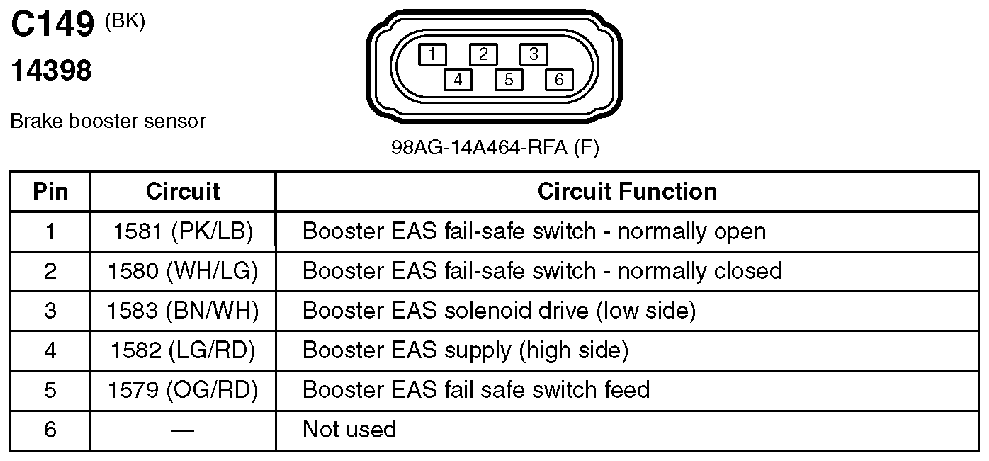

Fig 34: Brake Booster Sensor Connector End View (C149)
Courtesy of FORD MOTOR CO.

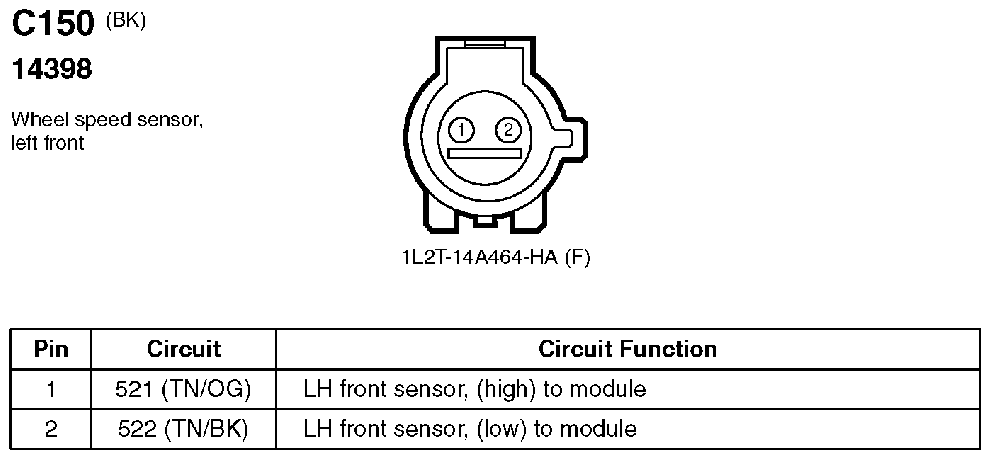

Fig 35: Wheel Speed Sensor, Left Front Connector End View (C150)
Courtesy of FORD MOTOR CO.

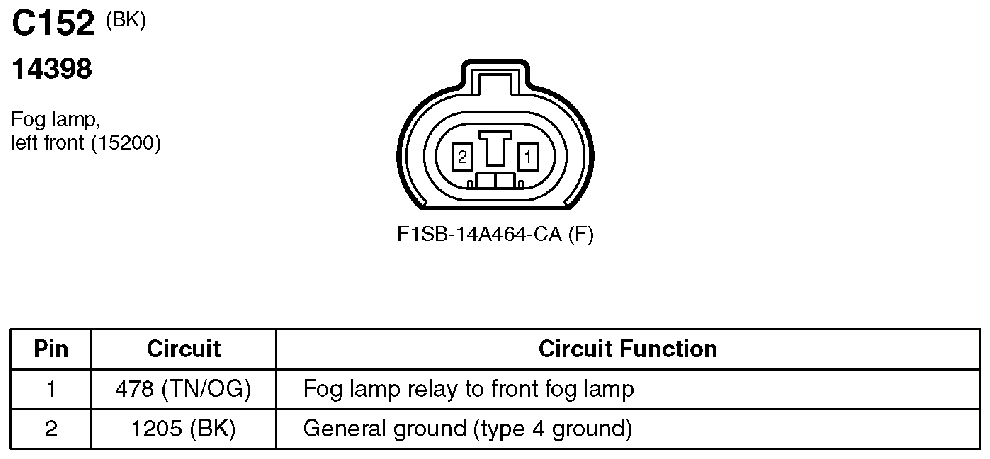

Fig 36: Fog Lamp, Left Front Connector End View (C152)
Courtesy of FORD MOTOR CO.

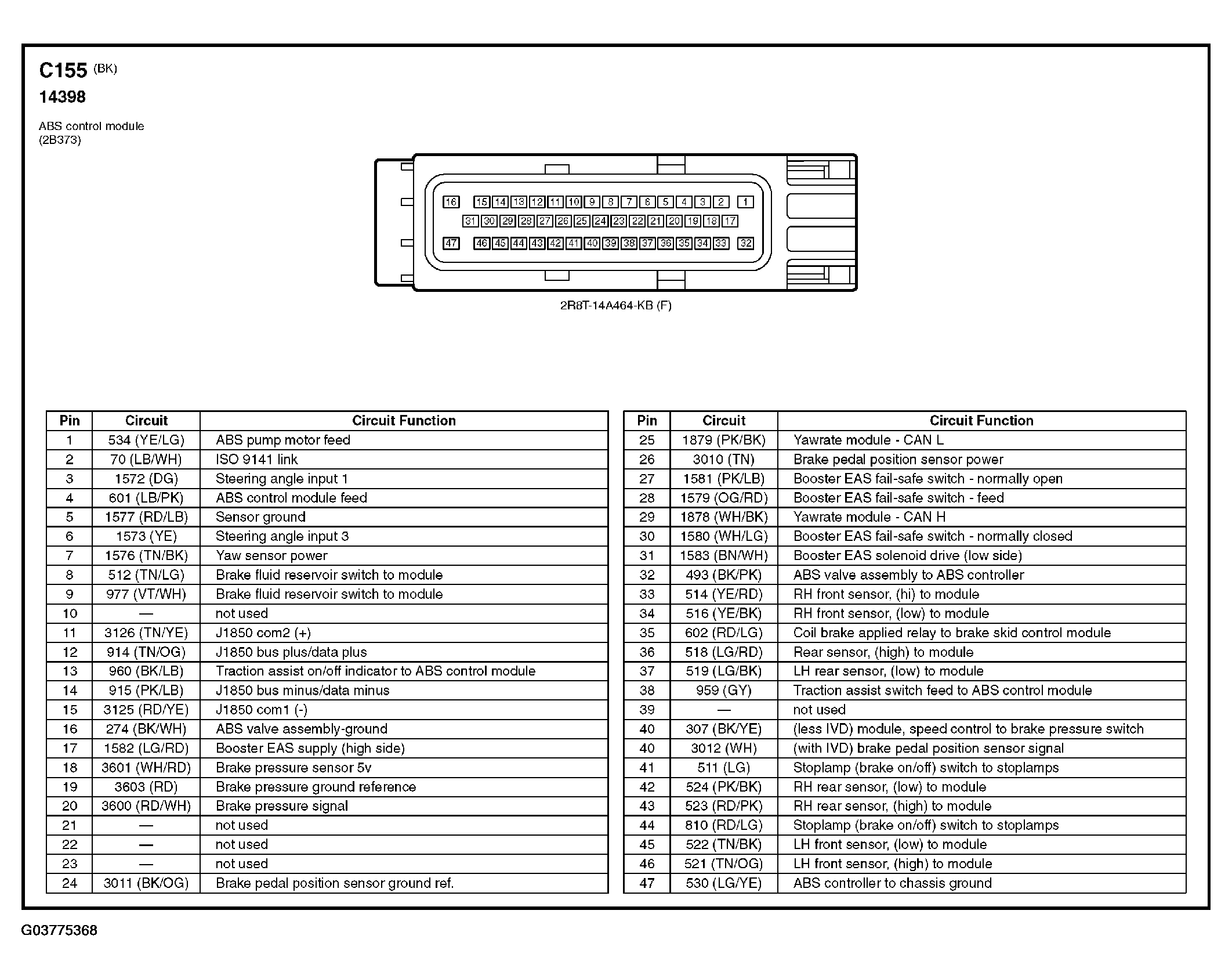

Fig 37: ABS Control Module Connector End View (C155)
Courtesy of FORD MOTOR CO.
Fig 38: Wheel Speed Sensor, Right Front Connector End View (C160)
Courtesy of FORD MOTOR CO.

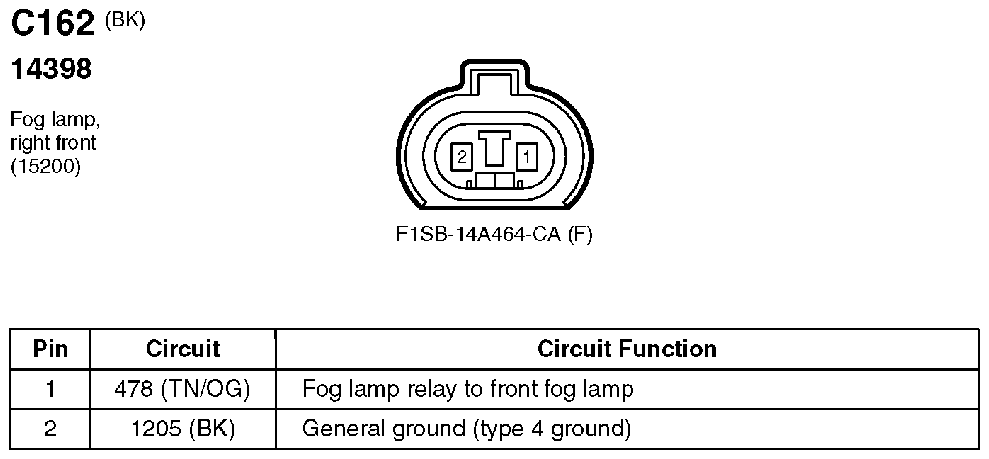

Fig 39: Fog Lamp, Right Front Connector End View (C162)
Courtesy of FORD MOTOR CO.

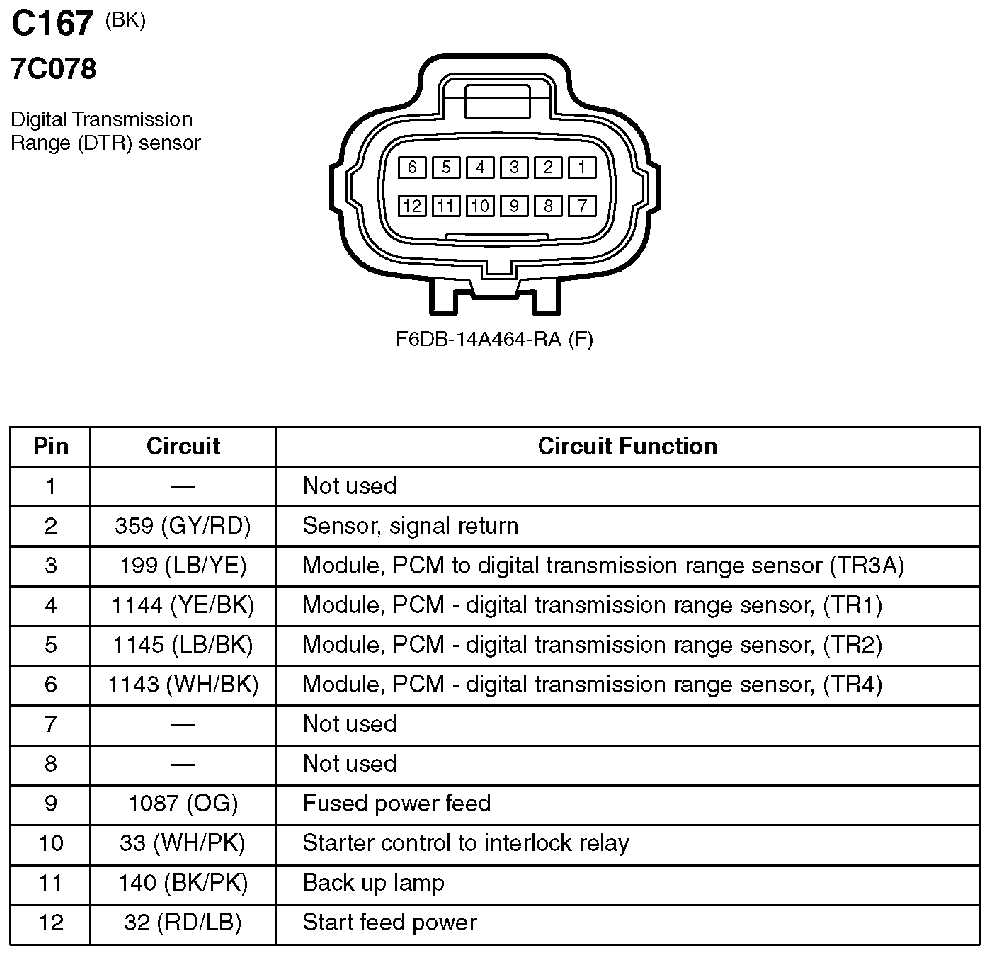

Fig 40: Digital Transmission Range (DTR) Sensor Connector End View (C167)
Courtesy of FORD MOTOR CO.

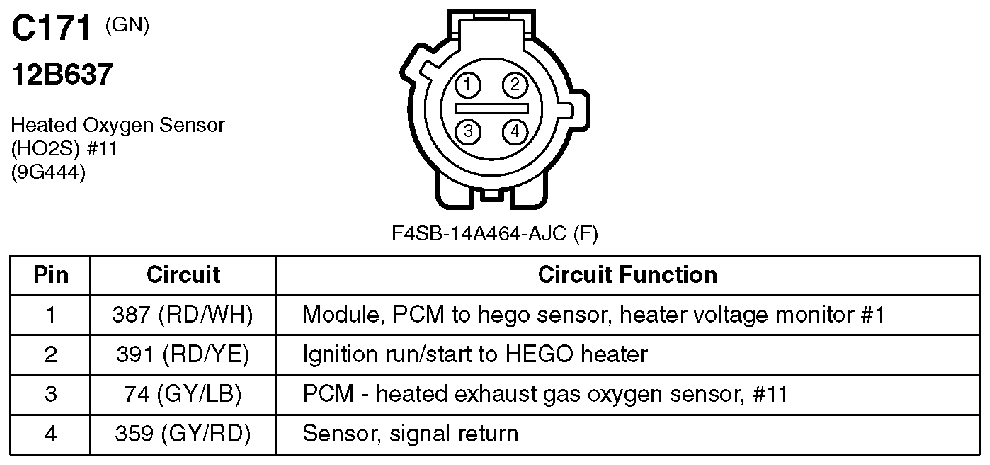

Fig 41: Heated Oxygen Sensor (HO2S) #11 Connector End View (C171)
Courtesy of FORD MOTOR CO.

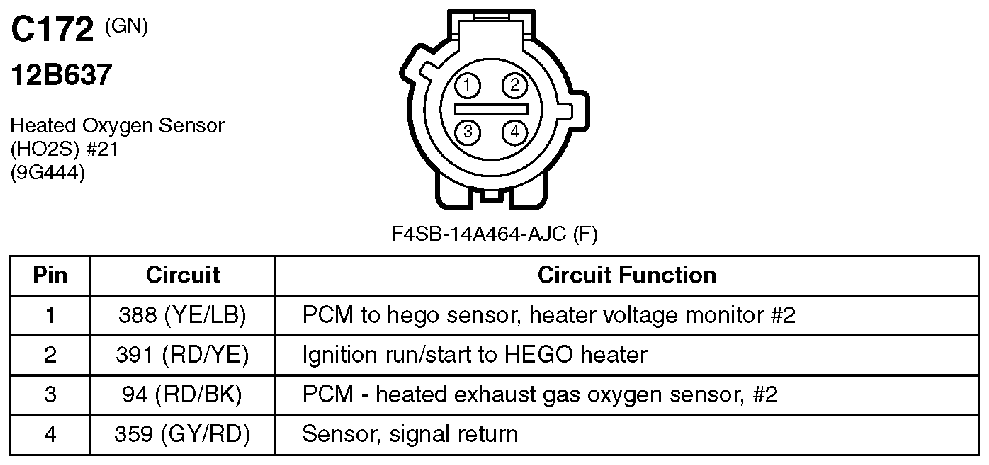

Fig 42: Heated Oxygen Sensor (HO2S) #21 Connector End View (C172)
Courtesy of FORD MOTOR CO.

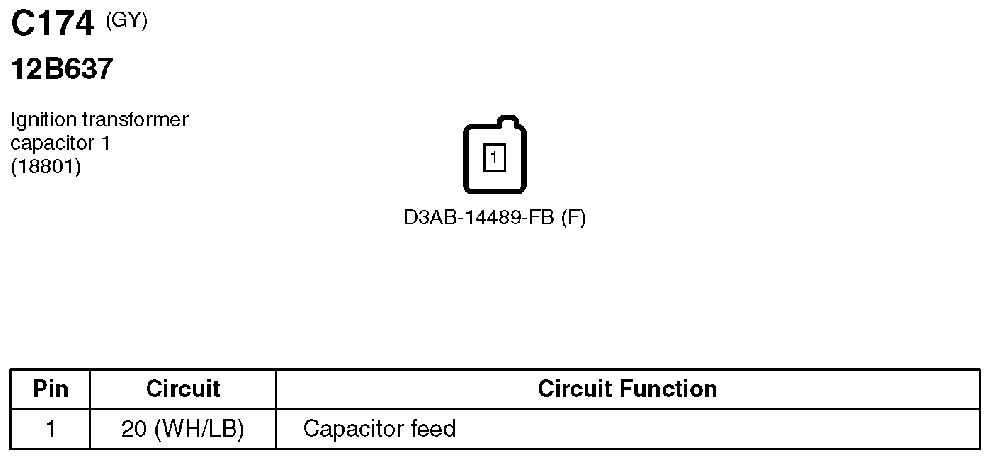

Fig 43: Ignition Transformer Capacitor 1 Connector End View (C174)
Courtesy of FORD MOTOR CO.

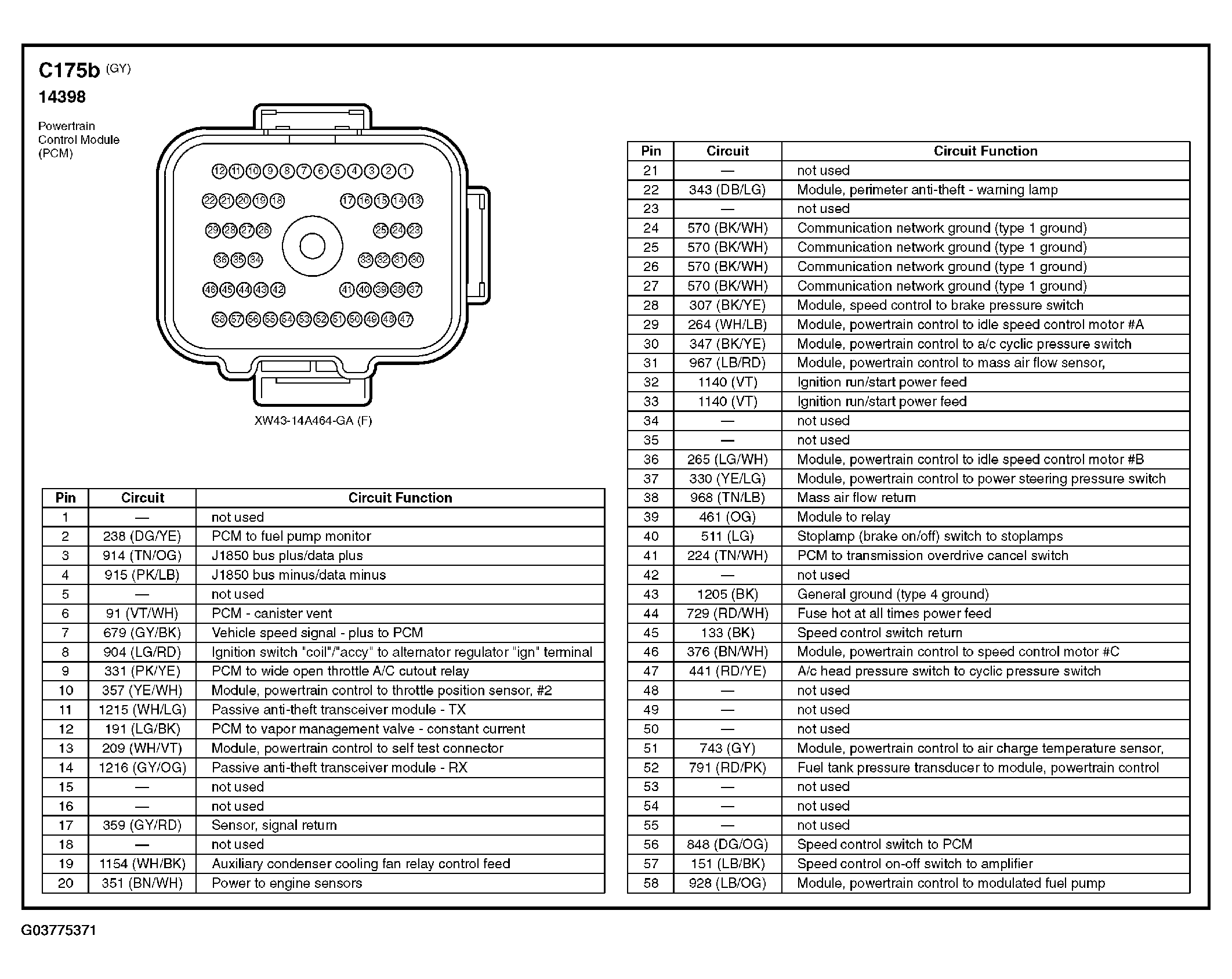

Fig 44: Powertrain Control Module (PCM) Connector End View (C175b)
Courtesy of FORD MOTOR CO.

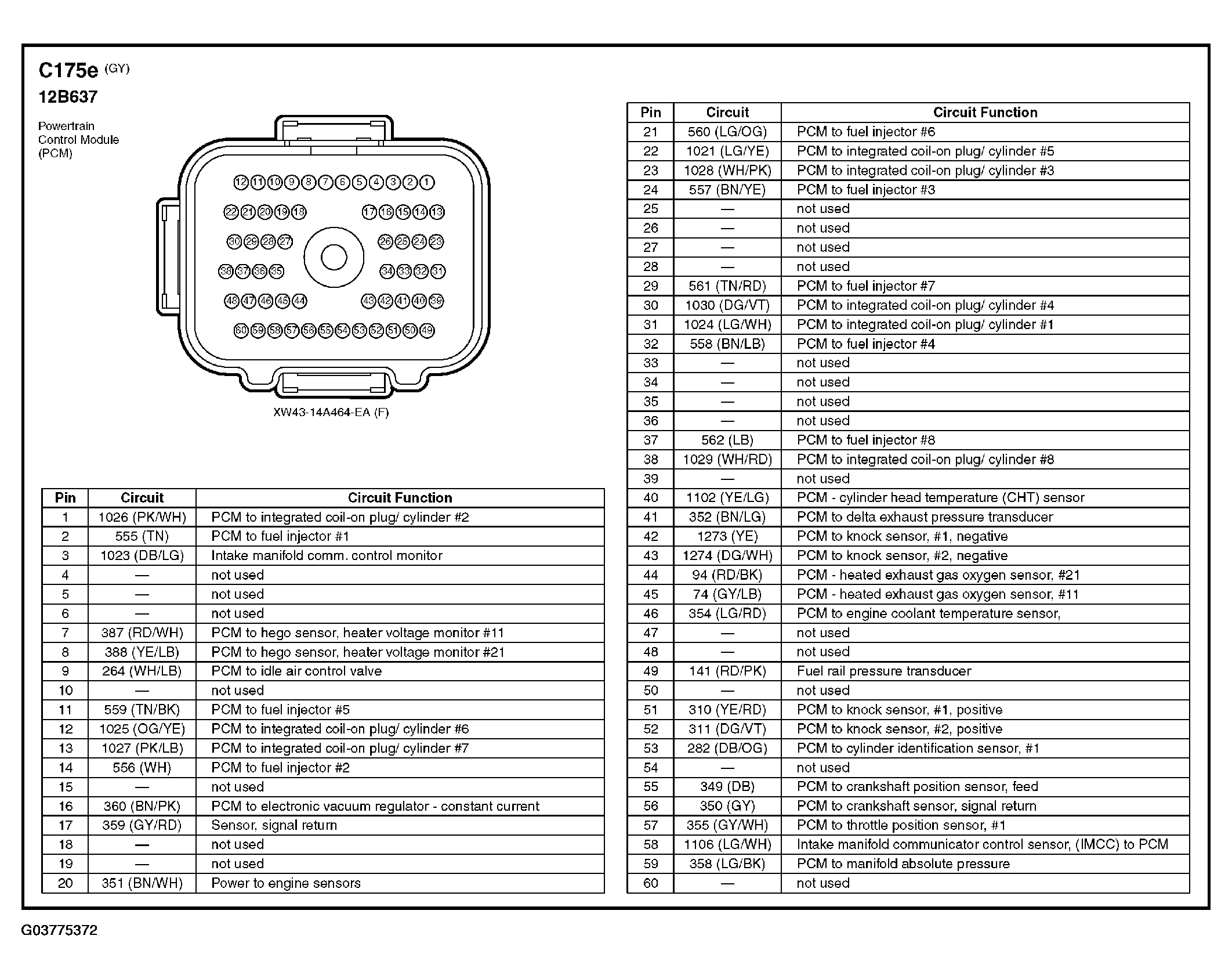

Fig 45: Powertrain Control Module (PCM) Connector End View (C175e)
Courtesy of FORD MOTOR CO.

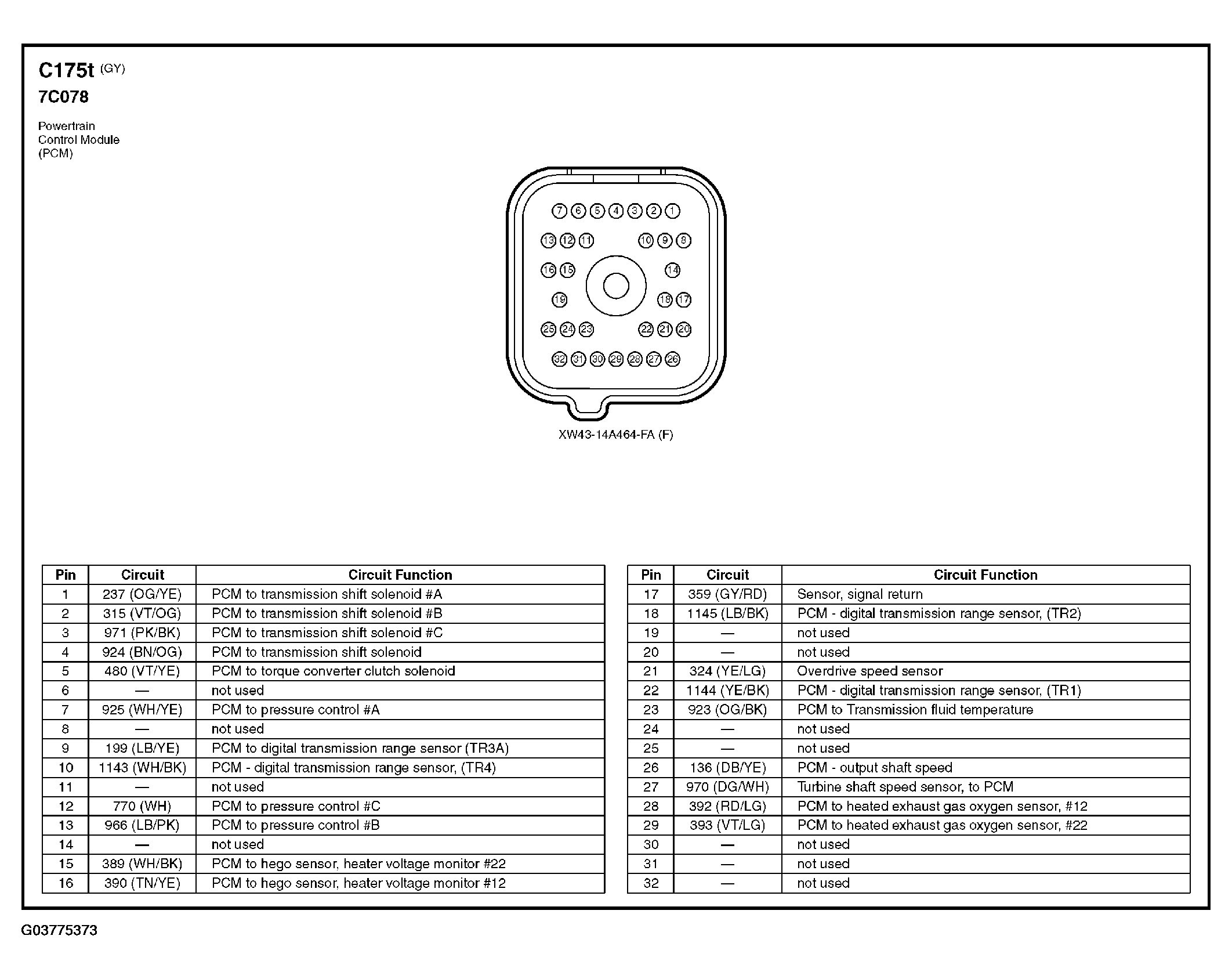

Fig 46: Powertrain Control Module (PCM) Connector End View (C175t)
Courtesy of FORD MOTOR CO.

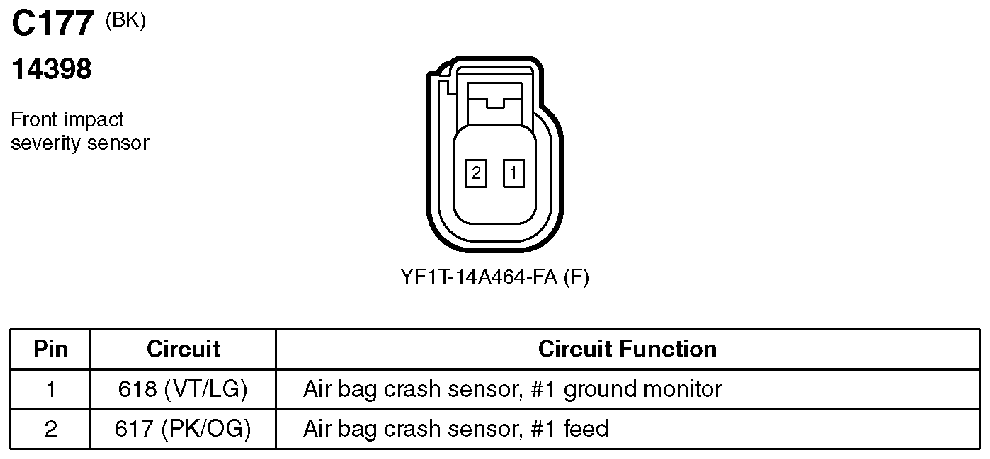

Fig 47: Front Impact Severity Sensor Connector End View (C177)
Courtesy of FORD MOTOR CO.

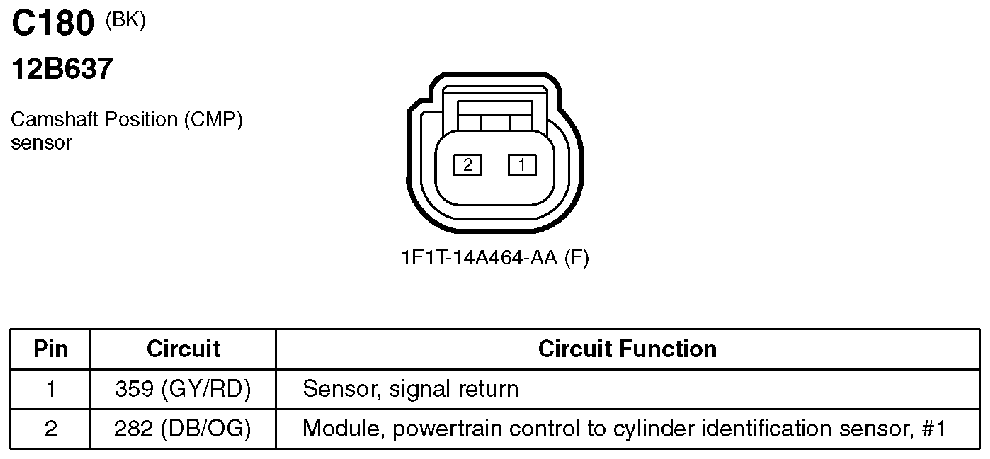

Fig 48: Camshaft Position (CMP) Sensor Connector End View (C180)
Courtesy of FORD MOTOR CO.

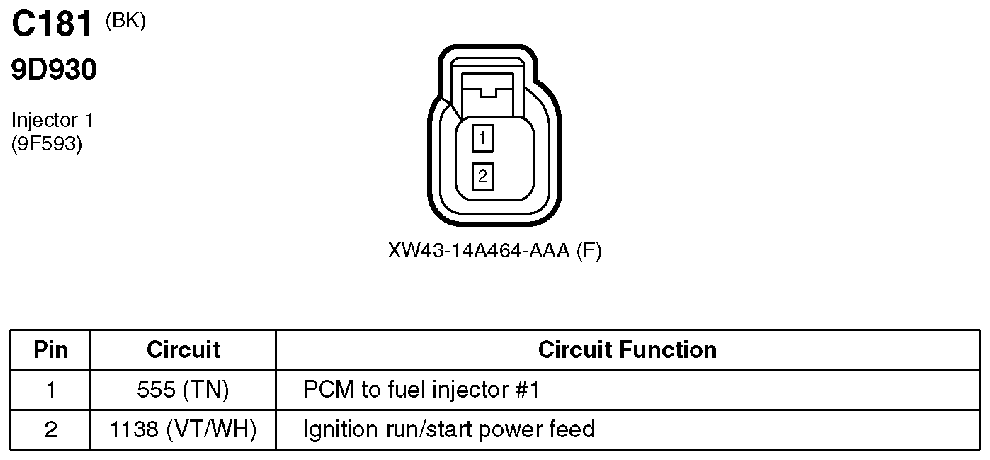

Fig 49: Injector 1 Connector End View (C181)
Courtesy of FORD MOTOR CO.
Fig 50: Injector 2 Connector End View (C182)
Courtesy of FORD MOTOR CO.
Fig 51: Injector 3 Connector End View (C183)
Courtesy of FORD MOTOR CO.

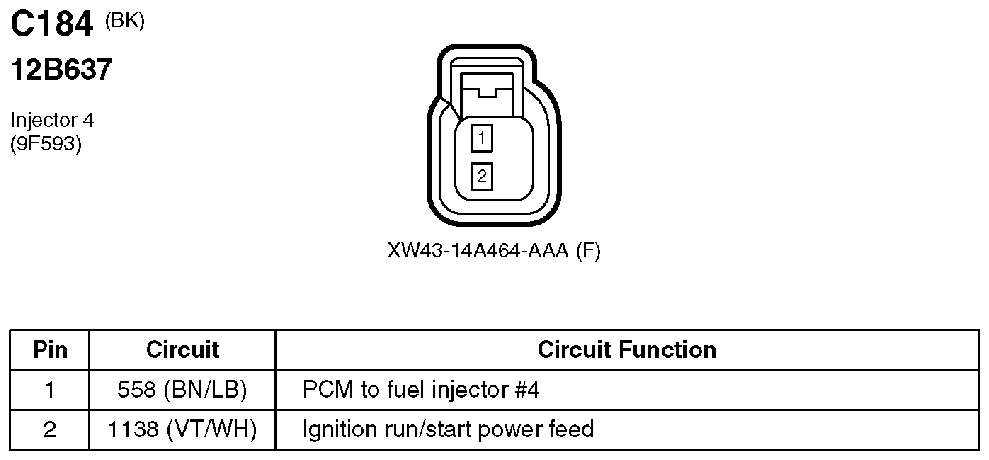

Fig 52: Injector 4 Connector End View (C184)
Courtesy of FORD MOTOR CO.
Fig 53: Injector 5 Connector End View (C185)
Courtesy of FORD MOTOR CO.
Fig 54: Injector 6 Connector End View (C186)
Courtesy of FORD MOTOR CO.

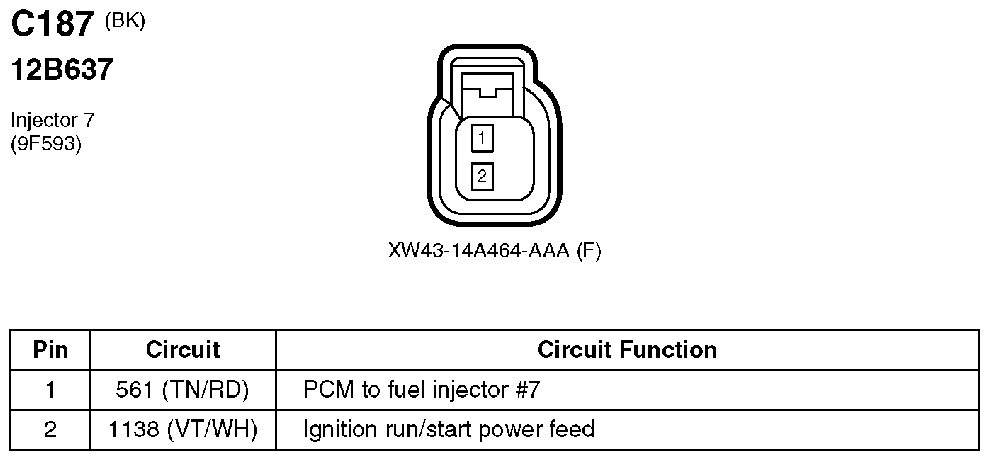

Fig 55: Injector 7 Connector End View (C187)
Courtesy of FORD MOTOR CO.
Fig 56: Injector 8 Connector End View (C188)
Courtesy of FORD MOTOR CO.

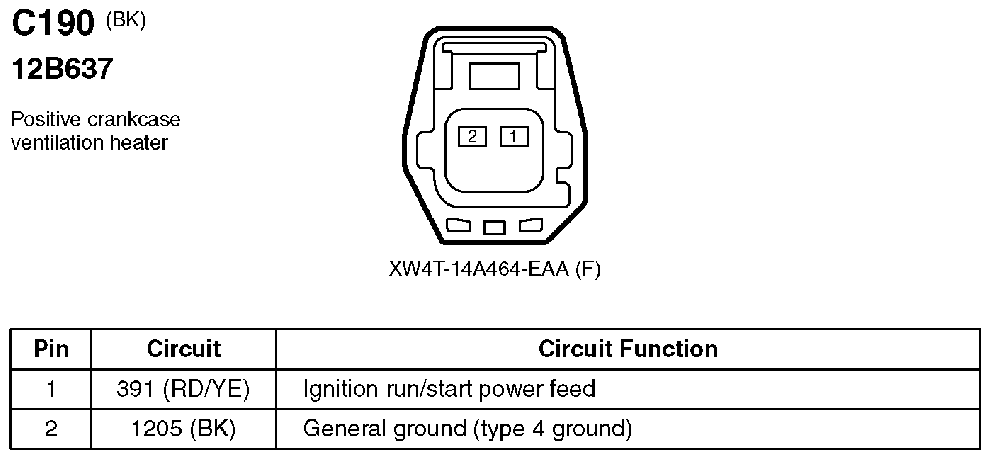

Fig 57: Positive Crankcase Ventilation Heater Connector End View (C190)
Courtesy of FORD MOTOR CO.

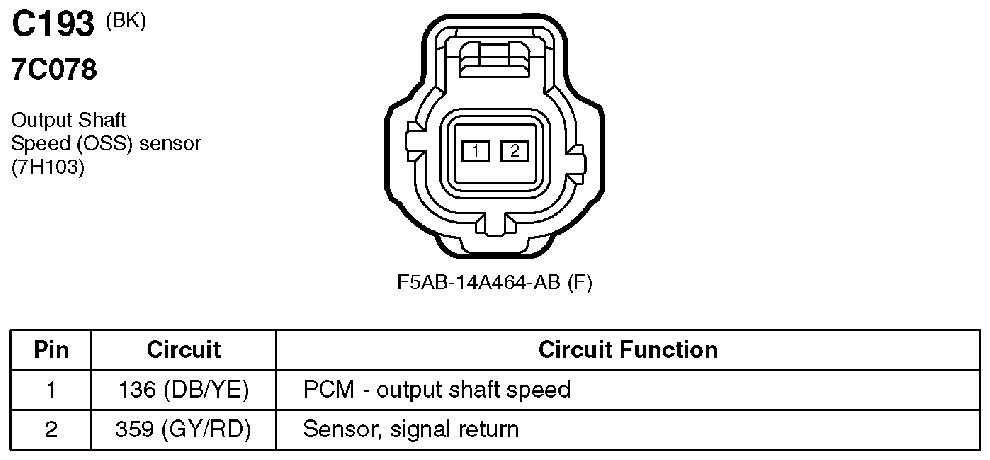

Fig 58: Output Shaft Speed (OSS) Sensor Connector End View (C193)
Courtesy of FORD MOTOR CO.
Fig 59: Ignition Transformer Capacitor 2 Connector End View (C194)
Courtesy of FORD MOTOR CO.

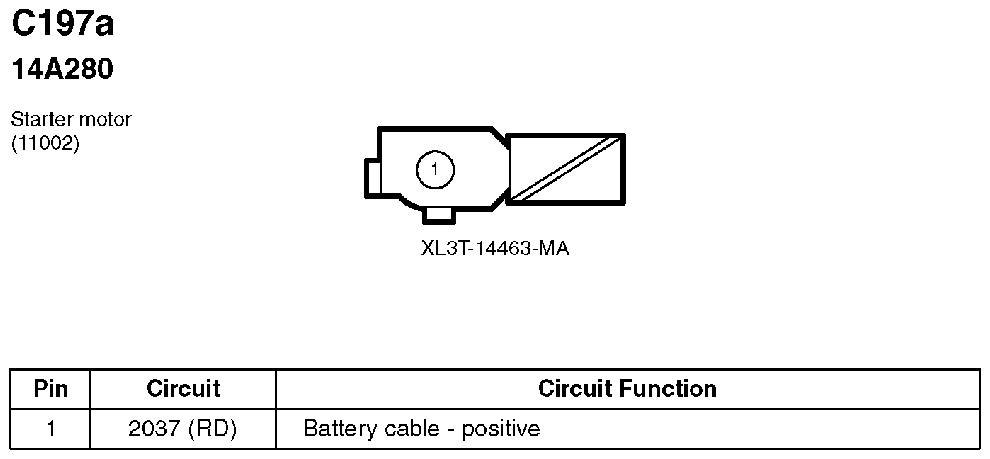

Fig 60: Starter Motor Connector End View (C197a)
Courtesy of FORD MOTOR CO.

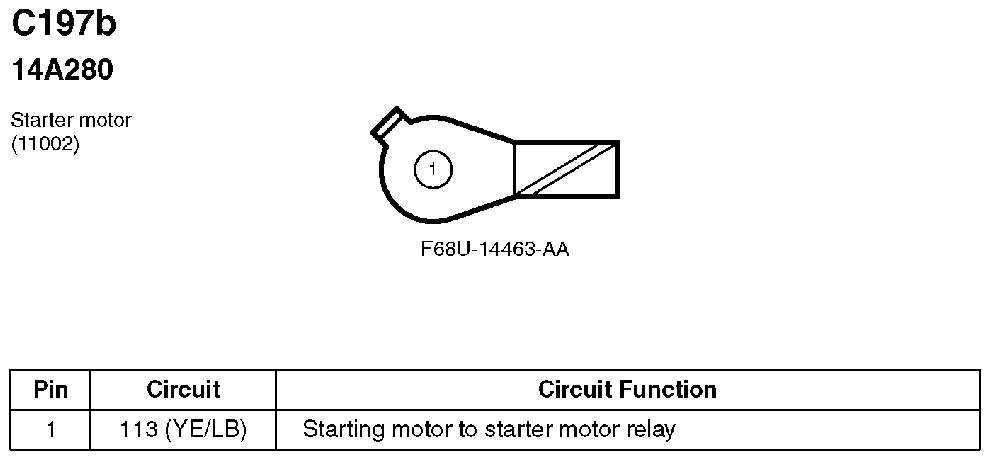

Fig 61: Starter Motor Connector End View (C197b)
Courtesy of FORD MOTOR CO.

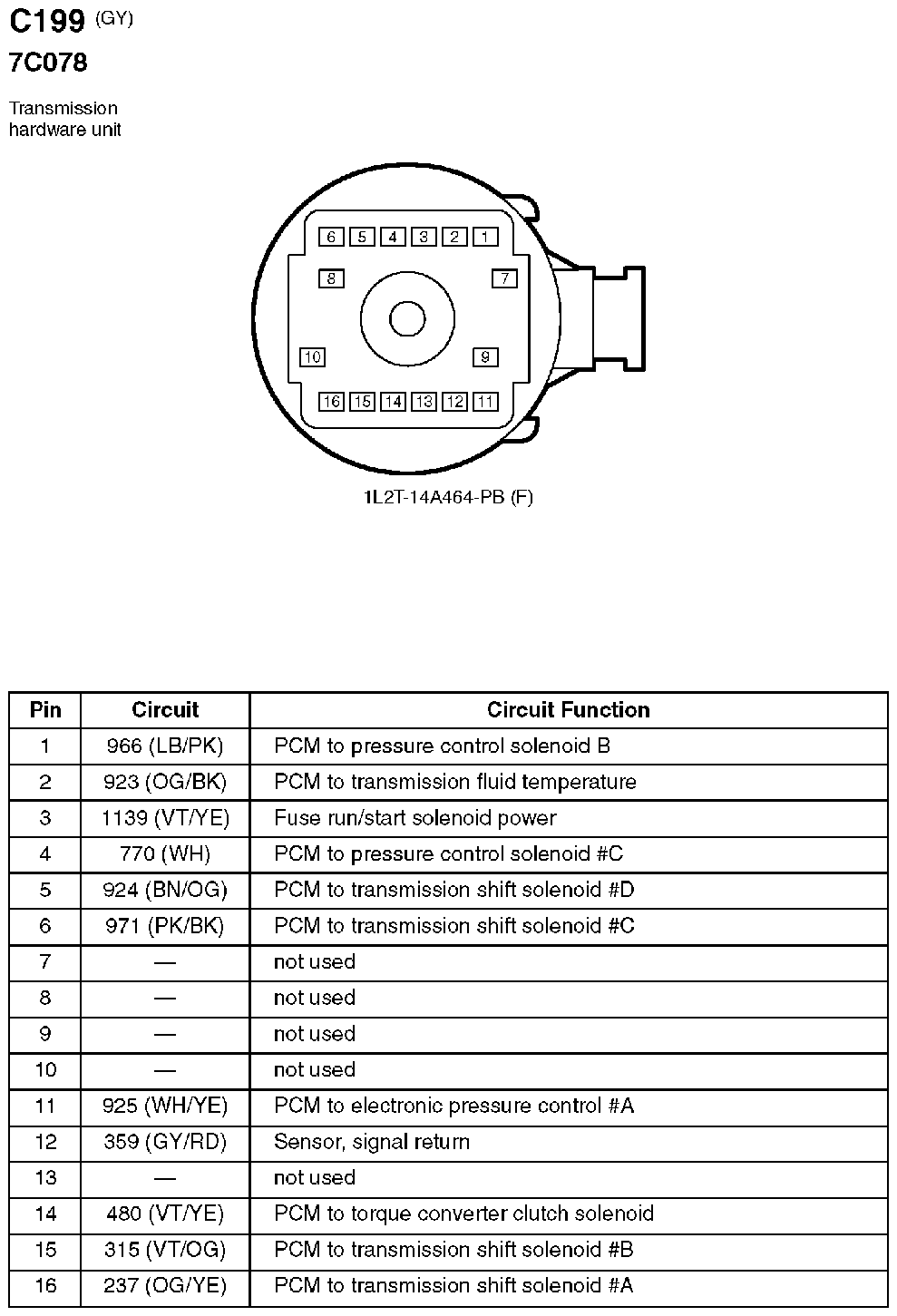

Fig 62: Transmission Hardware Unit Connector End View (C199)
Courtesy of FORD MOTOR CO.

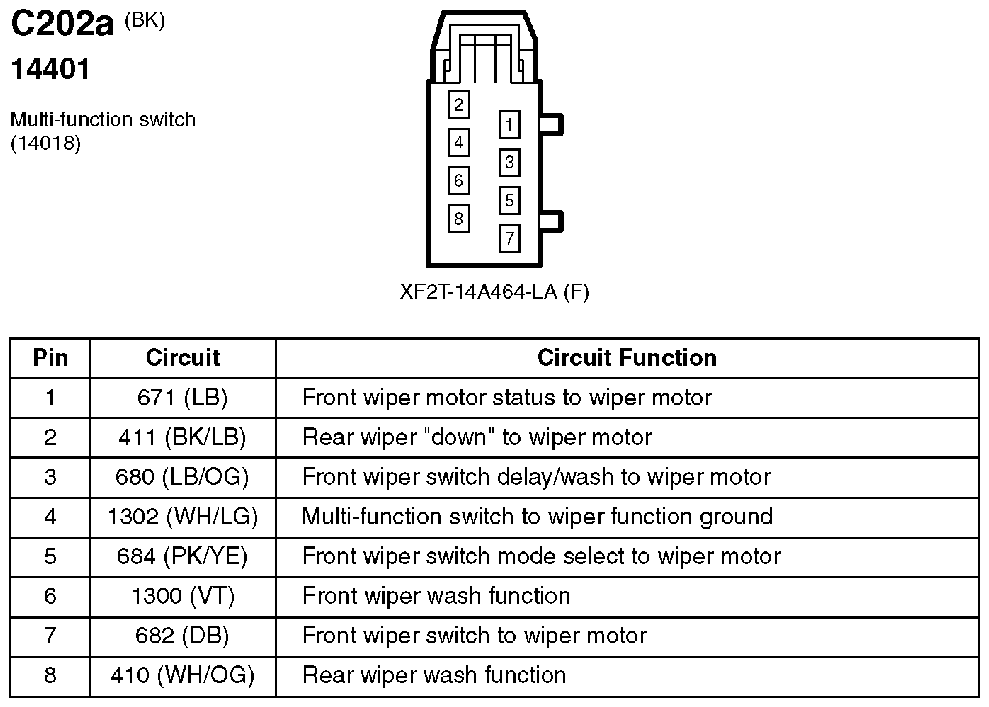

Fig 63: Multifunction Switch Connector End View (C202a)
Courtesy of FORD MOTOR CO.

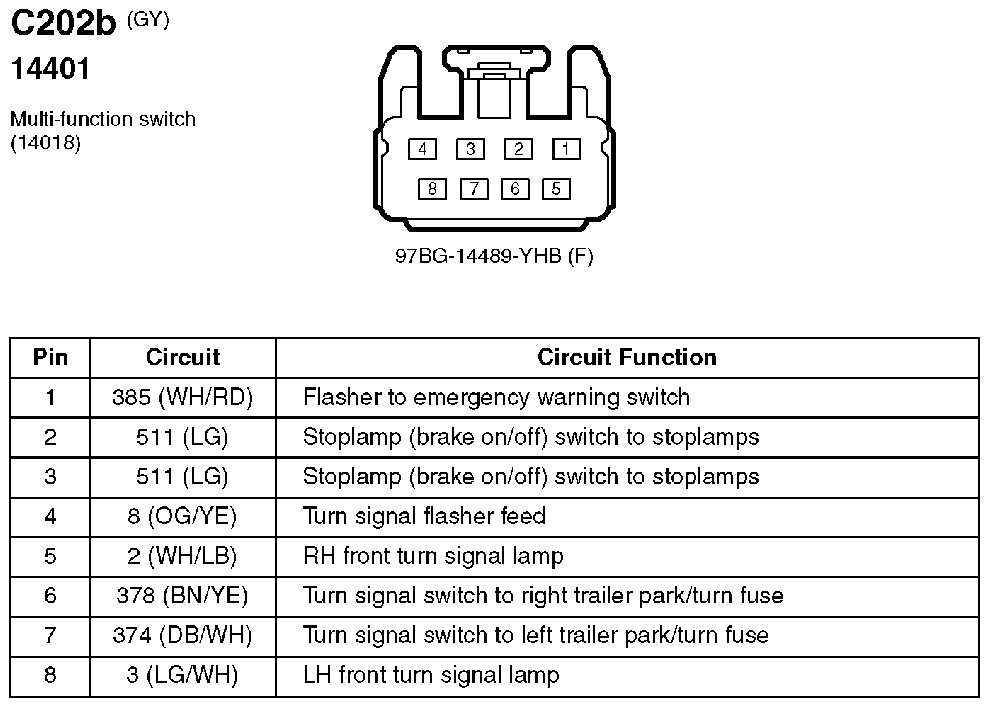

Fig 64: Multifunction Switch Connector End View (C202b)
Courtesy of FORD MOTOR CO.

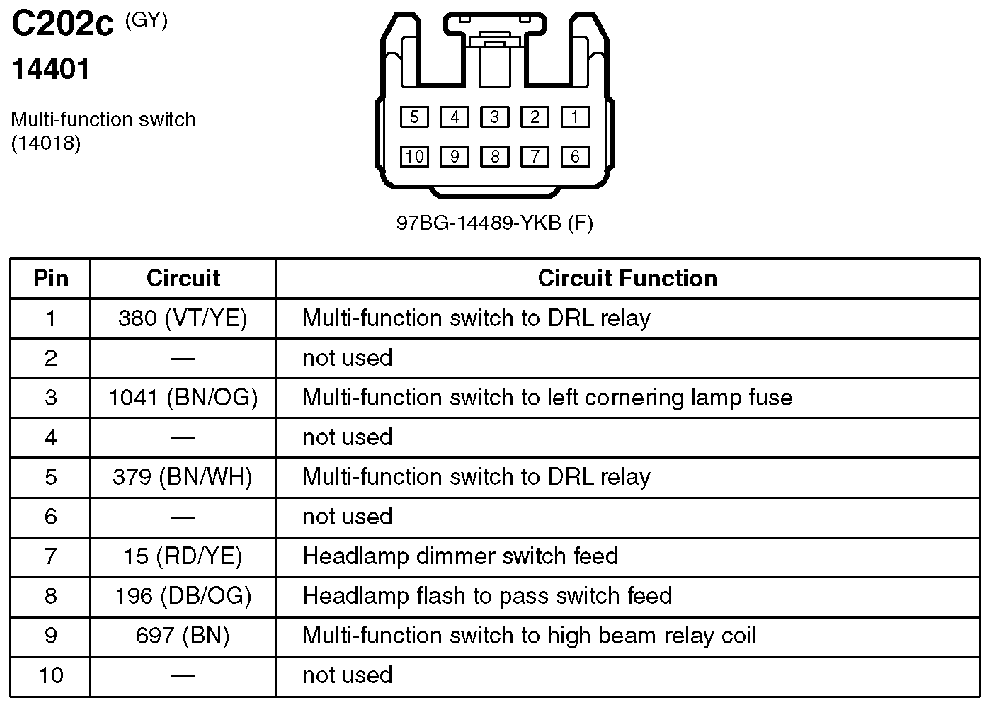

Fig 65: Multifunction Switch Connector End View (C202c)
Courtesy of FORD MOTOR CO.

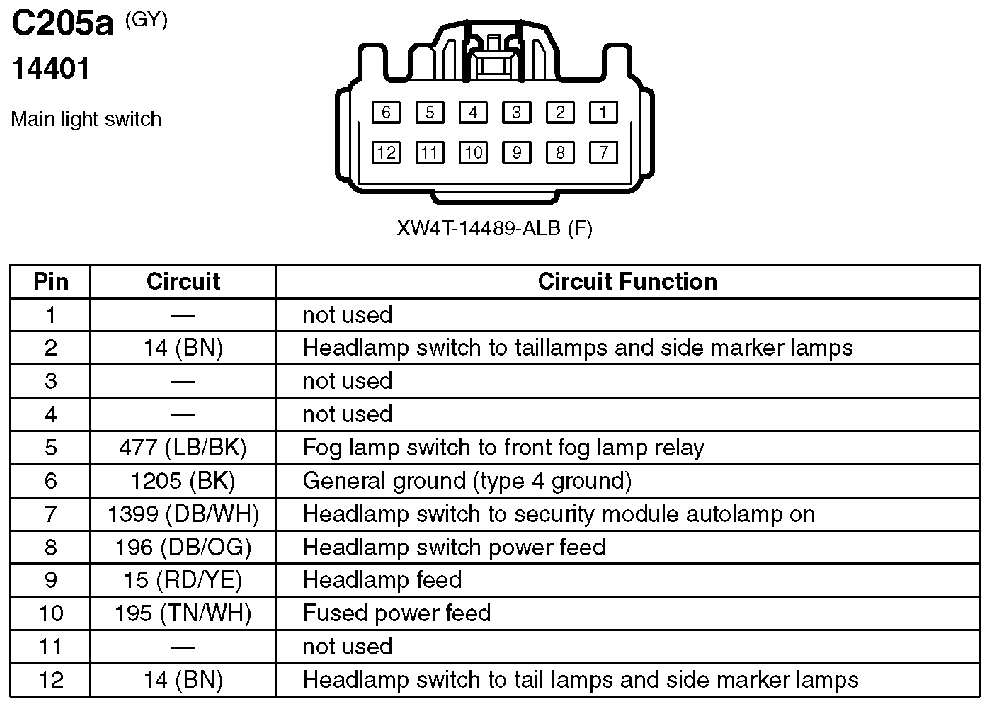

Fig 66: Main Light Switch Connector End View (C205a)
Courtesy of FORD MOTOR CO.

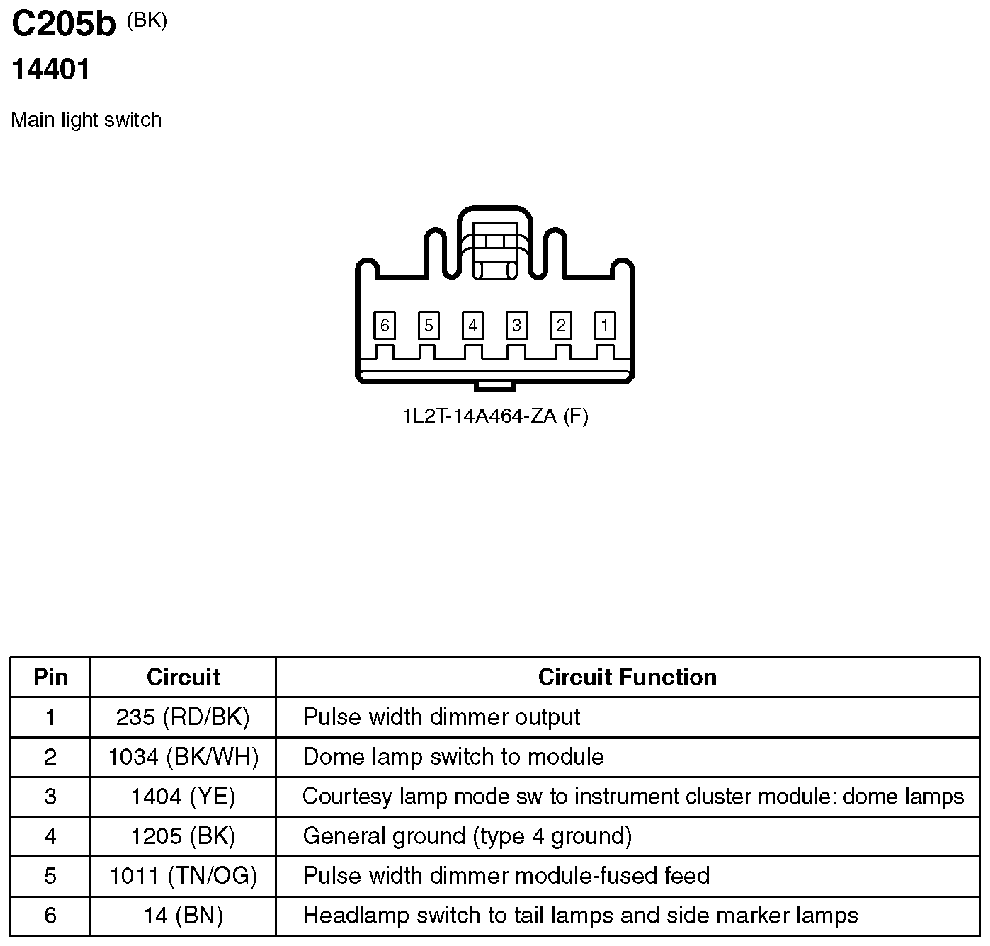

Fig 67: Main Light Switch Connector End View (C205b)
Courtesy of FORD MOTOR CO.

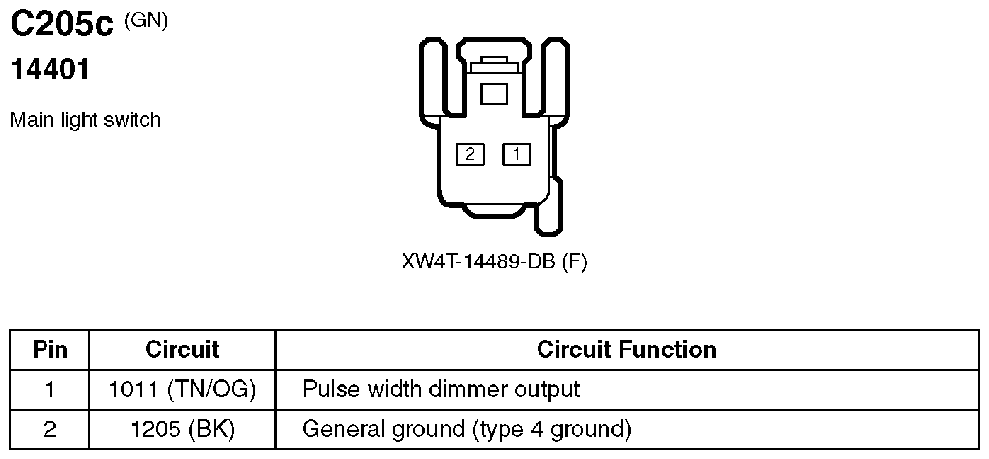

Fig 68: Main Light Switch Connector End View (C205c)
Courtesy of FORD MOTOR CO.

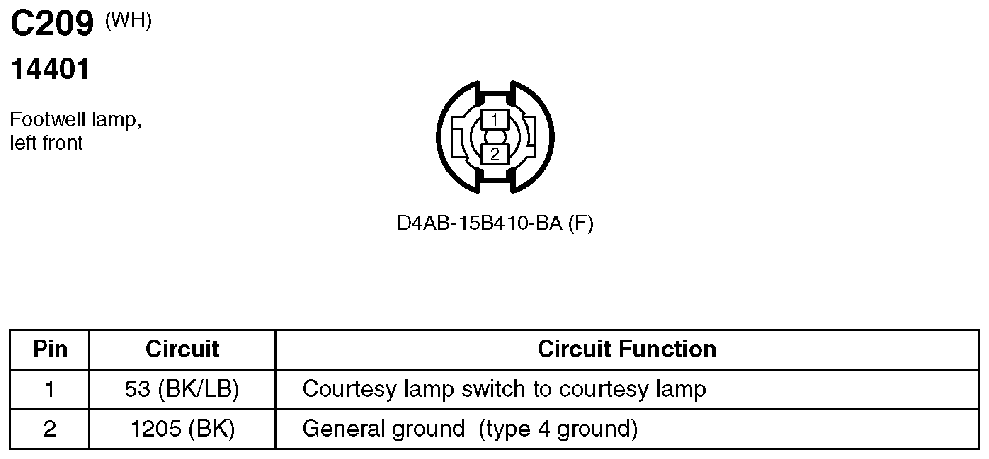

Fig 69: Footwell Lamp, Left Front Connector End View (C209)
Courtesy of FORD MOTOR CO.

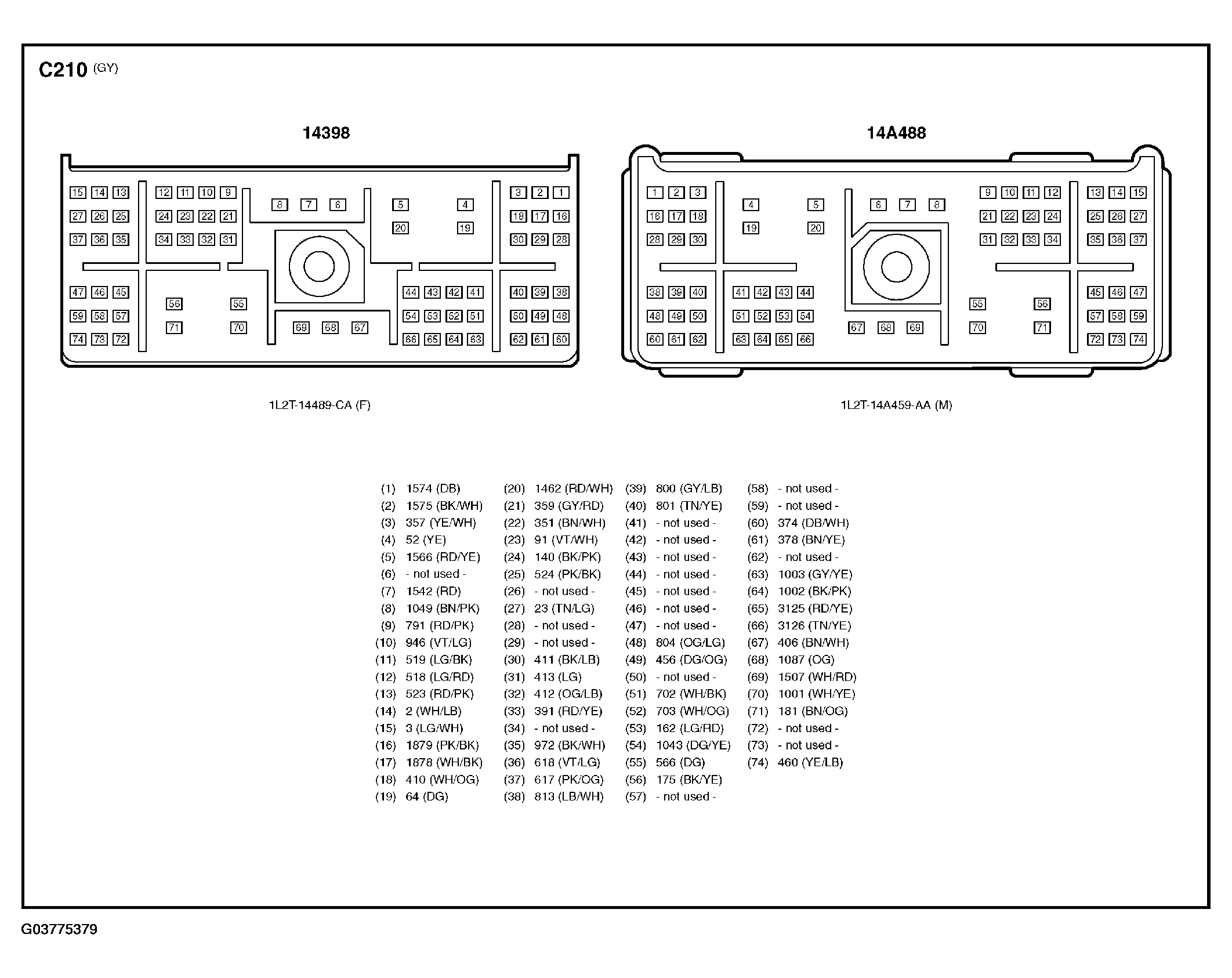

Fig 70: Inline Connector End View (C210)
Courtesy of FORD MOTOR CO.

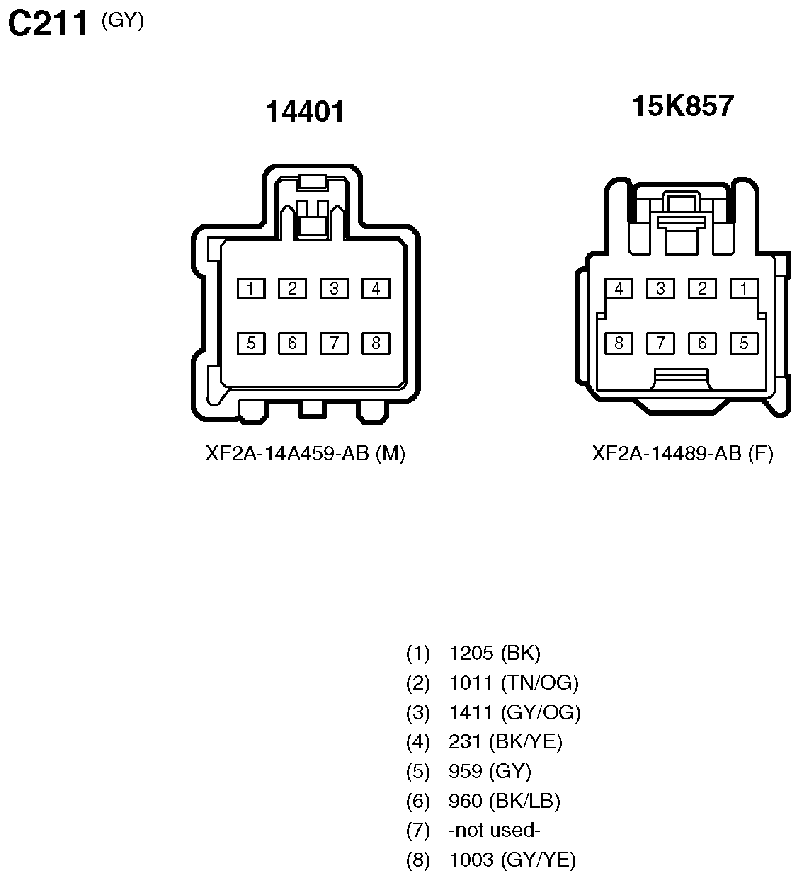

Fig 71: Inline Connector End View (C211)
Courtesy of FORD MOTOR CO.

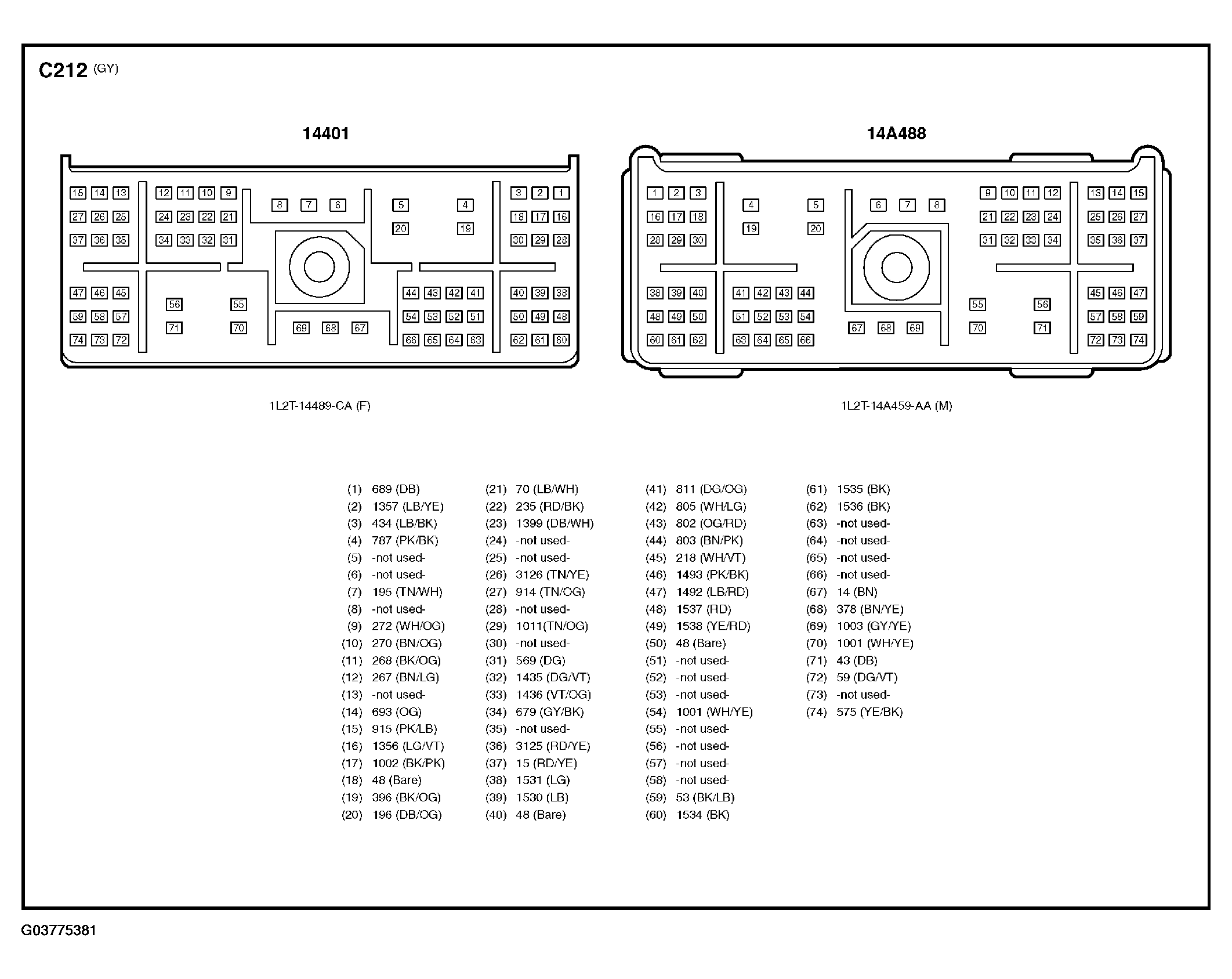

Fig 72: Inline Connector End View (C212)
Courtesy of FORD MOTOR CO.

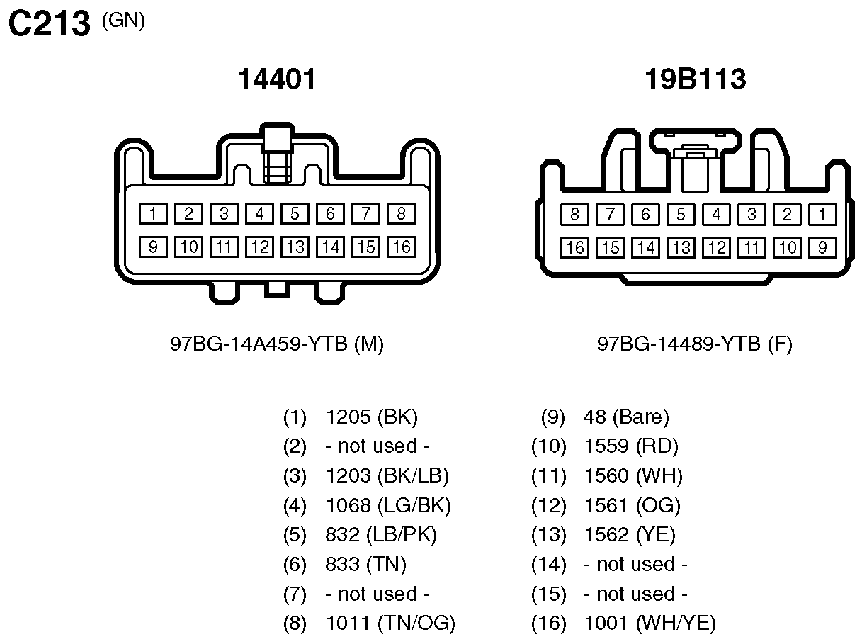

Fig 73: Inline Connector End View (C213)
Courtesy of FORD MOTOR CO.

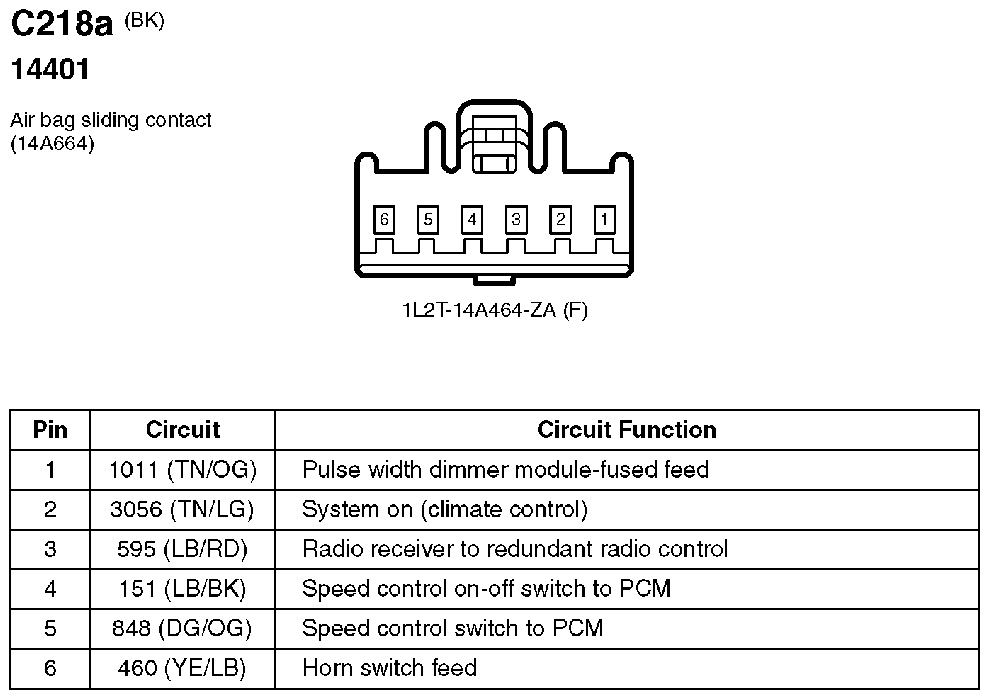

Fig 74: Air Bag Sliding Contact Connector End View (C218a)
Courtesy of FORD MOTOR CO.

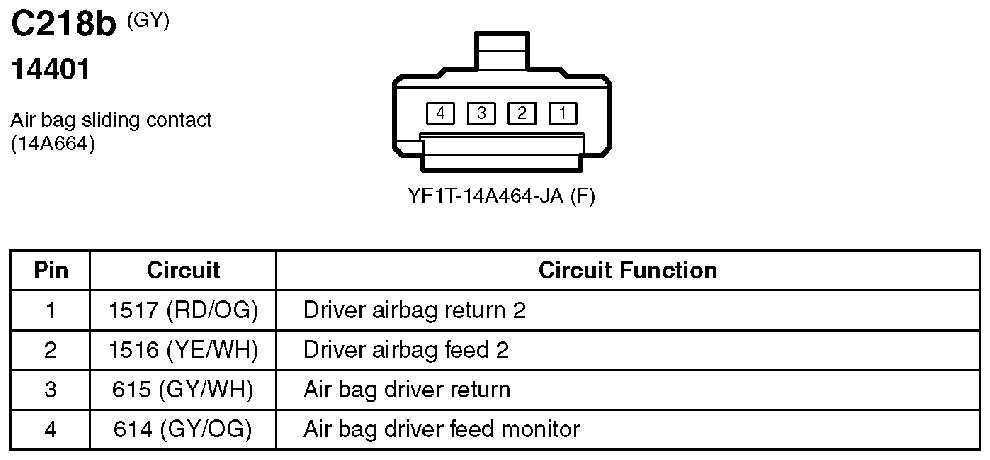

Fig 75: Air Bag Sliding Contact Connector End View (C218b)
Courtesy of FORD MOTOR CO.

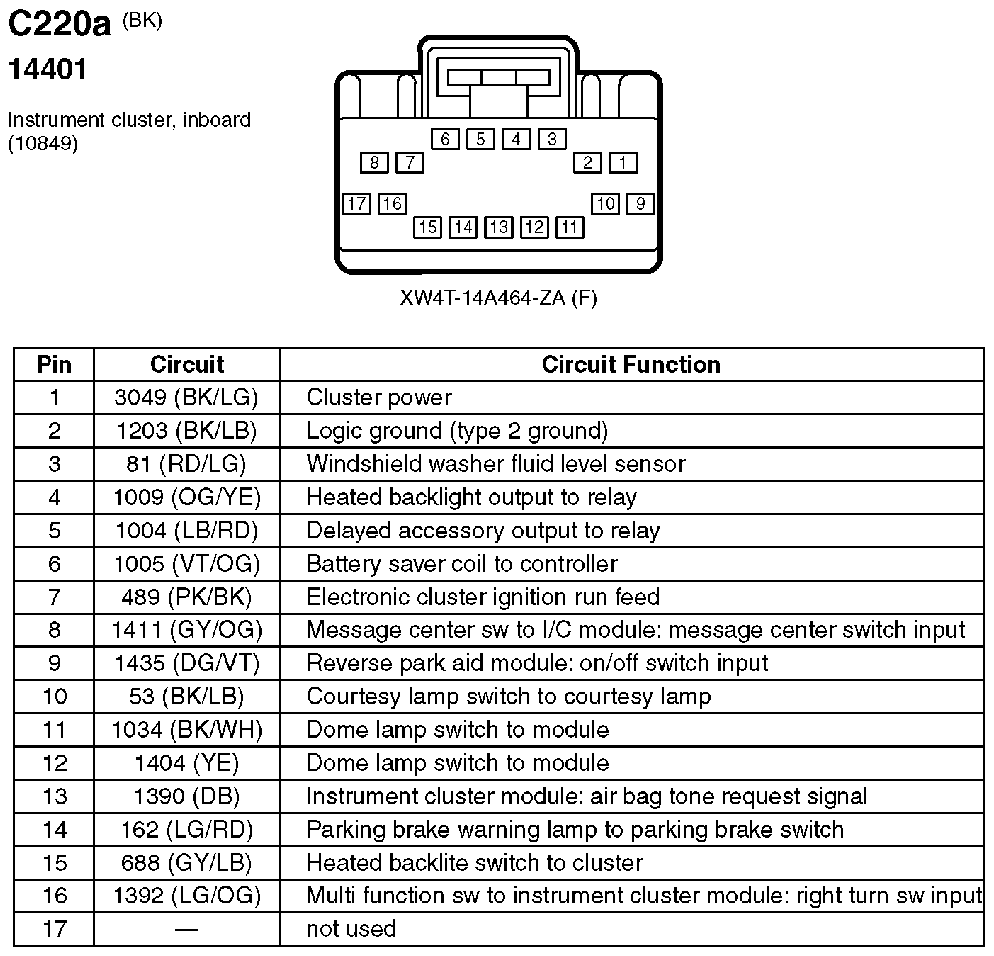

Fig 76: Instrument Cluster, Inboard Connector End View (C220a)
Courtesy of FORD MOTOR CO.

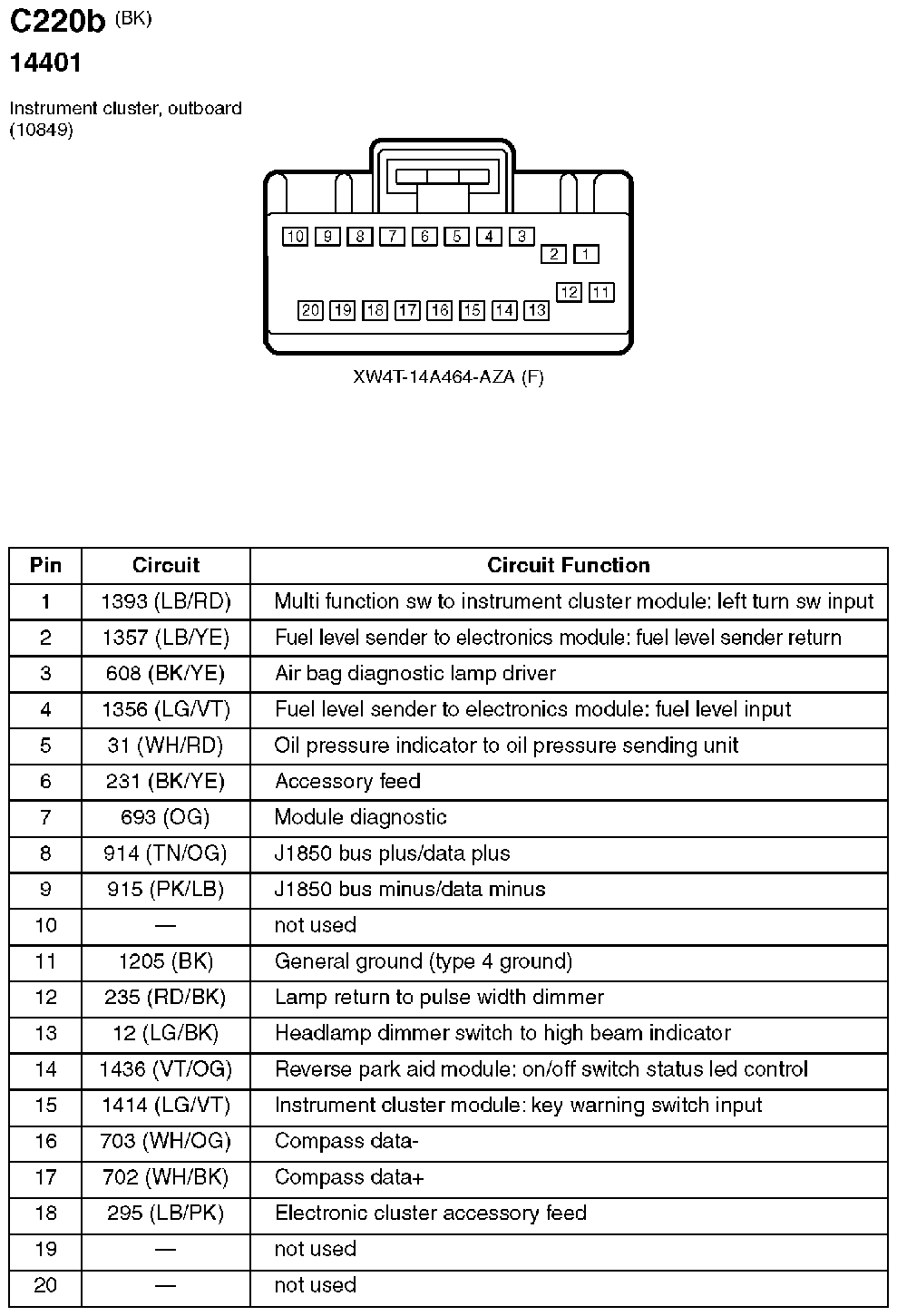

Fig 77: Instrument Cluster, Outboard Connector End View (C220b)
Courtesy of FORD MOTOR CO.

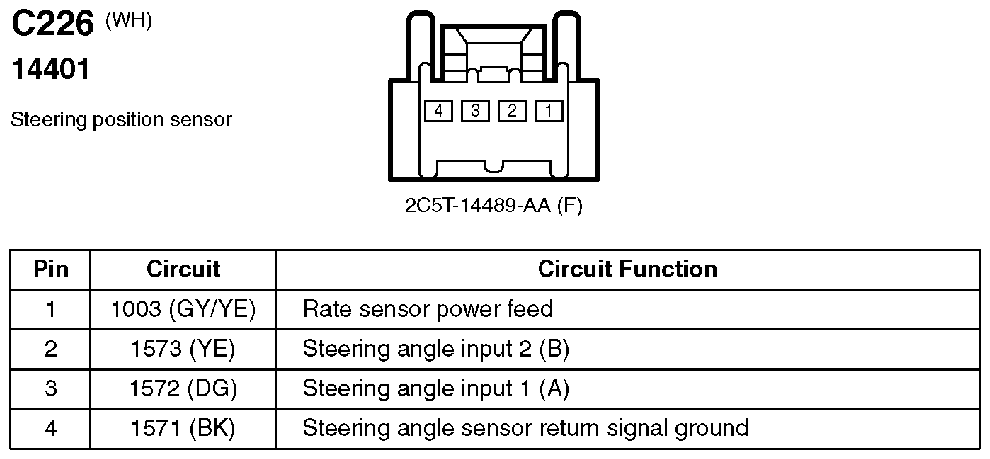

Fig 78: Steering Position Sensor Connector End View (C226)
Courtesy of FORD MOTOR CO.

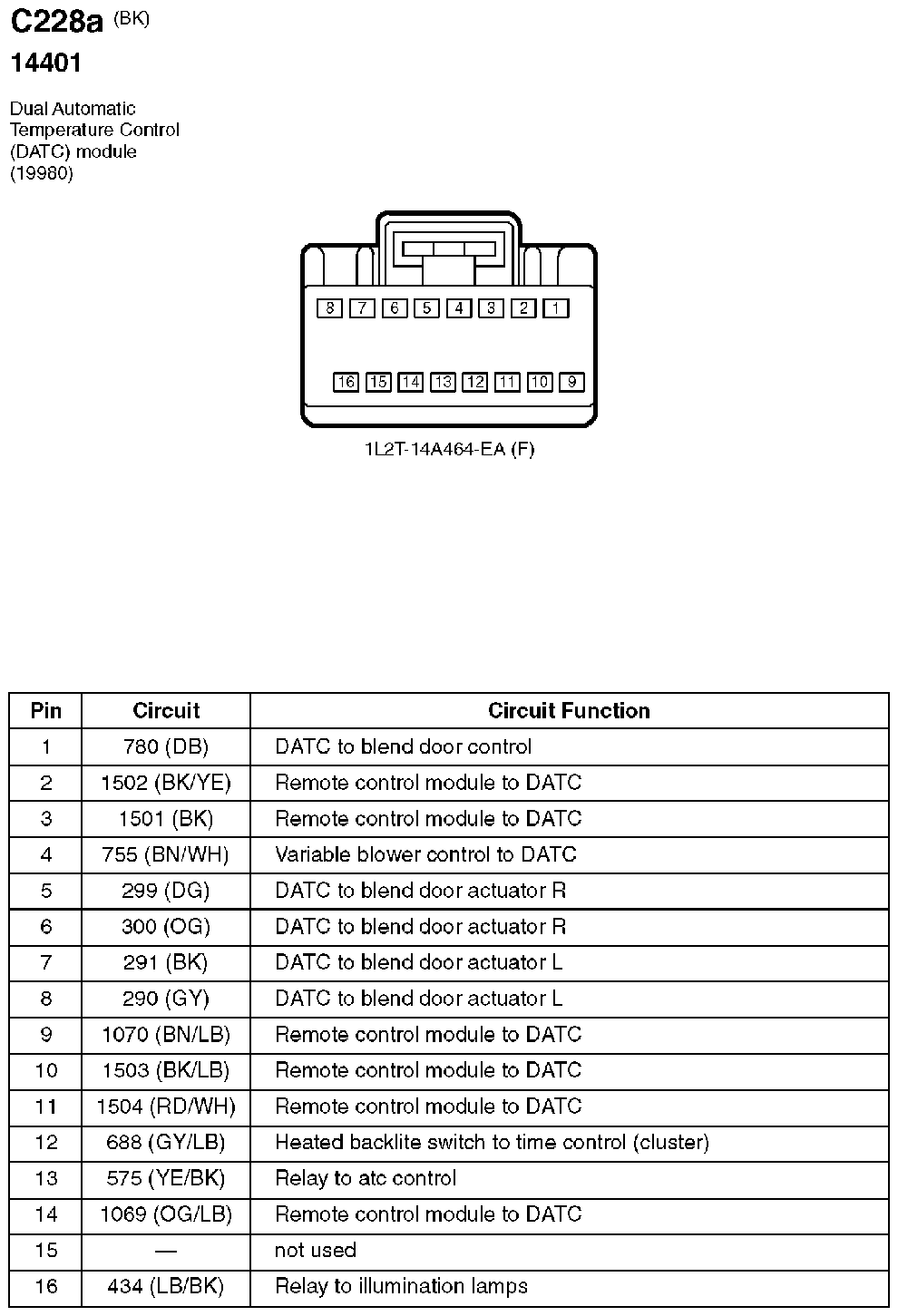

Fig 79: Dual Automatic Temperature Control (DATC) Module Connector End View (C228a)
Courtesy of FORD MOTOR CO.

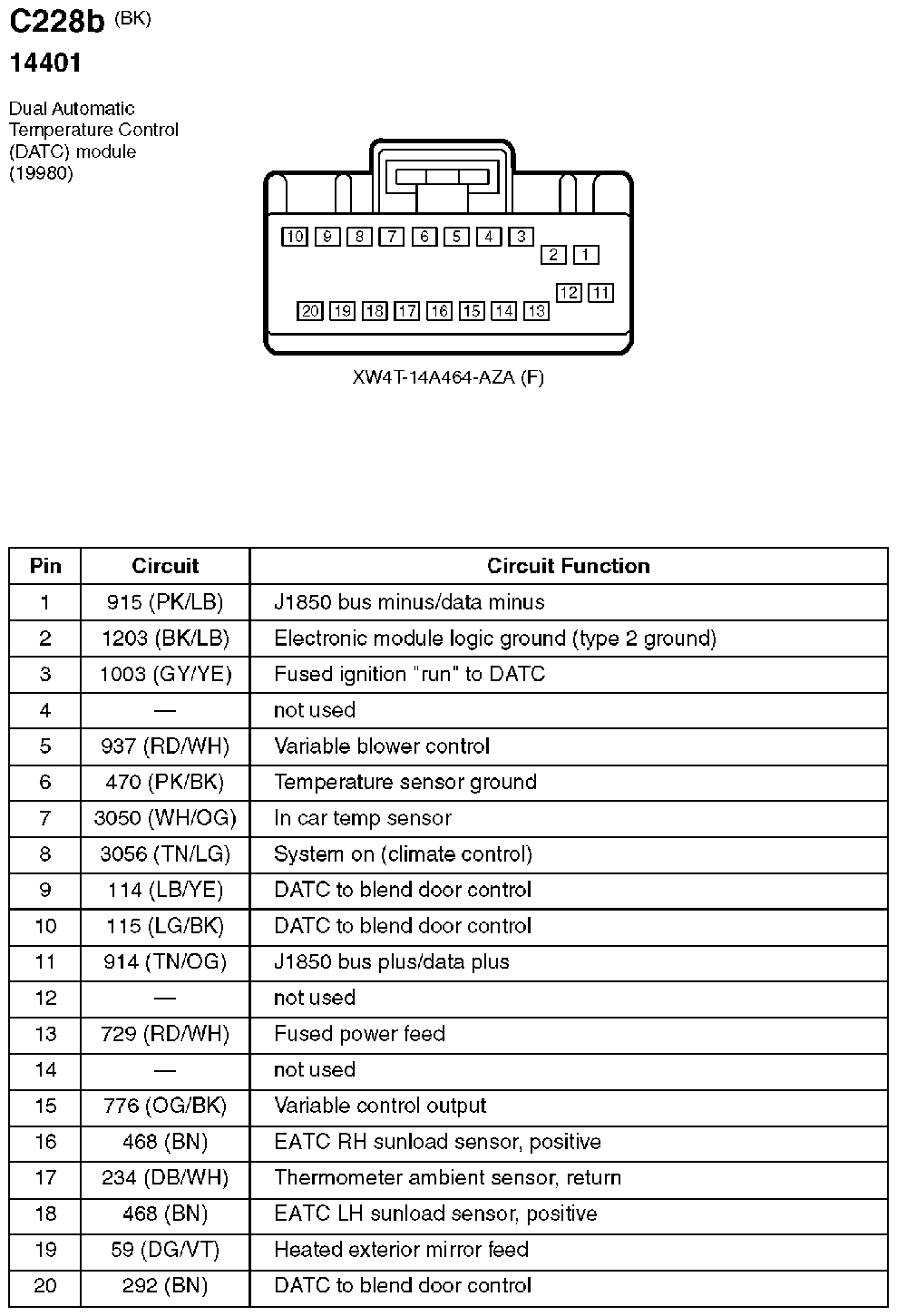

Fig 80: Dual Automatic Temperature Control (DATC) Module Connector End View (C228b)
Courtesy of FORD MOTOR CO.

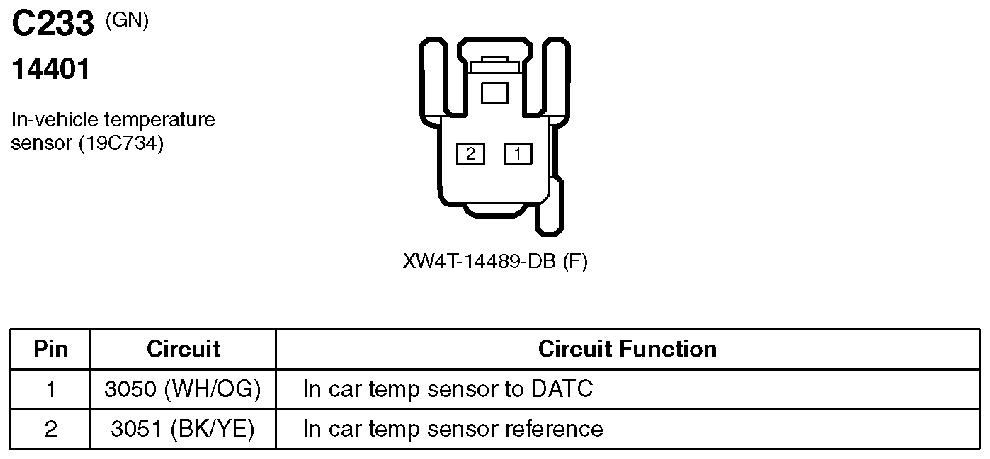

Fig 81: In-Vehicle Temperature Sensor Connector End View (C233)
Courtesy of FORD MOTOR CO.

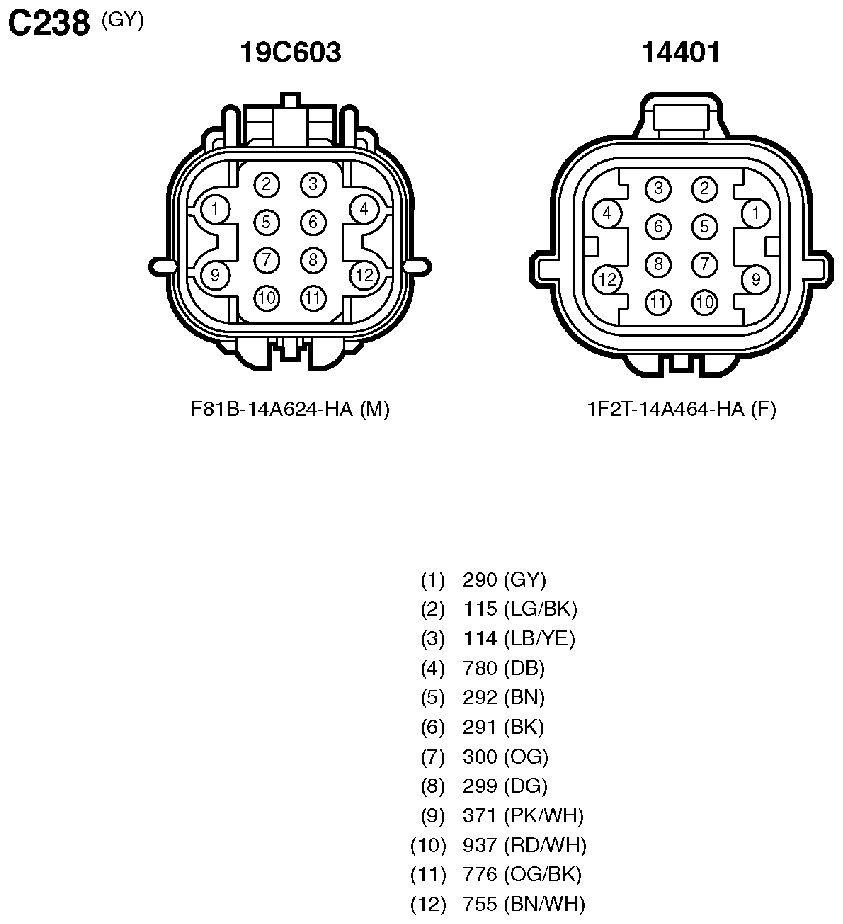

Fig 82: Inline Connector End View (C238)
Courtesy of FORD MOTOR CO.

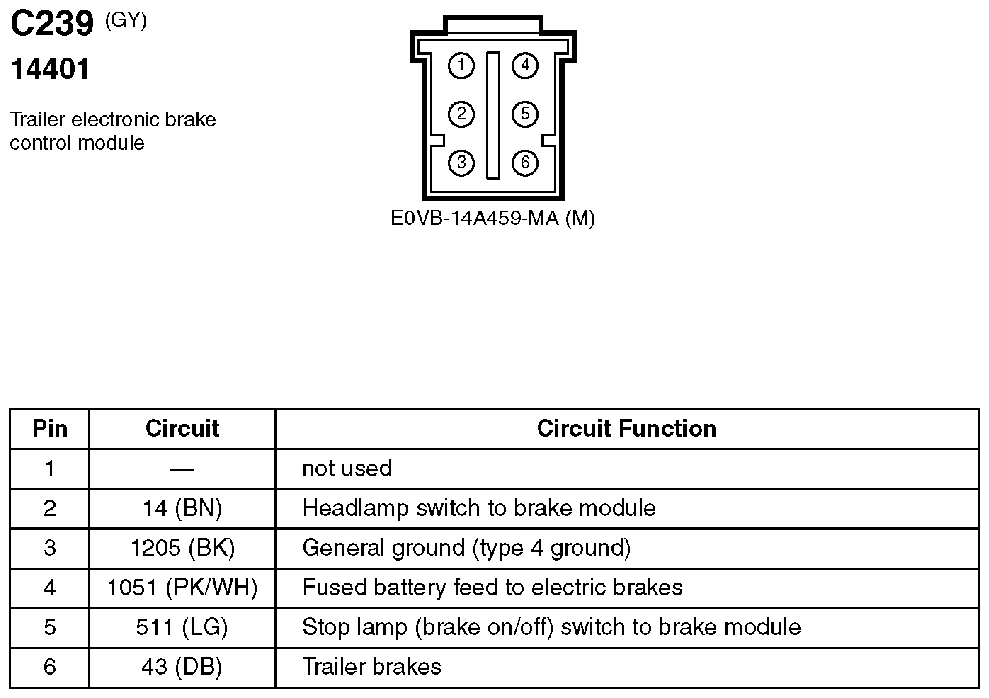

Fig 83: Trailer Electronic Brake Control Module Connector End View (C239)
Courtesy of FORD MOTOR CO.

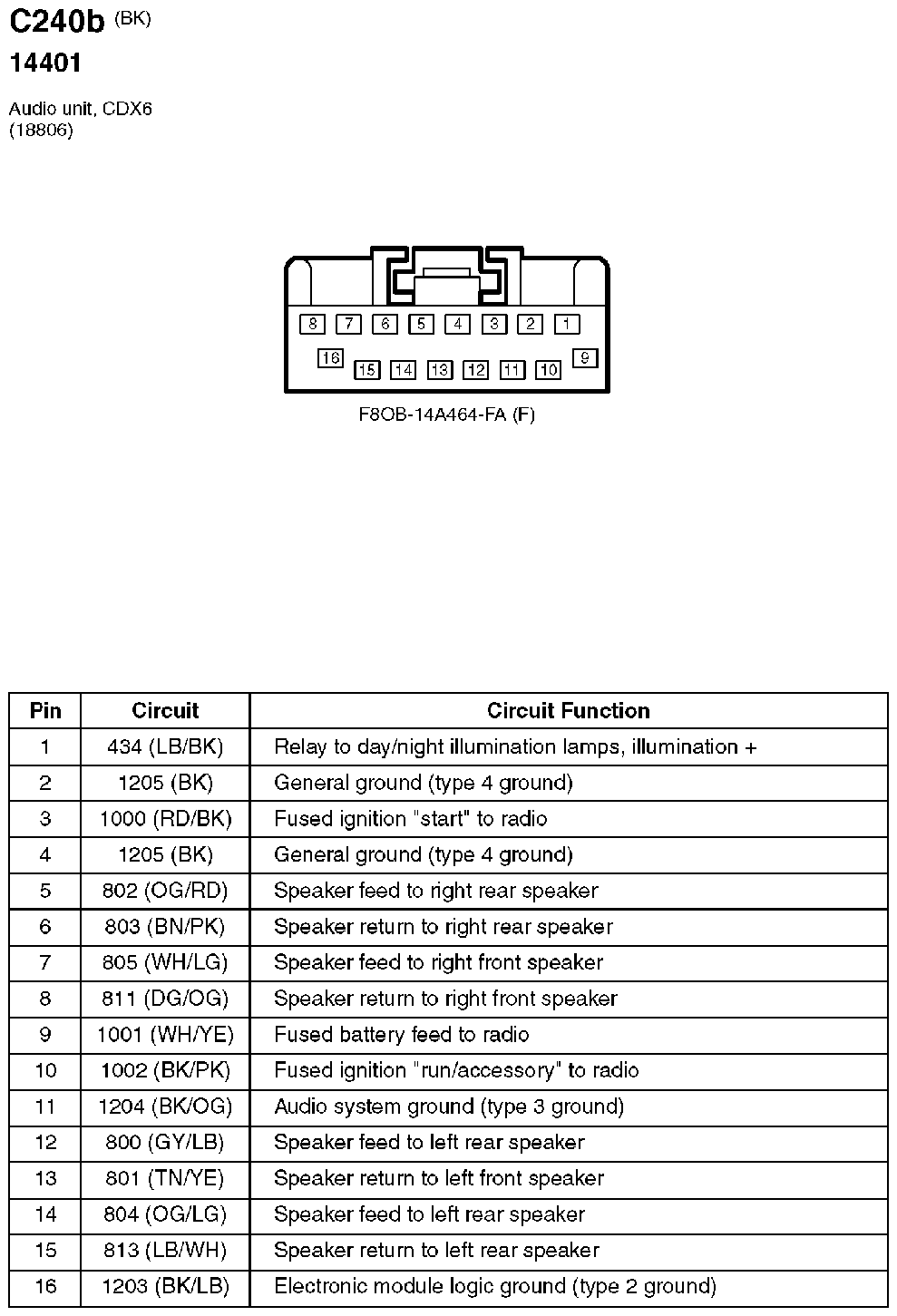

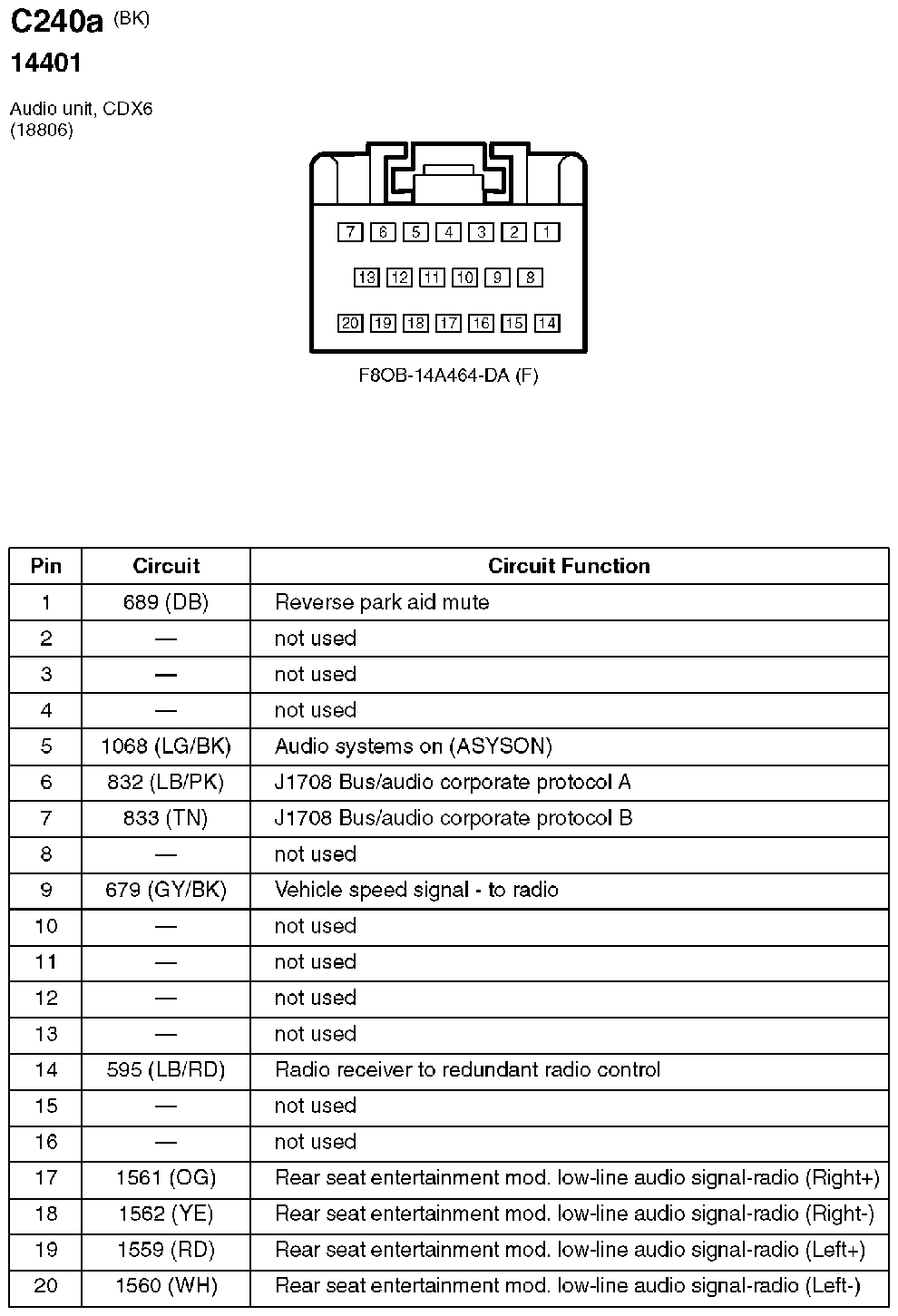

Fig 84: Audio Unit, CDx6 Connector End View (C240a)
Courtesy of FORD MOTOR CO.
Fig 85: Audio Unit, CDx6 Connector End View (C240b)
Courtesy of FORD MOTOR CO.

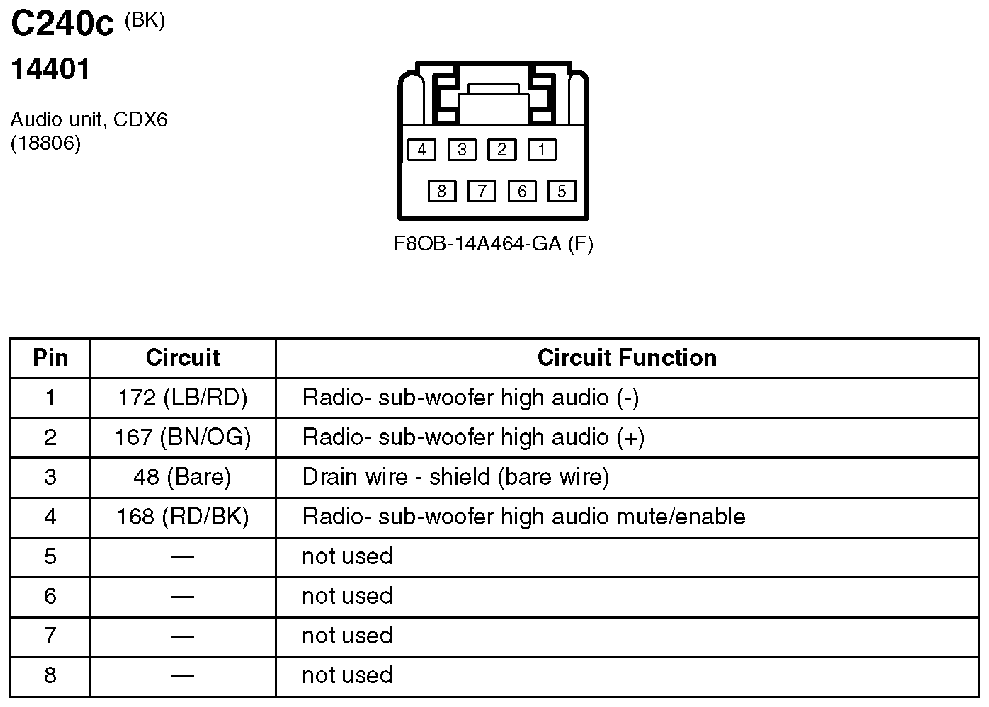

Fig 86: Audio Unit, CDx6 Connector End View (C240c)
Courtesy of FORD MOTOR CO.

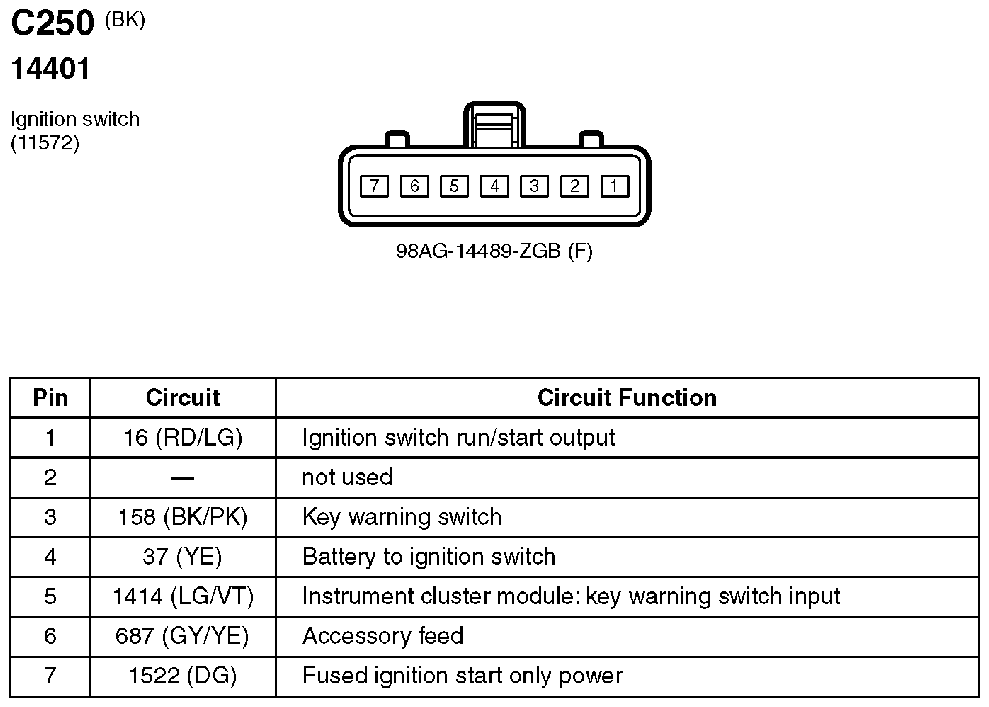

Fig 87: Ignition Switch Connector End View (C250)
Courtesy of FORD MOTOR CO.

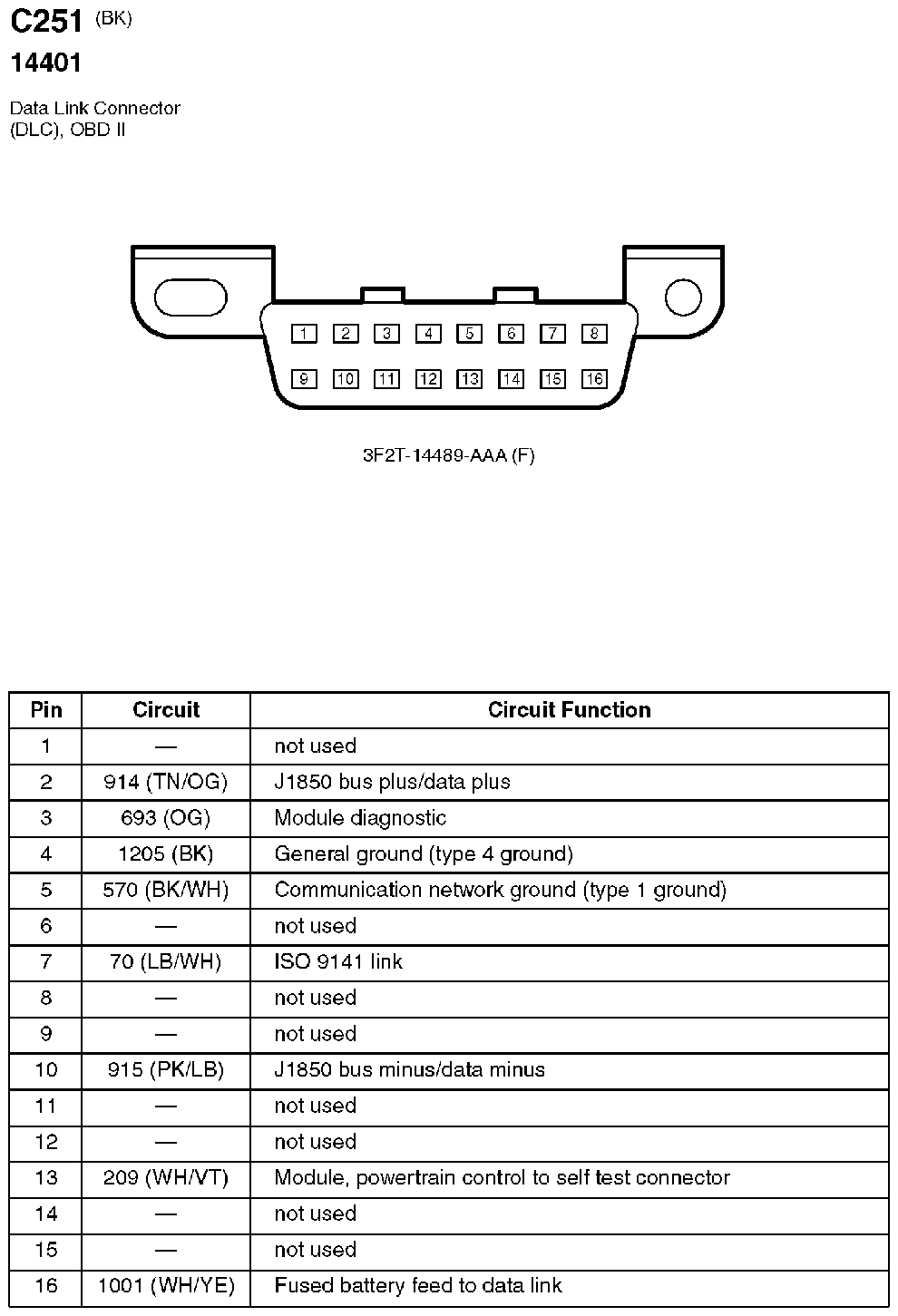

Fig 88: Data Link Connector (DLC), OBD II Connector End View (C251)
Courtesy of FORD MOTOR CO.

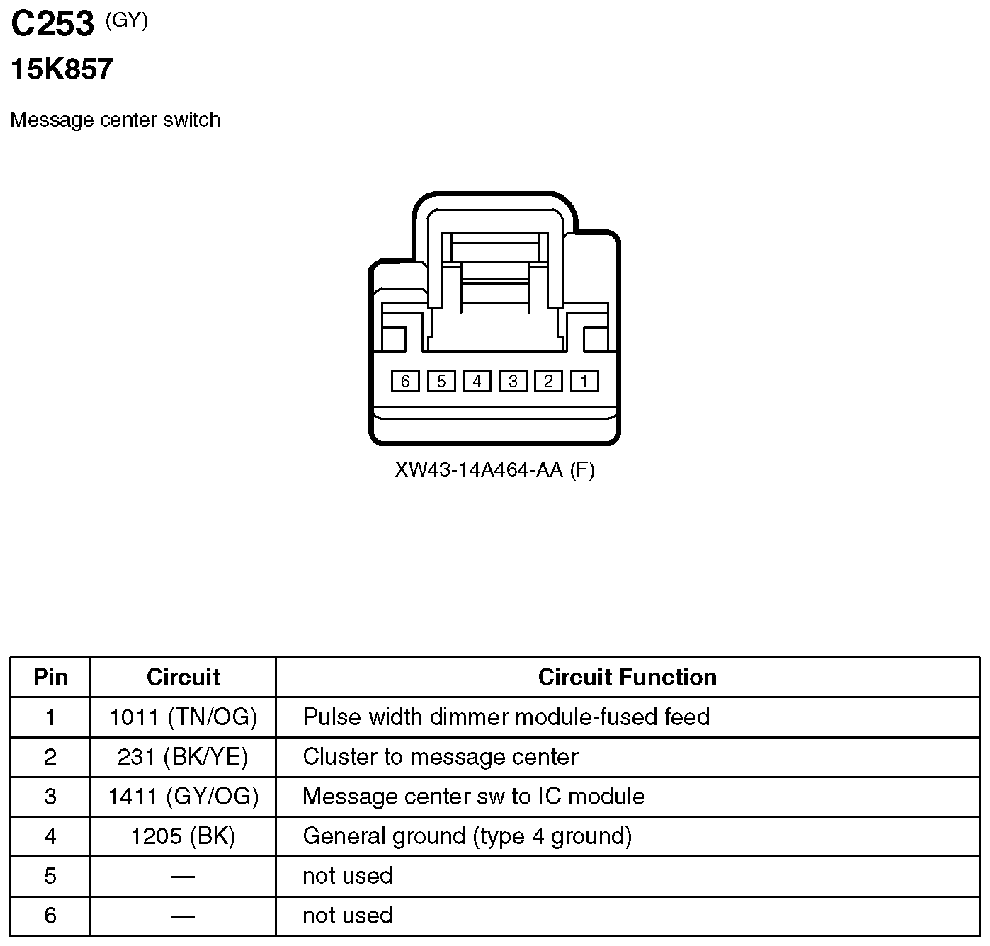

Fig 89: Message Center Switch Connector End View (C253)
Courtesy of FORD MOTOR CO.

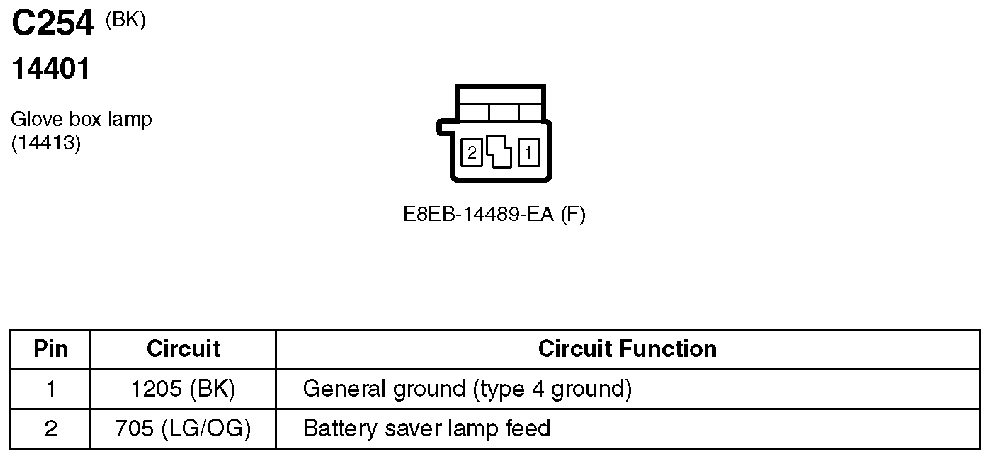

Fig 90: Glove Box Lamp Connector End View (C254)
Courtesy of FORD MOTOR CO.

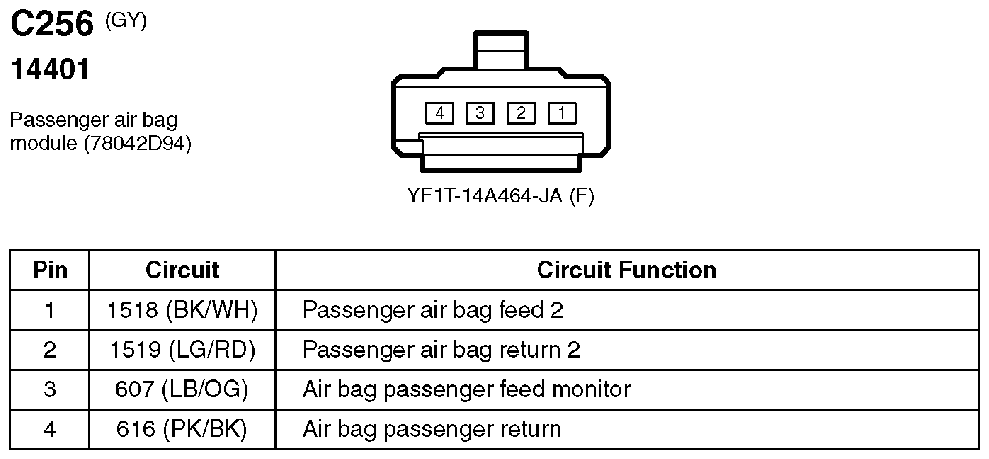

Fig 91: Passenger Air Bag Module Connector End View (C256)
Courtesy of FORD MOTOR CO.

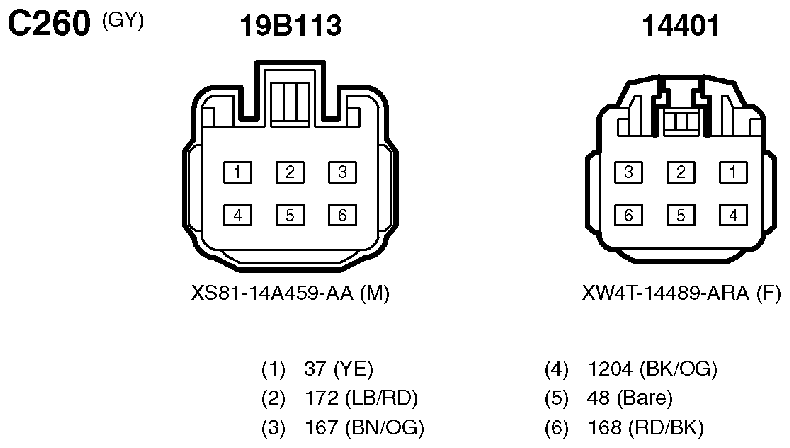

Fig 92: Inline Connector End View (C260)
Courtesy of FORD MOTOR CO.

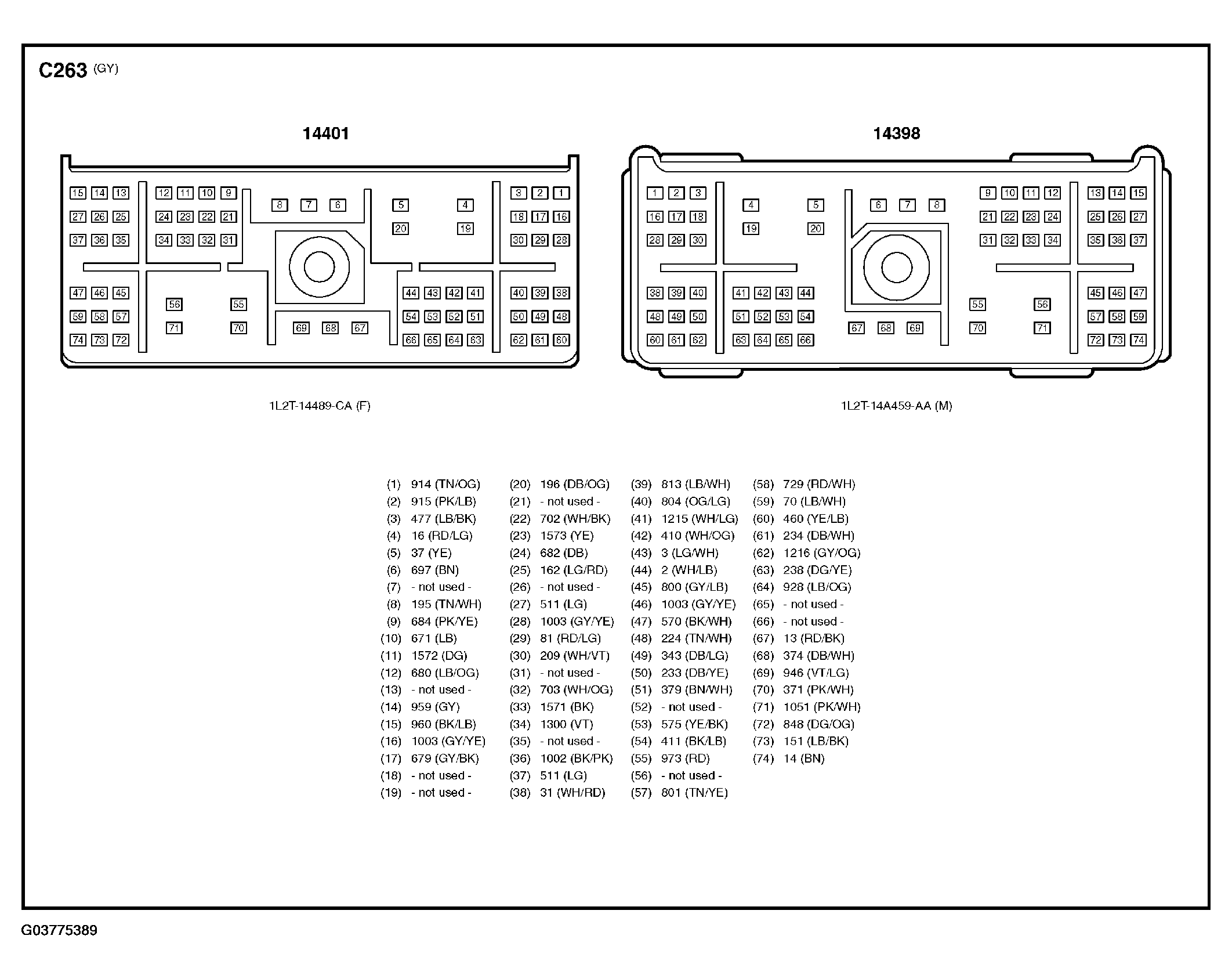

Fig 93: Inline Connector End View (C263)
Courtesy of FORD MOTOR CO.
Fig 94: Inline Connector End View (C264)
Courtesy of FORD MOTOR CO.

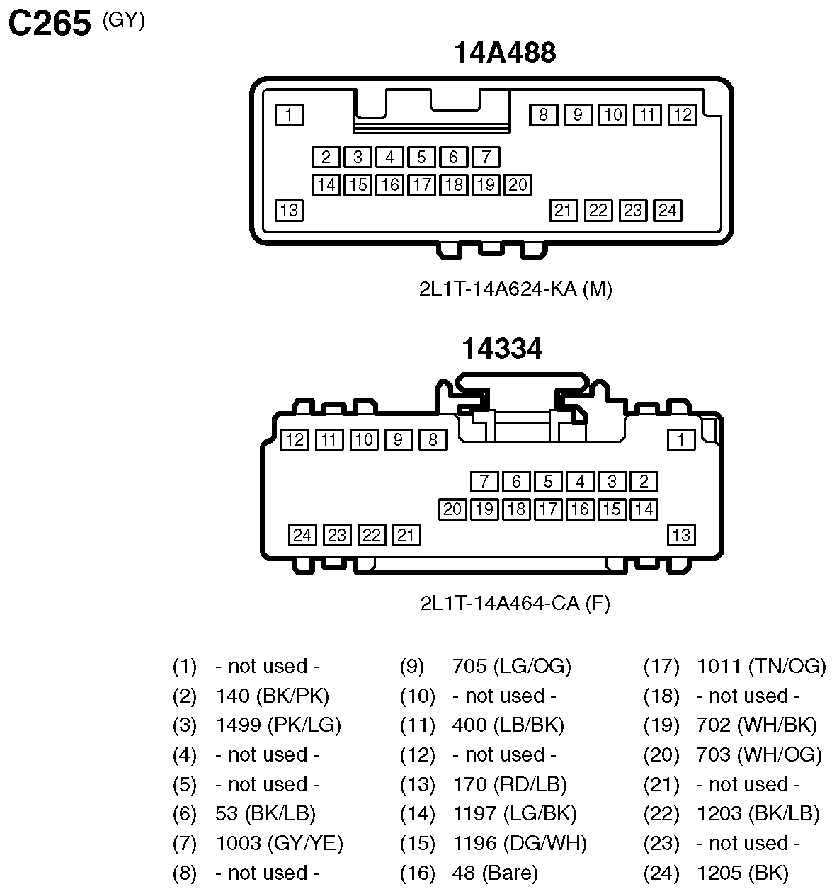

Fig 95: Inline Connector End View (C265)
Courtesy of FORD MOTOR CO.

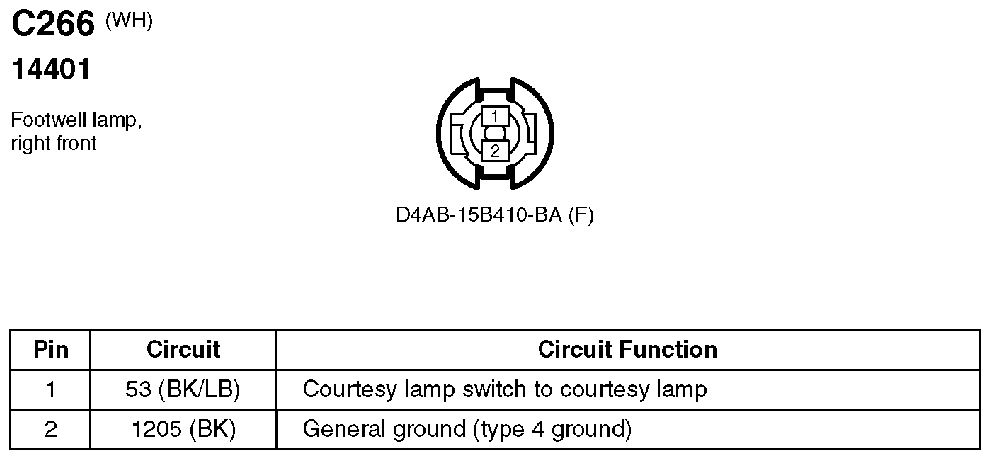

Fig 96: Footwell Lamp, Right Front Connector End View (C266)
Courtesy of FORD MOTOR CO.

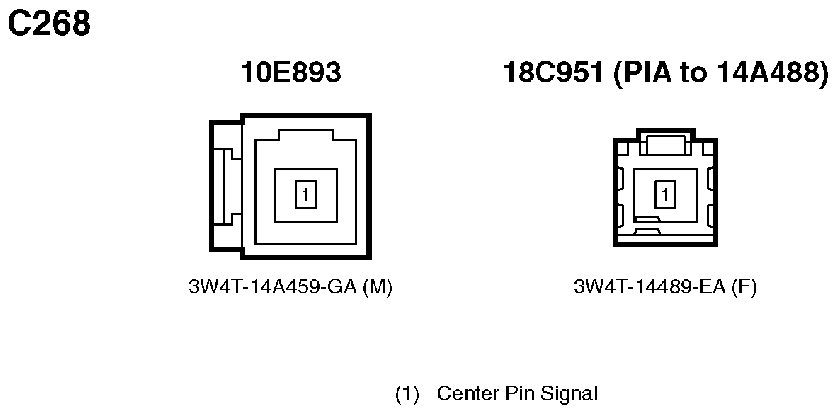

Fig 97: Inline Connector End View (C268)
Courtesy of FORD MOTOR CO.

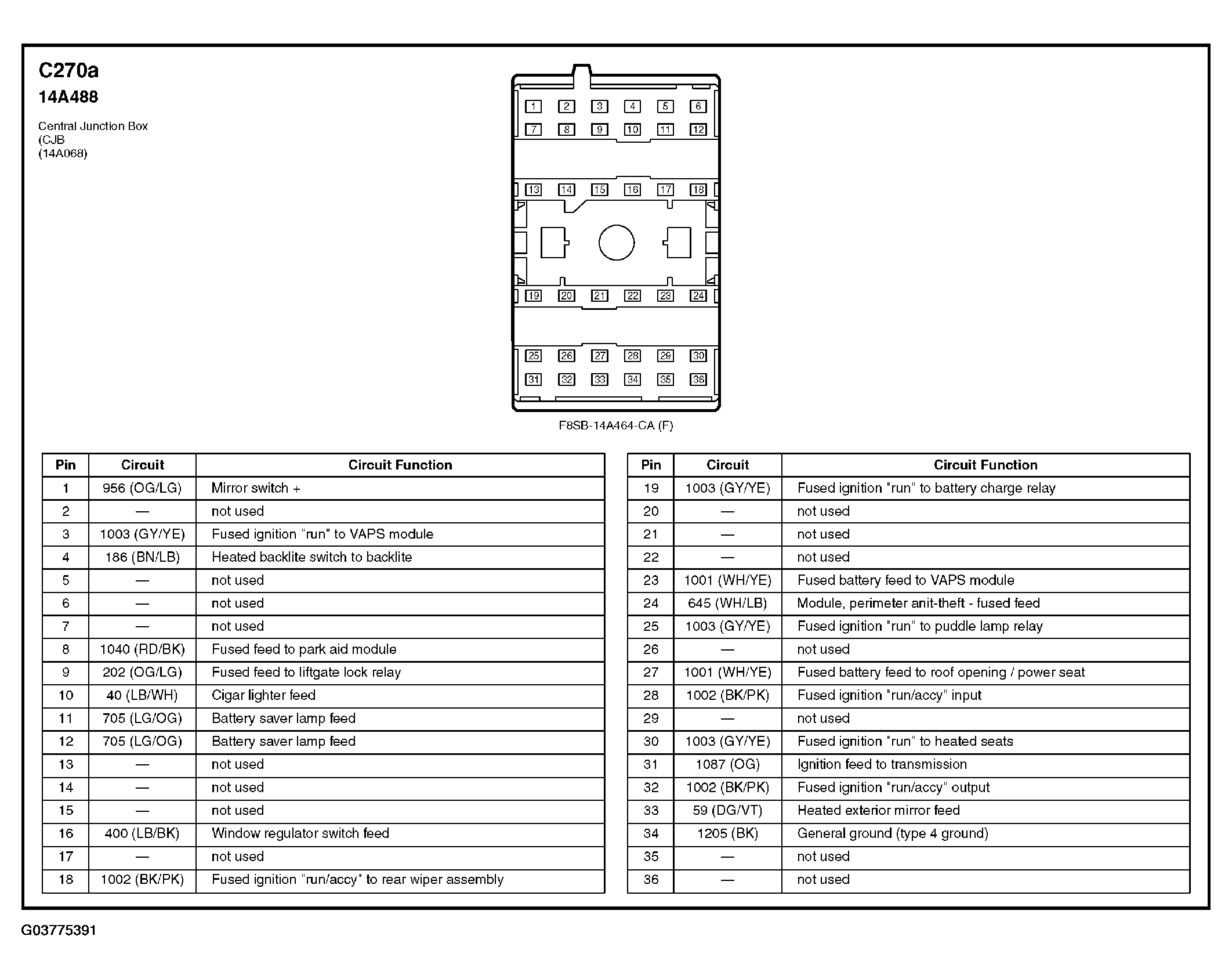

Fig 98: Central Junction Box (CJB) Connector End View (C270a)
Courtesy of FORD MOTOR CO.

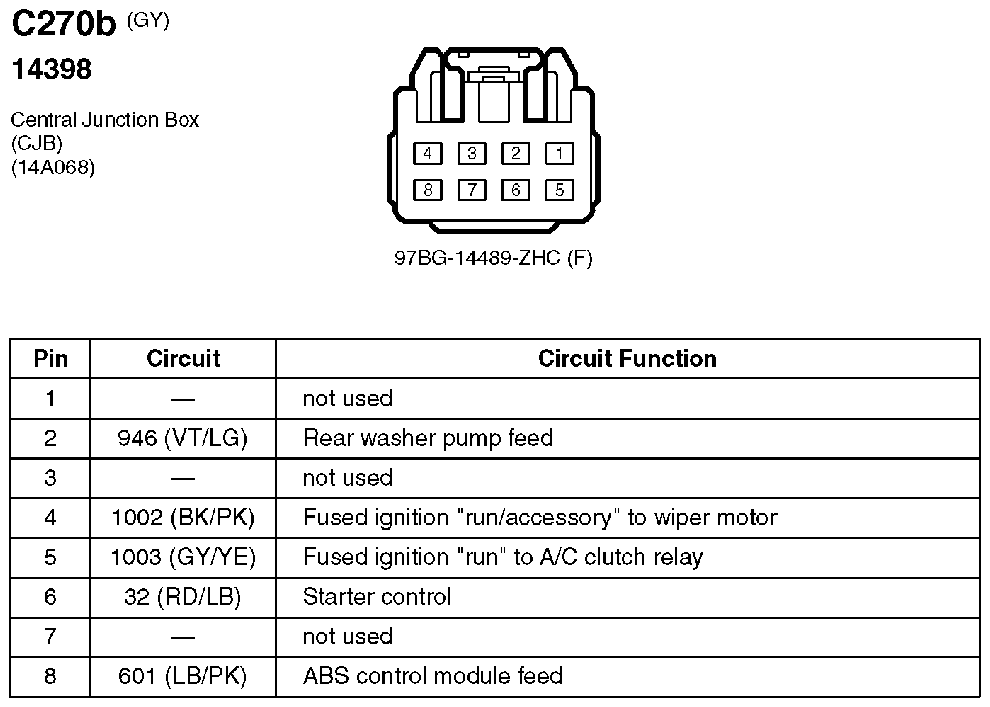

Fig 99: Central Junction Box (CJB) Connector End View (C270b)
Courtesy of FORD MOTOR CO.

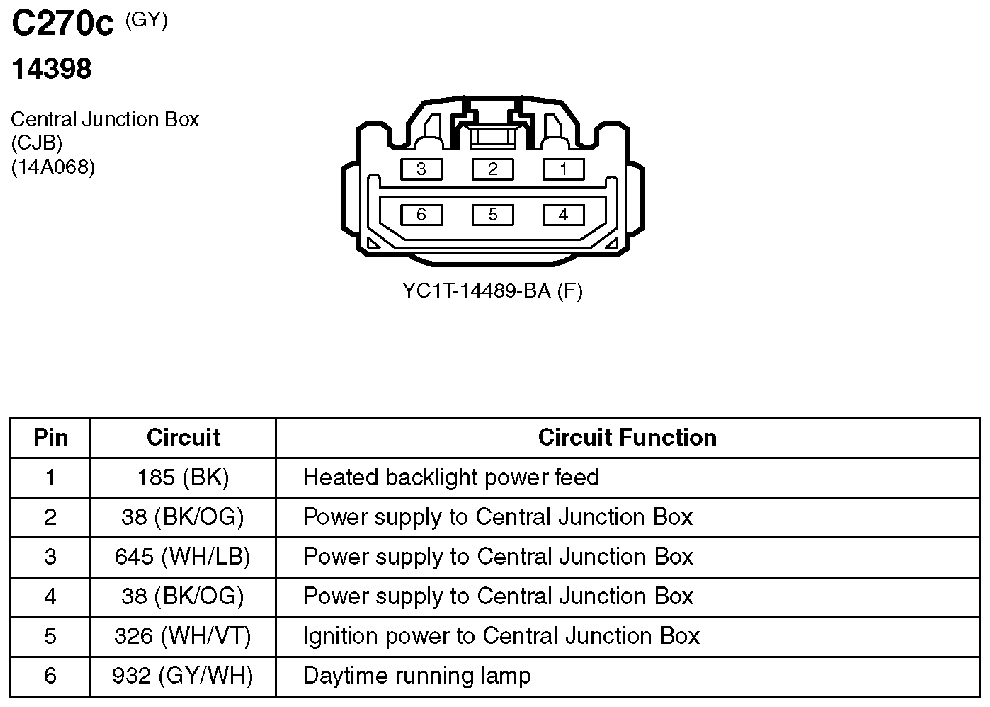

Fig 100: Central Junction Box (CJB) Connector End View (C270c)
Courtesy of FORD MOTOR CO.
Fig 101: Central Junction Box (CJB) Connector End View (C270d)
Courtesy of FORD MOTOR CO.
Fig 102: Central Junction Box (CJB) Connector End View (C270e)
Courtesy of FORD MOTOR CO.

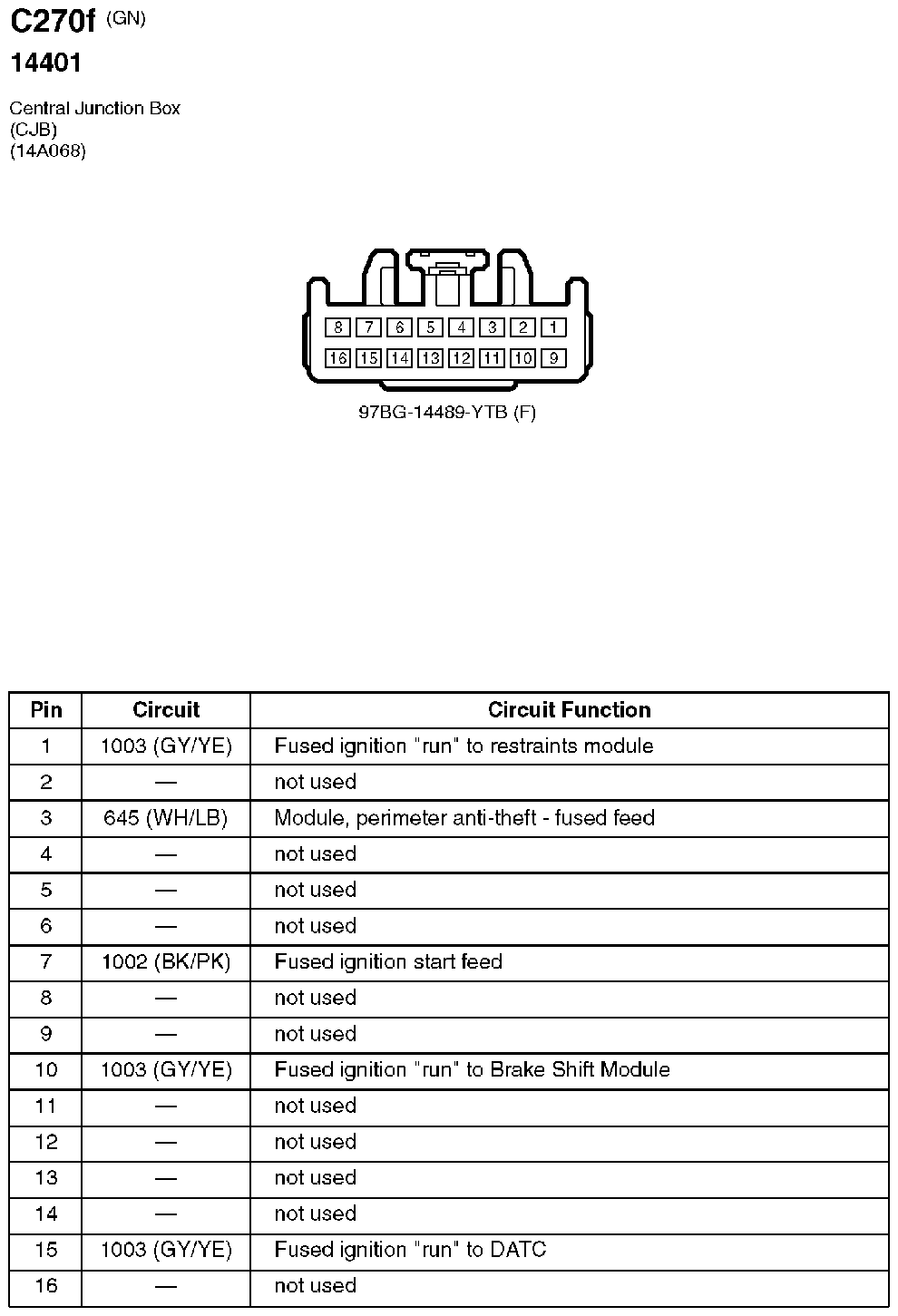

Fig 103: Central Junction Box (CJB) Connector End View (C270f)
Courtesy of FORD MOTOR CO.

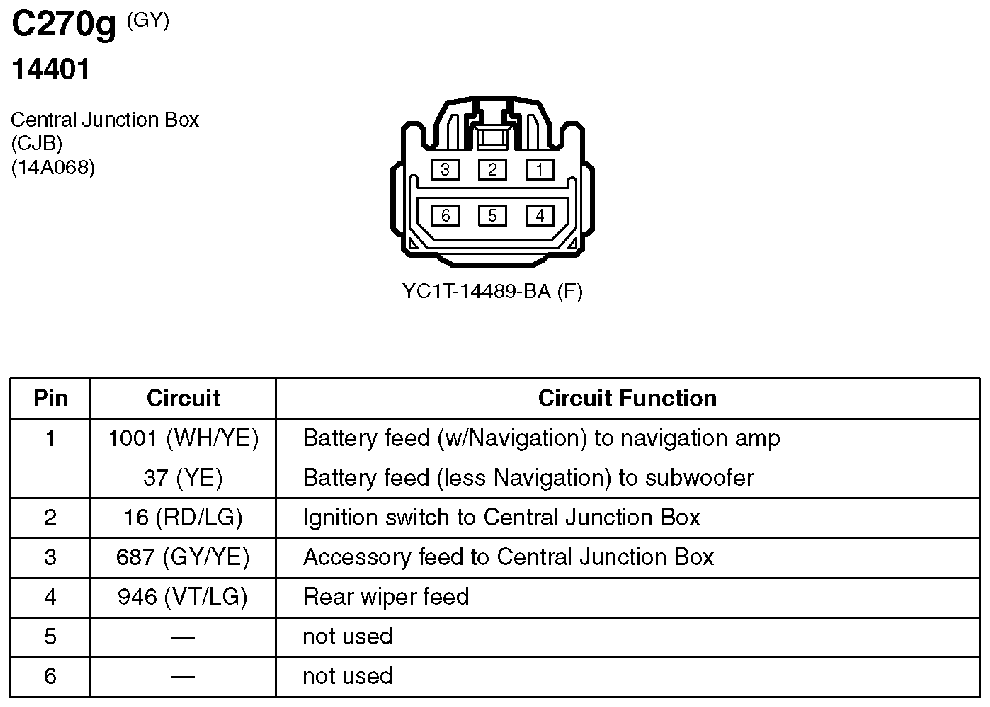

Fig 104: Central Junction Box (CJB) Connector End View (C270g)
Courtesy of FORD MOTOR CO.

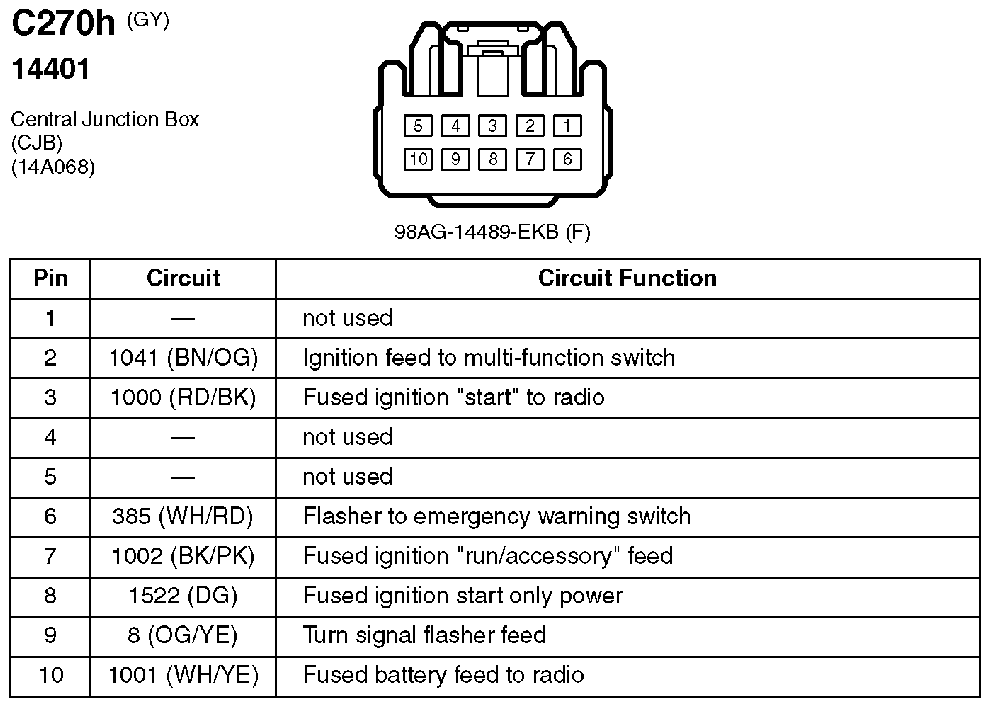

Fig 105: Central Junction Box (CJB) Connector End View (C270h)
Courtesy of FORD MOTOR CO.

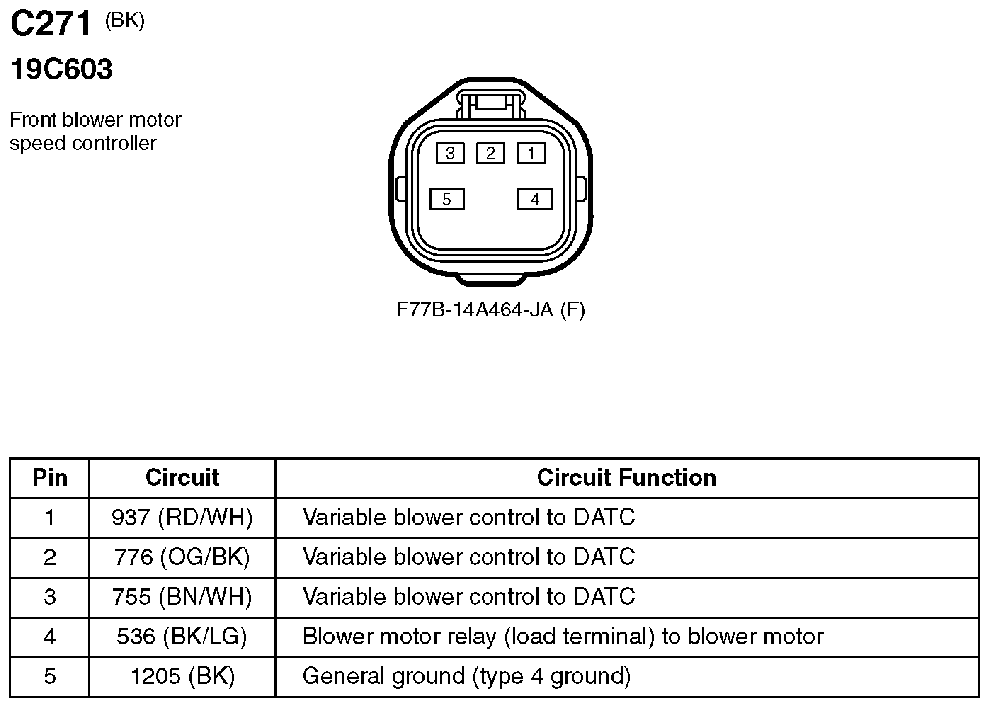

Fig 106: Front Blower Motor Speed Controller Connector End View (C271)
Courtesy of FORD MOTOR CO.

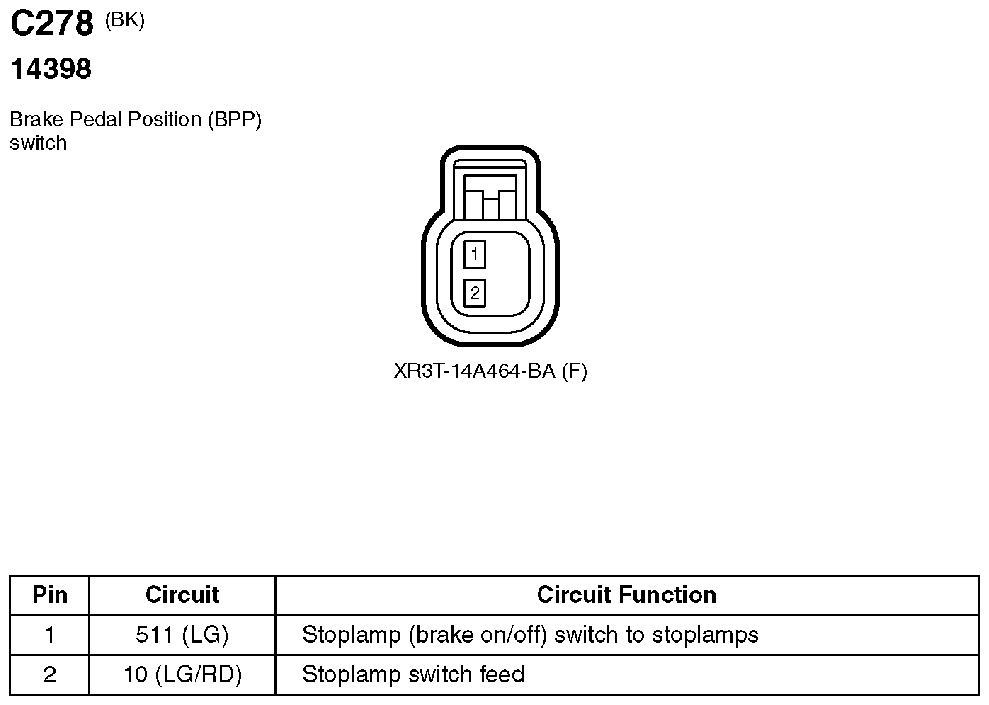

Fig 107: Brake Pedal Position (BPP) Switch Connector End View (C278)
Courtesy of FORD MOTOR CO.

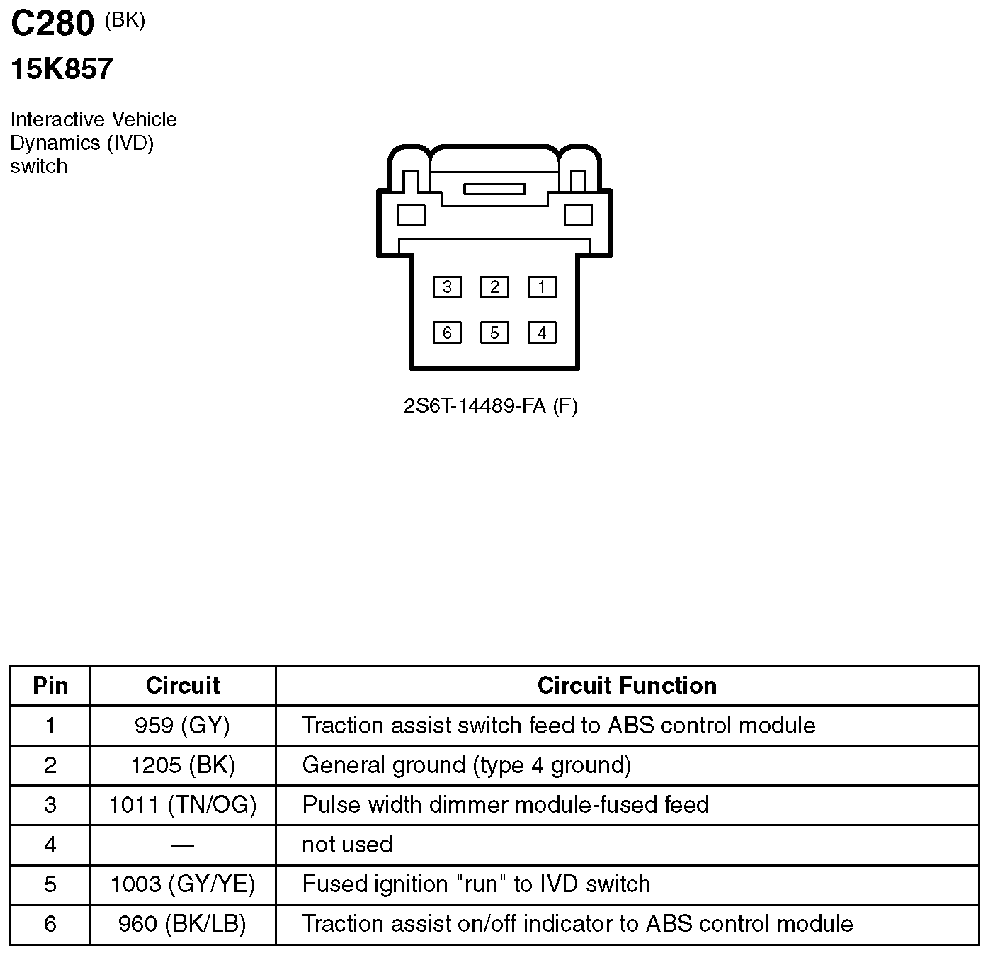

Fig 108: Interactive Vehicle Dynamics (IVD) Switch Connector End View (C280)
Courtesy of FORD MOTOR CO.

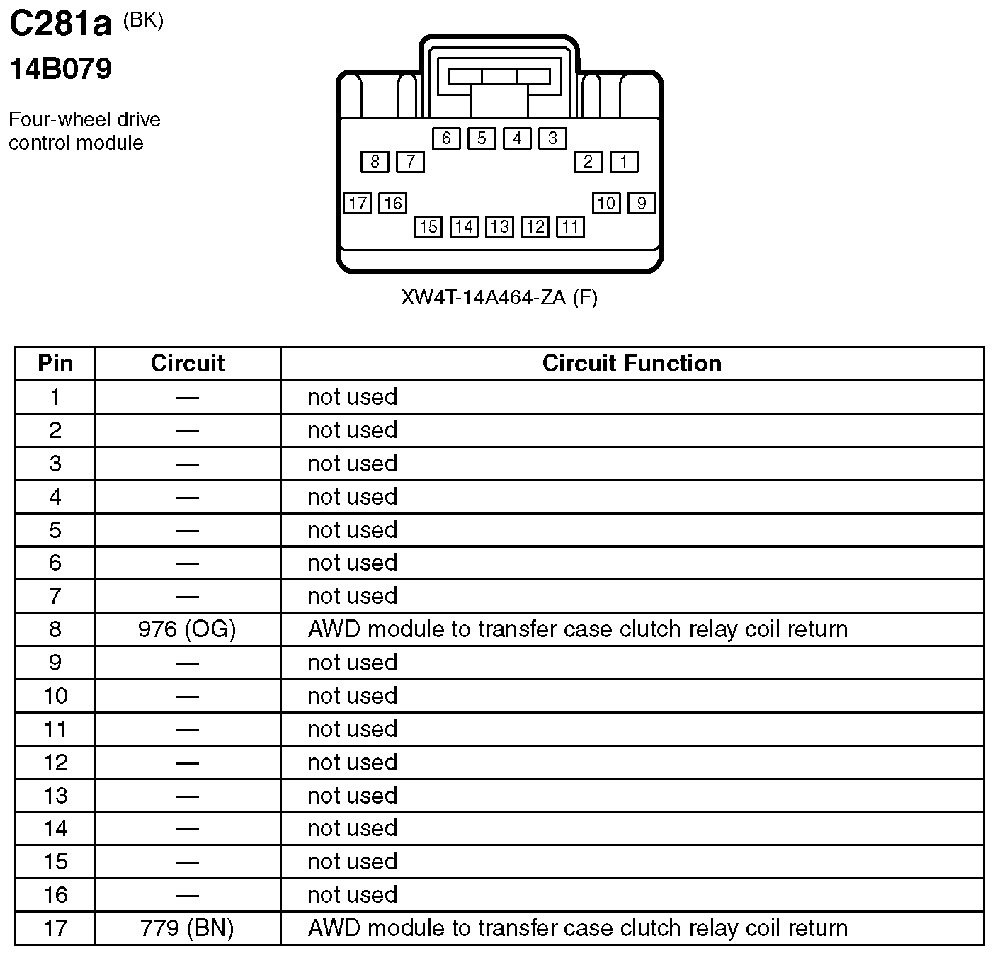

Fig 109: Four-Wheel Drive Control Module Connector End View (C281a)
Courtesy of FORD MOTOR CO.

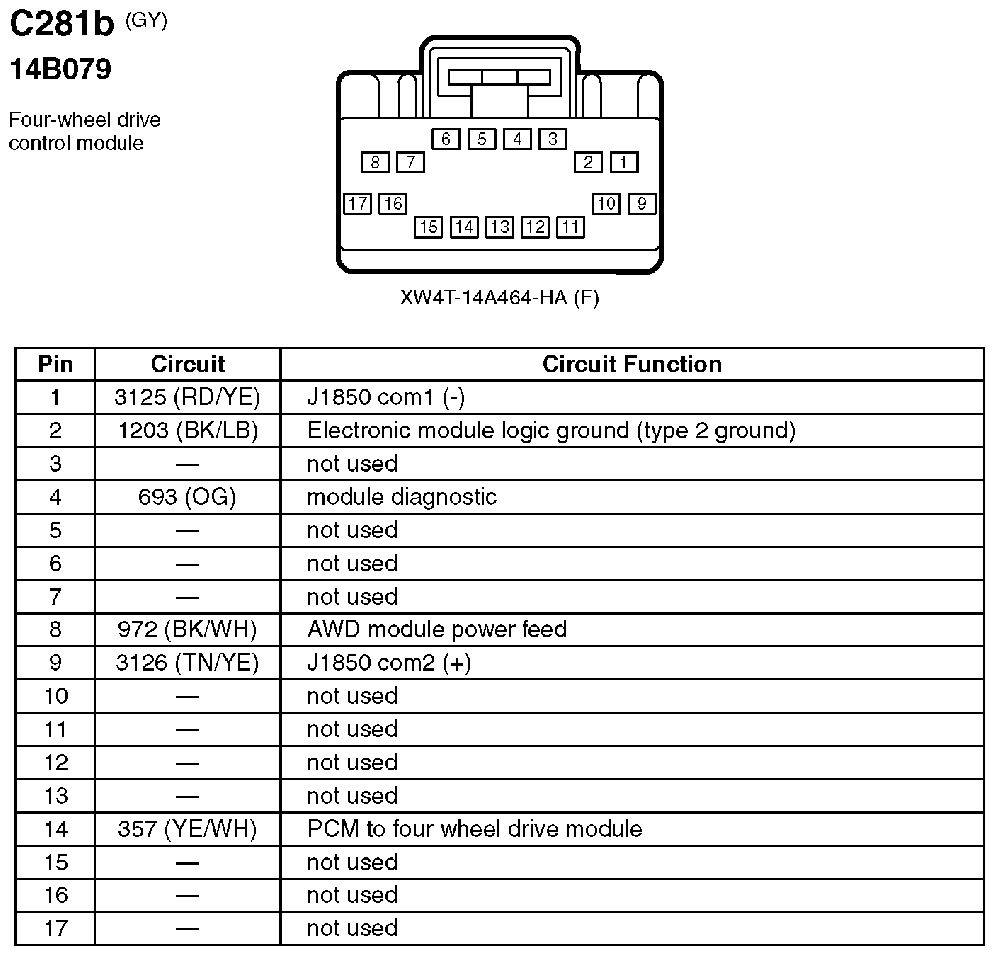

Fig 110: Four-Wheel Drive Control Module Connector End View (C281b)
Courtesy of FORD MOTOR CO.

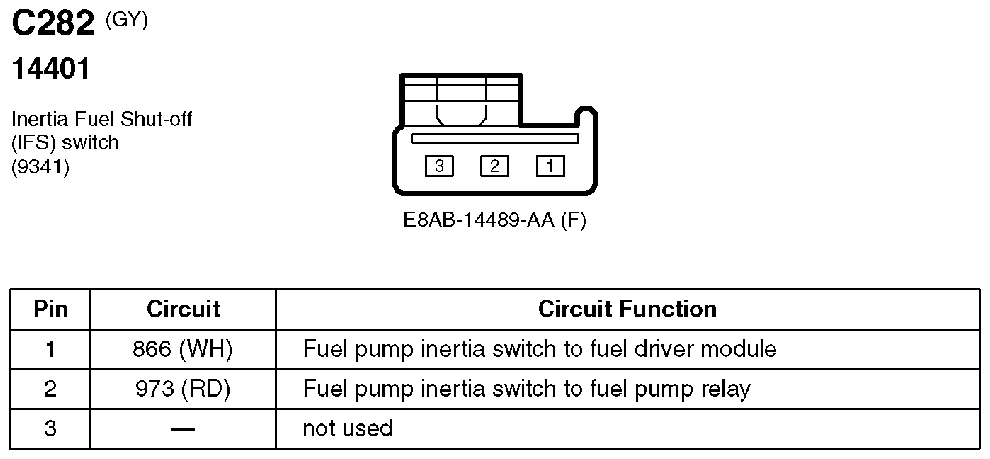

Fig 111: Inertia Fuel Shutoff (IFS) Switch Connector End View (C282)
Courtesy of FORD MOTOR CO.

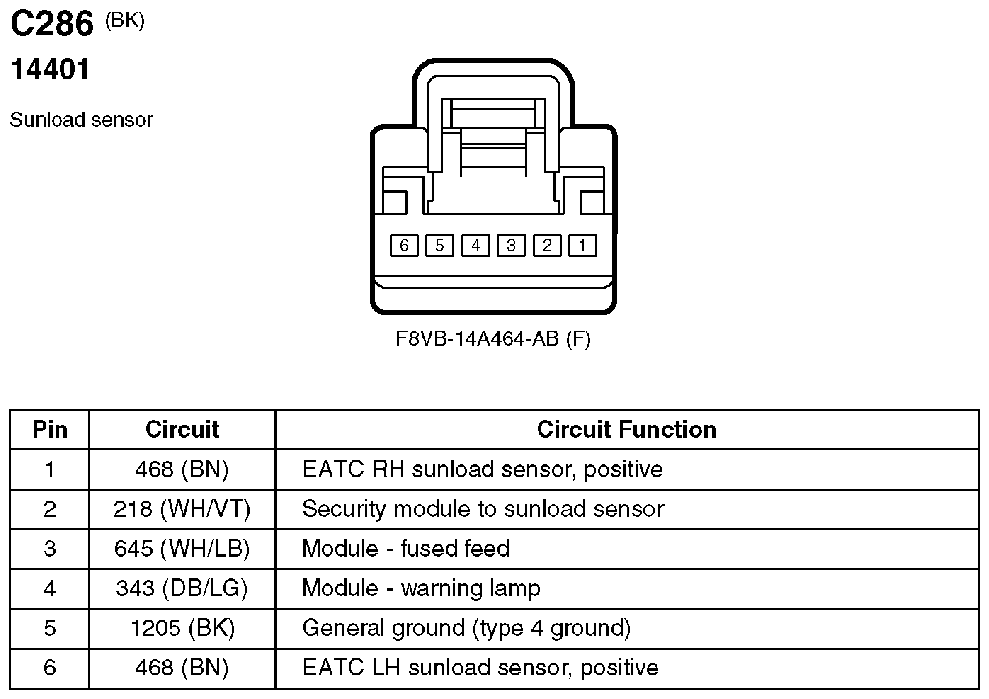

Fig 112: Sunload Sensor Connector End View (C286)
Courtesy of FORD MOTOR CO.

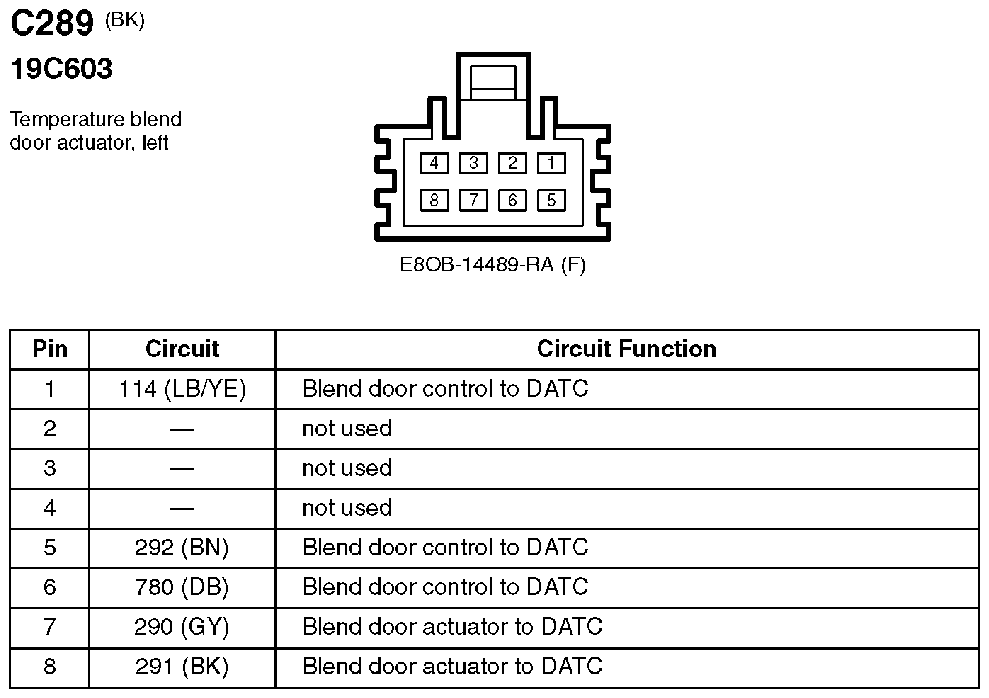

Fig 113: Temperature Blend Door Actuator, Left Connector End View (C289)
Courtesy of FORD MOTOR CO.

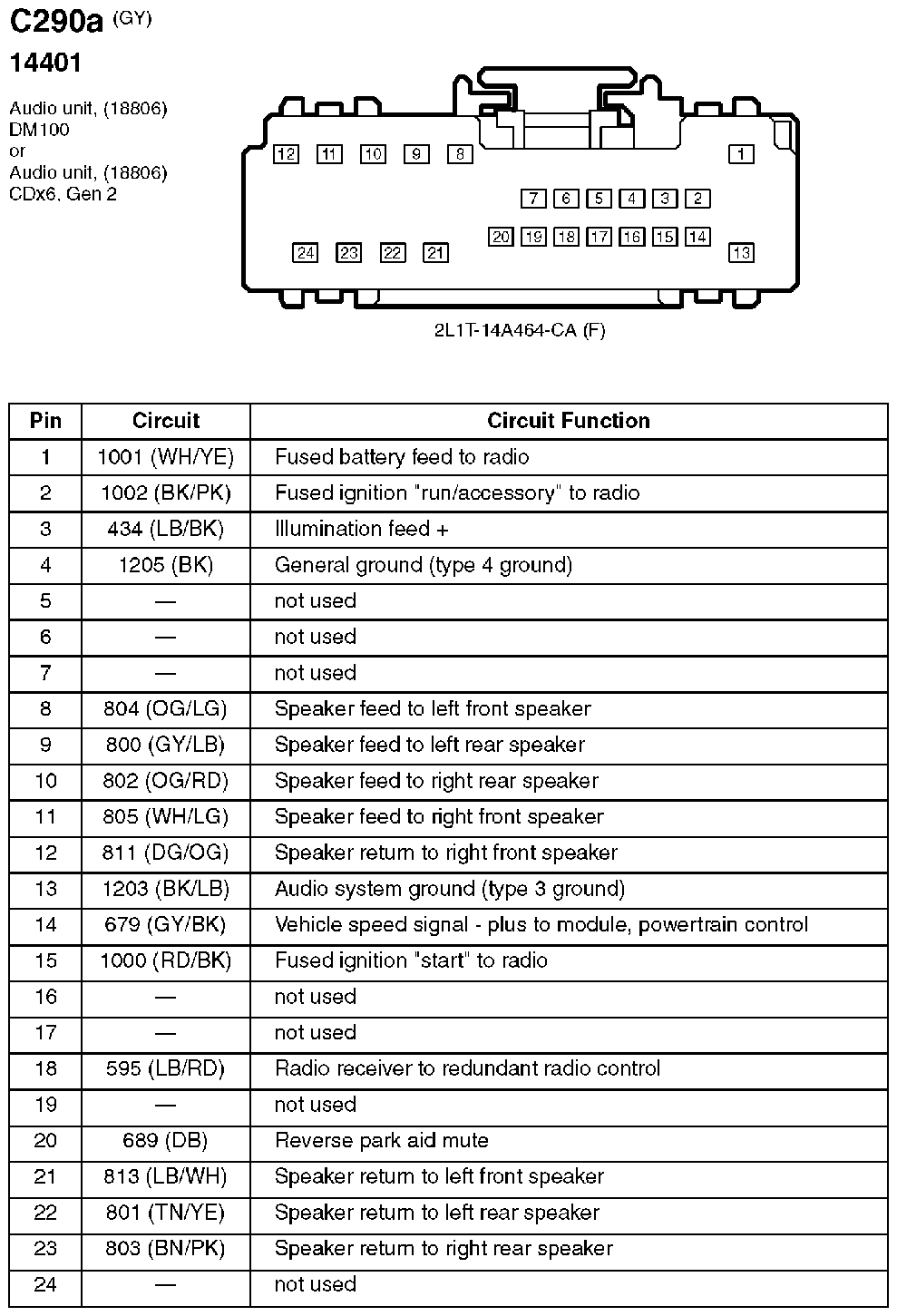

Fig 114: Audio Unit, (18806) DM 100 Or Audio Unit, (18806) CDx6, Gen 2 Connector End View (C290a)
Courtesy of FORD MOTOR CO.

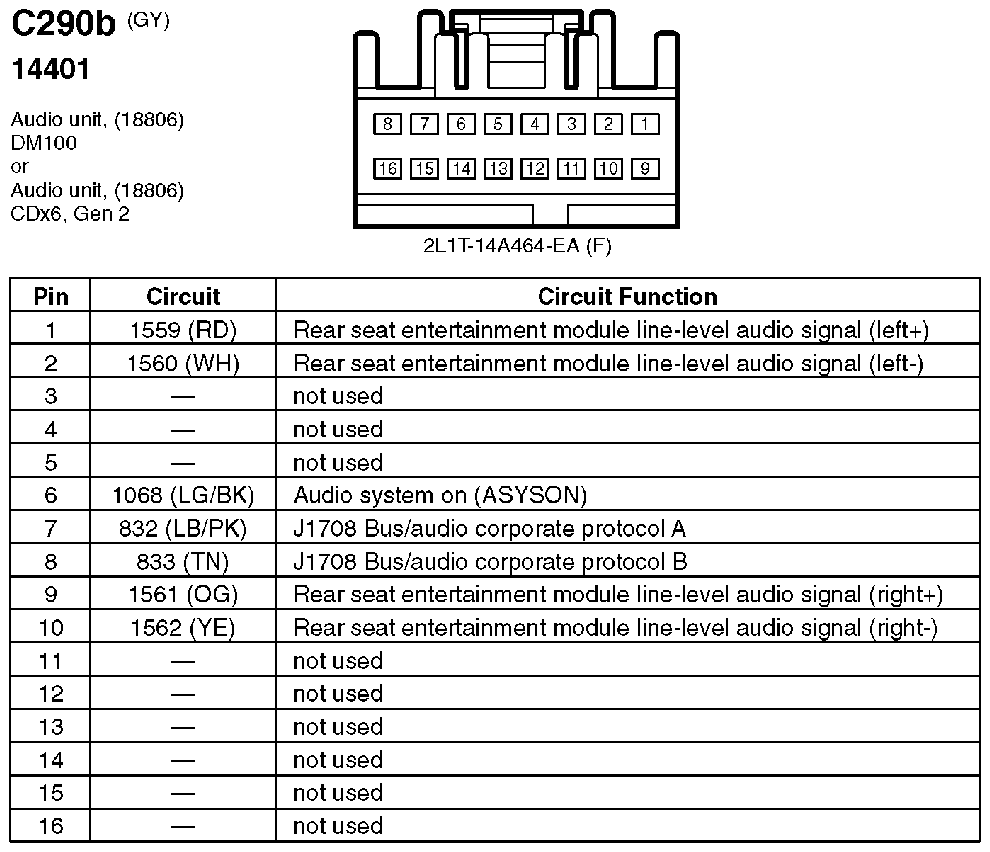

Fig 115: Audio Unit, (18806) DM 100 Or Audio Unit, (18806) CDx6, Gen 2 Connector End View (C290b)
Courtesy of FORD MOTOR CO.

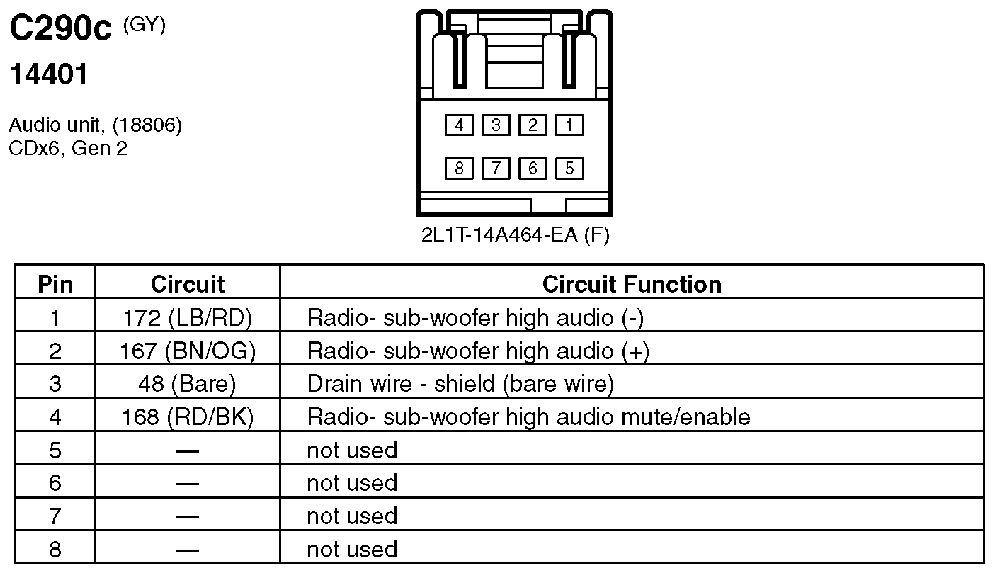

Fig 116: Audio Unit, (18806) CDx6, Gen 2 Connector End View (C290c)
Courtesy of FORD MOTOR CO.

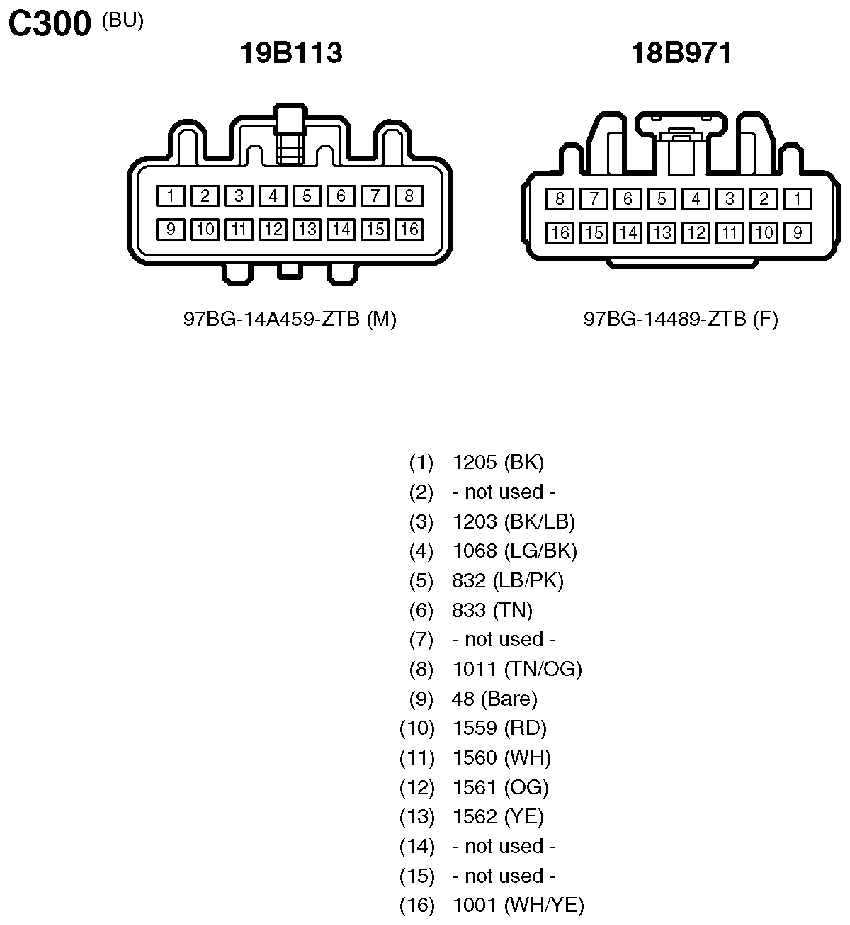

Fig 117: Inline Connector End View (C300)
Courtesy of FORD MOTOR CO.

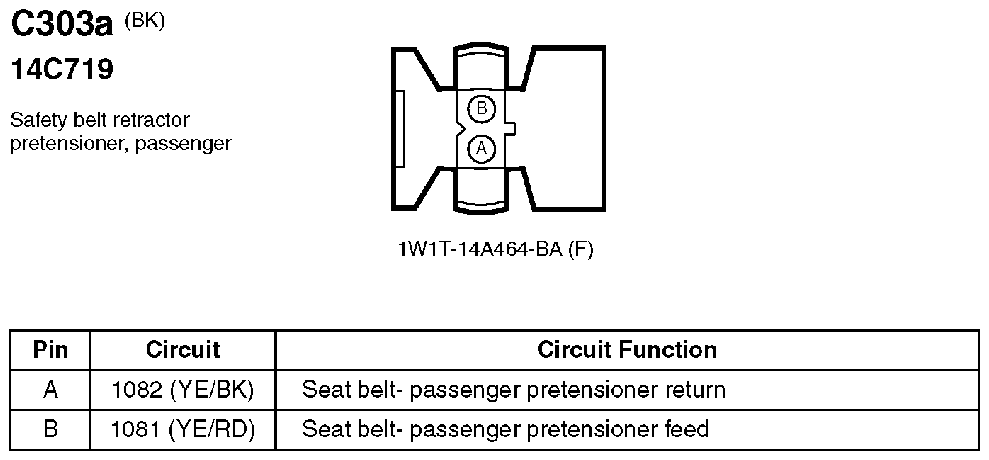

Fig 118: Safety Belt Retractor Pretensioner, Passenger Connector End View (C303a)
Courtesy of FORD MOTOR CO.

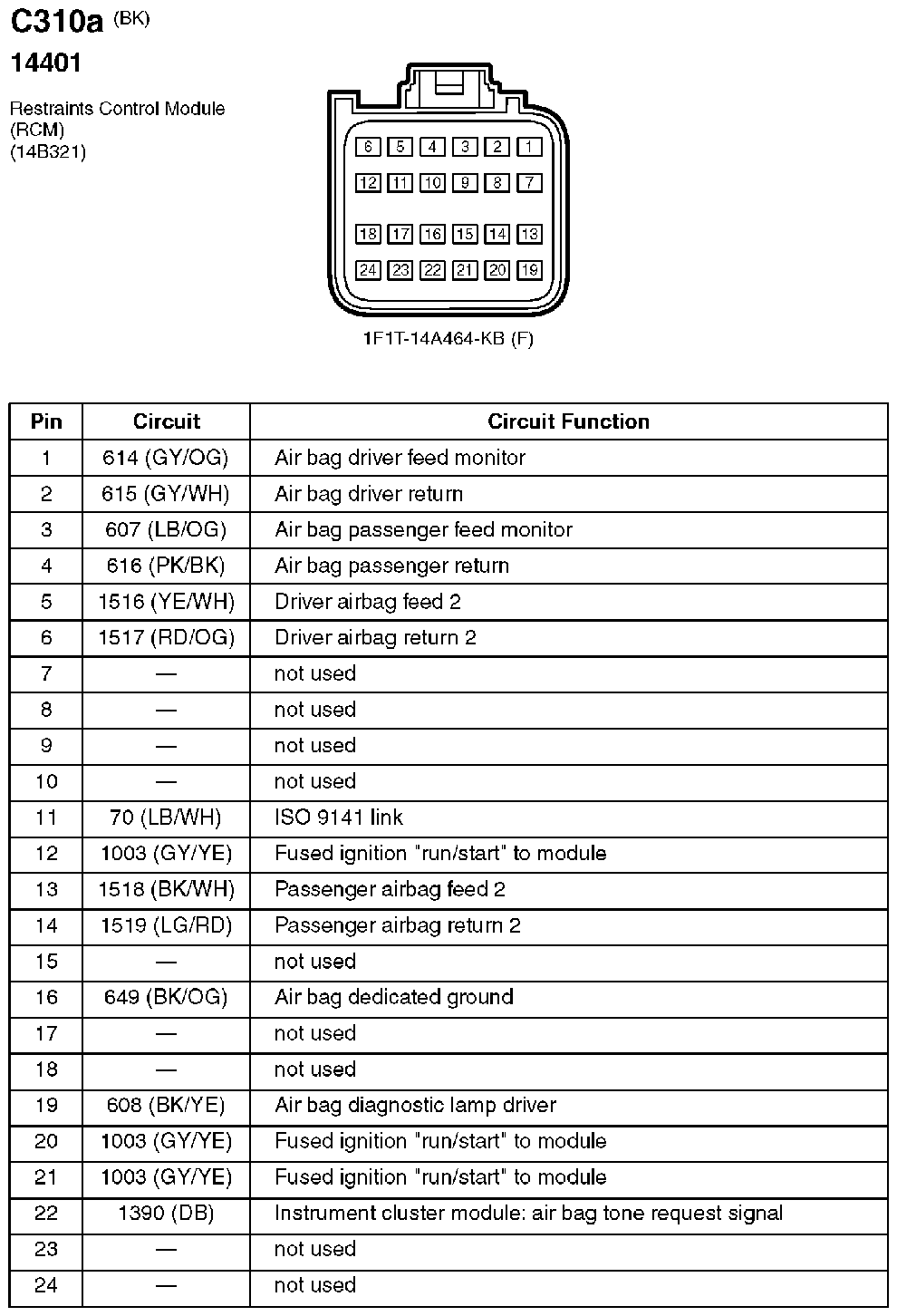

Fig 119: Restraints Control Module (RCM) Connector End View (C310a)
Courtesy of FORD MOTOR CO.

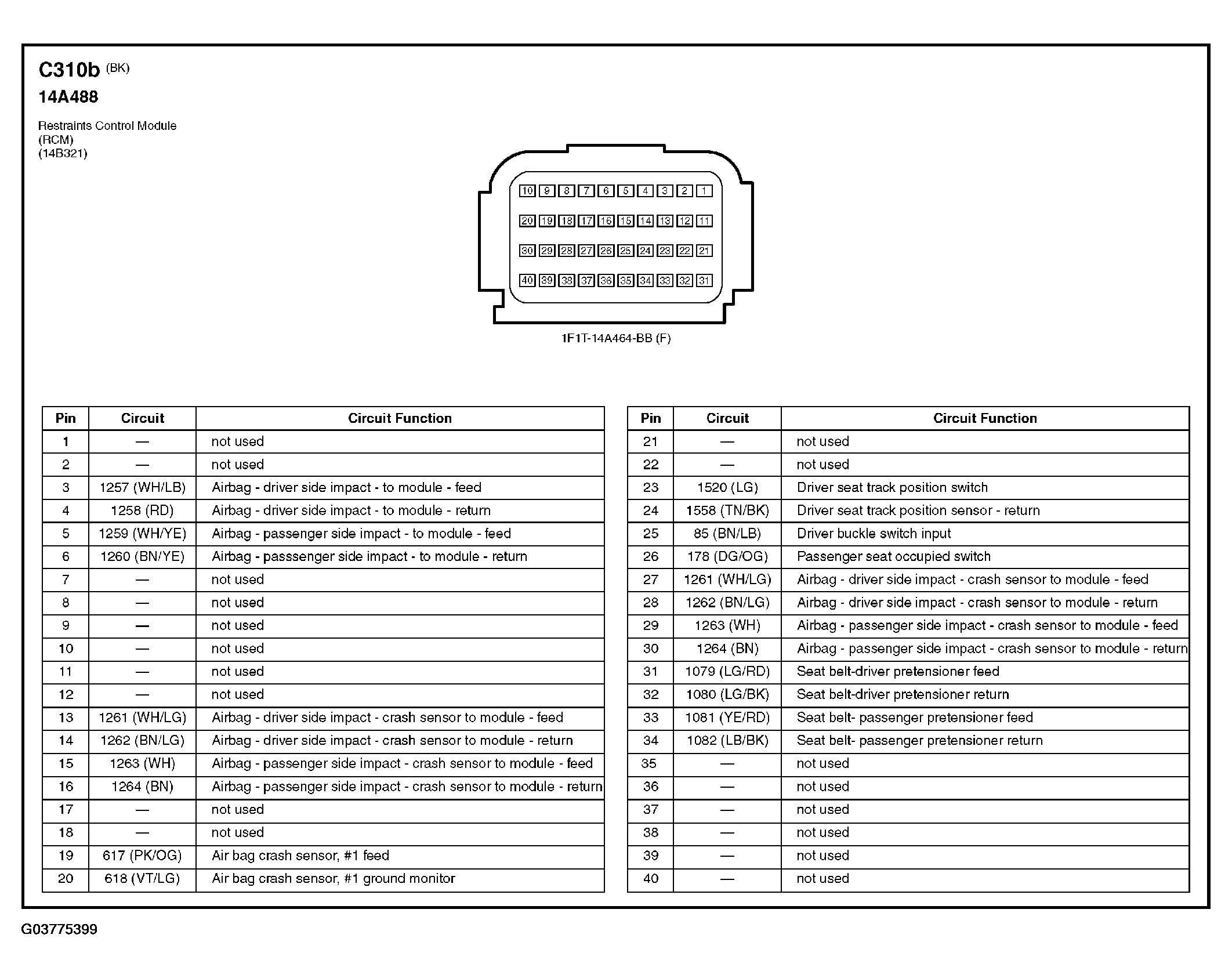

Fig 120: Restraints Control Module (RCM) Connector End View (C310b)
Courtesy of FORD MOTOR CO.

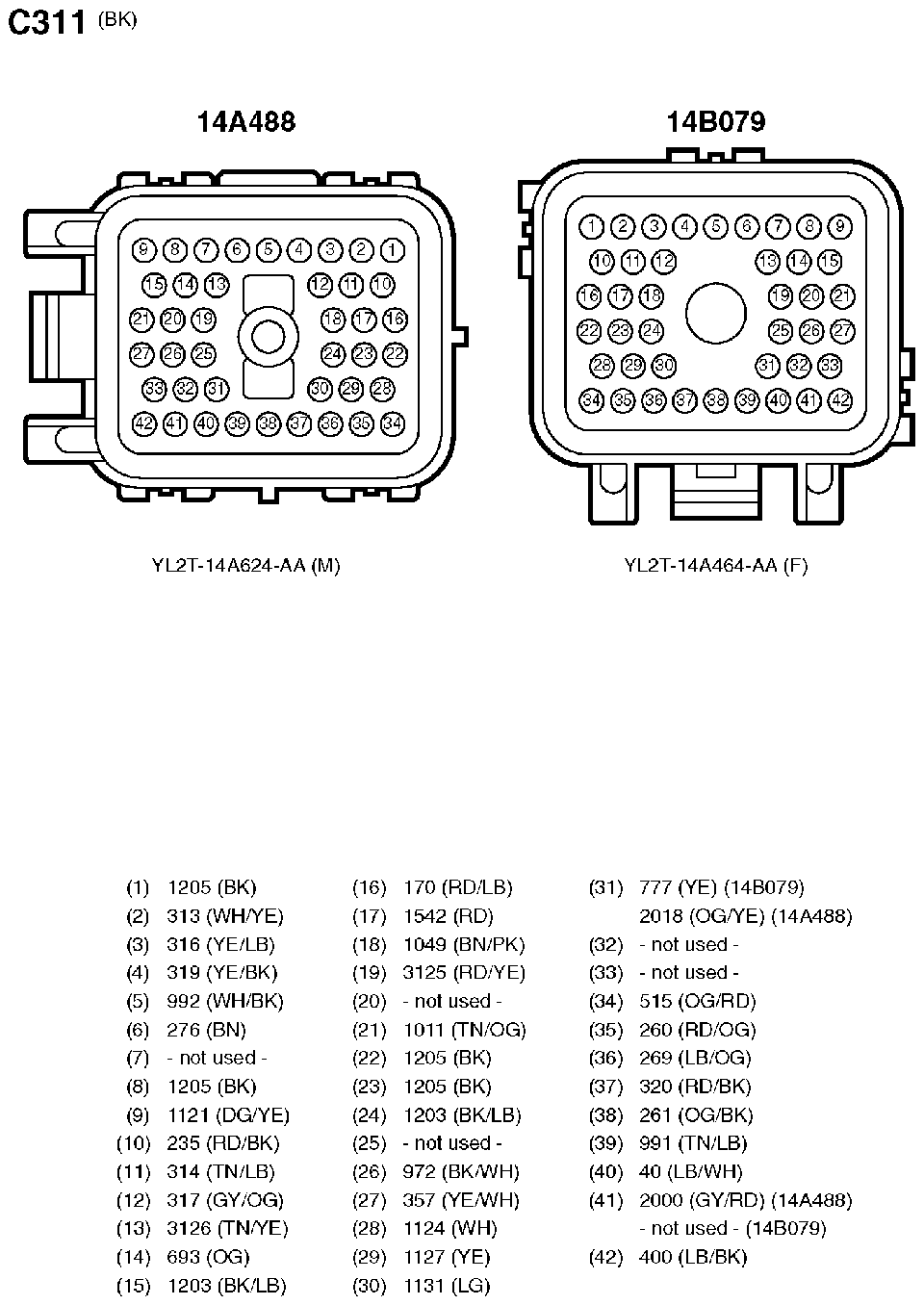

Fig 121: Inline Connector End View (C311)
Courtesy of FORD MOTOR CO.

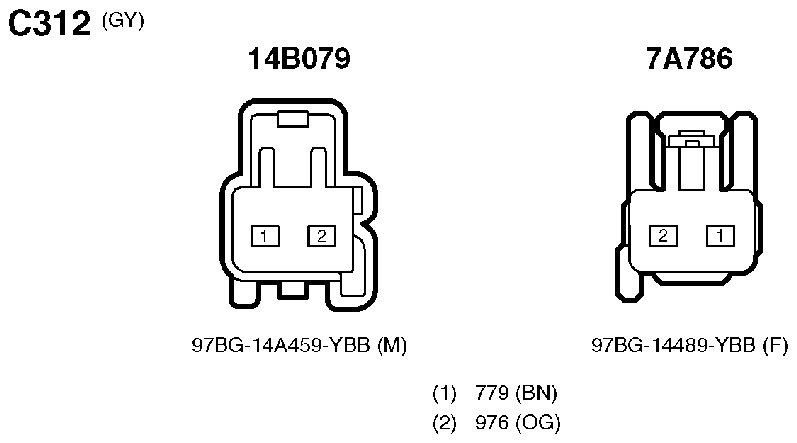

Fig 122: Inline Connector End View (C312)
Courtesy of FORD MOTOR CO.

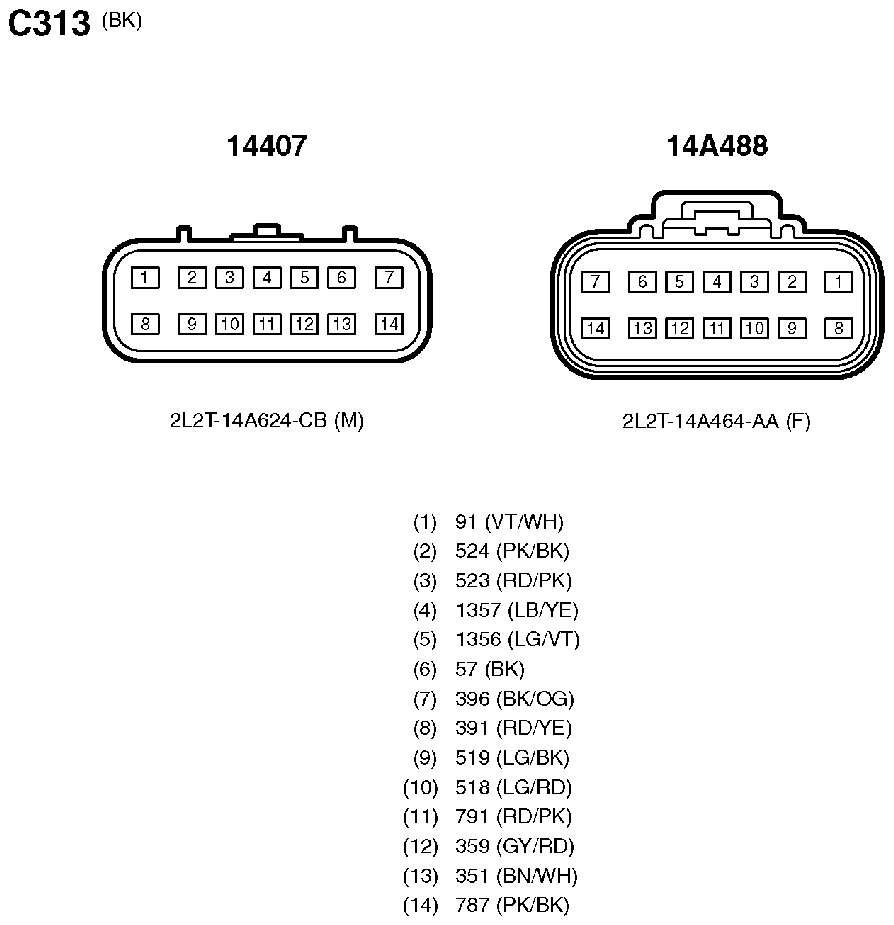

Fig 123: Inline Connector End View (C313)
Courtesy of FORD MOTOR CO.

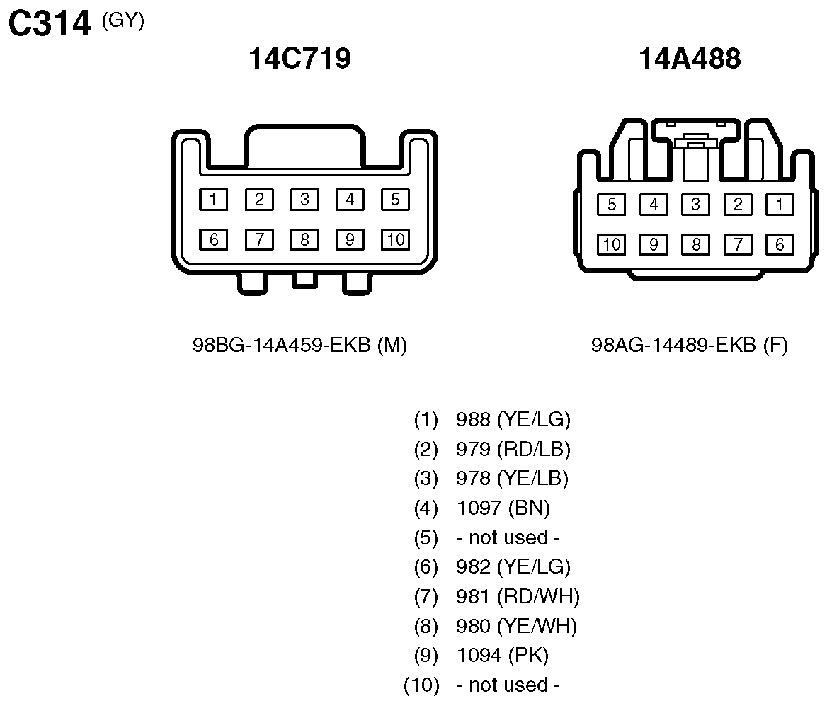

Fig 124: Inline Connector End View (C314)
Courtesy of FORD MOTOR CO.

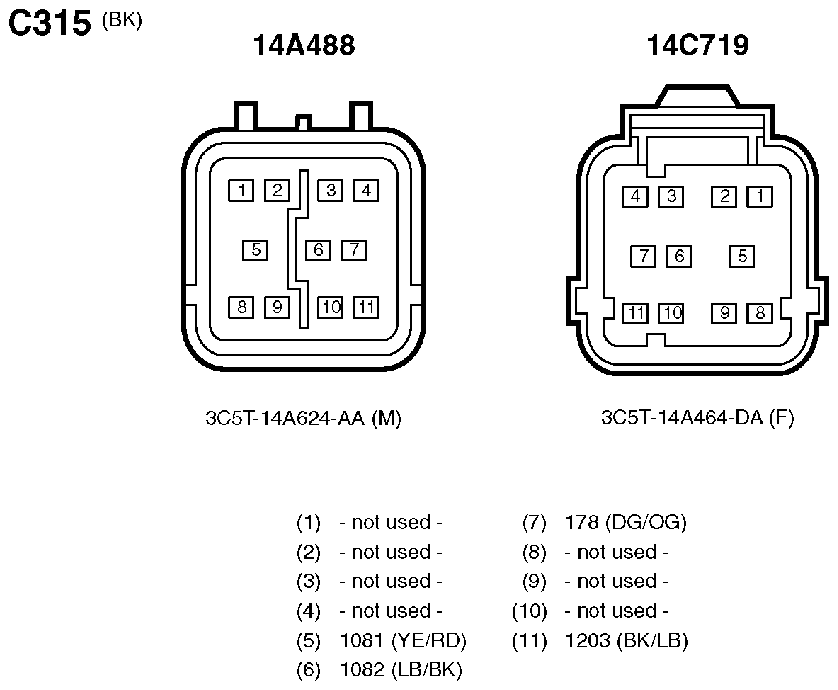

Fig 125: Inline Connector End View (C315)
Courtesy of FORD MOTOR CO.

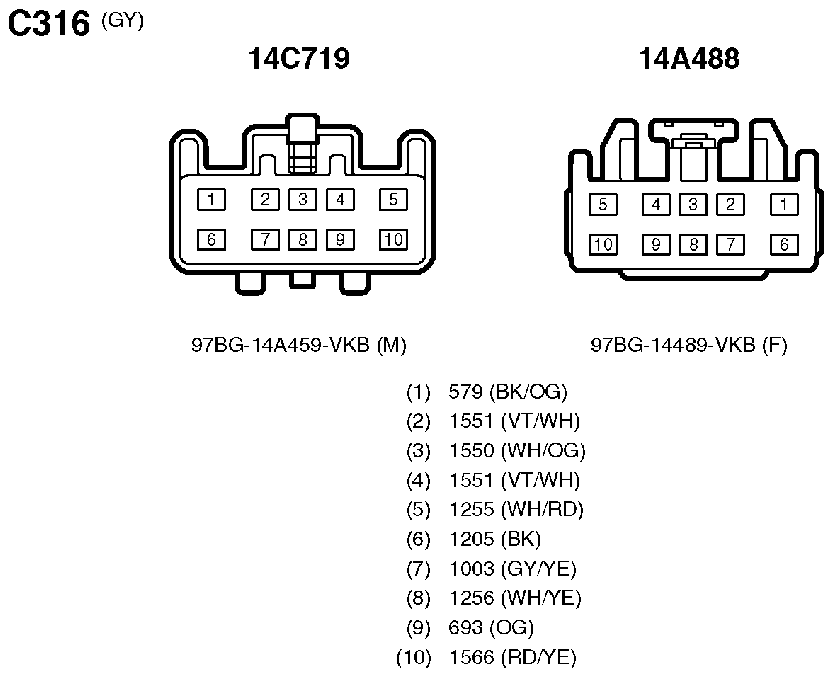

Fig 126: Inline Connector End View (C316)
Courtesy of FORD MOTOR CO.

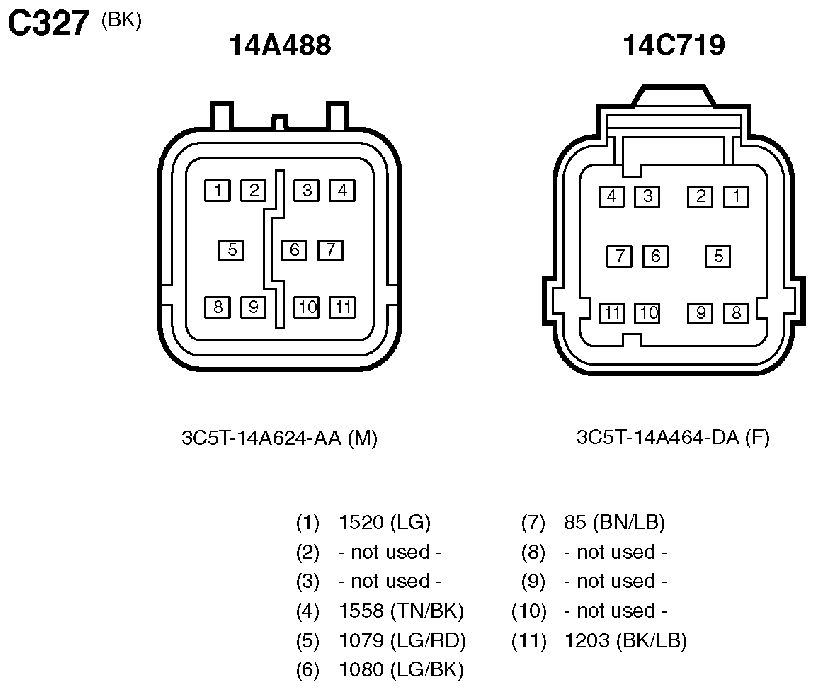

Fig 127: Inline Connector End View (C327)
Courtesy of FORD MOTOR CO.

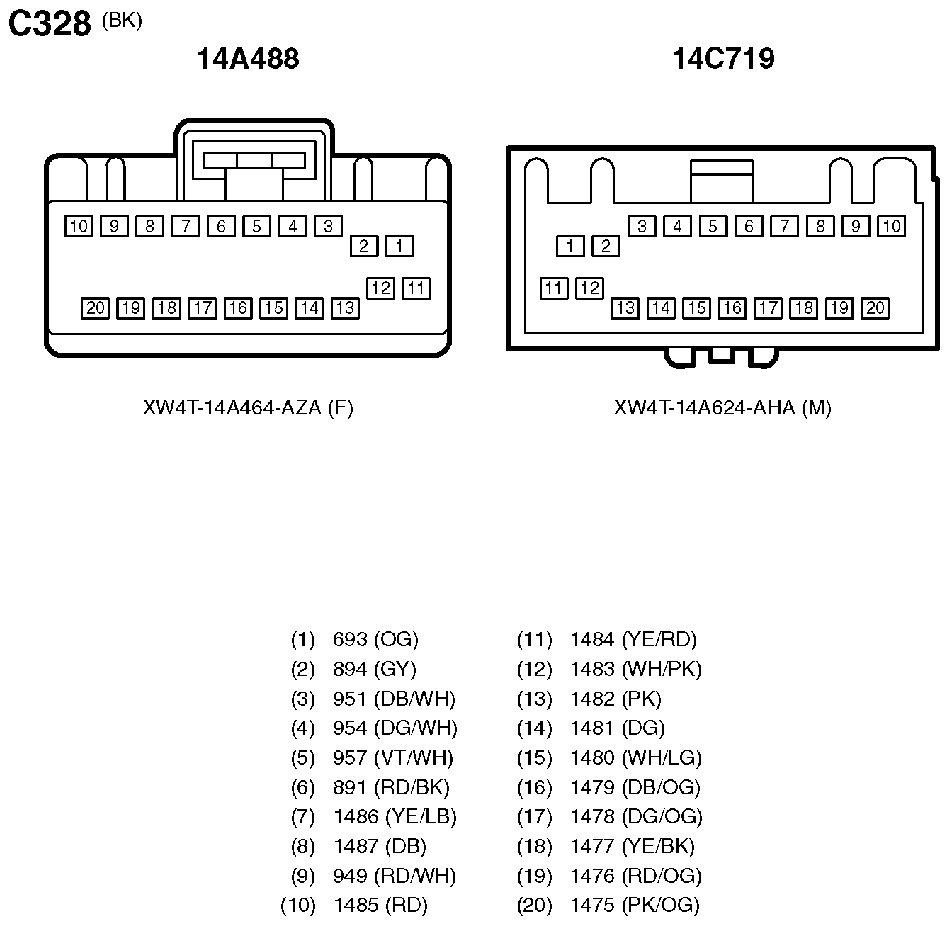

Fig 128: Inline Connector End View (C328)
Courtesy of FORD MOTOR CO.

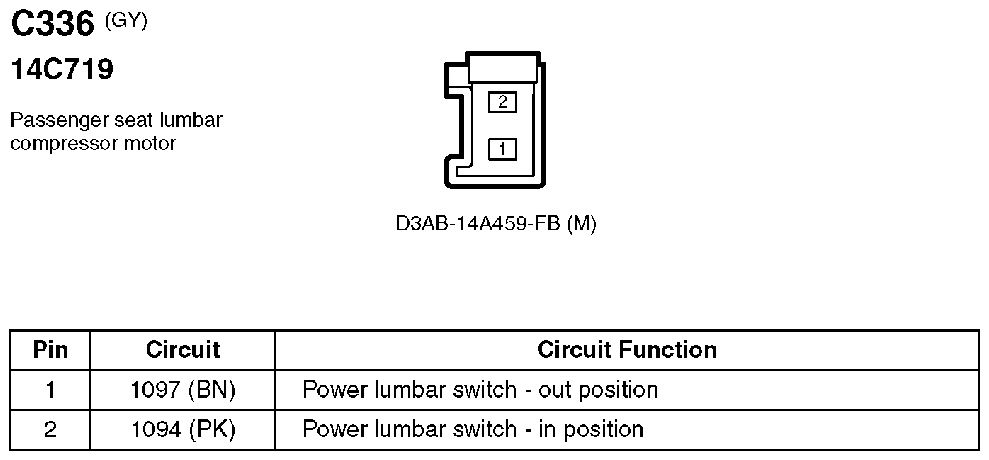

Fig 129: Passenger Seat Lumbar Compressor Motor Connector End View (C336)
Courtesy of FORD MOTOR CO.

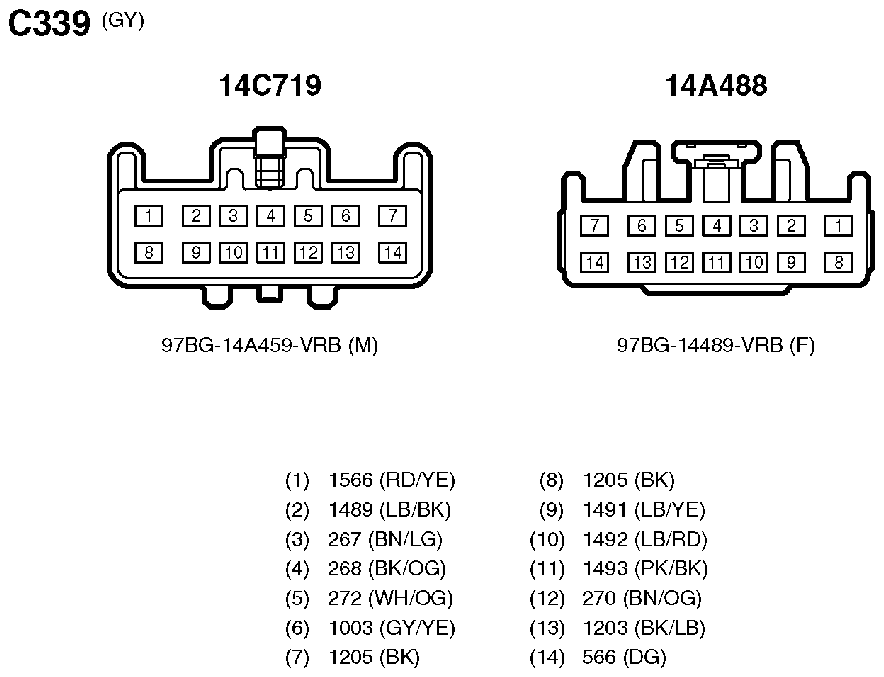

Fig 130: Inline Connector End View (C339)
Courtesy of FORD MOTOR CO.

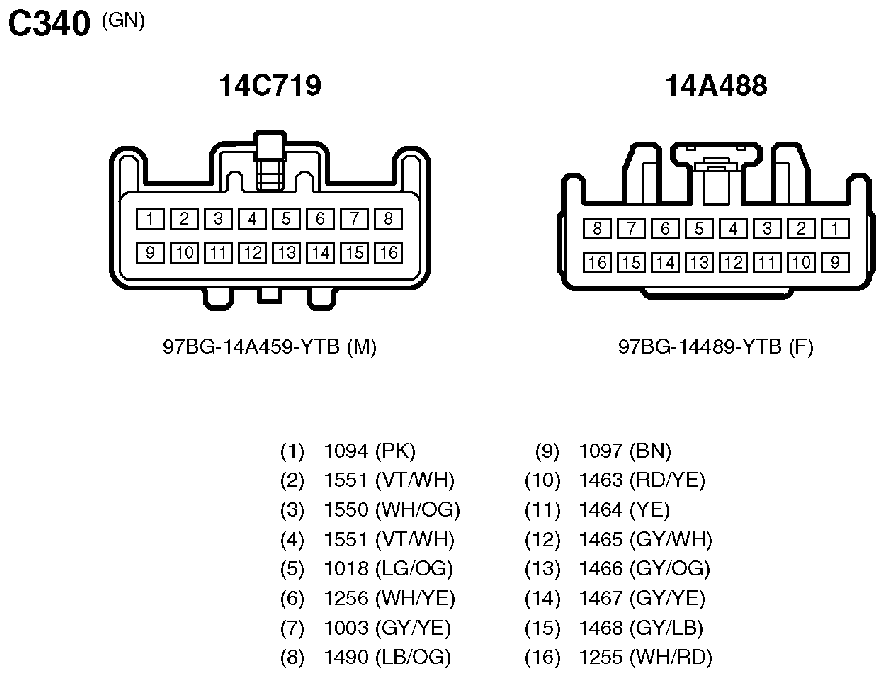

Fig 131: Inline Connector End View (C340)
Courtesy of FORD MOTOR CO.

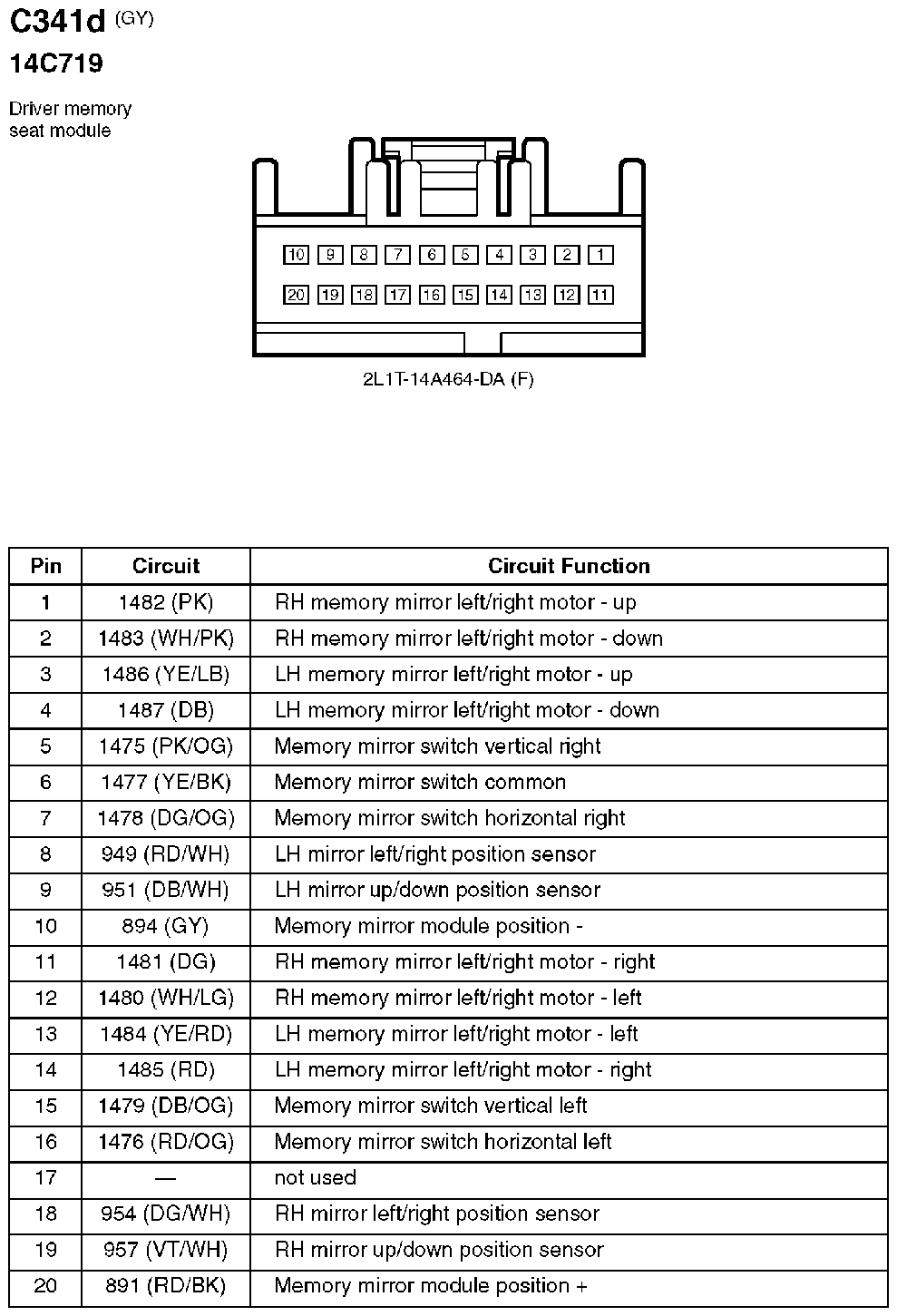

Fig 132: Driver Memory Seat Module Connector End View (C341d)
Courtesy of FORD MOTOR CO.

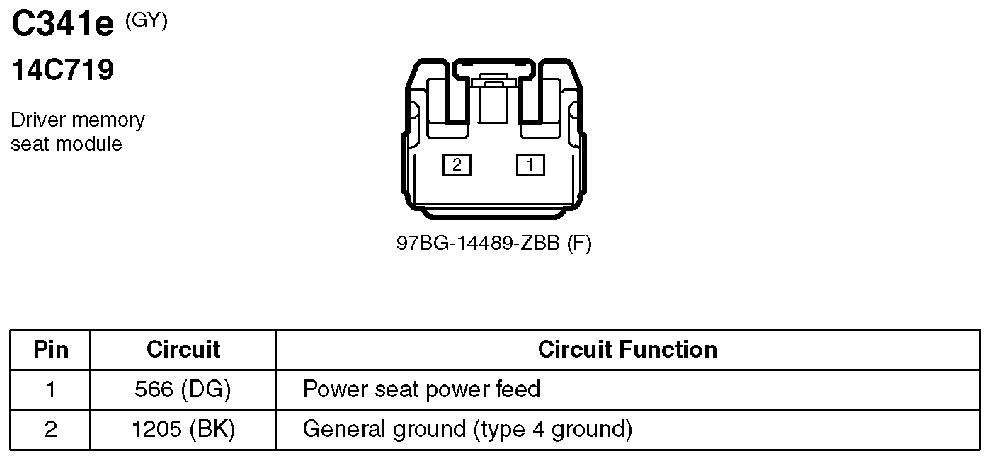

Fig 133: Driver Memory Seat Module Connector End View (C341e)
Courtesy of FORD MOTOR CO.

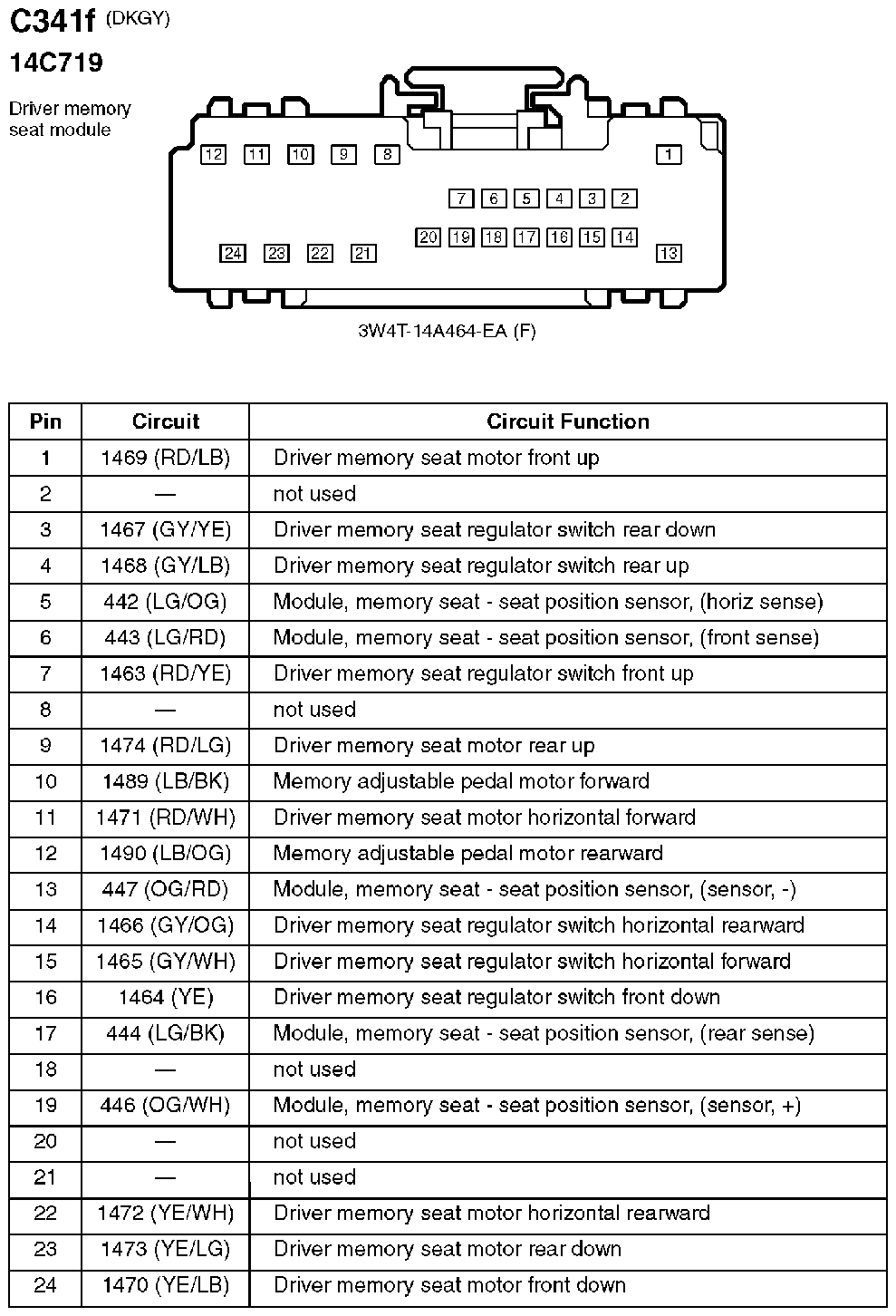

Fig 134: Driver Memory Seat Module Connector End View (C341f)
Courtesy of FORD MOTOR CO.

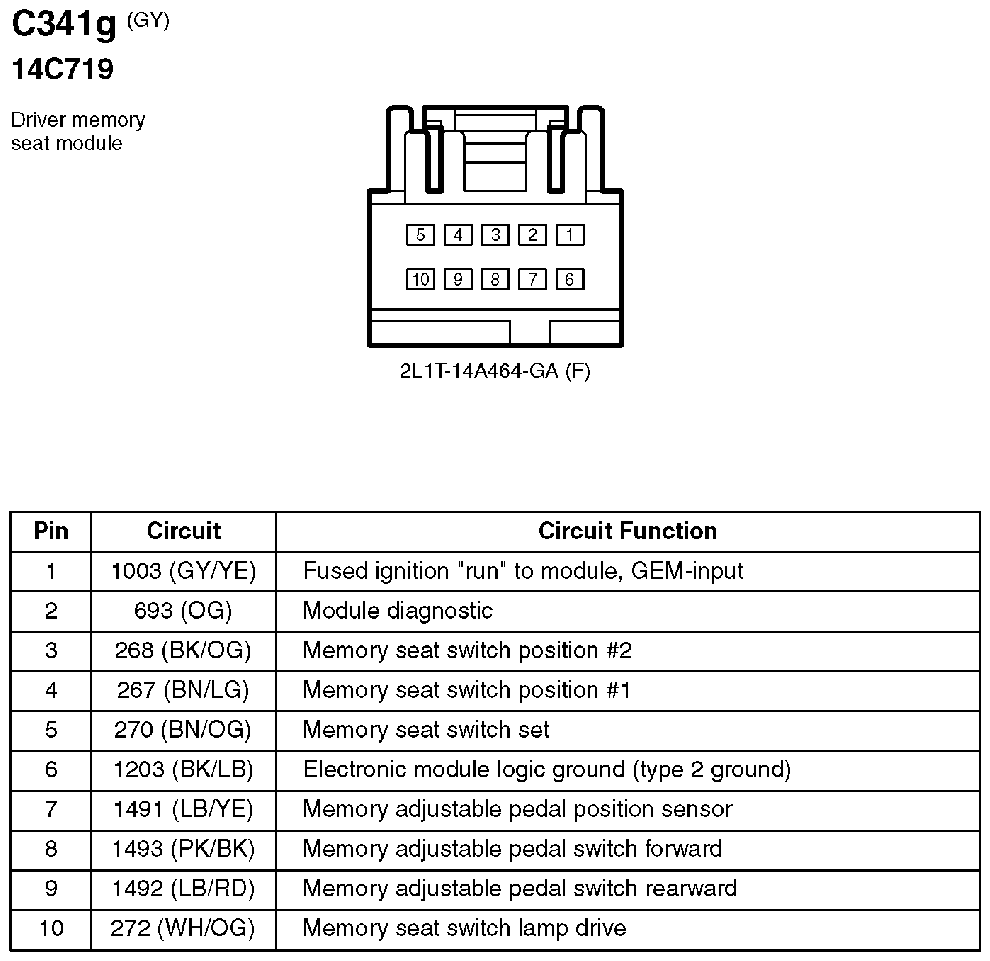

Fig 135: Driver Memory Seat Module Connector End View (C341g)
Courtesy of FORD MOTOR CO.

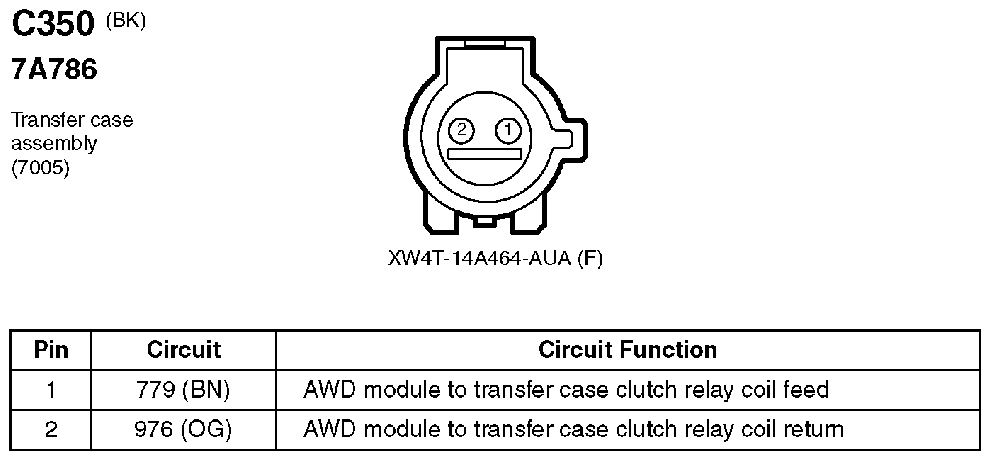

Fig 136: Transfer Case Assembly Connector End View (C350)
Courtesy of FORD MOTOR CO.

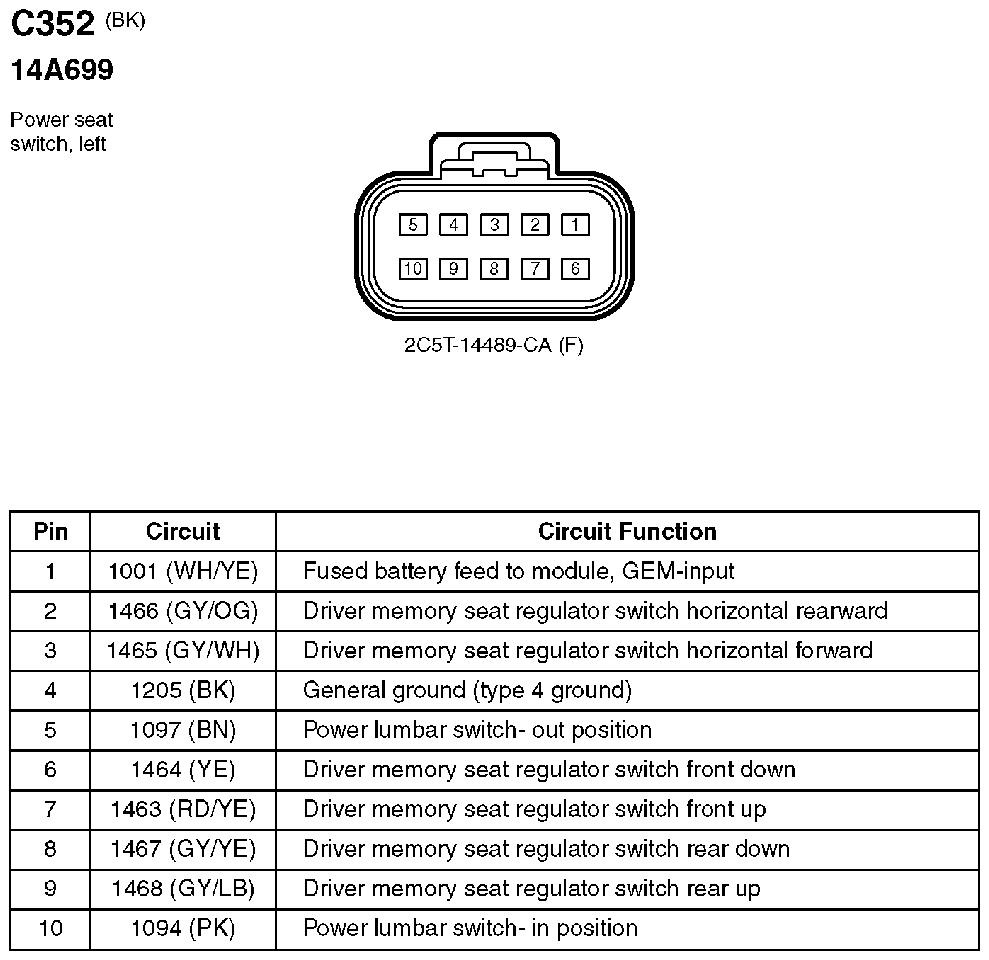

Fig 137: Power Seat Switch, Left Connector End View (C352)
Courtesy of FORD MOTOR CO.

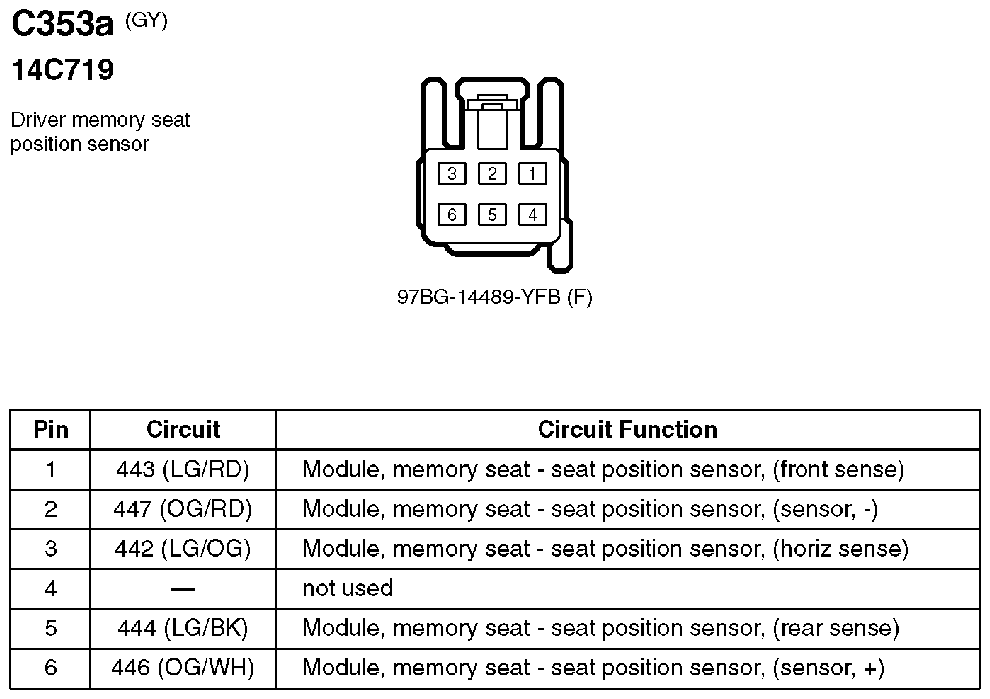

Fig 138: Driver Memory Seat Position Sensor Connector End View (C353a)
Courtesy of FORD MOTOR CO.

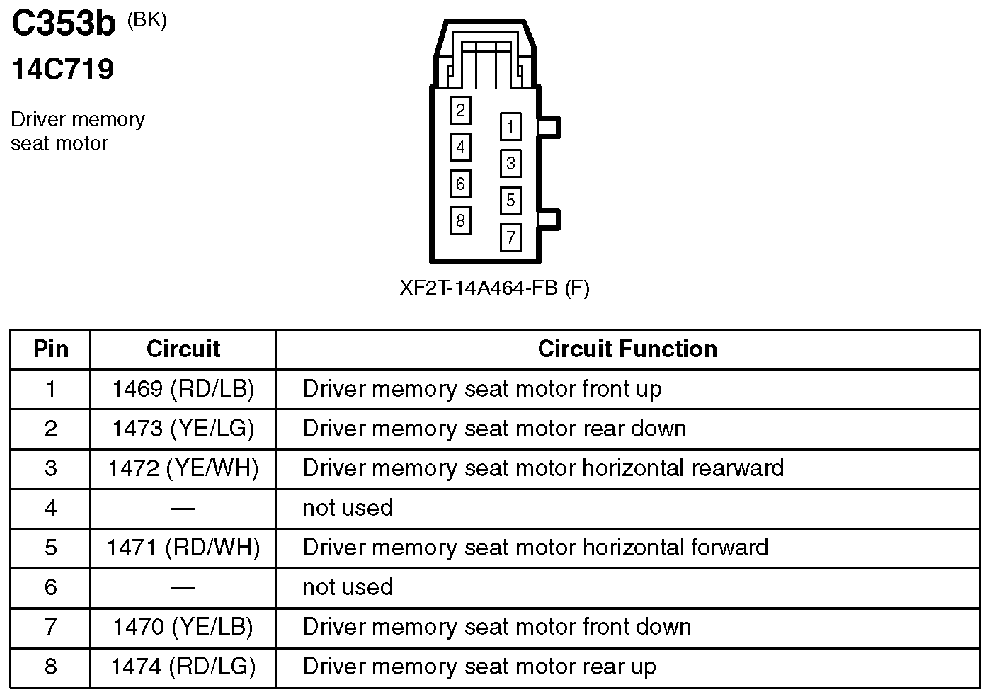

Fig 139: Driver Memory Seat Motor Connector End View (C353b)
Courtesy of FORD MOTOR CO.

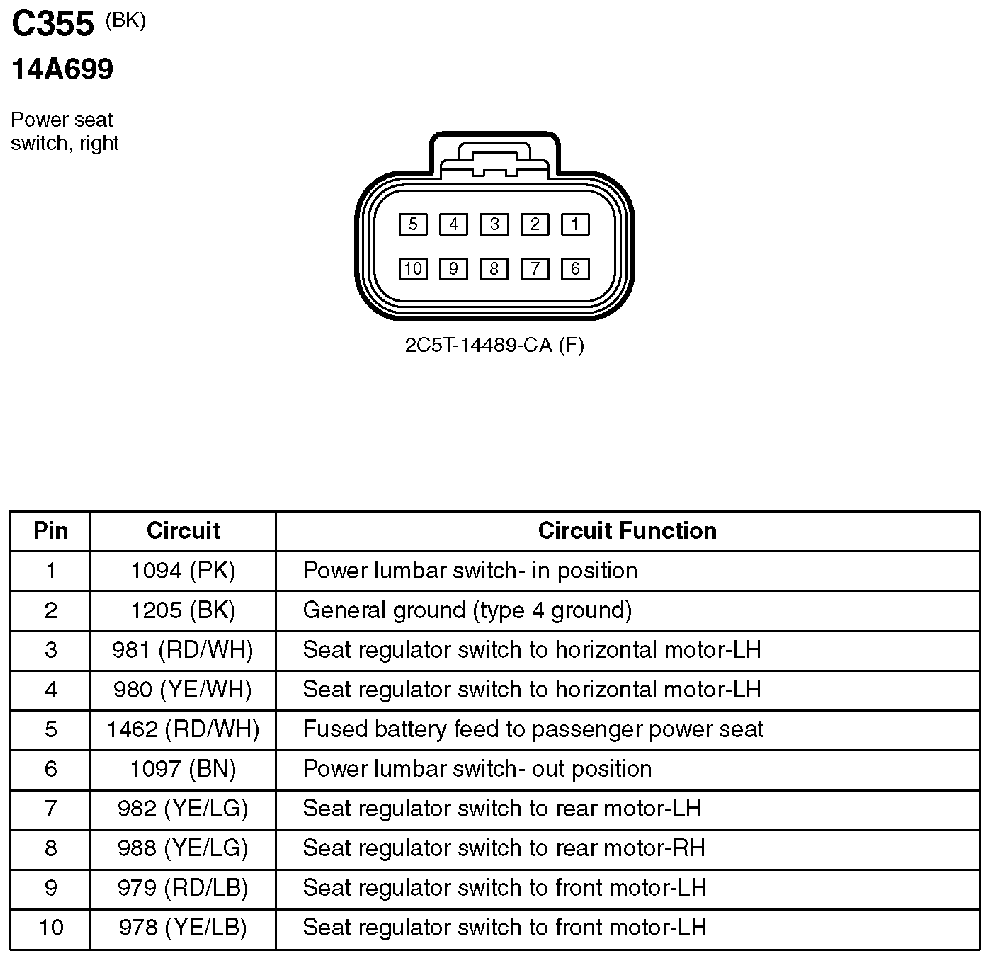

Fig 140: Power Seat Switch, Right Connector End View (C355)
Courtesy of FORD MOTOR CO.

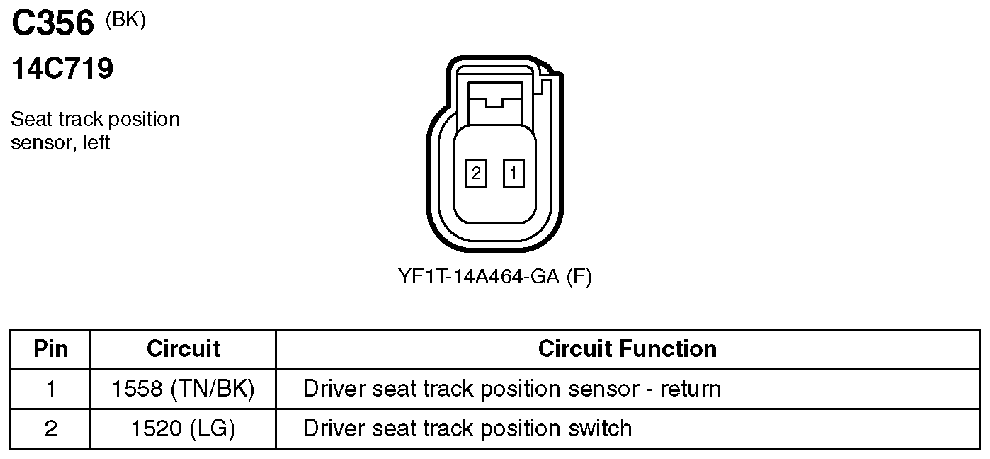

Fig 141: Seat Track Position Sensor, Left Connector End View (C356)
Courtesy of FORD MOTOR CO.

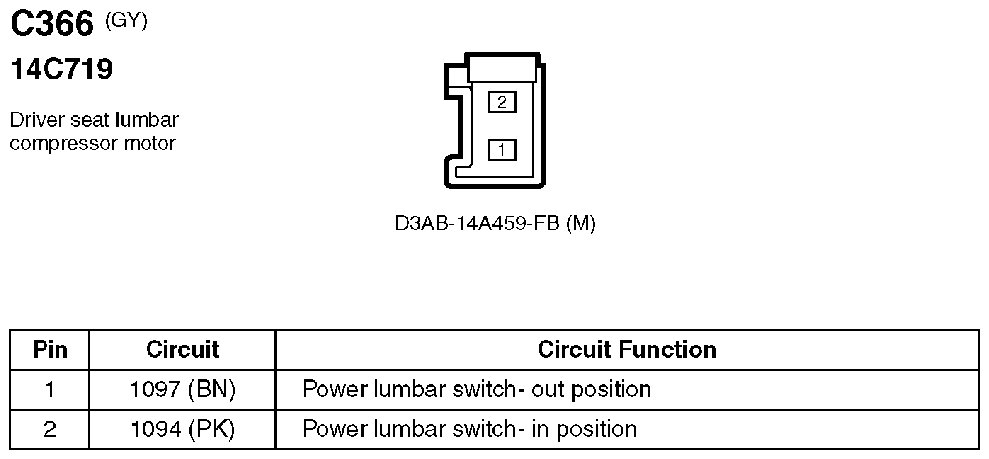

Fig 142: Driver Seat Lumbar Compressor Motor Connector End View (C366)
Courtesy of FORD MOTOR CO.

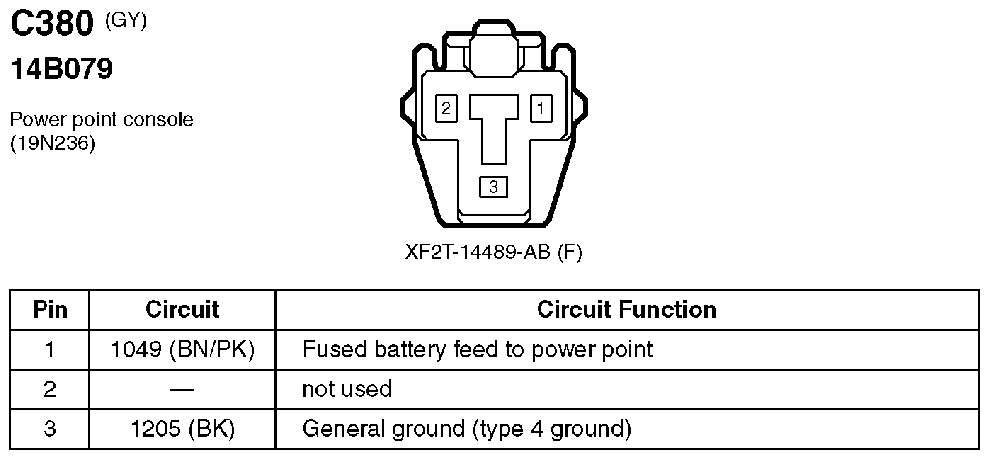

Fig 143: Power Point Console Connector End View (C380)
Courtesy of FORD MOTOR CO.

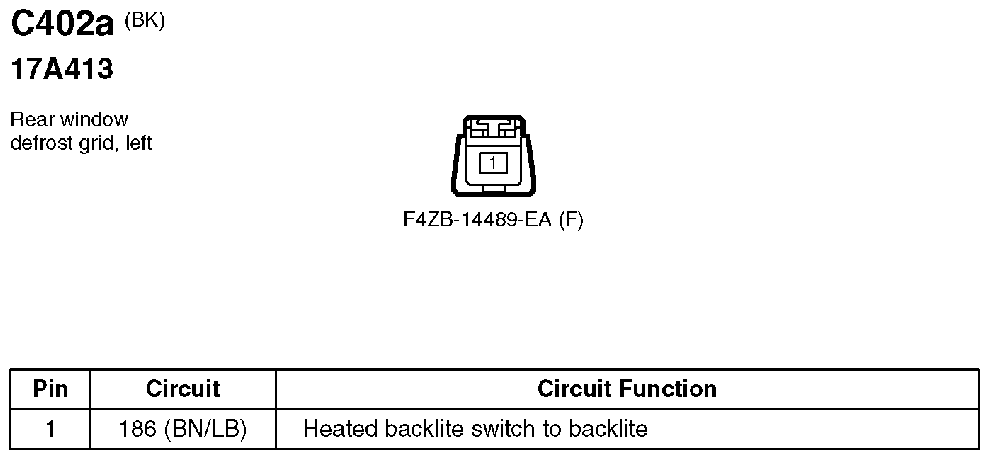

Fig 144: Rear Window Defrost Grid, Left Connector End View (C402a)
Courtesy of FORD MOTOR CO.

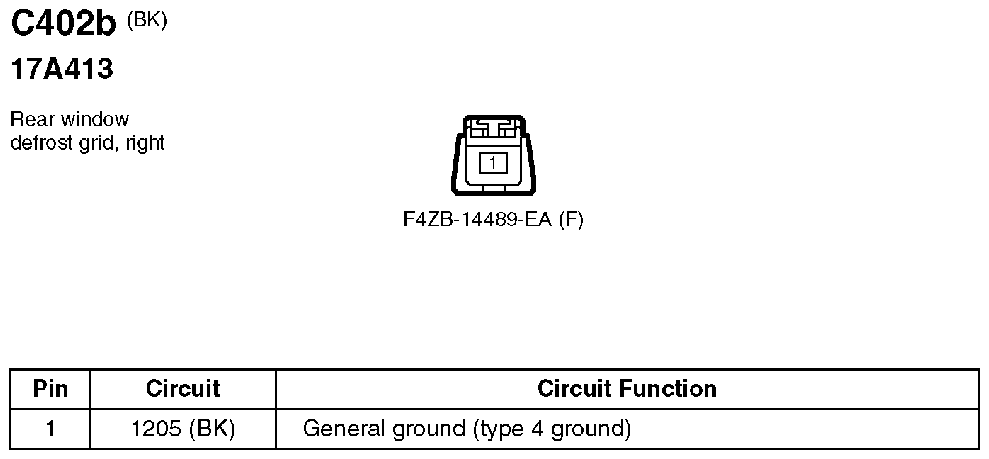

Fig 145: Rear Window Defrost Grid, Right Connector End View (C402b)
Courtesy of FORD MOTOR CO.

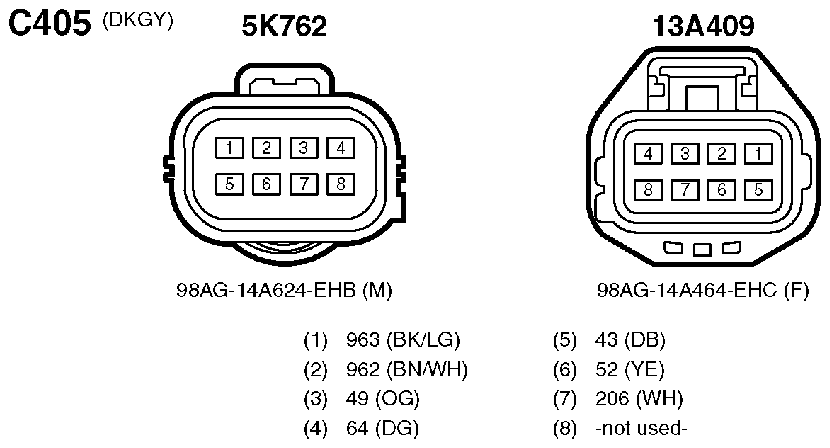

Fig 146: Inline Connector End View (C405)
Courtesy of FORD MOTOR CO.

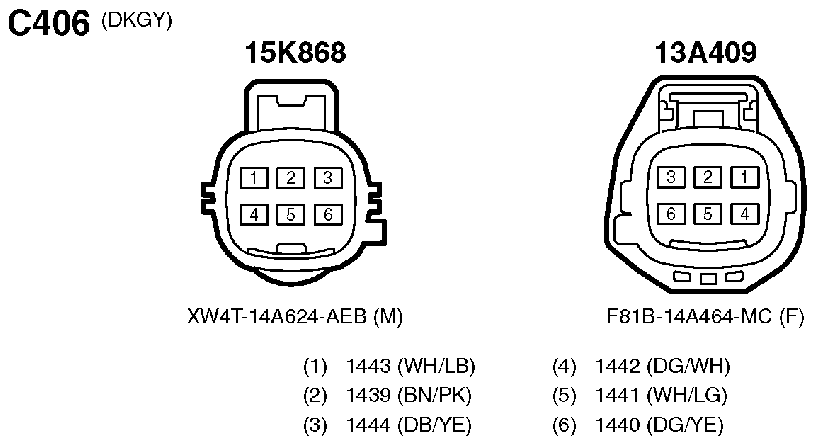

Fig 147: Inline Connector End View (C406)
Courtesy of FORD MOTOR CO.

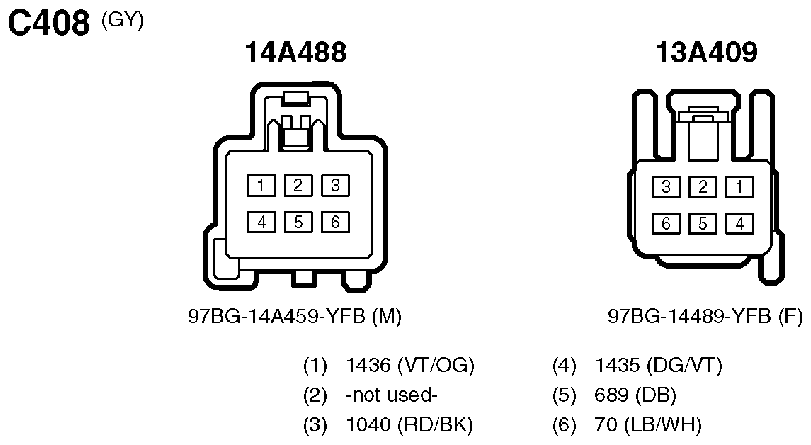

Fig 148: Inline Connector End View (C408)
Courtesy of FORD MOTOR CO.

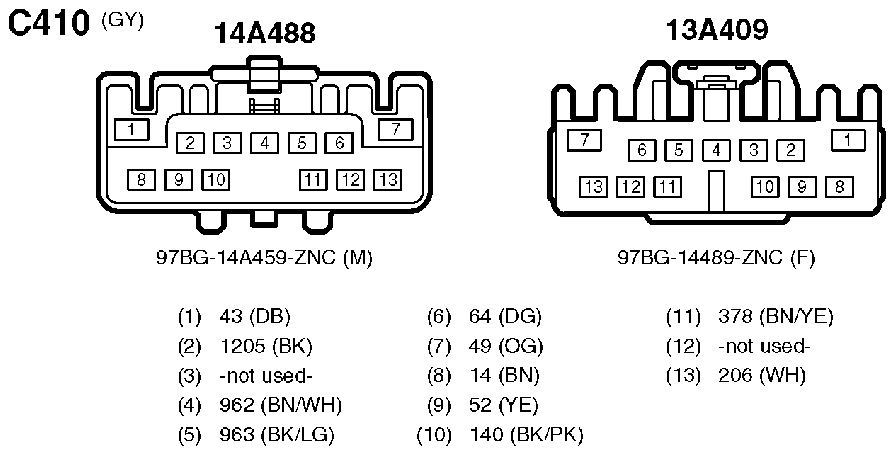

Fig 149: Inline Connector End View (C410)
Courtesy of FORD MOTOR CO.
Fig 150: Liftgate Tail Lamp, Left Connector End View (C412)
Courtesy of FORD MOTOR CO.

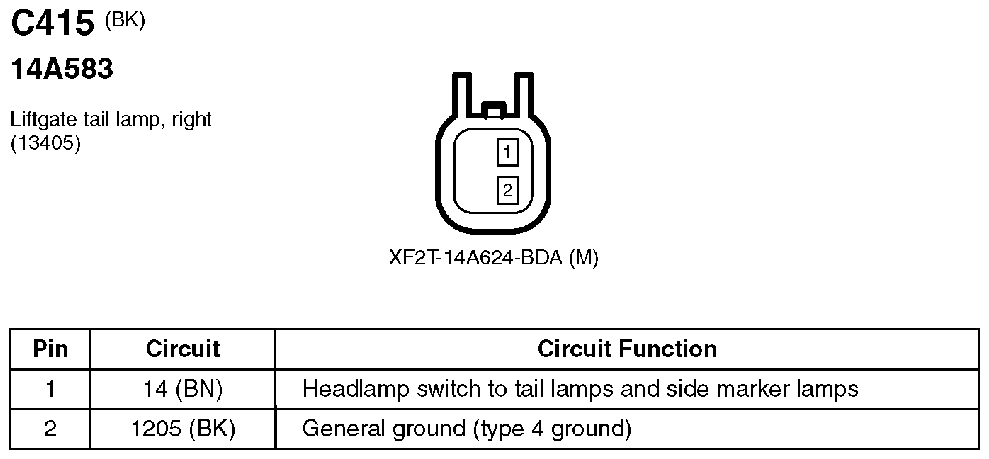

Fig 151: Liftgate Tail Lamp, Right Connector End View (C415)
Courtesy of FORD MOTOR CO.

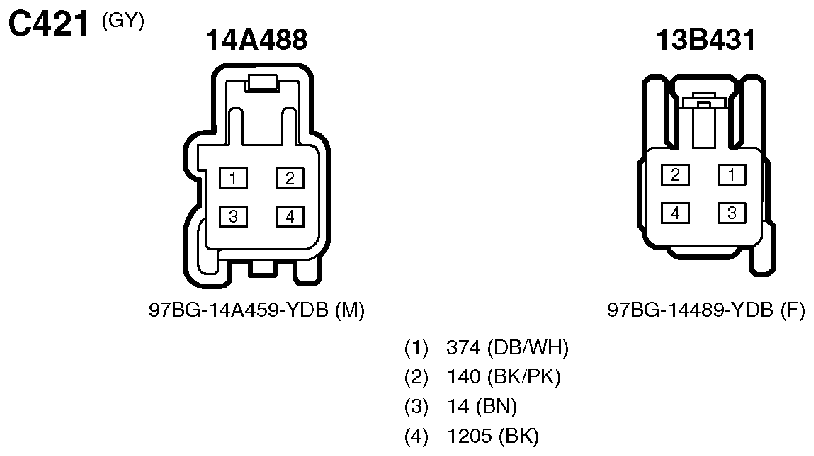

Fig 152: Inline Connector End View (C421)
Courtesy of FORD MOTOR CO.

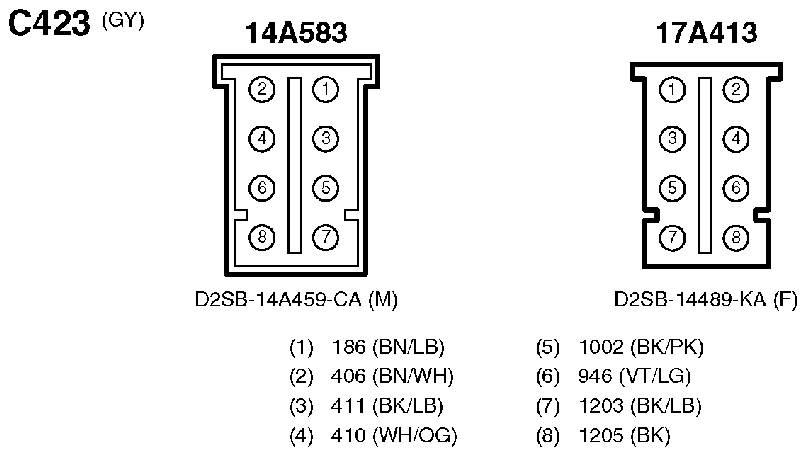

Fig 153: Inline Connector End View (C423)
Courtesy of FORD MOTOR CO.

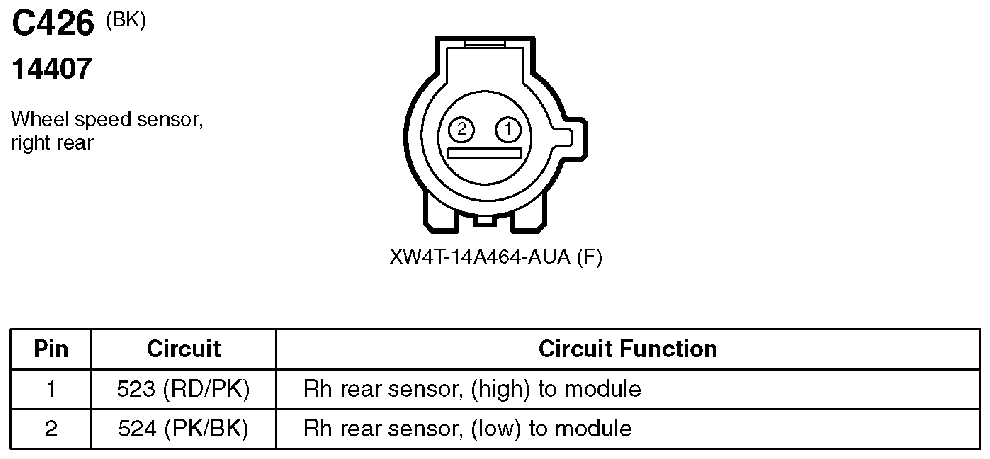

Fig 154: Wheel Speed Sensor, Right Front Connector End View (C426)
Courtesy of FORD MOTOR CO.

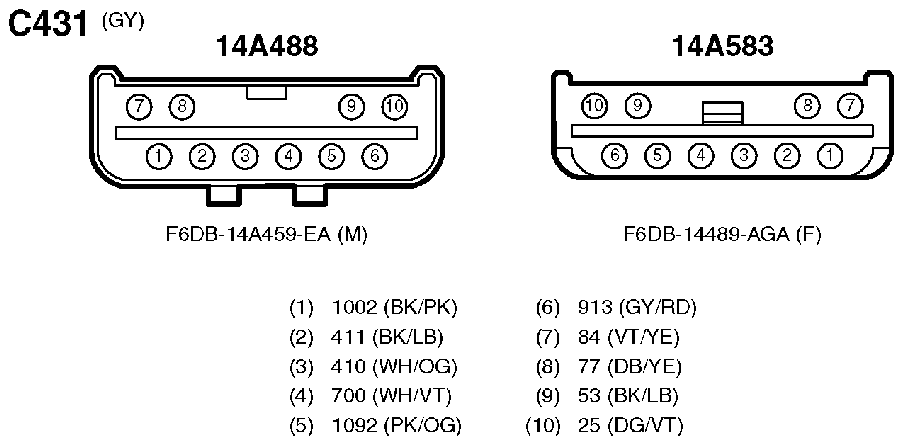

Fig 155: Inline Connector End View (C431)
Courtesy of FORD MOTOR CO.

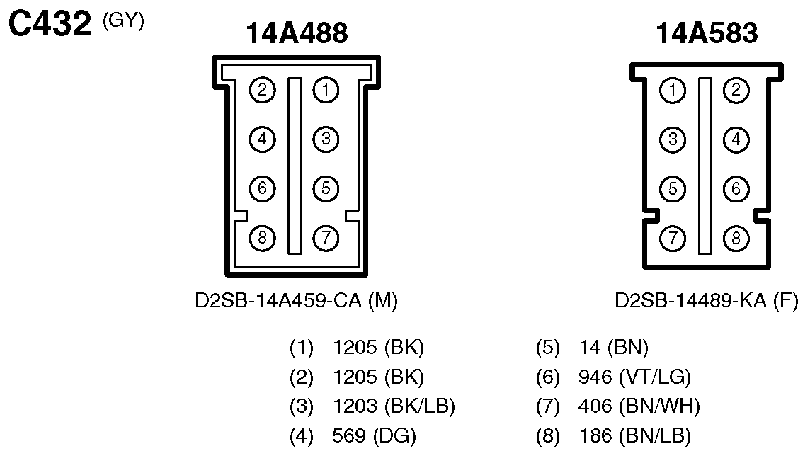

Fig 156: Inline Connector End View (C432)
Courtesy of FORD MOTOR CO.

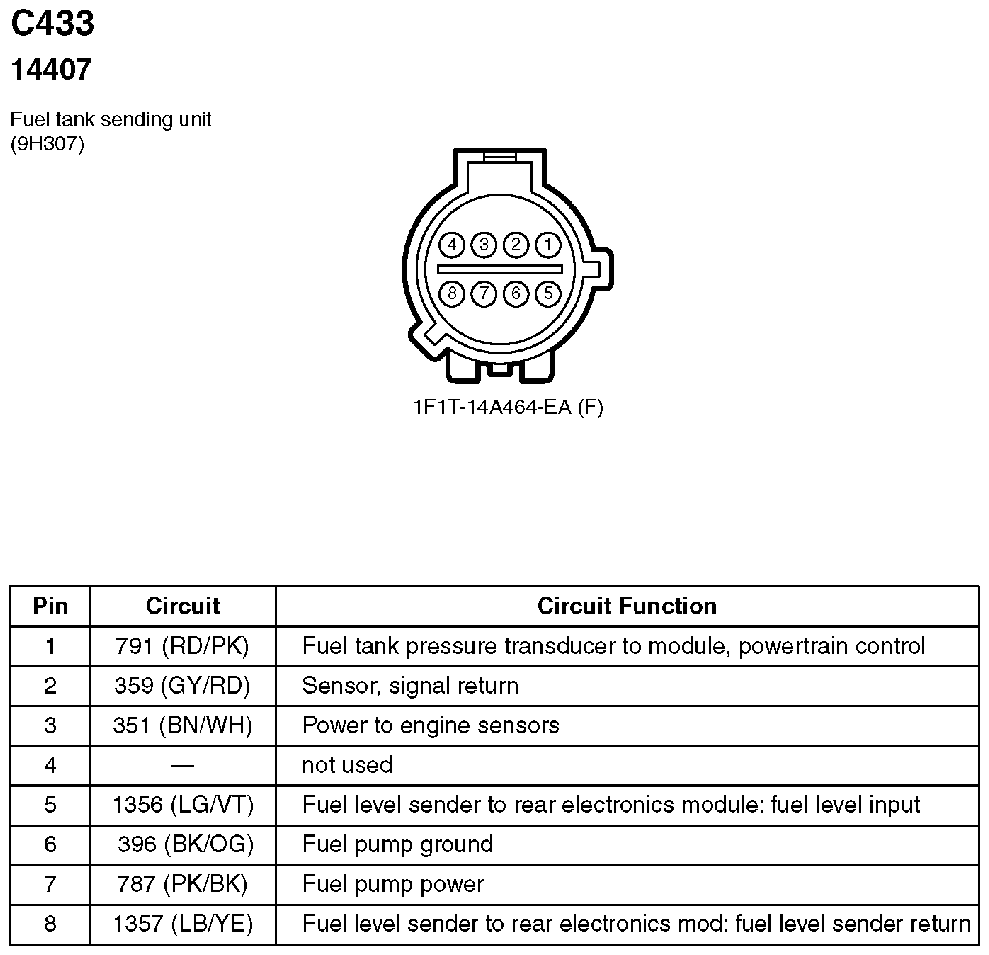

Fig 157: Fuel Tank Sending Unit Connector End View (C433)
Courtesy of FORD MOTOR CO.

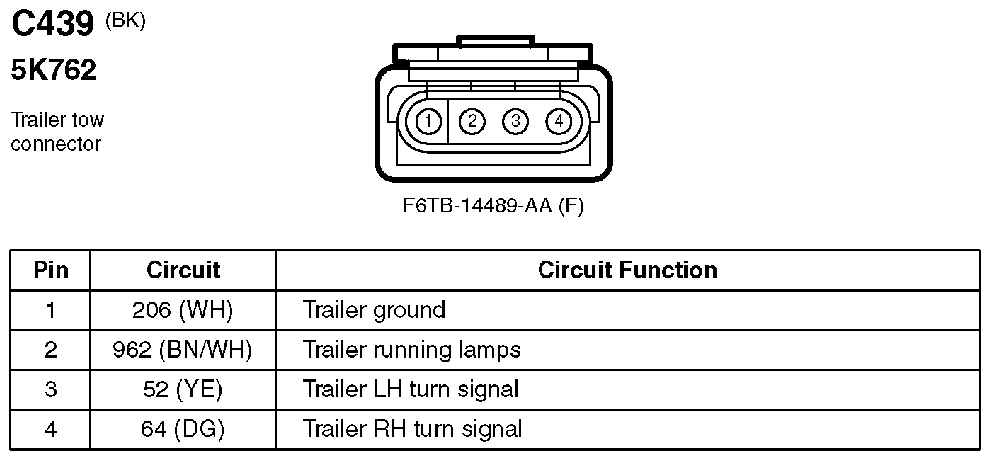

Fig 158: Trailer Tow Connector End View (C439)
Courtesy of FORD MOTOR CO.

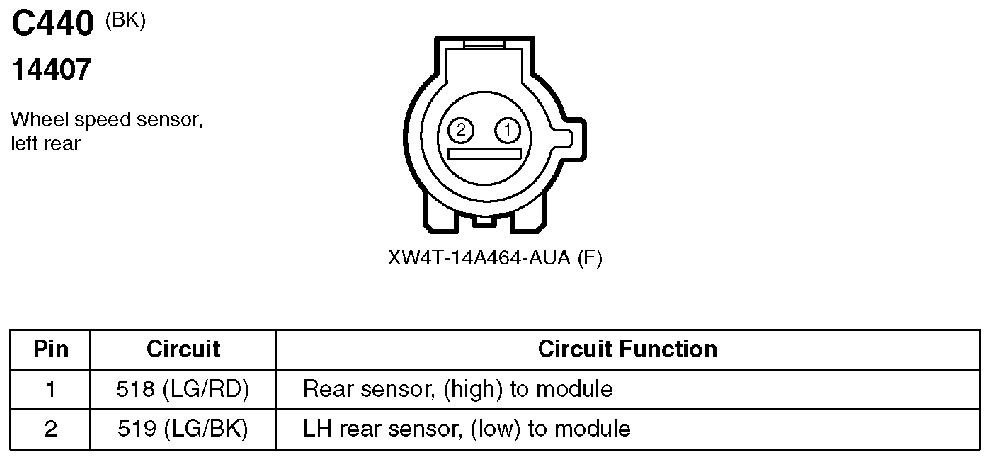

Fig 159: Wheel Speed Sensor, Left Rear Connector End View (C440)
Courtesy of FORD MOTOR CO.

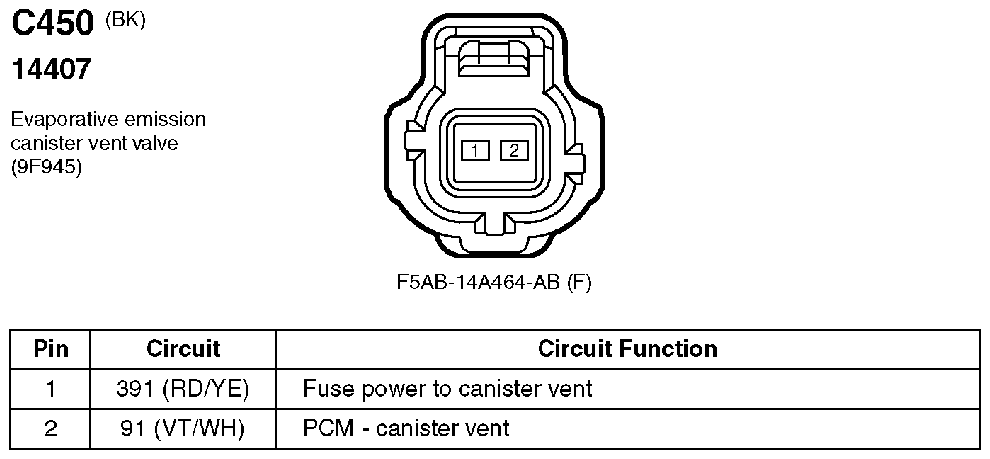

Fig 160: Evaporative Emission Canister Vent Valve Connector End View (C450)
Courtesy of FORD MOTOR CO.

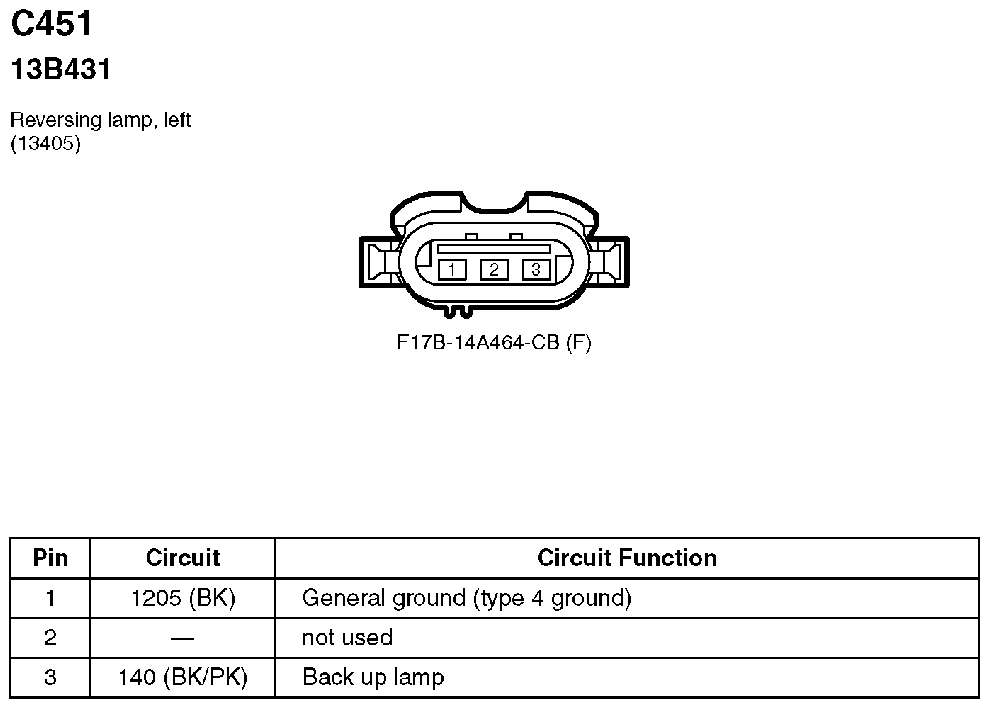

Fig 161: Reversing Lamp, Left Connector End View (C451)
Courtesy of FORD MOTOR CO.

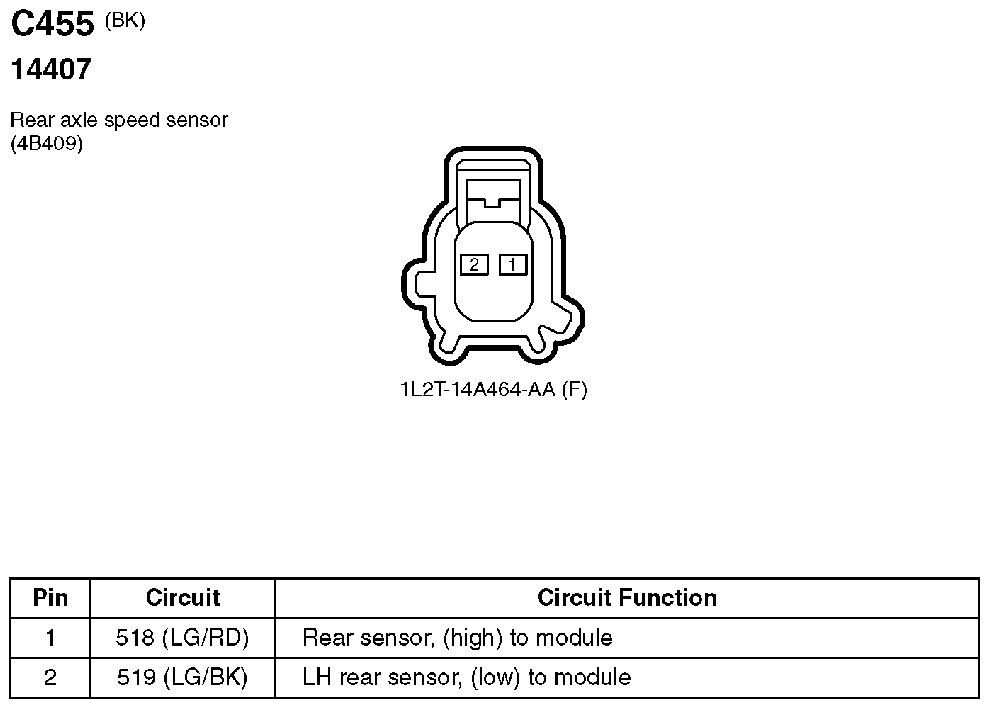

Fig 162: Rear Axle Speed Sensor Connector End View (C455)
Courtesy of FORD MOTOR CO.

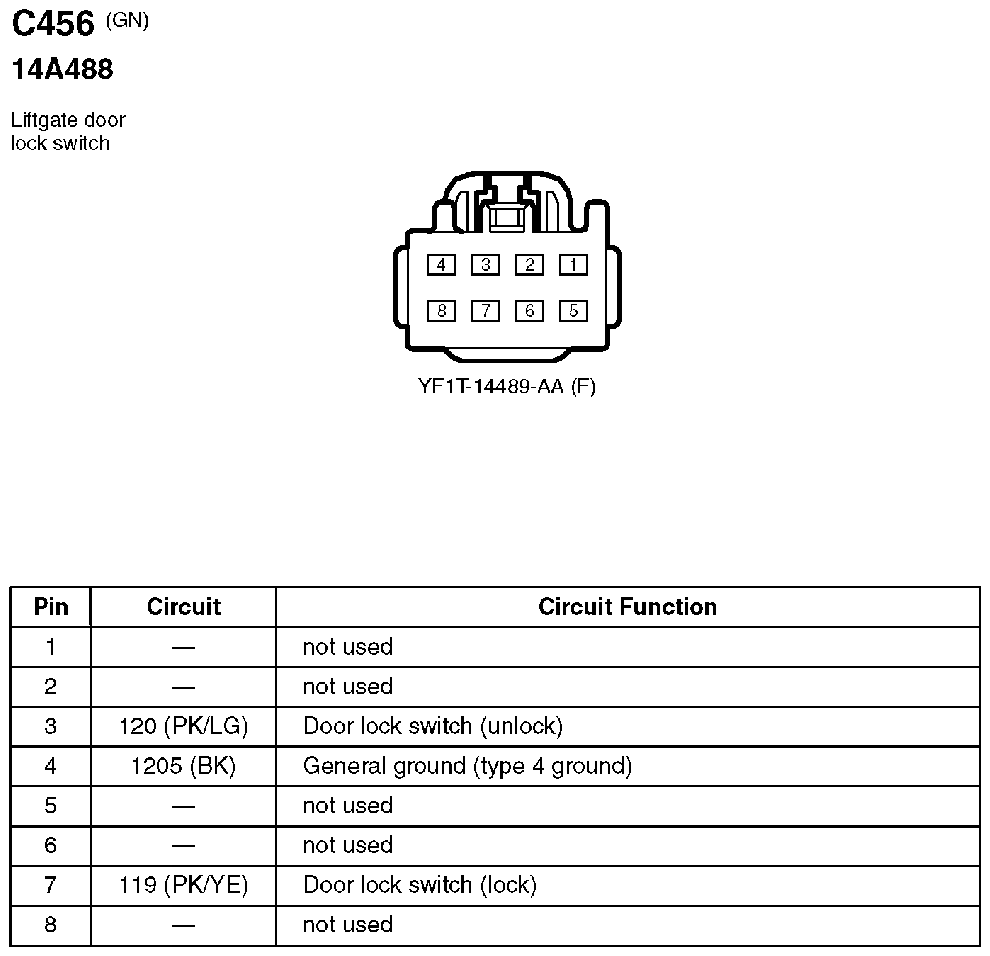

Fig 163: Liftgate Door Lock Switch Connector End View (C456)
Courtesy of FORD MOTOR CO.

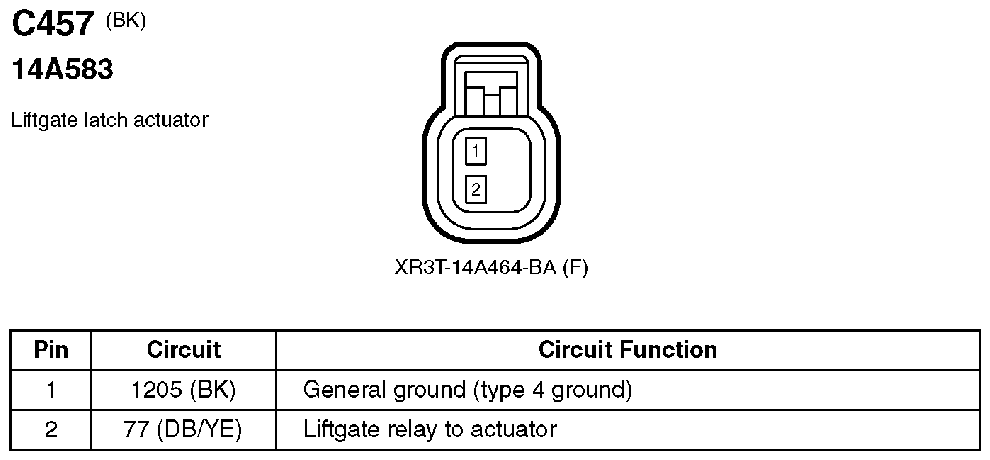

Fig 164: Liftgate Latch Actuator Connector End View (C457)
Courtesy of FORD MOTOR CO.

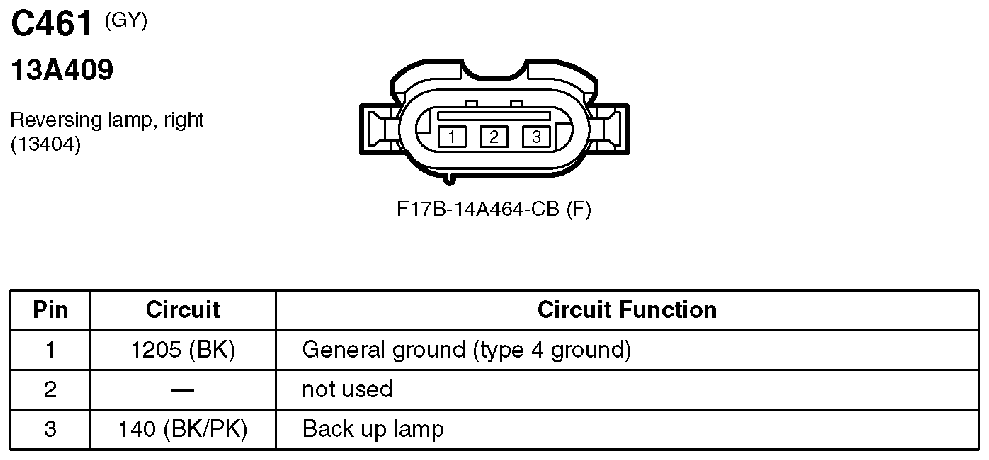

Fig 165: Reversing Lamp, Right Connector End View (C461)
Courtesy of FORD MOTOR CO.

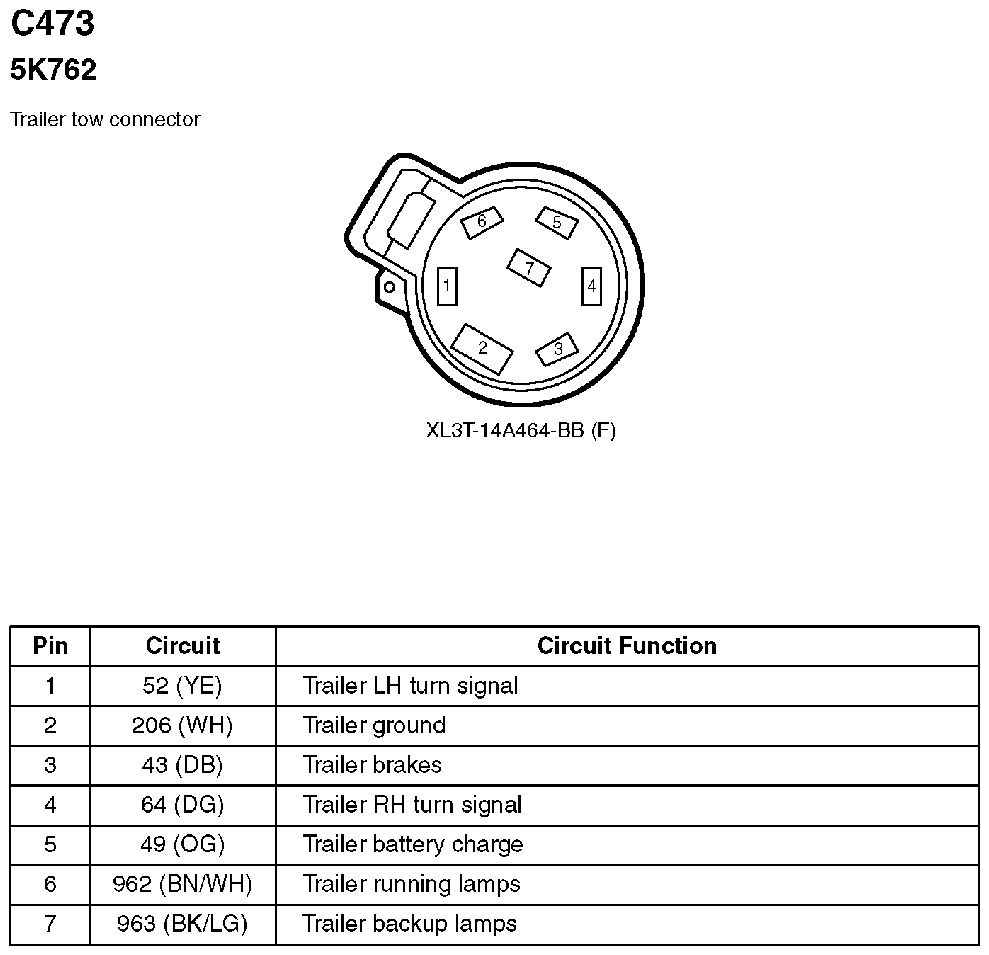

Fig 166: Trailer Tow Connector End View (C473)
Courtesy of FORD MOTOR CO.

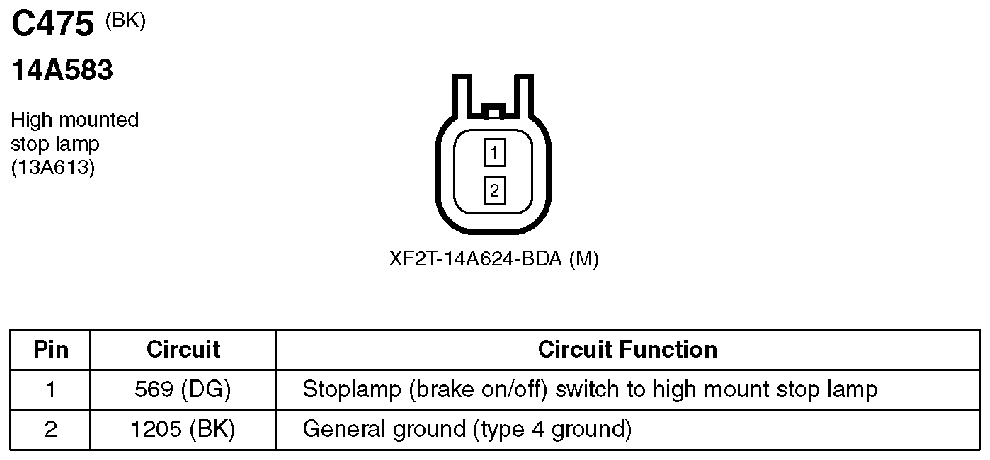

Fig 167: High Mounted Stop Lamp Connector End View (C475)
Courtesy of FORD MOTOR CO.

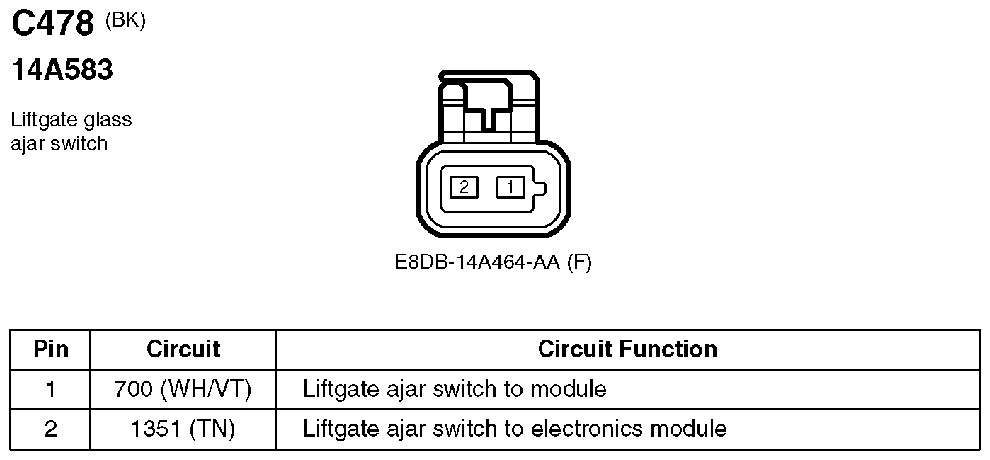

Fig 168: Liftgate Glass Ajar Switch Connector End View (C478)
Courtesy of FORD MOTOR CO.

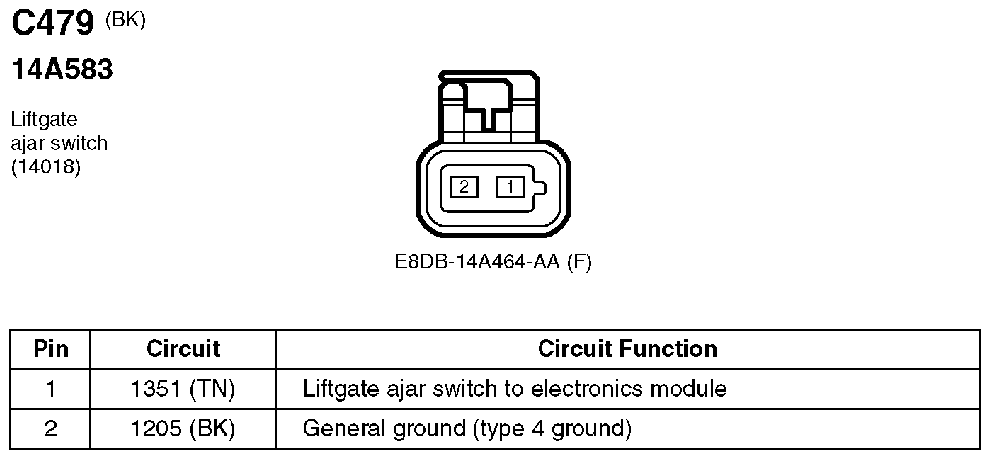

Fig 169: Liftgate Ajar Switch Connector End View (C479)
Courtesy of FORD MOTOR CO.

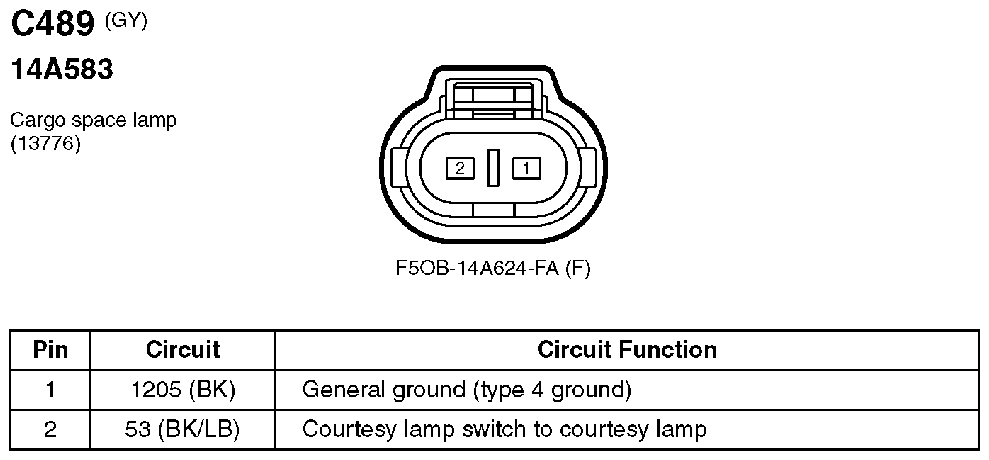

Fig 170: Cargo Space Lamp Connector End View (C489)
Courtesy of FORD MOTOR CO.

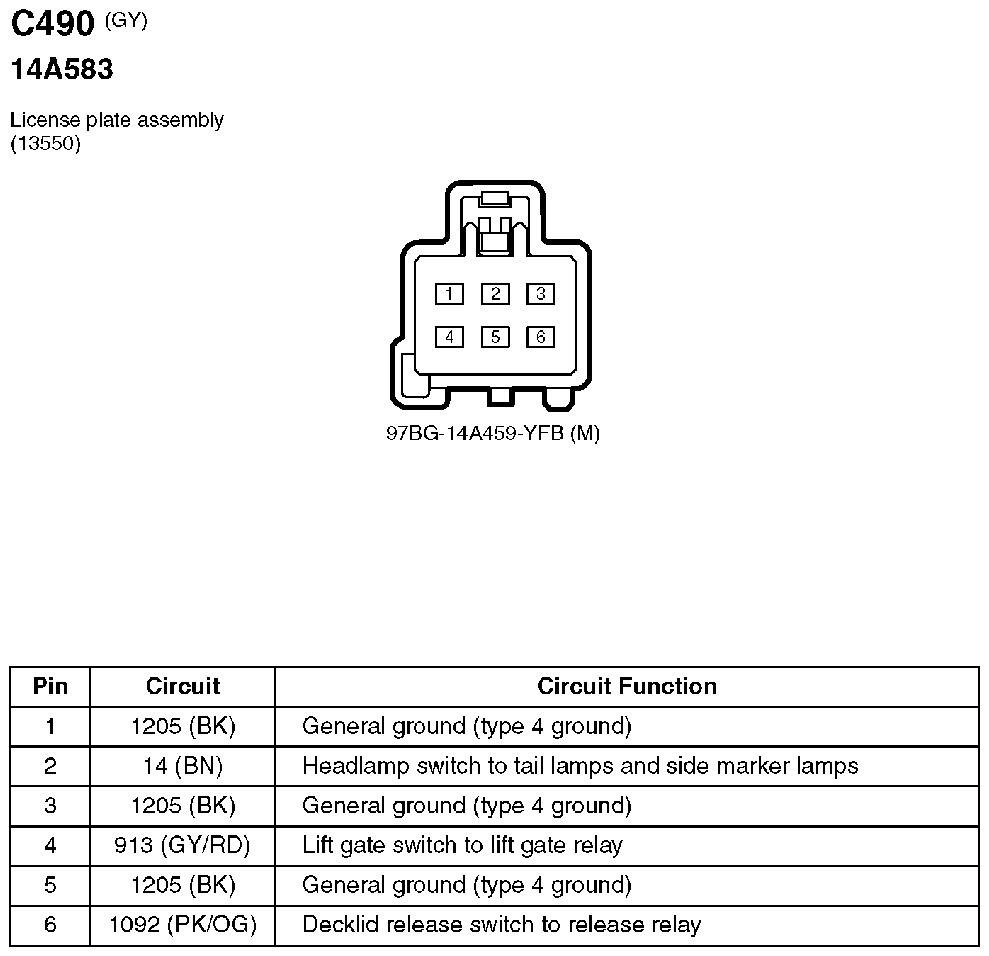

Fig 171: License Plate Assembly Connector End View (C490)
Courtesy of FORD MOTOR CO.

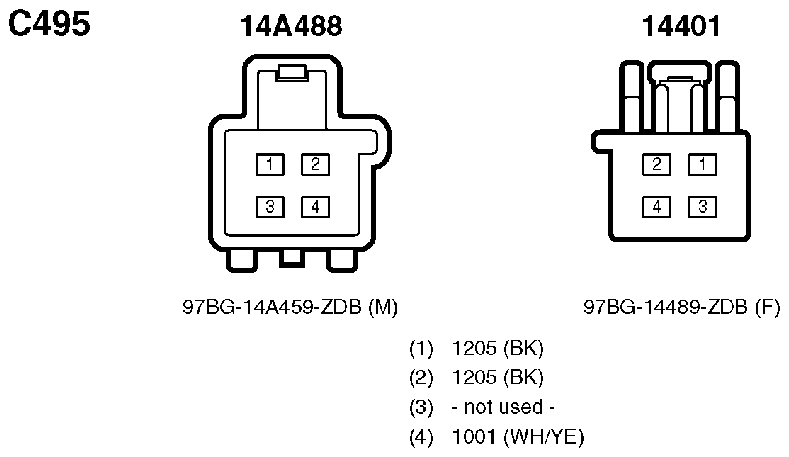

Fig 172: Inline Connector End View (C495)
Courtesy of FORD MOTOR CO.

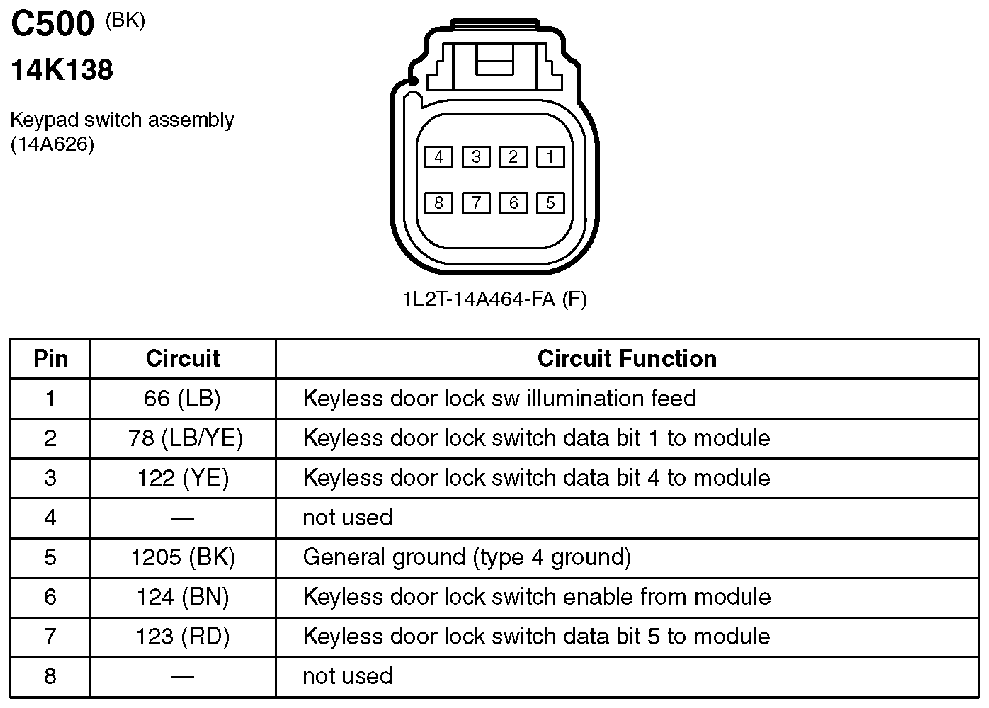

Fig 173: Keypad Switch Assembly Connector End View (C500)
Courtesy of FORD MOTOR CO.

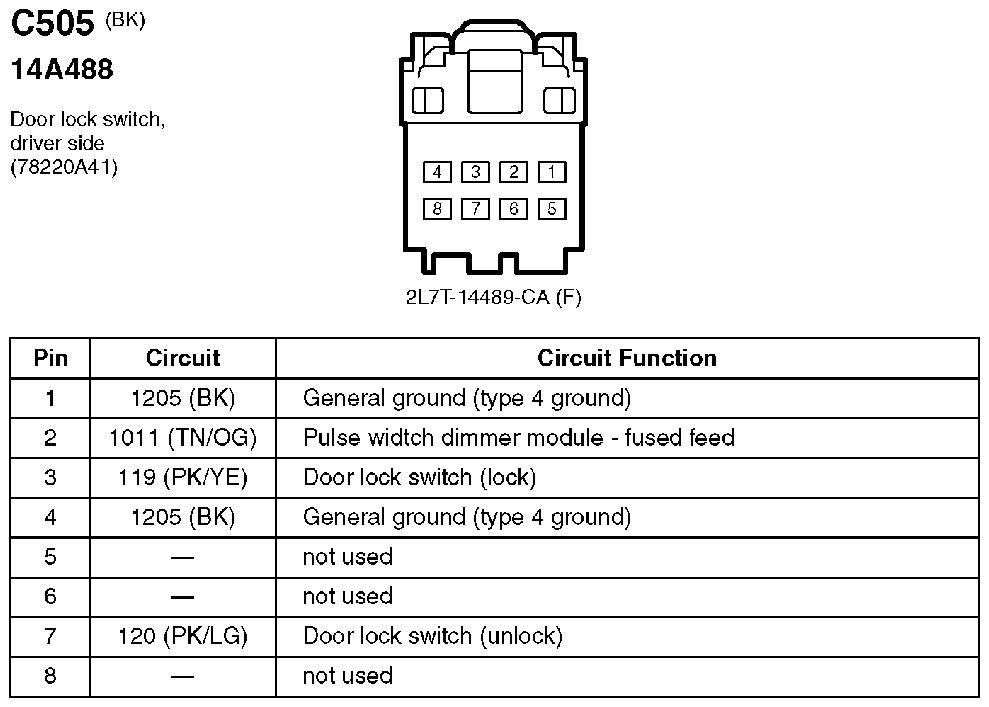

Fig 174: Door Lock Switch, Driver Side Connector End View (C505)
Courtesy of FORD MOTOR CO.

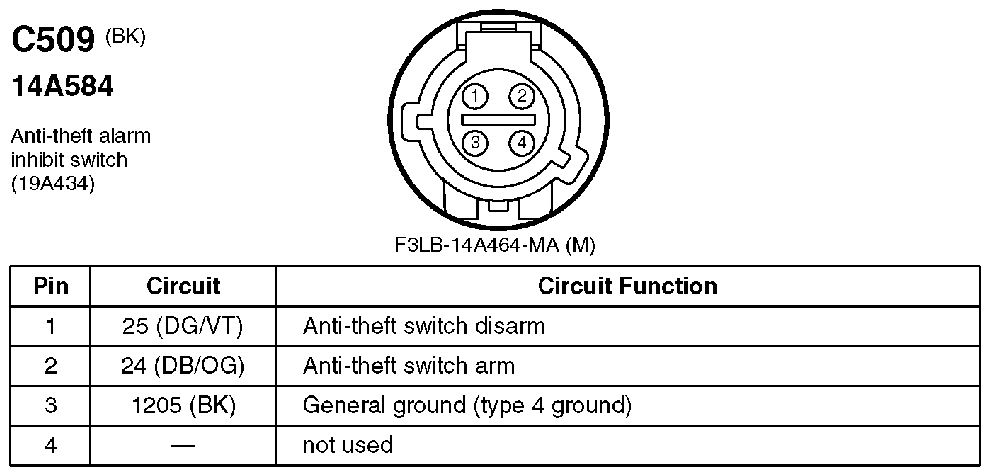

Fig 175: Anti-Theft Alarm Inhibit Switch Connector End View (C509)
Courtesy of FORD MOTOR CO.
Fig 176: Inline Connector End View (C510)
Courtesy of FORD MOTOR CO.

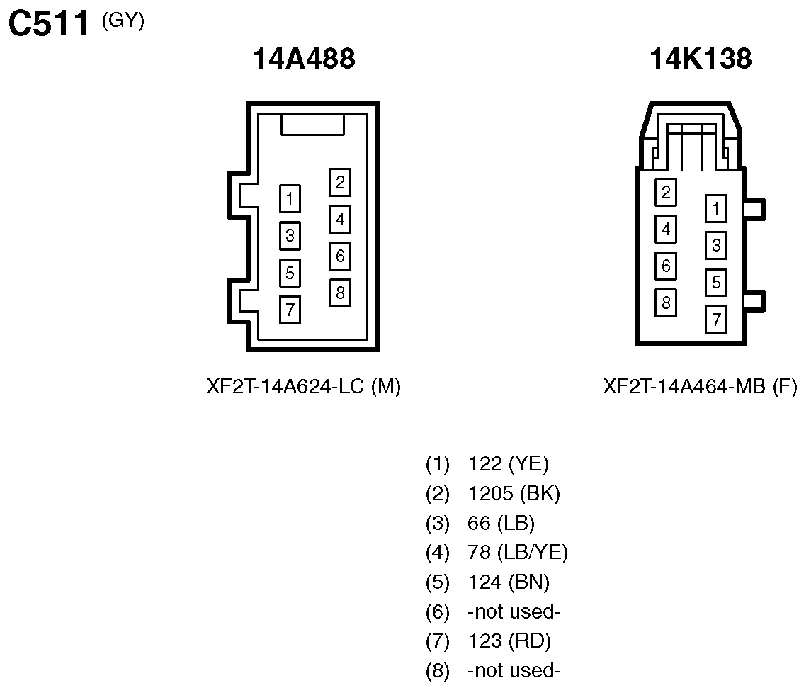

Fig 177: Inline Connector End View (C511)
Courtesy of FORD MOTOR CO.

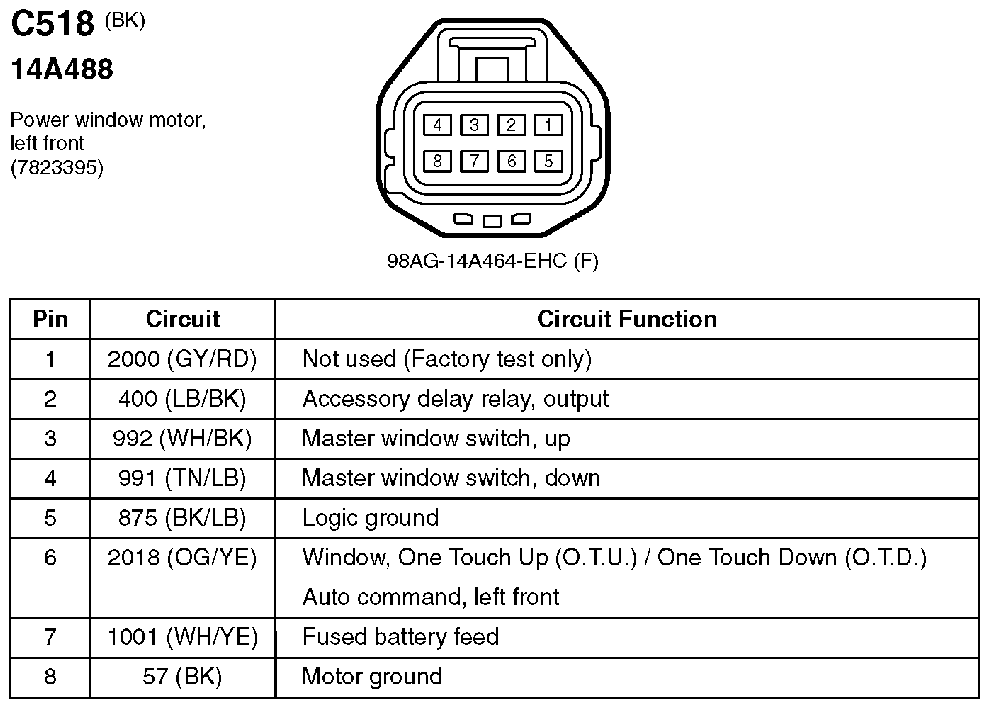

Fig 178: Power Window Motor, Left Front Connector End View (C518)
Courtesy of FORD MOTOR CO.

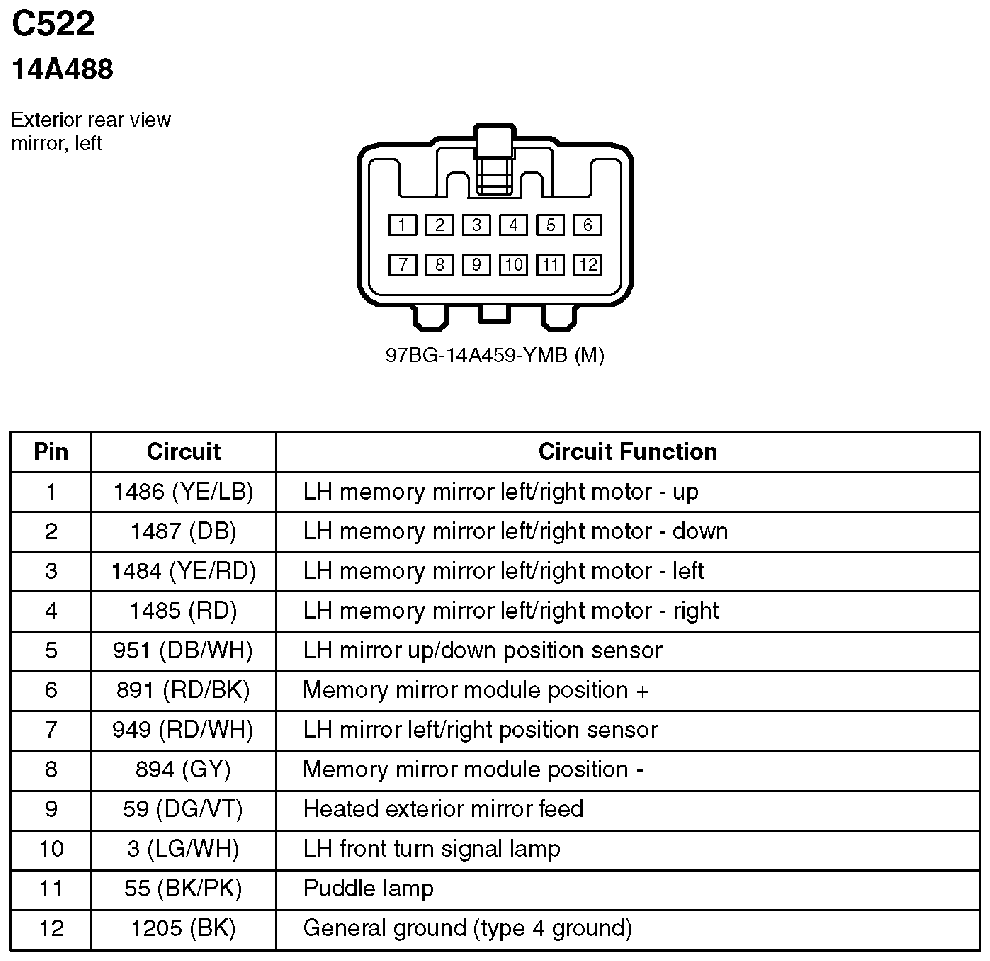

Fig 179: Exterior Rear View Mirror, Left Connector End View (C522)
Courtesy of FORD MOTOR CO.

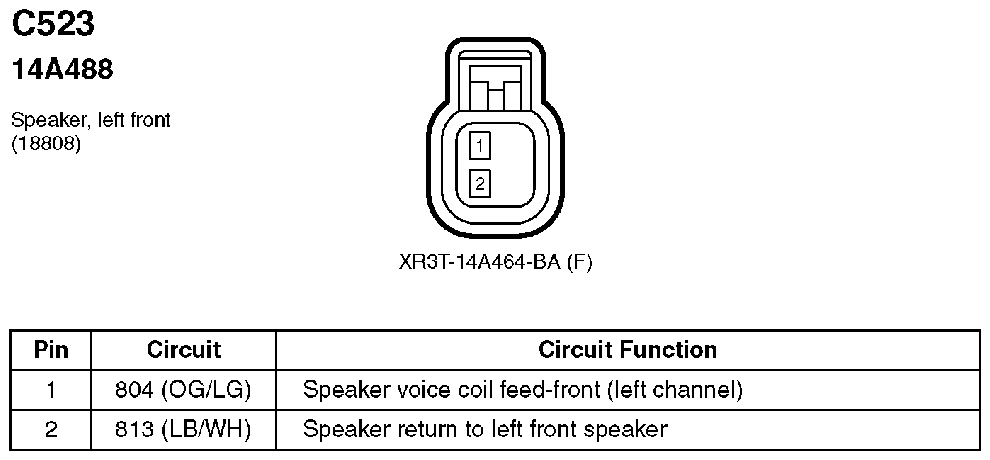

Fig 180: Speaker, Left Front Connector End View (C523)
Courtesy of FORD MOTOR CO.

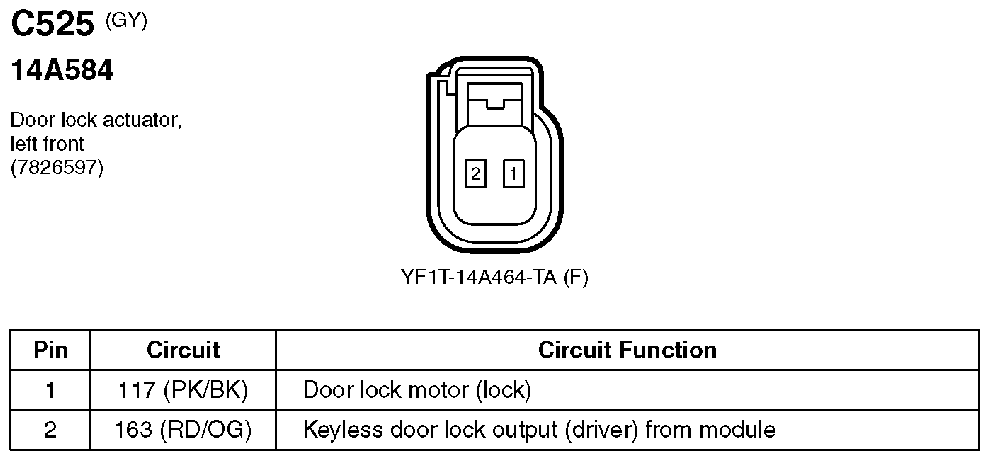

Fig 181: Door Lock Actuator, Left Front Connector End View (C525)
Courtesy of FORD MOTOR CO.
Fig 182: Door Ajar Switch, Left Front Connector End View (C526)
Courtesy of FORD MOTOR CO.

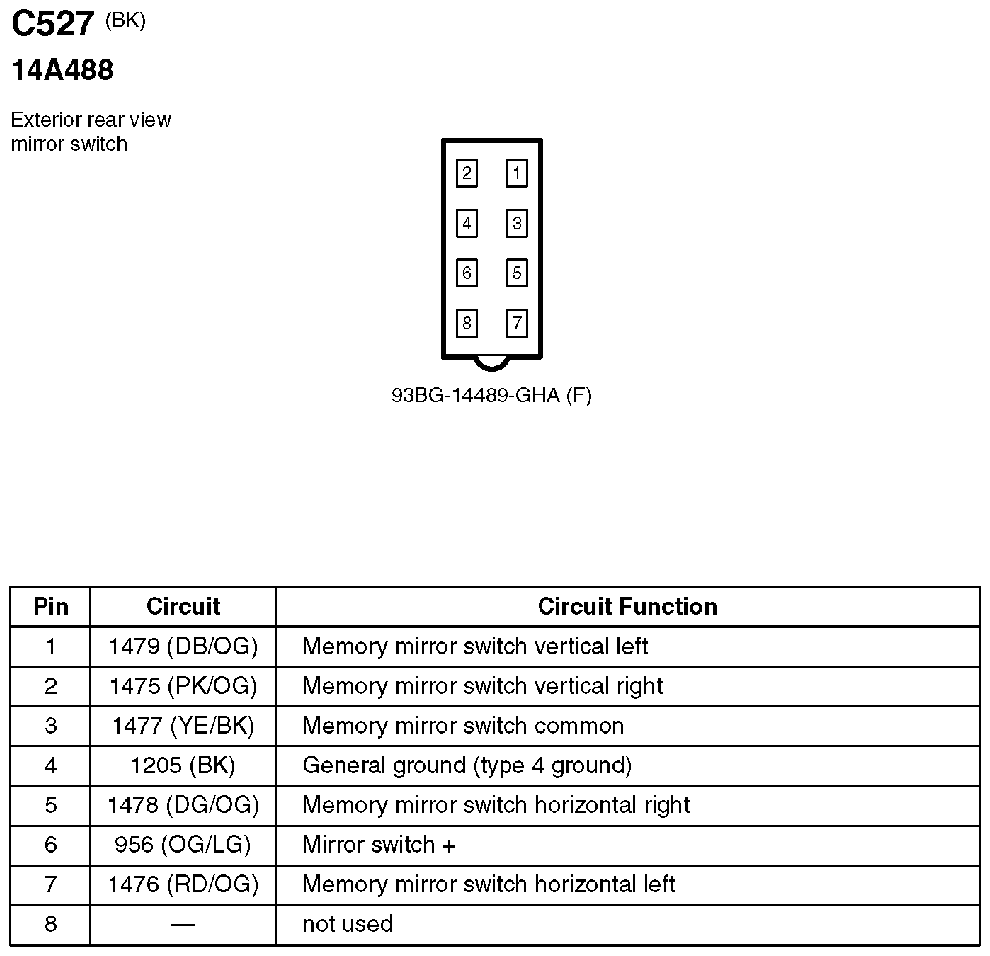

Fig 183: Exterior Rear View Mirror, Left Connector End View (C527)
Courtesy of FORD MOTOR CO.

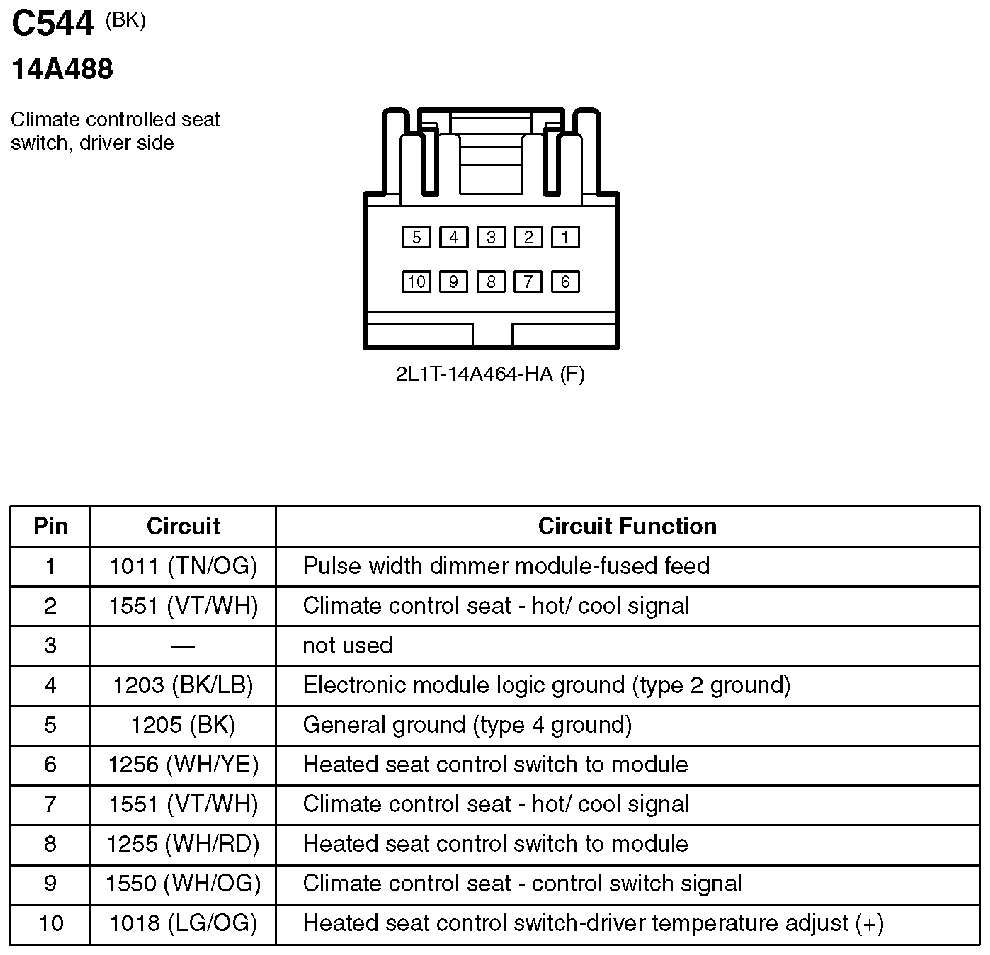

Fig 184: Climate Controlled Seat Switch, Driver Side Connector End View (C544)
Courtesy of FORD MOTOR CO.

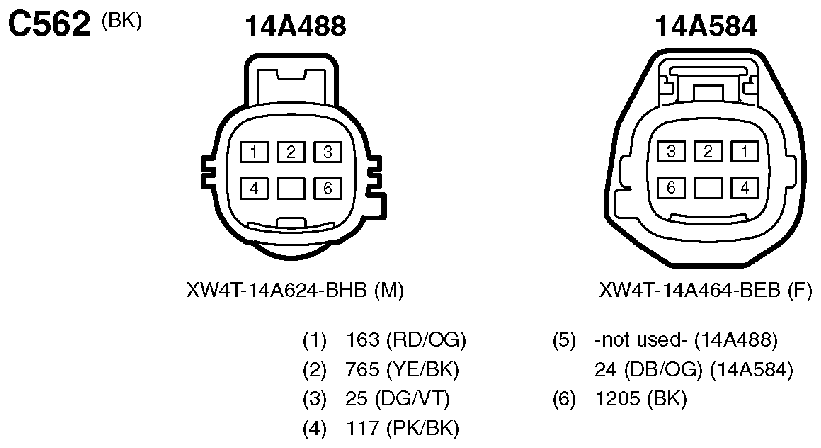

Fig 185: Inline Connector End View (C562)
Courtesy of FORD MOTOR CO.
Fig 186: Door Ajar Switch, Right Front Connector End View (C602)
Courtesy of FORD MOTOR CO.

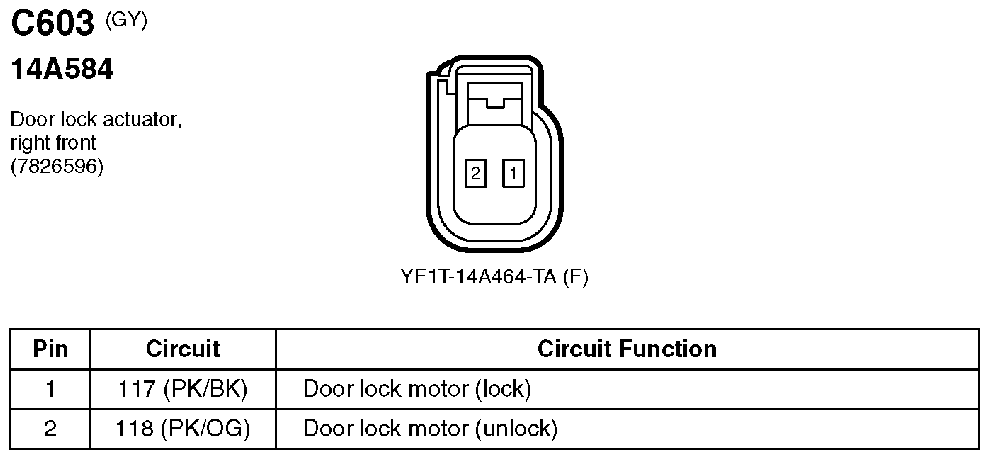

Fig 187: Door Lock Actuator, Right Front Connector End View (C603)
Courtesy of FORD MOTOR CO.

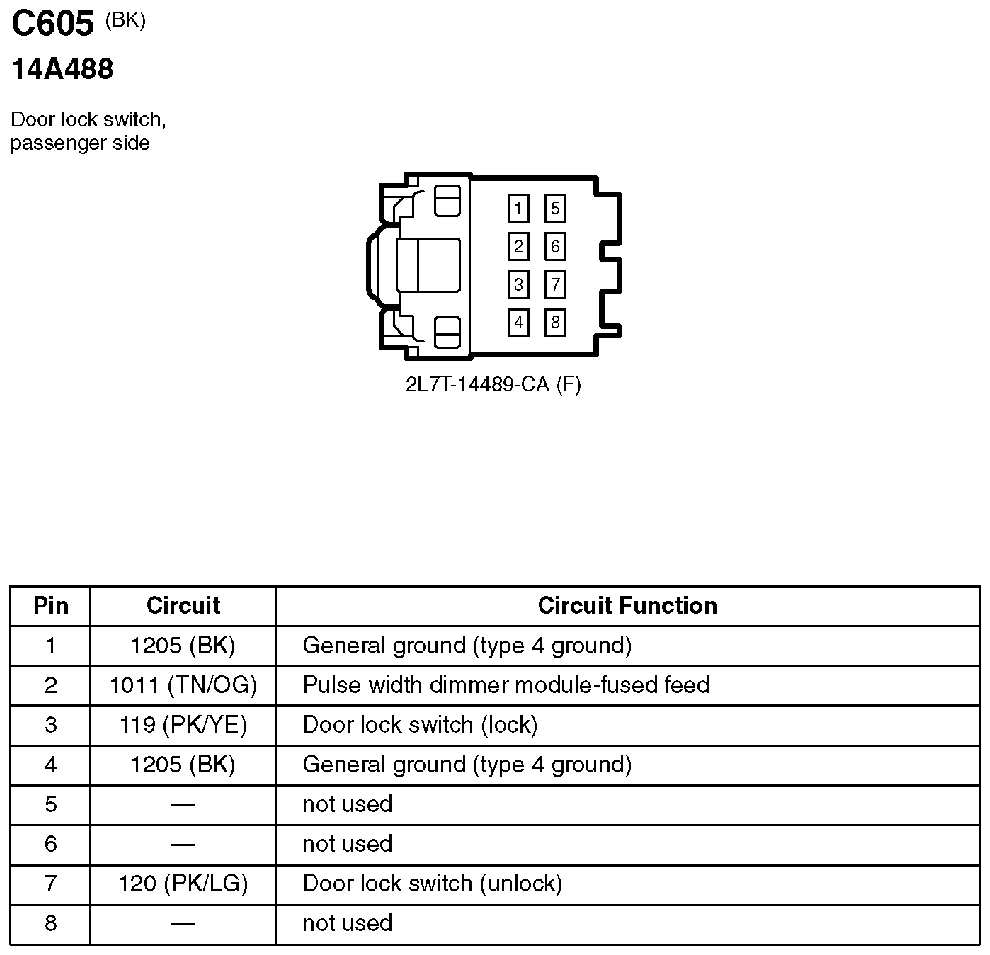

Fig 188: Door Lock Switch, Passenger Side Connector End View (C605)
Courtesy of FORD MOTOR CO.

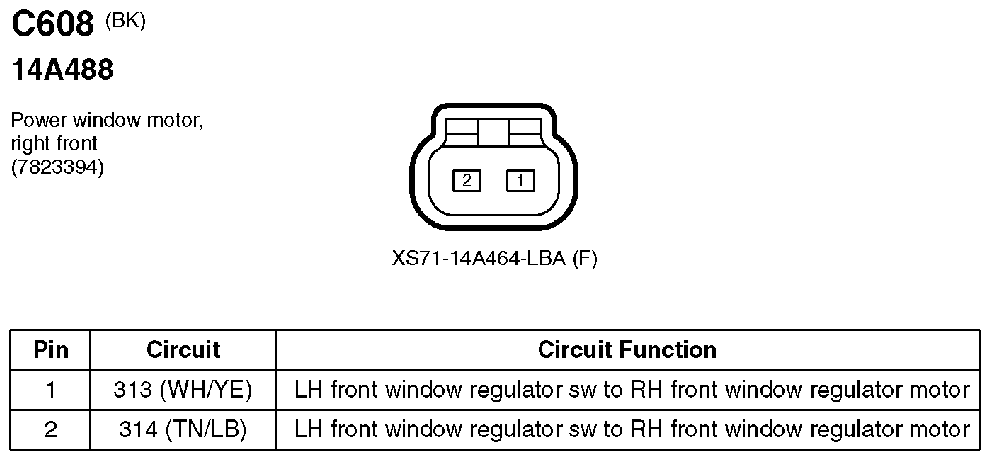

Fig 189: Power Window Motor, Right Front Connector End View (C608)
Courtesy of FORD MOTOR CO.

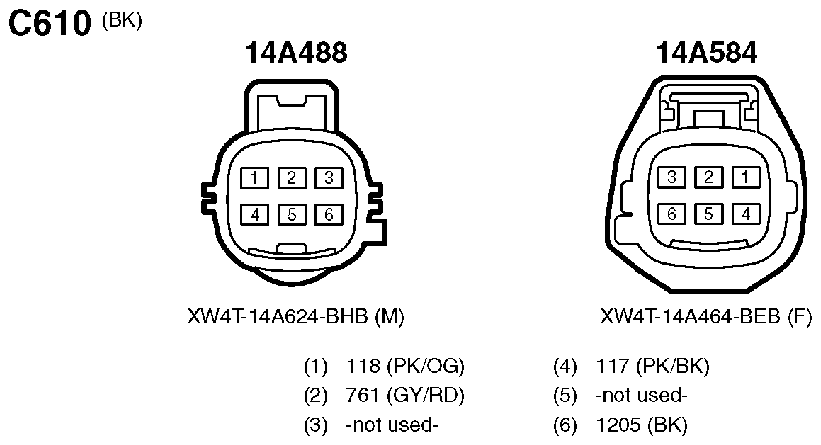

Fig 190: Inline Connector End View (C610)
Courtesy of FORD MOTOR CO.

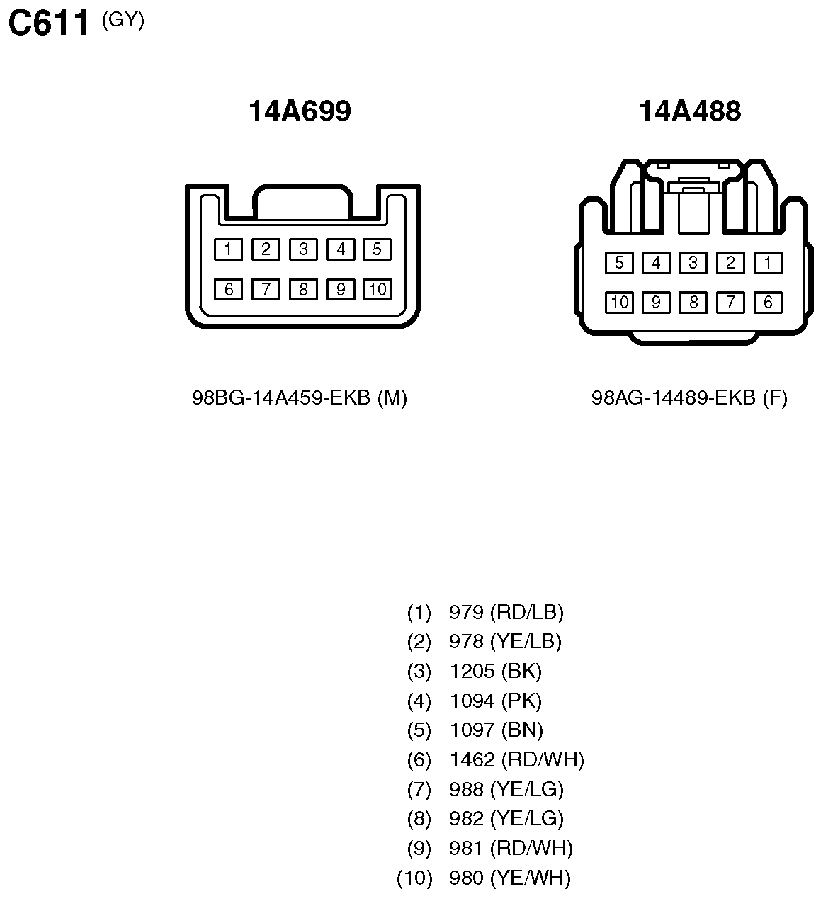

Fig 191: Inline Connector End View (C611)
Courtesy of FORD MOTOR CO.

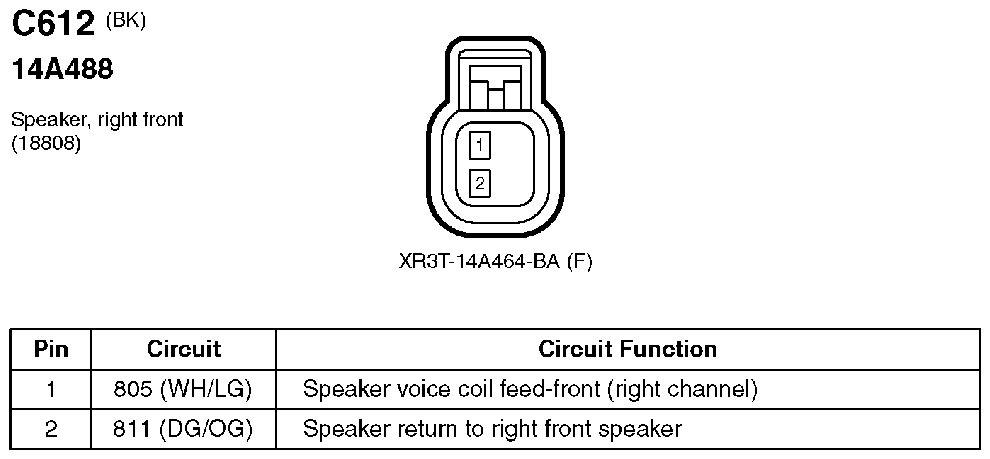

Fig 192: Speaker, Right Front Connector End View (C612)
Courtesy of FORD MOTOR CO.

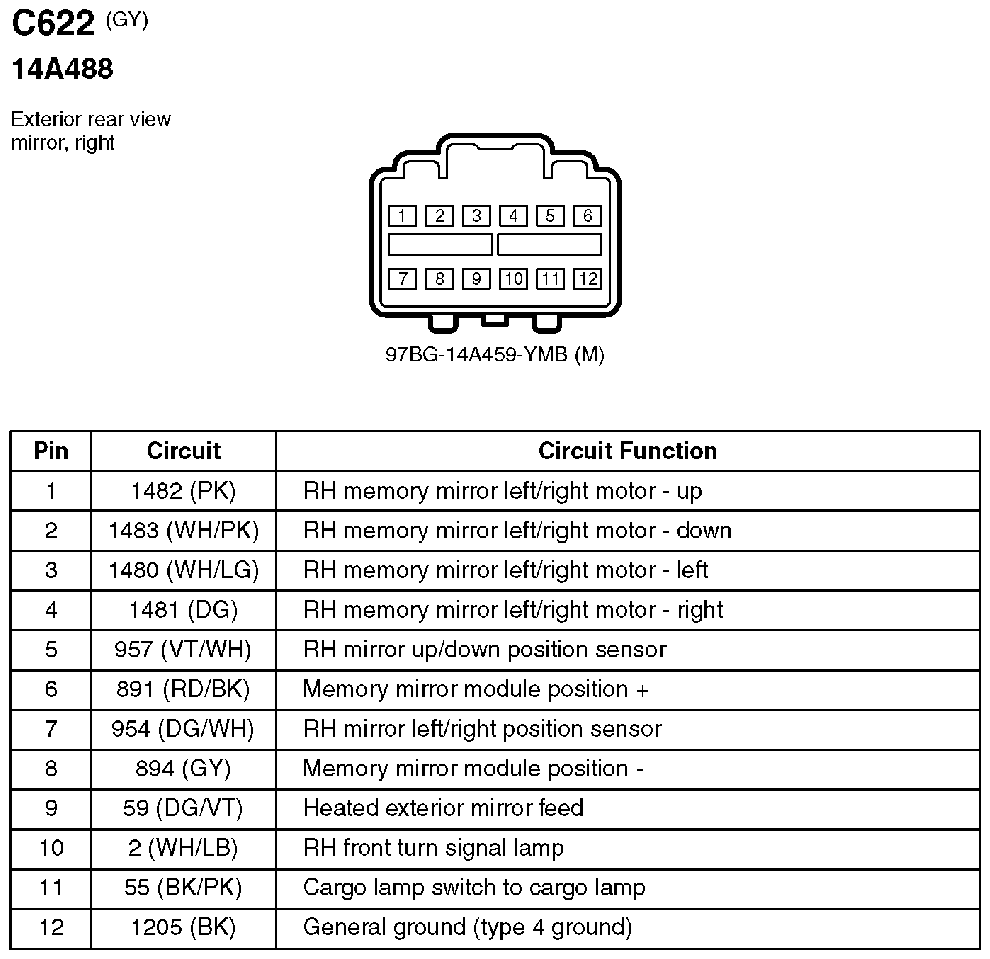

Fig 193: Exterior Rear View Mirror, Right Connector End View (C622)
Courtesy of FORD MOTOR CO.

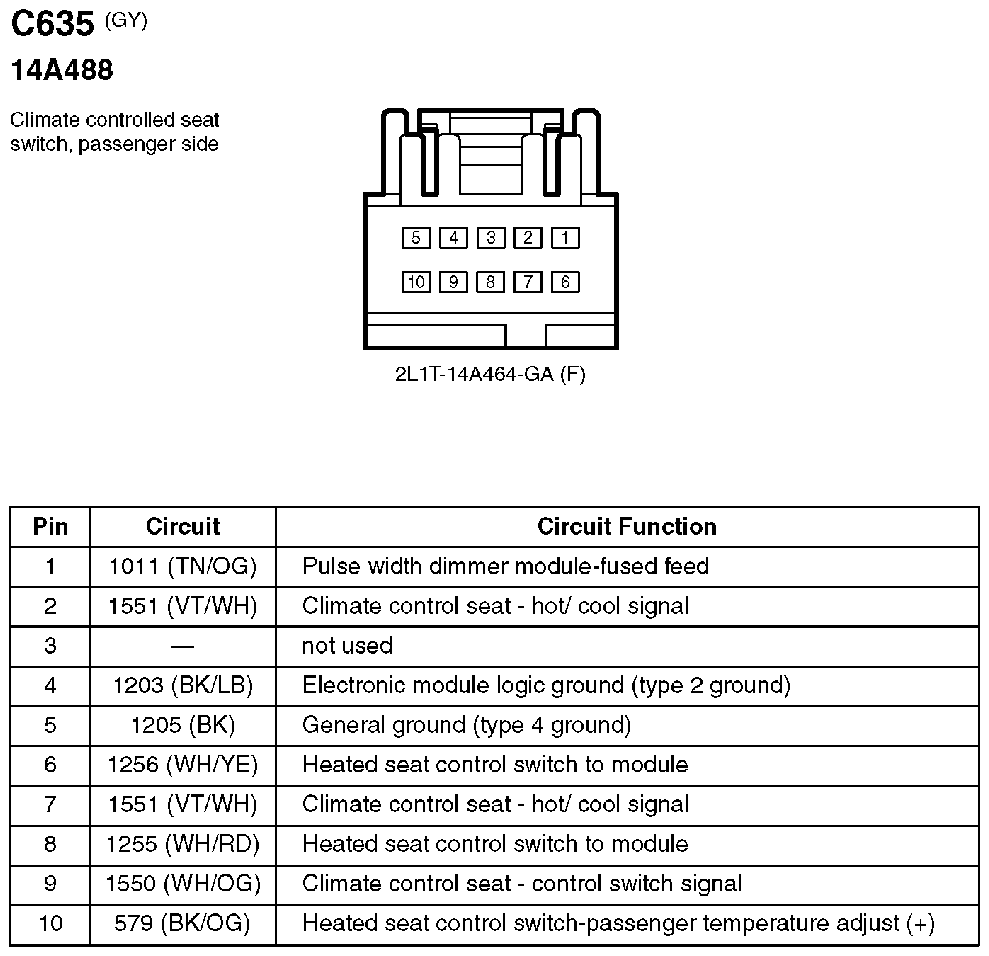

Fig 194: Climate Control Seat Switch, Passenger Side Connector End View (C635)
Courtesy of FORD MOTOR CO.

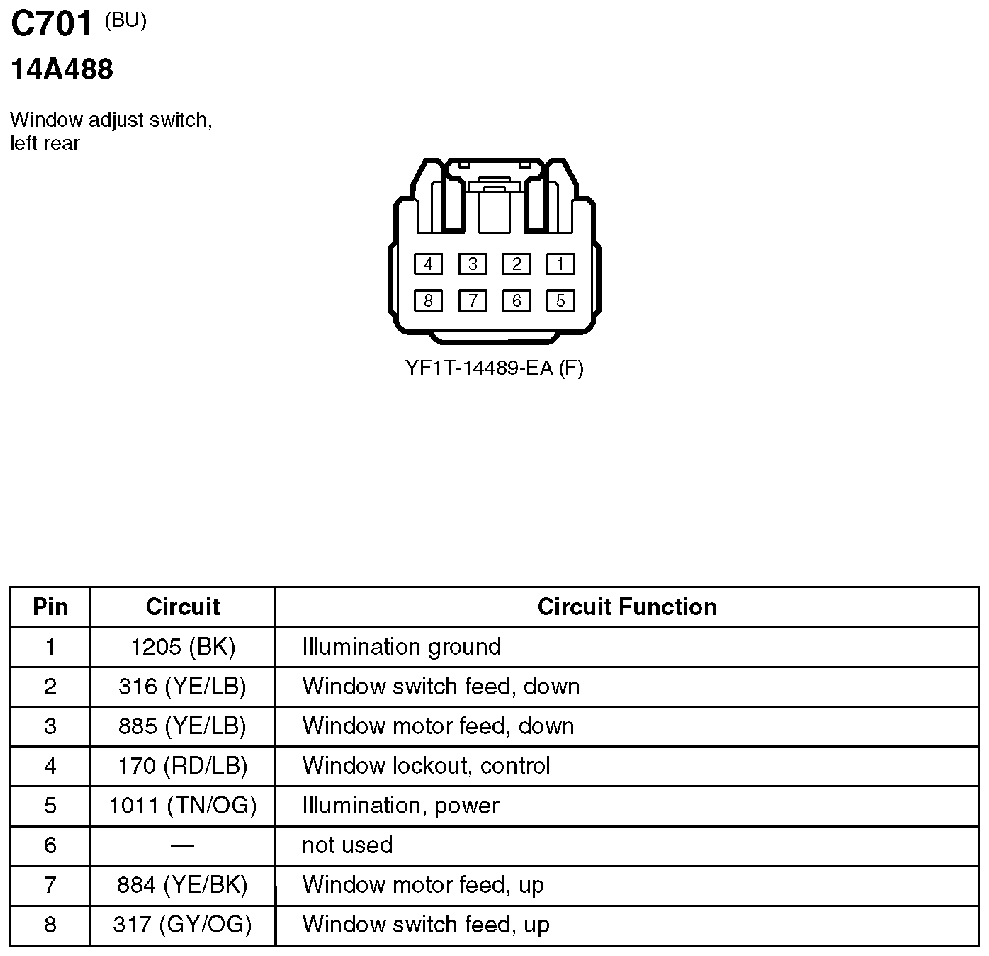

Fig 195: Window Adjust Switch, Left Rear Connector End View (C701)
Courtesy of FORD MOTOR CO.

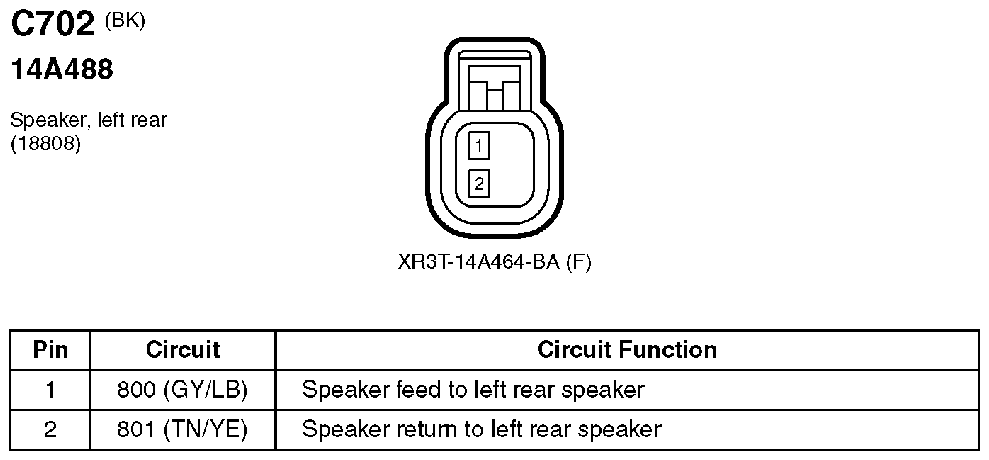

Fig 196: Speaker, Left Rear Connector End View (C702)
Courtesy of FORD MOTOR CO.

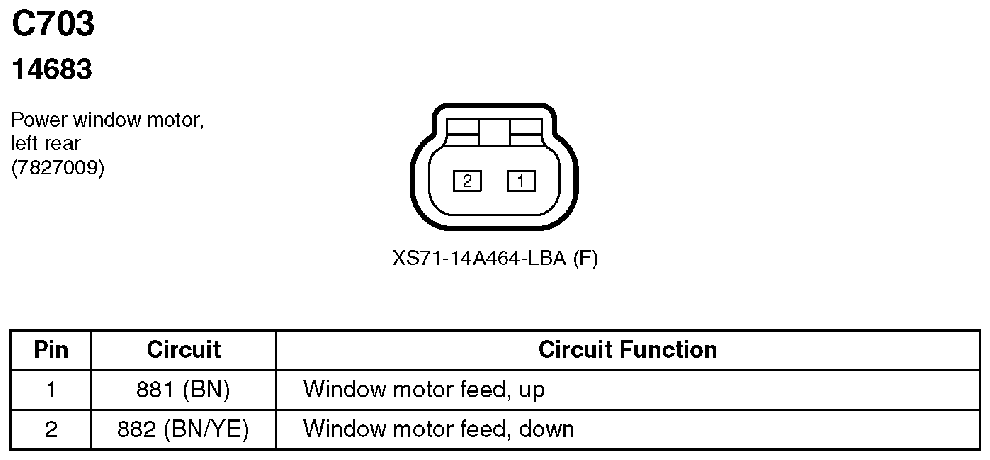

Fig 197: Power Window Motor, Left Rear Connector End View (C703)
Courtesy of FORD MOTOR CO.

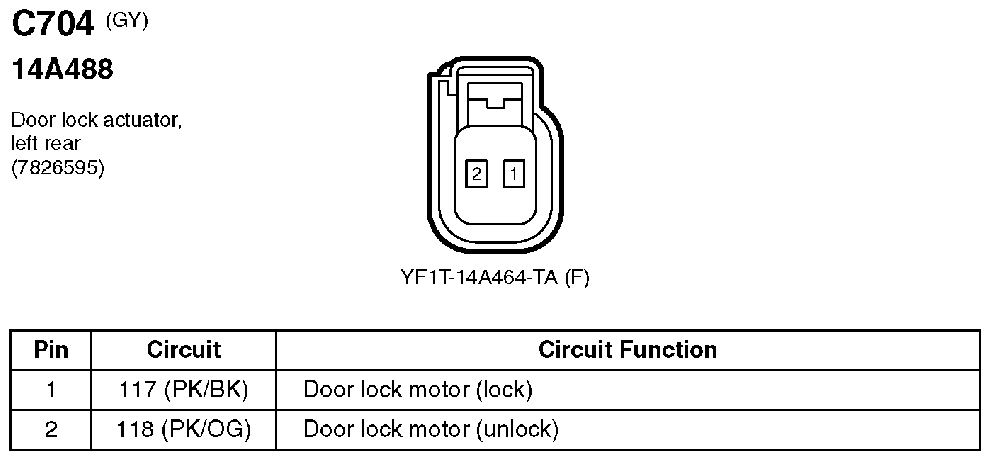

Fig 198: Door Lock Actuator, Left Rear Connector End View (C704)
Courtesy of FORD MOTOR CO.

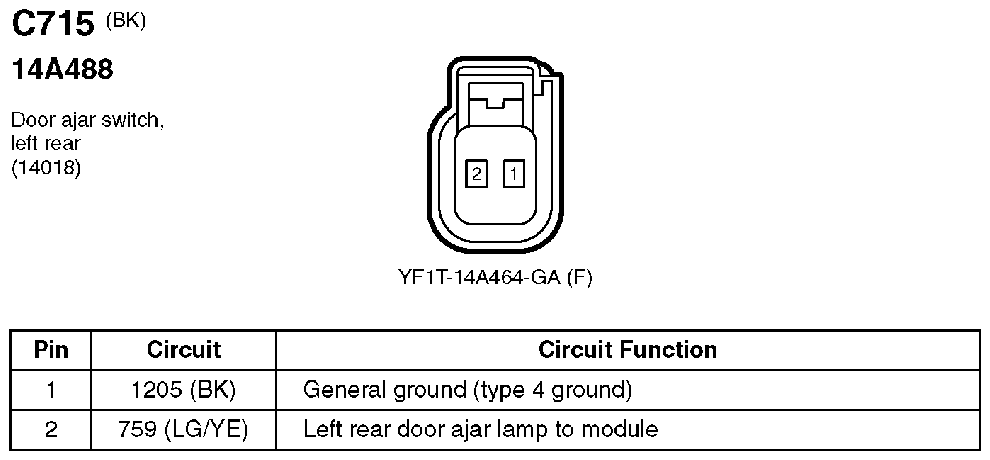

Fig 199: Door Ajar Switch, Left Rear Connector End View (C715)
Courtesy of FORD MOTOR CO.

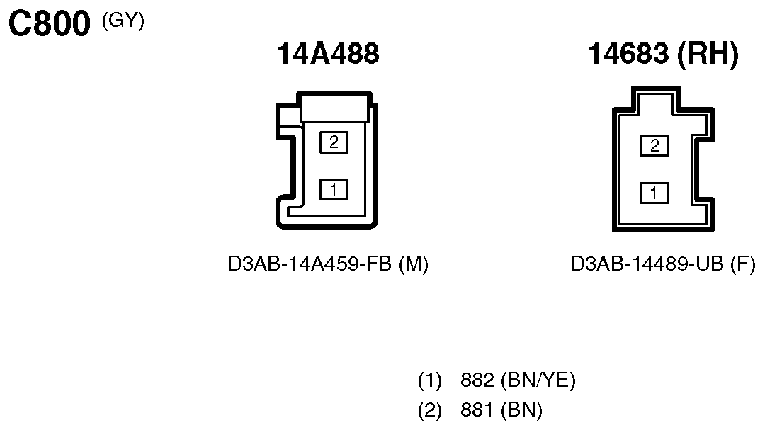

Fig 200: Inline Connector End View (C800)
Courtesy of FORD MOTOR CO.
Fig 201: Window Adjust Switch, Right Rear Connector End View (C801)
Courtesy of FORD MOTOR CO.

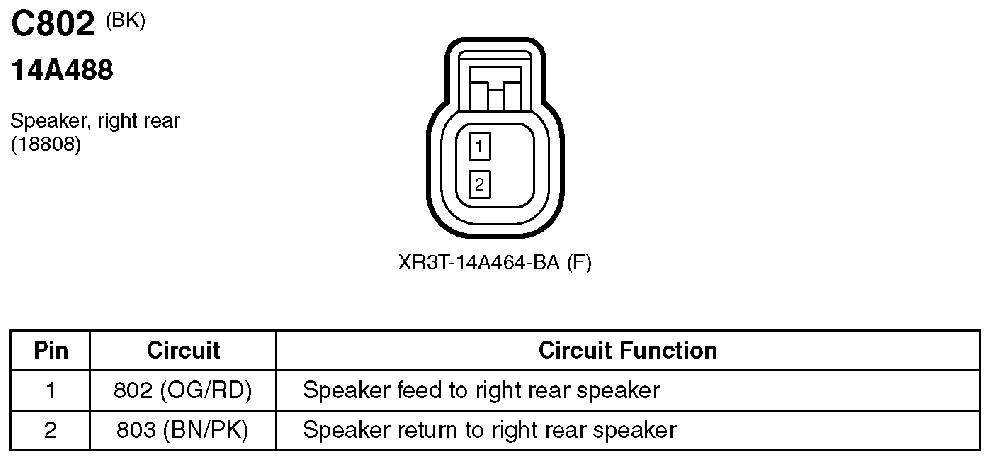

Fig 202: Speaker, Right Rear Connector End View (C802)
Courtesy of FORD MOTOR CO.

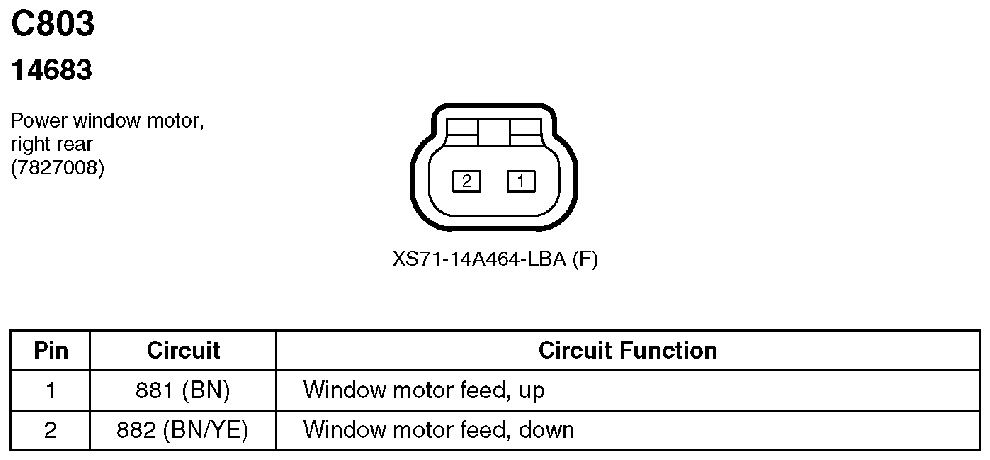

Fig 203: Power Window Motor, Right Rear Connector End View (C803)
Courtesy of FORD MOTOR CO.
Fig 204: Door Lock Actuator, Right Rear Connector End View (C804)
Courtesy of FORD MOTOR CO.

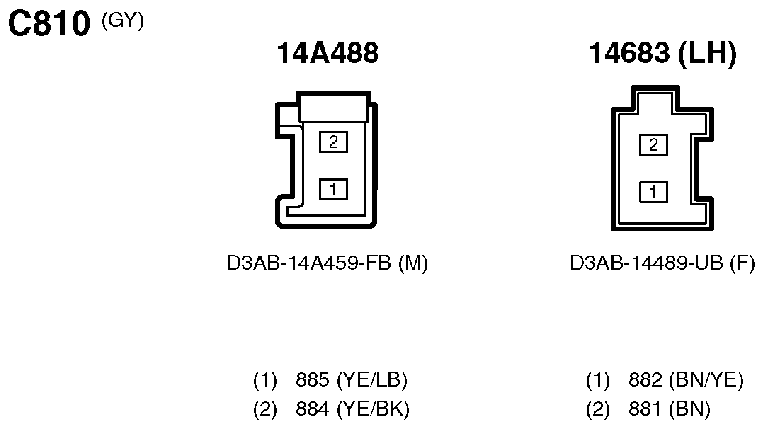

Fig 205: Inline Connector End View (C810)
Courtesy of FORD MOTOR CO.

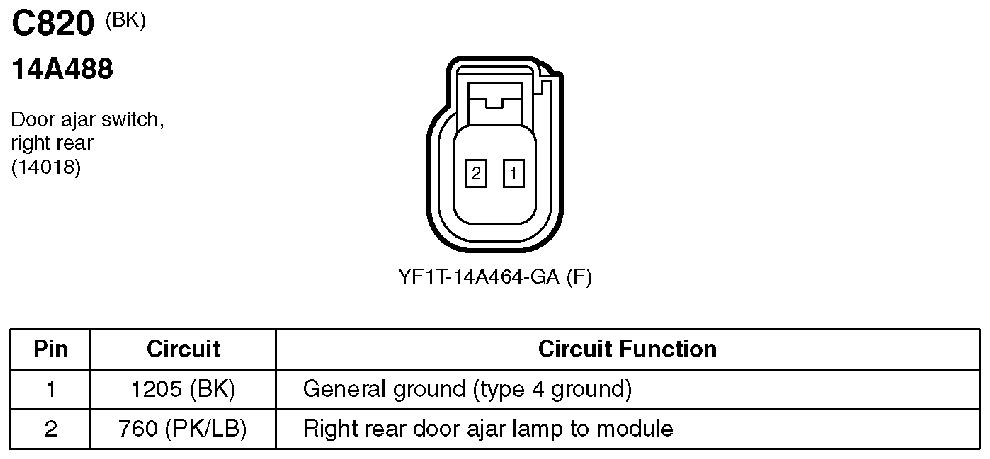

Fig 206: Door Ajar Switch, Right Rear Connector End View (C820)
Courtesy of FORD MOTOR CO.

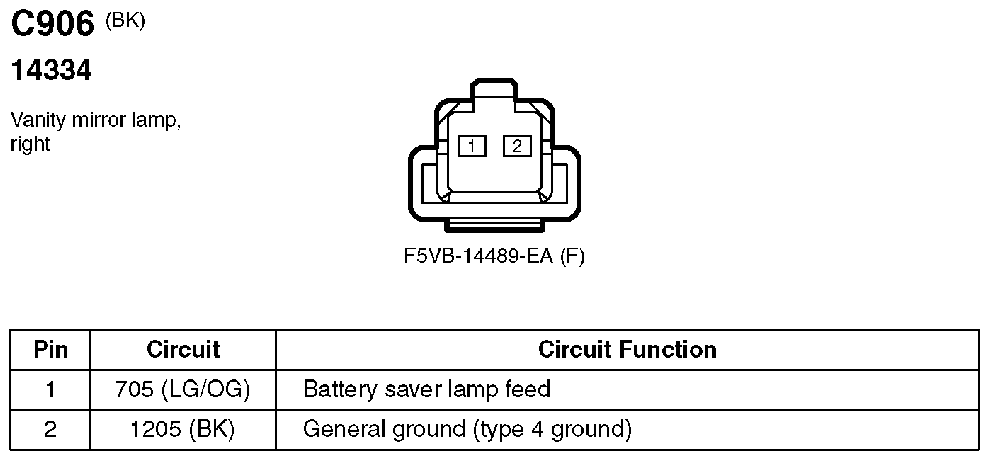

Fig 207: Vanity Mirror Lamp, Right Connector End View (C906)
Courtesy of FORD MOTOR CO.

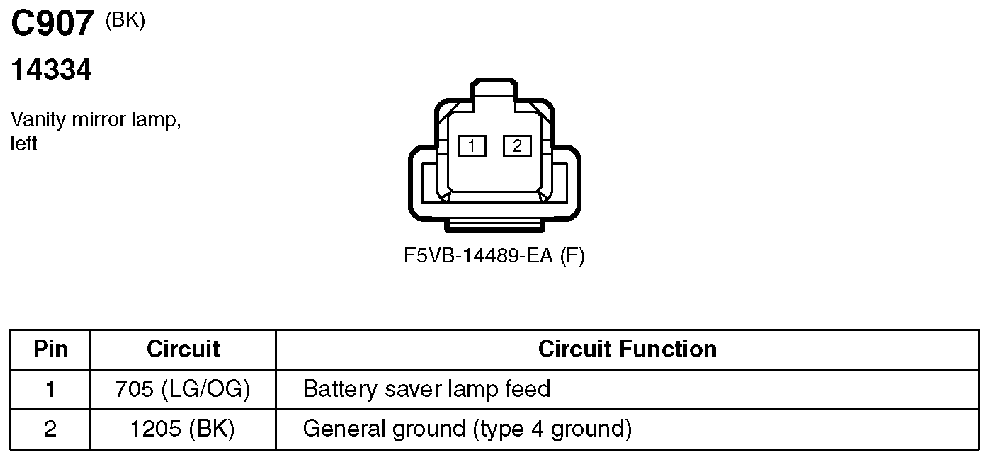

Fig 208: Vanity Mirror Lamp, Left Connector End View (C907)
Courtesy of FORD MOTOR CO.

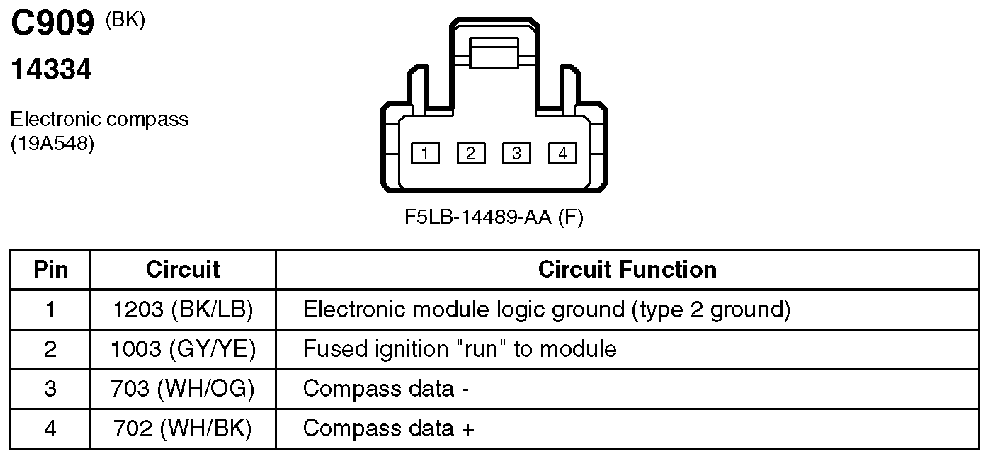

Fig 209: Electronic Compass Connector End View (C909)
Courtesy of FORD MOTOR CO.

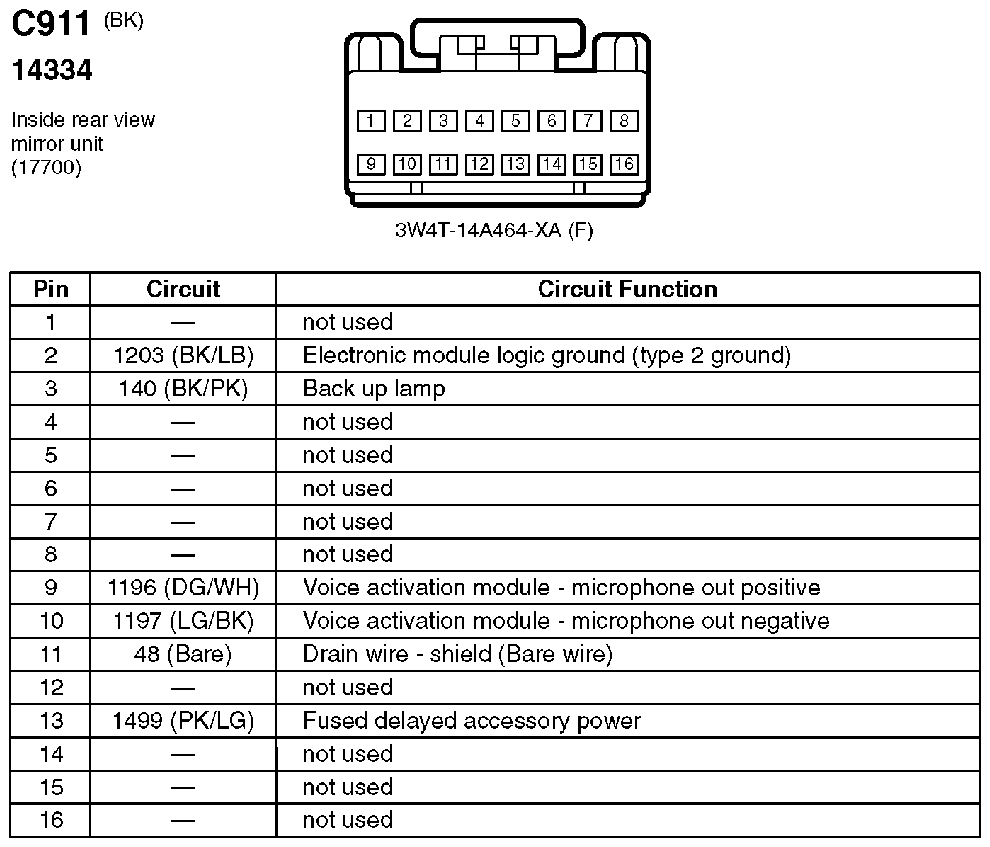

Fig 210: Inside Rear View Mirror Unit Connector End View (C911)
Courtesy of FORD MOTOR CO.

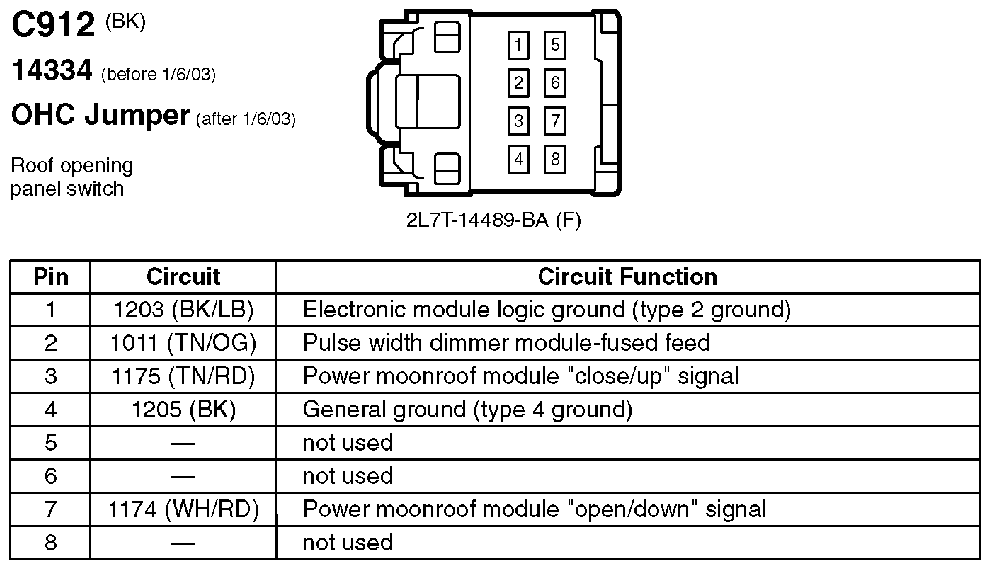

Fig 211: Roof Opening Panel Switch Connector End View (C912)
Courtesy of FORD MOTOR CO.

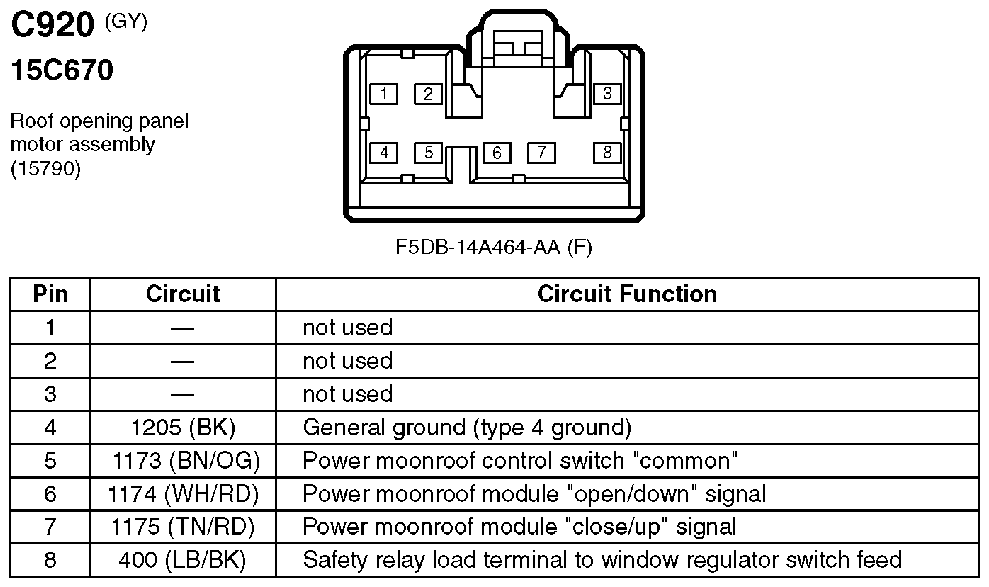

Fig 212: Roof Opening Panel Motor Assembly Connector End View (C920)
Courtesy of FORD MOTOR CO.
Fig 213: Inline Connector End View (C922)
Courtesy of FORD MOTOR CO.

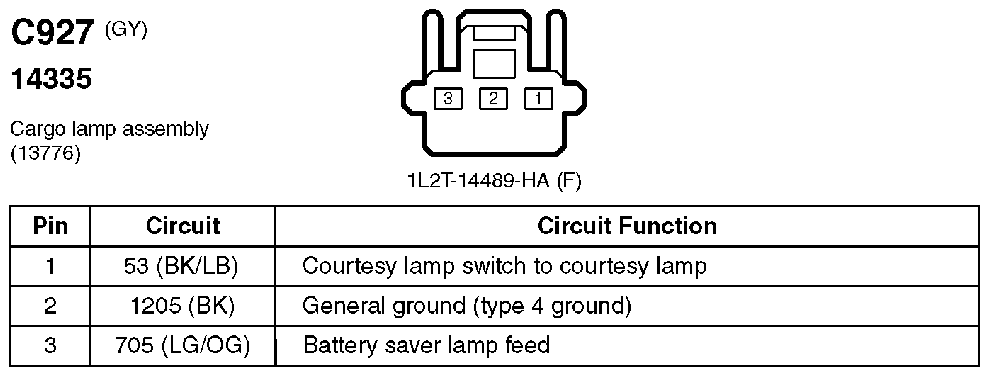

Fig 214: Cargo Lamp Assembly Connector End View (C927)
Courtesy of FORD MOTOR CO.

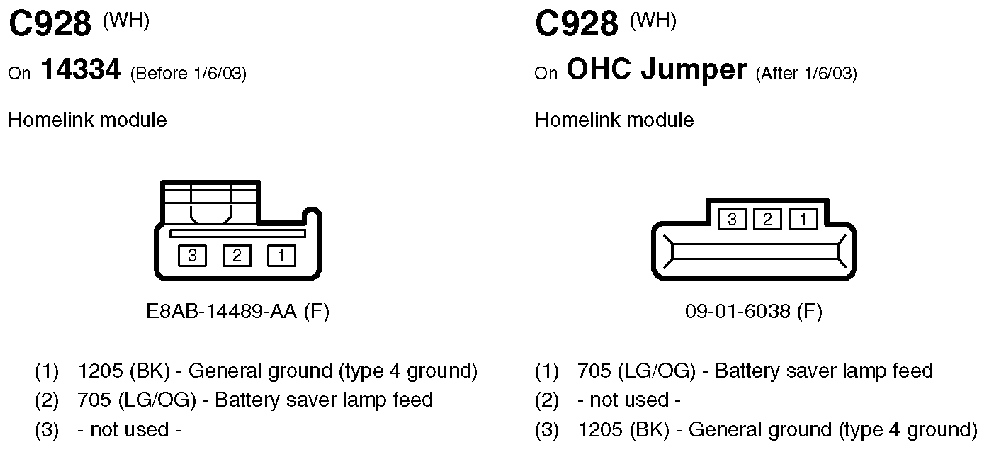

Fig 215: Homelink Module Connector End View (C928)
Courtesy of FORD MOTOR CO.

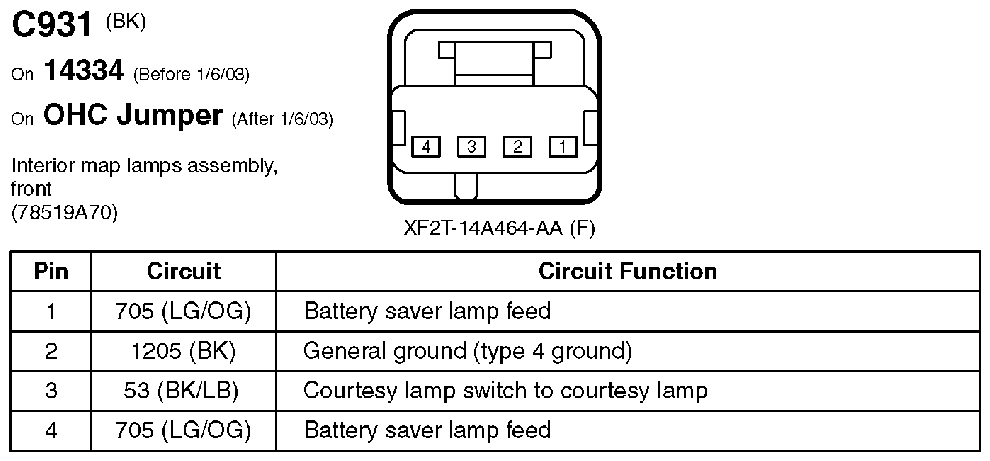

Fig 216: Interior Map Lamps Assembly, Front Connector End View (C931)
Courtesy of FORD MOTOR CO.

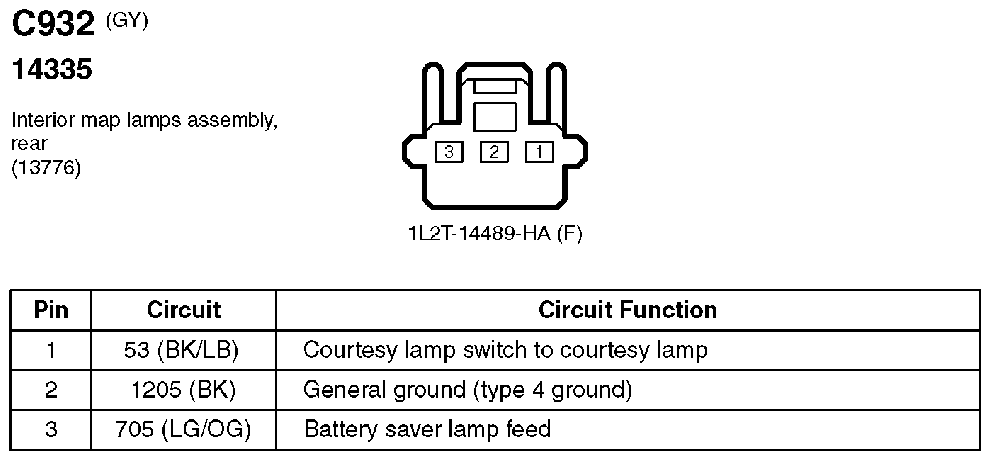

Fig 217: Interior Map Lamps Assembly, Rear Connector End View (C932)
Courtesy of FORD MOTOR CO.

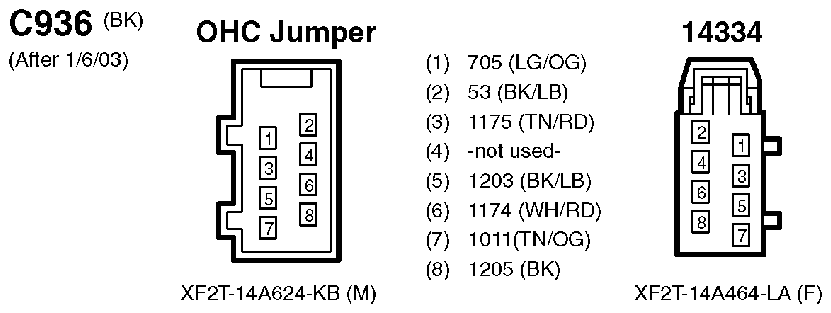

Fig 218: Inline Connector End View (C936)
Courtesy of FORD MOTOR CO.

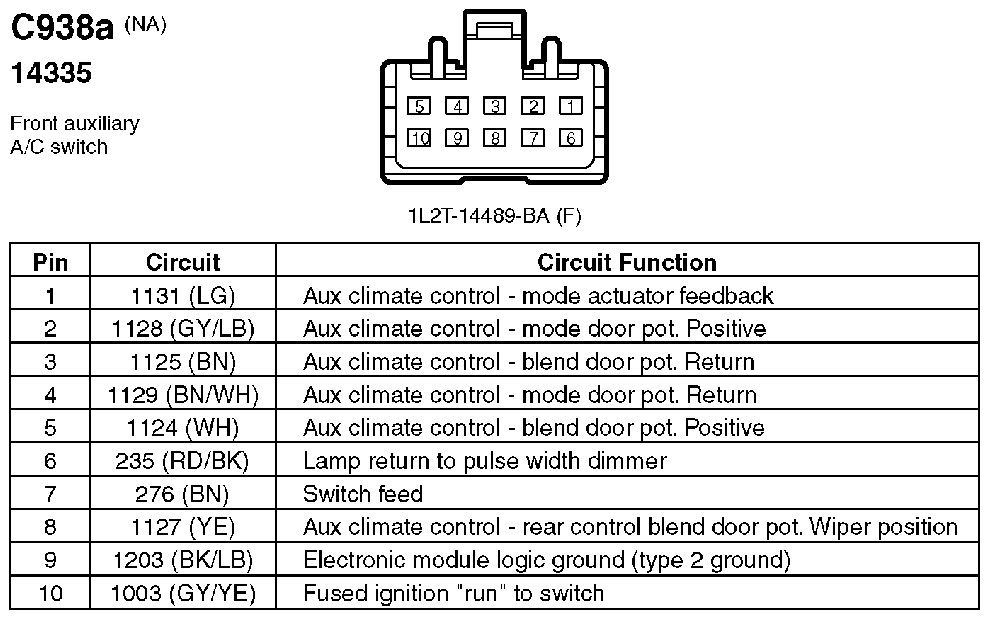

Fig 219: Front Auxiliary A/C Switch Connector End View (C938a)
Courtesy of FORD MOTOR CO.

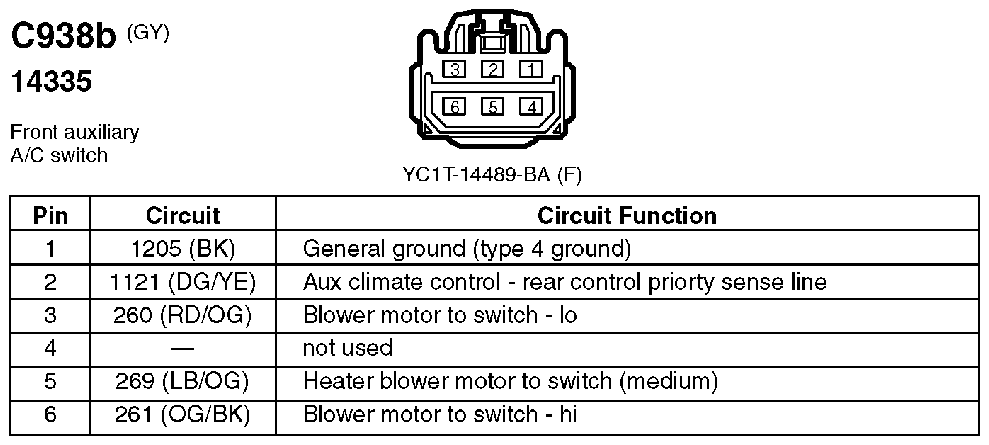

Fig 220: Front Auxiliary A/C Switch Connector End View (C938b)
Courtesy of FORD MOTOR CO.

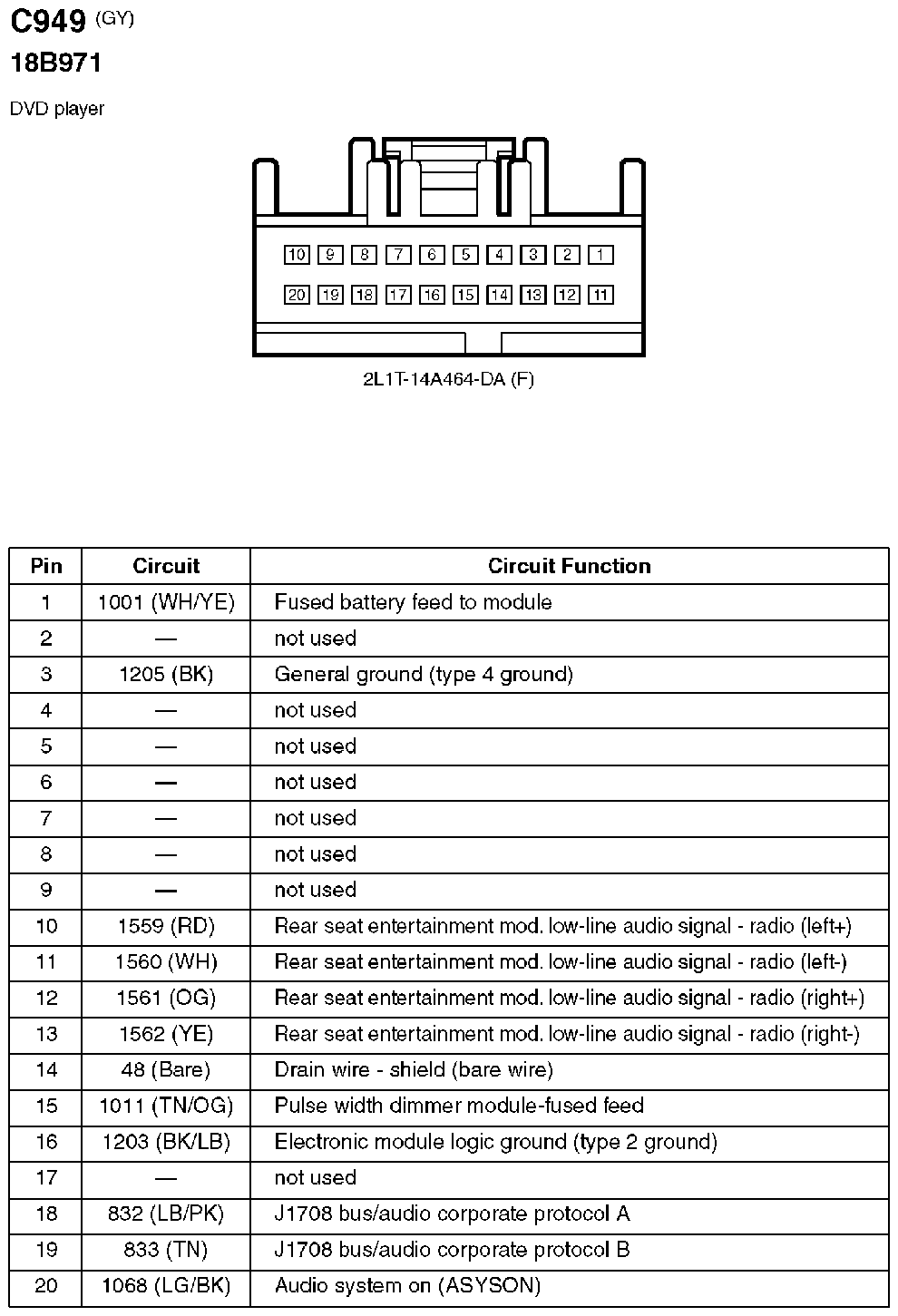

Fig 221: DVD Player Connector End View (C949)
Courtesy of FORD MOTOR CO.
Fig 222: High Beam Lamp, Left Front Connector End View (C1020)
Courtesy of FORD MOTOR CO.

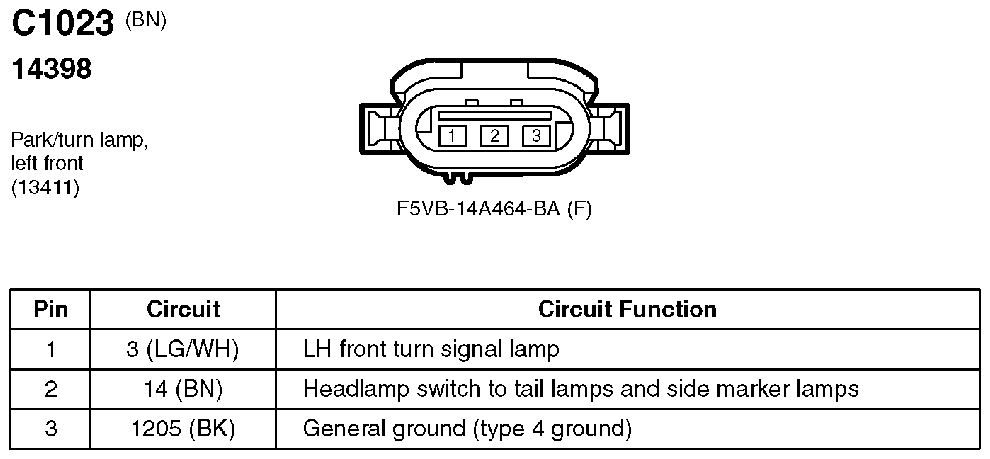

Fig 223: Park/Turn Lamp, Left Front Connector End View (C1023)
Courtesy of FORD MOTOR CO.

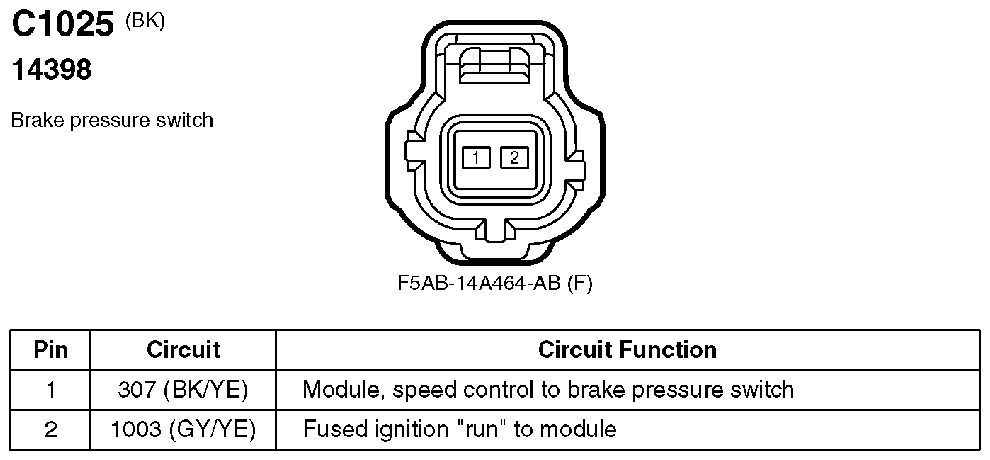

Fig 224: Brake Pressure Switch Connector End View (C1025)
Courtesy of FORD MOTOR CO.

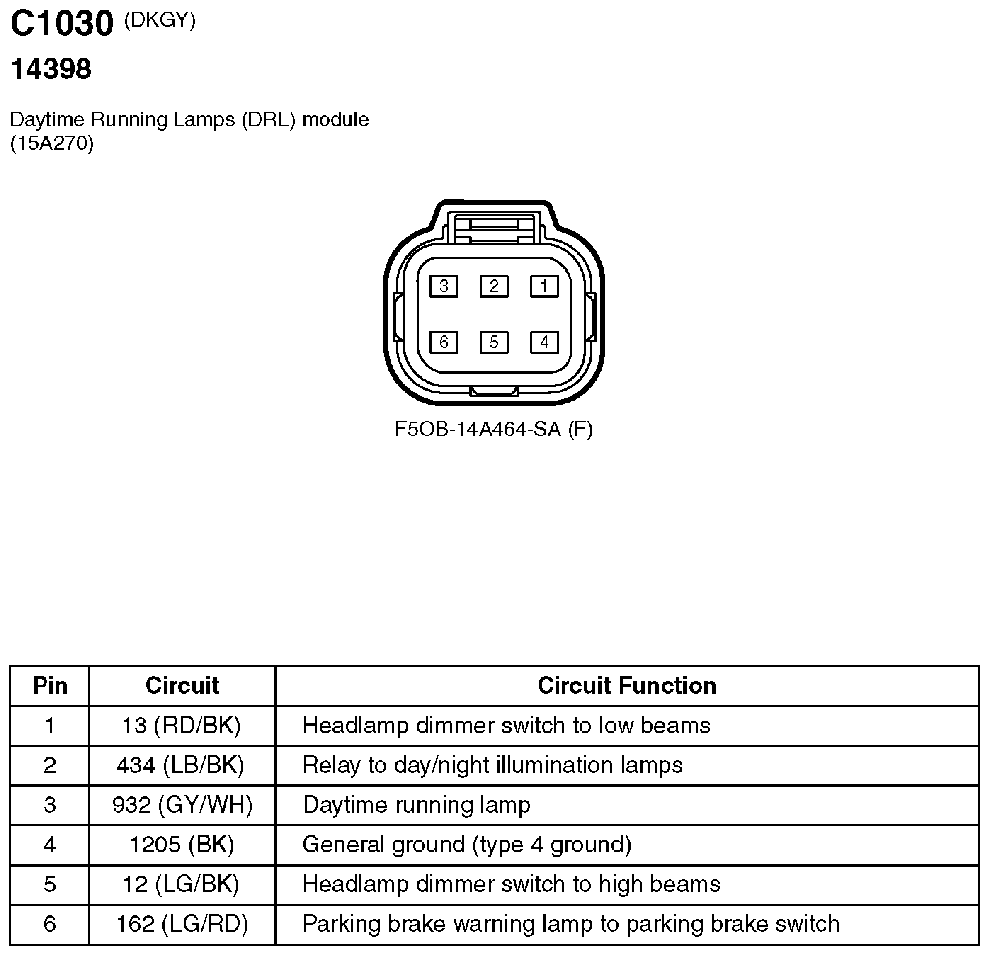

Fig 225: Daytime Running Lamps (DRL) Module Connector End View (C1030)
Courtesy of FORD MOTOR CO.

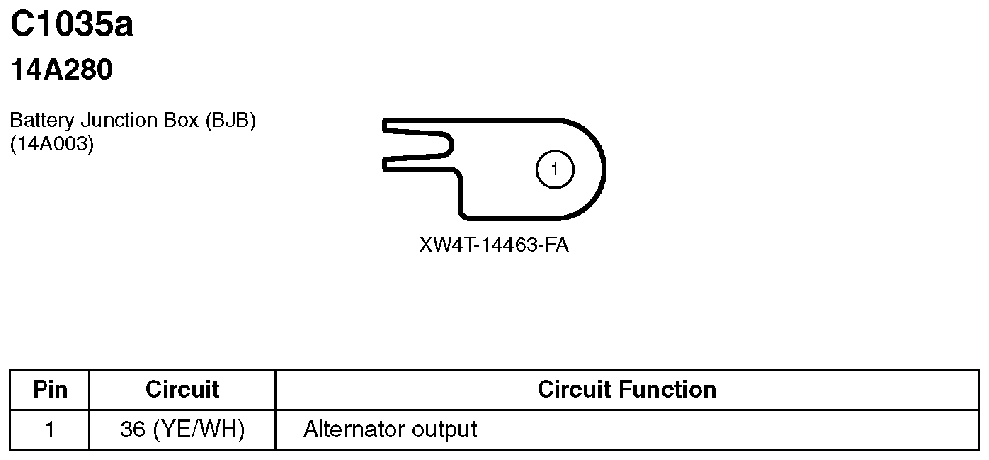

Fig 226: Battery Junction Box (BJB) Connector End View (C1035a)
Courtesy of FORD MOTOR CO.

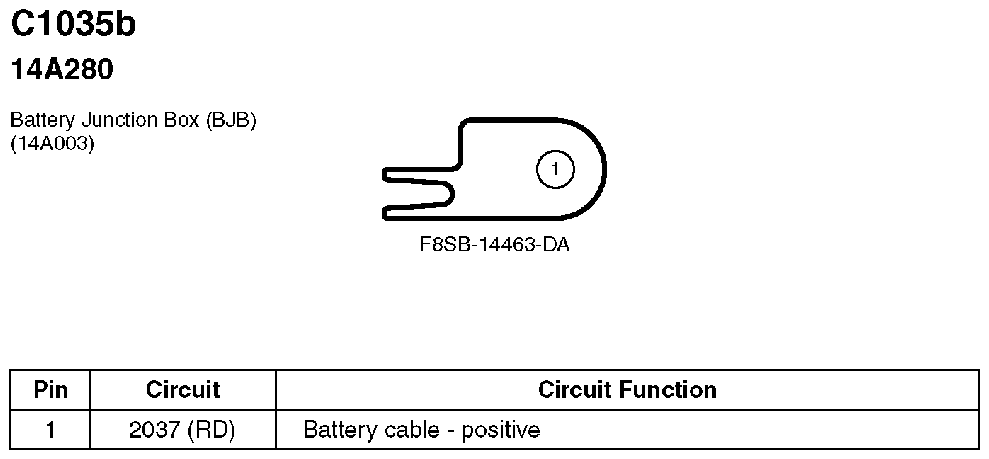

Fig 227: Battery Junction Box (BJB) Connector End View (C1035b)
Courtesy of FORD MOTOR CO.

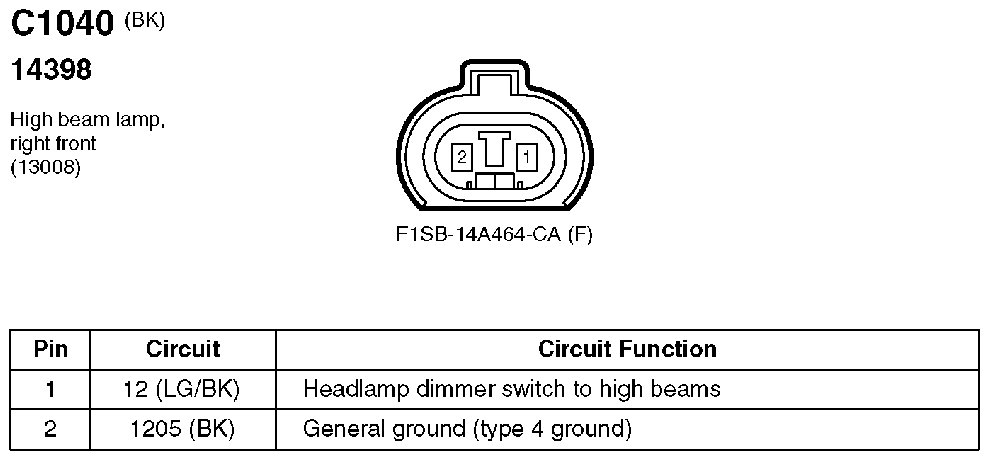

Fig 228: High Beam Lamp, Right Front Connector End View (C1040)
Courtesy of FORD MOTOR CO.

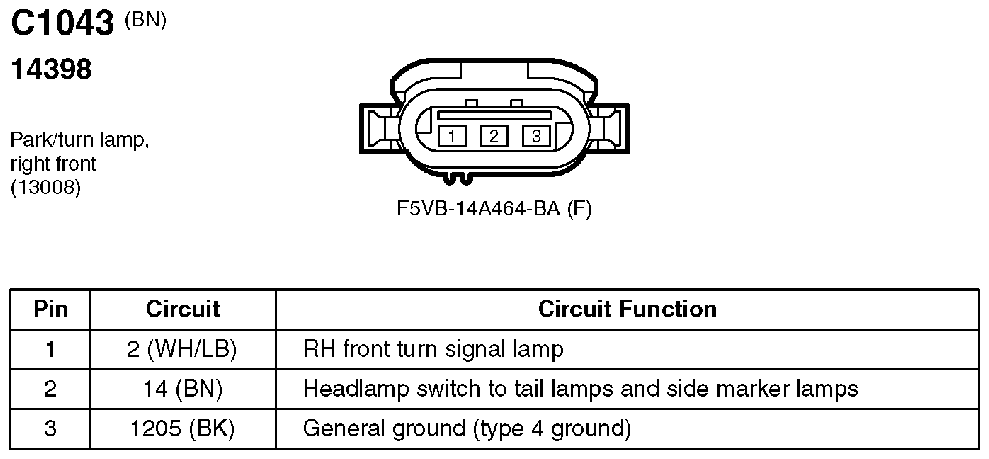

Fig 229: Park/Turn Lamp, Right Front Connector End View (C1043)
Courtesy of FORD MOTOR CO.

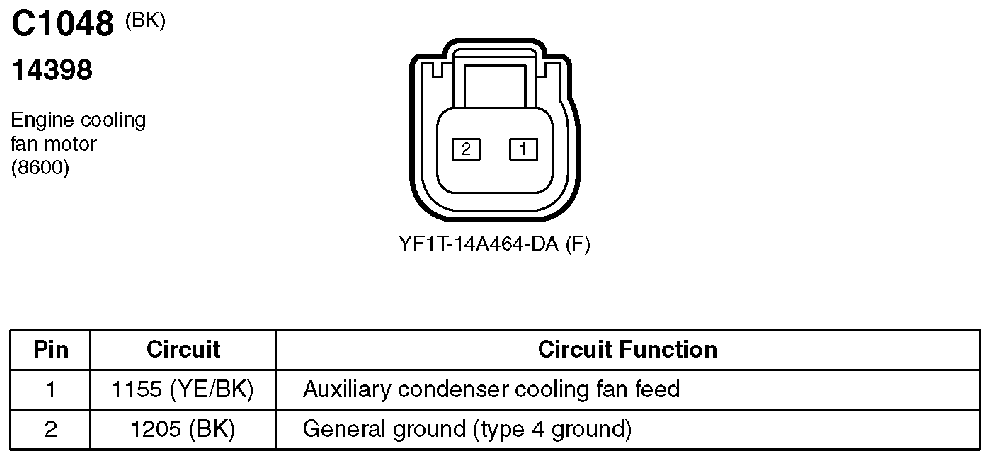

Fig 230: Engine Cooling Fan Motor Connector End View (C1048)
Courtesy of FORD MOTOR CO.

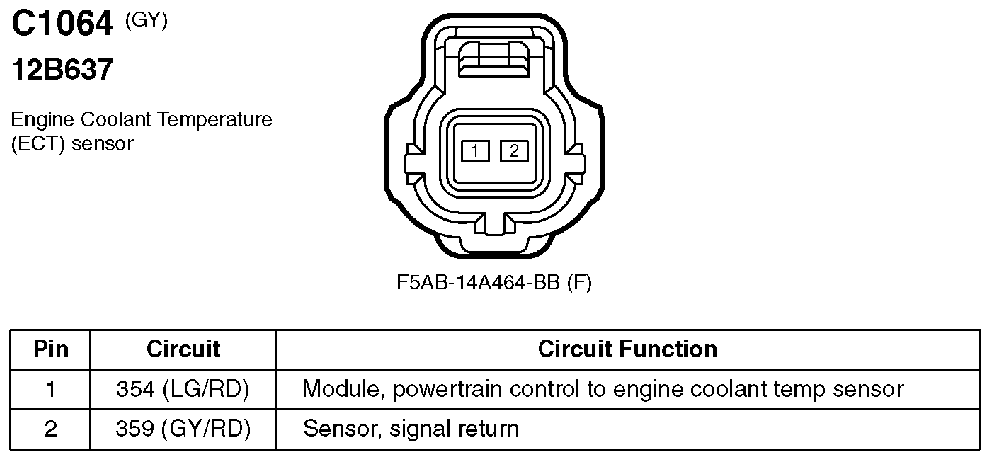

Fig 231: Engine Coolant Temperature (ECT) Sensor Connector End View (C1064)
Courtesy of FORD MOTOR CO.

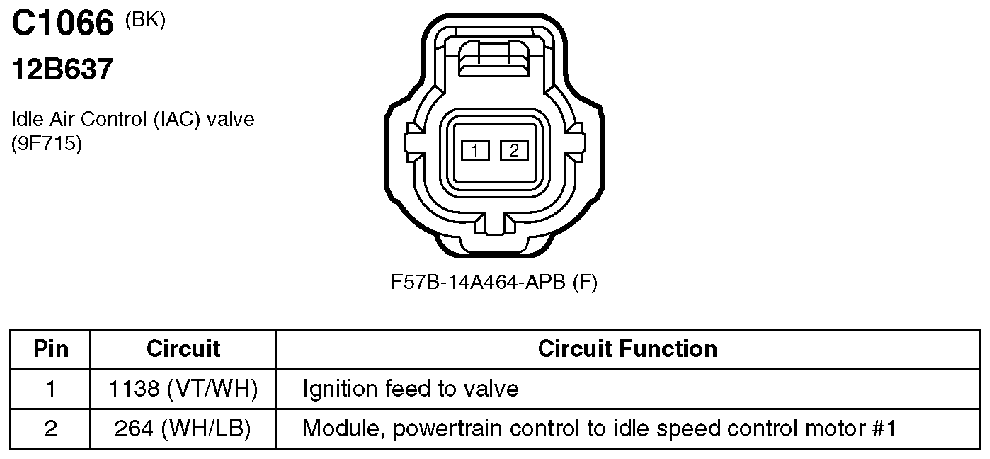

Fig 232: Idle Air Control (IAC) Valve Connector End View (C1066)
Courtesy of FORD MOTOR CO.

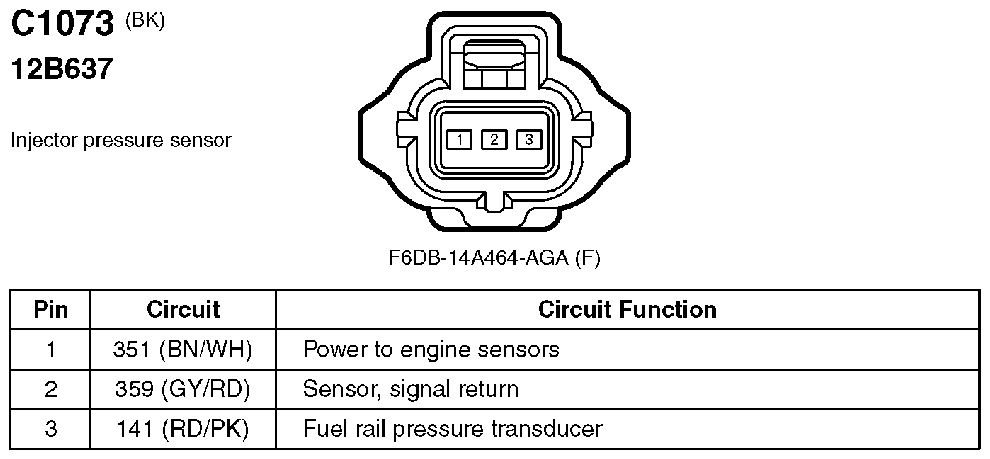

Fig 233: Injector Pressure Sensor Connector End View (C1073)
Courtesy of FORD MOTOR CO.

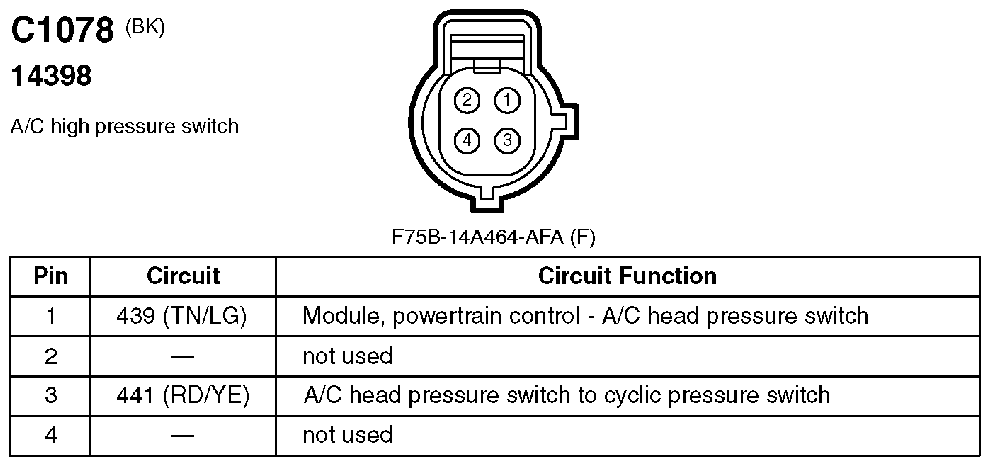

Fig 234: A/C High Pressure Switch Connector End View (C1078)
Courtesy of FORD MOTOR CO.

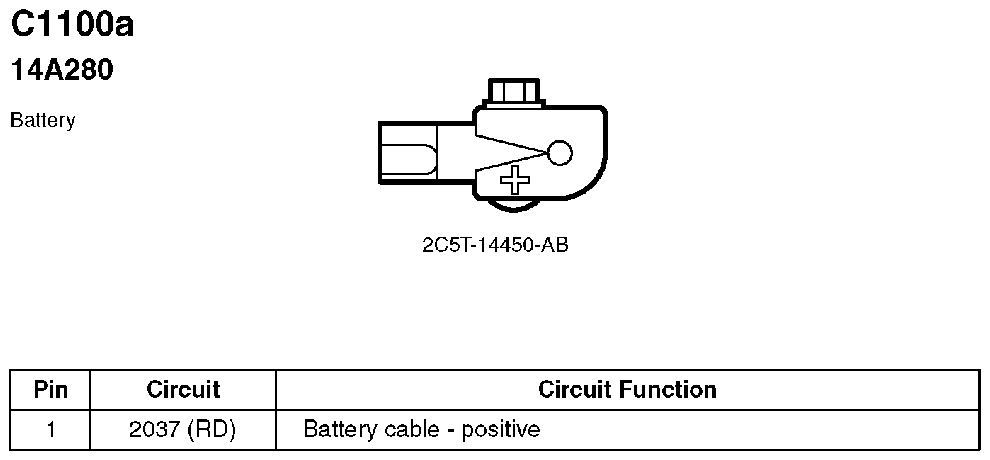

Fig 235: Battery Connector End View (C1100a)
Courtesy of FORD MOTOR CO.
Fig 236: Battery Connector End View (C1100b)
Courtesy of FORD MOTOR CO.

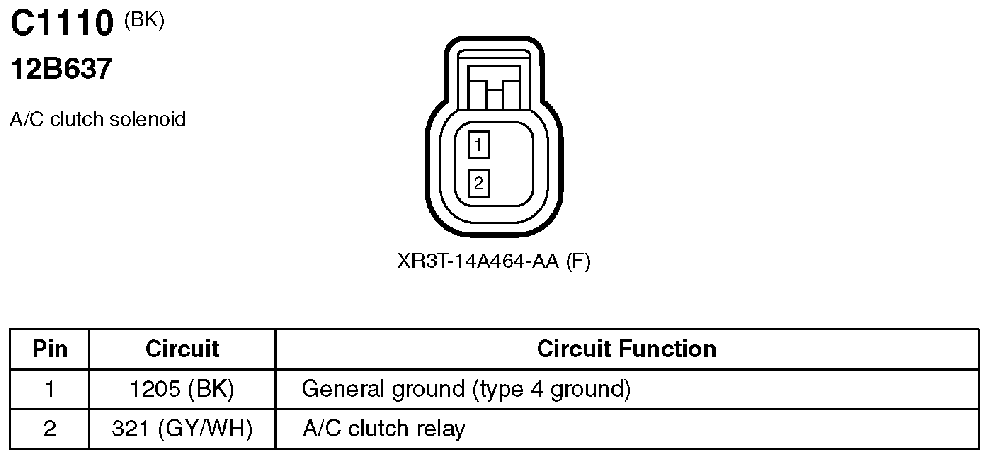

Fig 237: A/C Clutch Solenoid Connector End View (C1110)
Courtesy of FORD MOTOR CO.

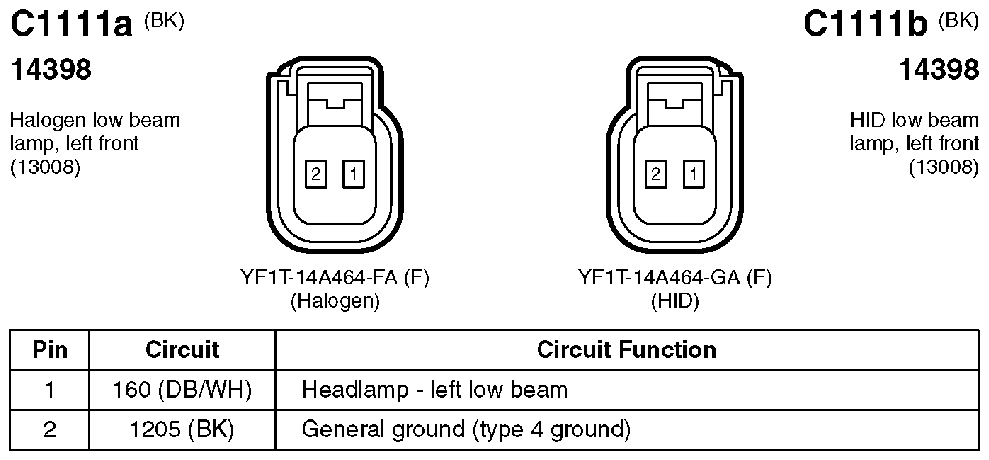

Fig 238: Halogen Low Beam Lamp, Left Front Connector End View (C1111a)
Courtesy of FORD MOTOR CO.

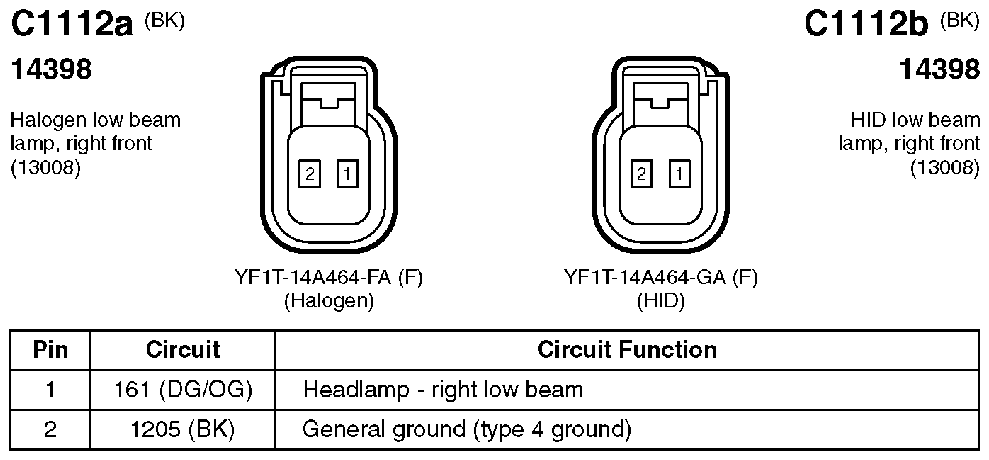

Fig 239: Halogen Low Beam Lamp, Right Front Connector End View (C1112a)
Courtesy of FORD MOTOR CO.

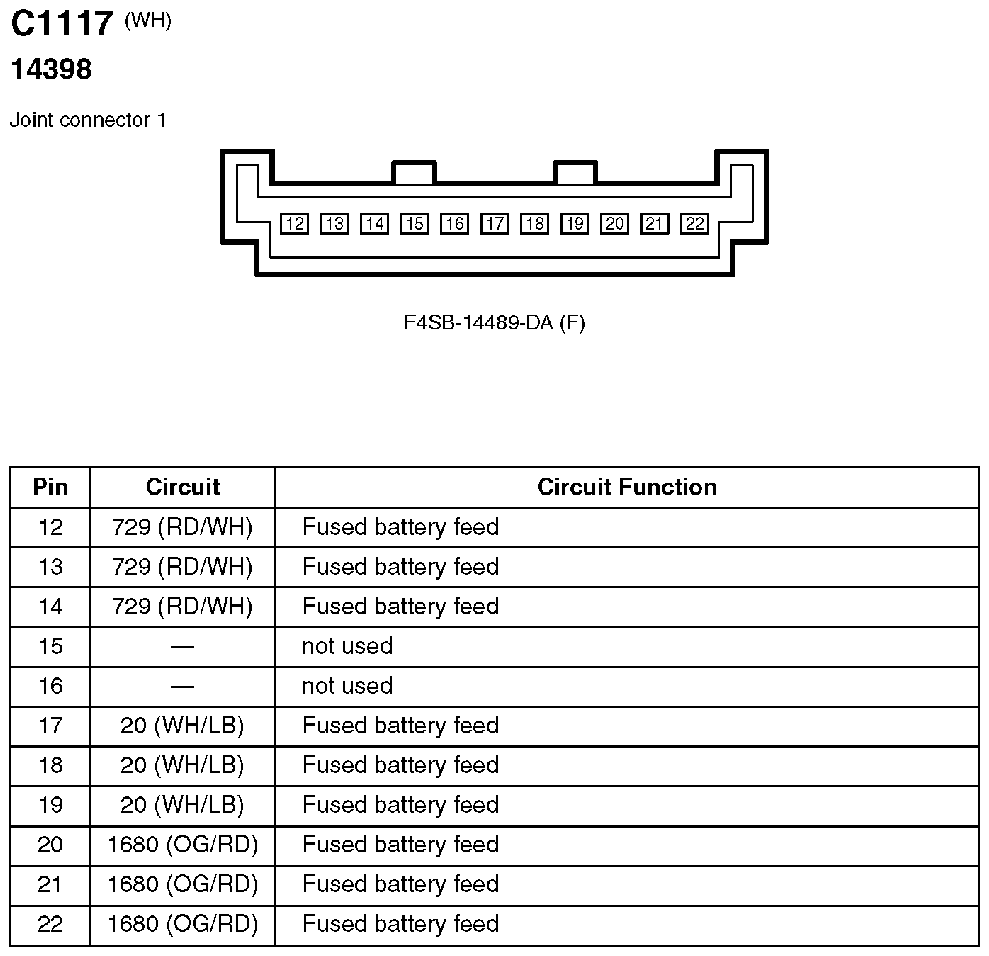

Fig 240: Joint Connector 1 Connector End View (C1117)
Courtesy of FORD MOTOR CO.

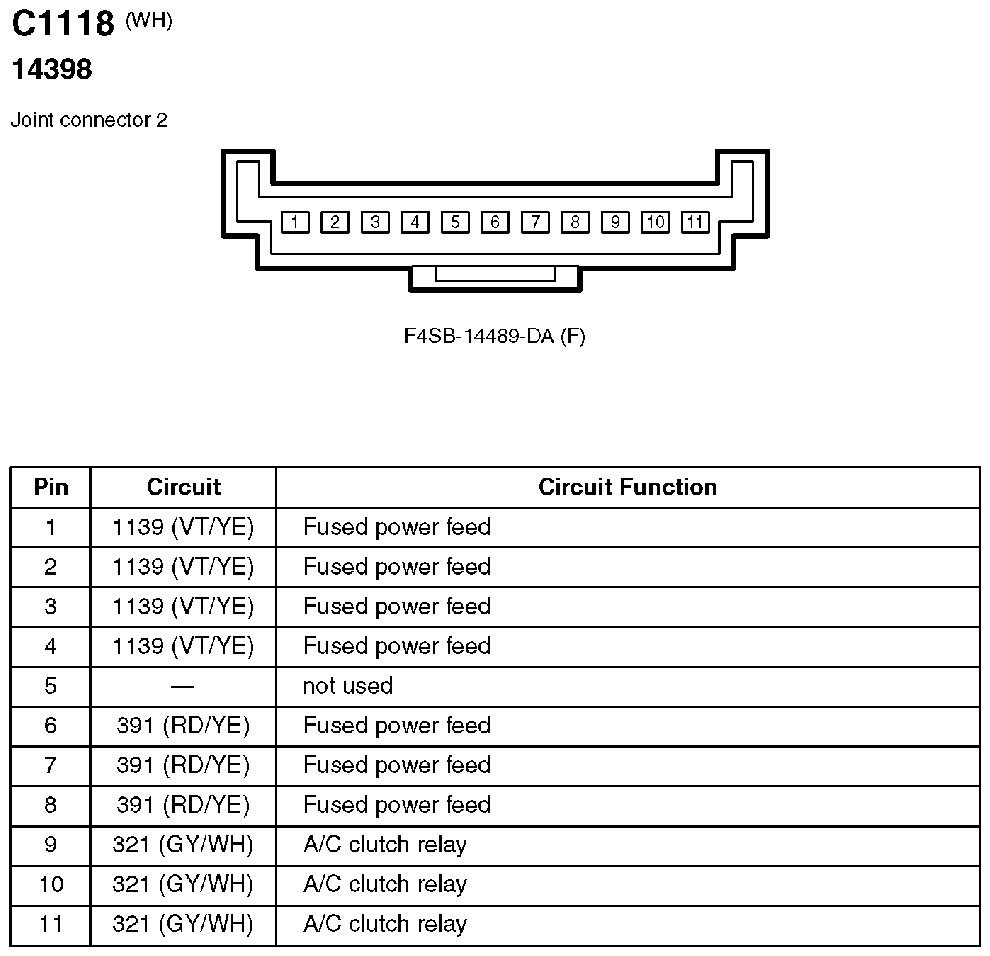

Fig 241: Joint Connector 2 Connector End View (C1118)
Courtesy of FORD MOTOR CO.

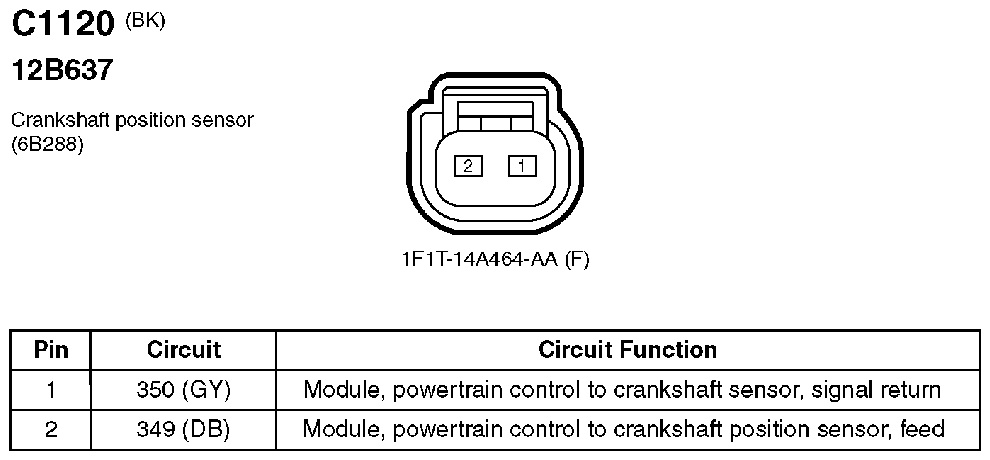

Fig 242: Crankshaft Position Sensor Connector End View (C1120)
Courtesy of FORD MOTOR CO.
Fig 243: Side Lamp, Right Front Connector End View (C1126)
Courtesy of FORD MOTOR CO.

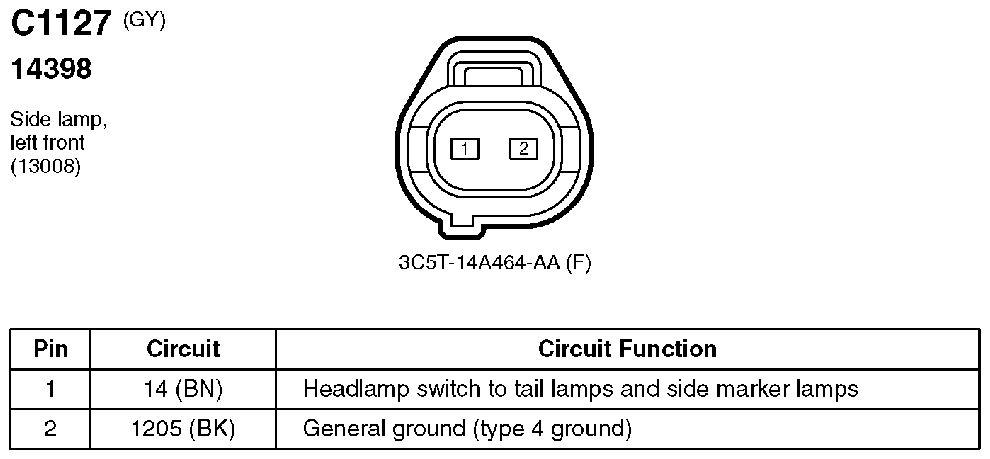

Fig 244: Side Lamp, Left Front Connector End View (C1127)
Courtesy of FORD MOTOR CO.

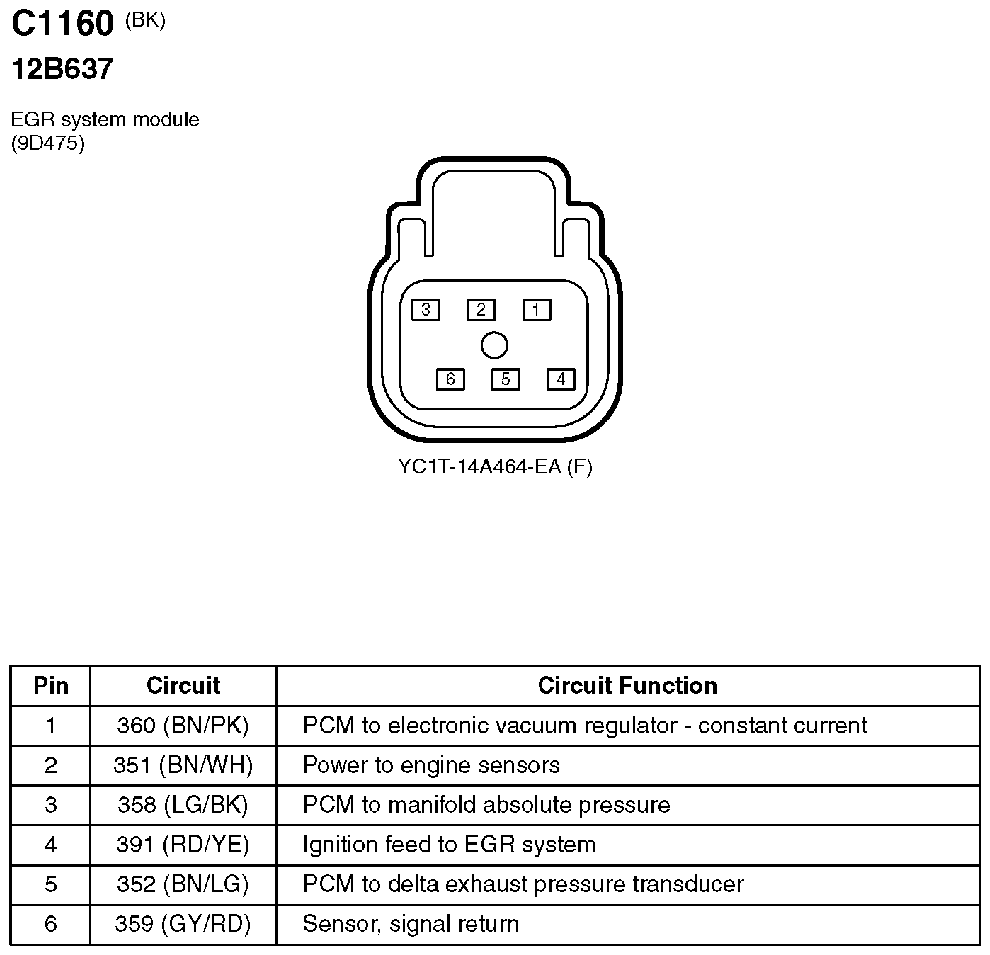

Fig 245: EGR System Module Connector End View (C1160)
Courtesy of FORD MOTOR CO.

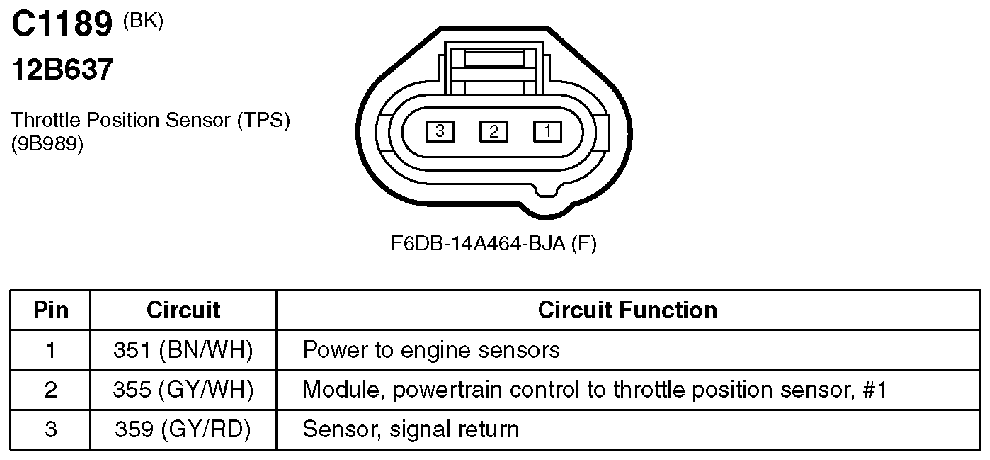

Fig 246: Throttle Position Sensor (TPS) Connector End View (C1189)
Courtesy of FORD MOTOR CO.

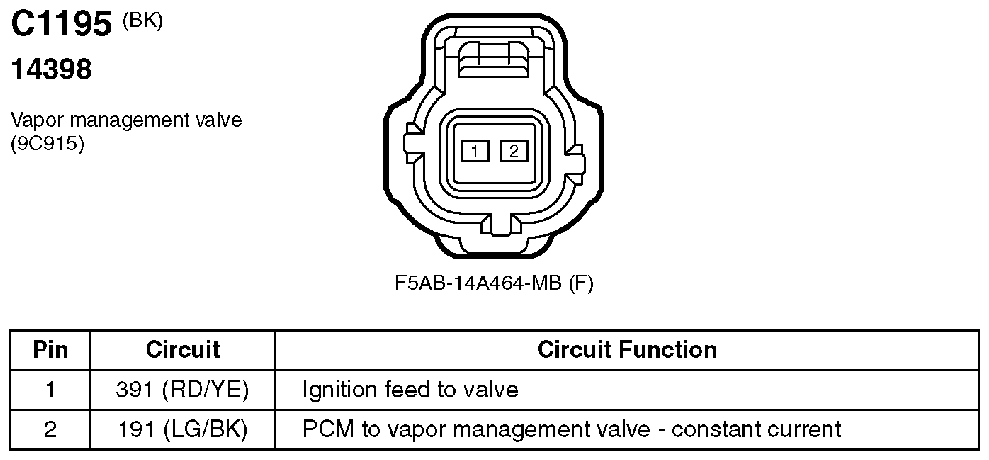

Fig 247: Vapor Management Valve Connector End View (C1195)
Courtesy of FORD MOTOR CO.

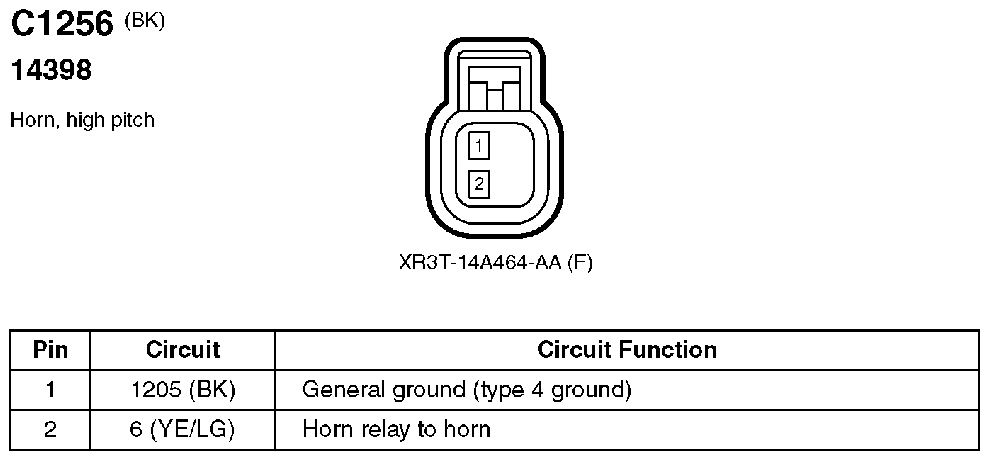

Fig 248: Horn, High Pitch Connector End View (C1256)
Courtesy of FORD MOTOR CO.

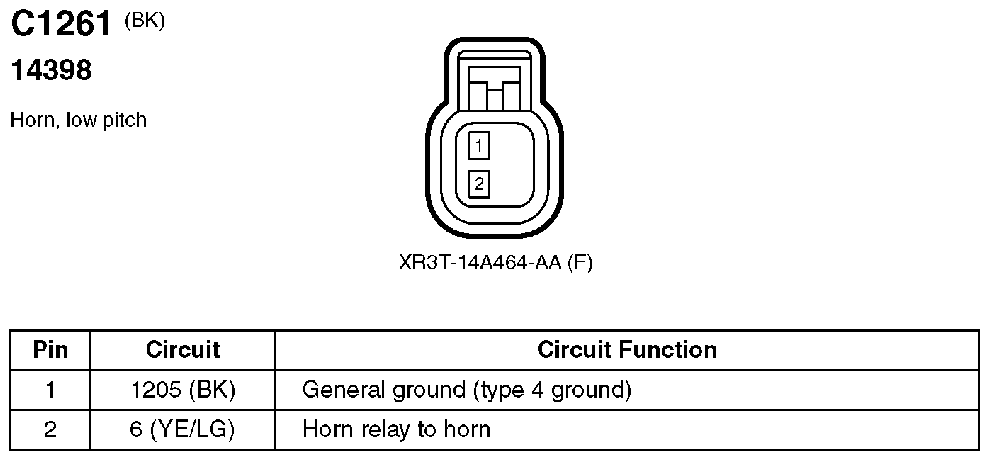

Fig 249: Horn, Low Pitch Connector End View (C1261)
Courtesy of FORD MOTOR CO.

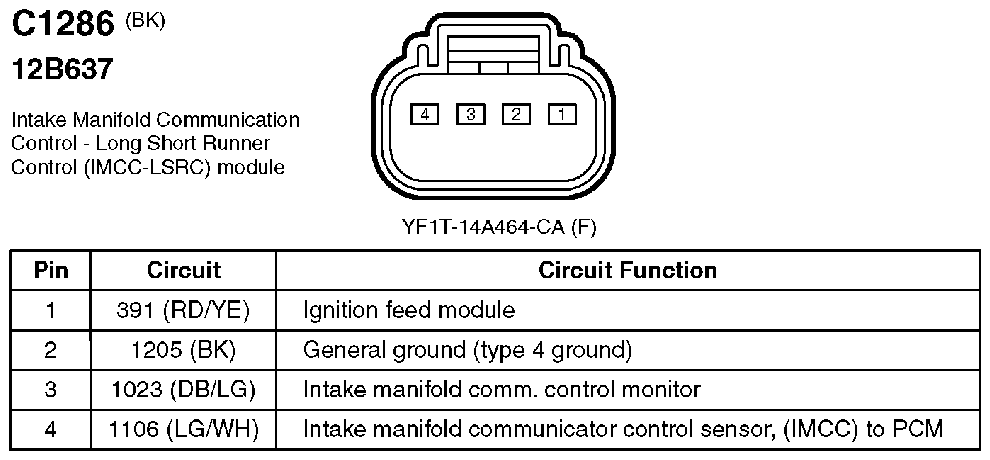

Fig 250: Intake Manifold Communication Control - Long Short Runner Control (IMCC-LSRC) Module Connector End View (C1286)
Courtesy of FORD MOTOR CO.

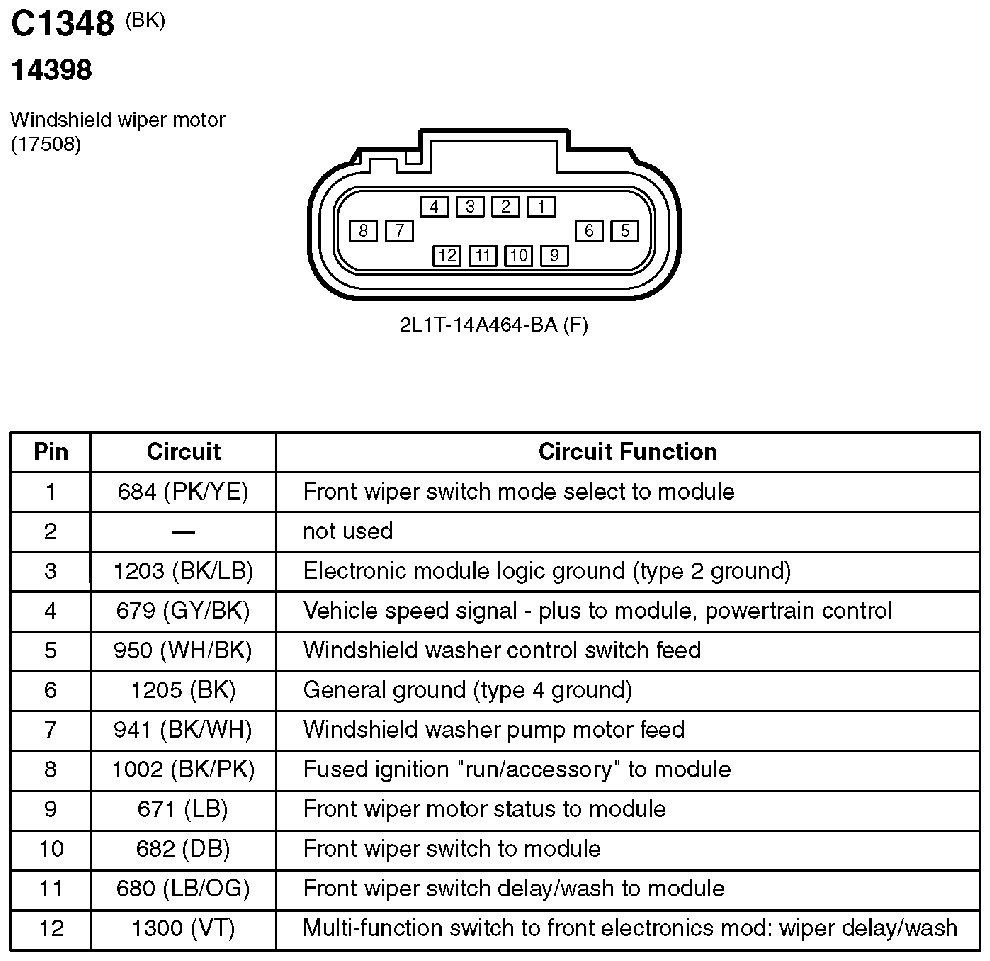

Fig 251: Windshield Wiper Motor Connector End View (C1348)
Courtesy of FORD MOTOR CO.

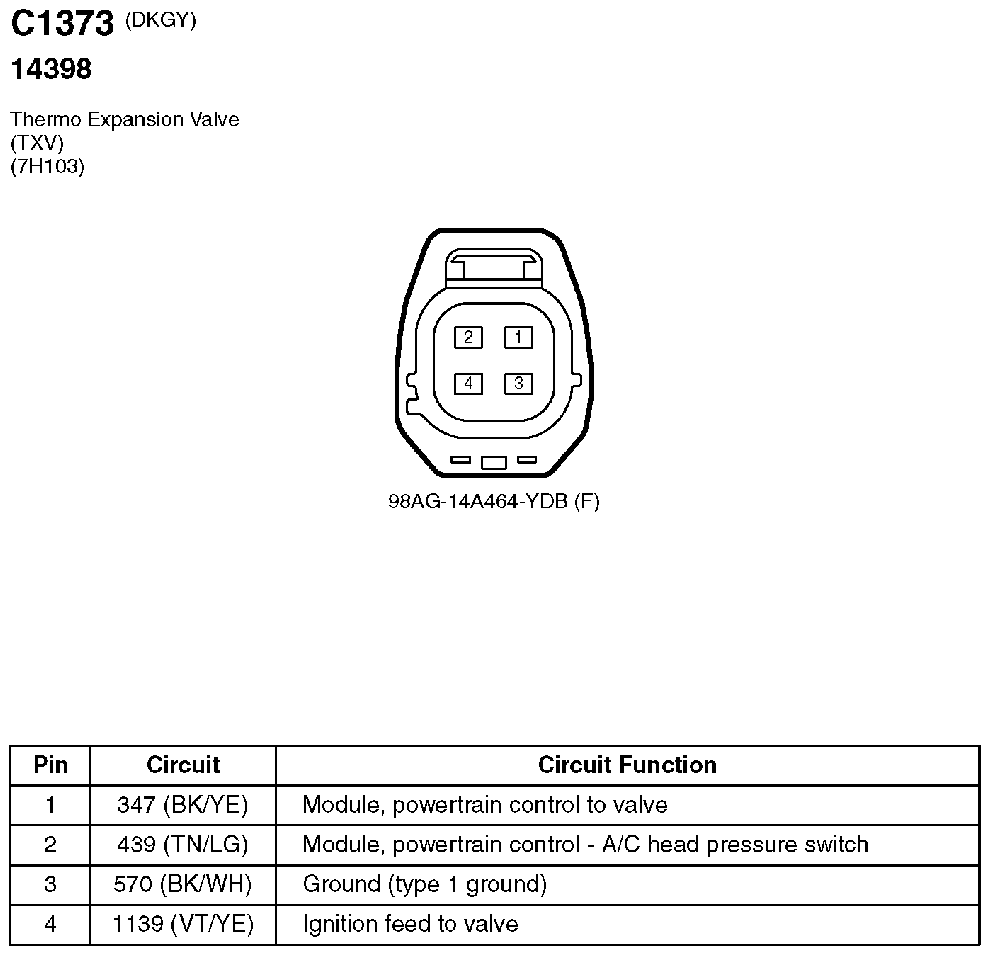

Fig 252: Thermo Expansion Valve (TXV) Connector End View (C1373)
Courtesy of FORD MOTOR CO.

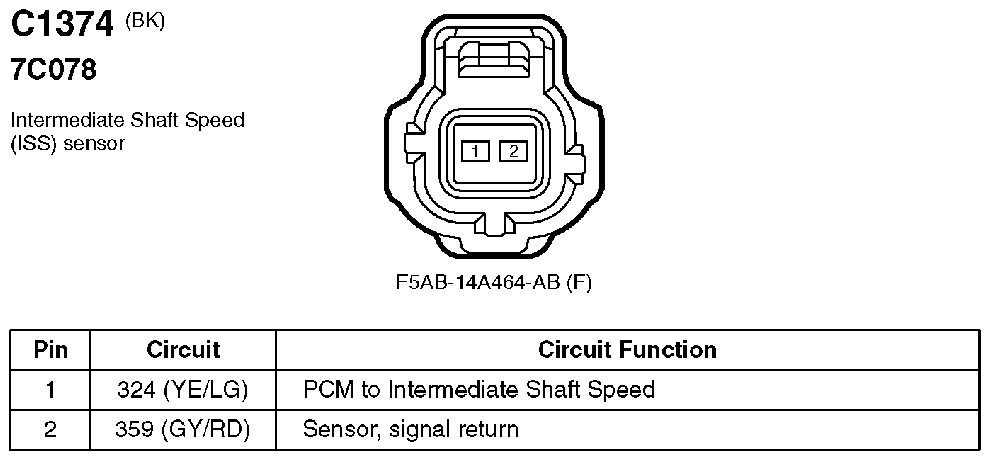

Fig 253: Intermediate Shaft Speed (ISS) Sensor Connector End View (C1374)
Courtesy of FORD MOTOR CO.

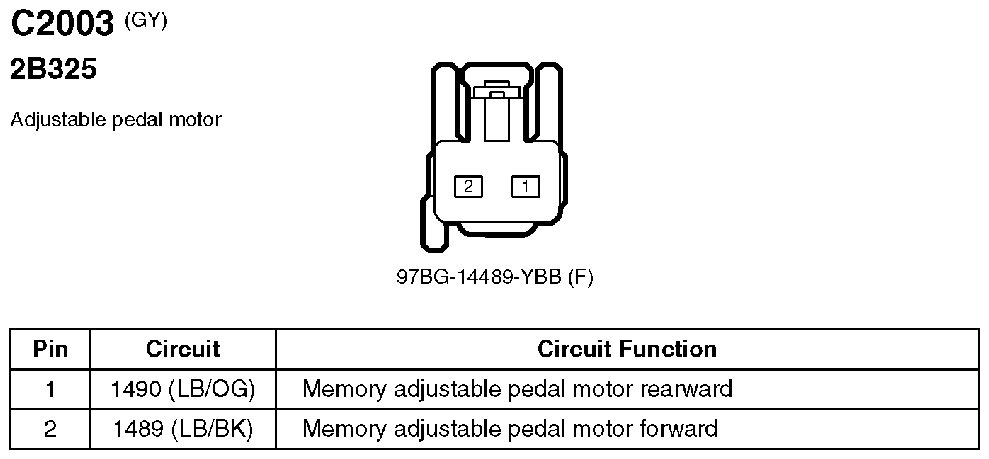

Fig 254: Adjustable Pedal Motor Connector End View (C2003)
Courtesy of FORD MOTOR CO.

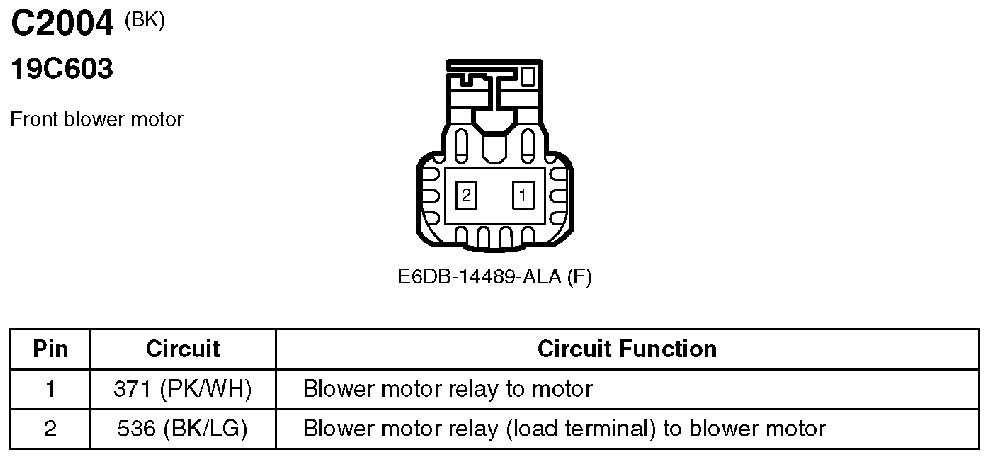

Fig 255: Front Blower Motor Connector End View (C2004)
Courtesy of FORD MOTOR CO.

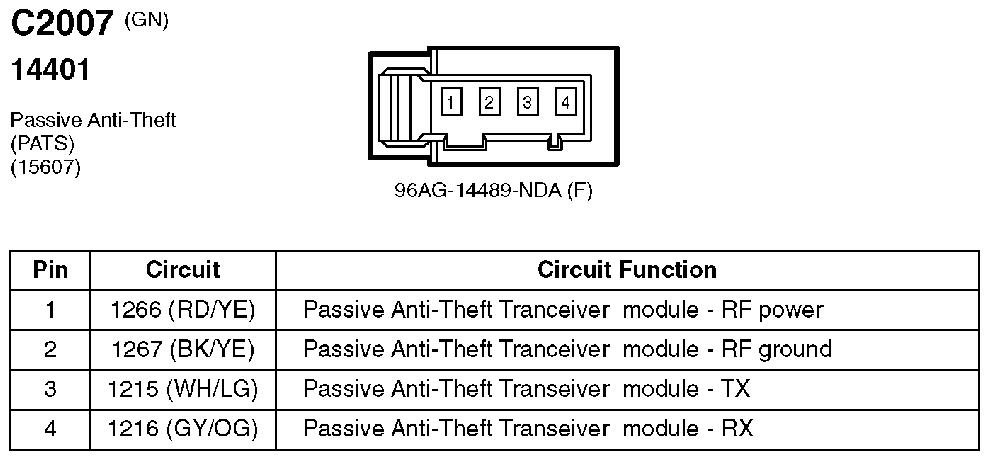

Fig 256: Passive Anti-Theft (PATS) Connector End View (C2007)
Courtesy of FORD MOTOR CO.

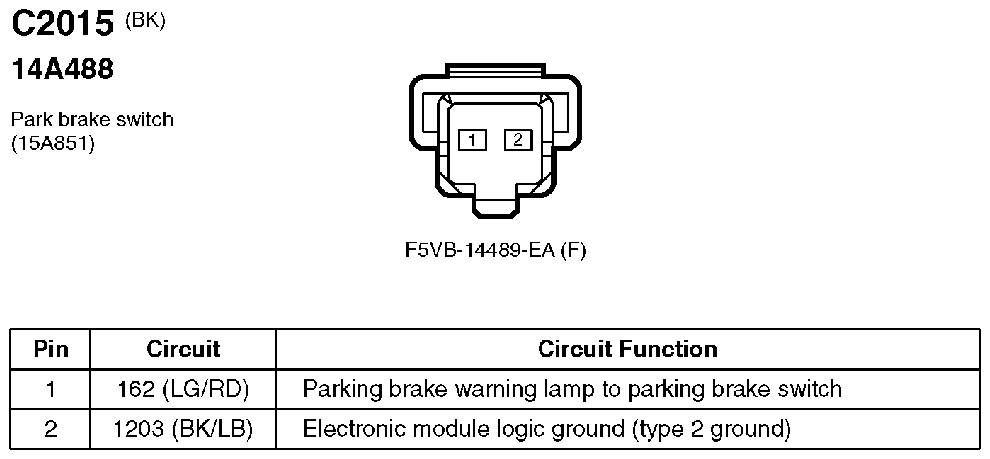

Fig 257: Park Brake Switch Connector End View (C2015)
Courtesy of FORD MOTOR CO.

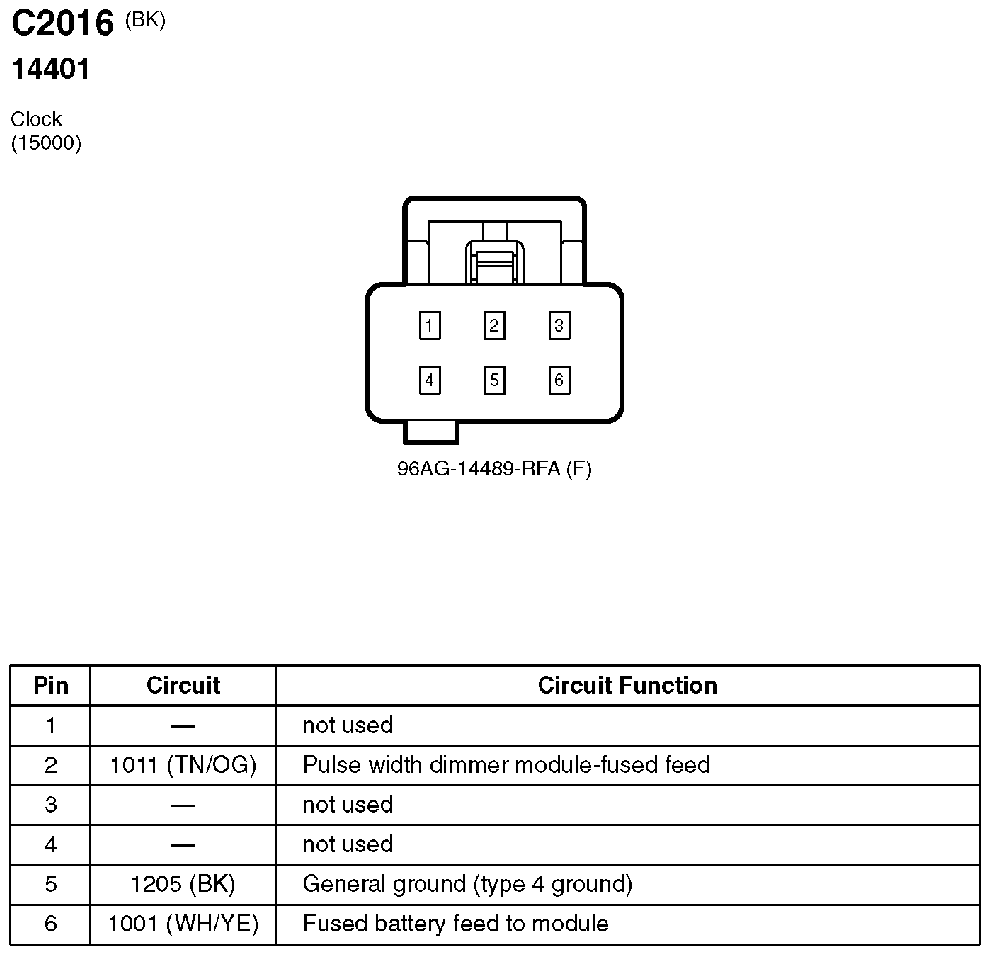

Fig 258: Clock Connector End View (C2016)
Courtesy of FORD MOTOR CO.

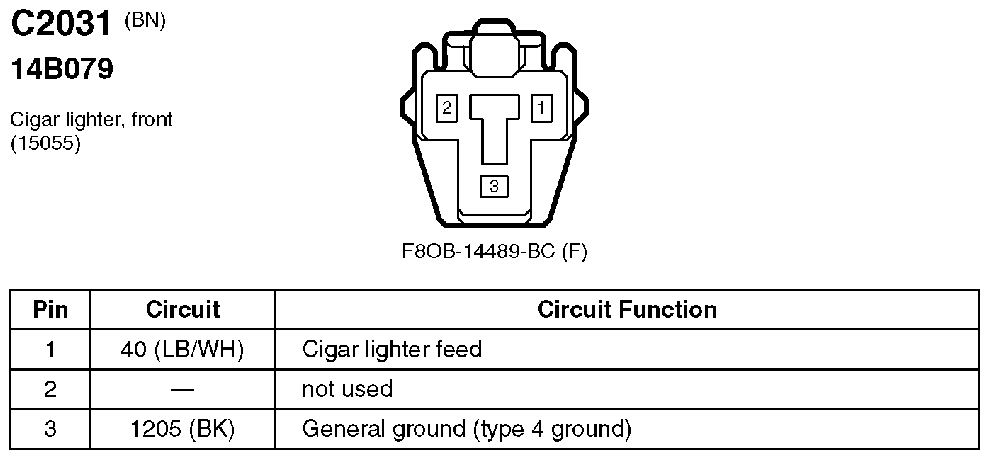

Fig 259: Cigar Lighter, Front Connector End View (C2031)
Courtesy of FORD MOTOR CO.

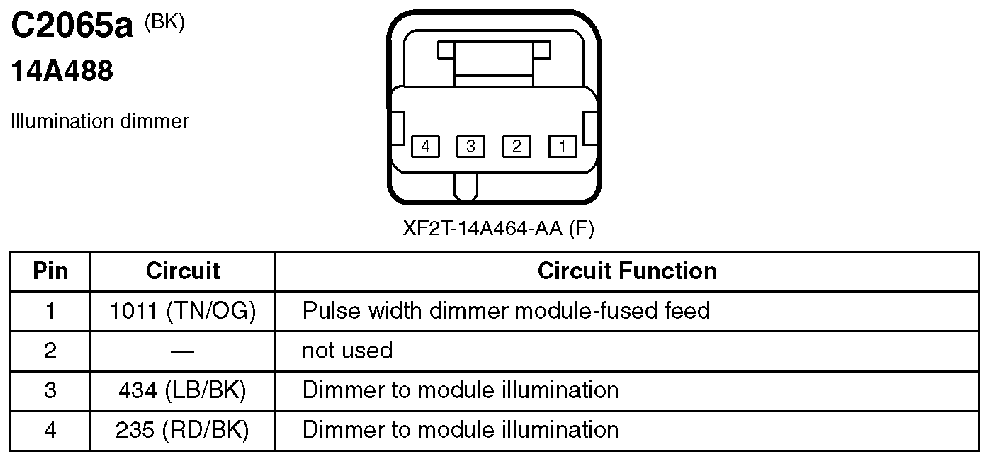

Fig 260: Illumination Dimmer Connector End View (C2065a)
Courtesy of FORD MOTOR CO.

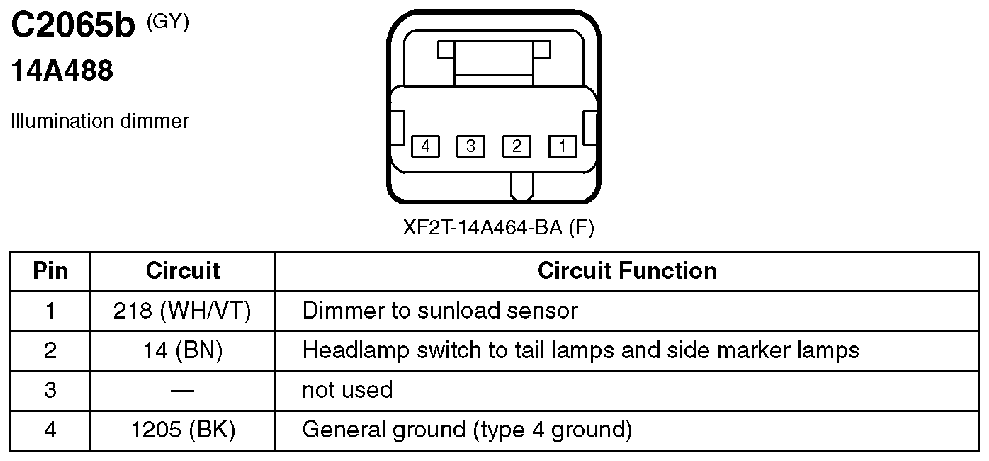

Fig 261: Illumination Dimmer Connector End View (C2065b)
Courtesy of FORD MOTOR CO.

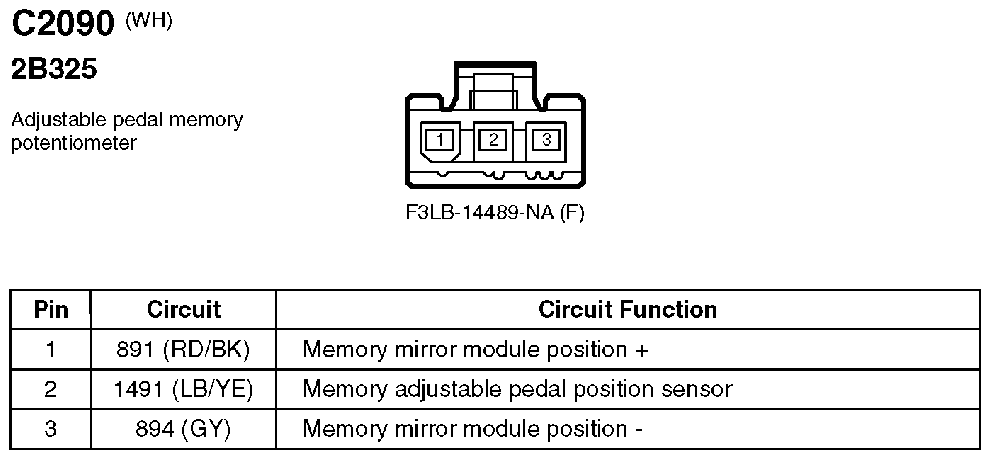

Fig 262: Adjustable Pedal Memory Potentiometer Connector End View (C2090)
Courtesy of FORD MOTOR CO.

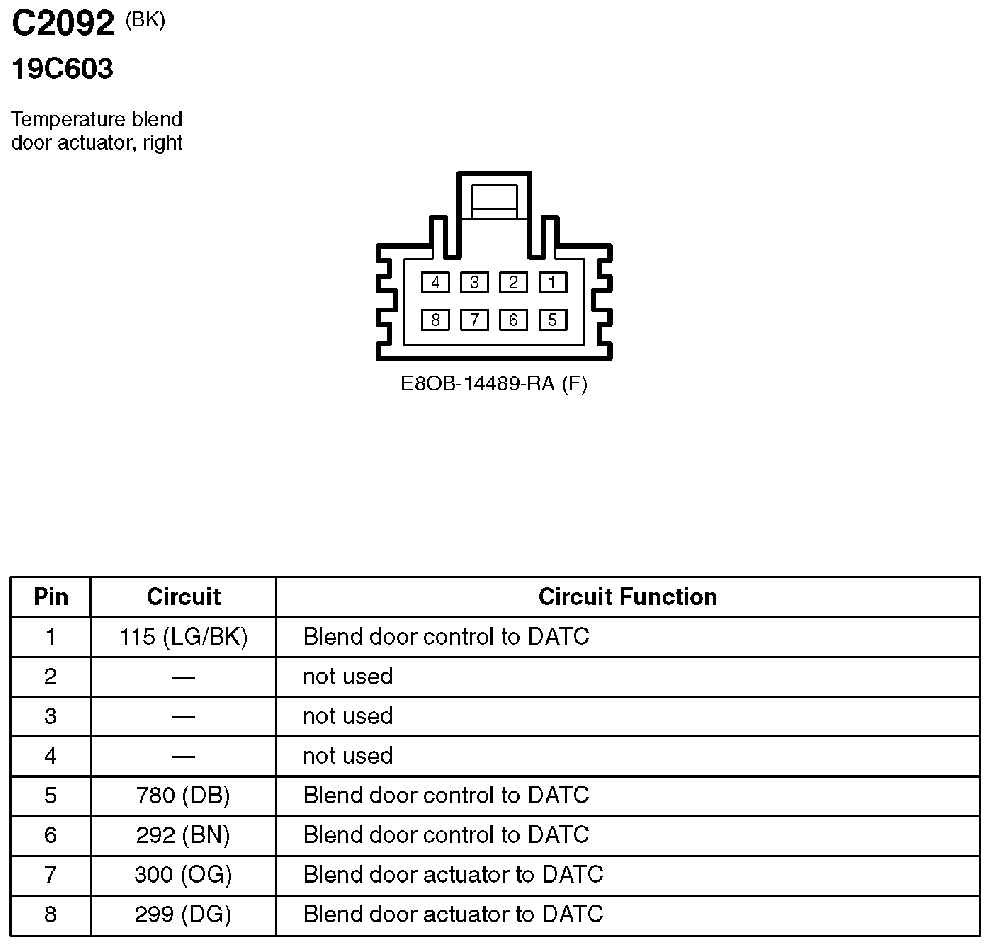

Fig 263: Temperature Blend Door Actuator, Right Connector End View (C2092)
Courtesy of FORD MOTOR CO.

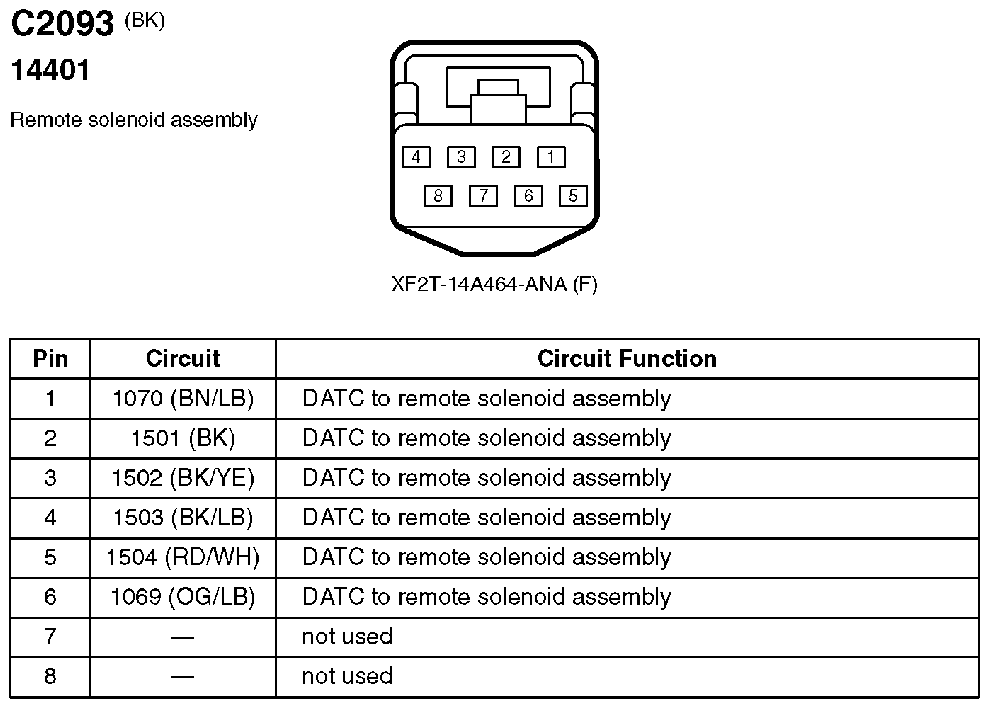

Fig 264: Remote Solenoid Assembly Connector End View (C2093)
Courtesy of FORD MOTOR CO.

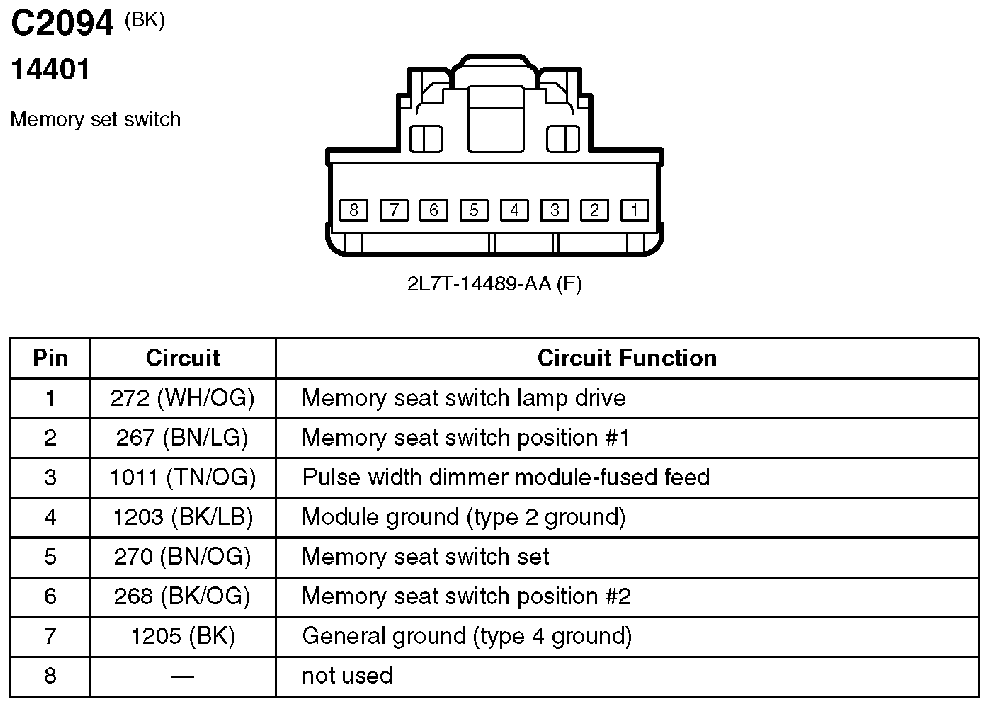

Fig 265: Memory Set Switch Connector End View (C2094)
Courtesy of FORD MOTOR CO.

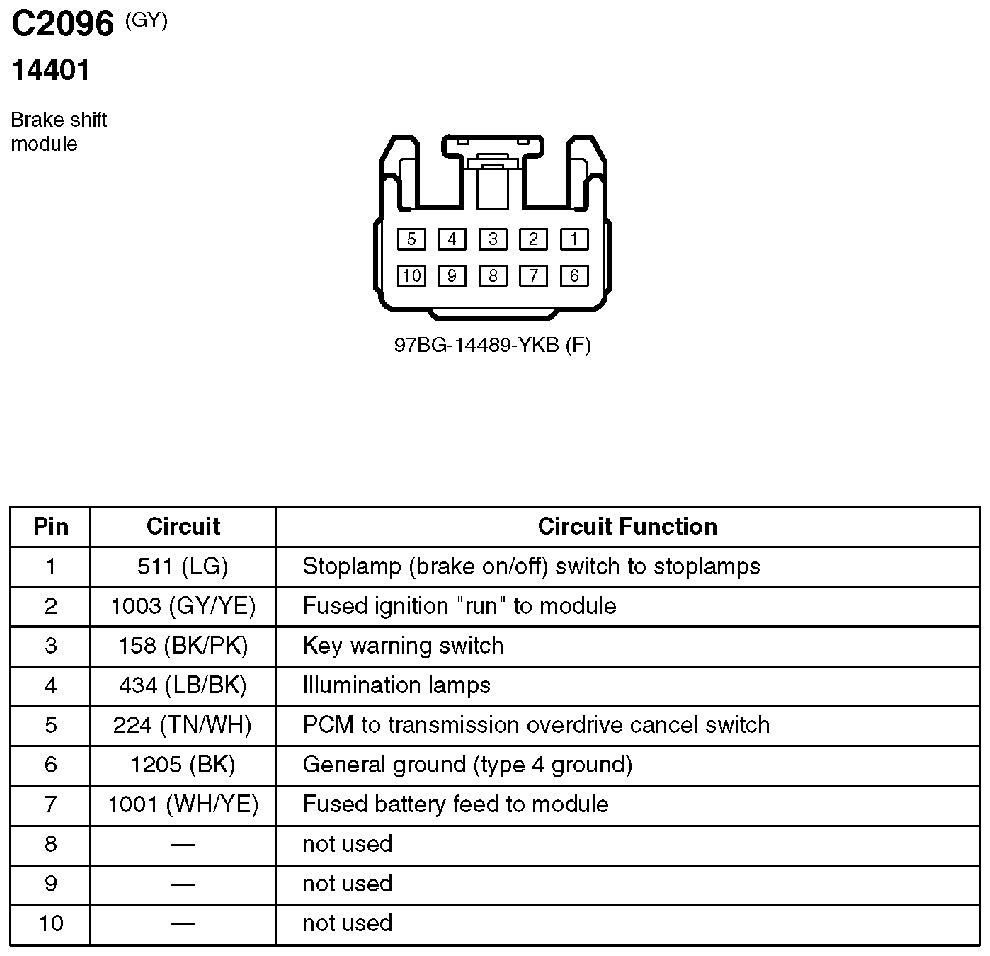

Fig 266: Brake Shift Module Connector End View (C2096)
Courtesy of FORD MOTOR CO.

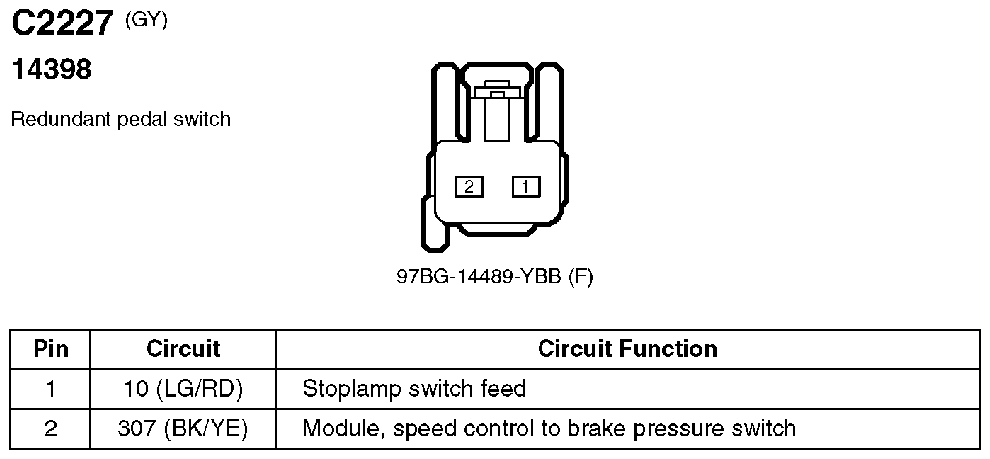

Fig 267: Redundant Pedal Switch Connector End View (C2227)
Courtesy of FORD MOTOR CO.

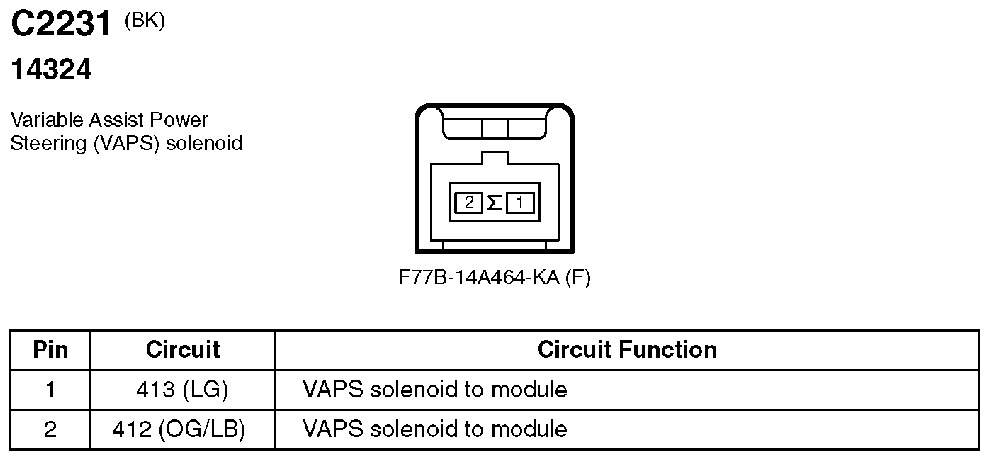

Fig 268: Variable Assist Power Steering (VAPS) Solenoid Connector End View (C2231)
Courtesy of FORD MOTOR CO.

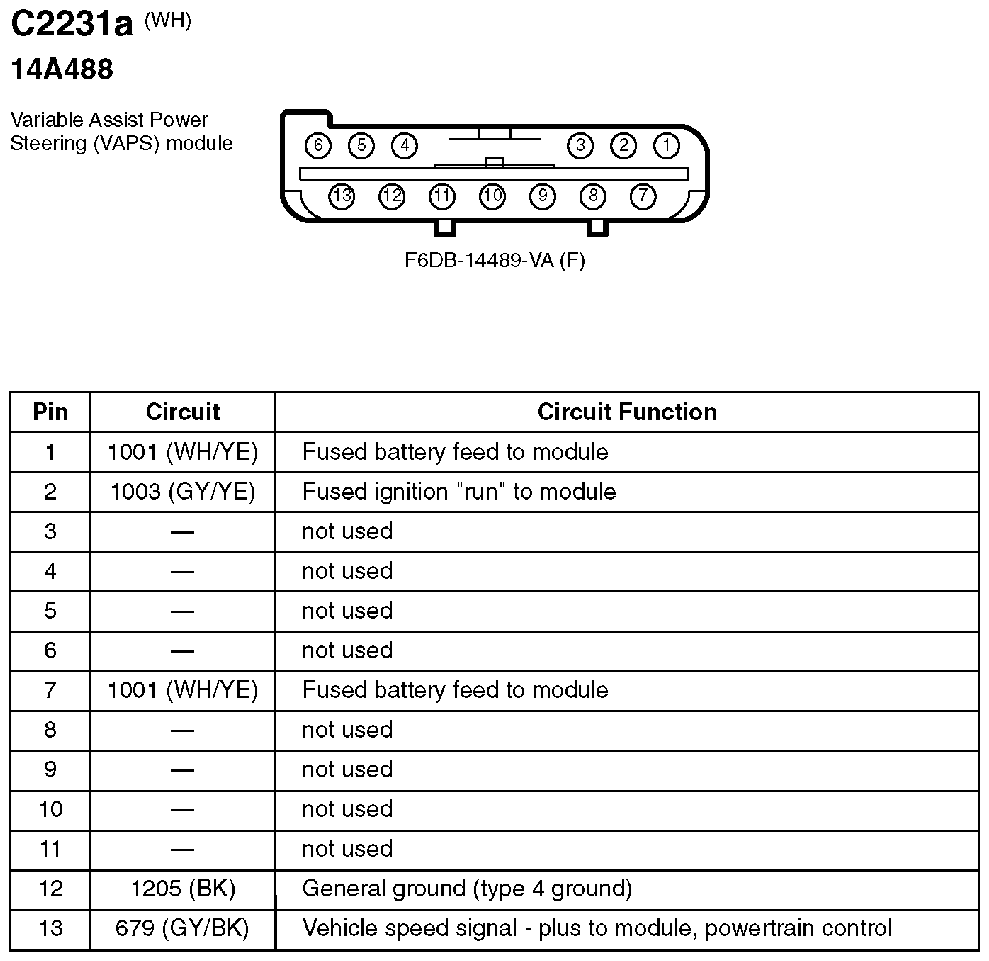

Fig 269: Variable Assist Power Steering (VAPS) Module Connector End View (C2231a)
Courtesy of FORD MOTOR CO.

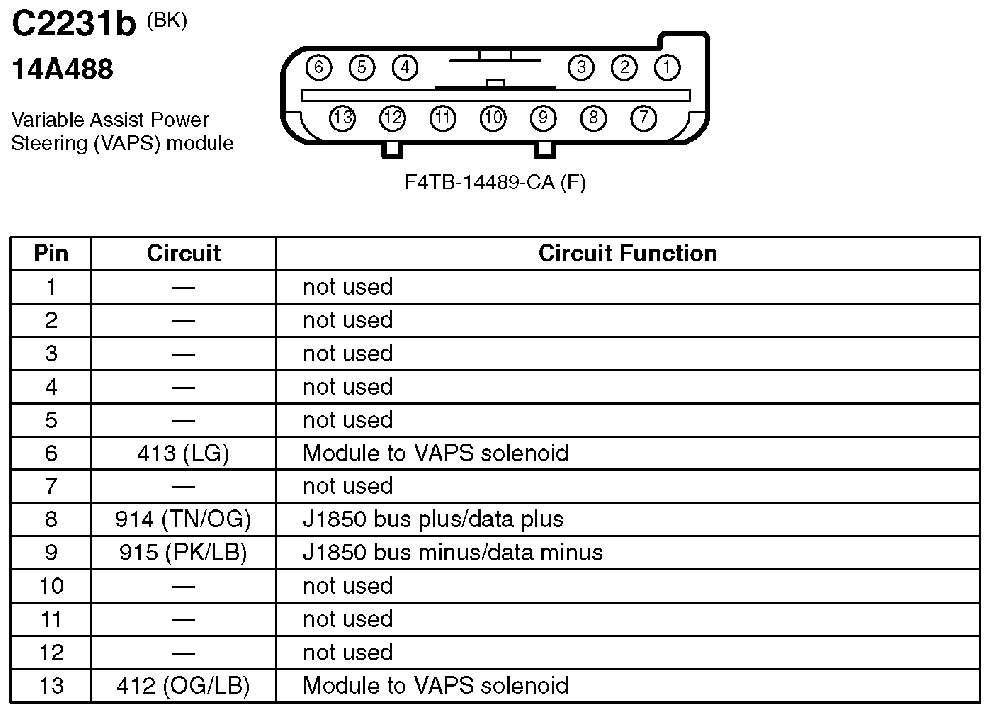

Fig 270: Variable Assist Power Steering (VAPS) Module Connector End View (C2231b)
Courtesy of FORD MOTOR CO.

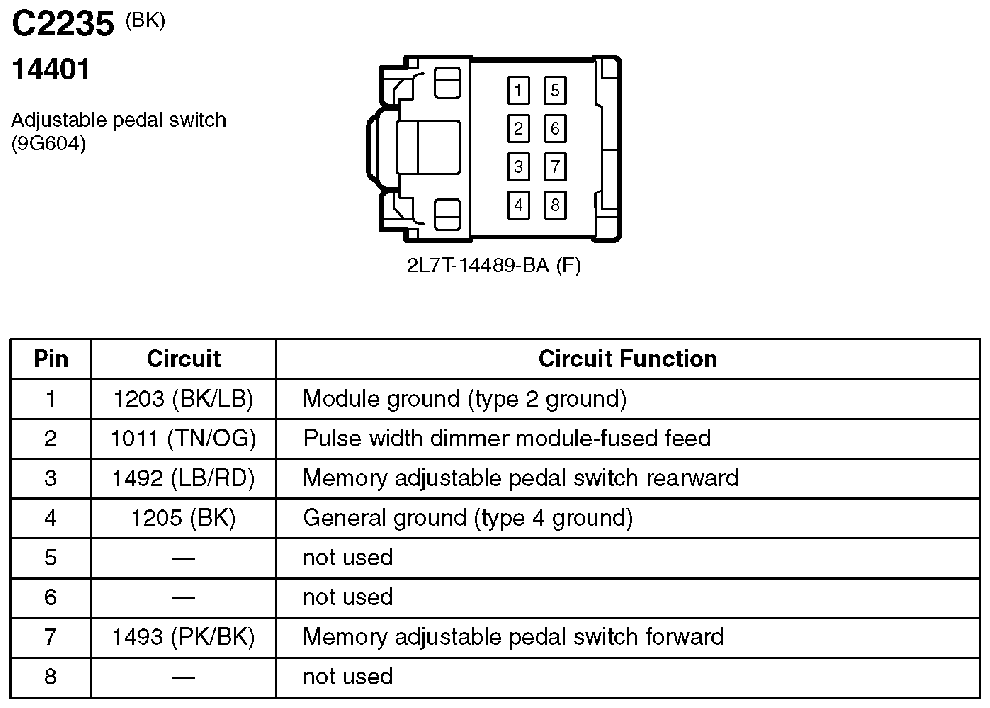

Fig 271: Adjustable Pedal Switch Connector End View (C2235)
Courtesy of FORD MOTOR CO.

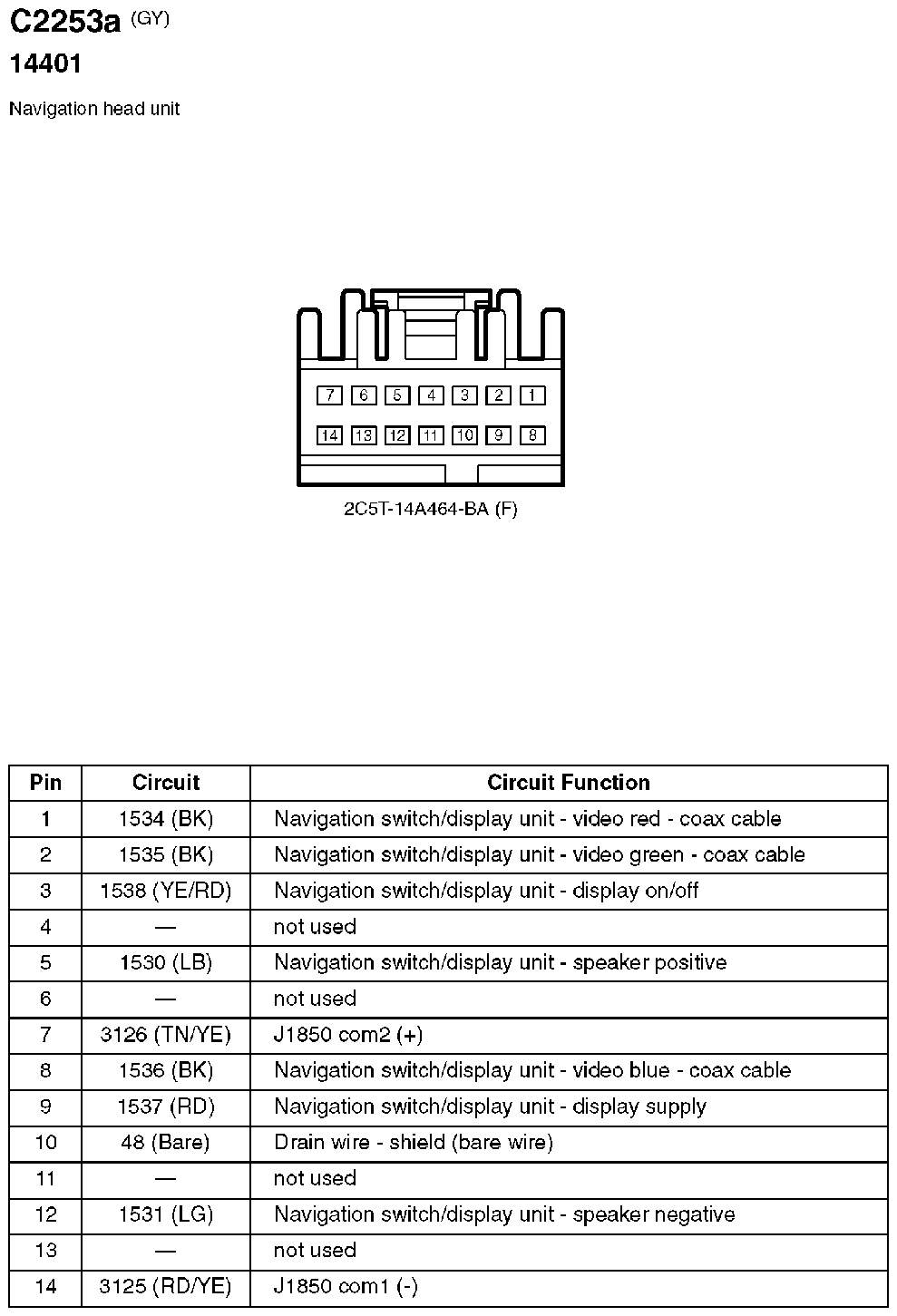

Fig 272: Navigation Head Unit Connector End View (C2253a)
Courtesy of FORD MOTOR CO.

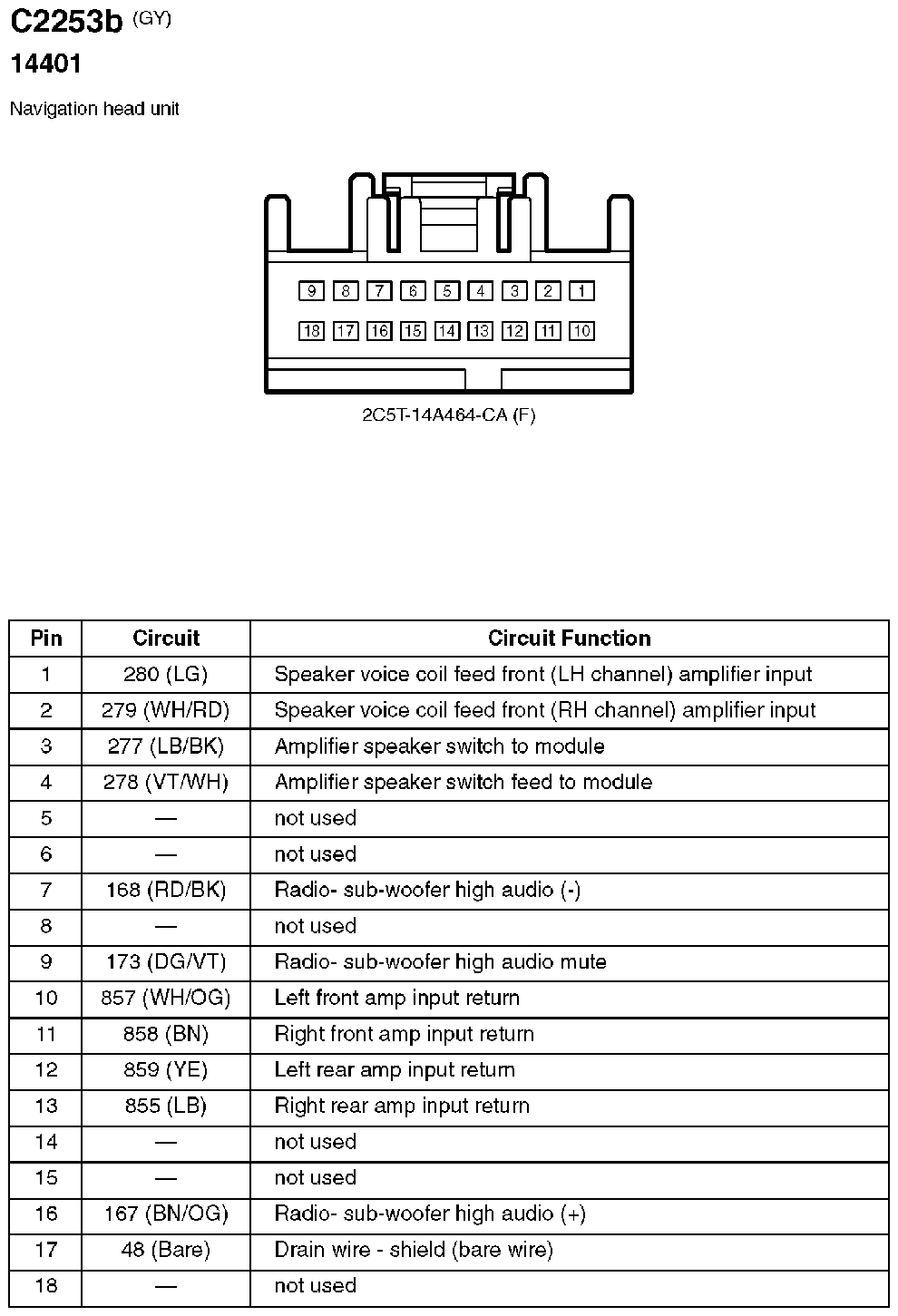

Fig 273: navigation Head Unit Connector End View (C2253b)
Courtesy of FORD MOTOR CO.

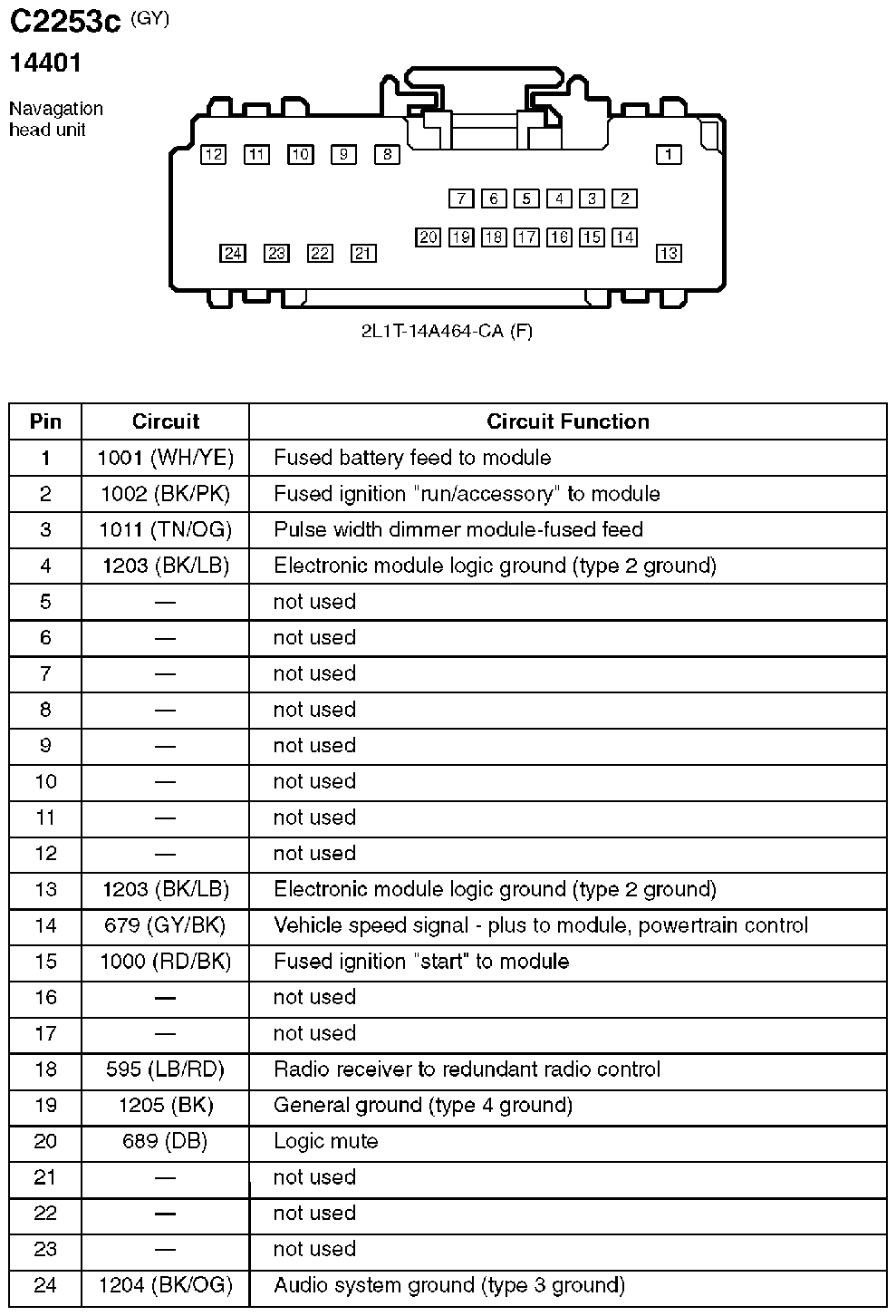

Fig 274: Navigation Head Unit Connector End View (C2253c)
Courtesy of FORD MOTOR CO.

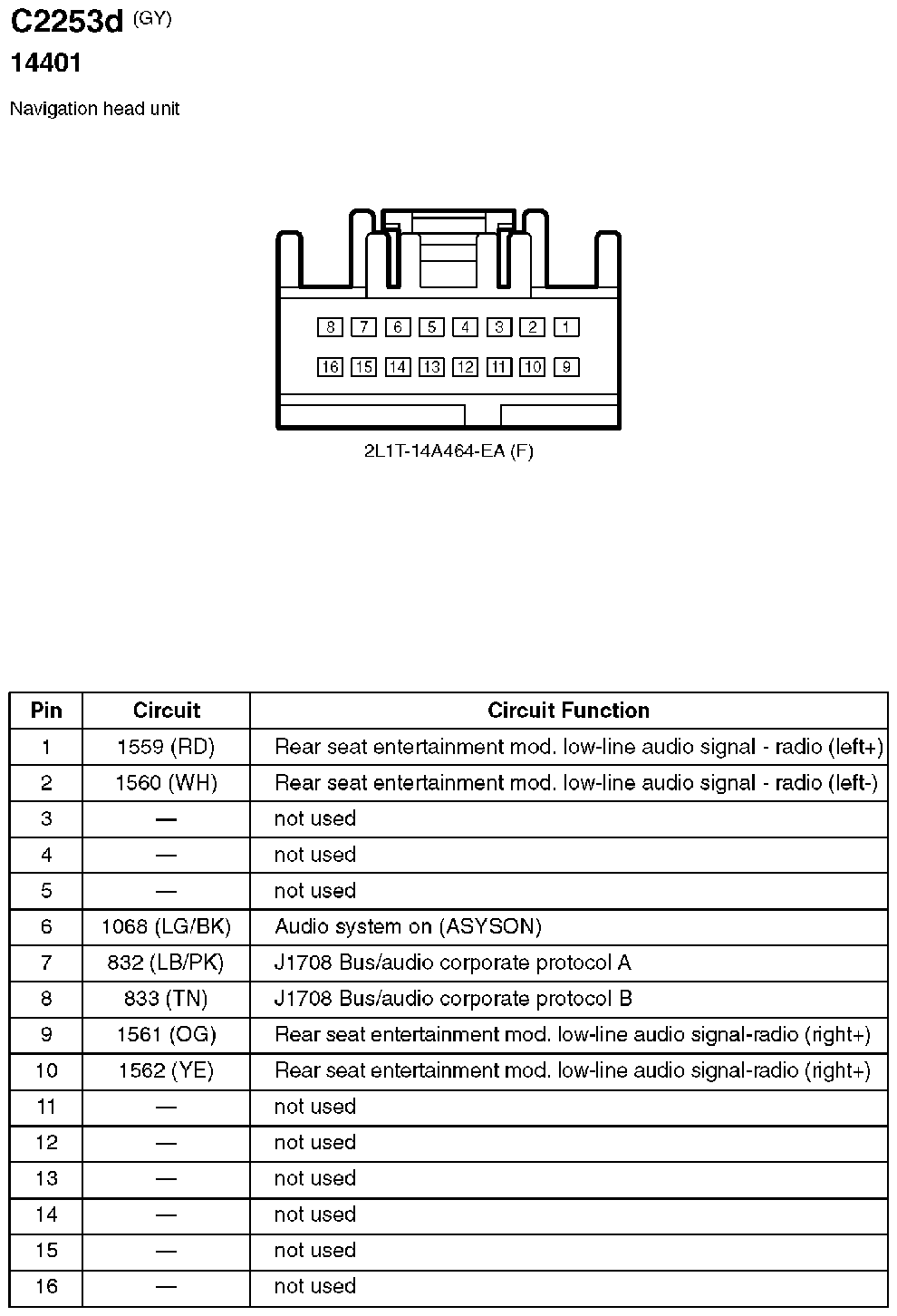

Fig 275: navigation Head Unit Connector End View (C2253d)
Courtesy of FORD MOTOR CO.

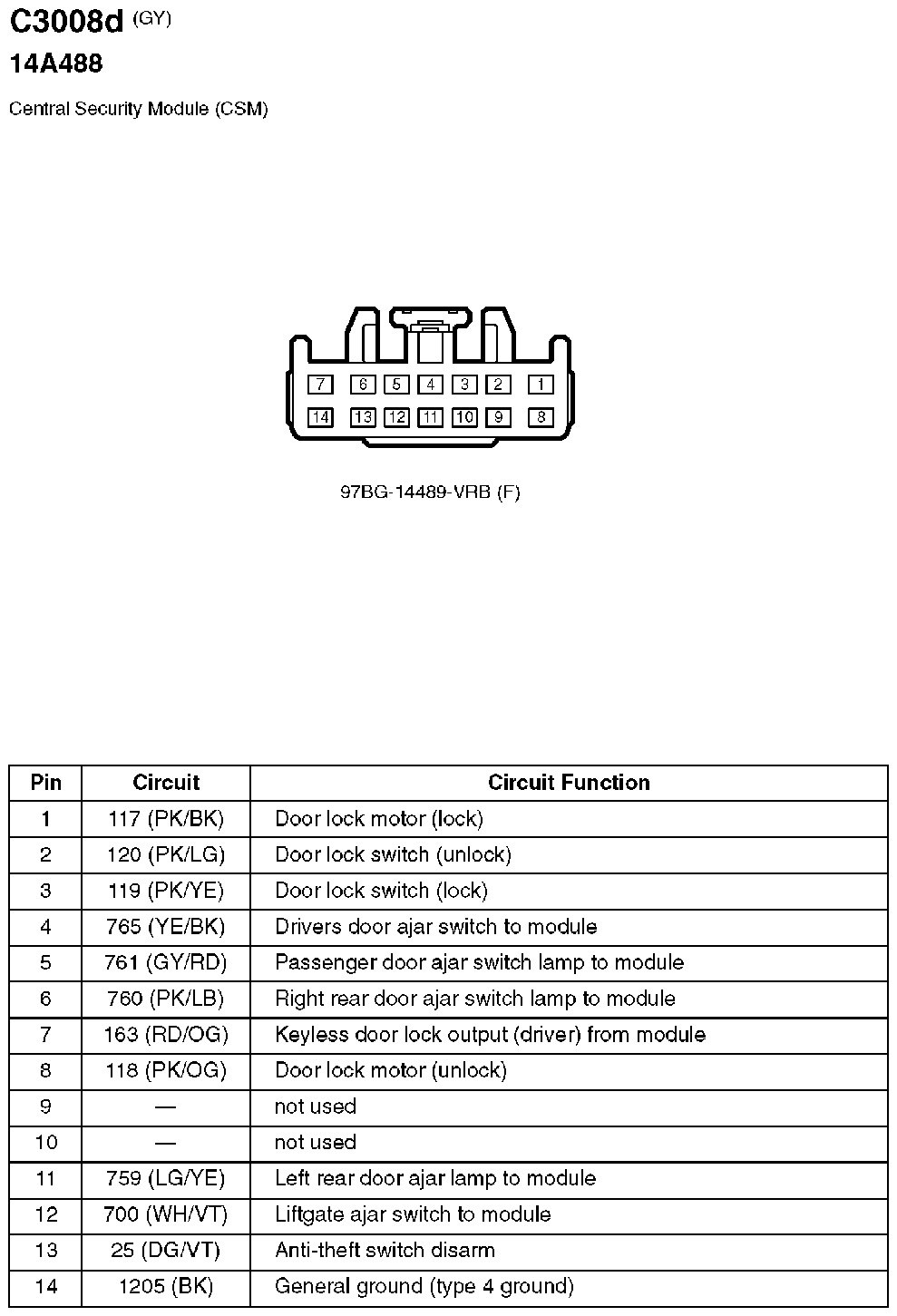

Fig 276: Central Security Module (CSM) Connector End View (C3008d)
Courtesy of FORD MOTOR CO.

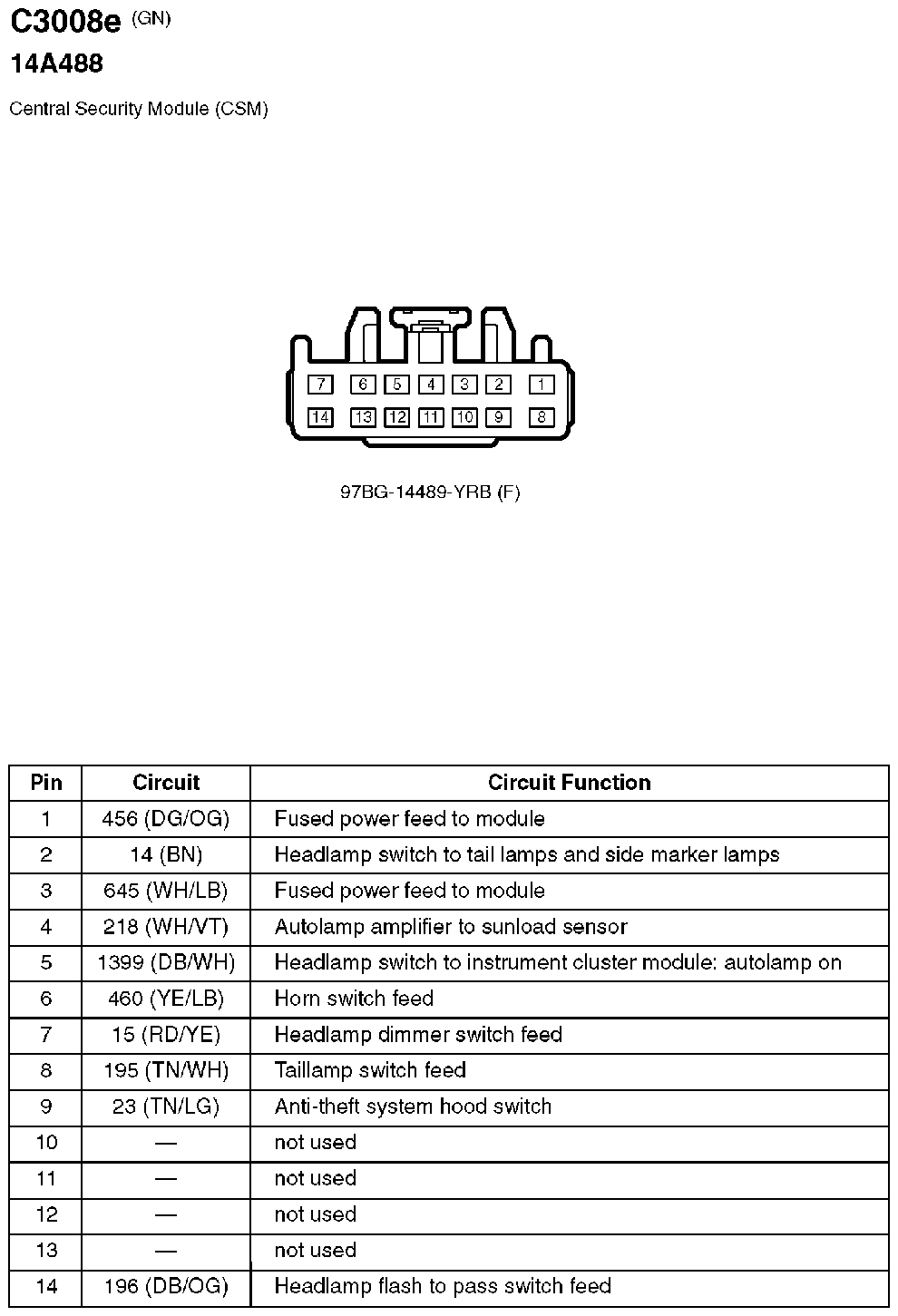

Fig 277: Central Security Module (CSM) Connector End View (C3008e)
Courtesy of FORD MOTOR CO.
Fig 278: Central Security Module (CSM) Connector End View (C3008f)
Courtesy of FORD MOTOR CO.

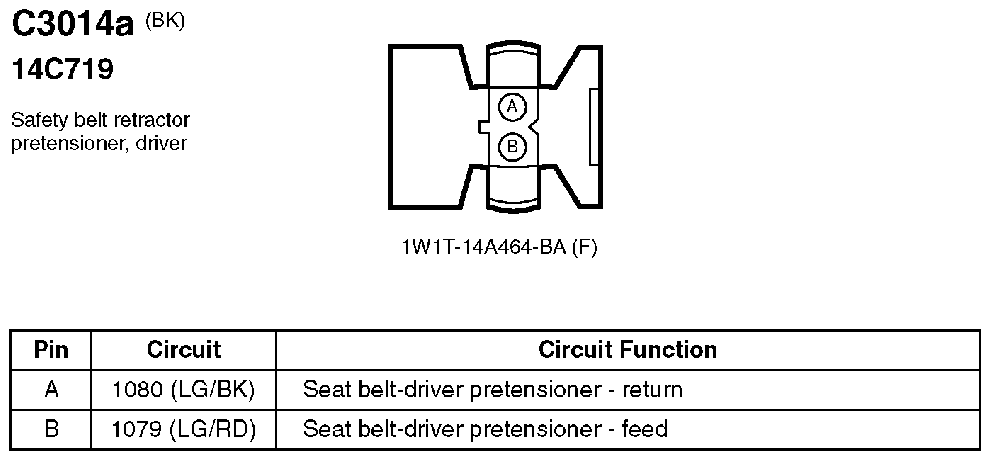

Fig 279: Safety Belt Retractor Pretensioner, Driver Connector End View (C3014a)
Courtesy of FORD MOTOR CO.

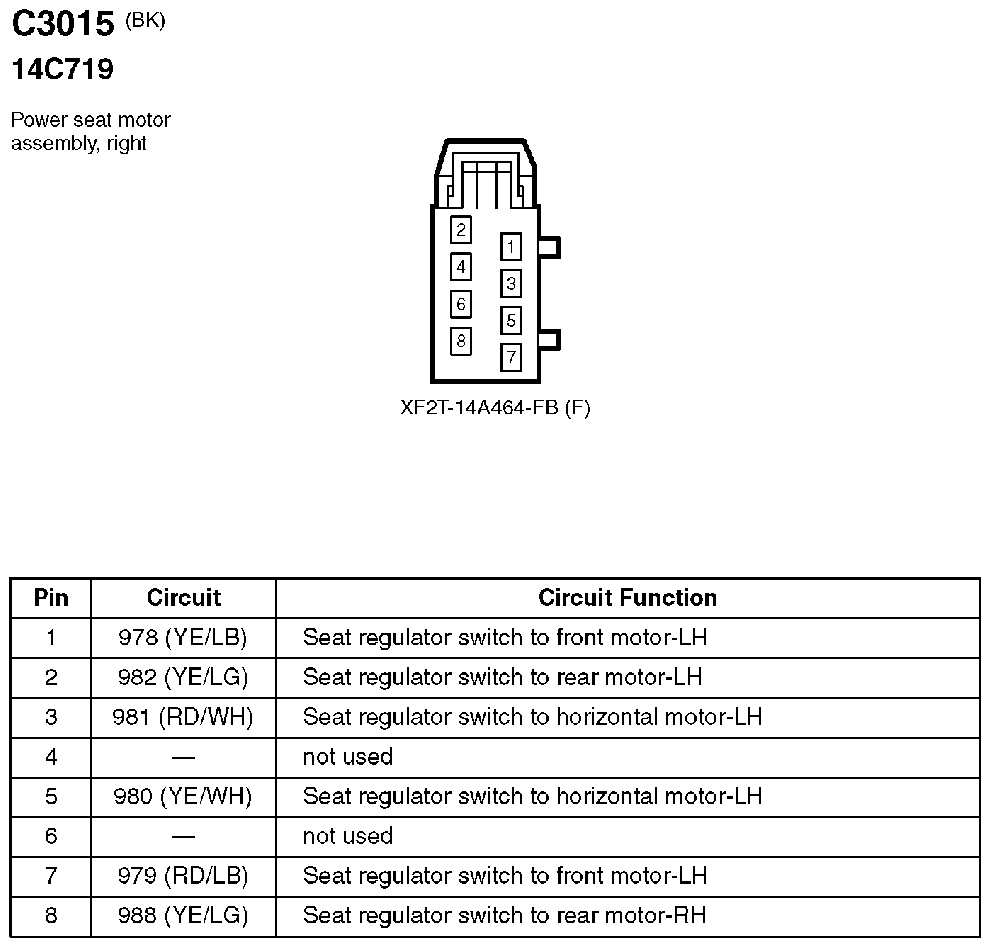

Fig 280: Power Seat Motor Assembly, Right Connector End View (C3015)
Courtesy of FORD MOTOR CO.

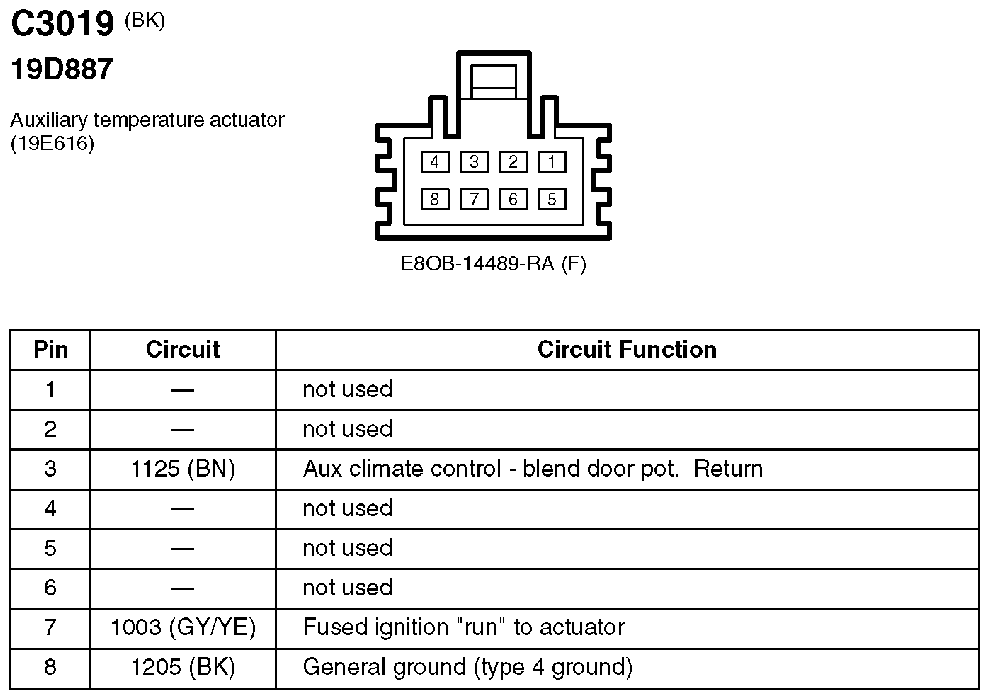

Fig 281: Auxiliary Temperature Actuator Connector End View (C3019)
Courtesy of FORD MOTOR CO.

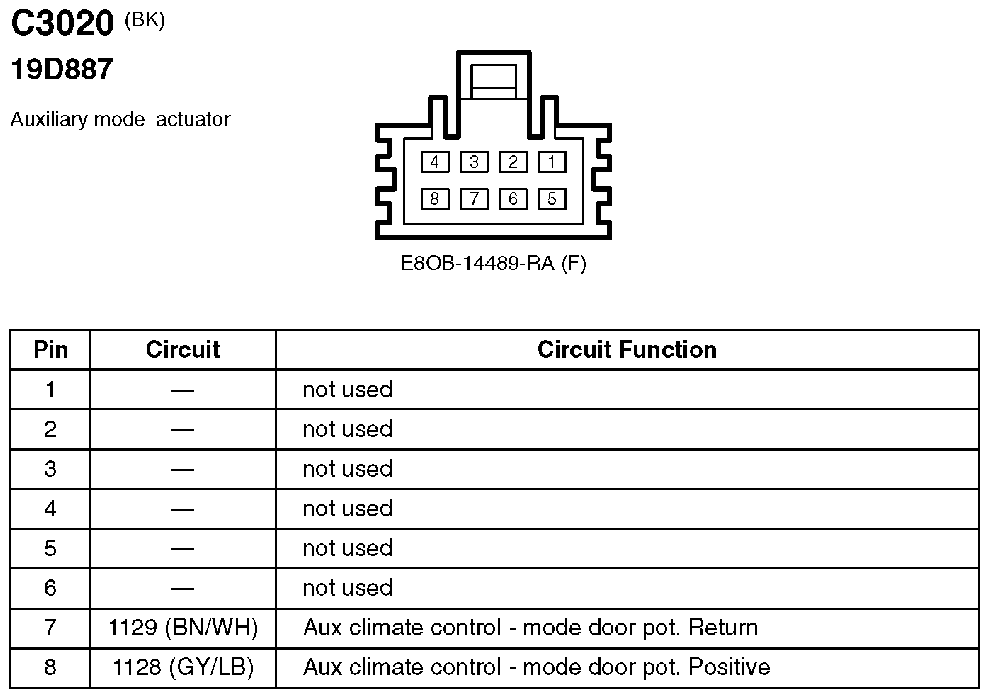

Fig 282: Auxiliary Mode Actuator Connector End View (C3020)
Courtesy of FORD MOTOR CO.

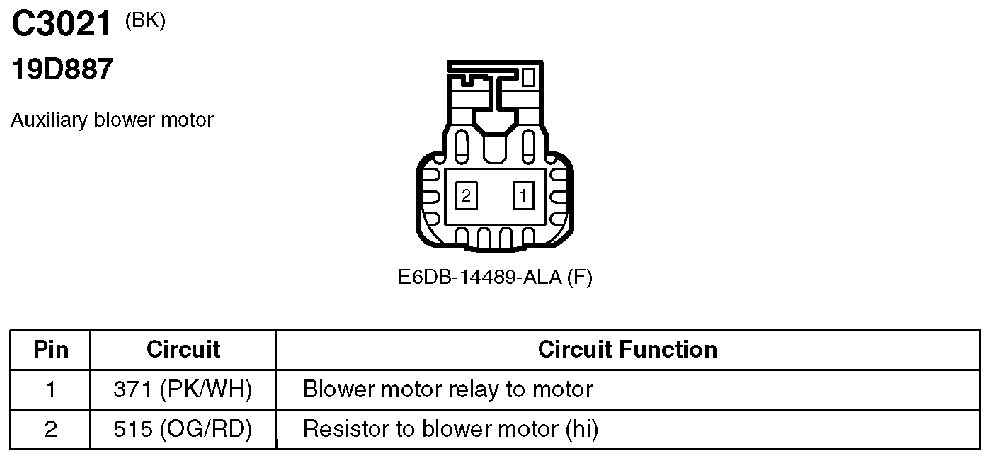

Fig 283: Auxiliary Blower Motor Connector End View (C3021)
Courtesy of FORD MOTOR CO.

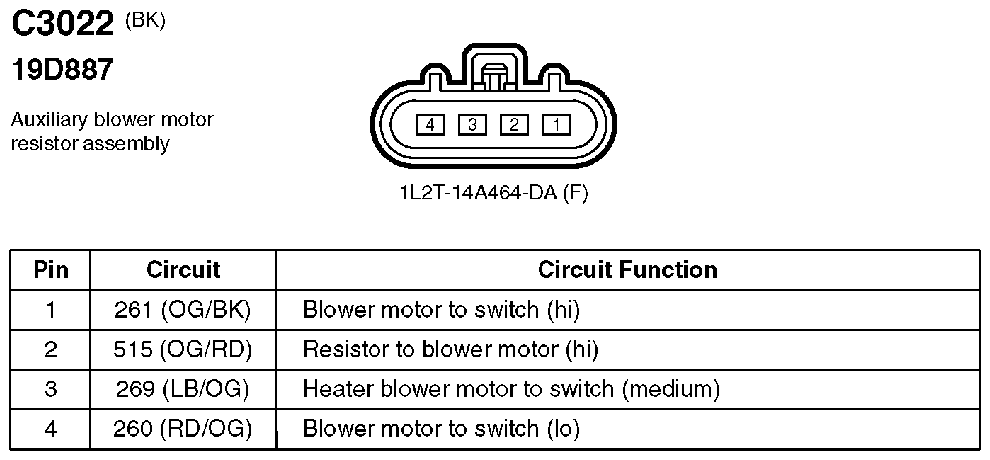

Fig 284: Auxiliary Blower Motor Resistor Assembly Connector End View (C3022)
Courtesy of FORD MOTOR CO.

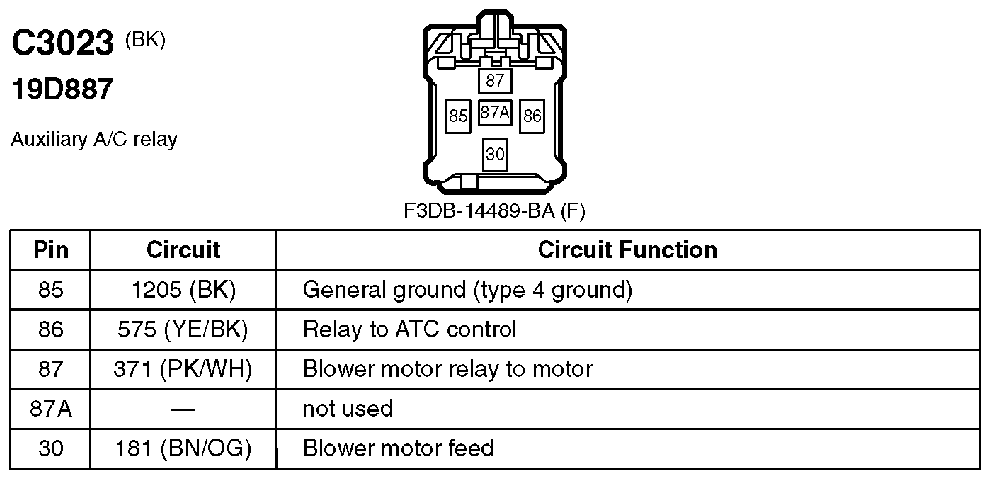

Fig 285: Auxiliary A/C Relay Connector End View (C3023)
Courtesy of FORD MOTOR CO.

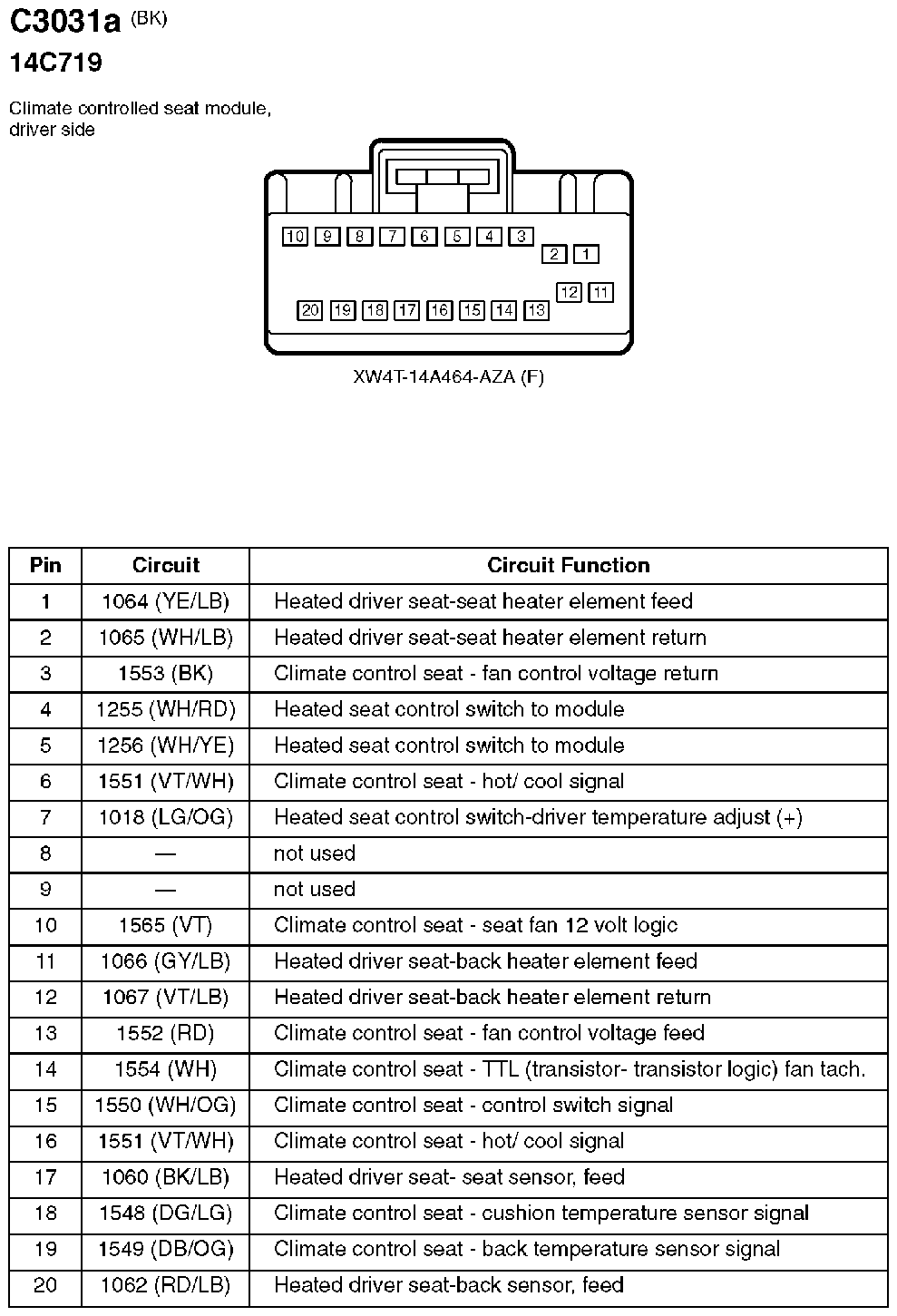

Fig 286: Climate Controlled Seat Module, Driver Side Connector End View (C3031a)
Courtesy of FORD MOTOR CO.

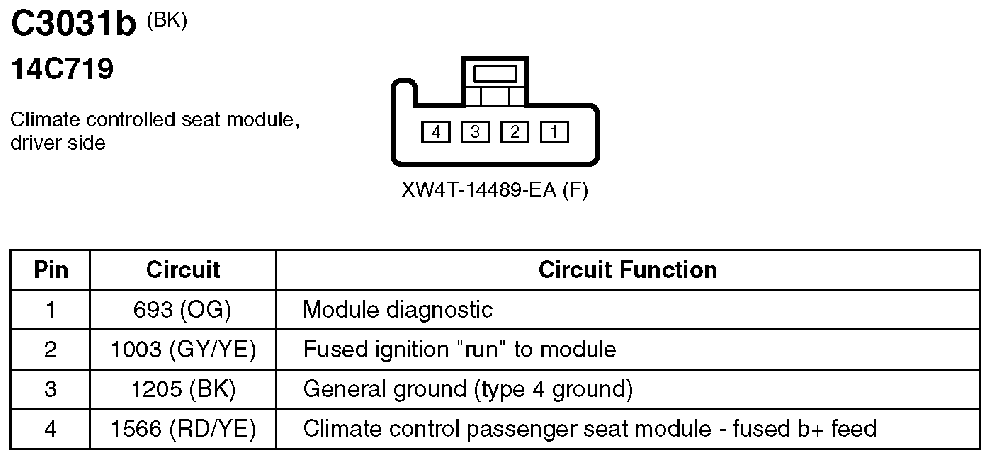

Fig 287: Climate Controlled Seat Module, Driver Side Connector End View (C3031b)
Courtesy of FORD MOTOR CO.

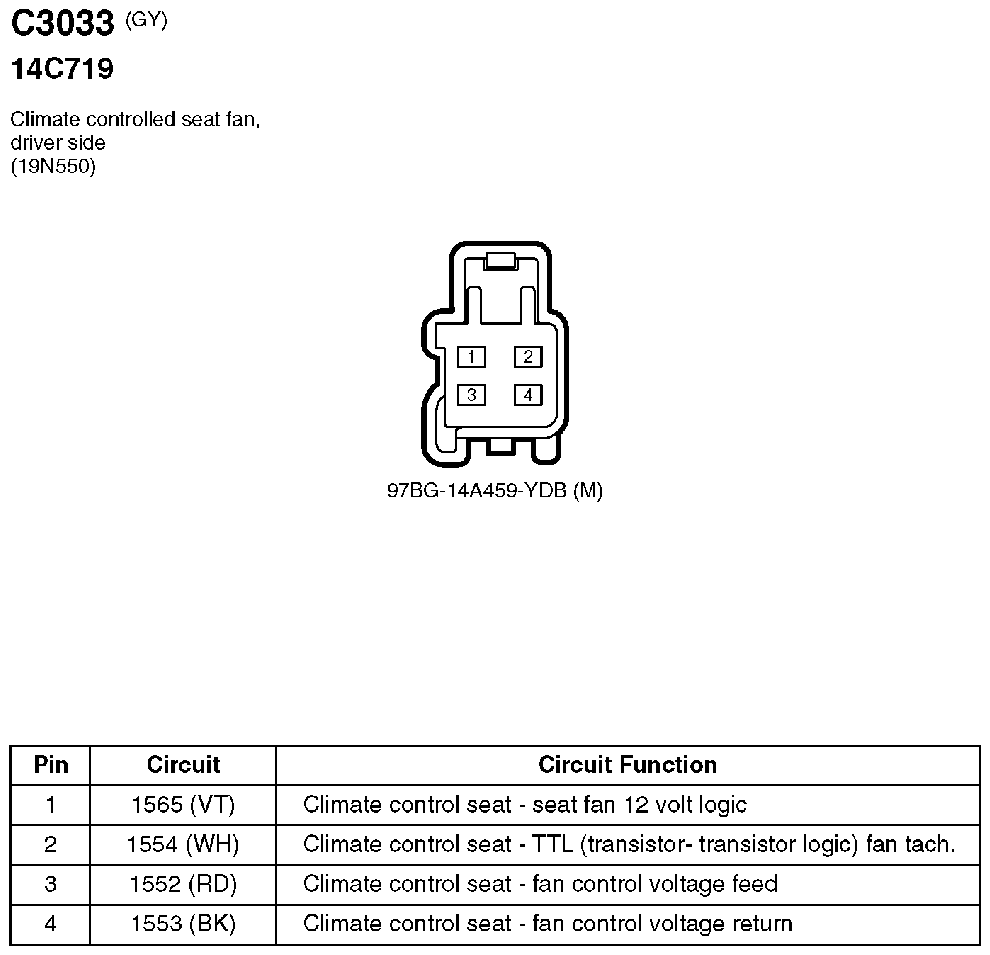

Fig 288: Climate Controlled Seat Fan, Driver Side Connector End View (C3033)
Courtesy of FORD MOTOR CO.

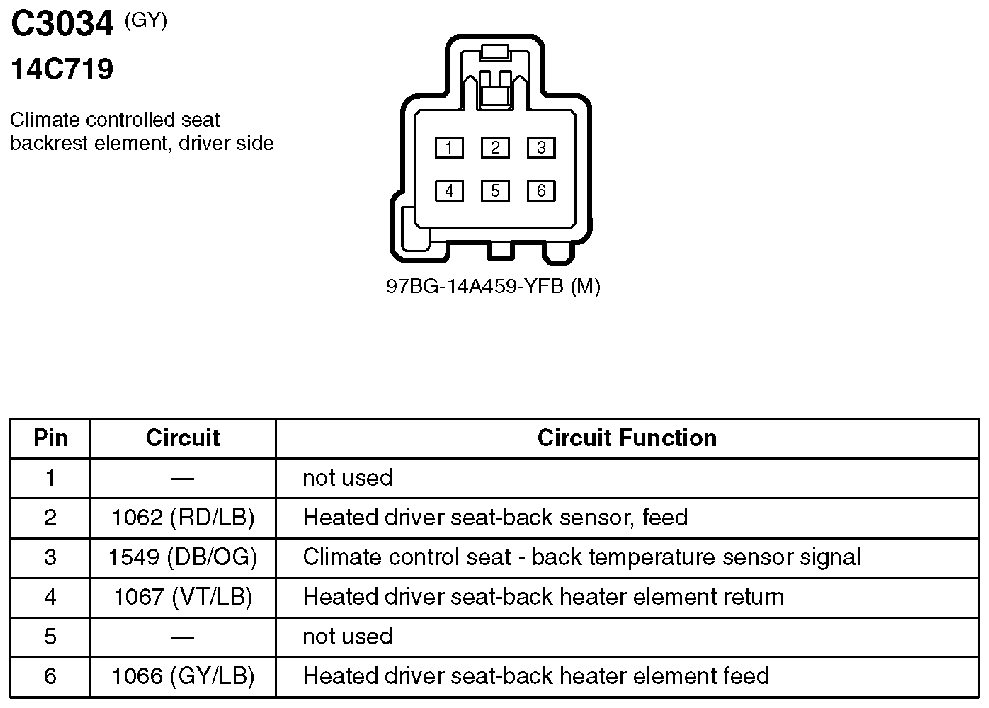

Fig 289: Climate Controlled Seat Backrest Element, Driver Side Connector End View (C3034)
Courtesy of FORD MOTOR CO.

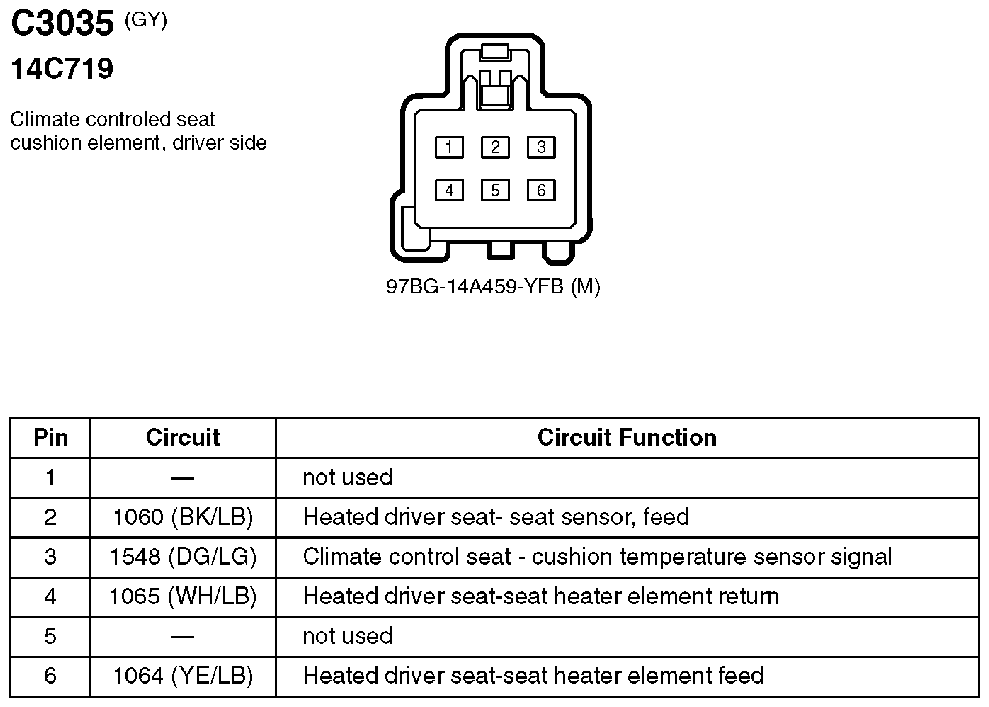

Fig 290: Climate Controlled Seat Cushion Element, Driver Side Connector End View (C3035)
Courtesy of FORD MOTOR CO.

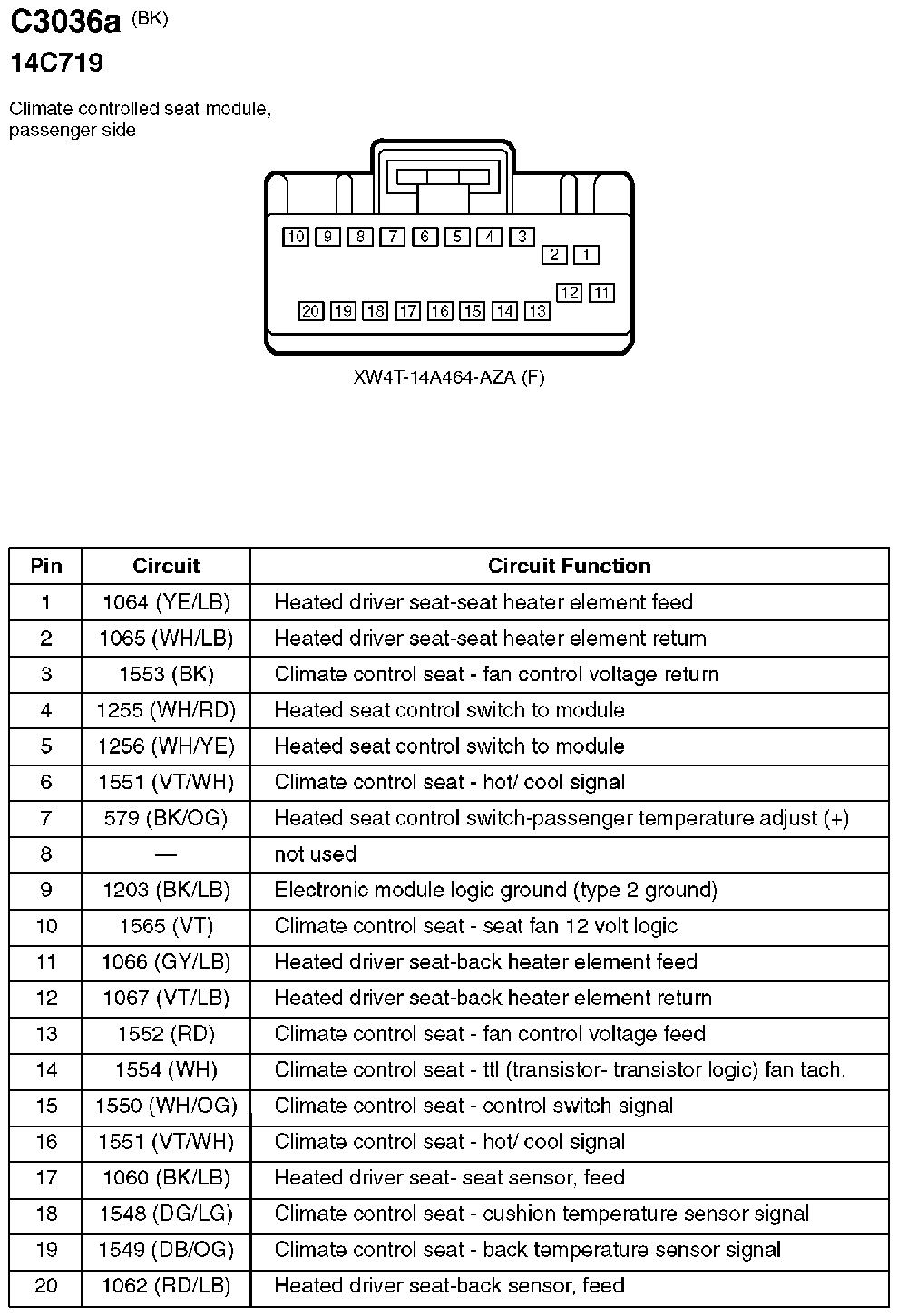

Fig 291: Climate Controlled Seat Module, Passenger Side Connector End View (C3036a)
Courtesy of FORD MOTOR CO.

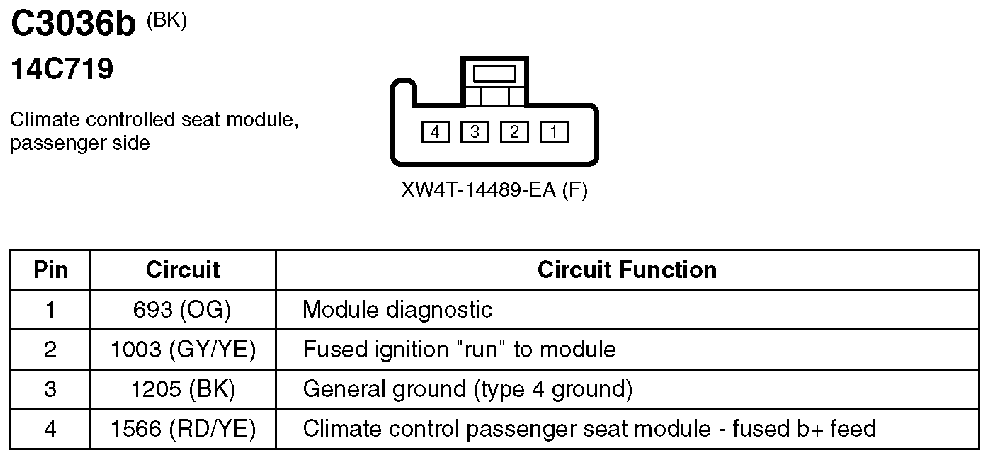

Fig 292: Climate Controlled Seat Module, Passenger Side Connector End View (C3036b)
Courtesy of FORD MOTOR CO.
Fig 293: Climate Controlled Seat Fan, Passenger Side Connector End View (C3038)
Courtesy of FORD MOTOR CO.

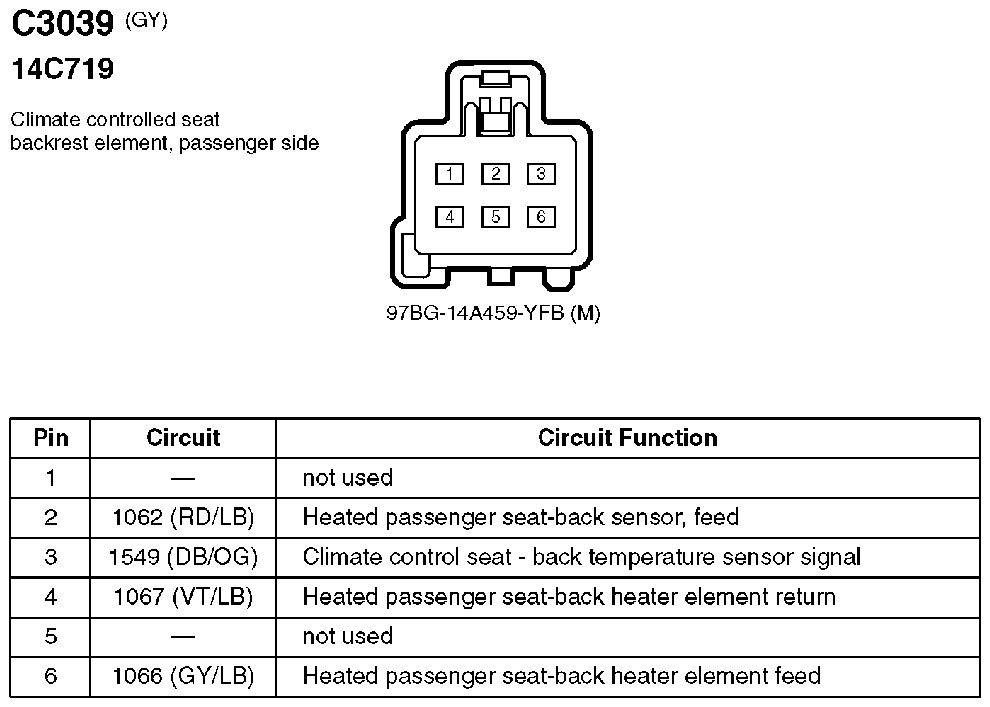

Fig 294: Climate Controlled Seat Backrest Element, Passenger Side Connector End View (C3039)
Courtesy of FORD MOTOR CO.

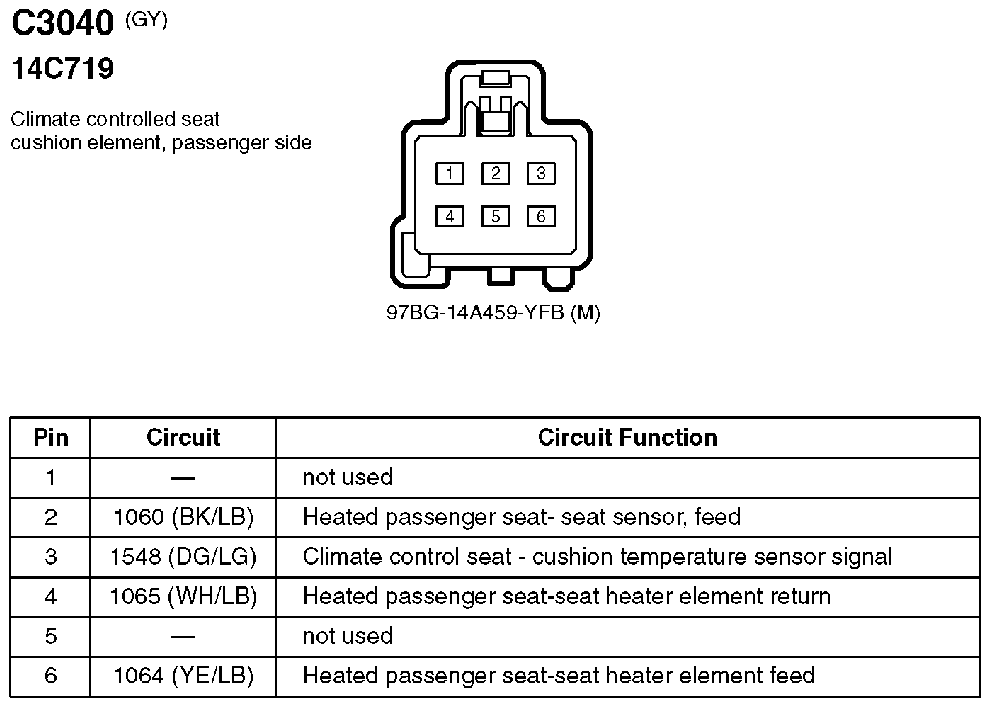

Fig 295: Climate Controlled Seat Cushion Element, Passenger Side Connector End View (C3040)
Courtesy of FORD MOTOR CO.

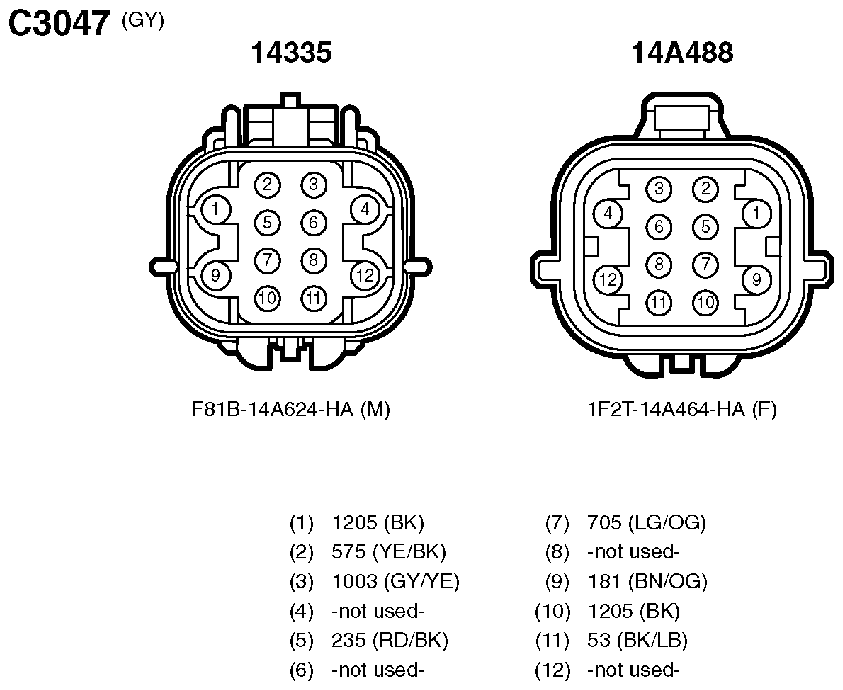

Fig 296: Inline Connector End View (C3047)
Courtesy of FORD MOTOR CO.

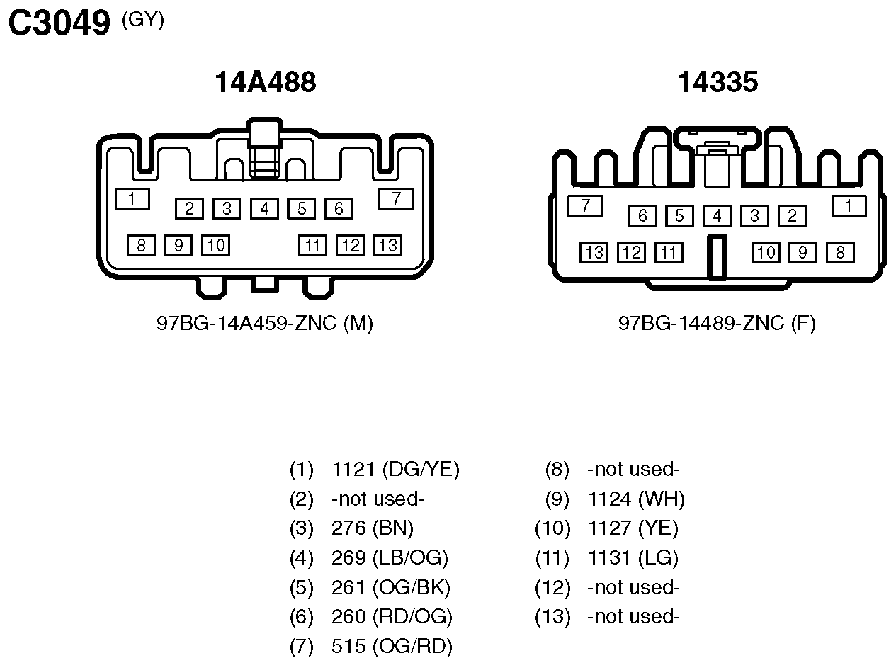

Fig 297: Inline Connector End View (C3049)
Courtesy of FORD MOTOR CO.

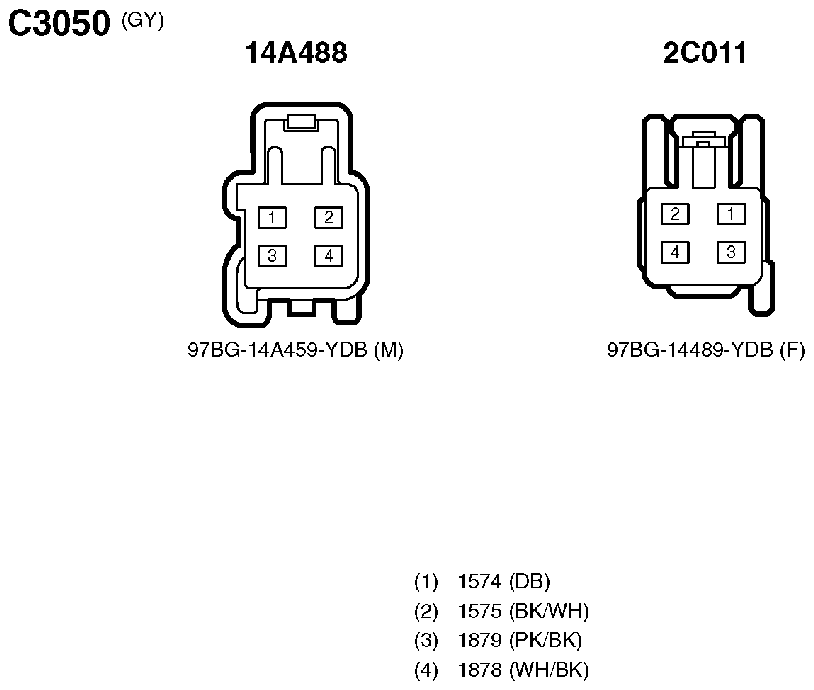

Fig 298: Inline Connector End View (C3050)
Courtesy of FORD MOTOR CO.

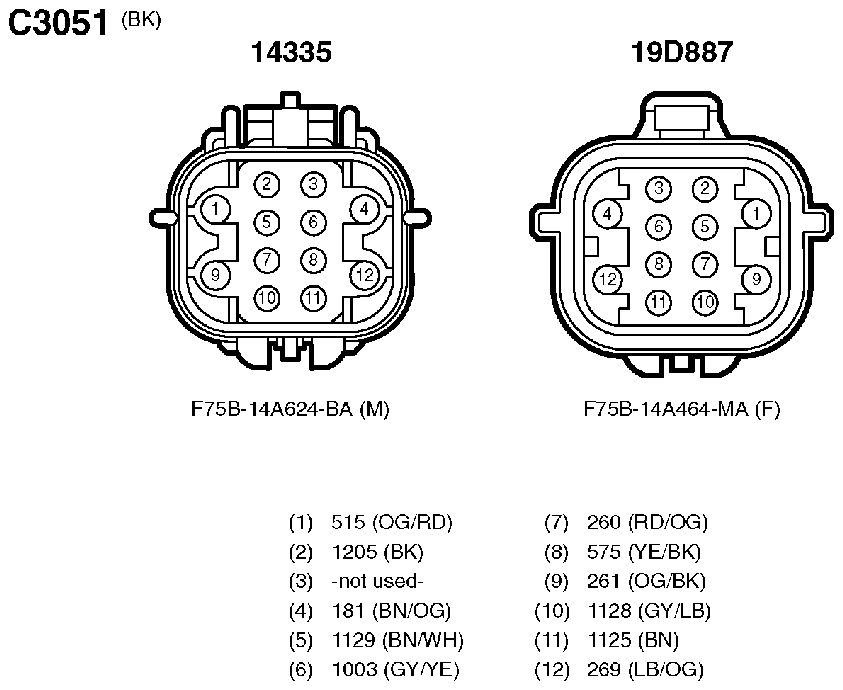

Fig 299: Inline Connector End View (C3051)
Courtesy of FORD MOTOR CO.

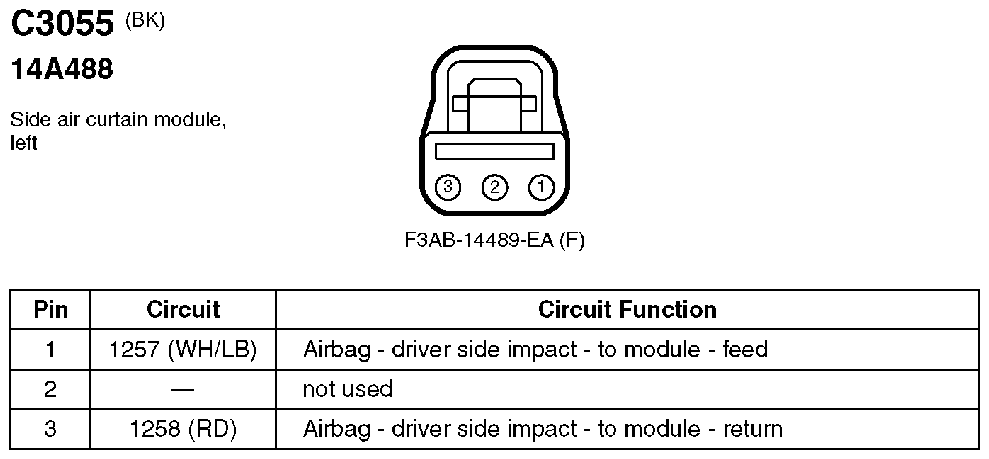

Fig 300: Side Air Curtain Module, Left Connector End View (C3055)
Courtesy of FORD MOTOR CO.
Fig 301: Side Air Curtain Module, Right Connector End View (C3056)
Courtesy of FORD MOTOR CO.

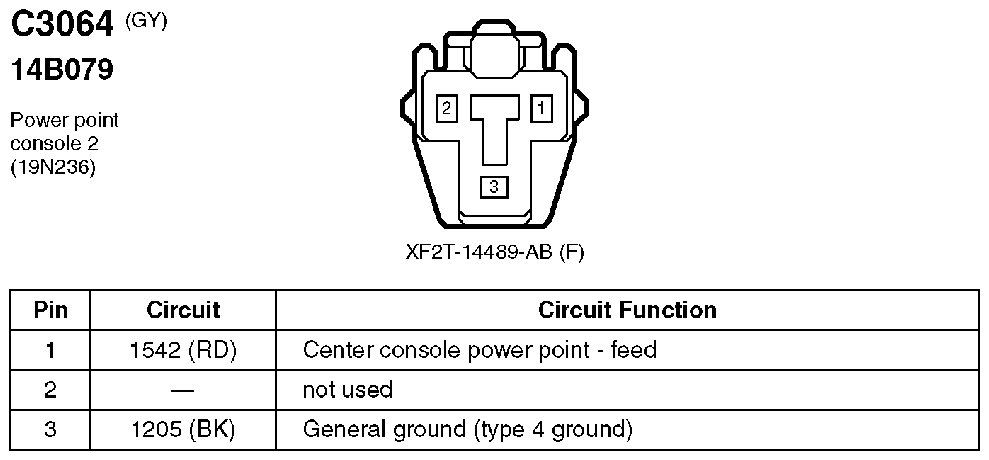

Fig 302: Power Point Console 2 Connector End View (C3064)
Courtesy of FORD MOTOR CO.

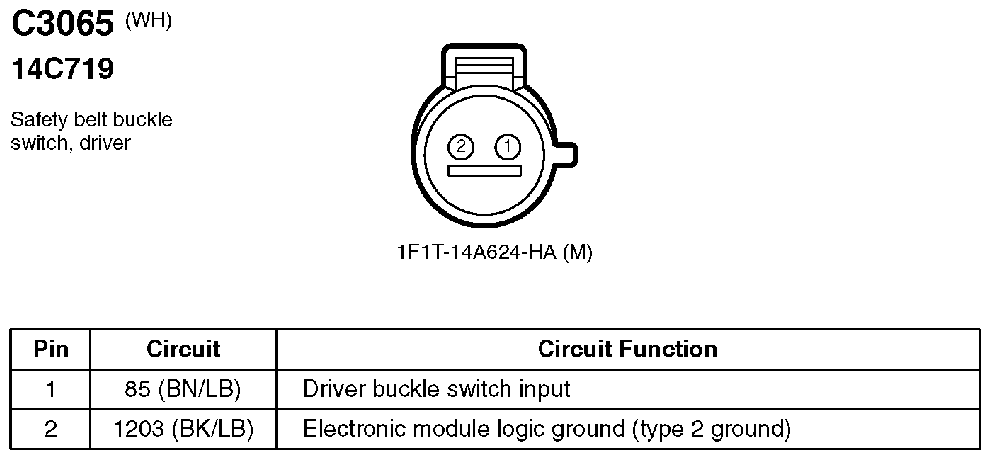

Fig 303: Safety Belt Buckle Switch, Driver Connector End View (C3065)
Courtesy of FORD MOTOR CO.

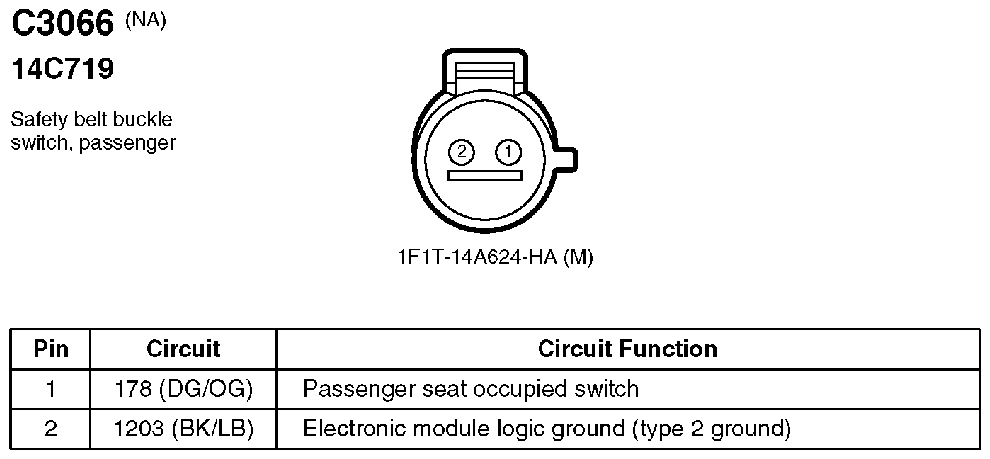

Fig 304: Safety Belt Buckle Switch, Passenger Connector End View (C3066)
Courtesy of FORD MOTOR CO.

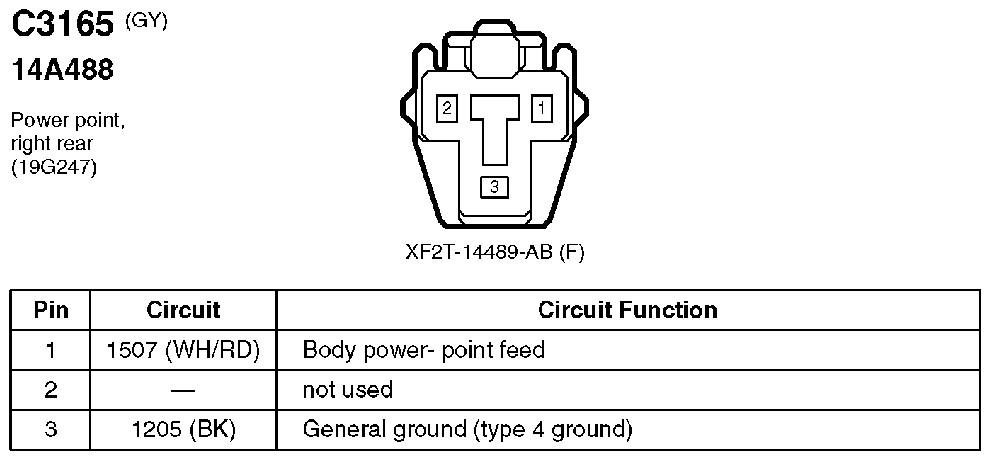

Fig 305: Power Point, Right Rear Connector End View (C3165)
Courtesy of FORD MOTOR CO.

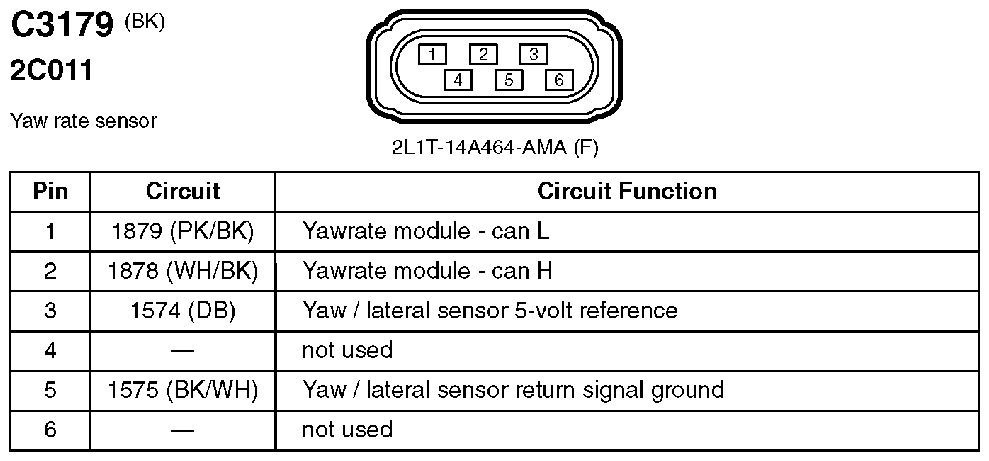

Fig 306: Yaw Rate Sensor Connector End View (C3179)
Courtesy of FORD MOTOR CO.

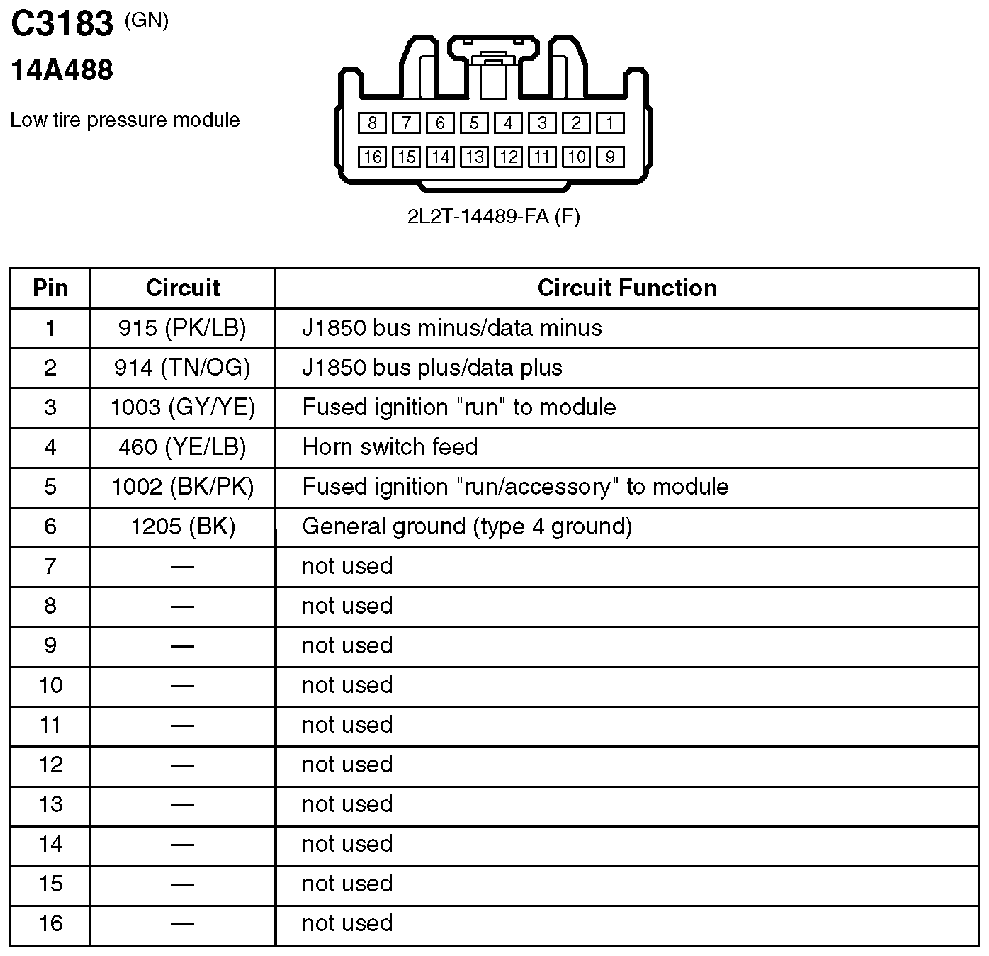

Fig 307: Low Tire Pressure Module Connector End View (C3183)
Courtesy of FORD MOTOR CO.

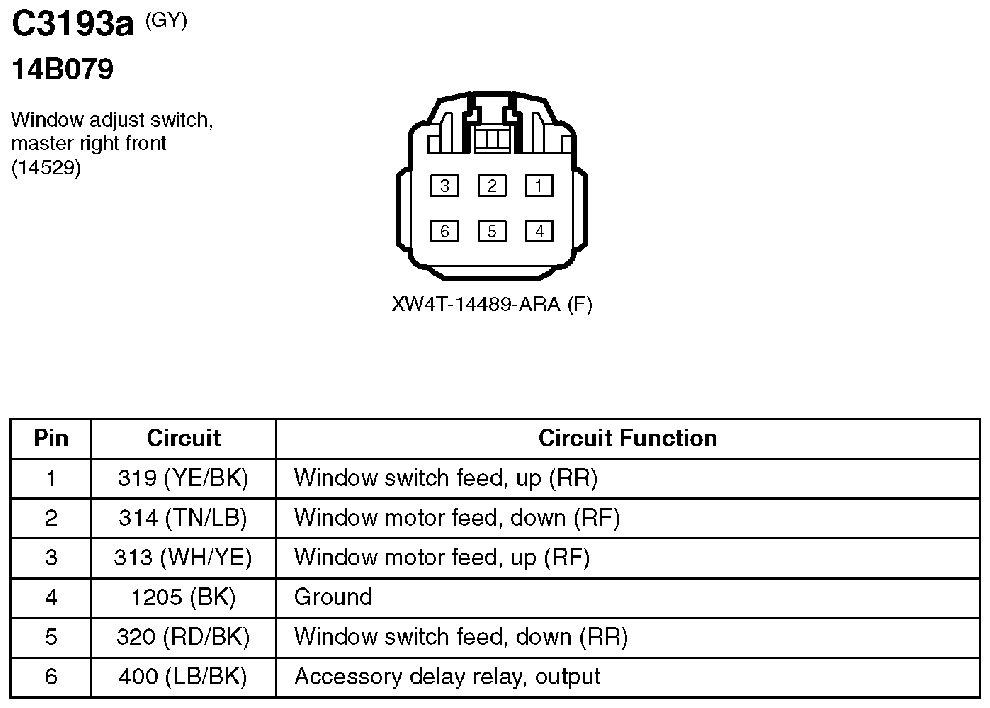

Fig 308: Window Adjust Switch, Master Right Front Connector End View (C3193a)
Courtesy of FORD MOTOR CO.

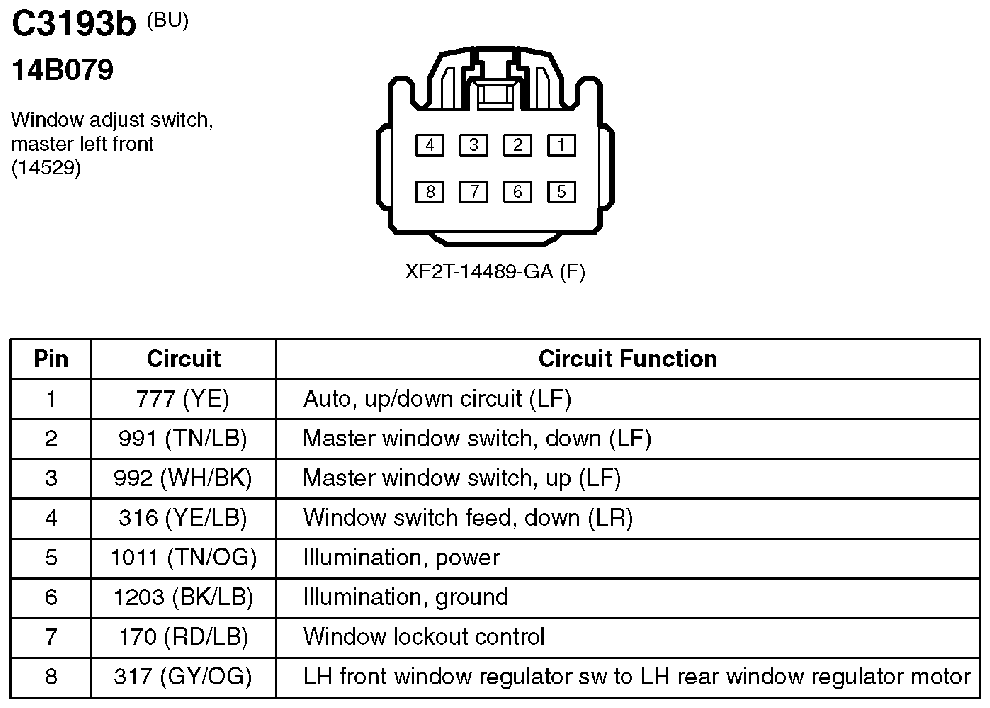

Fig 309: Window Adjust Switch, Master Left Front Connector End View (C3193b)
Courtesy of FORD MOTOR CO.

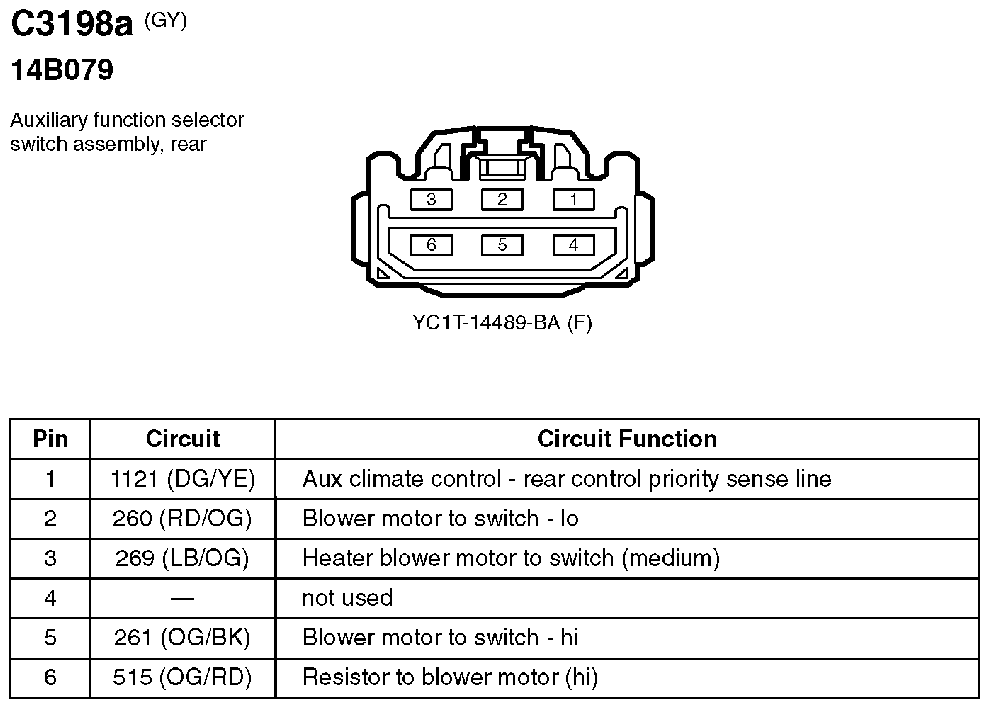

Fig 310: Auxiliary Function Selector Switch Assembly, Rear Connector End View (C3198a)
Courtesy of FORD MOTOR CO.

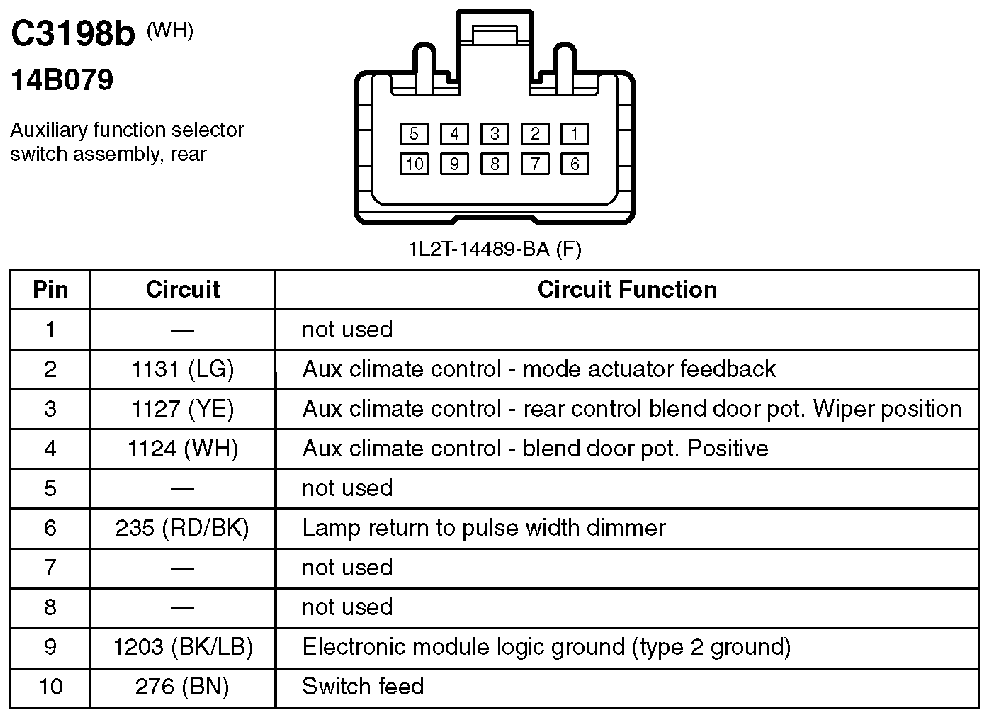

Fig 311: Auxiliary Function Selector Switch Assembly, Rear Connector End View (C3198b)
Courtesy of FORD MOTOR CO.

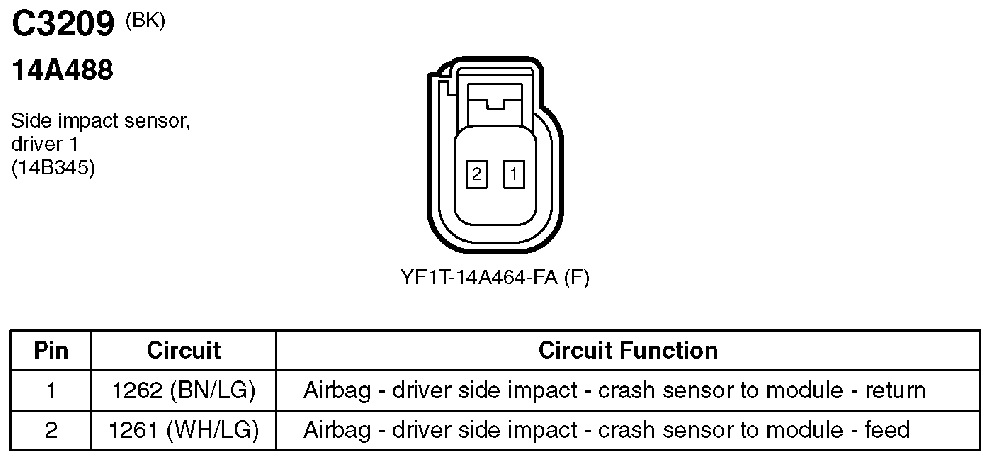

Fig 312: Side Impact Sensor, Driver 1 Connector End View (C3209)
Courtesy of FORD MOTOR CO.

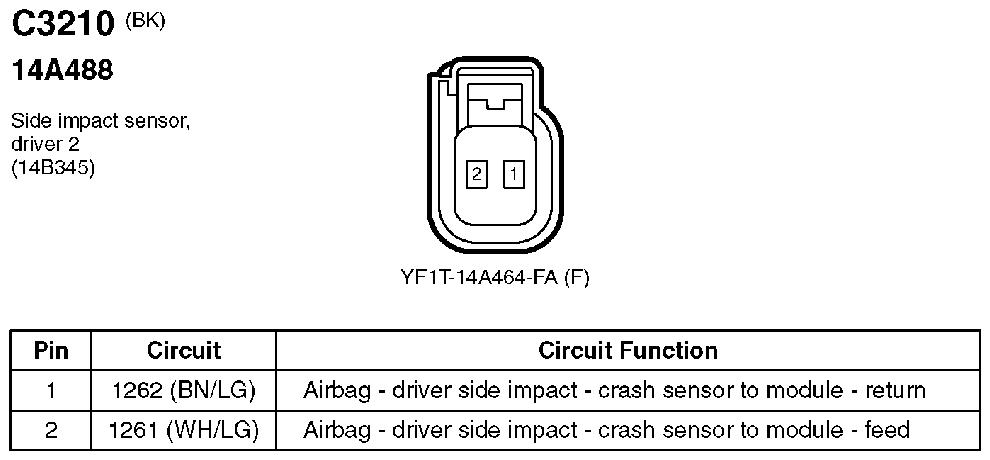

Fig 313: Side Impact Sensor, Driver 2 Connector End View (C3210)
Courtesy of FORD MOTOR CO.

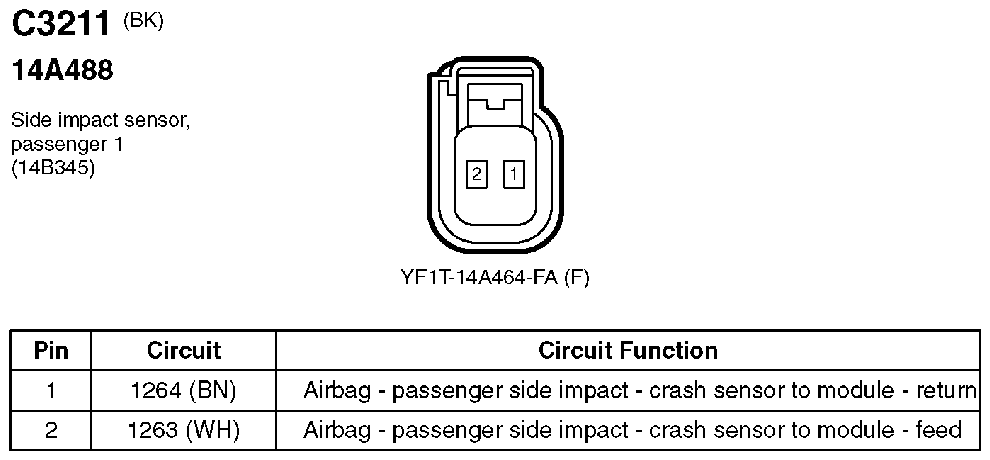

Fig 314: Side Impact Sensor, Passenger 1 Connector End View (C3211)
Courtesy of FORD MOTOR CO.

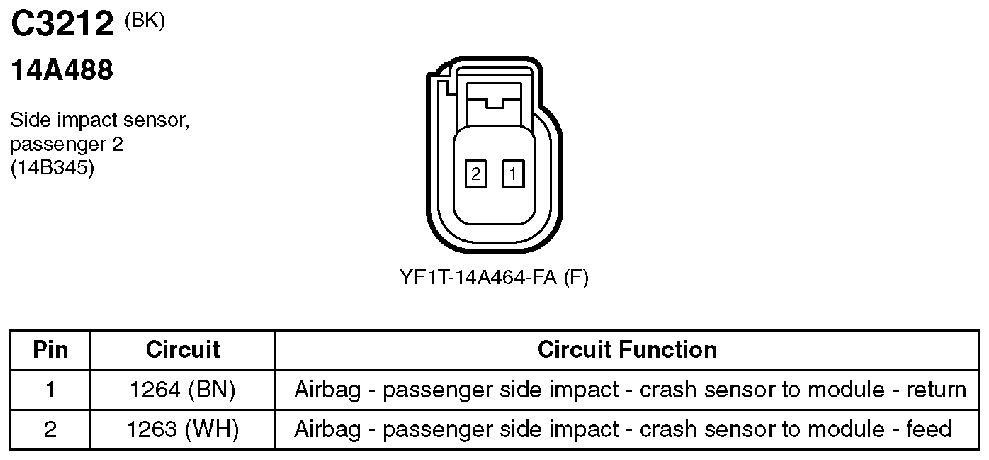

Fig 315: Side Impact Sensor, Passenger 2 Connector End View (C3212)
Courtesy of FORD MOTOR CO.

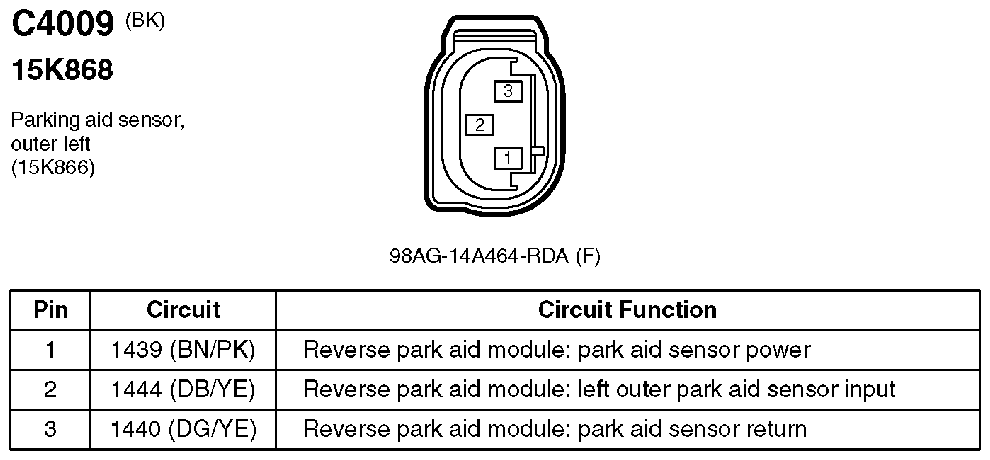

Fig 316: Parking Aid Sensor, Outer Left Connector End View (C4009)
Courtesy of FORD MOTOR CO.

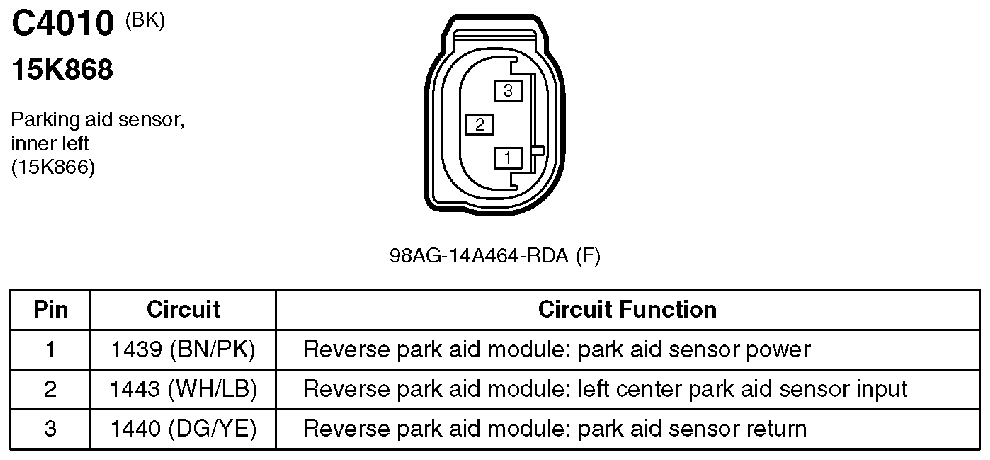

Fig 317: Parking Aid Sensor, Inner Left Connector End View (C4010)
Courtesy of FORD MOTOR CO.
Fig 318: Parking Aid Sensor, Outer Right Connector End View (C4011)
Courtesy of FORD MOTOR CO.

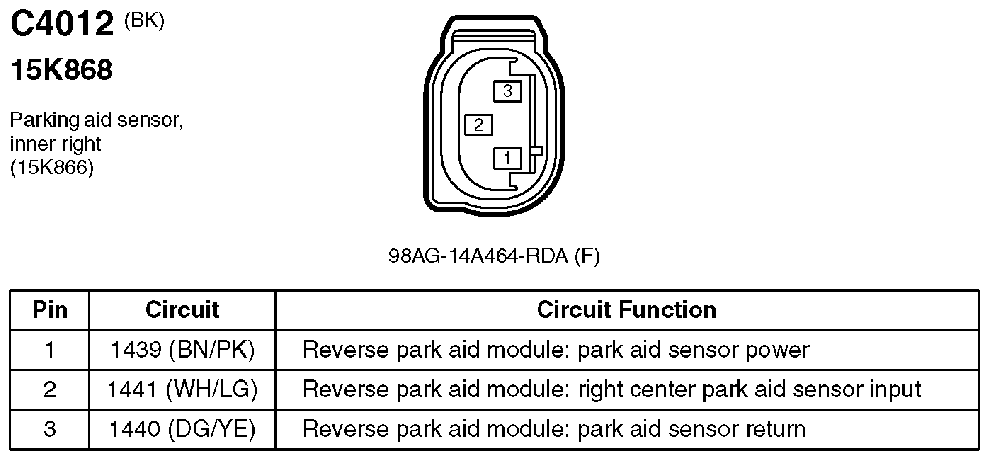

Fig 319: Parking Aid Sensor, Inner Right Connector End View (C4012)
Courtesy of FORD MOTOR CO.

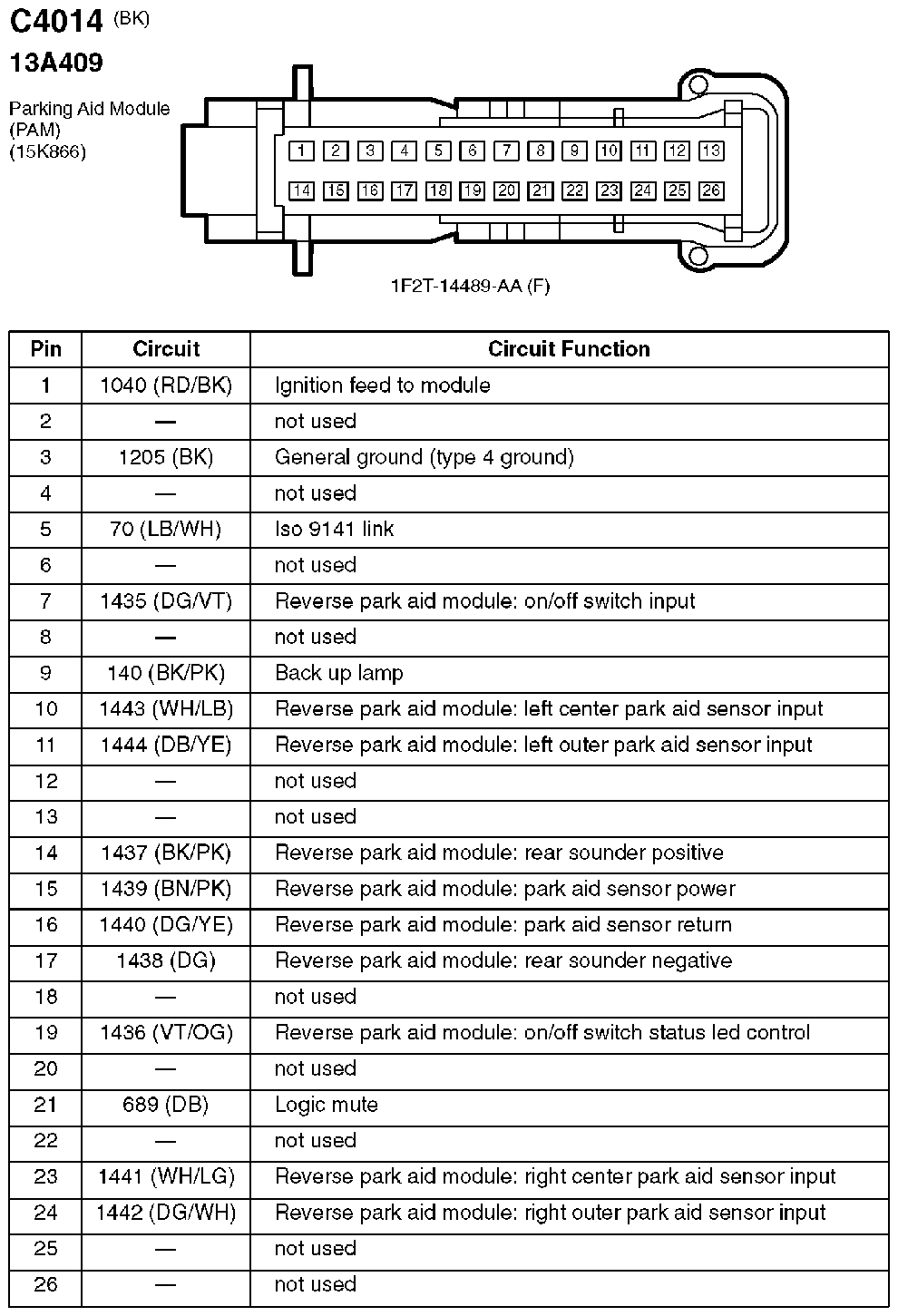

Fig 320: Parking Aid Module (PAM) Connector End View (C4014)
Courtesy of FORD MOTOR CO.

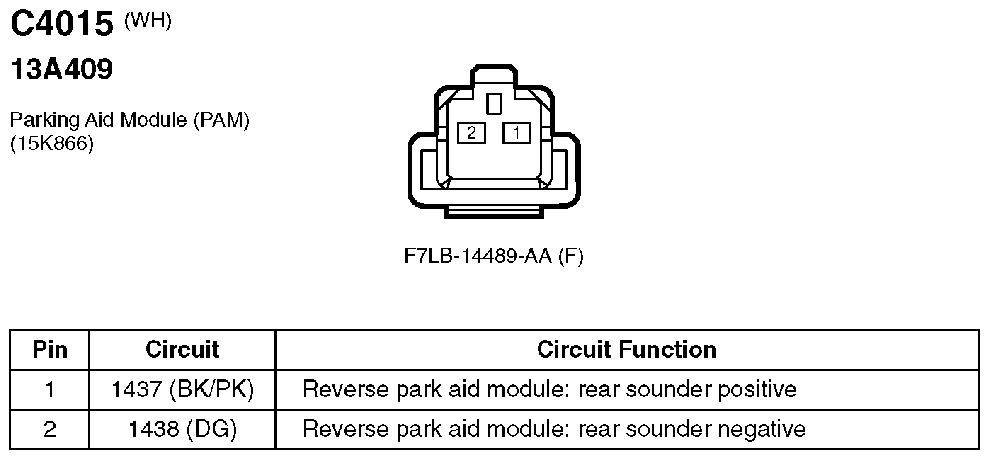

Fig 321: Parking Aid Module (PAM) Connector End View (C4015)
Courtesy of FORD MOTOR CO.

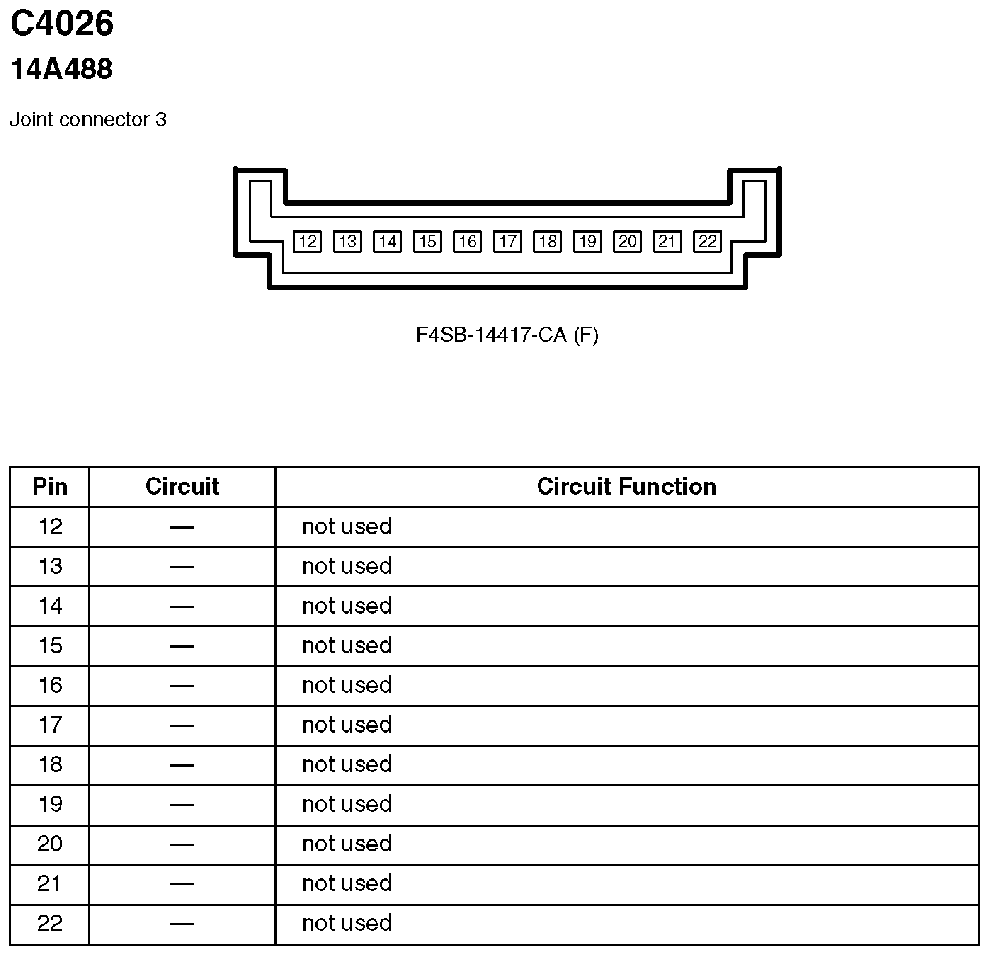

Fig 322: Joint Connector 3 Connector End View (C4026)
Courtesy of FORD MOTOR CO.

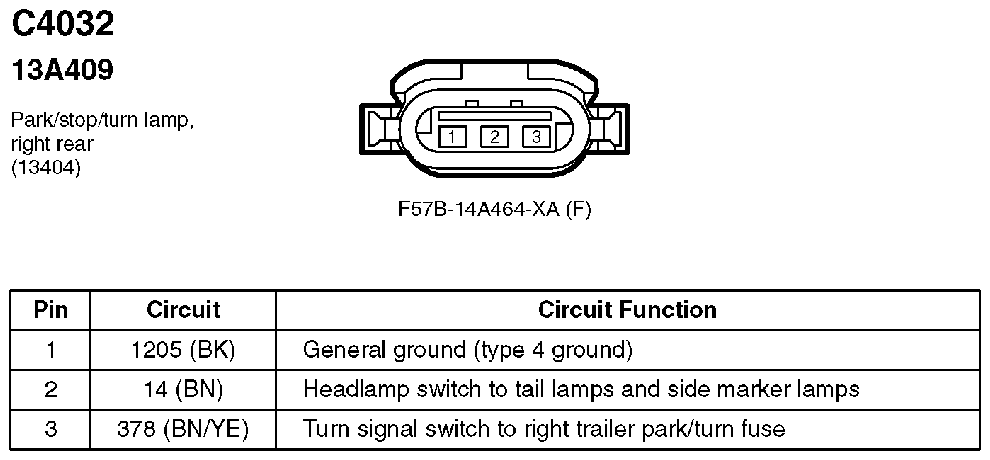

Fig 323: Park/Stop/Turn Lamp, Right Rear Connector End View (C4032)
Courtesy of FORD MOTOR CO.

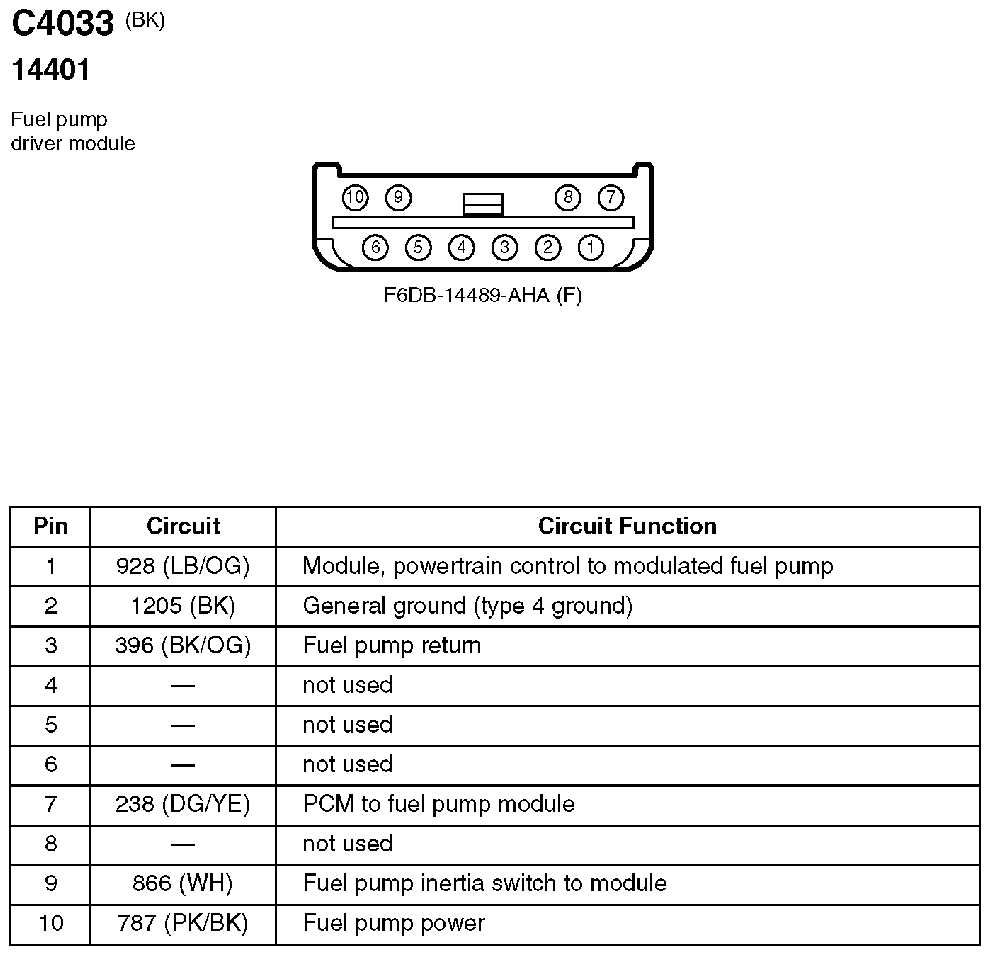

Fig 324: Fuel Pump Driver Module Connector End View (C4033)
Courtesy of FORD MOTOR CO.

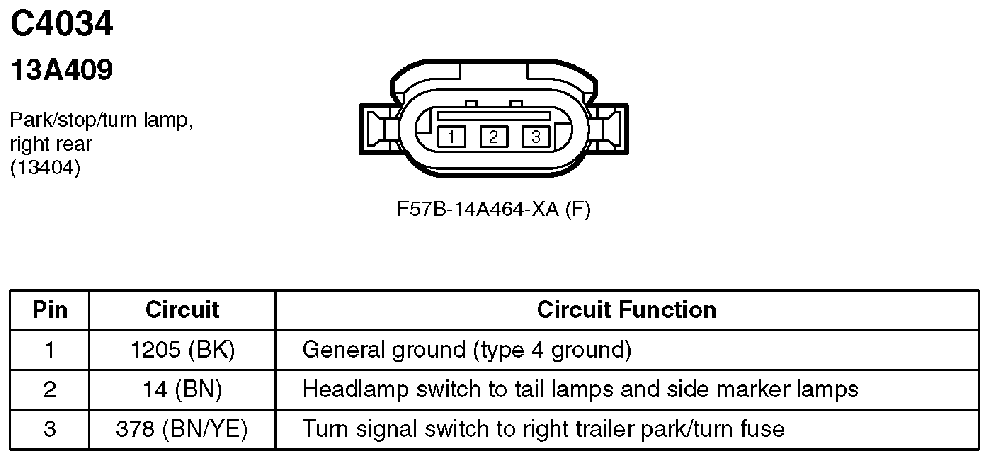

Fig 325: Park/Stop/Turn Lamp, Right Rear Connector End View (C4034)
Courtesy of FORD MOTOR CO.

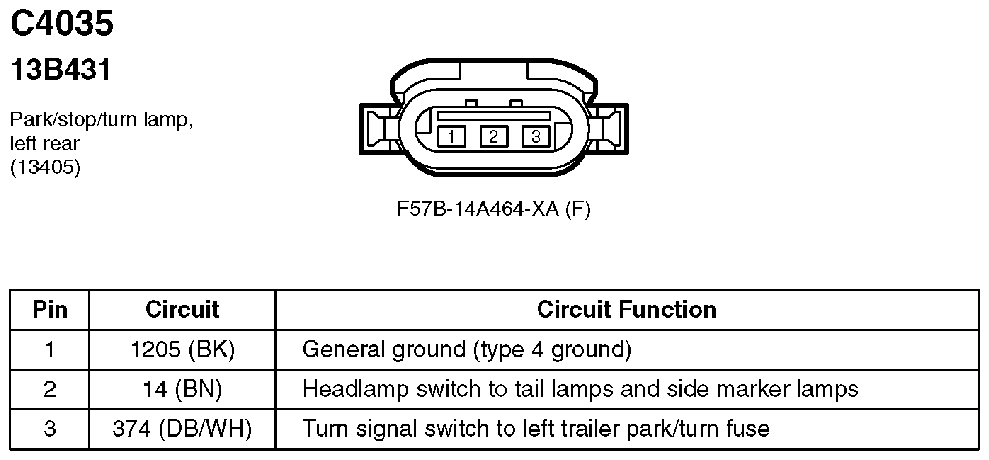

Fig 326: Park/Stop/Turn Lamp, Left Rear Connector End View (C4035)
Courtesy of FORD MOTOR CO.

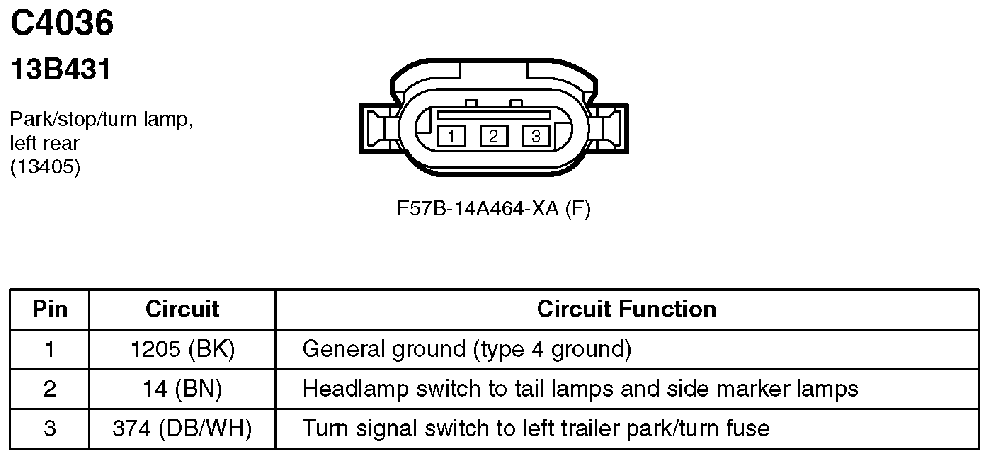

Fig 327: Park/Stop/Turn Lamp, Left Rear Connector End View (C4036)
Courtesy of FORD MOTOR CO.

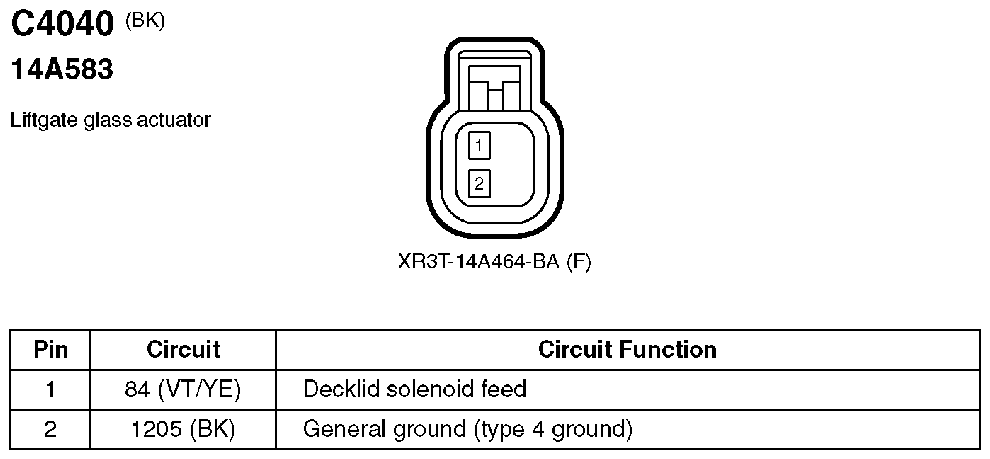

Fig 328: Liftgate Glass Actuator Connector End View (C4040)
Courtesy of FORD MOTOR CO.

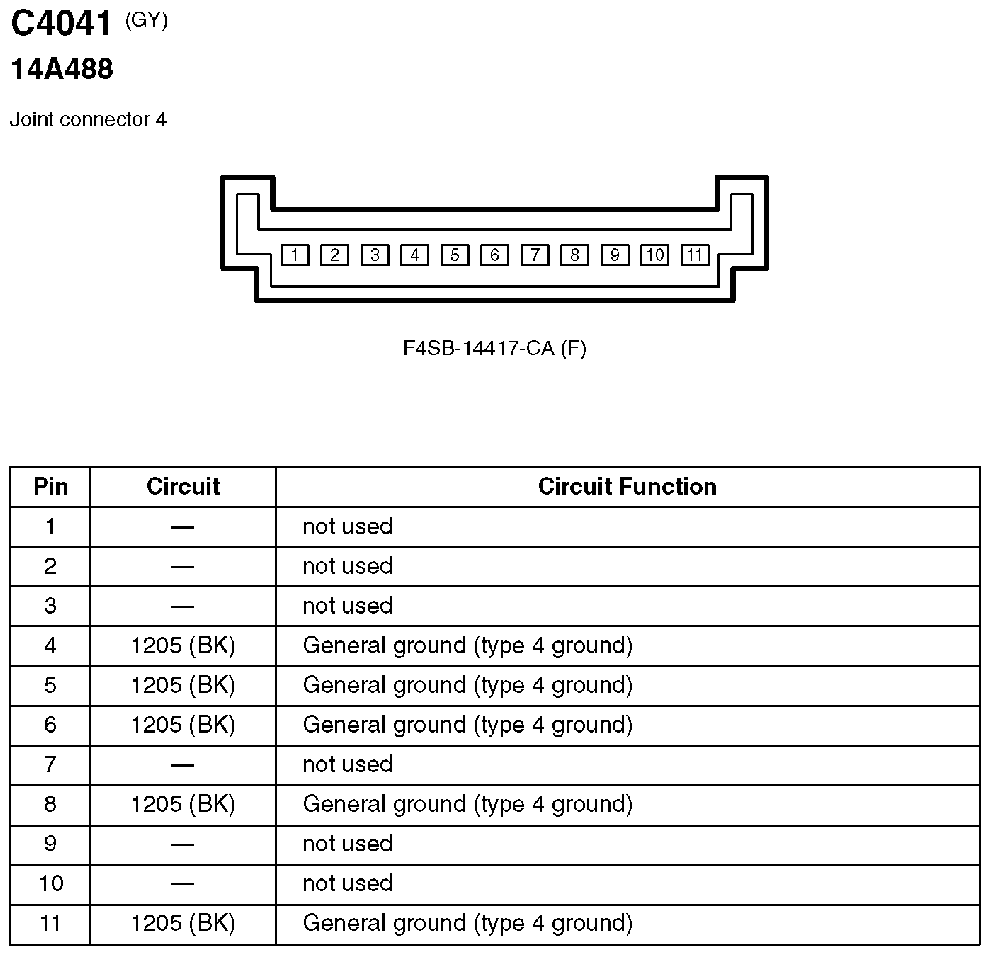

Fig 329: Joint Connector 4 Connector End View (C4041)
Courtesy of FORD MOTOR CO.

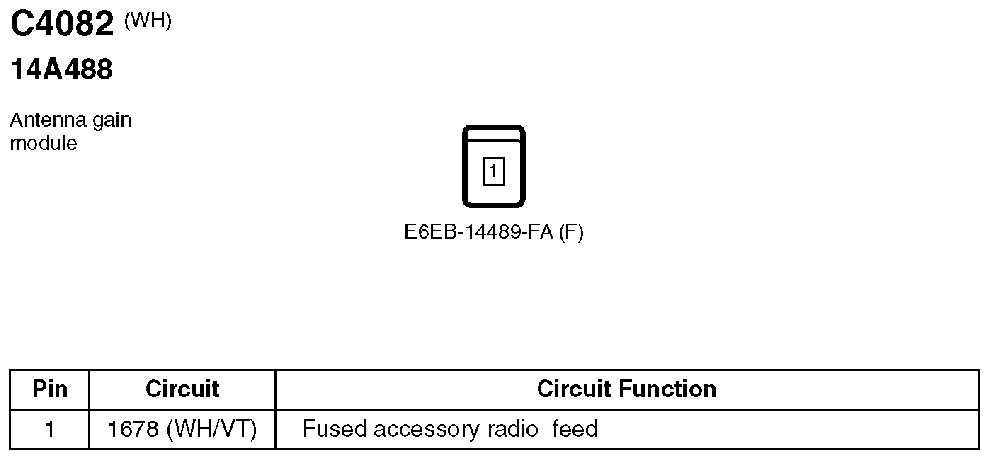

Fig 330: Antenna Gain Module Connector End View (C4082)
Courtesy of FORD MOTOR CO.

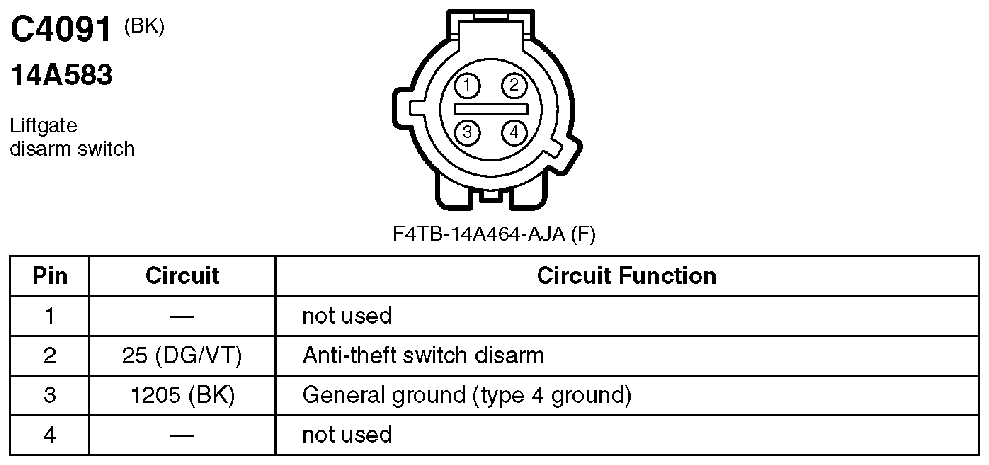

Fig 331: Liftgate Disarm Switch Connector End View (C4091)
Courtesy of FORD MOTOR CO.

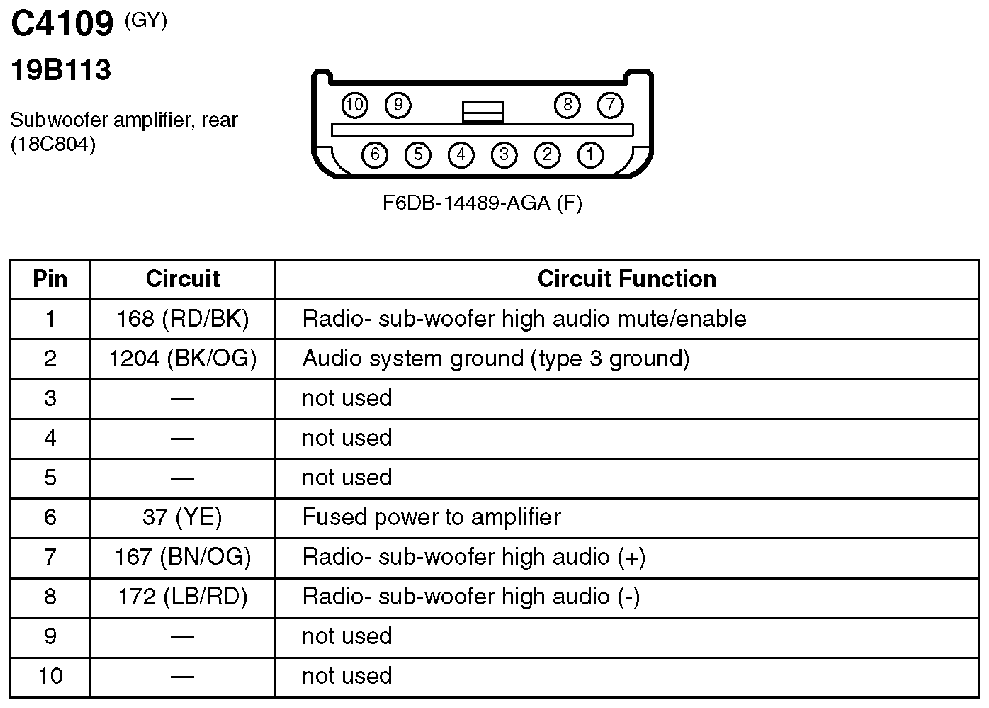

Fig 332: Subwoofer Amplifier, Rear Connector End View (C4109)
Courtesy of FORD MOTOR CO.

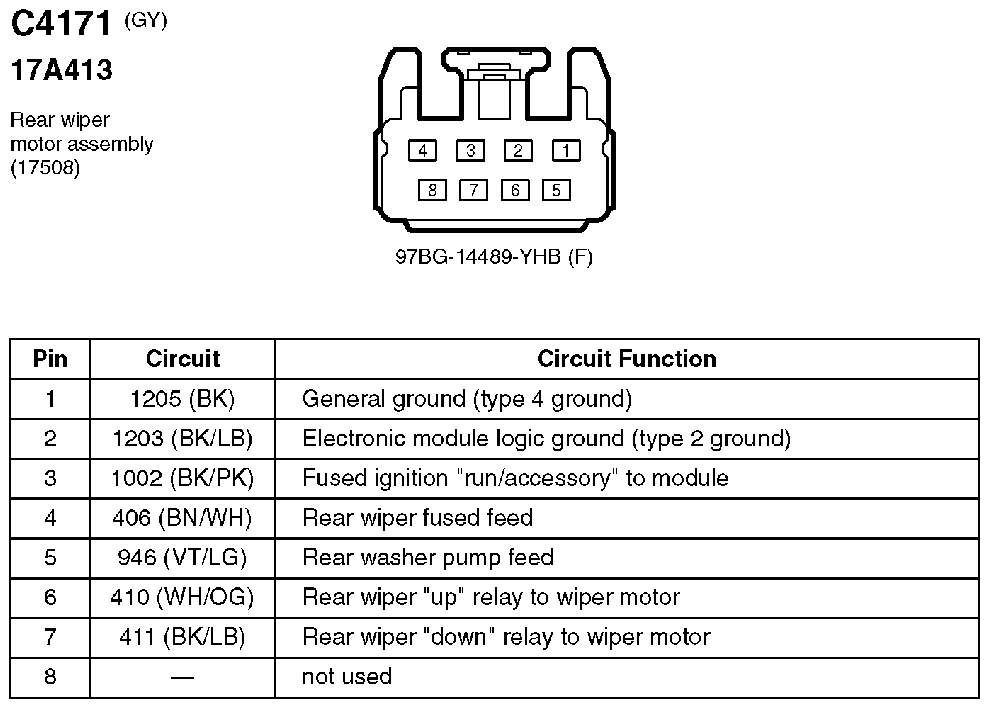

Fig 333: Rear Wiper Motor Assembly Connector End View (C4171)
Courtesy of FORD MOTOR CO.

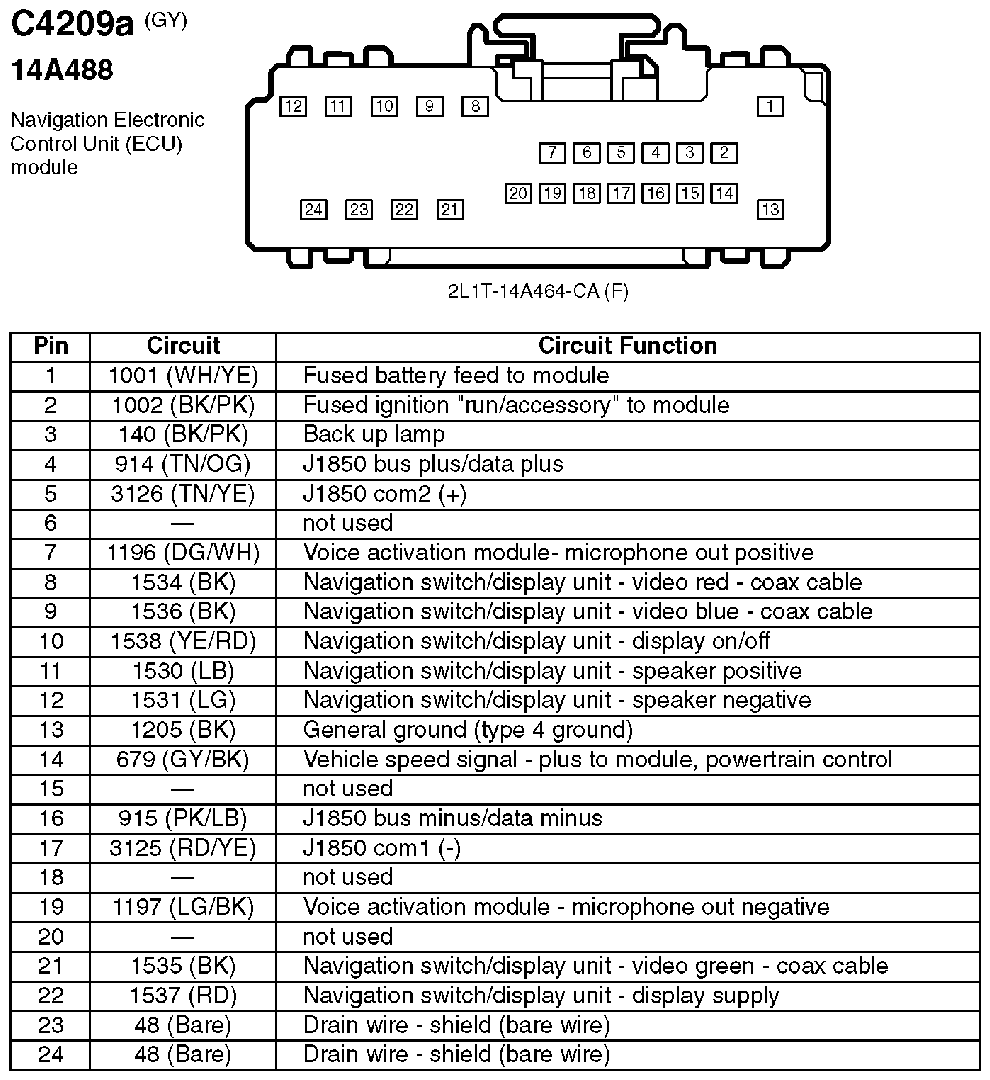

Fig 334: Navigation Electronic Control Unit (ECU) Module Connector End View (C4209a)
Courtesy of FORD MOTOR CO.

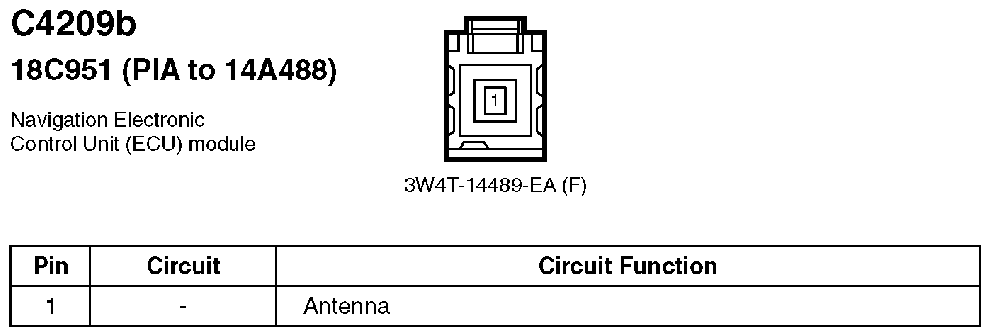

Fig 335: Navigation Electronic Control Unit (ECU) Module Connector End View (C4209b)
Courtesy of FORD MOTOR CO.

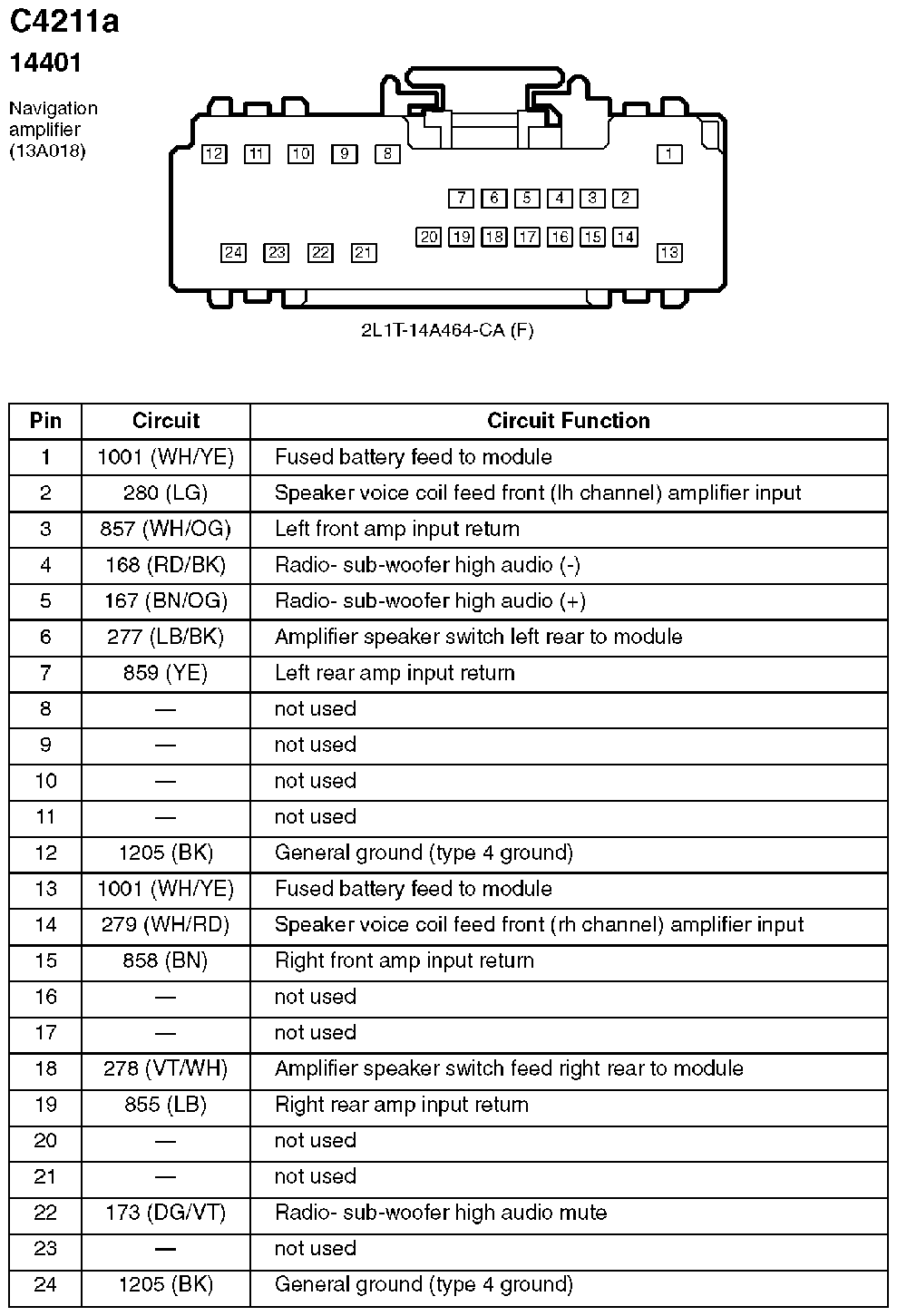

Fig 336: Navigation Amplifier Connector End View (C4211a)
Courtesy of FORD MOTOR CO.

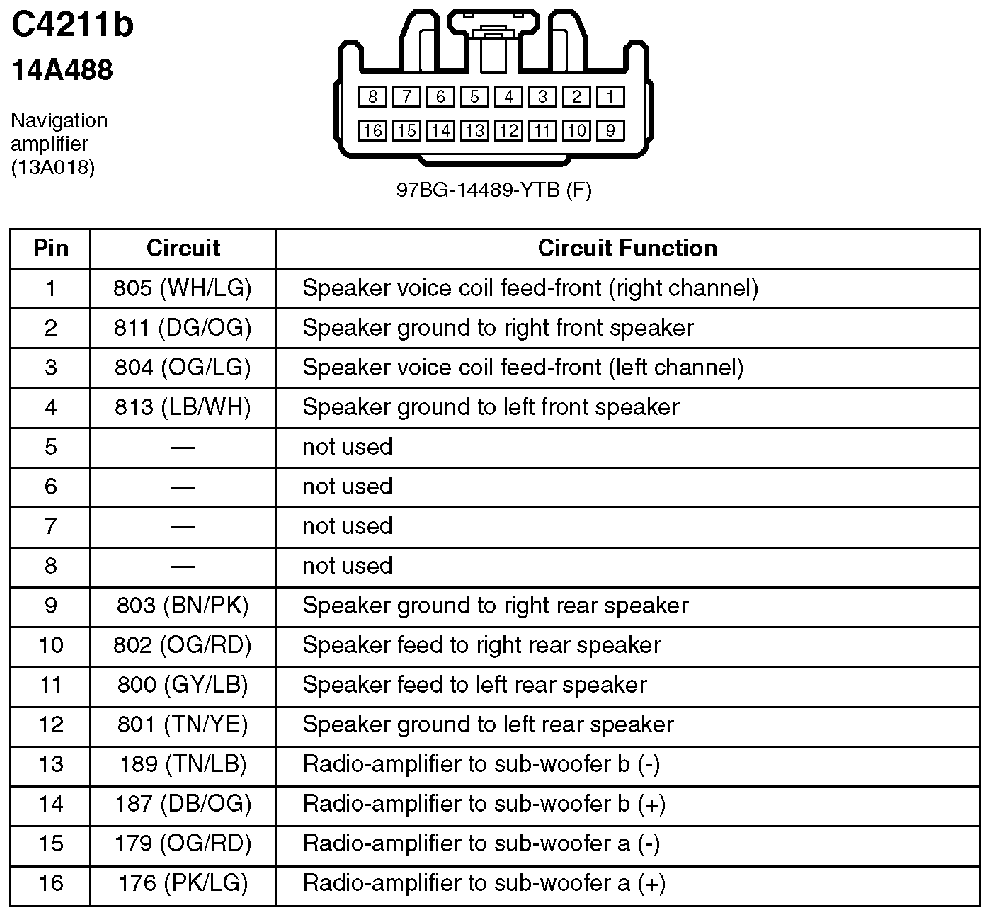

Fig 337: Navigation Amplifier Connector End View (C4211b)
Courtesy of FORD MOTOR CO.

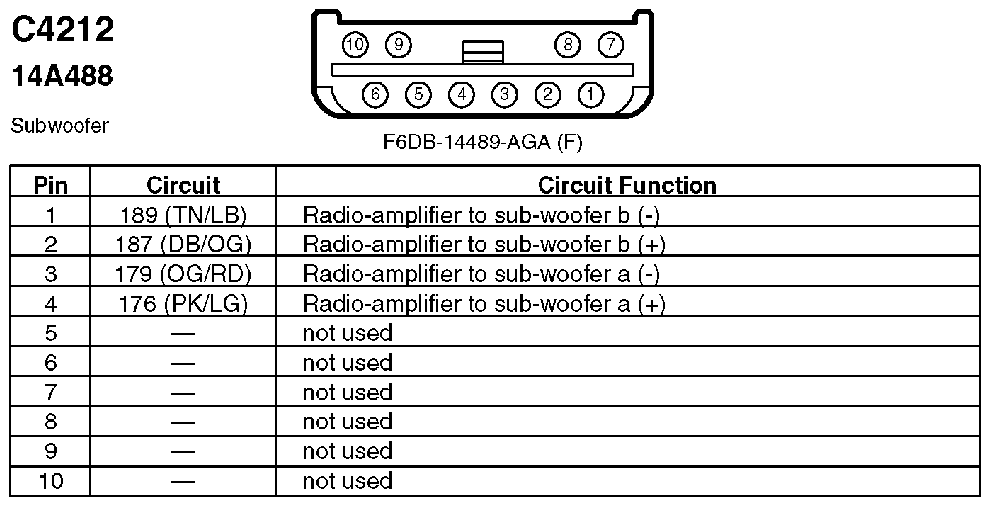

Fig 338: Subwoofer Connector End View (C4212)
Courtesy of FORD MOTOR CO.

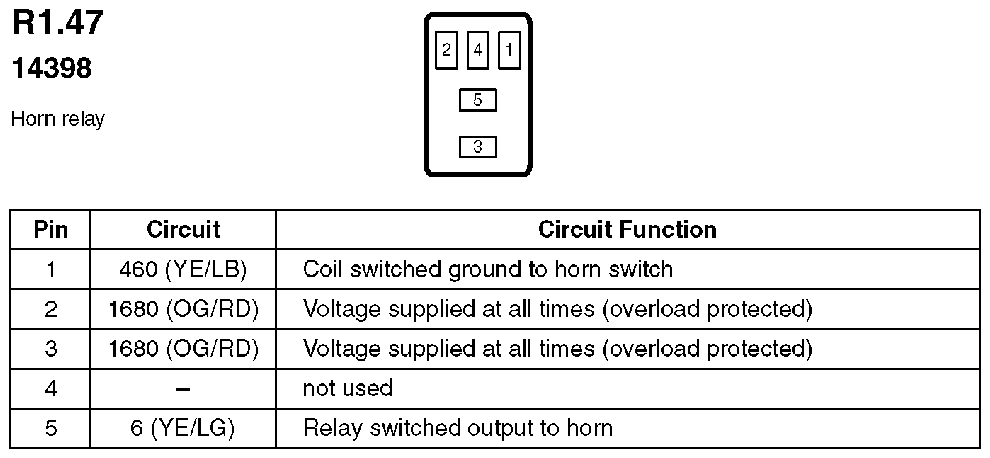

Fig 339: Horn Relay Connector End View (R1.47)
Courtesy of FORD MOTOR CO.

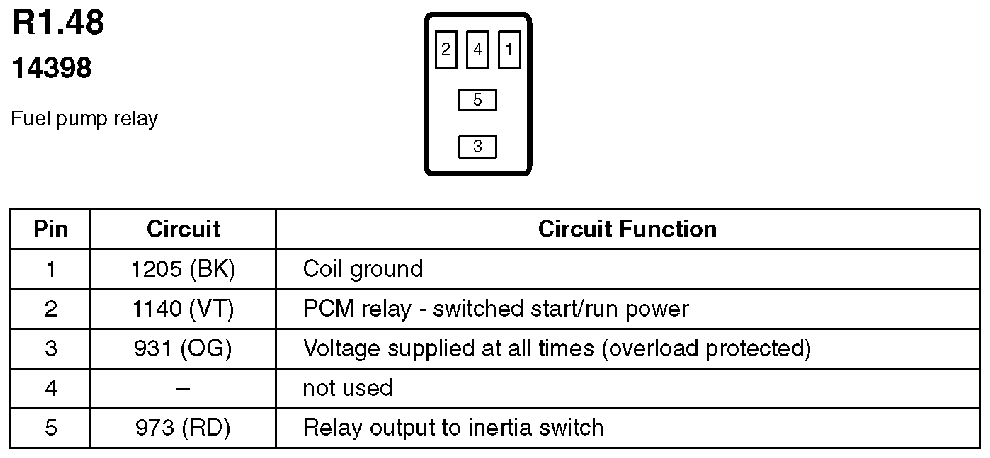

Fig 340: Fuel Pump Relay Connector End View (R1.48)
Courtesy of FORD MOTOR CO.

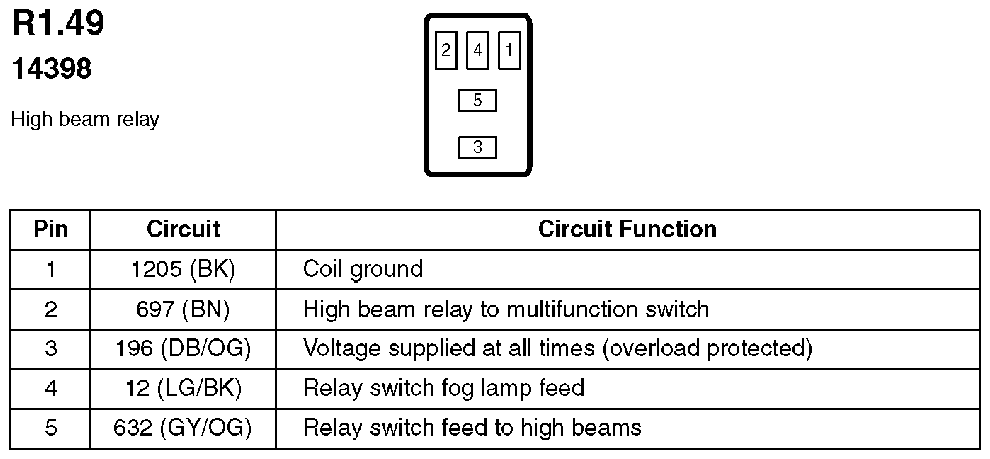

Fig 341: High Beam Relay Connector End View (R1.49)
Courtesy of FORD MOTOR CO.

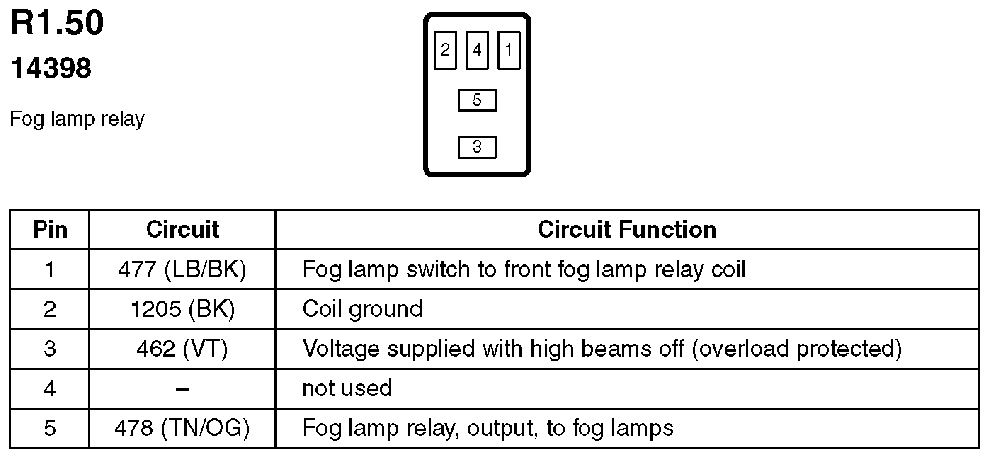

Fig 342: Fog Lamp Relay Connector End View (R1.50)
Courtesy of FORD MOTOR CO.

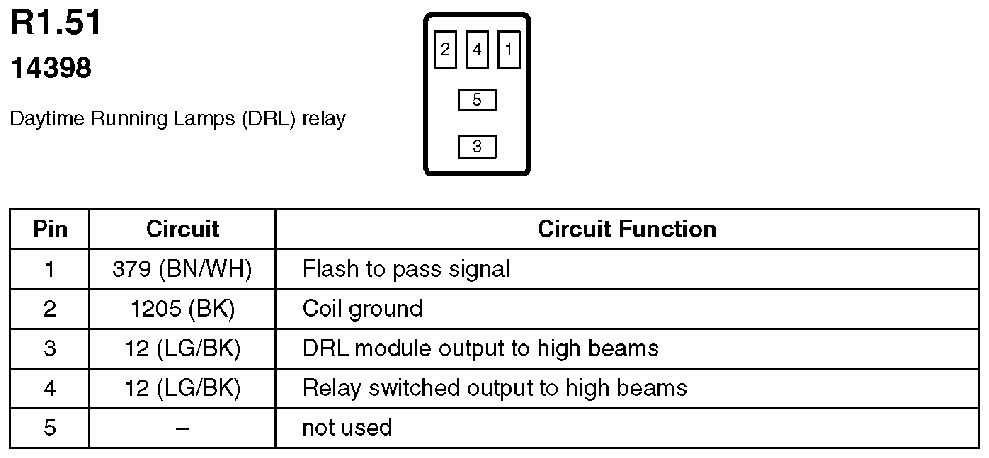

Fig 343: Daytime Running Lamps (DRL) Relay Connector End View (R1.51)
Courtesy of FORD MOTOR CO.

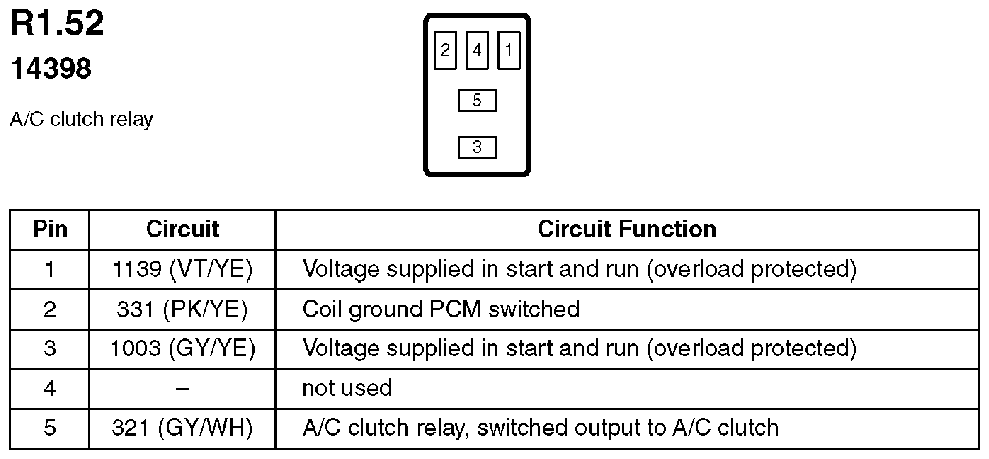

Fig 344: A/C Clutch Relay Connector End View (R1.52)
Courtesy of FORD MOTOR CO.

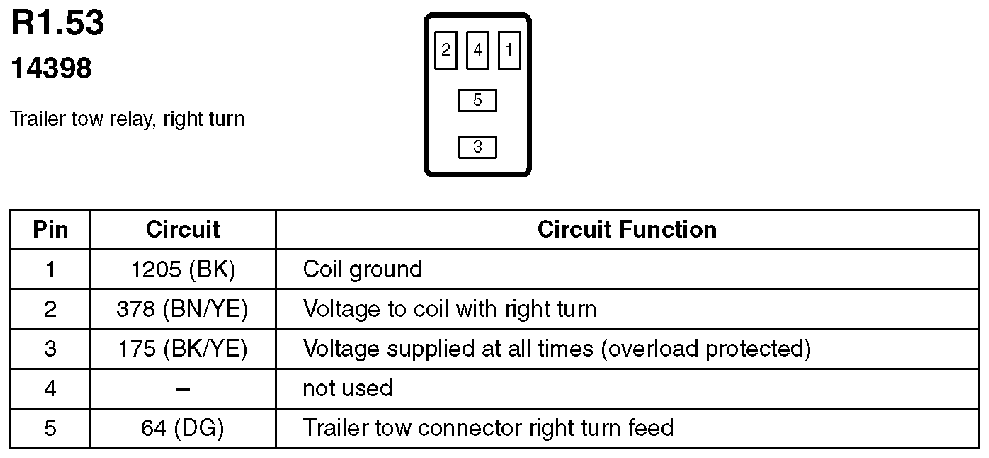

Fig 345: Trailer Tow Relay, Right Turn Connector End View (R1.53)
Courtesy of FORD MOTOR CO.

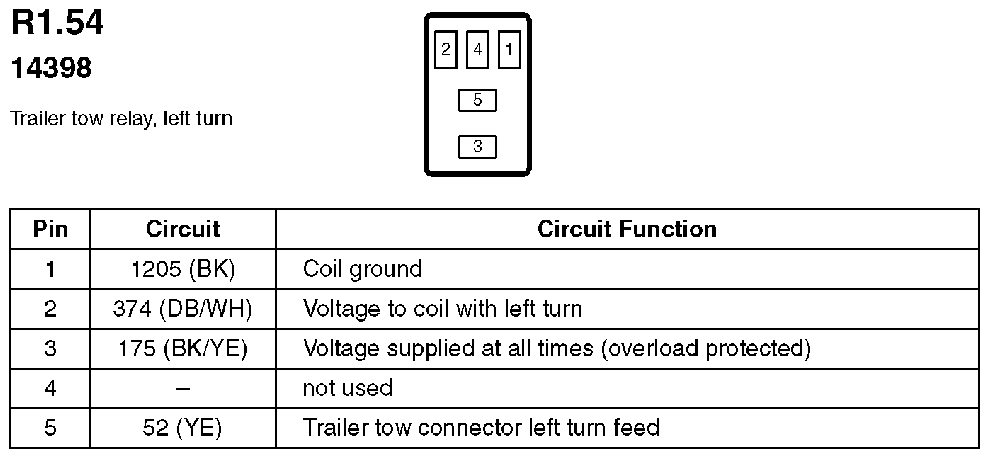

Fig 346: Trailer Tow Relay, Left Turn Connector End View (R1.54)
Courtesy of FORD MOTOR CO.

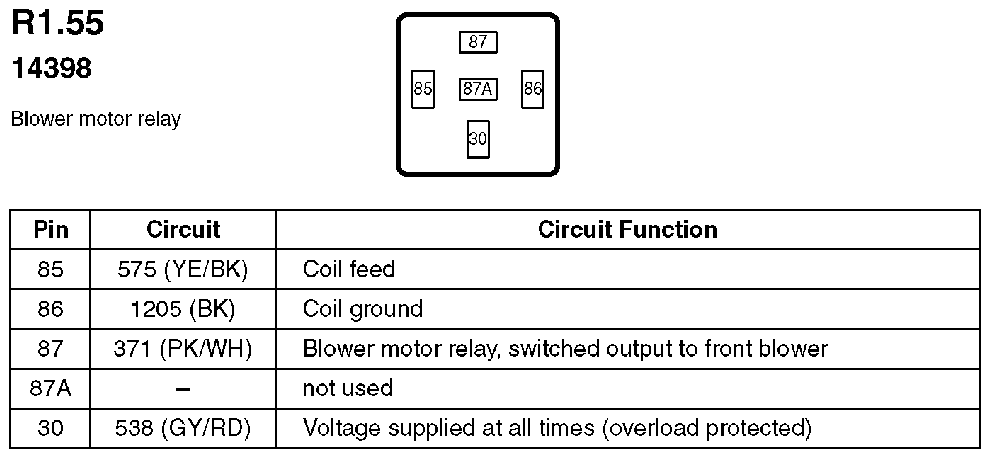

Fig 347: Blower Motor Relay Connector End View (R1.55)
Courtesy of FORD MOTOR CO.

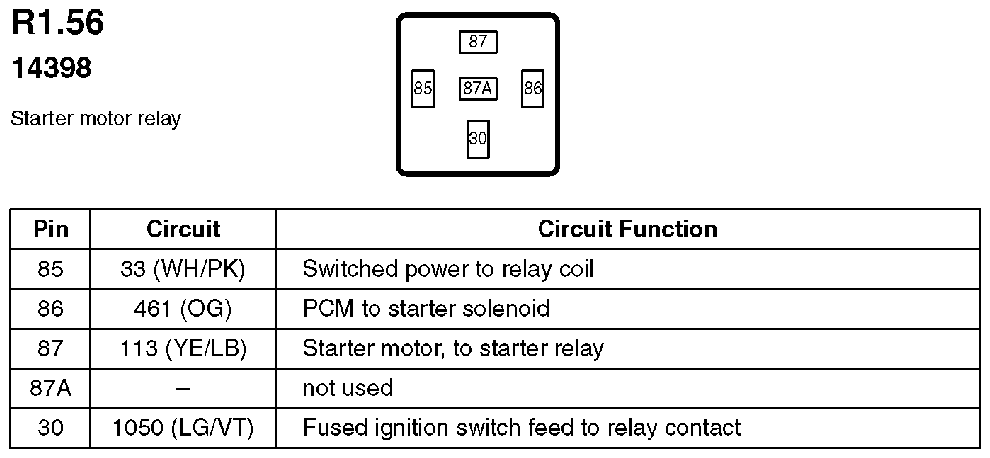

Fig 348: Starter Motor Relay Connector End View (R1.56)
Courtesy of FORD MOTOR CO.

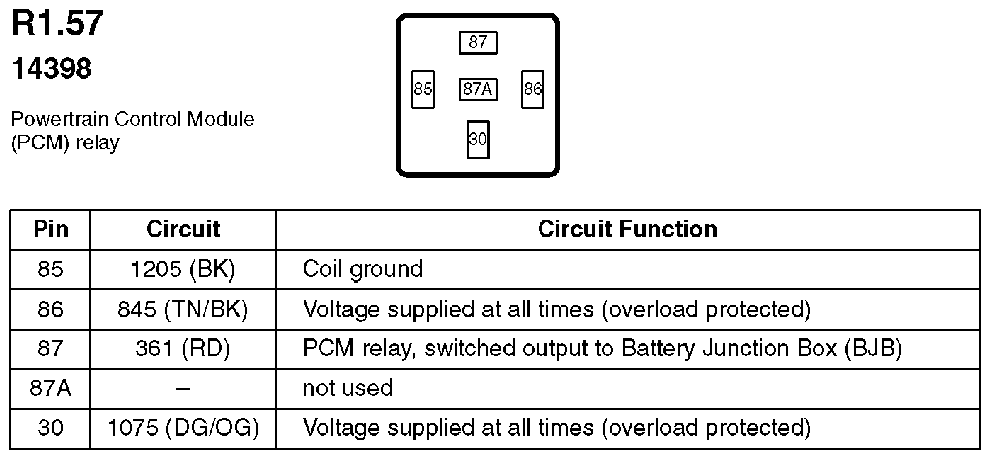

Fig 349: Powertrain Control Module (PCM) Relay Connector End View (R1.57)
Courtesy of FORD MOTOR CO.

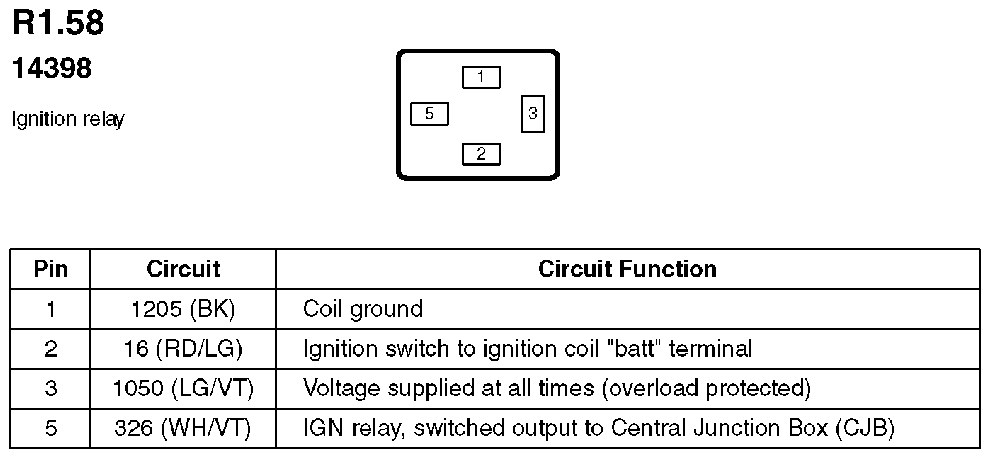

Fig 350: Ignition Relay Connector End View (R1.58)
Courtesy of FORD MOTOR CO.

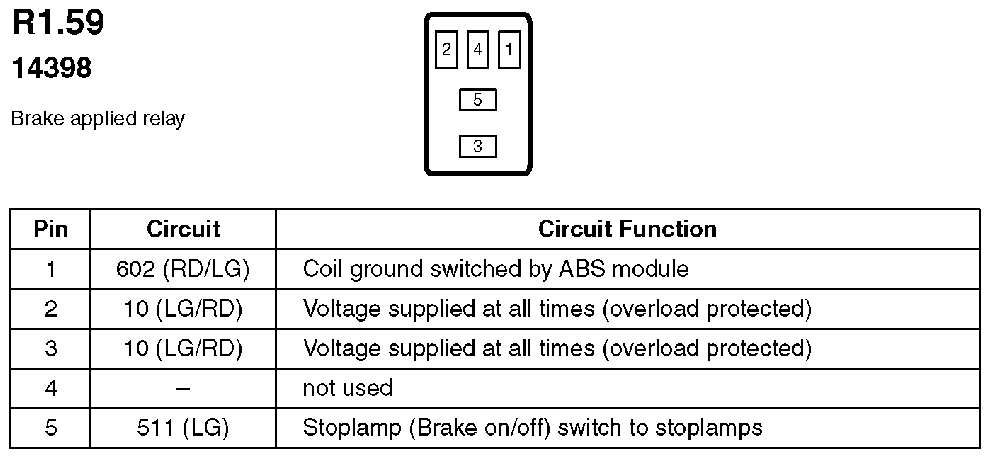

Fig 351: Brake Applied Relay Connector End View (R1.59)
Courtesy of FORD MOTOR CO.

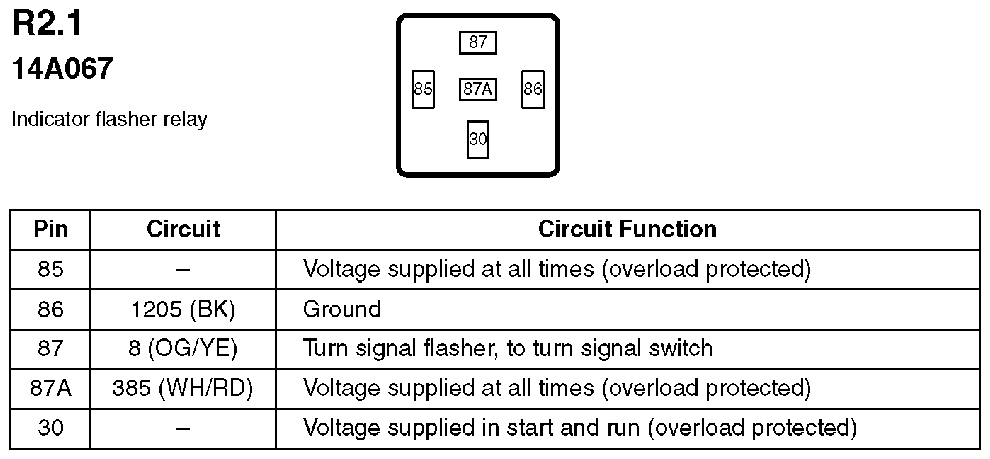

Fig 352: Indicator Flasher Relay Connector End View (R2.1)
Courtesy of FORD MOTOR CO.

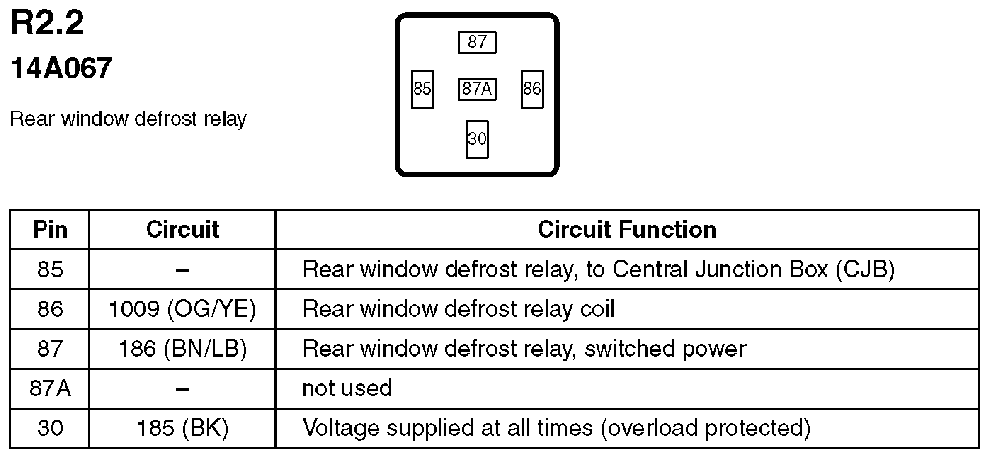

Fig 353: Rear Window Defrost Relay Connector End View (R2.2)
Courtesy of FORD MOTOR CO.

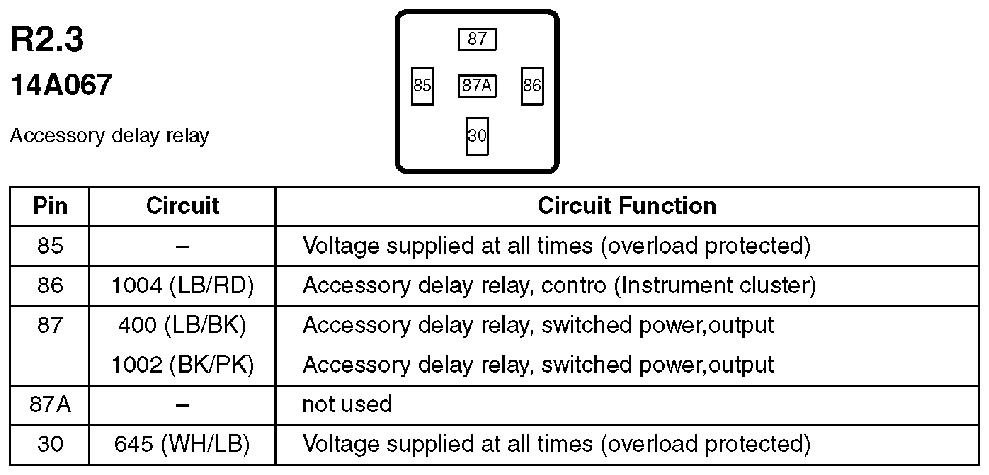

Fig 354: Accessory Delay Relay Connector End View (R2.3)
Courtesy of FORD MOTOR CO.

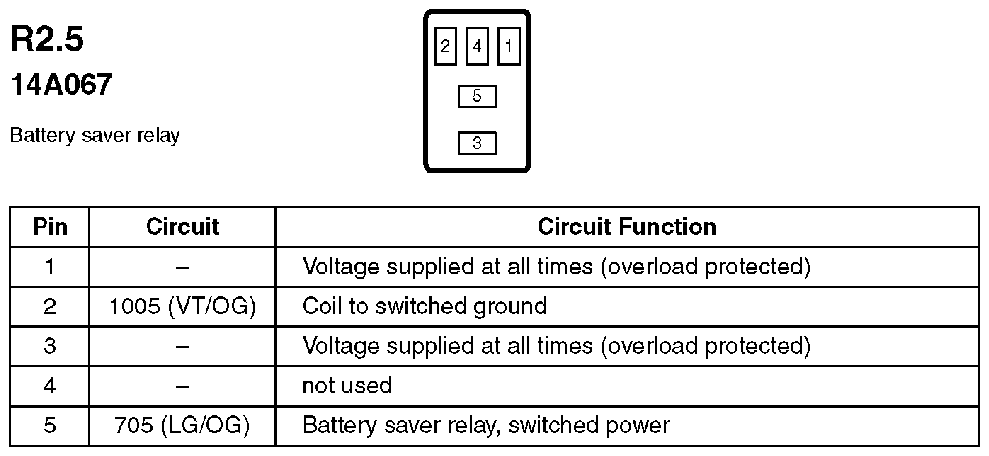

Fig 355: Battery Saver Relay Connector End View (R2.5)
Courtesy of FORD MOTOR CO.

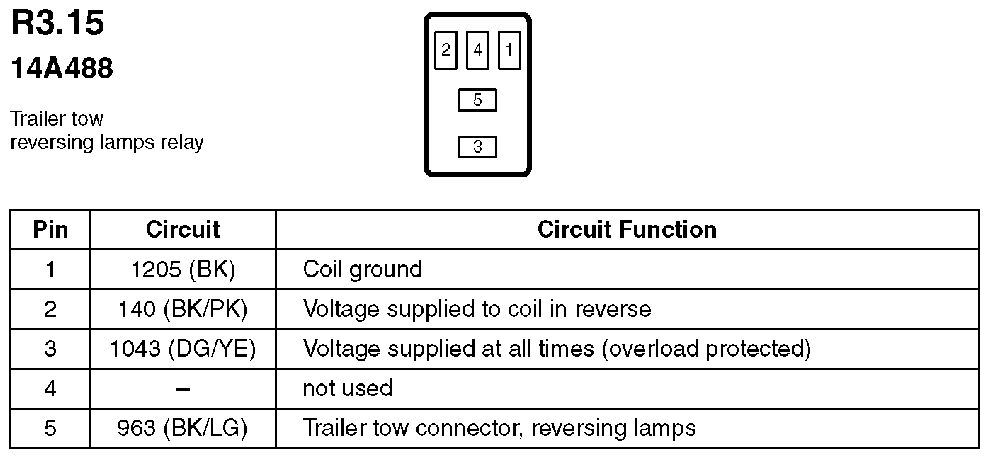

Fig 356: Trailer Tow Reversing Lamps Relay Connector End View (R3.15)
Courtesy of FORD MOTOR CO.

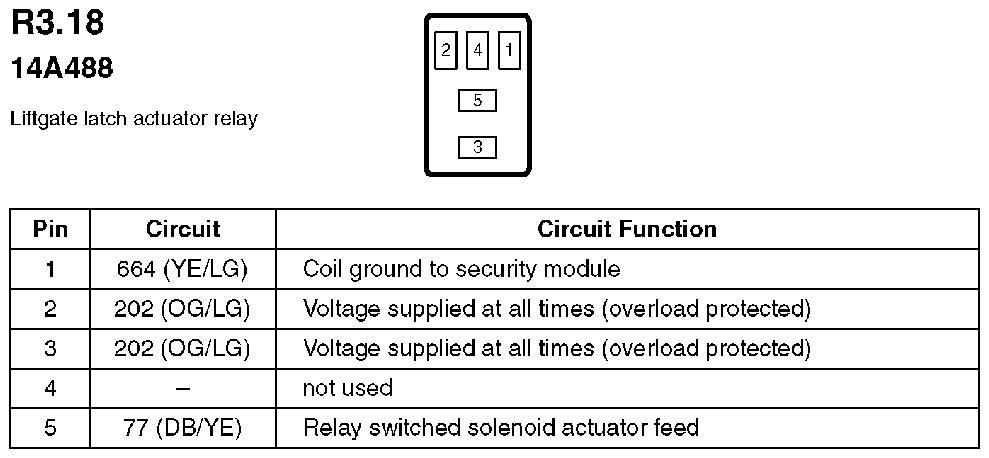

Fig 357: Liftgate Latch Actuator Relay Connector End View (R3.18)
Courtesy of FORD MOTOR CO.

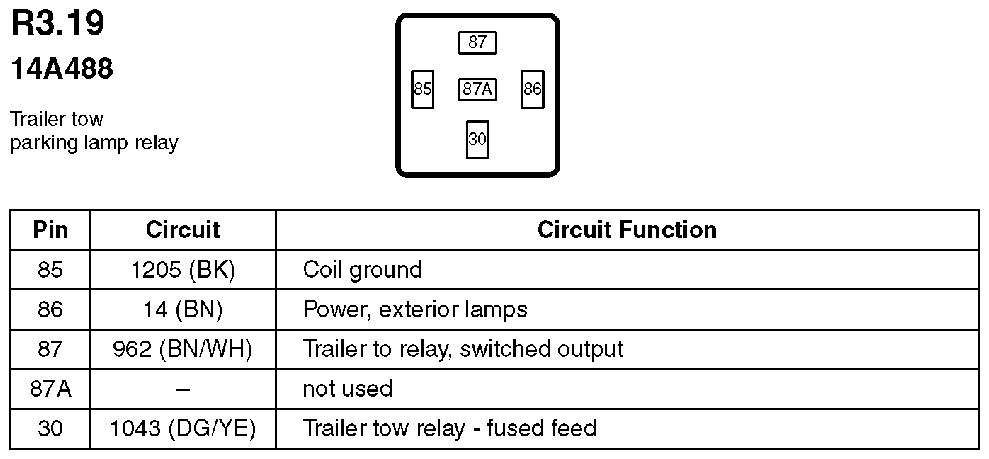

Fig 358: Trailer Tow Parking Lamp Relay Connector End View (R3.19)
Courtesy of FORD MOTOR CO.

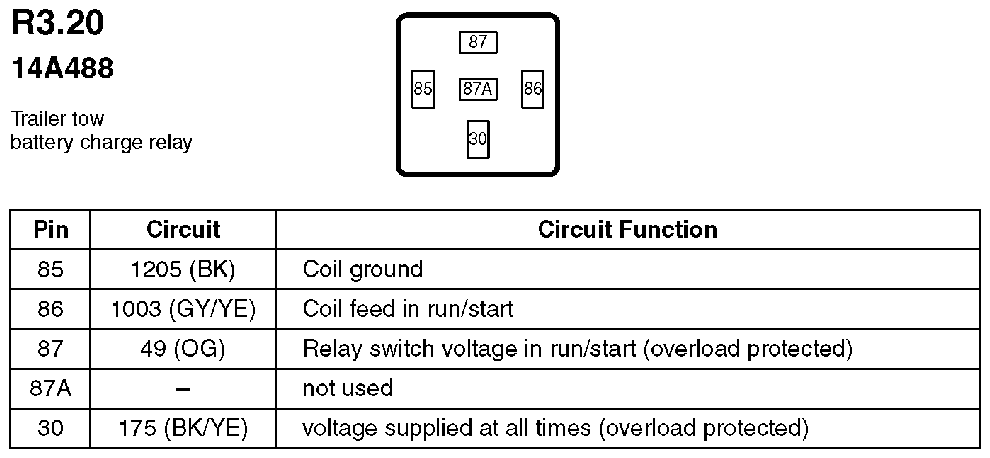

Fig 359: Trailer Tow Battery Charge Relay Connector End View (R3.20)
Courtesy of FORD MOTOR CO.

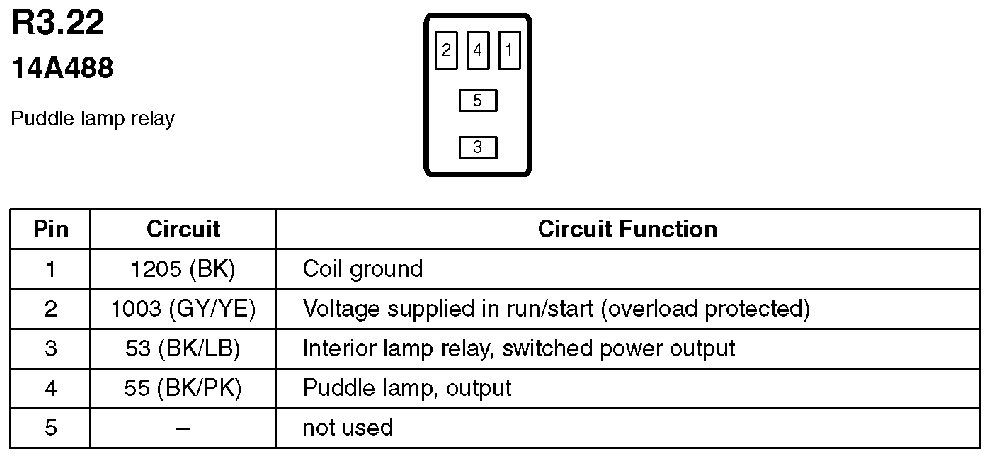

Fig 360: Puddle Lamp Relay Connector End View (R3.22)
Courtesy of FORD MOTOR CO.

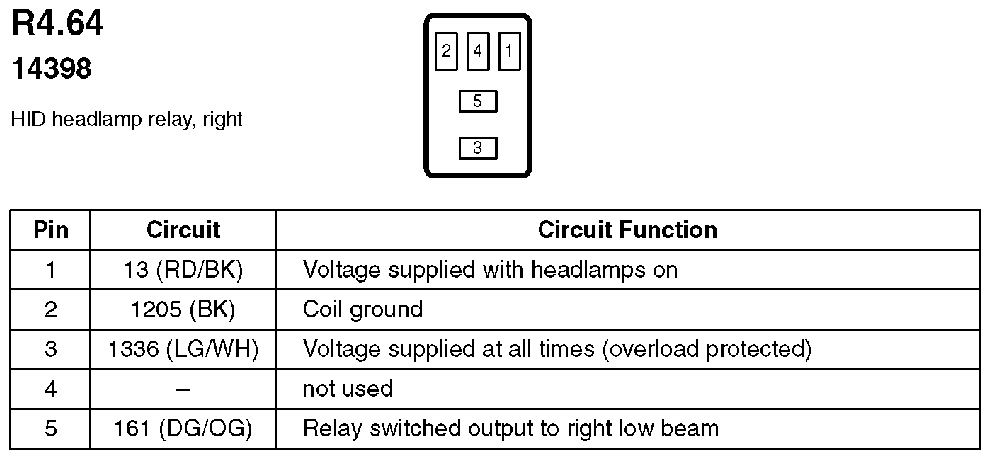

Fig 361: HID Headlamp Relay, Right Connector End View (R4.64)
Courtesy of FORD MOTOR CO.

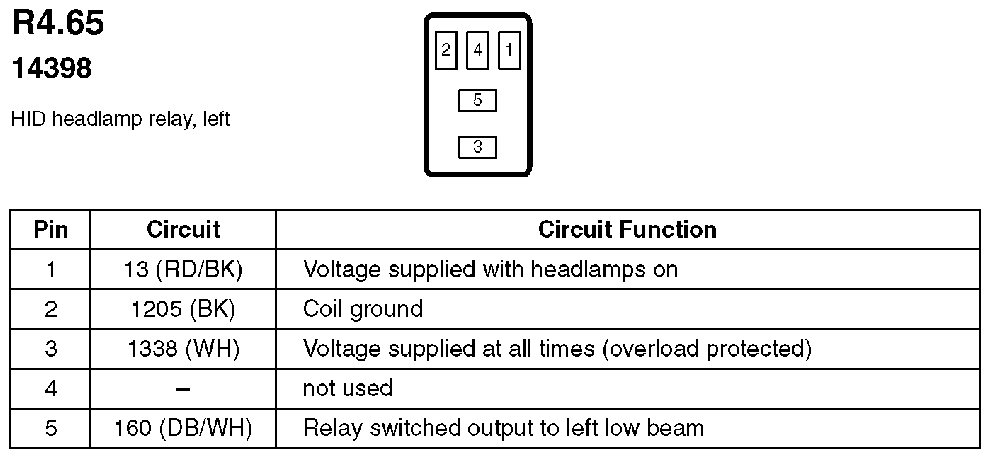

Fig 362: HID Headlamp Relay, Left Connector End View (R4.65)
Courtesy of FORD MOTOR CO.

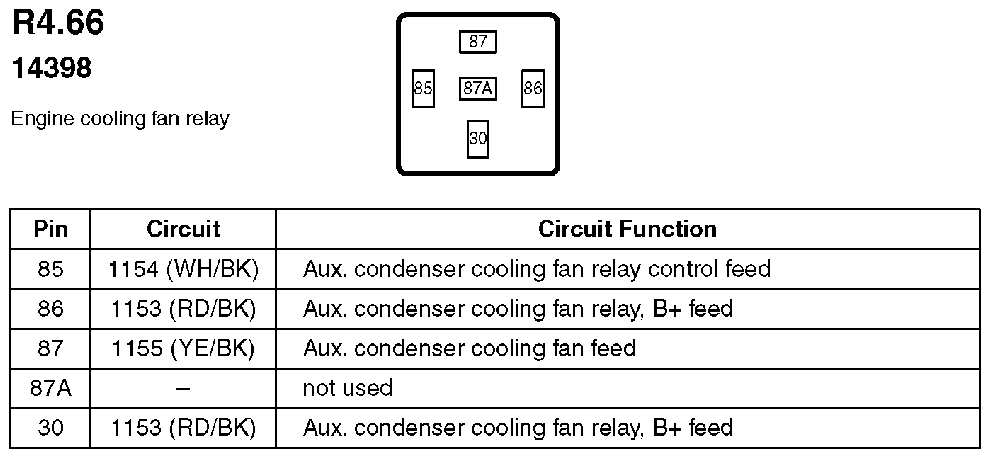

Fig 363: Engine Cooling Fan Relay Connector End View (R4.66)
Courtesy of FORD MOTOR CO.

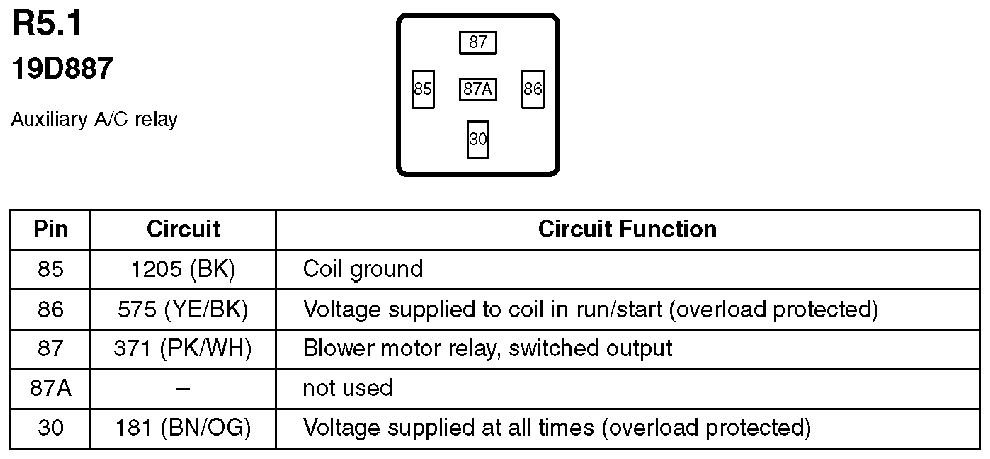

Fig 364: Auxiliary A/C Relay Connector End View (R5.1)
Courtesy of FORD MOTOR CO.

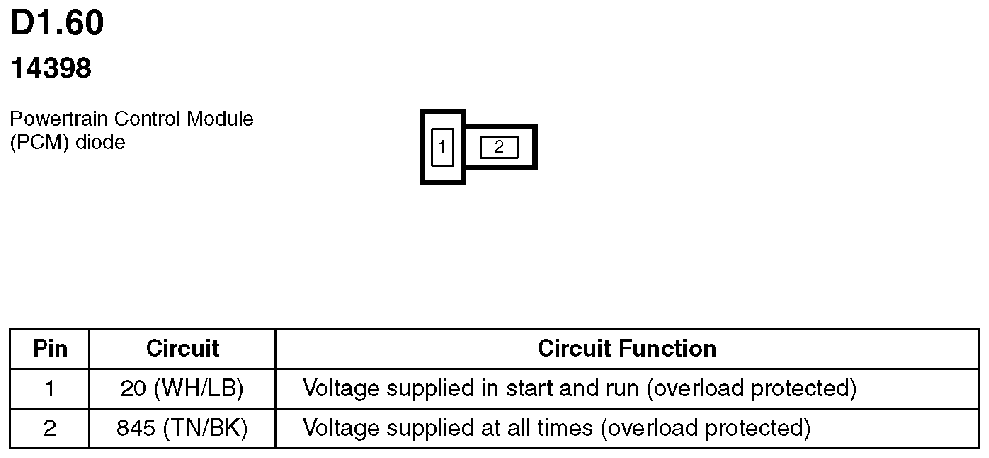

Fig 365: Powertrain Control Module (PCM) Diode Connector End View (D1.60)
Courtesy of FORD MOTOR CO.

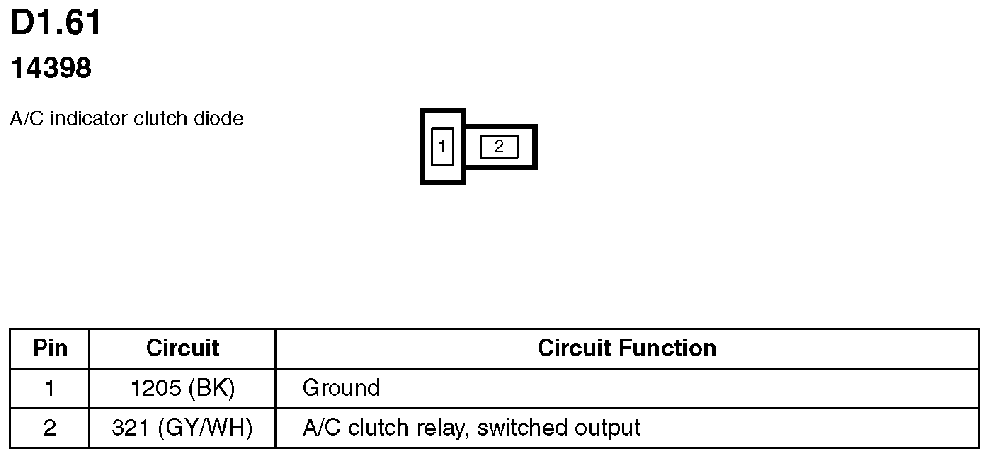

Fig 366: A/C Indicator Clutch Diode Connector End View (D1.61)
Courtesy of FORD MOTOR CO.

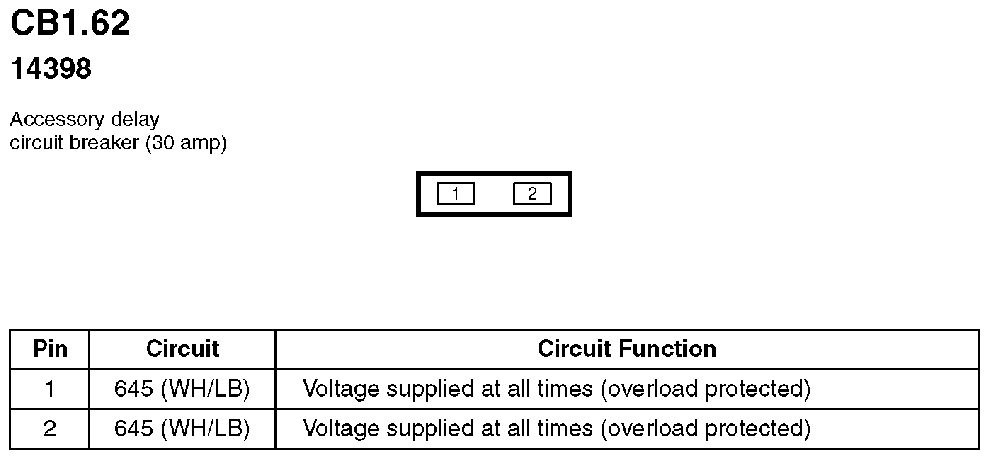

Fig 367: Accessory Delay Circuit Breaker (30 amp) Connector End View (CB1.62)
Courtesy of FORD MOTOR CO.
