Alignment Specifications

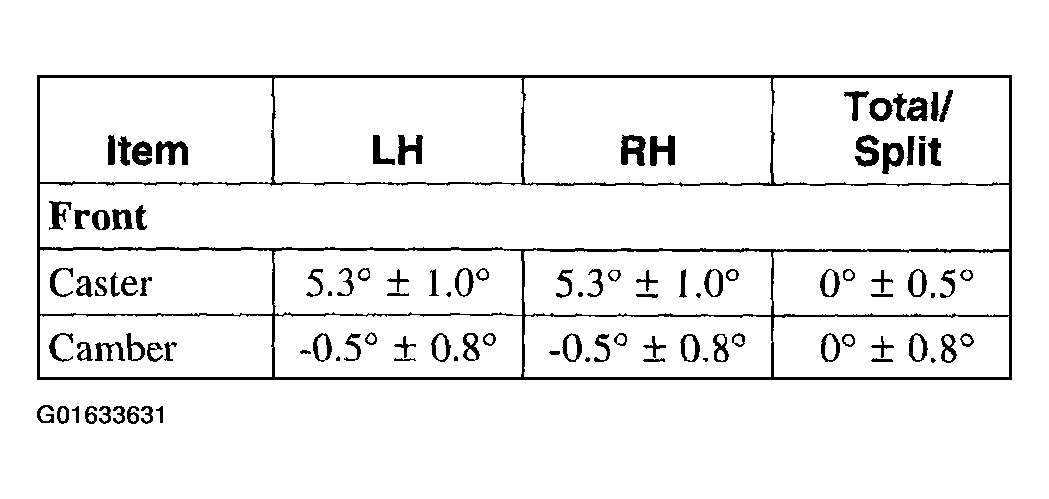

Fig 1: Front Camber & Caster Specifications
G01633631Courtesy of FORD MOTOR CO.

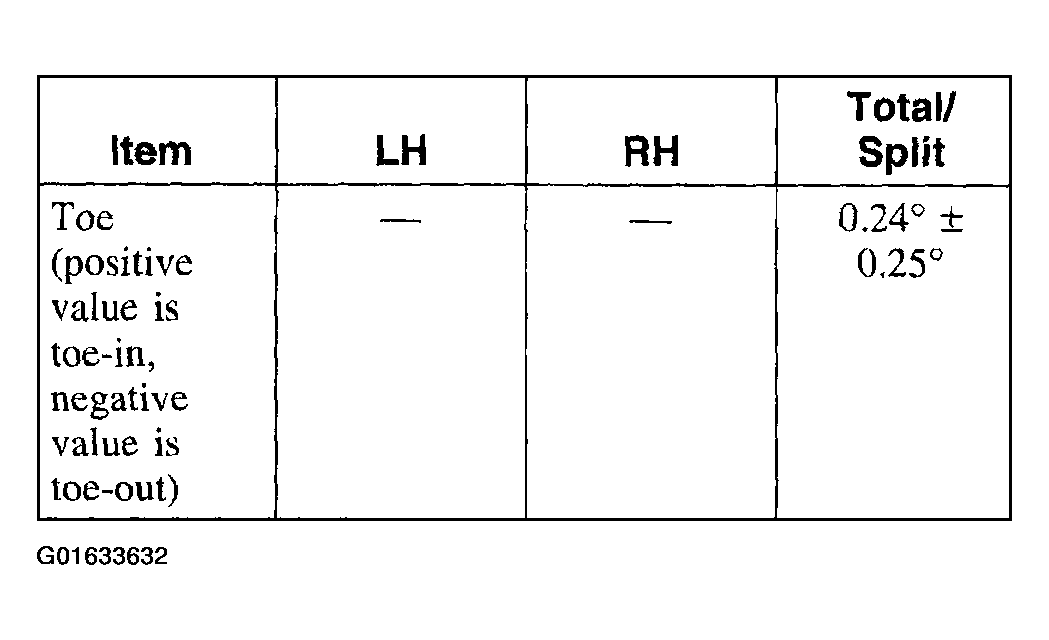

Fig 2: Front Toe Specifications
G01633632Courtesy of FORD MOTOR CO.

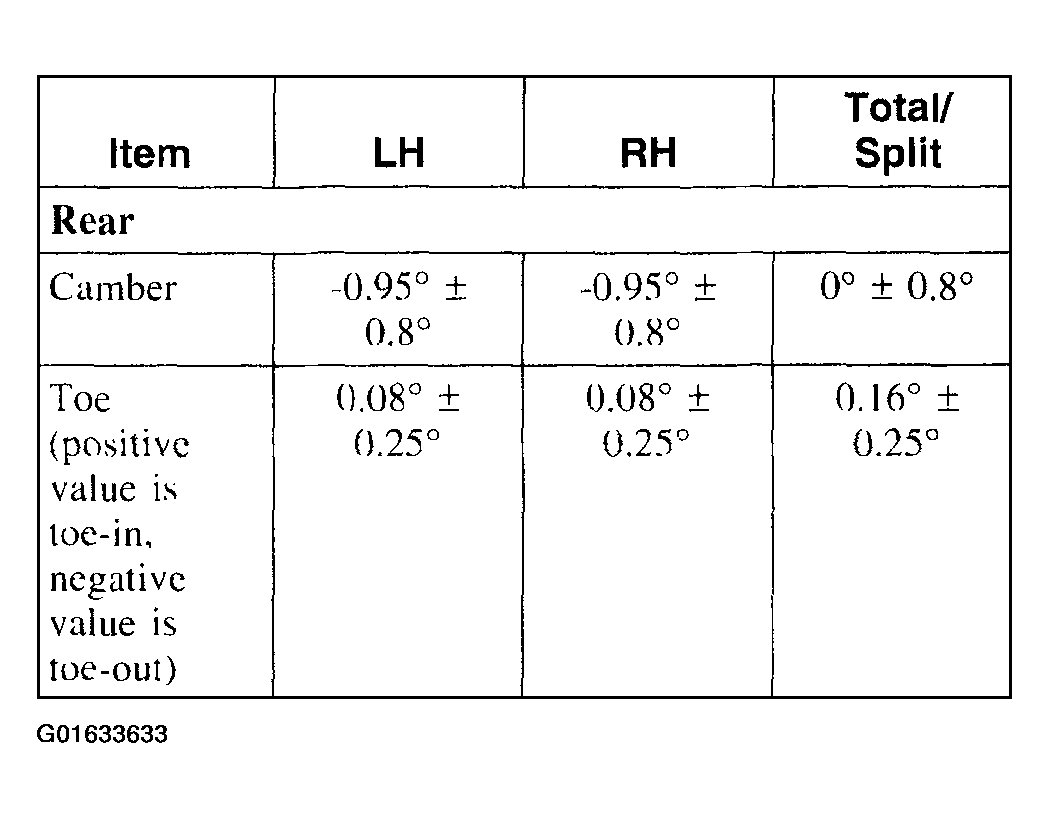

Fig 3: Rear Caster & Toe Specifications
G01633633Courtesy of FORD MOTOR CO.
