End Play Specifications
End Play Specifications

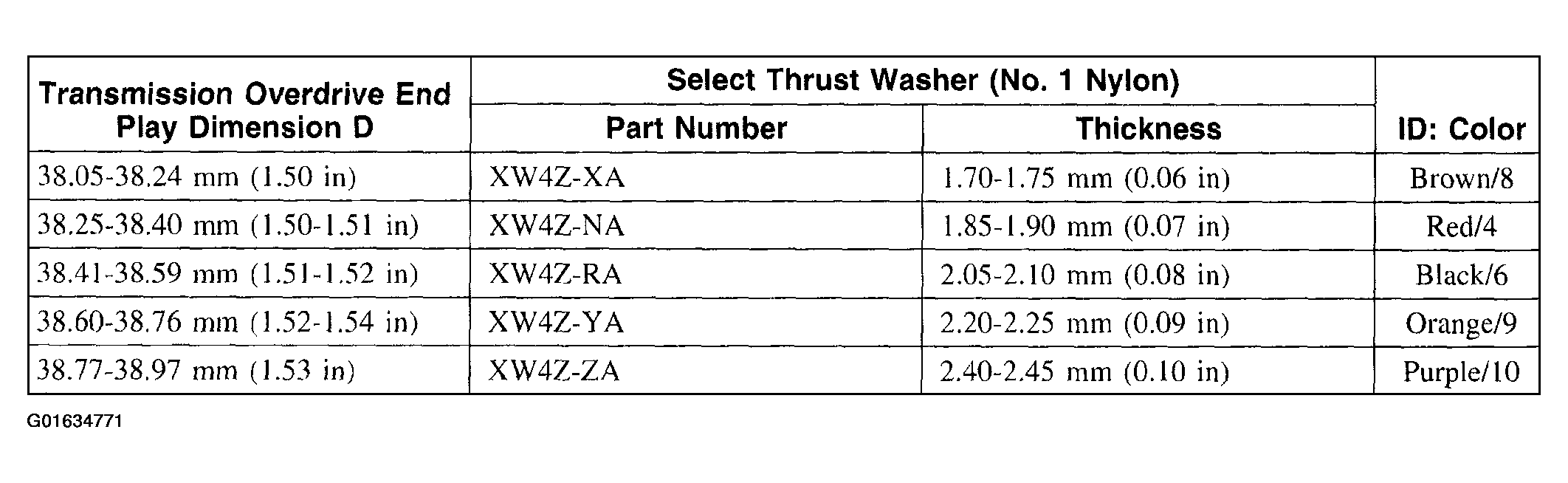

Fig 1: Transmission Overdrive End Play Dimension D Specifications
Courtesy of FORD MOTOR CO.

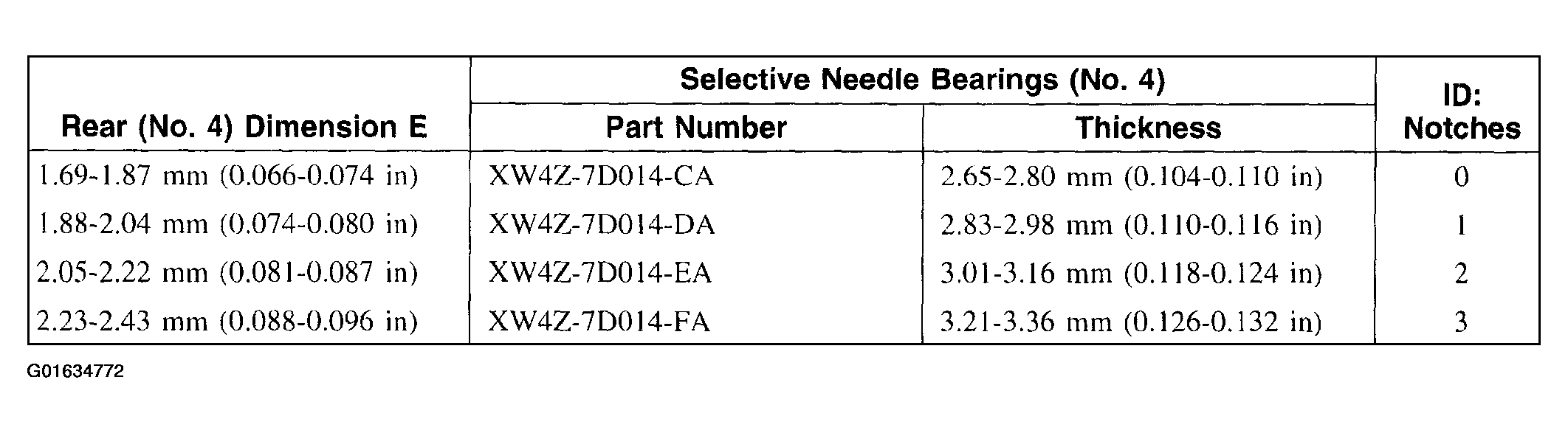

Fig 2: Rear No. 4 End Play Dimension E Specifications
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
