Home >> Lincoln >> 2003 >> Navigator 4WD >> Repair and Diagnosis >> Transmission >> Transfer Case - Automatic Shift >> Disassembly And Assembly >> Transfer Case >> Notes

Transfer Case: Notes

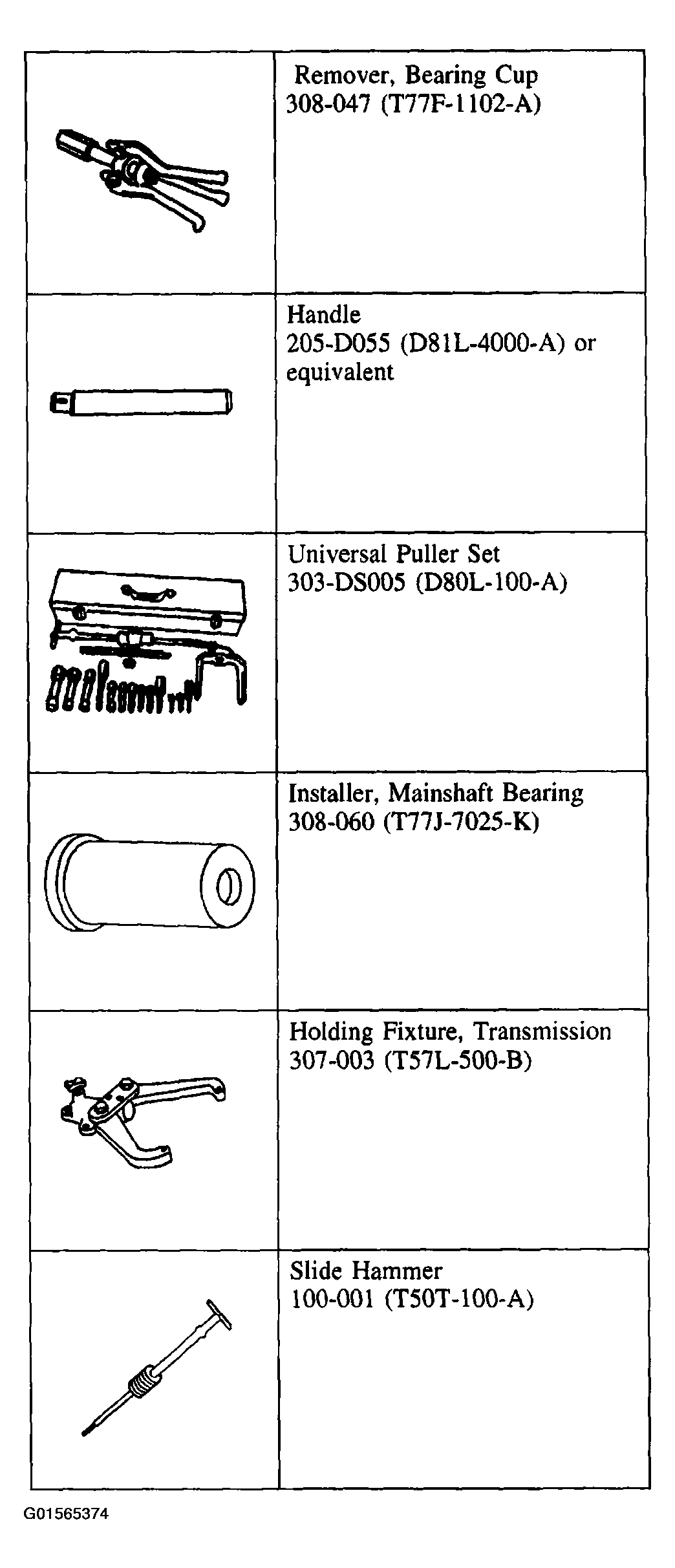

Fig 1: Identifying Special Tools (1 Of 2)
G01565374Courtesy of FORD MOTOR CO.

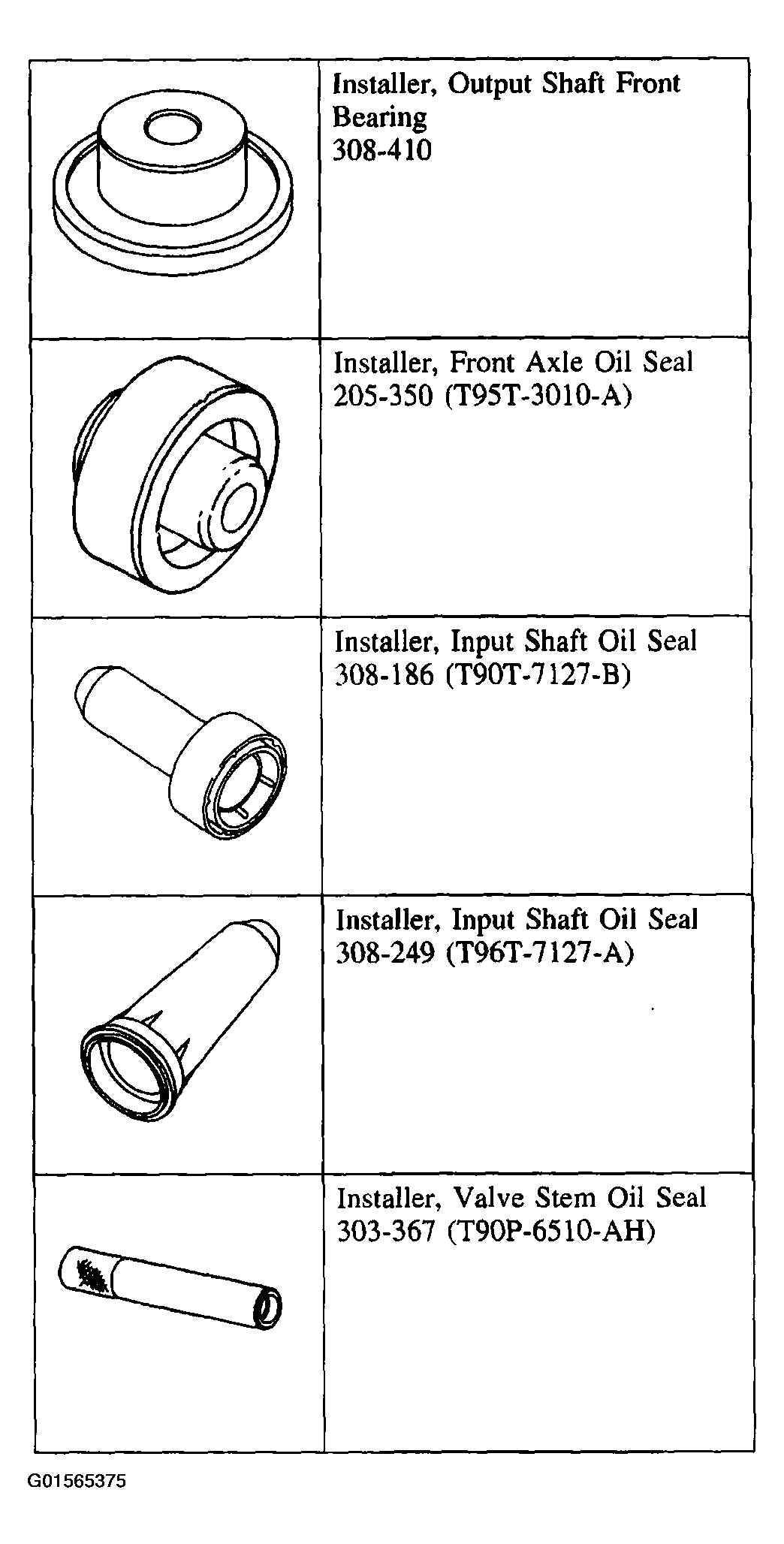

Fig 2: Identifying Special Tools (2 Of 2)
G01565375Courtesy of FORD MOTOR CO.

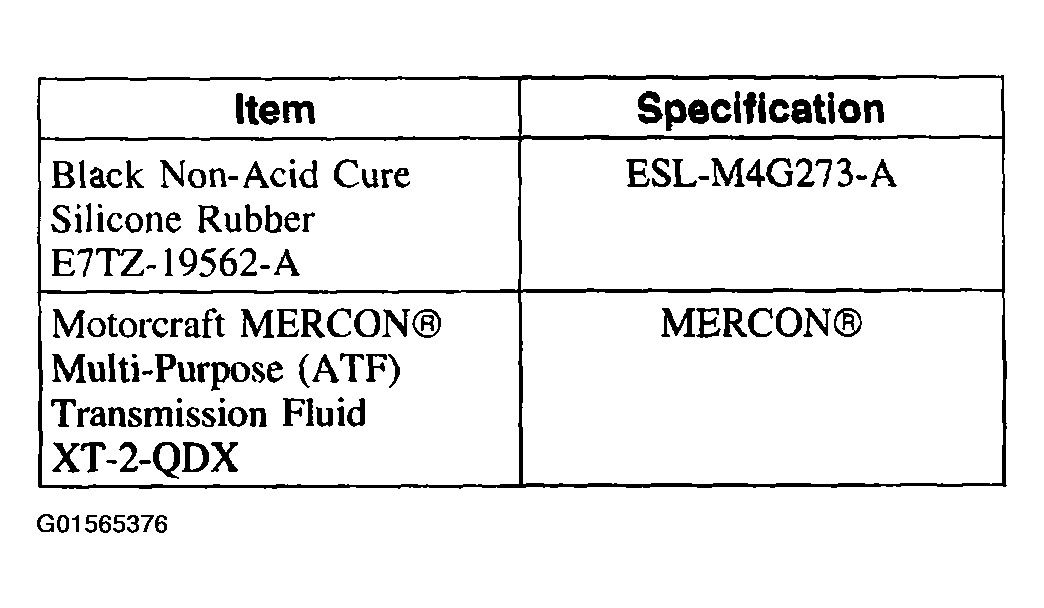

Fig 3: Identifying Material Specifications
G01565376Courtesy of FORD MOTOR CO.
