Transfer Case

  1. To install, reverse the removal procedure.
    • Install a new transfer case-to-transmission gasket.
    • Fill the transfer case. For additional information, refer to TRANSFER CASE DRAINING AND FILLING  when refilling the transfer case. Refer to SPECIFICATIONS  for the correct type and quantity of fluid.
    • Tighten the transfer case-to-transmission bolts evenly in a star pattern.

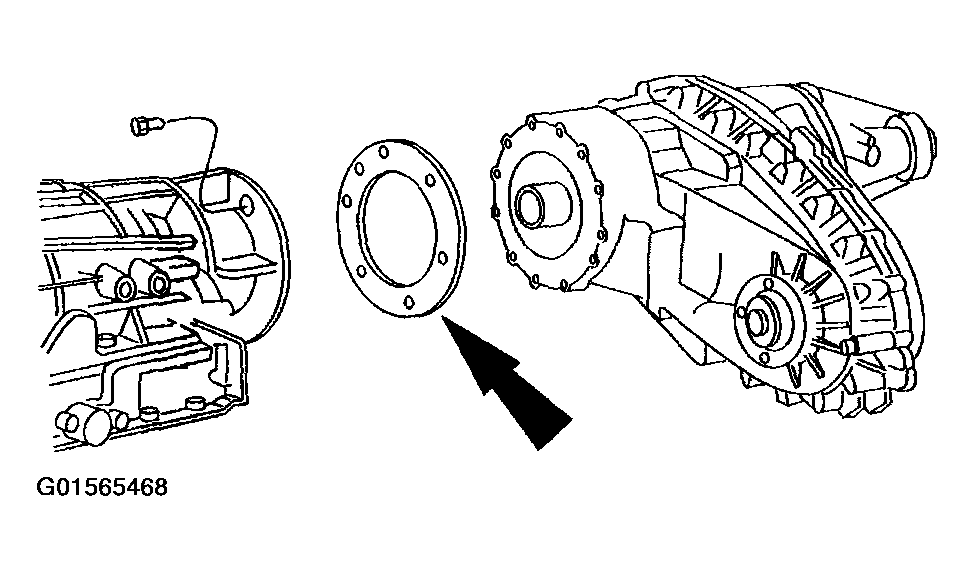

      Fig 1: Tightening Transfer Case-To-Transmission Bolts In Star Pattern
      G01565468Courtesy of FORD MOTOR CO.
