Window Control Switch: Removal

Navigator Front

1. Lift up on the center console armrest.
2. Remove the center console window control switch panel.
   • Remove the pin-type retainer.

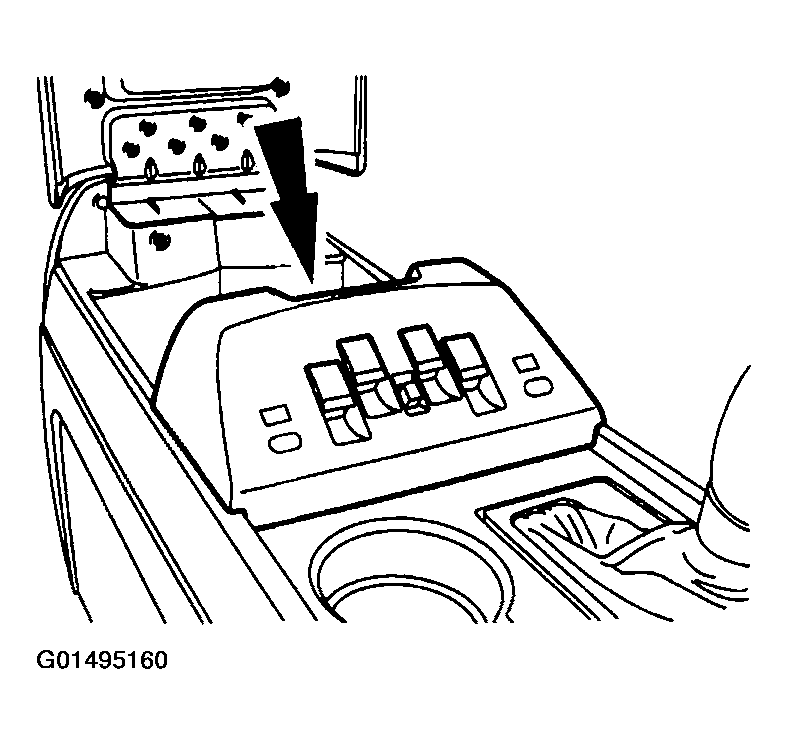

     Fig 1: Removing Center Console Window Control Switch Panel

     Courtesy of FORD MOTOR CO.
3. Disconnect the electrical connectors and remove the window control switch.
   • Release the locking tabs.

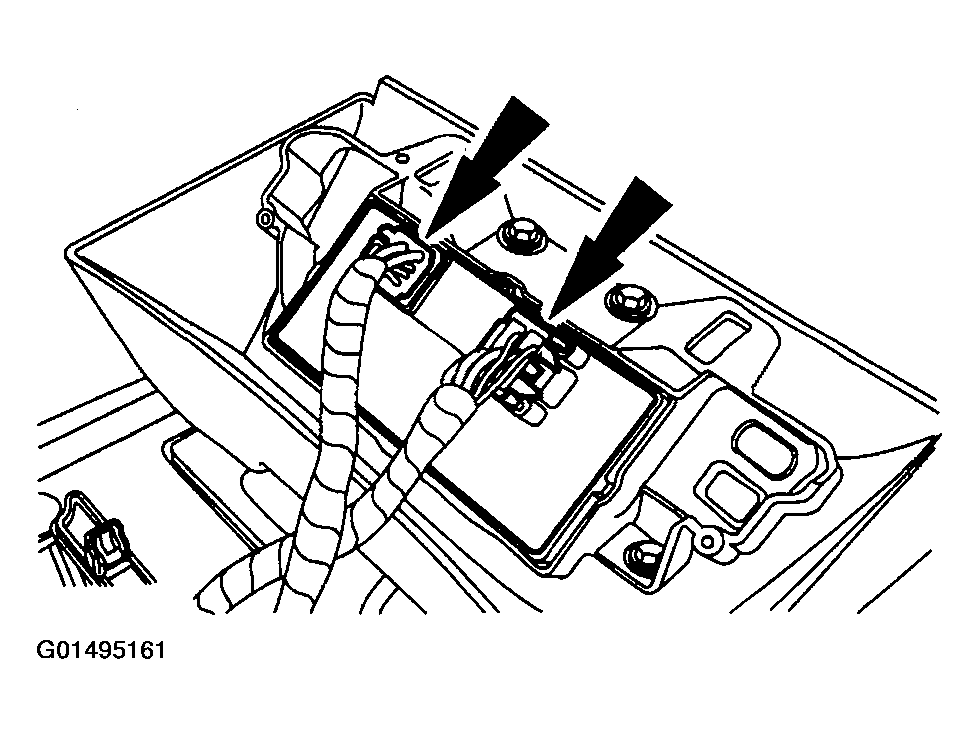

     Fig 2: Disconnecting Electrical Connectors And Removing Window Control Switch

     Courtesy of FORD MOTOR CO.

   Expedition And Navigator Passenger Rear

   NOTE: Driver side Expedition shown, all others similar.
4. Remove the window control switch panel.

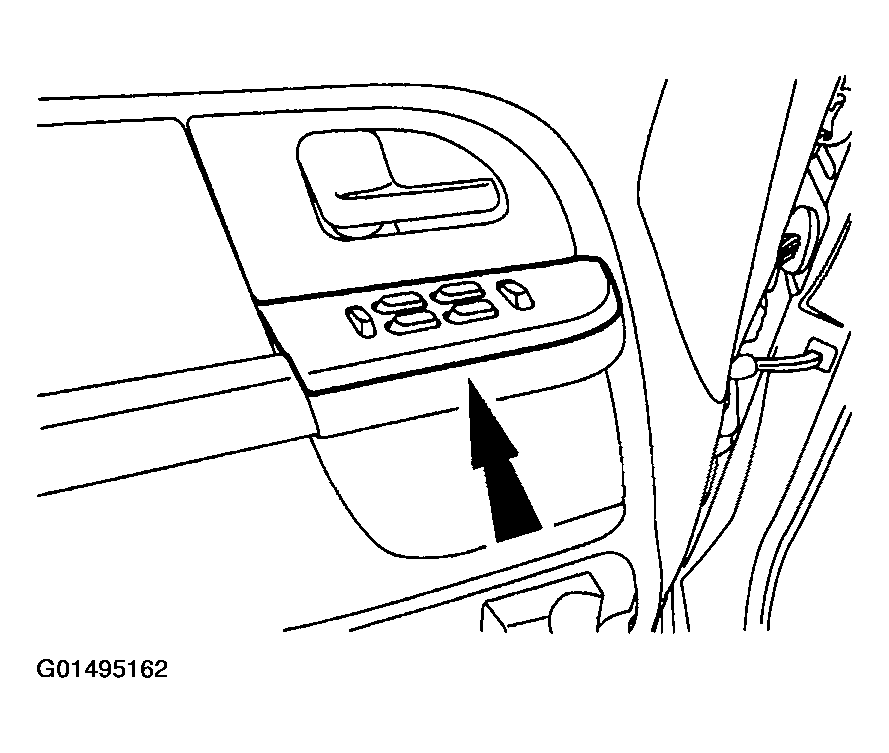

   Fig 3: Removing Window Control Switch Panel

   Courtesy of FORD MOTOR CO.
5. Disconnect the electrical connector(s) and remove the window control switch.
   • Release the locking tabs.

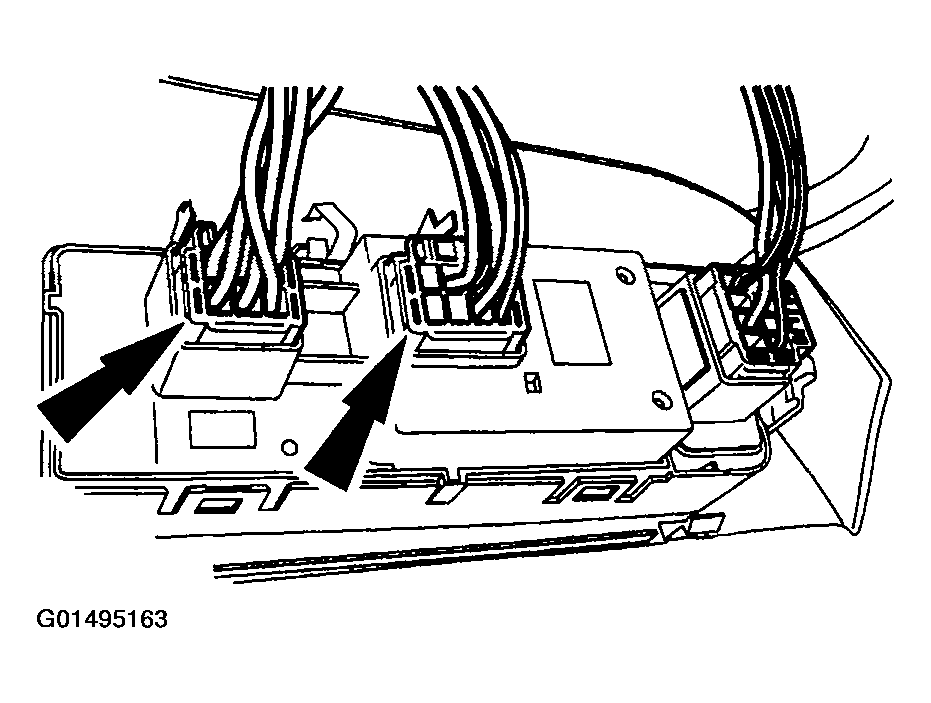

     Fig 4: Disconnecting Electrical Connector(S) And Removing Window Control Switch

     Courtesy of FORD MOTOR CO.

   All Vehicles

6. To install, reverse removal procedure.
