Connector End Views
>>
Connector Views
Connector Views

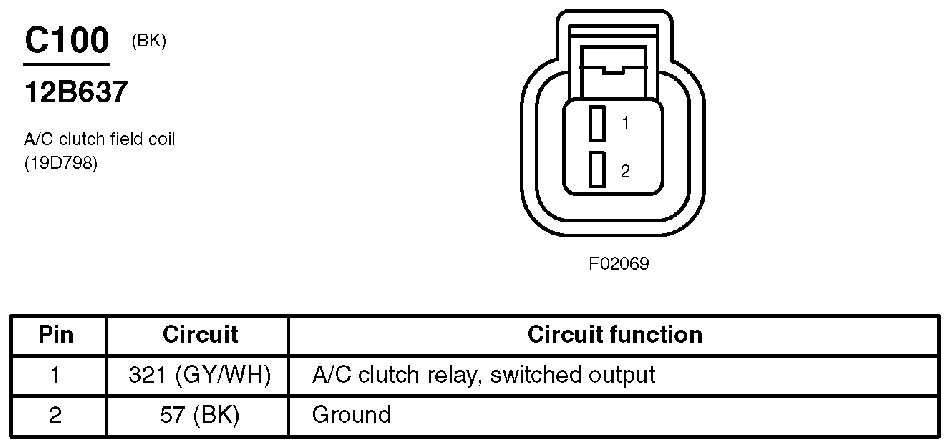

Fig 1: A/C Clutch Field Coil Connector End View (C100)
Courtesy of FORD MOTOR CO.

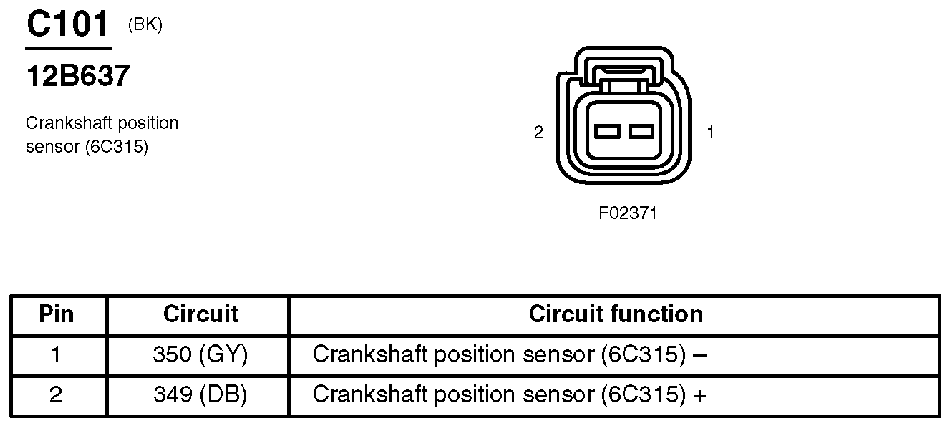

Fig 2: Crankshaft Position Sensor Connector End View (C101)
Courtesy of FORD MOTOR CO.

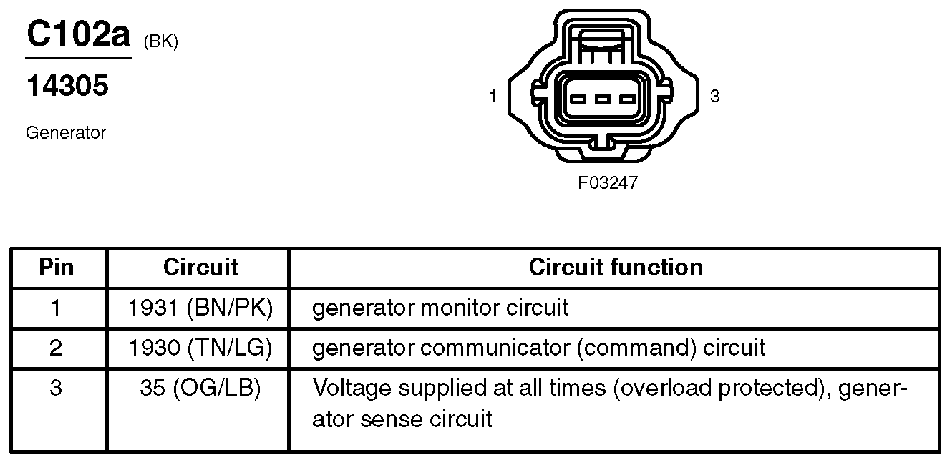

Fig 3: Generator Connector End View (C102a)
Courtesy of FORD MOTOR CO.

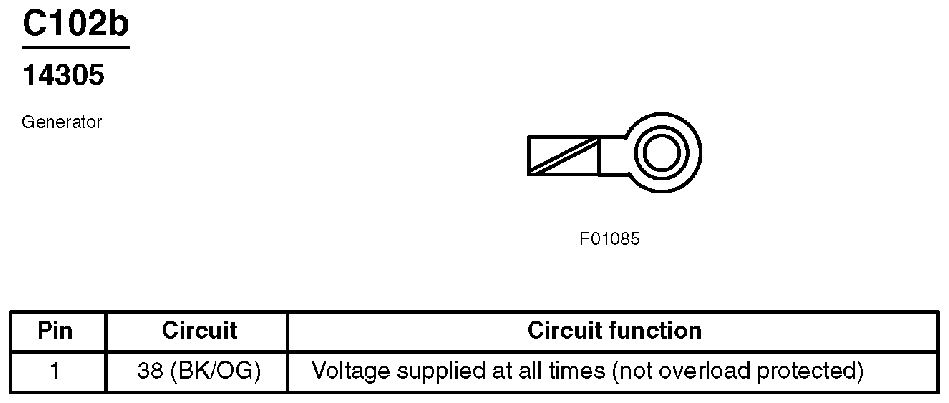

Fig 4: Generator Connector End View (C102b)
Courtesy of FORD MOTOR CO.

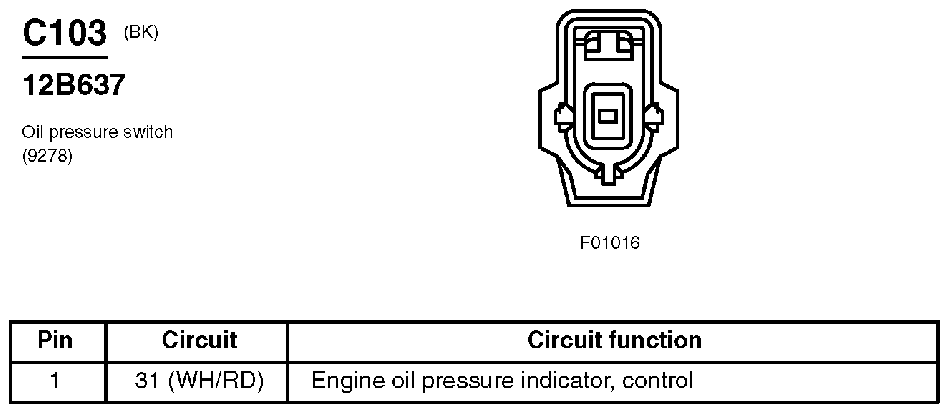

Fig 5: Oil Pressure Switch Connector End View (C103)
Courtesy of FORD MOTOR CO.

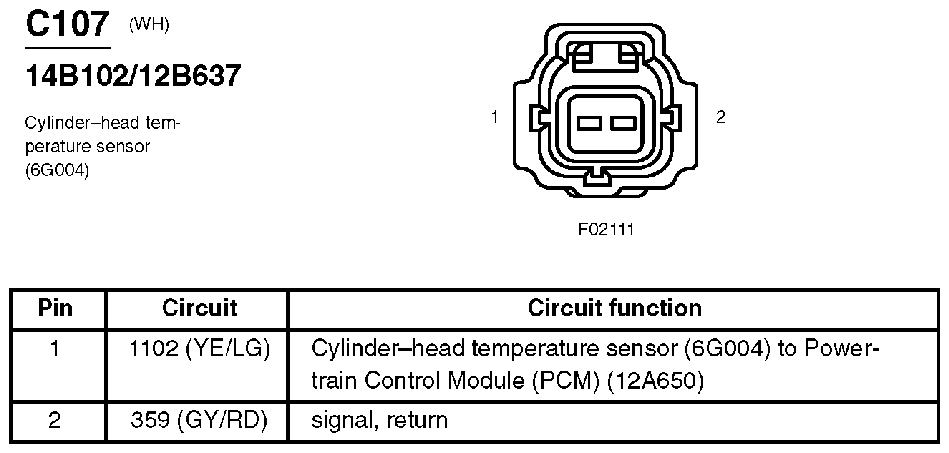

Fig 6: Cylinder-Head Temperature Sensor Connector End View (C107)
Courtesy of FORD MOTOR CO.

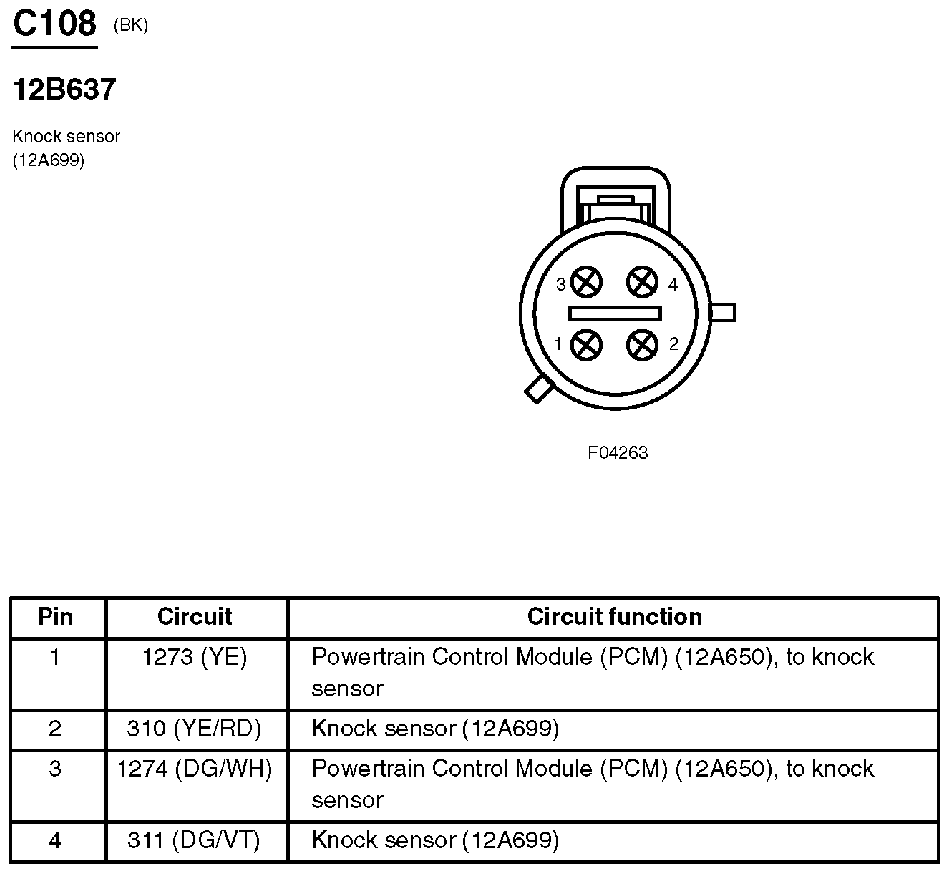

Fig 7: Knock Sensor Connector End View (C108)
Courtesy of FORD MOTOR CO.

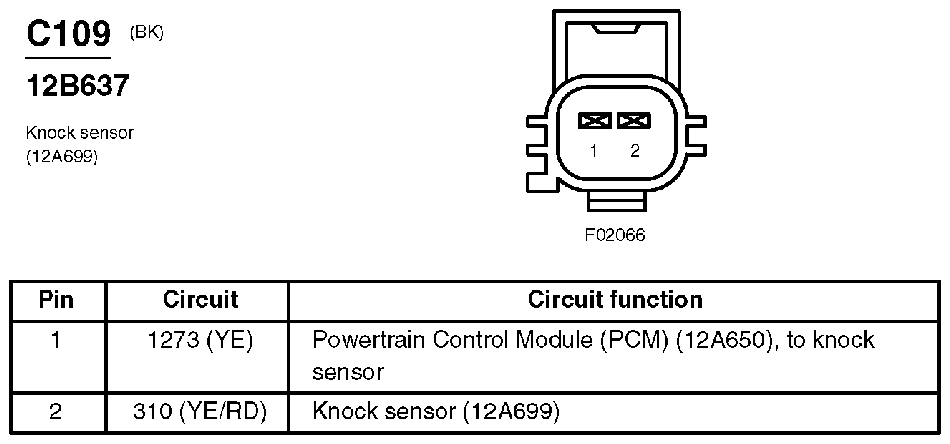

Fig 8: Knock Sensor Connector End View (C109)
Courtesy of FORD MOTOR CO.

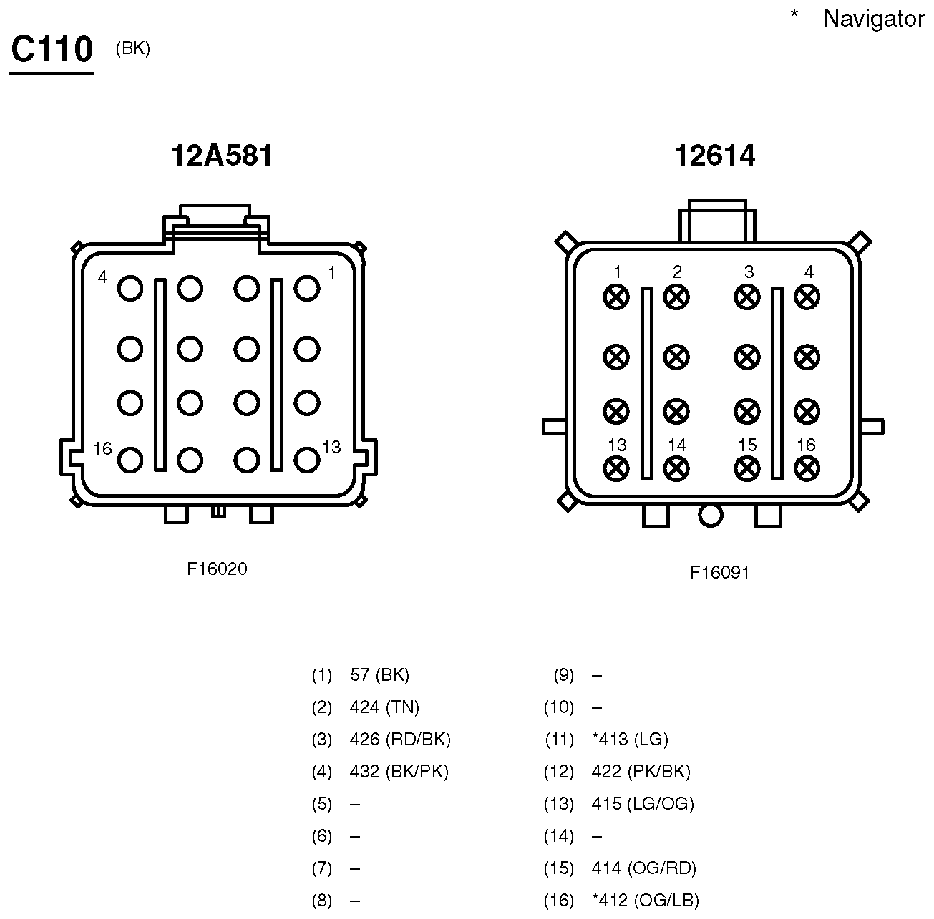

Fig 9: Inline Connector End View (C110)
Courtesy of FORD MOTOR CO.

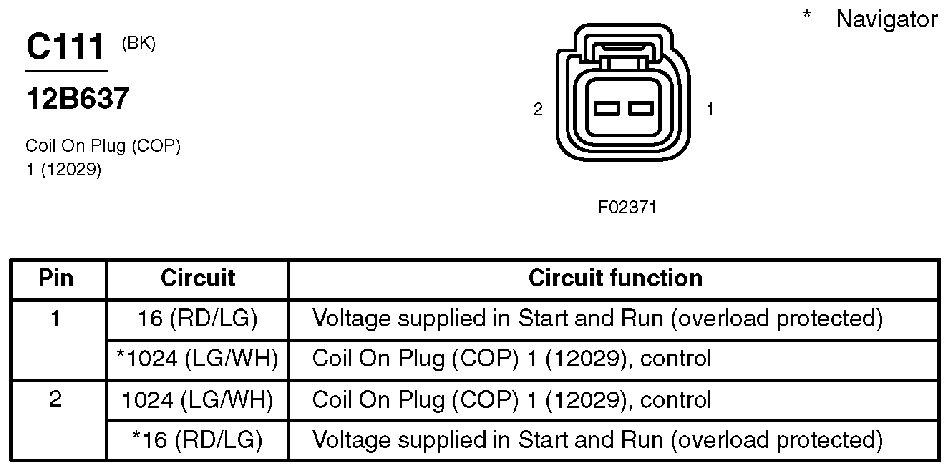

Fig 10: Coil On Plug (COP) 1 Connector End View (C111)
Courtesy of FORD MOTOR CO.

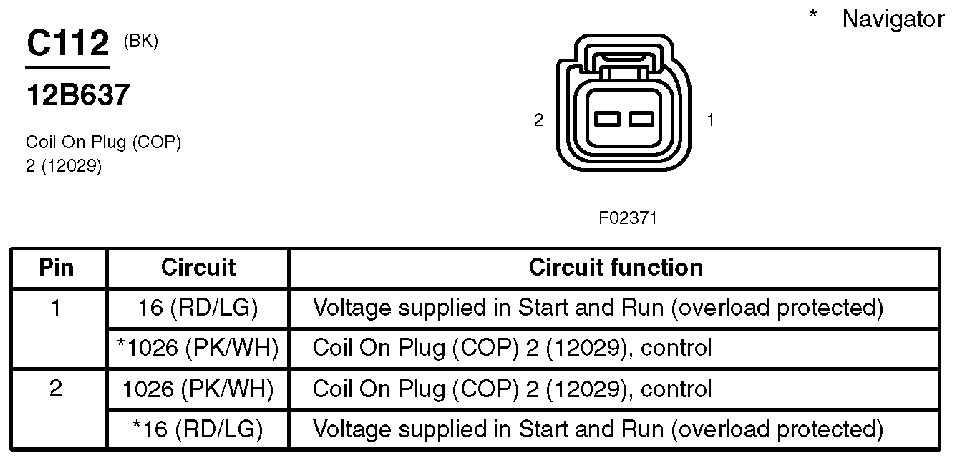

Fig 11: Coil On Plug (COP) 2 Connector End View (C112)
Courtesy of FORD MOTOR CO.

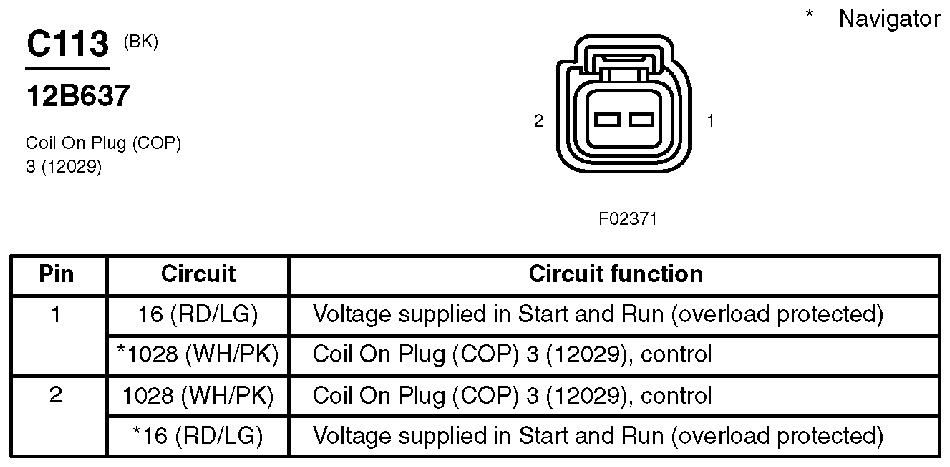

Fig 12: Coil On Plug (COP) 3 Connector End View (C113)
Courtesy of FORD MOTOR CO.

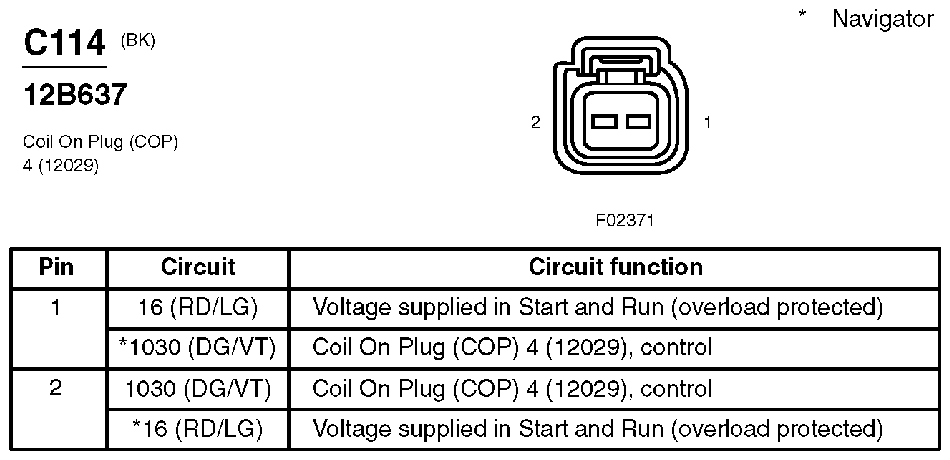

Fig 13: Coil On Plug (COP) 4 Connector End View (C114)
Courtesy of FORD MOTOR CO.

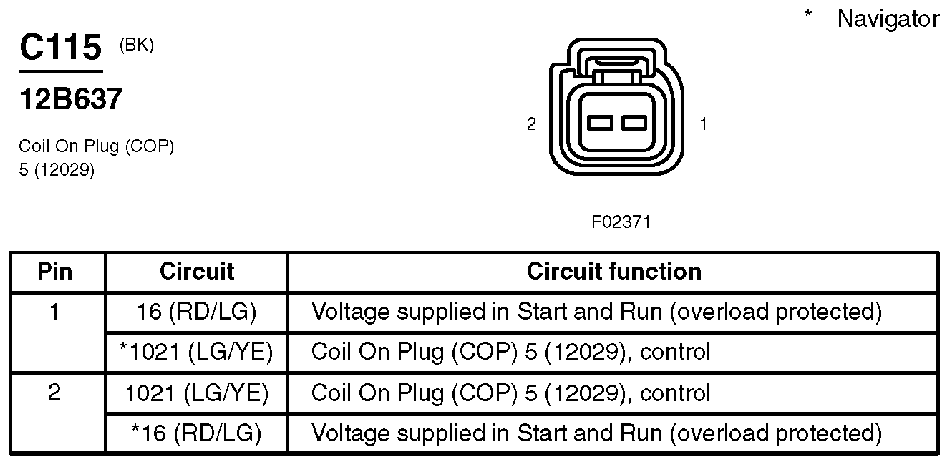

Fig 14: Coil On Plug (COP) 5 Connector End View (C115)
Courtesy of FORD MOTOR CO.

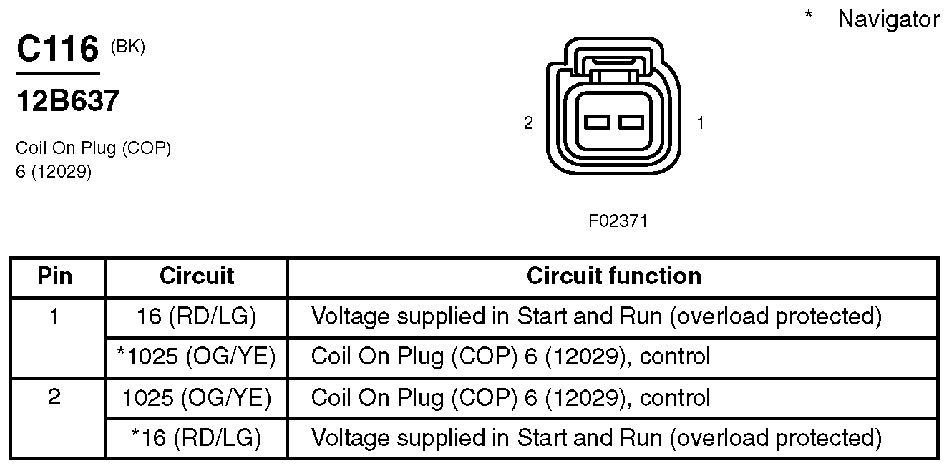

Fig 15: Coil On Plug (COP) 6 Connector End View (C116)
Courtesy of FORD MOTOR CO.

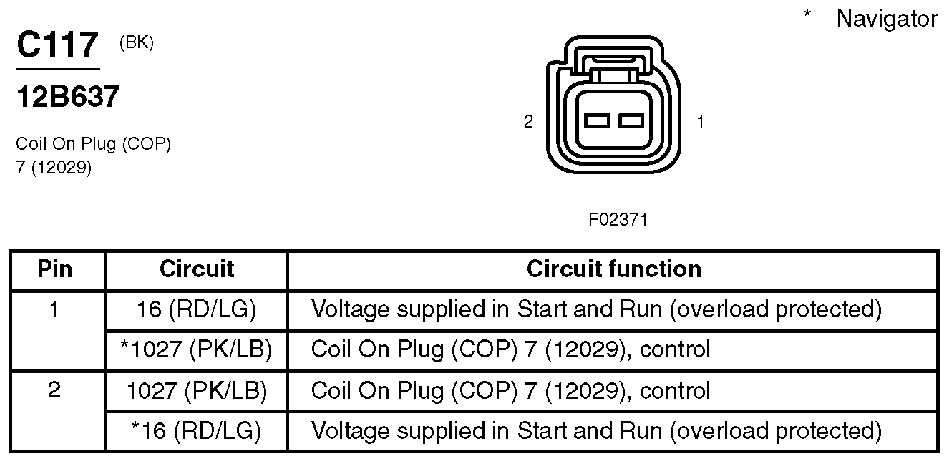

Fig 16: Coil On Plug (COP) 7 Connector End View (C117)
Courtesy of FORD MOTOR CO.

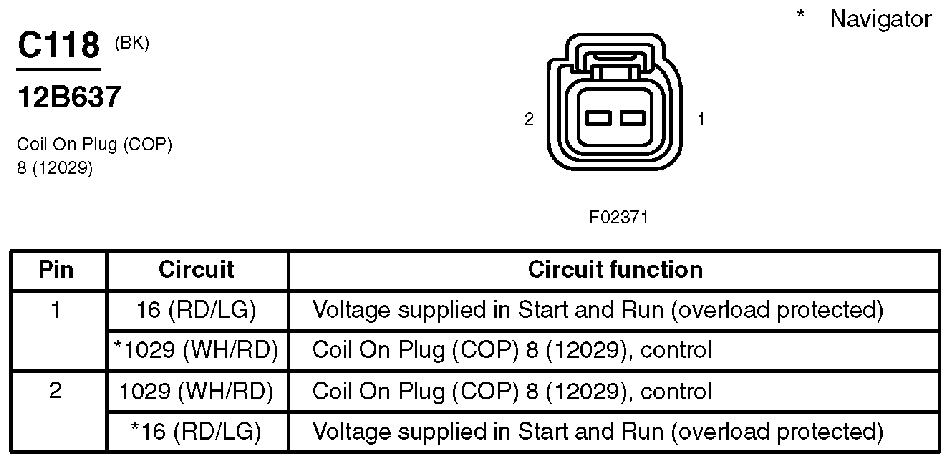

Fig 17: Coil On Plug (COP) 8 Connector End View (C118)
Courtesy of FORD MOTOR CO.

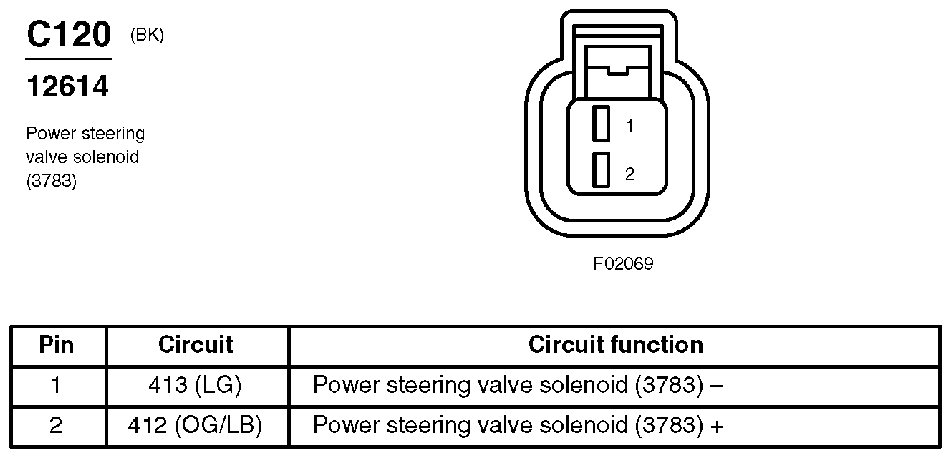

Fig 18: Power Steering Valve Solenoid Connector End View (C120)
Courtesy of FORD MOTOR CO.

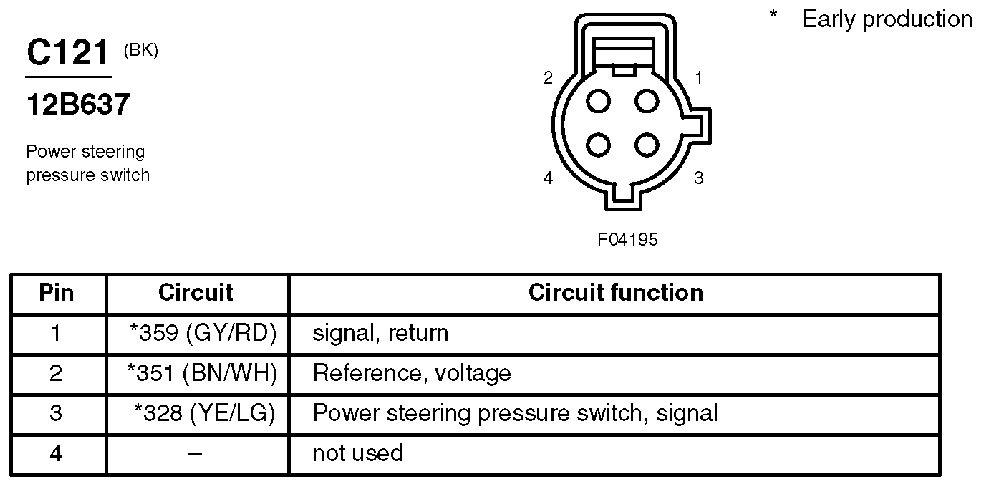

Fig 19: Power Steering Pressure Switch Connector End View (C121)
Courtesy of FORD MOTOR CO.

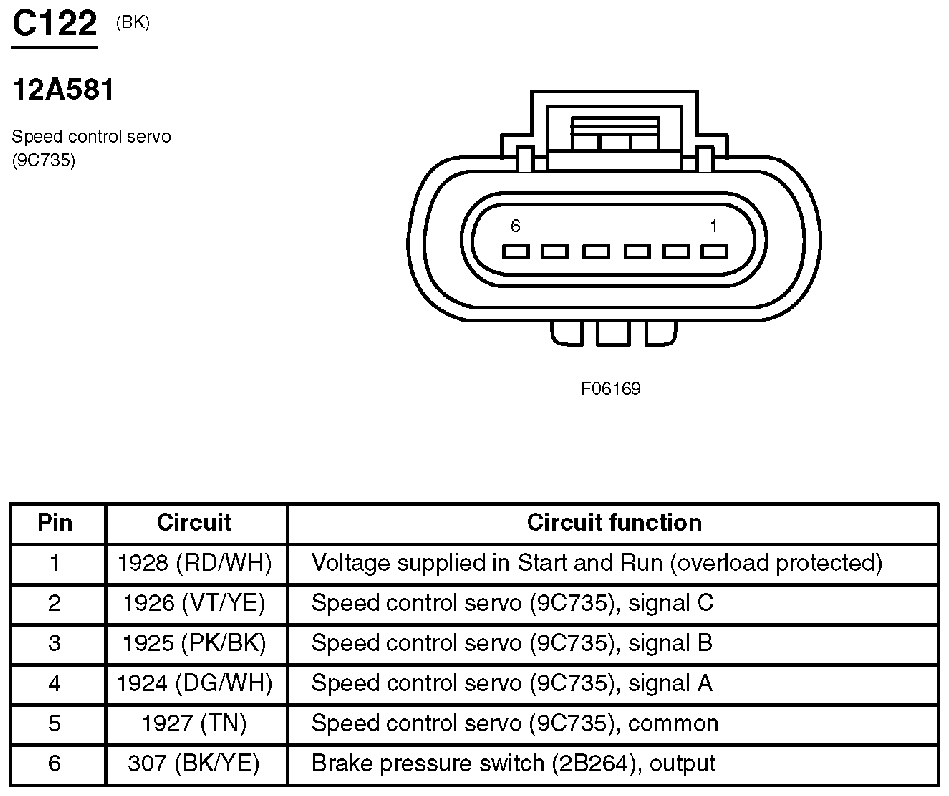

Fig 20: Speed Control Servo Connector End View (C122)
Courtesy of FORD MOTOR CO.

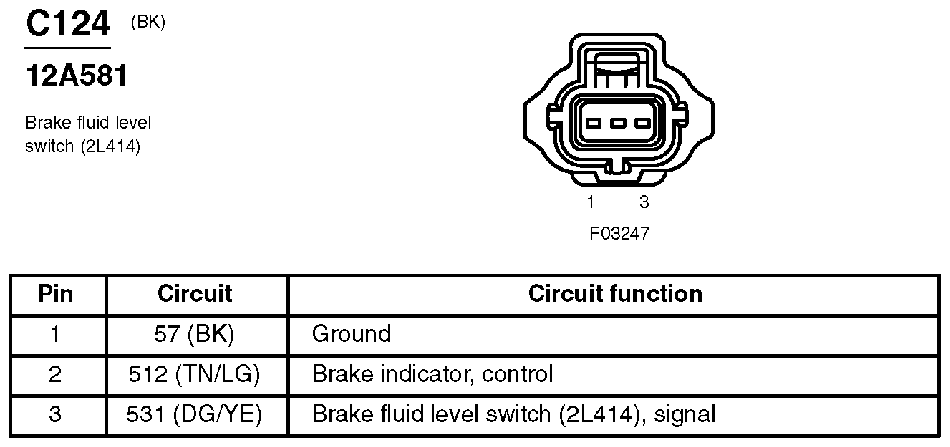

Fig 21: Brake Fluid Level Switch Connector End View (C124)
Courtesy of FORD MOTOR CO.

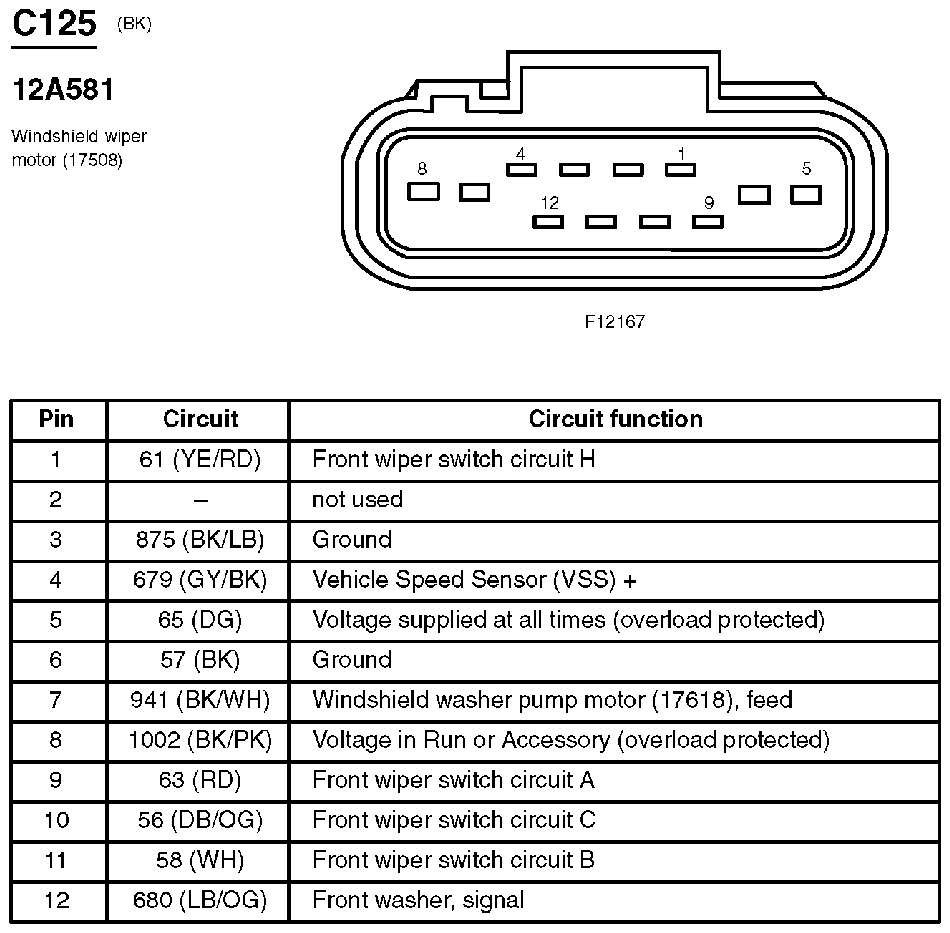

Fig 22: Windshield Wiper Motor Connector End View (C125)
Courtesy of FORD MOTOR CO.

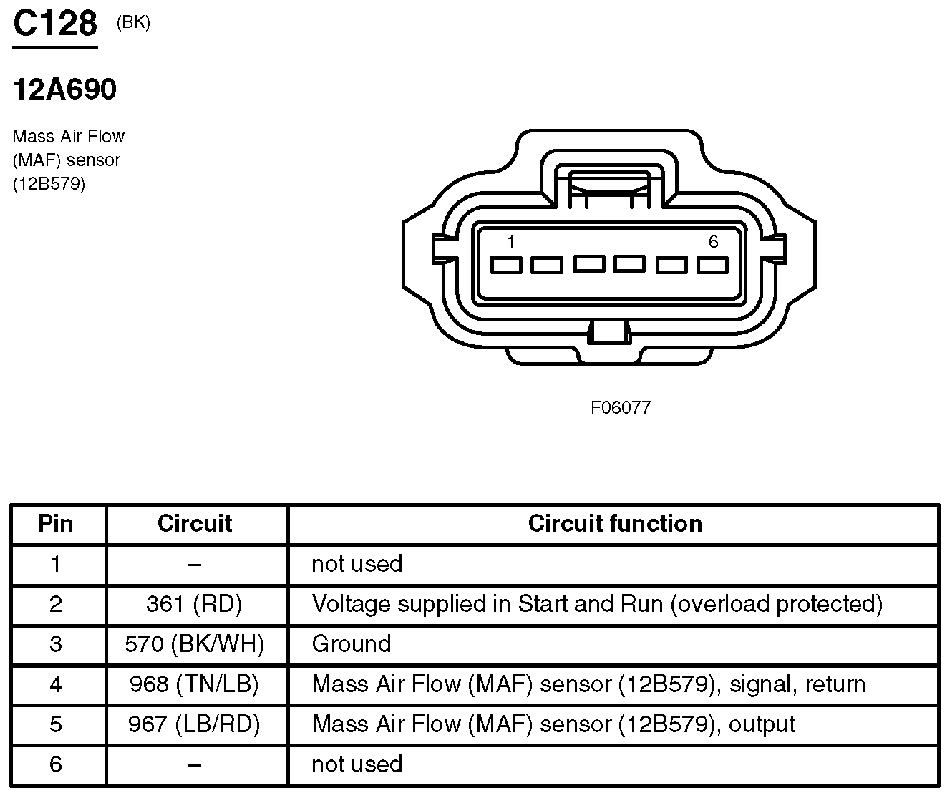

Fig 23: Mass Air Flow (MAF) Sensor Connector End View (C128)
Courtesy of FORD MOTOR CO.

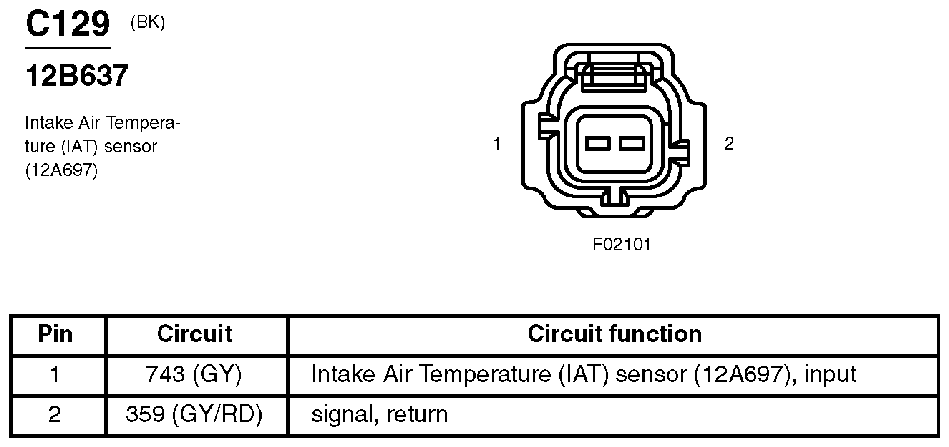

Fig 24: Intake Air Temperature (IAT) Sensor Connector End View (C129)
Courtesy of FORD MOTOR CO.

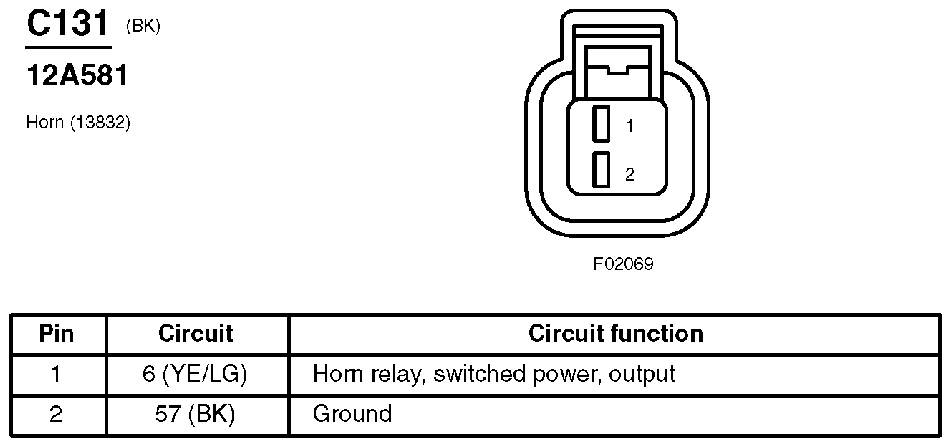

Fig 25: Horn Connector End View (C131)
Courtesy of FORD MOTOR CO.

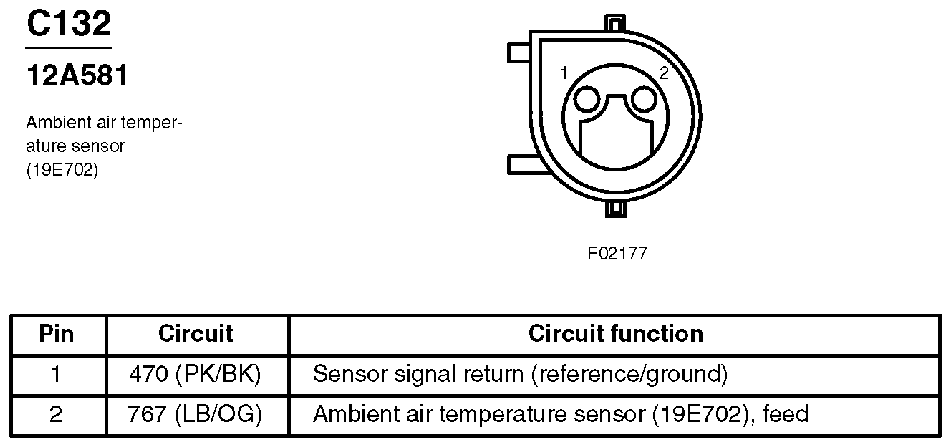

Fig 26: Ambient Air Temperature Sensor Connector End View (C132)
Courtesy of FORD MOTOR CO.

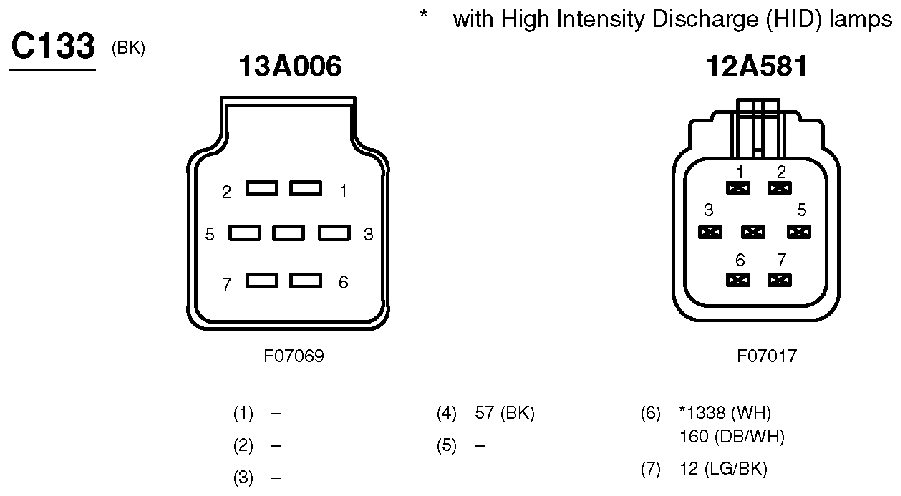

Fig 27: Inline Connector End View (C133)
Courtesy of FORD MOTOR CO.

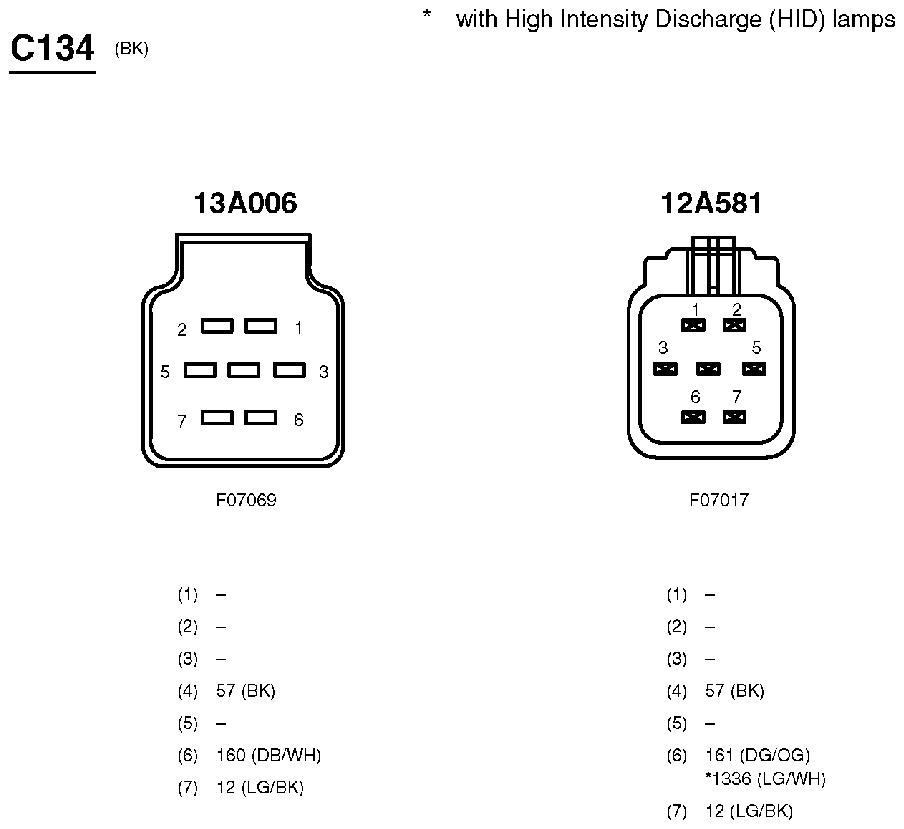

Fig 28: Inline Connector End View (C134)
Courtesy of FORD MOTOR CO.

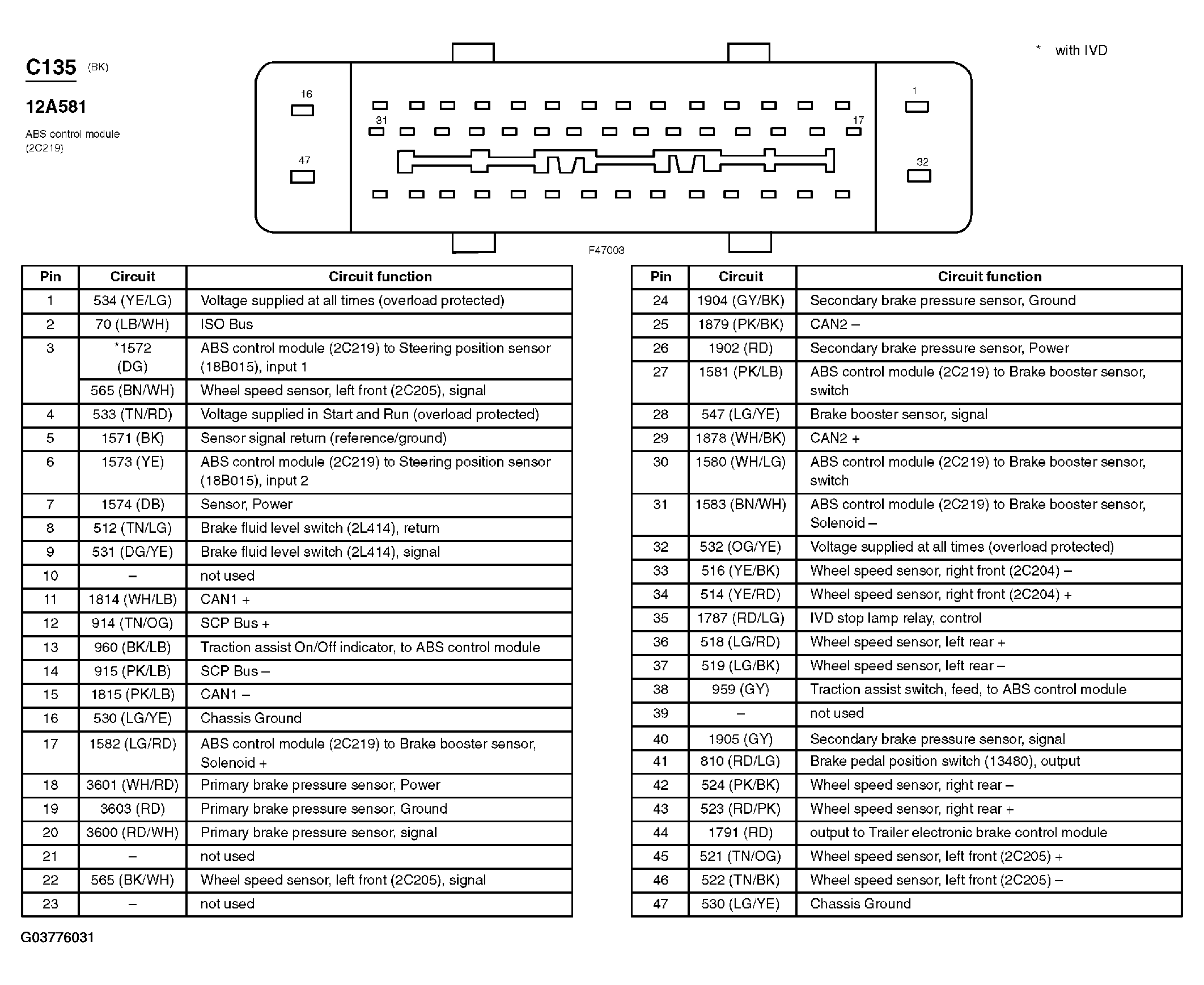

Fig 29: ABS Control Module Connector End View (C135)
Courtesy of FORD MOTOR CO.

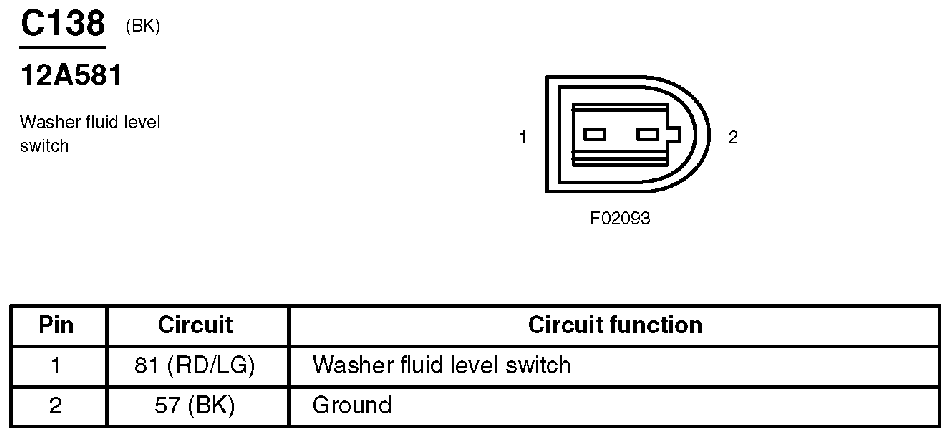

Fig 30: Washer Fluid Level Switch Connector End View (C138)
Courtesy of FORD MOTOR CO.

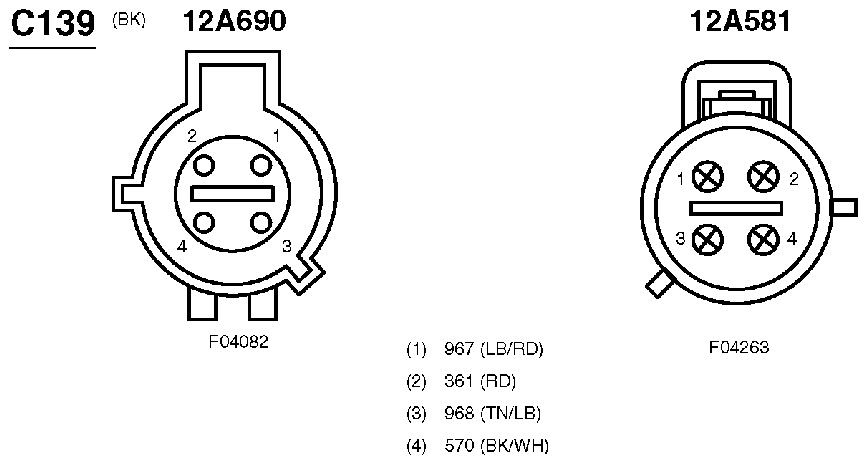

Fig 31: Inline Connector End View (C139)
Courtesy of FORD MOTOR CO.

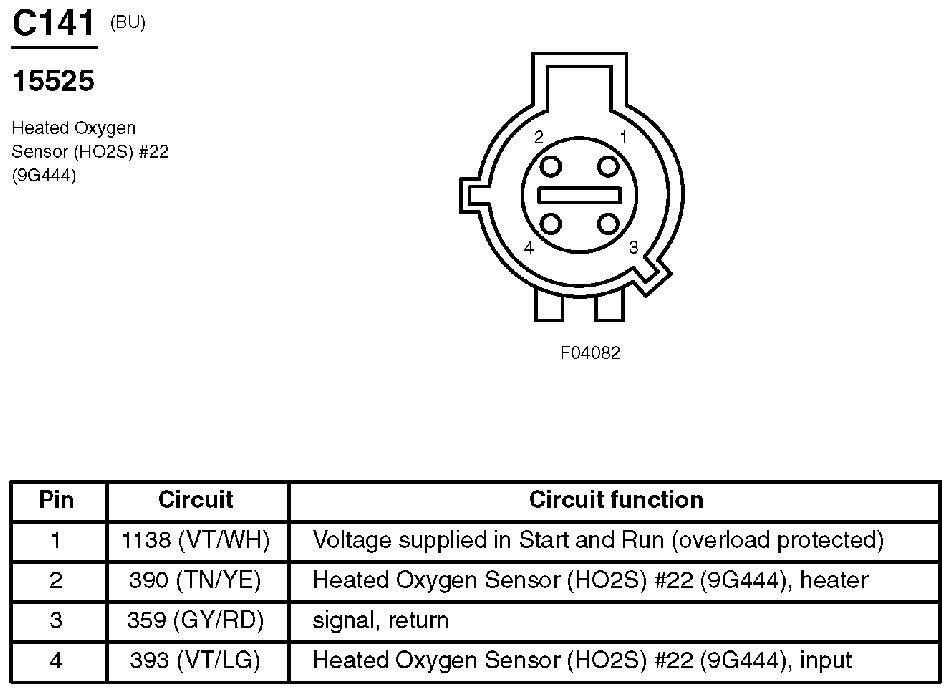

Fig 32: Heated Oxygen Sensor (HO2S) #22 Connector End View (C141)
Courtesy of FORD MOTOR CO.

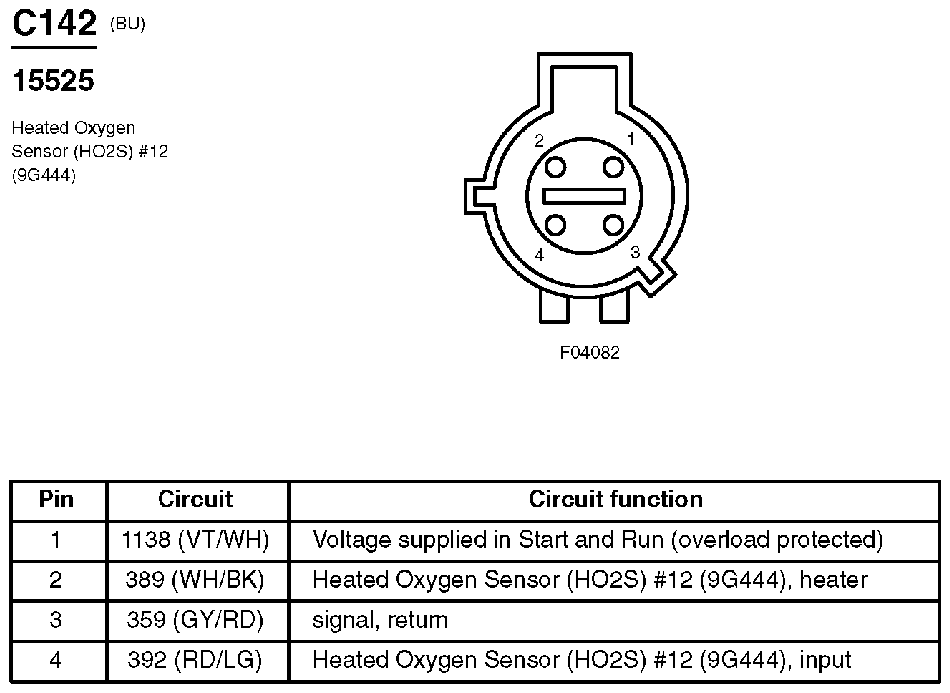

Fig 33: Heated Oxygen Sensor (HO2S) #12 Connector End View (C142)
Courtesy of FORD MOTOR CO.

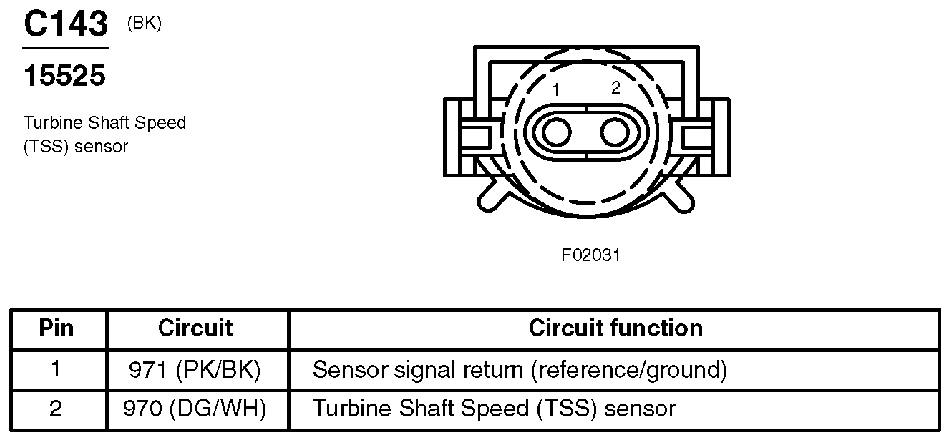

Fig 34: Turbine Shaft Speed (TSS) Sensor Connector End View (C143)
Courtesy of FORD MOTOR CO.

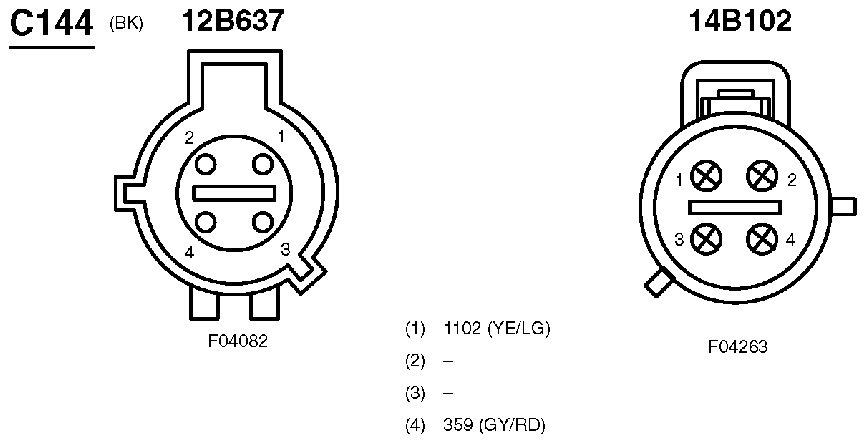

Fig 35: Inline Connector End View (C144)
Courtesy of FORD MOTOR CO.

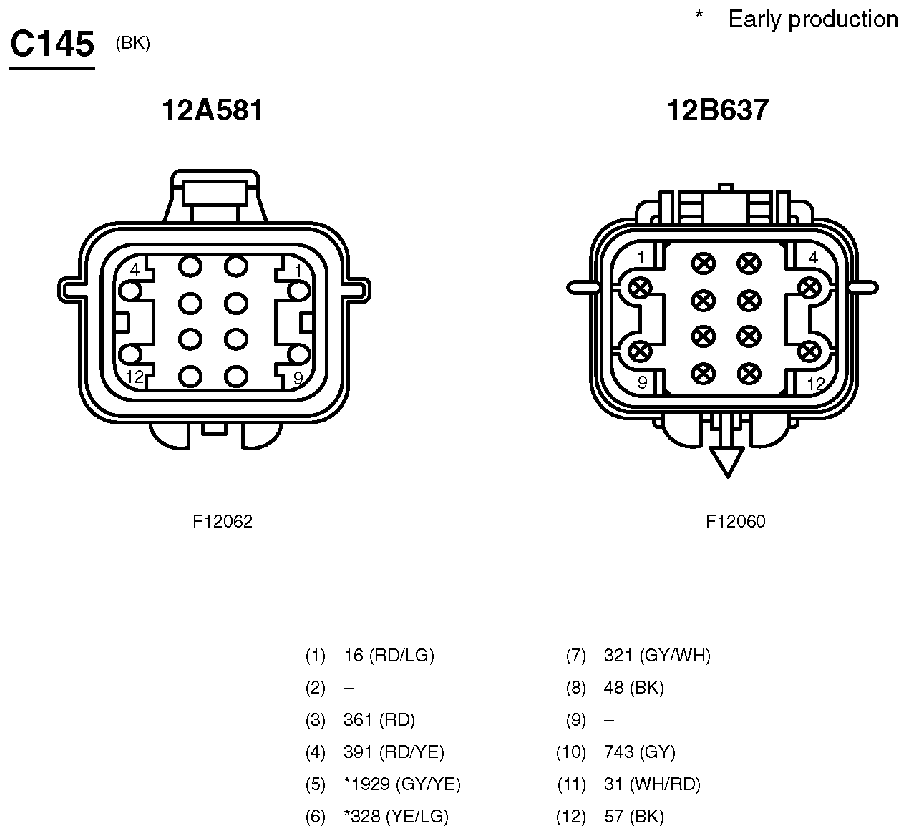

Fig 36: Inline Connector End View (C145)
Courtesy of FORD MOTOR CO.

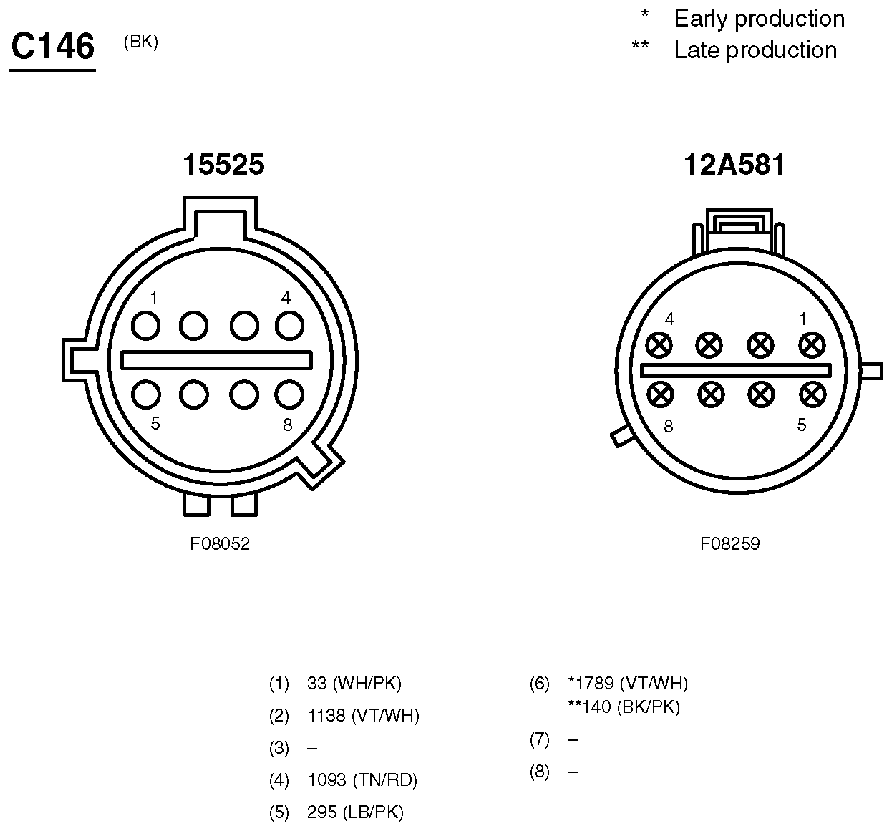

Fig 37: Inline Connector End View (C146)
Courtesy of FORD MOTOR CO.

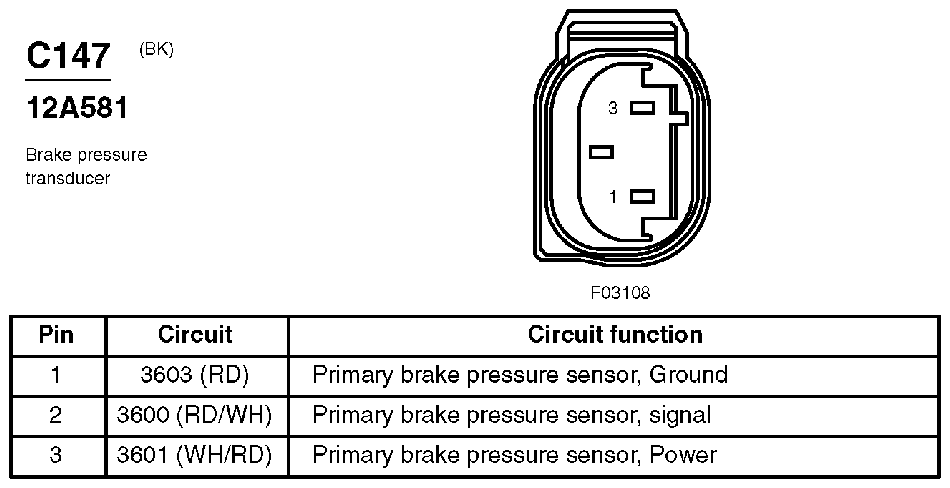

Fig 38: Brake Pressure Transducer Connector End View (C147)
Courtesy of FORD MOTOR CO.

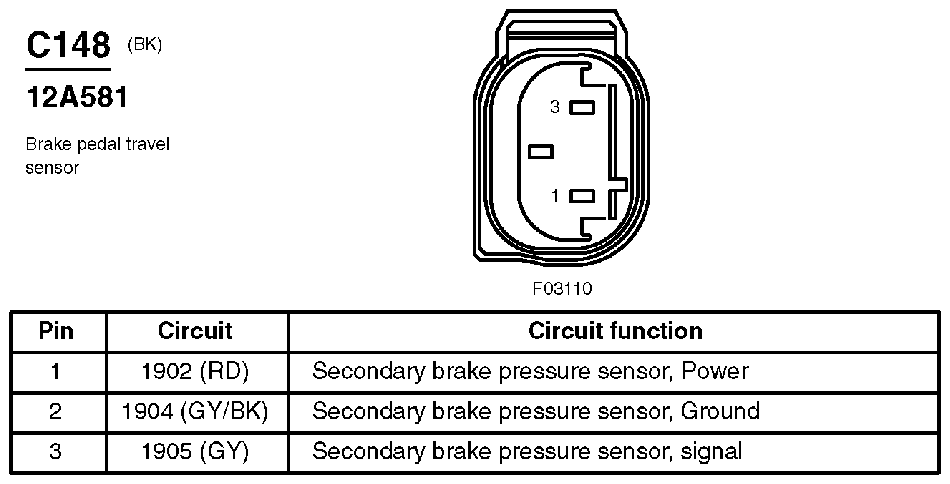

Fig 39: Brake Pedal Travel Sensor Connector End View (C148)
Courtesy of FORD MOTOR CO.

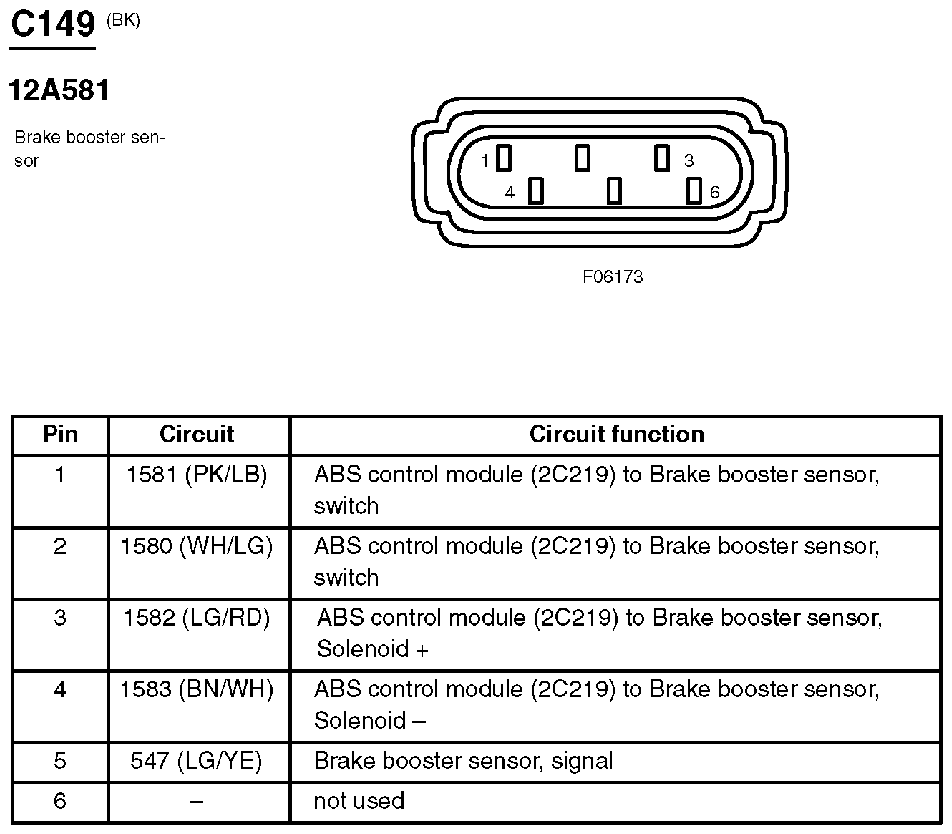

Fig 40: Brake Booster Sensor Connector End View (C149)
Courtesy of FORD MOTOR CO.

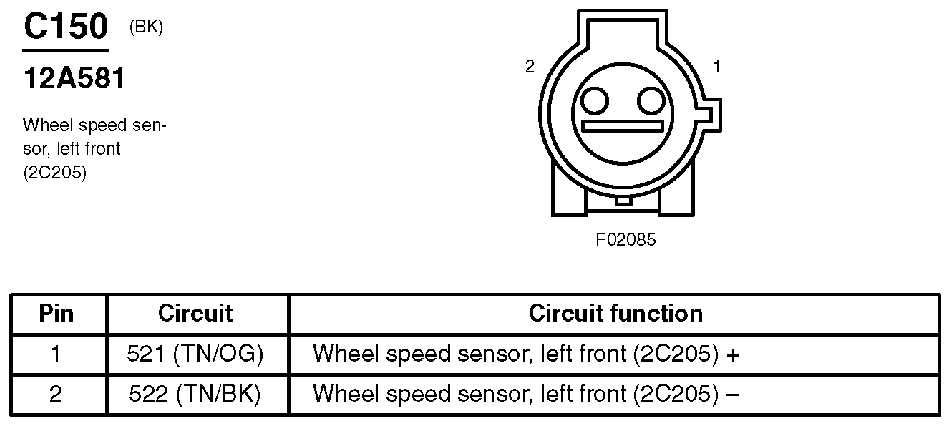

Fig 41: Wheel Speed Sensor, Left Front Connector End View (C150)
Courtesy of FORD MOTOR CO.

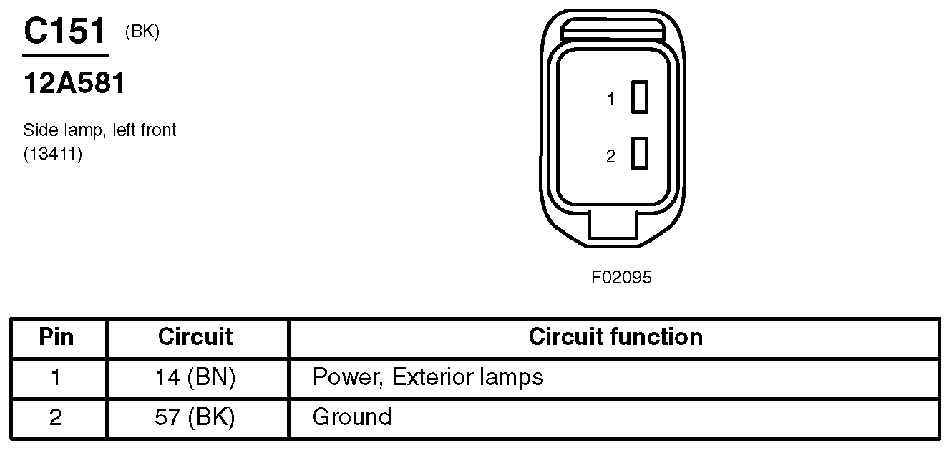

Fig 42: Side Lamp, Left Front Connector End View (C151)
Courtesy of FORD MOTOR CO.

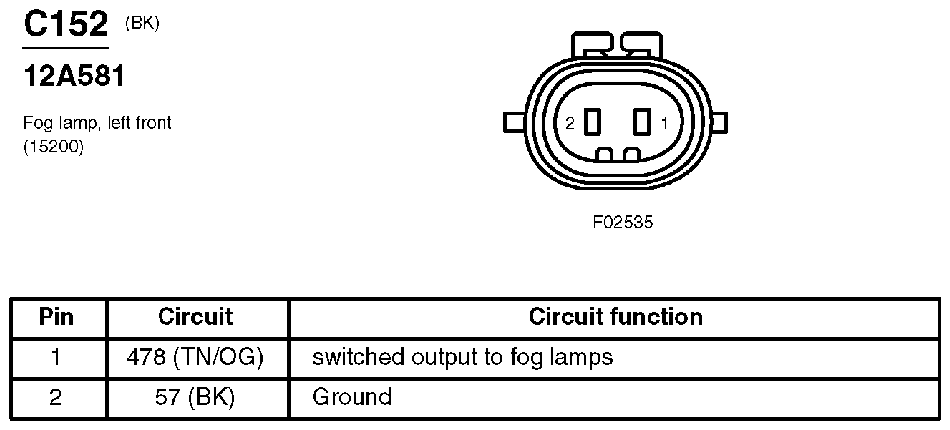

Fig 43: Fog Lamp, Left Front Connector End View (C152)
Courtesy of FORD MOTOR CO.

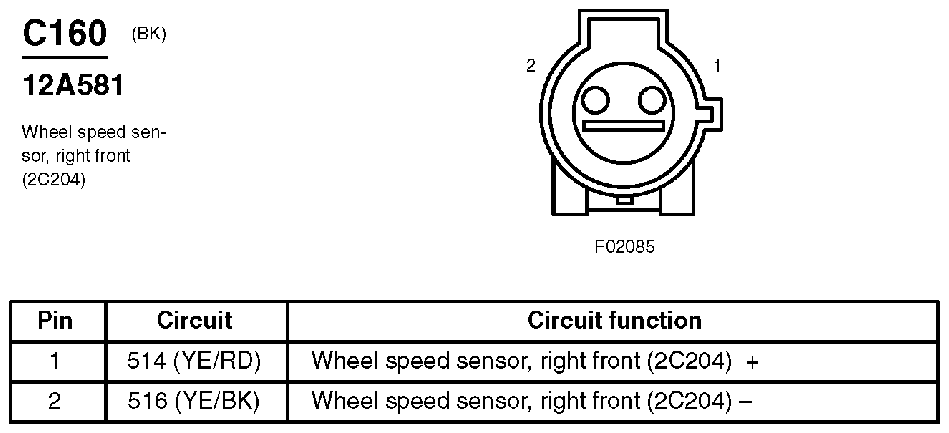

Fig 44: Wheel Speed Sensor, Right Front Connector End View (C160)
Courtesy of FORD MOTOR CO.

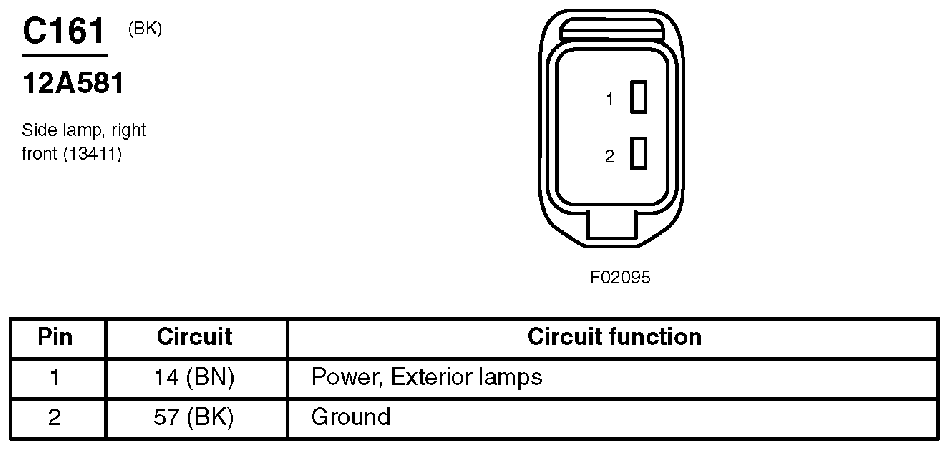

Fig 45: Side Lamp, Right Front Connector End View (C161)
Courtesy of FORD MOTOR CO.

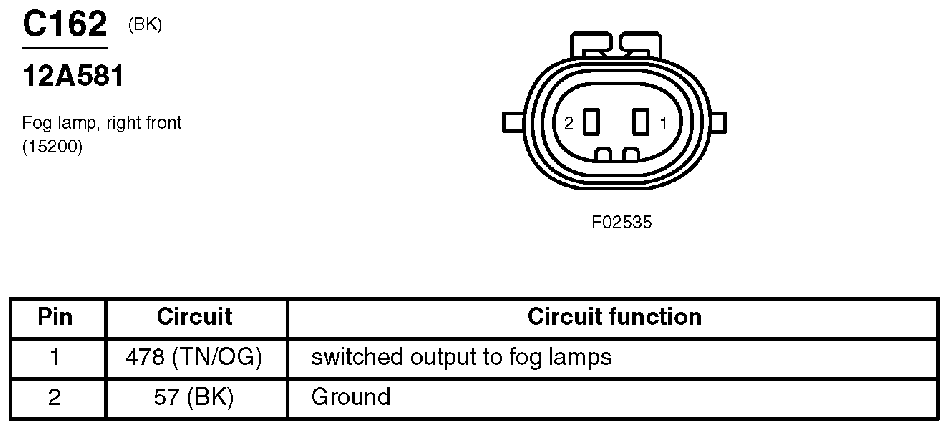

Fig 46: Fog Lamp, Right Front Connector End View (C162)
Courtesy of FORD MOTOR CO.

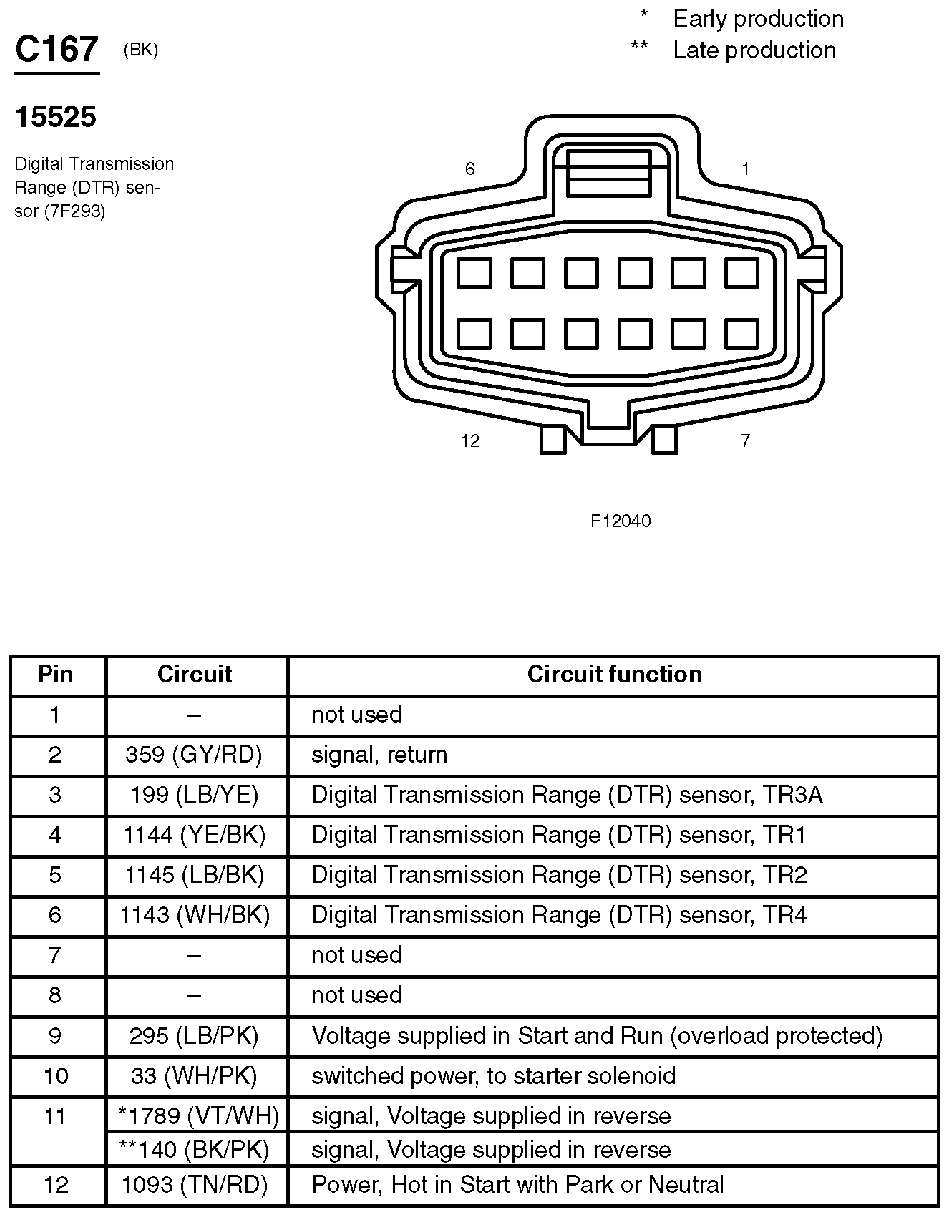

Fig 47: Digital Transmission Range (DTR) Sensor Connector End View (C167)
Courtesy of FORD MOTOR CO.

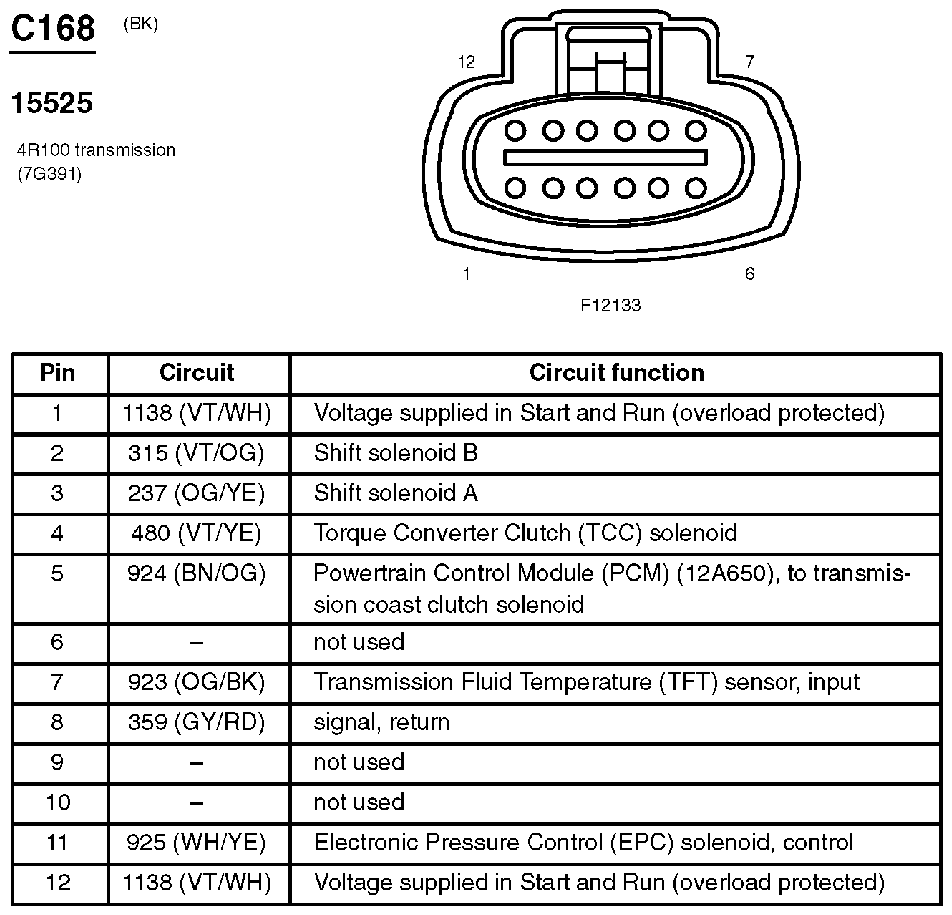

Fig 48: 4R100 Transmission Connector End View (C168)
Courtesy of FORD MOTOR CO.

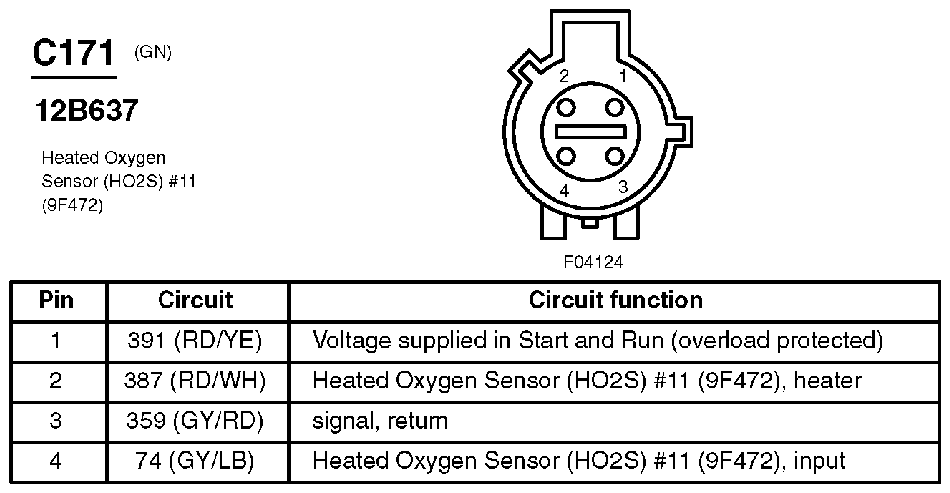

Fig 49: Heated Oxygen Sensor (HO2S) #11 Connector End View (C171)
Courtesy of FORD MOTOR CO.

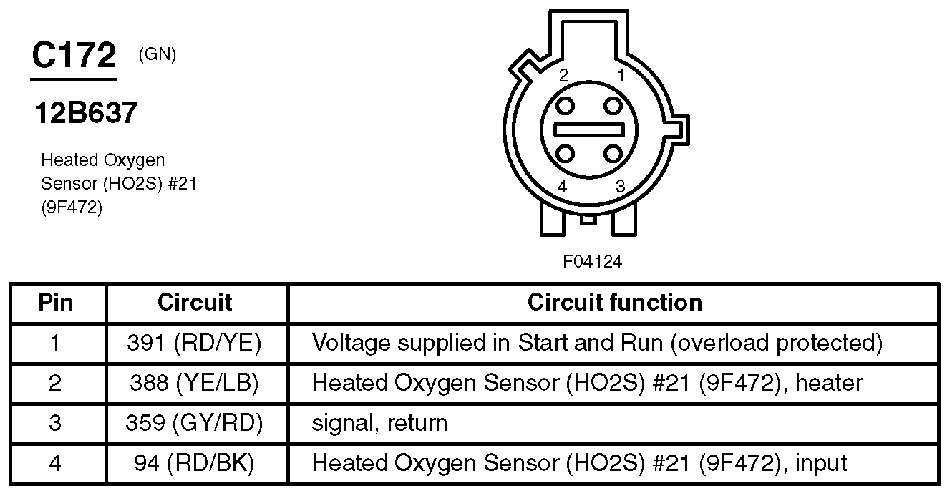

Fig 50: Heated Oxygen Sensor (HO2S) #21 Connector End View (C172)
Courtesy of FORD MOTOR CO.

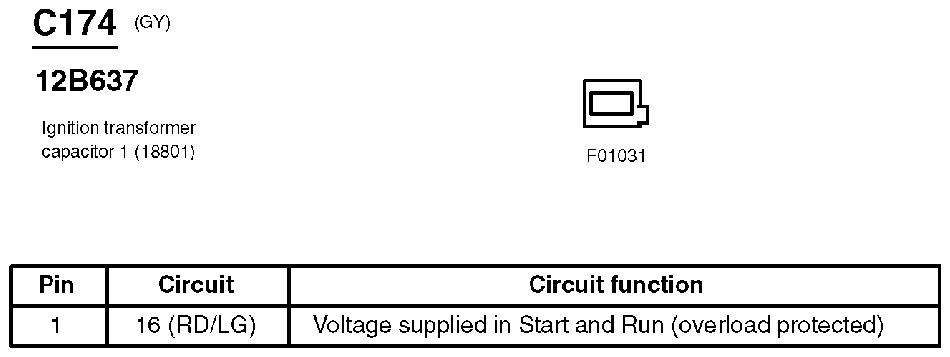

Fig 51: Ignition Transformer Capacitor 1 Connector End View (C174)
Courtesy of FORD MOTOR CO.

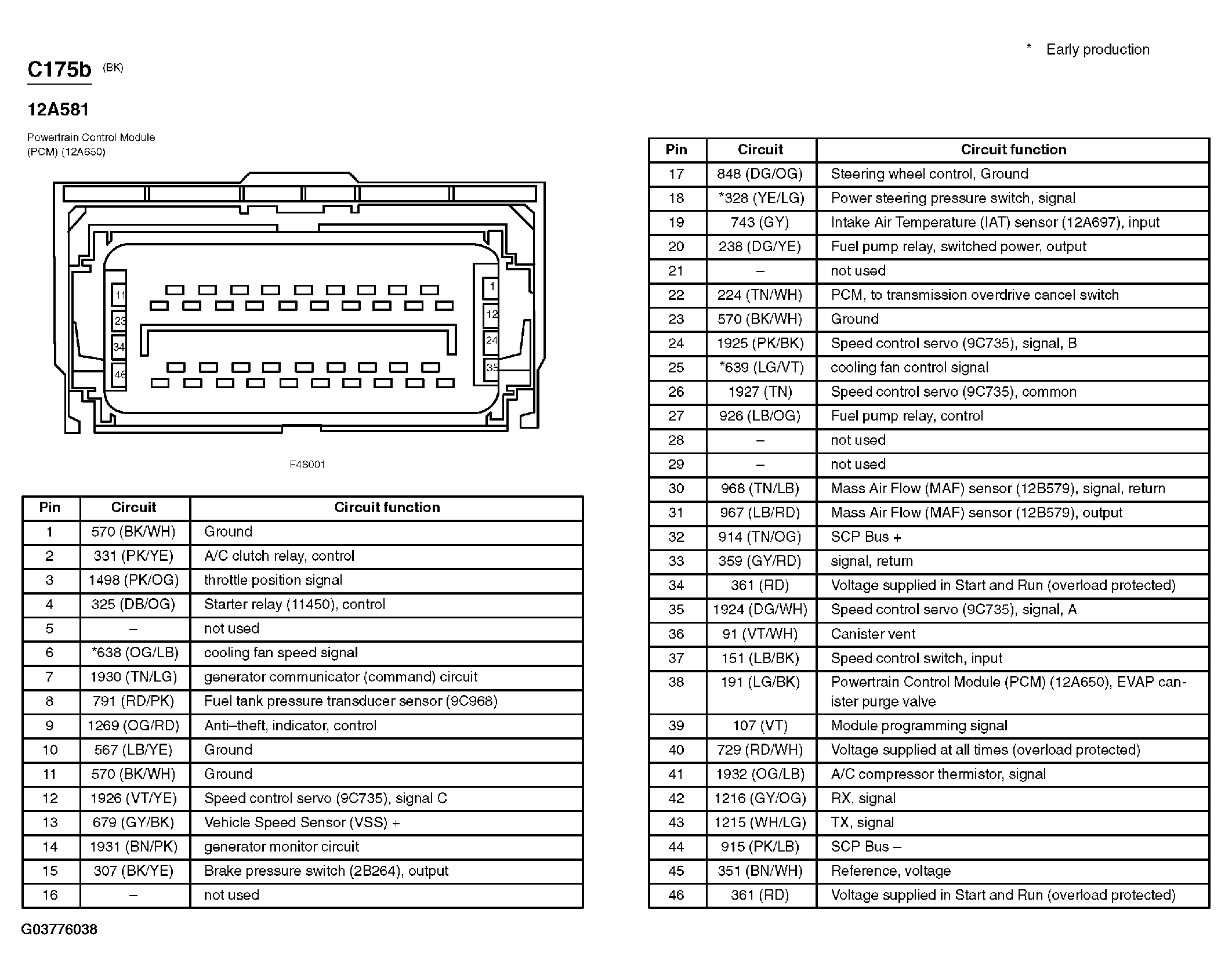

Fig 52: Powertrain Control Module (PCM) Connector End View (C175b)
Courtesy of FORD MOTOR CO.

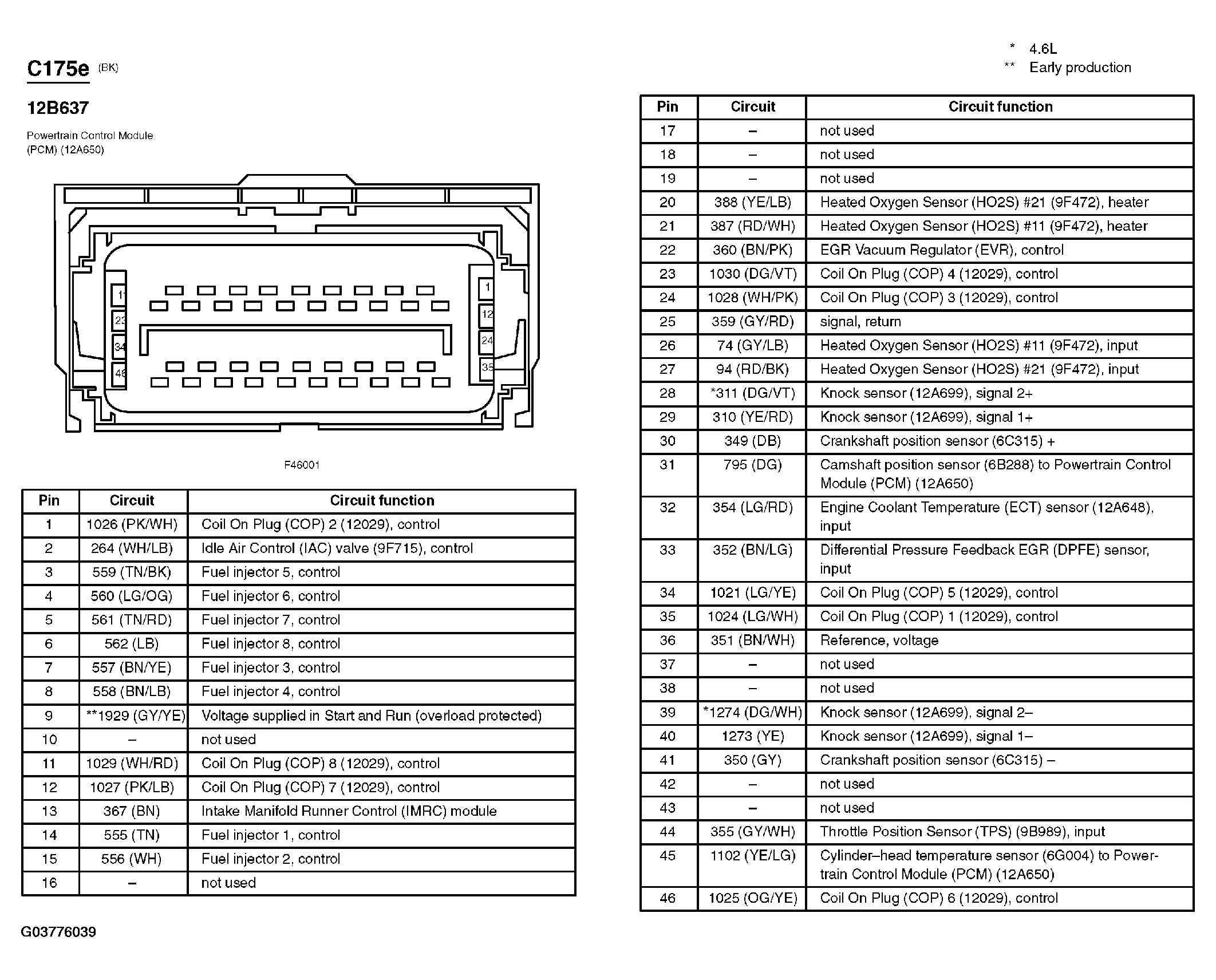

Fig 53: Powertrain Control Module (PCM) Connector End View (C175e)
Courtesy of FORD MOTOR CO.

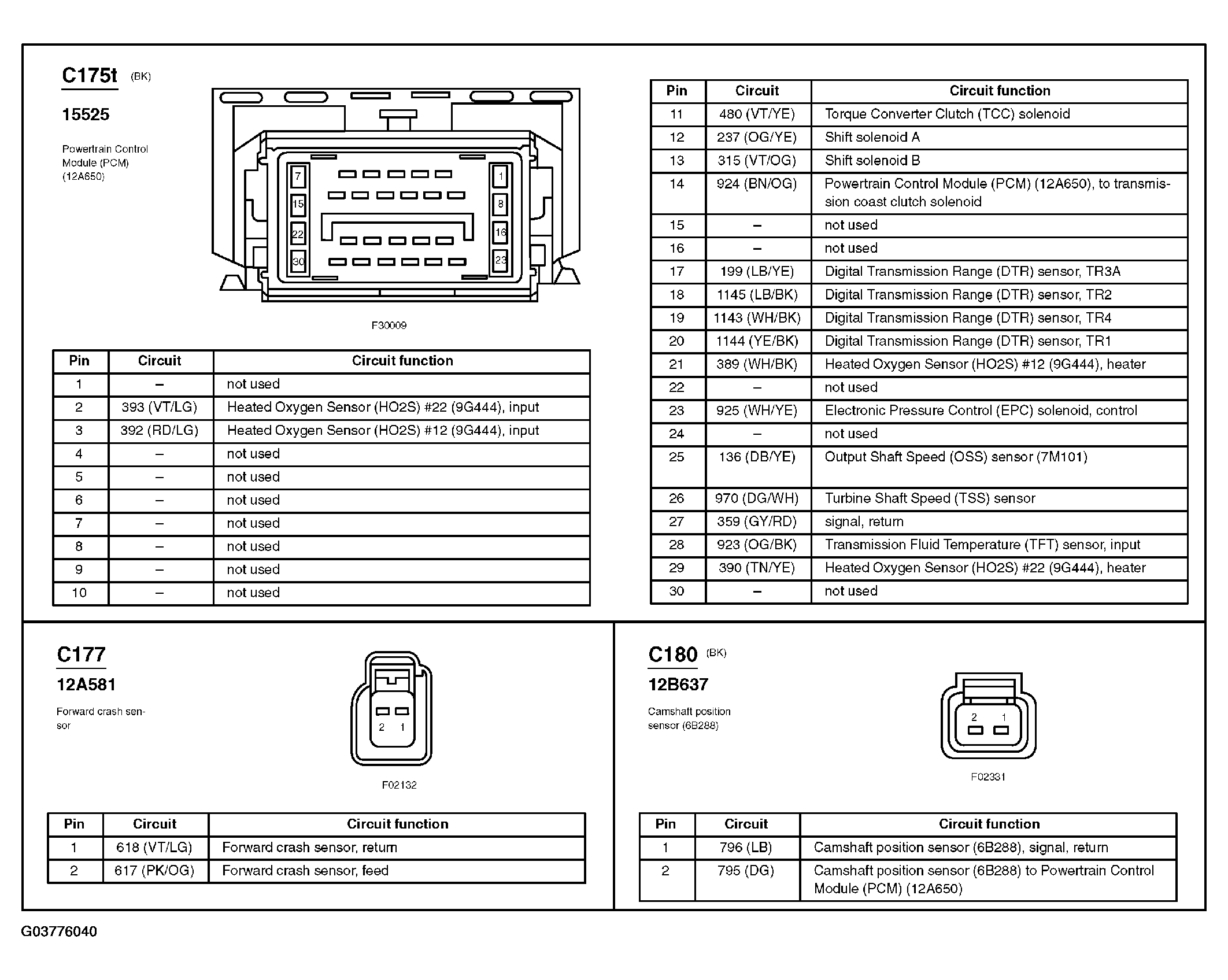

Fig 54: Powertrain Control Module (PCM) Connector End View (C175t)
Courtesy of FORD MOTOR CO.

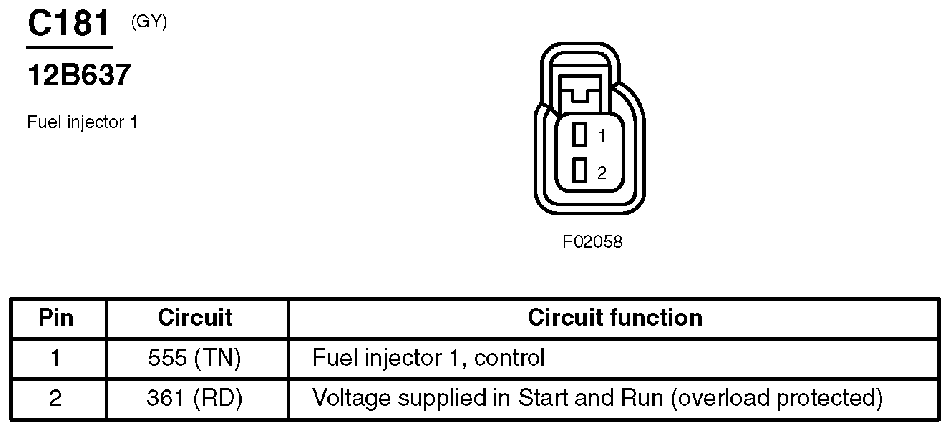

Fig 55: Fuel Injector 1 Connector End View (C181)
Courtesy of FORD MOTOR CO.
Fig 56: Fuel Injector 2 Connector End View (C182)
Courtesy of FORD MOTOR CO.

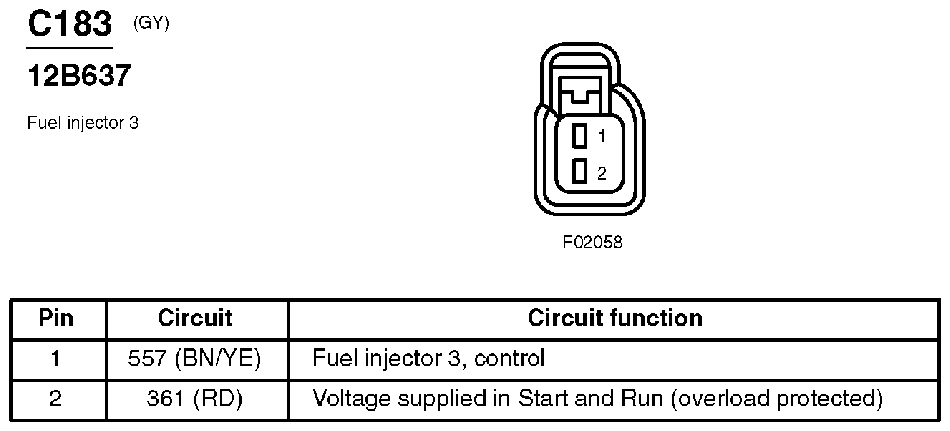

Fig 57: Fuel Injector 3 Connector End View (C183)
Courtesy of FORD MOTOR CO.
Fig 58: Fuel Injector 4 Connector End View (C184)
Courtesy of FORD MOTOR CO.

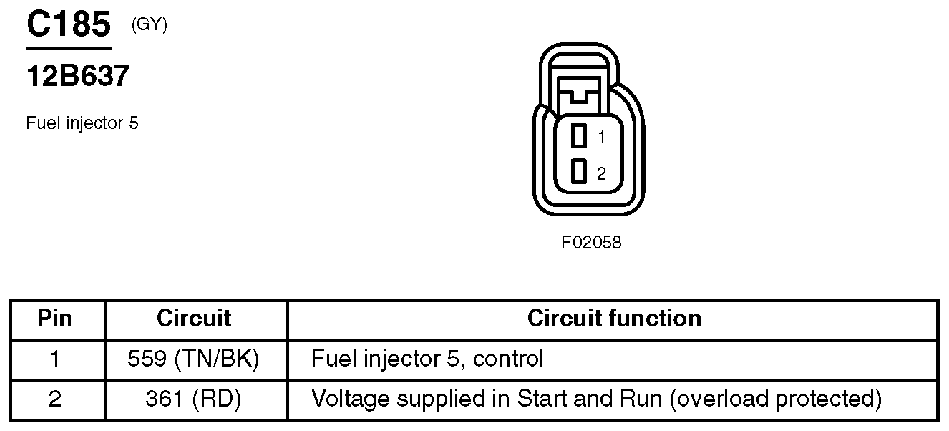

Fig 59: Fuel Injector 5 Connector End View (C185)
Courtesy of FORD MOTOR CO.

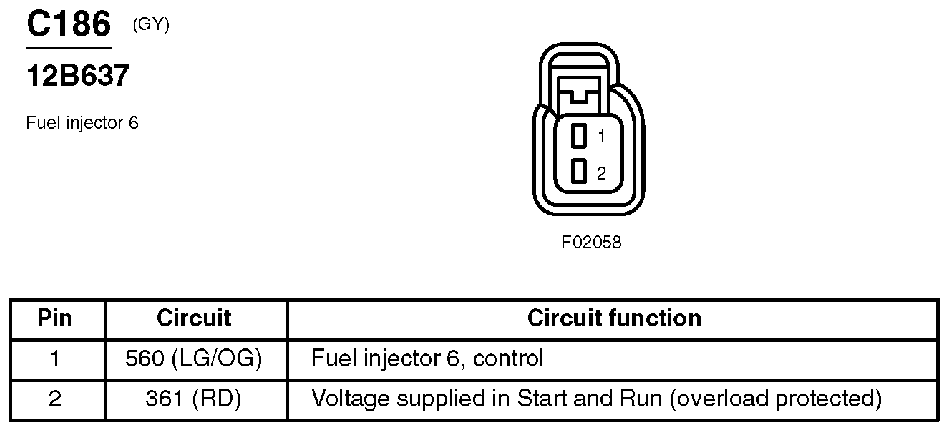

Fig 60: Fuel Injector 6 Connector End View (C186)
Courtesy of FORD MOTOR CO.
Fig 61: Fuel Injector 7 Connector End View (C187)
Courtesy of FORD MOTOR CO.
Fig 62: Fuel Injector 8 Connector End View (C188)
Courtesy of FORD MOTOR CO.

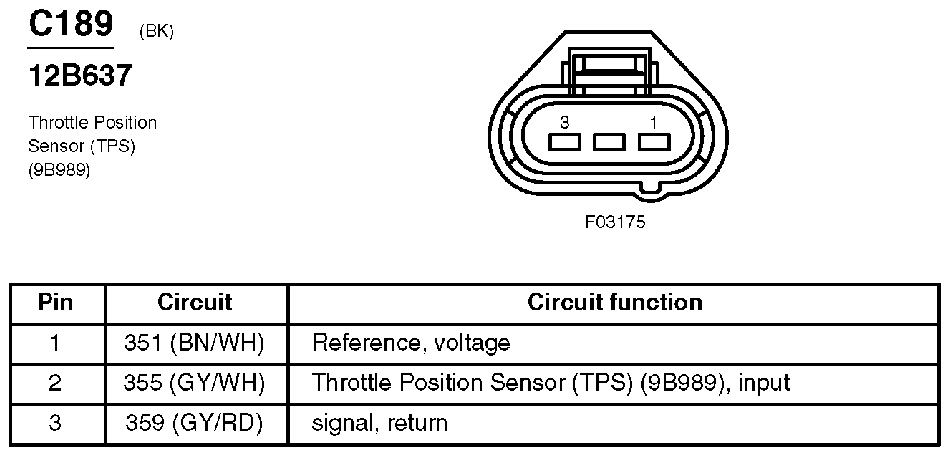

Fig 63: Throttle Position Sensor (TPS) Connector End View (C189)
Courtesy of FORD MOTOR CO.

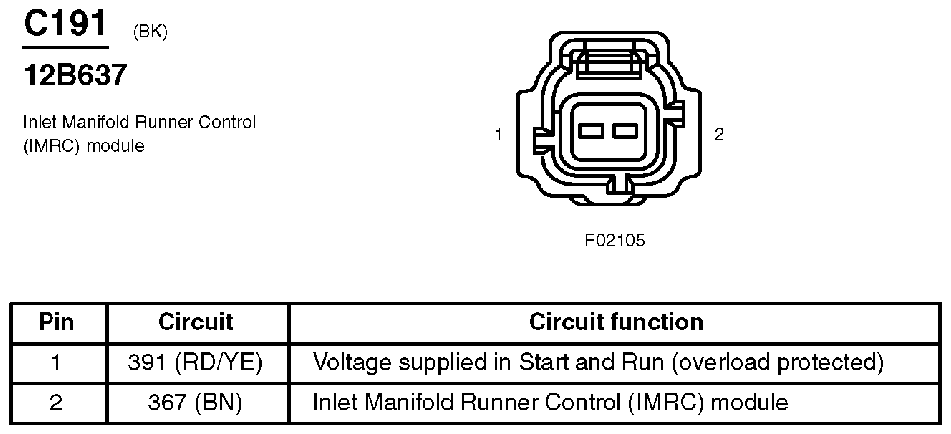

Fig 64: Inlet Manifold Runner Control (IMRC) Module Connector End View (C191)
Courtesy of FORD MOTOR CO.

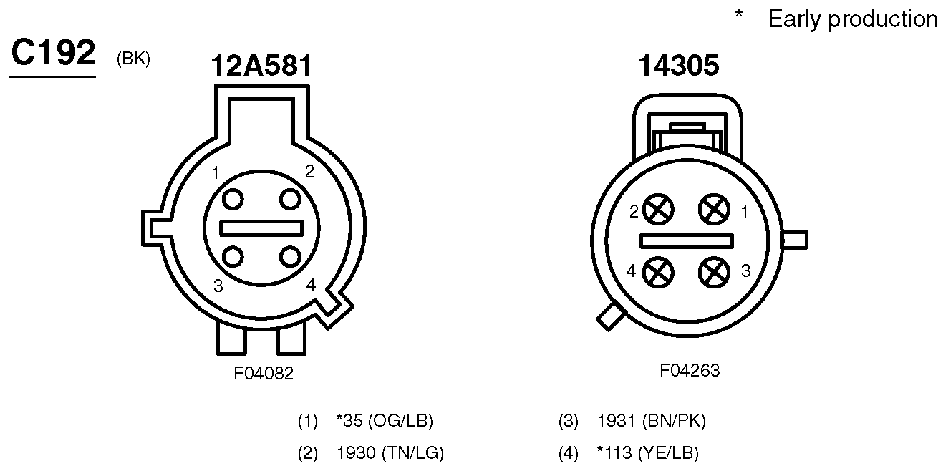

Fig 65: Inline Connector End View (C192)
Courtesy of FORD MOTOR CO.

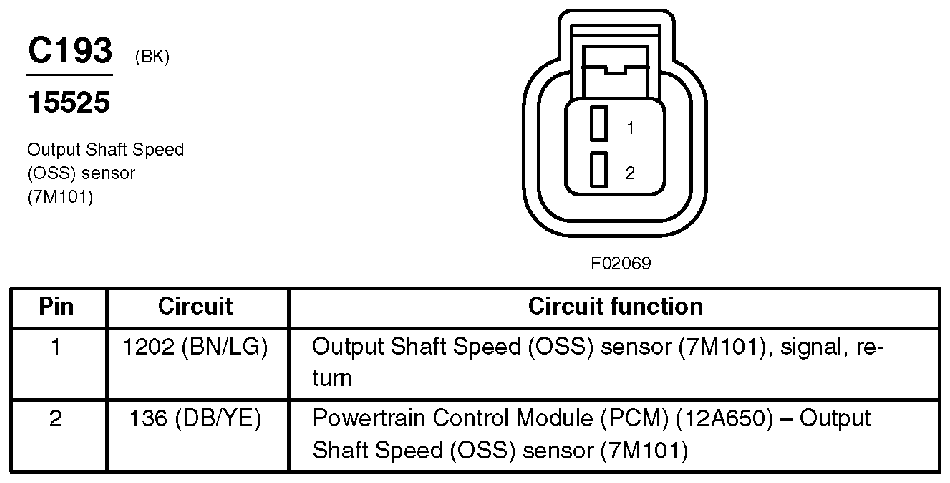

Fig 66: Output Shaft Speed (OSS) Sensor Connector End View (C193)
Courtesy of FORD MOTOR CO.

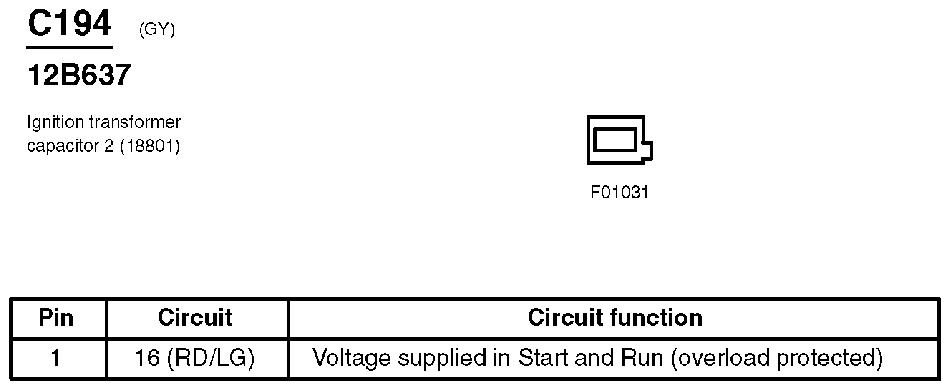

Fig 67: Ignition Transformer Capacitor 2 Connector End View (C194)
Courtesy of FORD MOTOR CO.

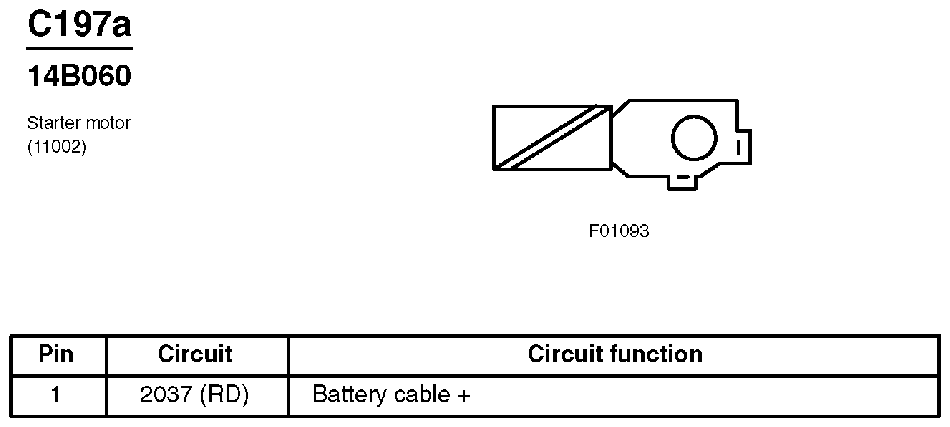

Fig 68: Starter Motor Connector End View (C197a)
Courtesy of FORD MOTOR CO.

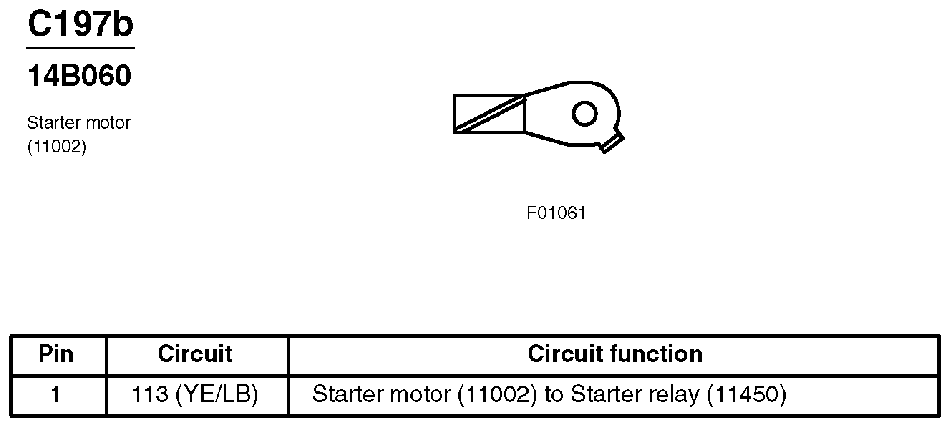

Fig 69: Starter Motor Connector End View (C197b)
Courtesy of FORD MOTOR CO.

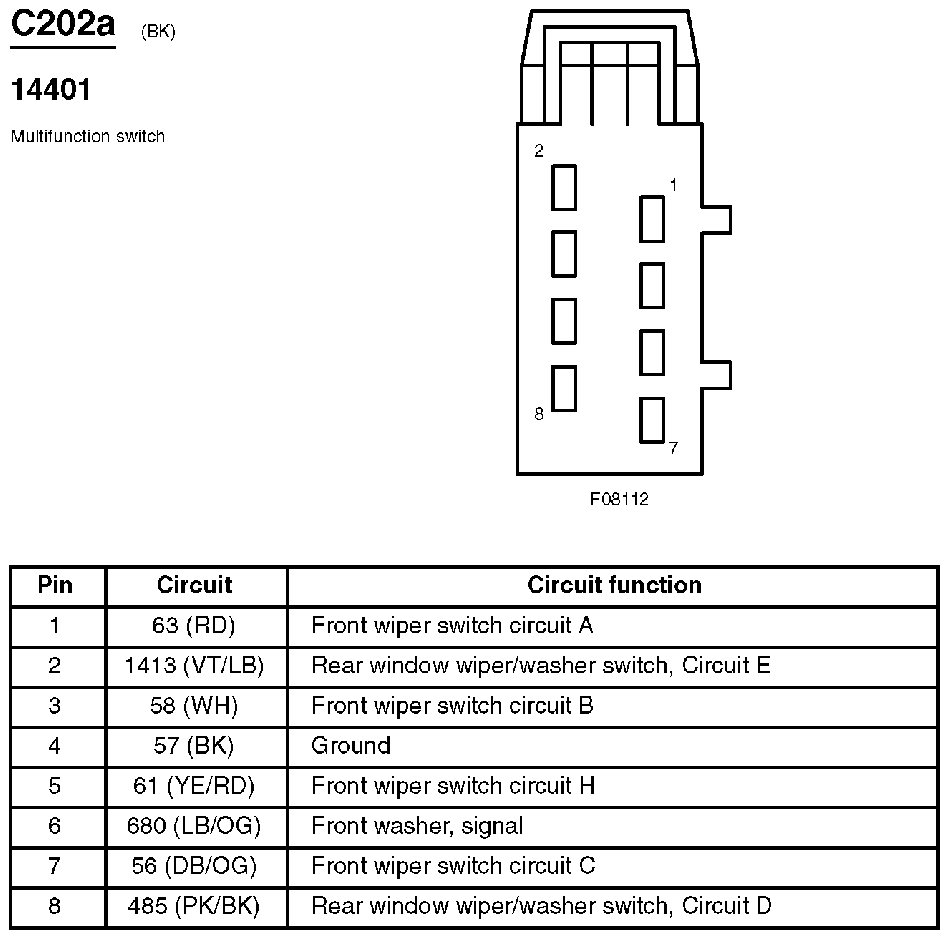

Fig 70: Multifunction Switch Connector End View (C202a)
Courtesy of FORD MOTOR CO.

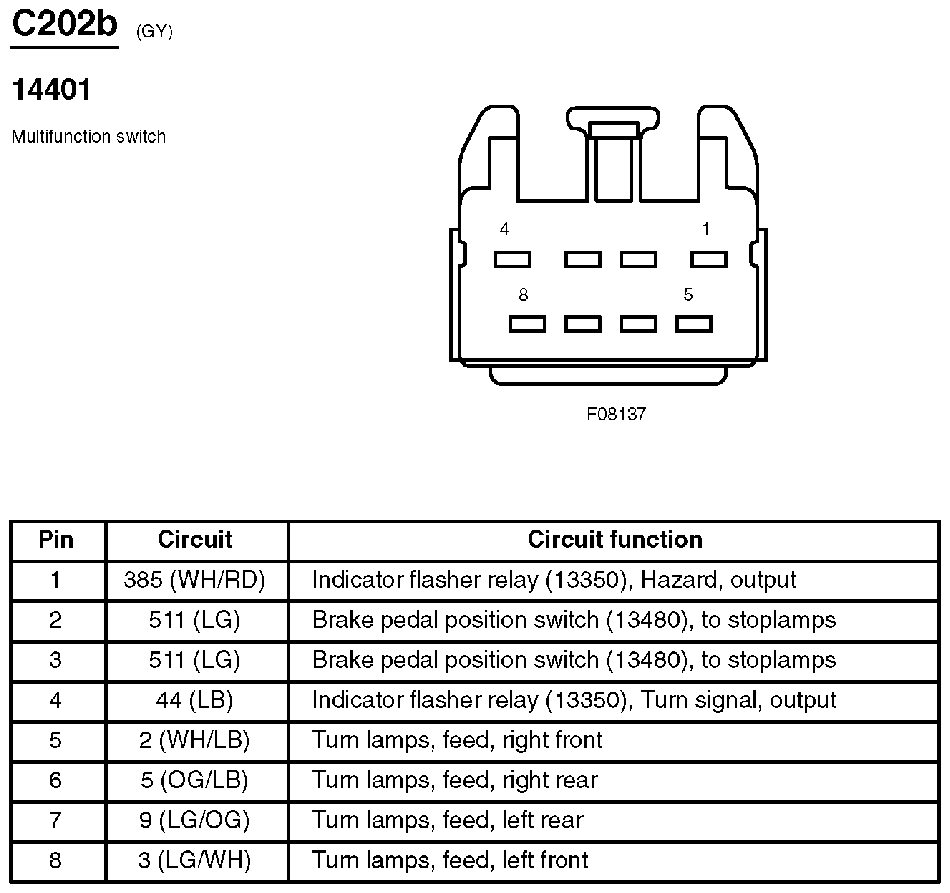

Fig 71: Multifunction Switch Connector End View (C202b)
Courtesy of FORD MOTOR CO.

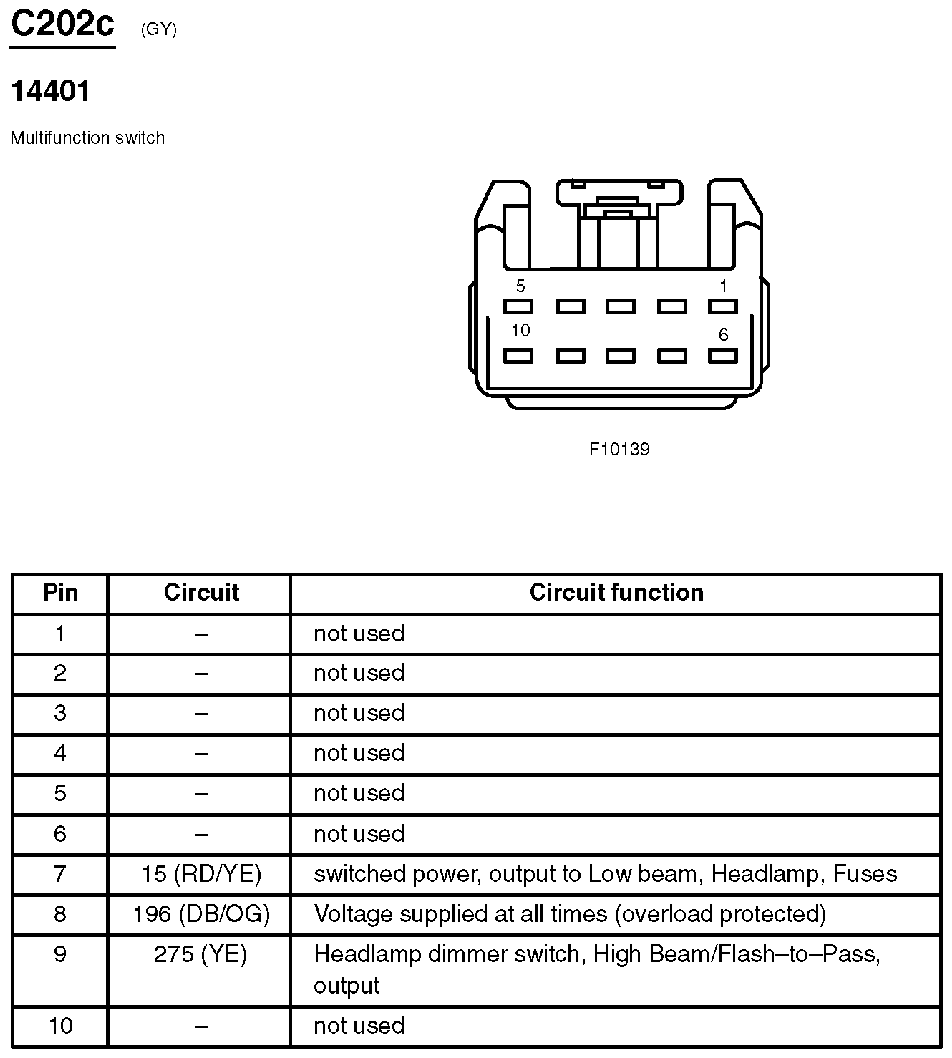

Fig 72: Multifunction Switch Connector End View (C202c)
Courtesy of FORD MOTOR CO.

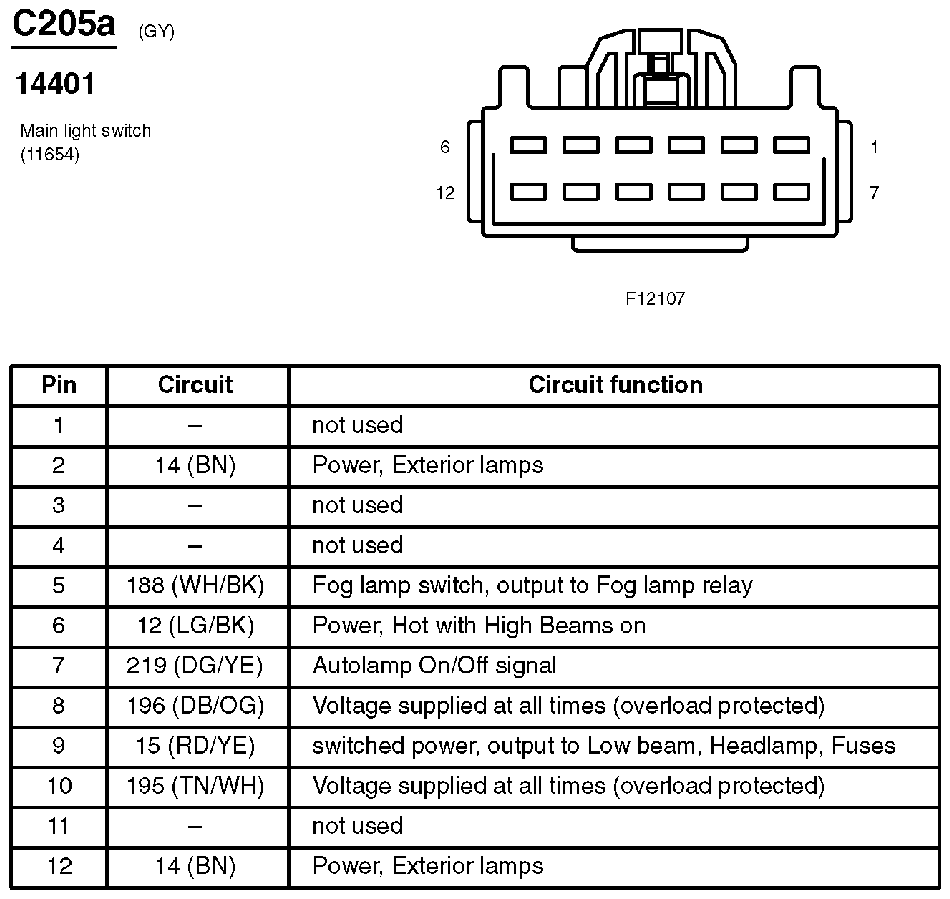

Fig 73: Main Light Switch Connector End View (C205a)
Courtesy of FORD MOTOR CO.

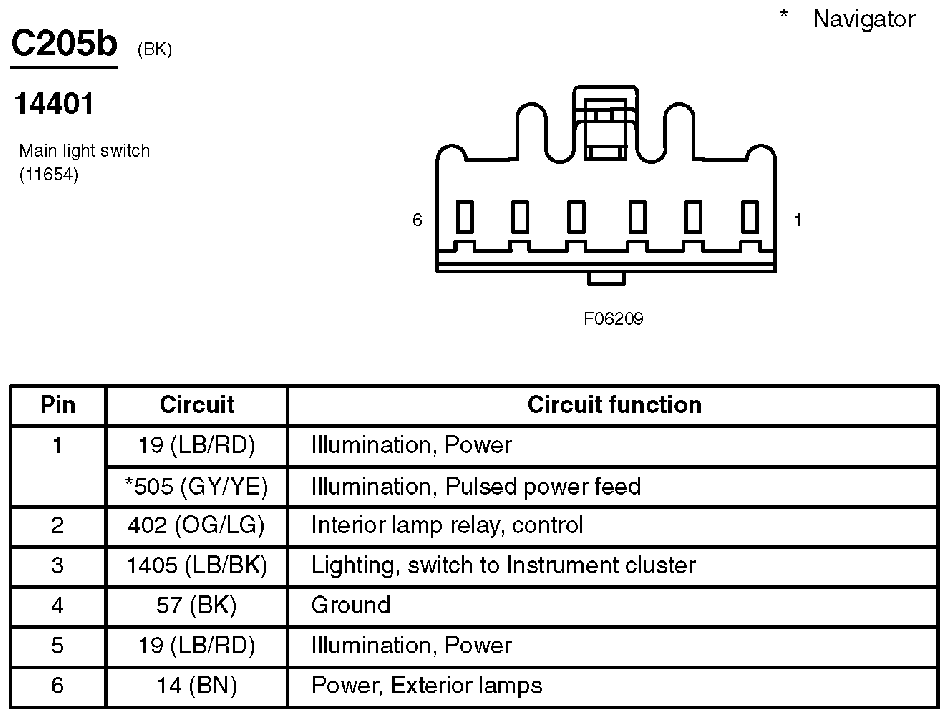

Fig 74: Main Light Switch Connector End View (C205b)
Courtesy of FORD MOTOR CO.

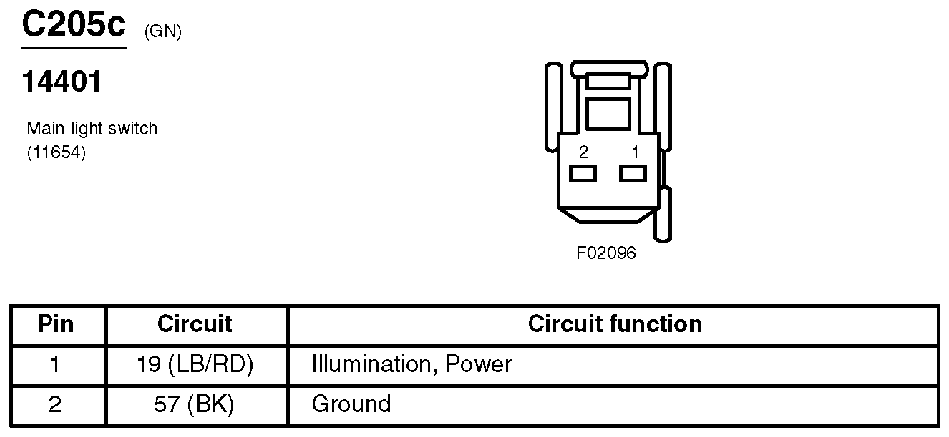

Fig 75: Main Light Switch Connector End View (C205c)
Courtesy of FORD MOTOR CO.

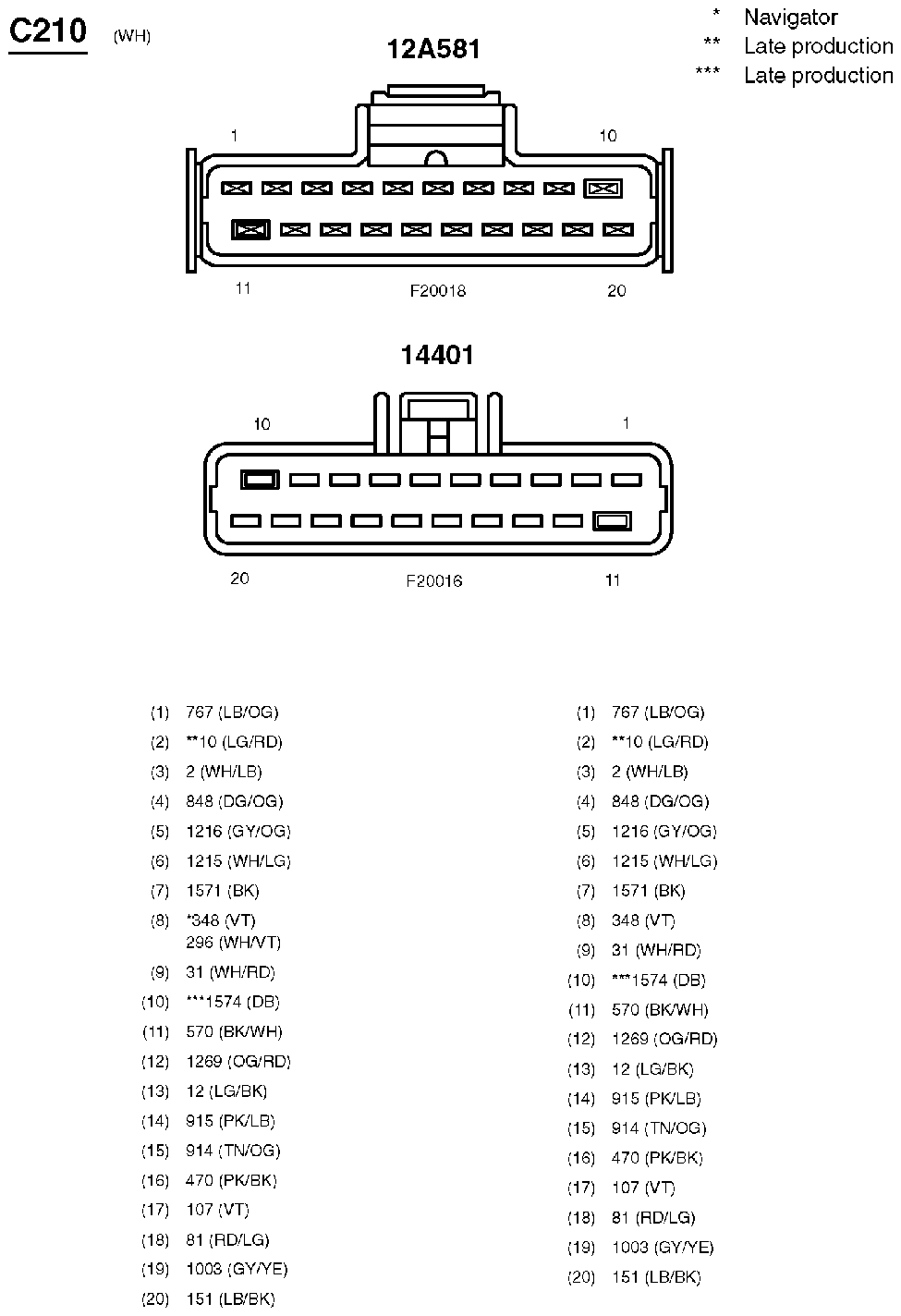

Fig 76: Inline Connector End View (C210)
Courtesy of FORD MOTOR CO.

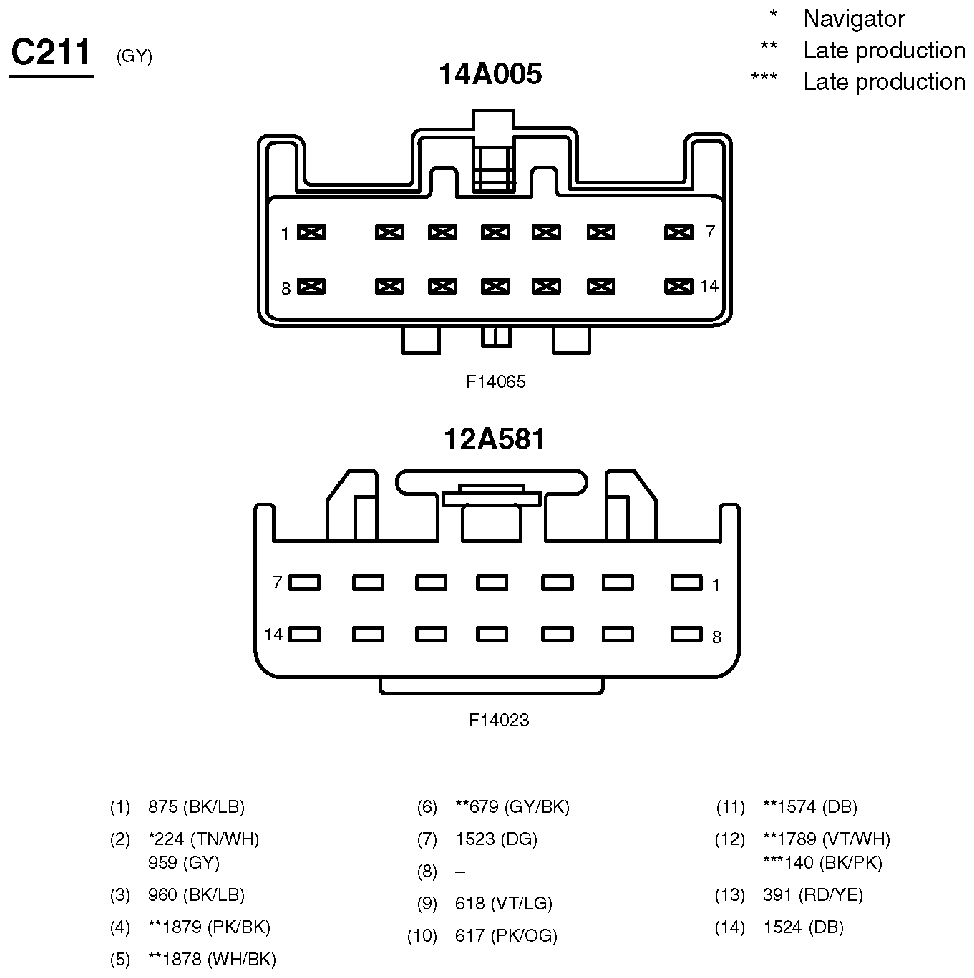

Fig 77: Inline Connector End View (C211)
Courtesy of FORD MOTOR CO.

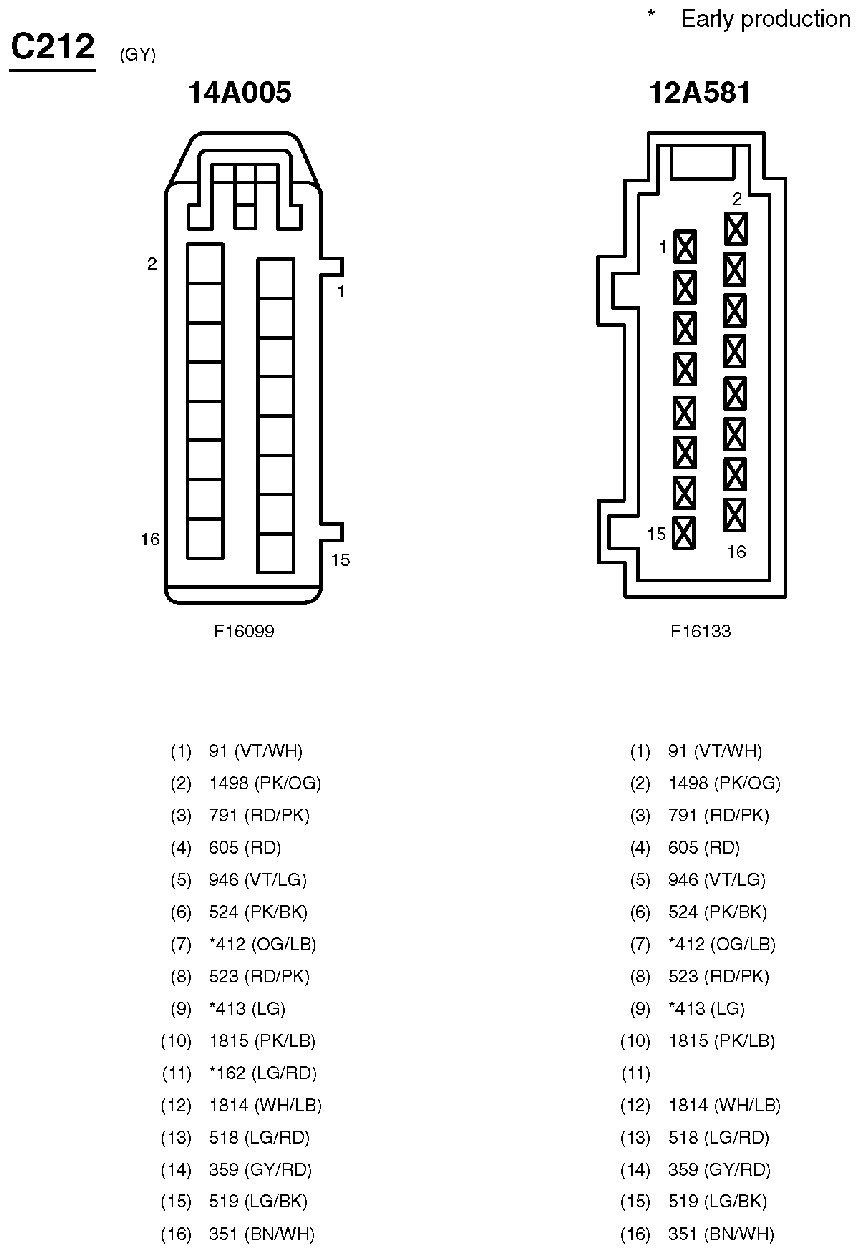

Fig 78: Inline Connector End View (C212)
Courtesy of FORD MOTOR CO.

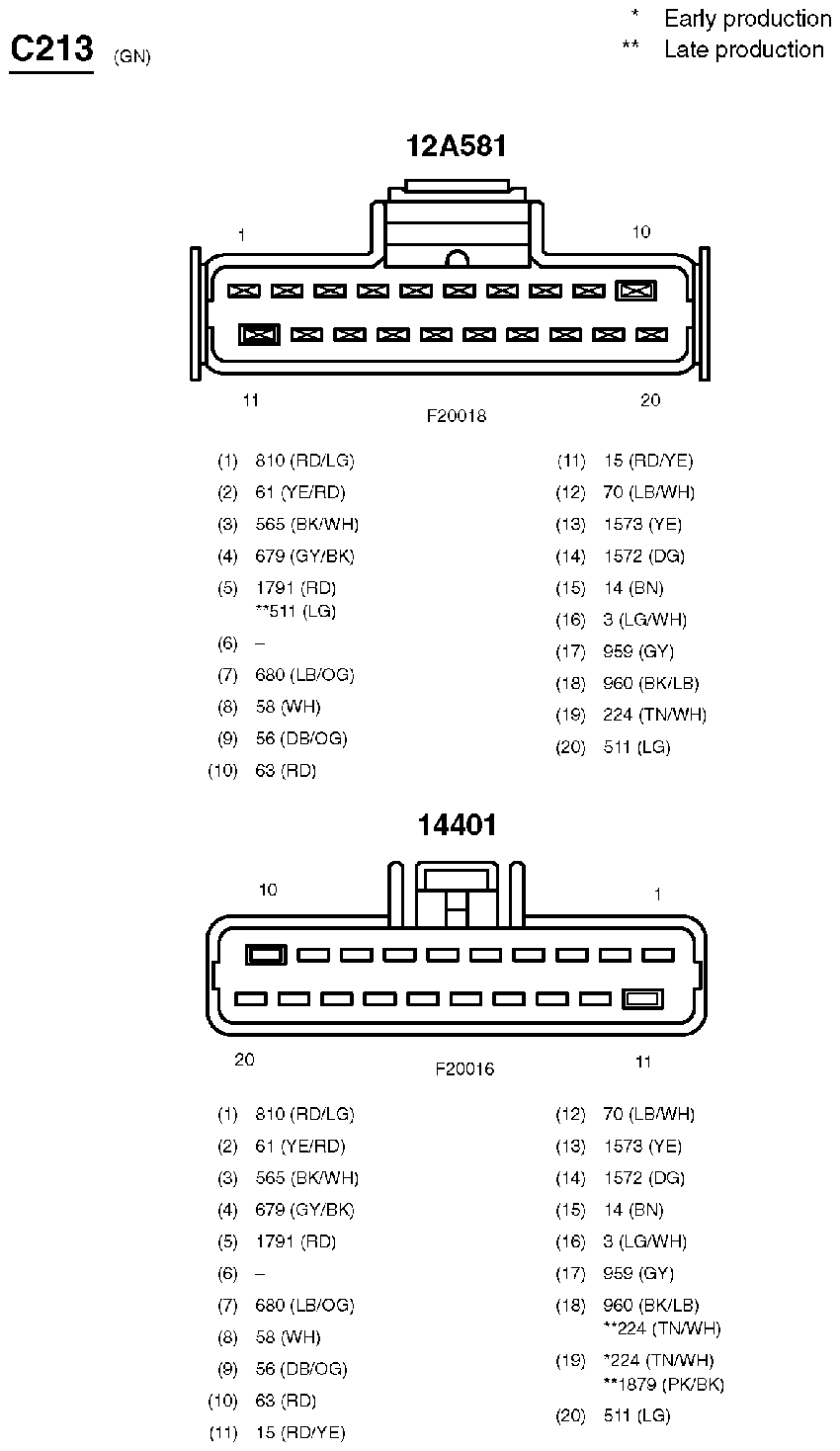

Fig 79: Inline Connector End View (C213)
Courtesy of FORD MOTOR CO.

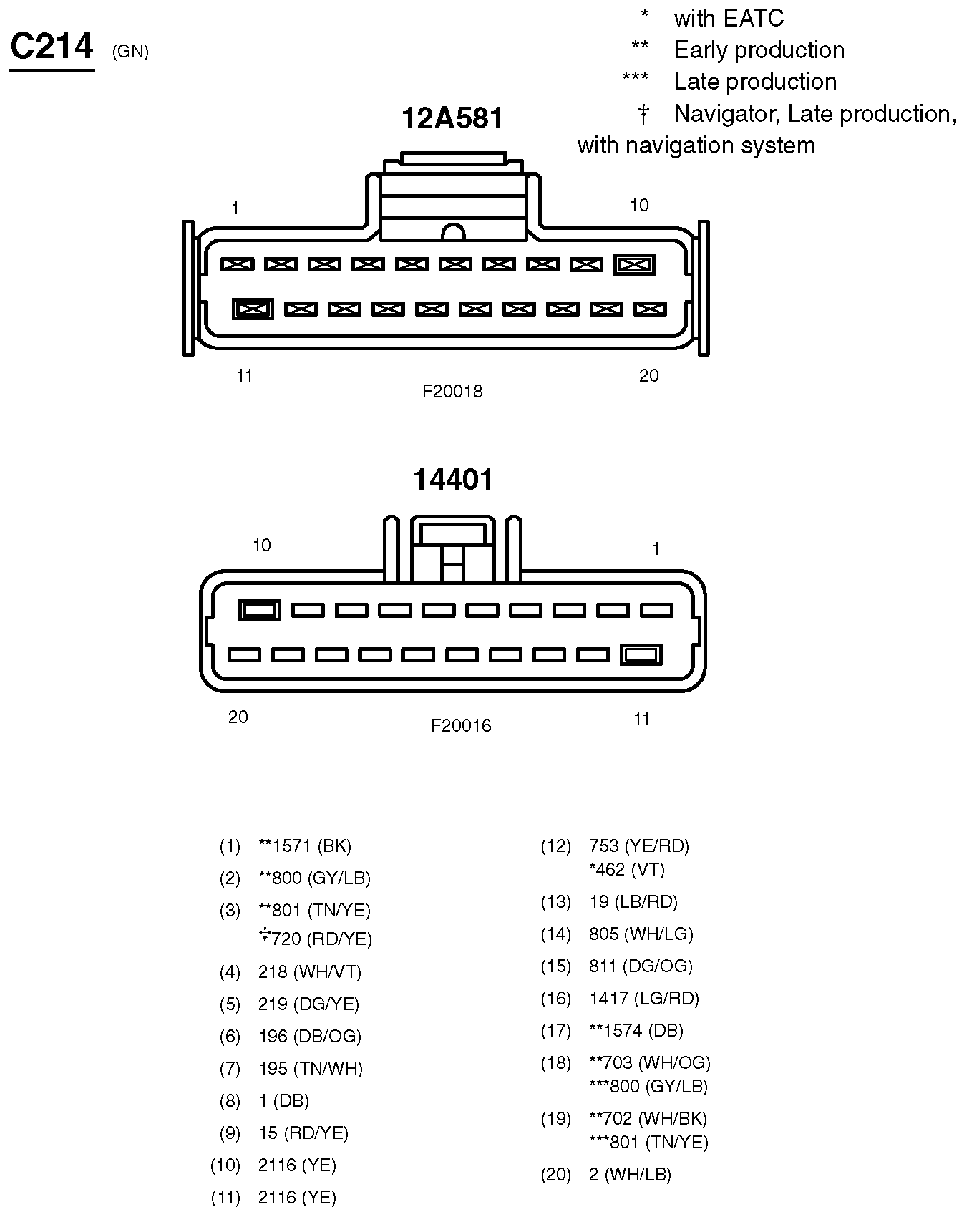

Fig 80: Inline Connector End View (C214)
Courtesy of FORD MOTOR CO.

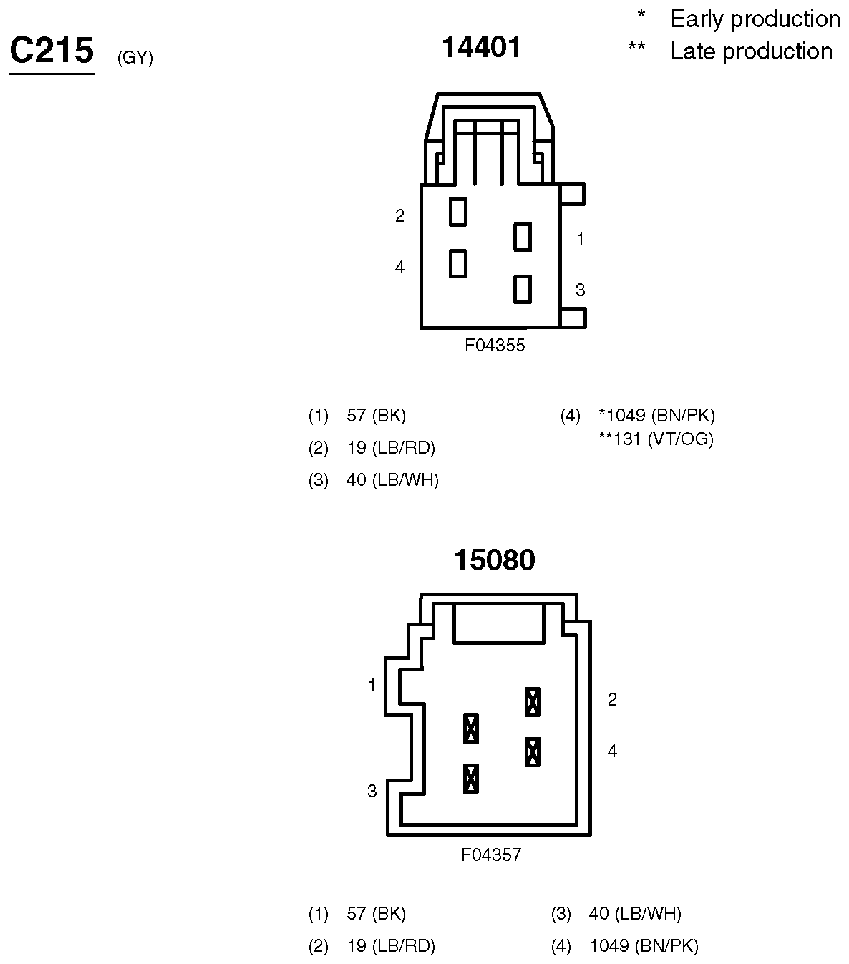

Fig 81: Inline Connector End View (C215)
Courtesy of FORD MOTOR CO.

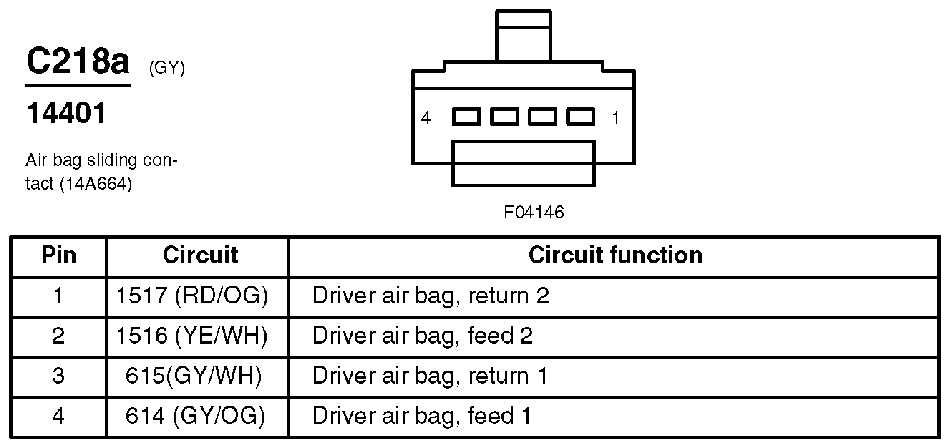

Fig 82: Air Bag Sliding Contact Connector End View (C218a)
Courtesy of FORD MOTOR CO.

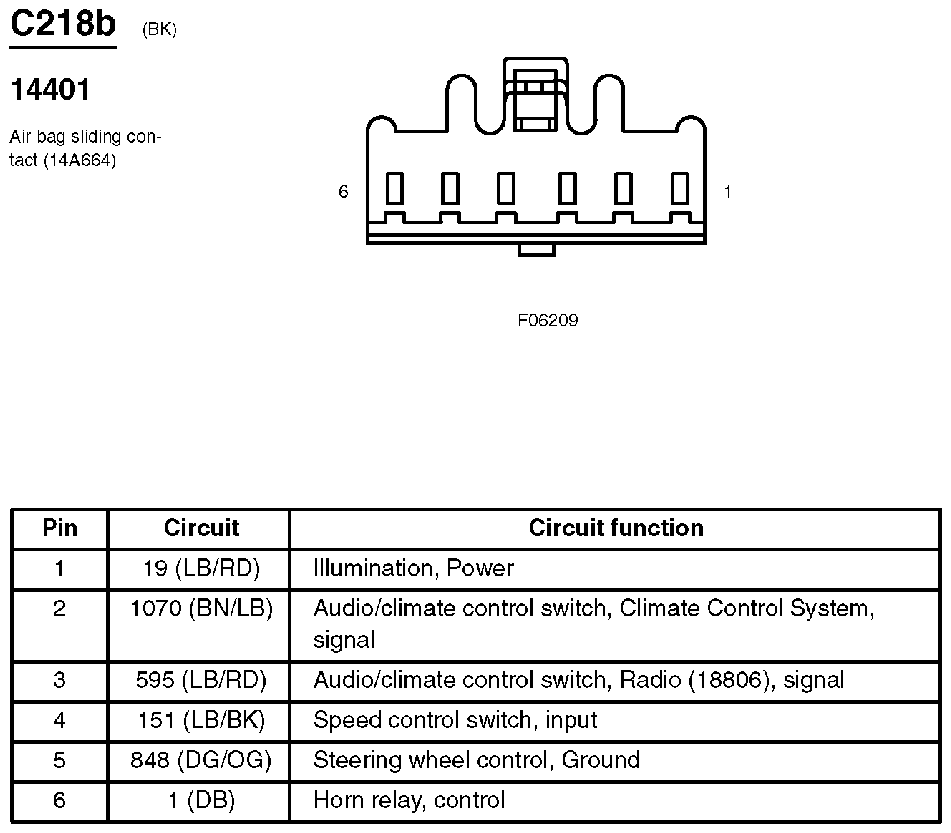

Fig 83: Air Bag Sliding Contact Connector End View (C218b)
Courtesy of FORD MOTOR CO.

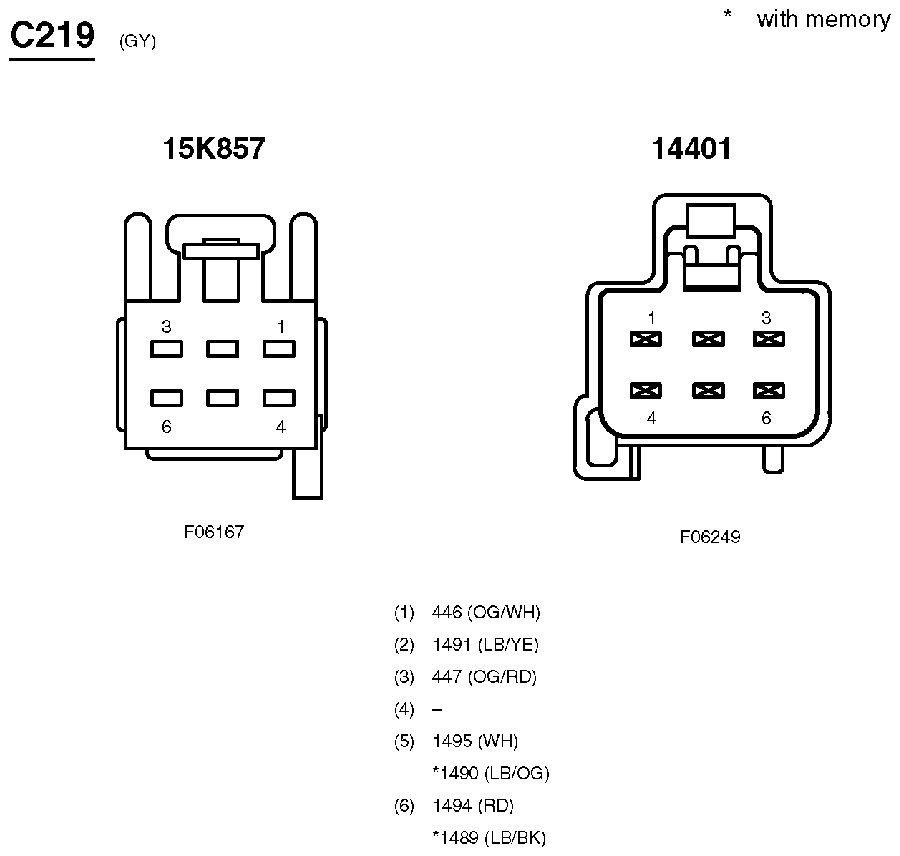

Fig 84: Inline Connector End View (C219)
Courtesy of FORD MOTOR CO.

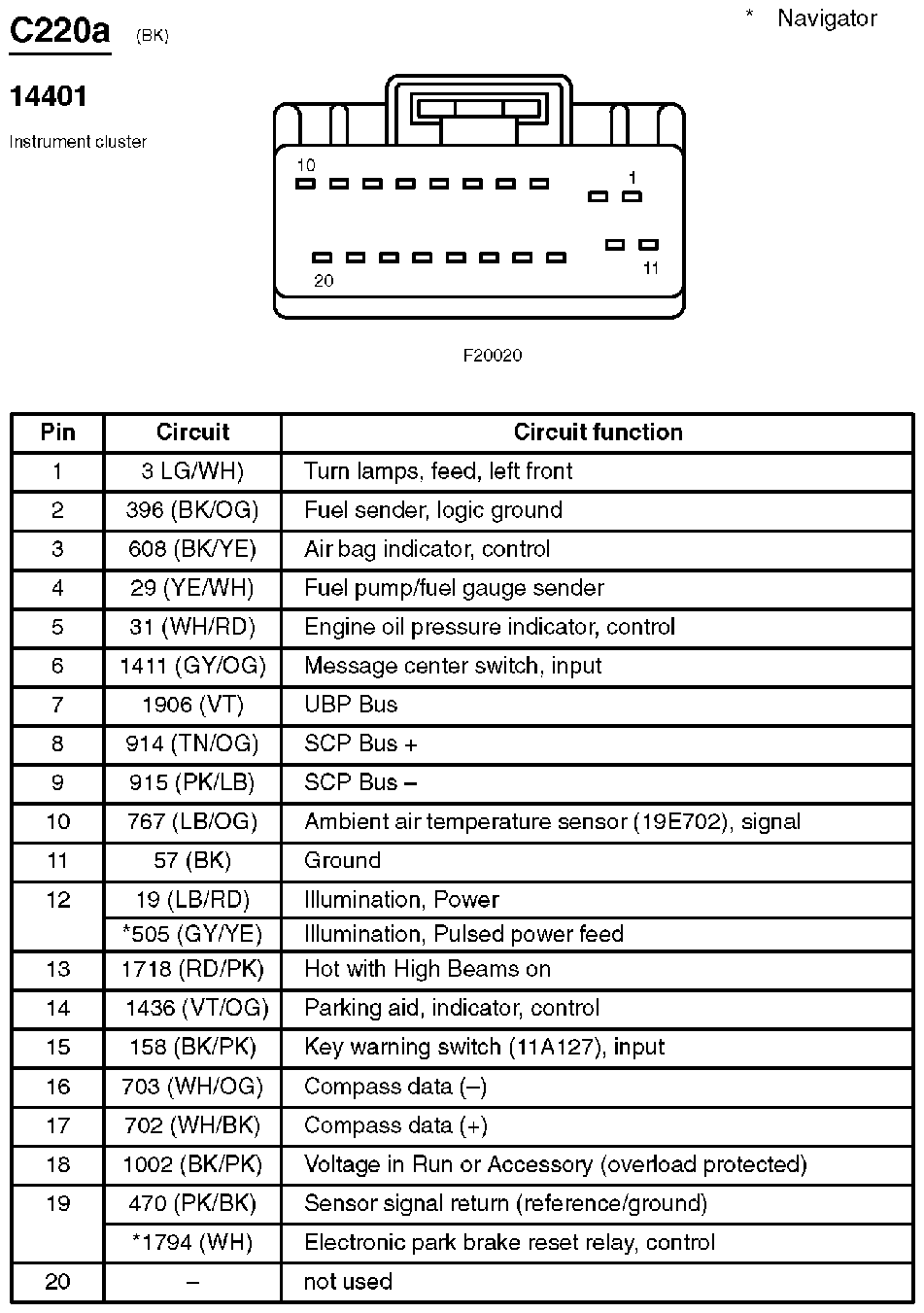

Fig 85: Instrument Cluster Connector End View (C220a)
Courtesy of FORD MOTOR CO.

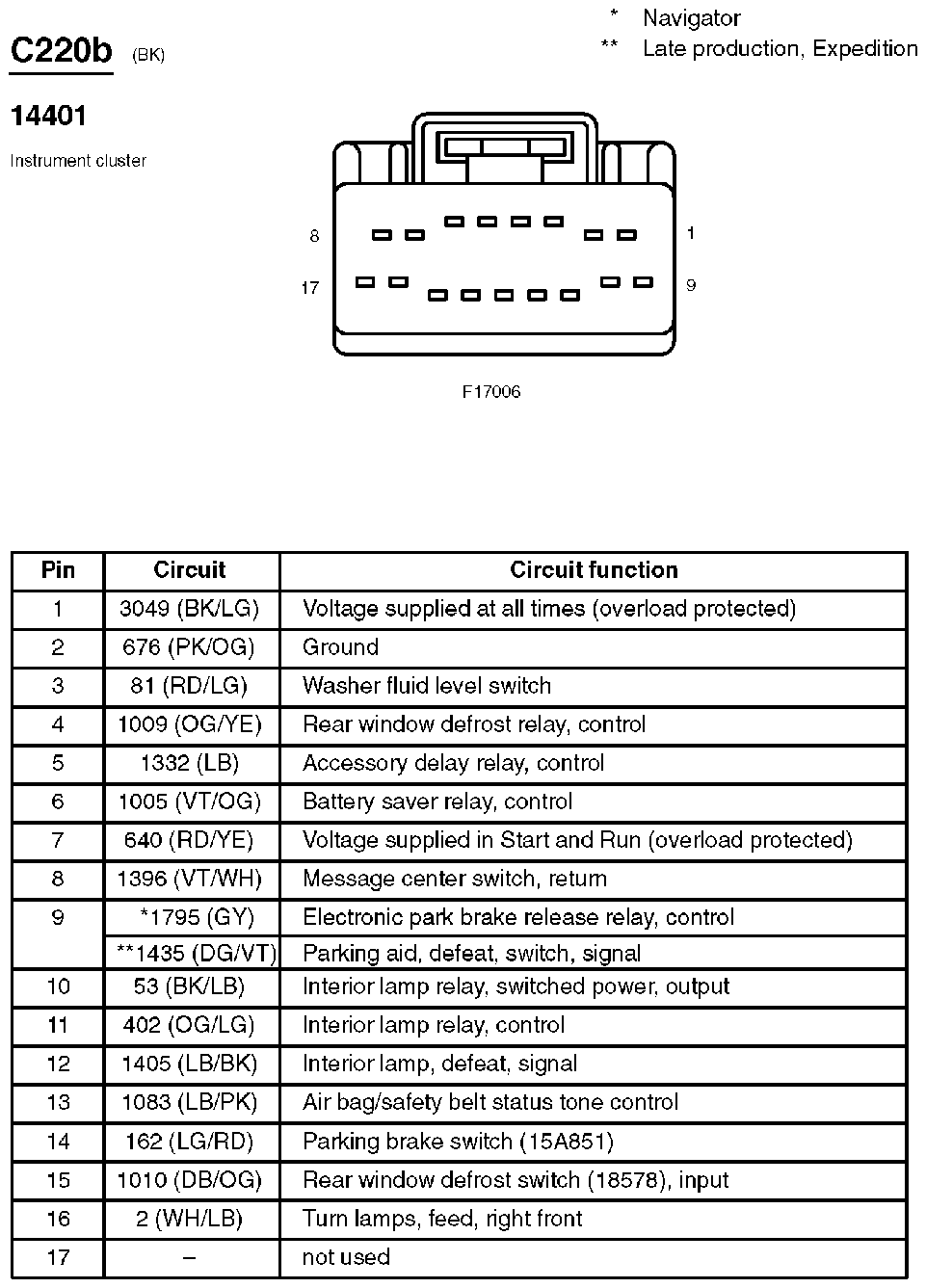

Fig 86: Instrument Cluster Connector End View (C220b)
Courtesy of FORD MOTOR CO.

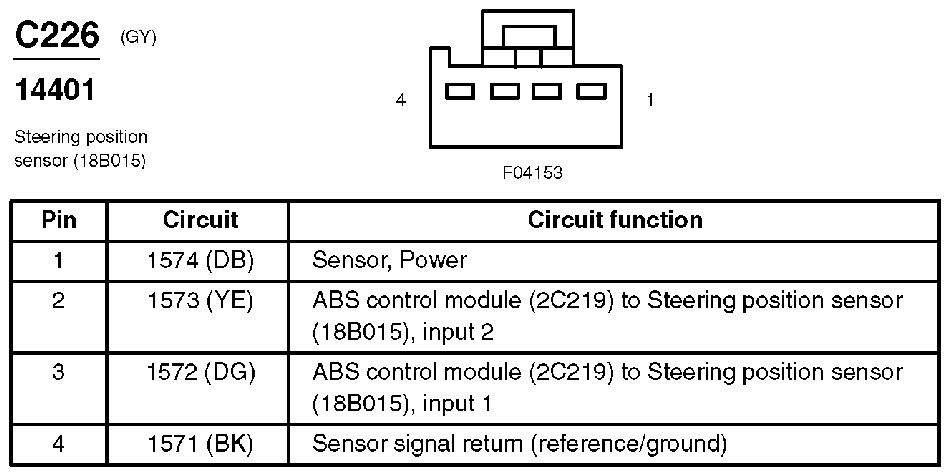

Fig 87: Steering Position Sensor Connector End View (C226)
Courtesy of FORD MOTOR CO.
Fig 88: Electronic Automatic Temperature Control (EATC) Module Connector End View (C228a)
Courtesy of FORD MOTOR CO.

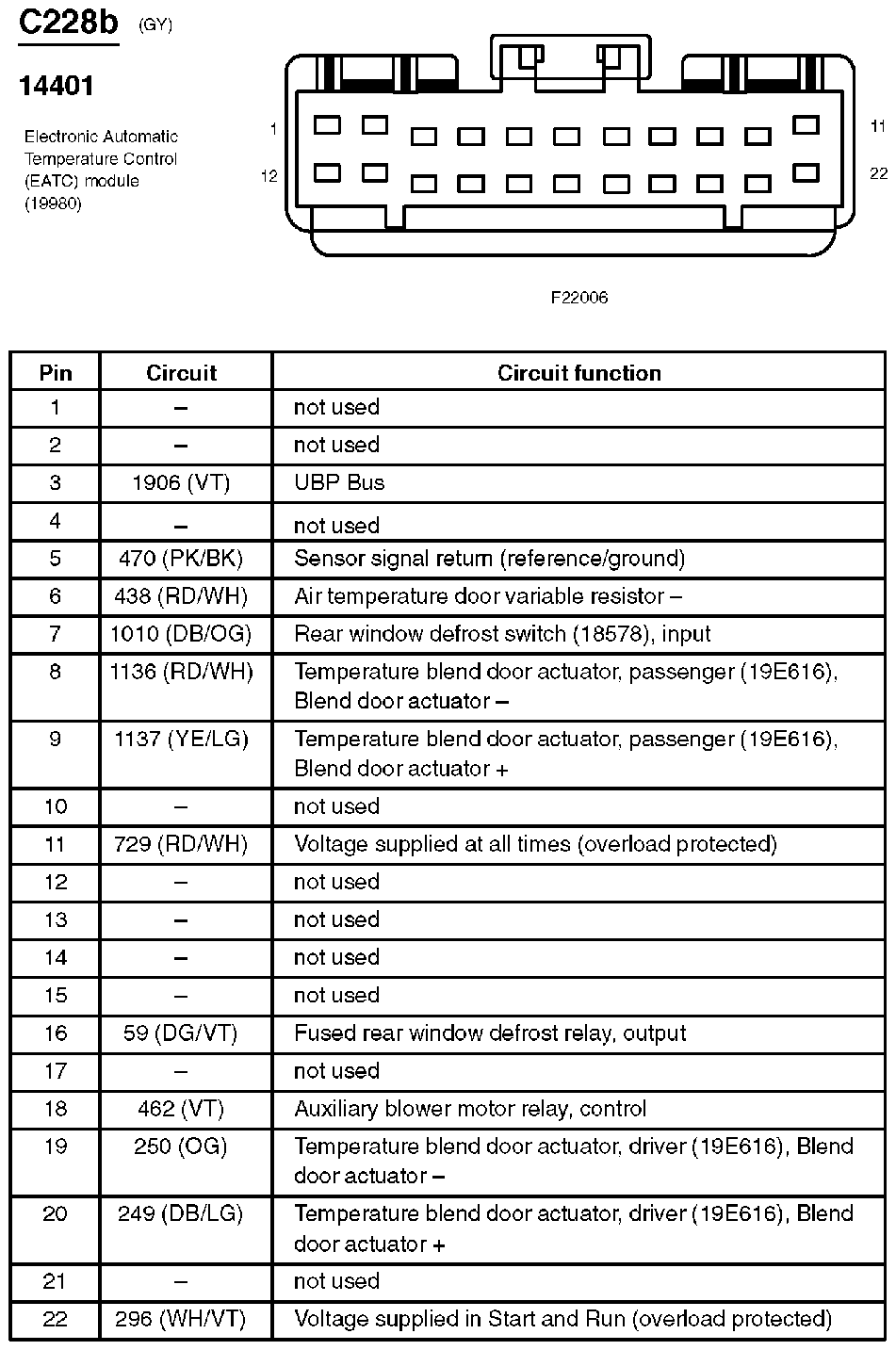

Fig 89: Electronic Automatic Temperature Control (EATC) Module Connector End View (C228b)
Courtesy of FORD MOTOR CO.

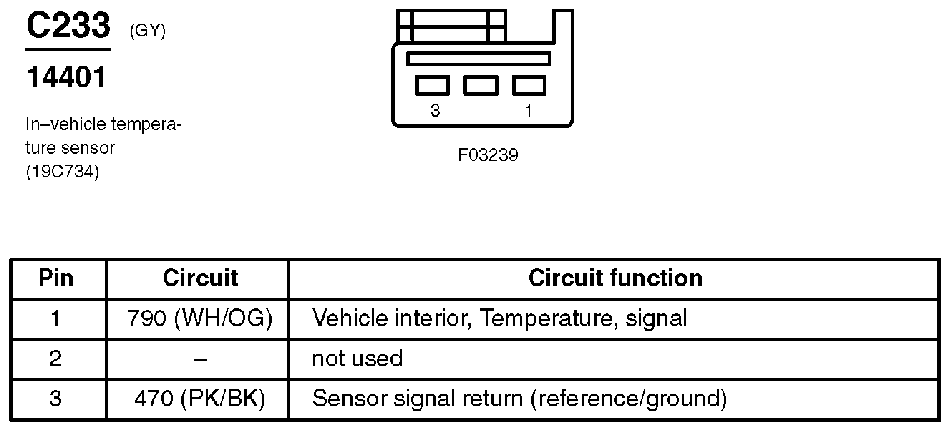

Fig 90: In-Vehicle Temperature Sensor Connector End View (C233)
Courtesy of FORD MOTOR CO.

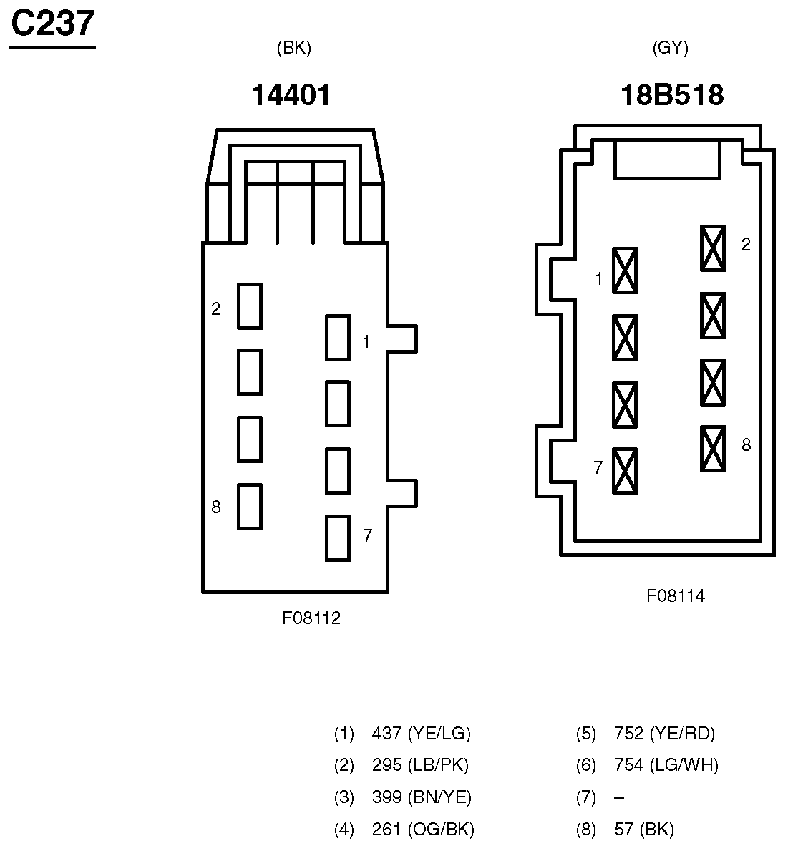

Fig 91: Inline Connector End View (C237)
Courtesy of FORD MOTOR CO.

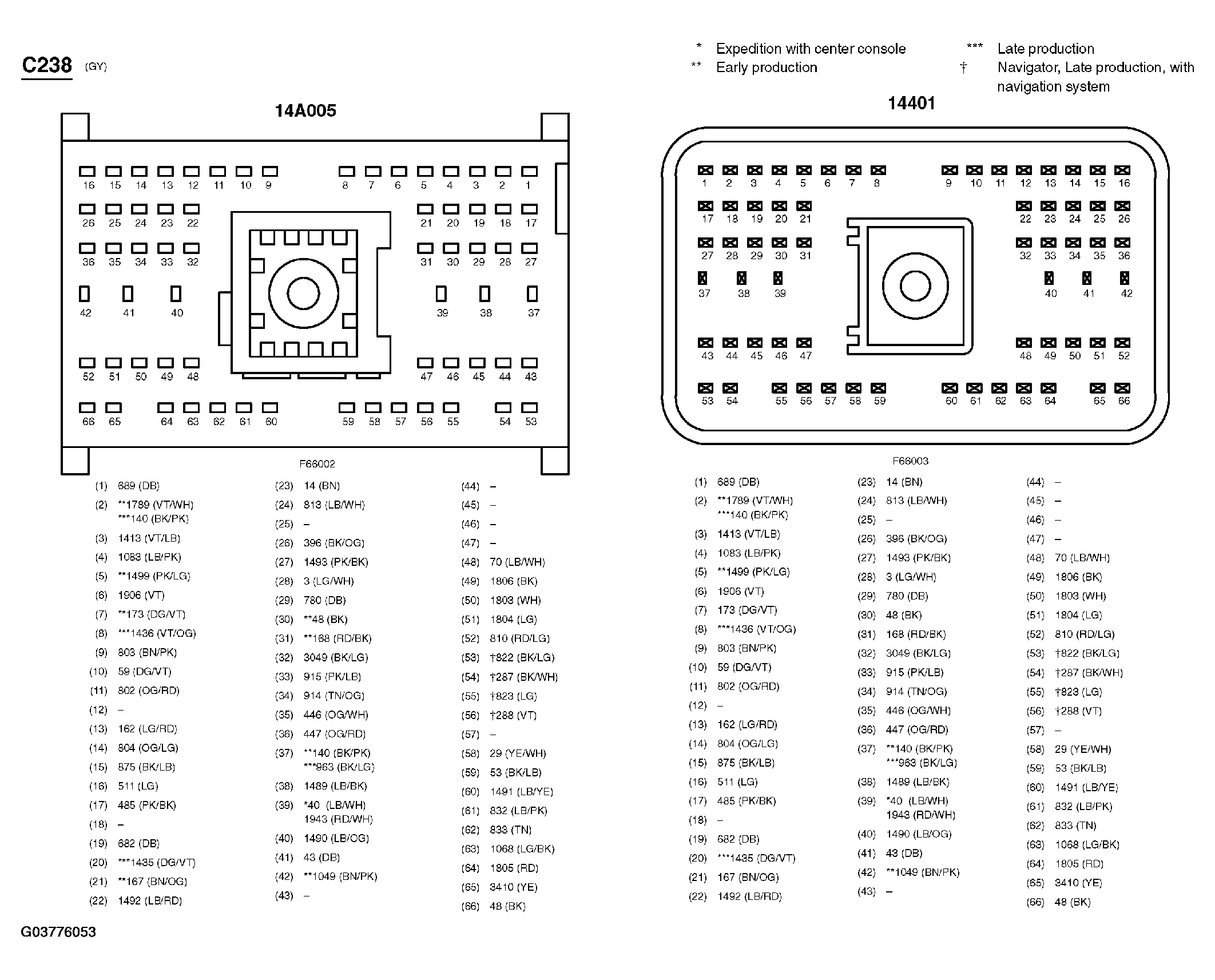

Fig 92: Inline Connector End View (C238)
Courtesy of FORD MOTOR CO.

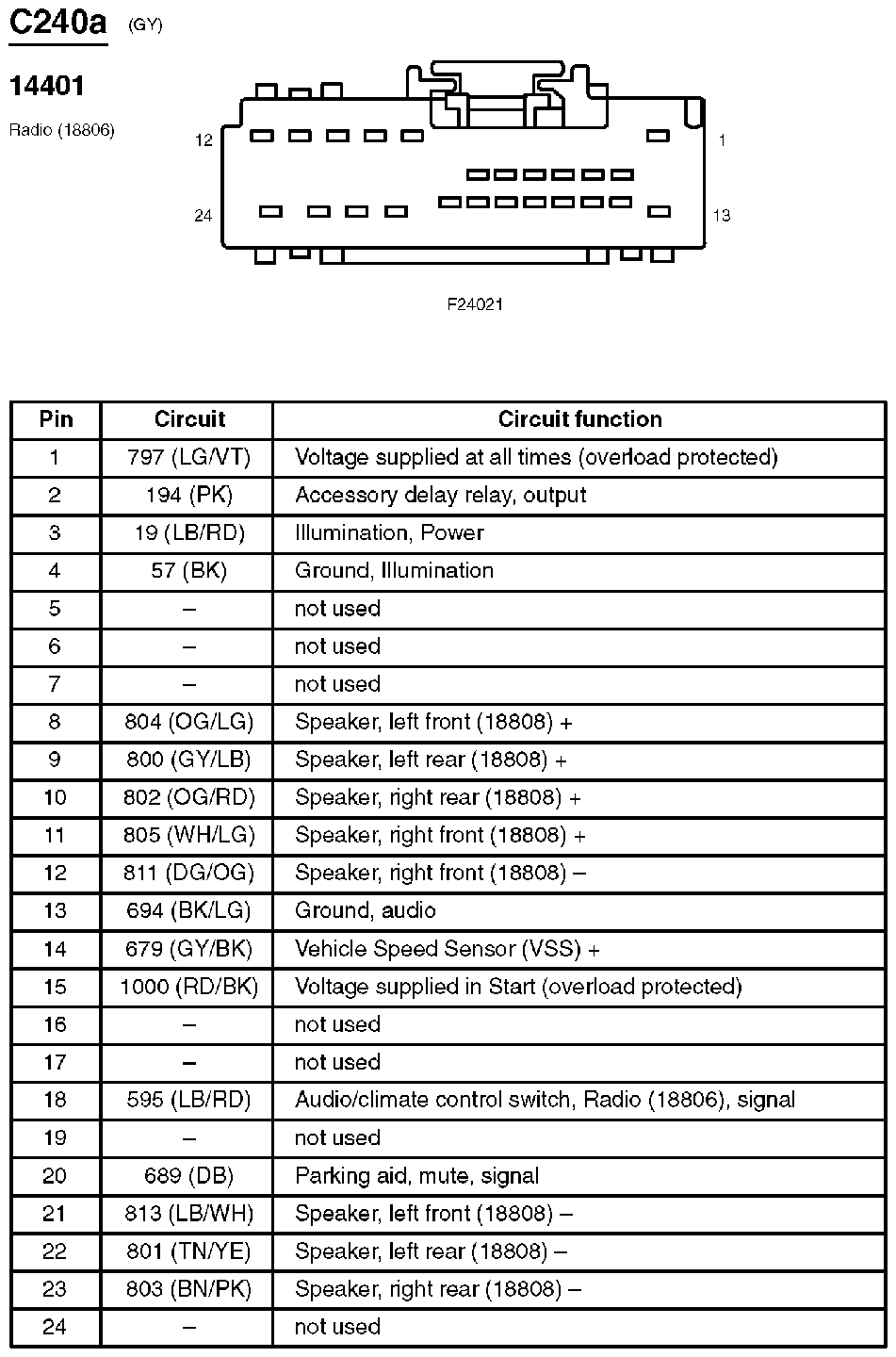

Fig 93: Radio Connector End View (C240a)
Courtesy of FORD MOTOR CO.

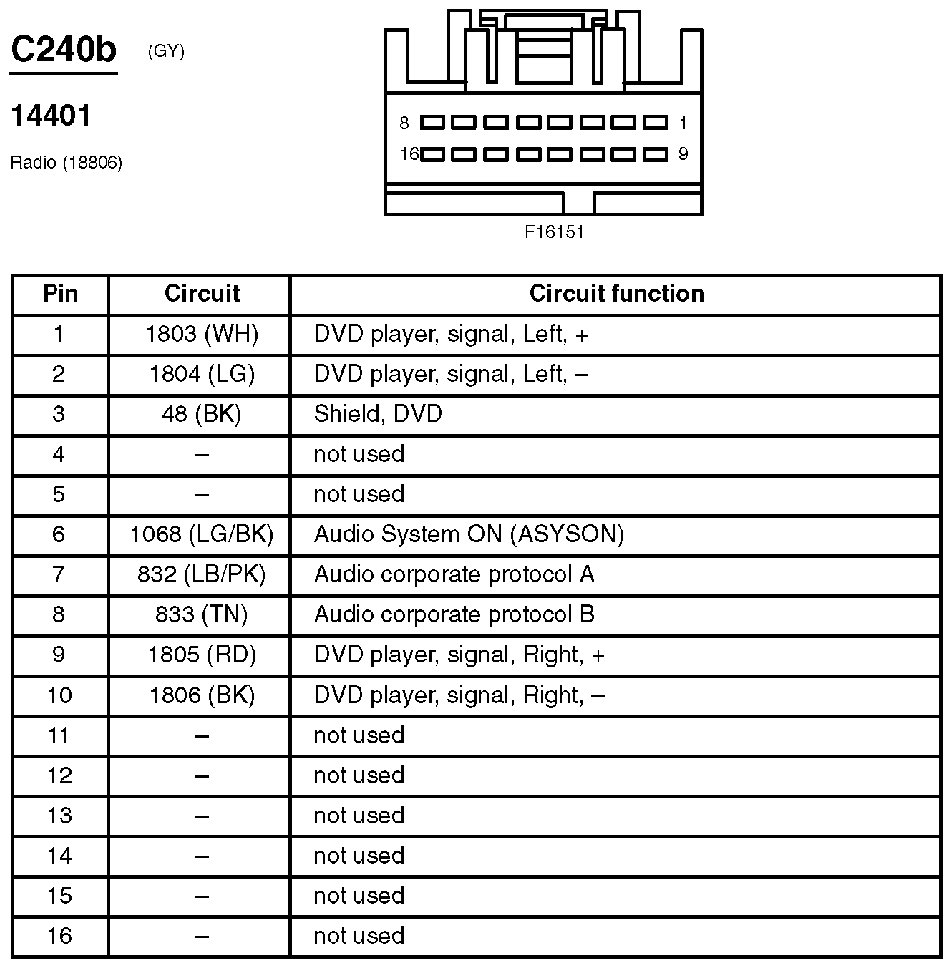

Fig 94: Radio Connector End View (C240b)
Courtesy of FORD MOTOR CO.

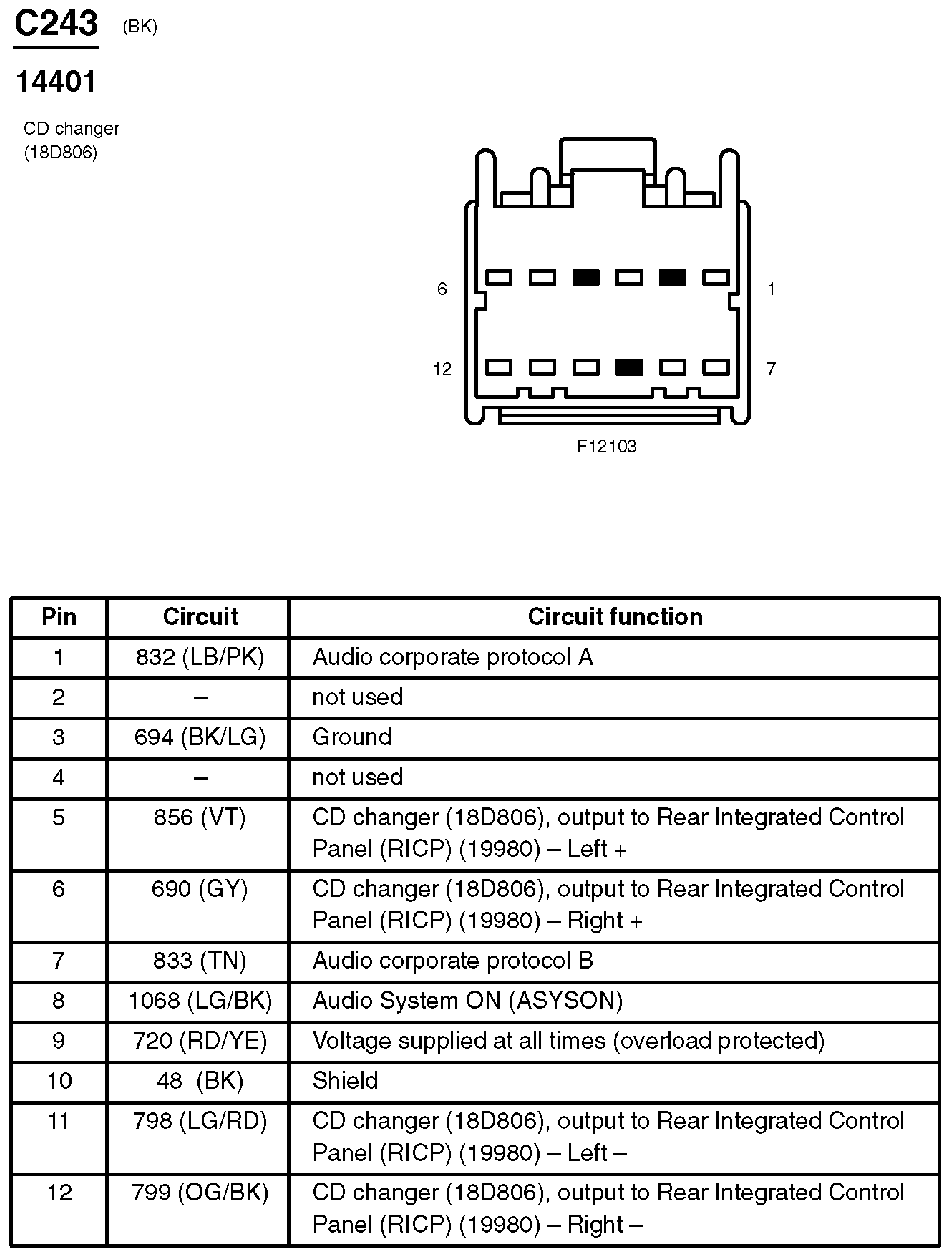

Fig 95: CD Changer Connector End View (C243)
Courtesy of FORD MOTOR CO.

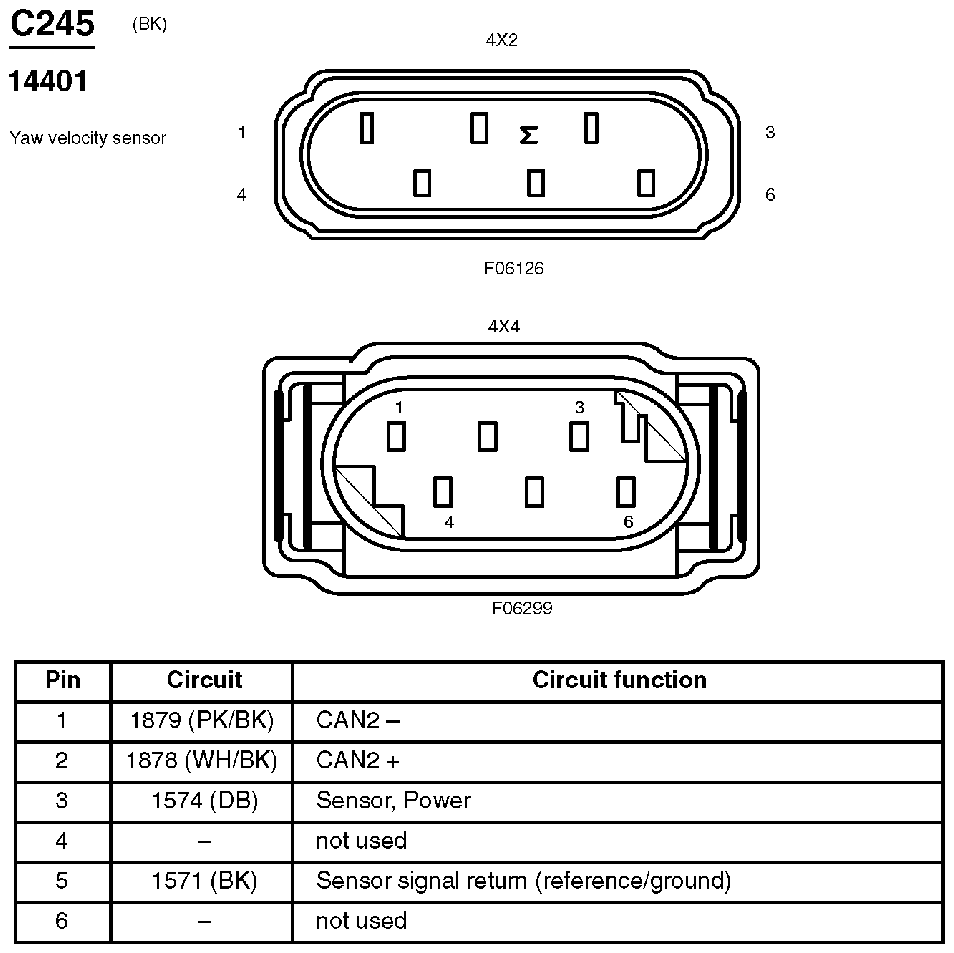

Fig 96: Yaw Velocity Sensor Connector End View (C245)
Courtesy of FORD MOTOR CO.

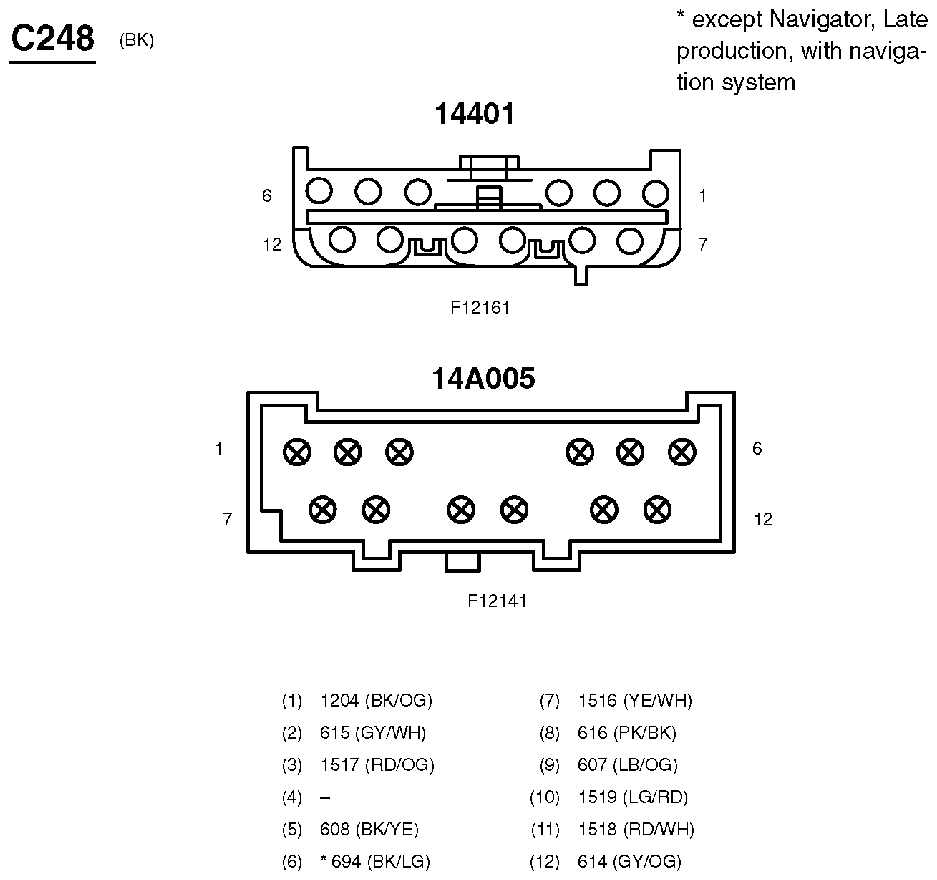

Fig 97: Inline Connector End View (C248)
Courtesy of FORD MOTOR CO.

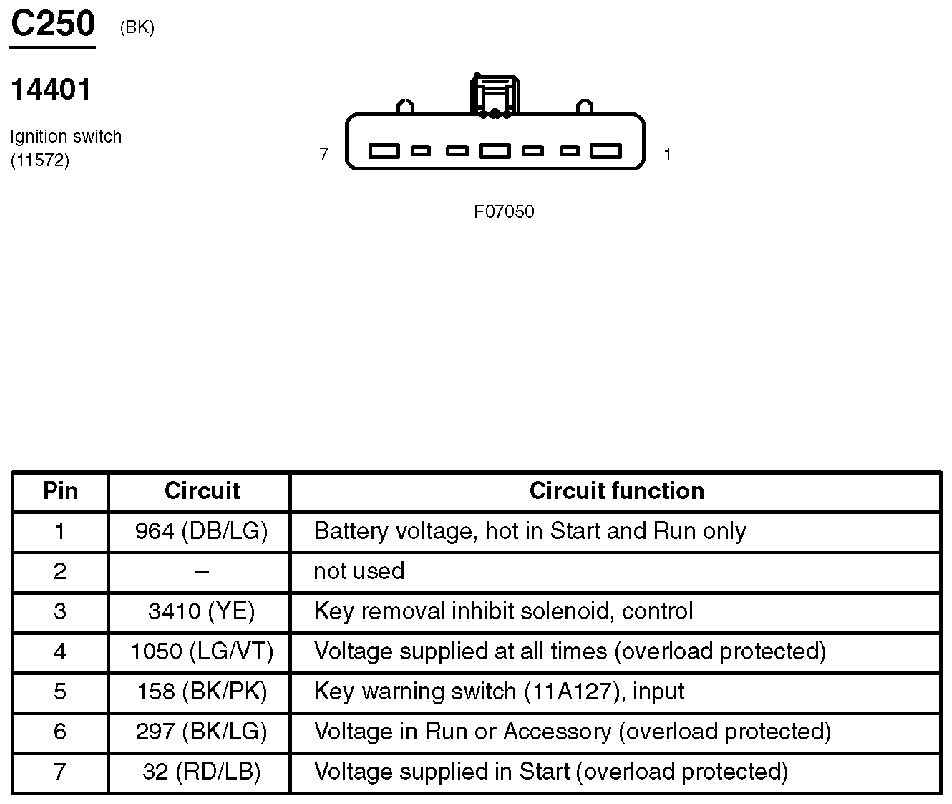

Fig 98: Ignition Switch Connector End View (C250)
Courtesy of FORD MOTOR CO.

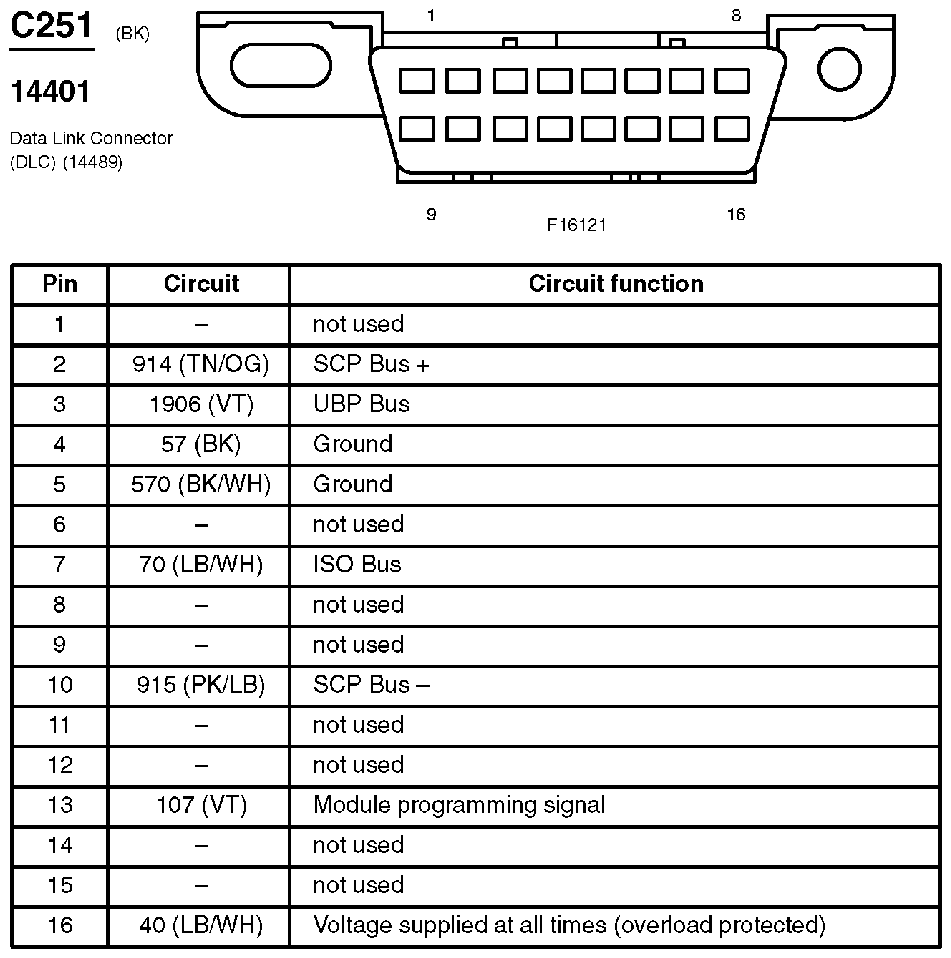

Fig 99: Data Link Connector (DLC) Connector End View (C251)
Courtesy of FORD MOTOR CO.

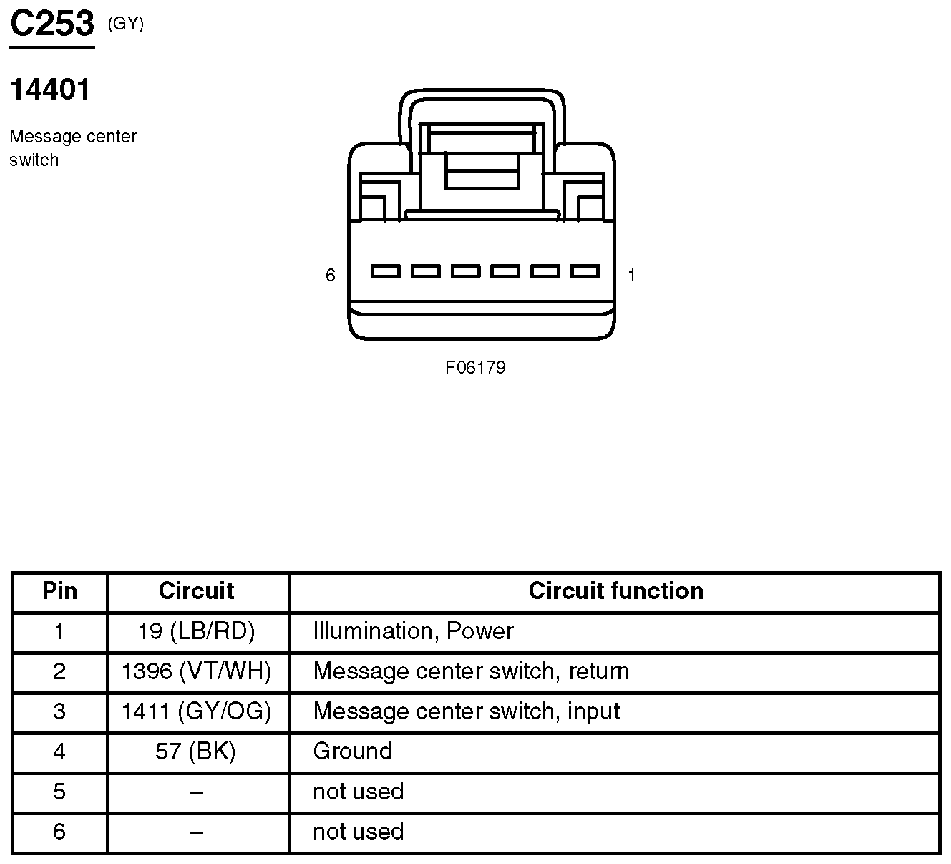

Fig 100: Message Center Switch Connector End View (C253)
Courtesy of FORD MOTOR CO.

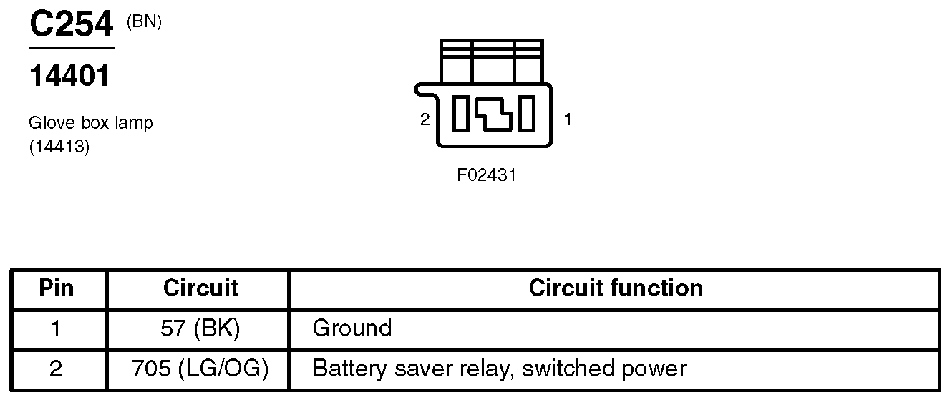

Fig 101: Glove Box Lamp Connector End View (C254)
Courtesy of FORD MOTOR CO.

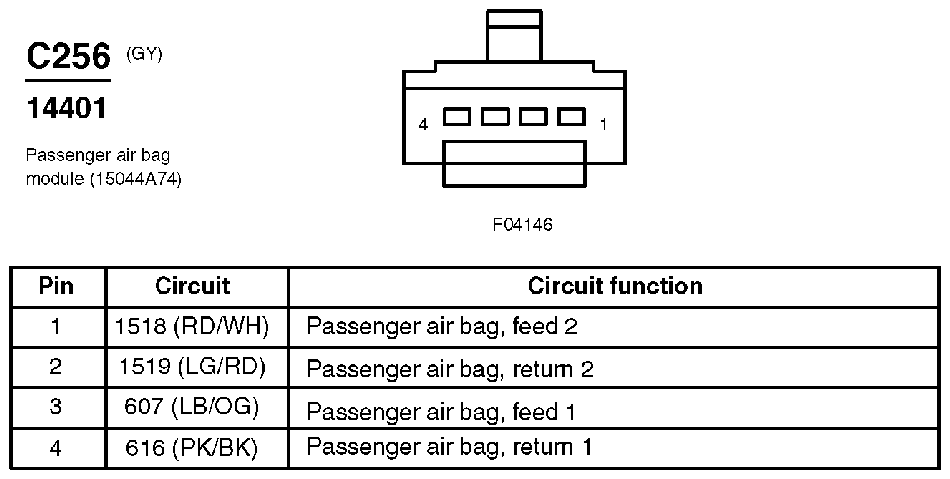

Fig 102: Passenger Air Bag Module Connector End View (C256)
Courtesy of FORD MOTOR CO.

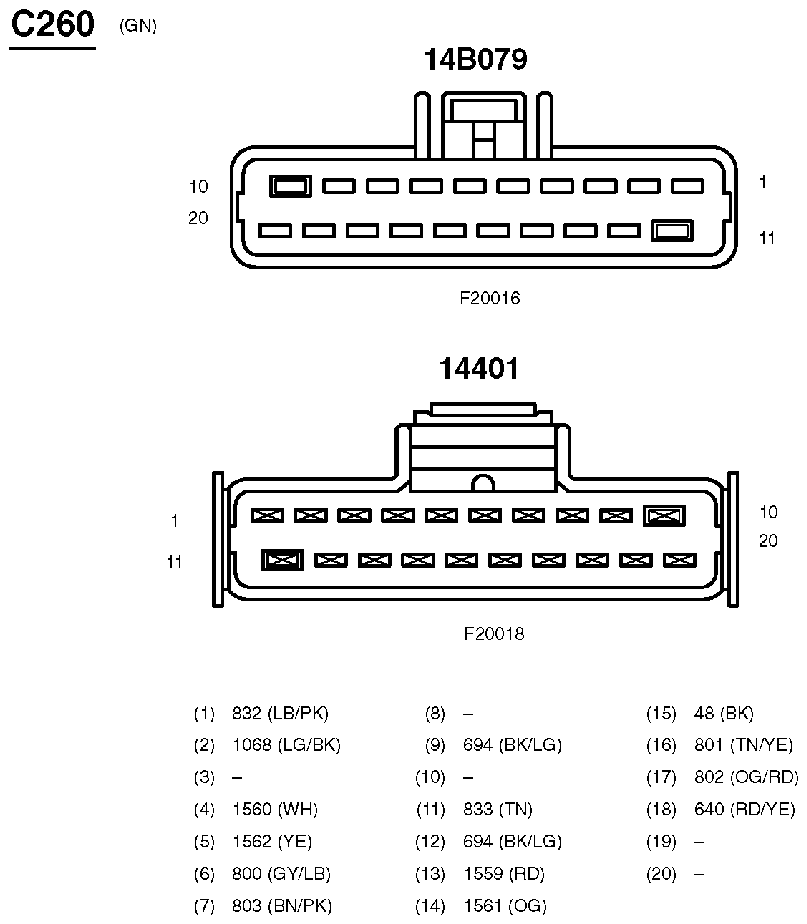

Fig 103: Inline Connector End View (C260)
Courtesy of FORD MOTOR CO.

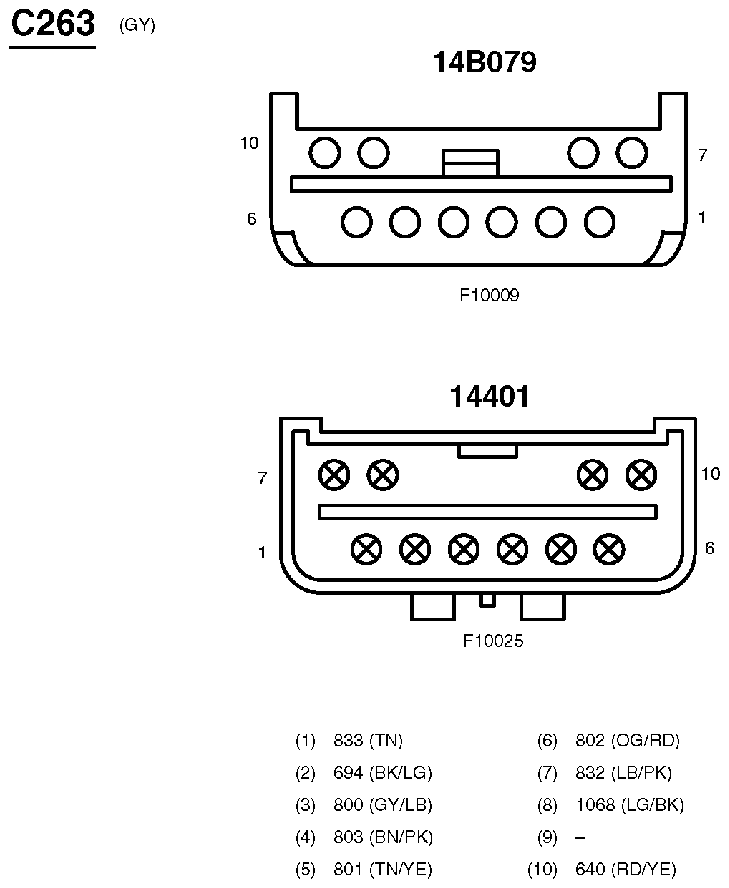

Fig 104: Inline Connector End View (C263)
Courtesy of FORD MOTOR CO.

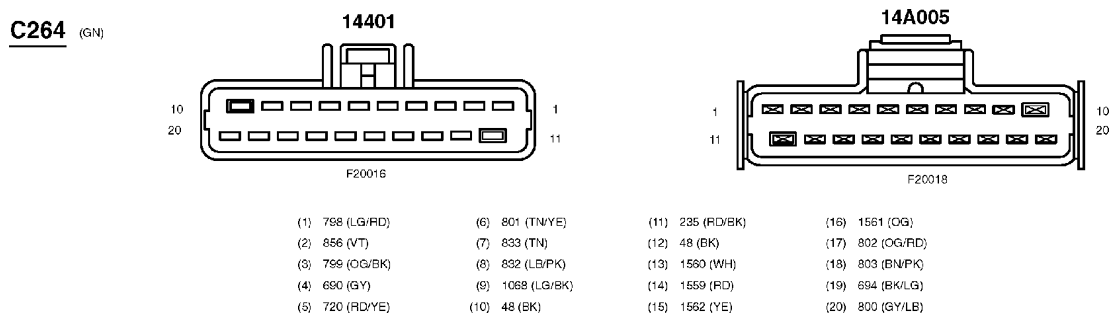

Fig 105: Inline Connector End View (C264)
Courtesy of FORD MOTOR CO.

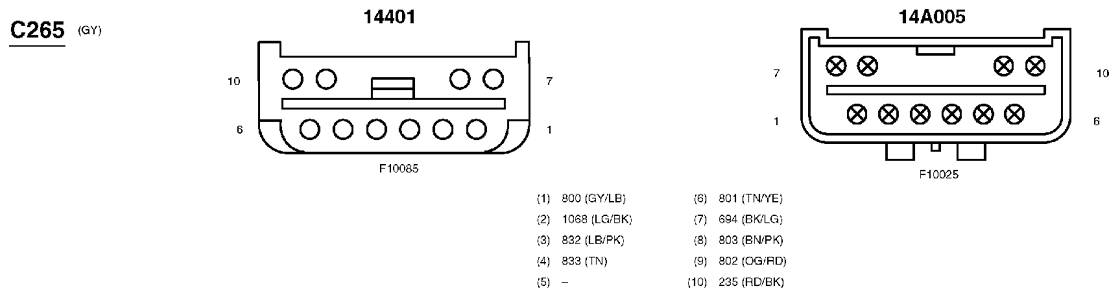

Fig 106: Inline Connector End View (C265)
Courtesy of FORD MOTOR CO.

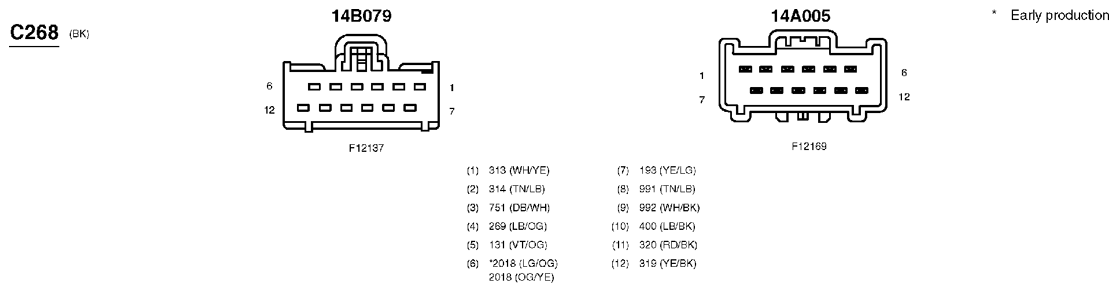

Fig 107: Inline Connector End View (C268)
Courtesy of FORD MOTOR CO.

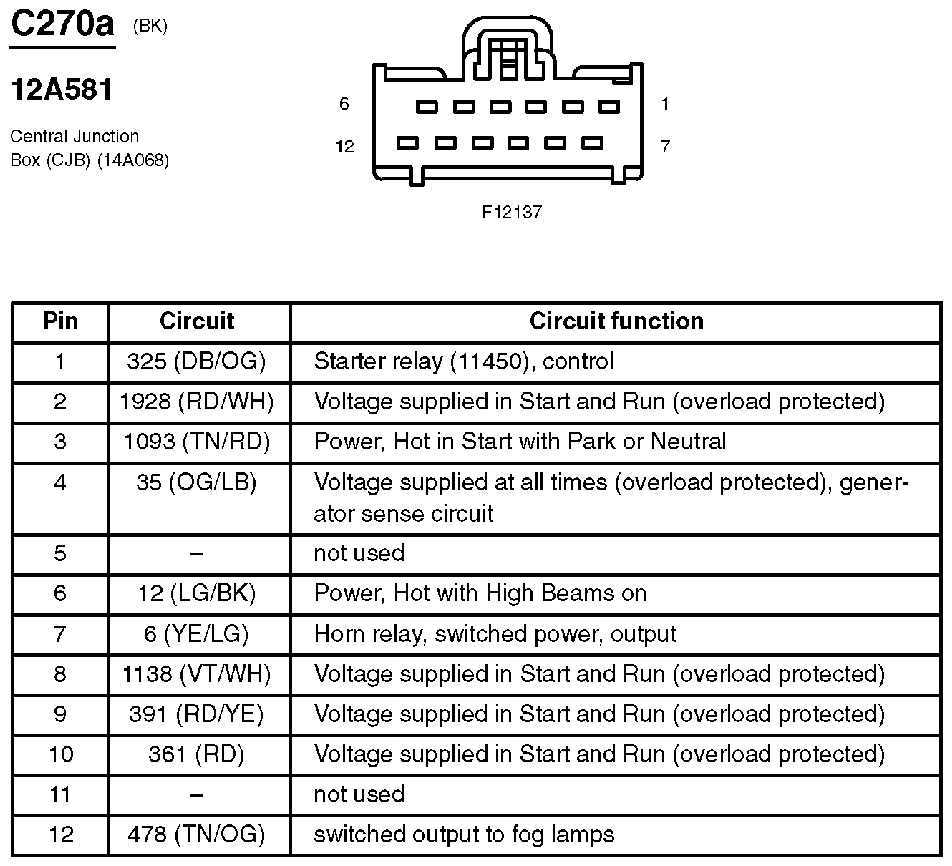

Fig 108: Central Junction Box (CJB) Connector End View (C270a)
Courtesy of FORD MOTOR CO.

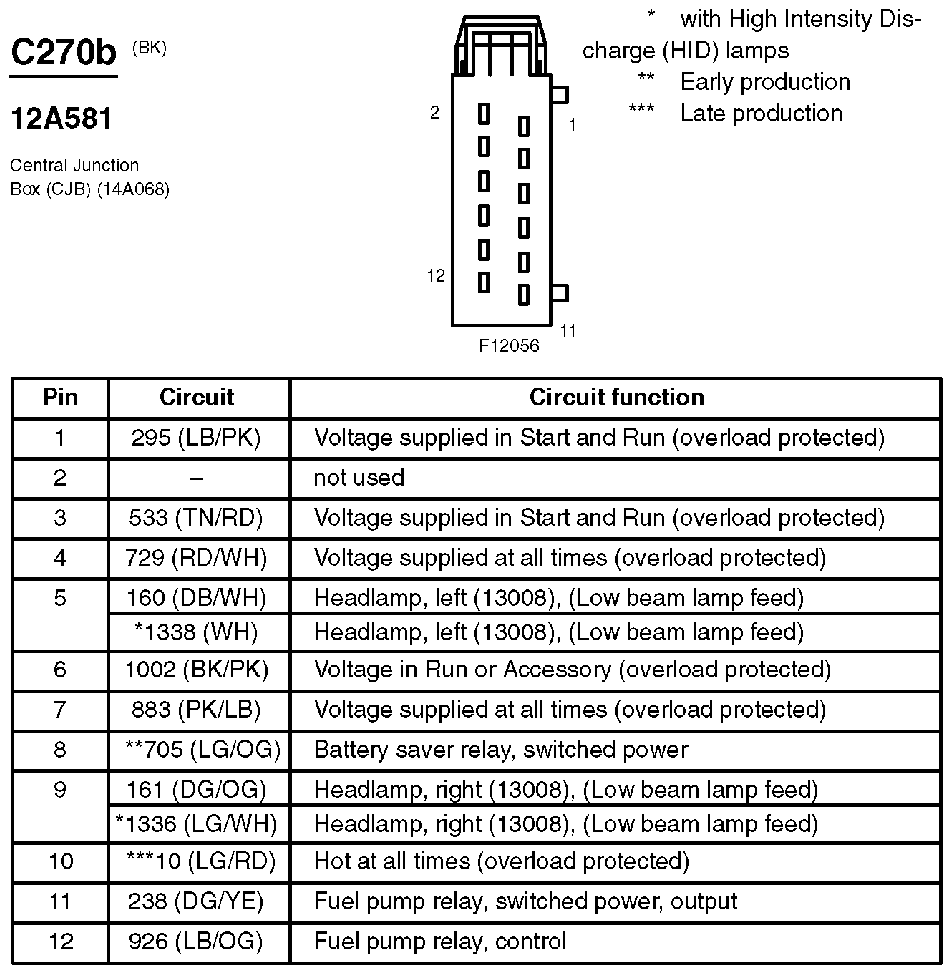

Fig 109: Central Junction Box (CJB) Connector End View (C270b)
Courtesy of FORD MOTOR CO.

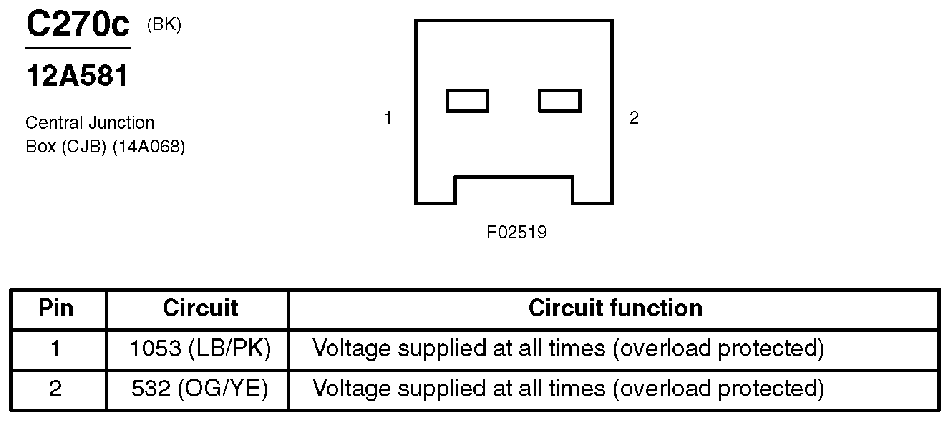

Fig 110: Central Junction Box (CJB) Connector End View (C270c)
Courtesy of FORD MOTOR CO.

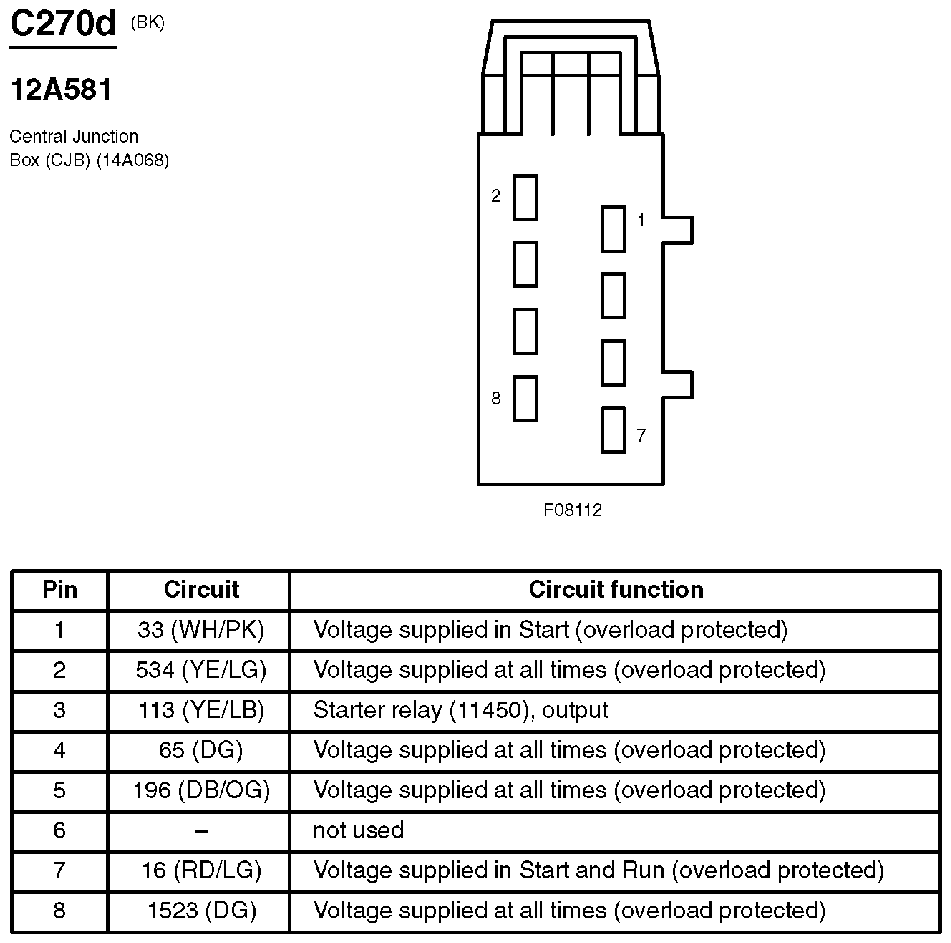

Fig 111: Central Junction Box (CJB) Connector End View (C270d)
Courtesy of FORD MOTOR CO.

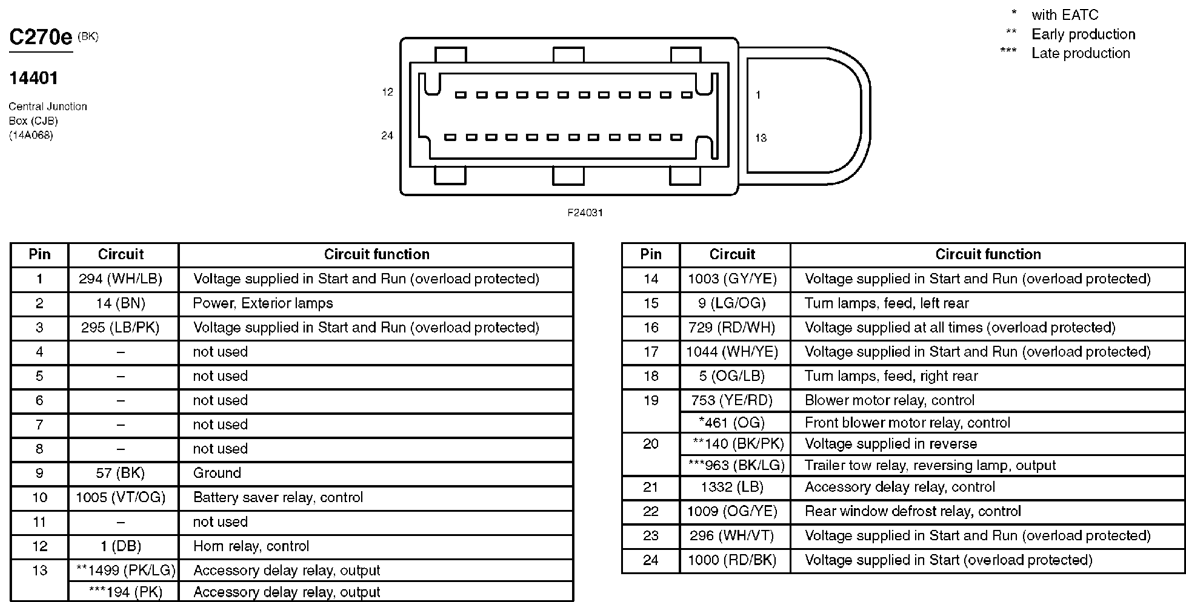

Fig 112: Central Junction Box (CJB) Connector End View (C270e)
Courtesy of FORD MOTOR CO.

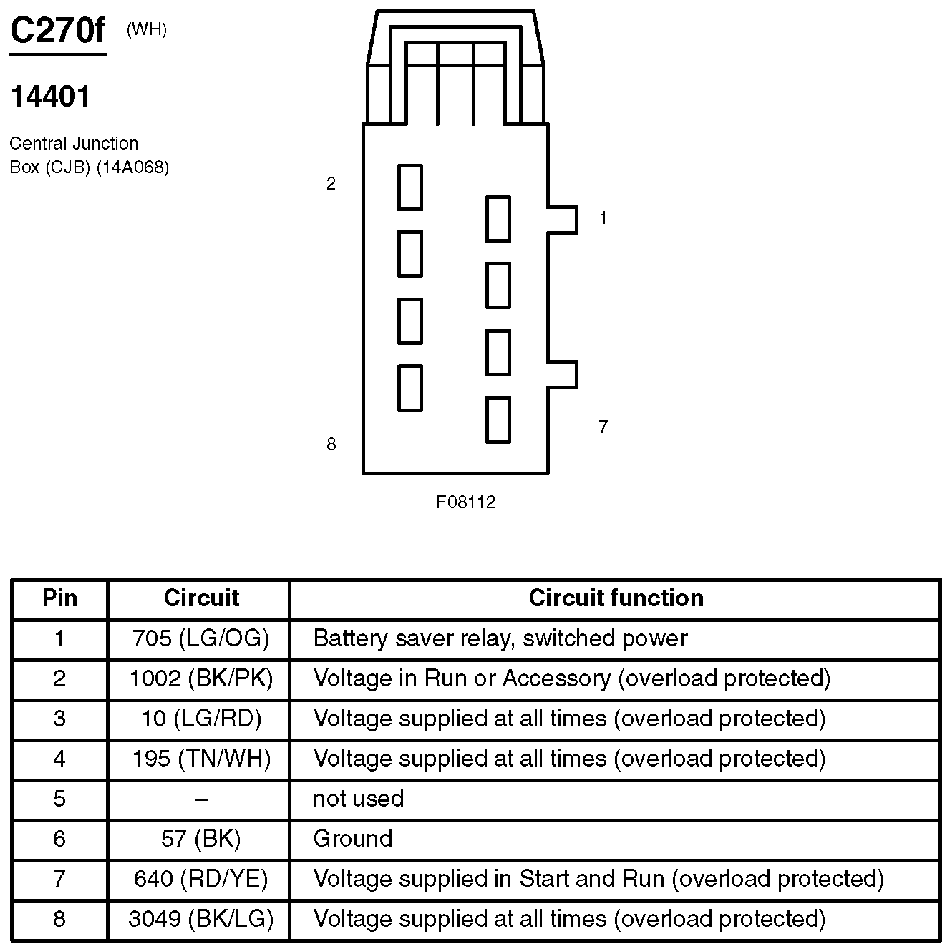

Fig 113: Central Junction Box (CJB) Connector End View (C270f)
Courtesy of FORD MOTOR CO.

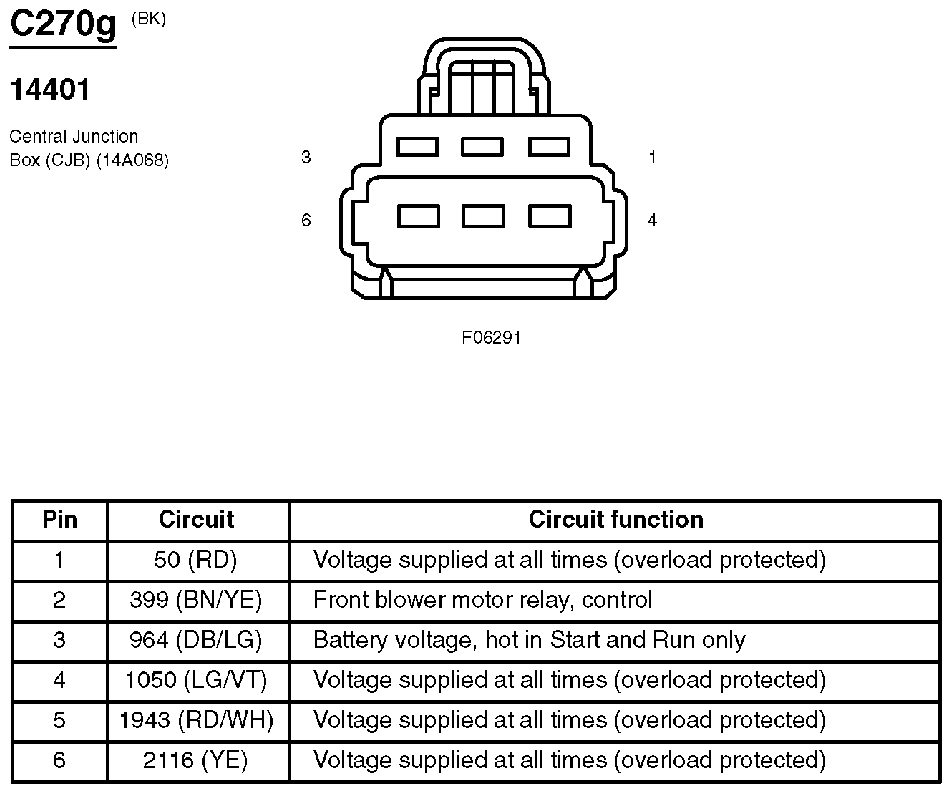

Fig 114: Central Junction Box (CJB) Connector End View (C270g)
Courtesy of FORD MOTOR CO.

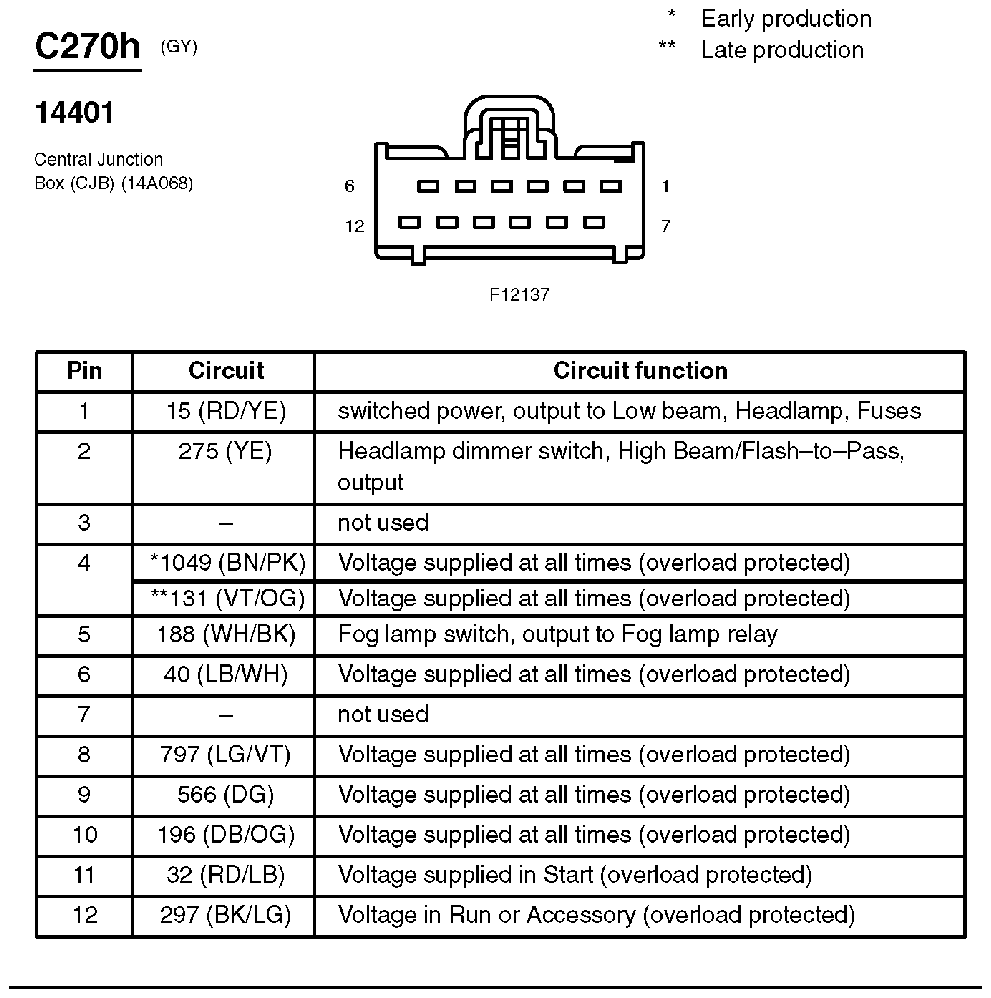

Fig 115: Central Junction Box (CJB) Connector End View (C270h)
Courtesy of FORD MOTOR CO.

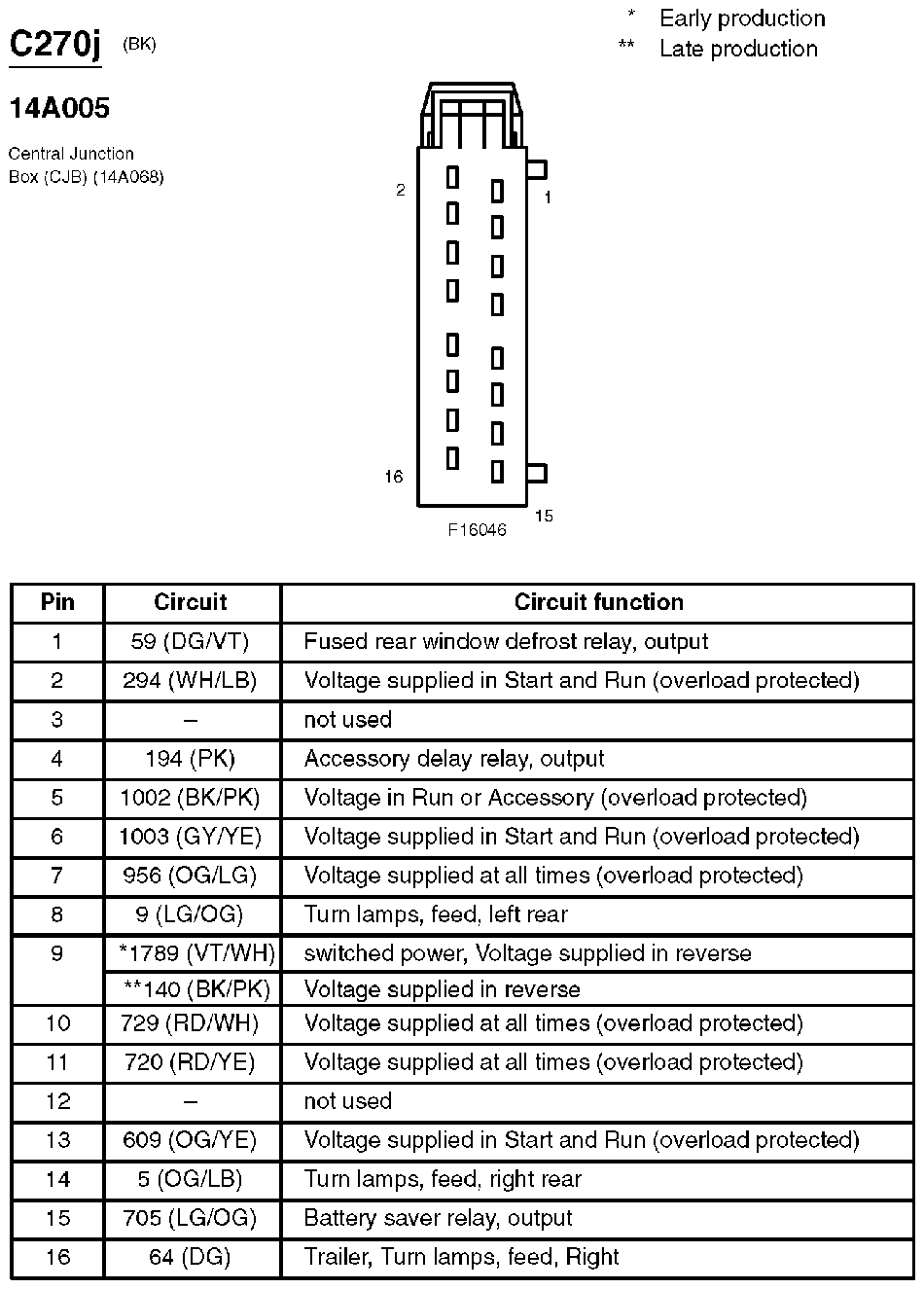

Fig 116: Central Junction Box (CJB) Connector End View (C270j)
Courtesy of FORD MOTOR CO.

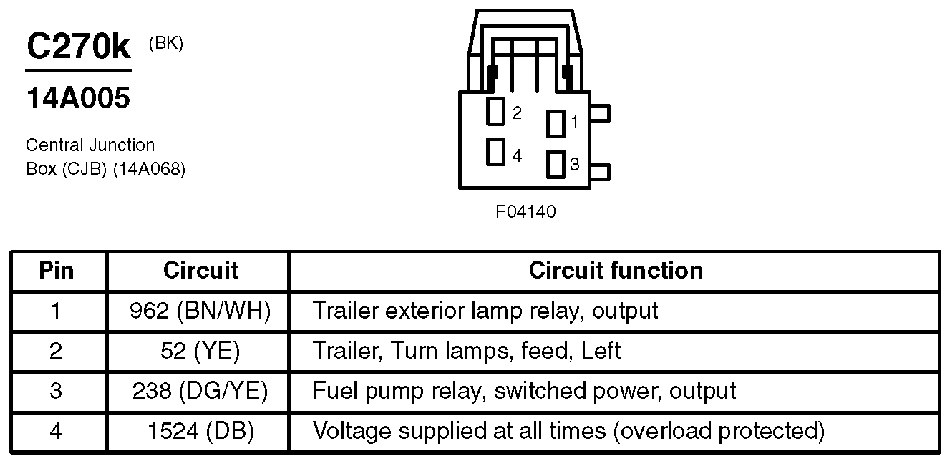

Fig 117: Central Junction Box (CJB) Connector End View (C270k)
Courtesy of FORD MOTOR CO.

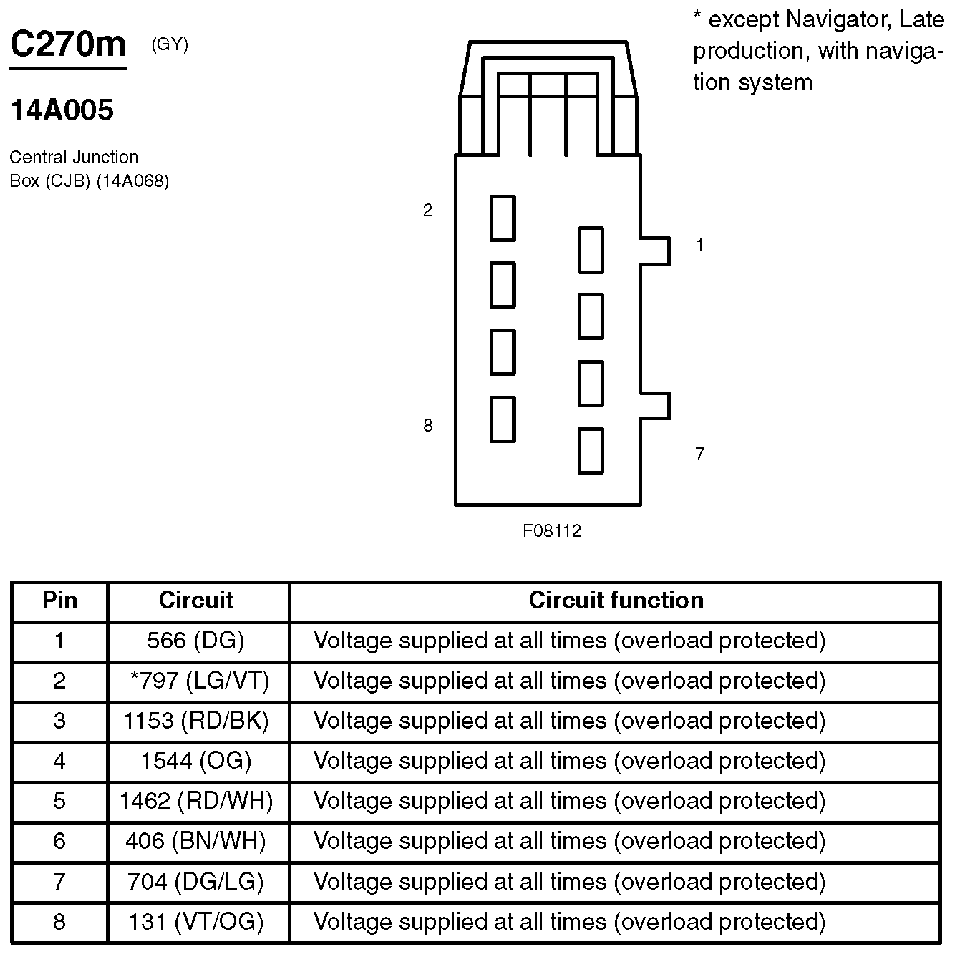

Fig 118: Central Junction Box (CJB) Connector End View (C270m)
Courtesy of FORD MOTOR CO.

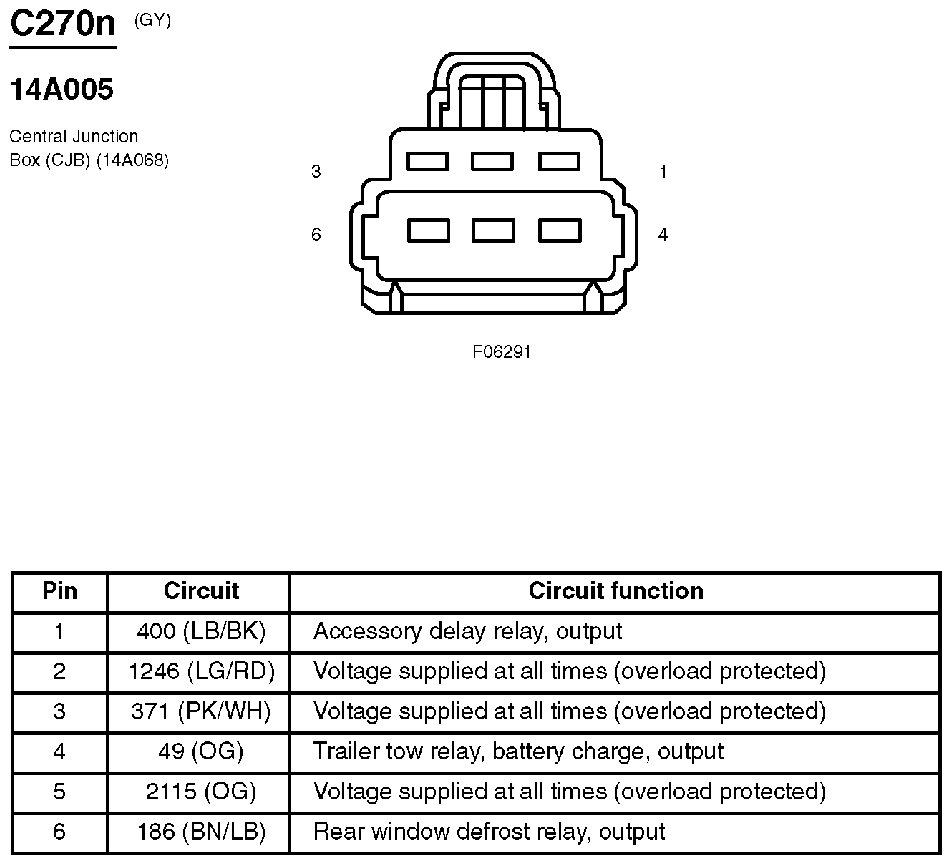

Fig 119: Central Junction Box (CJB) Connector End View (C270n)
Courtesy of FORD MOTOR CO.

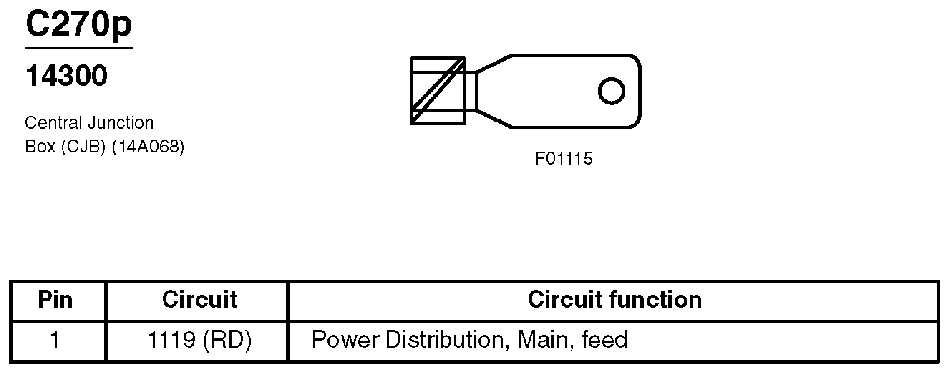

Fig 120: Central Junction Box (CJB) Connector End View (C270p)
Courtesy of FORD MOTOR CO.

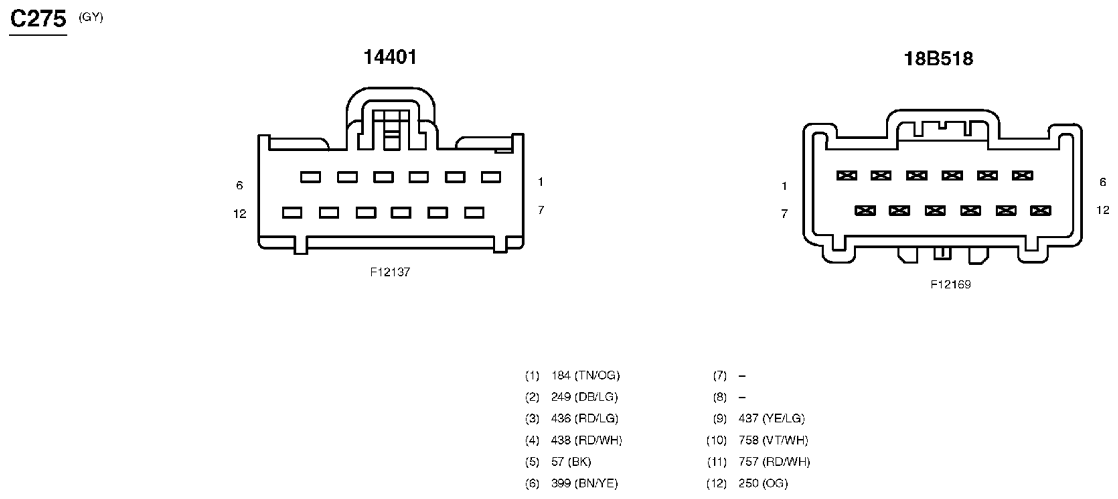

Fig 121: Inline Connector End View (C275)
Courtesy of FORD MOTOR CO.

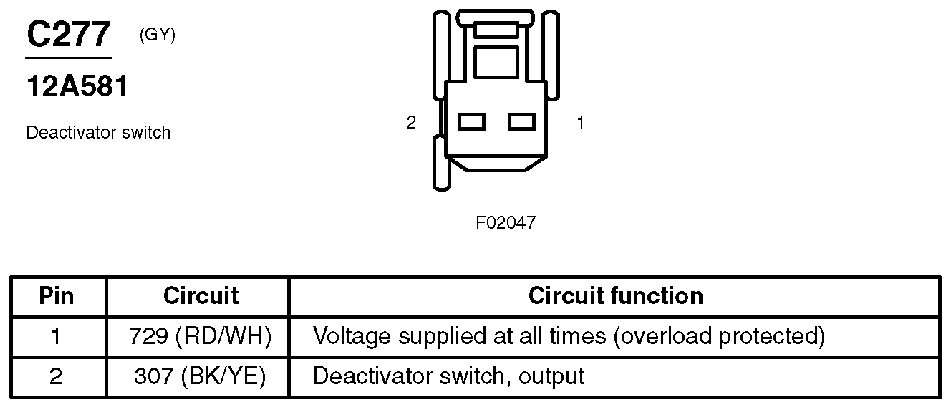

Fig 122: Deactivator Switch Connector End View (C277)
Courtesy of FORD MOTOR CO.

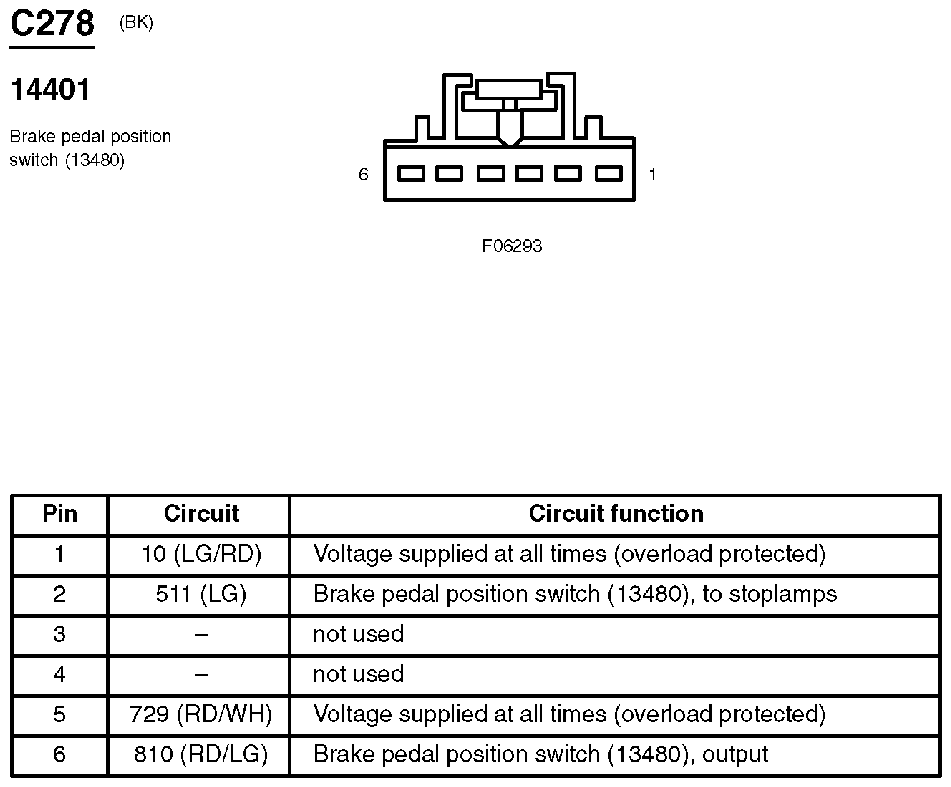

Fig 123: Brake Pedal Position Switch Connector End View (C278)
Courtesy of FORD MOTOR CO.

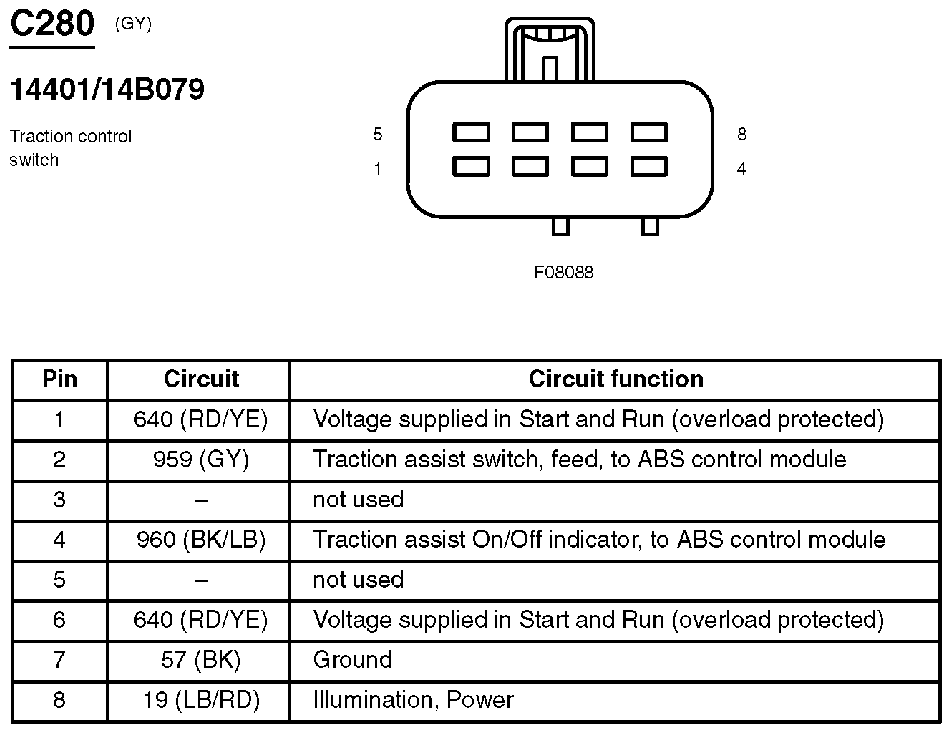

Fig 124: Traction Control Switch Connector End View (C280)
Courtesy of FORD MOTOR CO.

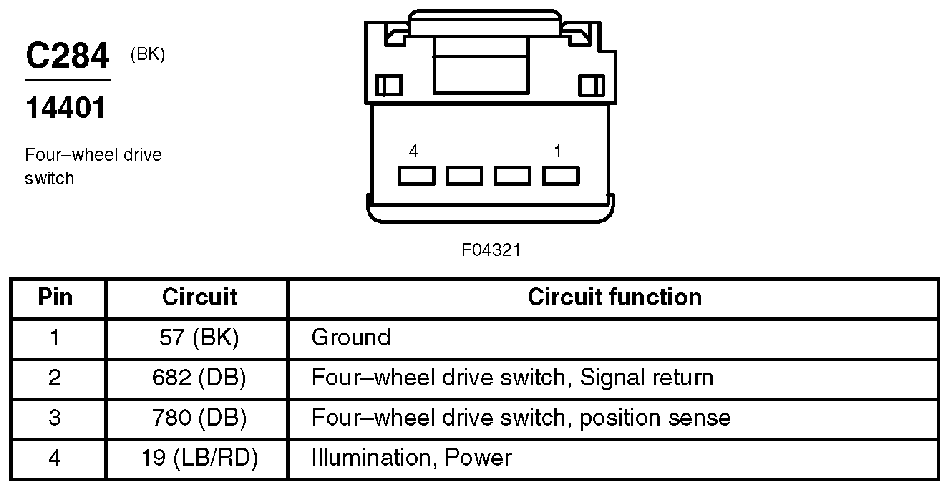

Fig 125: Four-Wheel Drive Switch Connector End View (C284)
Courtesy of FORD MOTOR CO.

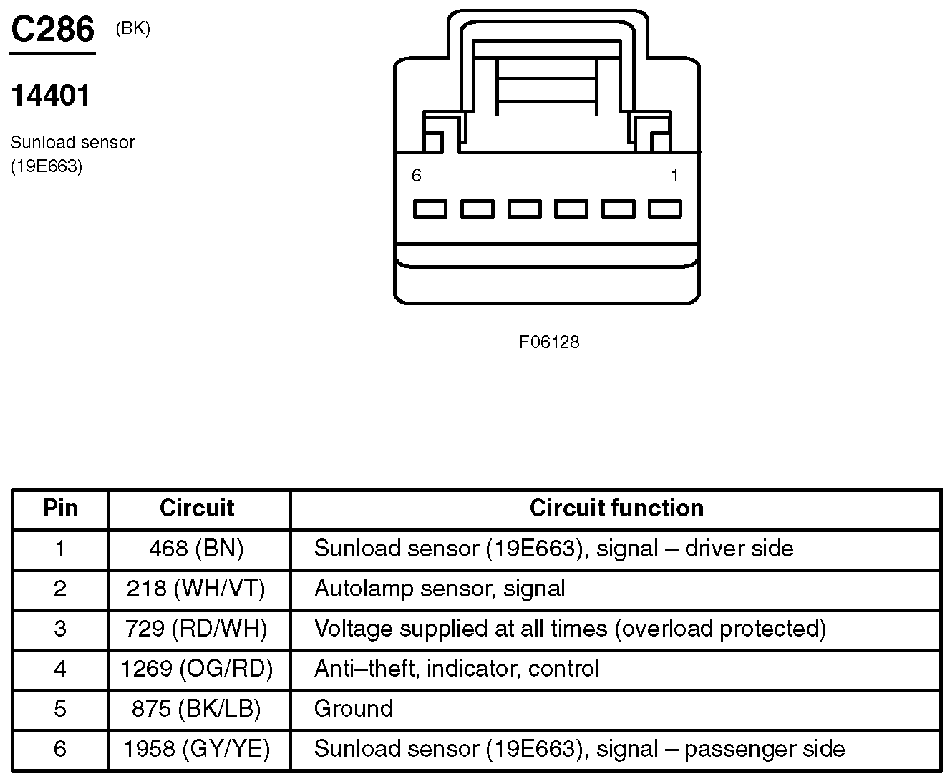

Fig 126: Sunload Sensor Connector End View (C286)
Courtesy of FORD MOTOR CO.

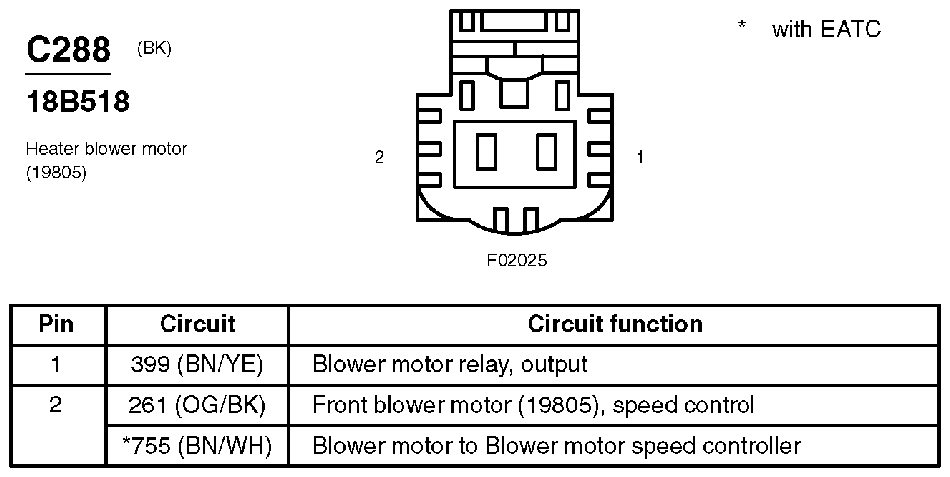

Fig 127: Heater Blower Motor Connector End View (C288)
Courtesy of FORD MOTOR CO.

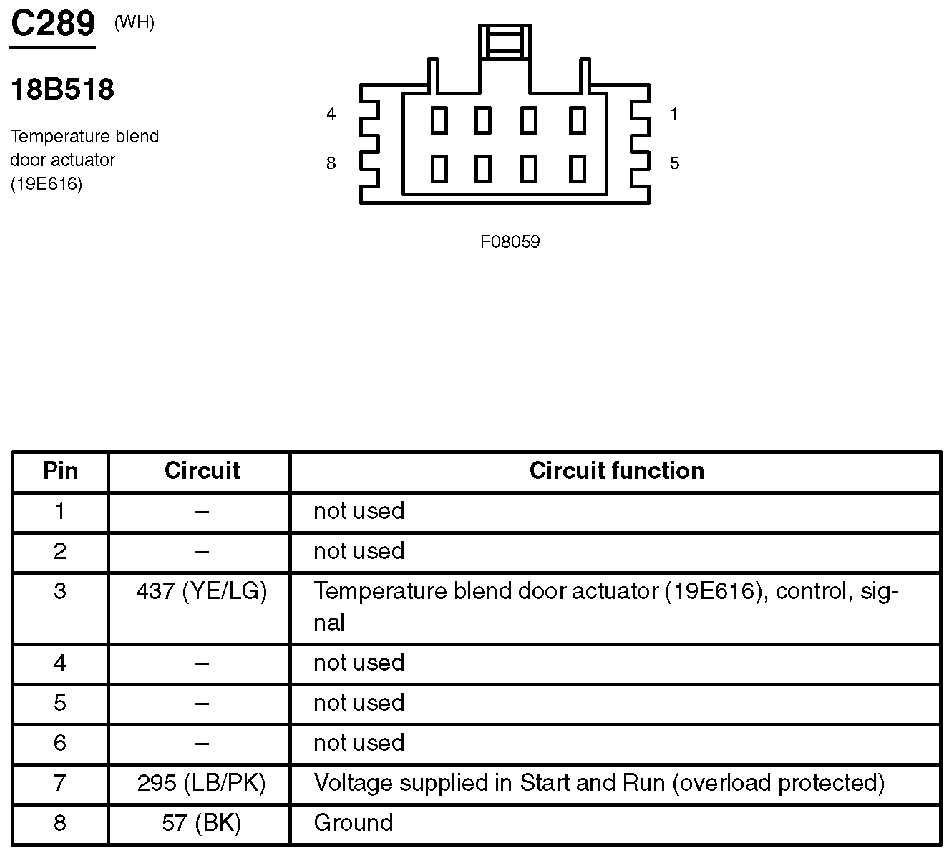

Fig 128: Temperature Blend Door Actuator Connector End View (C289)
Courtesy of FORD MOTOR CO.

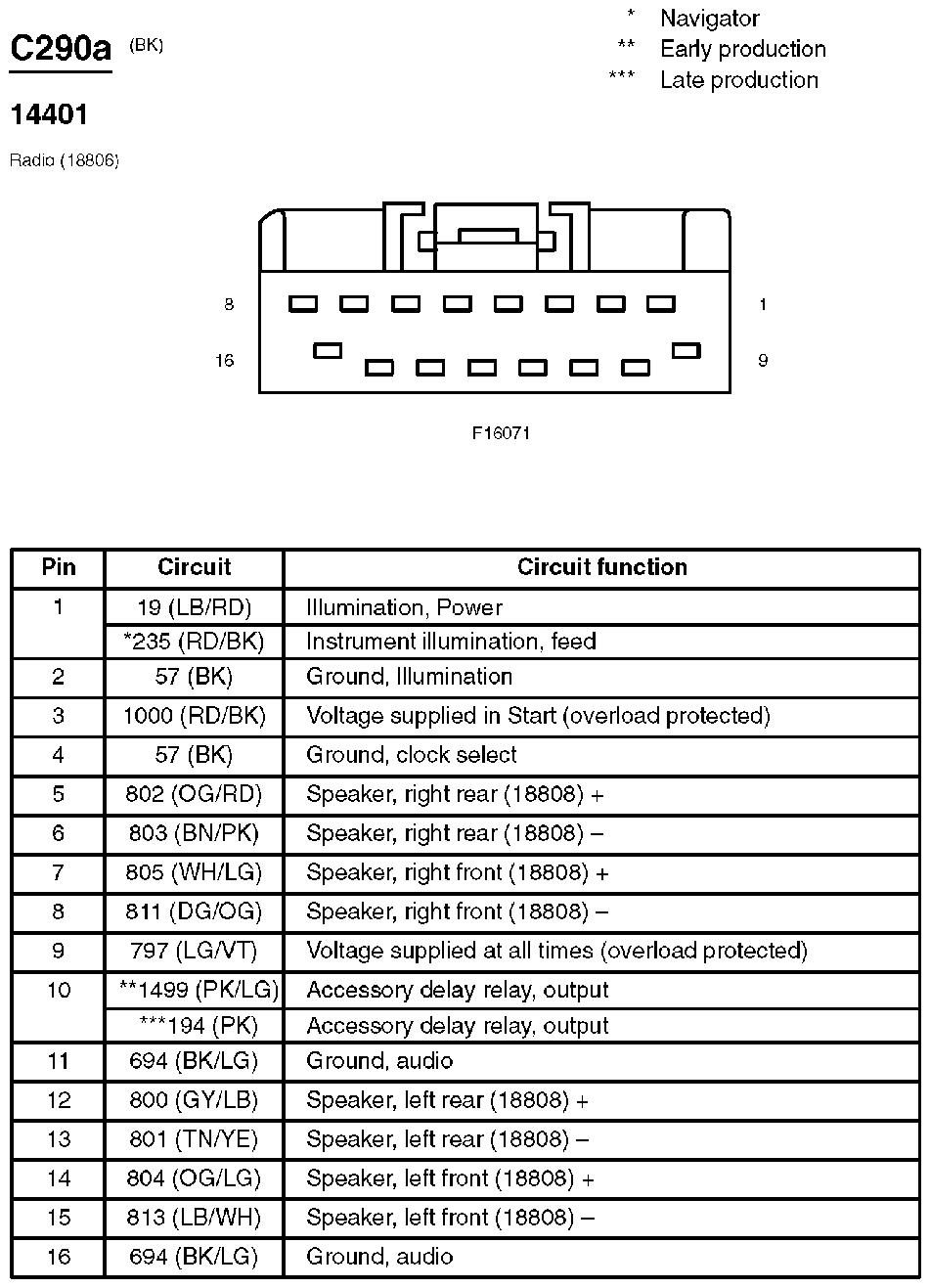

Fig 129: Radio Connector End View (C290a)
Courtesy of FORD MOTOR CO.

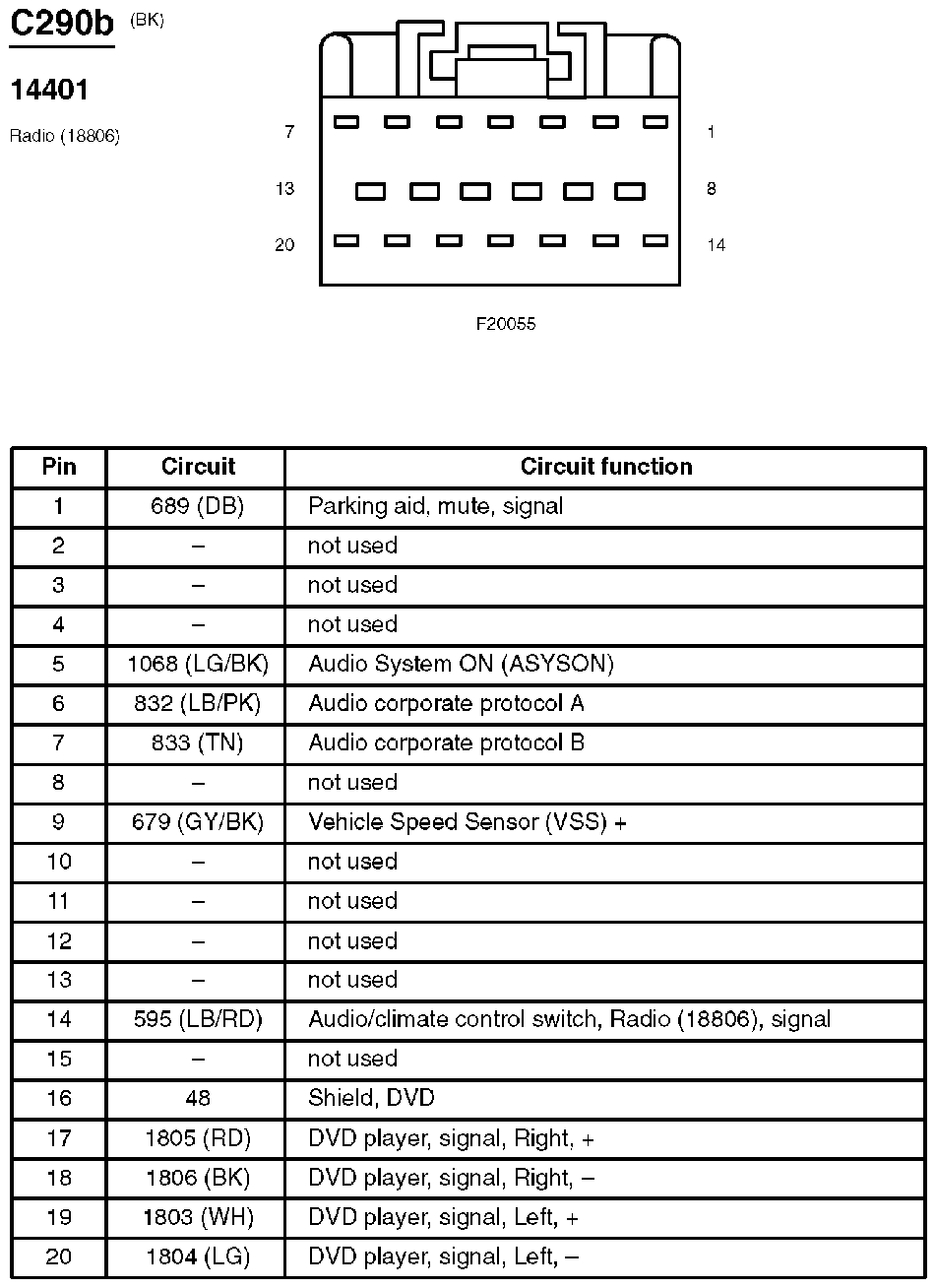

Fig 130: Radio Connector End View (C290b)
Courtesy of FORD MOTOR CO.

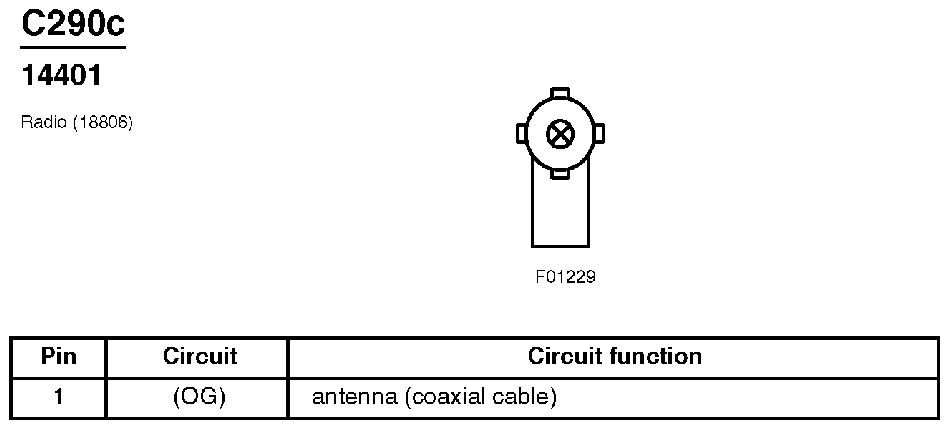

Fig 131: Radio Connector End View (C290c)
Courtesy of FORD MOTOR CO.
Fig 132: Radio Connector End View (C290d)
Courtesy of FORD MOTOR CO.

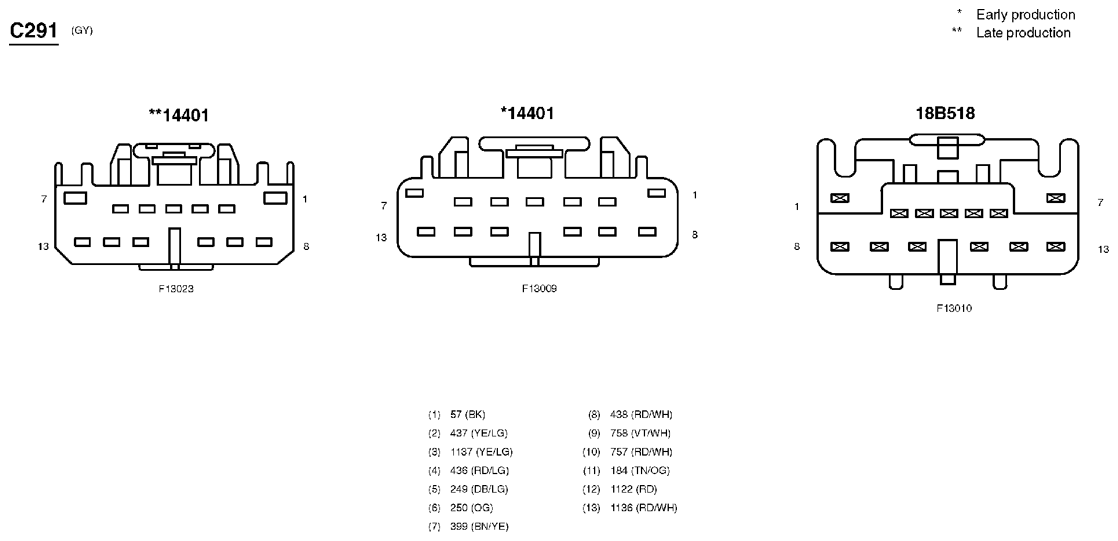

Fig 133: Inline Connector End View (C291)
Courtesy of FORD MOTOR CO.

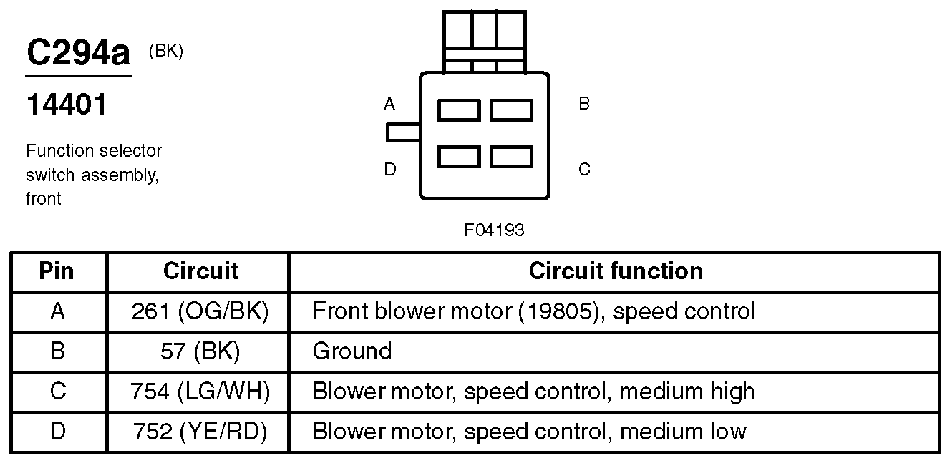

Fig 134: Function Selector Switch Assembly, Front Connector End View (C294a)
Courtesy of FORD MOTOR CO.

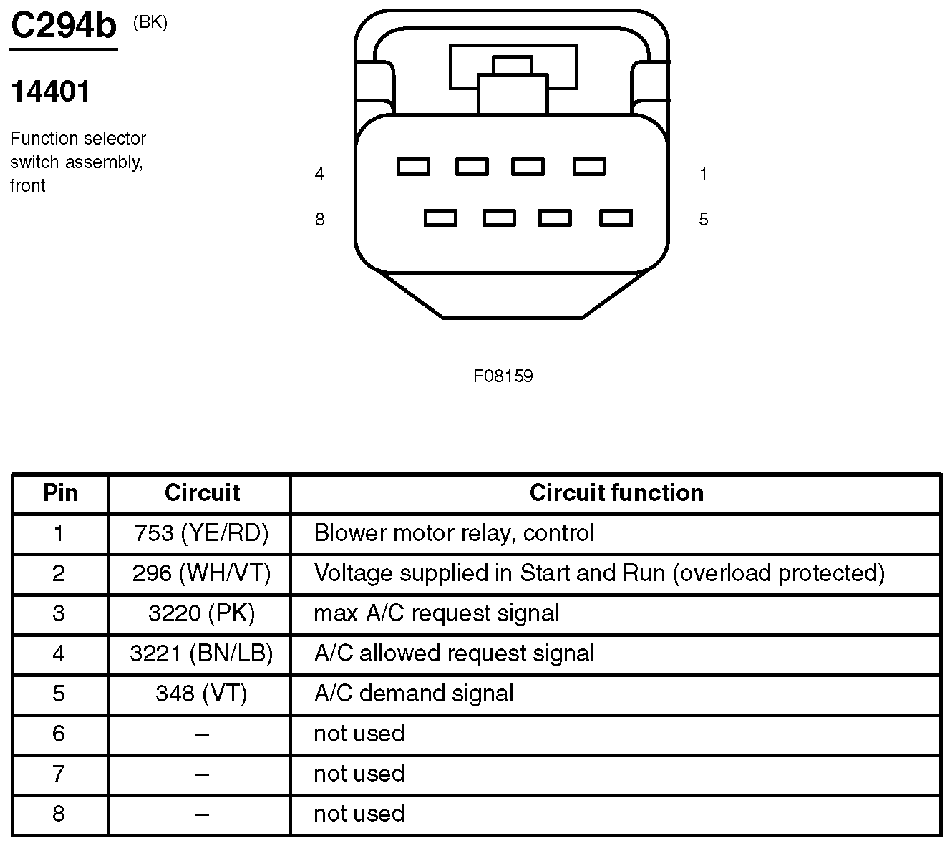

Fig 135: Function Selector Switch Assembly, Front Connector End View (C294b)
Courtesy of FORD MOTOR CO.

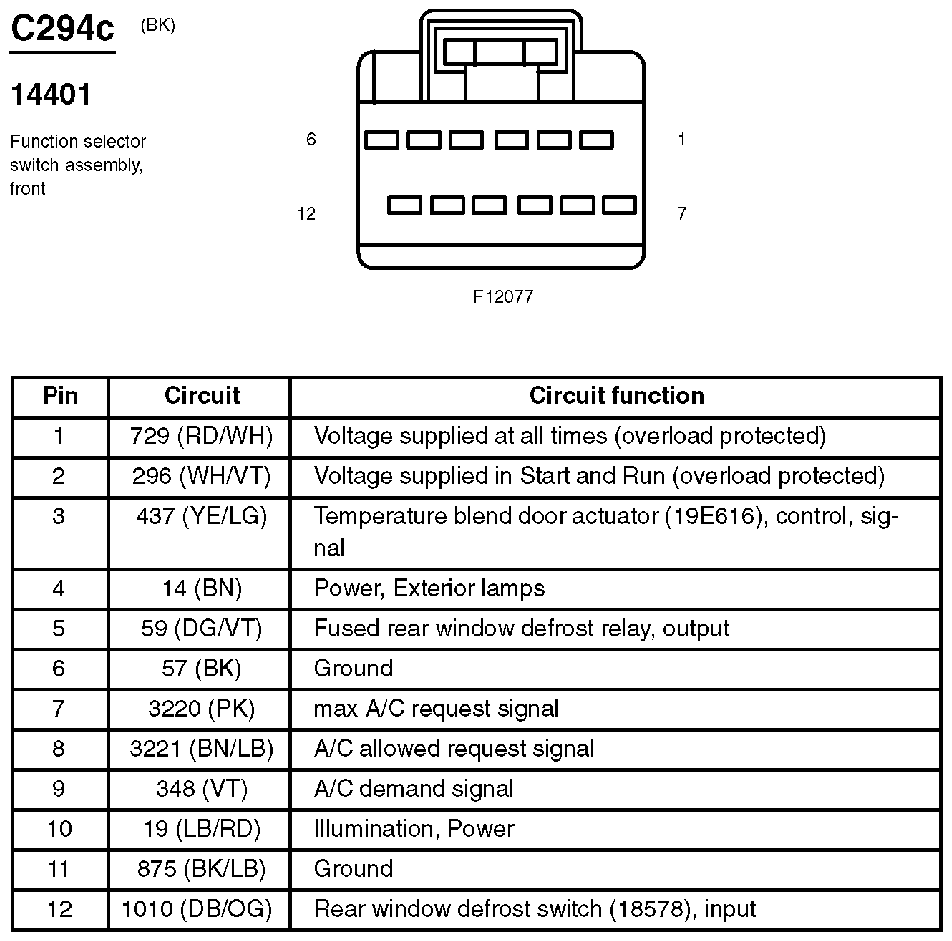

Fig 136: Function Selector Switch Assembly, Front Connector End View (C294c)
Courtesy of FORD MOTOR CO.

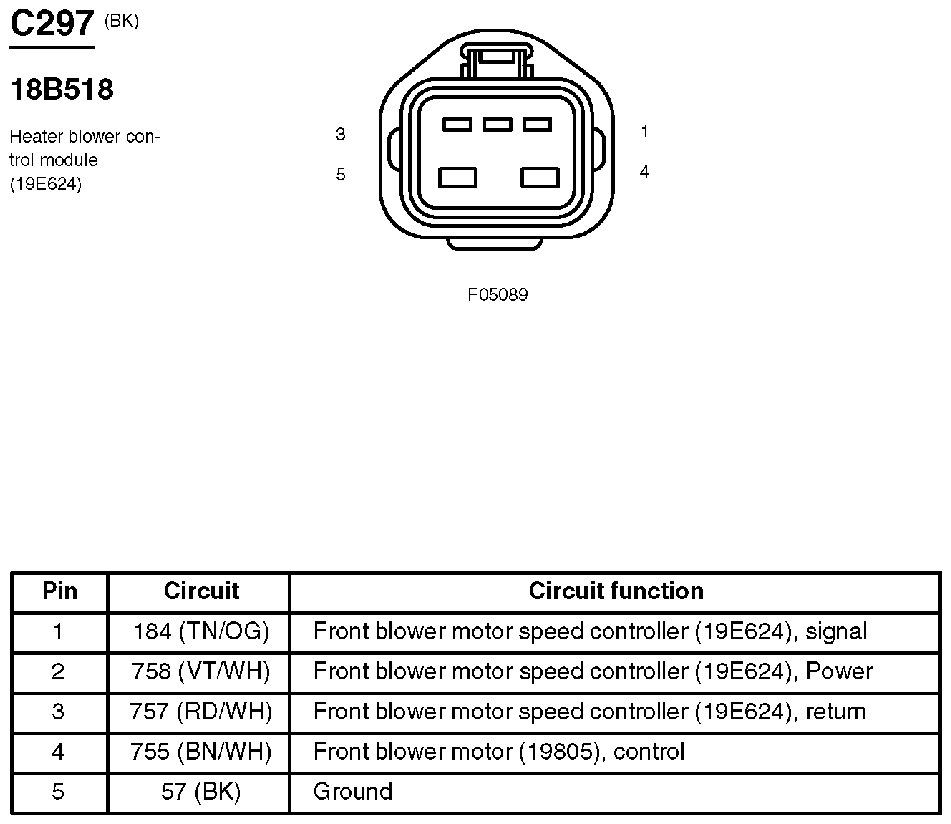

Fig 137: Heater Blower Control Module Connector End View (C297)
Courtesy of FORD MOTOR CO.

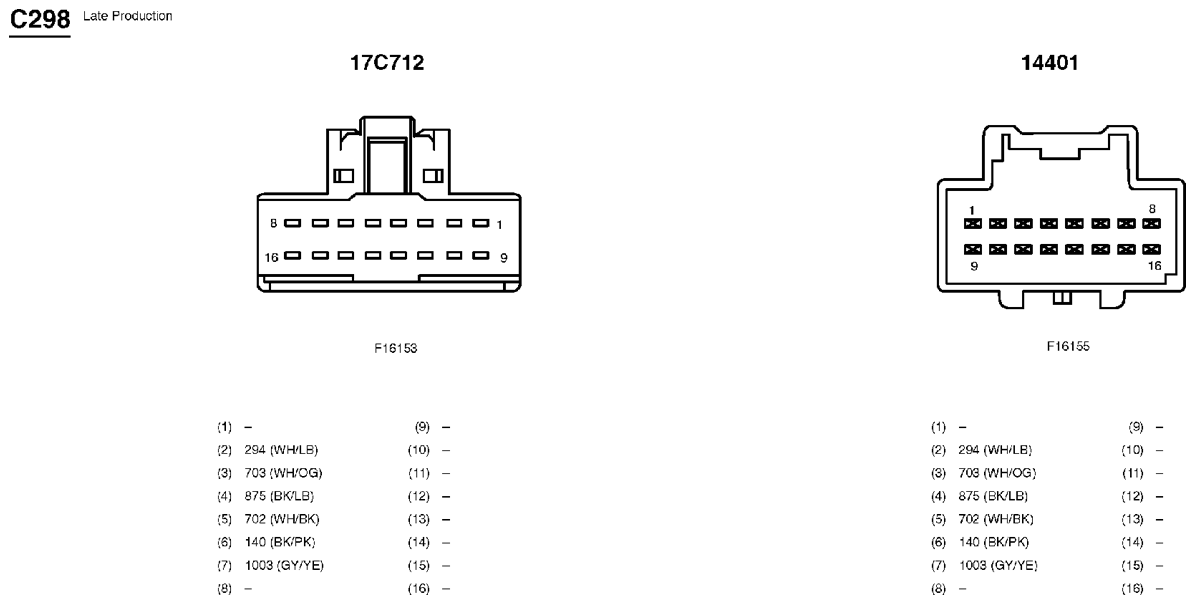

Fig 138: Inline Connector End View (C298)
Courtesy of FORD MOTOR CO.

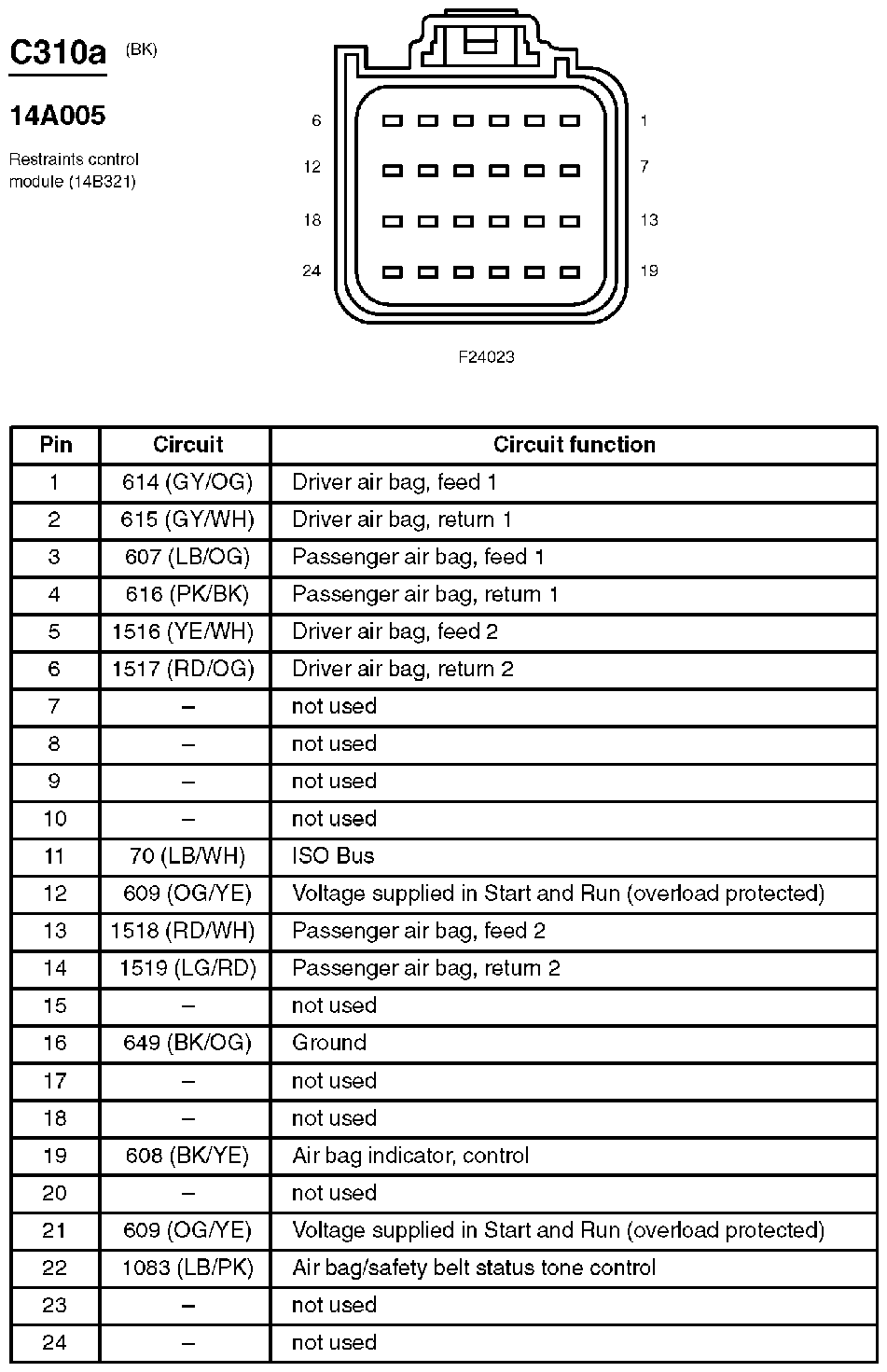

Fig 139: Restraints Control Module Connector End View (C310a)
Courtesy of FORD MOTOR CO.

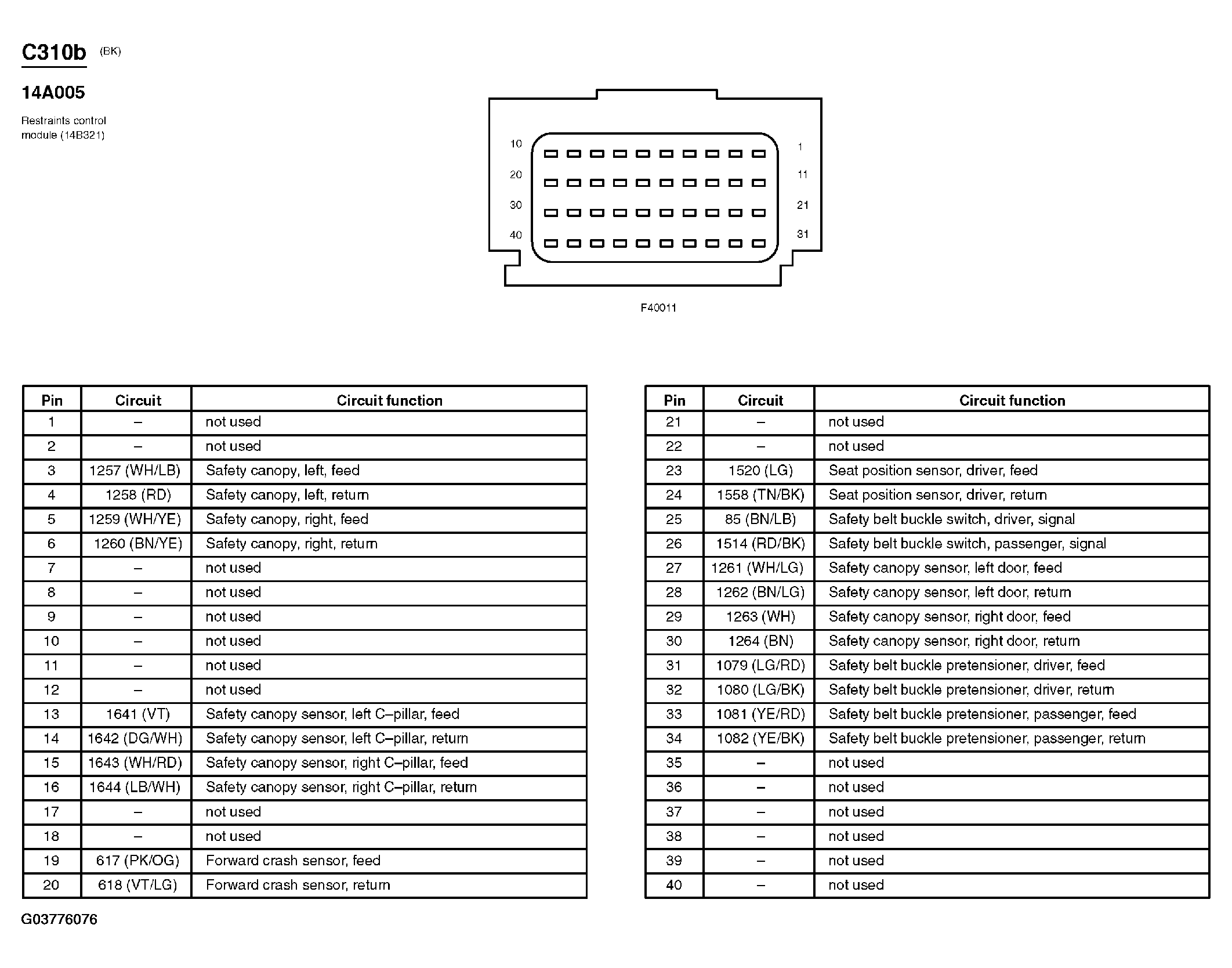

Fig 140: Restraints Control Module Connector End View (C310b)
Courtesy of FORD MOTOR CO.

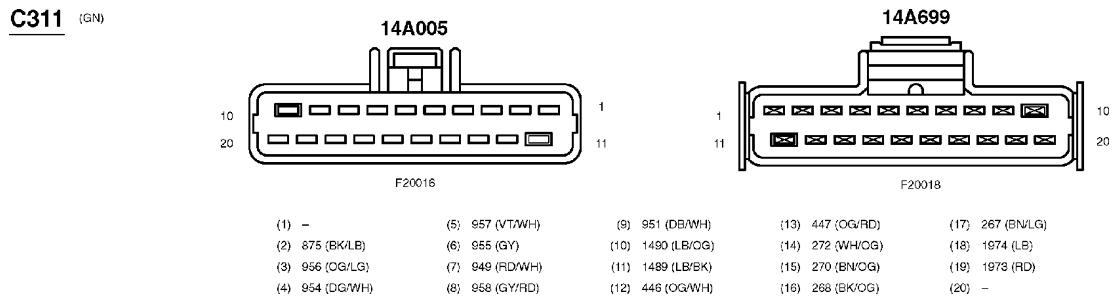

Fig 141: Inline Connector End View (C311)
Courtesy of FORD MOTOR CO.

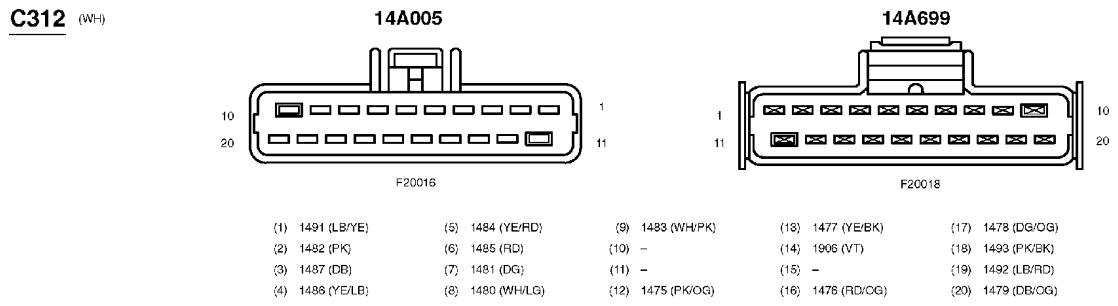

Fig 142: Inline Connector End View (C312)
Courtesy of FORD MOTOR CO.

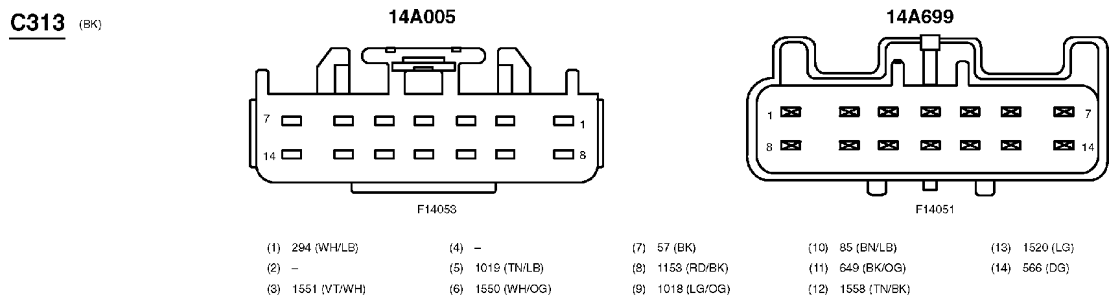

Fig 143: Inline Connector End View (C313)
Courtesy of FORD MOTOR CO.

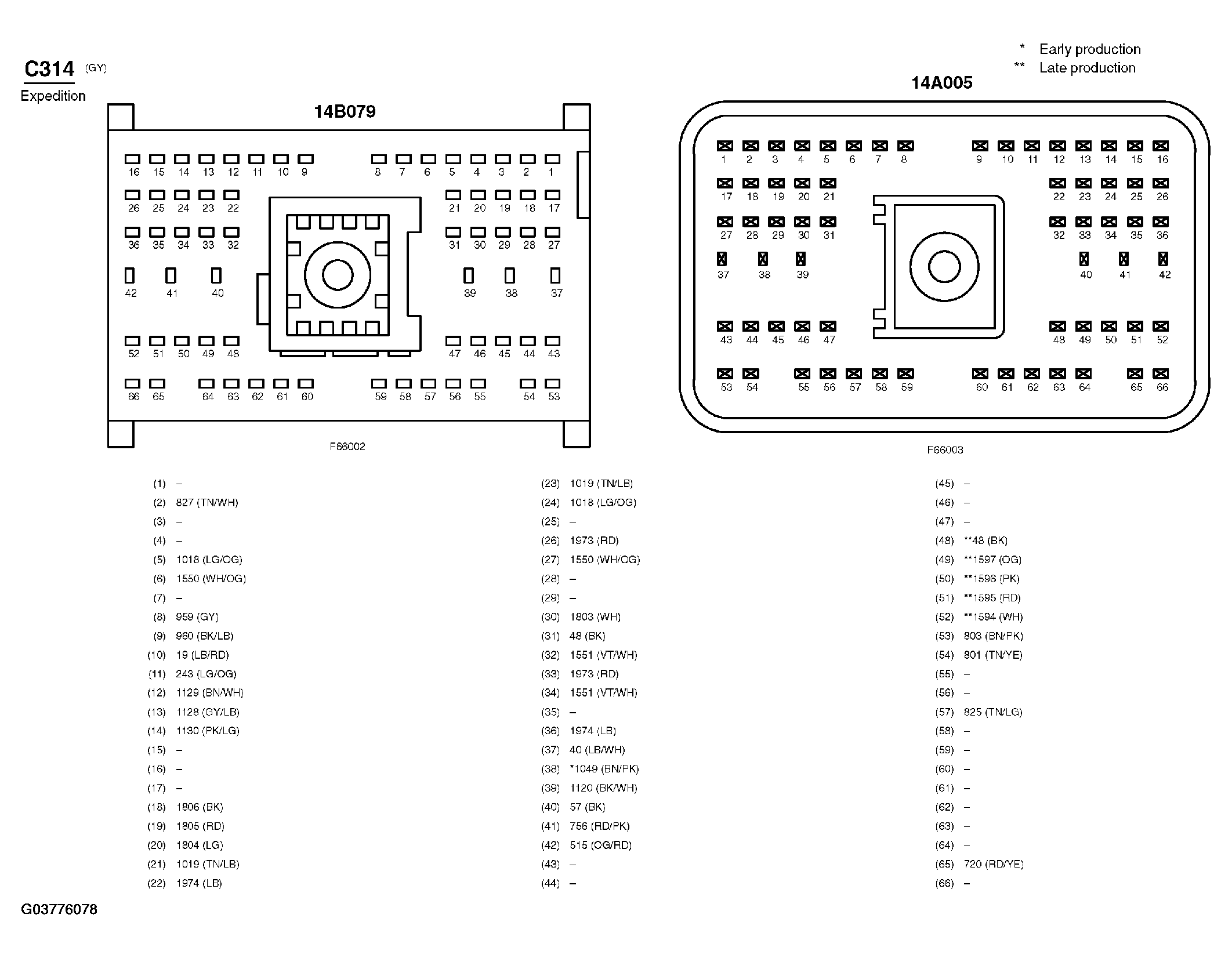

Fig 144: Expedition Connector End View (C314)
Courtesy of FORD MOTOR CO.

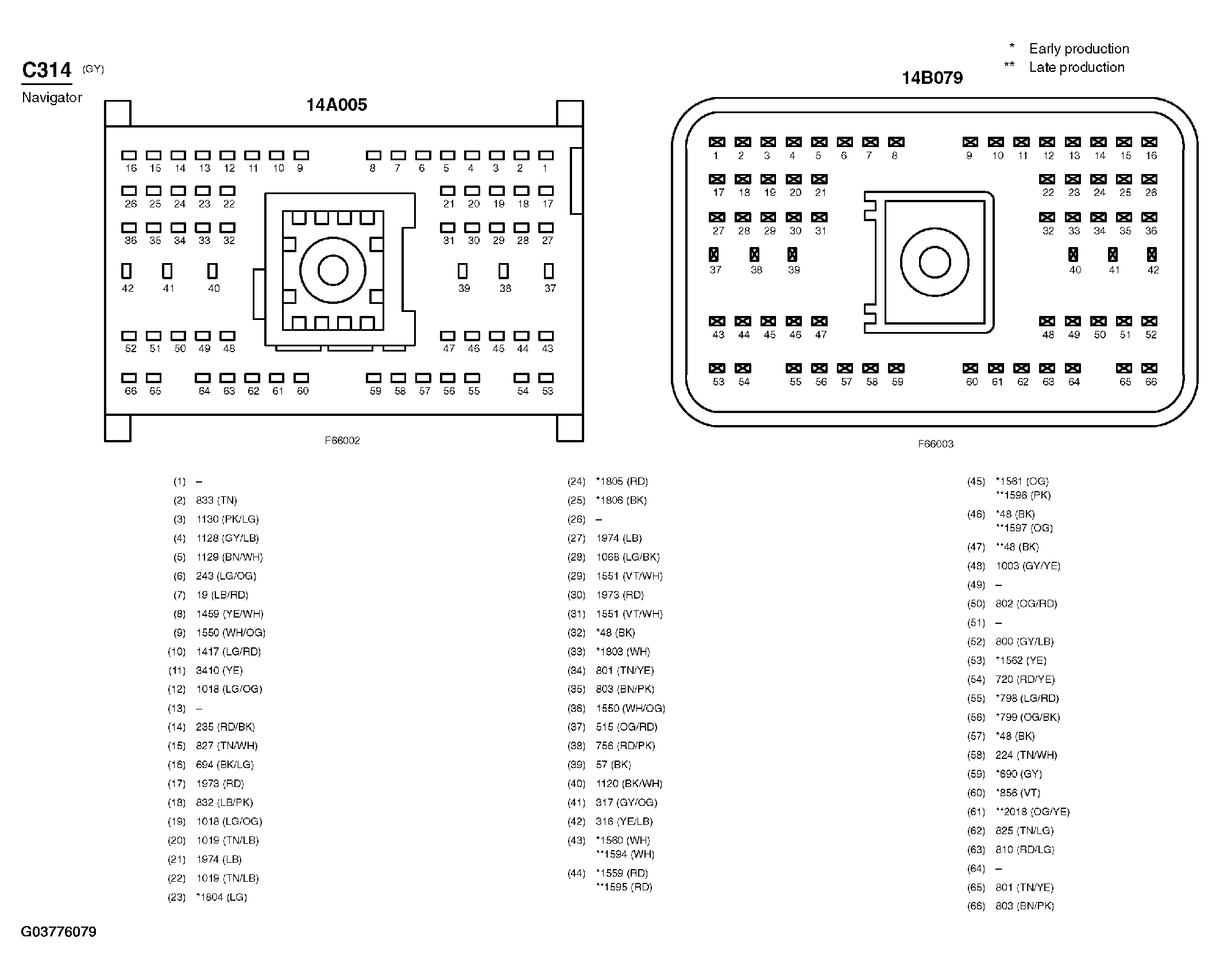

Fig 145: Navigator Connector End View (C314)
Courtesy of FORD MOTOR CO.

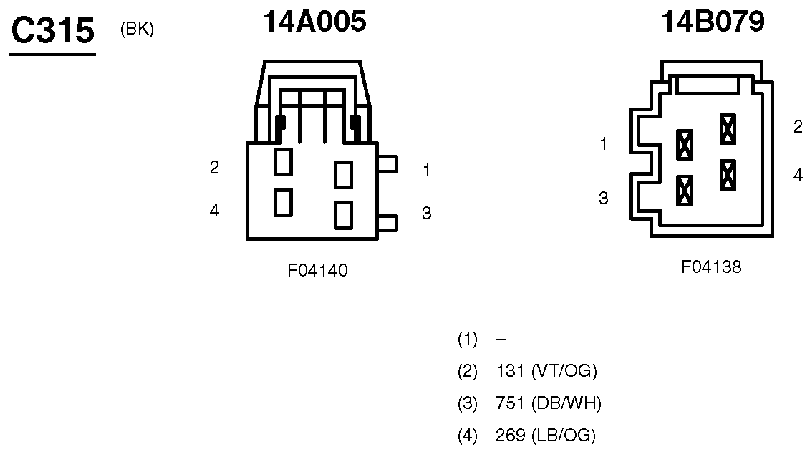

Fig 146: Inline Connector End View (C315)
Courtesy of FORD MOTOR CO.

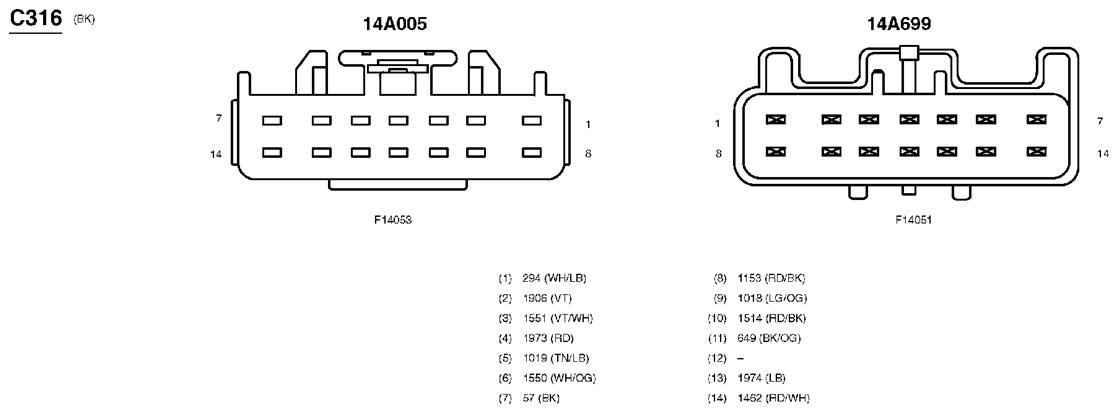

Fig 147: Inline Connector End View (C316)
Courtesy of FORD MOTOR CO.
Fig 148: Cigar Lighter, Front Connector End View (C319)
Courtesy of FORD MOTOR CO.

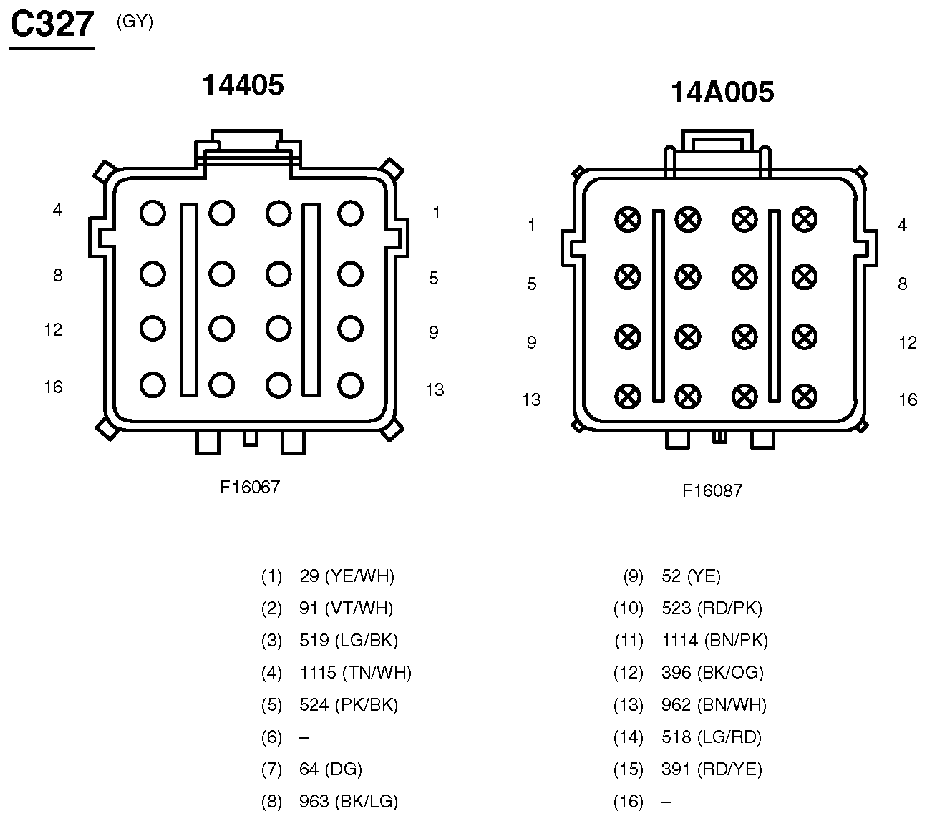

Fig 149: Inline Connector End View (C327)
Courtesy of FORD MOTOR CO.

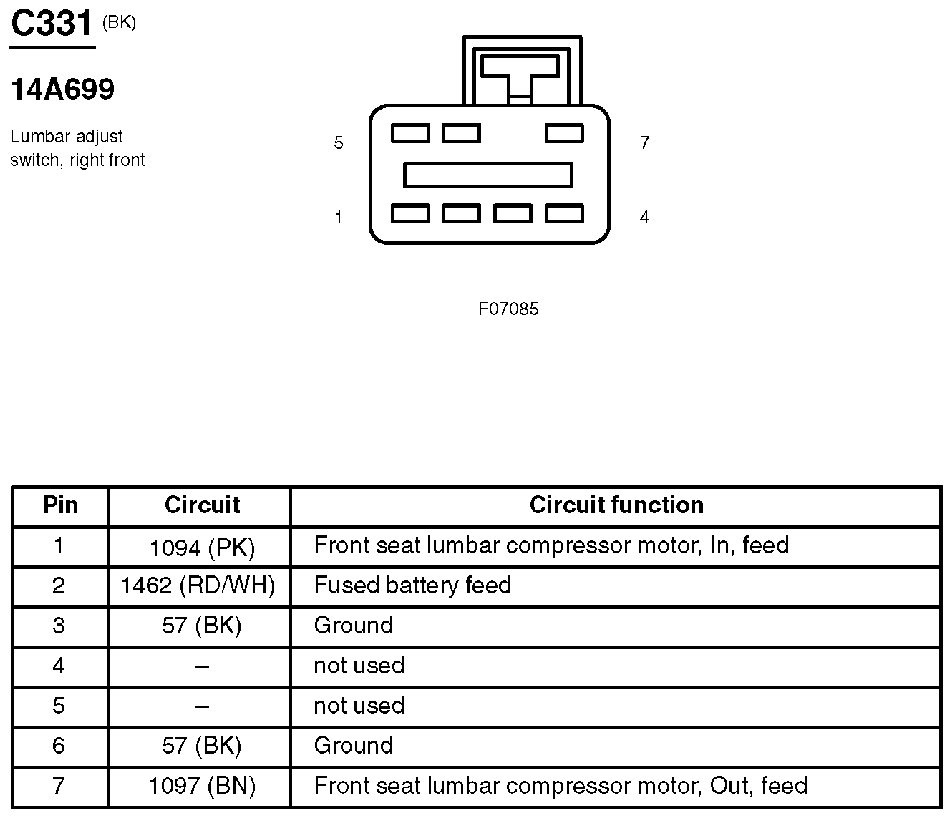

Fig 150: Lumbar Adjust Switch, Right Front Connector End View (C331)
Courtesy of FORD MOTOR CO.

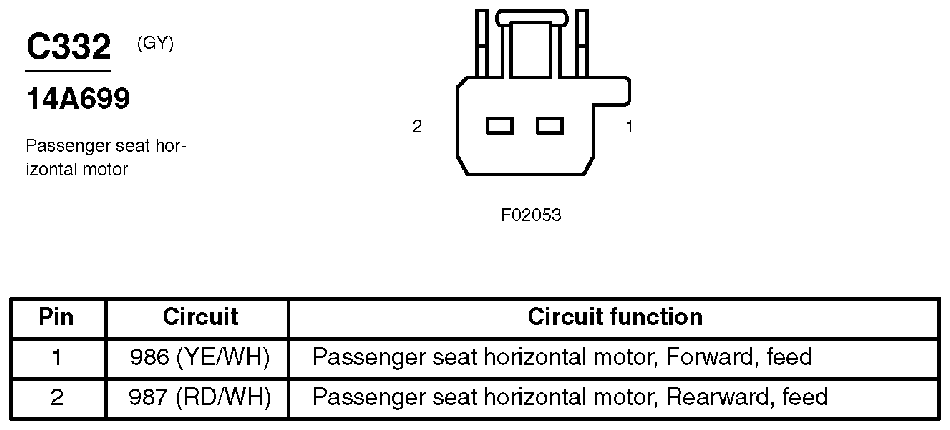

Fig 151: Passenger Seat Horizontal Motor Connector End View (C332)
Courtesy of FORD MOTOR CO.

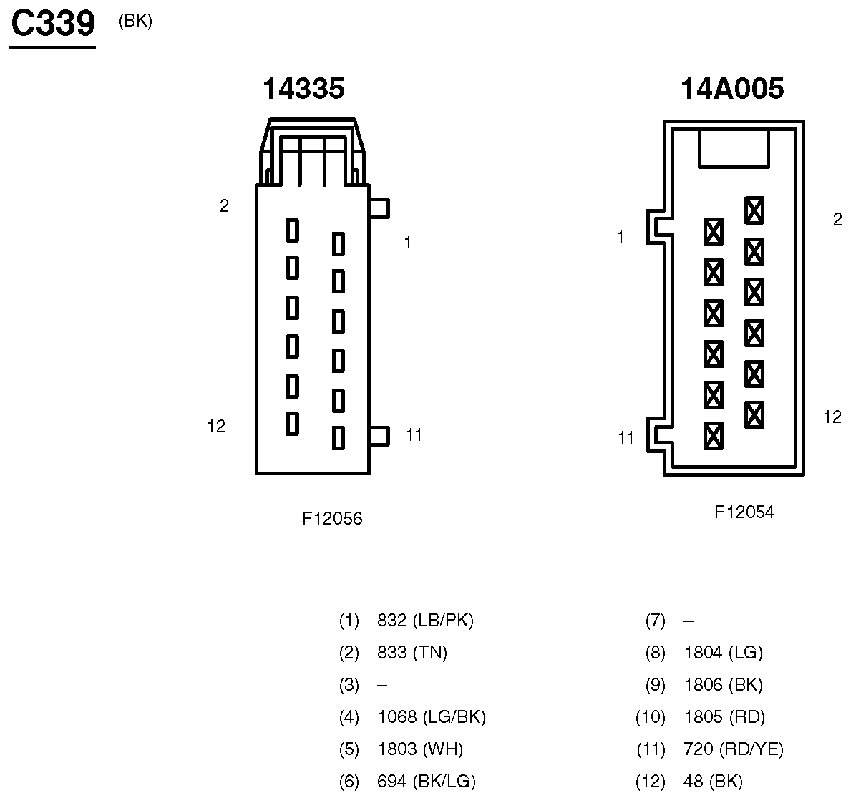

Fig 152: Inline Connector End View (C339)
Courtesy of FORD MOTOR CO.

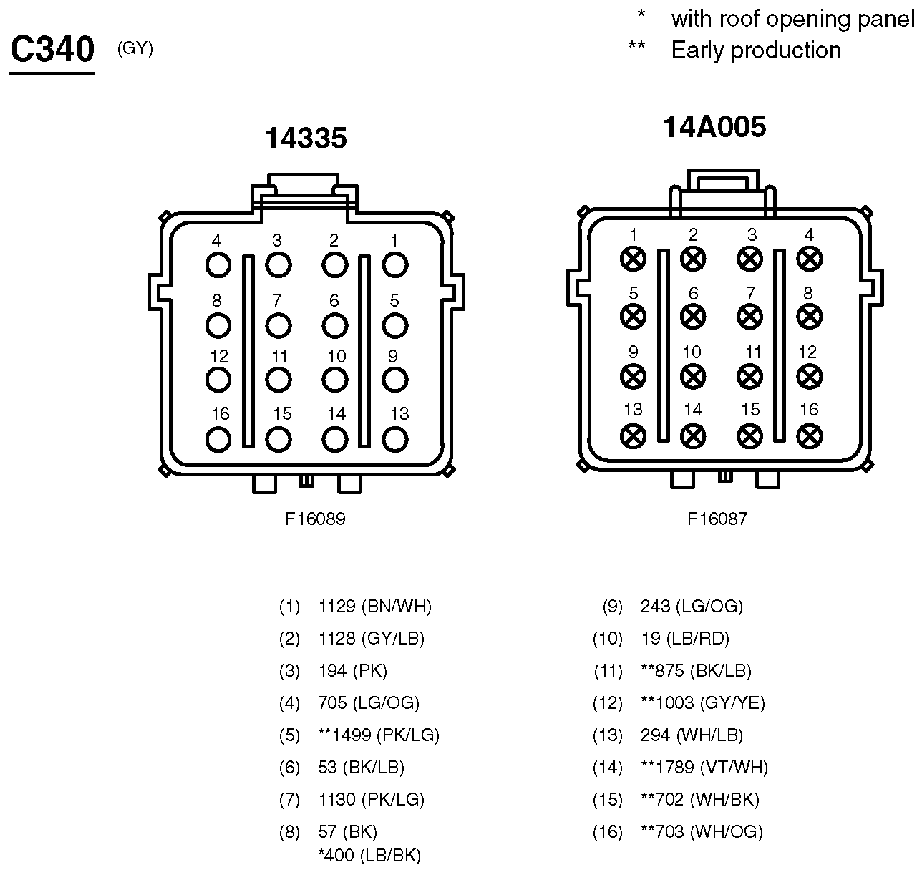

Fig 153: Inline Connector End View (C340)
Courtesy of FORD MOTOR CO.

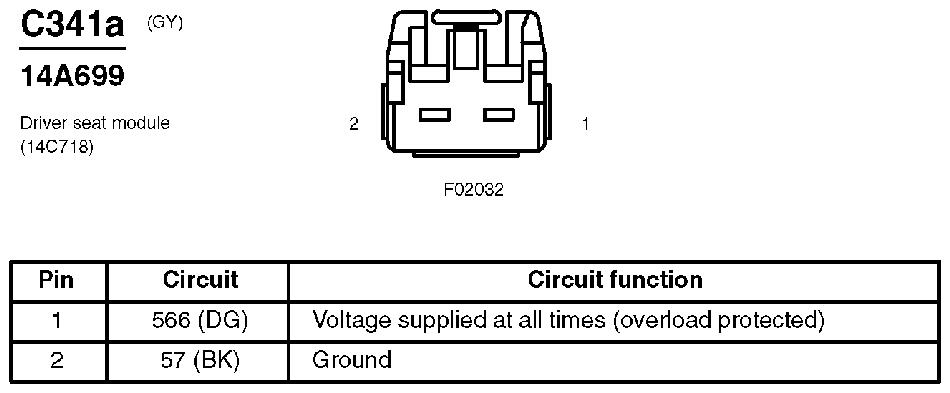

Fig 154: Driver Seat Module Connector End View (C341a)
Courtesy of FORD MOTOR CO.

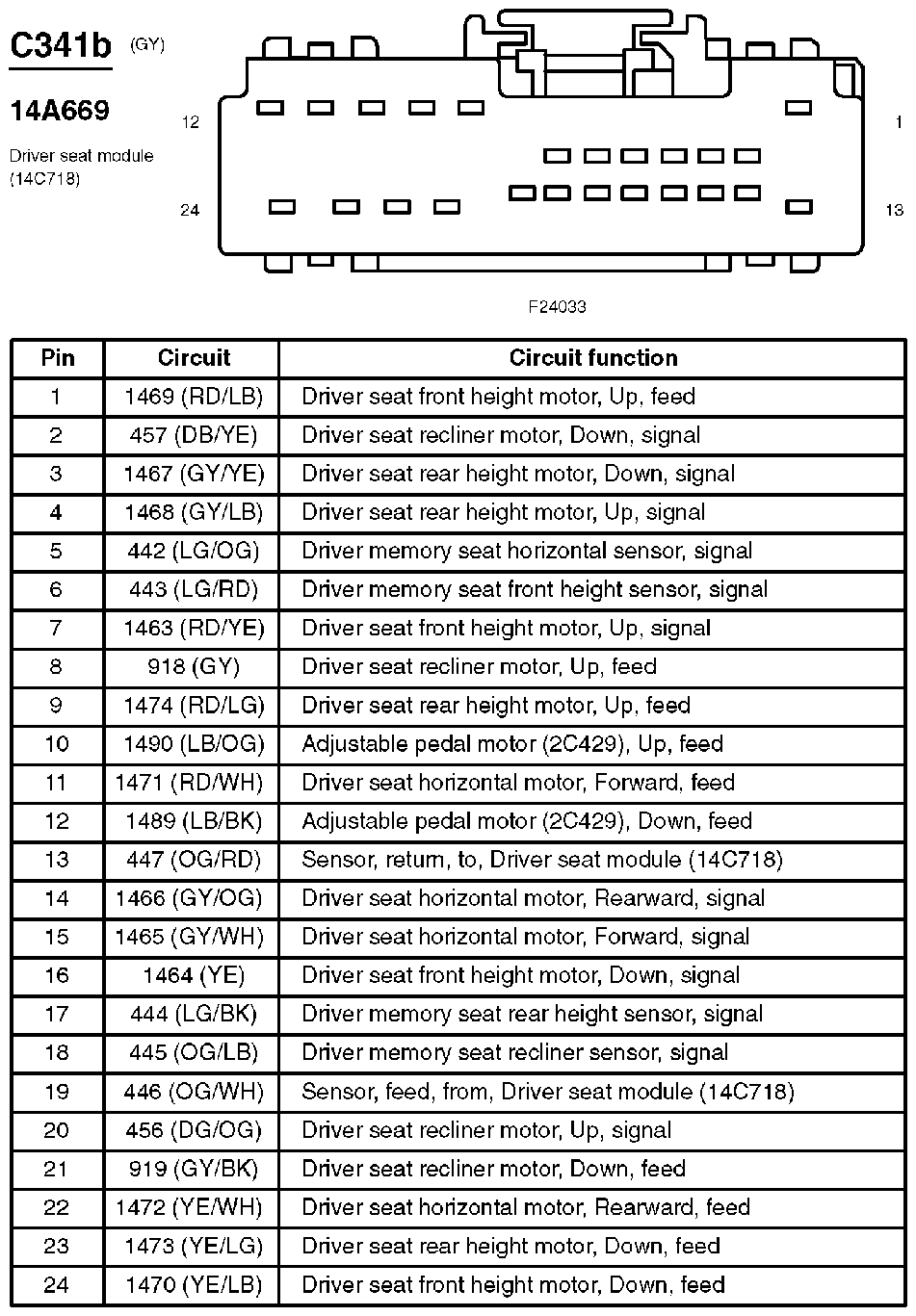

Fig 155: Driver Seat Module Connector End View (C341b)
Courtesy of FORD MOTOR CO.

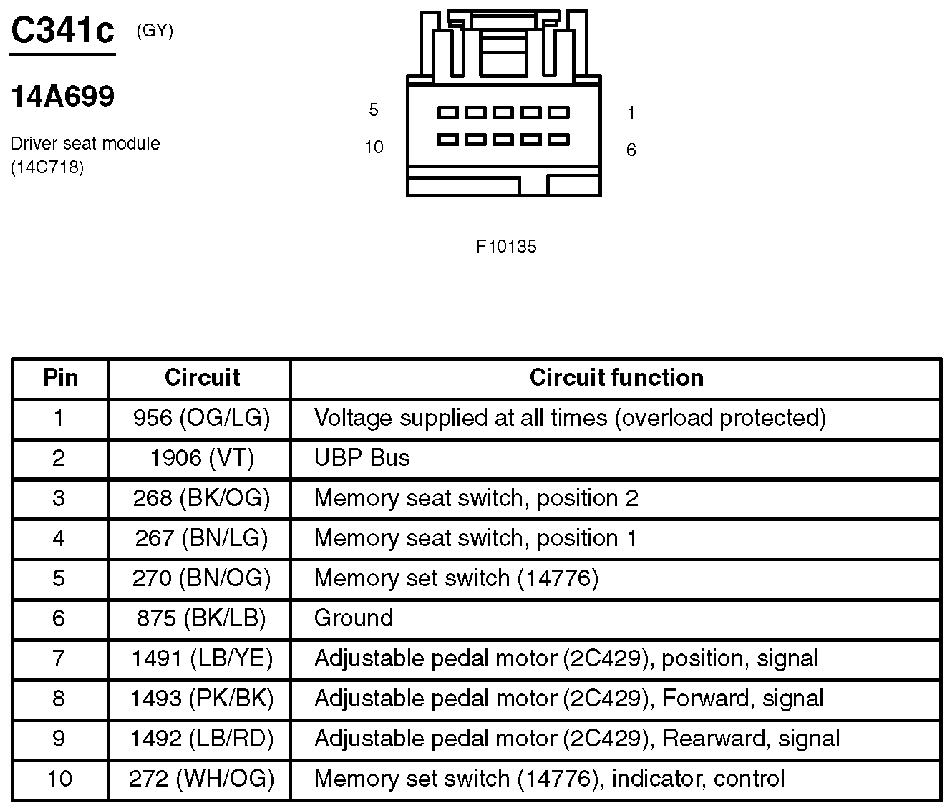

Fig 156: Driver Seat Module Connector End View (C341c)
Courtesy of FORD MOTOR CO.

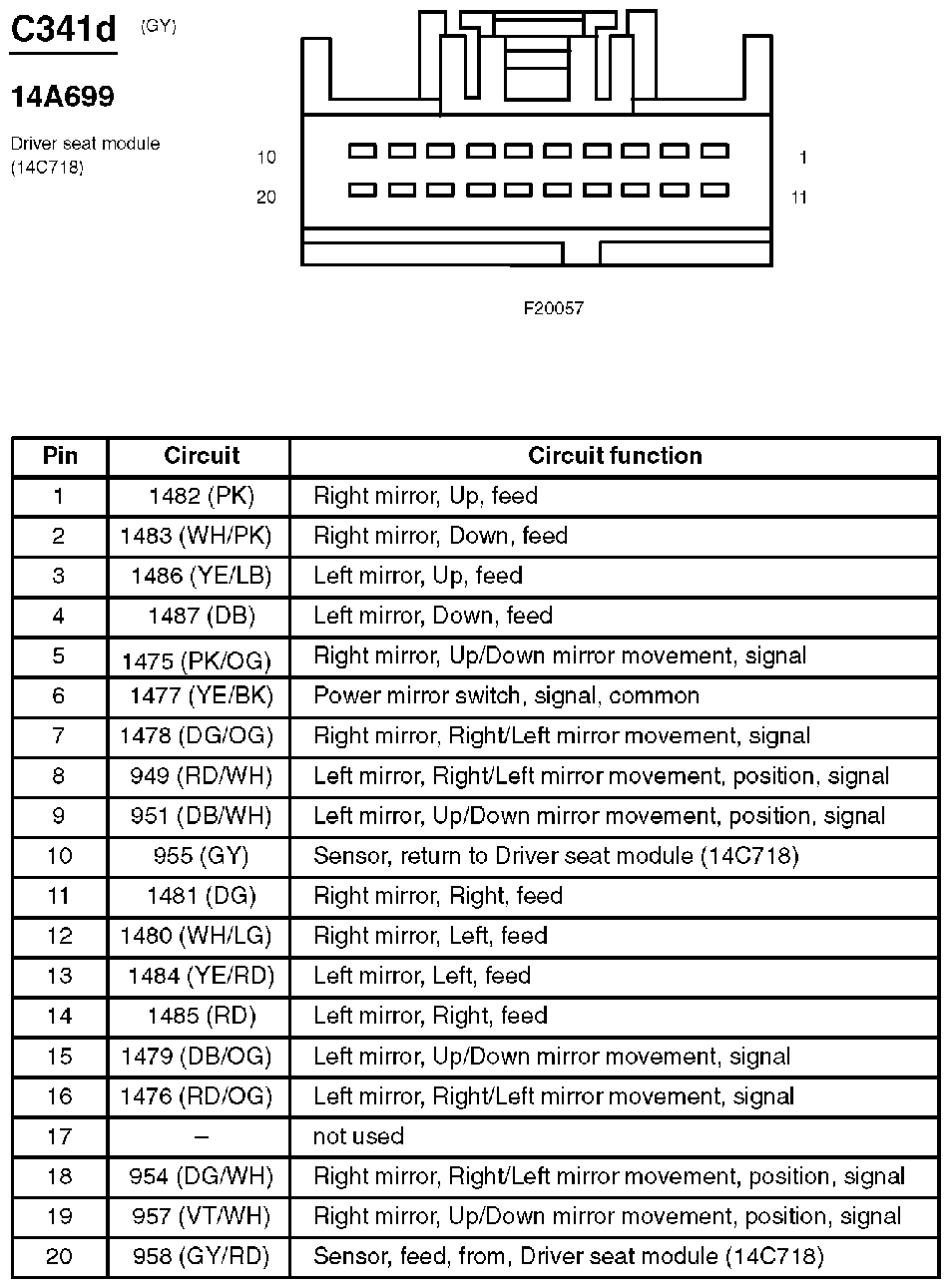

Fig 157: Driver Memory Seat Module Connector End View (C341d)
Courtesy of FORD MOTOR CO.

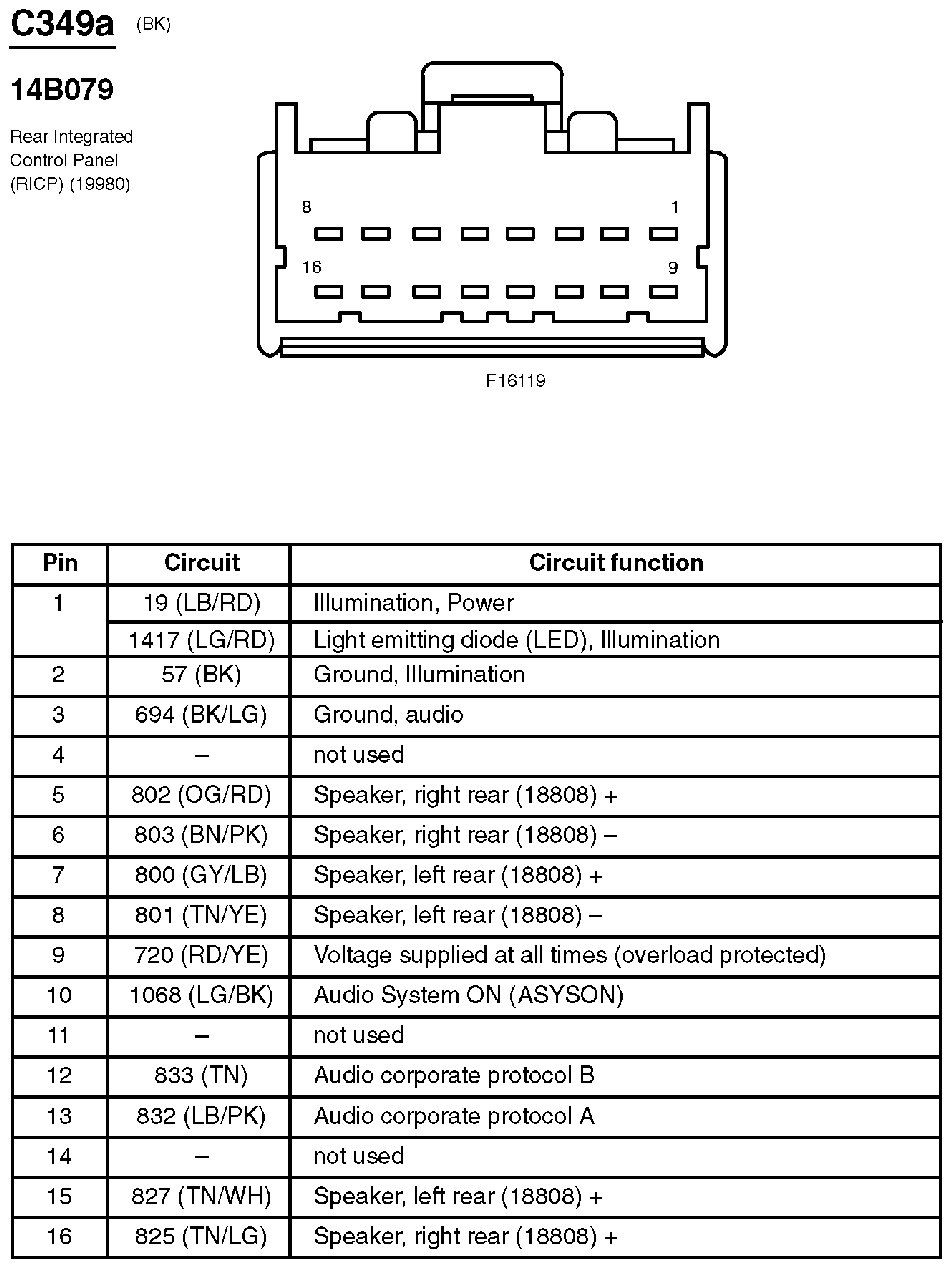

Fig 158: Rear Integrated Control Panel (RICP) Connector End View (C349a)
Courtesy of FORD MOTOR CO.

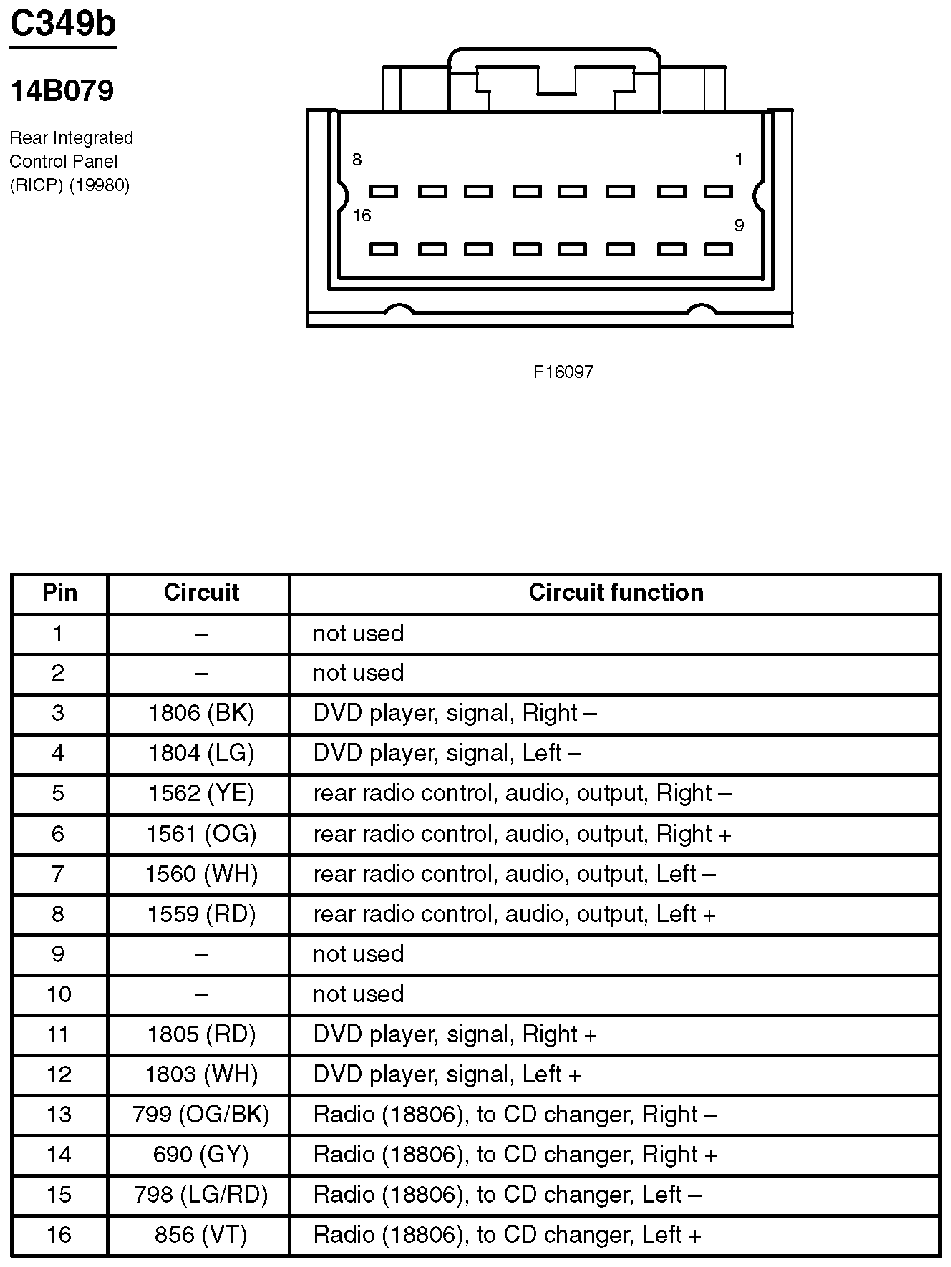

Fig 159: Rear Integrated Control Panel (RICP) Connector End View (C349b)
Courtesy of FORD MOTOR CO.

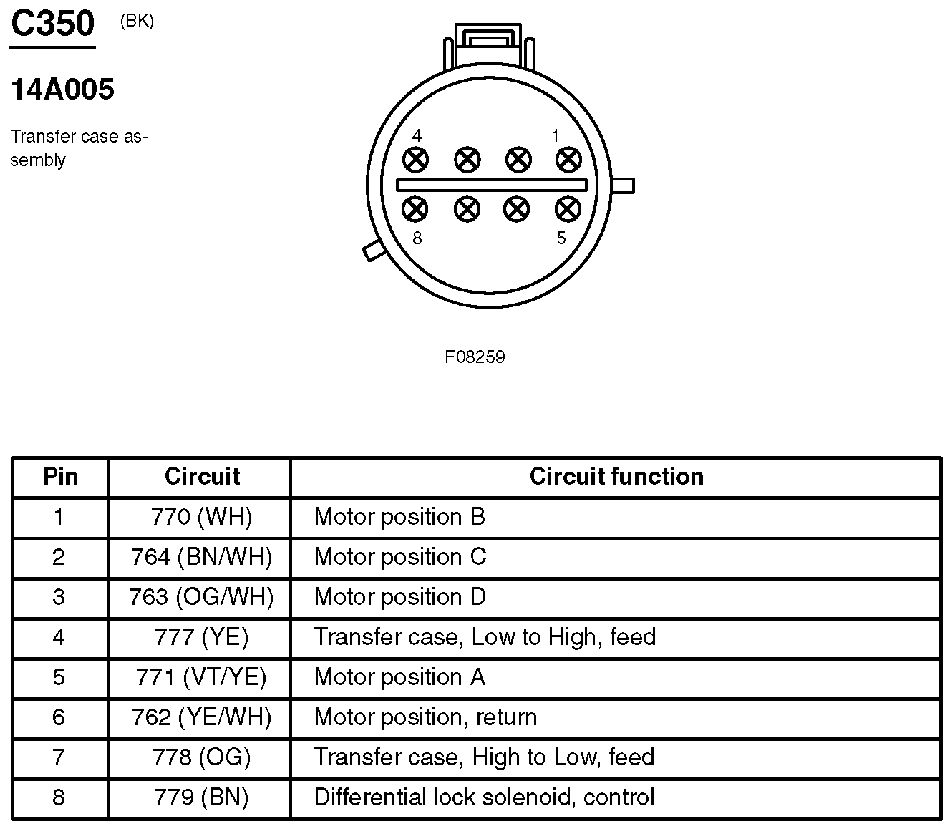

Fig 160: Transfer Case Assembly Connector End View (C350)
Courtesy of FORD MOTOR CO.

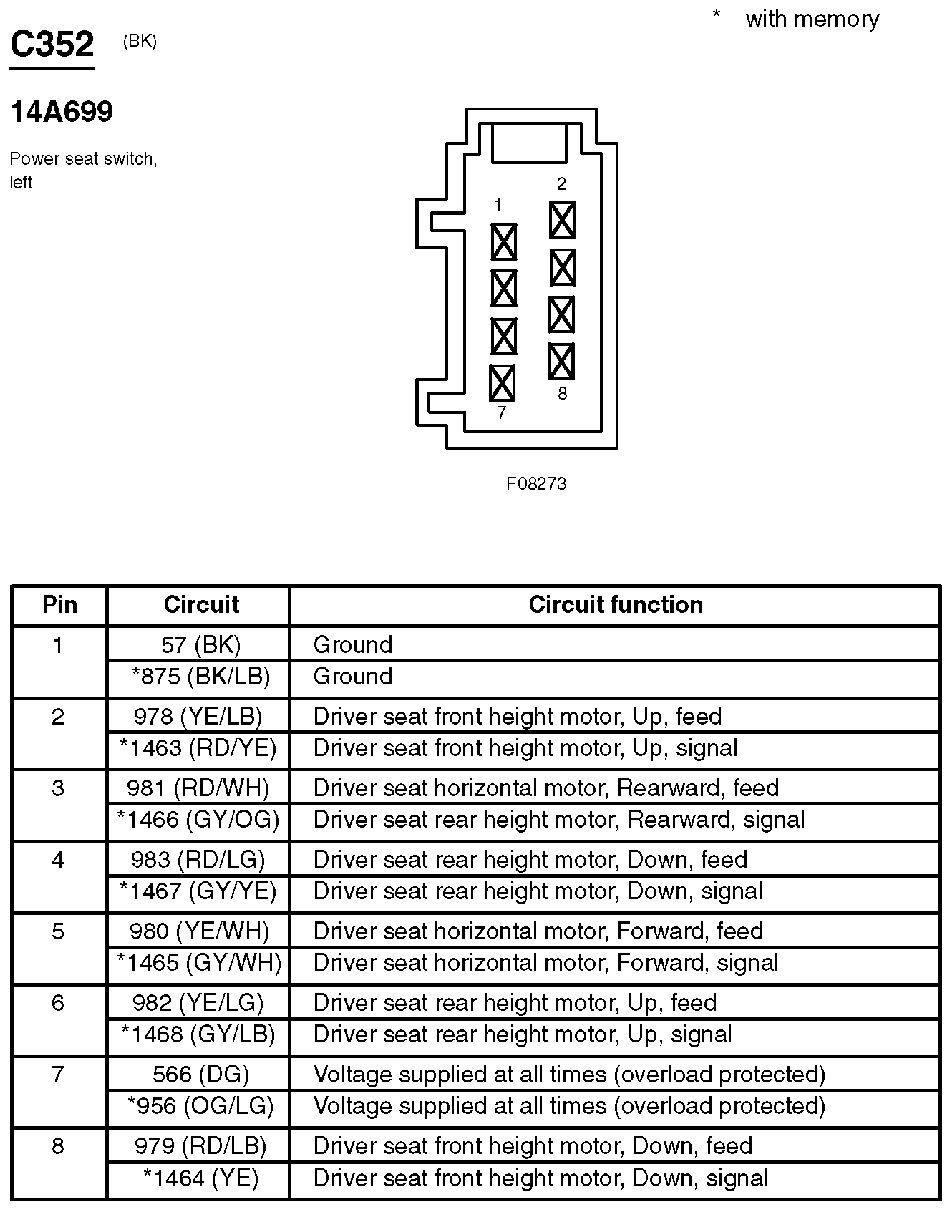

Fig 161: Power Seat Switch, Left Connector End View (C352)
Courtesy of FORD MOTOR CO.

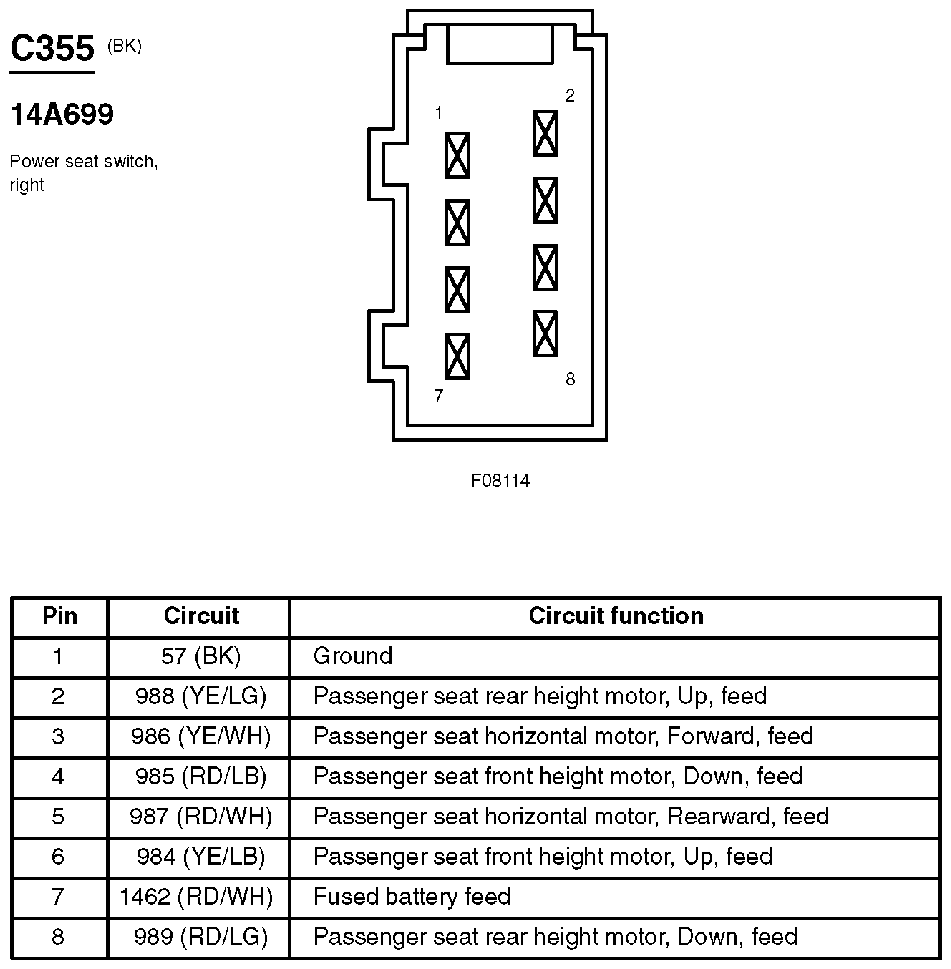

Fig 162: Power Seat Switch, Right Connector End View (C355)
Courtesy of FORD MOTOR CO.

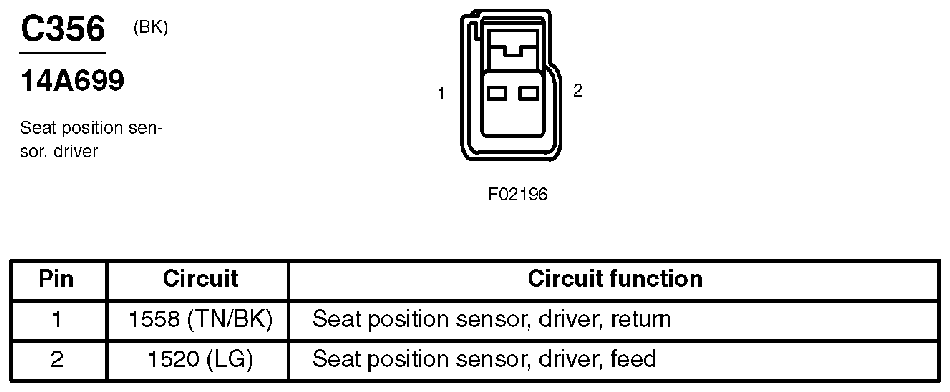

Fig 163: Seat Position Sensor, Driver Connector End View (C356)
Courtesy of FORD MOTOR CO.

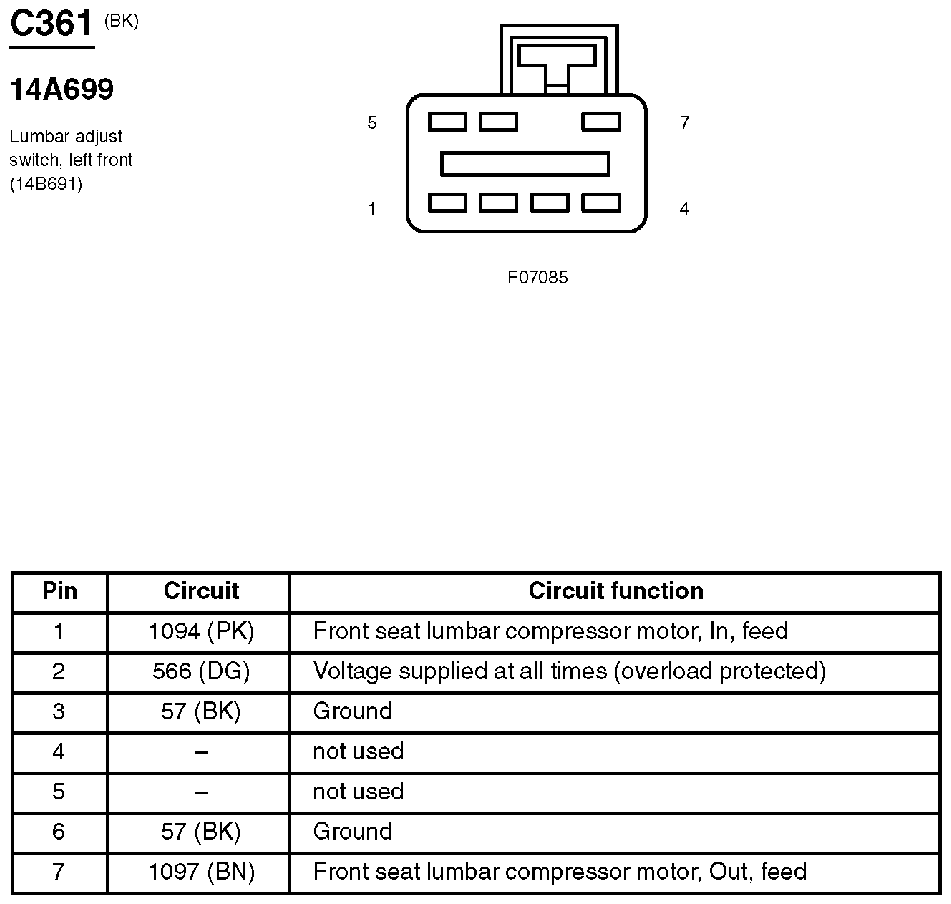

Fig 164: Lumbar Adjust Switch, Left Front Connector End View (C361)
Courtesy of FORD MOTOR CO.

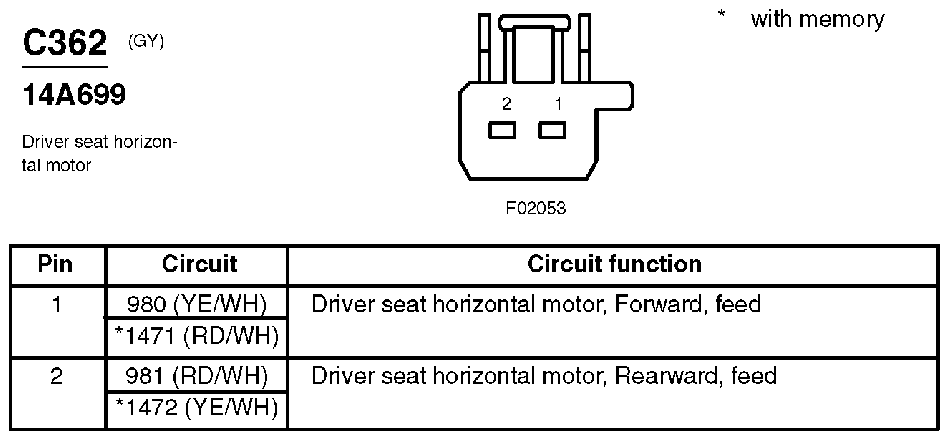

Fig 165: Driver Seat Horizontal Motor Connector End View (C362)
Courtesy of FORD MOTOR CO.

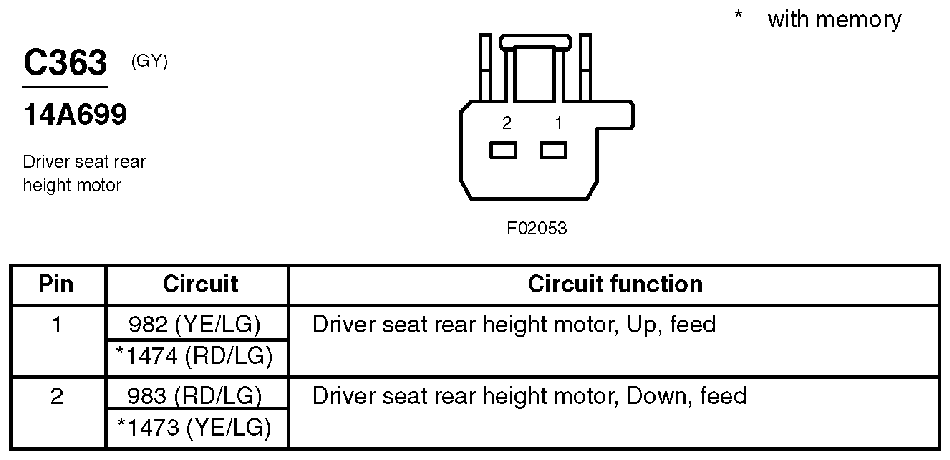

Fig 166: Driver Seat Rear Height Motor Connector End View (C363)
Courtesy of FORD MOTOR CO.
Fig 167: Ashtray Illumination Lamp Connector End View (C370)
Courtesy of FORD MOTOR CO.

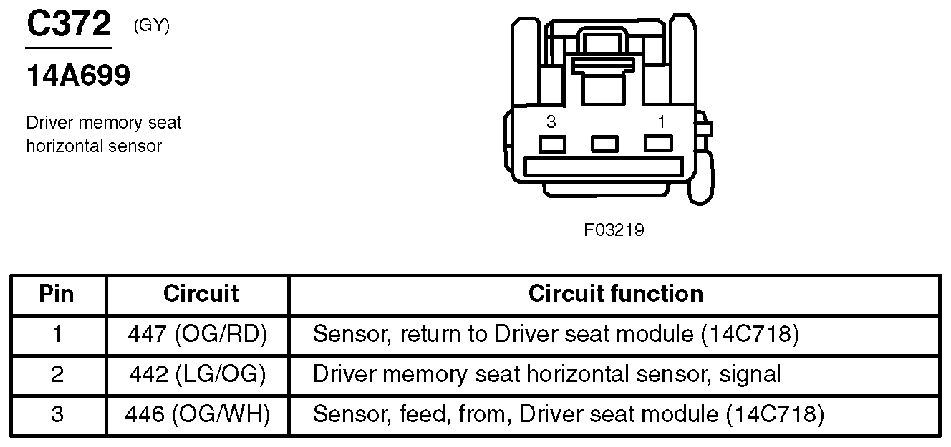

Fig 168: Driver Memory Seat Horizontal Sensor Connector End View (C372)
Courtesy of FORD MOTOR CO.
Fig 169: Driver Memory Seat Rear Height Sensor Connector End View (C373)
Courtesy of FORD MOTOR CO.

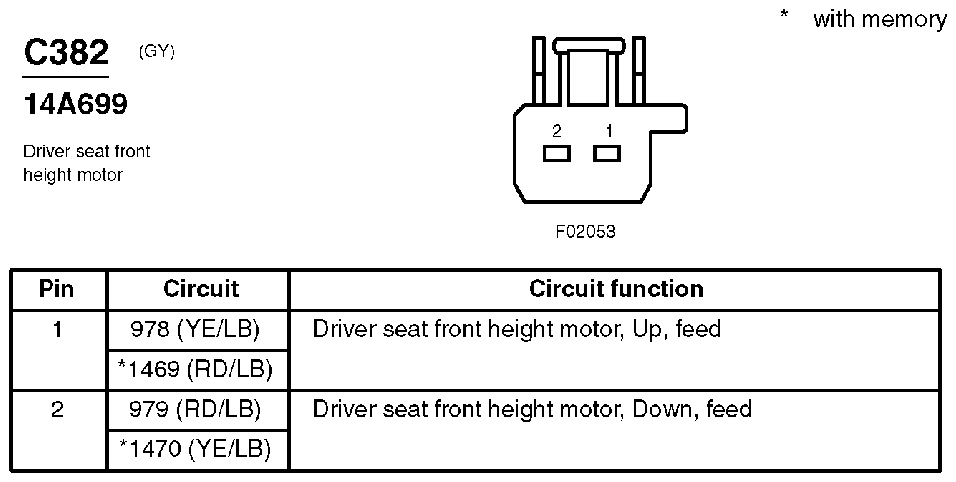

Fig 170: Driver Seat Front Height Motor Connector End View (C382)
Courtesy of FORD MOTOR CO.
Fig 171: Driver Memory Seat Front Height Sensor Connector End View (C383)
Courtesy of FORD MOTOR CO.

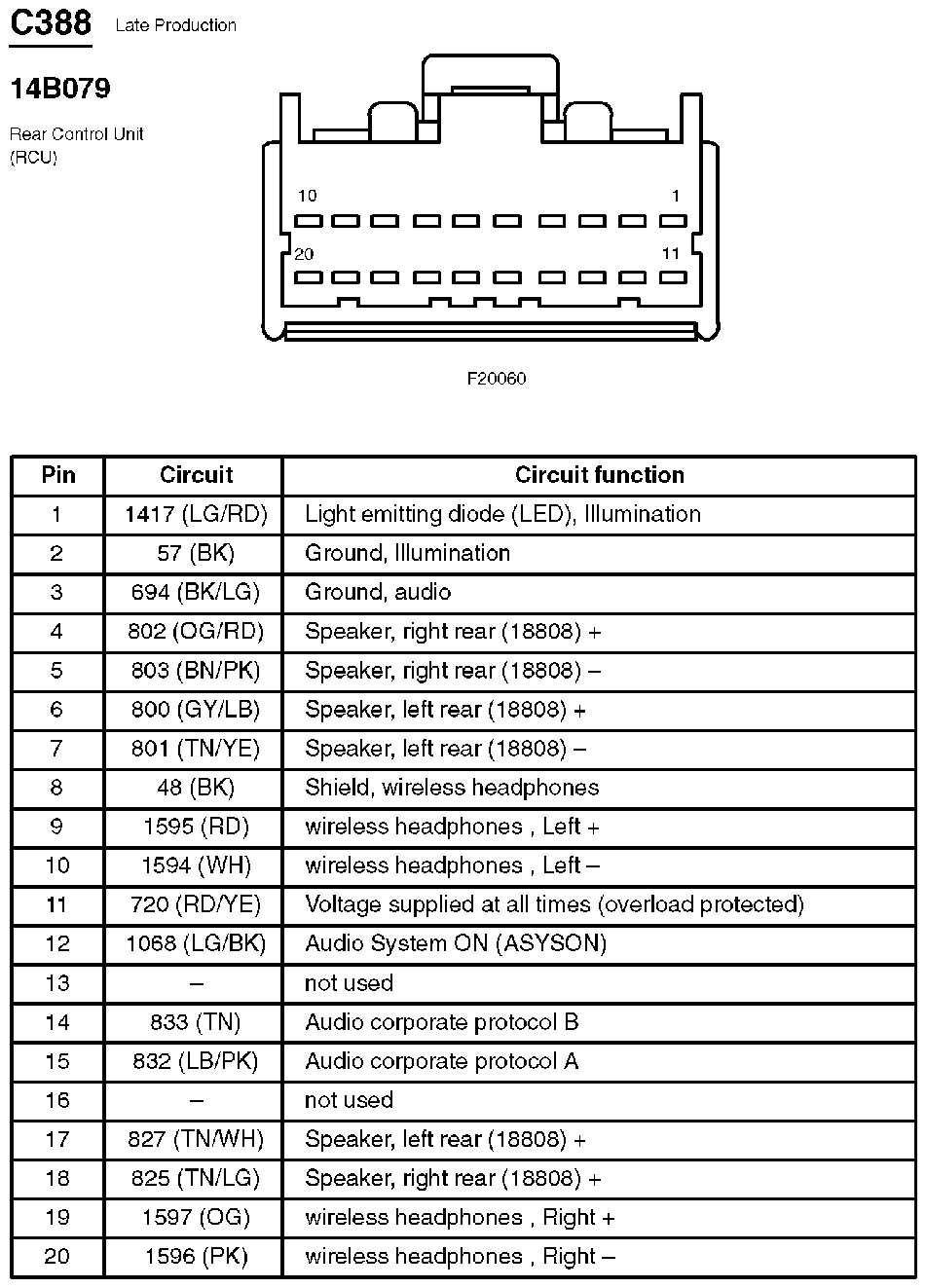

Fig 172: Rear Control Unit (RCU) Connector End View (C388)
Courtesy of FORD MOTOR CO.

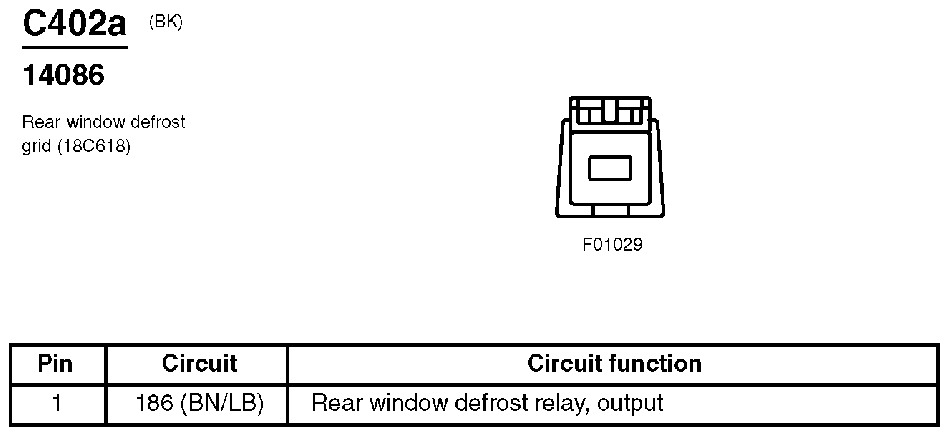

Fig 173: Rear Window Defrost Grid Connector End View (C402a)
Courtesy of FORD MOTOR CO.

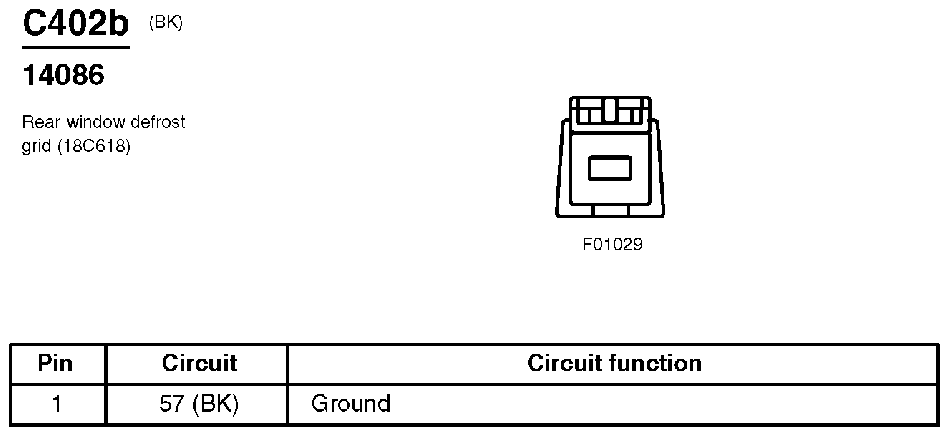

Fig 174: Rear Window Defrost Grid Connector End View (C402b)
Courtesy of FORD MOTOR CO.

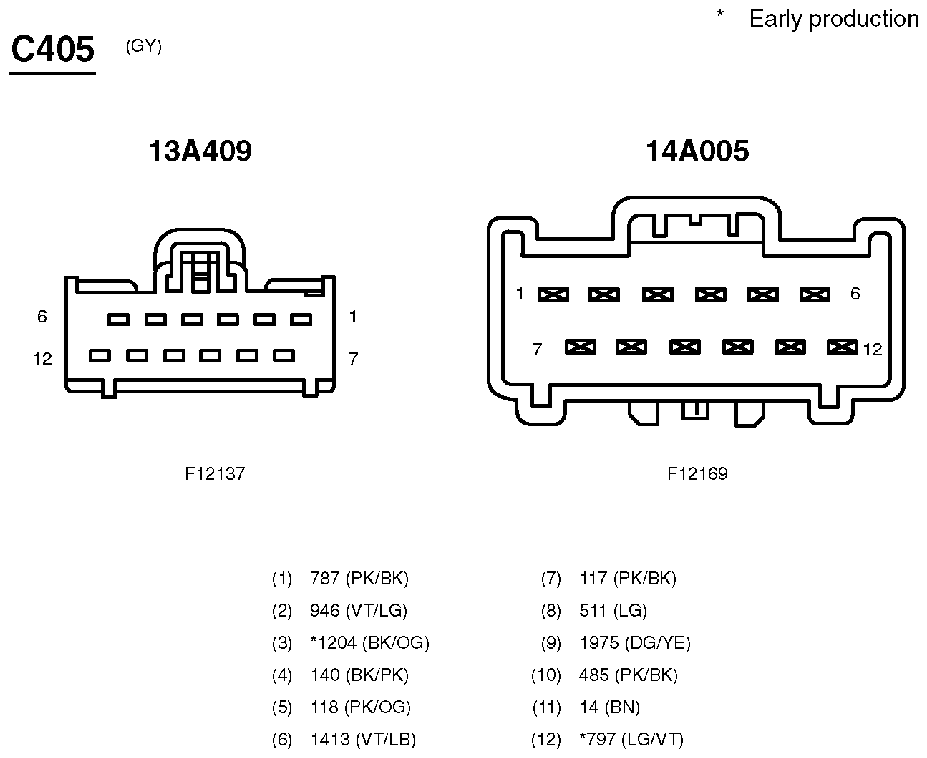

Fig 175: Inline Connector End View (C405)
Courtesy of FORD MOTOR CO.

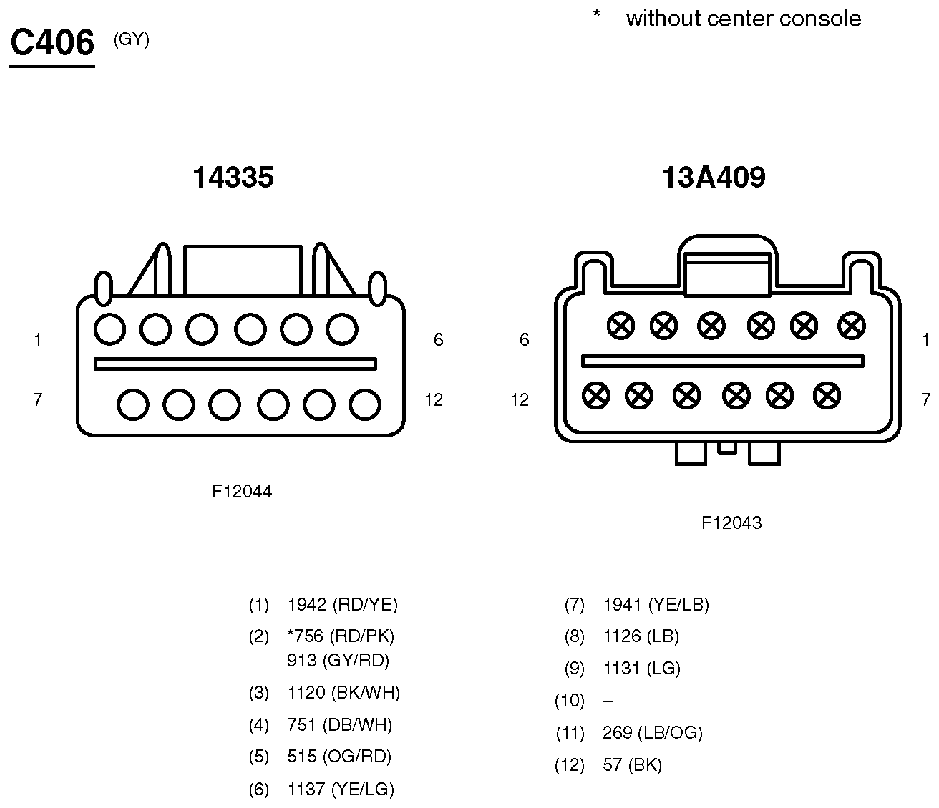

Fig 176: Inline Connector End View (C406)
Courtesy of FORD MOTOR CO.

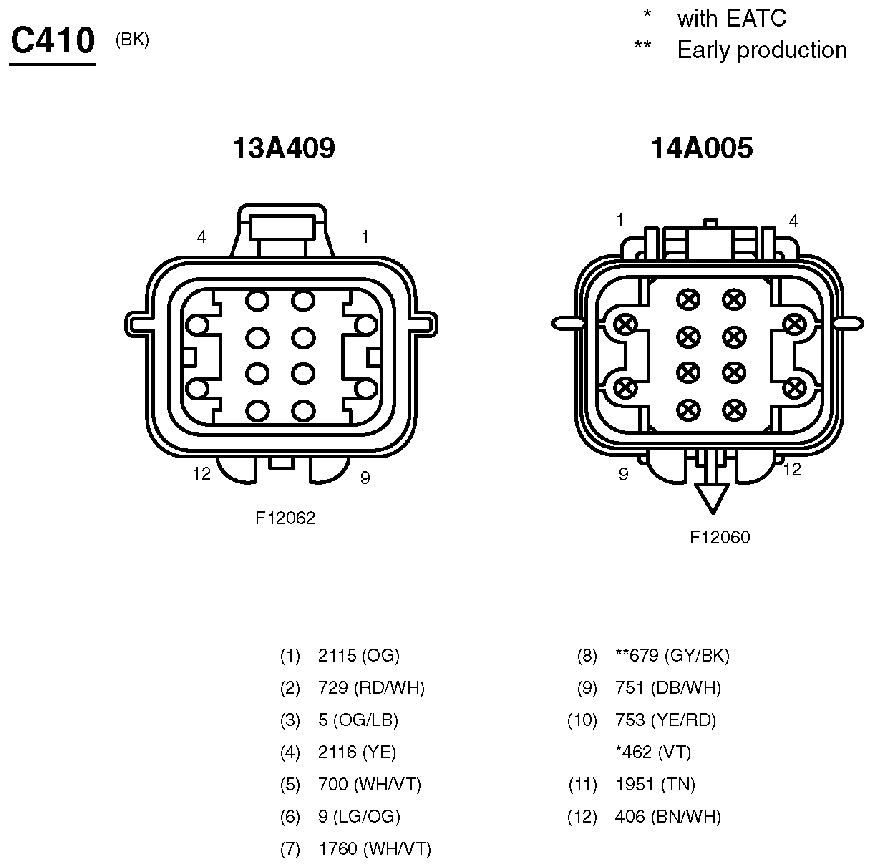

Fig 177: Inline Connector End View (C410)
Courtesy of FORD MOTOR CO.

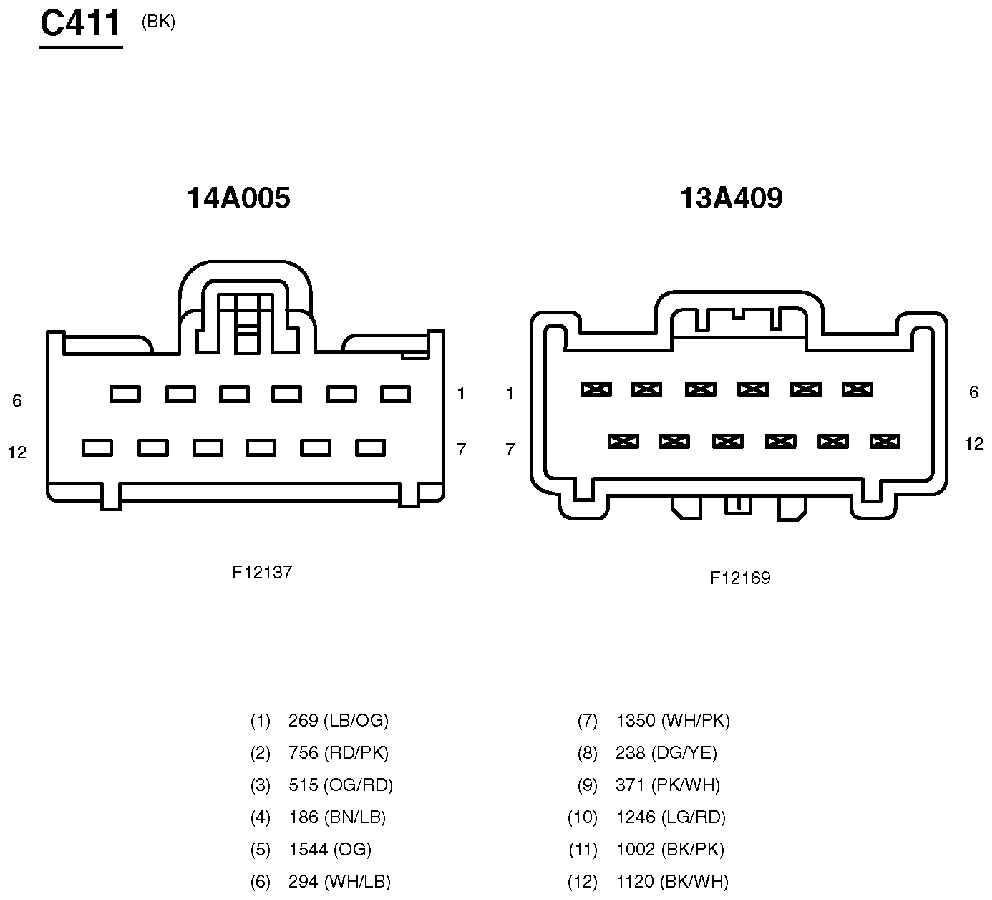

Fig 178: Inline Connector End View (C411)
Courtesy of FORD MOTOR CO.

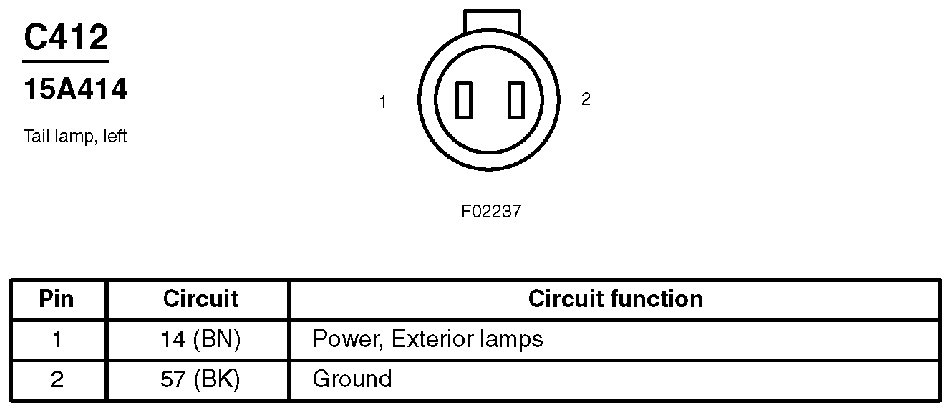

Fig 179: Tail Lamp, Left Connector End View (C412)
Courtesy of FORD MOTOR CO.

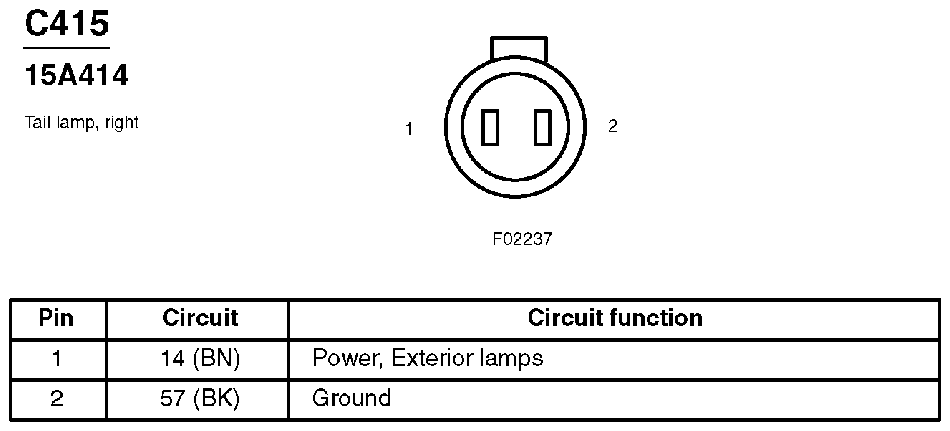

Fig 180: Tail Lamp, Right Connector End View (C415)
Courtesy of FORD MOTOR CO.

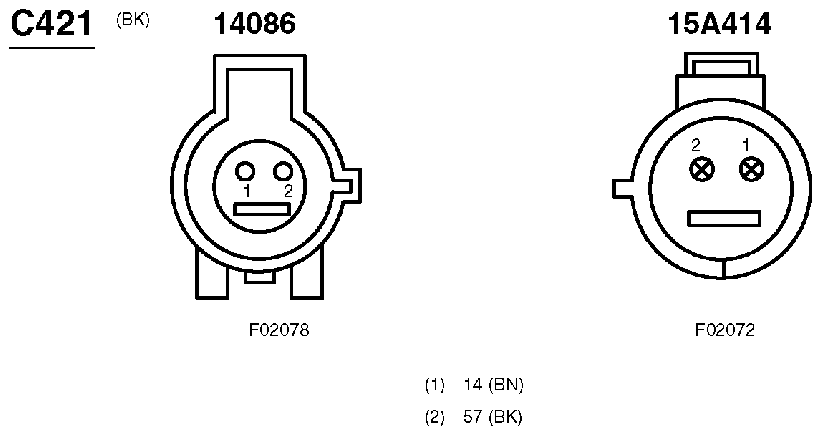

Fig 181: Inline Connector End View (C421)
Courtesy of FORD MOTOR CO.

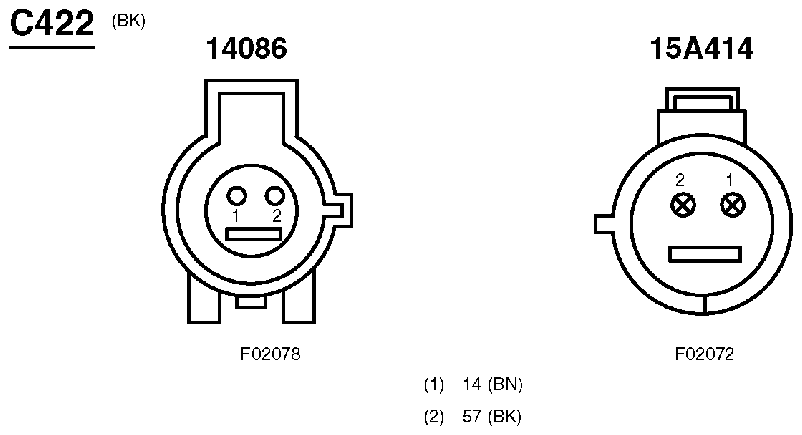

Fig 182: Inline Connector End View (C422)
Courtesy of FORD MOTOR CO.

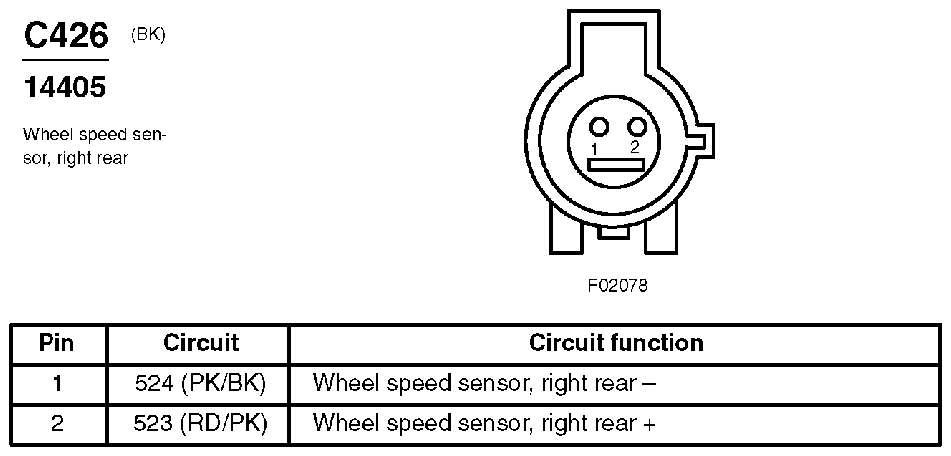

Fig 183: Wheel Speed Sensor, Right Rear Connector End View (C426)
Courtesy of FORD MOTOR CO.

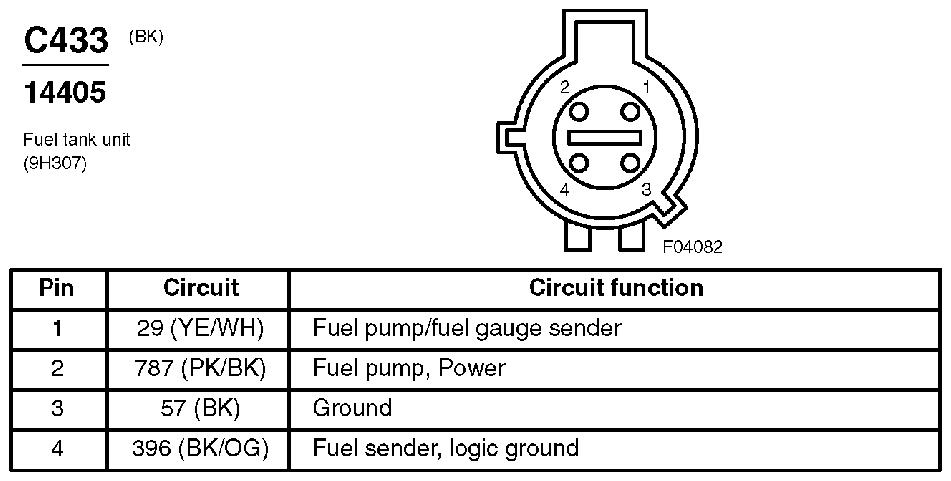

Fig 184: Fuel Tank Unit Connector End View (C433)
Courtesy of FORD MOTOR CO.

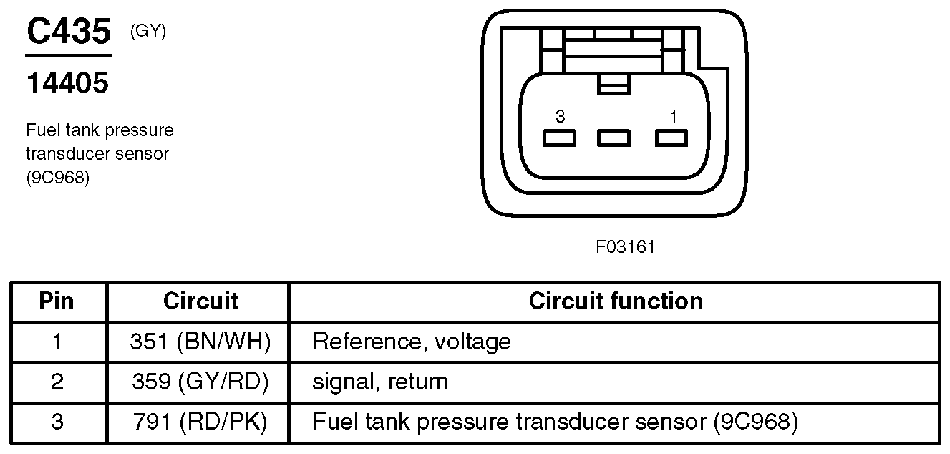

Fig 185: Fuel Tank Pressure Transducer Sensor Connector End View (C435)
Courtesy of FORD MOTOR CO.

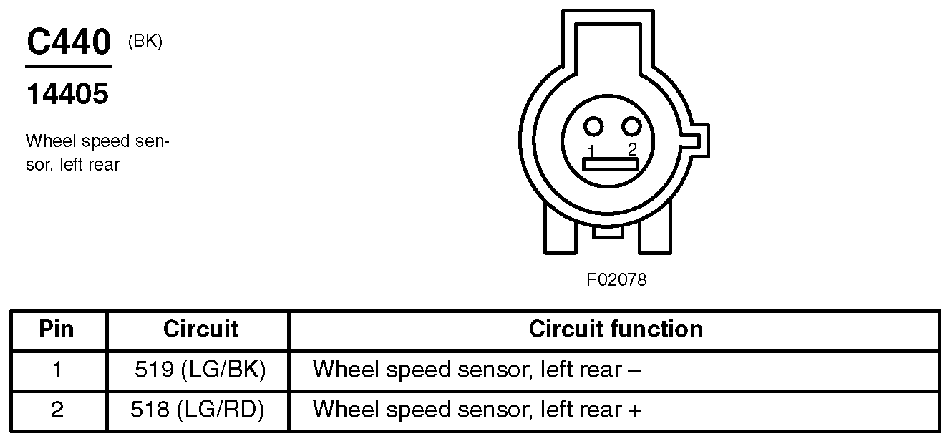

Fig 186: Wheel Speed Sensor, Left Rear Connector End View (C440)
Courtesy of FORD MOTOR CO.

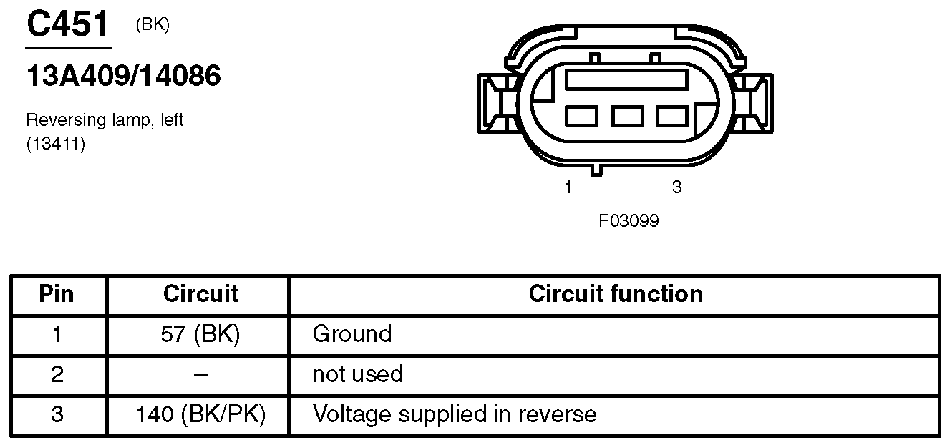

Fig 187: Reversing Lamp, Left Connector End View (C451)
Courtesy of FORD MOTOR CO.

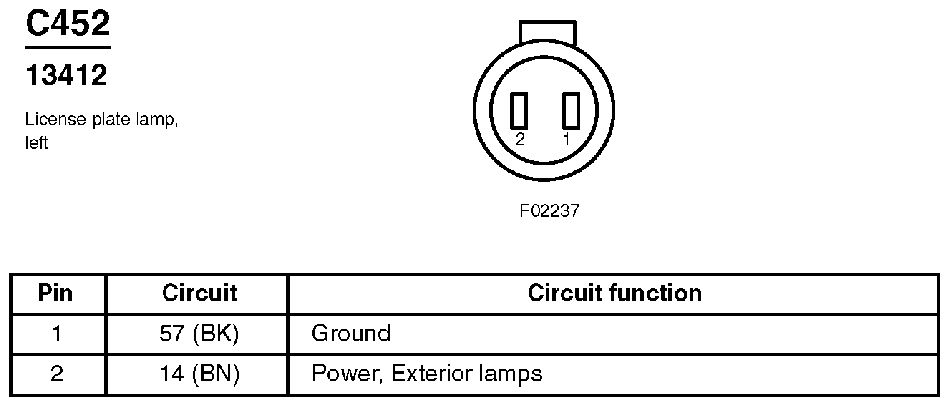

Fig 188: License Plate Lamp, Left Connector End View (C452)
Courtesy of FORD MOTOR CO.

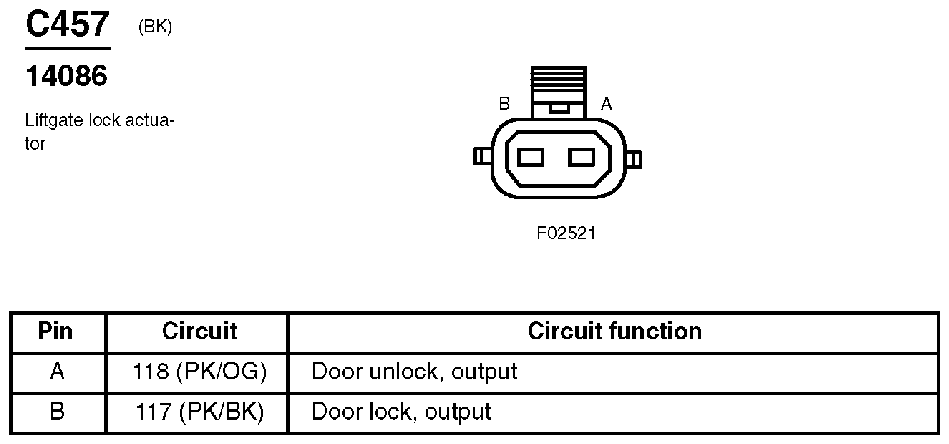

Fig 189: Liftgate Lock Actuator Connector End View (C457)
Courtesy of FORD MOTOR CO.

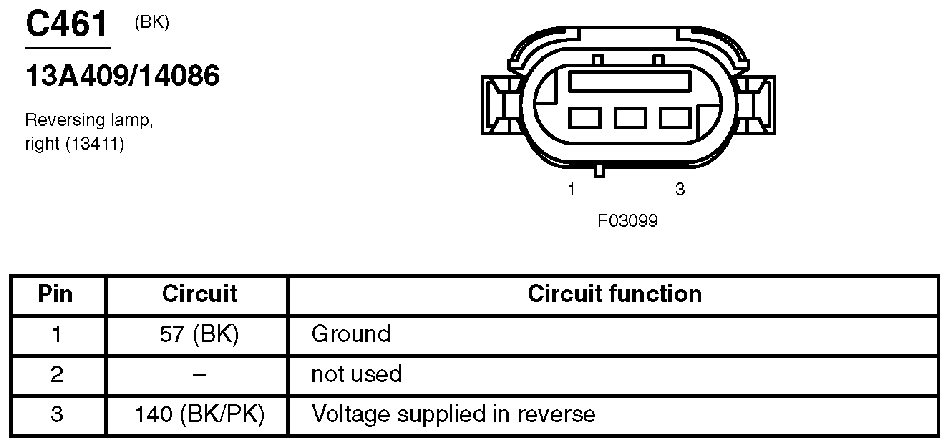

Fig 190: Reversing Lamp, Right Connector End View (C461)
Courtesy of FORD MOTOR CO.

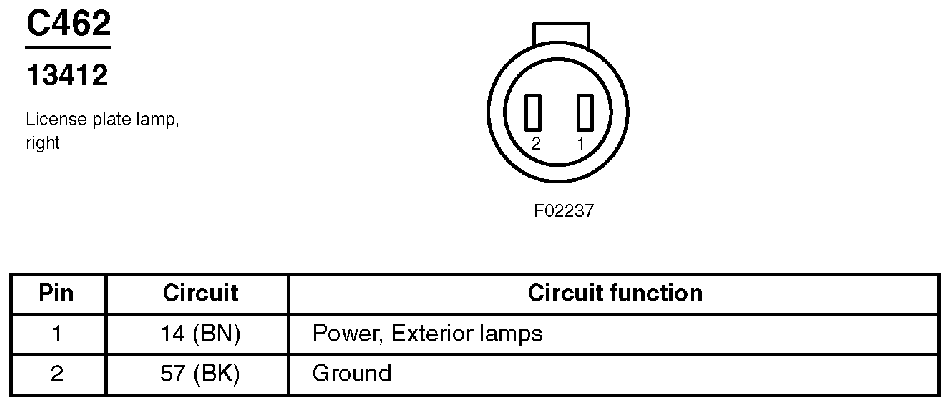

Fig 191: License Plate Lamp, Right Connector End View (C462)
Courtesy of FORD MOTOR CO.

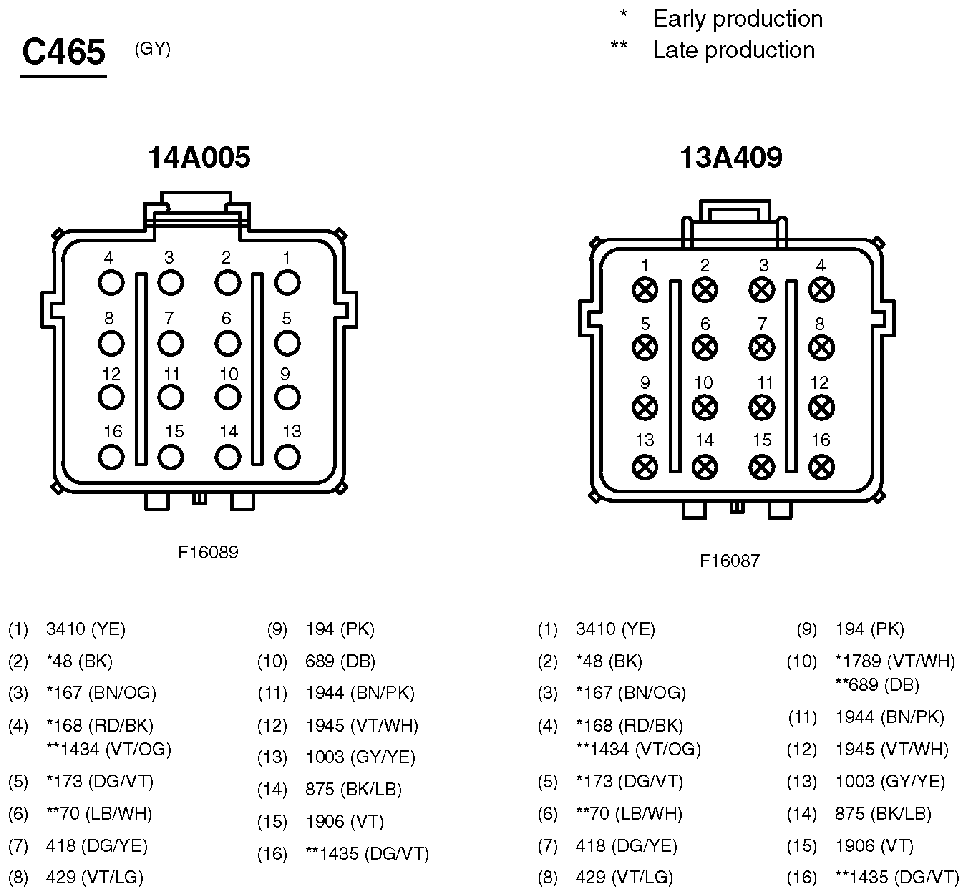

Fig 192: Inline Connector End View (C465)
Courtesy of FORD MOTOR CO.

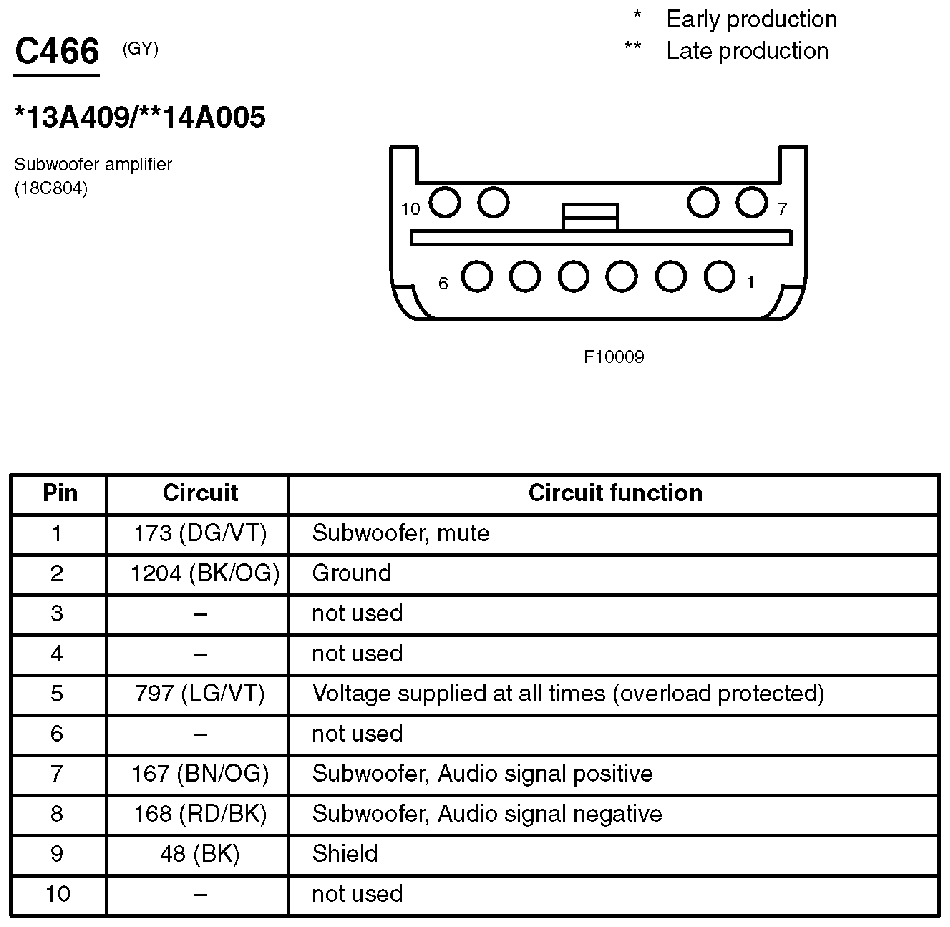

Fig 193: Subwoofer Amplifier Connector End View (C466)
Courtesy of FORD MOTOR CO.

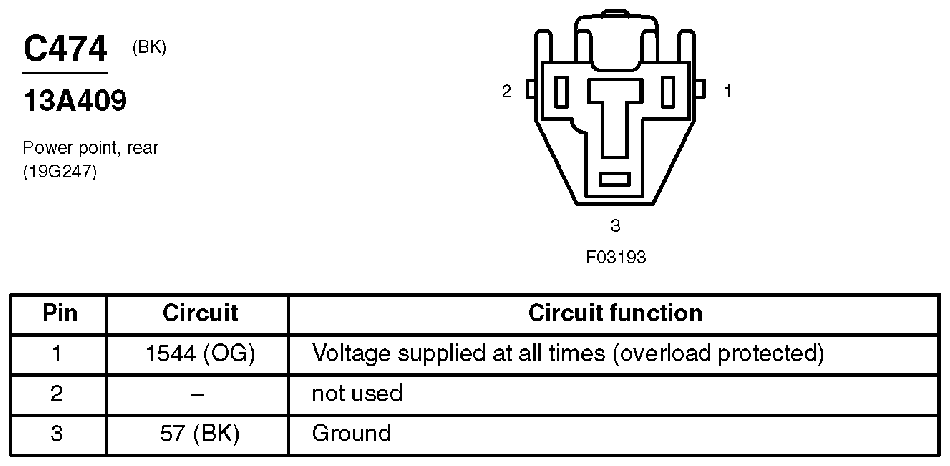

Fig 194: Power Point, Rear Connector End View (C474)
Courtesy of FORD MOTOR CO.

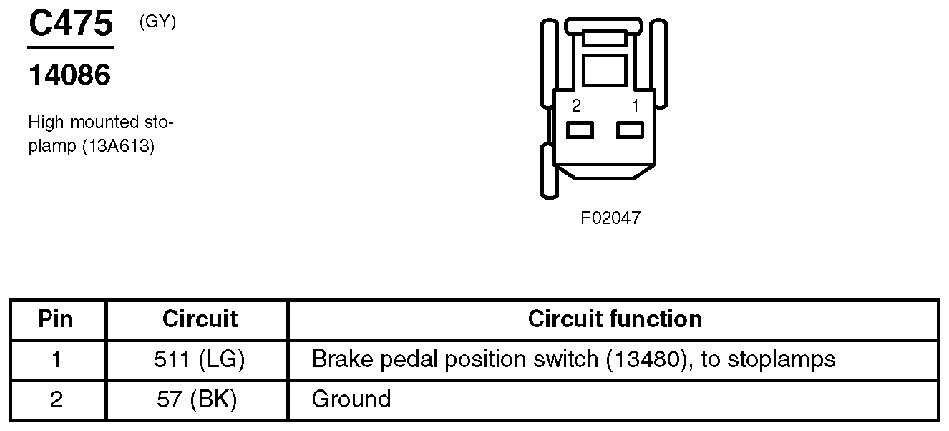

Fig 195: High Mounted Stoplamp Connector End View (C475)
Courtesy of FORD MOTOR CO.

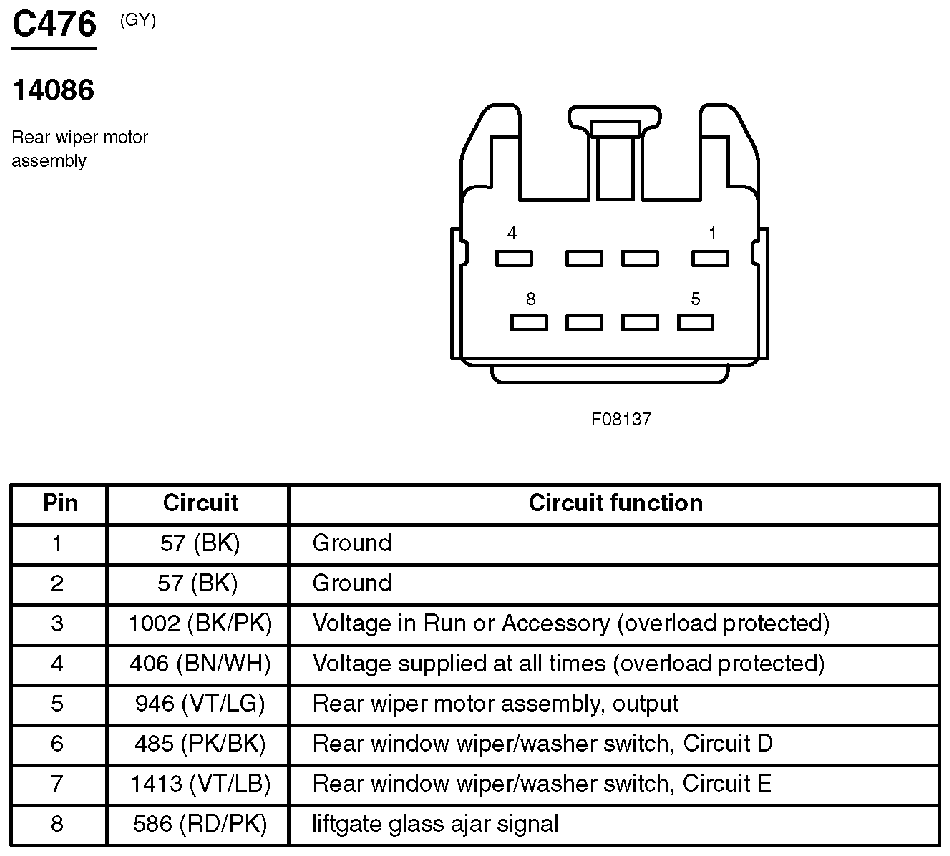

Fig 196: Rear Wiper Motor Assembly Connector End View (C476)
Courtesy of FORD MOTOR CO.

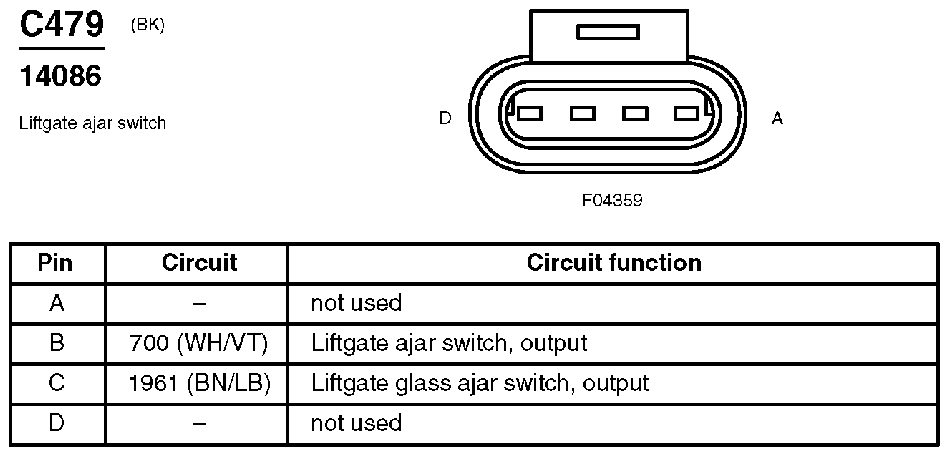

Fig 197: Liftgate Ajar Switch Connector End View (C479)
Courtesy of FORD MOTOR CO.
Fig 198: Inline Connector End View (C494)
Courtesy of FORD MOTOR CO.

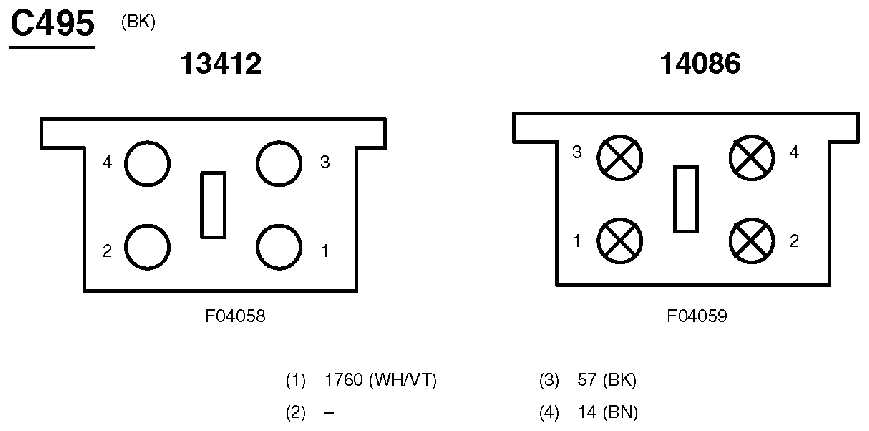

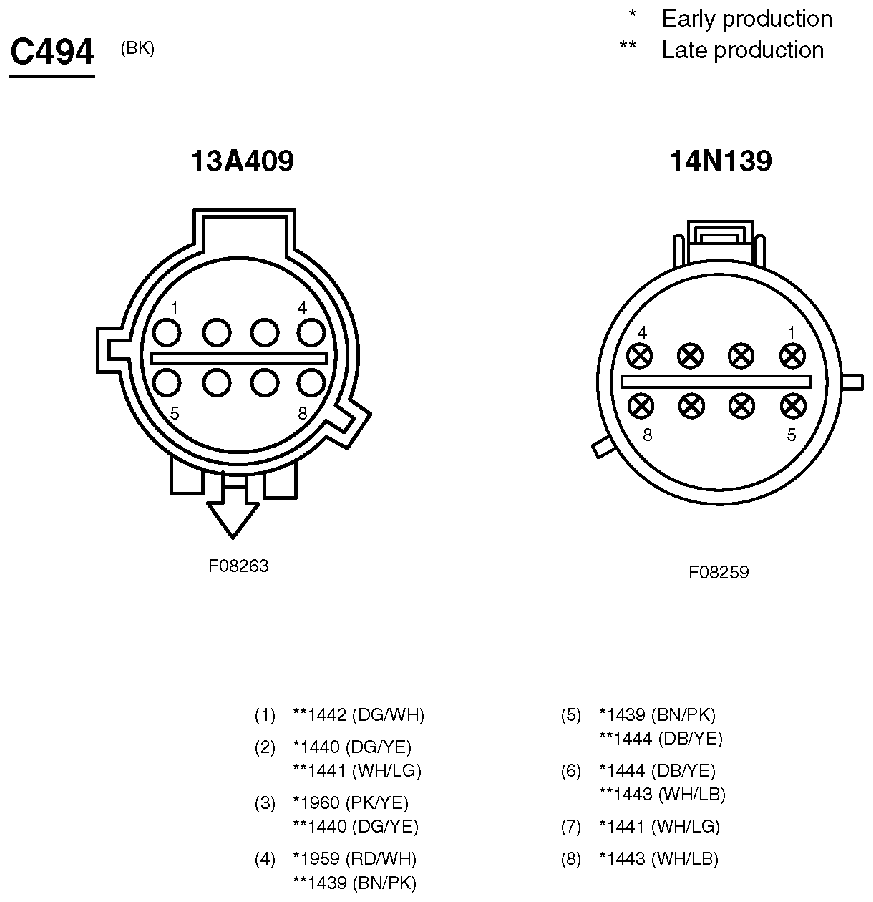

Fig 199: Inline Connector End View (C495)
Courtesy of FORD MOTOR CO.

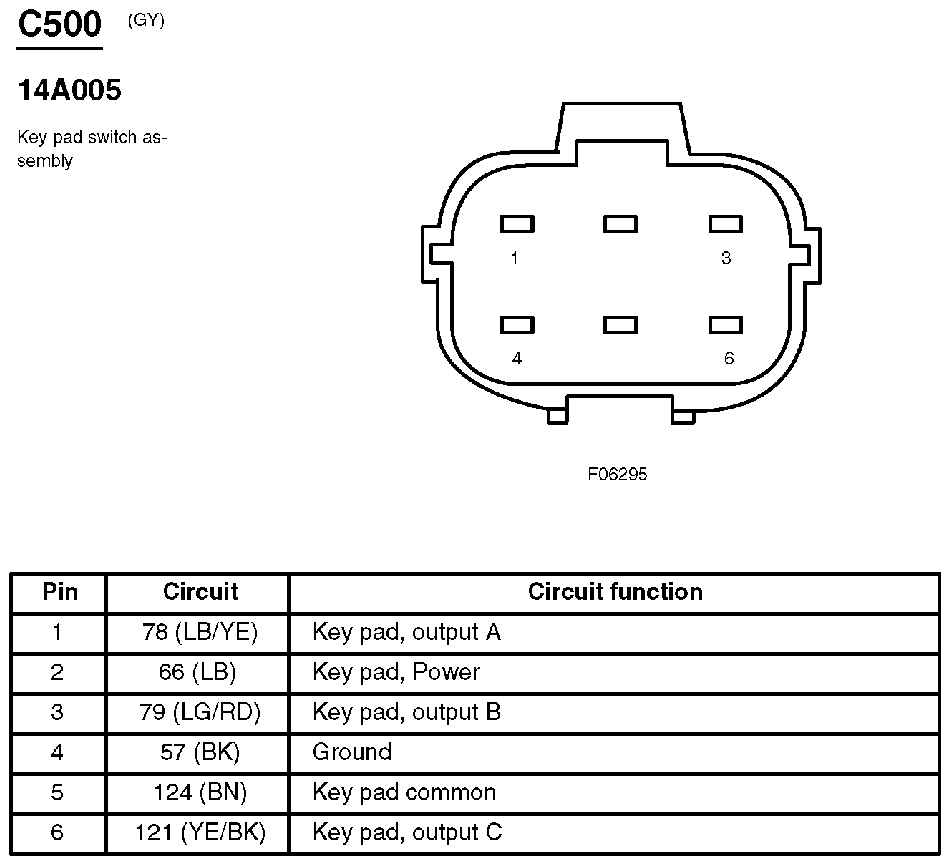

Fig 200: Key Pad Switch Assembly Connector End View (C500)
Courtesy of FORD MOTOR CO.

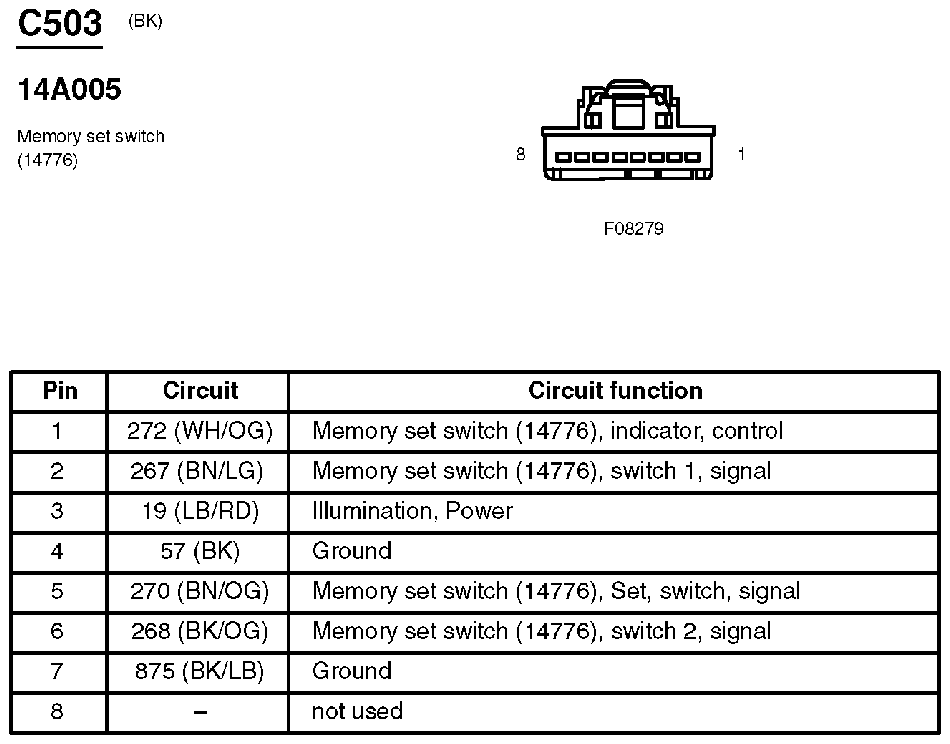

Fig 201: Memory Set Switch Connector End View (C503)
Courtesy of FORD MOTOR CO.

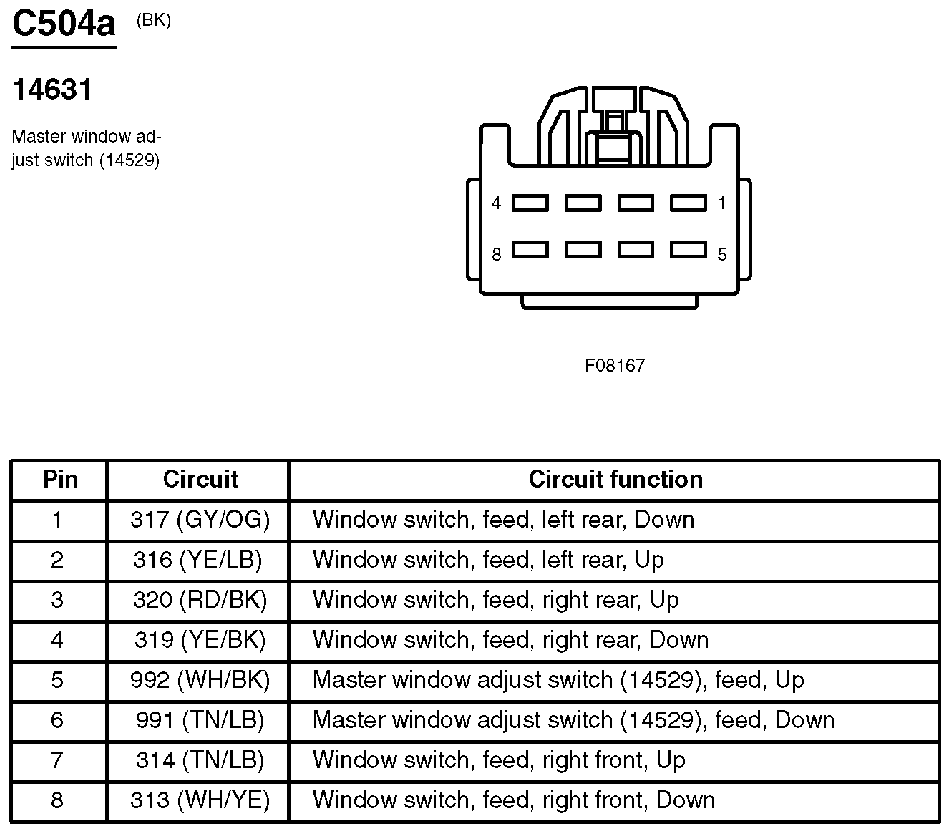

Fig 202: Master Window Adjust Switch Connector End View (C504a)
Courtesy of FORD MOTOR CO.

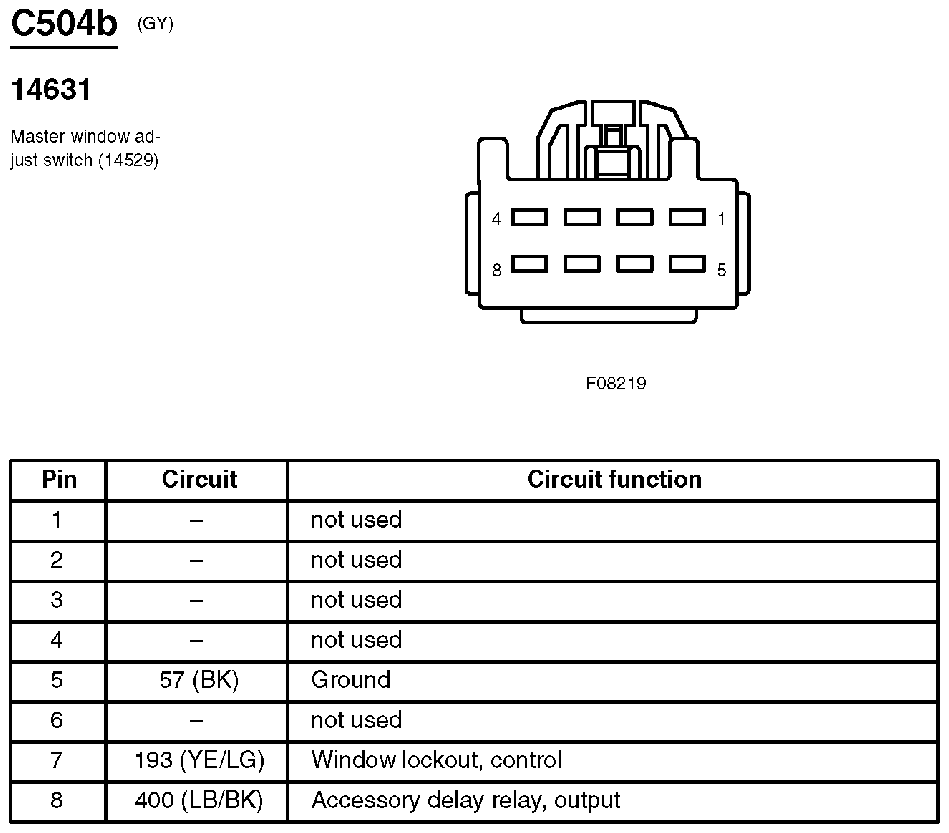

Fig 203: Master Window Adjust Switch Connector End View (C504b)
Courtesy of FORD MOTOR CO.

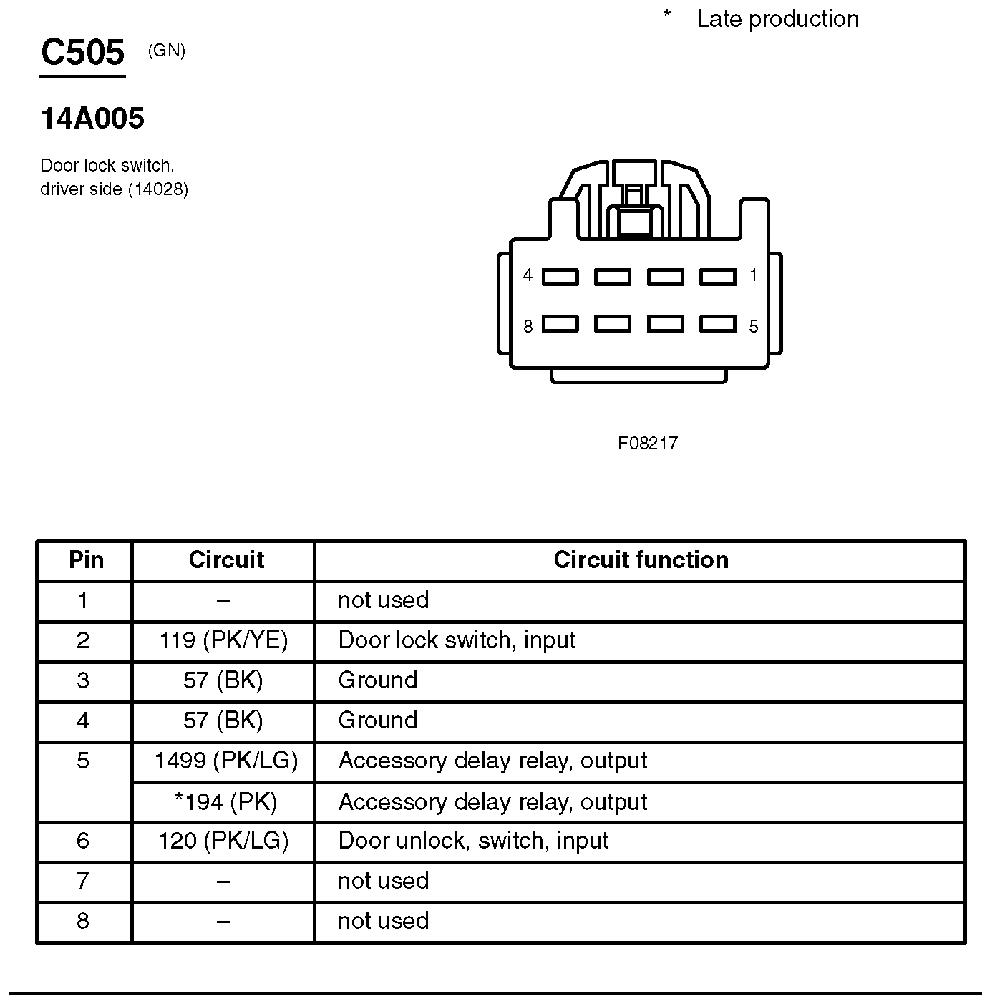

Fig 204: Door Lock Switch, Driver Side Connector End View (C505)
Courtesy of FORD MOTOR CO.

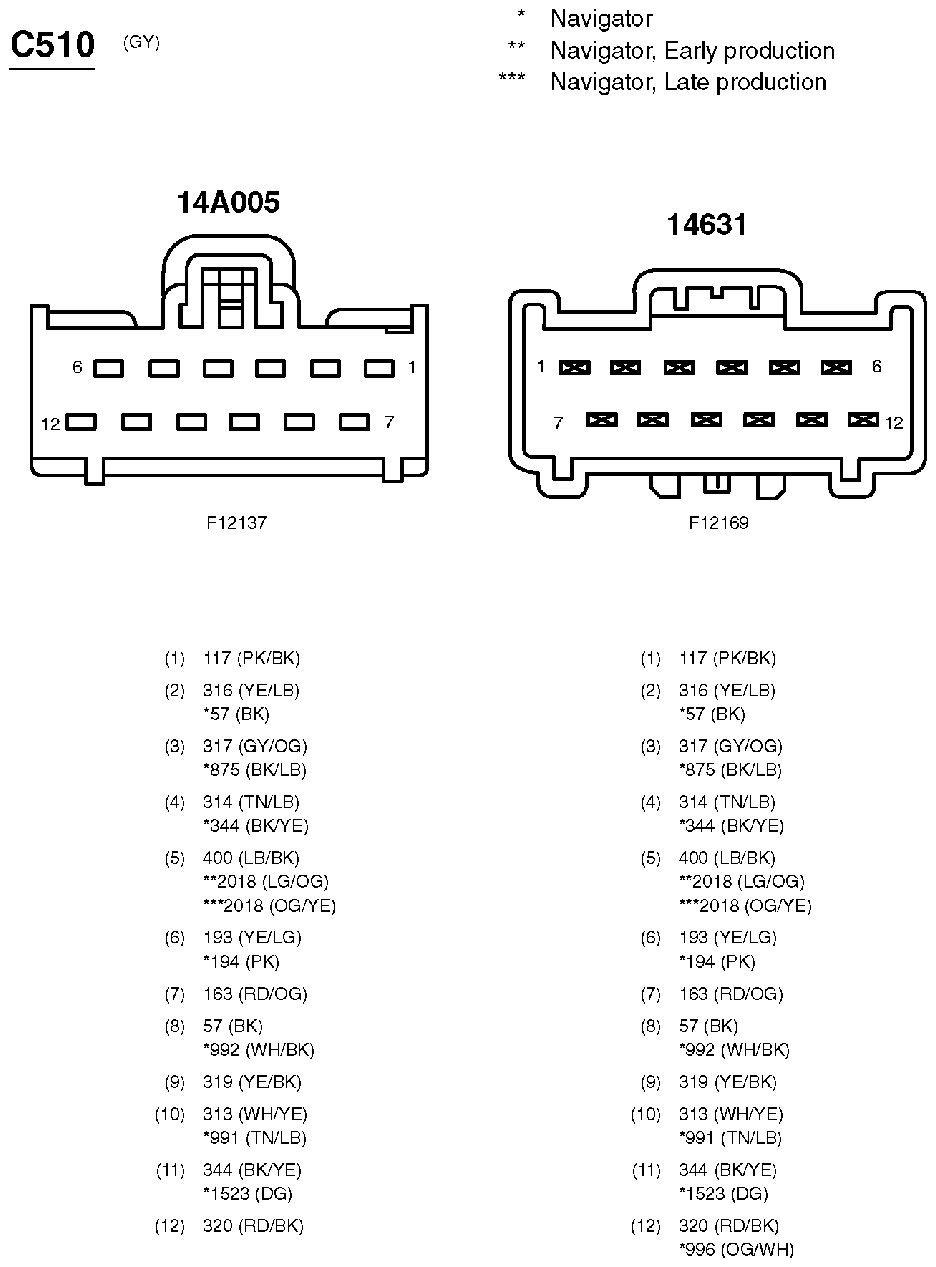

Fig 205: Inline Connector End View (C510)
Courtesy of FORD MOTOR CO.

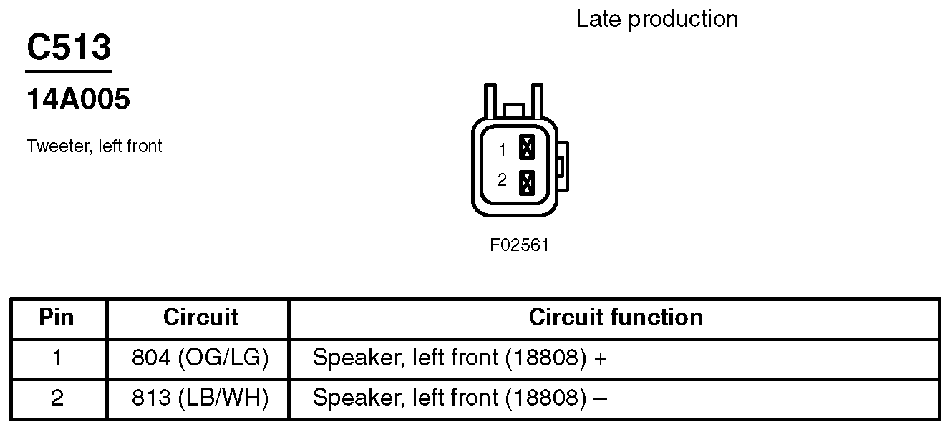

Fig 206: Tweeter, Left Front Connector End View (C513)
Courtesy of FORD MOTOR CO.

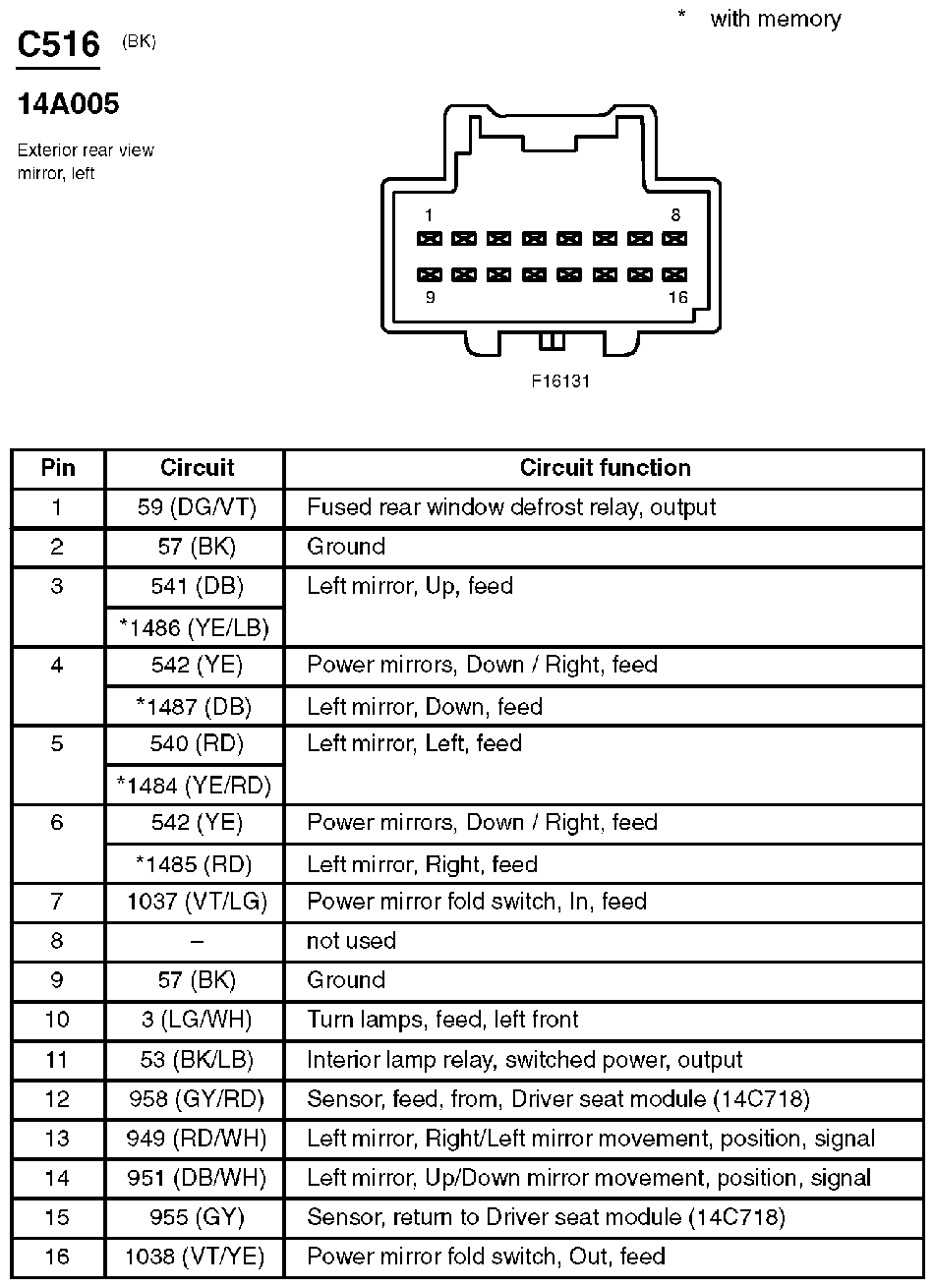

Fig 207: Exterior Rear View Mirror, Left Connector End View (C516)
Courtesy of FORD MOTOR CO.

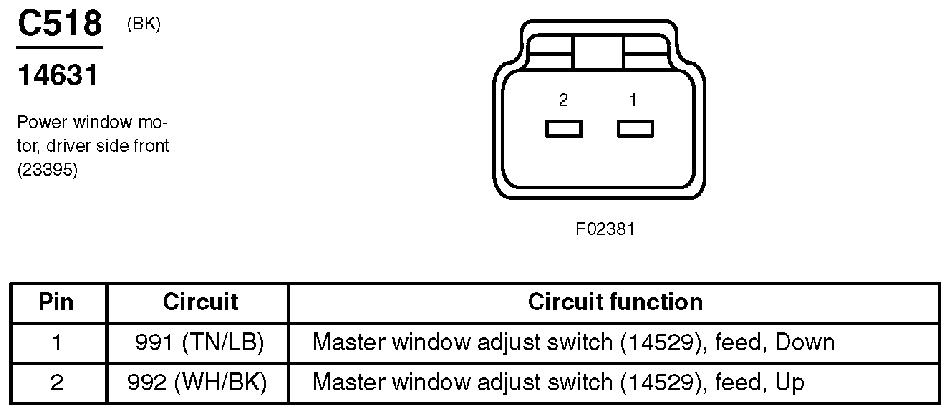

Fig 208: Power Window Motor, Driver Side Front Connector End View (C518)
Courtesy of FORD MOTOR CO.

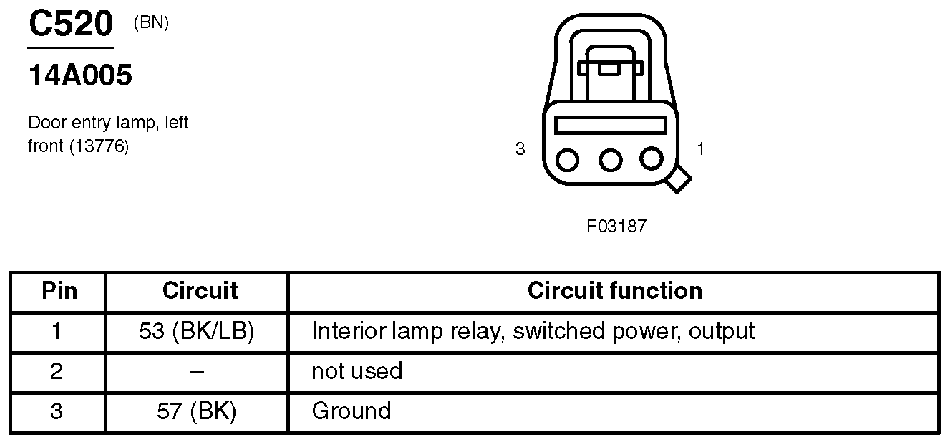

Fig 209: Door Entry Lamp, Left Front Connector End View (C520)
Courtesy of FORD MOTOR CO.

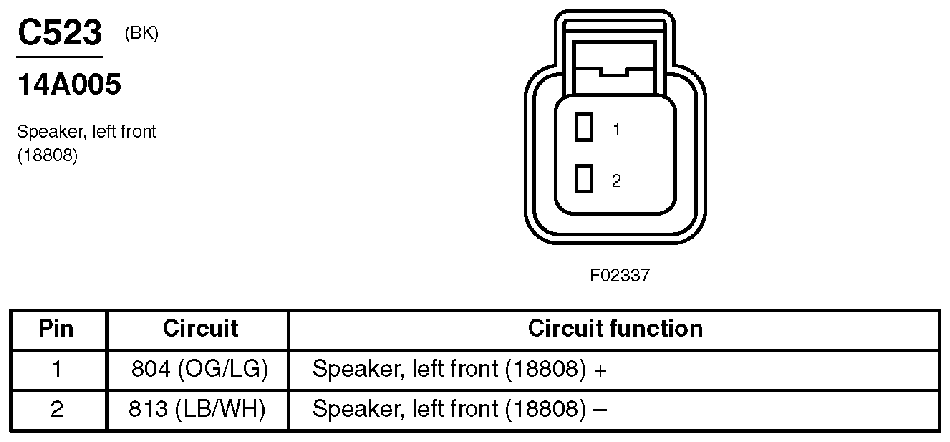

Fig 210: Speaker, Left Front Connector End View (C523)
Courtesy of FORD MOTOR CO.

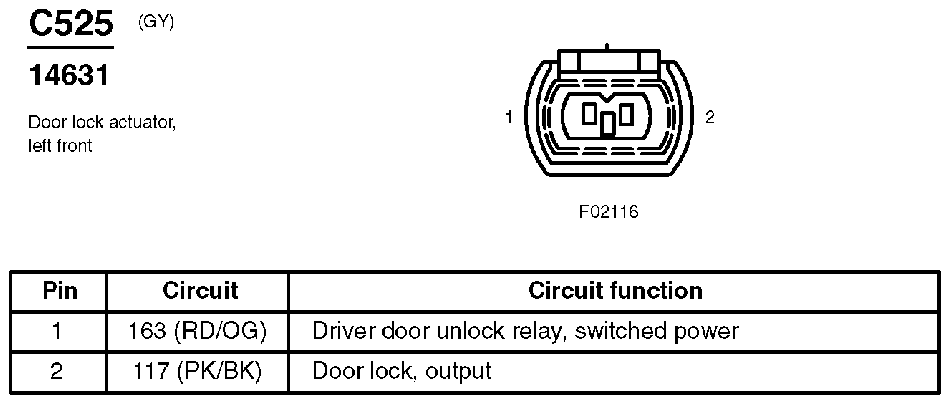

Fig 211: Door Lock Actuator, Left Front Connector End View (C525)
Courtesy of FORD MOTOR CO.

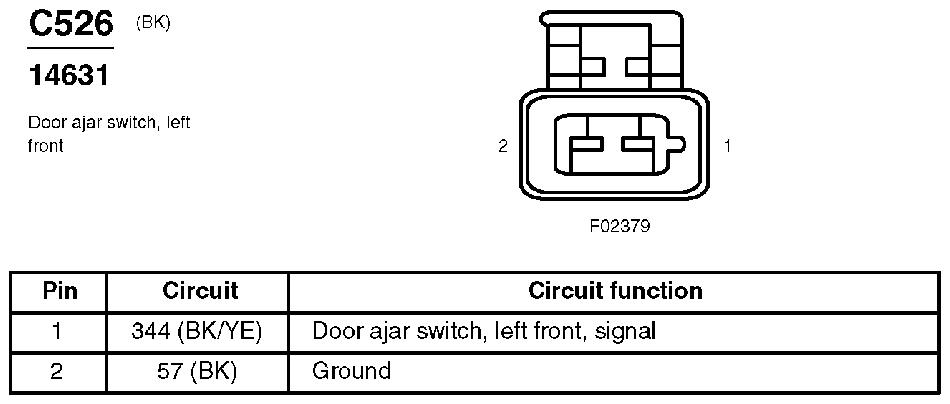

Fig 212: Door Ajar Switch, Left Front Connector End View (C526)
Courtesy of FORD MOTOR CO.

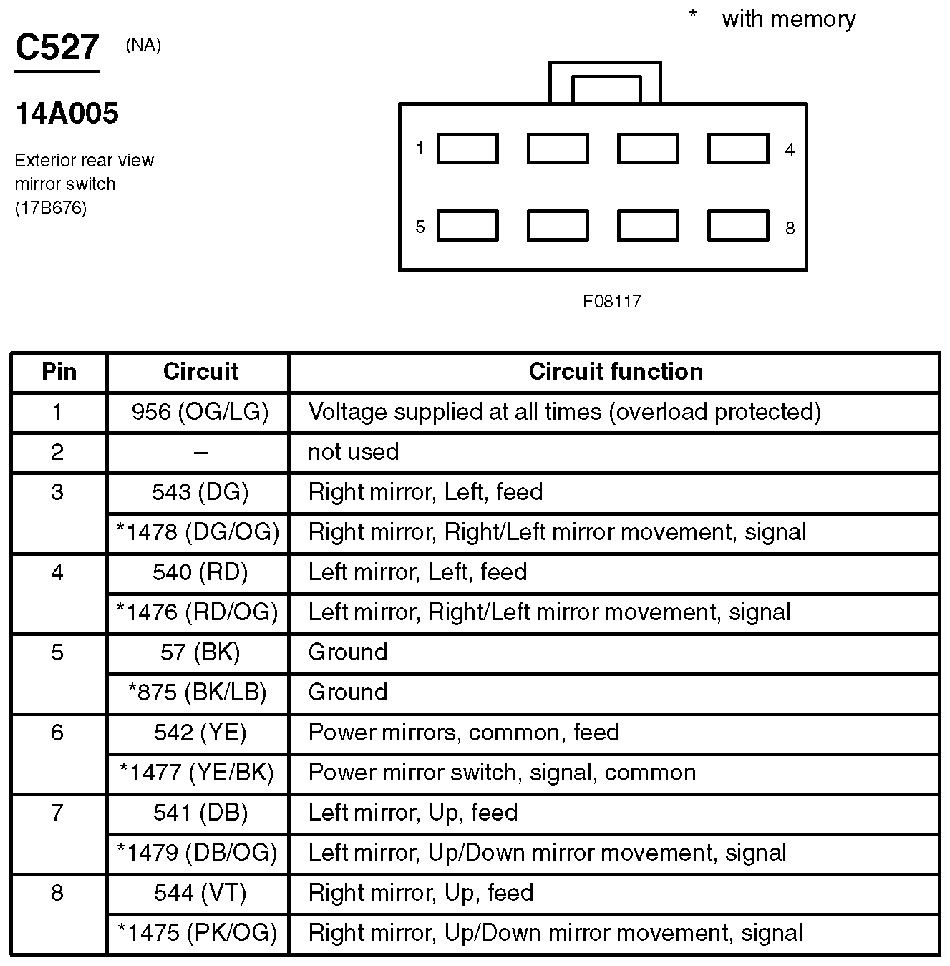

Fig 213: Exterior Rear View Mirror Switch Connector End View (C527)
Courtesy of FORD MOTOR CO.

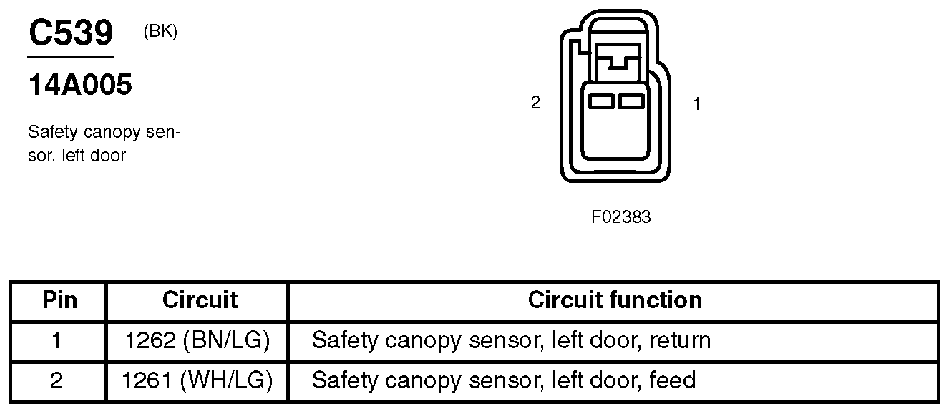

Fig 214: Safety Canopy Sensor, Left Door Connector End View (C539)
Courtesy of FORD MOTOR CO.

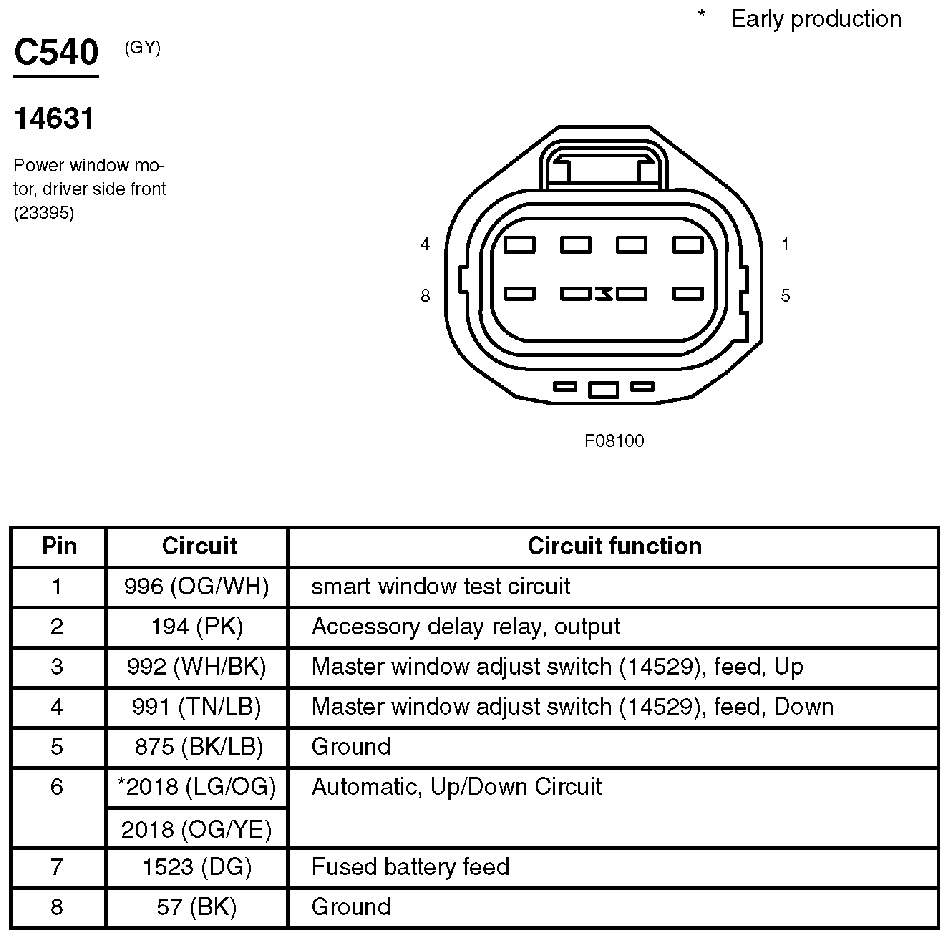

Fig 215: Power Window Motor, Driver Side Front Connector End View (C540)
Courtesy of FORD MOTOR CO.

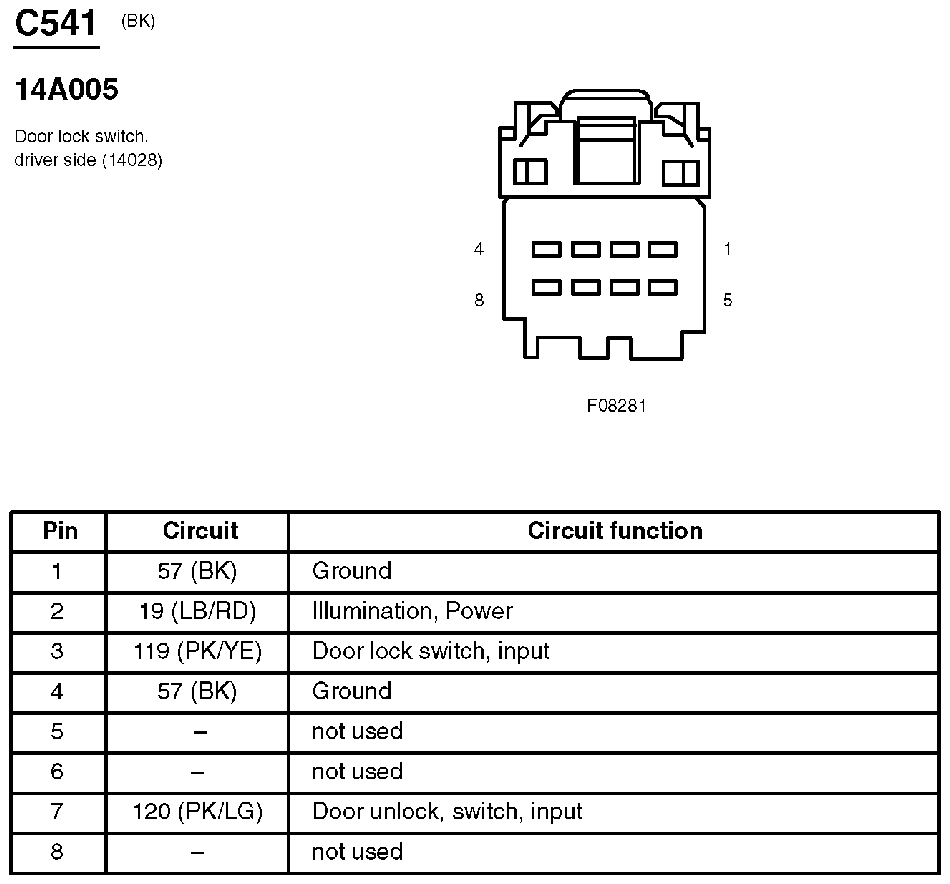

Fig 216: Door Lock Switch, Driver Side Connector End View (C541)
Courtesy of FORD MOTOR CO.

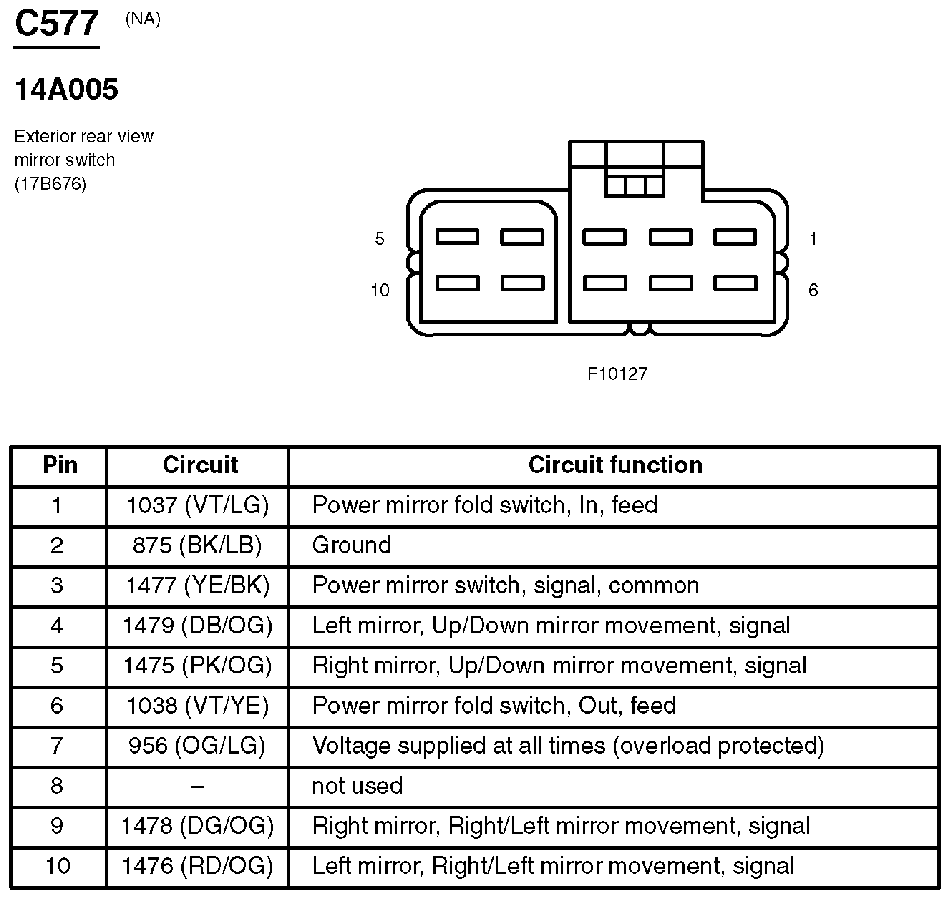

Fig 217: Exterior Rear View Mirror Switch Connector End View (C577)
Courtesy of FORD MOTOR CO.

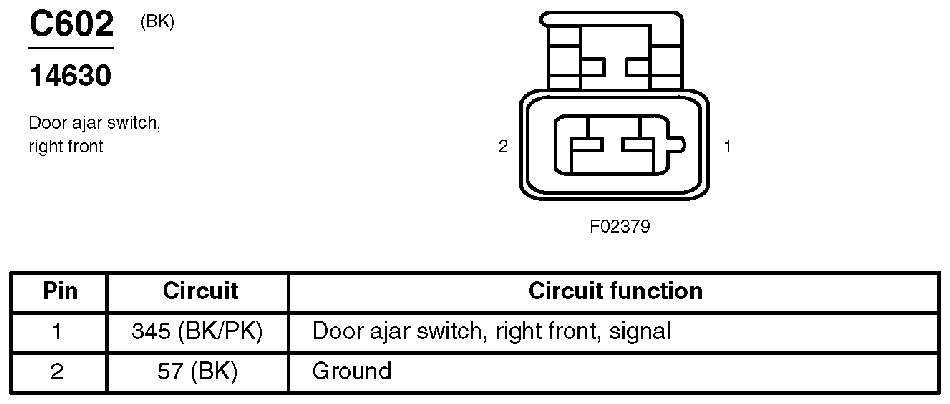

Fig 218: Door Ajar Switch, Right Front Connector End View (C602)
Courtesy of FORD MOTOR CO.

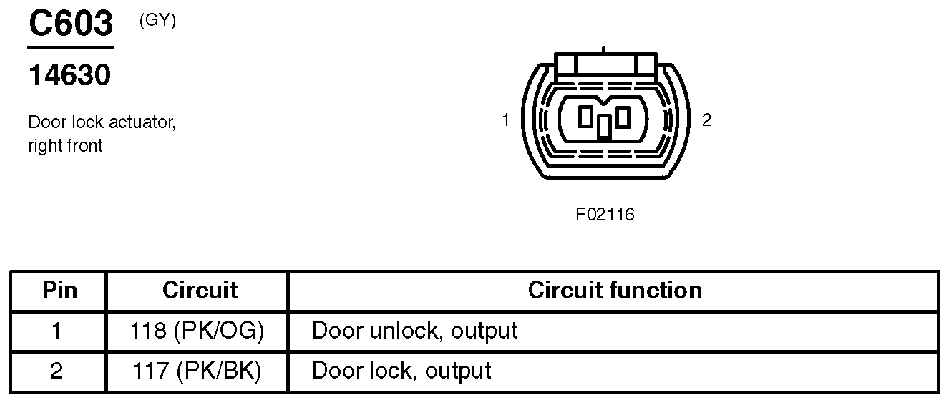

Fig 219: Door Lock Actuator, Right Front Connector End View (C603)
Courtesy of FORD MOTOR CO.

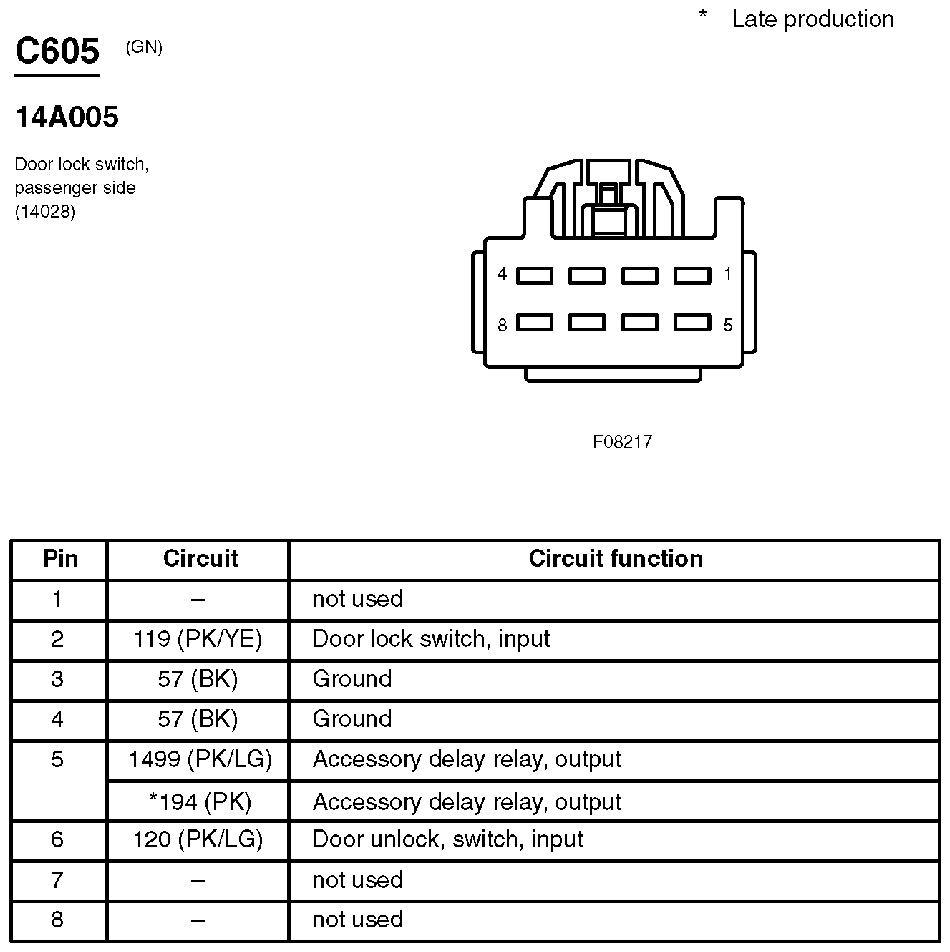

Fig 220: Door Lock Switch, Passenger Side Connector End View (C605)
Courtesy of FORD MOTOR CO.

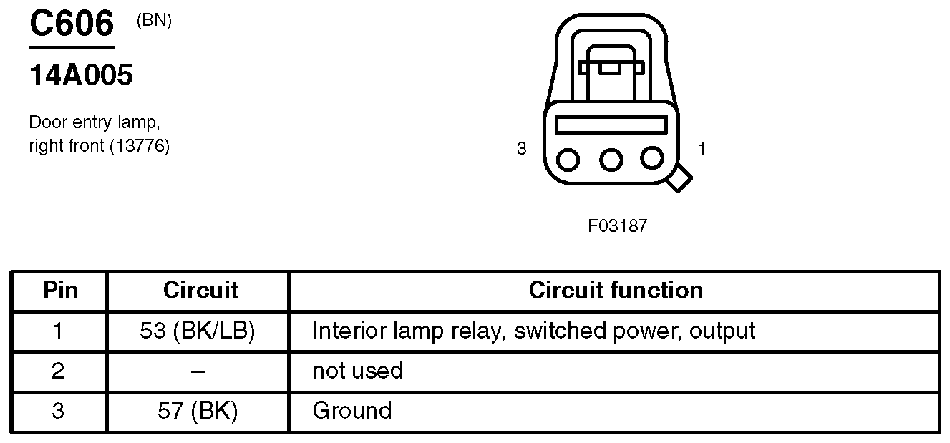

Fig 221: Door Entry Lamp, Right Front Connector End View (C606)
Courtesy of FORD MOTOR CO.

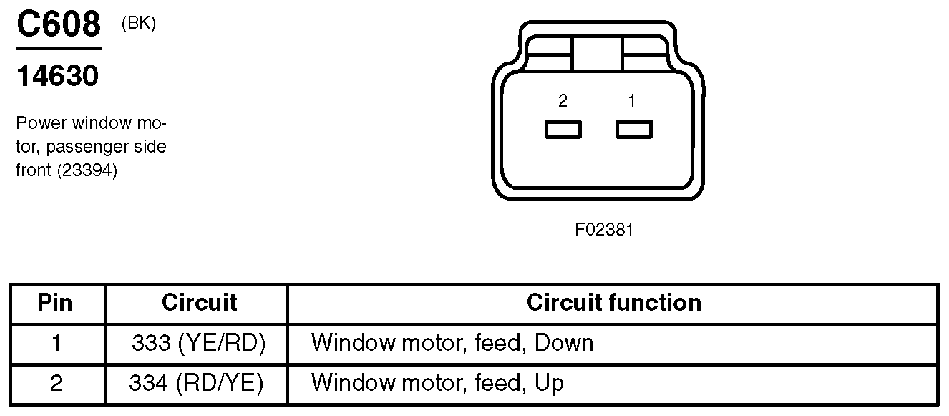

Fig 222: Power Window Motor, Passenger Side Front Connector End View (C608)
Courtesy of FORD MOTOR CO.

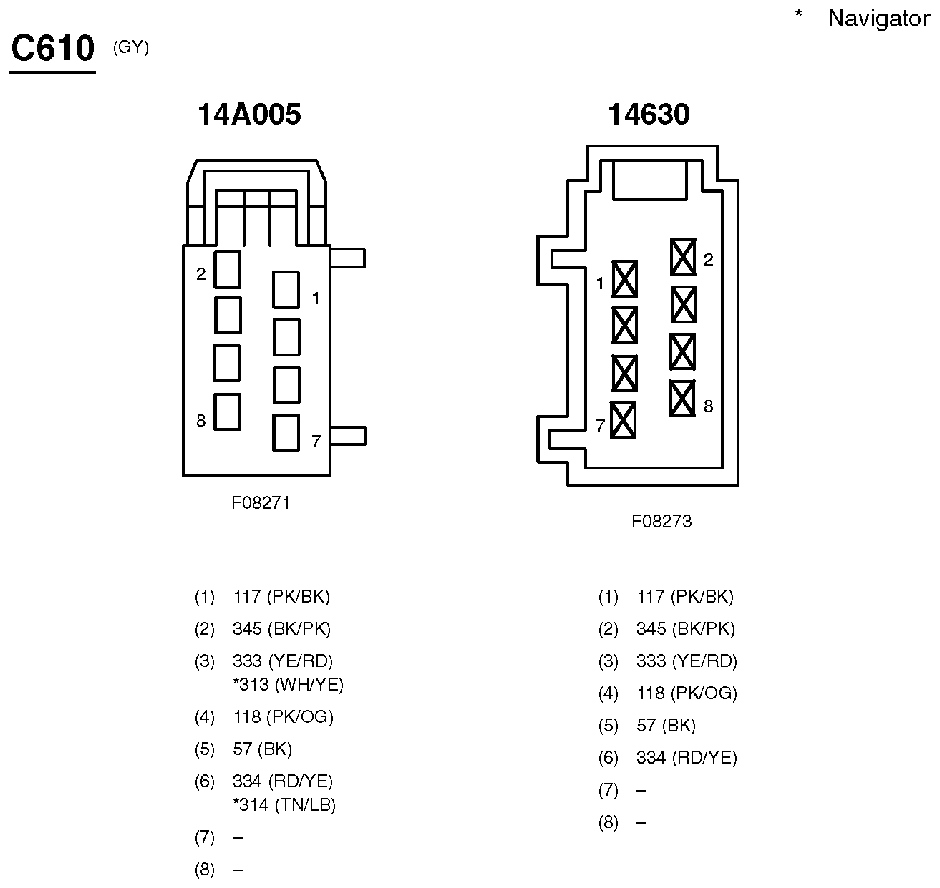

Fig 223: Inline Connector End View (C610)
Courtesy of FORD MOTOR CO.

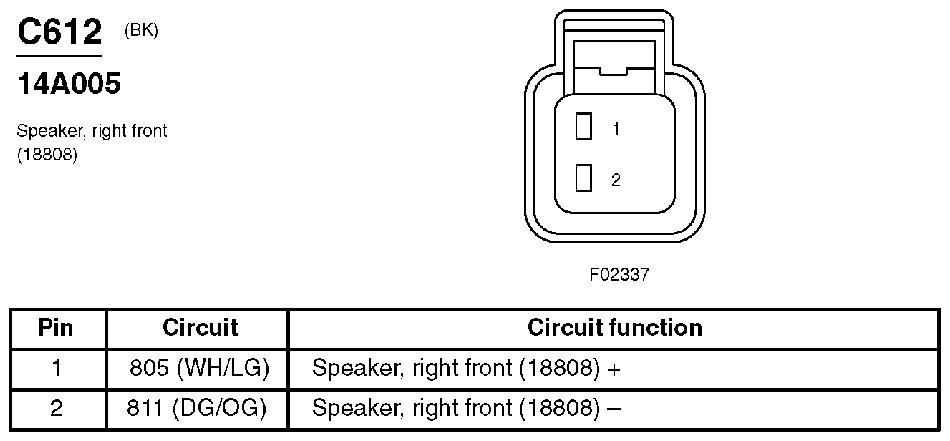

Fig 224: Speaker, Right Front Connector End View (C612)
Courtesy of FORD MOTOR CO.

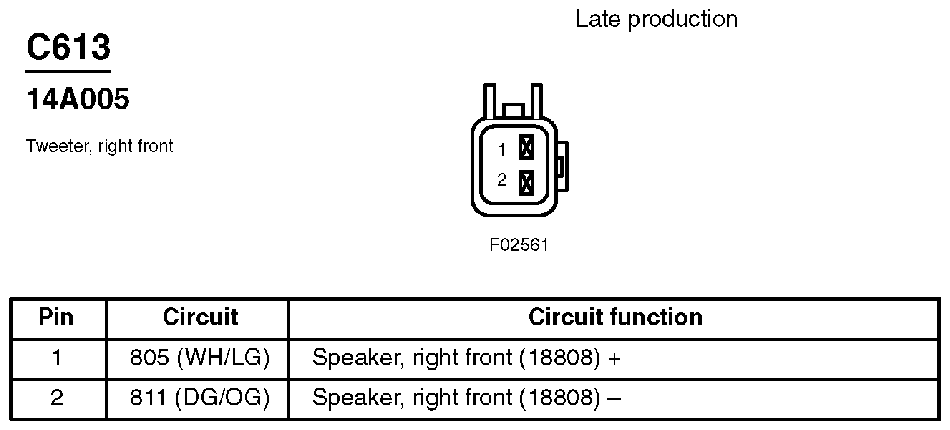

Fig 225: Tweeter, Right Front Connector End View (C613)
Courtesy of FORD MOTOR CO.

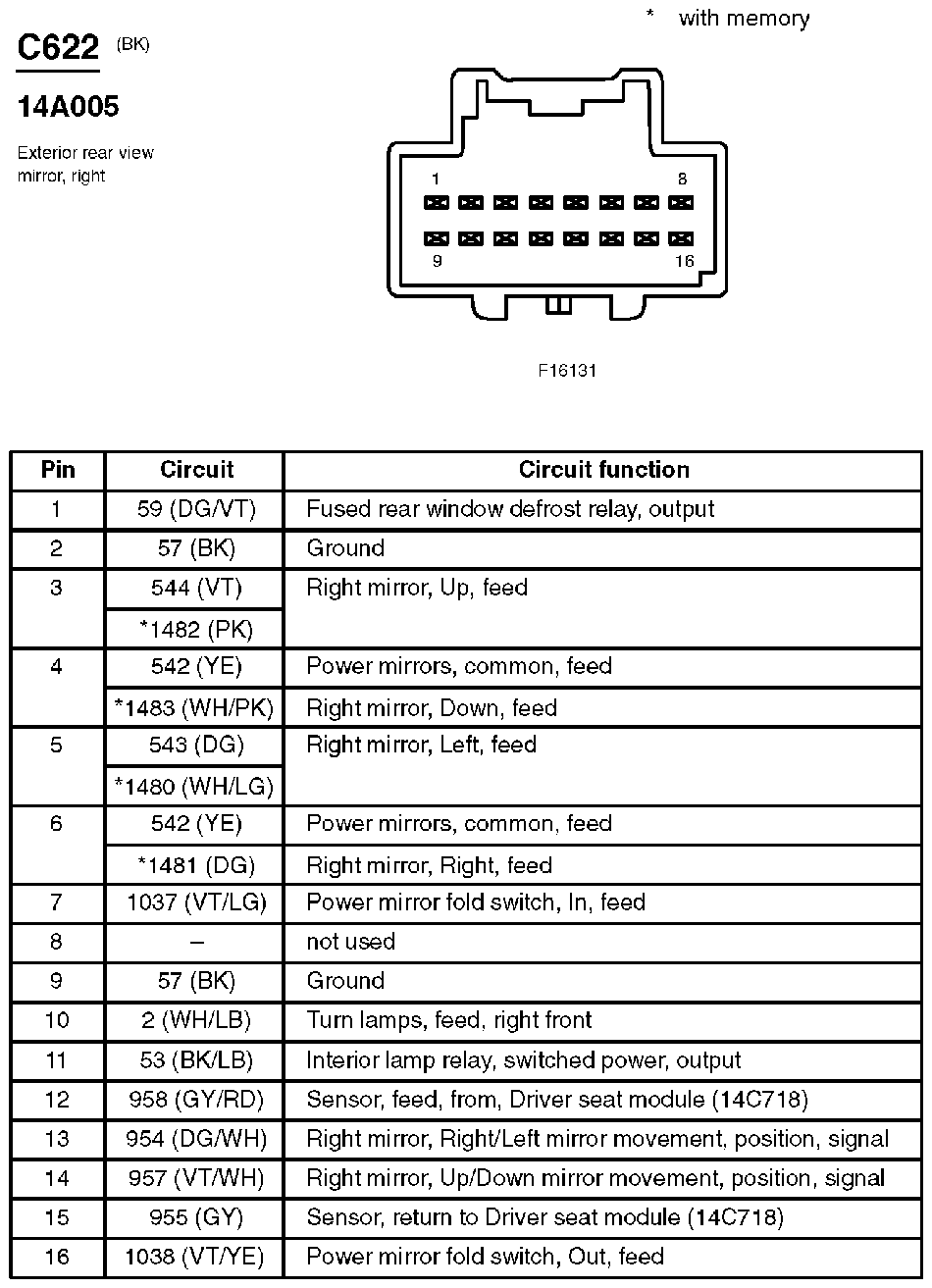

Fig 226: Exterior Rear View Mirror, Right Connector End View (C622)
Courtesy of FORD MOTOR CO.

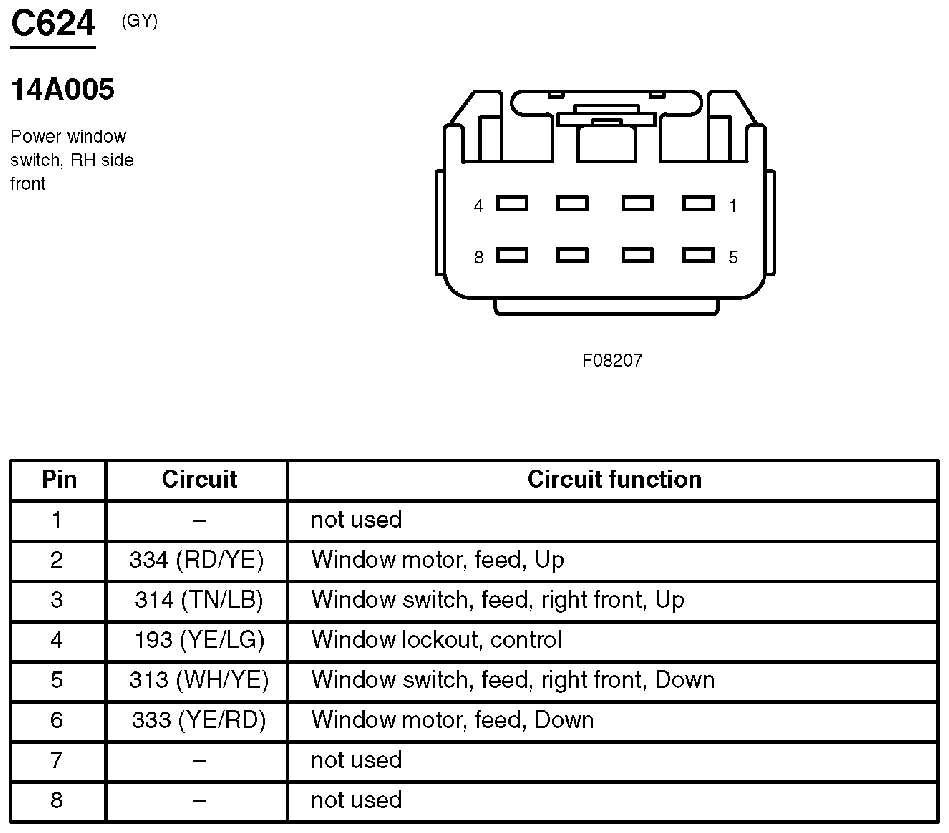

Fig 227: Power Window Switch, RH Side Front Connector End View (C624)
Courtesy of FORD MOTOR CO.

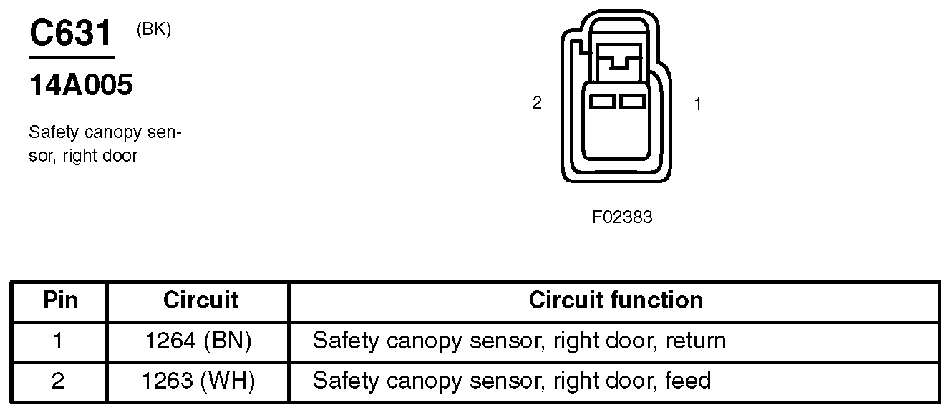

Fig 228: Safety Canopy Sensor, Right Door Connector End View (C631)
Courtesy of FORD MOTOR CO.
Fig 229: Door Lock Switch, Passenger Side Connector End View (C632)
Courtesy of FORD MOTOR CO.

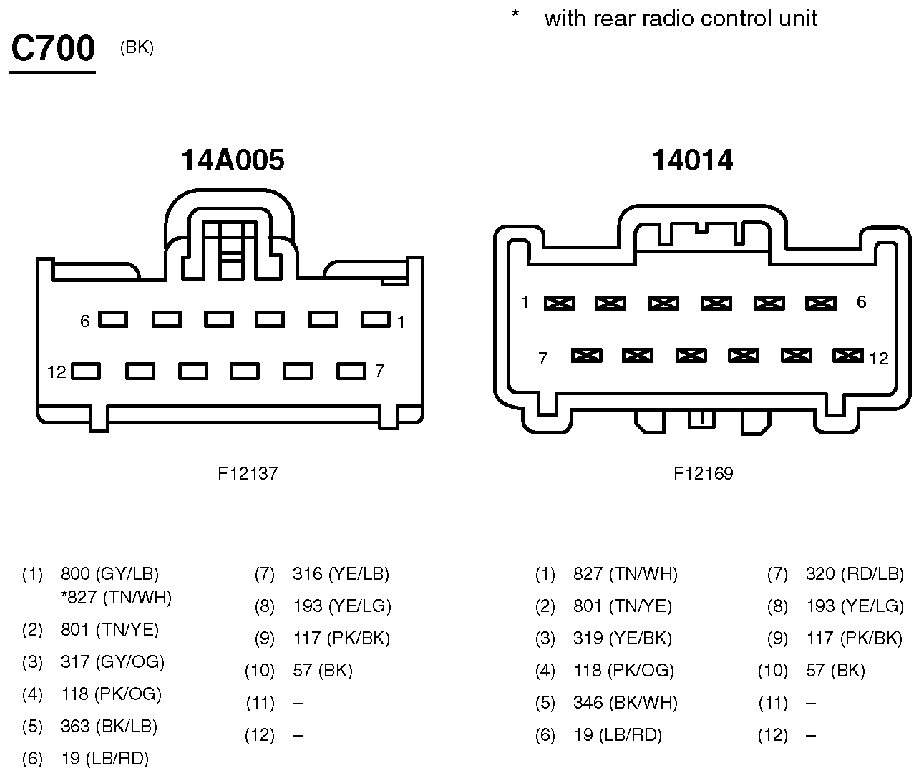

Fig 230: Inline Connector End View (C700)
Courtesy of FORD MOTOR CO.

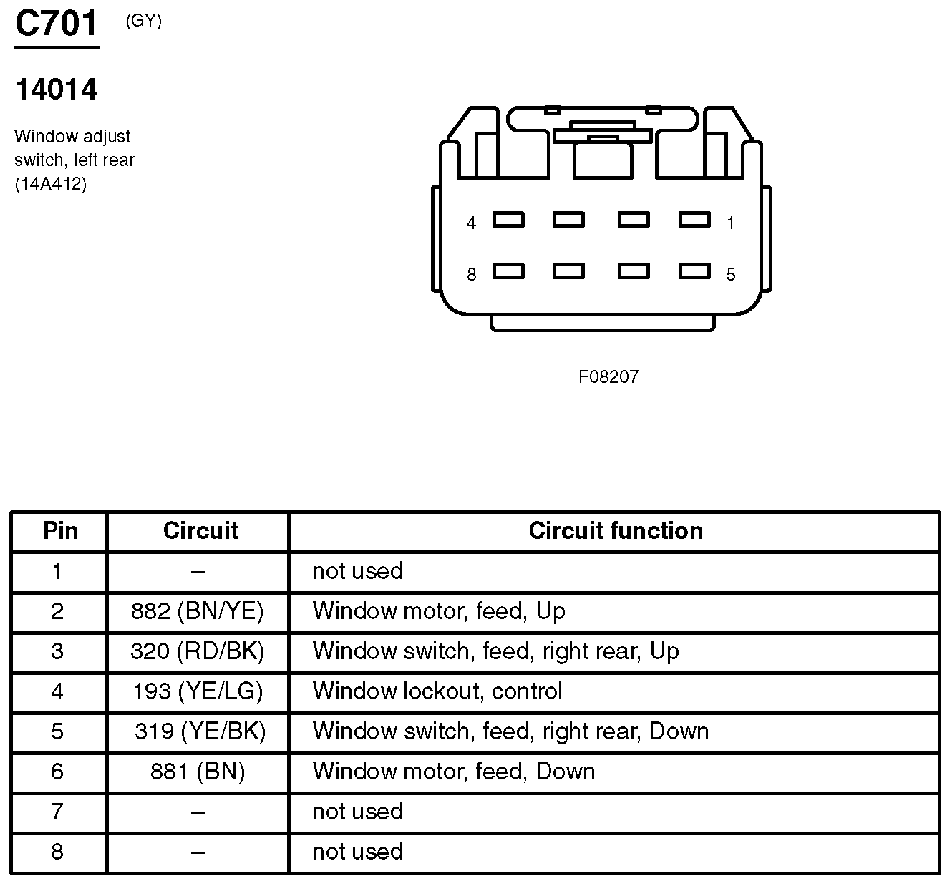

Fig 231: Window Adjust Switch, Left Rear Connector End View (C701)
Courtesy of FORD MOTOR CO.

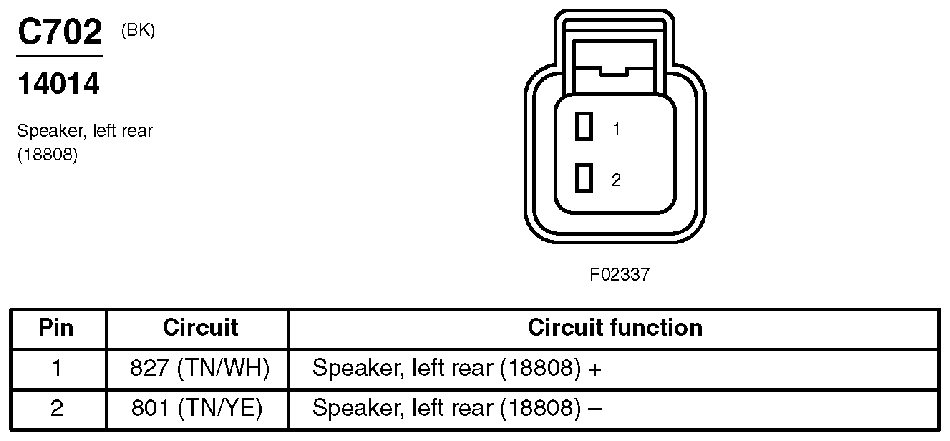

Fig 232: Speaker, Left Rear Connector End View (C702)
Courtesy of FORD MOTOR CO.

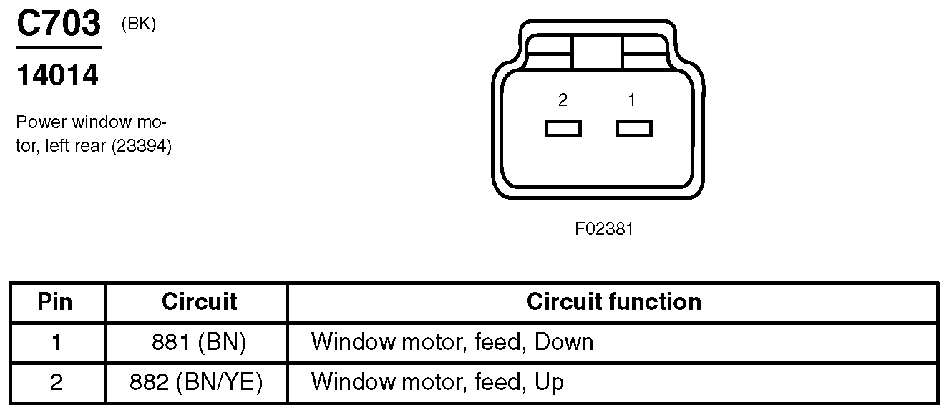

Fig 233: Power Window Motor, Left Rear Connector End View (C703)
Courtesy of FORD MOTOR CO.

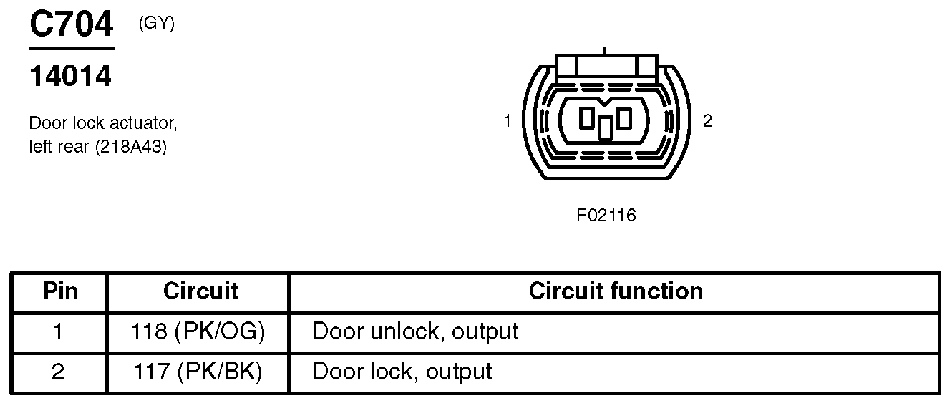

Fig 234: Door Lock Actuator, Left Rear Connector End View (C704)
Courtesy of FORD MOTOR CO.

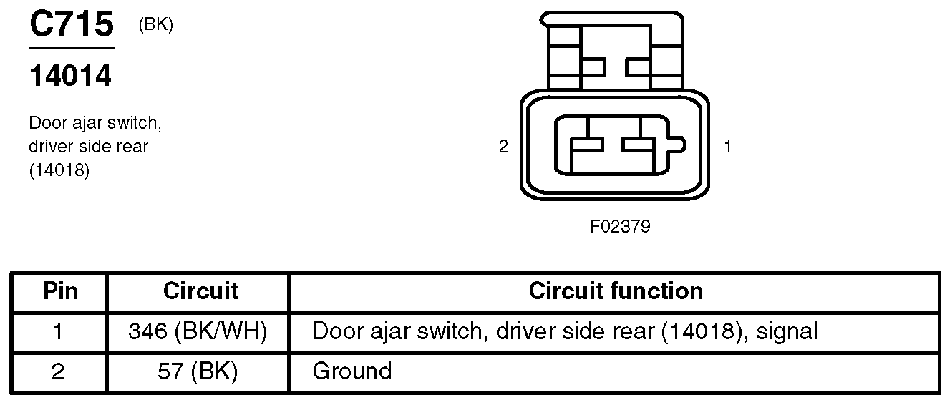

Fig 235: Door Ajar Switch, Driver Side Rear Connector End View (C715)
Courtesy of FORD MOTOR CO.

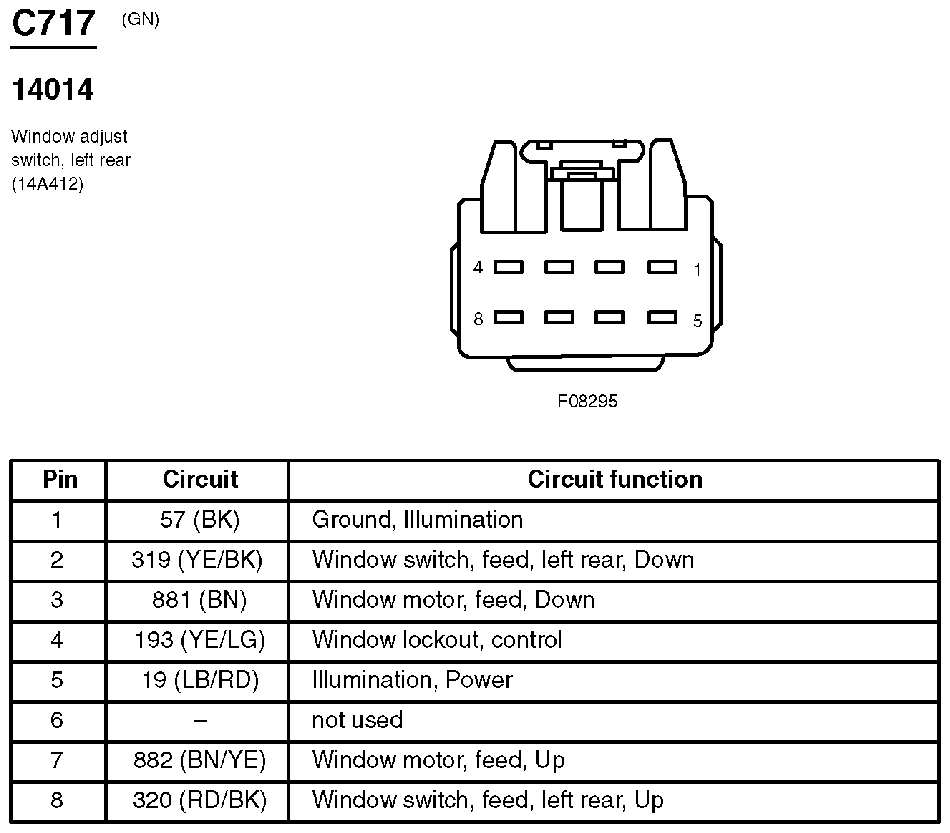

Fig 236: Window Adjust Switch, Left Rear Connector End View (C717)
Courtesy of FORD MOTOR CO.

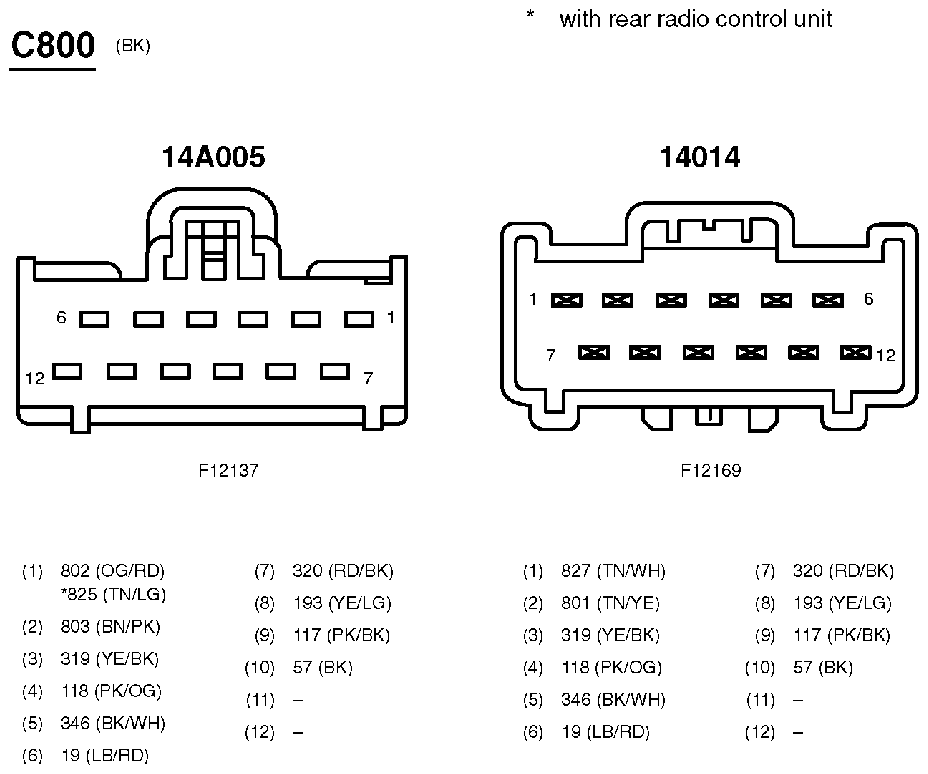

Fig 237: Inline Connector End View (C800)
Courtesy of FORD MOTOR CO.
Fig 238: Window Adjust Switch, Right Rear Connector End View (C801)
Courtesy of FORD MOTOR CO.

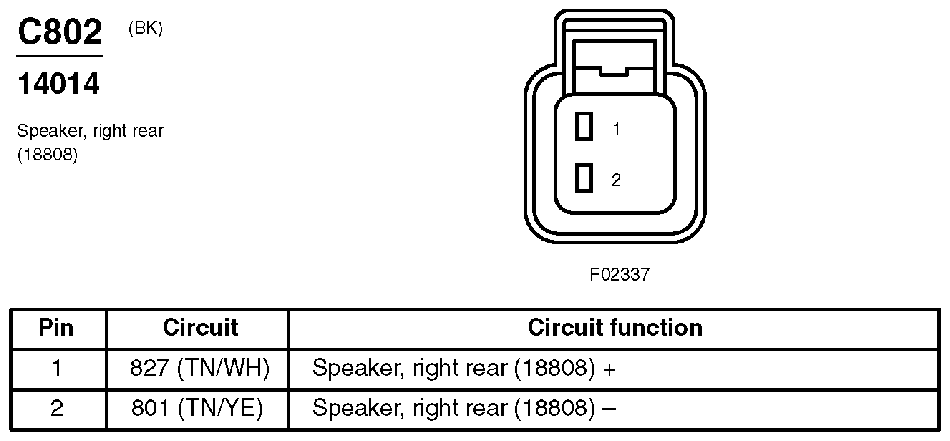

Fig 239: Speaker, Right Rear Connector End View (C802)
Courtesy of FORD MOTOR CO.

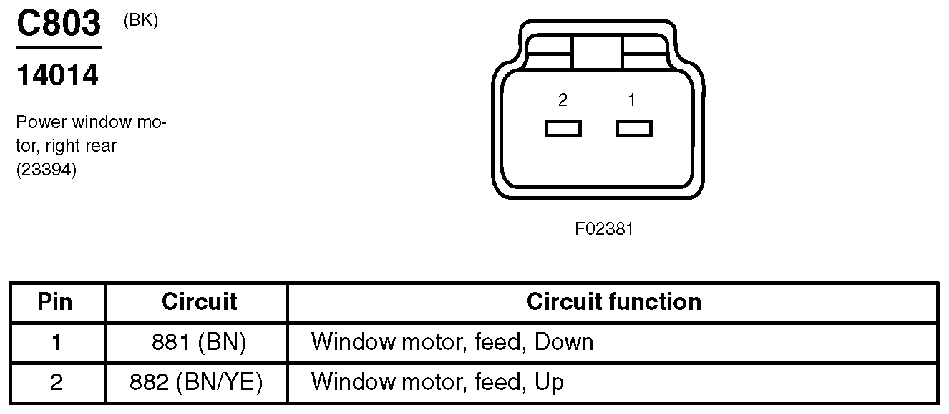

Fig 240: Power Window Motor, Right Rear Connector End View (C803)
Courtesy of FORD MOTOR CO.

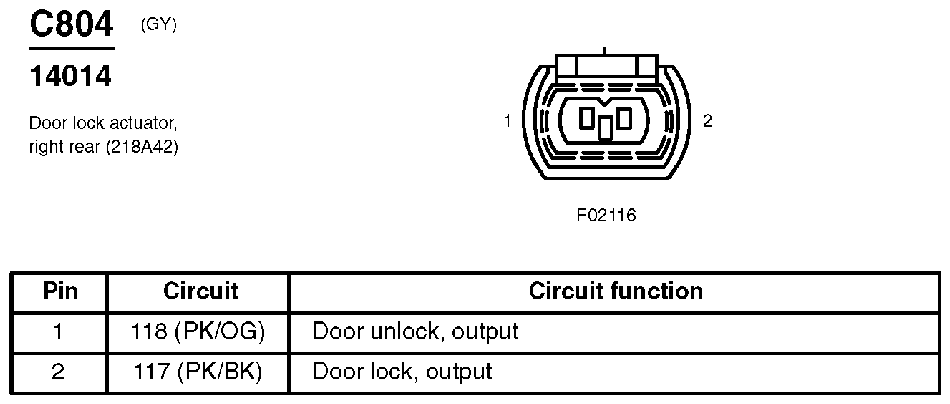

Fig 241: Door Lock Actuator, Right Rear Connector End View (C804)
Courtesy of FORD MOTOR CO.

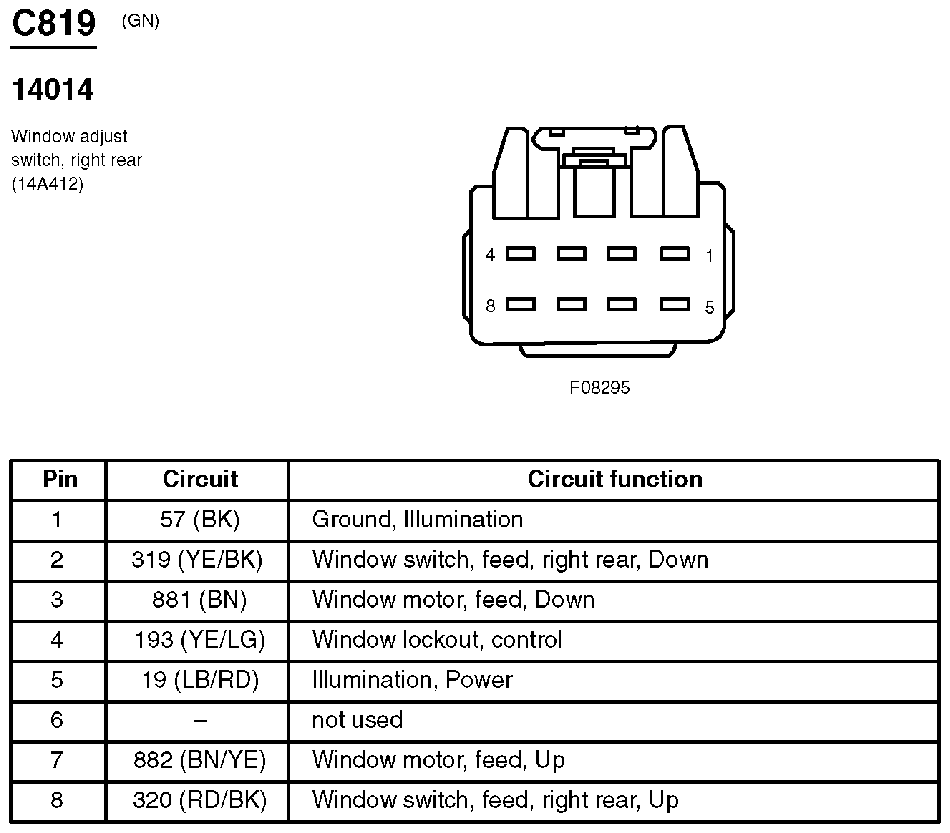

Fig 242: Window Adjust Switch, Right Rear Connector End View (C819)
Courtesy of FORD MOTOR CO.

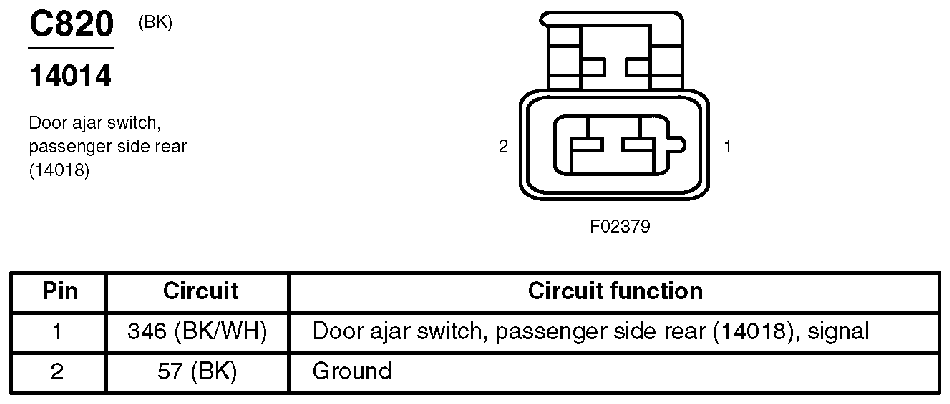

Fig 243: Door Ajar Switch, Passenger Side Rear Connector End View (C820)
Courtesy of FORD MOTOR CO.

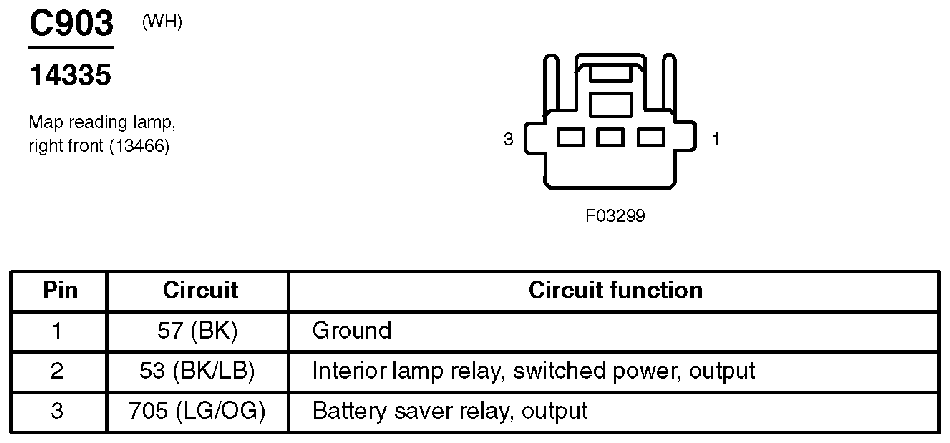

Fig 244: Map Reading Lamp, Right Front Connector End View (C903)
Courtesy of FORD MOTOR CO.

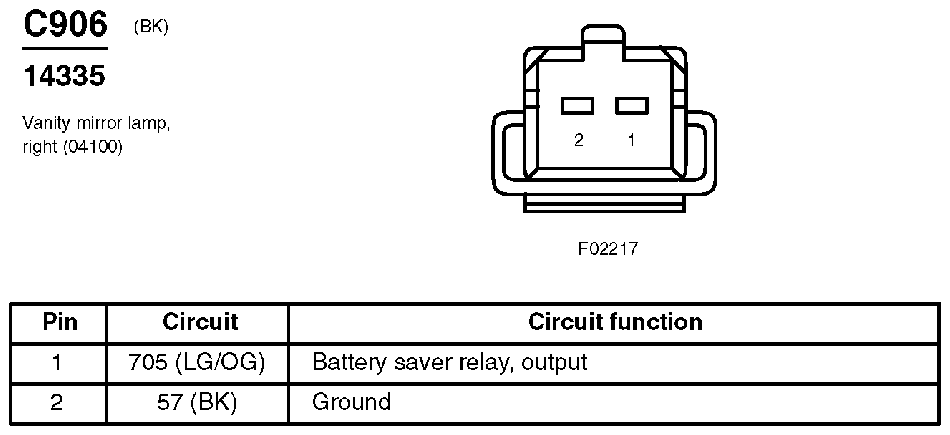

Fig 245: Vanity Mirror Lamp, Right Connector End View (C906)
Courtesy of FORD MOTOR CO.

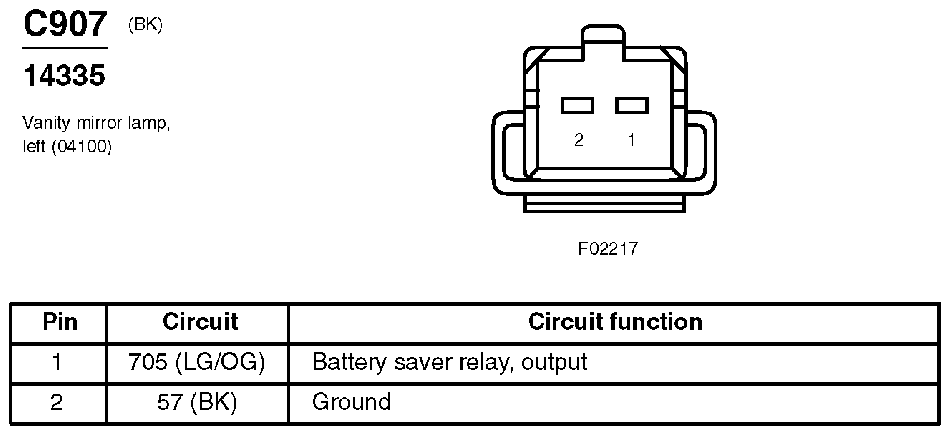

Fig 246: Vanity Mirror Lamp, Left Connector End View (C907)
Courtesy of FORD MOTOR CO.

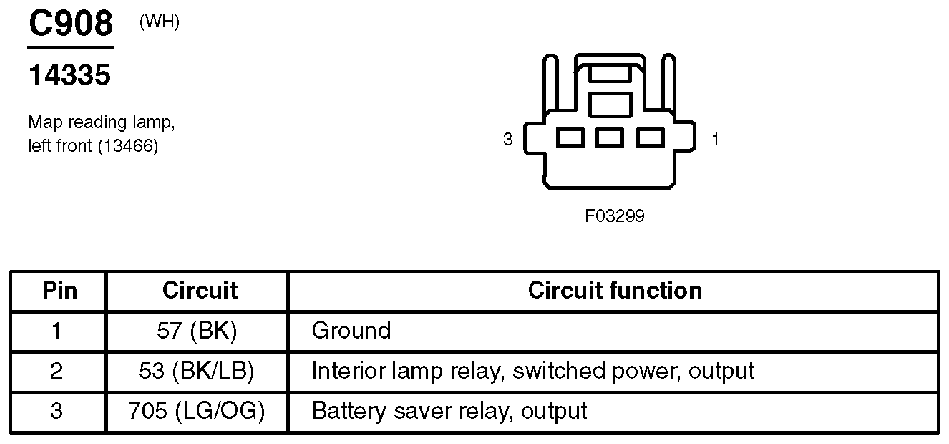

Fig 247: Map Reading Lamp, Left Front Connector End View (C908)
Courtesy of FORD MOTOR CO.

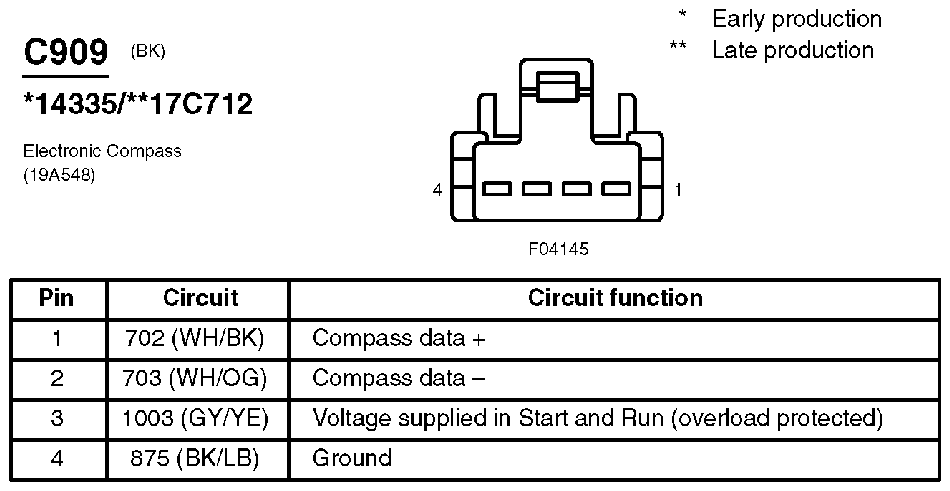

Fig 248: Electronic Compass Connector End View (C909)
Courtesy of FORD MOTOR CO.

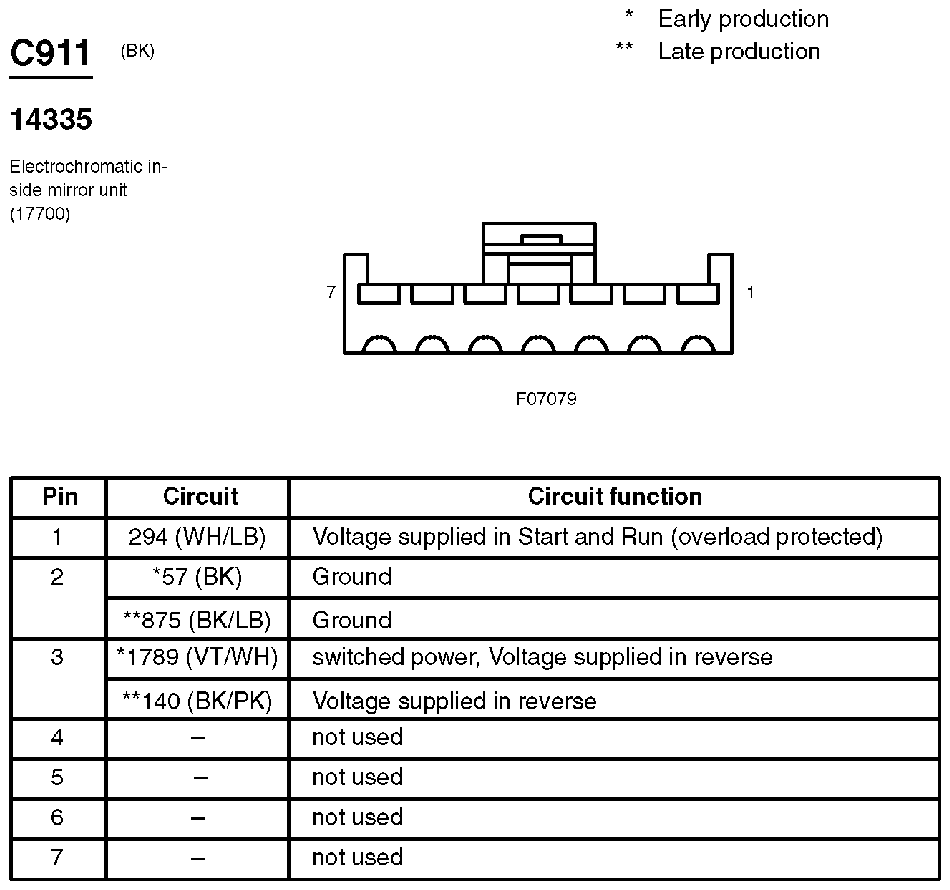

Fig 249: Electrochromatic Inside Mirror Unit Connector End View (C911)
Courtesy of FORD MOTOR CO.
Fig 250: Roof Opening Panel Switch Connector End View (C912)
Courtesy of FORD MOTOR CO.

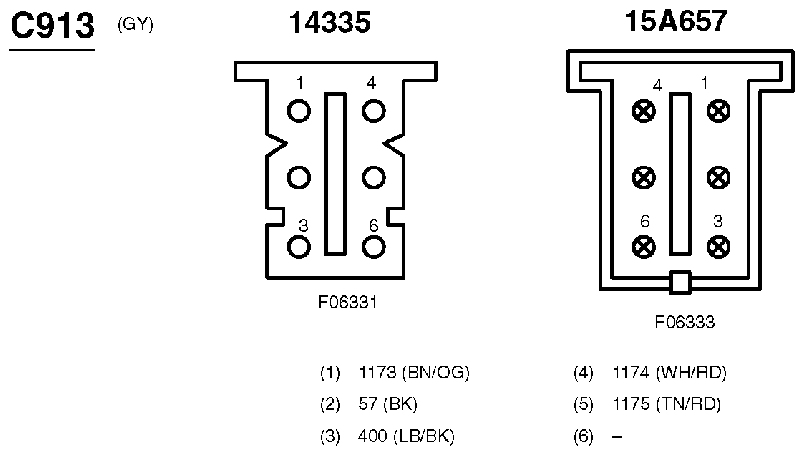

Fig 251: Inline Connector End View (C913)
Courtesy of FORD MOTOR CO.

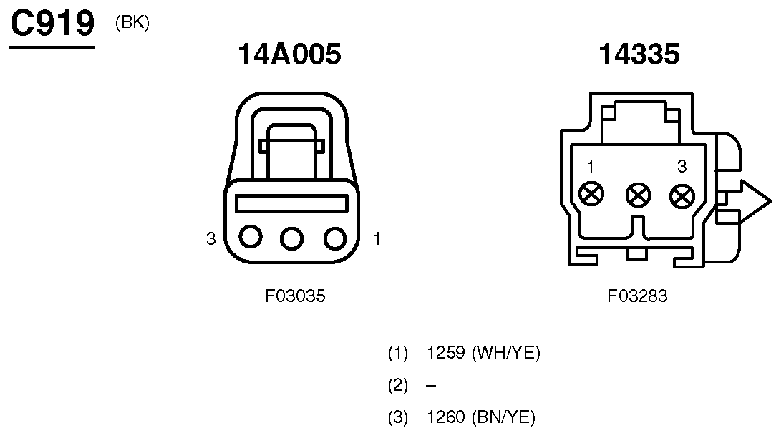

Fig 252: Inline Connector End View (C919)
Courtesy of FORD MOTOR CO.

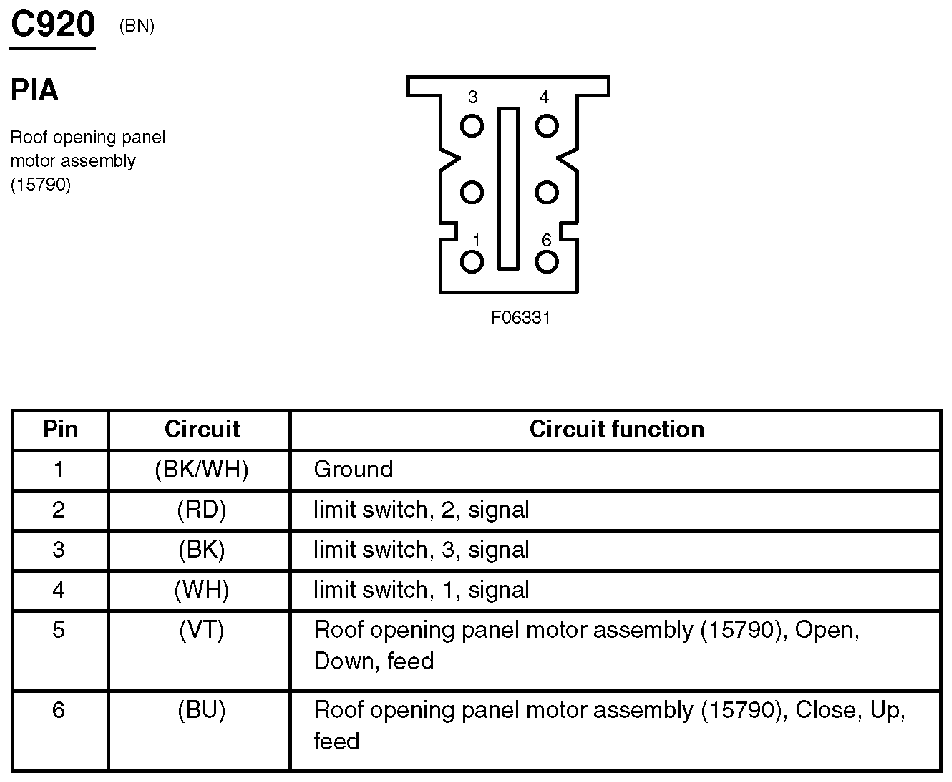

Fig 253: Roof Opening Panel Motor Assembly Connector End View (C920)
Courtesy of FORD MOTOR CO.

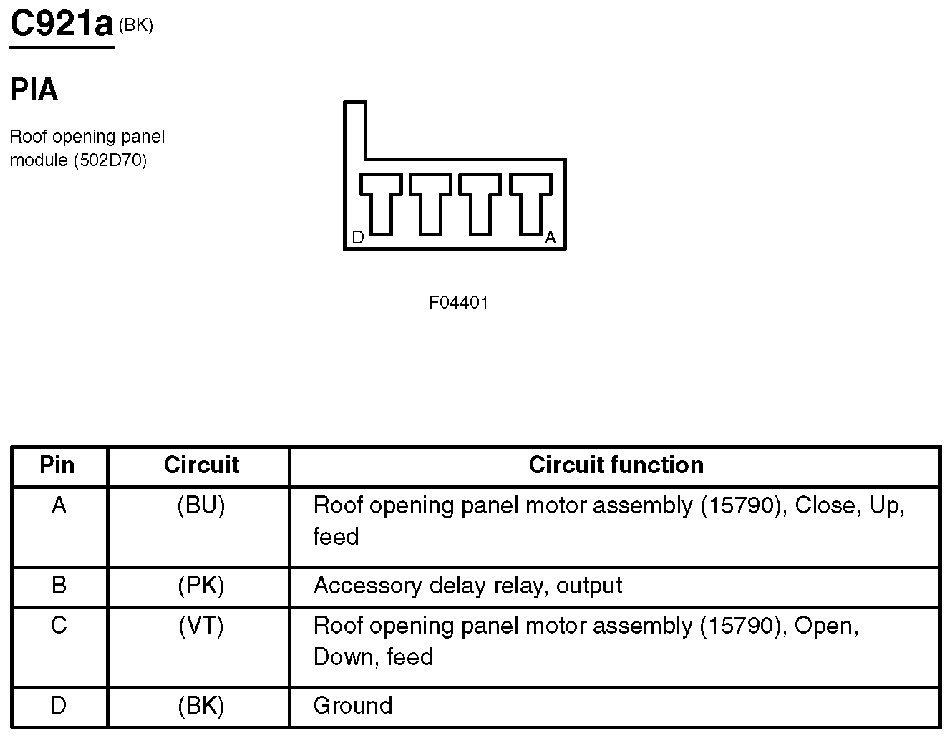

Fig 254: Roof Opening Panel Module Connector End View (C921a)
Courtesy of FORD MOTOR CO.
Fig 255: Roof Opening Panel Module Connector End View (C921b)
Courtesy of FORD MOTOR CO.

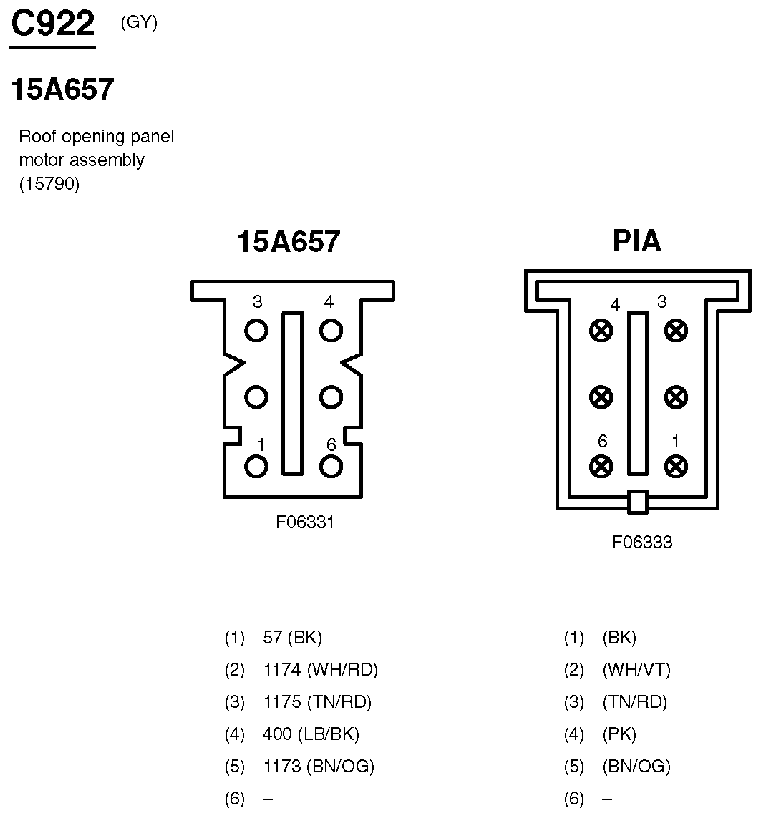

Fig 256: Roof Opening Panel Motor Assembly Connector End View (C922)
Courtesy of FORD MOTOR CO.

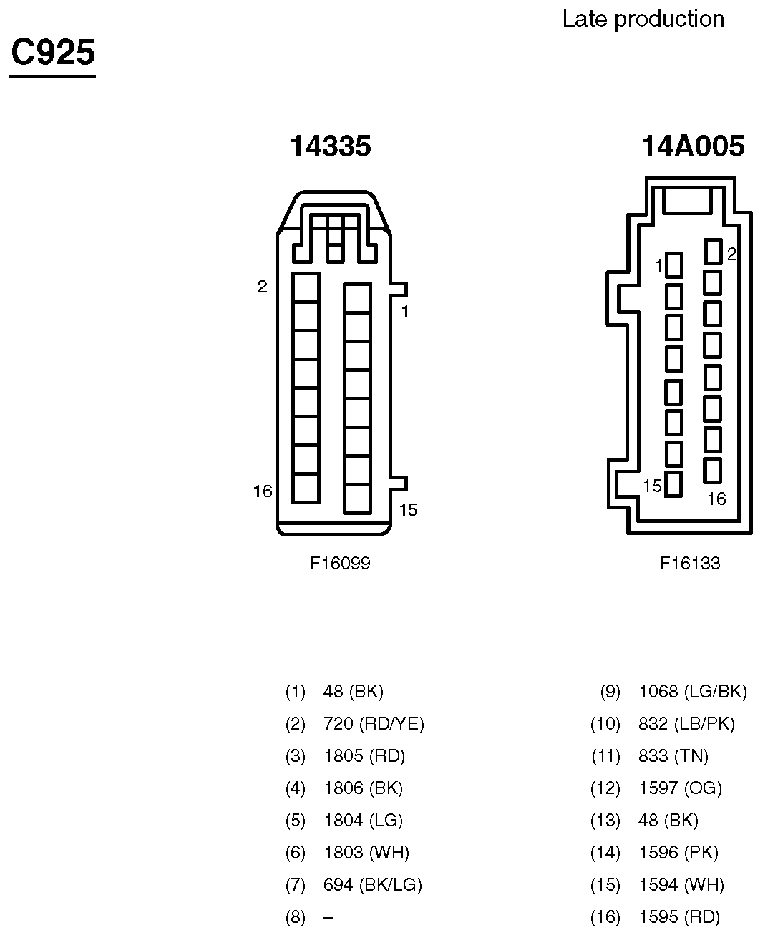

Fig 257: Inline Connector End View (C925)
Courtesy of FORD MOTOR CO.

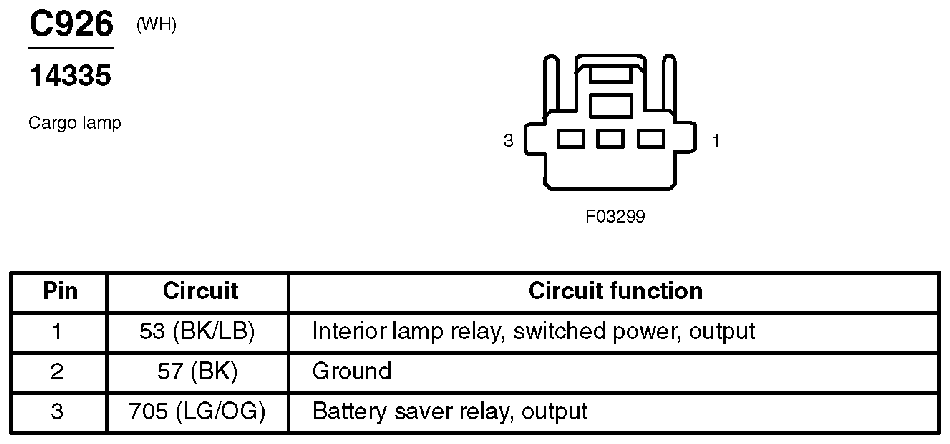

Fig 258: Cargo Lamp Connector End View (C926)
Courtesy of FORD MOTOR CO.

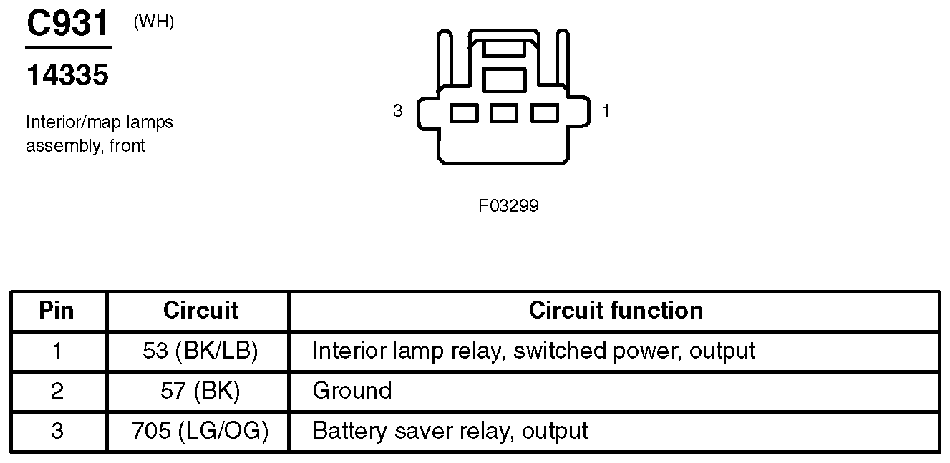

Fig 259: Interior/Map Lamps Assembly, Front Connector End View (C931)
Courtesy of FORD MOTOR CO.

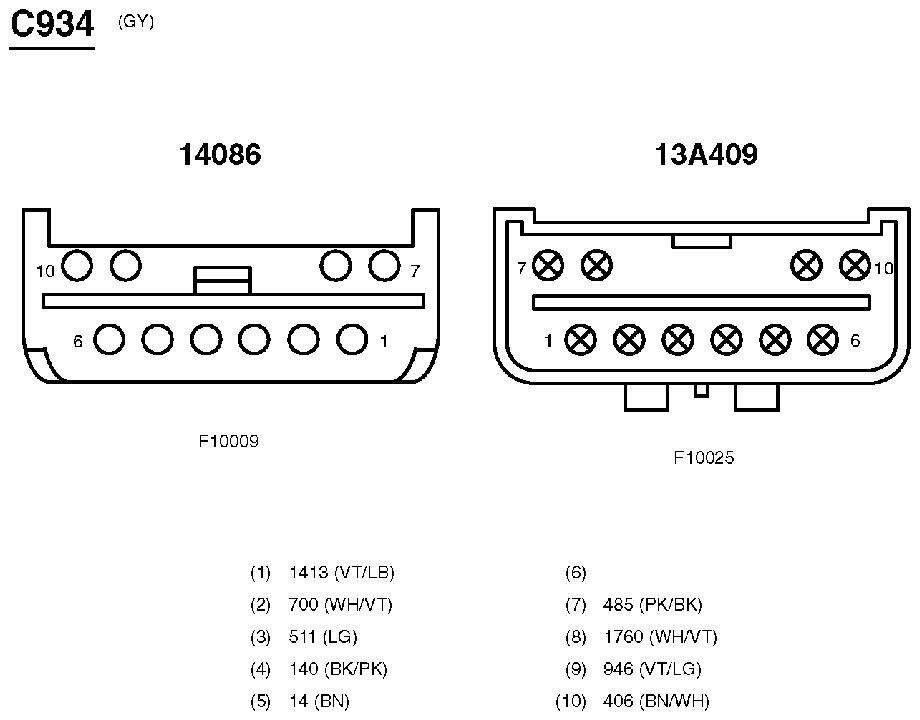

Fig 260: Inline Connector End View (C934)
Courtesy of FORD MOTOR CO.

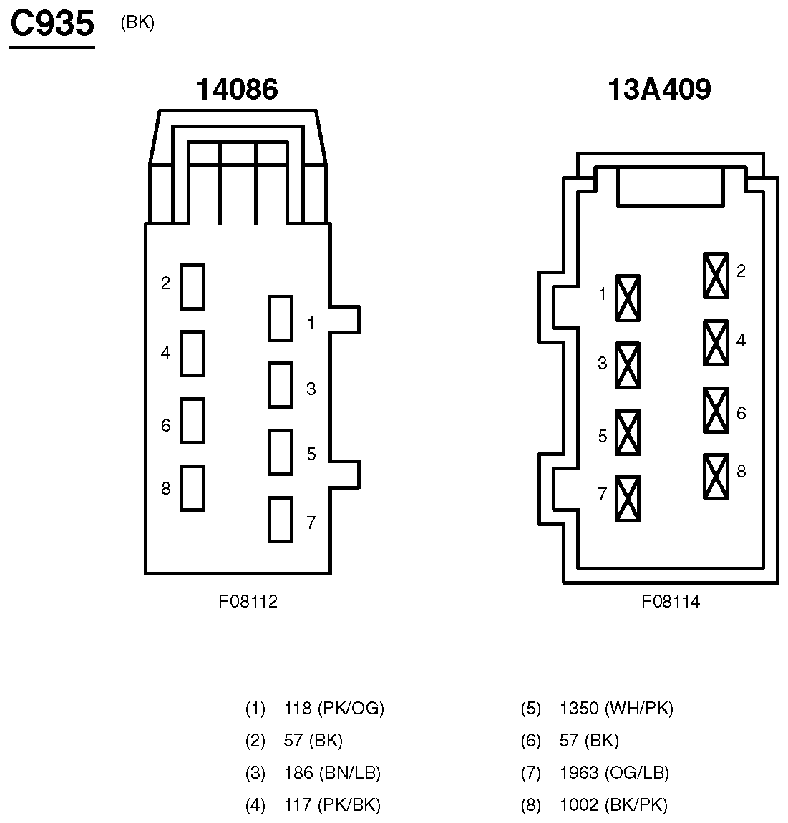

Fig 261: Inline Connector End View (C935)
Courtesy of FORD MOTOR CO.

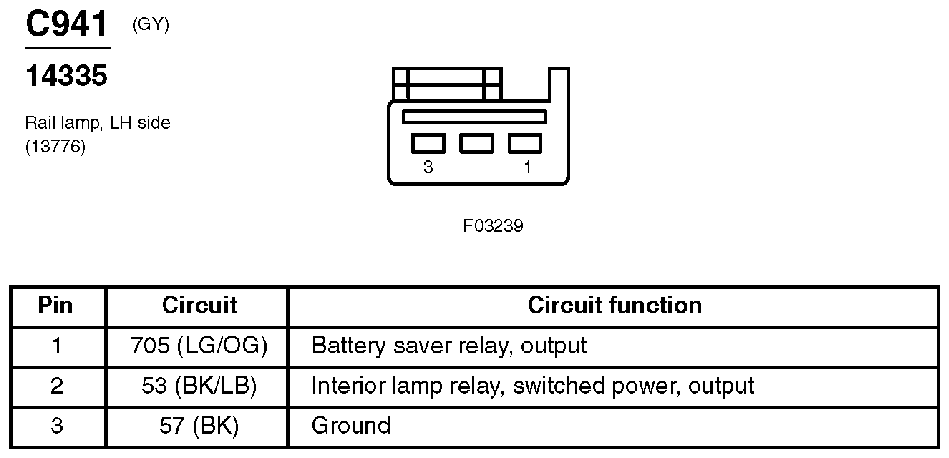

Fig 262: Rail Lamp, LH Side Connector End View (C941)
Courtesy of FORD MOTOR CO.

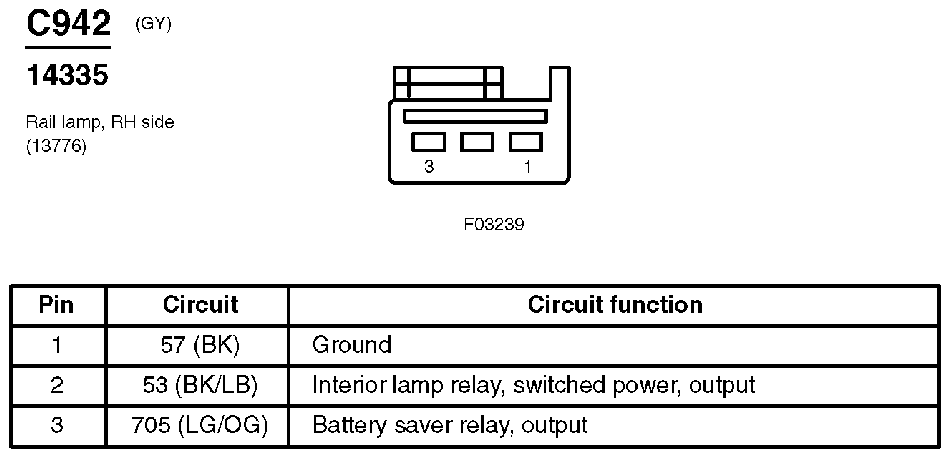

Fig 263: Rail Lamp, RH Side Connector End View (C942)
Courtesy of FORD MOTOR CO.

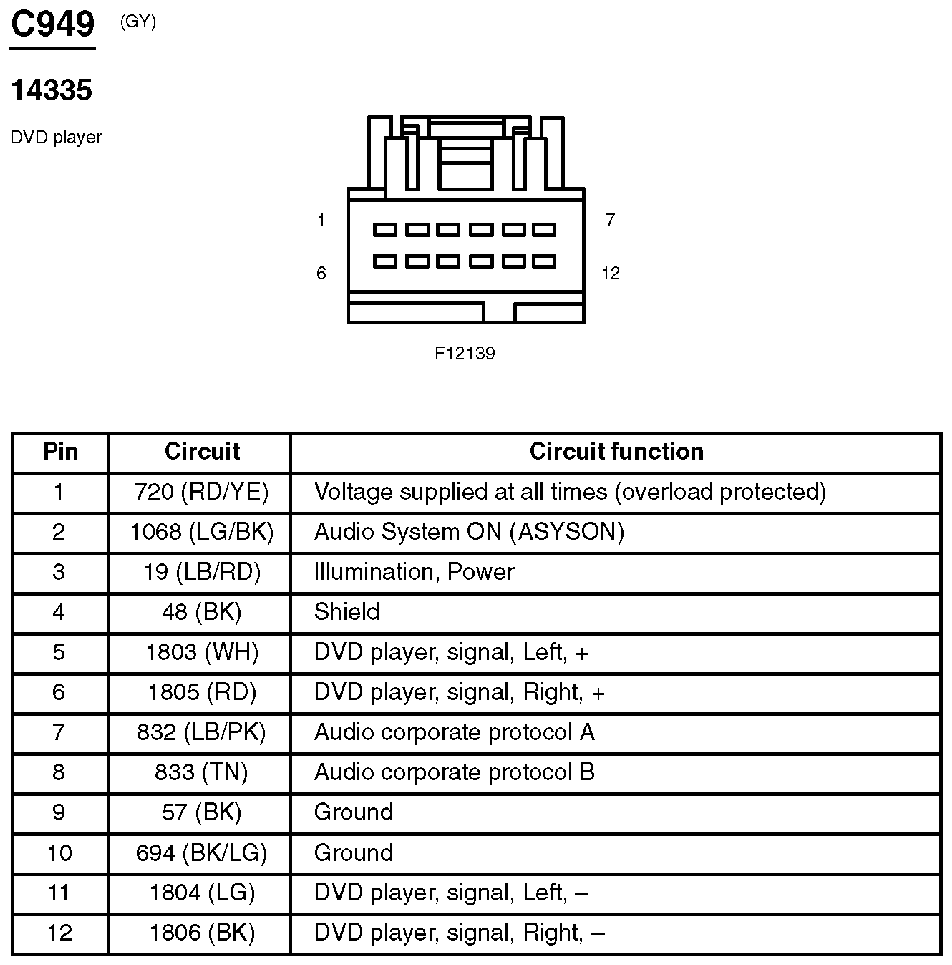

Fig 264: DVD Player Connector End View (C949)
Courtesy of FORD MOTOR CO.
Fig 265: Auxiliary Function Selector Switch Assembly, Front Connector End View (C989a)
Courtesy of FORD MOTOR CO.

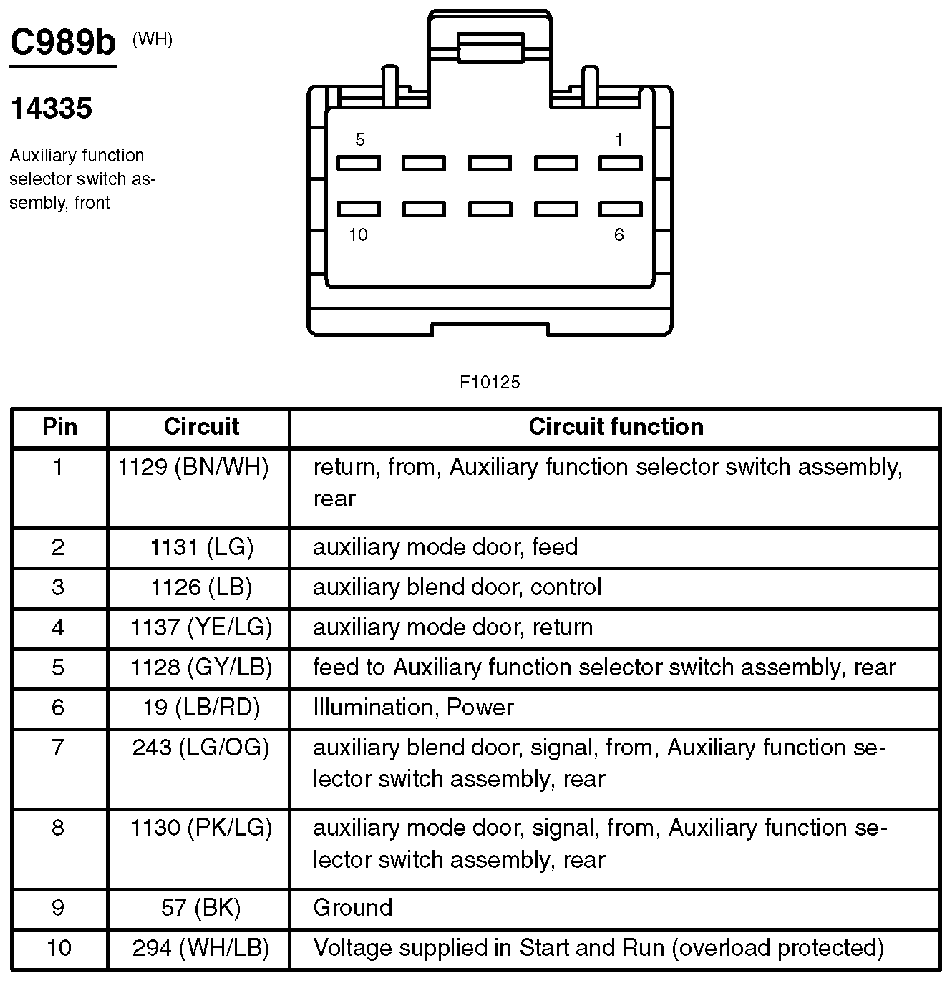

Fig 266: Auxiliary Function Selector Switch Assembly, Front Connector End View (C989b)
Courtesy of FORD MOTOR CO.
Fig 267: Inline Connector End View (C991)
Courtesy of FORD MOTOR CO.

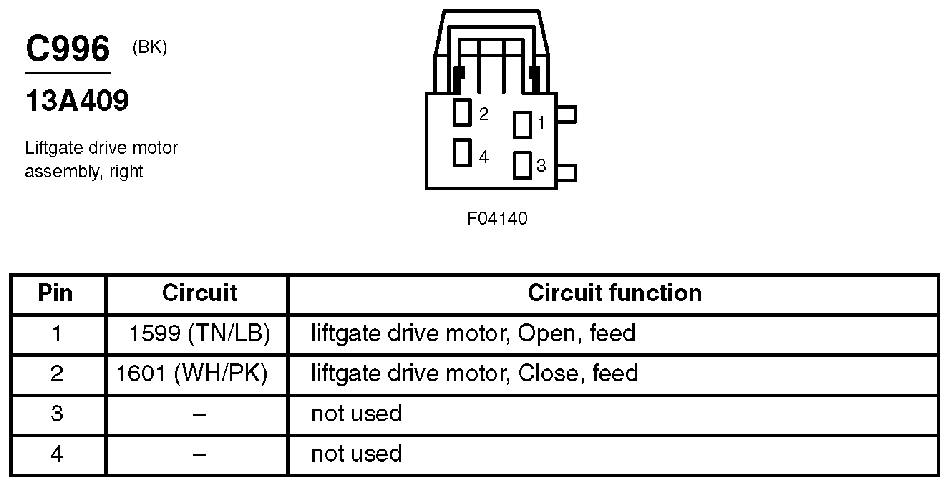

Fig 268: Liftgate Drive Motor Assembly, Right Connector End View (C996)
Courtesy of FORD MOTOR CO.

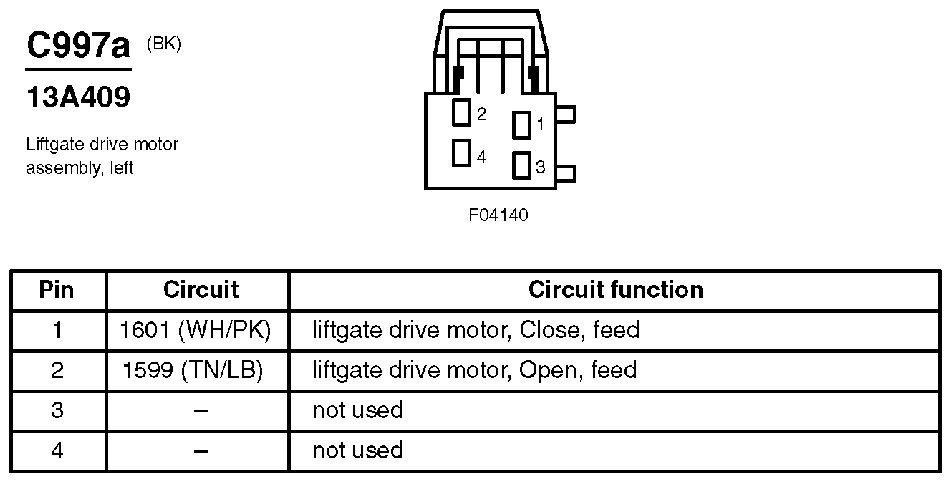

Fig 269: Liftgate Drive Motor Assembly, Left Connector End View (C997a)
Courtesy of FORD MOTOR CO.

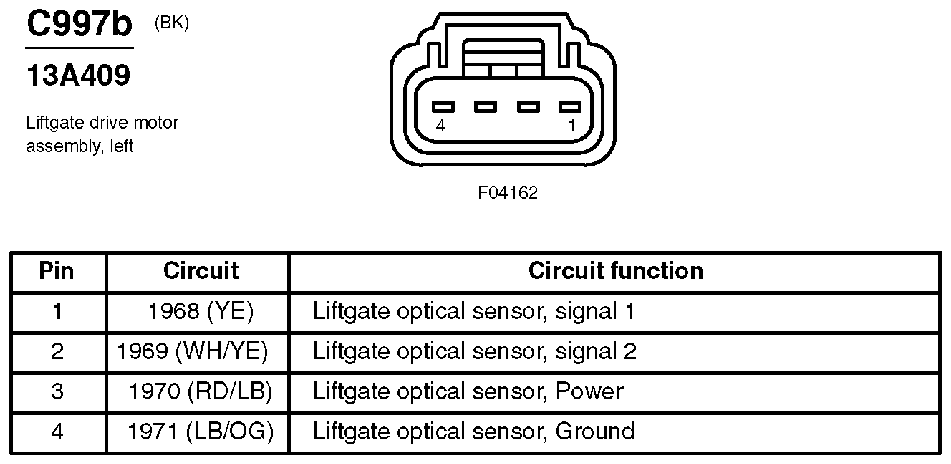

Fig 270: Liftgate Drive Motor Assembly, Left Connector End View (C997b)
Courtesy of FORD MOTOR CO.

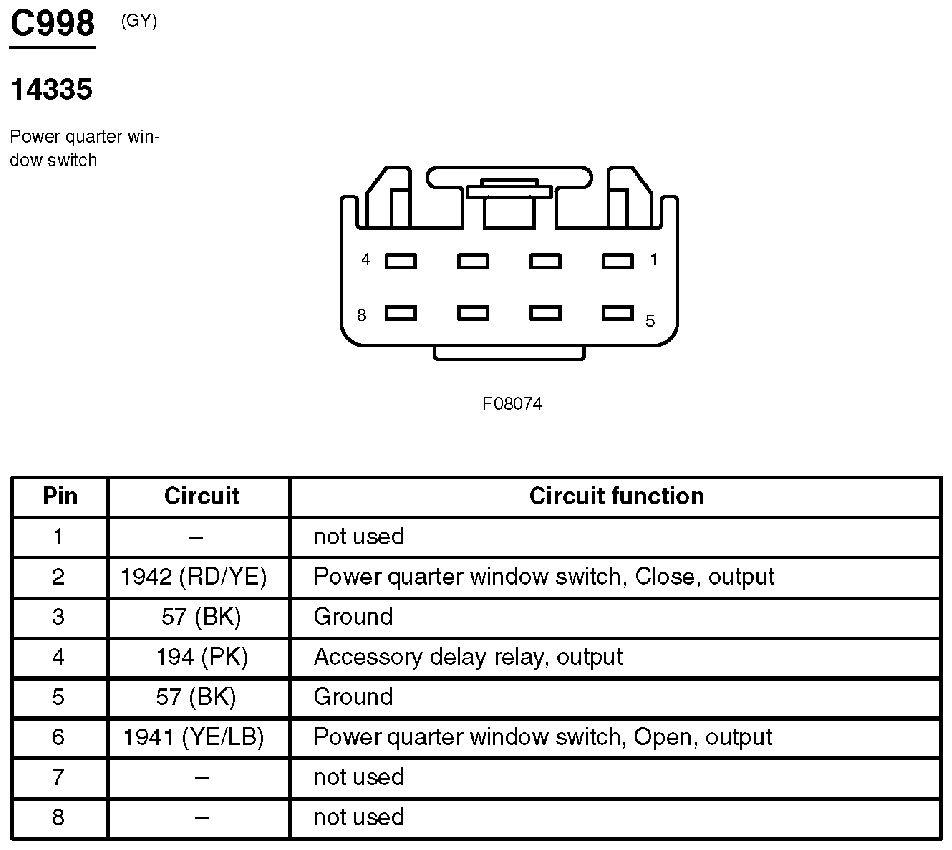

Fig 271: Power Quarter Window Switch Connector End View (C998)
Courtesy of FORD MOTOR CO.

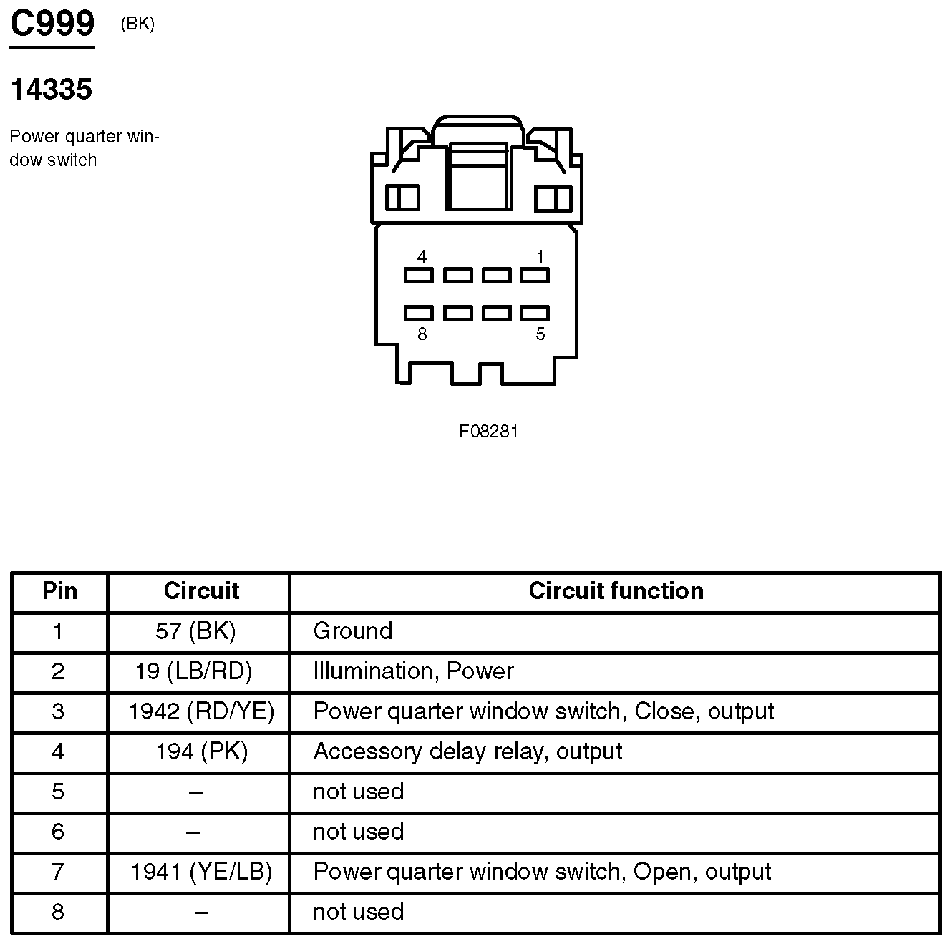

Fig 272: Power Quarter Window Switch Connector End View (C999)
Courtesy of FORD MOTOR CO.

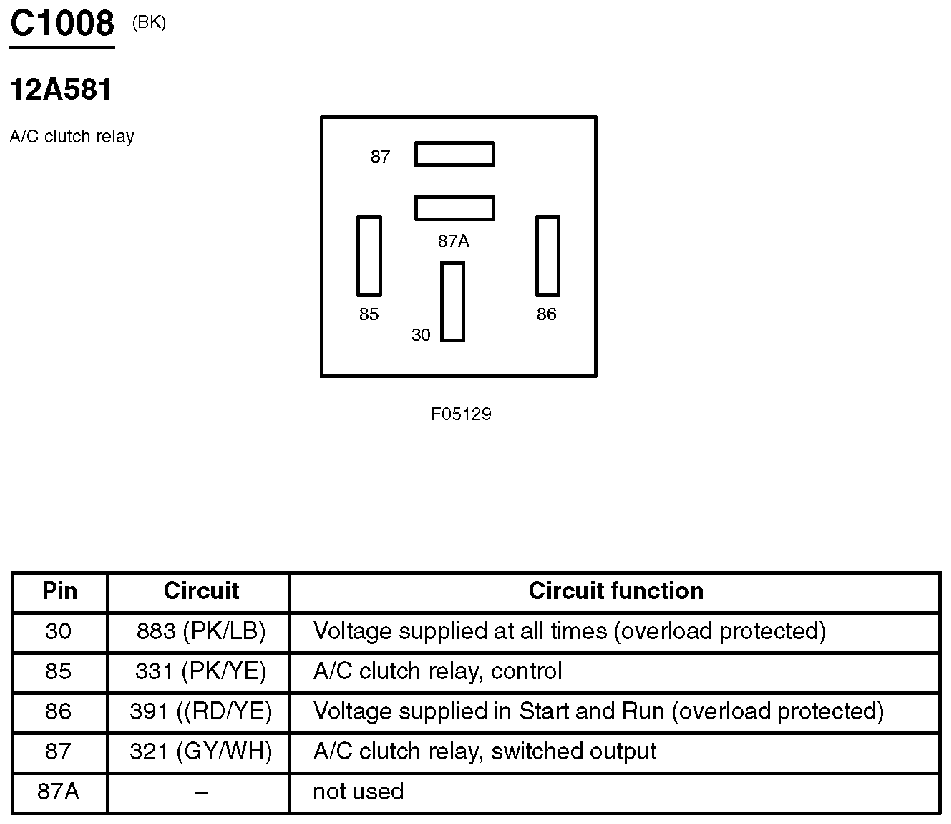

Fig 273: A/C Clutch Relay Connector End View (C1008)
Courtesy of FORD MOTOR CO.

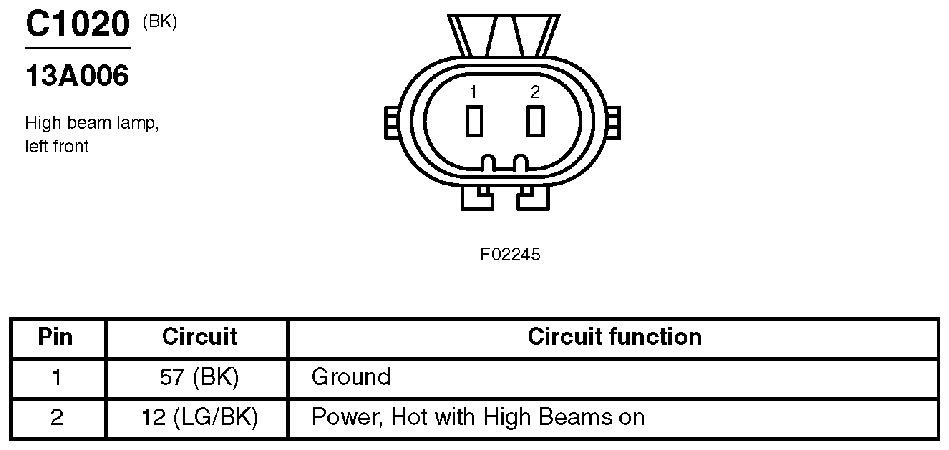

Fig 274: High Beam Lamp, Left Front Connector End View (C1020)
Courtesy of FORD MOTOR CO.

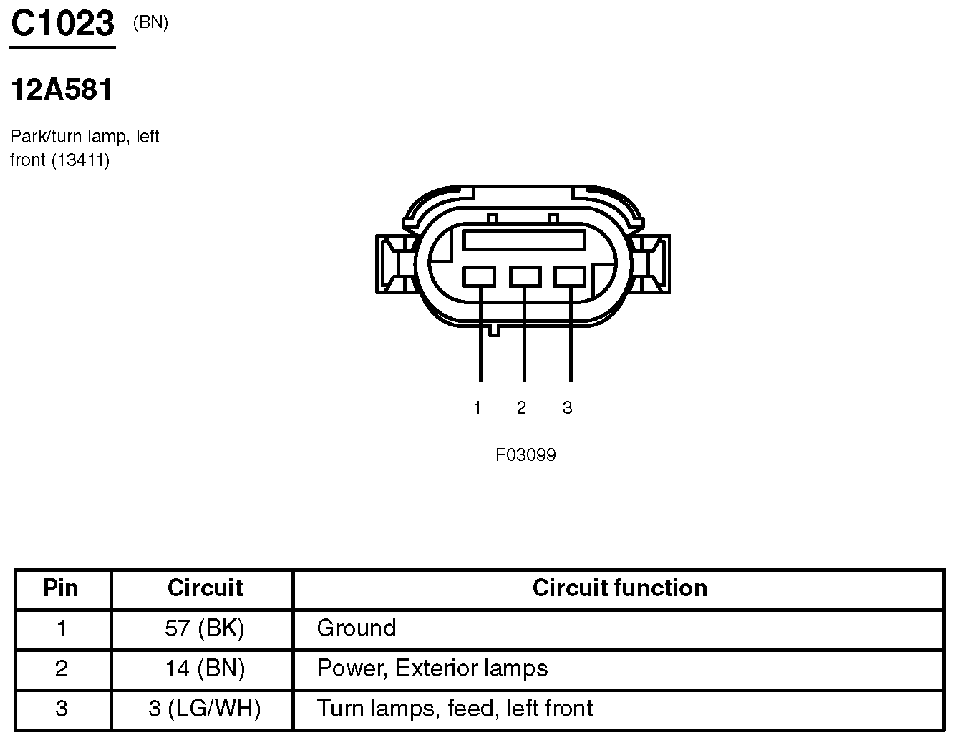

Fig 275: Park/Turn Lamp, Left Front Connector End View (C1023)
Courtesy of FORD MOTOR CO.

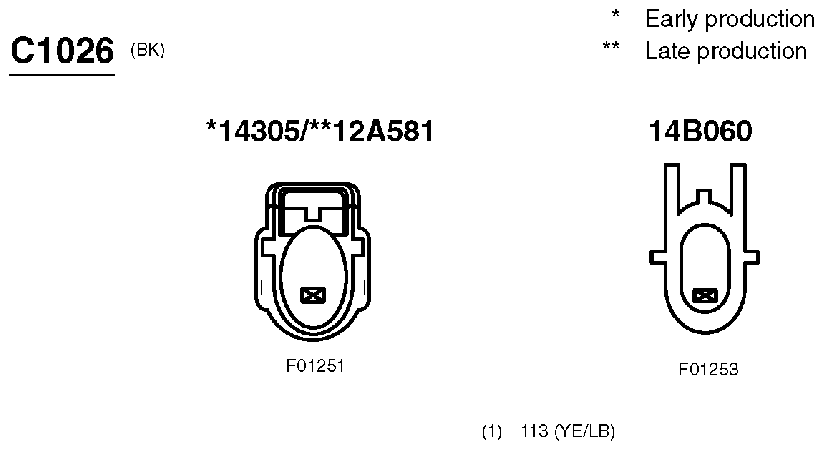

Fig 276: Inline Connector End View (C1026)
Courtesy of FORD MOTOR CO.

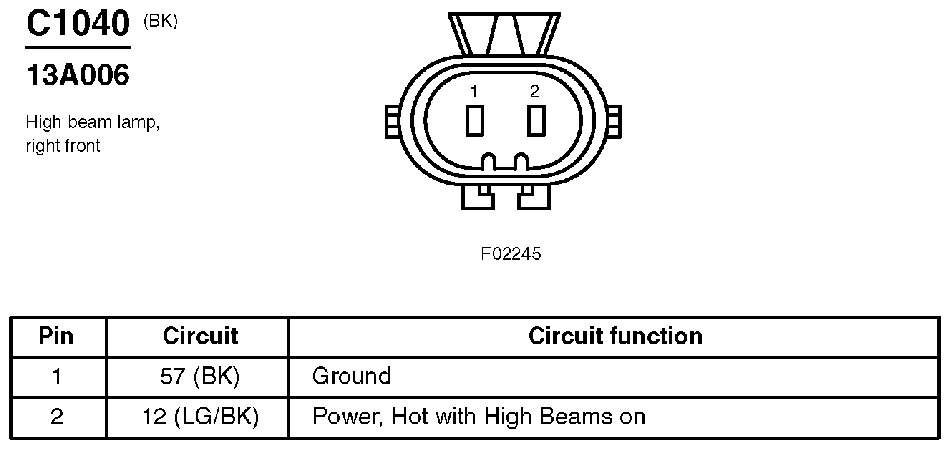

Fig 277: High Beam Lamp, Right Front Connector End View (C1040)
Courtesy of FORD MOTOR CO.

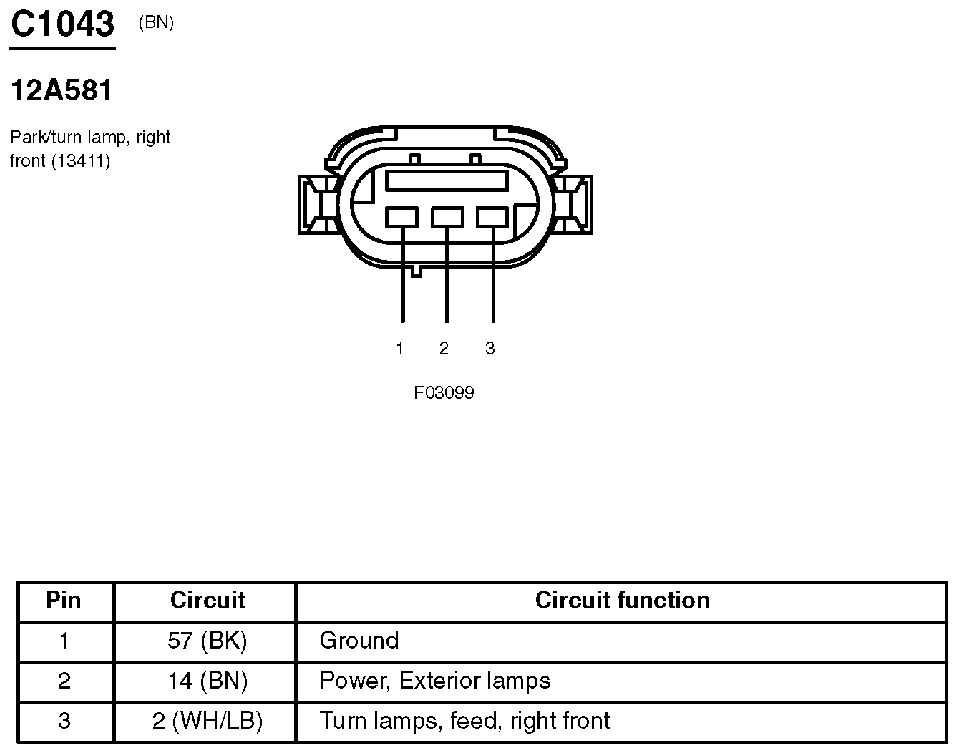

Fig 278: Park/Turn Lamp, Right Front Connector End View (C1043)
Courtesy of FORD MOTOR CO.

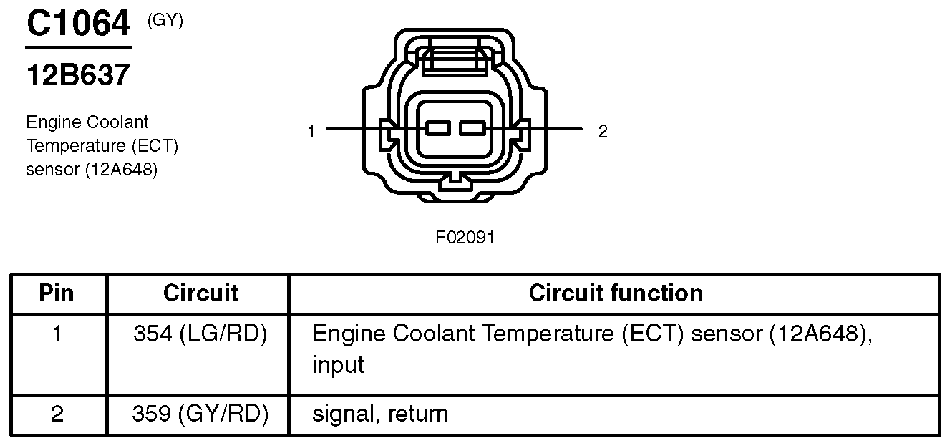

Fig 279: Engine Coolant Temperature (ECT) Sensor Connector End View (C1064)
Courtesy of FORD MOTOR CO.
Fig 280: Idle Air Control (IAC) Valve Connector End View (C1066)
Courtesy of FORD MOTOR CO.

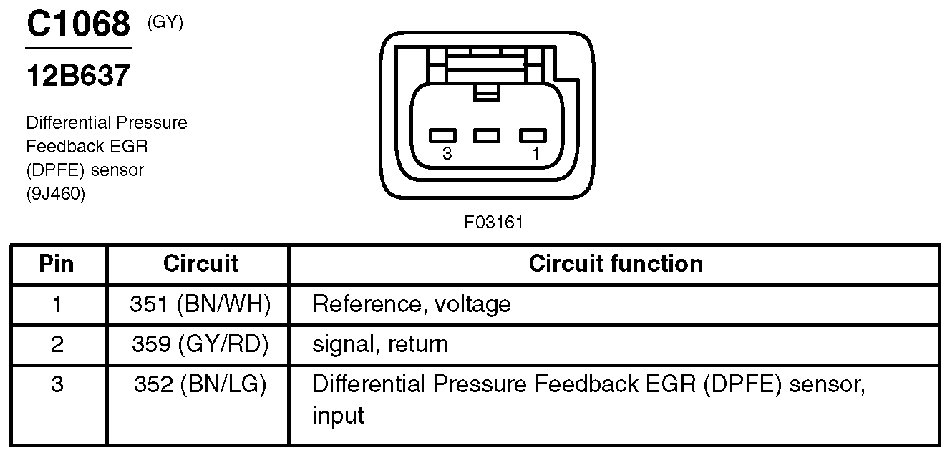

Fig 281: Differential Pressure Feedback EGR (DPFE) Sensor Connector End View (C1068)
Courtesy of FORD MOTOR CO.

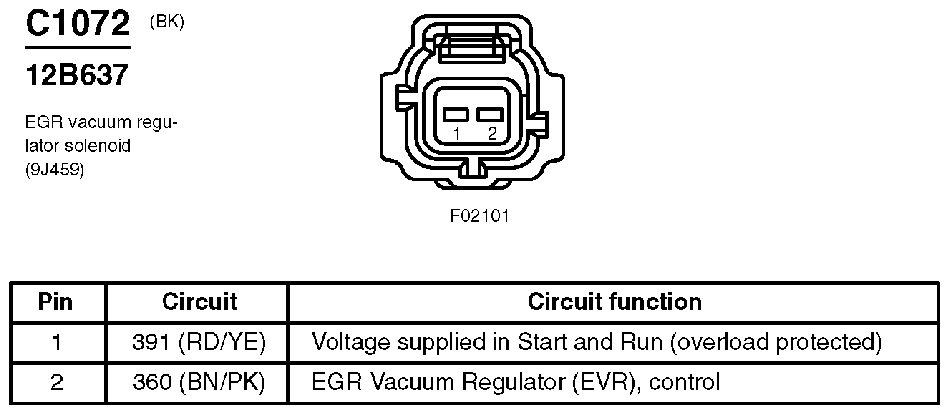

Fig 282: EGR Vacuum Regulator Solenoid Connector End View (C1072)
Courtesy of FORD MOTOR CO.

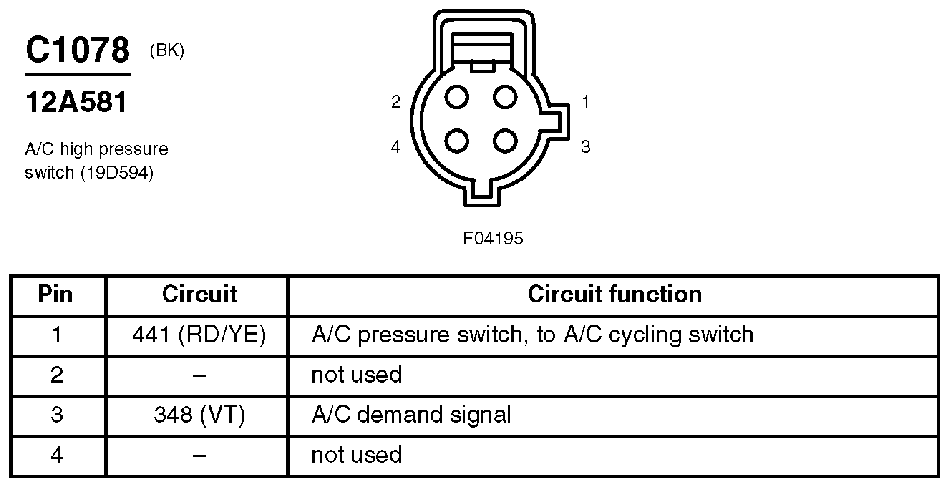

Fig 283: A/C High Pressure Switch Connector End View (C1078)
Courtesy of FORD MOTOR CO.

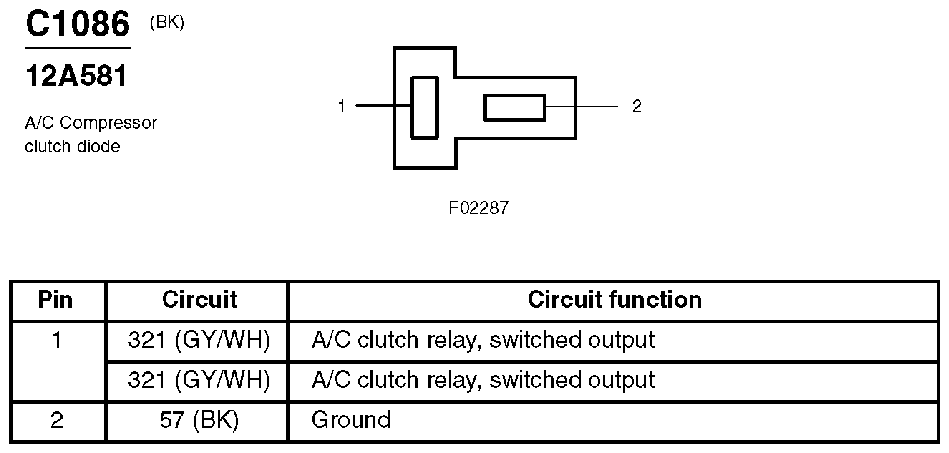

Fig 284: A/C Compressor Clutch Diode Connector End View (C1086)
Courtesy of FORD MOTOR CO.

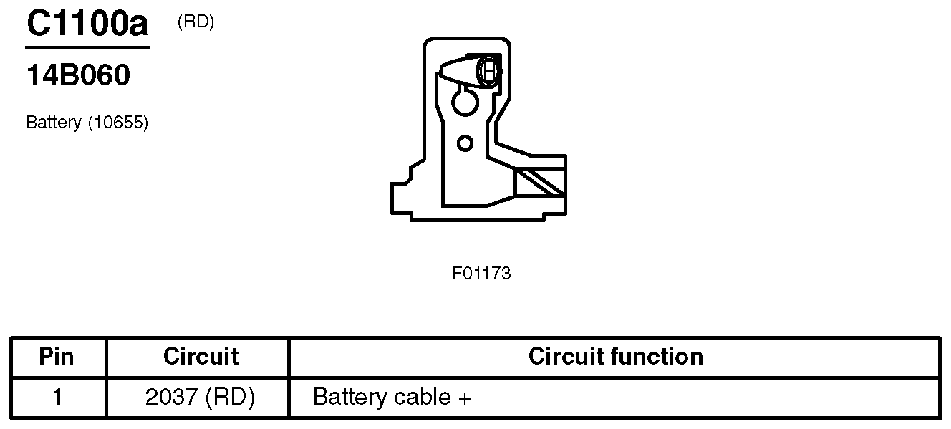

Fig 285: Battery Connector End View (C1100a)
Courtesy of FORD MOTOR CO.

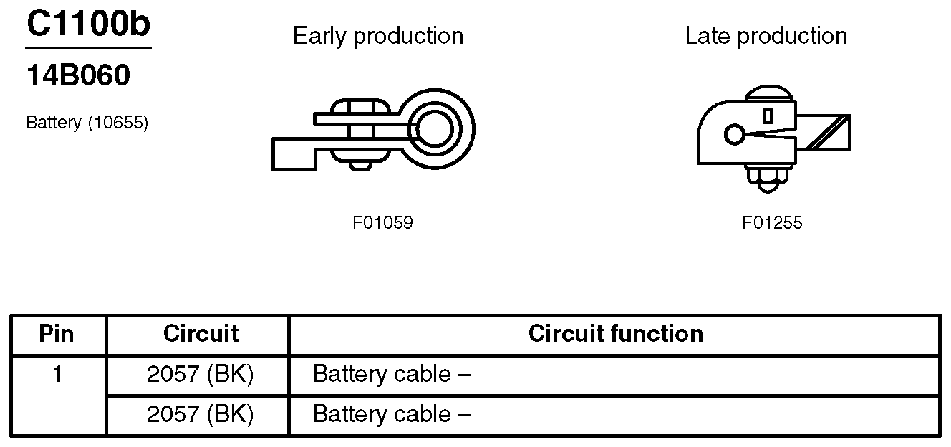

Fig 286: Battery Connector End View (C1100b)
Courtesy of FORD MOTOR CO.

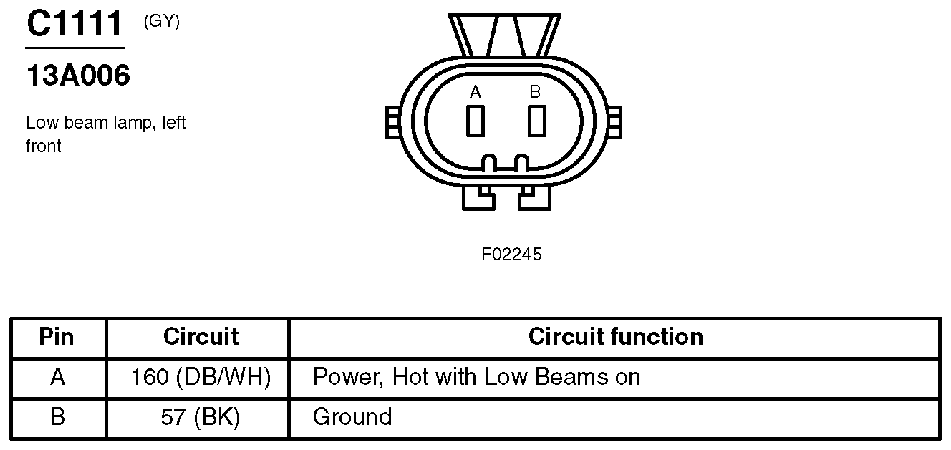

Fig 287: Low Beam Lamp, Left Front Connector End View (C1111)
Courtesy of FORD MOTOR CO.

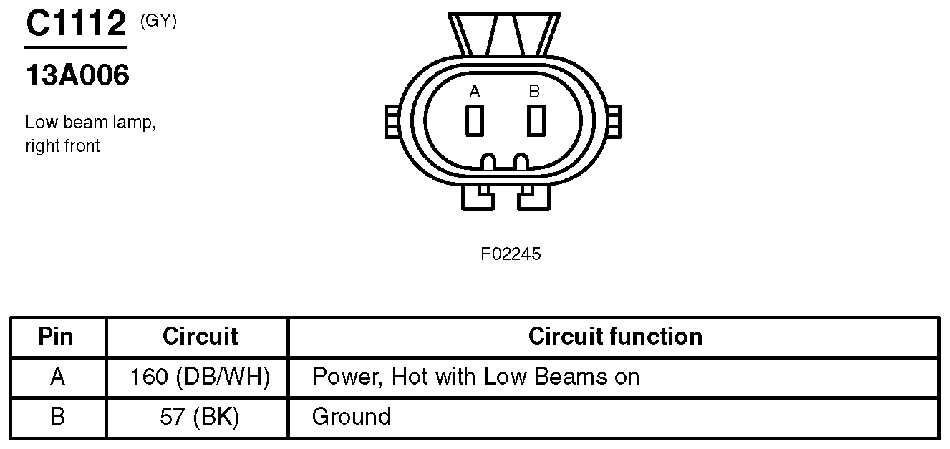

Fig 288: Low Beam Lamp, Right Front Connector End View (C1112)
Courtesy of FORD MOTOR CO.

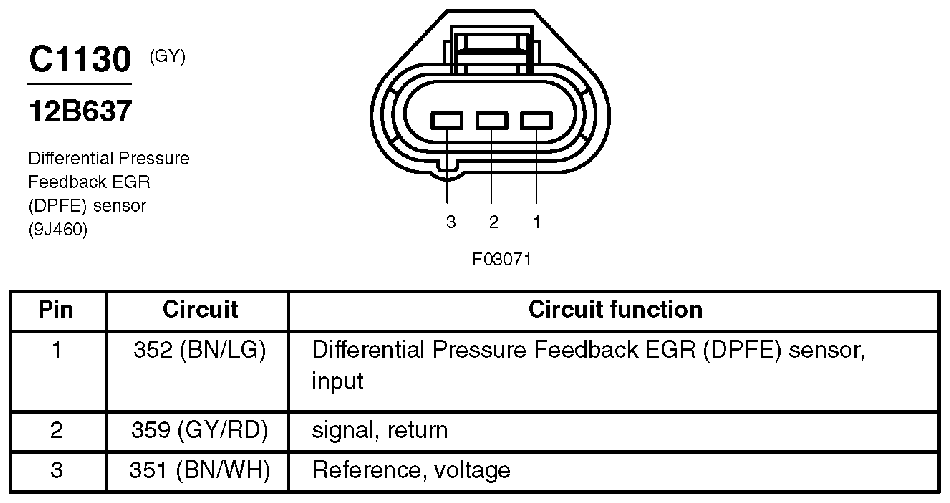

Fig 289: Differential Pressure Feedback EGR (DPFE) Sensor Connector End View (C1130)
Courtesy of FORD MOTOR CO.

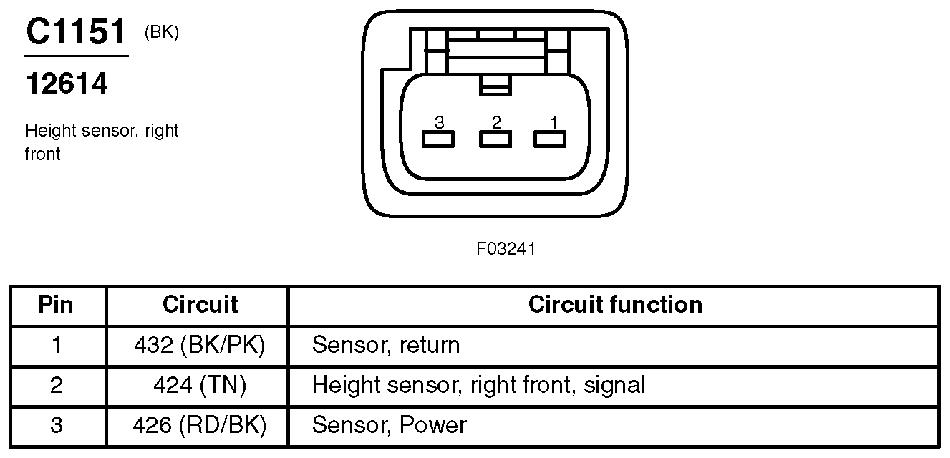

Fig 290: Height Sensor, Right Front Connector End View (C1151)
Courtesy of FORD MOTOR CO.

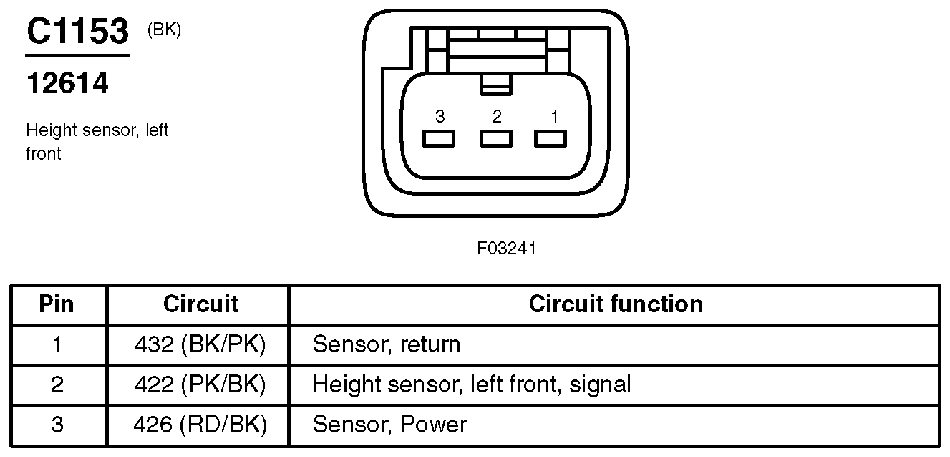

Fig 291: Height Sensor, Left Front Connector End View (C1153)
Courtesy of FORD MOTOR CO.

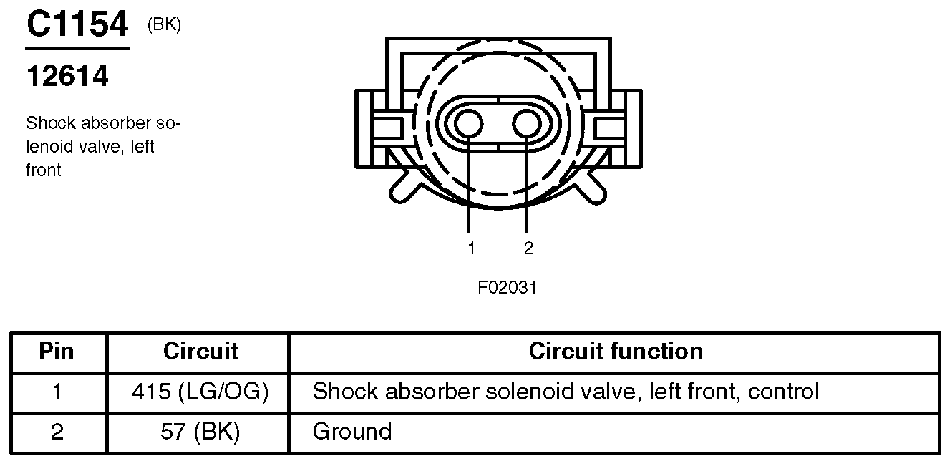

Fig 292: Shock Absorber Solenoid Valve, Left Front Connector End View (C1154)
Courtesy of FORD MOTOR CO.

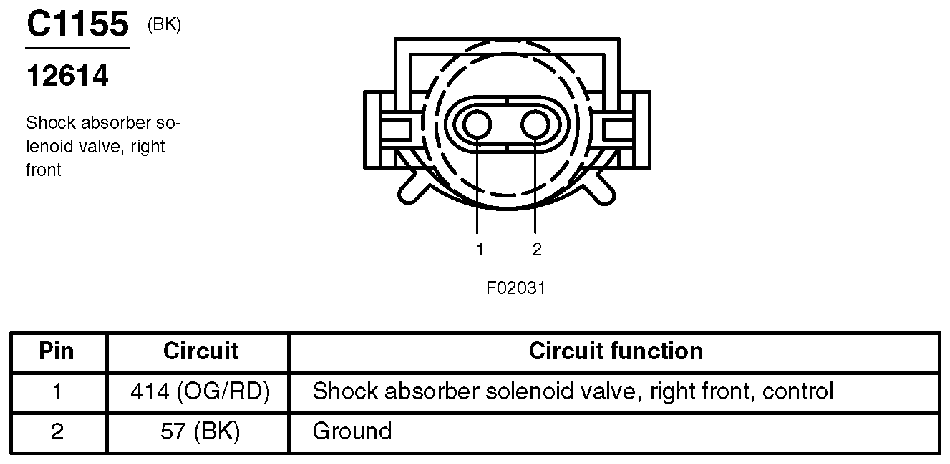

Fig 293: Shock Absorber Solenoid Valve, Right Front Connector End View (C1155)
Courtesy of FORD MOTOR CO.

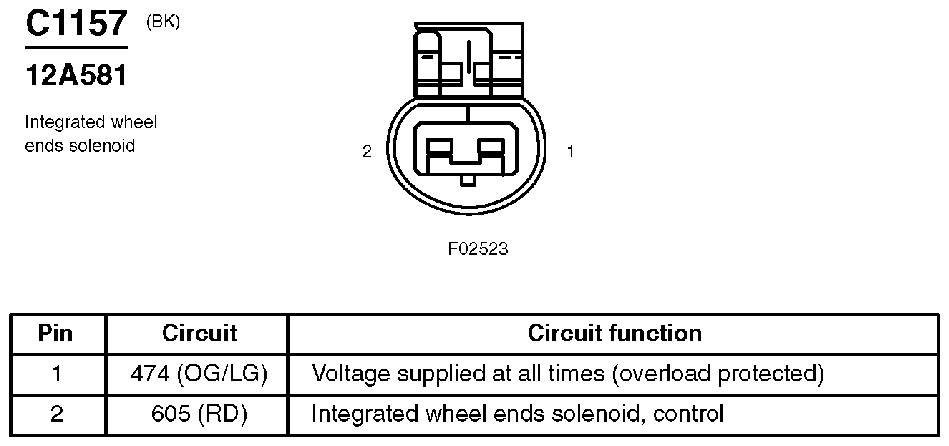

Fig 294: Integrated Wheel Ends Solenoid Connector End View (C1157)
Courtesy of FORD MOTOR CO.

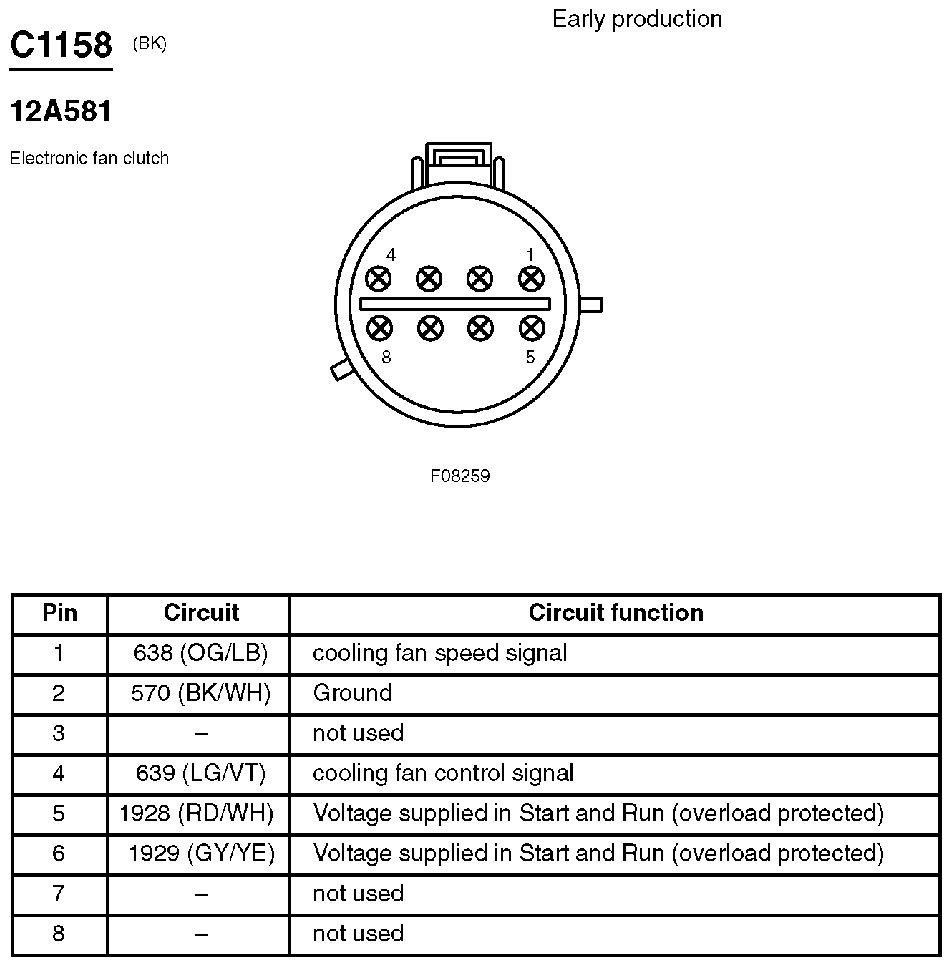

Fig 295: Electronic Fan Clutch Connector End View (C1158)
Courtesy of FORD MOTOR CO.

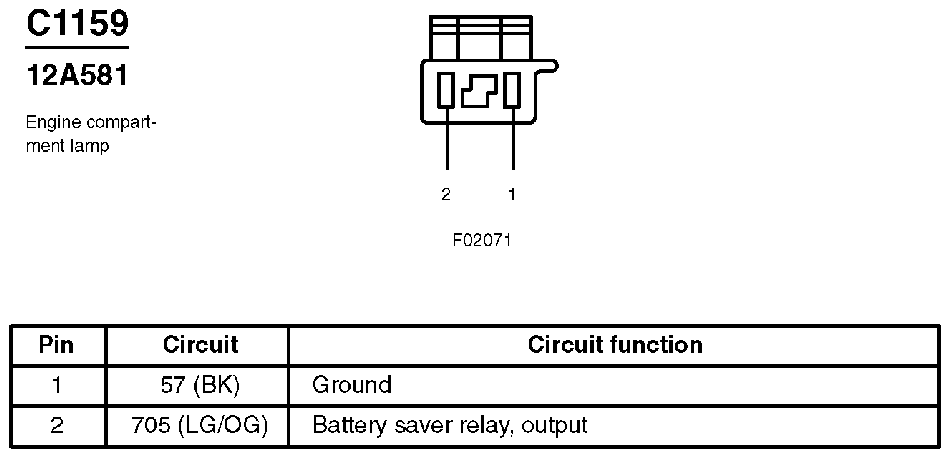

Fig 296: Engine Compartment Lamp Connector End View (C1159)
Courtesy of FORD MOTOR CO.

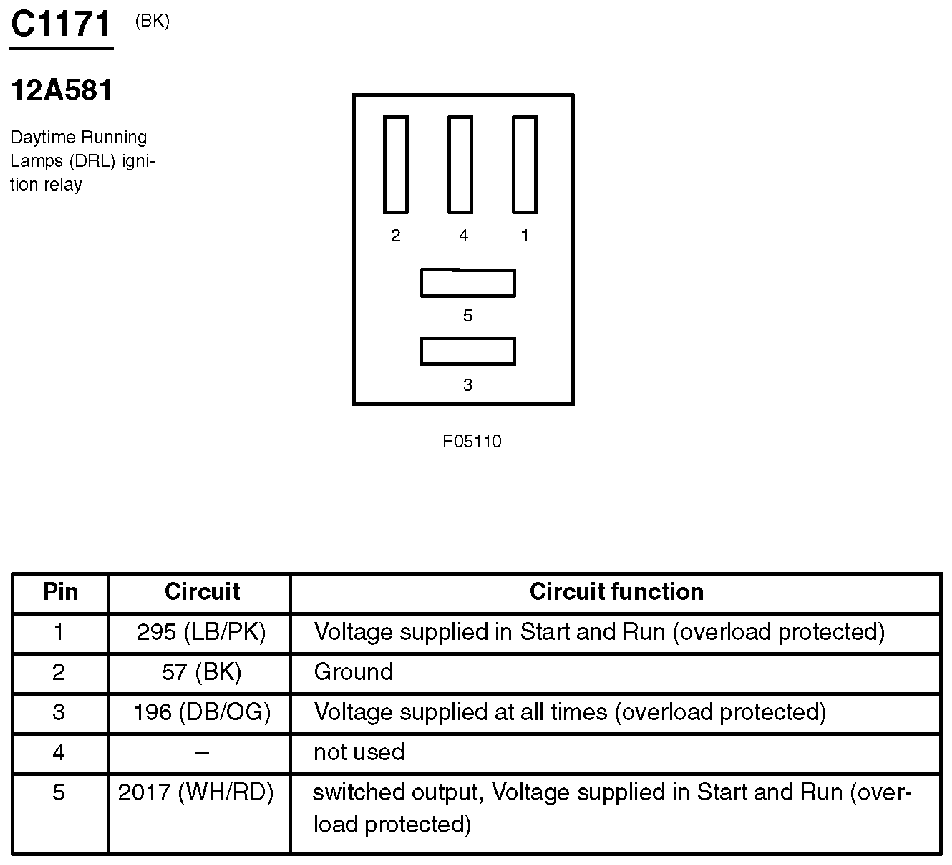

Fig 297: Daytime Running Lamps (DRL) Ignition Relay Connector End View (C1171)
Courtesy of FORD MOTOR CO.

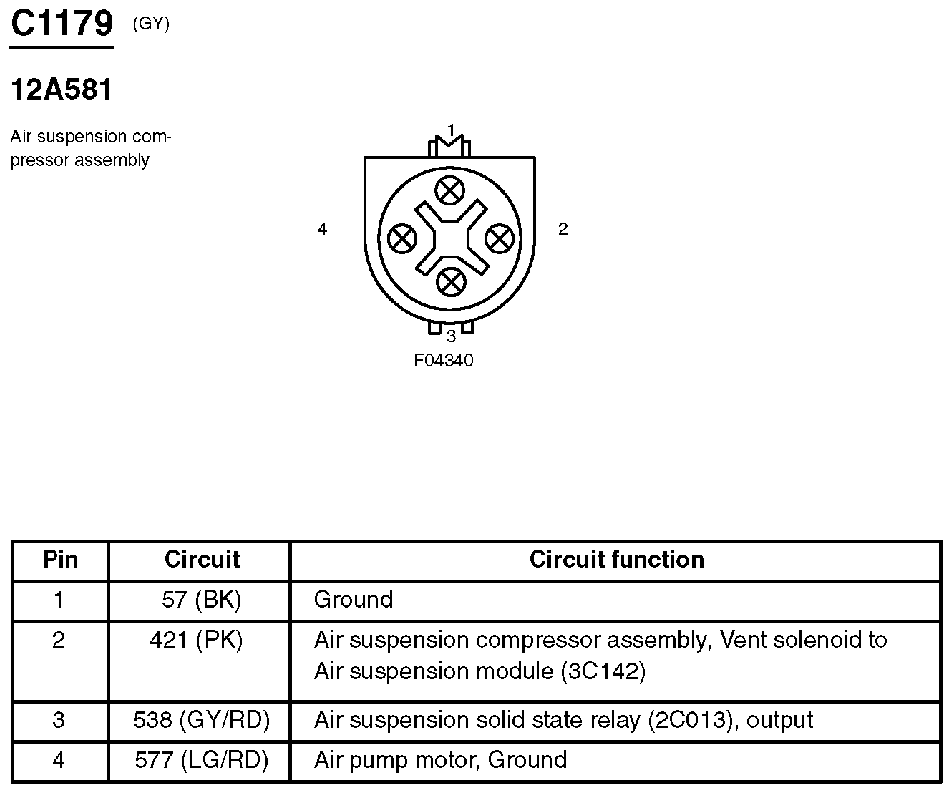

Fig 298: Air Suspension Compressor Assembly Connector End View (C1179)
Courtesy of FORD MOTOR CO.

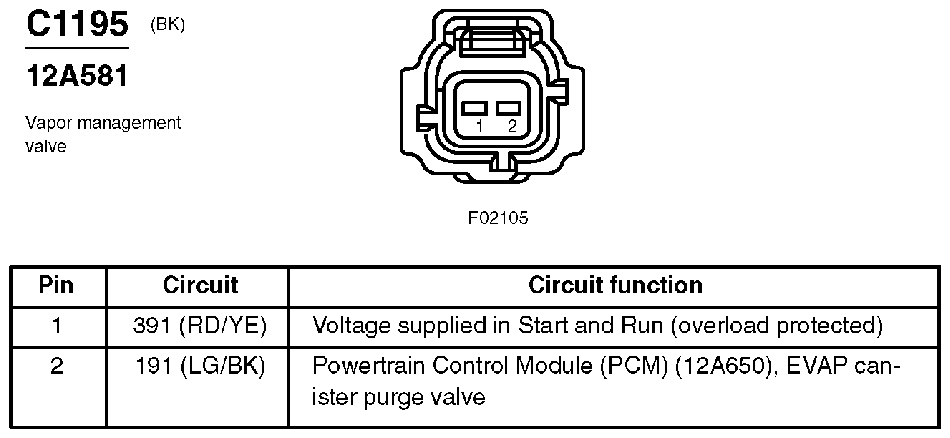

Fig 299: Vapor Management Valve Connector End View (C1195)
Courtesy of FORD MOTOR CO.

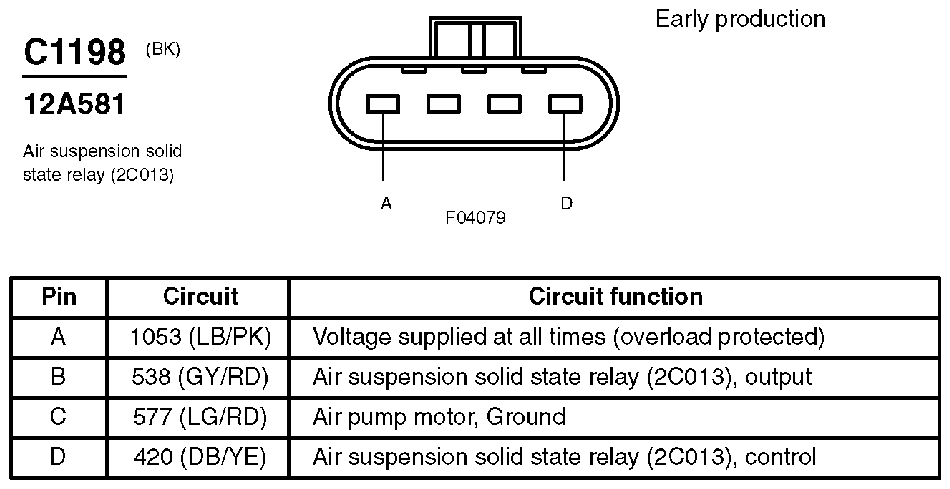

Fig 300: Air Suspension Solid State Relay Connector End View (C1198)
Courtesy of FORD MOTOR CO.

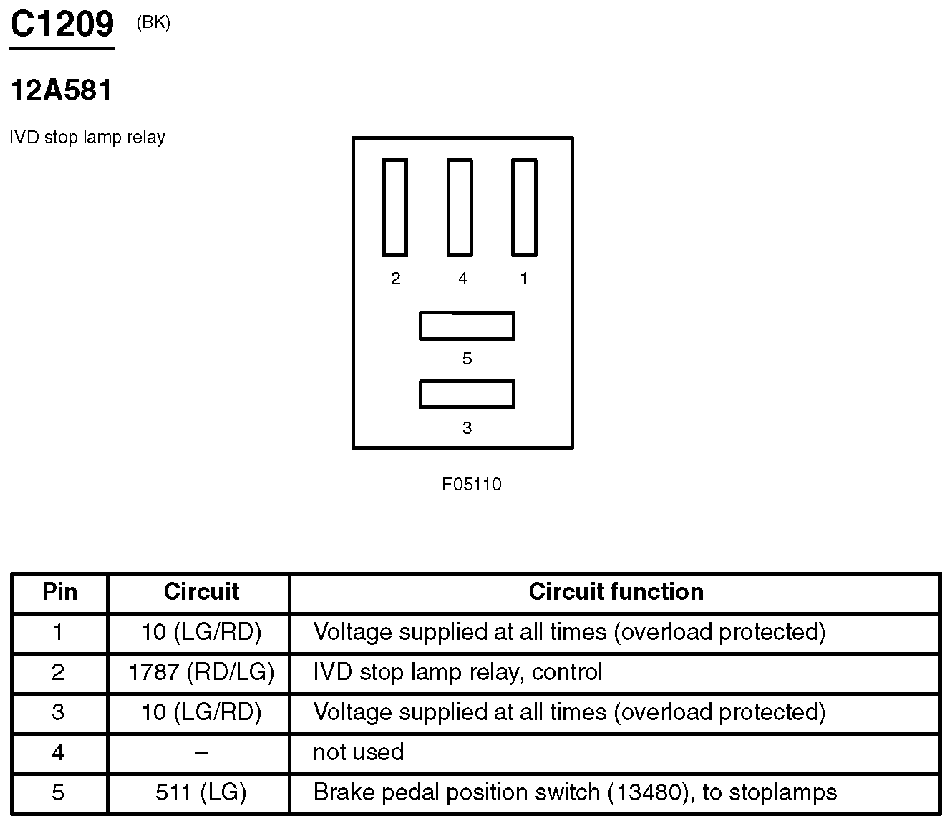

Fig 301: IVD Stop Lamp Relay Connector End View (C1209)
Courtesy of FORD MOTOR CO.

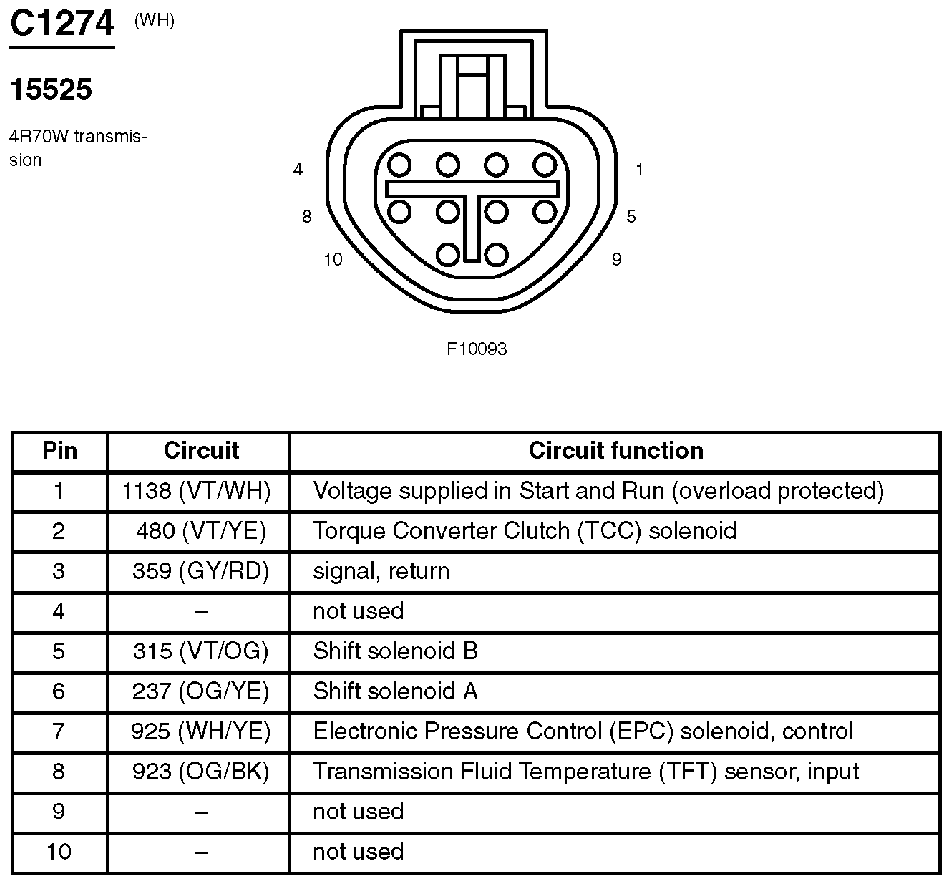

Fig 302: 4R70W Transmission Connector End View (C1274)
Courtesy of FORD MOTOR CO.

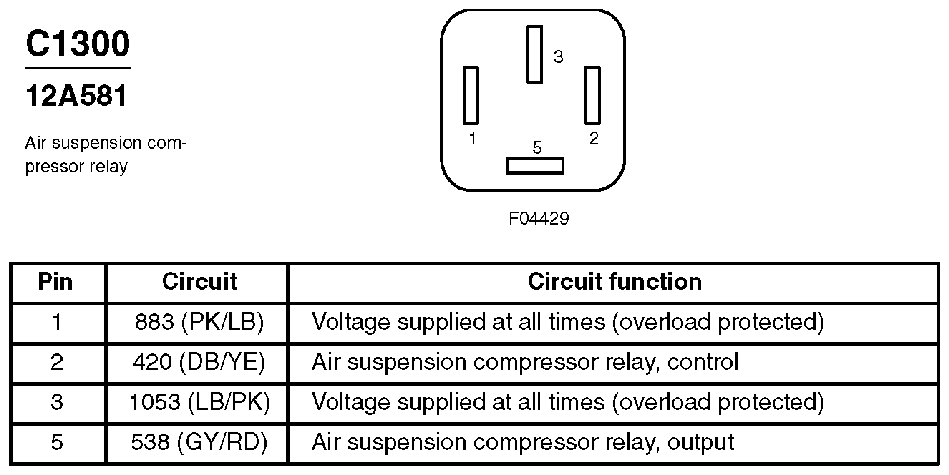

Fig 303: Air Suspension Compressor Relay Connector End View (C1300)
Courtesy of FORD MOTOR CO.

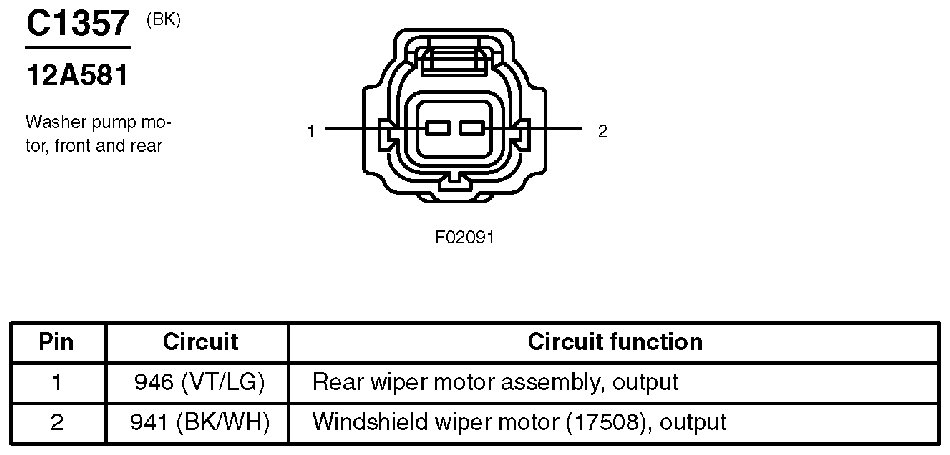

Fig 304: Washer Pump Motor, Front And Rear Connector End View (C1357)
Courtesy of FORD MOTOR CO.

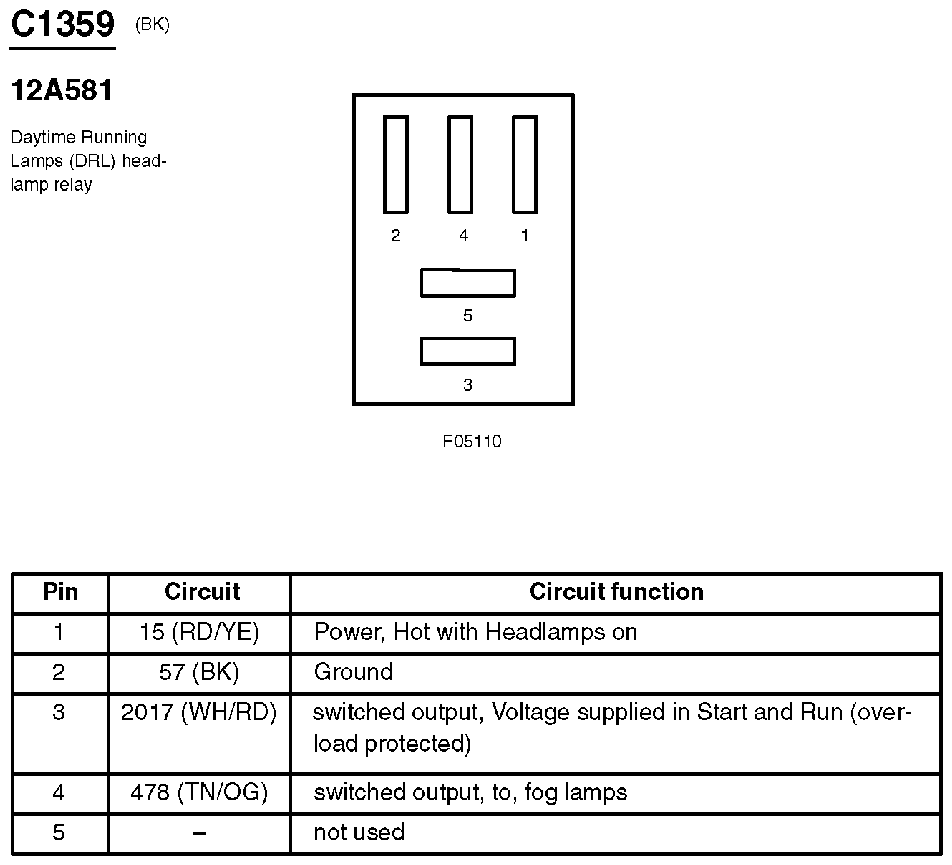

Fig 305: Daytime Running Lamps (DRL) Headlamp Relay Connector End View (C1359)
Courtesy of FORD MOTOR CO.

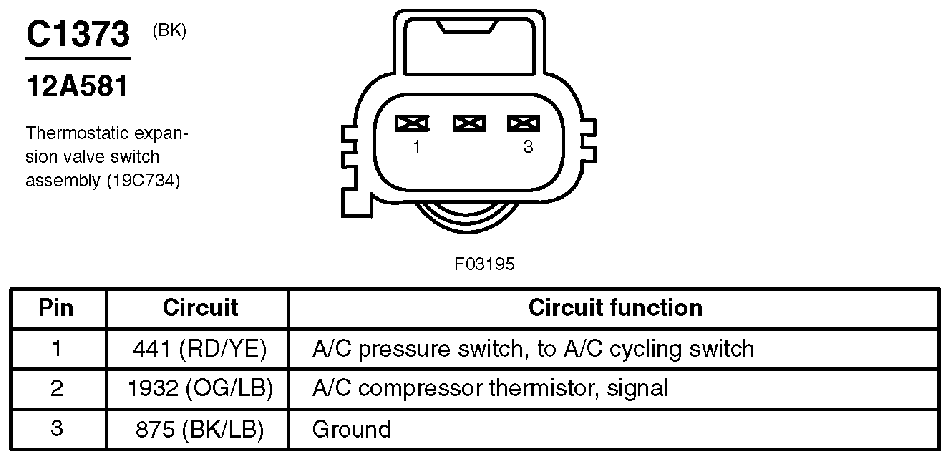

Fig 306: Thermostatic Expansion Valve Switch Assembly Connector End View (C1373)
Courtesy of FORD MOTOR CO.

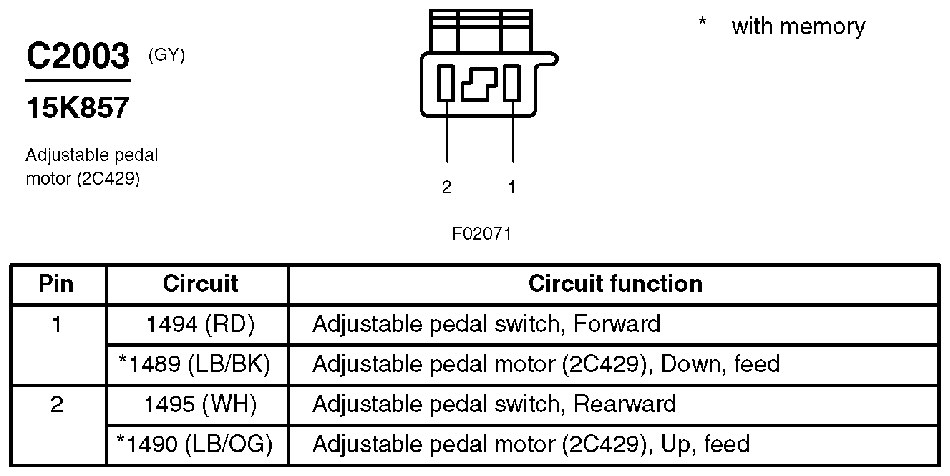

Fig 307: Adjustable Pedal Motor Connector End View (C2003)
Courtesy of FORD MOTOR CO.

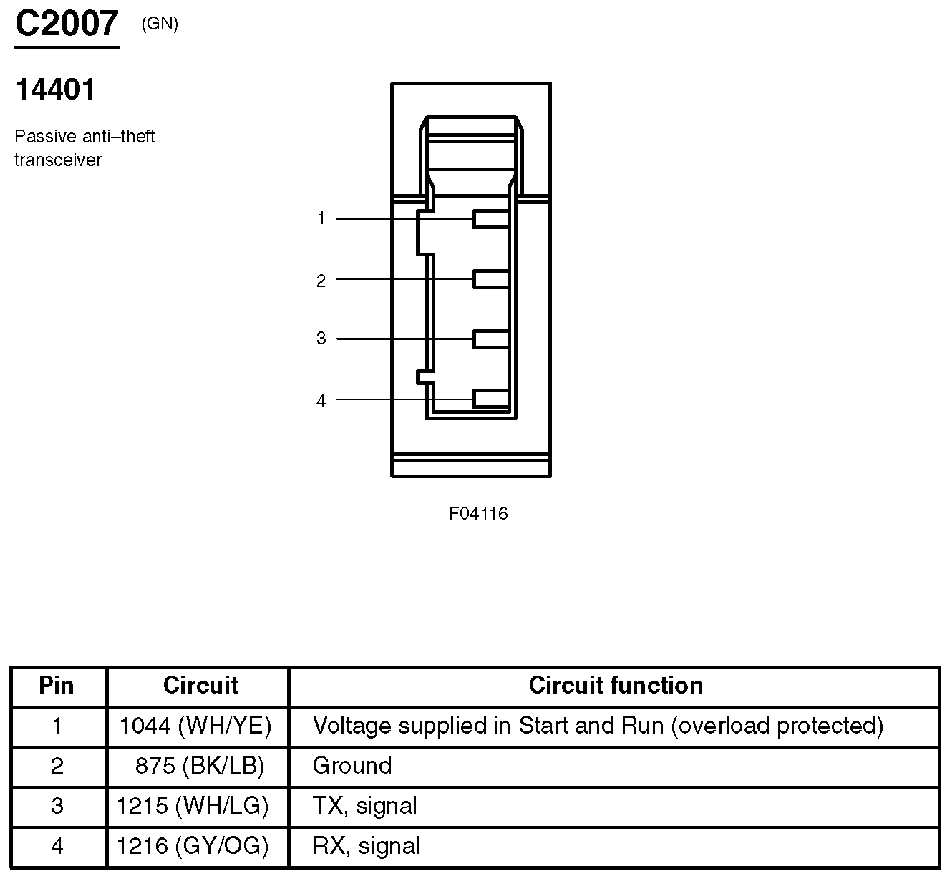

Fig 308: Passive Anti-Theft Transceiver Connector End View (C2007)
Courtesy of FORD MOTOR CO.

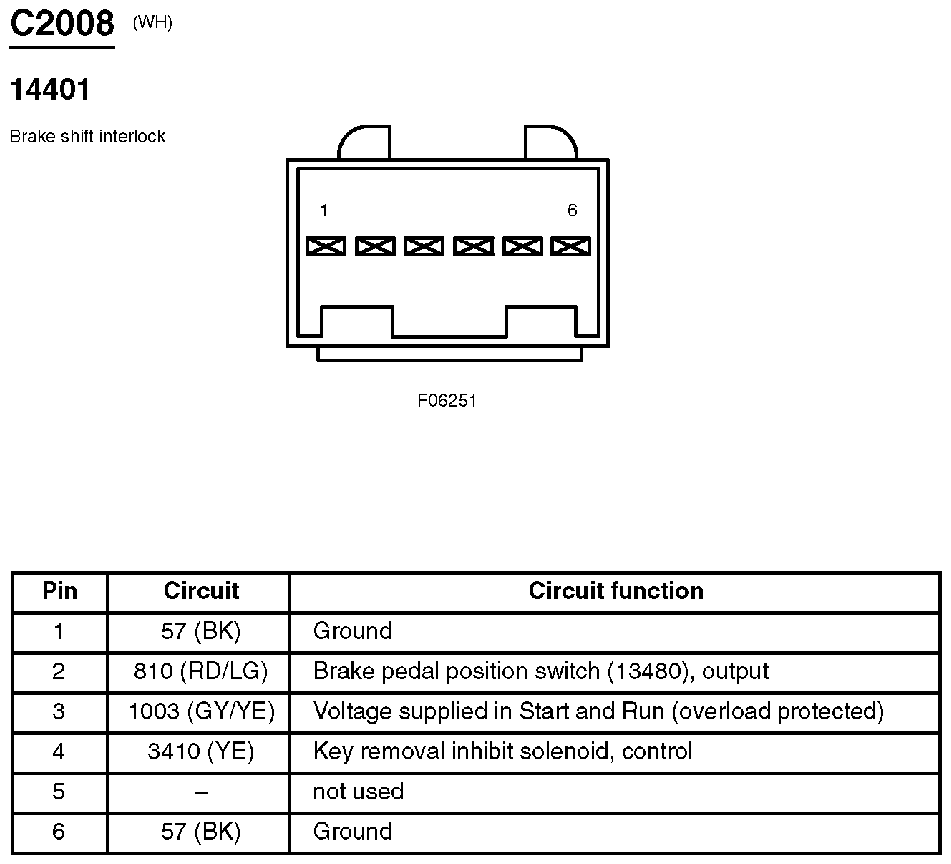

Fig 309: Brake Shift Interlock Connector End View (C2008)
Courtesy of FORD MOTOR CO.

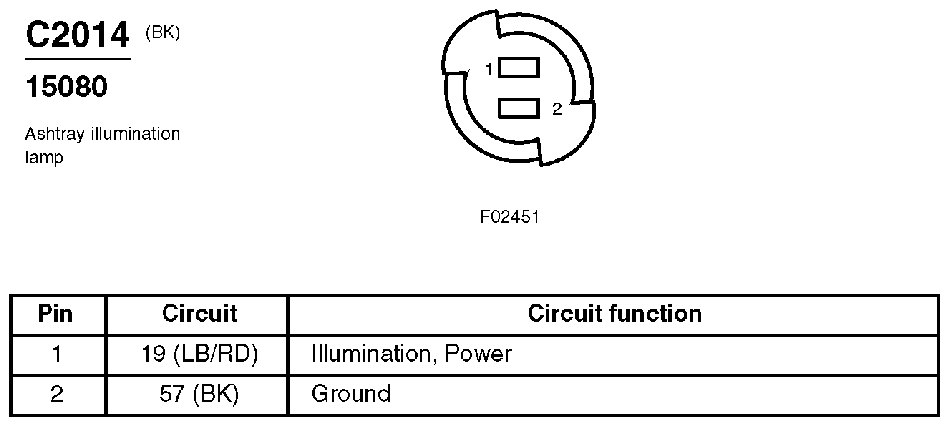

Fig 310: Ashtray Illumination Lamp Connector End View (C2014)
Courtesy of FORD MOTOR CO.

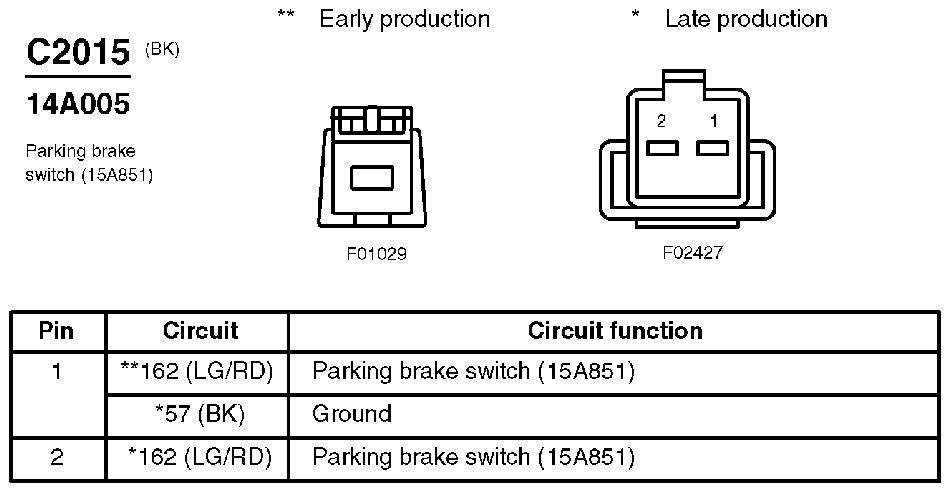

Fig 311: Parking Brake Switch Connector End View (C2015)
Courtesy of FORD MOTOR CO.

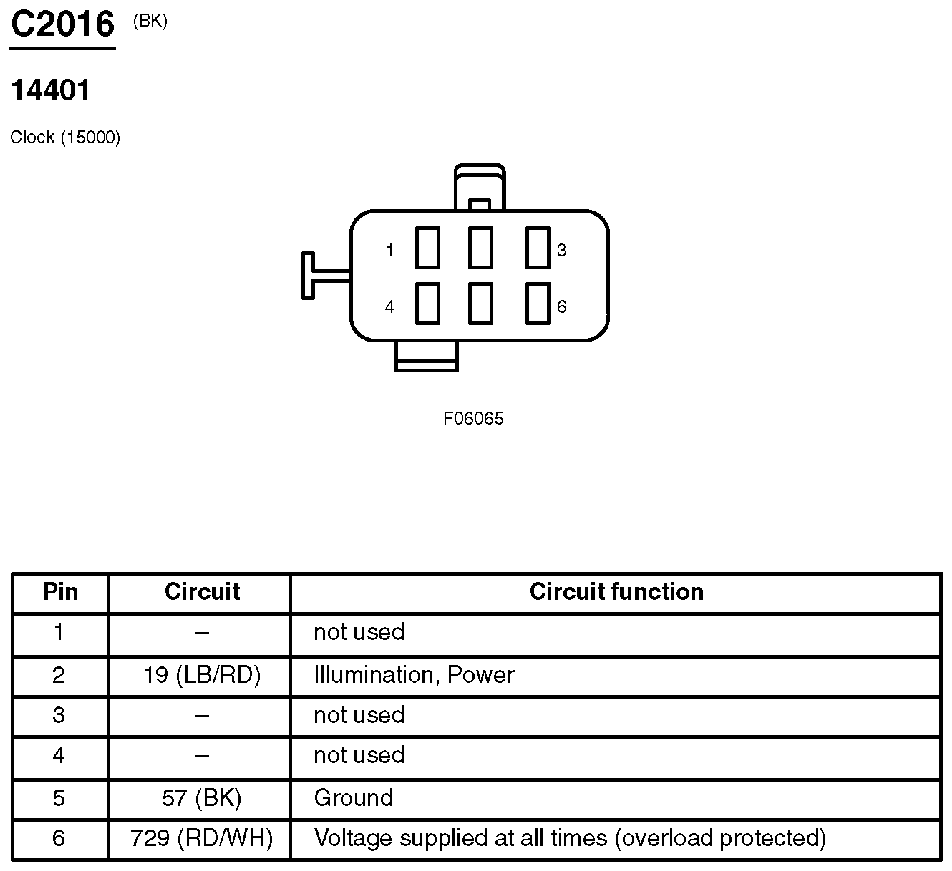

Fig 312: Clock Connector End View (C2016)
Courtesy of FORD MOTOR CO.

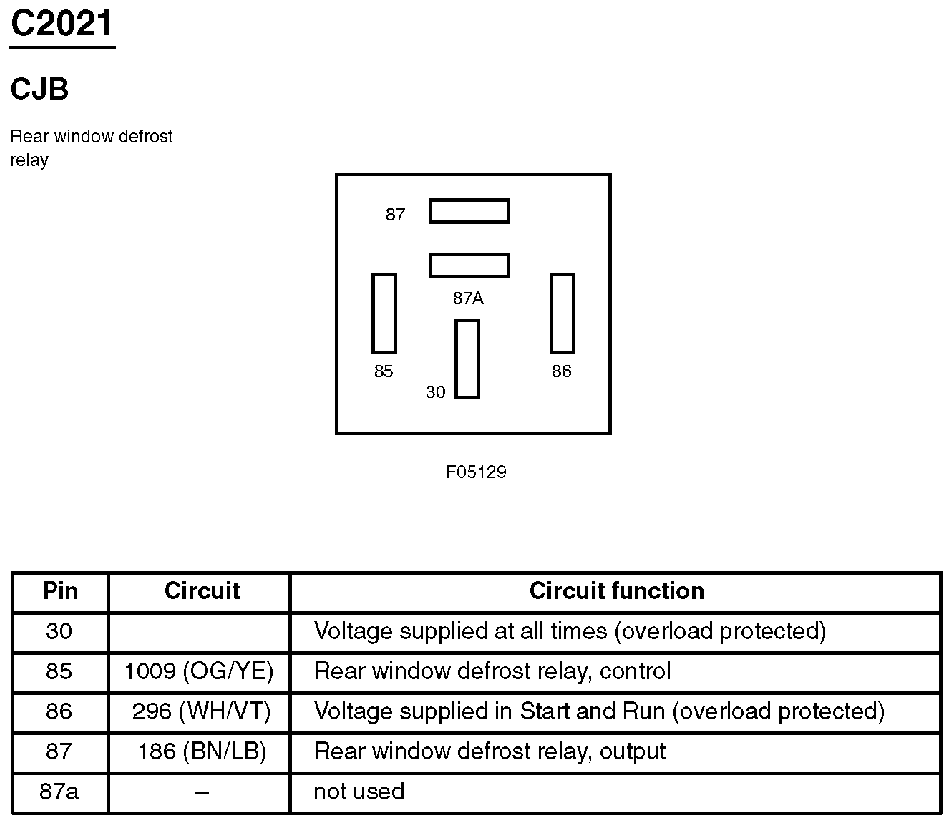

Fig 313: Rear Window Defrost Relay Connector End View (C2021)
Courtesy of FORD MOTOR CO.

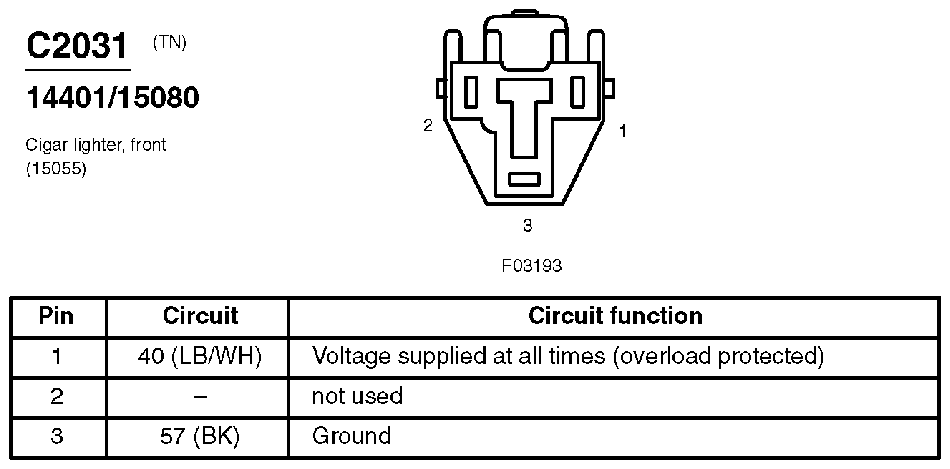

Fig 314: Cigar Lighter, Front Connector End View (C2031)
Courtesy of FORD MOTOR CO.

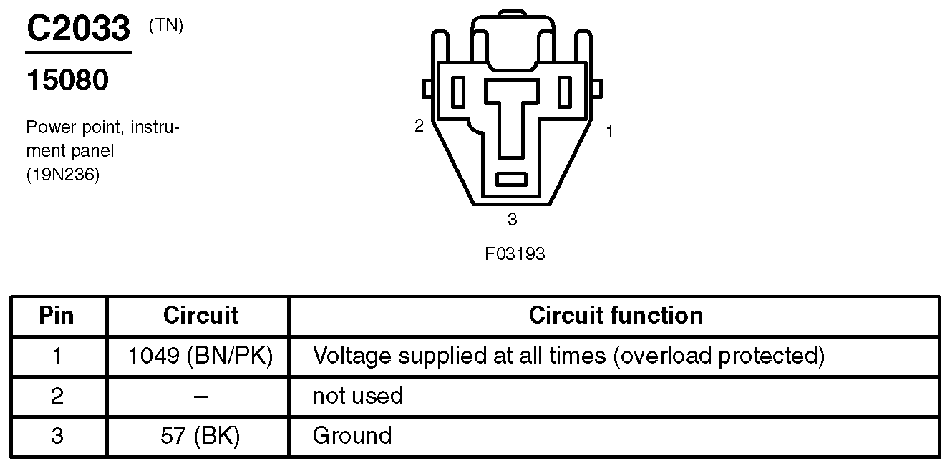

Fig 315: Power Point, Instrument Panel Connector End View (C2033)
Courtesy of FORD MOTOR CO.

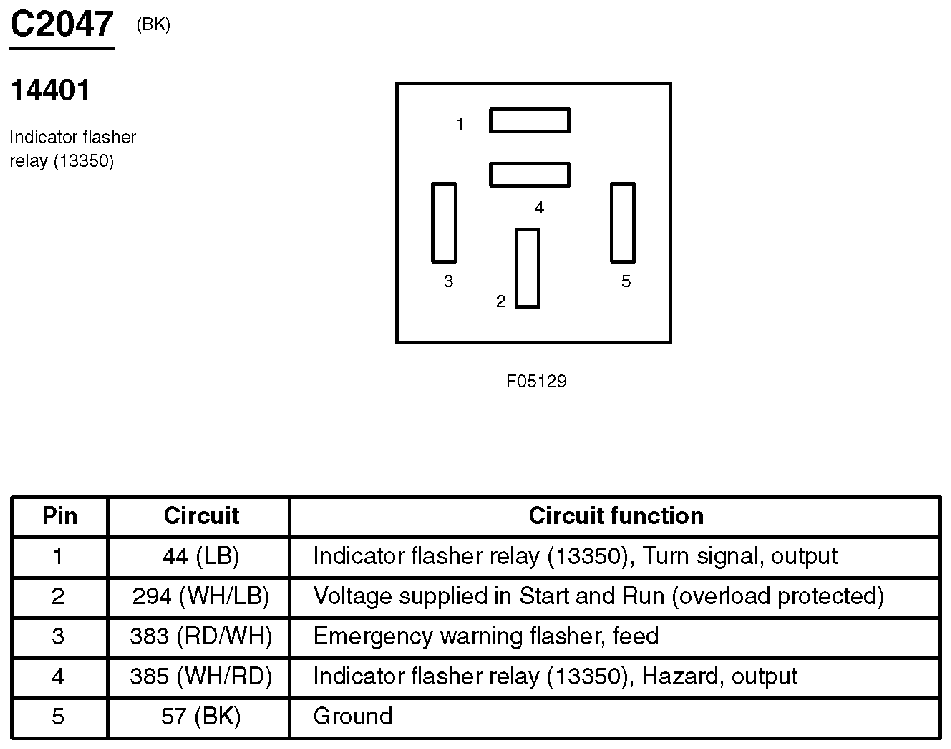

Fig 316: Indicator Flasher Relay Connector End View (C2047)
Courtesy of FORD MOTOR CO.

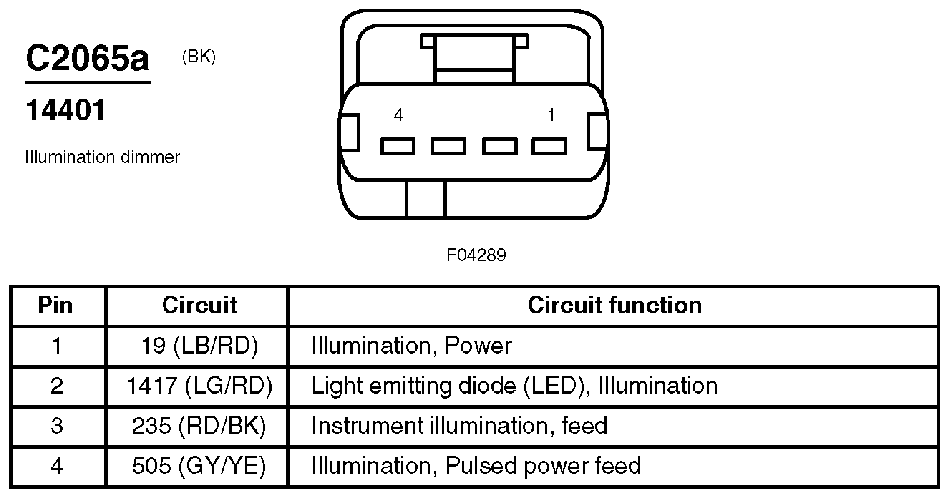

Fig 317: Illumination Dimmer Connector End View (C2065a)
Courtesy of FORD MOTOR CO.

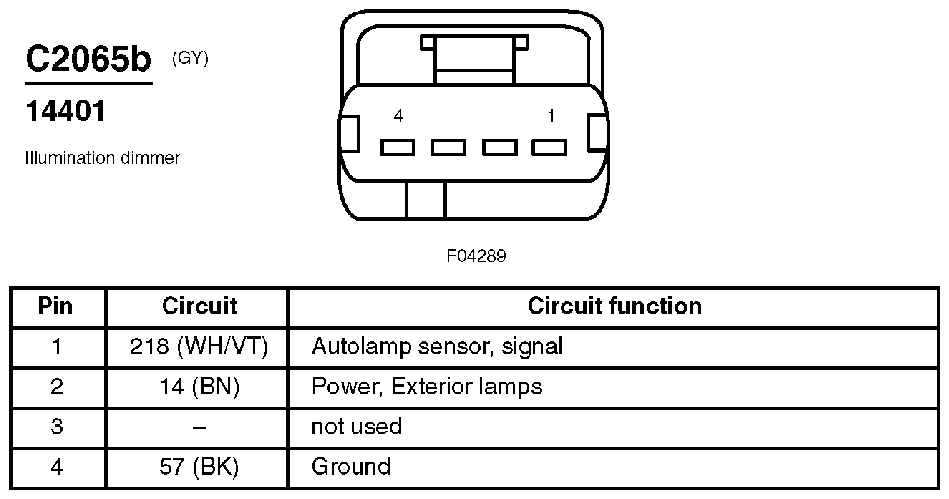

Fig 318: Illumination Dimmer Connector End View (C2065b)
Courtesy of FORD MOTOR CO.

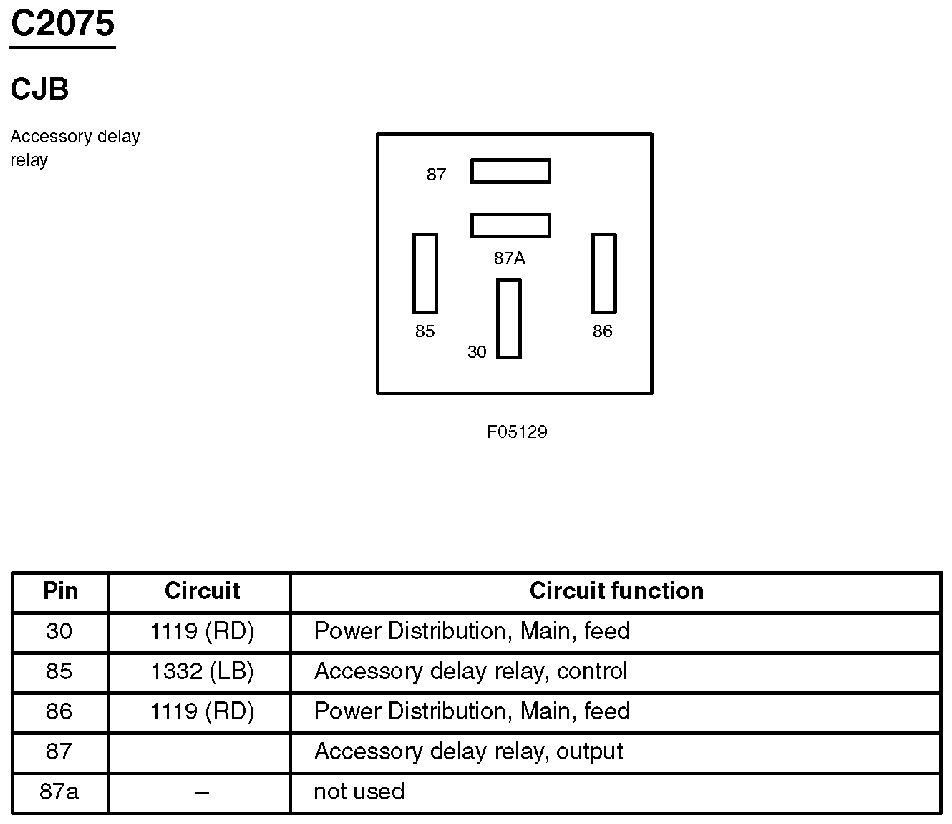

Fig 319: Accessory Delay Relay Connector End View (C2075)
Courtesy of FORD MOTOR CO.

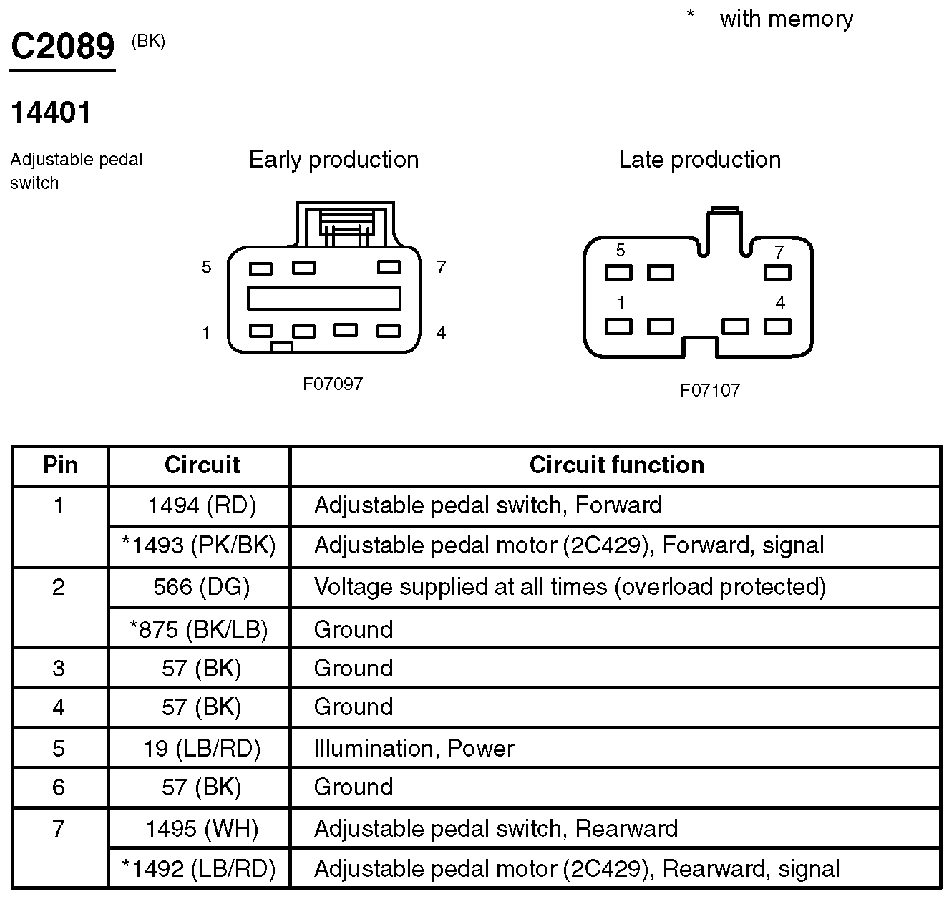

Fig 320: Adjustable Pedal Switch Connector End View (C2089)
Courtesy of FORD MOTOR CO.

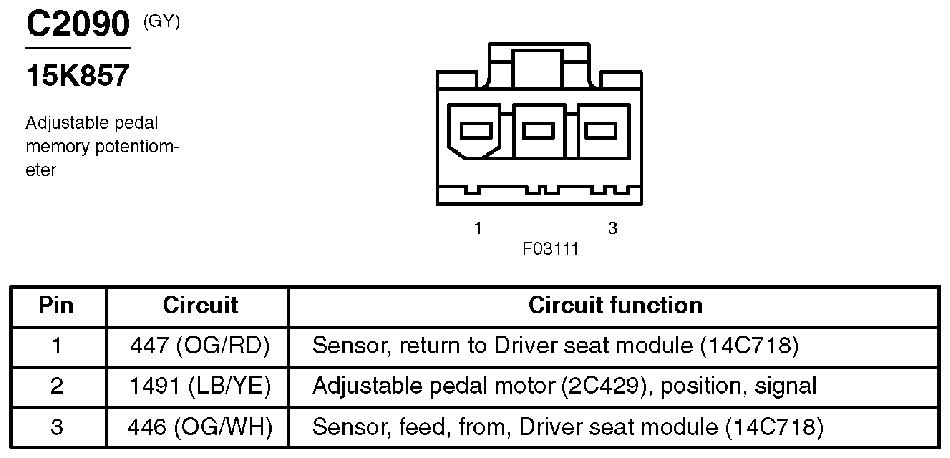

Fig 321: Adjustable Pedal Memory Potentiometer Connector End View (C2090)
Courtesy of FORD MOTOR CO.

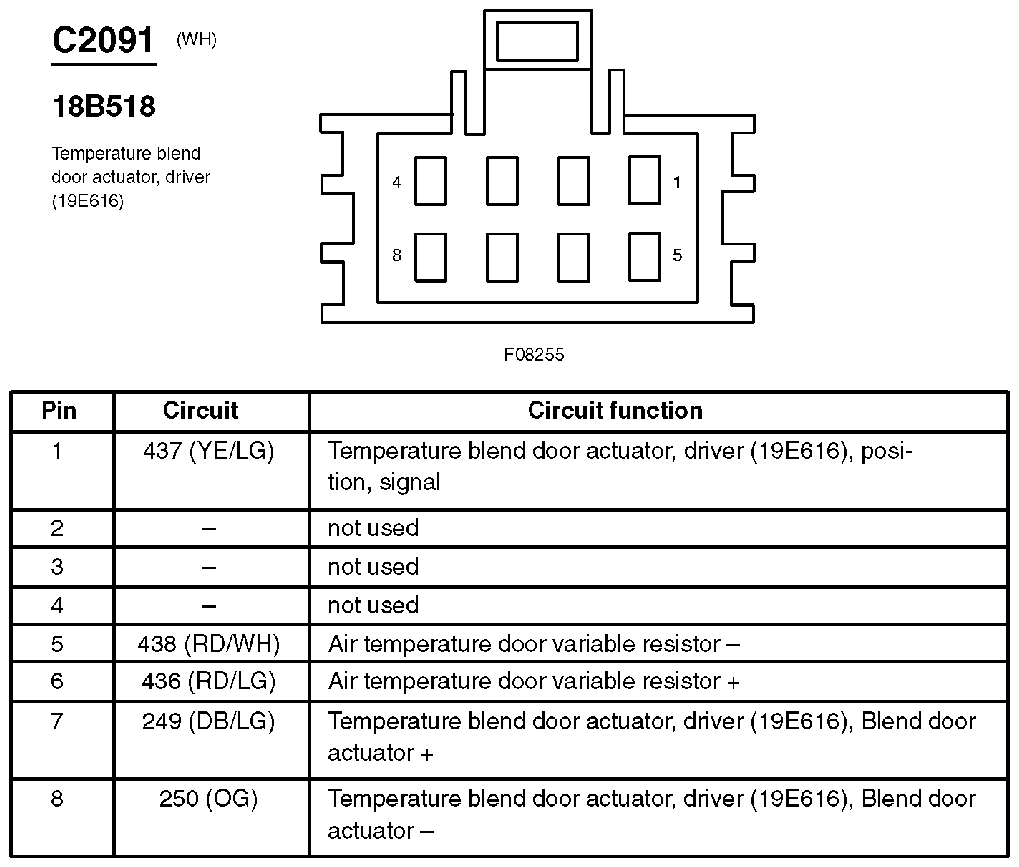

Fig 322: Temperature Blend Door Actuator, Driver Connector End View (C2091)
Courtesy of FORD MOTOR CO.

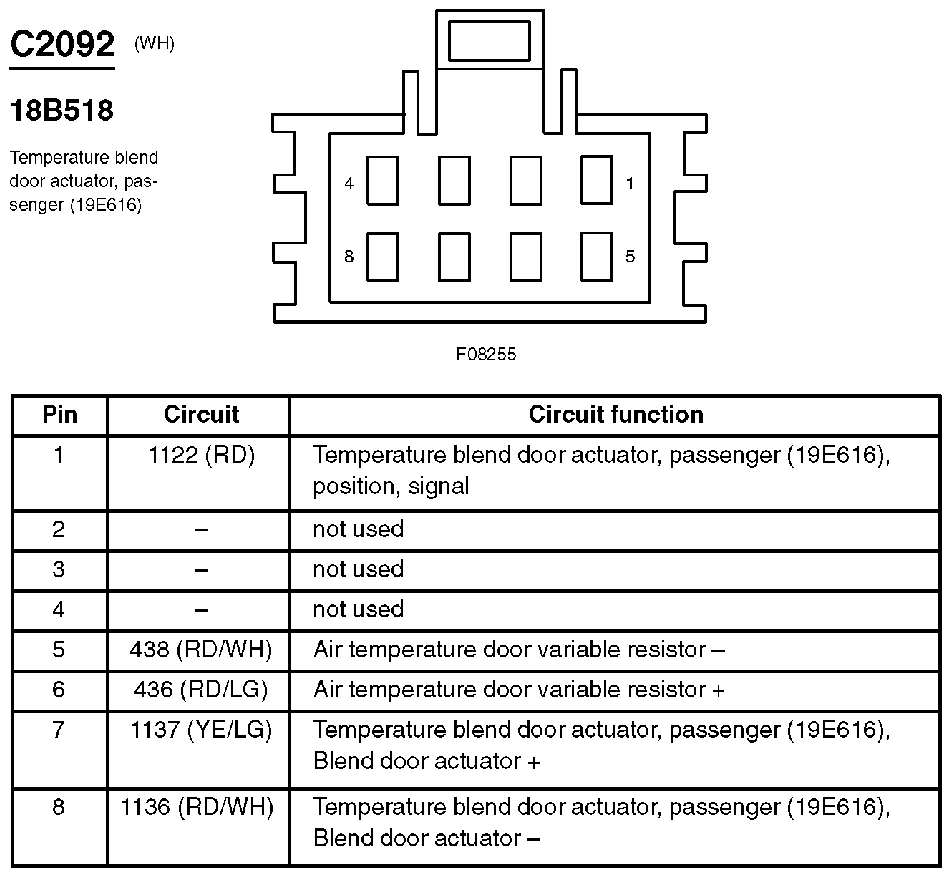

Fig 323: Temperature Blend Door Actuator, Right Connector End View (C2092)
Courtesy of FORD MOTOR CO.
Fig 324: Remote Solenoid Assembly Connector End View (C2093)
Courtesy of FORD MOTOR CO.

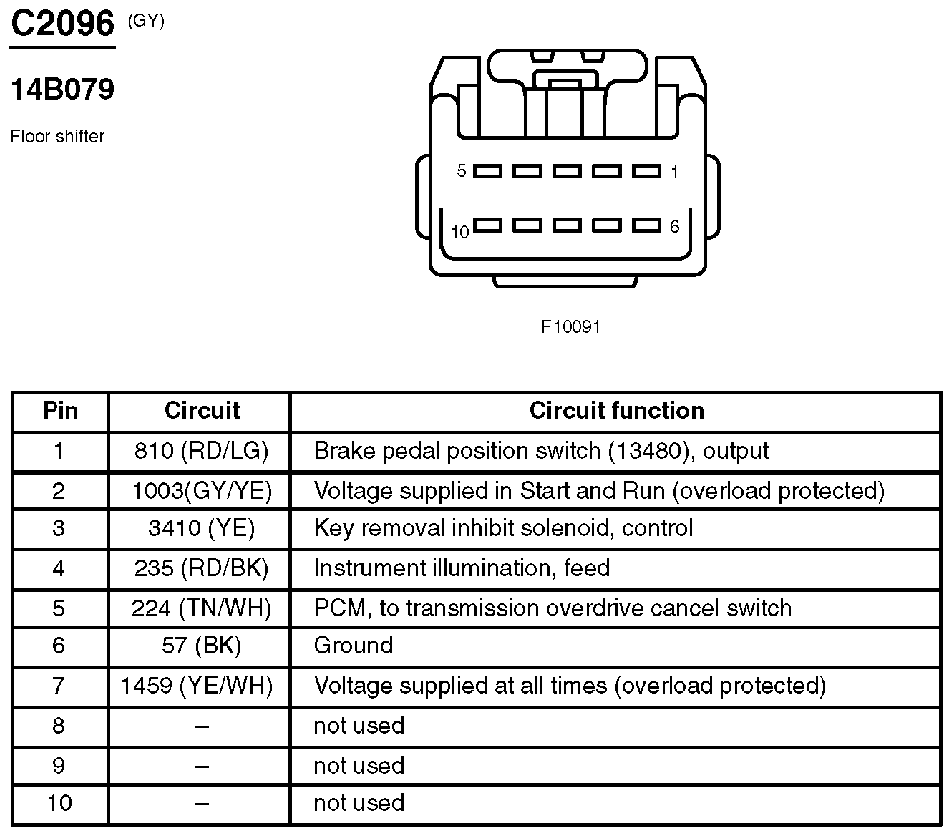

Fig 325: Floor Shifter Connector End View (C2096)
Courtesy of FORD MOTOR CO.

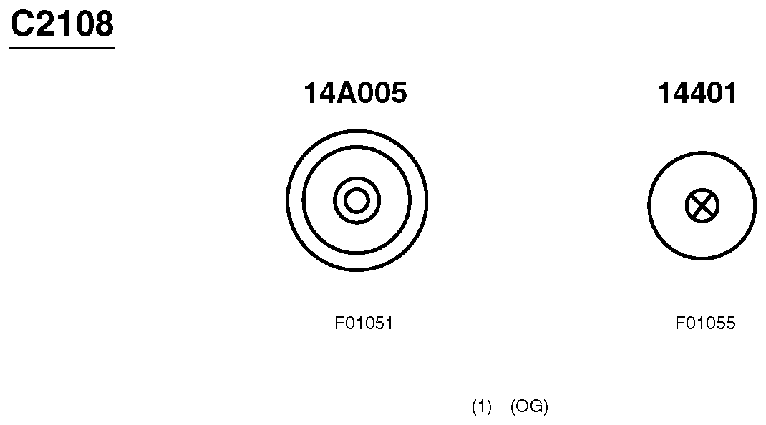

Fig 326: Inline Connector End View (C2108)
Courtesy of FORD MOTOR CO.

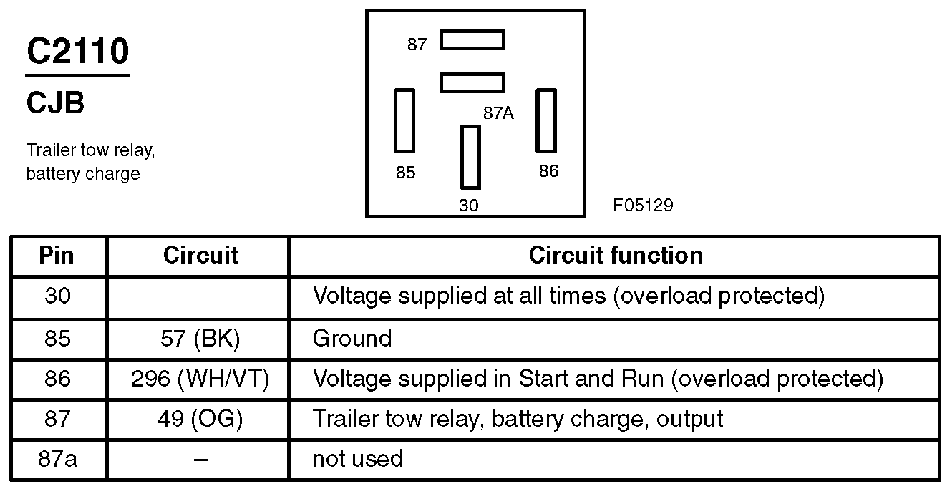

Fig 327: Trailer Tow Relay, Battery Charge Connector End View (C2110)
Courtesy of FORD MOTOR CO.

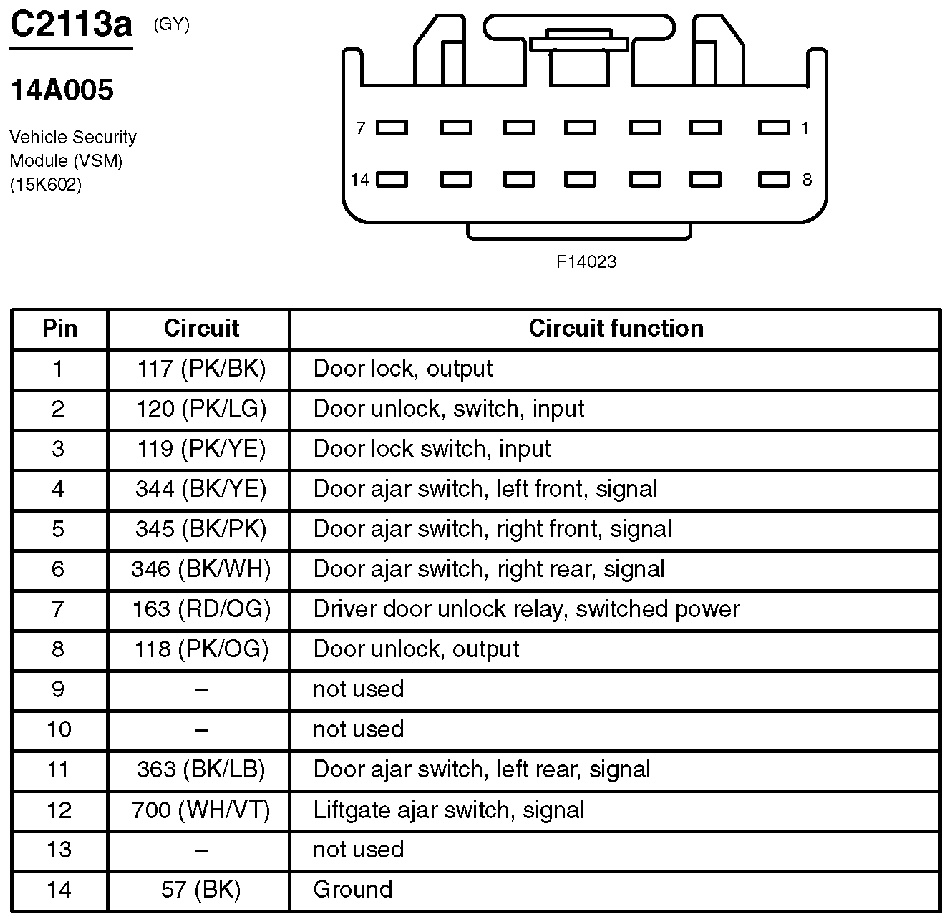

Fig 328: Vehicle Security Module (VSM) Connector End View (C2113a)
Courtesy of FORD MOTOR CO.

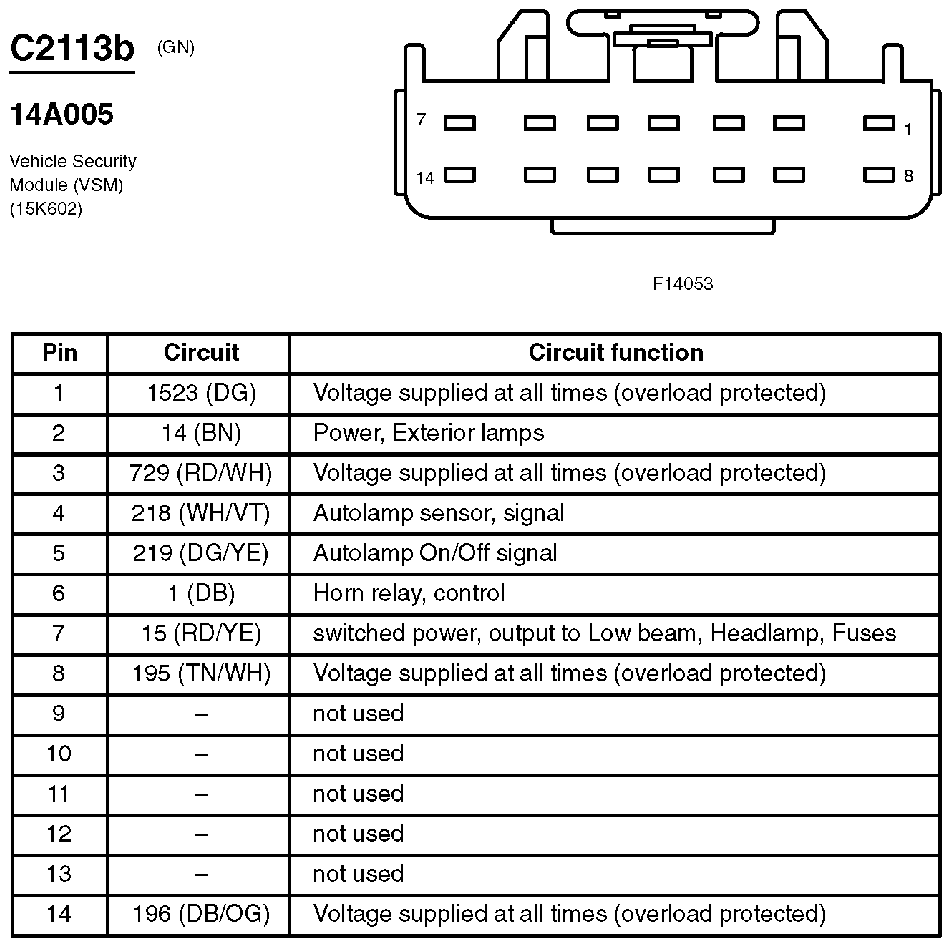

Fig 329: Vehicle Security Module (VSM) Connector End View (C2113b)
Courtesy of FORD MOTOR CO.

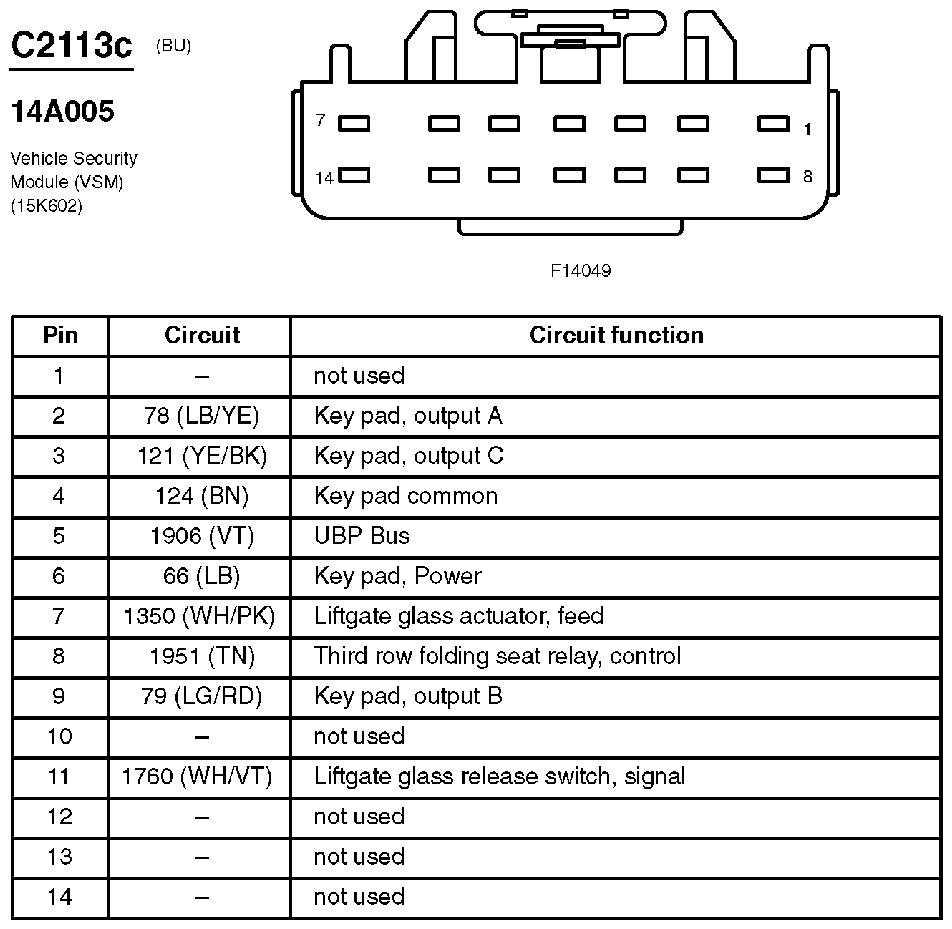

Fig 330: Vehicle Security Module (VSM) Connector End View (C2113c)
Courtesy of FORD MOTOR CO.

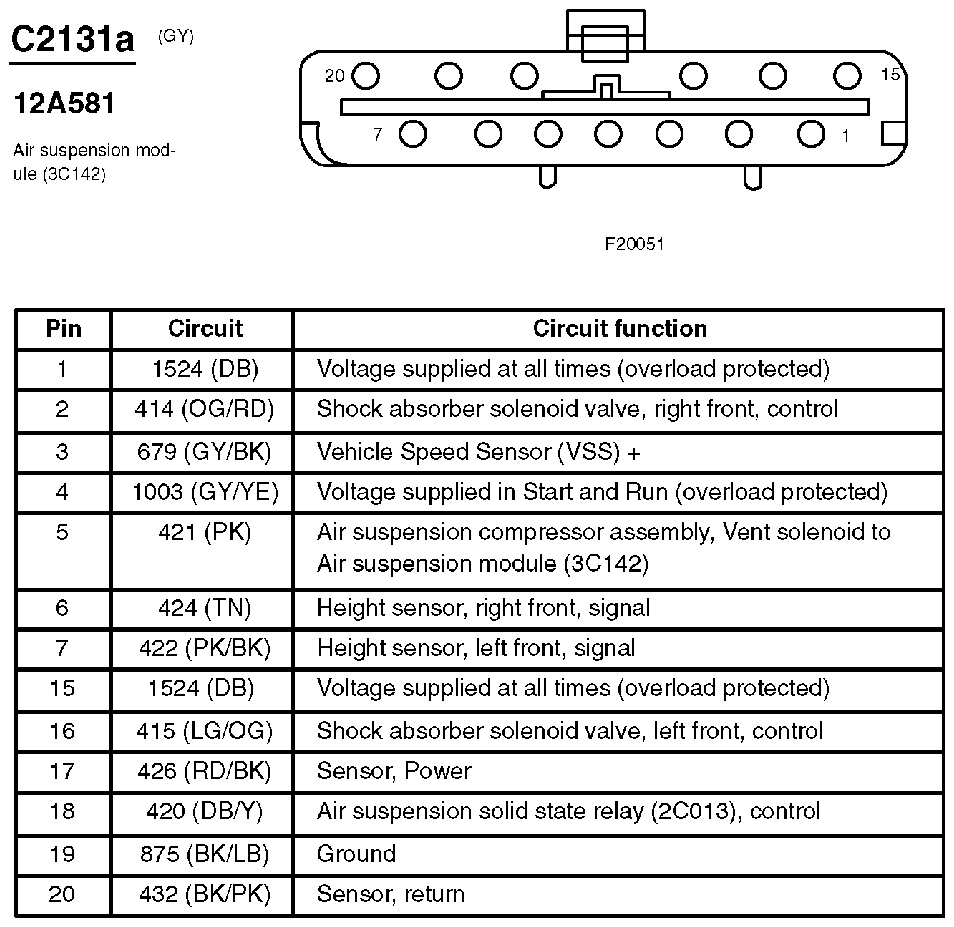

Fig 331: Air Suspension Module Connector End View (C2131a)
Courtesy of FORD MOTOR CO.

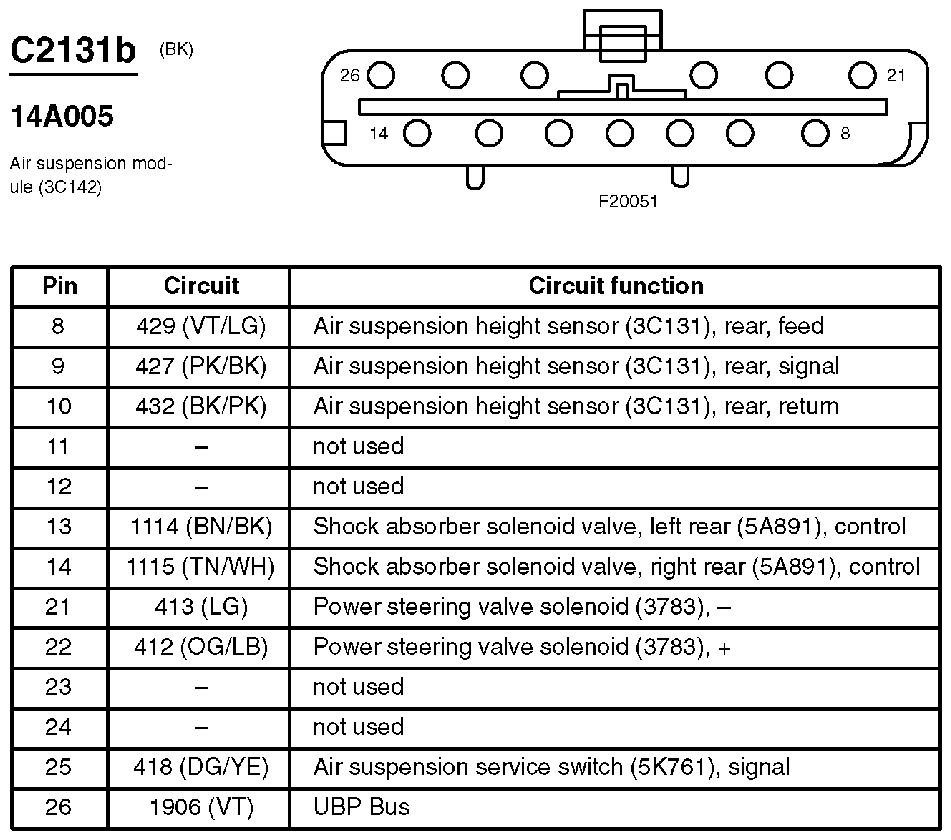

Fig 332: Air Suspension Module Connector End View (C2131b)
Courtesy of FORD MOTOR CO.

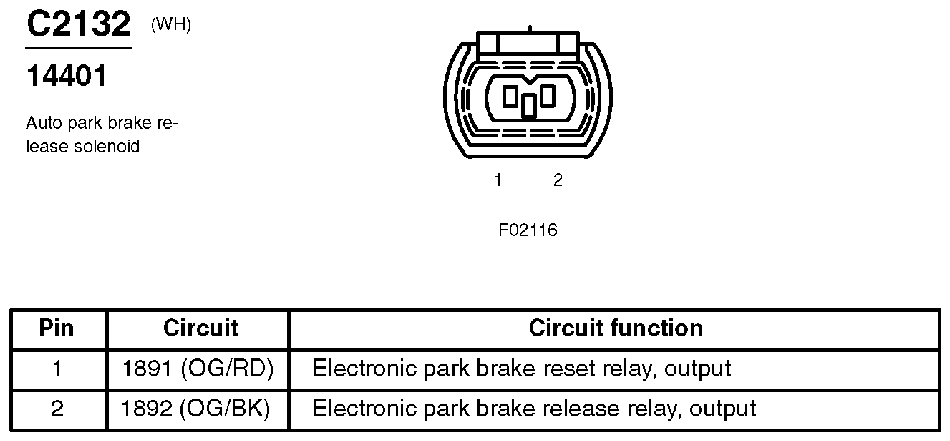

Fig 333: Auto Park Brake Release Solenoid Connector End View (C2132)
Courtesy of FORD MOTOR CO.

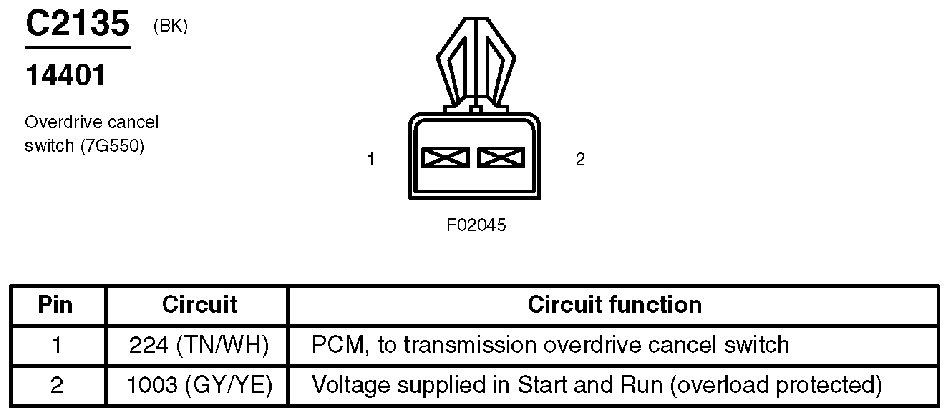

Fig 334: Overdrive Cancel Switch Connector End View (C2135)
Courtesy of FORD MOTOR CO.

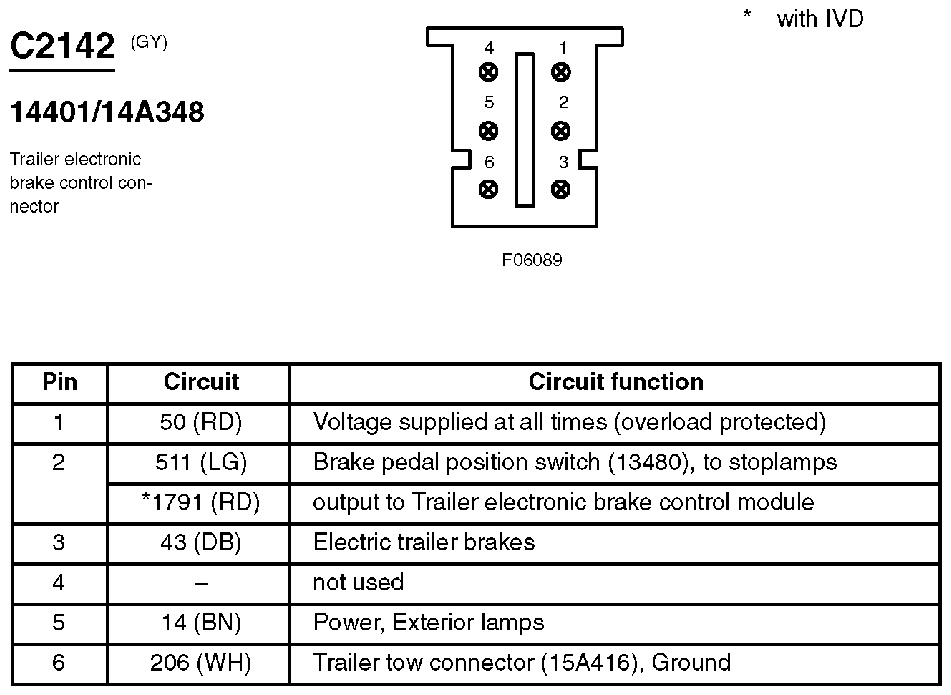

Fig 335: Trailer Electronic Brake Control Connector End View (C2142)
Courtesy of FORD MOTOR CO.

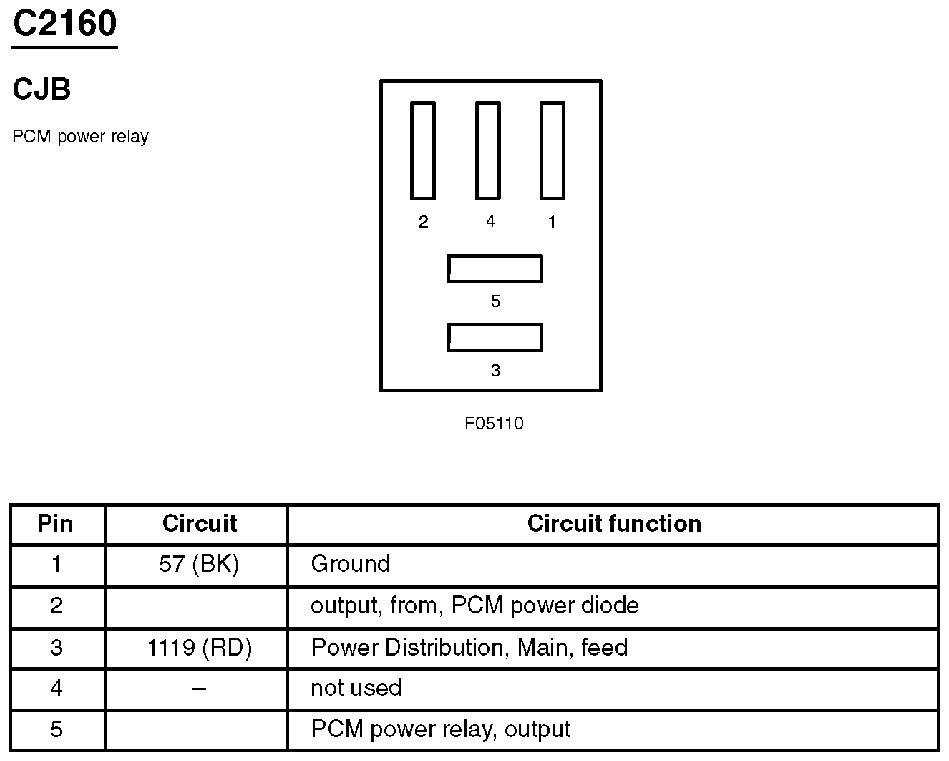

Fig 336: PCM Power Relay Connector End View (C2160)
Courtesy of FORD MOTOR CO.

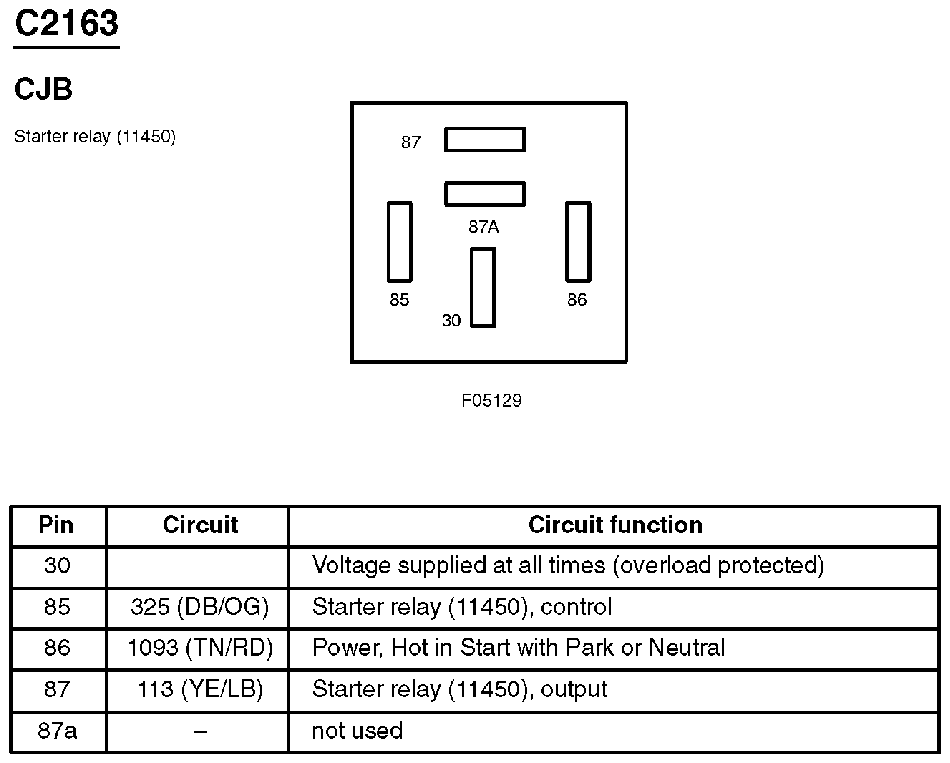

Fig 337: Starter Relay Connector End View (C2163)
Courtesy of FORD MOTOR CO.

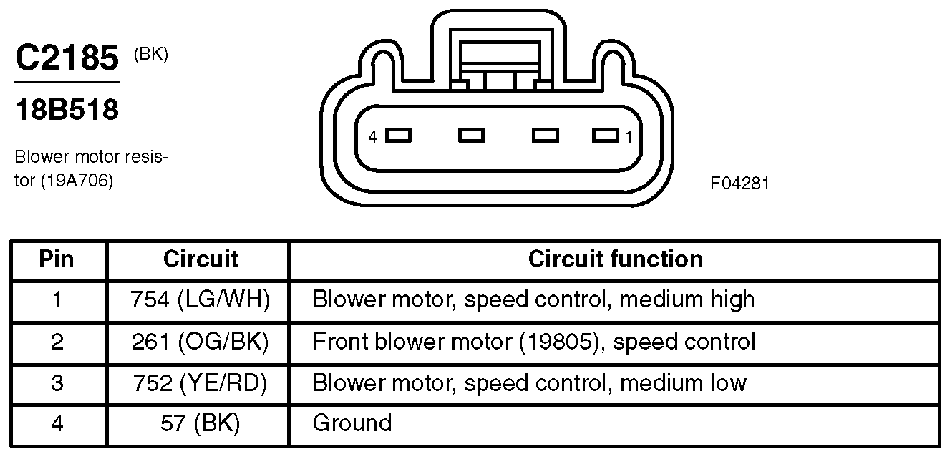

Fig 338: Blower Motor Resistor Connector End View (C2185)
Courtesy of FORD MOTOR CO.

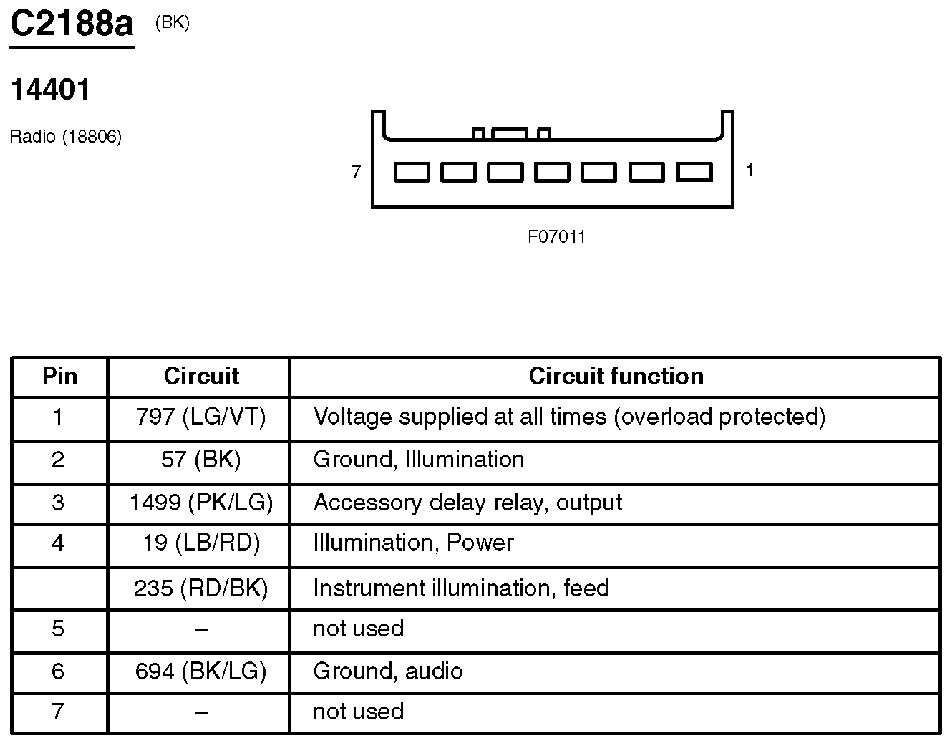

Fig 339: Radio Connector End View (C2188a)
Courtesy of FORD MOTOR CO.

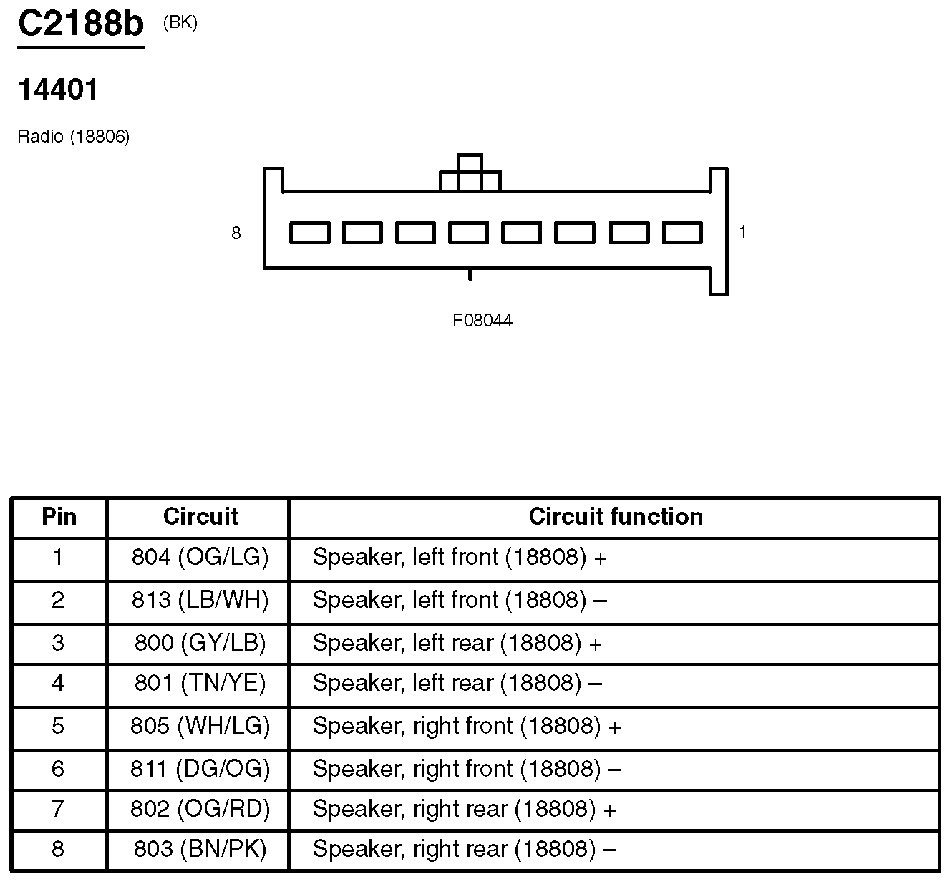

Fig 340: Radio Connector End View (C2188b)
Courtesy of FORD MOTOR CO.

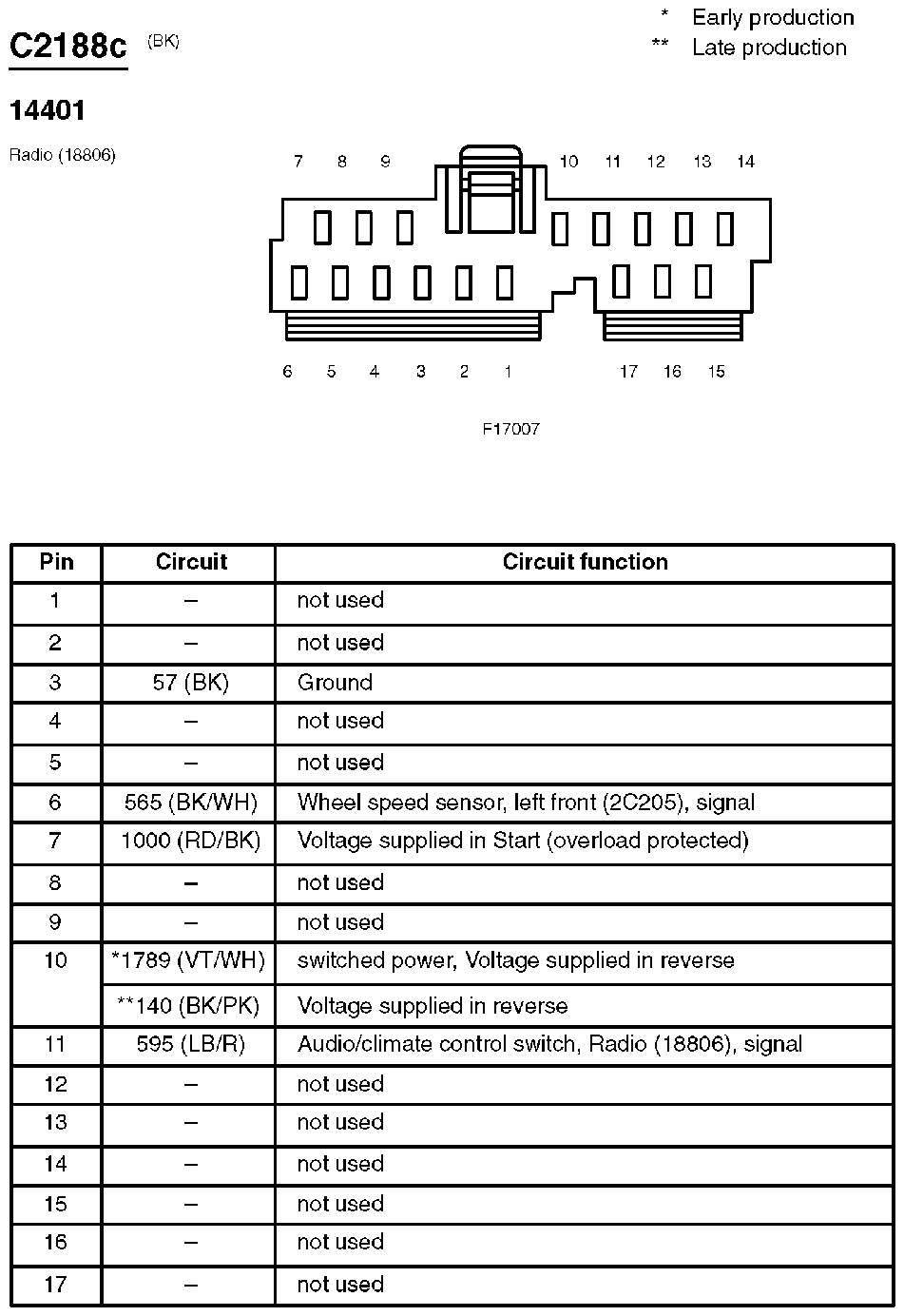

Fig 341: Radio Connector End View (C2188c)
Courtesy of FORD MOTOR CO.

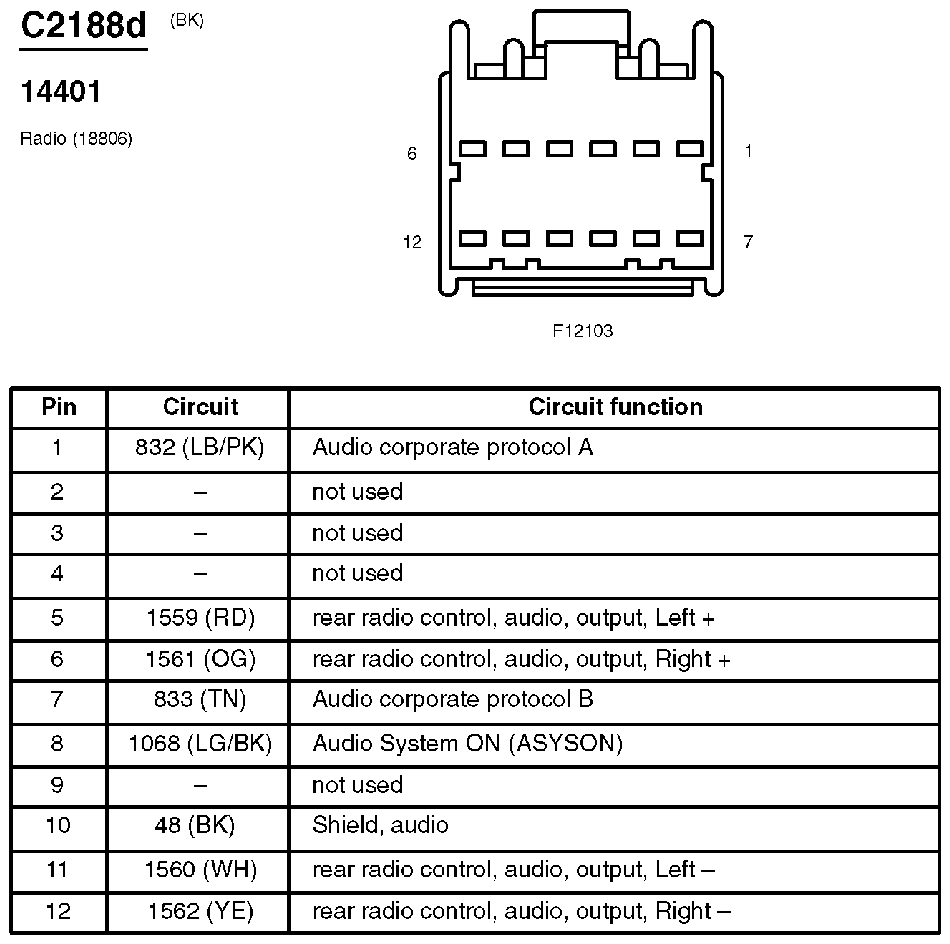

Fig 342: Radio Connector End View (C2188d)
Courtesy of FORD MOTOR CO.

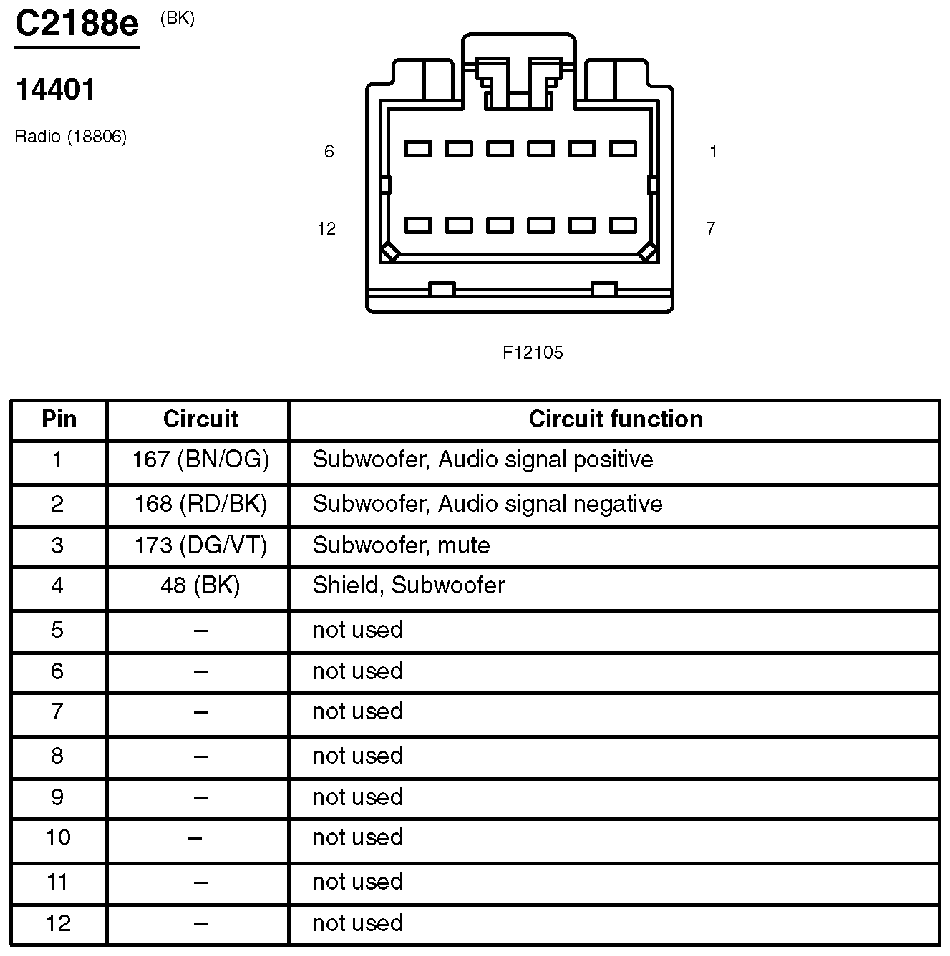

Fig 343: Radio Connector End View (C2188e)
Courtesy of FORD MOTOR CO.

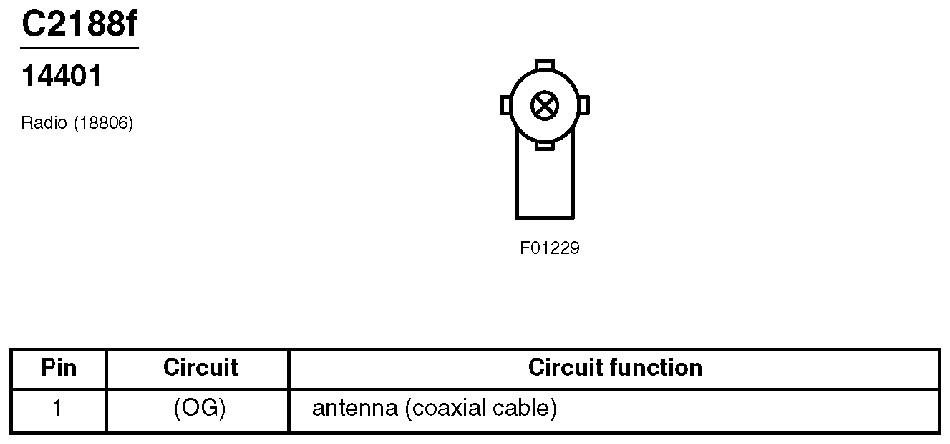

Fig 344: Radio Connector End View (C2188f)
Courtesy of FORD MOTOR CO.

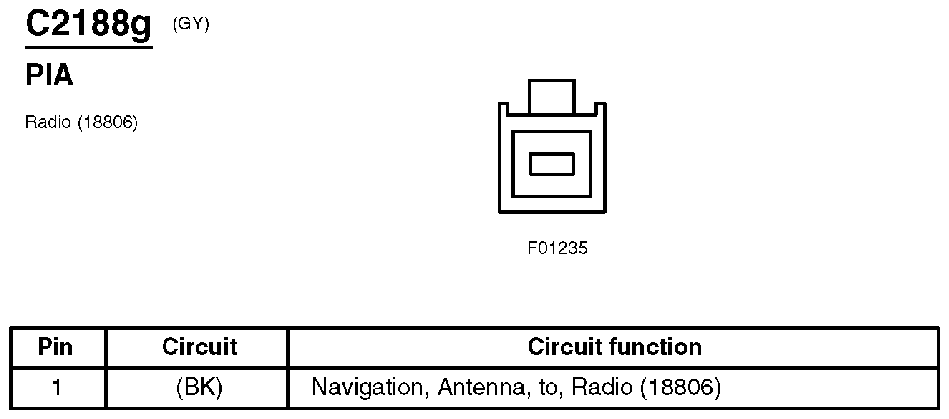

Fig 345: Radio Connector End View (C2188g)
Courtesy of FORD MOTOR CO.

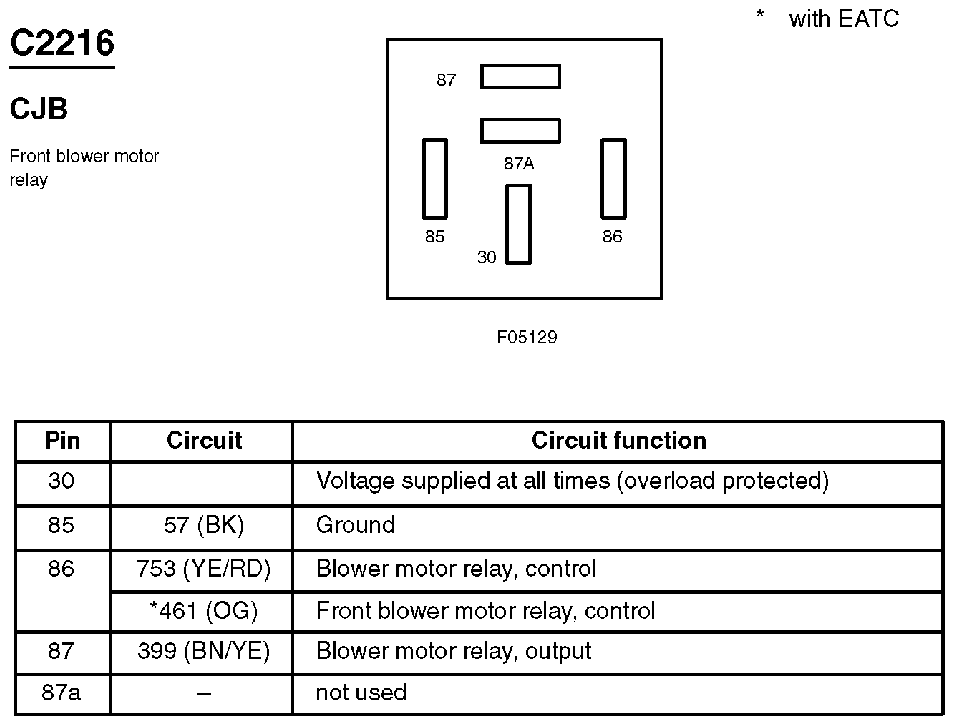

Fig 346: Front Blower Motor Relay Connector End View (C2216)
Courtesy of FORD MOTOR CO.

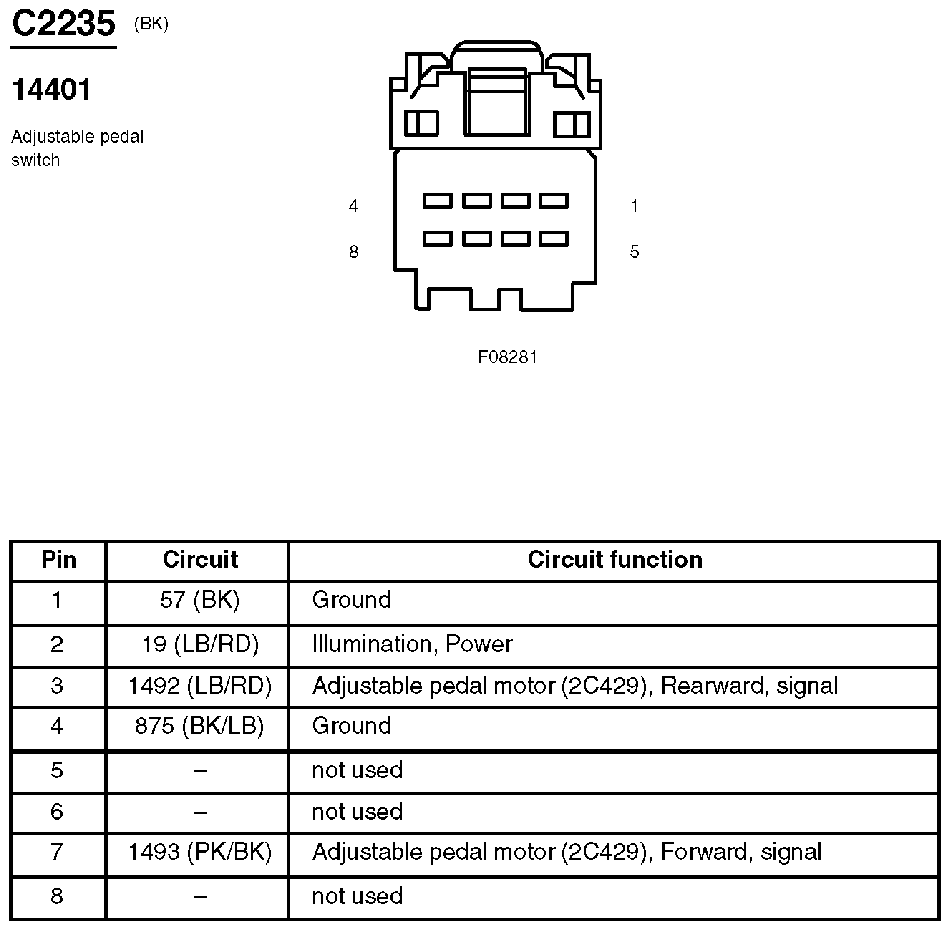

Fig 347: Adjustable Pedal Switch Connector End View (C2235)
Courtesy of FORD MOTOR CO.

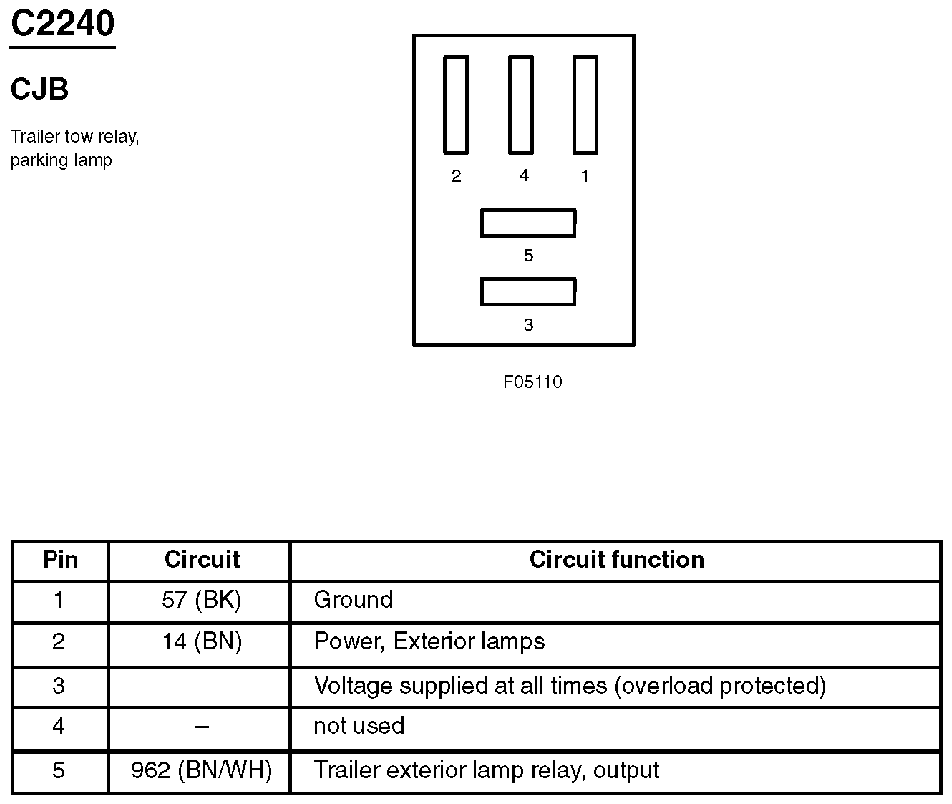

Fig 348: Trailer Tow Relay, Parking Pump Connector End View (C2240)
Courtesy of FORD MOTOR CO.

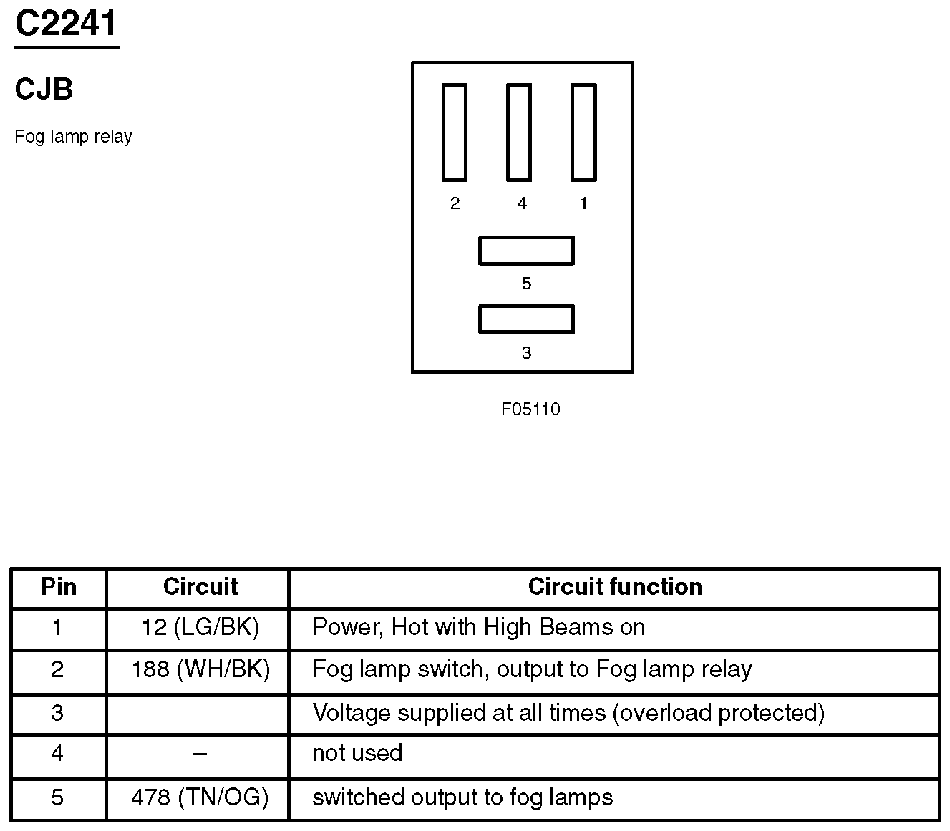

Fig 349: Fog Lamp Relay Connector End View (C2241)
Courtesy of FORD MOTOR CO.

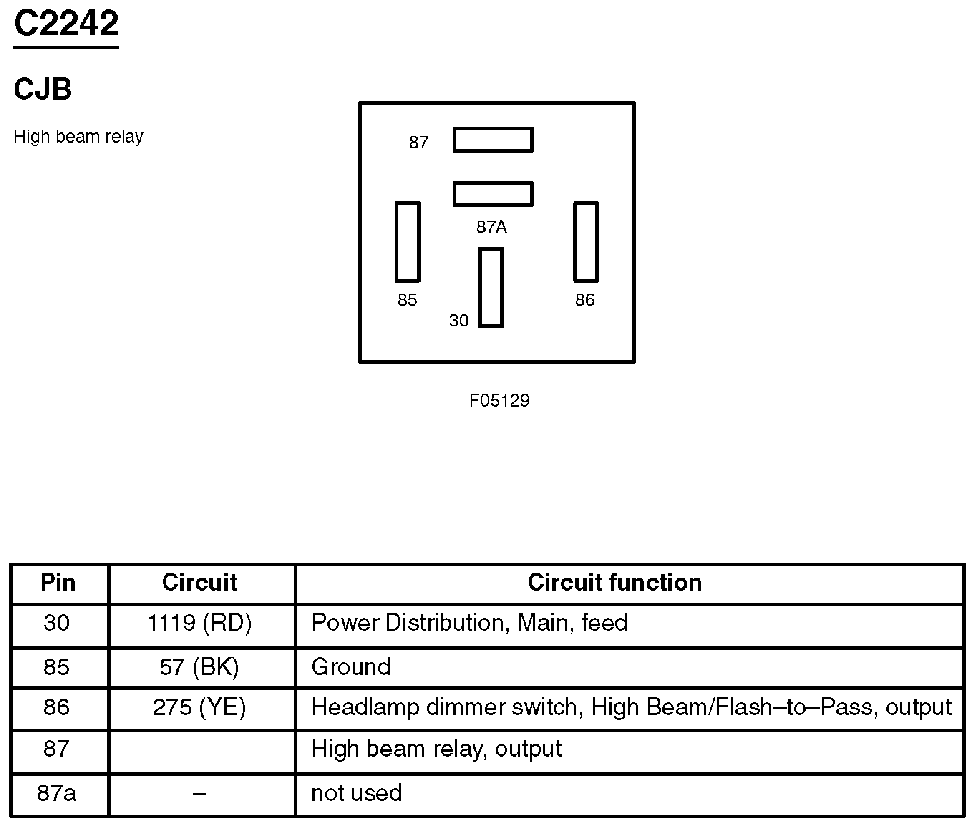

Fig 350: High Beam Relay Connector End View (C2242)
Courtesy of FORD MOTOR CO.

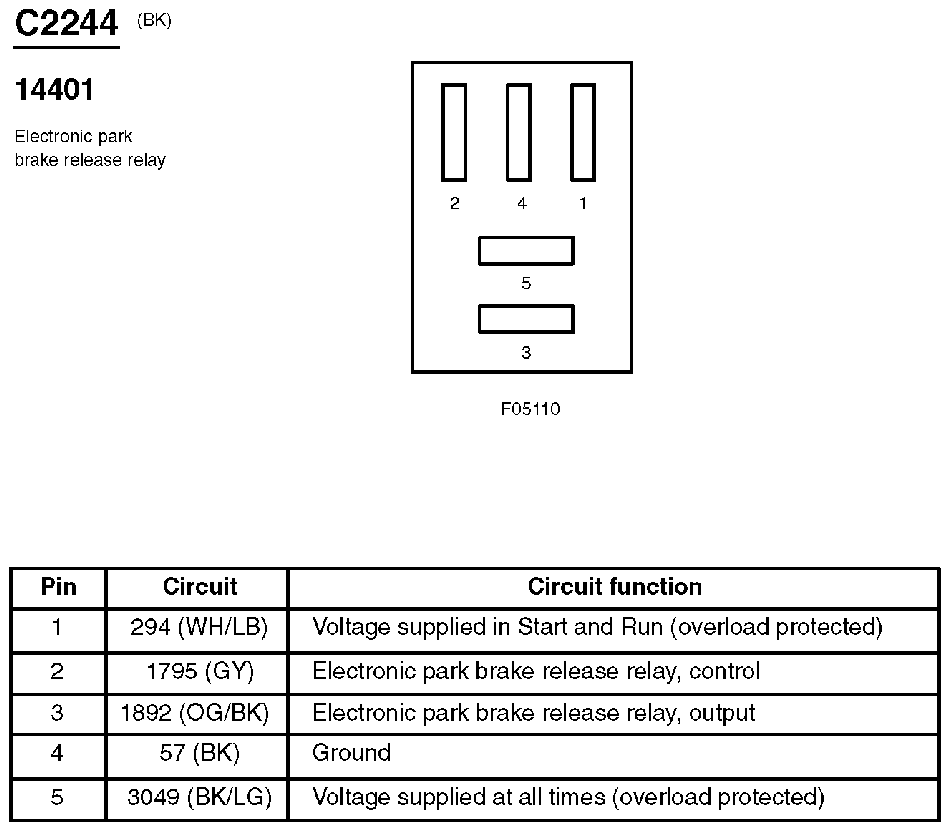

Fig 351: Electronic Park Brake Release Relay Connector End View (C2244)
Courtesy of FORD MOTOR CO.

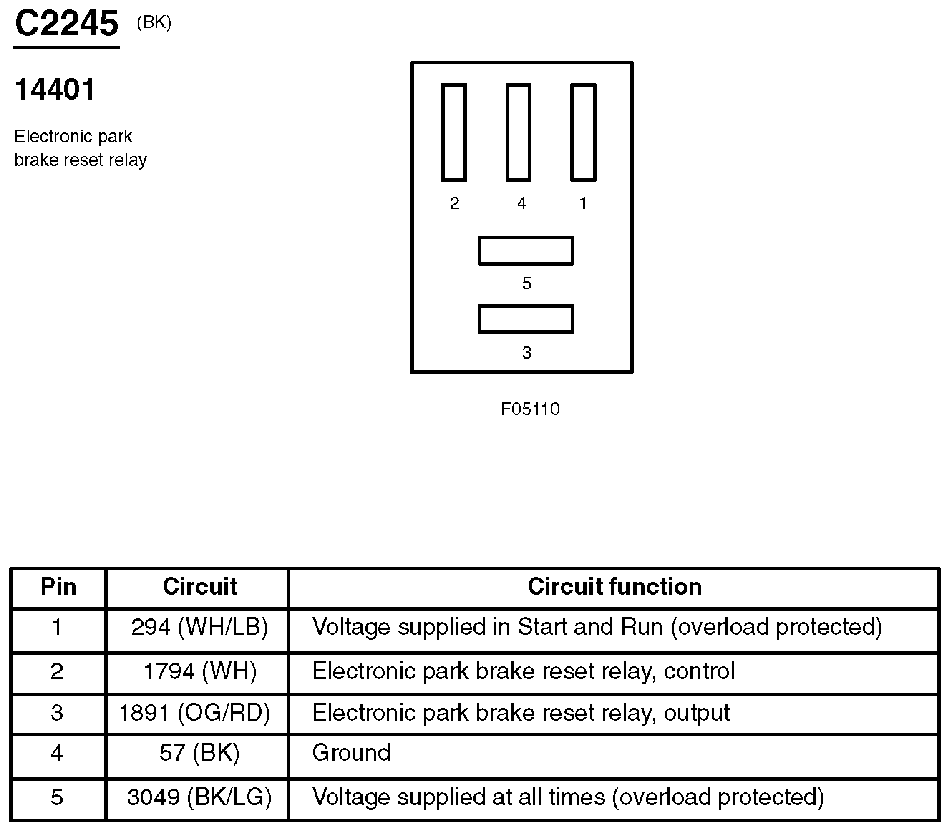

Fig 352: Electronic Park Brake Reset Relay Connector End View (C2245)
Courtesy of FORD MOTOR CO.

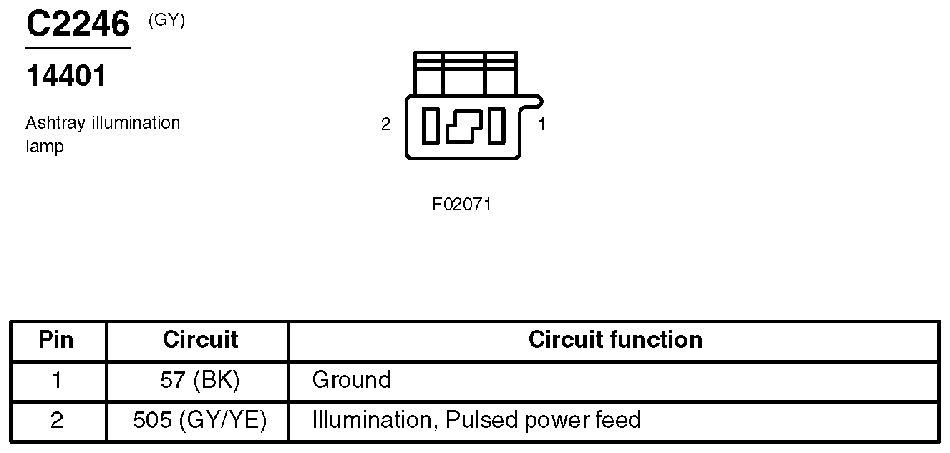

Fig 353: Ashtray Illumination Lamp Connector End View (C2246)
Courtesy of FORD MOTOR CO.

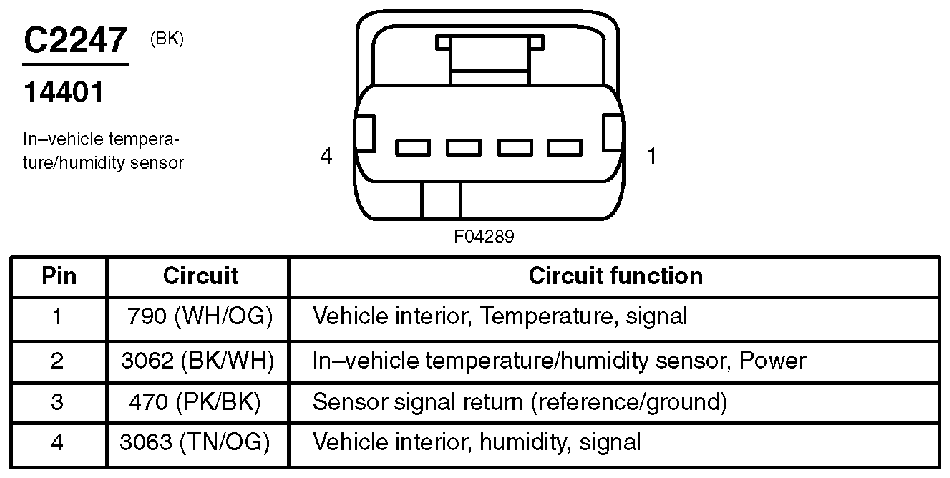

Fig 354: In-Vehicle Temperature/Humidity Sensor Connector End View (C2247)
Courtesy of FORD MOTOR CO.

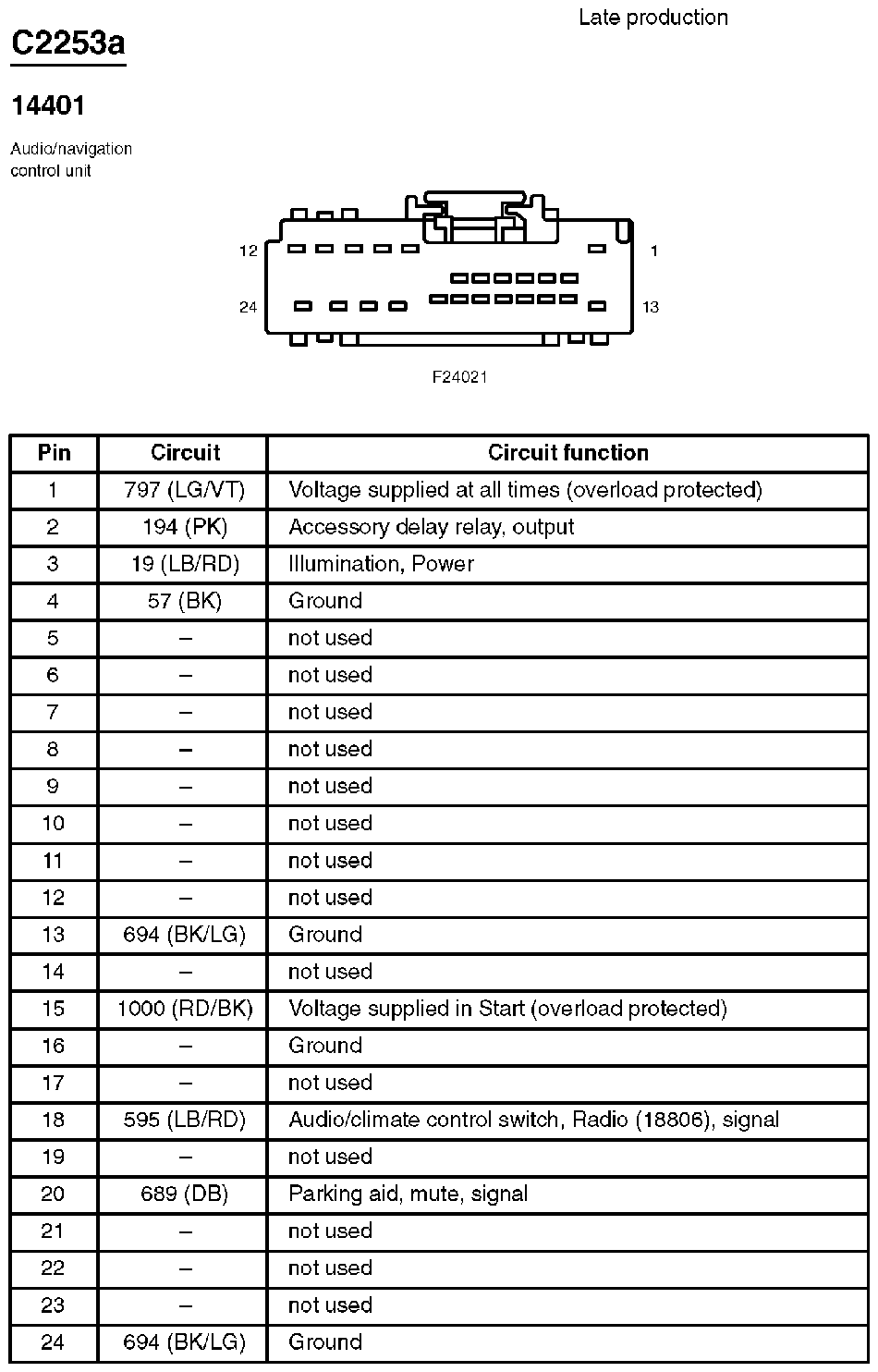

Fig 355: Audio/Navigation Control Unit Connector End View (C2253a)
Courtesy of FORD MOTOR CO.

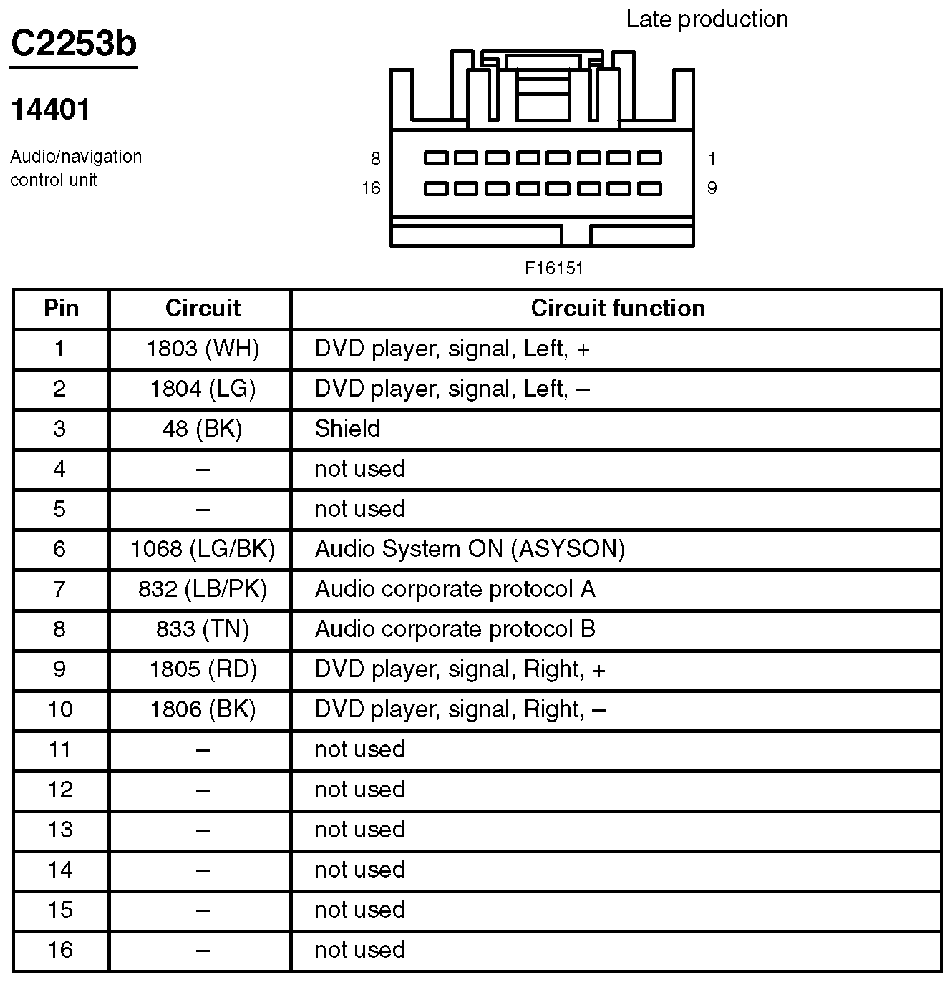

Fig 356: Audio/Navigation Control Unit Connector End View (C2253b)
Courtesy of FORD MOTOR CO.

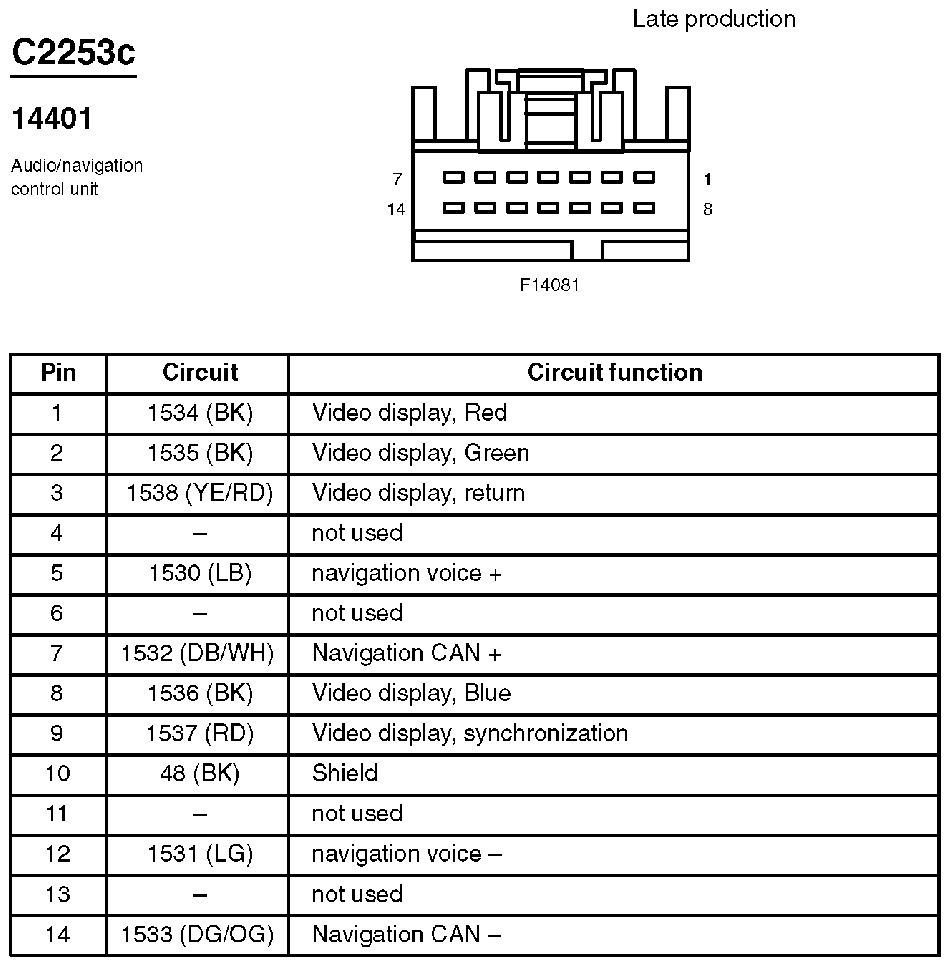

Fig 357: Audio/Navigation Control Unit Connector End View (C2253c)
Courtesy of FORD MOTOR CO.

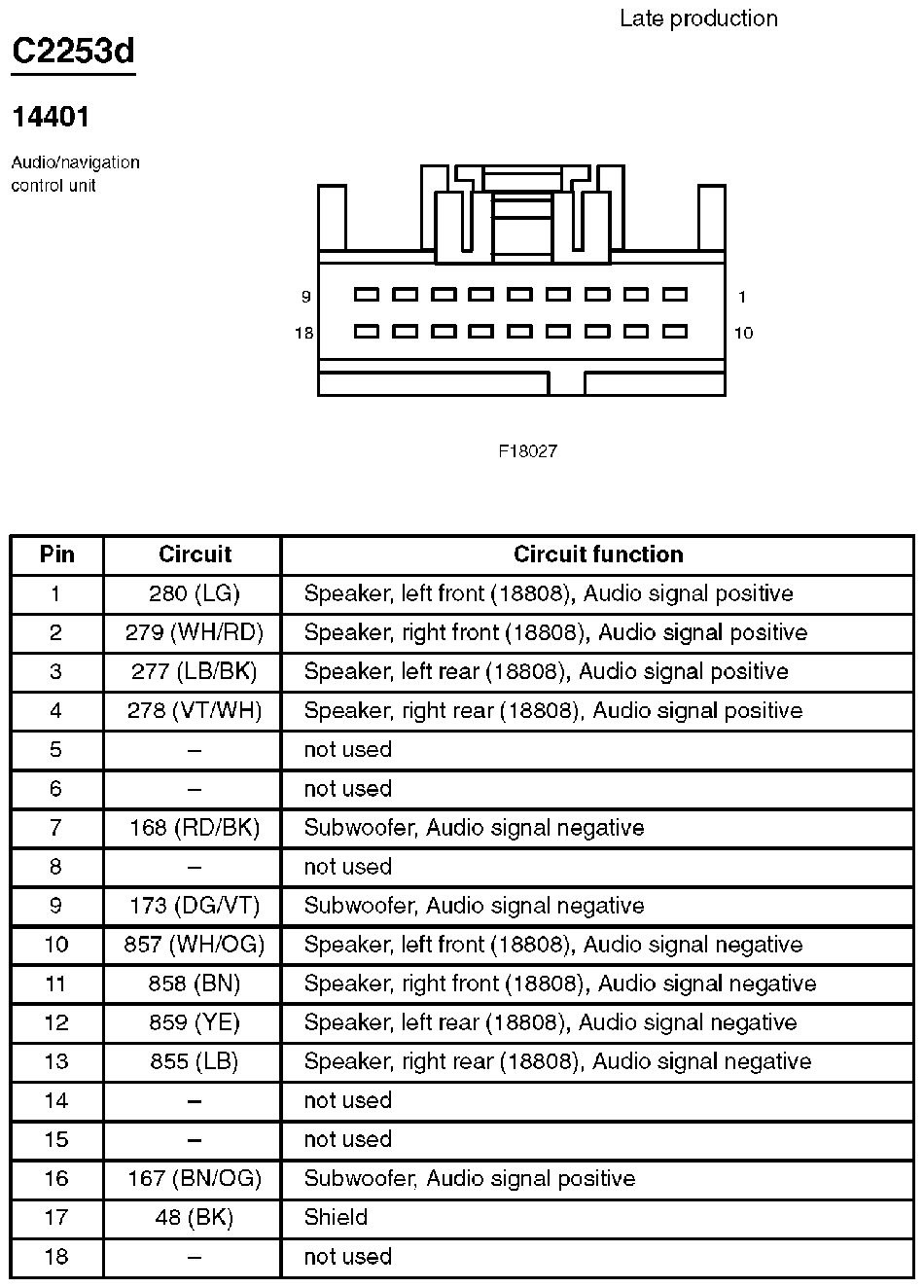

Fig 358: Audio/Navigation Control Unit Connector End View (C2253d)
Courtesy of FORD MOTOR CO.

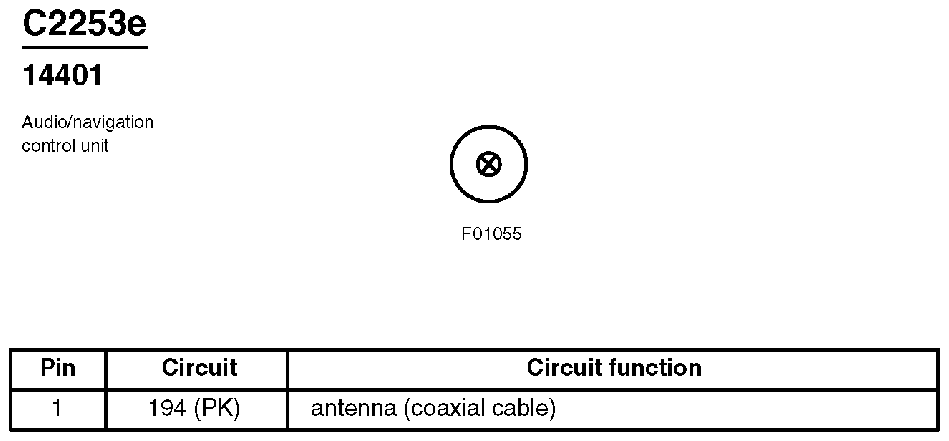

Fig 359: Audio/Navigation Control Unit Connector End View (C2253e)
Courtesy of FORD MOTOR CO.

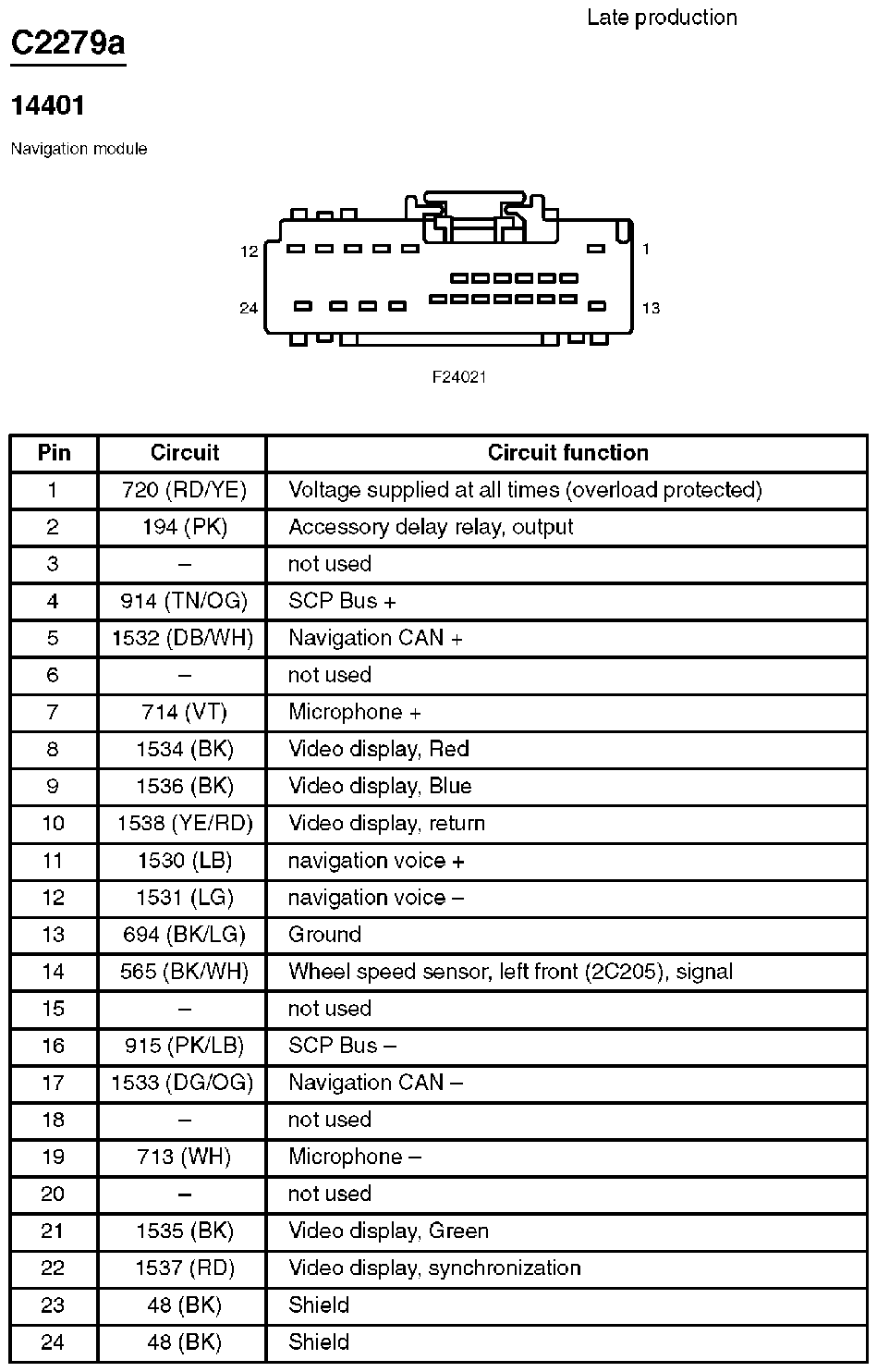

Fig 360: Navigation Module Connector End View (C2279a)
Courtesy of FORD MOTOR CO.
Fig 361: Navigation Module Connector End View (C2279b)
Courtesy of FORD MOTOR CO.

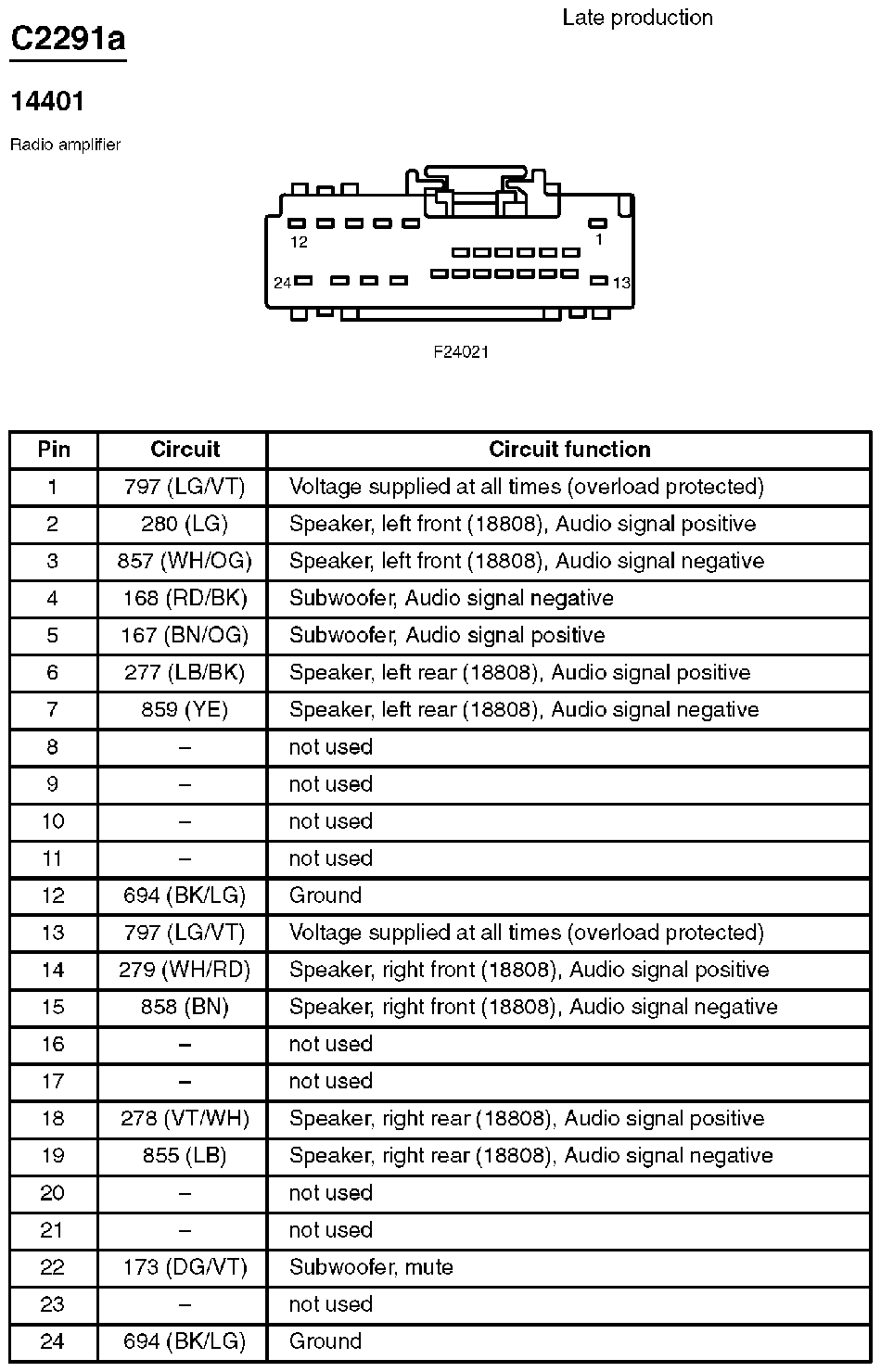

Fig 362: Radio Amplifier Connector End View (C2291a)
Courtesy of FORD MOTOR CO.

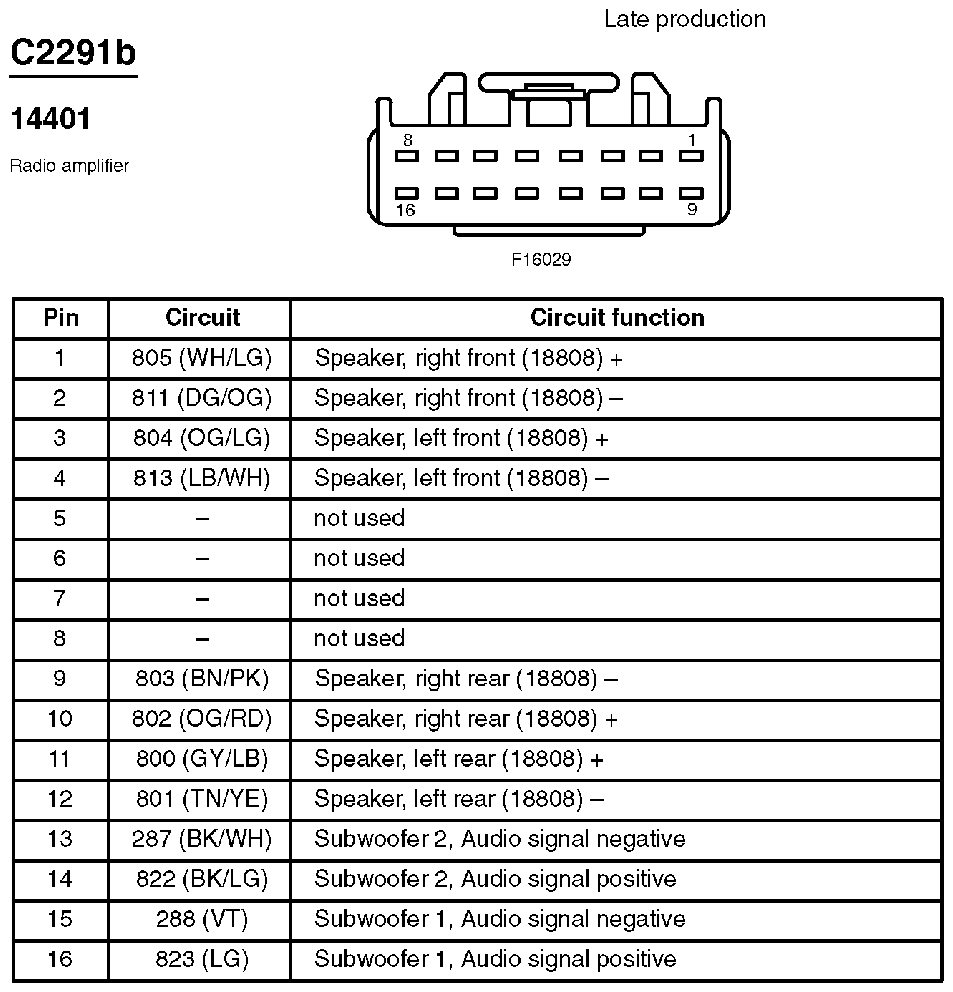

Fig 363: Radio Amplifier Connector End View (C2291b)
Courtesy of FORD MOTOR CO.

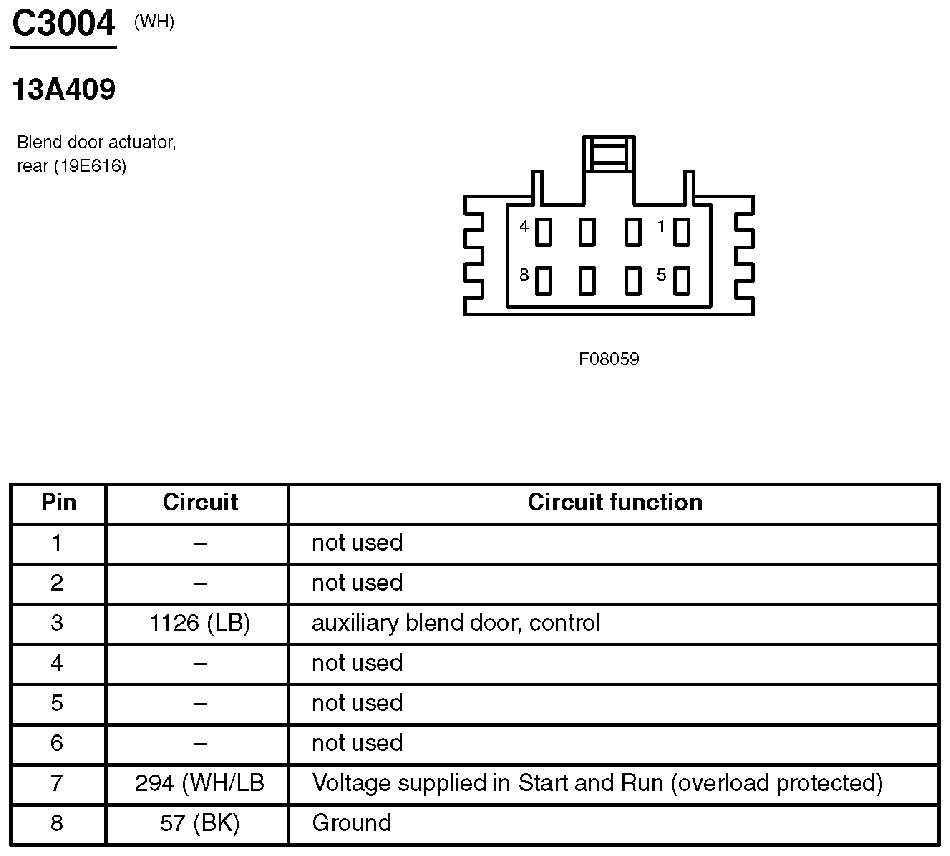

Fig 364: Blend Door Actuator, Rear Connector End View (C3004)
Courtesy of FORD MOTOR CO.

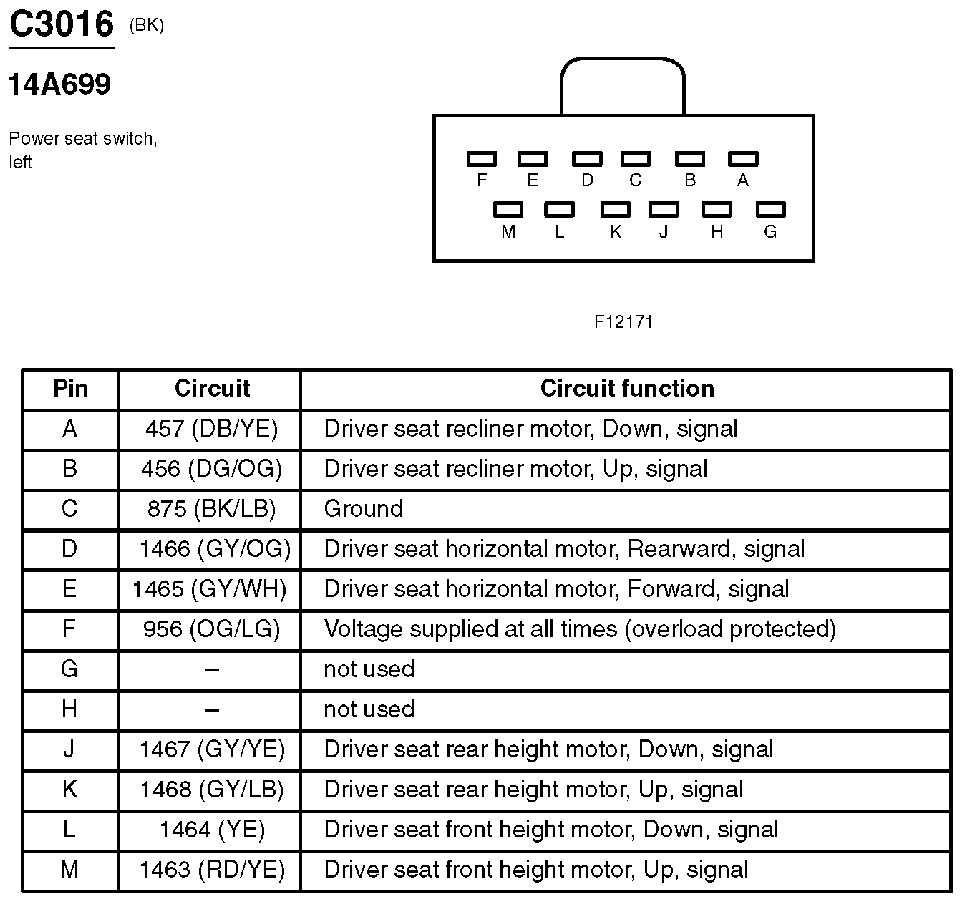

Fig 365: Power Seat Switch, Left Connector End View (C3016)
Courtesy of FORD MOTOR CO.

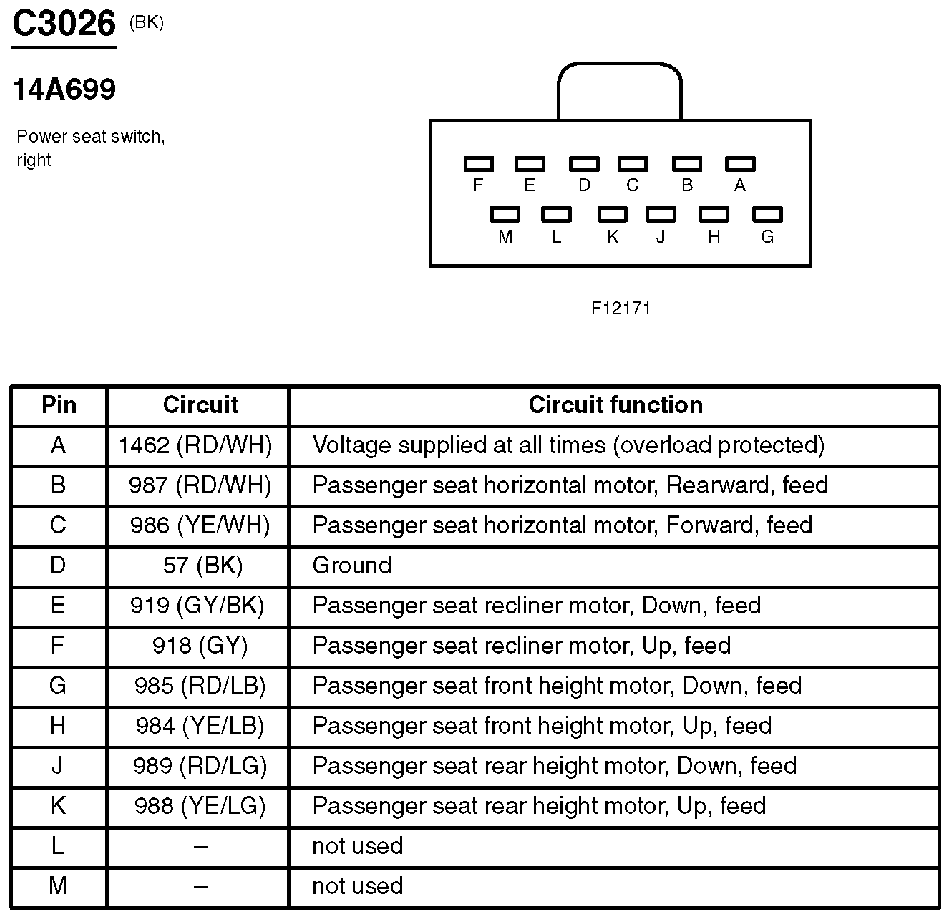

Fig 366: Power Seat Switch, Right Connector End View (C3026)
Courtesy of FORD MOTOR CO.

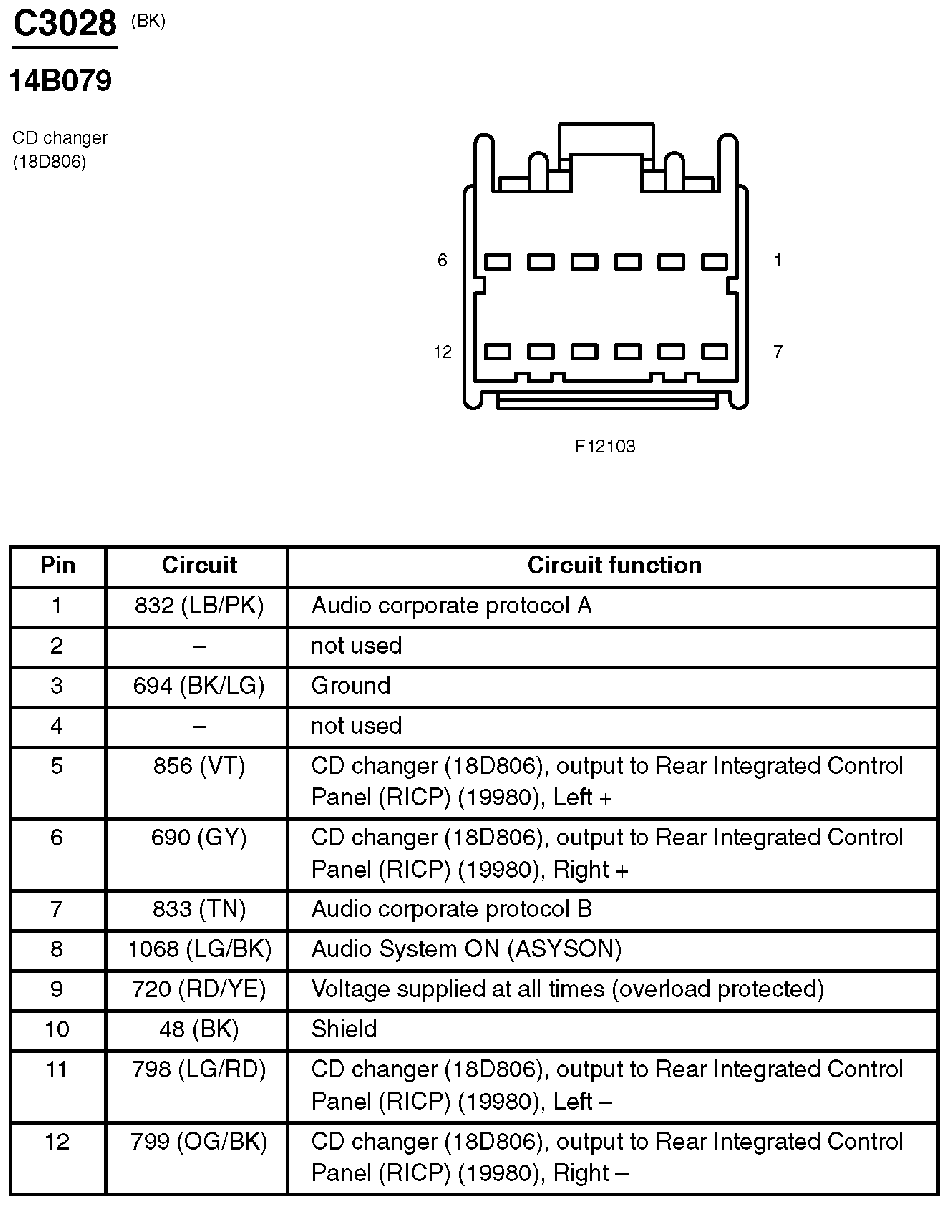

Fig 367: CD Changer Connector End View (C3028)
Courtesy of FORD MOTOR CO.

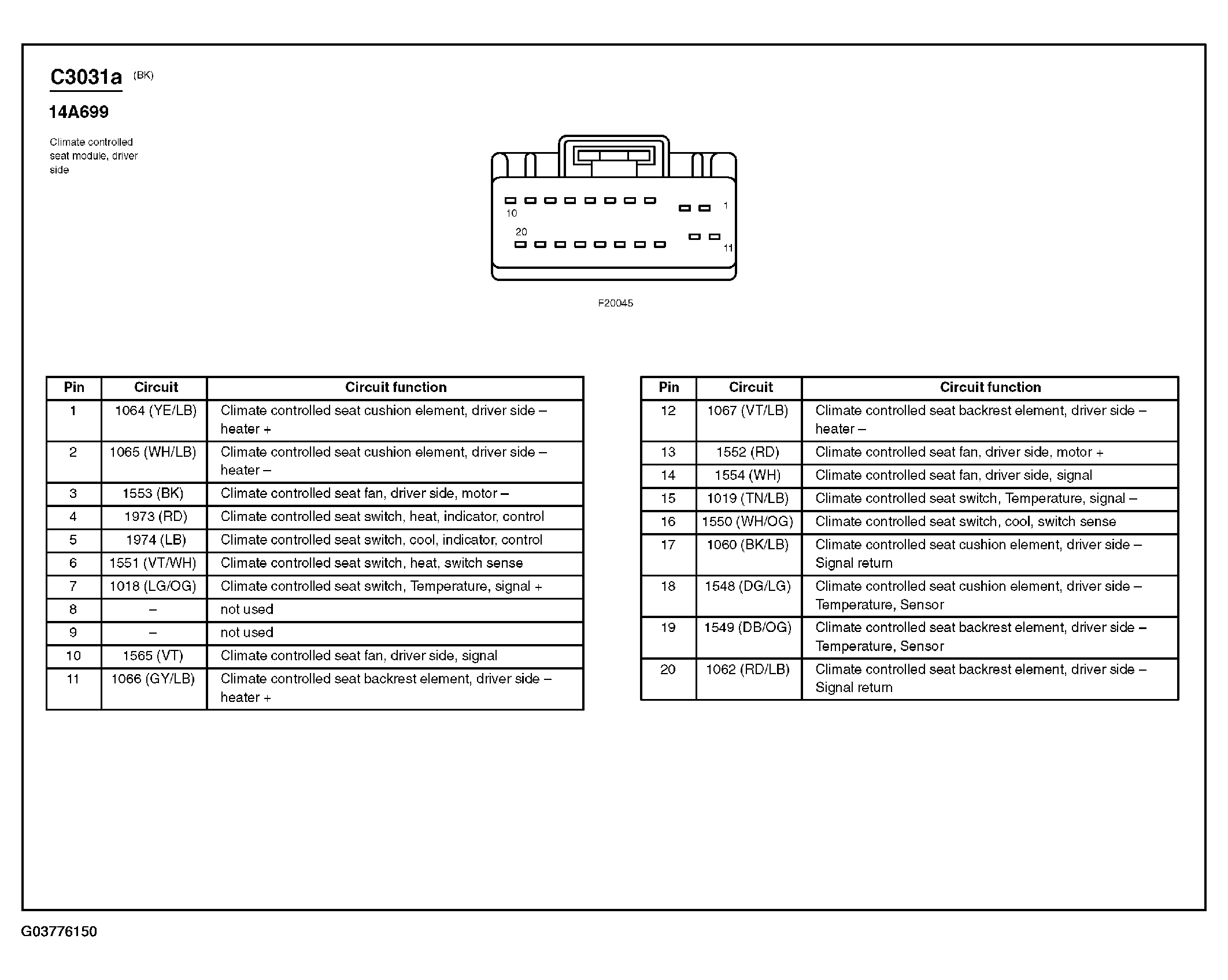

Fig 368: Climate Controlled Seat Module, Driver Side Connector End View (C3031a)
Courtesy of FORD MOTOR CO.

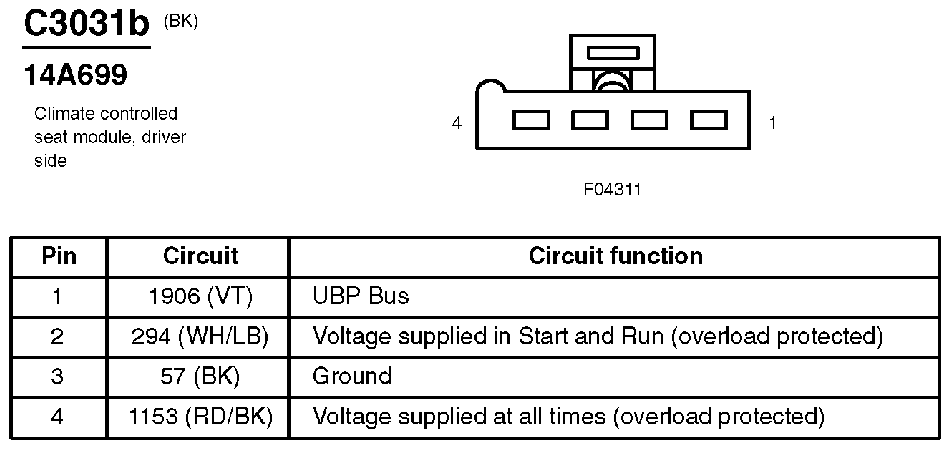

Fig 369: Climate Controlled Seat Module, Driver Side Connector End View (C3031b)
Courtesy of FORD MOTOR CO.

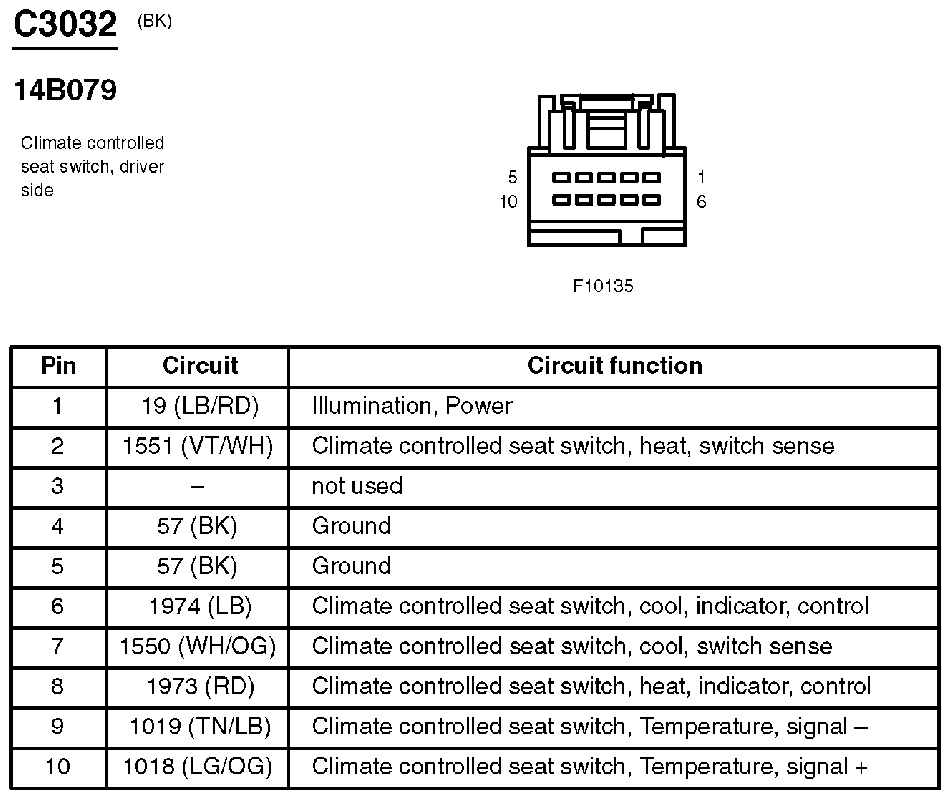

Fig 370: Climate Controlled Seat Switch, Driver Side Connector End View (C3032)
Courtesy of FORD MOTOR CO.

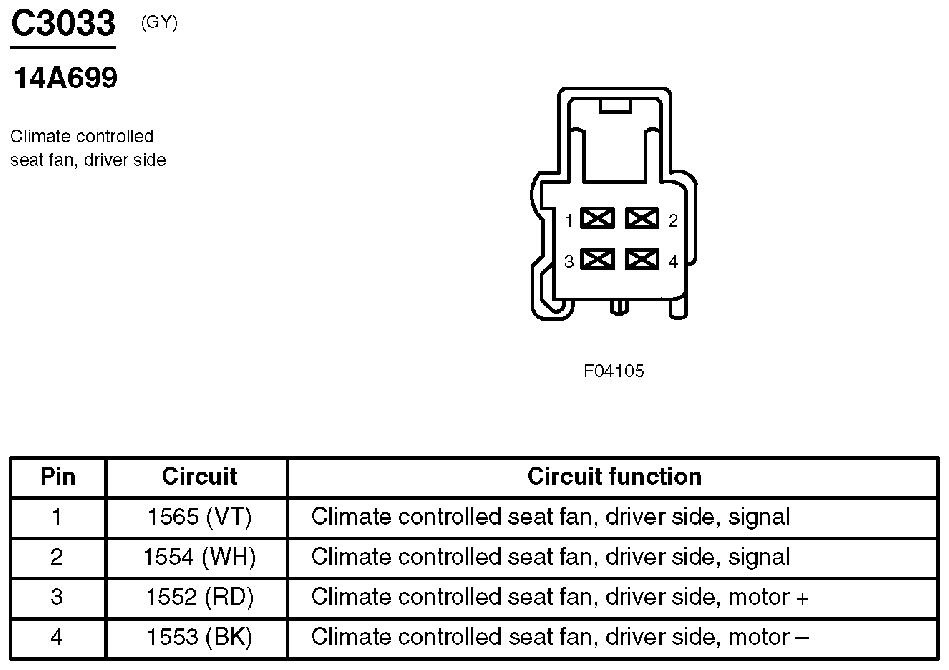

Fig 371: Climate Controlled Seat Fan, Driver Side Connector End View (C3033)
Courtesy of FORD MOTOR CO.

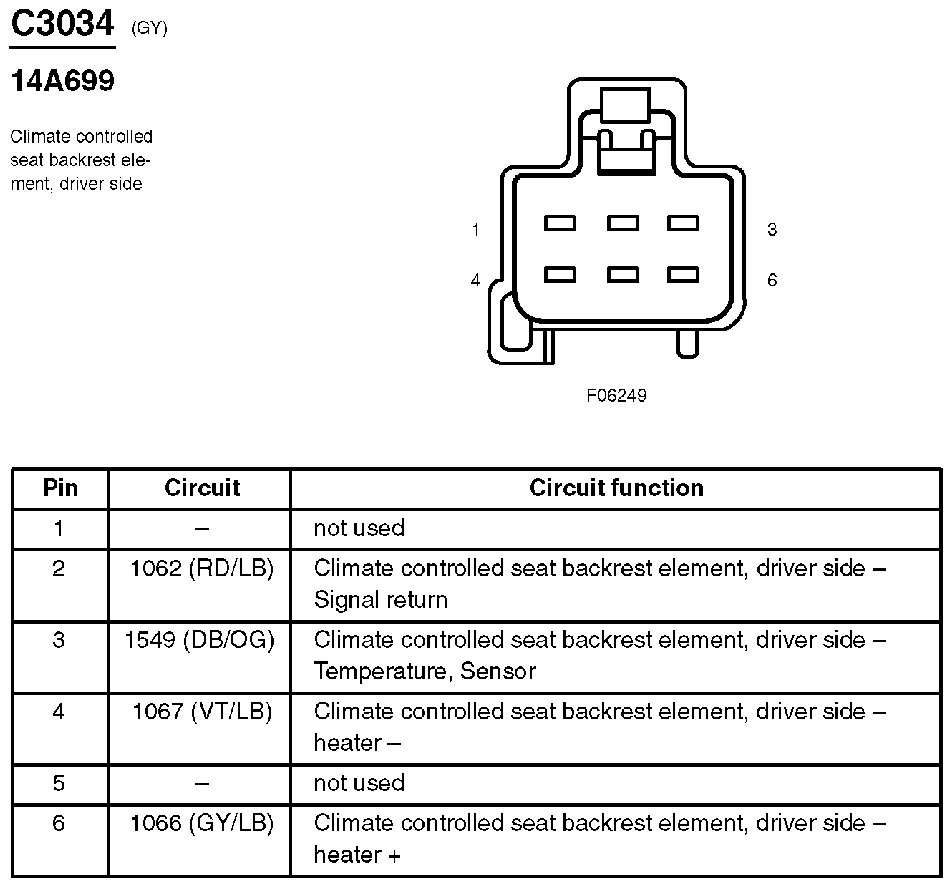

Fig 372: Climate Controlled Seat Backrest Element, Driver Side Connector End View (C3034)
Courtesy of FORD MOTOR CO.

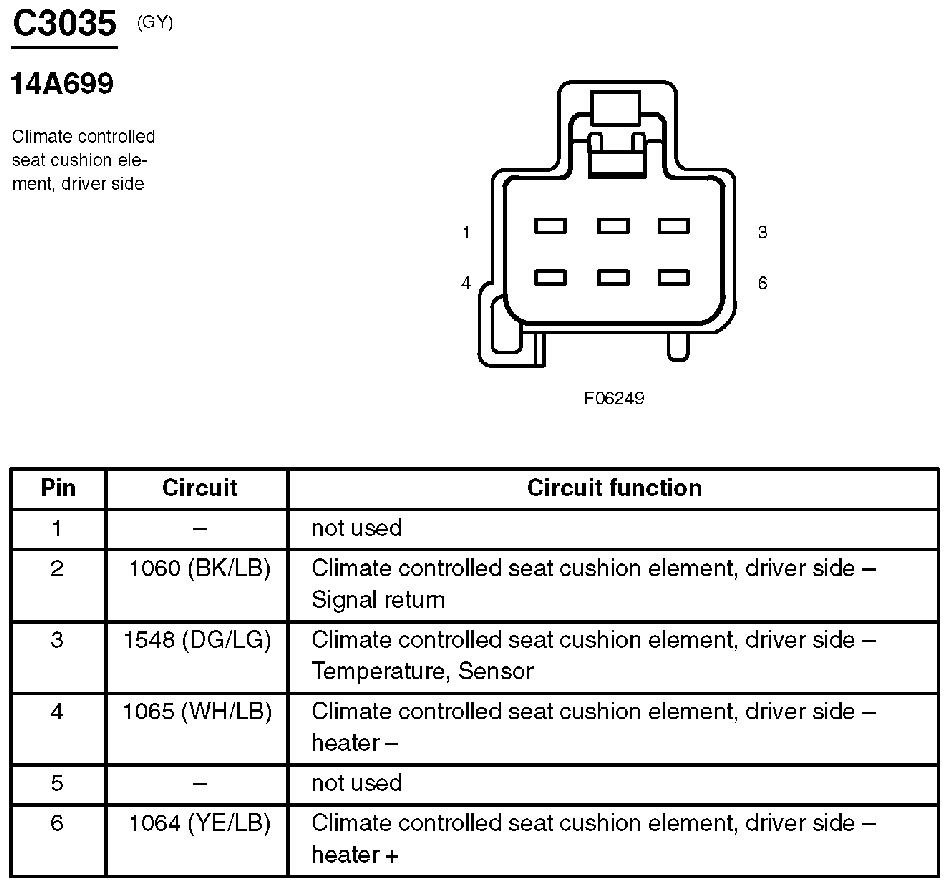

Fig 373: Climate Controlled Seat Cushion Element, Driver Side Connector End View (C3035)
Courtesy of FORD MOTOR CO.

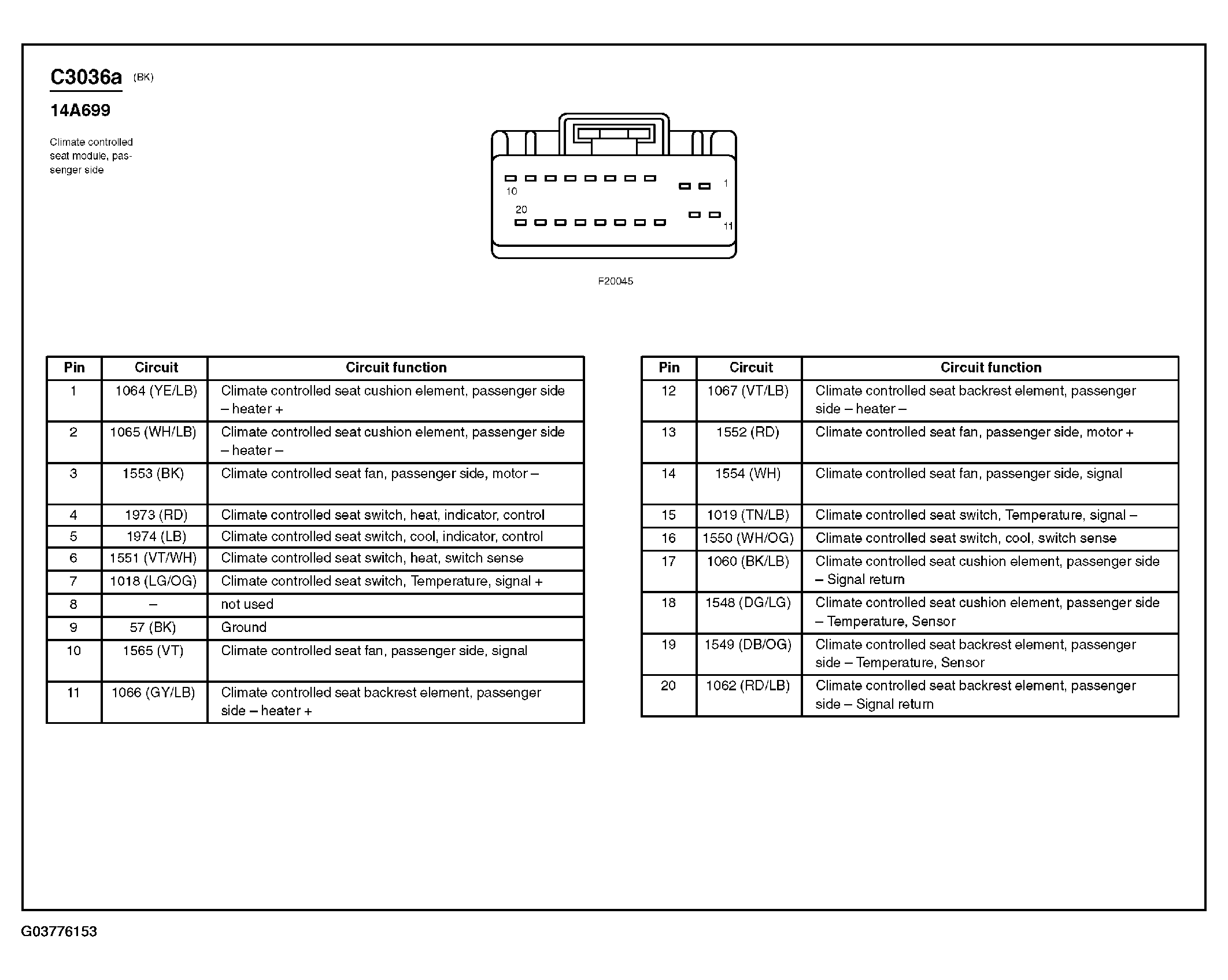

Fig 374: Climate Controlled Seat Module, Passenger Side Connector End View (C3036a)
Courtesy of FORD MOTOR CO.

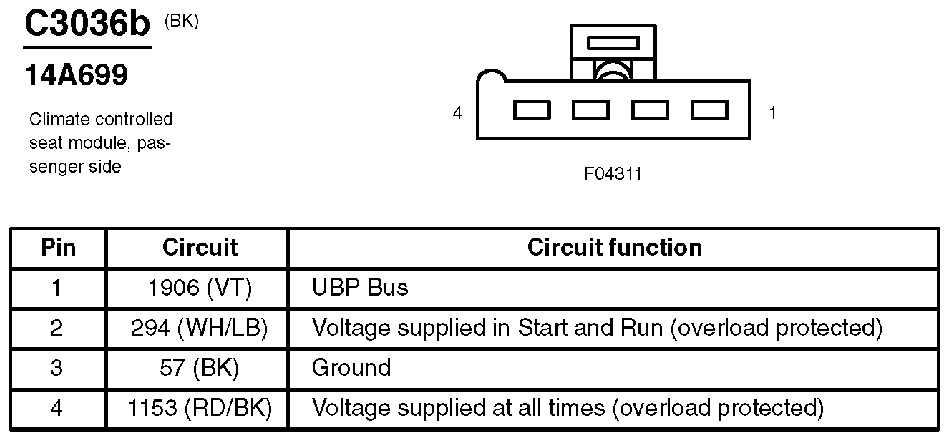

Fig 375: Climate Controlled Seat Module, Passenger Side Connector End View (C3036b)
Courtesy of FORD MOTOR CO.

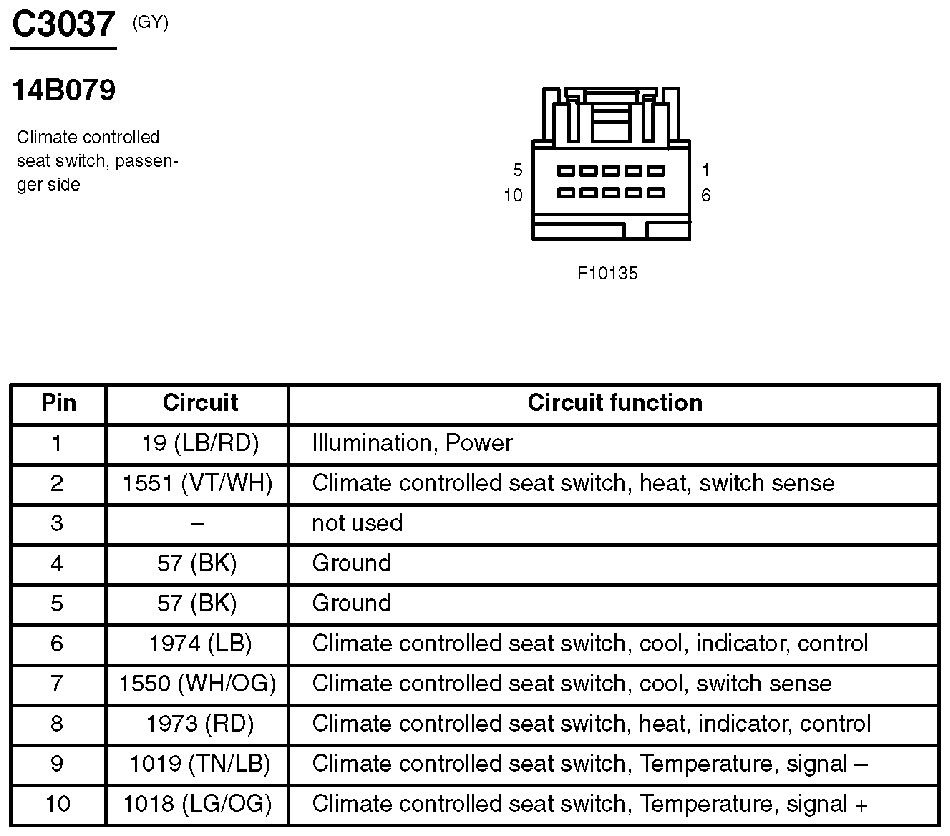

Fig 376: Climate Controlled Seat Switch, Passenger Side Connector End View (C3037)
Courtesy of FORD MOTOR CO.

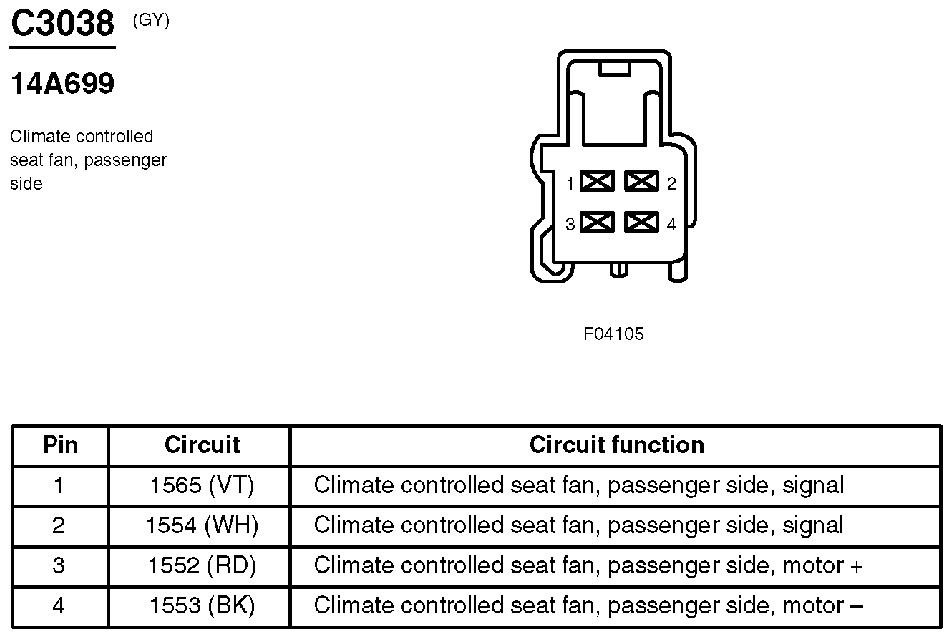

Fig 377: Climate Controlled Seat Fan, Passenger Side Connector End View (C3038)
Courtesy of FORD MOTOR CO.

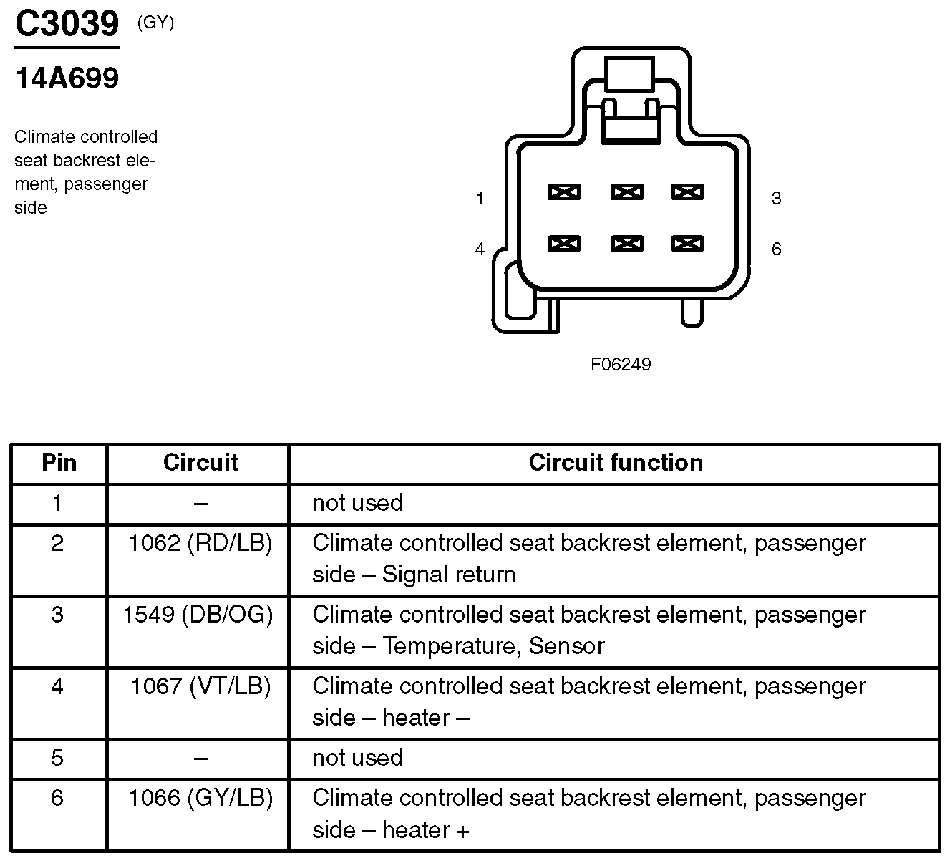

Fig 378: Climate Controlled Seat Backrest Element, Passenger Side Connector End View (C3039)
Courtesy of FORD MOTOR CO.

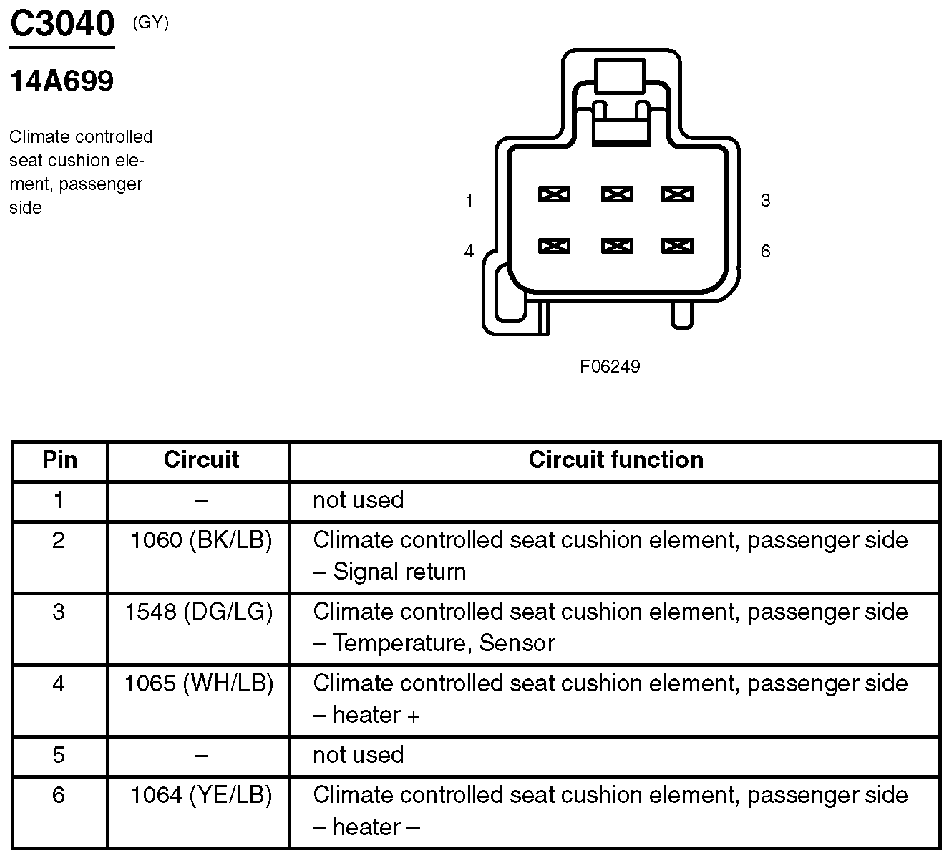

Fig 379: Climate Controlled Seat Cushion Element, Passenger Side Connector End View (C3040)
Courtesy of FORD MOTOR CO.

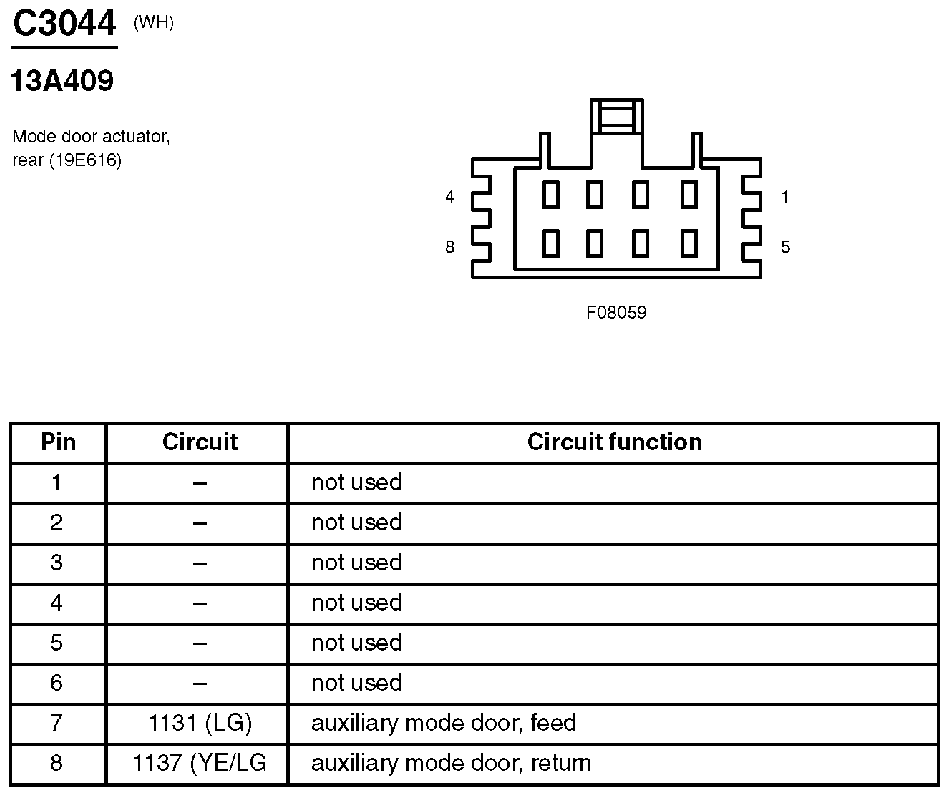

Fig 380: Mode Door Actuator, Rear Connector End View (C3044)
Courtesy of FORD MOTOR CO.

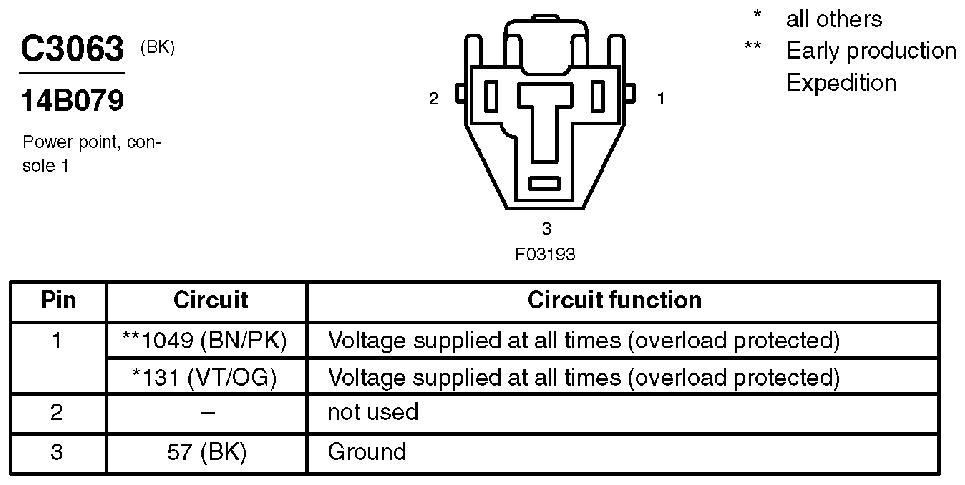

Fig 381: Power Point, Console 1 Connector End View (C3063)
Courtesy of FORD MOTOR CO.

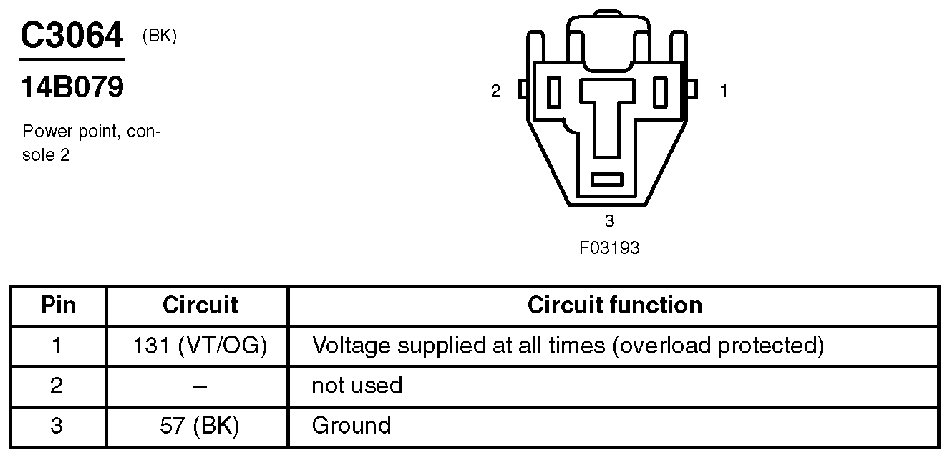

Fig 382: Power Point, Console 2 Connector End View (C3064)
Courtesy of FORD MOTOR CO.

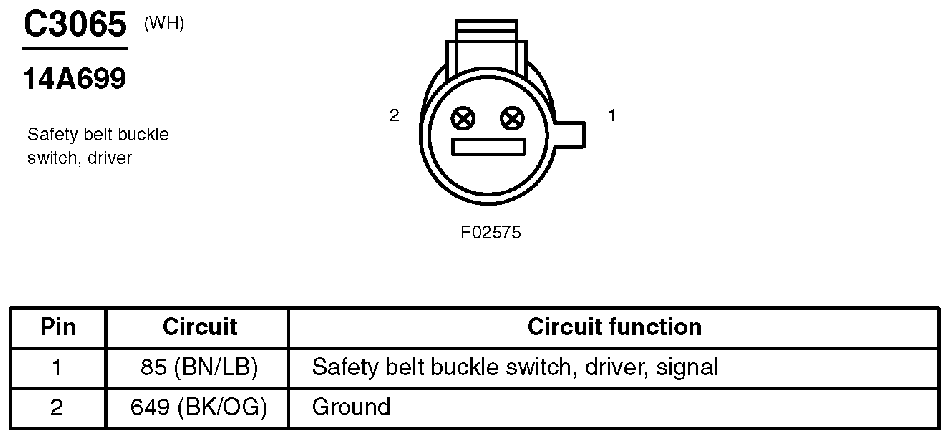

Fig 383: Safety Belt Buckle Switch, Driver Connector End View (C3065)
Courtesy of FORD MOTOR CO.
Fig 384: Safety Belt Buckle Switch, Passenger Connector End View (C3066)
Courtesy of FORD MOTOR CO.

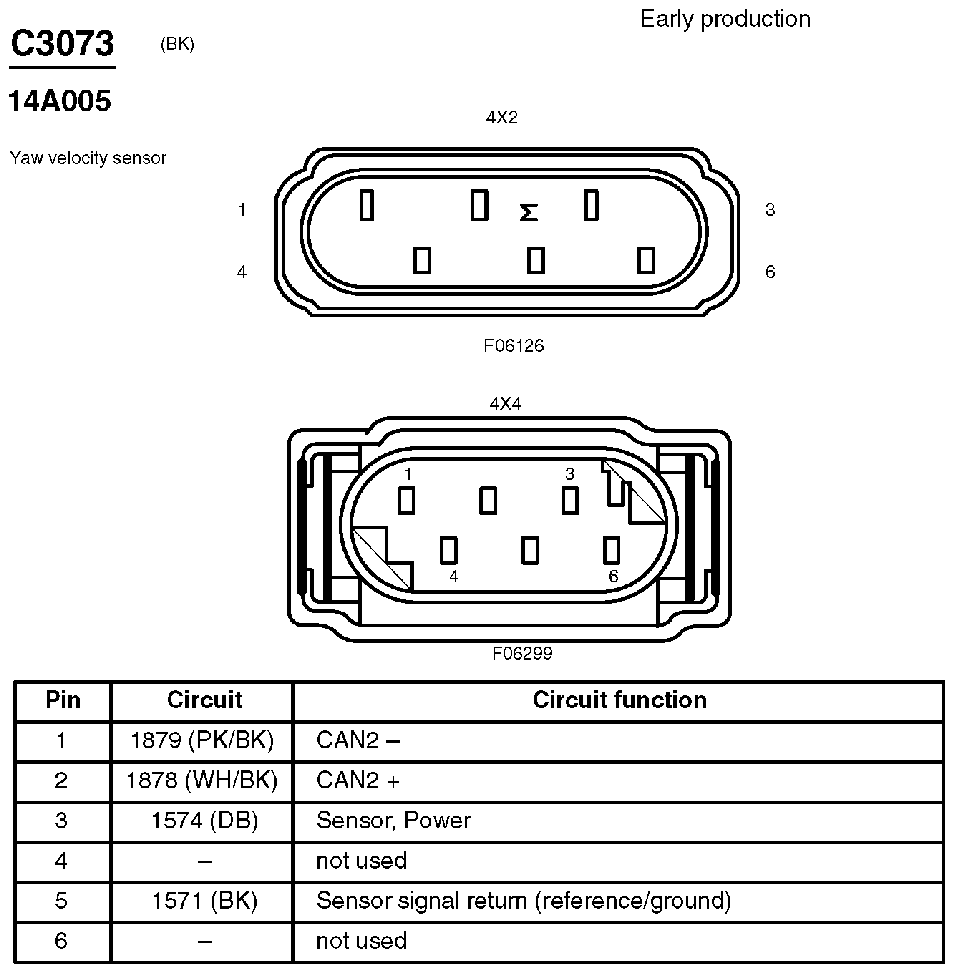

Fig 385: Yaw Velocity Sensor Connector End View (C3073)
Courtesy of FORD MOTOR CO.

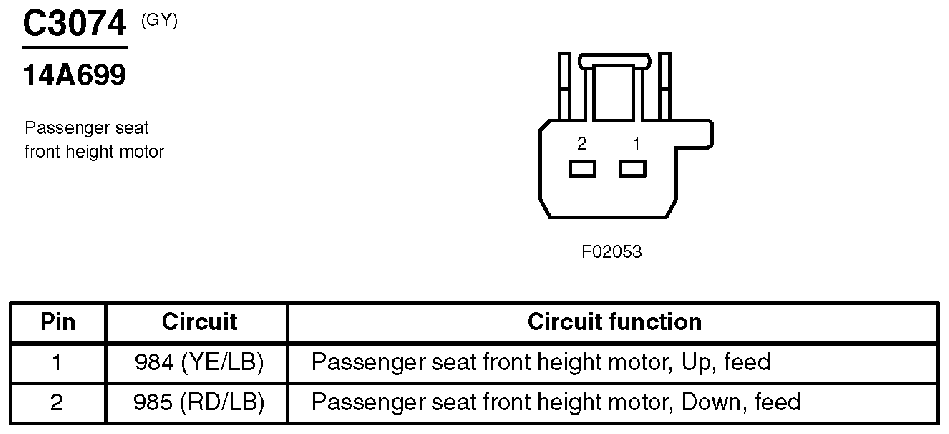

Fig 386: Passenger Seat Front Height Motor Connector End View (C3074)
Courtesy of FORD MOTOR CO.

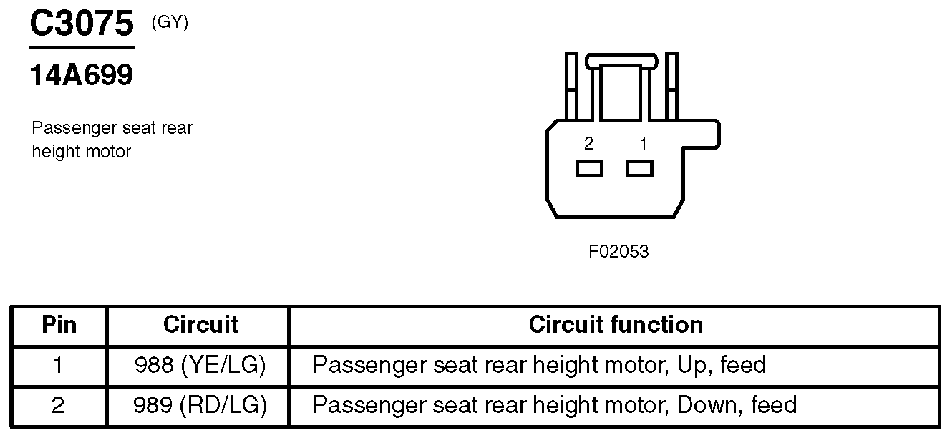

Fig 387: Passenger Seat Rear Height Motor Connector End View (C3075)
Courtesy of FORD MOTOR CO.

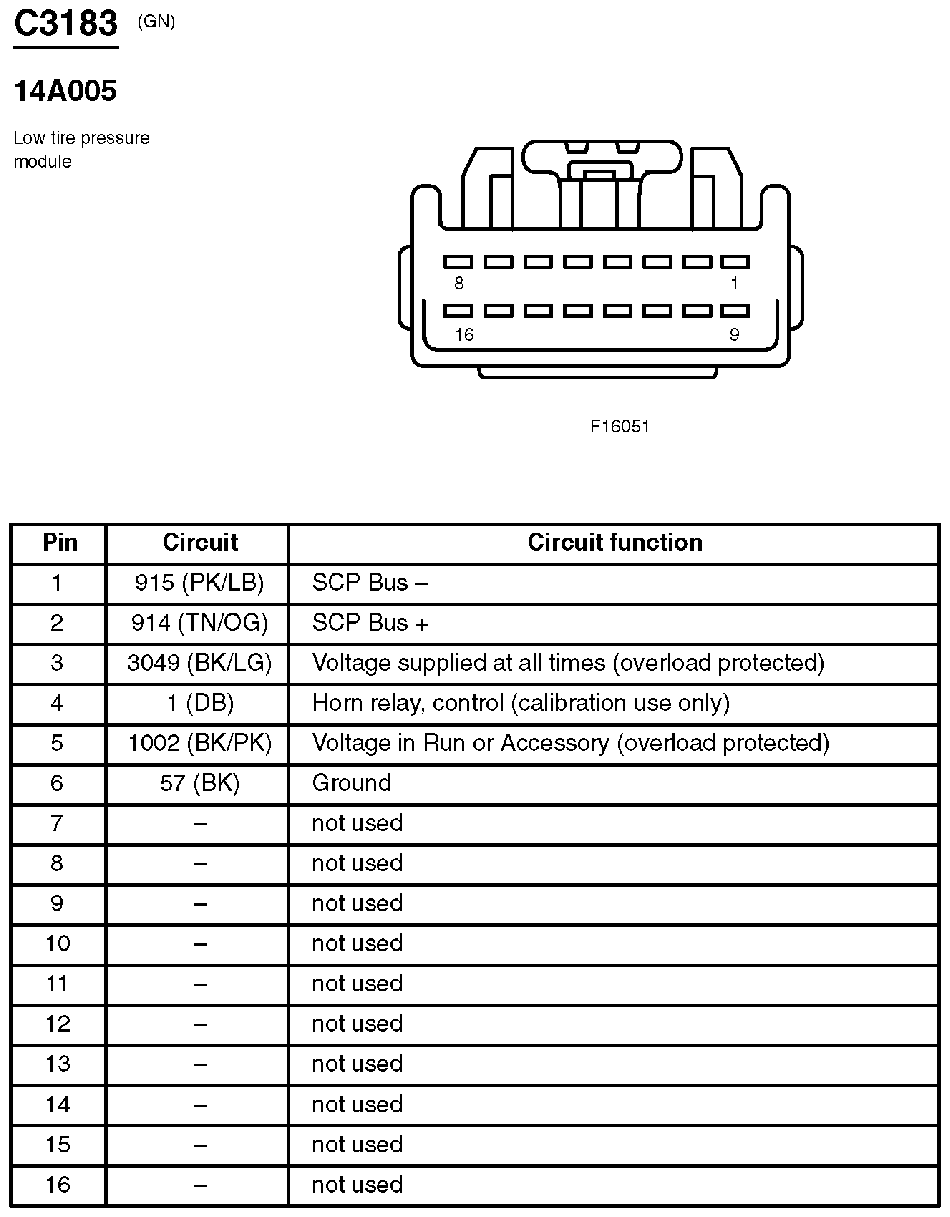

Fig 388: Low Tire Pressure Module Connector End View (C3183)
Courtesy of FORD MOTOR CO.

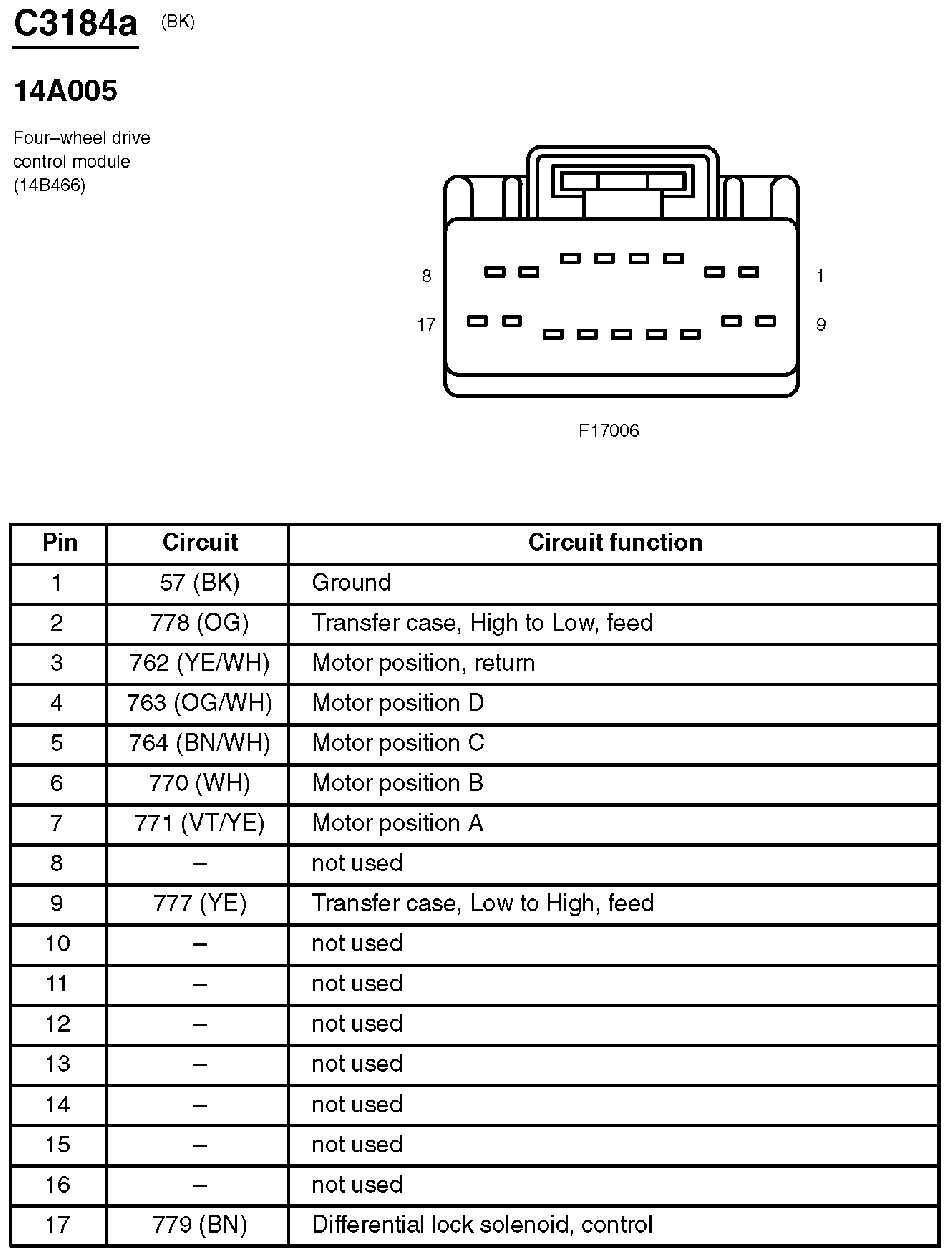

Fig 389: Four-Wheel Drive Control Module Connector End View (C3184a)
Courtesy of FORD MOTOR CO.

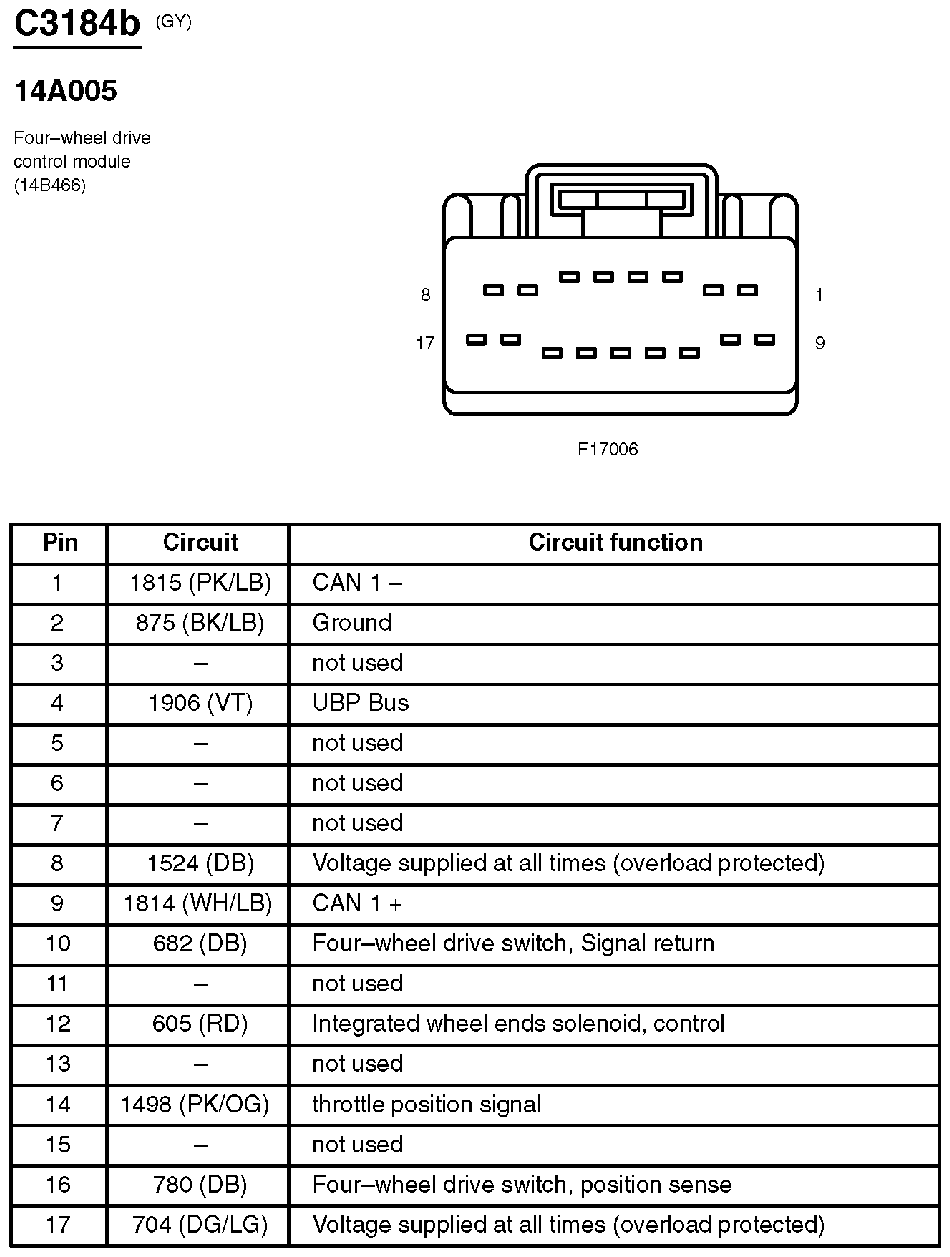

Fig 390: Four-Wheel Drive Control Module Connector End View (C3184b)
Courtesy of FORD MOTOR CO.

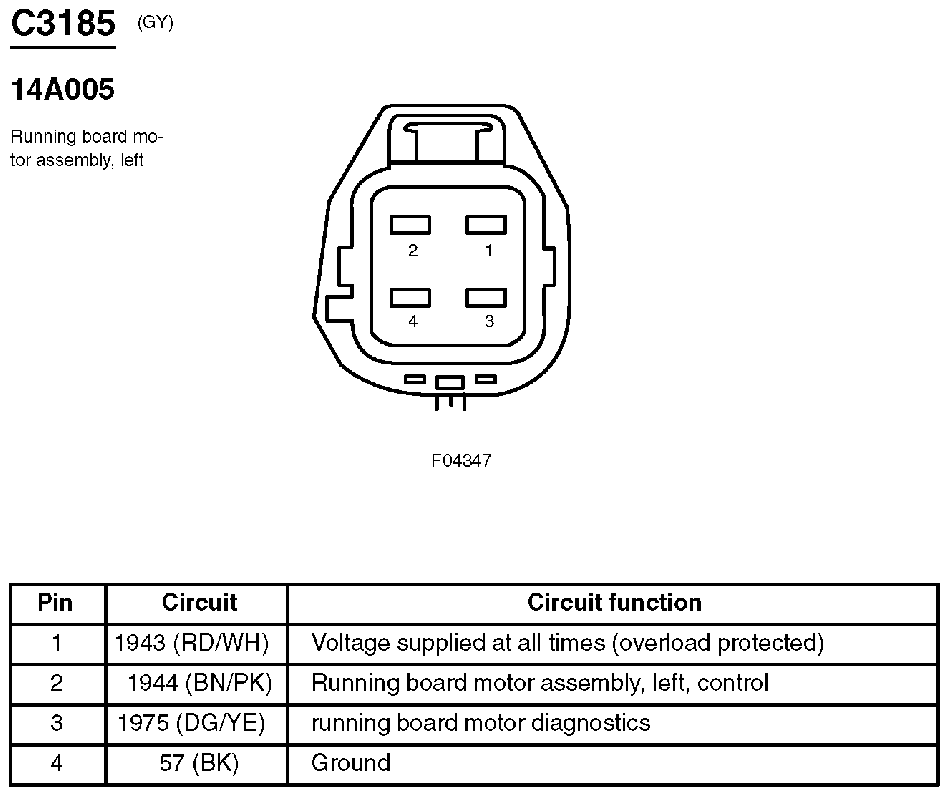

Fig 391: Running Board Motor Assembly, Left Connector End View (C3185)
Courtesy of FORD MOTOR CO.

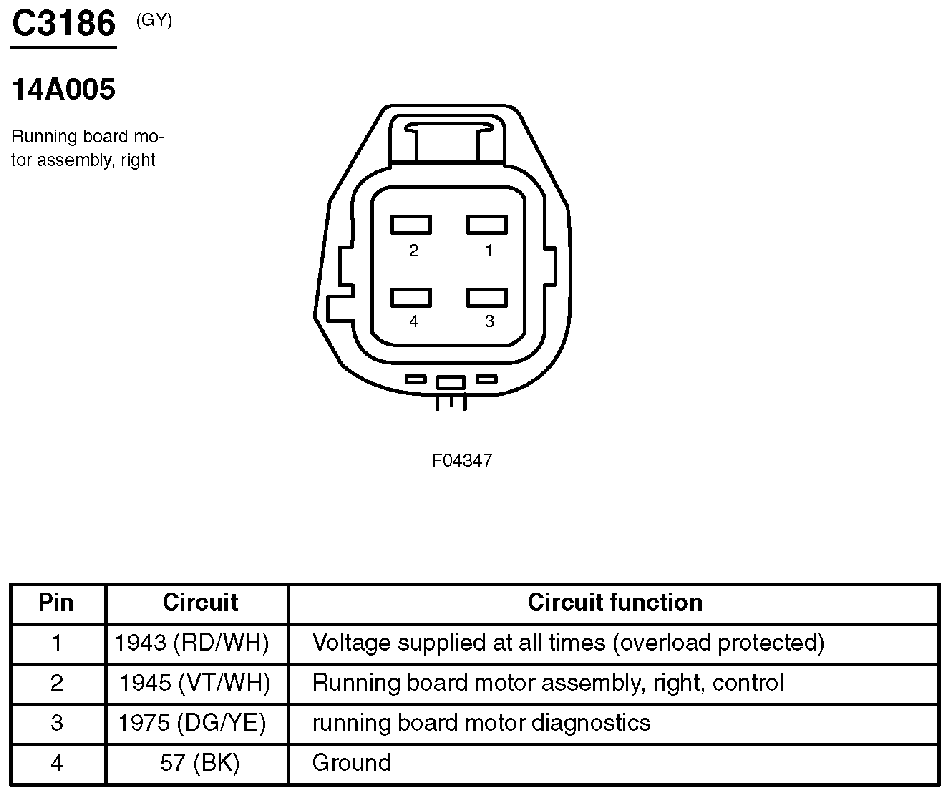

Fig 392: Running Board Motor Assembly, Right Connector End View (C3186)
Courtesy of FORD MOTOR CO.

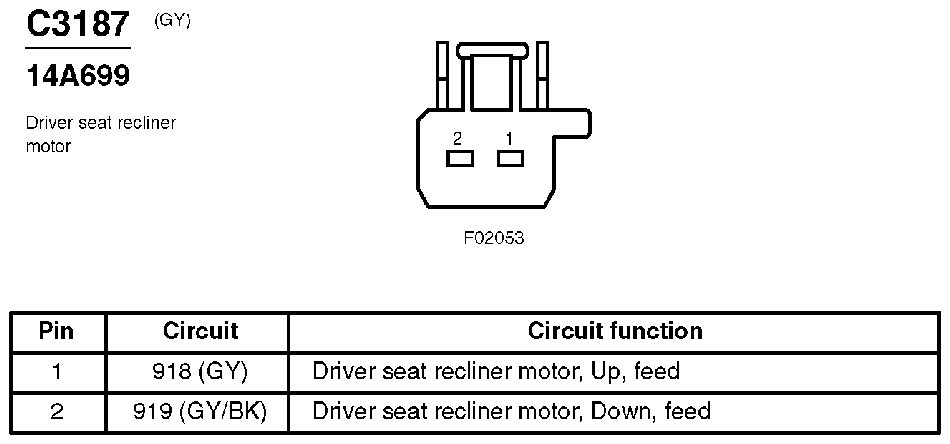

Fig 393: Driver Seat Recliner Motor Connector End View (C3187)
Courtesy of FORD MOTOR CO.

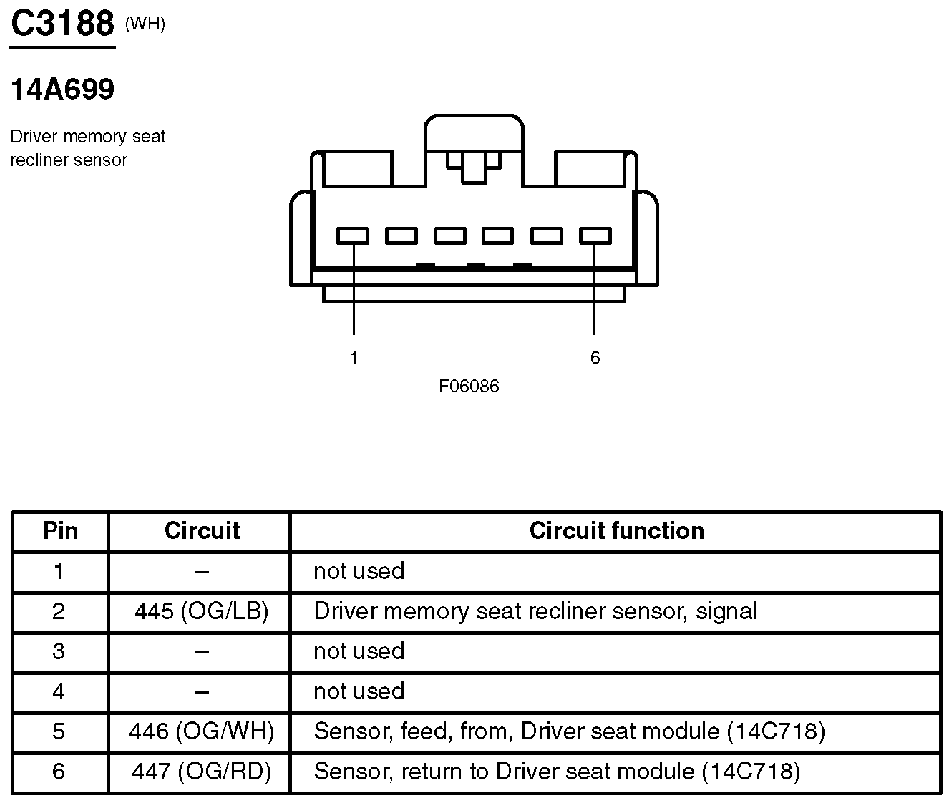

Fig 394: Driver Memory Seat Recliner Sensor Connector End View (C3188)
Courtesy of FORD MOTOR CO.

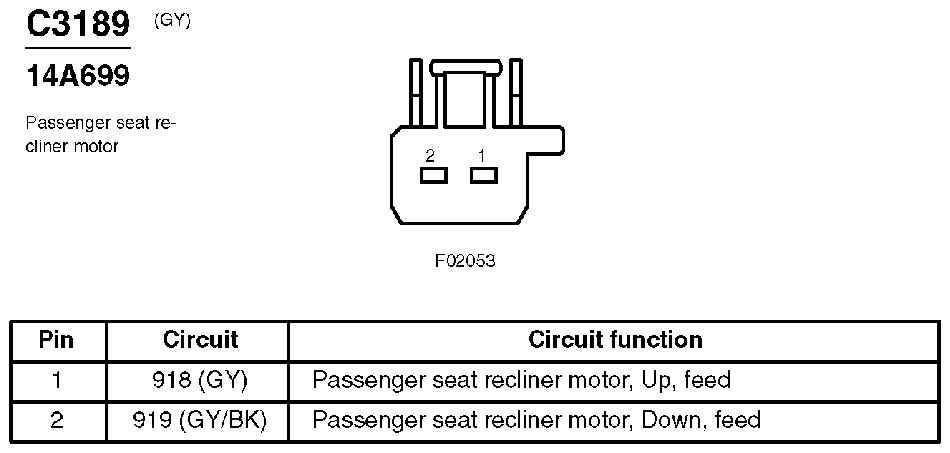

Fig 395: Passenger Seat Recliner Motor Connector End View (C3189)
Courtesy of FORD MOTOR CO.

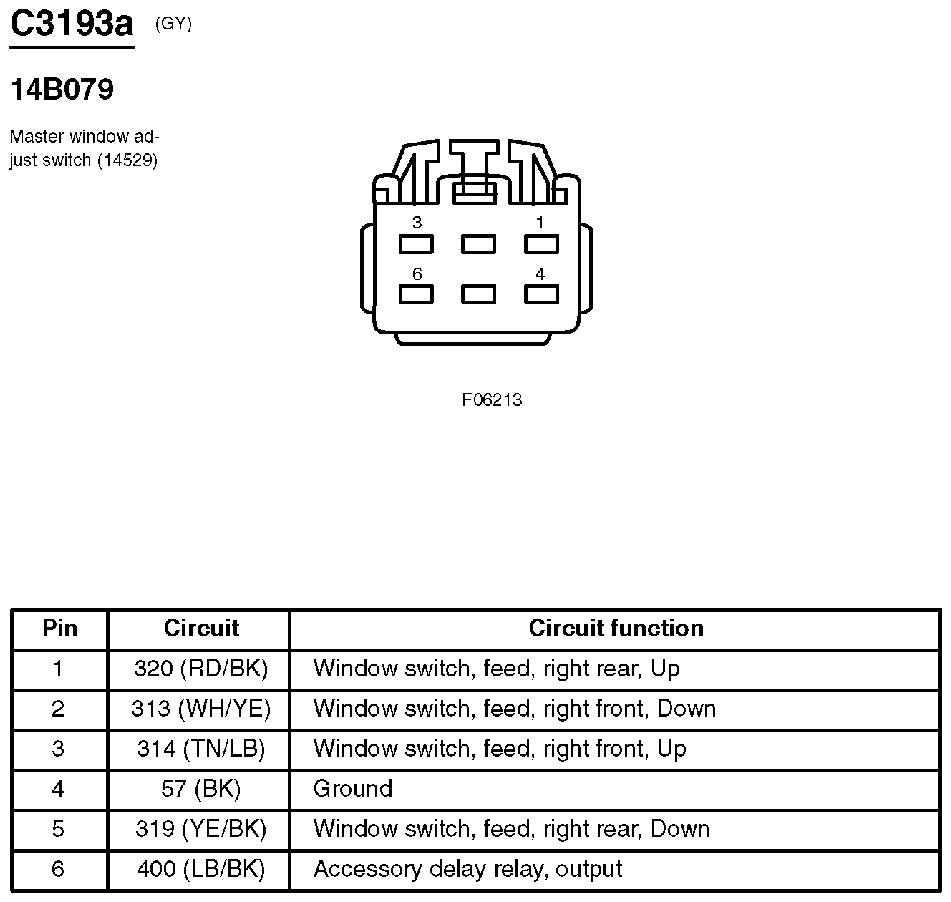

Fig 396: Master Window Adjust Switch Connector End View (C3193a)
Courtesy of FORD MOTOR CO.

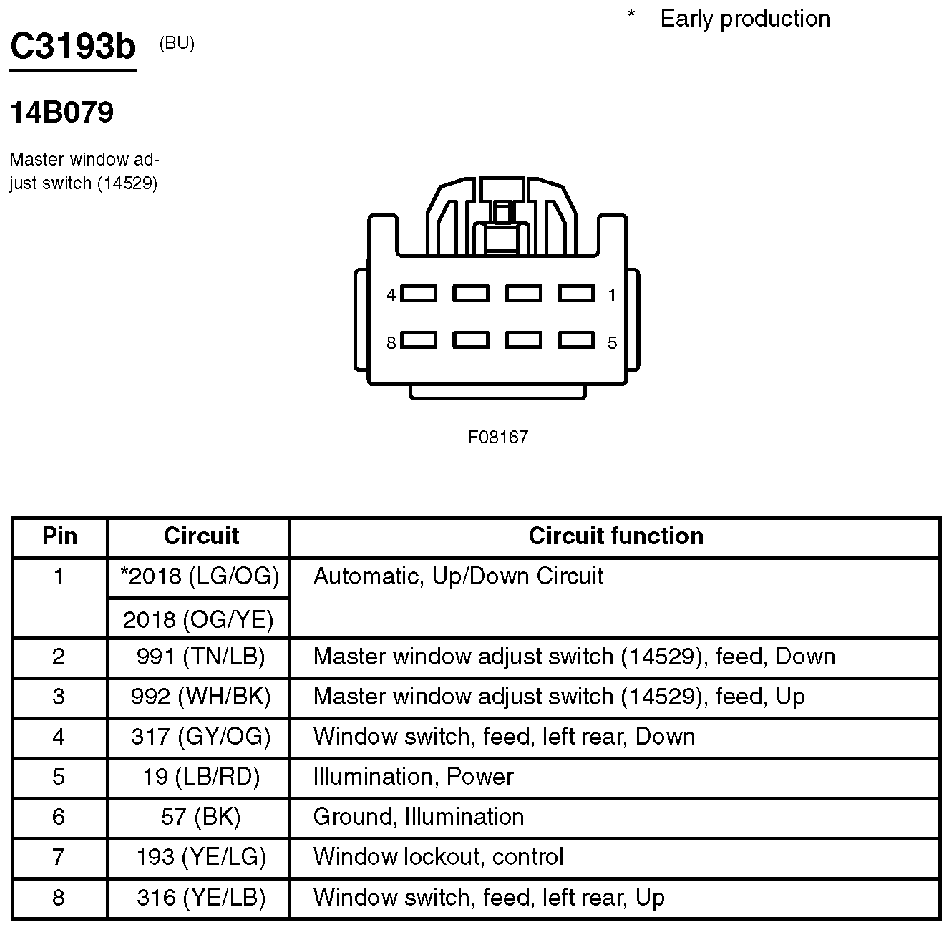

Fig 397: Master Window Adjust Switch Connector End View (C3193b)
Courtesy of FORD MOTOR CO.

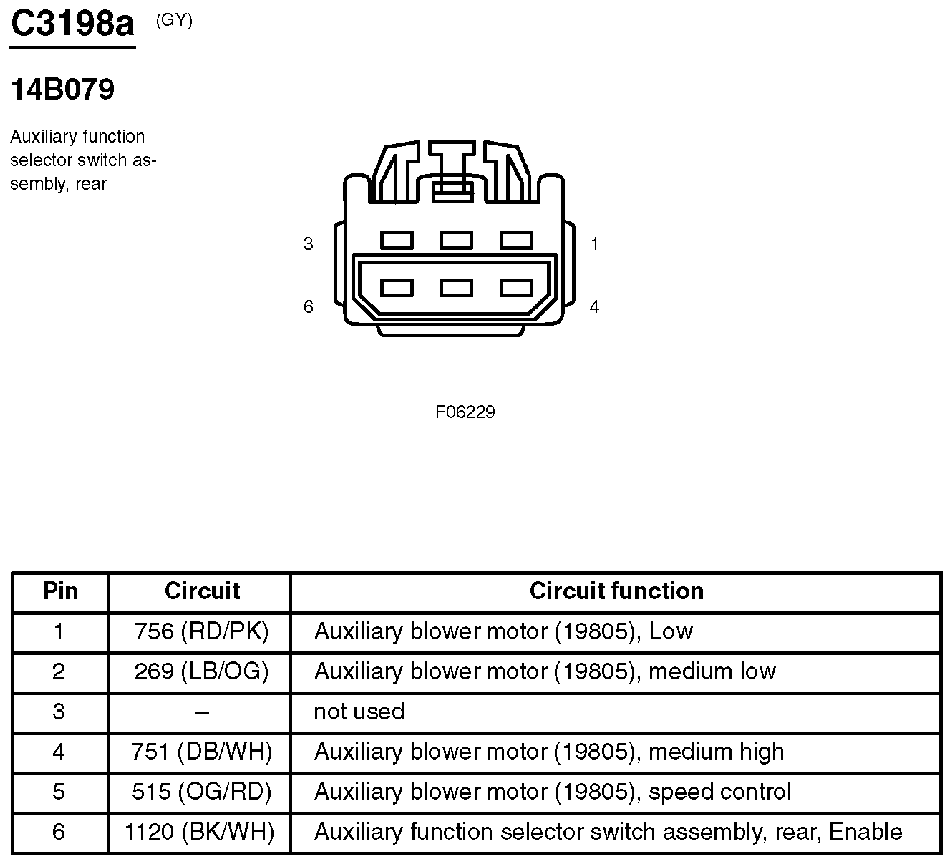

Fig 398: Auxiliary Function Selector Switch Assembly, Rear Connector End View (C3198a)
Courtesy of FORD MOTOR CO.

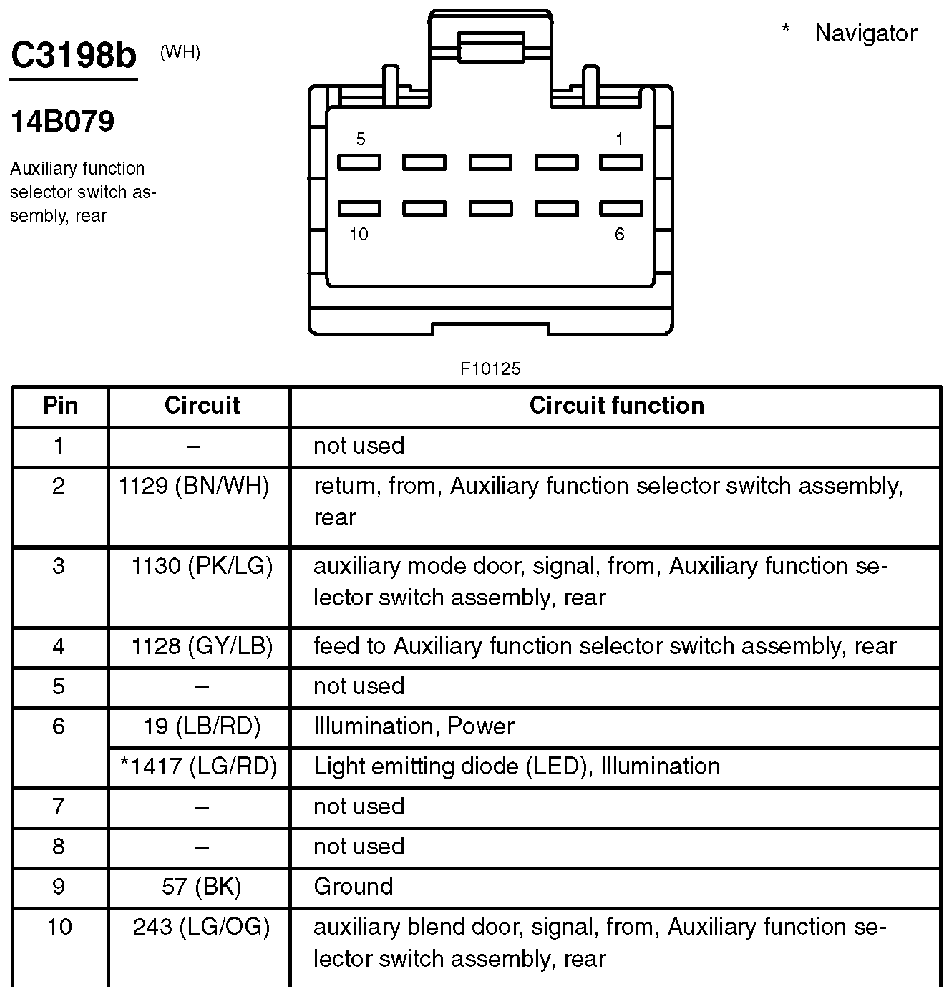

Fig 399: Auxiliary Function Selector Switch Assembly, Rear Connector End View (C3198b)
Courtesy of FORD MOTOR CO.

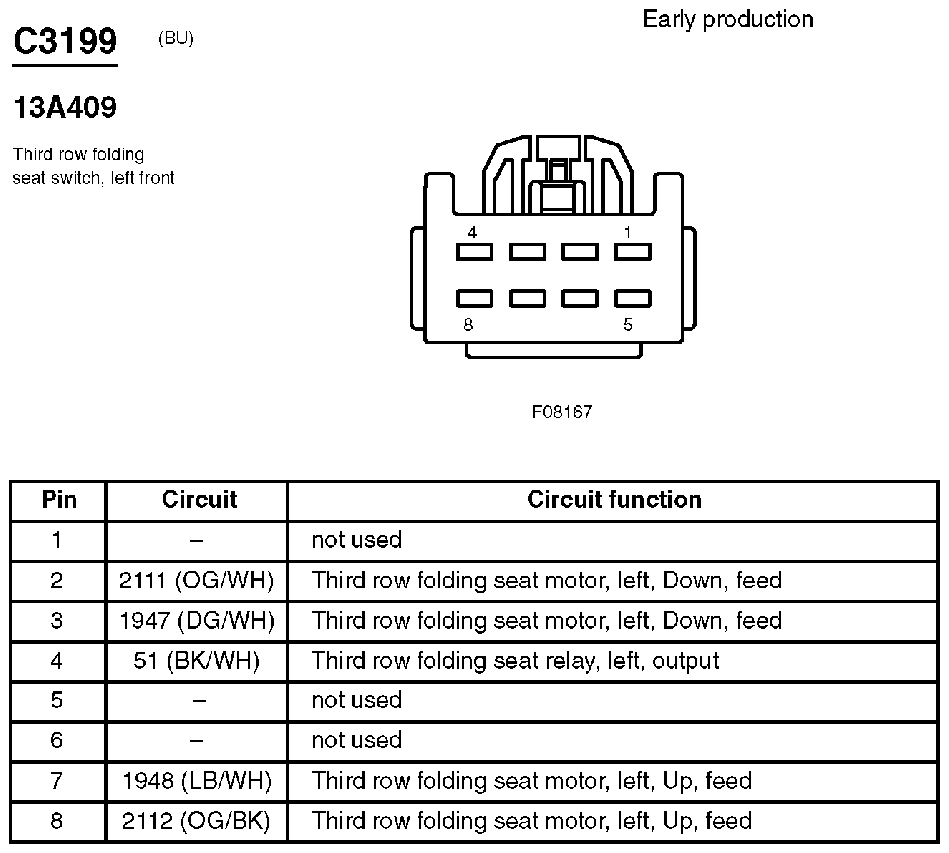

Fig 400: Third Row Folding Seat Switch, Left Front Connector End View (C3199)
Courtesy of FORD MOTOR CO.

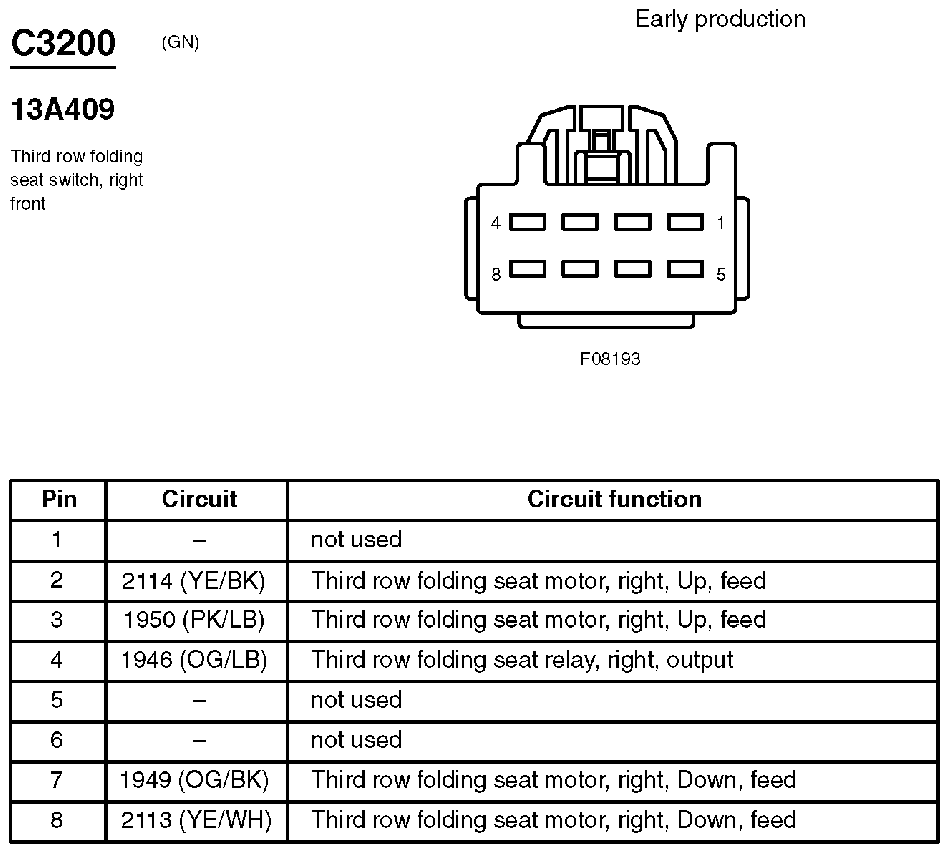

Fig 401: Third Row Folding Seat Switch, Right Front Connector End View (C3200)
Courtesy of FORD MOTOR CO.

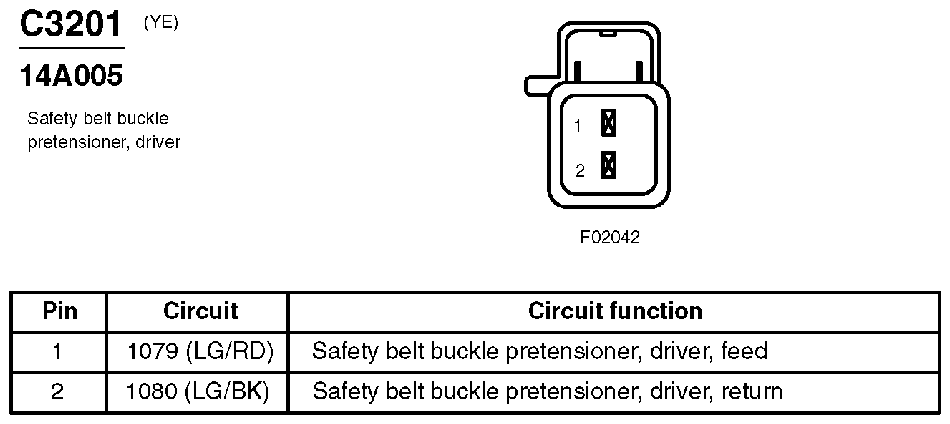

Fig 402: Safety Belt Buckle Pretensioner, Driver Connector End View (C3201)
Courtesy of FORD MOTOR CO.

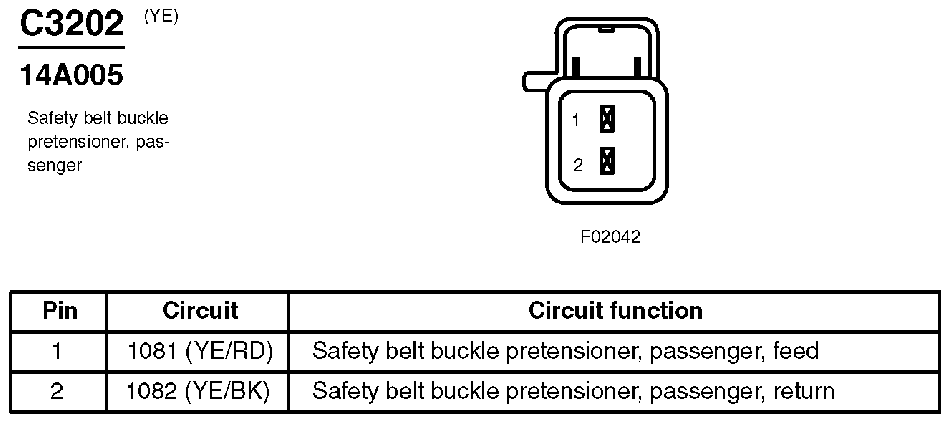

Fig 403: Safety Belt Buckle Pretensioner, Passenger Connector End View (C3202)
Courtesy of FORD MOTOR CO.

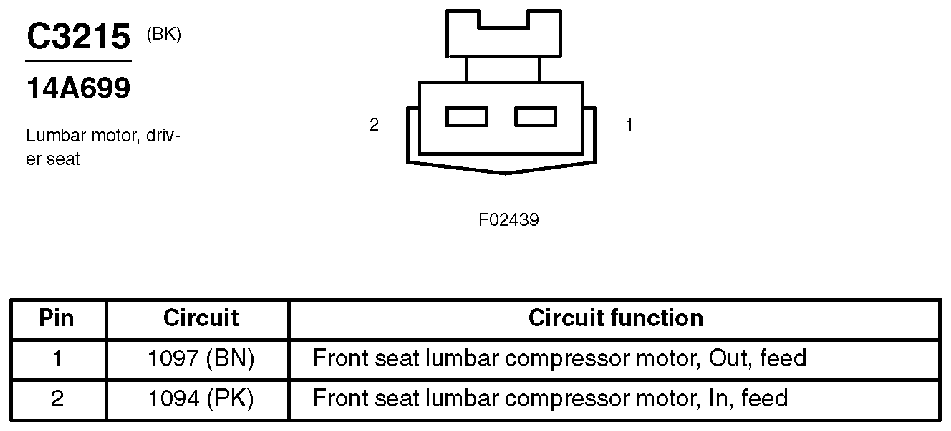

Fig 404: Lumbar Motor, Driver Seat Connector End View (C3215)
Courtesy of FORD MOTOR CO.

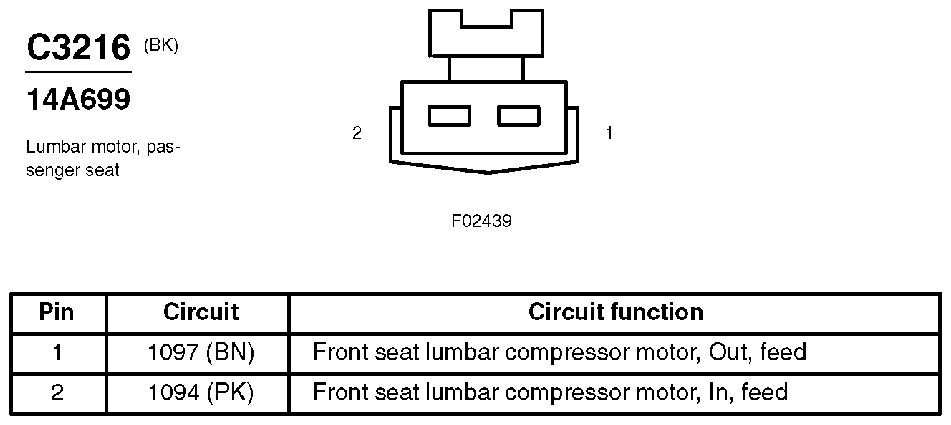

Fig 405: Lumbar Motor, Passenger Seat Connector End View (C3216)
Courtesy of FORD MOTOR CO.

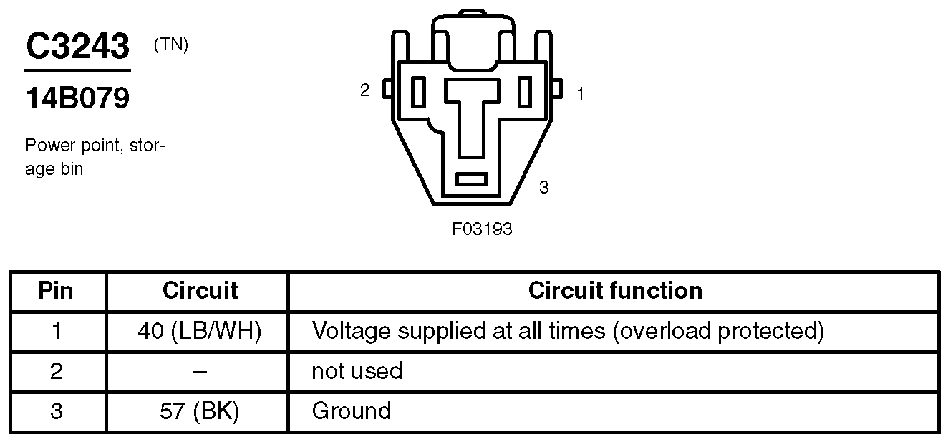

Fig 406: Power Point, Storage Bin Connector End View (C3243)
Courtesy of FORD MOTOR CO.

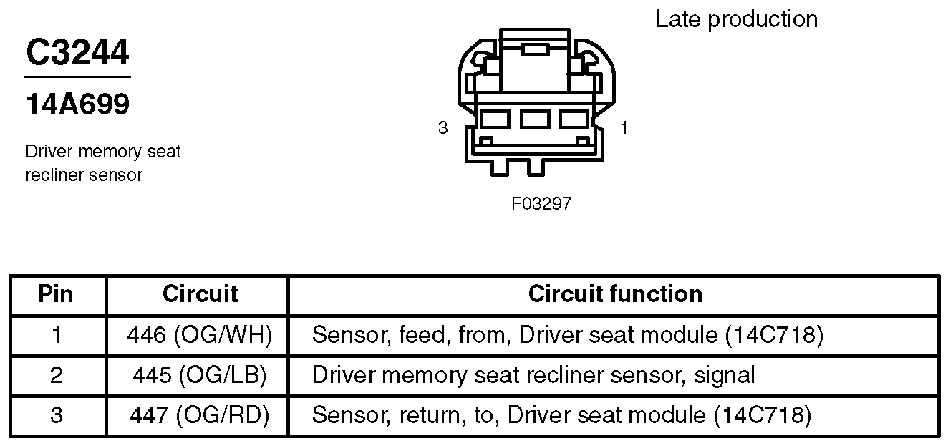

Fig 407: Driver Memory Seat Recliner Sensor Connector End View (C3244)
Courtesy of FORD MOTOR CO.

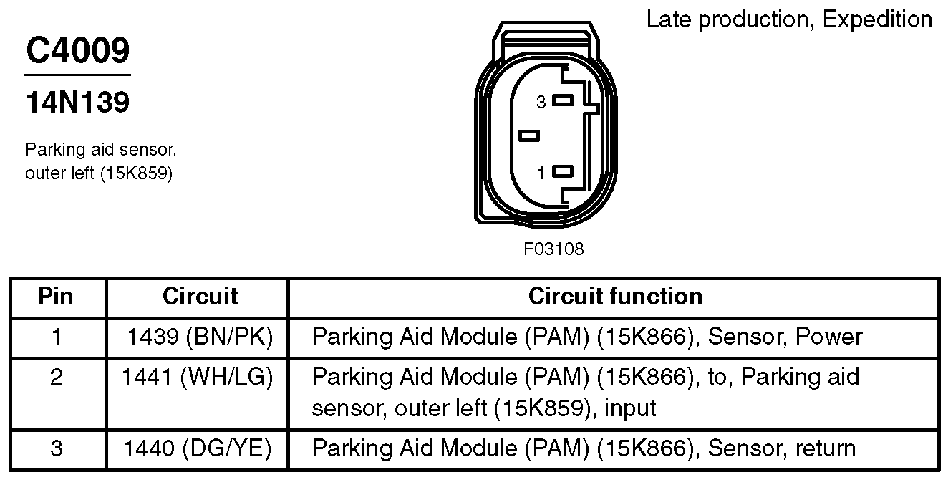

Fig 408: Parking Aid Sensor, Outer Left Connector End View (C4009)
Courtesy of FORD MOTOR CO.

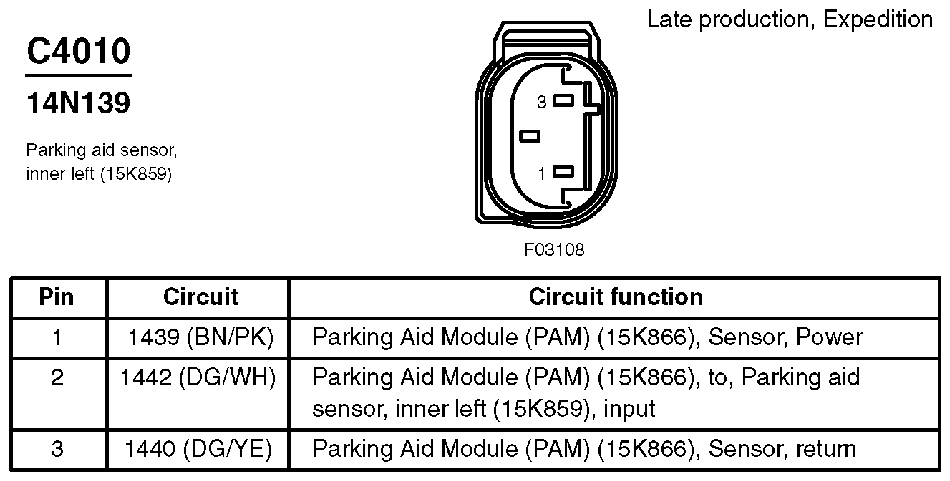

Fig 409: Parking Aid Sensor, Inner Left Connector End View (C4010)
Courtesy of FORD MOTOR CO.

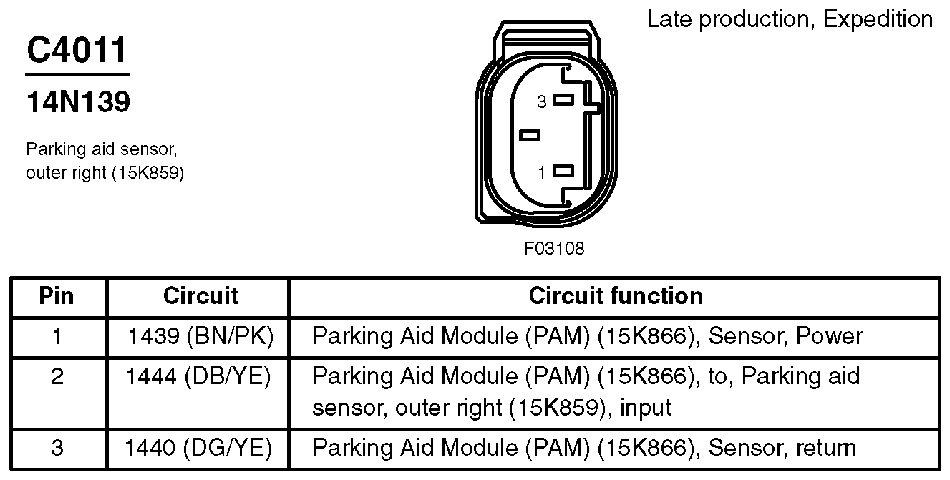

Fig 410: Parking Aid Sensor, Outer Right Connector End View (C4011)
Courtesy of FORD MOTOR CO.
Fig 411: Parking Aid Sensor, Inner Right Connector End View (C4012)
Courtesy of FORD MOTOR CO.

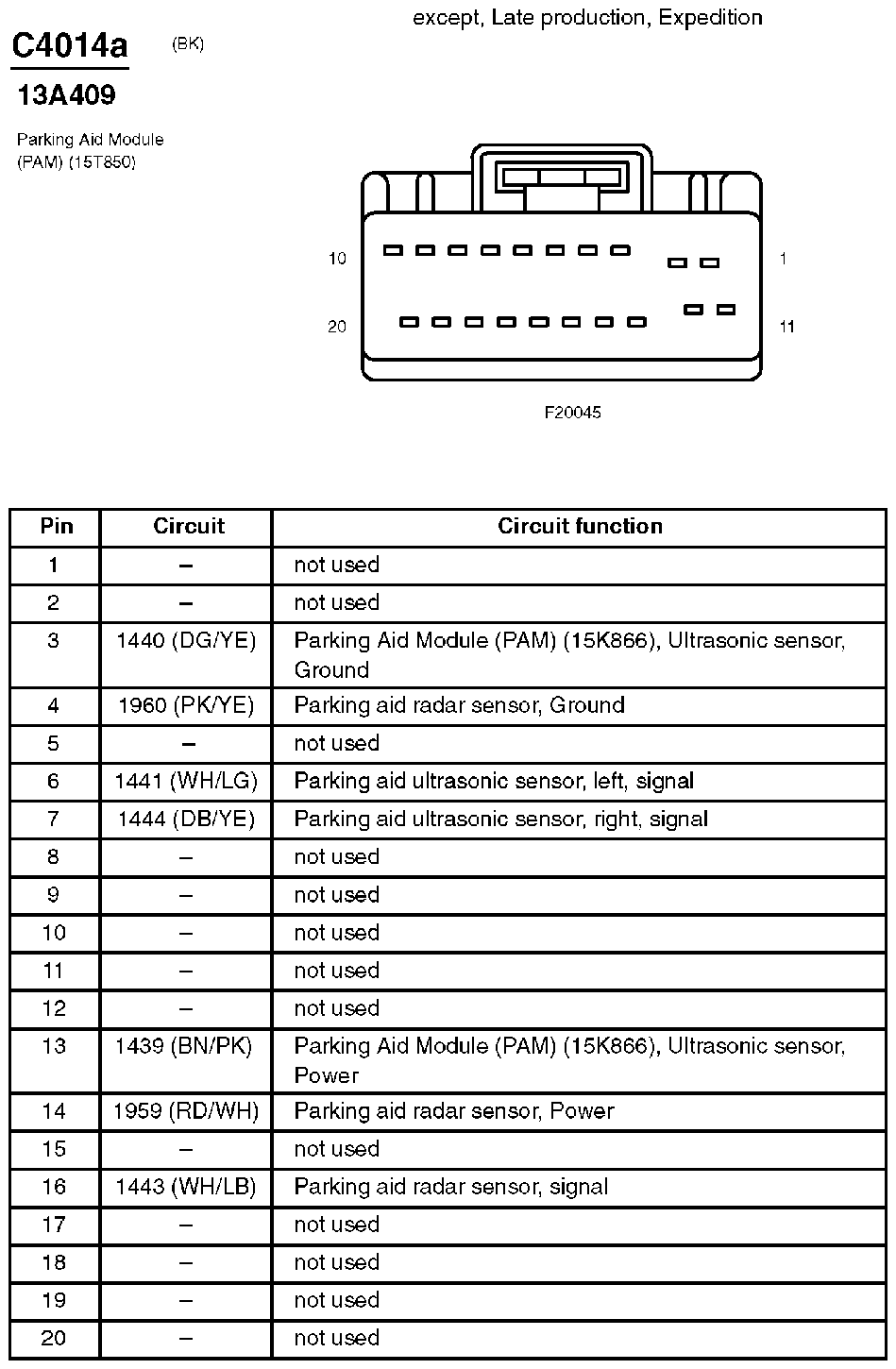

Fig 412: Parking Aid Module (PAM) Connector End View (C4014a)
Courtesy of FORD MOTOR CO.

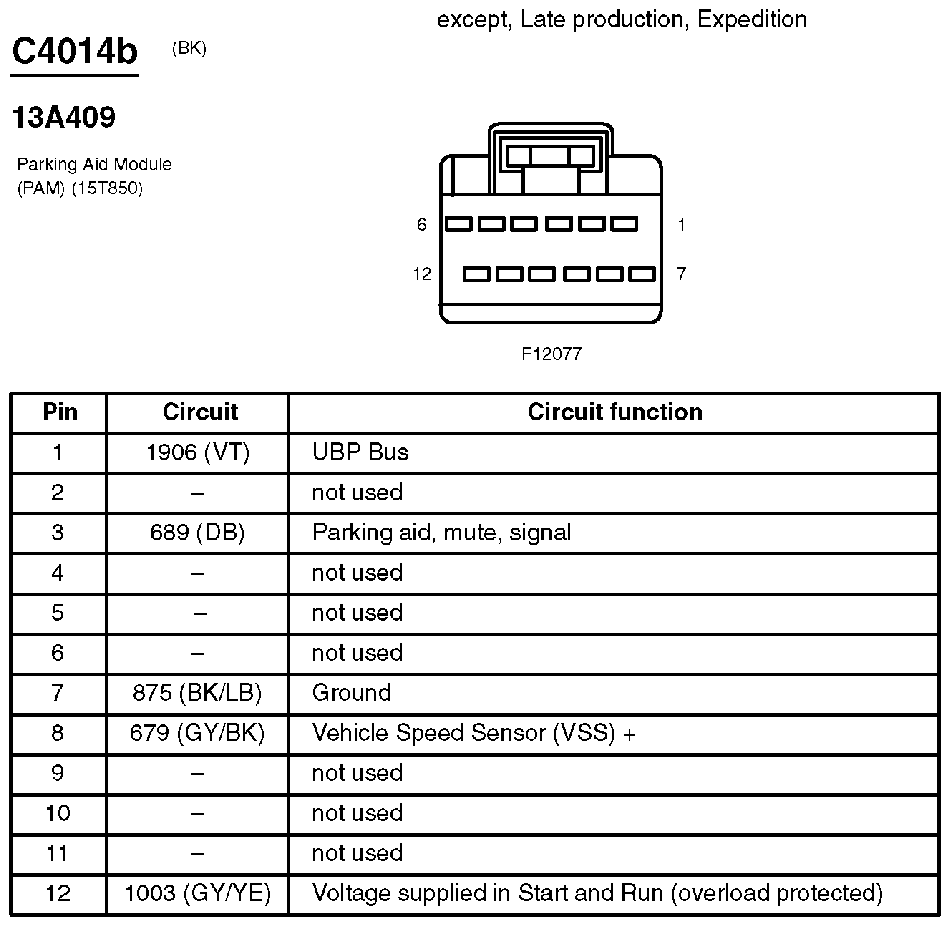

Fig 413: Parking Aid Module (PAM) Connector End View (C4014b)
Courtesy of FORD MOTOR CO.

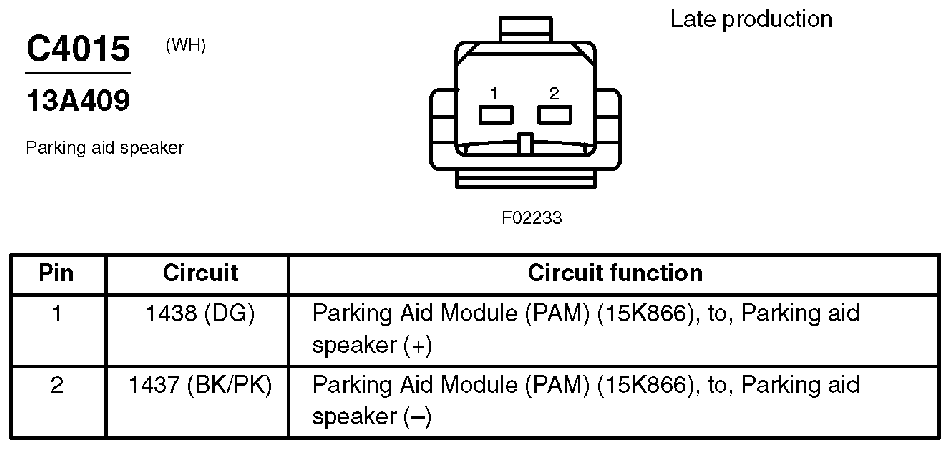

Fig 414: Parking Aid Speaker Connector End View (C4015)
Courtesy of FORD MOTOR CO.

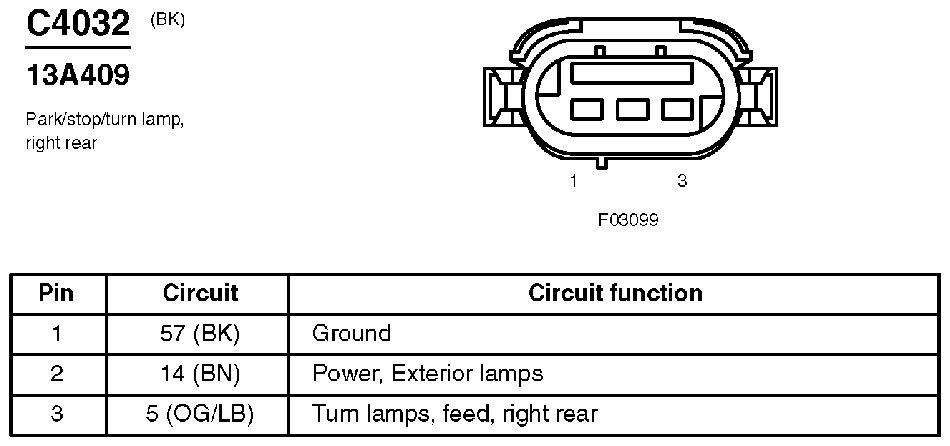

Fig 415: Park/Stop/Turn Lamp, Right Rear Connector End View (C4032)
Courtesy of FORD MOTOR CO.

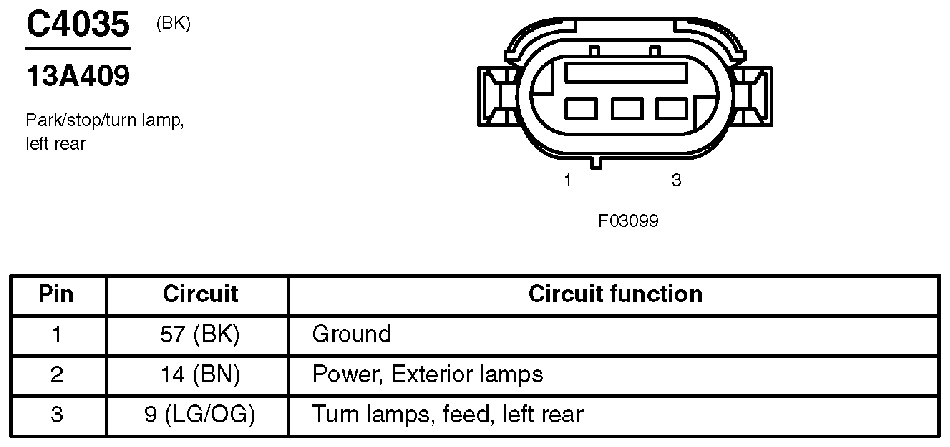

Fig 416: Park/Stop/Turn Lamp, Left Rear Connector End View (C4035)
Courtesy of FORD MOTOR CO.

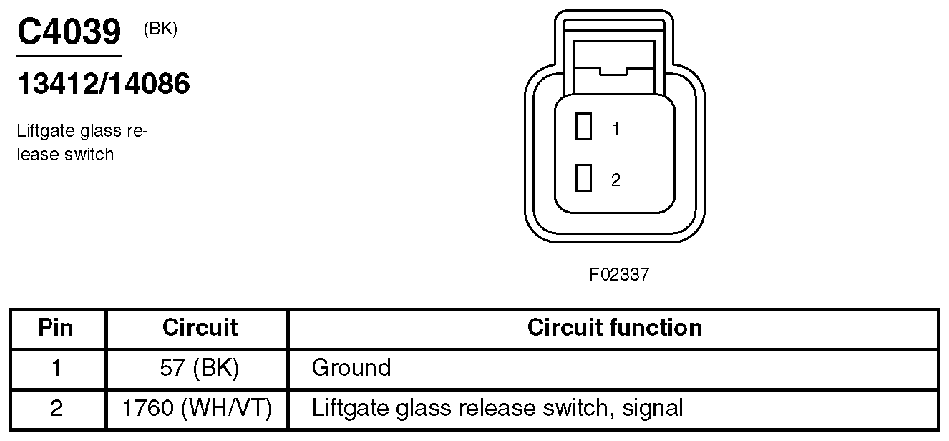

Fig 417: Liftgate Glass Release Switch Connector End View (C4039)
Courtesy of FORD MOTOR CO.

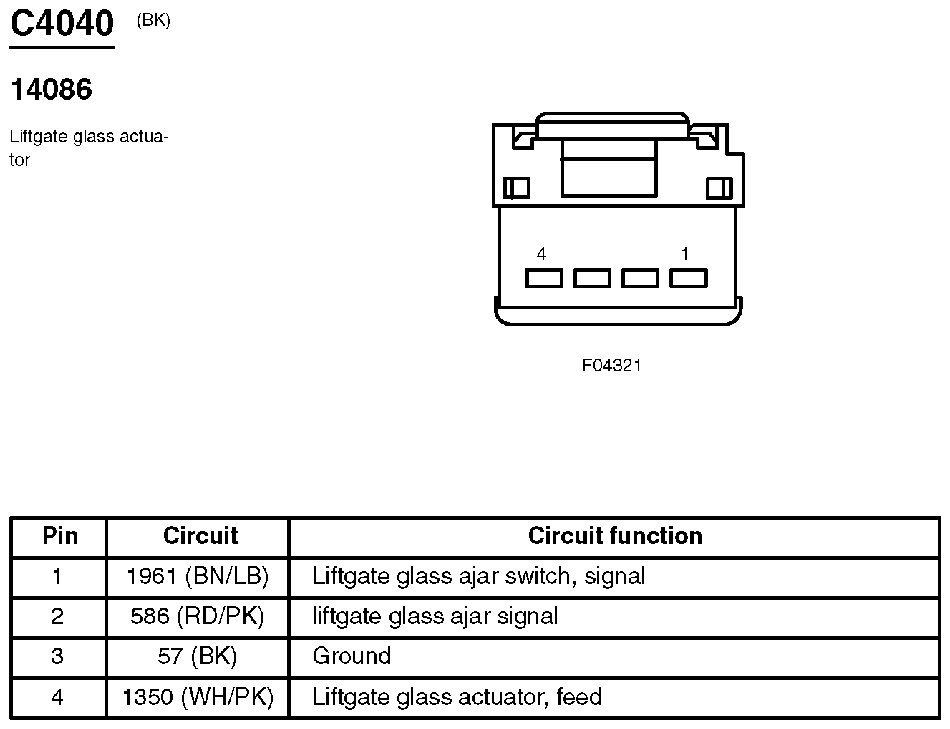

Fig 418: Liftgate Glass Actuator Connector End View (C4040)
Courtesy of FORD MOTOR CO.

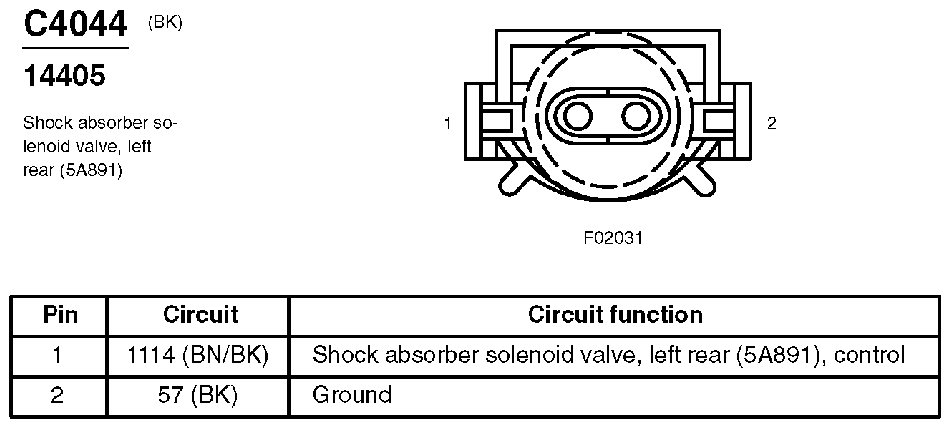

Fig 419: Shock Absorber Solenoid Valve, Left Rear Connector End View (C4044)
Courtesy of FORD MOTOR CO.

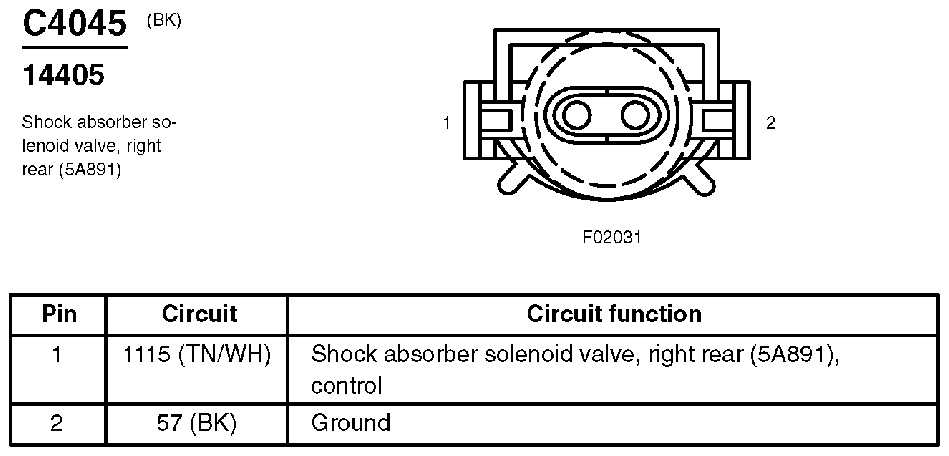

Fig 420: Shock Absorber Solenoid Valve, Right Rear Connector End View (C4045)
Courtesy of FORD MOTOR CO.

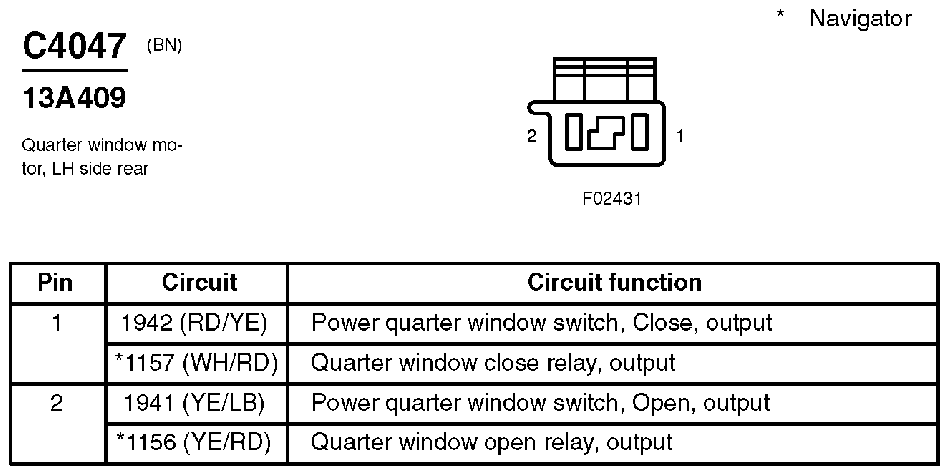

Fig 421: Quarter Window Motor, LH Side Rear Connector End View (C4047)
Courtesy of FORD MOTOR CO.

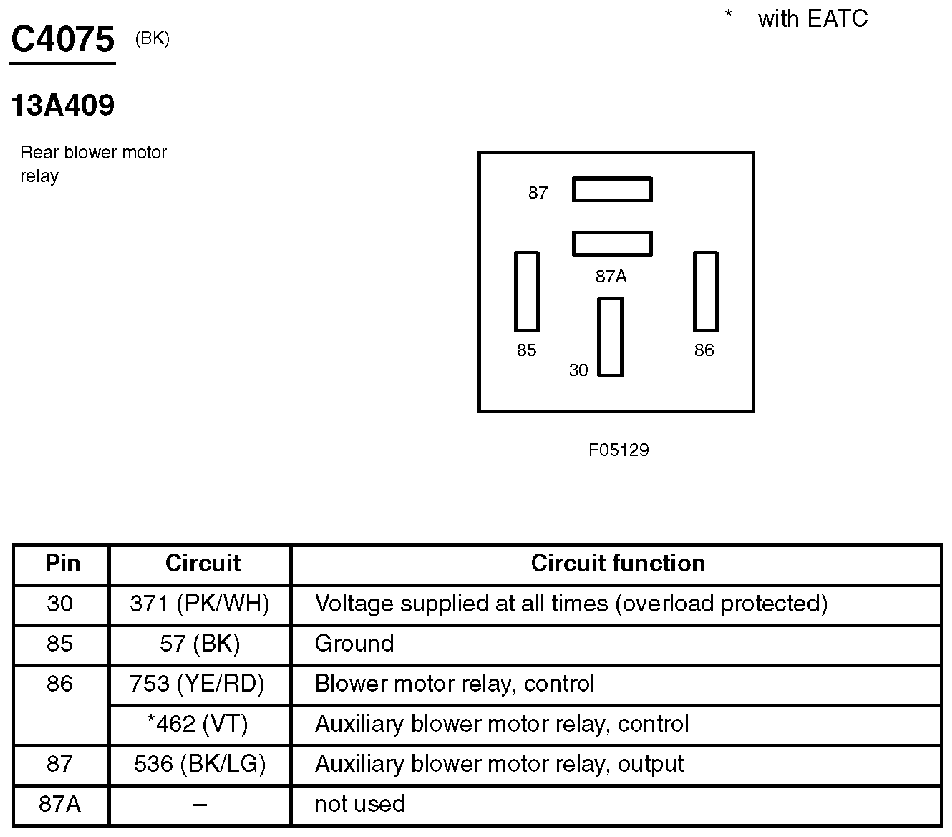

Fig 422: Rear Blower Motor Relay Connector End View (C4075)
Courtesy of FORD MOTOR CO.

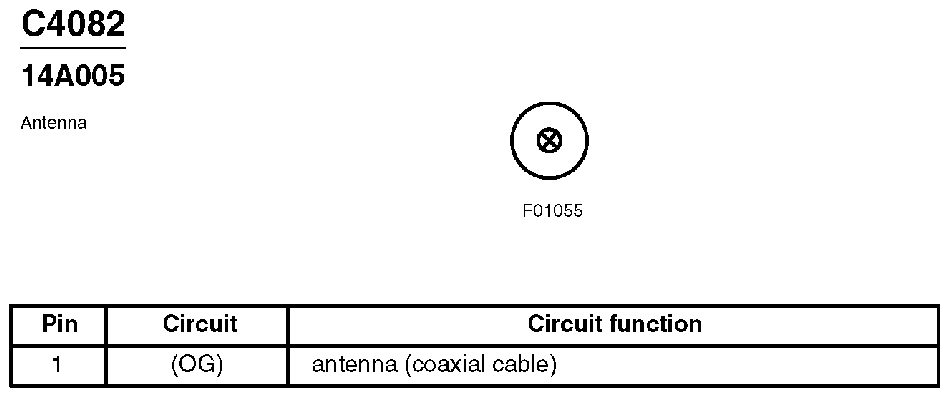

Fig 423: Antenna Connector End View (C4082)
Courtesy of FORD MOTOR CO.

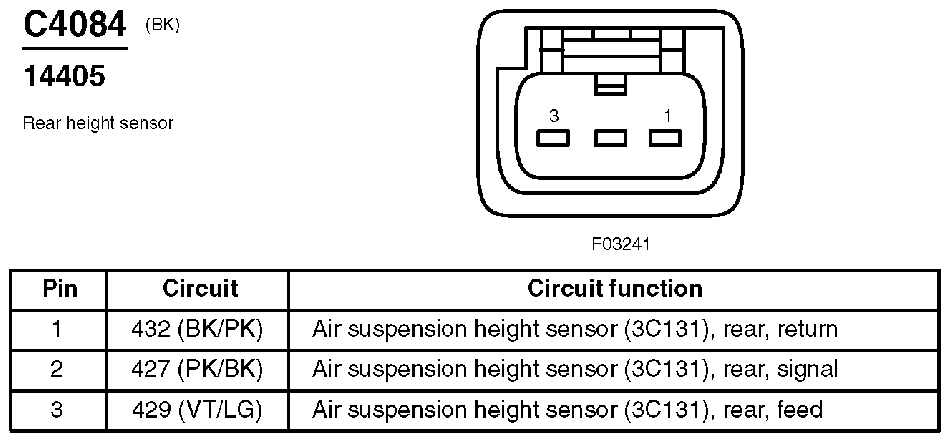

Fig 424: Rear Height Sensor Connector End View (C4084)
Courtesy of FORD MOTOR CO.

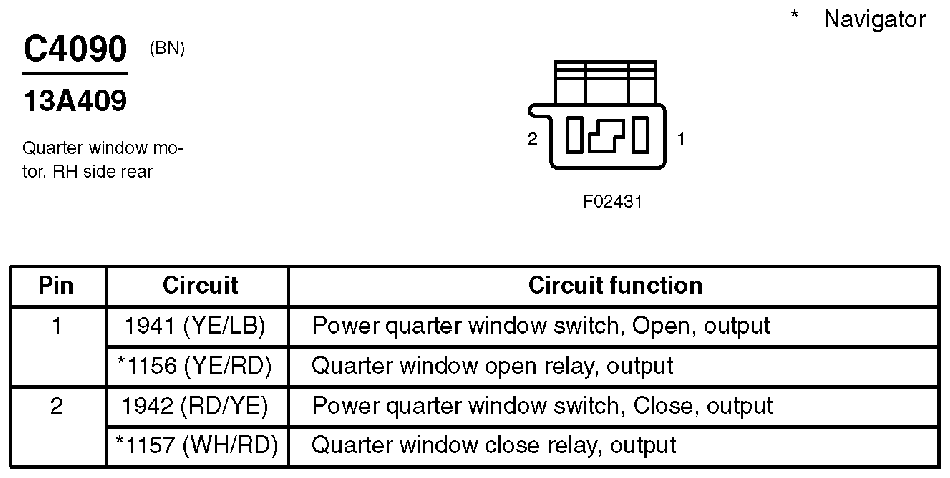

Fig 425: Quarter Window Motor, RH Side Rear Connector End View (C4090)
Courtesy of FORD MOTOR CO.

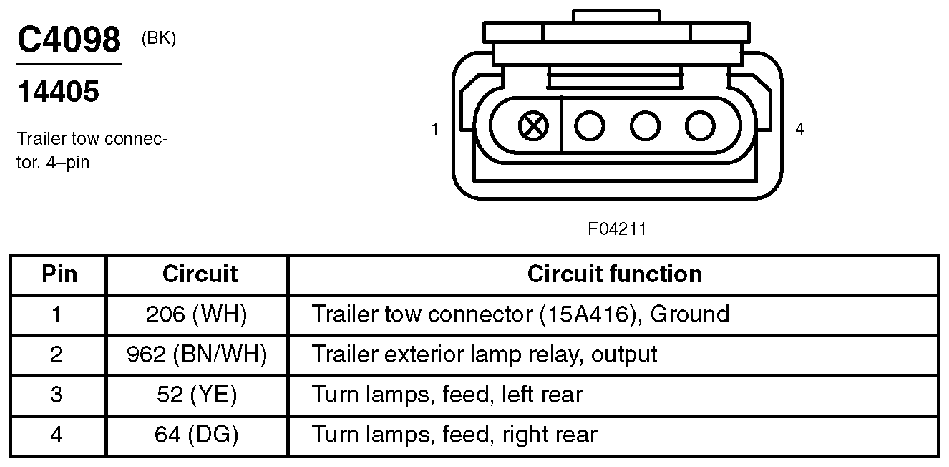

Fig 426: Trailer Tow Connector, 4-Pin Connector End View (C4098)
Courtesy of FORD MOTOR CO.

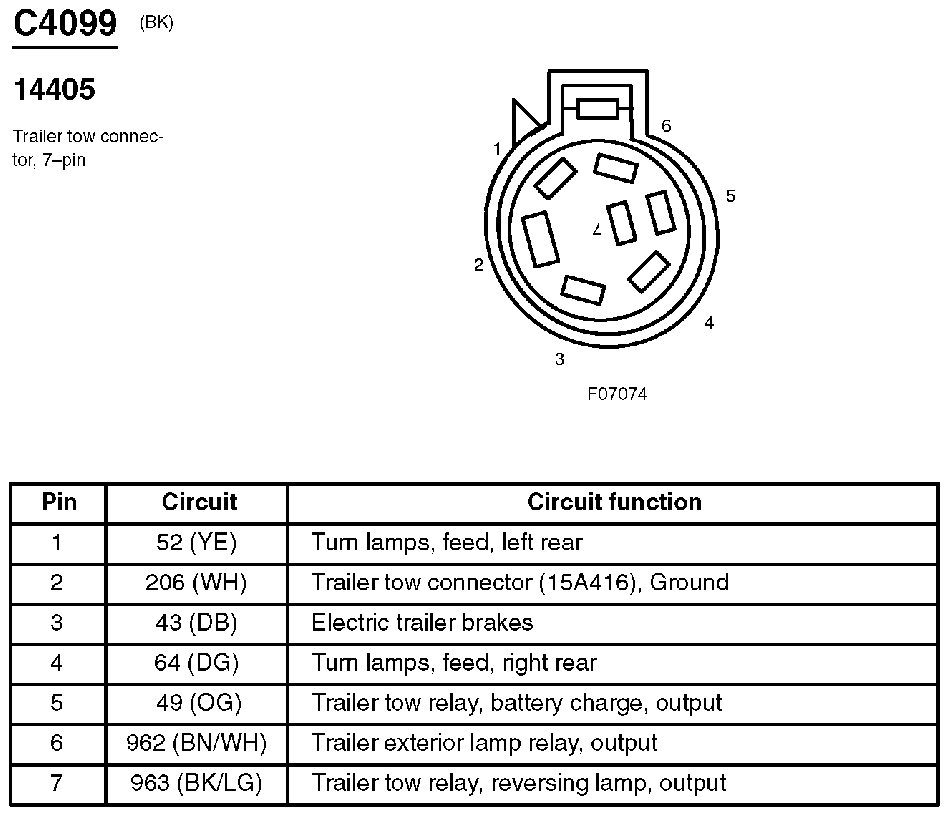

Fig 427: Trailer Tow Connector, 7-Pin Connector End View (C4099)
Courtesy of FORD MOTOR CO.

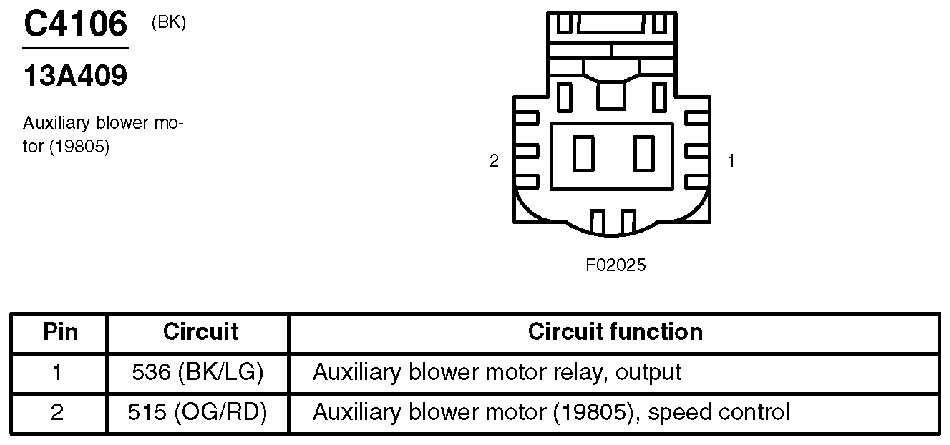

Fig 428: Auxiliary Blower Motor Connector End View (C4106)
Courtesy of FORD MOTOR CO.

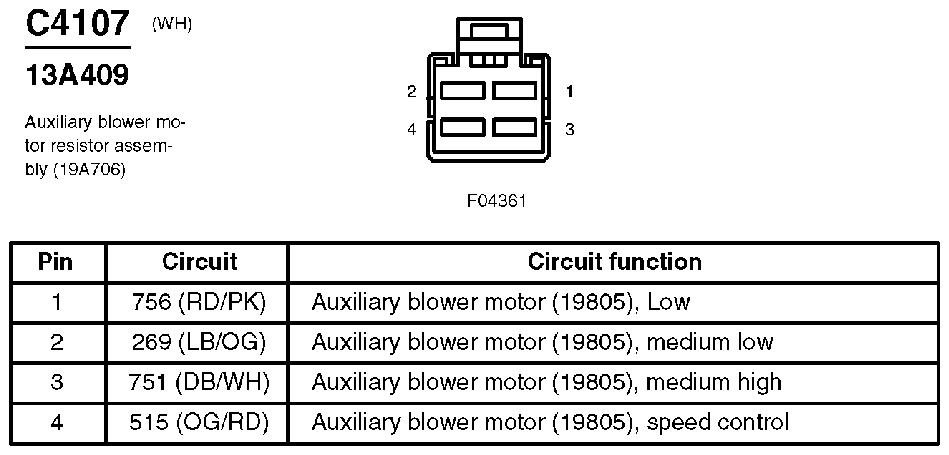

Fig 429: Auxiliary Blower Motor Resistor Assembly Connector End View (C4107)
Courtesy of FORD MOTOR CO.
Fig 430: EVAP Canister Vent Control Solenoid Connector End View (C4116)
Courtesy of FORD MOTOR CO.

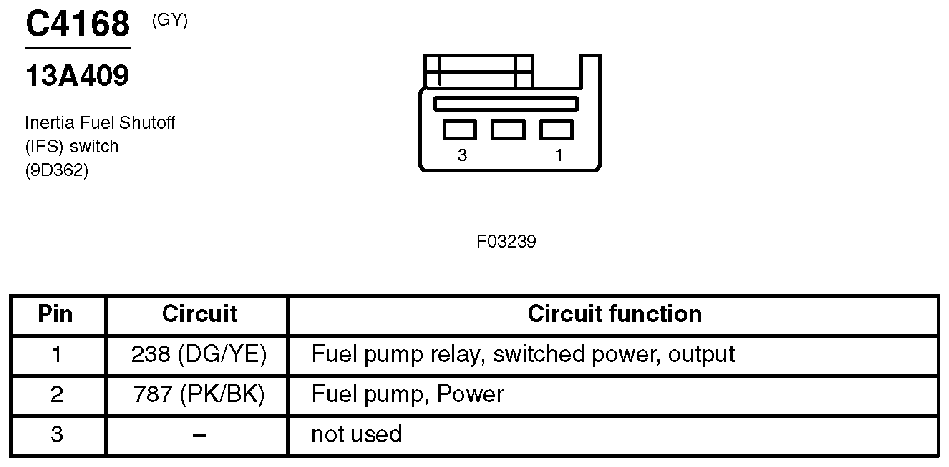

Fig 431: Inertia Fuel Shutoff (IFS) Switch Connector End View (C4168)
Courtesy of FORD MOTOR CO.

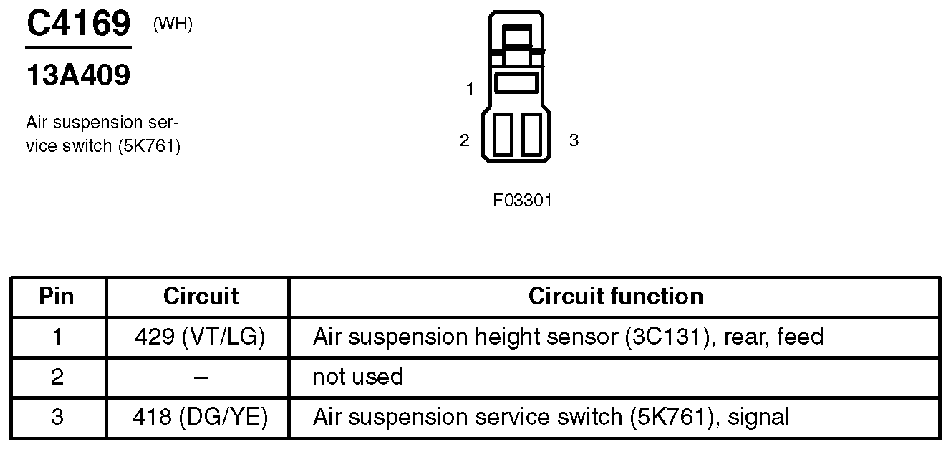

Fig 432: Air Suspension Service Switch Connector End View (C4169)
Courtesy of FORD MOTOR CO.

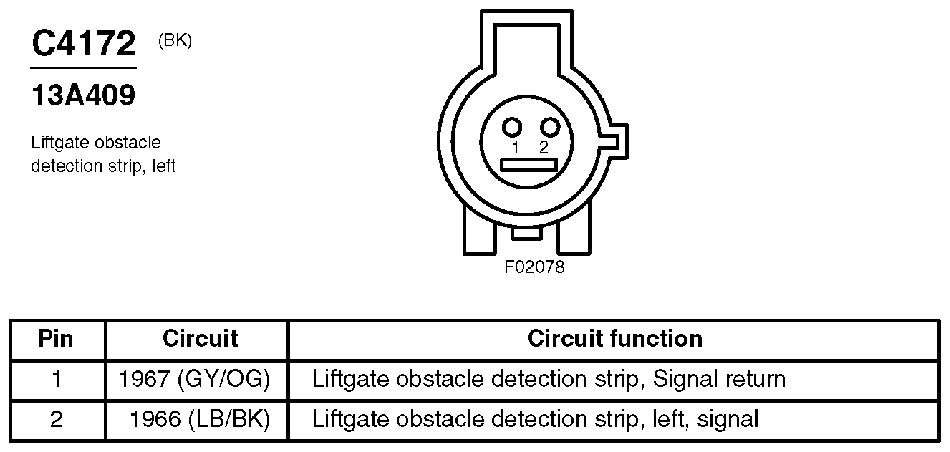

Fig 433: Liftgate Obstacle Detection Strip, Left Connector End View (C4172)
Courtesy of FORD MOTOR CO.

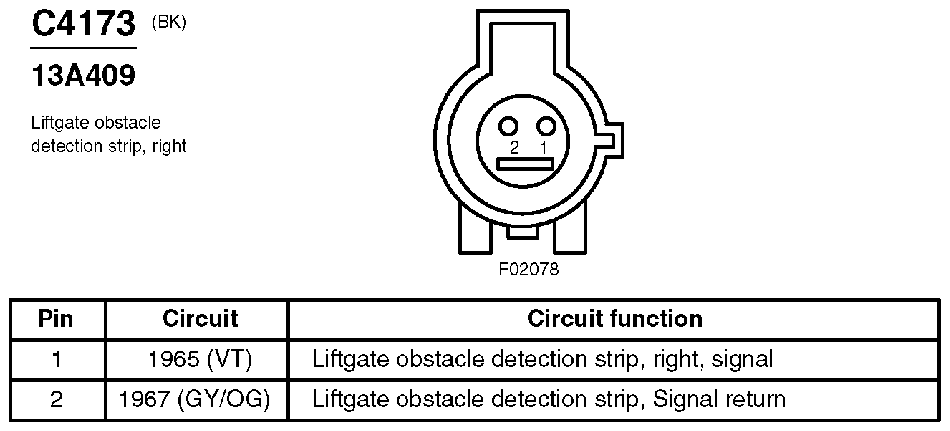

Fig 434: Liftgate Obstacle Detection Strip, Right Connector End View (C4173)
Courtesy of FORD MOTOR CO.

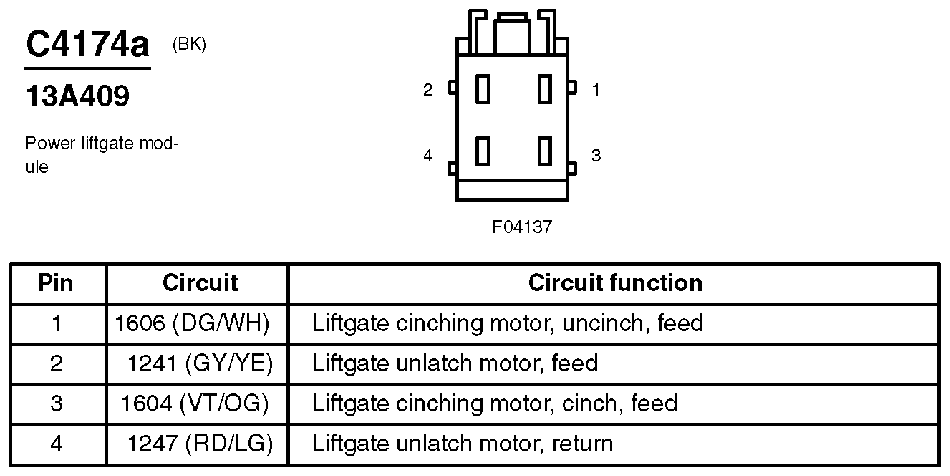

Fig 435: Power Liftgate Module Connector End View (C4174a)
Courtesy of FORD MOTOR CO.

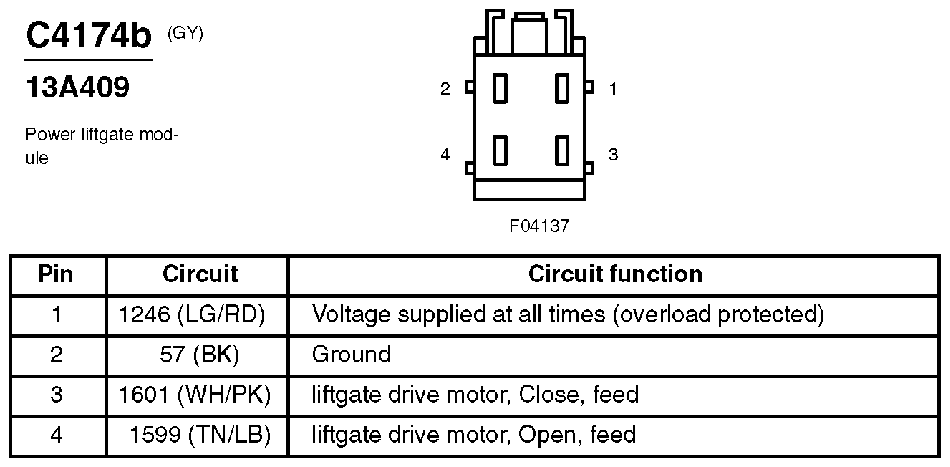

Fig 436: Power Liftgate Module Connector End View (C4174b)
Courtesy of FORD MOTOR CO.

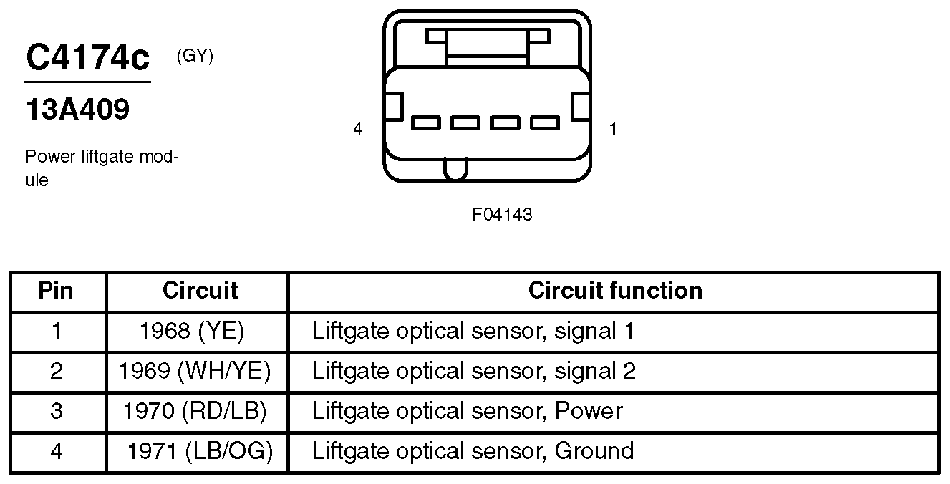

Fig 437: Power Liftgate Module Connector End View (C4174c)
Courtesy of FORD MOTOR CO.

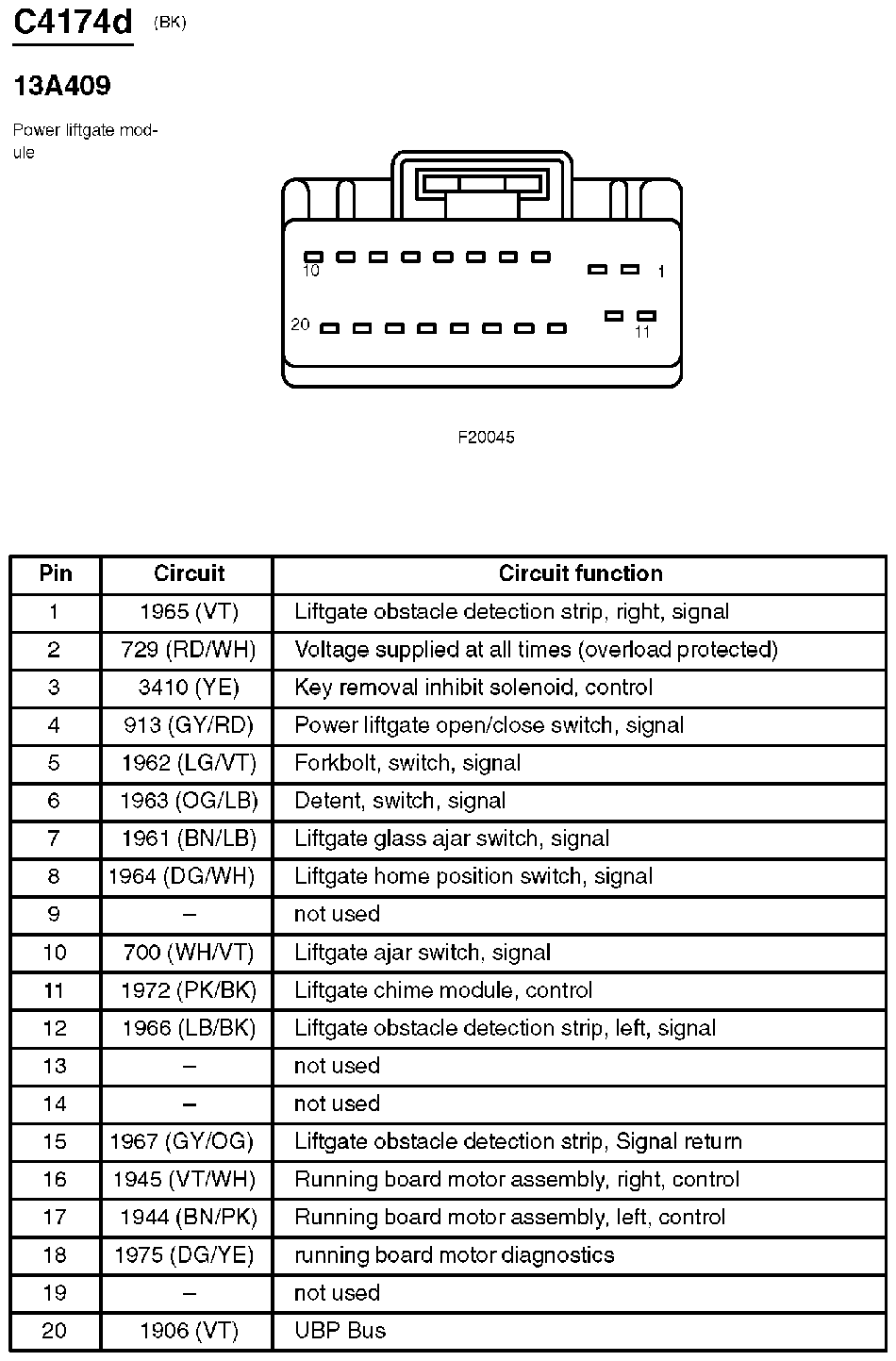

Fig 438: Power Liftgate Module Connector End View (C4174d)
Courtesy of FORD MOTOR CO.

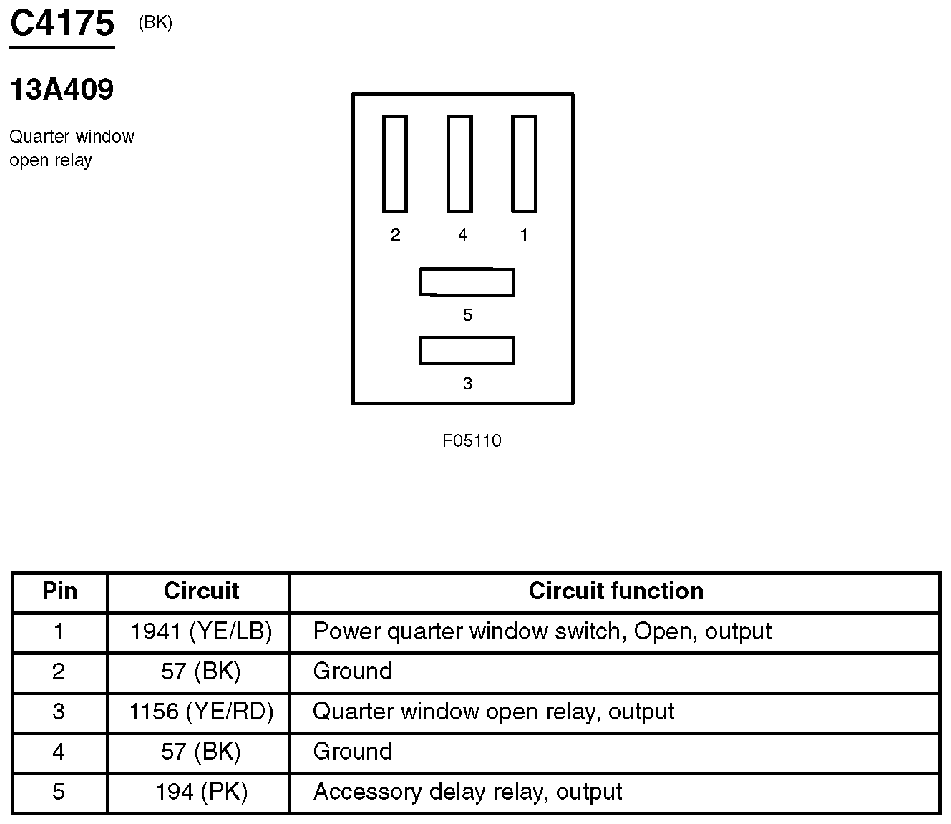

Fig 439: Quarter Window Open Relay Connector End View (C4175)
Courtesy of FORD MOTOR CO.

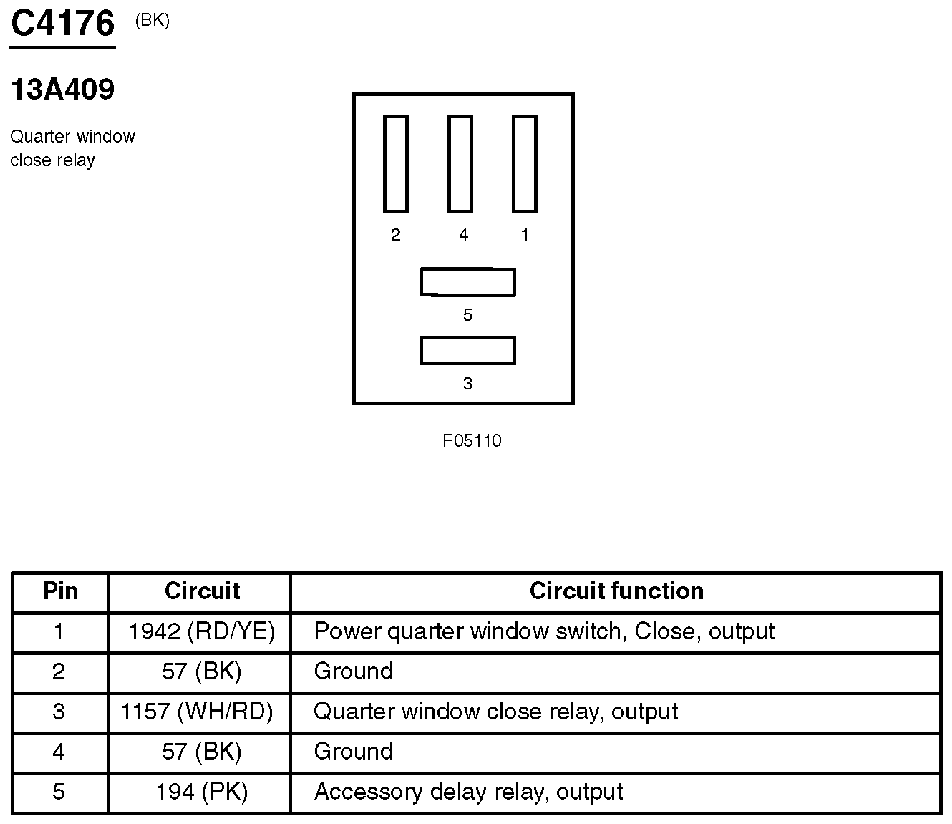

Fig 440: Quarter Window Close Relay Connector End View (C4176)
Courtesy of FORD MOTOR CO.

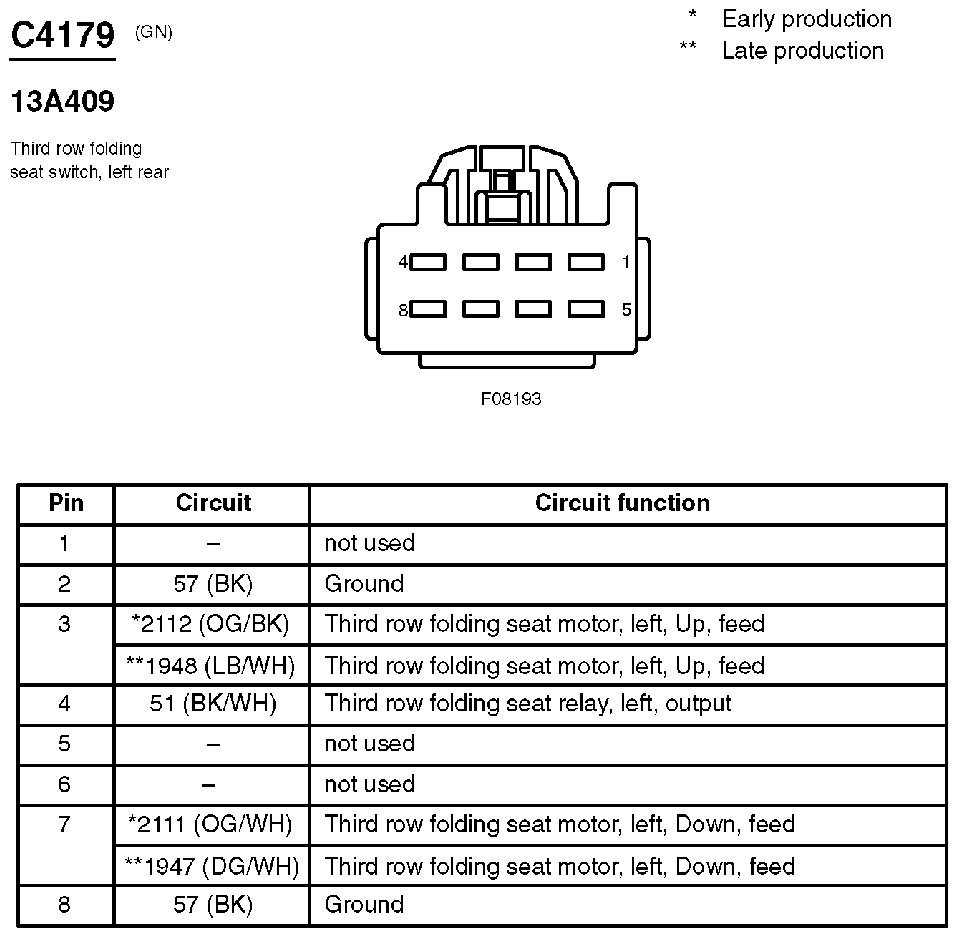

Fig 441: Third Row Folding Seat Switch, Left Connector End View (C4179)
Courtesy of FORD MOTOR CO.

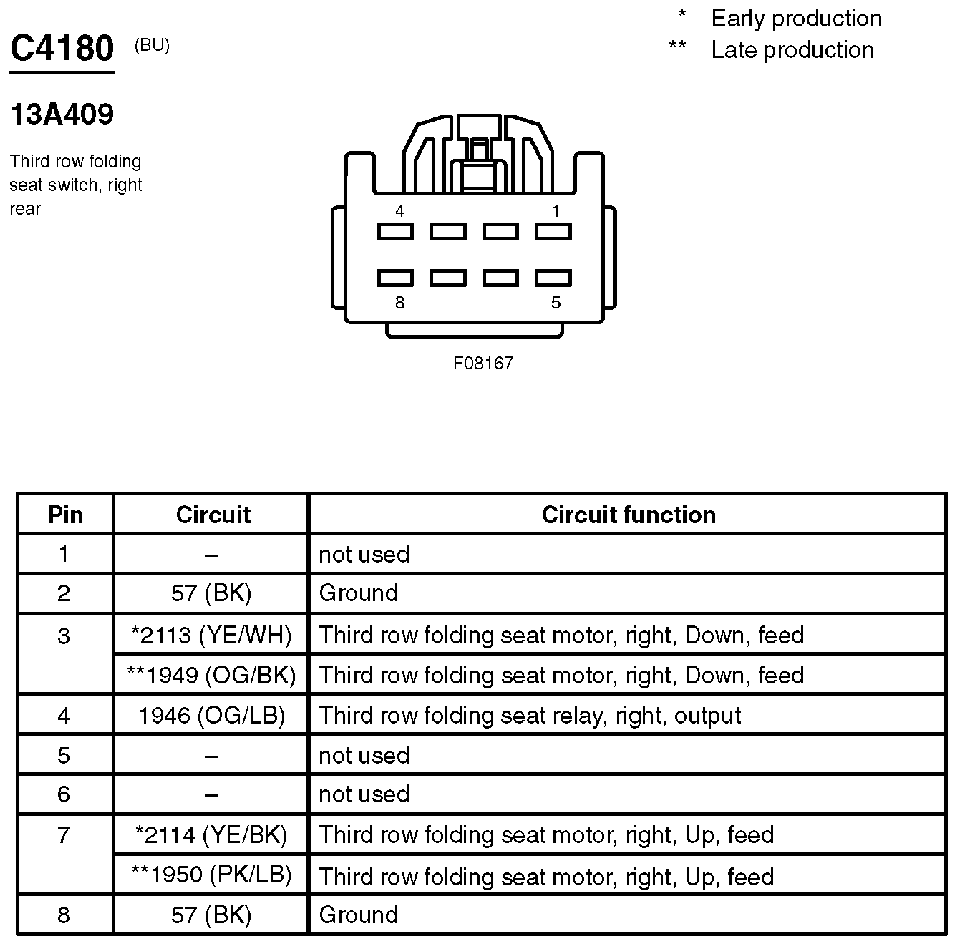

Fig 442: Third Row Folding Seat Switch, Right Rear Connector End View (C4180)
Courtesy of FORD MOTOR CO.

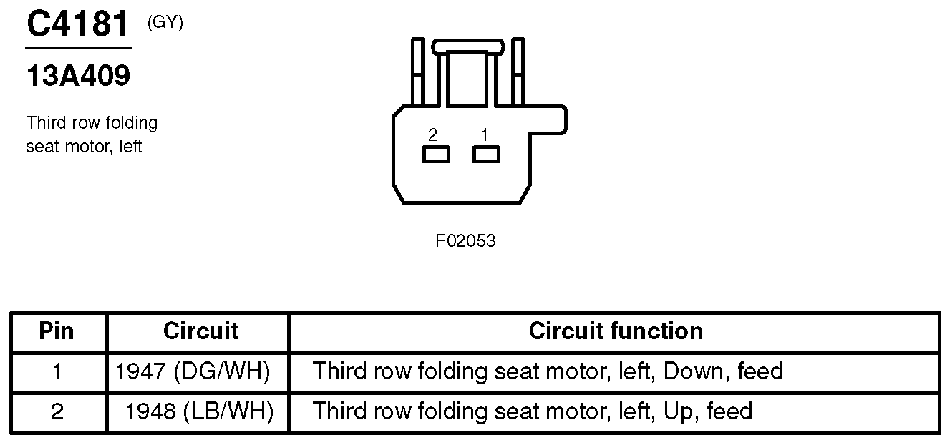

Fig 443: Third Row Folding Seat Motor, Left Connector End View (C4181)
Courtesy of FORD MOTOR CO.

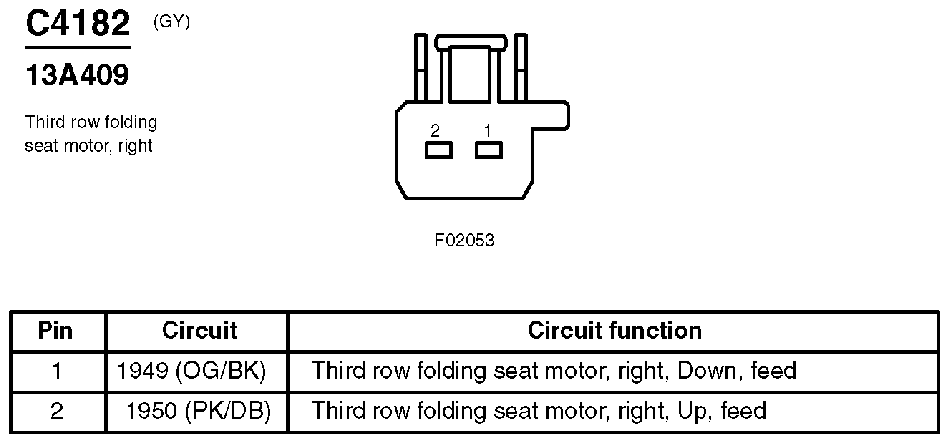

Fig 444: Third Row Folding Seat Motor, Right Connector End View (C4182)
Courtesy of FORD MOTOR CO.

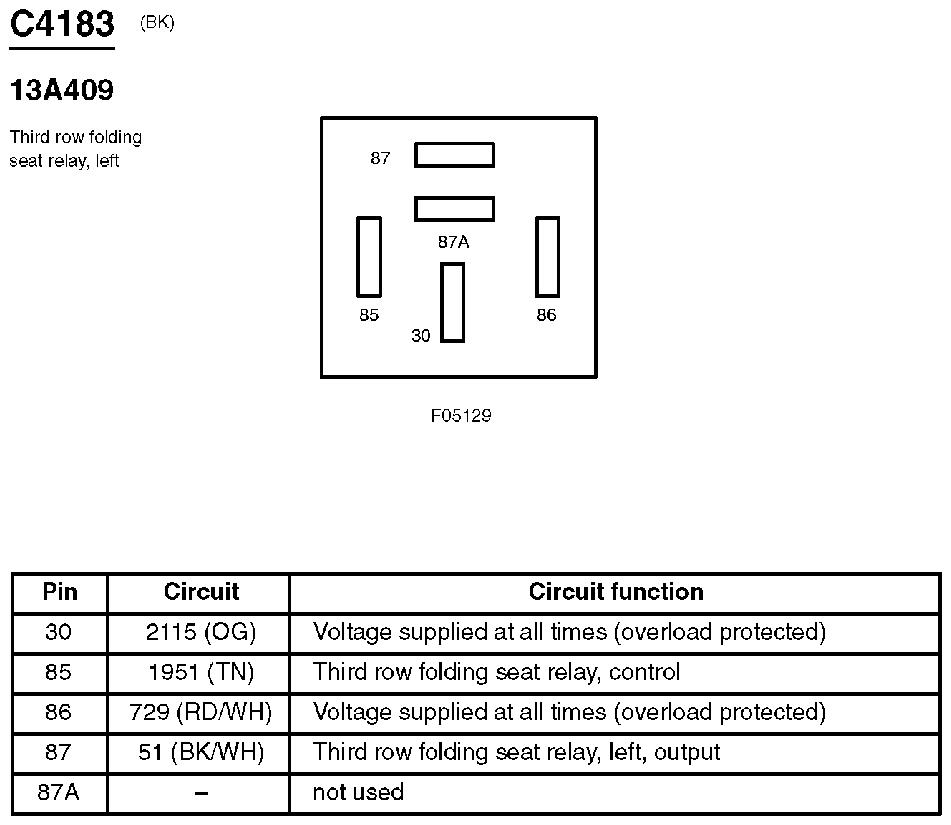

Fig 445: Third Row Folding Seat Relay, Left Connector End View (C4183)
Courtesy of FORD MOTOR CO.
Fig 446: Third Row Folding Seat Relay, Right Connector End View (C4184)
Courtesy of FORD MOTOR CO.

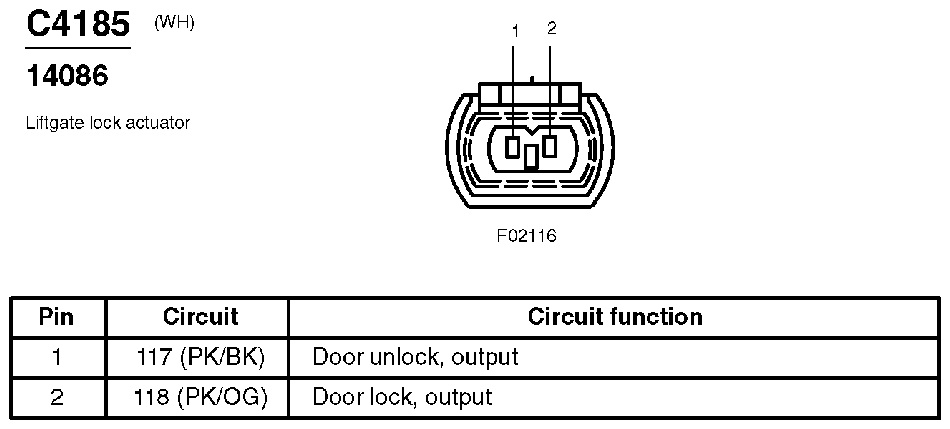

Fig 447: Liftgate Lock Actuator Connector End View (C4185)
Courtesy of FORD MOTOR CO.

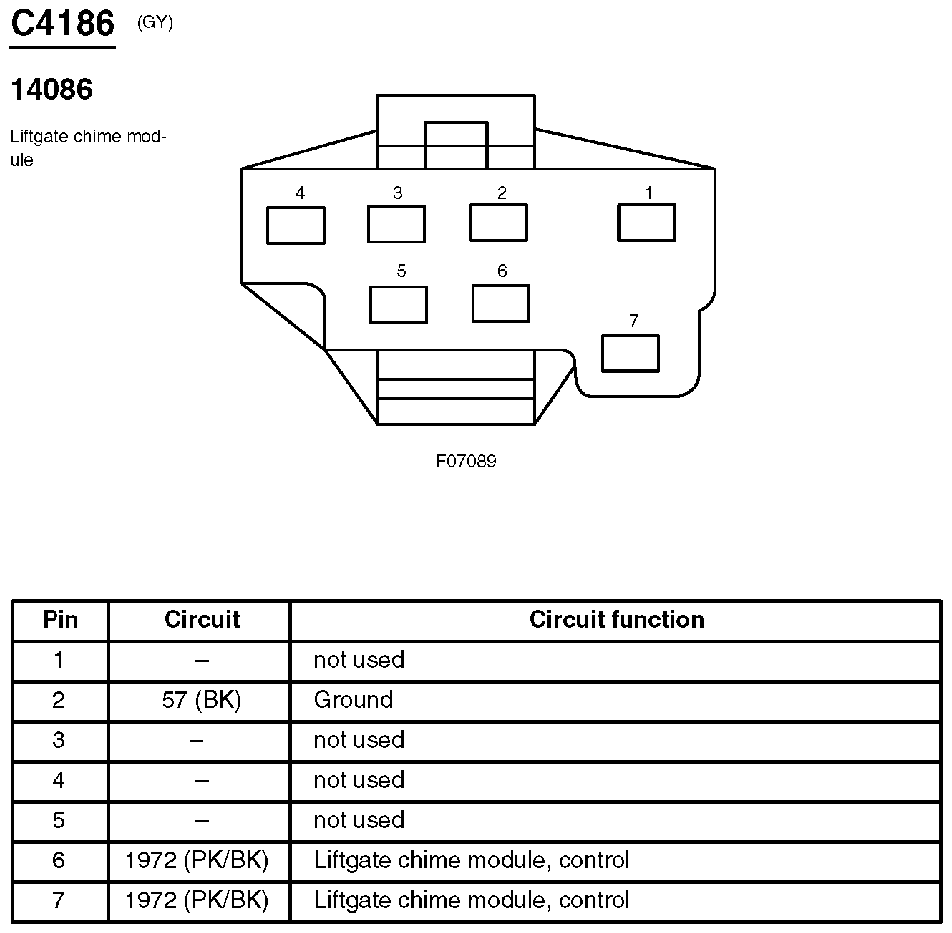

Fig 448: Liftgate Chime Module Connector End View (C4186)
Courtesy of FORD MOTOR CO.

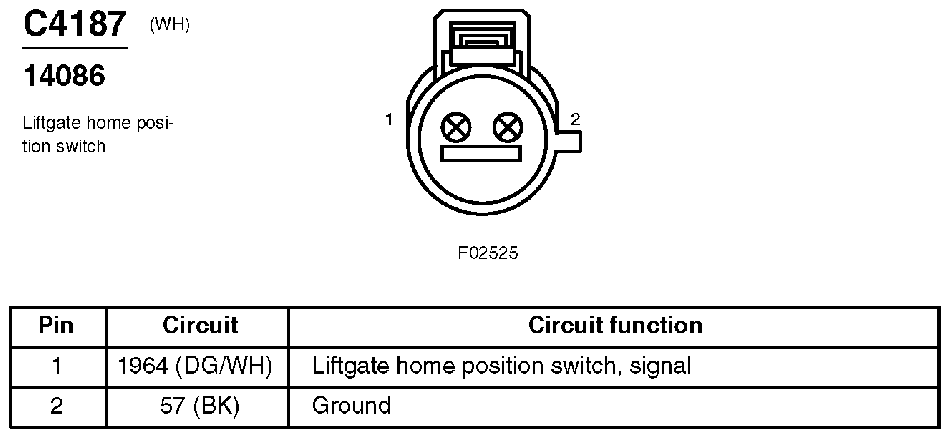

Fig 449: Liftgate Home Position Switch Connector End View (C4187)
Courtesy of FORD MOTOR CO.

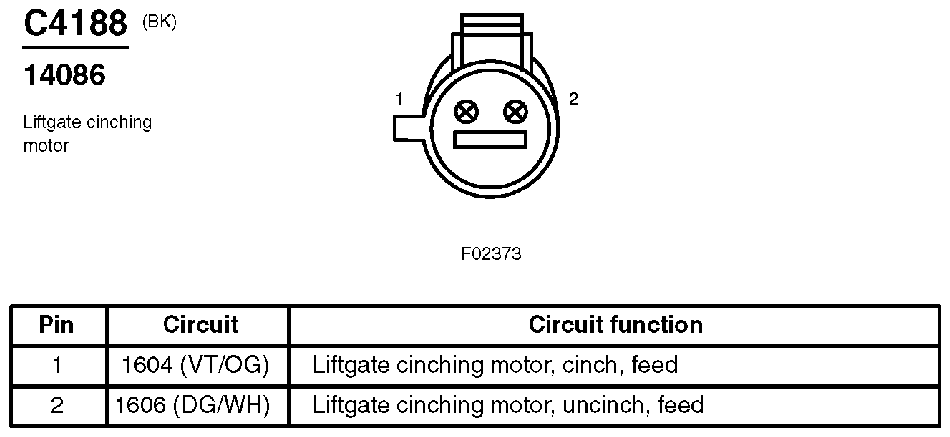

Fig 450: Liftgate Cinching Motor Connector End View (C4188)
Courtesy of FORD MOTOR CO.

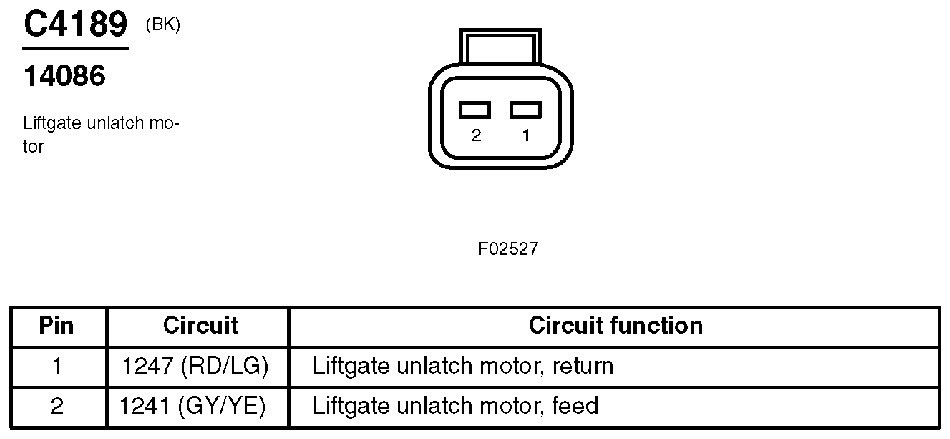

Fig 451: Liftgate Unlatch Motor Connector End View (C4189)
Courtesy of FORD MOTOR CO.

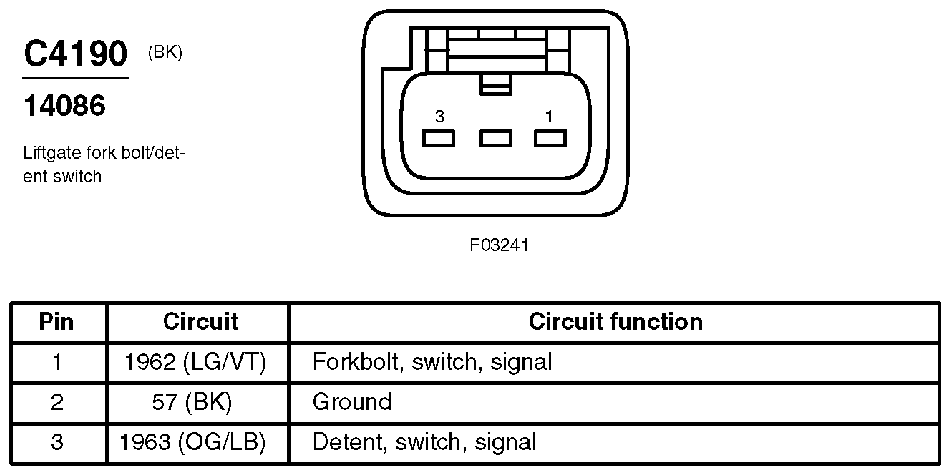

Fig 452: Liftgate Fork Bolt/Detent Switch Connector End View (C4190)
Courtesy of FORD MOTOR CO.

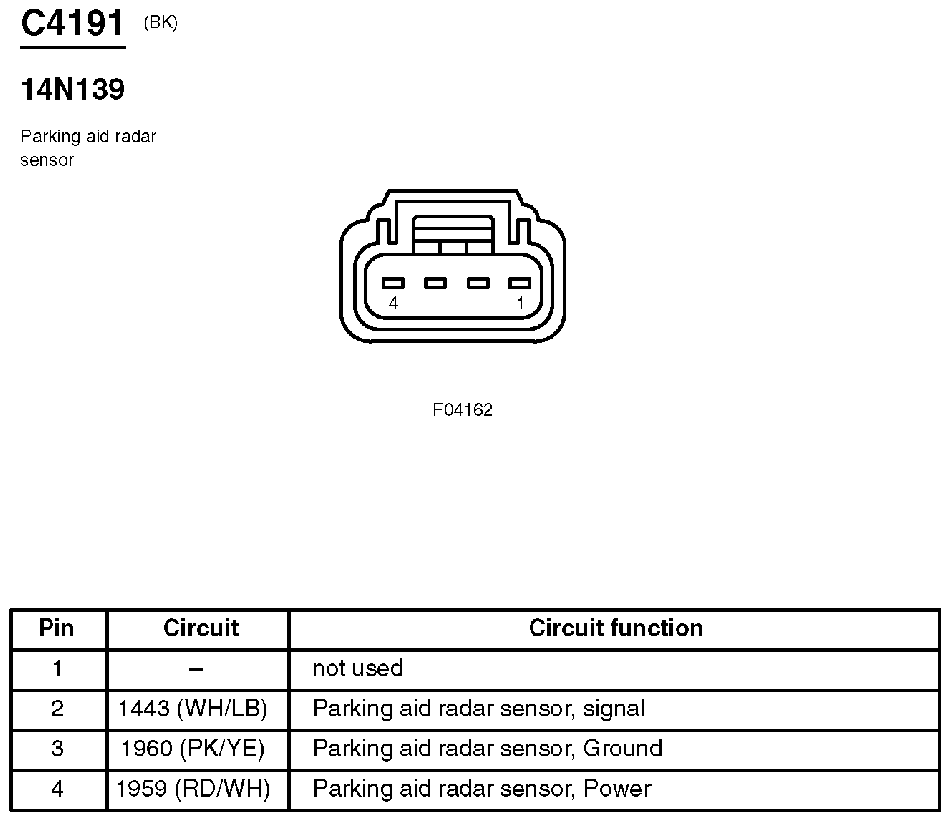

Fig 453: Parking Aid Radar Sensor Connector End View (C4191)
Courtesy of FORD MOTOR CO.

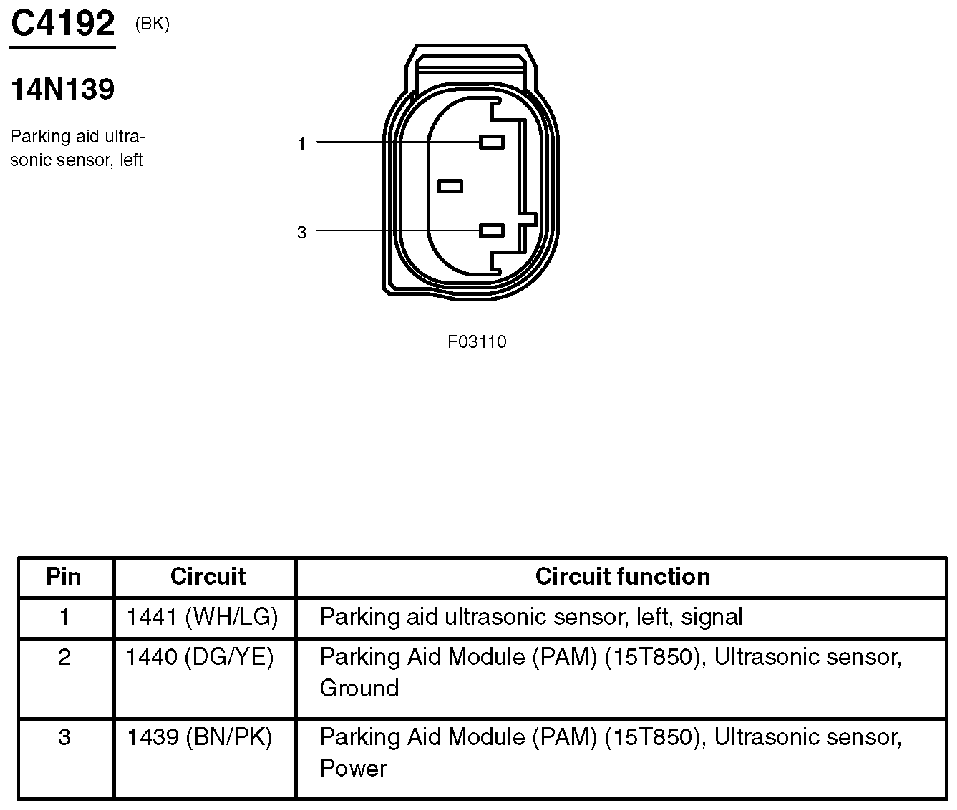

Fig 454: Parking Aid Ultrasonic Sensor, Left Connector End View (C4192)
Courtesy of FORD MOTOR CO.

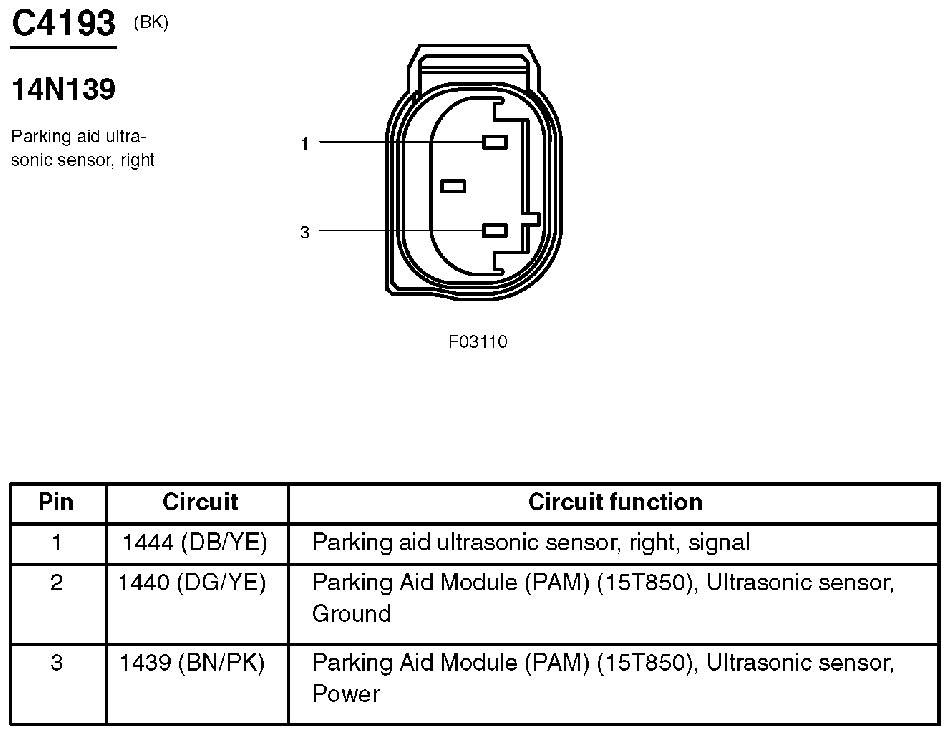

Fig 455: Parking Aid Ultrasonic Sensor, Right Connector End View (C4193)
Courtesy of FORD MOTOR CO.

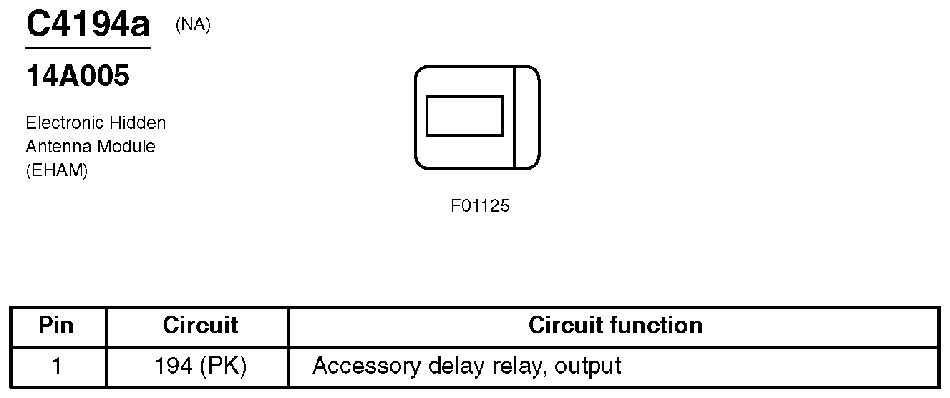

Fig 456: Electronic Hidden Antenna Module (EHAM) Connector End View (C4194a)
Courtesy of FORD MOTOR CO.

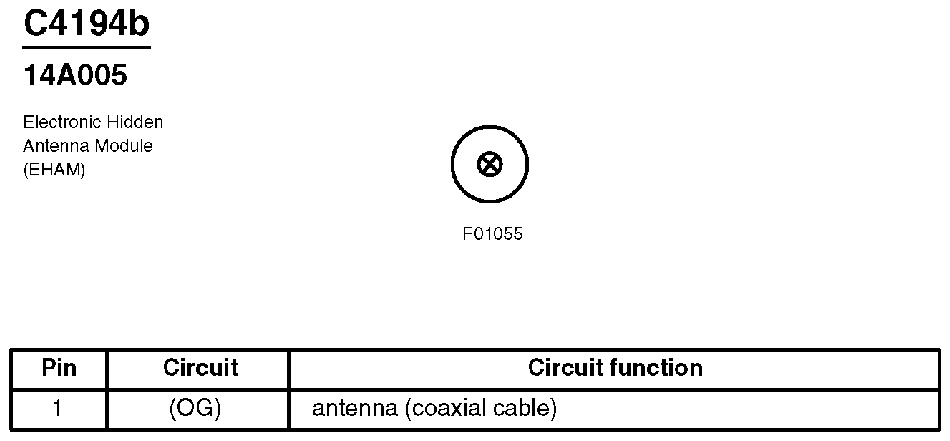

Fig 457: Electronic Hidden Antenna Module (EHAM) Connector End View (C4194b)
Courtesy of FORD MOTOR CO.

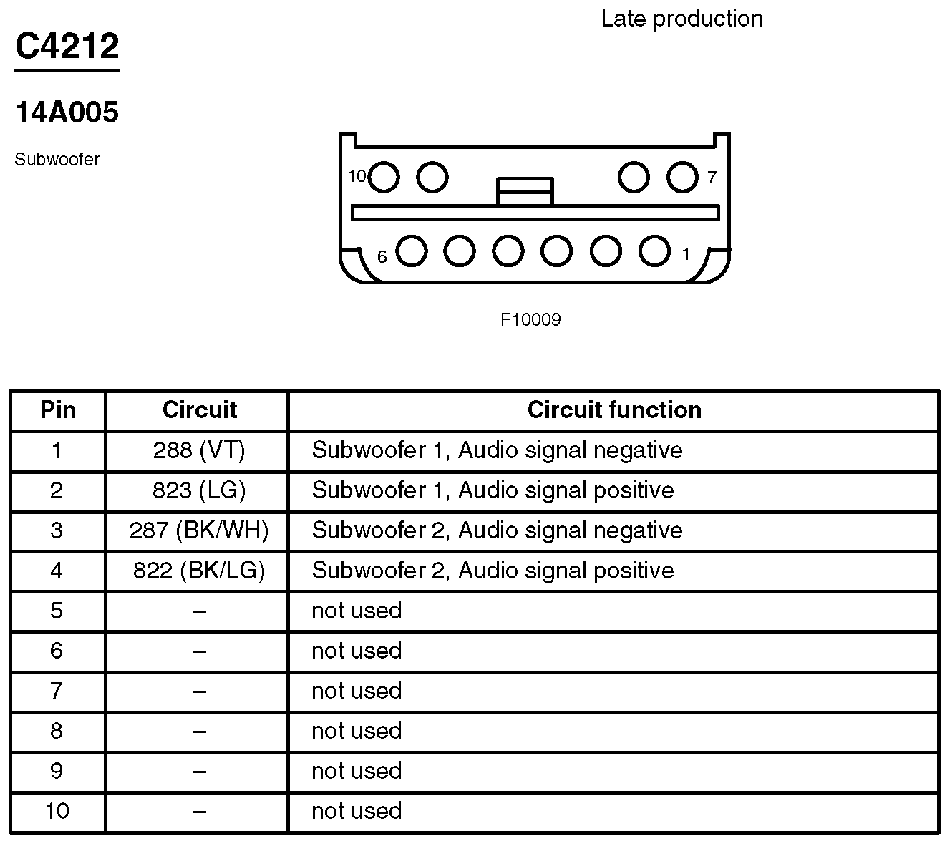

Fig 458: Subwoofer Connector End View (C4212)
Courtesy of FORD MOTOR CO.

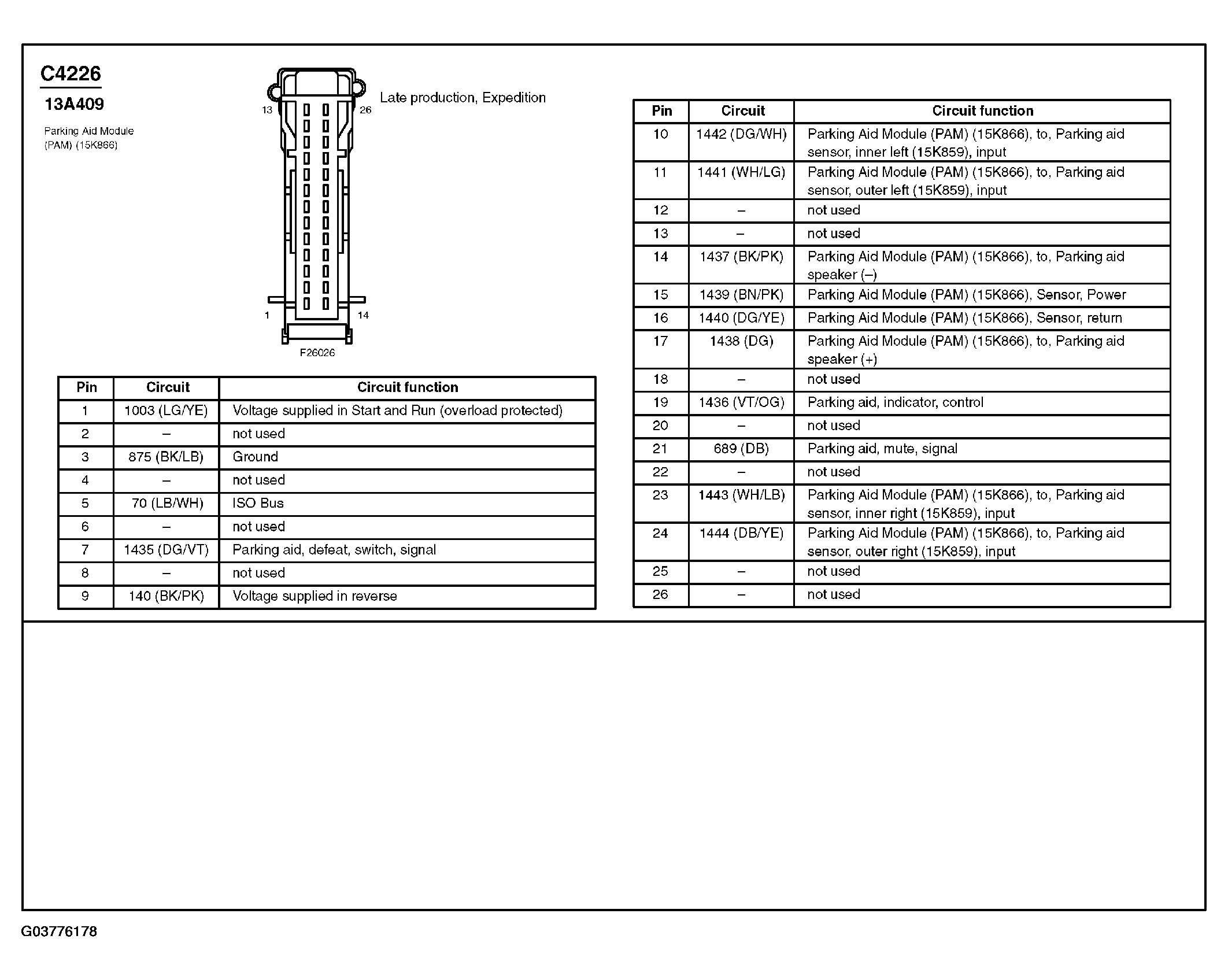

Fig 459: Parking Aid Module (PAM) Connector End View (C4226)
Courtesy of FORD MOTOR CO.

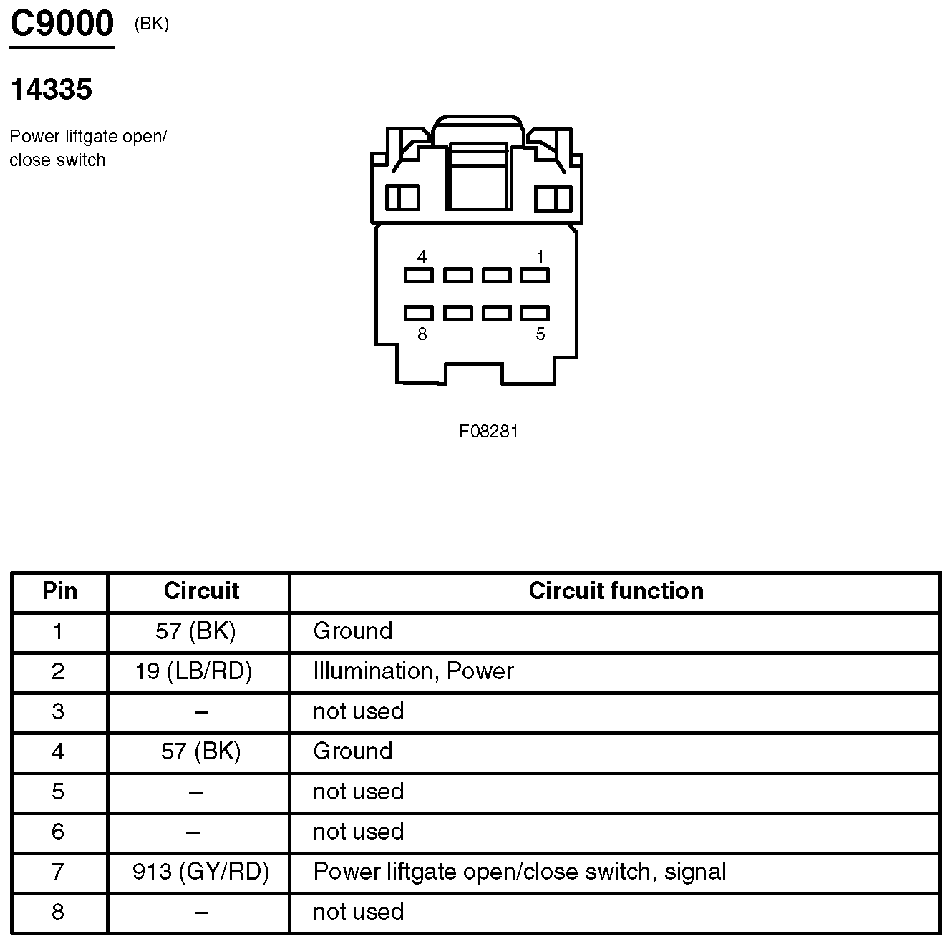

Fig 460: Power Liftgate Open/Close Switch Connector End View (C9000)
Courtesy of FORD MOTOR CO.
Fig 461: Roof Opening Panel Switch Connector End View (C9001)
Courtesy of FORD MOTOR CO.

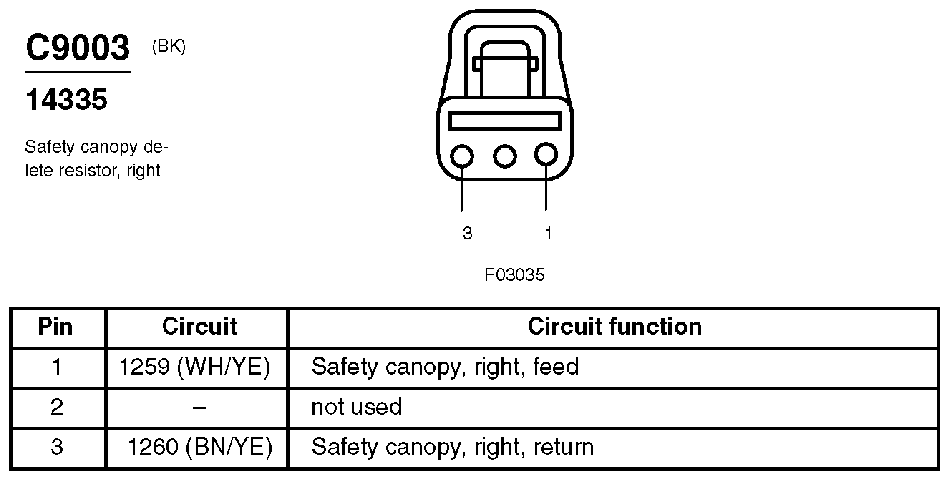

Fig 462: Safety Canopy Delete Resistor, Right Connector End View (C9003)
Courtesy of FORD MOTOR CO.

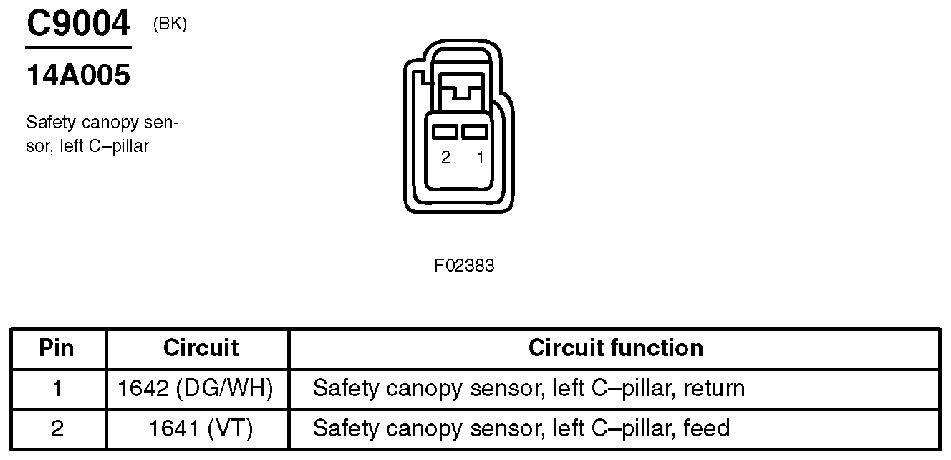

Fig 463: Safety Canopy Sensor, Left C-Pillar Connector End View (C9004)
Courtesy of FORD MOTOR CO.

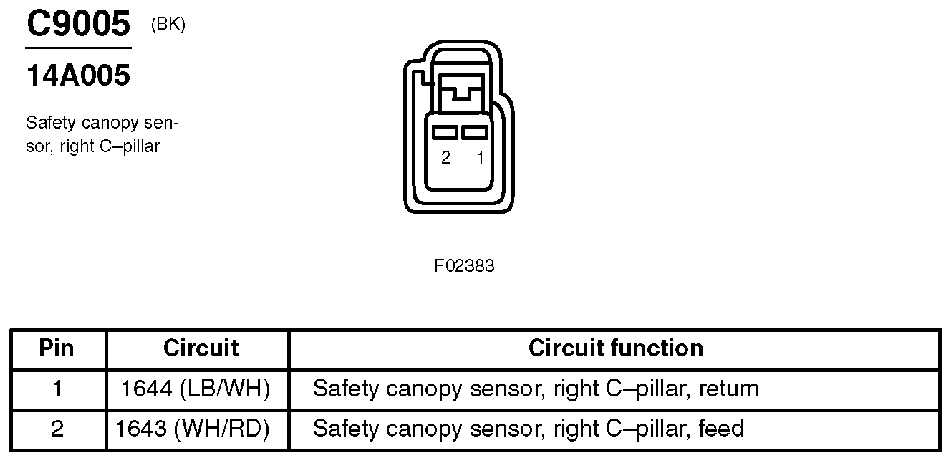

Fig 464: Safety Canopy Sensor, Right C-Pillar Connector End View (C9005)
Courtesy of FORD MOTOR CO.

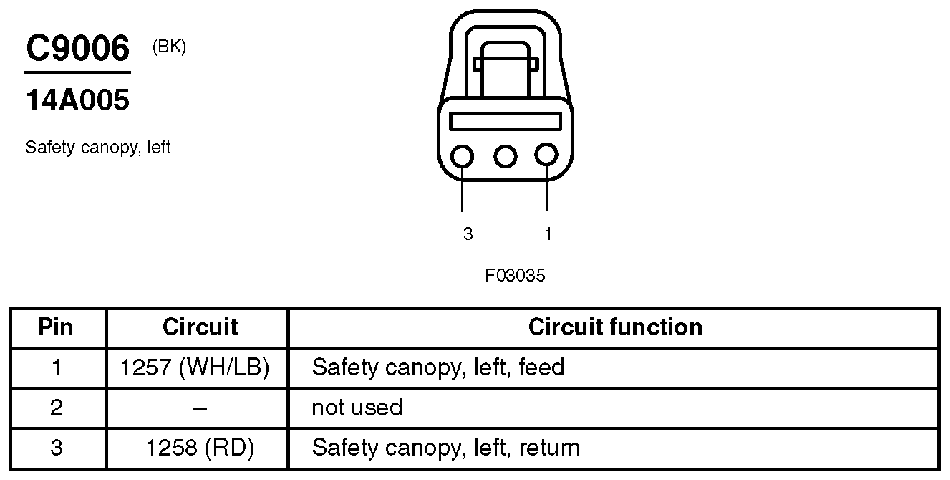

Fig 465: Safety Canopy, Left Connector End View (C9006)
Courtesy of FORD MOTOR CO.

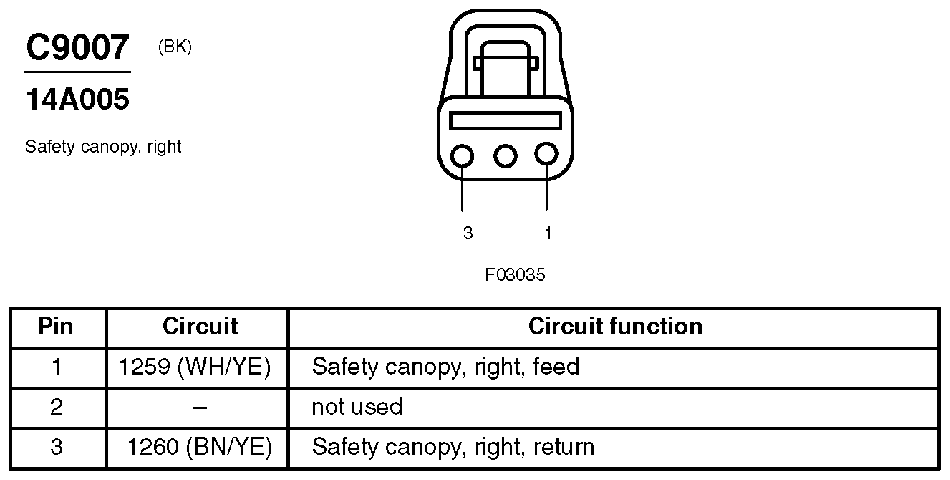

Fig 466: Safety Canopy, Right Connector End View (C9007)
Courtesy of FORD MOTOR CO.

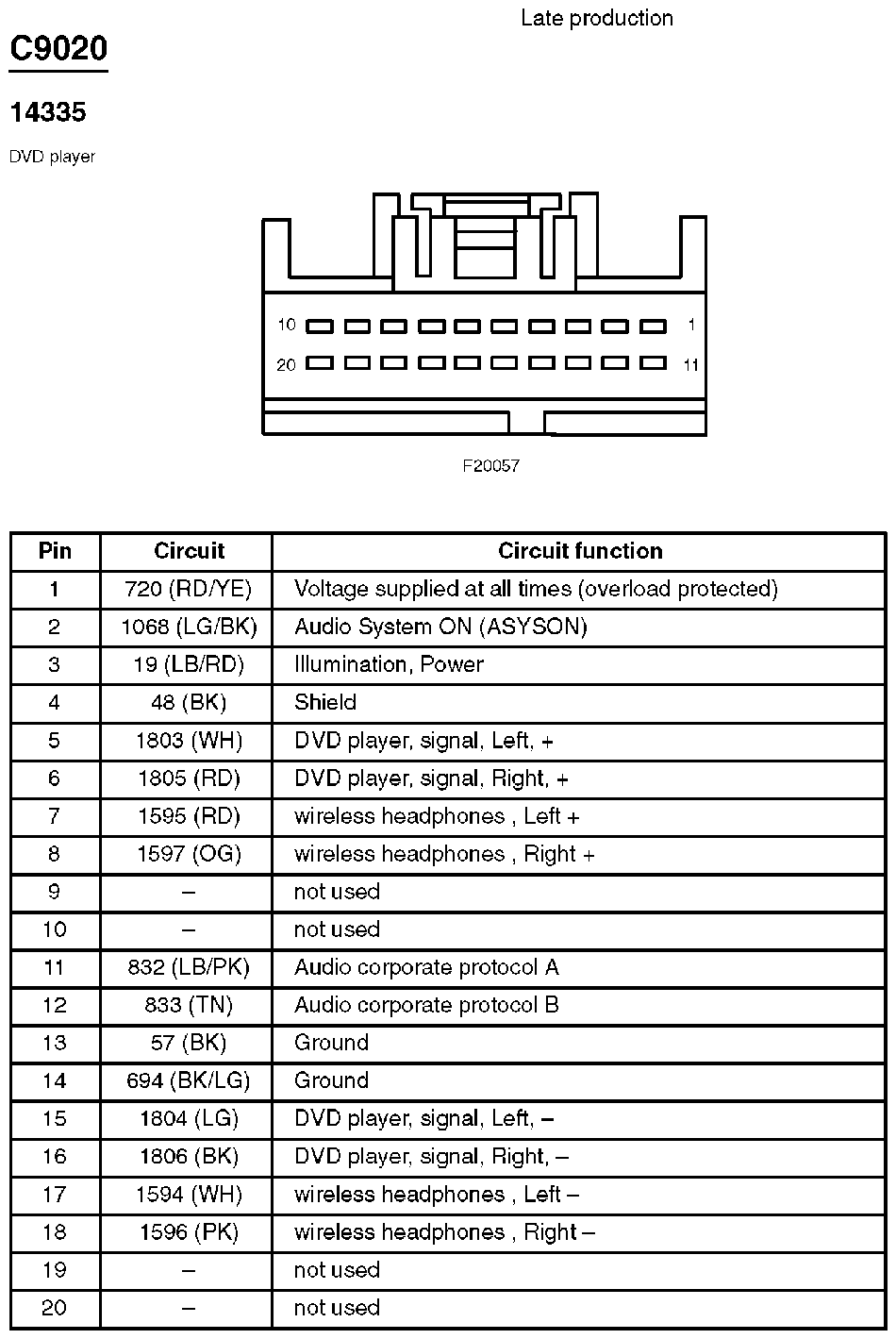

Fig 467: DVD Player Connector End View (C9020)
Courtesy of FORD MOTOR CO.
