Disassembly And Assembly Of Subassemblies: Piston: Assembly

    NOTE: Connecting rod must be installed into piston with identification markings toward front.

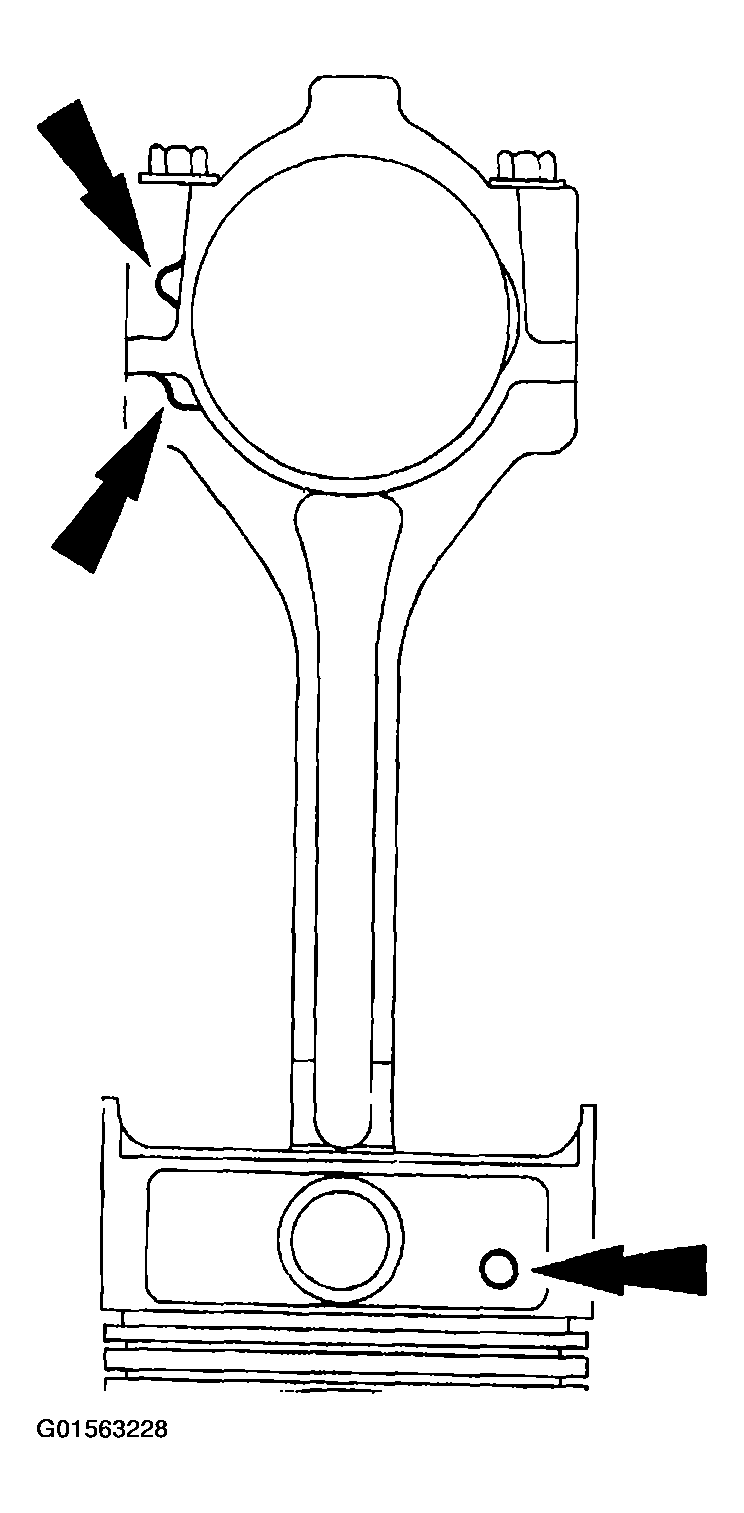

    Fig 1: Identifying Piston Identification Markings Position
    G01563228Courtesy of FORD MOTOR CO.
  1. Position the connecting rod in the piston.
  2. Lubricate the piston pin and pin bore with clean engine oil.

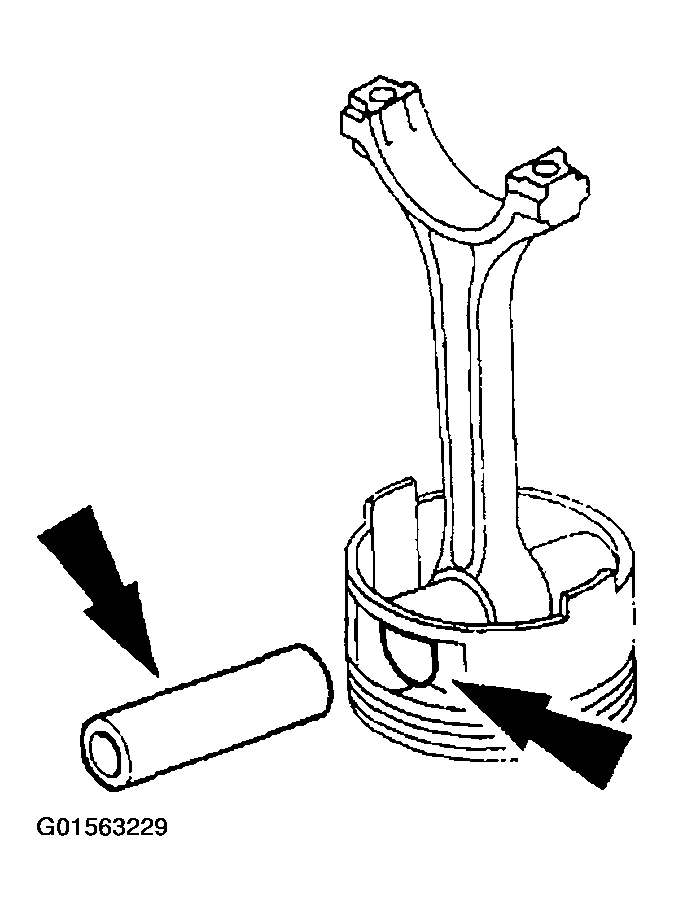

    Fig 2: Lubricating Piston Pin And Pin Bore With Clean Engine Oil
    G01563229Courtesy of FORD MOTOR CO.
  3. Install the piston pin in the piston and connecting rod assembly.

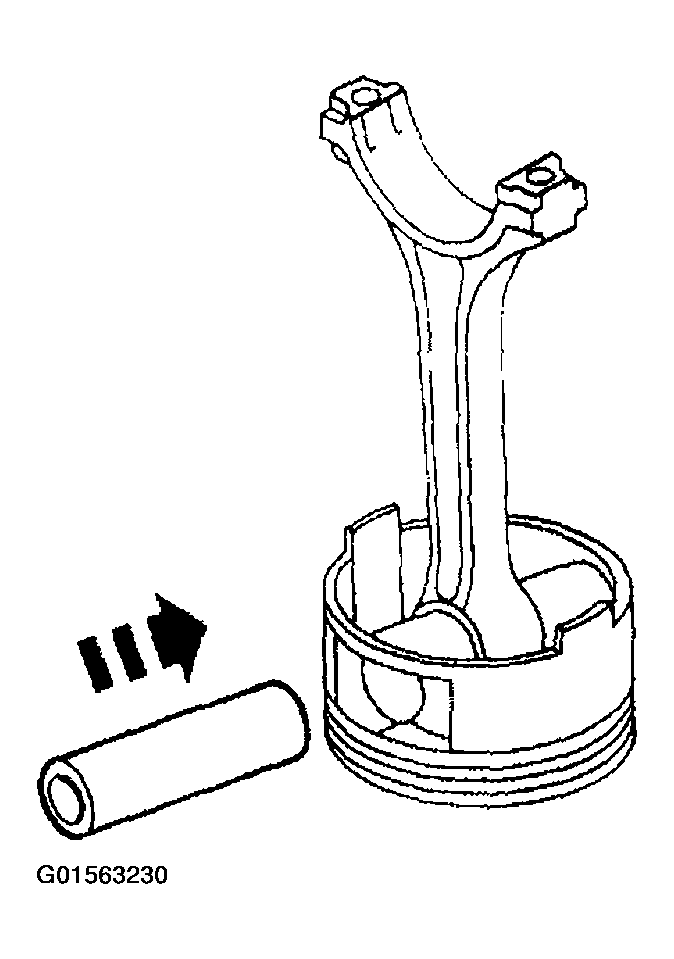

    Fig 3: Installing Piston Pin In Piston And Connecting Rod Assembly
    G01563230Courtesy of FORD MOTOR CO.
  4. Install the piston pin retaining clips in the piston.

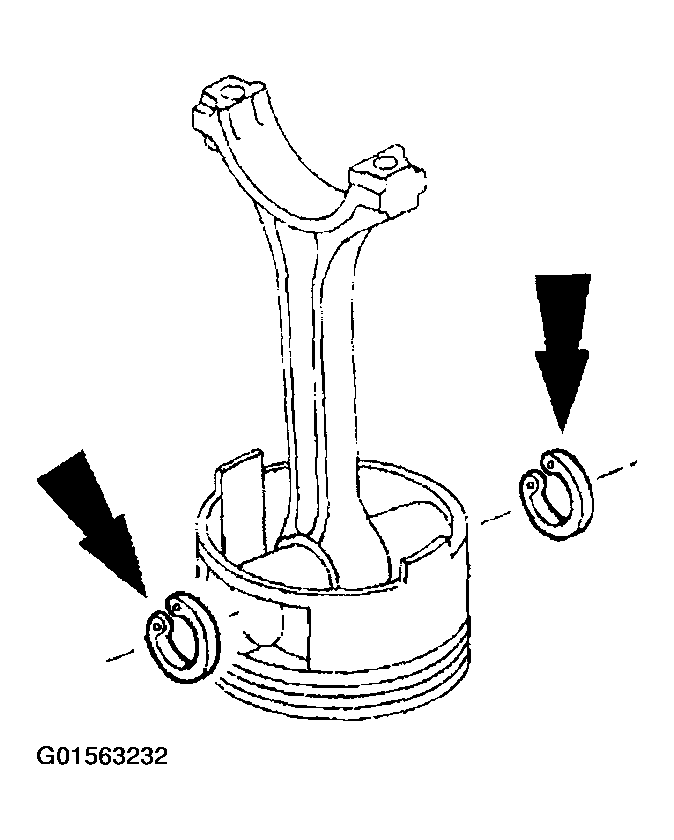

    Fig 4: Installing Piston Pin Retaining Clips In Piston
    G01563232Courtesy of FORD MOTOR CO.
