Description And Operation: GEARTRAIN: Notes

Power is transmitted from the torque converter to the geartrain components through the input shaft and forward clutch cylinder.

By holding or driving certain members of the gearset, four forward ratios and one reverse ratio are obtained and transmitted to the output shaft. The ratios are as follows:

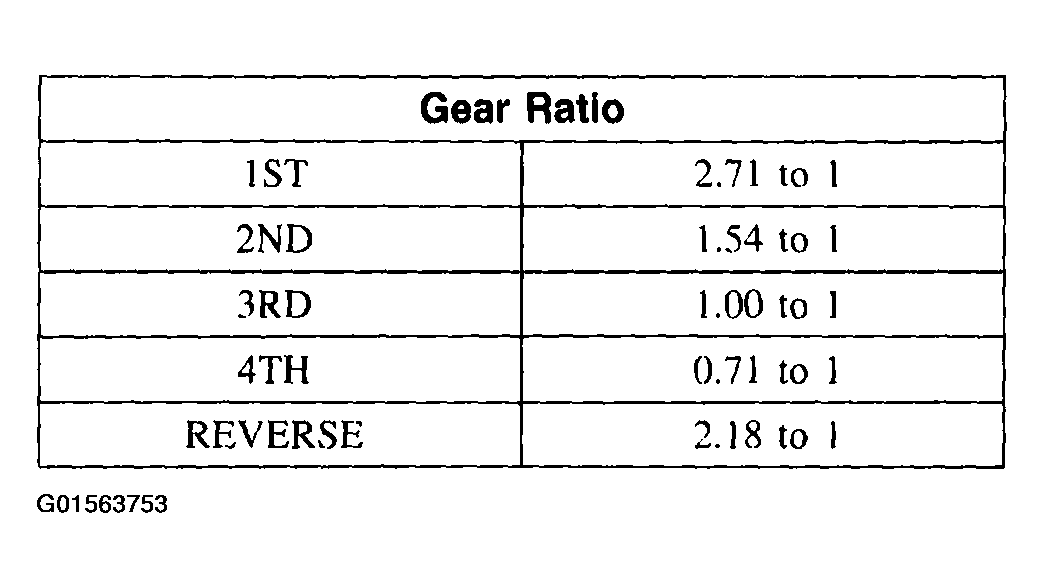

Fig 1: Identifying Gear Ratio Specifications

Courtesy of FORD MOTOR CO.
