Pump Assembly: Notes

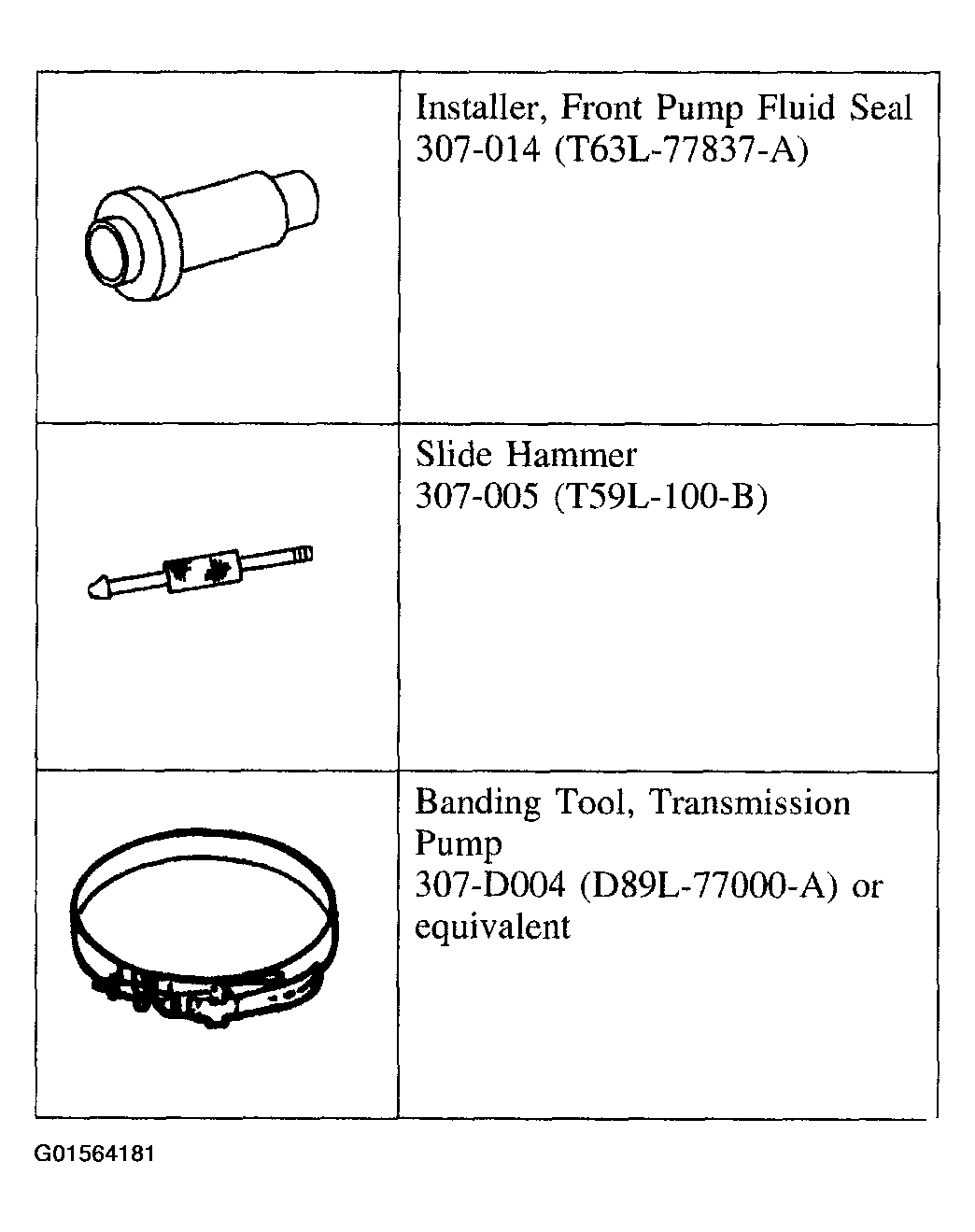

Fig 1: Identifying Special Tool (1 Of 2)
G01564181Courtesy of FORD MOTOR CO.
Fig 2: Identifying Special Tool (2 Of 2)
G01564182Courtesy of FORD MOTOR CO.
Fig 3: Identifying Material Specifications
G01564183Courtesy of FORD MOTOR CO.
Fig 4: Exploded View Of Pump Assembly Components And Item Description Chart
G01564184Courtesy of FORD MOTOR CO.

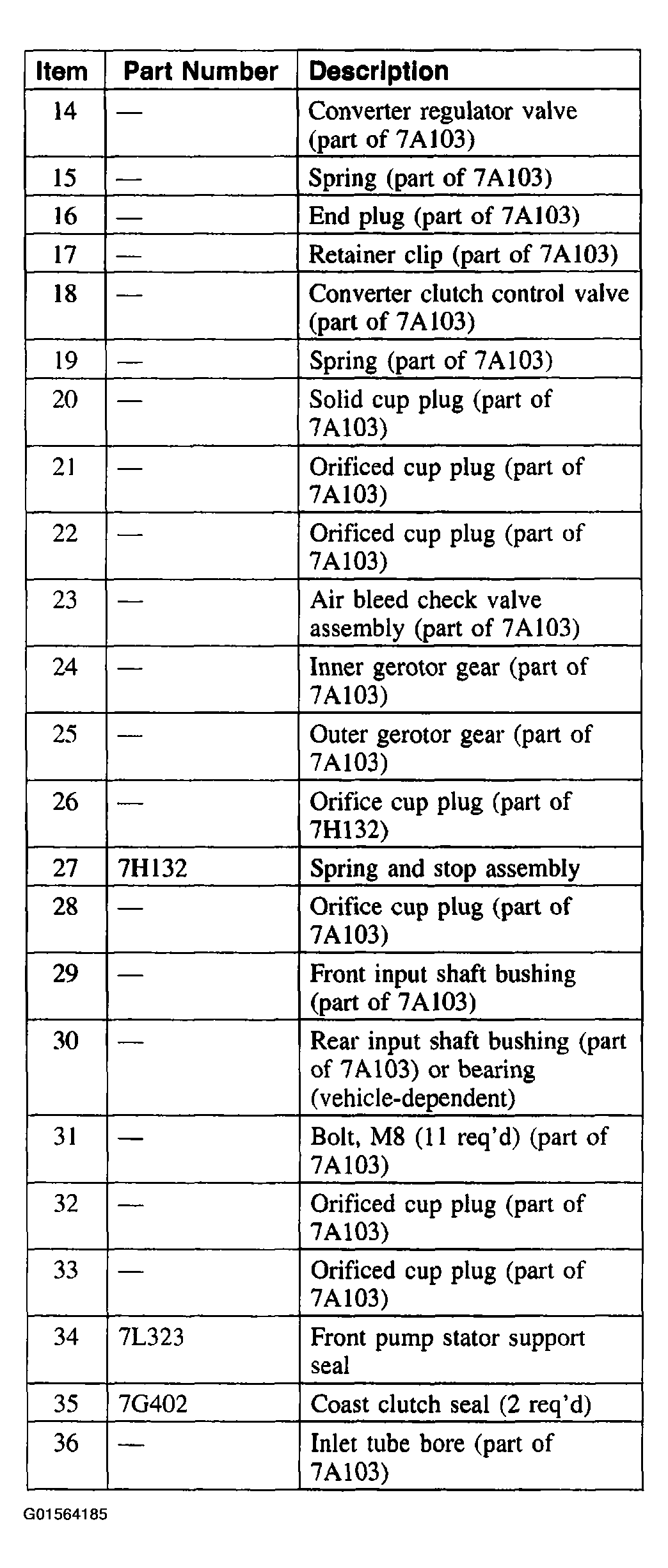

Fig 5: Identifying Pump Assembly Components Item Description Chart
G01564185Courtesy of FORD MOTOR CO.
