Automatic Transaxle/Transmission
>>
Specifications
>>
Band/Clutch Specifications
Band/Clutch Specifications
Fig 1: Identifying Band/Clutch Application Chart A
Courtesy of FORD MOTOR CO.

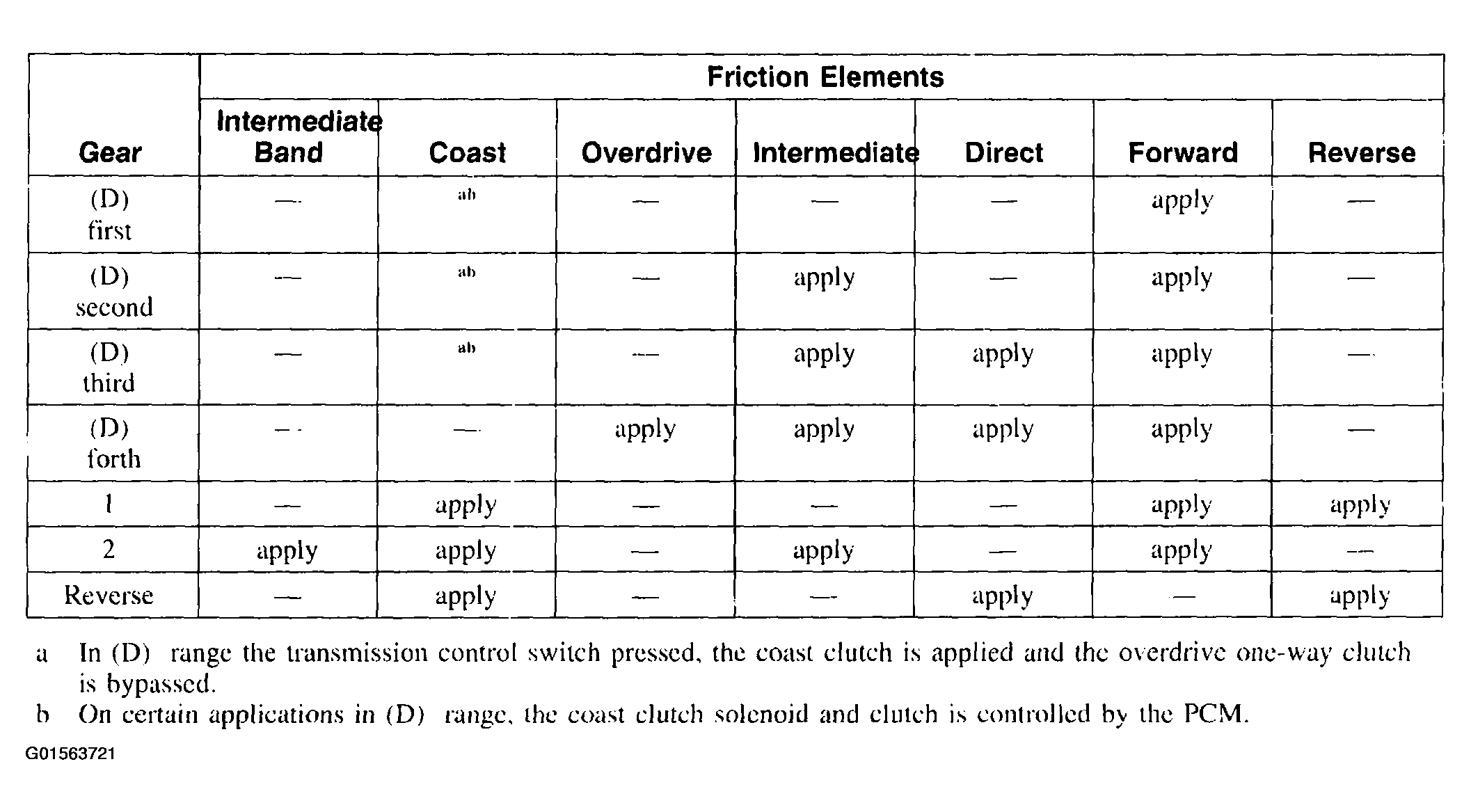

Fig 2: Band/Clutch Application Chart B
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
