Home >> Lincoln >> 2003 >> Town Car Base >> Repair and Diagnosis >> Body & Frame >> Windows >> Component Tests >> Component Testing >> MULTIFUNCTION Switch

MULTIFUNCTION Switch

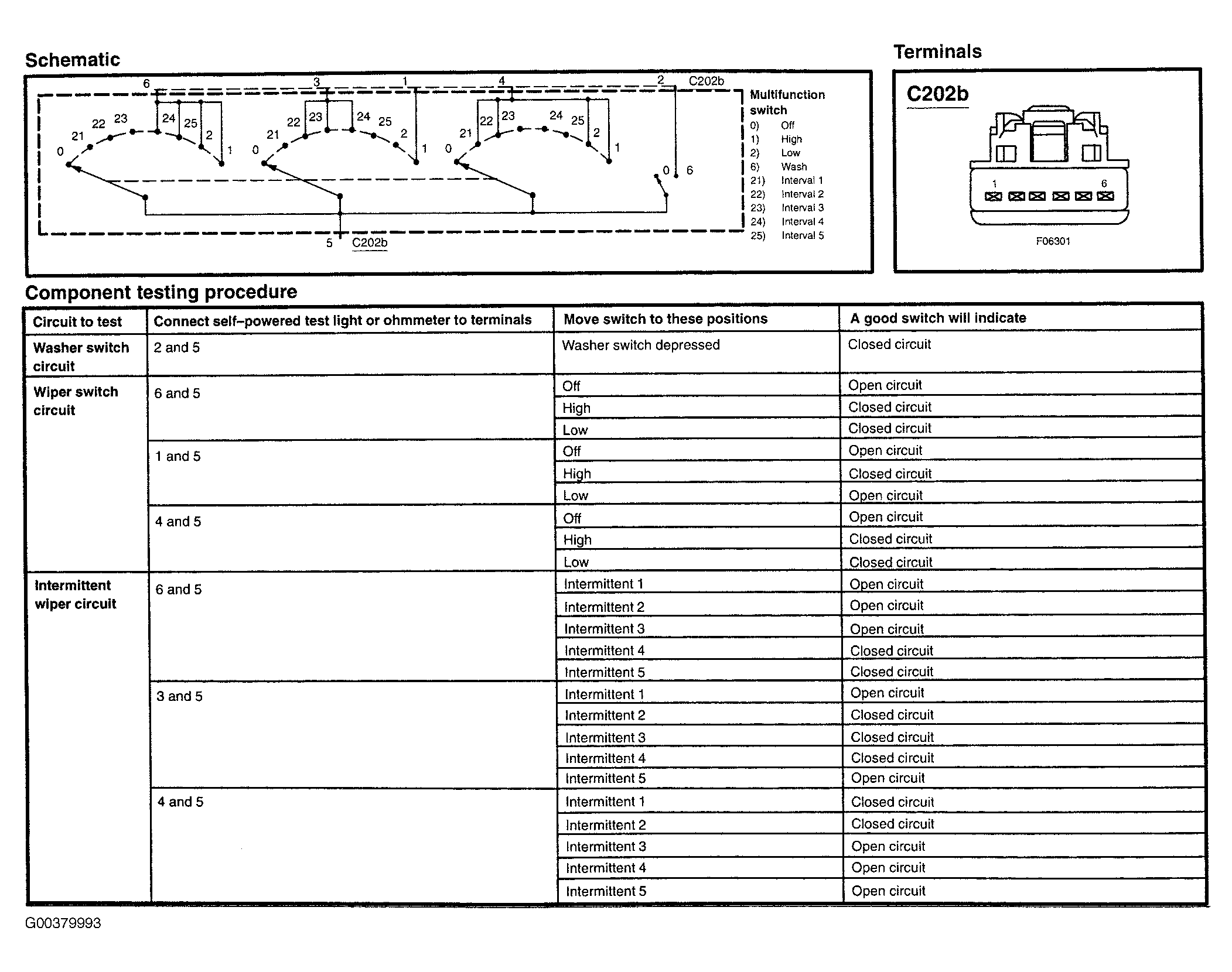

Fig 1: Testing Multifunction Switch - Front Wiper
G00379993Courtesy of FORD MOTOR CO.

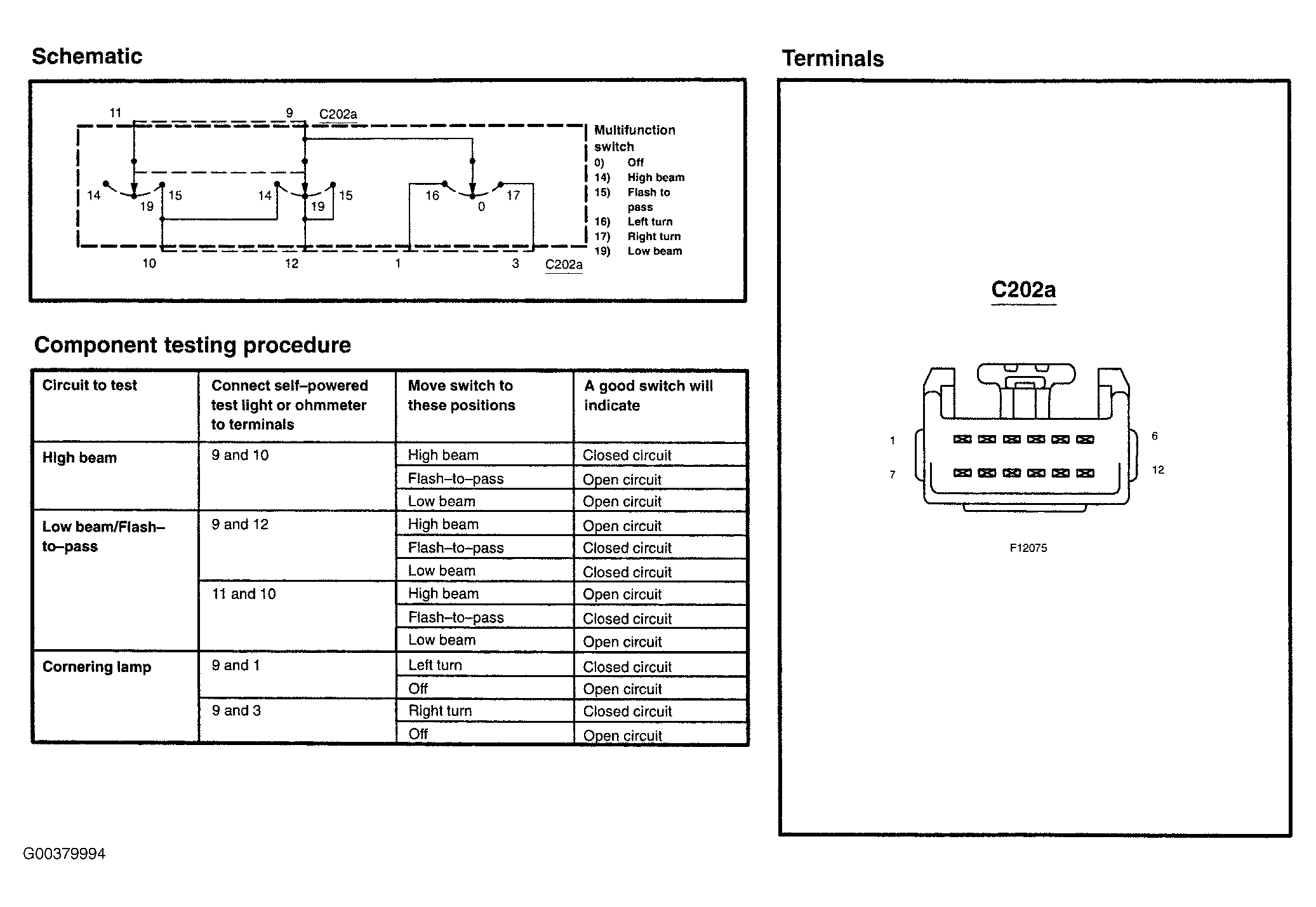

Fig 2: Testing Multifunction Switch - Lamp Portion (1 Of 2)
G00379994Courtesy of FORD MOTOR CO.

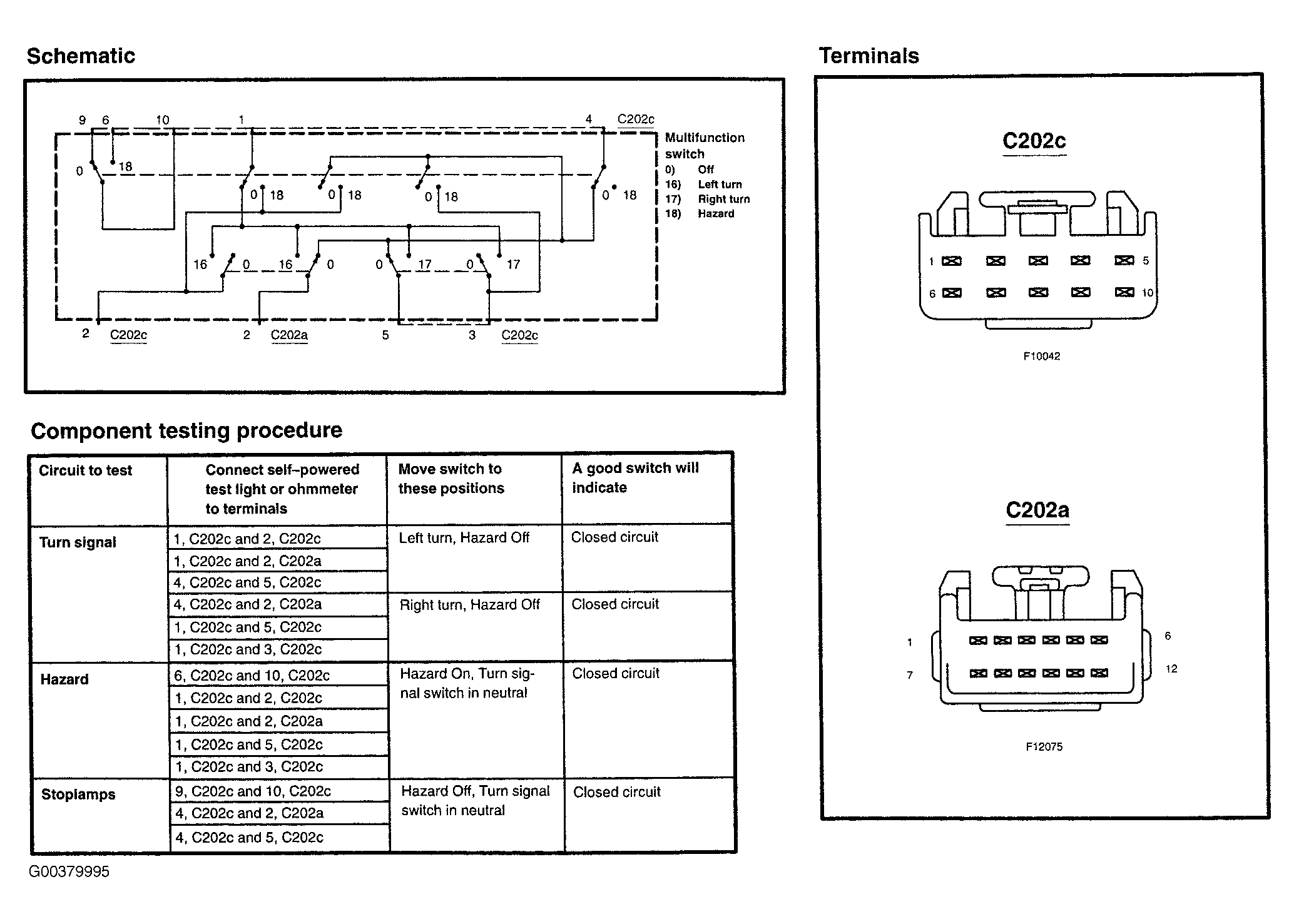

Fig 3: Testing Multifunction Switch - Lamp Portion (2 Of 2)
G00379995Courtesy of FORD MOTOR CO.
