Master Window Adjust Switch
Master Window Adjust Switch

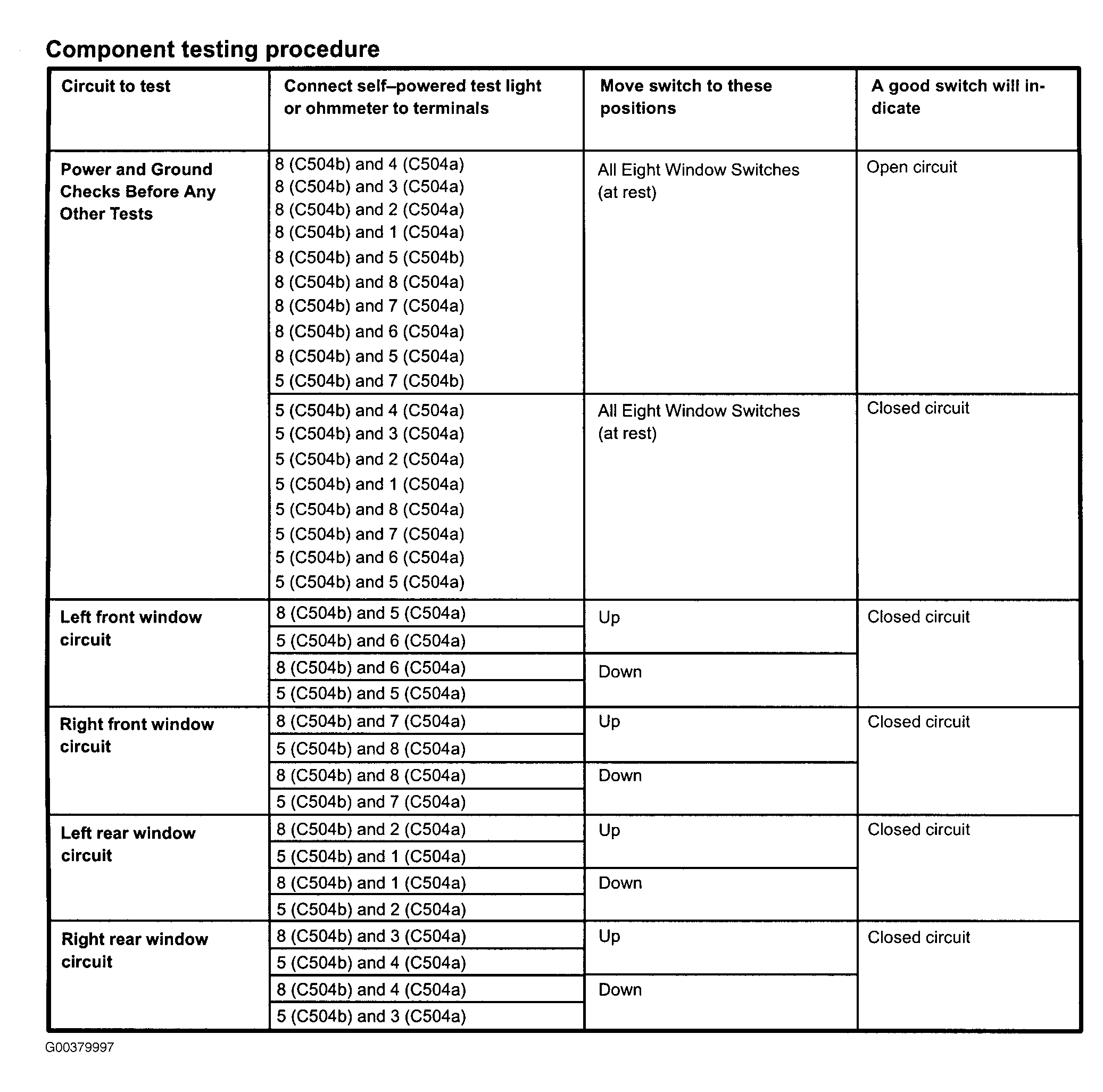

Fig 1: Testing Master Window Adjust Switch (1 Of 2)
Courtesy of FORD MOTOR CO.

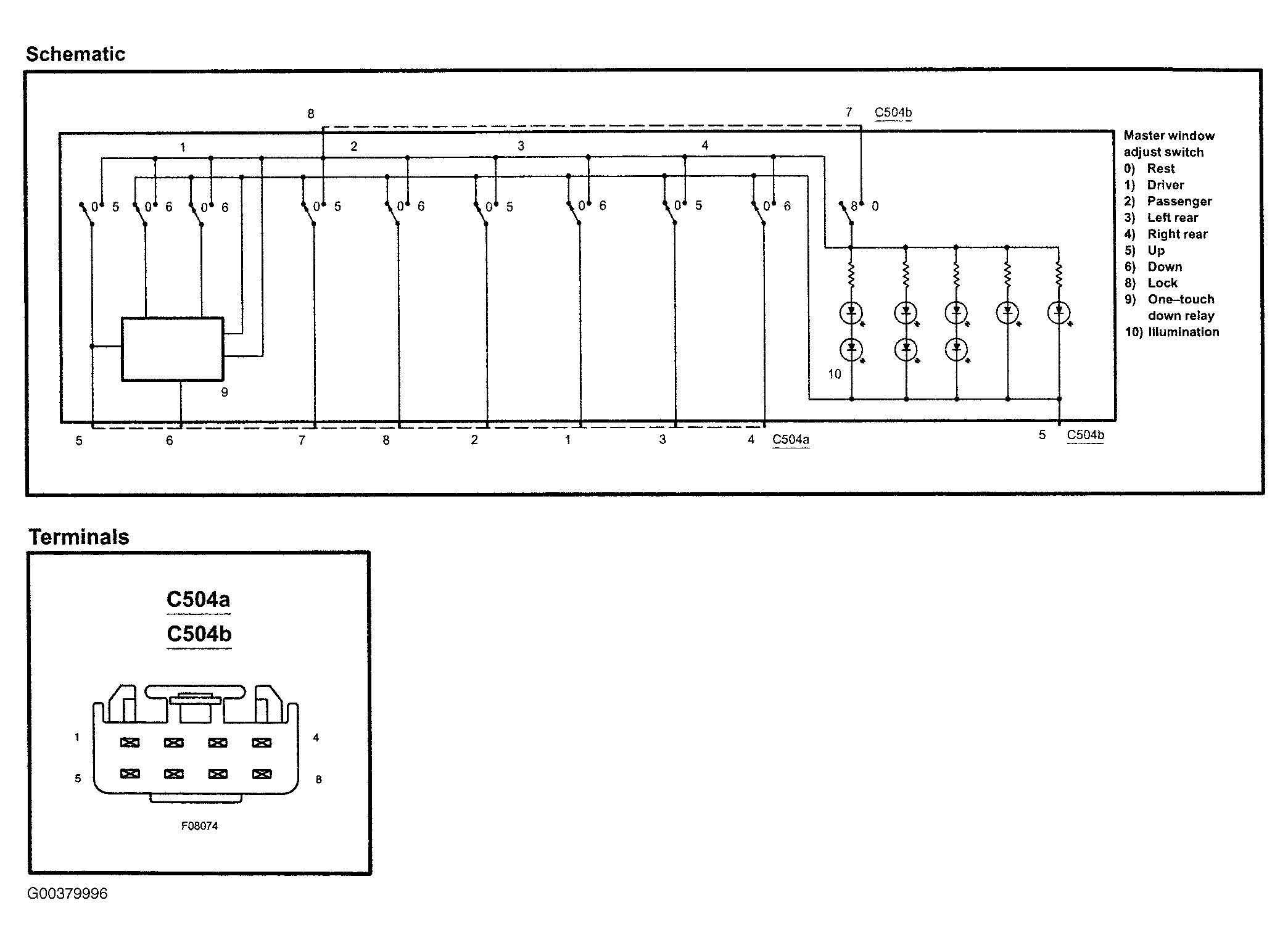

Fig 2: Testing Master Window Adjust Switch (2 Of 2)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
