Home >> Lincoln >> 2003 >> Town Car Base >> Repair and Diagnosis >> Body & Frame >> Windows >> Component Tests >> Component Testing >> Power Seat Switch

Power Seat Switch

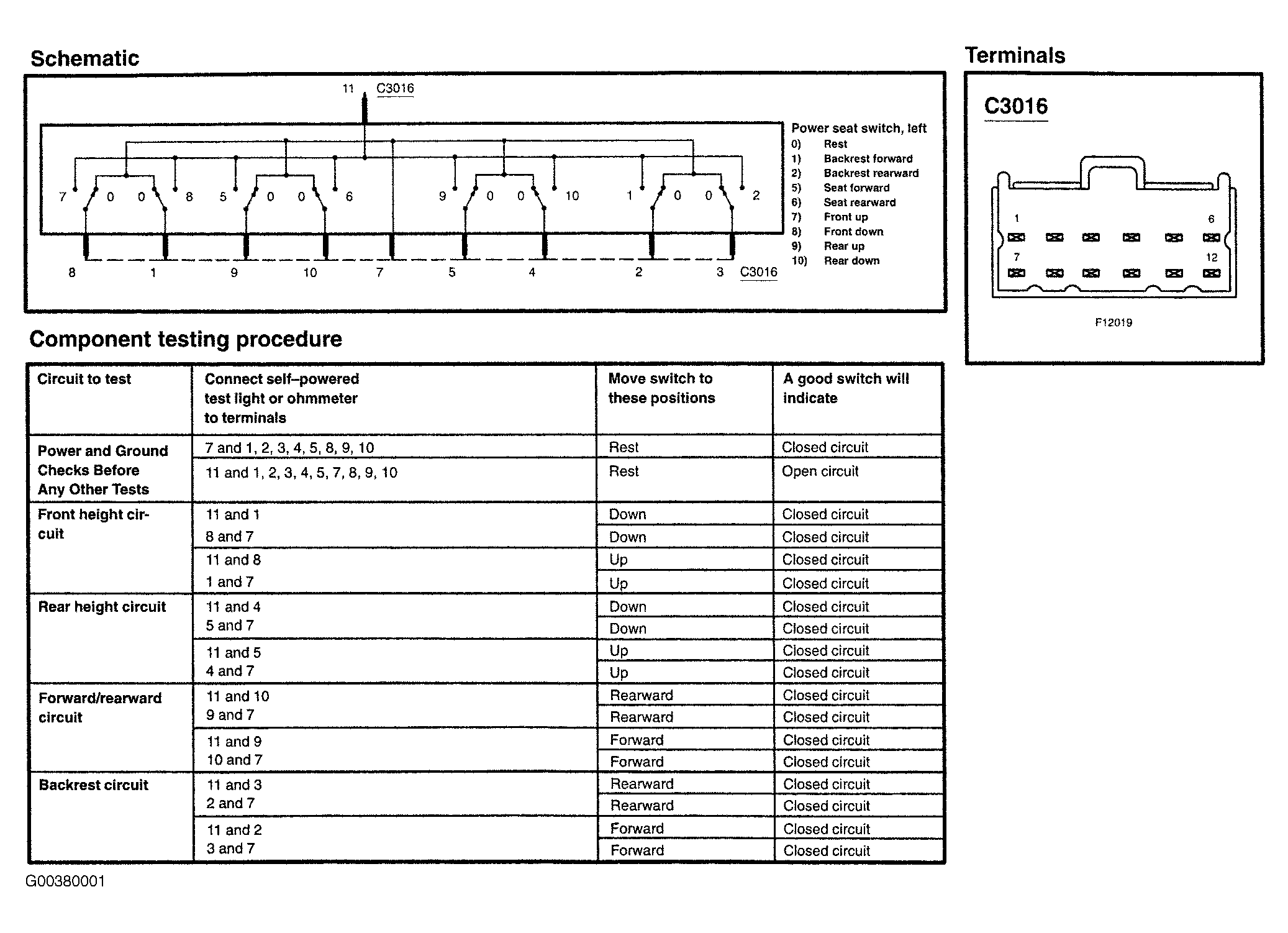

Fig 1: Testing Power Seat Switch - Left - Executive - Limousine
G00380001Courtesy of FORD MOTOR CO.
Fig 2: Testing Power Seat Switch - Left - Signature - Cartier
G00380002Courtesy of FORD MOTOR CO.

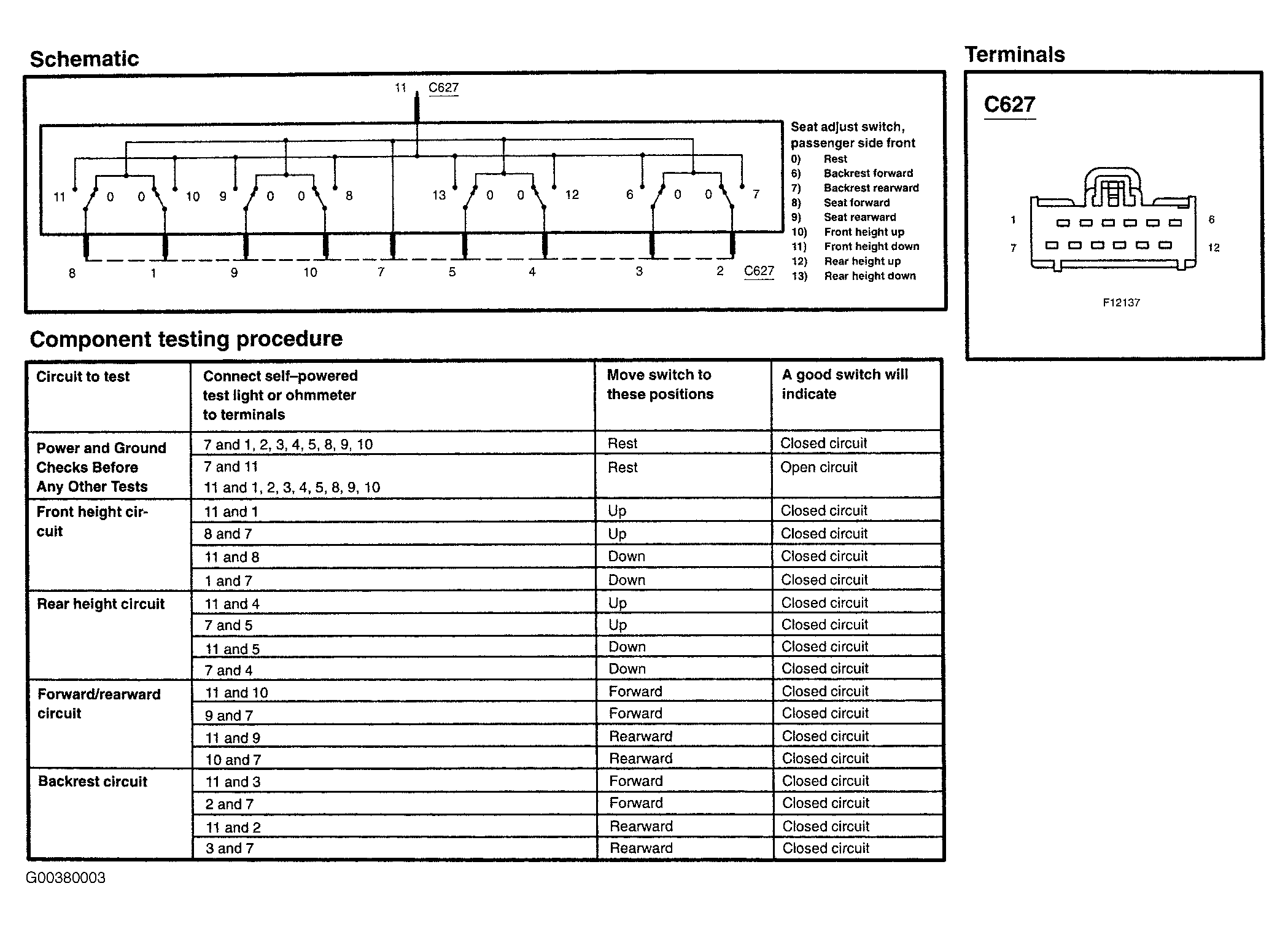

Fig 3: Testing Seat Adjust Switch - Passenger Side Front
G00380003Courtesy of FORD MOTOR CO.
