Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

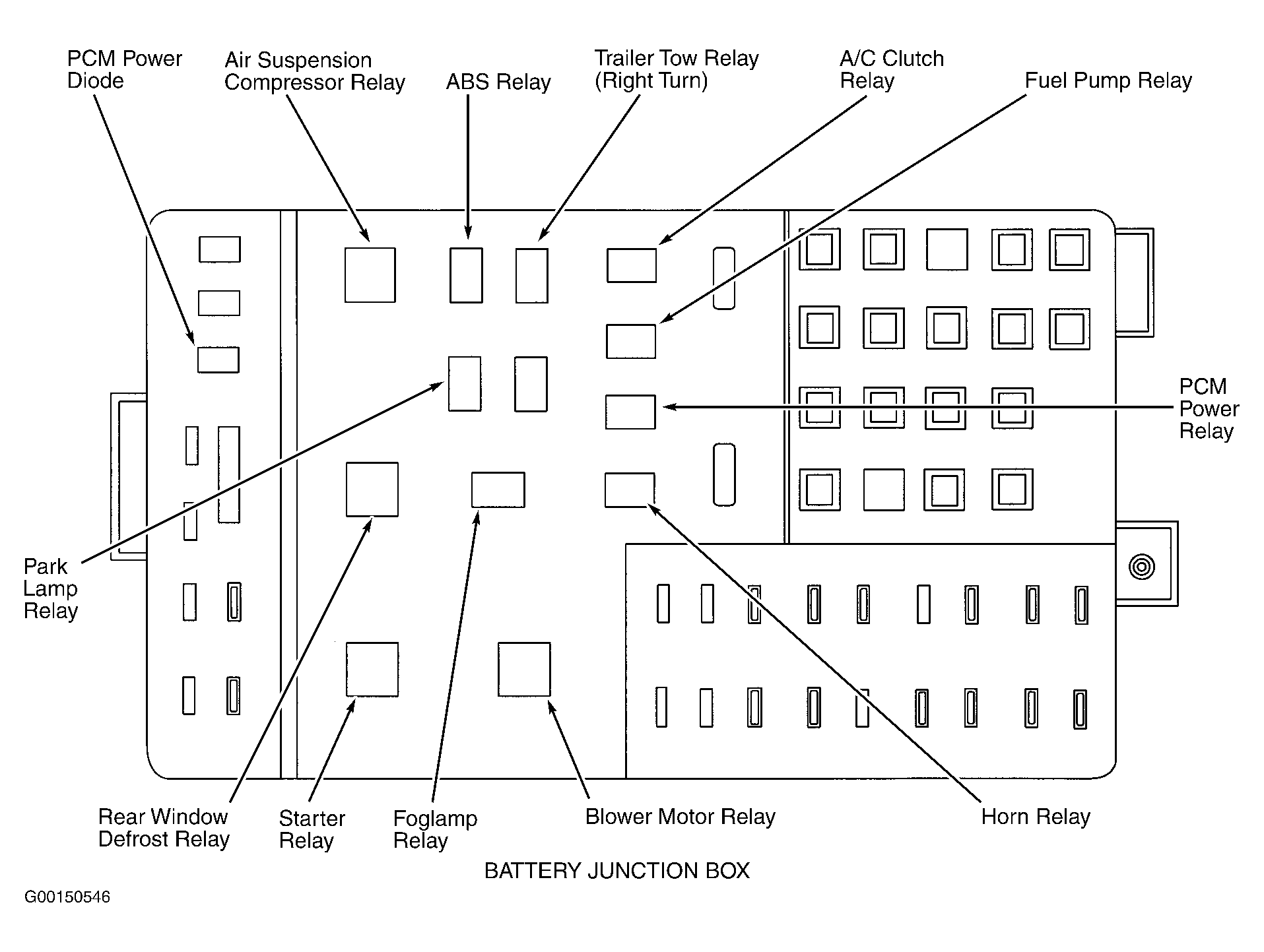

Fig 1: Battery Junction Box

Courtesy of FORD MOTOR CO.

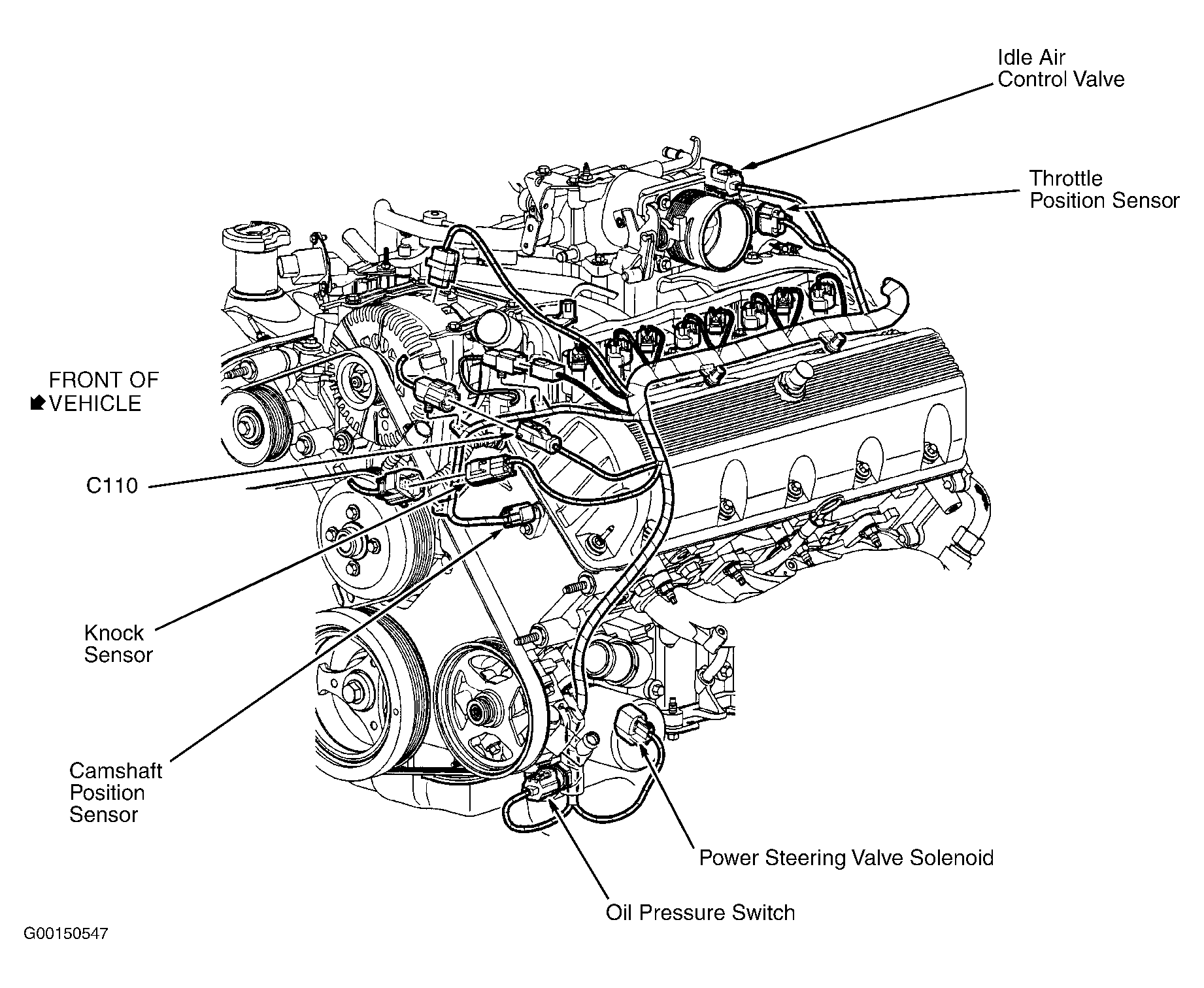

Fig 2: Left Front Side Of Engine

Courtesy of FORD MOTOR CO.

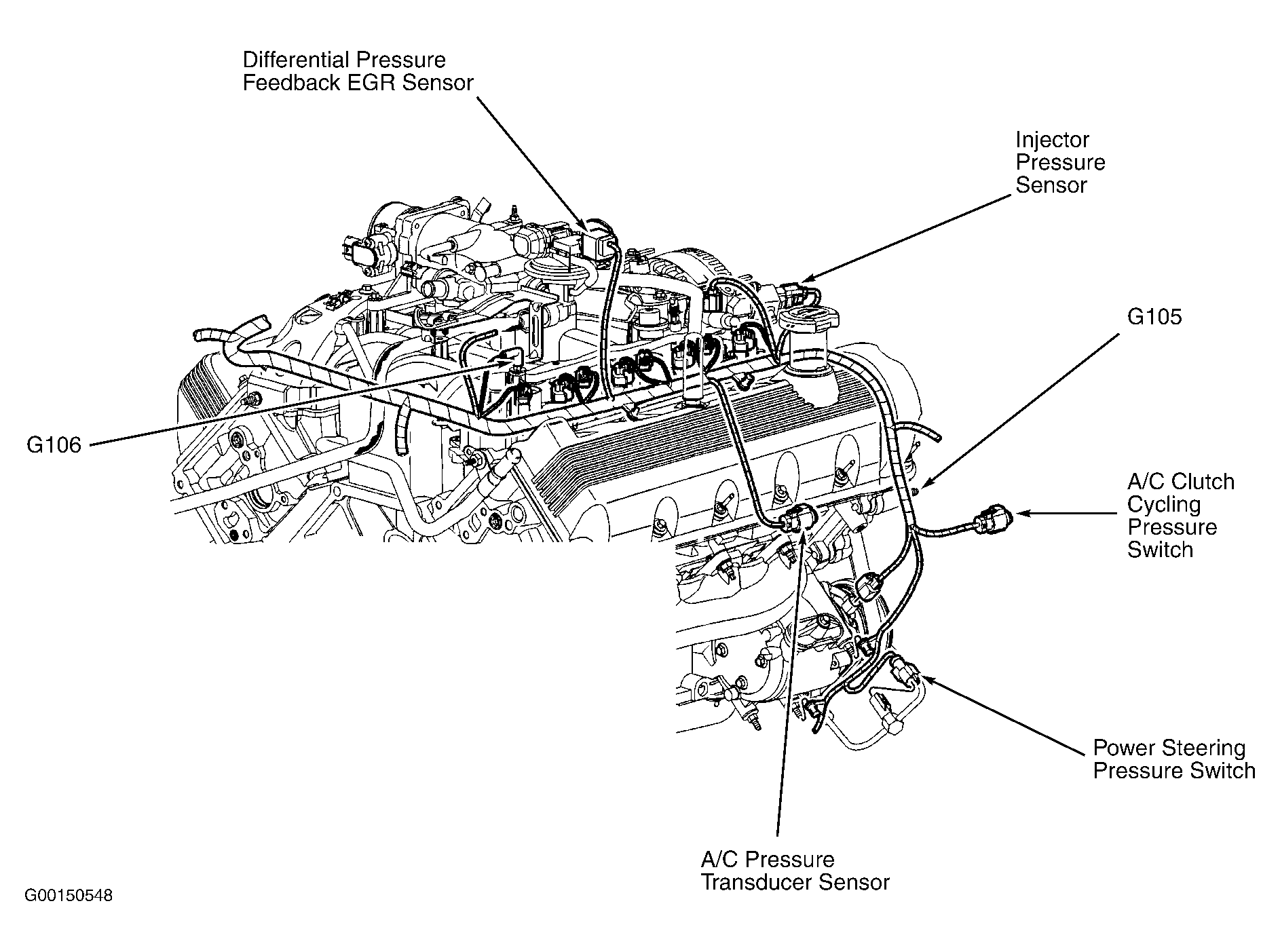

Fig 3: Right Rear Side Of Engine

Courtesy of FORD MOTOR CO.

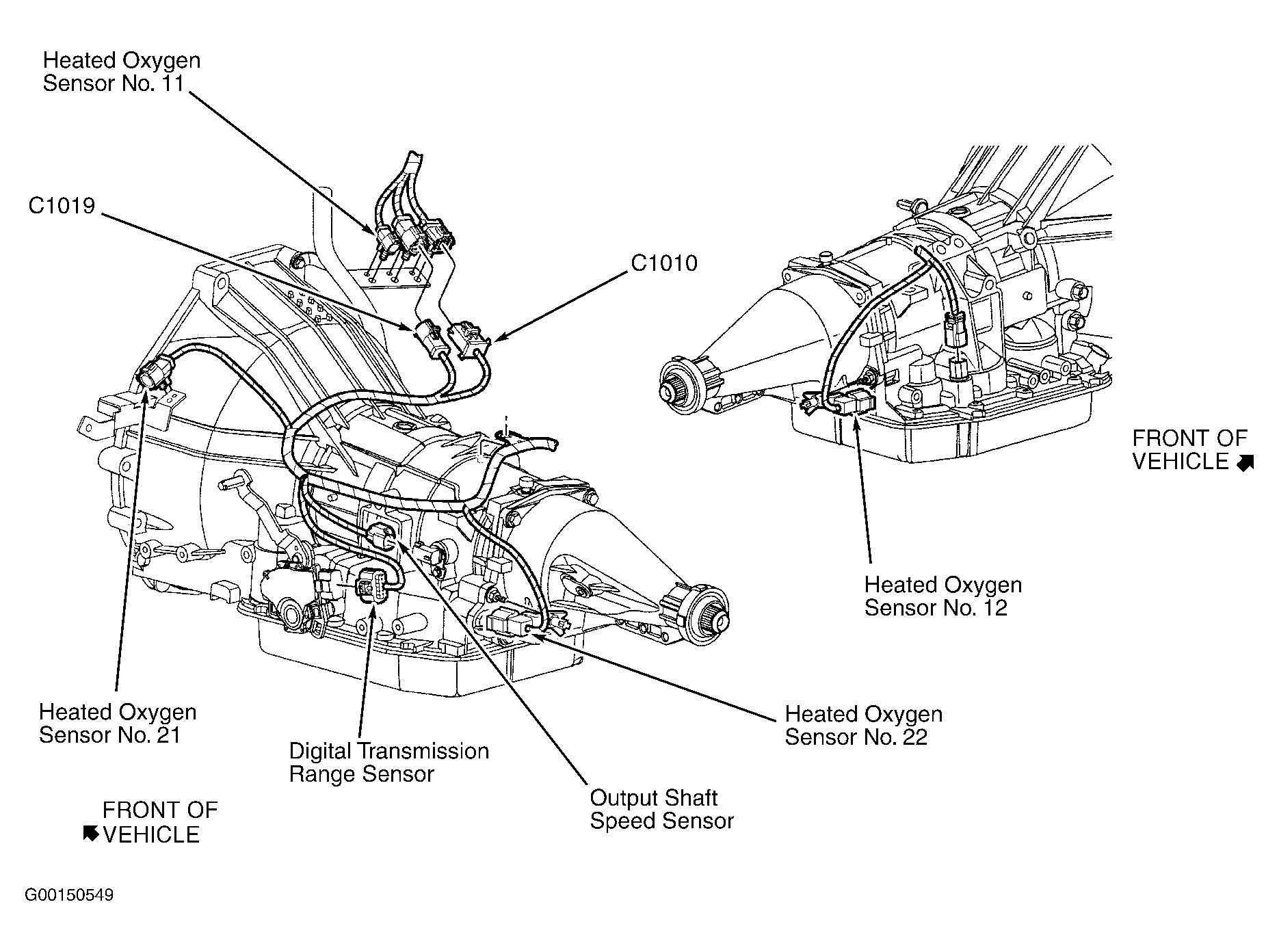

Fig 4: Transmission

Courtesy of FORD MOTOR CO.

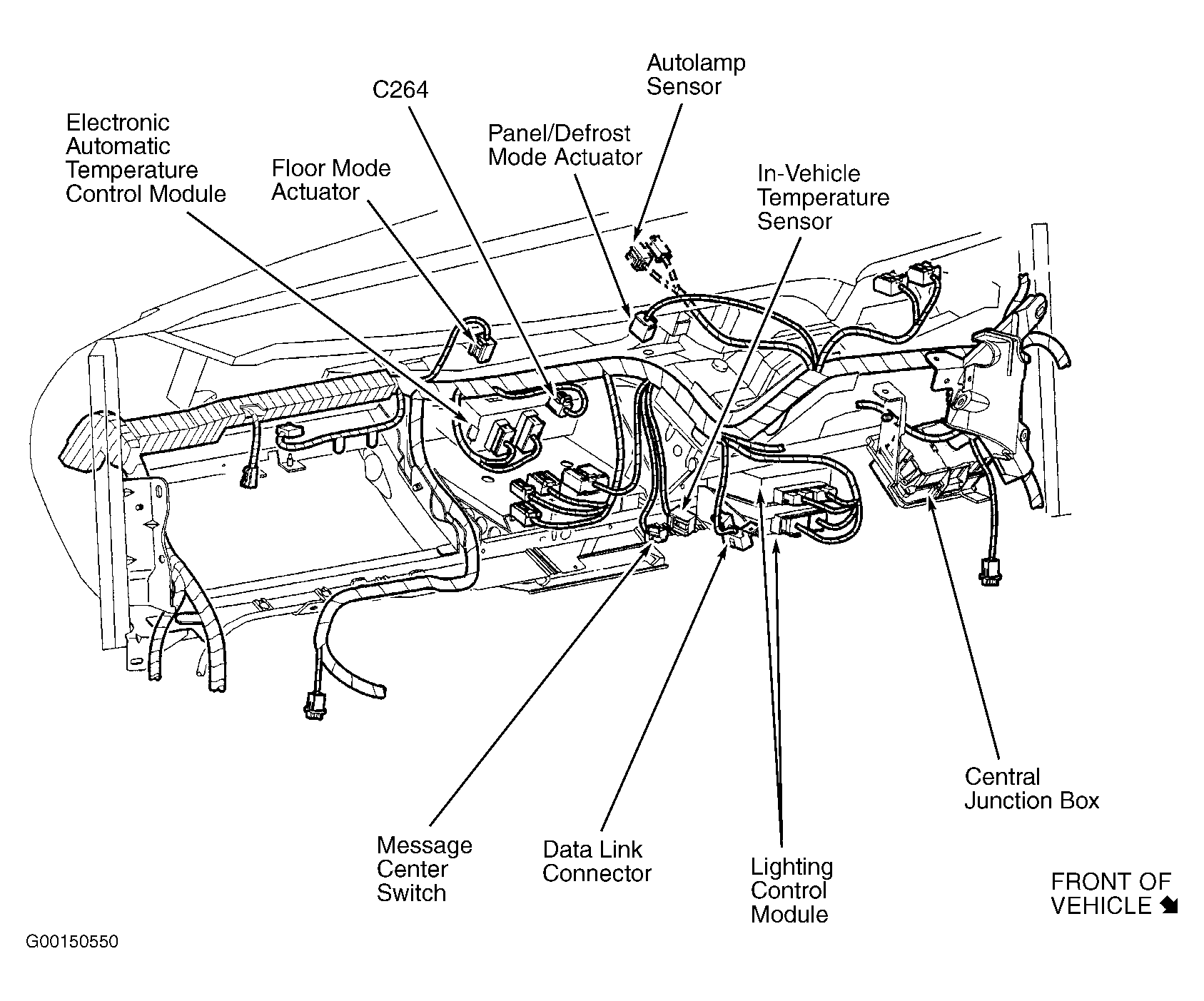

Fig 5: Rear View Of Dash

Courtesy of FORD MOTOR CO.

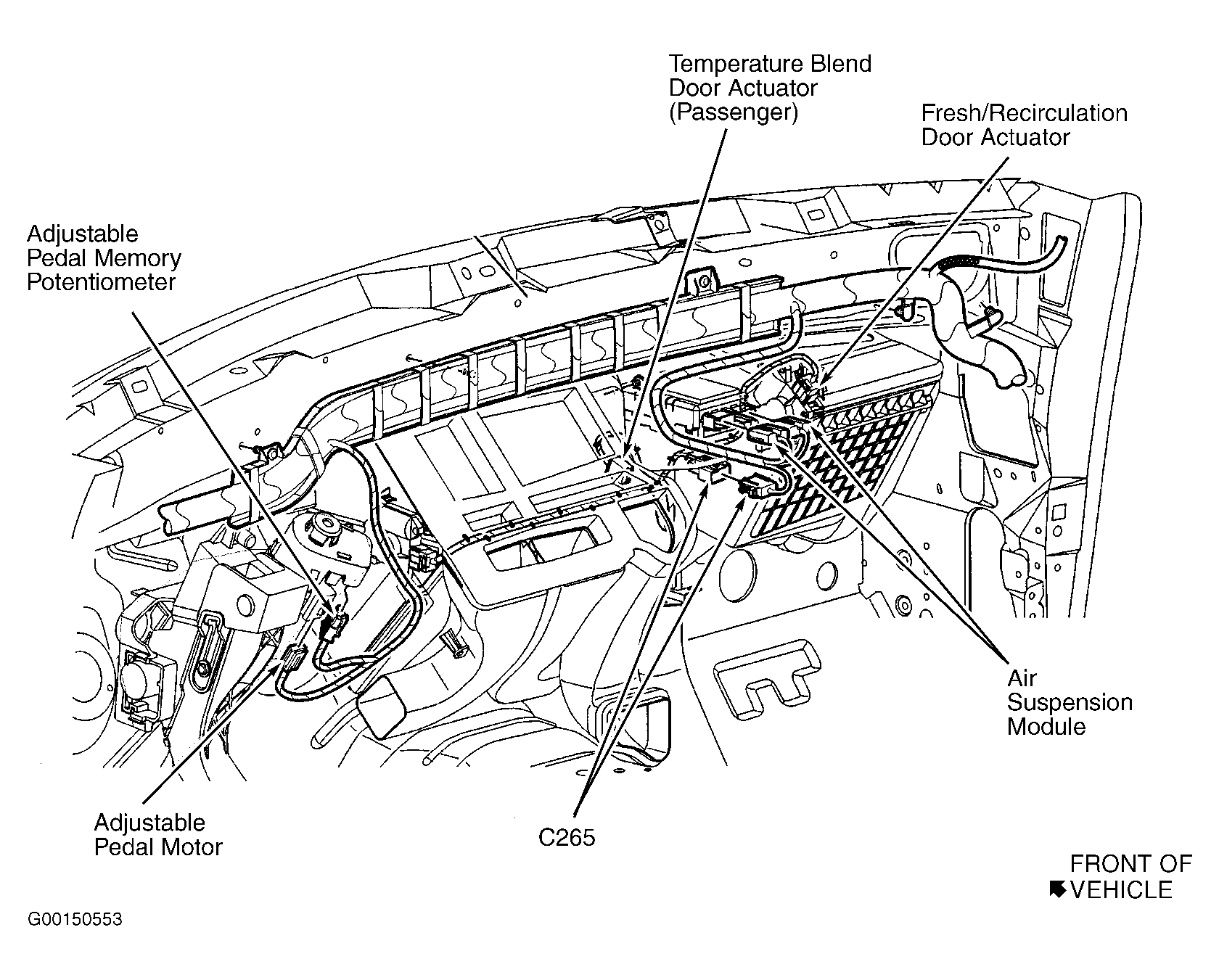

Fig 6: Front View Of Dash

Courtesy of FORD MOTOR CO.

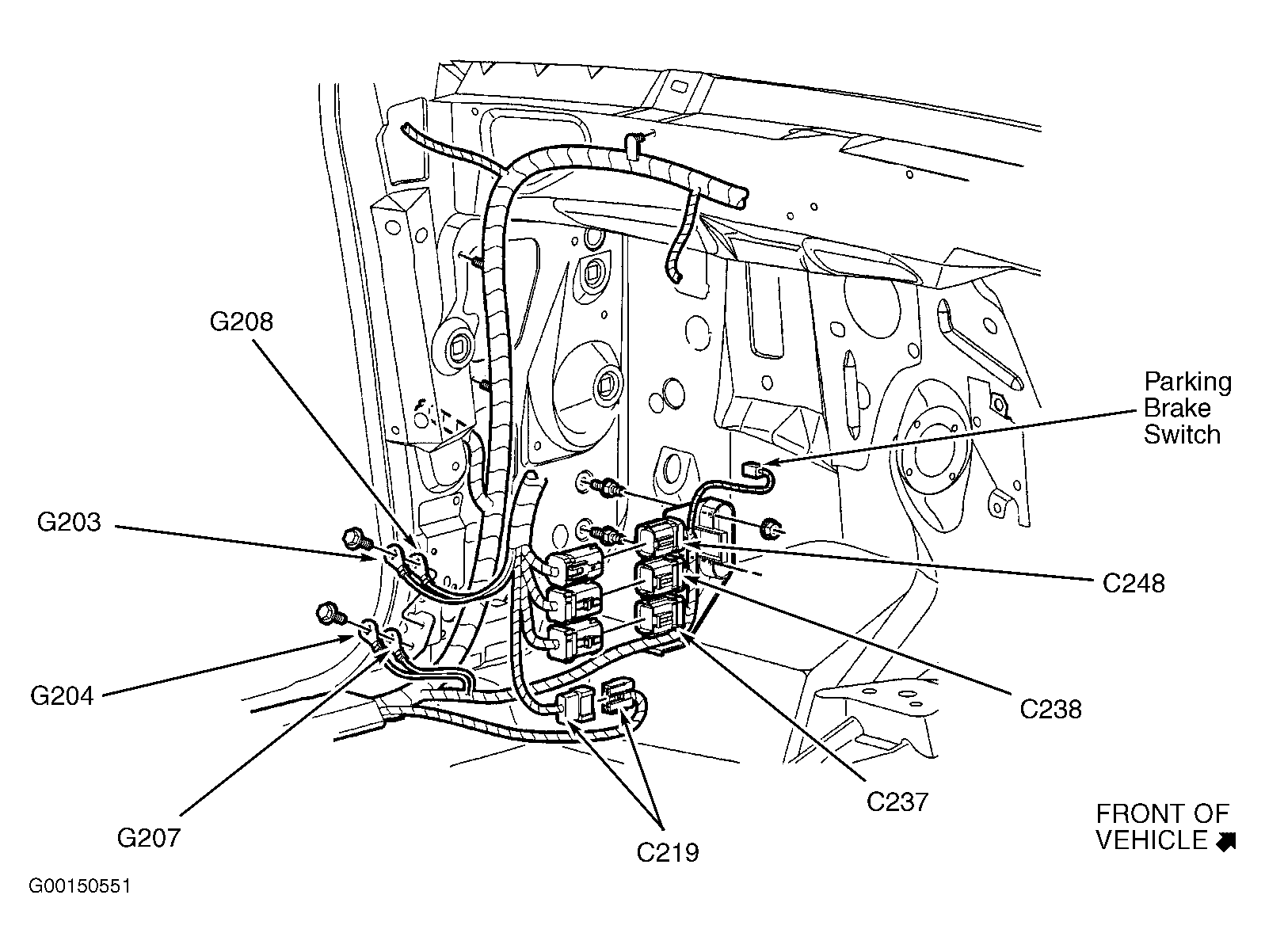

Fig 7: Left Kick Panel

Courtesy of FORD MOTOR CO.

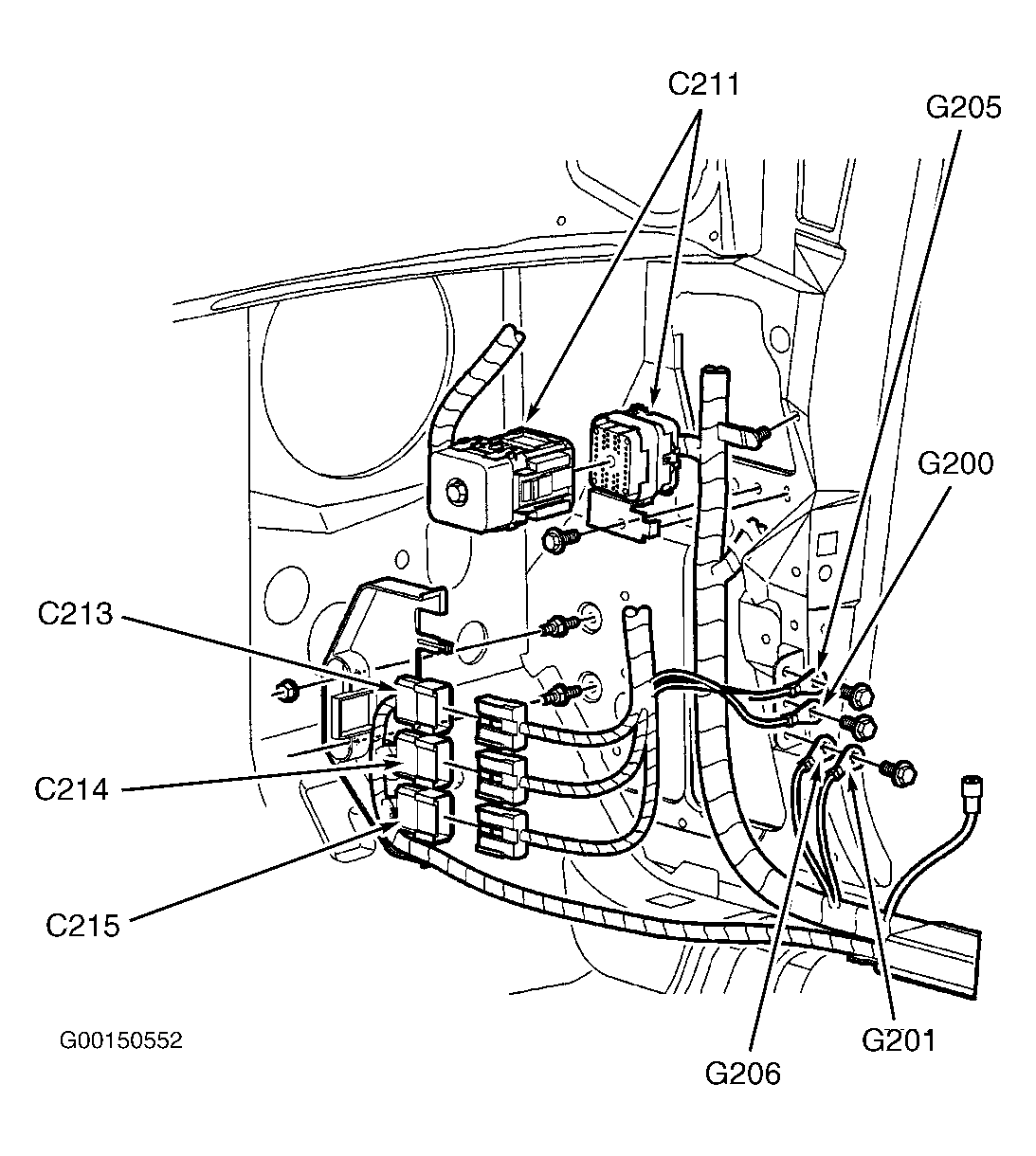

Fig 8: Right Kick Panel

Courtesy of FORD MOTOR CO.
