Valve Guide Reaming

  1. Use a hand-reaming kit to ream the valve guide.

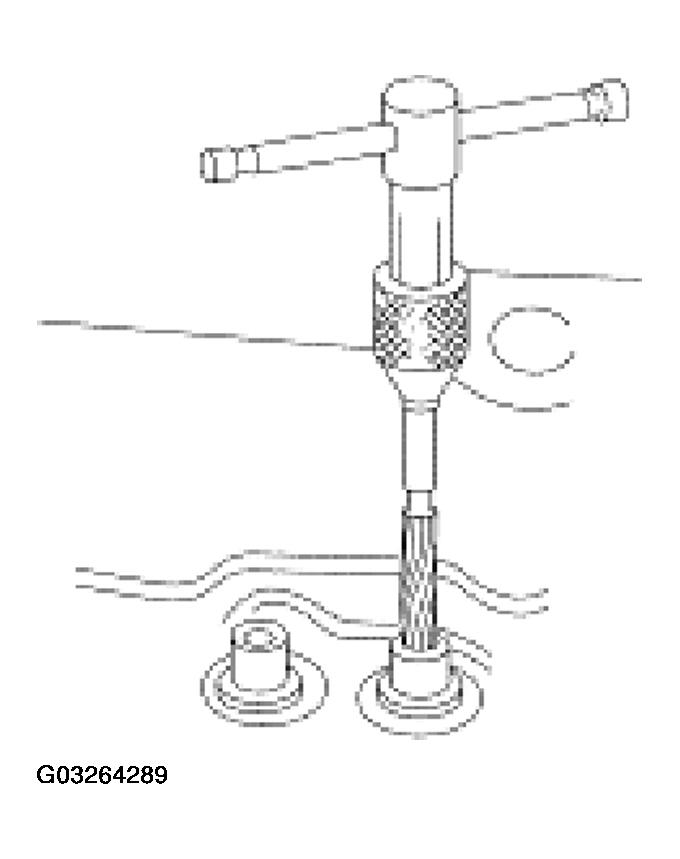

    Fig 1: Using A Hand-Reaming Kit To Ream Valve Guide
    G03264289Courtesy of FORD MOTOR CO.
  2. Reface the valve seat.
  3. Clean the sharp edges left by reaming.
