Valve Spring Free Length

  1. Measure the free length of each valve spring.
    • Refer to ENGINE for the procedure.
    • If out of specification, install new components as necessary. Refer to ENGINE for the procedure.

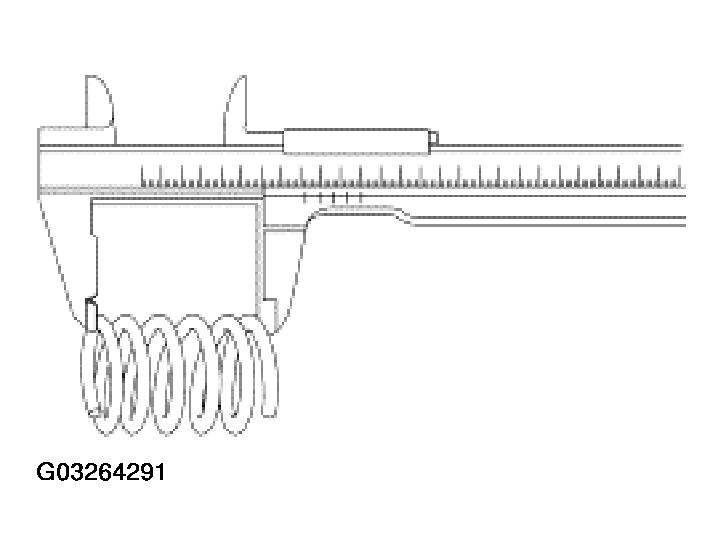

    Fig 1: Measuring Valve Spring Free Length
    G03264291Courtesy of FORD MOTOR CO.
