Transfer Case - AWD: Notes

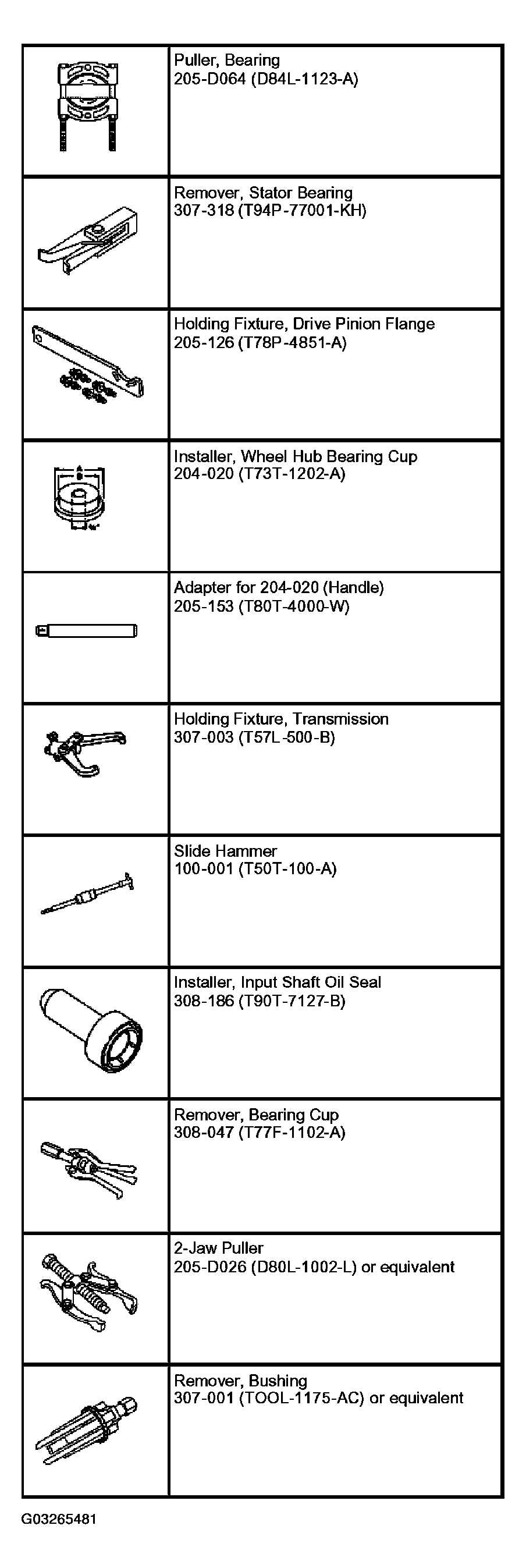

Fig 1: Identifying Special Tool(s)

Courtesy of FORD MOTOR CO.

MATERIAL SPECIFICATION

Item	Specification
Clear Silicone Rubber TA-32	ESB-M4G92-A
MERCON® V Automatic Transmission Fluid XT-5-QM	MERCON® V

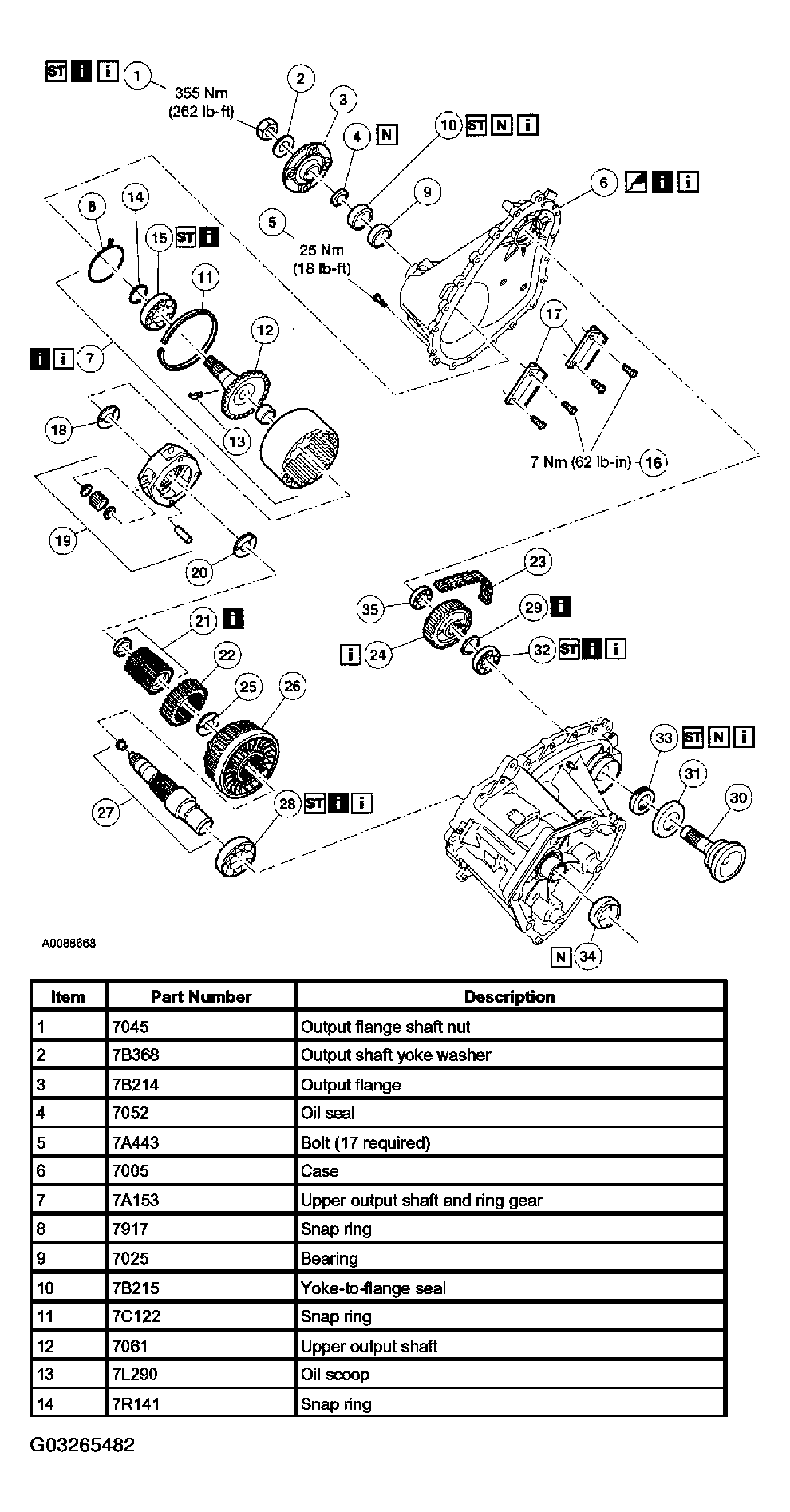

Fig 2: Identifying Transfer Case - AWD Components (Items 1-14)

Courtesy of FORD MOTOR CO.

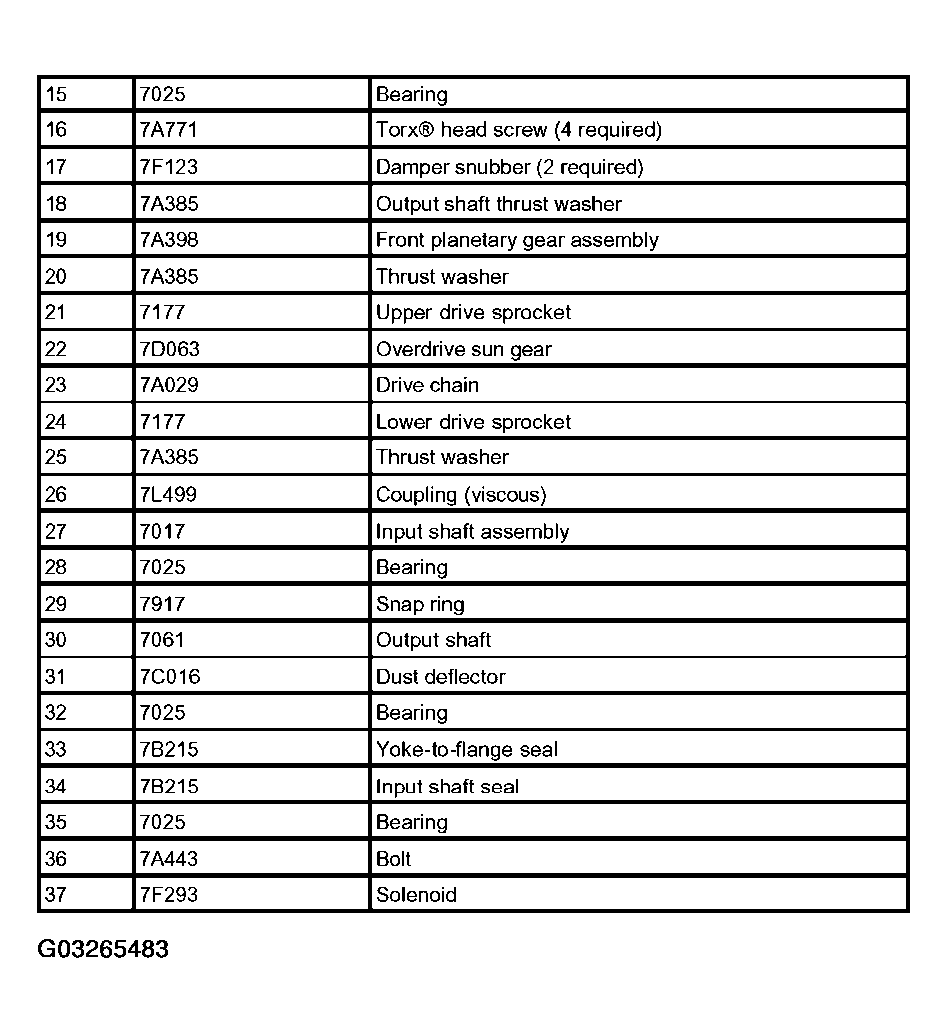

Fig 3: Identifying Transfer Case - AWD Components (Items 15-37)

Courtesy of FORD MOTOR CO.
