Four-Wheel Drive (4WD) Control Module: Notes

WARNING: To avoid accidental deployment and possible personal injury, the backup power supply must be depleted before repairing or replacing any front or side air bag supplemental restraint system (SRS) components and before servicing, replacing, adjusting or striking components near the front or side air bag sensors, such as doors, instrument panel, console, door latches, strikers, seats and hood latches.
1. Disconnect the battery ground cable and wait at least one minute.
2. Remove the parts in the order listed in the following illustration and table.

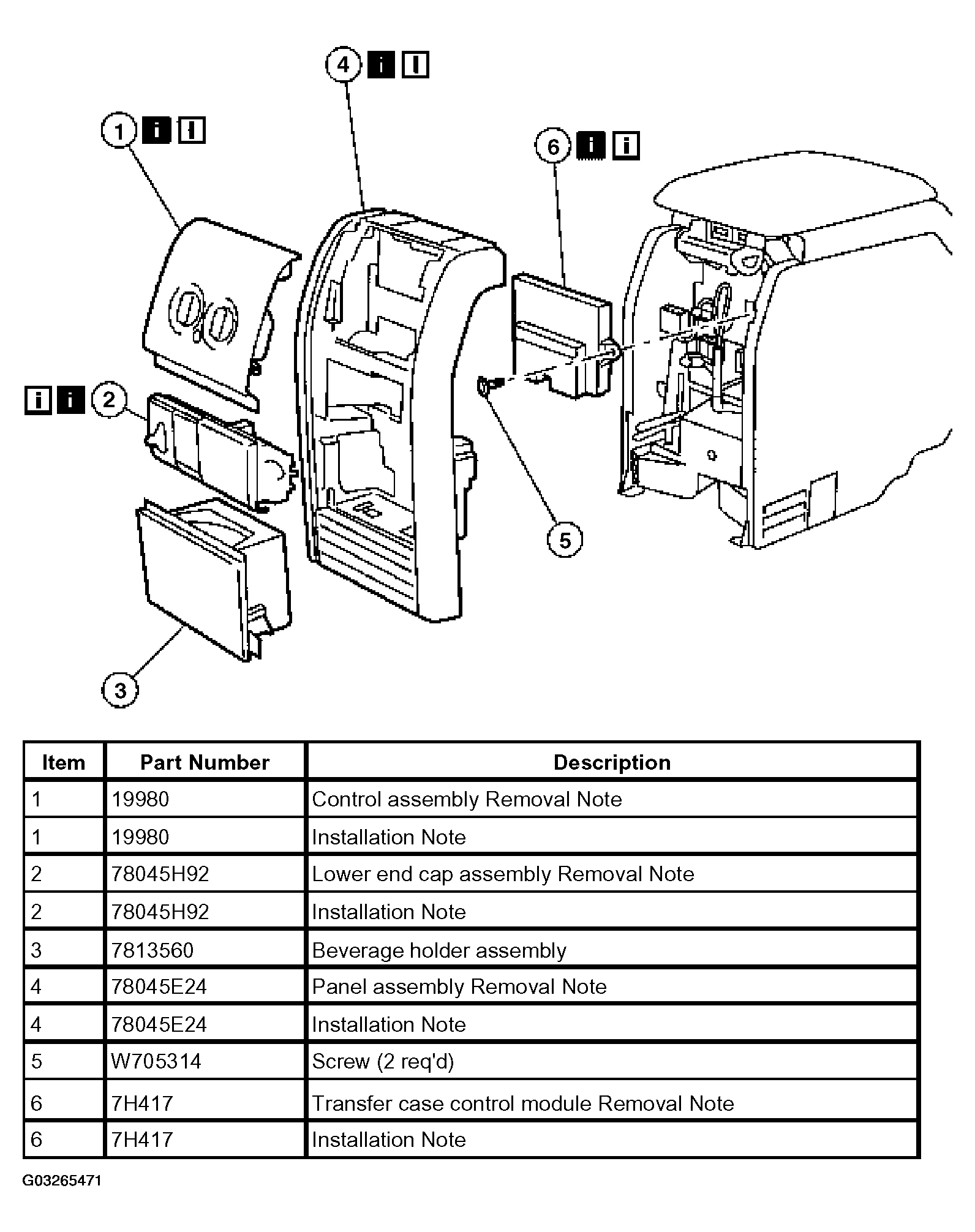

   Fig 1: Removing Four-Wheel Drive (4WD) Control Module Parts

   Courtesy of FORD MOTOR CO.
3. To install, reverse the removal procedure.
