Shock Absorber And Spring Assembly: Notes

  1. Remove the shock absorber and spring assembly. For additional information, refer to SHOCK ABSORBER AND SPRING ASSEMBLY - FRONT  or SHOCK ABSORBER AND SPRING ASSEMBLY - REAR .
  2. Using a suitable spring compressor, compress the spring until the tension is released from the shock absorber.

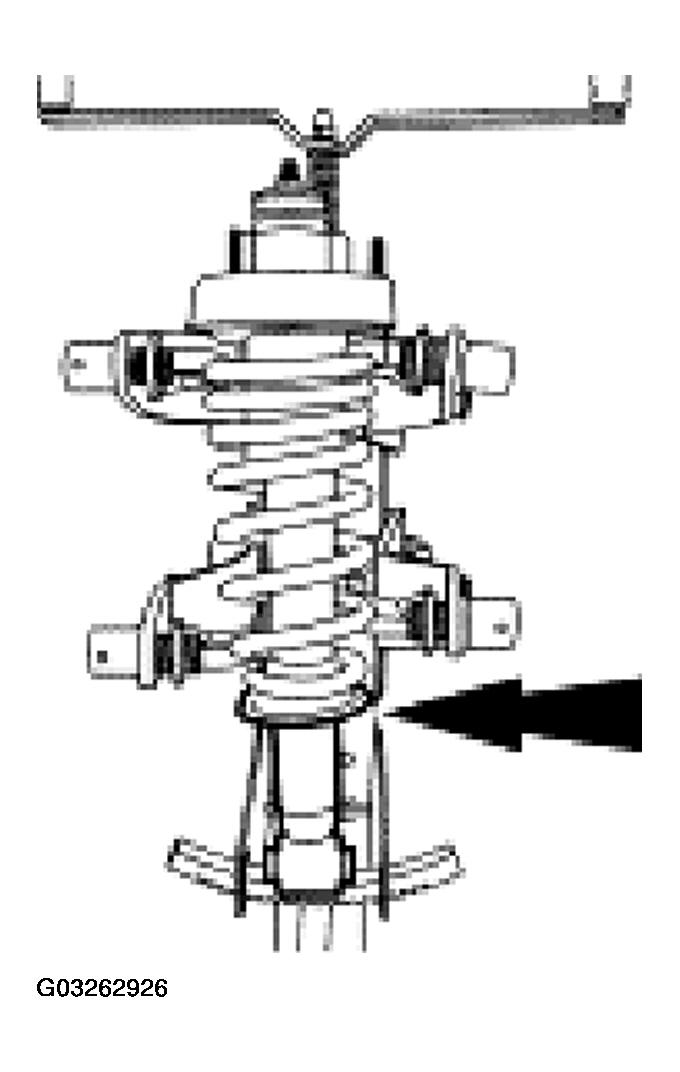

    Fig 1: Compressing Spring Until Tension Is Released From Shock Absorber
    G03262926Courtesy of FORD MOTOR CO.
  3. Disassemble the parts in the order indicated in the following illustration and table.

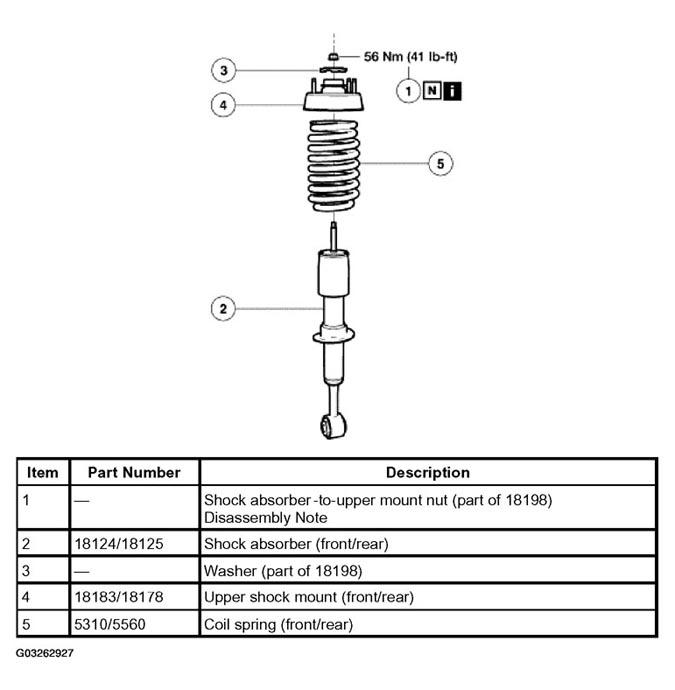

    Fig 2: Identifying Shock Absorber And Spring Assembly Components
    G03262927Courtesy of FORD MOTOR CO.
  4. To assemble, reverse the disassembly procedure.
