Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location |
|---|---|
| Auxiliary Junction Box (AJB) (Interior) | Under left side of dash. See Figure. |
| Auxiliary Junction Box (AJB) (Underhood) | In right front of engine compartment. See Figure. |

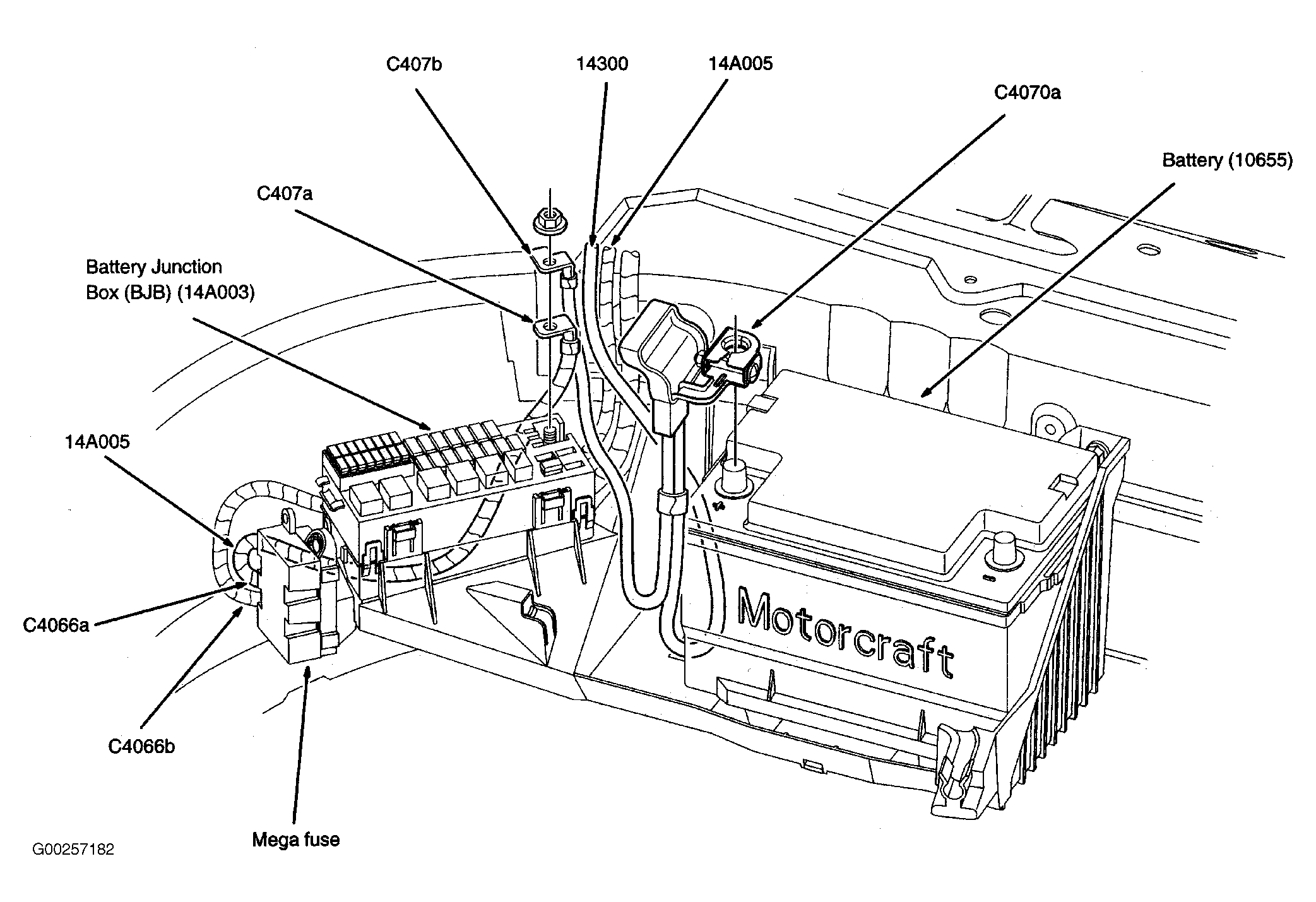

| Battery Junction Box (BJB) | In luggage compartment, near battery. See Figure. |
| Central Junction Box (CJB) | Behind right kick panel. See Figure. |
| In-Line Fuse | At right kick panel. See Figure. |
| Junction Block | On right front fender. See Figure. |
| Mega Fuse | In luggage compartment, near battery junction box. See Figure. |
