Valve Spring Strength

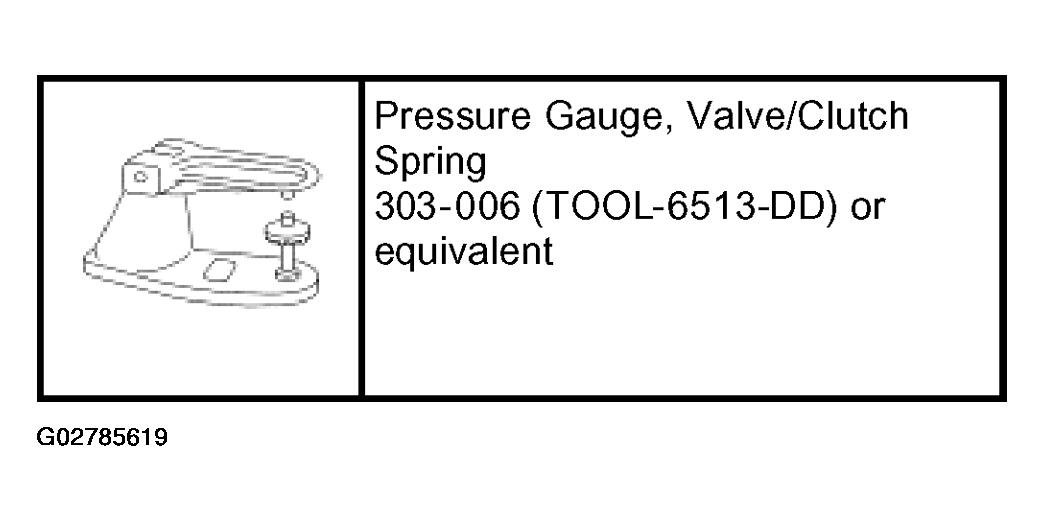

Fig 1: Special Tool Chart
G02785619Courtesy of FORD MOTOR CO.
  1. Use a Valve/Clutch Spring Pressure Gauge to check the valve spring for correct strength at the specified valve spring length.
    • Refer to the appropriate article in ENGINES for the procedure.
    • If out of specification, install new components as necessary. Refer to the appropriate article in ENGINES for the procedure.

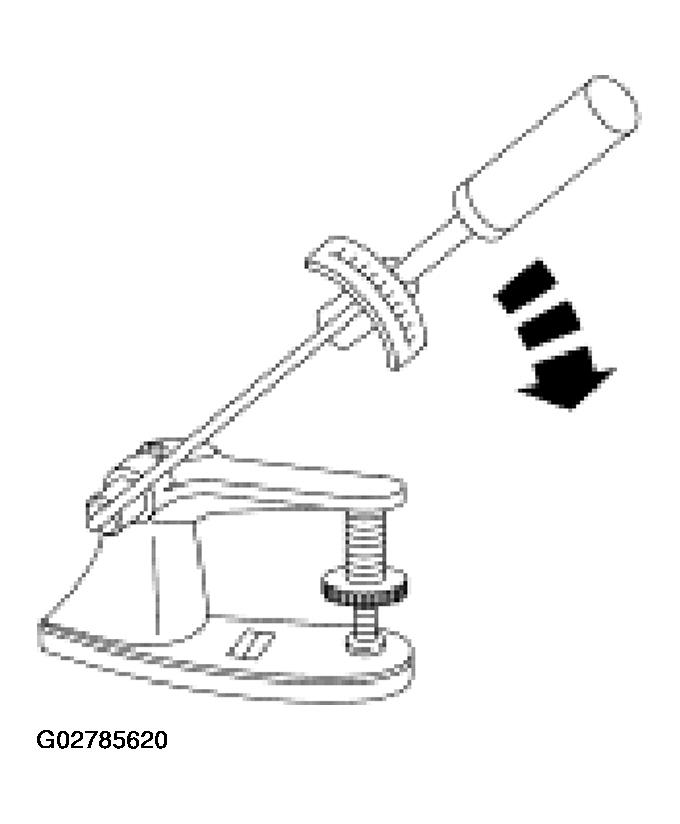

    Fig 2: Checking Valve Spring For Strength
    G02785620Courtesy of FORD MOTOR CO.
