Camber Adjustment -Rear
NOTE:
Air suspension vehicles must be at trim ride height prior to measuring or adjusting the rear camber or toe. For additional information, refer to VEHICLE DYNAMIC - 4 WHEEL
.
- Measure and record the LH rear and RH rear camber angles.
- Compare the recorded camber angles to the specifications. Refer to Figure.
- Determine desired camber adjustment (subtract the specified camber angle from the measured camber angle).
- Remove the rear wheel. For additional information, refer to WHEELS & TIRES .

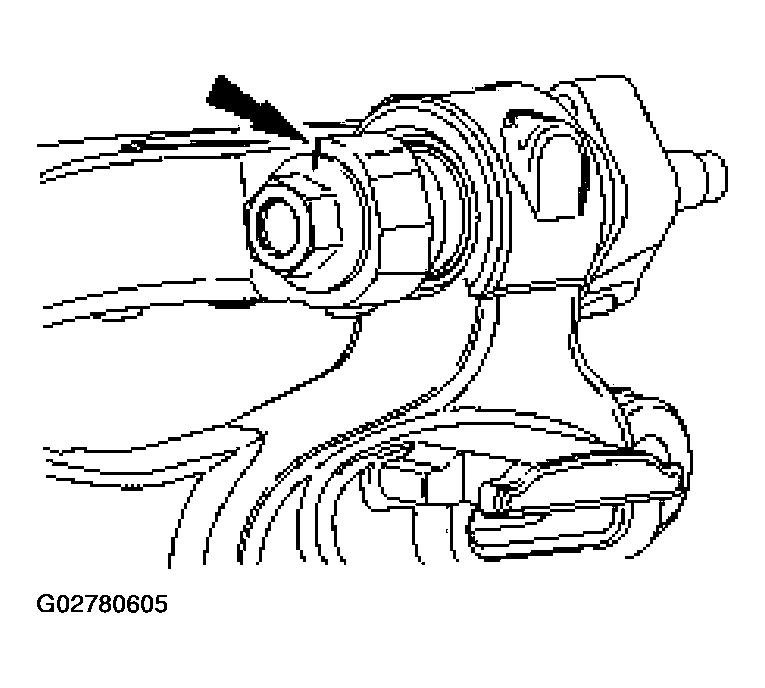

- Mark a scribe line on the upper arm-to-wheel knuckle bolt head and upper arm.
- Use CAMBER ADJUSTMENT CHART to determine the camber adjustment required.
- Obtained by subtracting the specified camber angle from the measure camber angle.
CAMBER ADJUSTMENT CHARTDesired Camber Adjustment (In Degrees) Bolt Adjustment -2.2 10 mm (0.39 in) inboard -2.0 9 mm (0.35 in) inboard -1.8 8 mm (0.31 in) inboard -1.5 7 mm (0.27 in) inboard -1.3 6 mm (0.23 in) inboard -1.1 5 mm (0.19 in) inboard -0.9 4 mm (0.15 in) inboard -0.7 3 mm (0.11 in) inboard -0.4 2 mm (0.07 in) inboard -0.2 1 mm (0.04 in) inboard 0 No adjustment required 0.2 1 mm (0.04 in) outboard 0.4 2 mm (0.07 in) outboard 0.7 3 mm (0.11 in) outboard 0.9 4 mm (0.15 in) outboard 1.1 5 mm (0.19 in) outboard 1.3 6 mm (0.23 in) outboard 1.5 7 mm (0.27 in) outboard 1.8 8 mm (0.31 in) outboard 2.0 9 mm (0.35 in) outboard 2.2 10 mm (0.39 in) outboard - Install a new upper arm-to-knuckle nut on the upper arm-to-knuckle bolt.
- Position the upper arm-to-knuckle bolt in the upper arm slot as required to adjust camber angle to the value obtained in step 6.

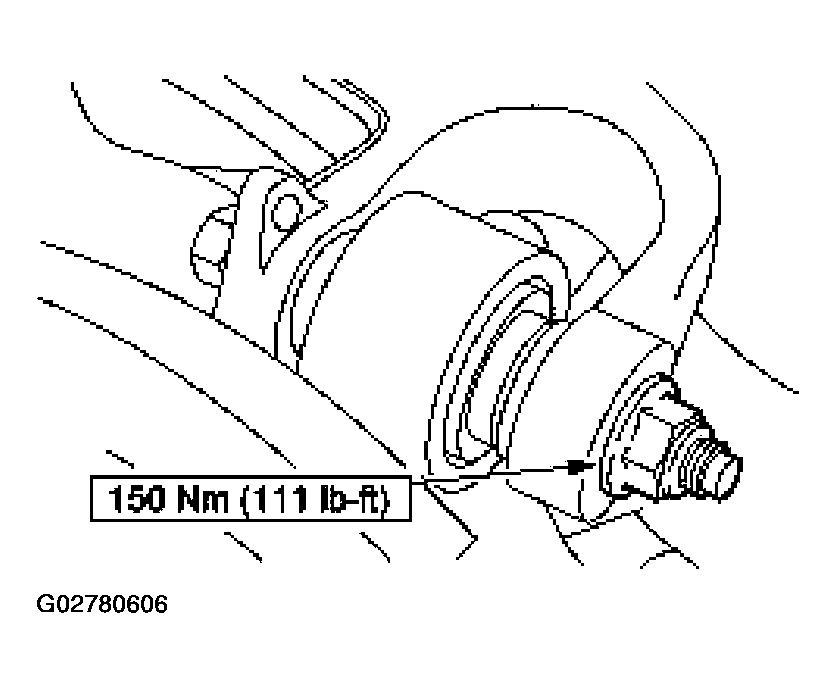

- Tighten the upper arm-to-knuckle nut.
- Install the wheel and tire assembly. For additional information, refer to WHEELS & TIRES .
- Using the alignment equipment, verify the camber adjustment.
- Check and if necessary, adjust the rear toe. For additional information, refer to REAR TOE ADJUSTMENT .
NOTE:
Support the vehicle at the lower arm to ease the wheel knuckle movement in the upper arm slot.
