Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

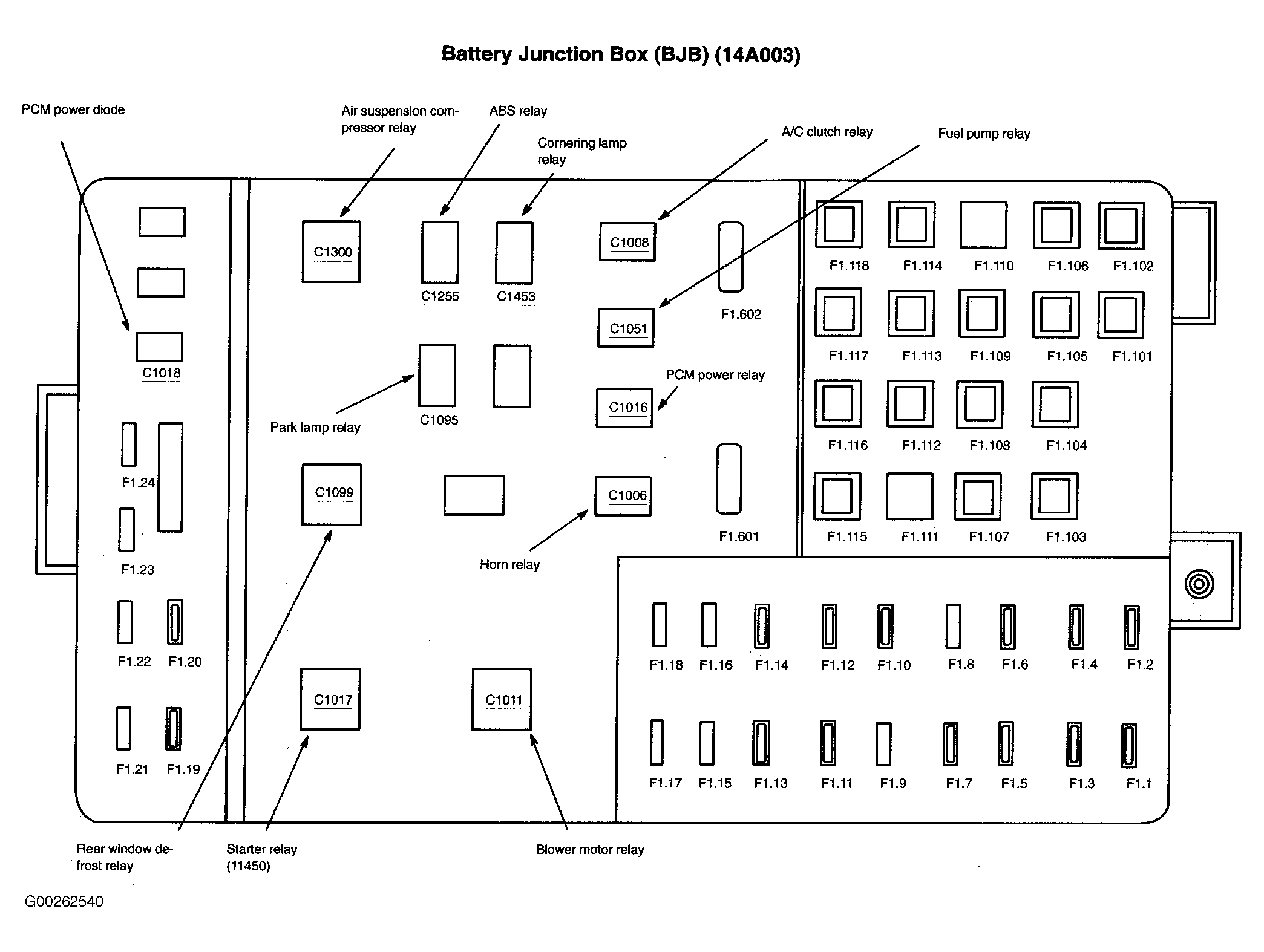

Fig 1: Battery Junction Box

G00262540

Courtesy of FORD MOTOR CO.

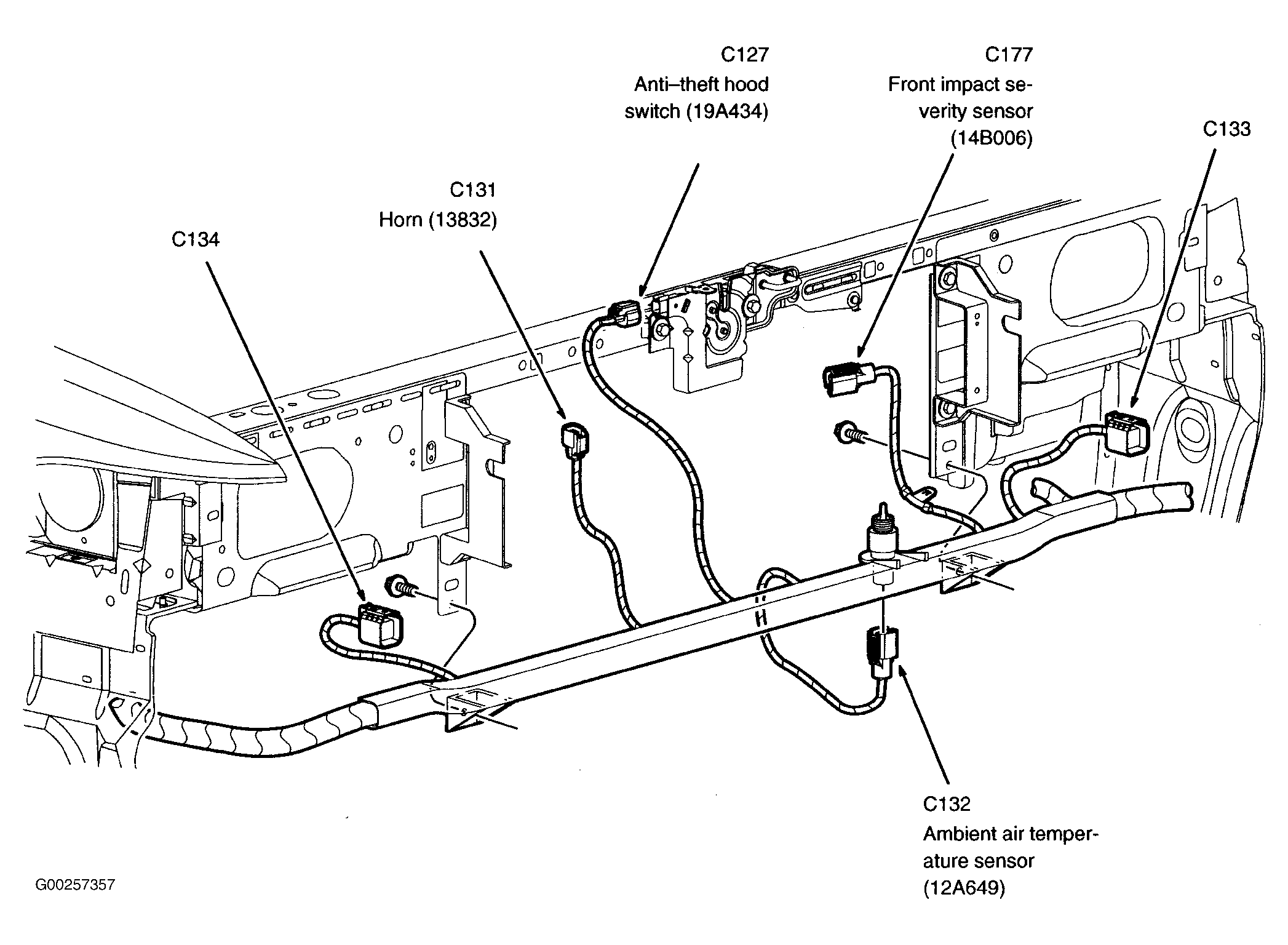

Fig 2: Behind Radiator Grille

G00257357

Courtesy of FORD MOTOR CO.

Fig 3: Left Front Of Engine Compartment

G00257358

Courtesy of FORD MOTOR CO.

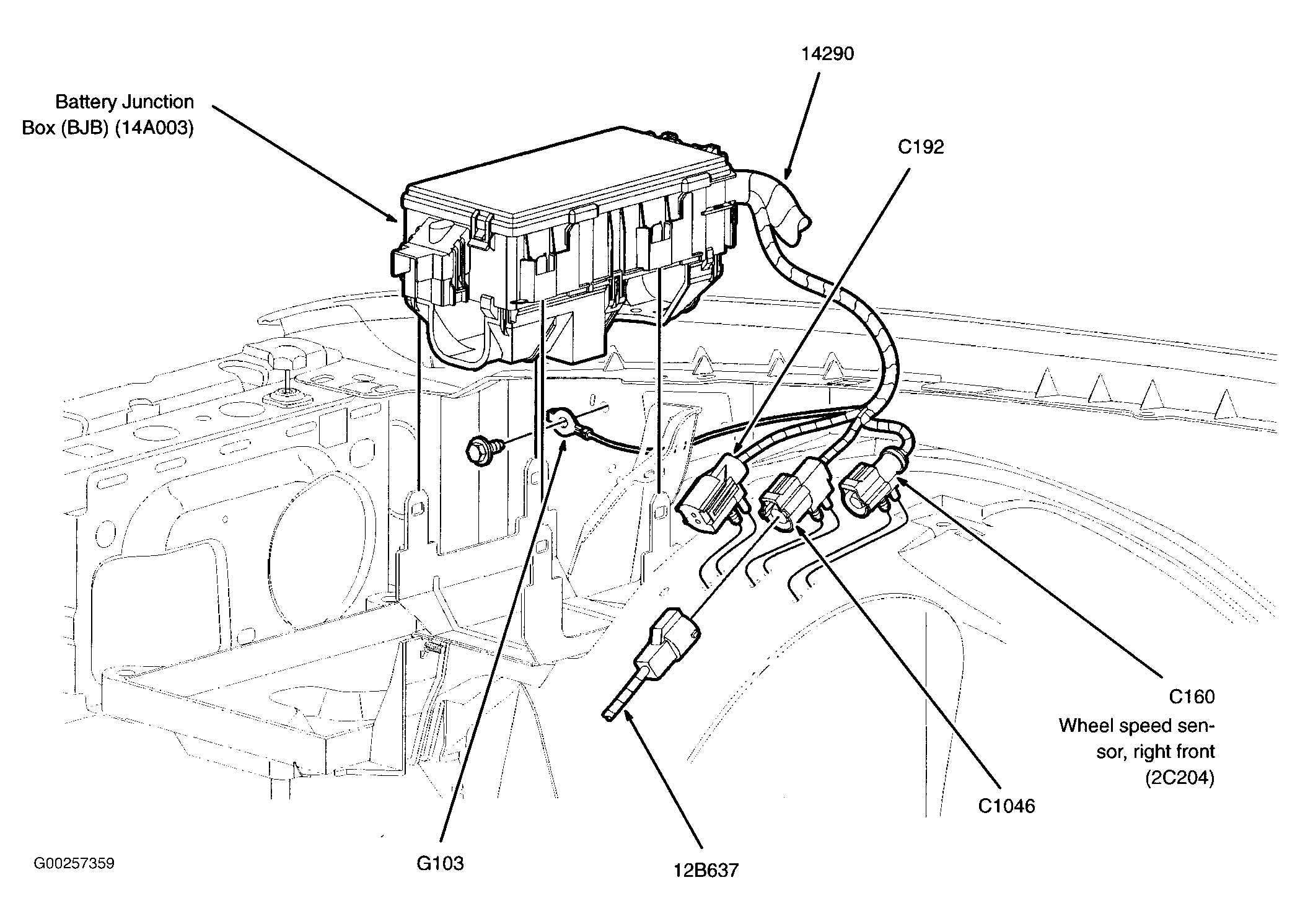

Fig 4: Right Front Of Engine Compartment

G00257359

Courtesy of FORD MOTOR CO.

Fig 5: Right Rear Of Engine Compartment

G00257360

Courtesy of FORD MOTOR CO.

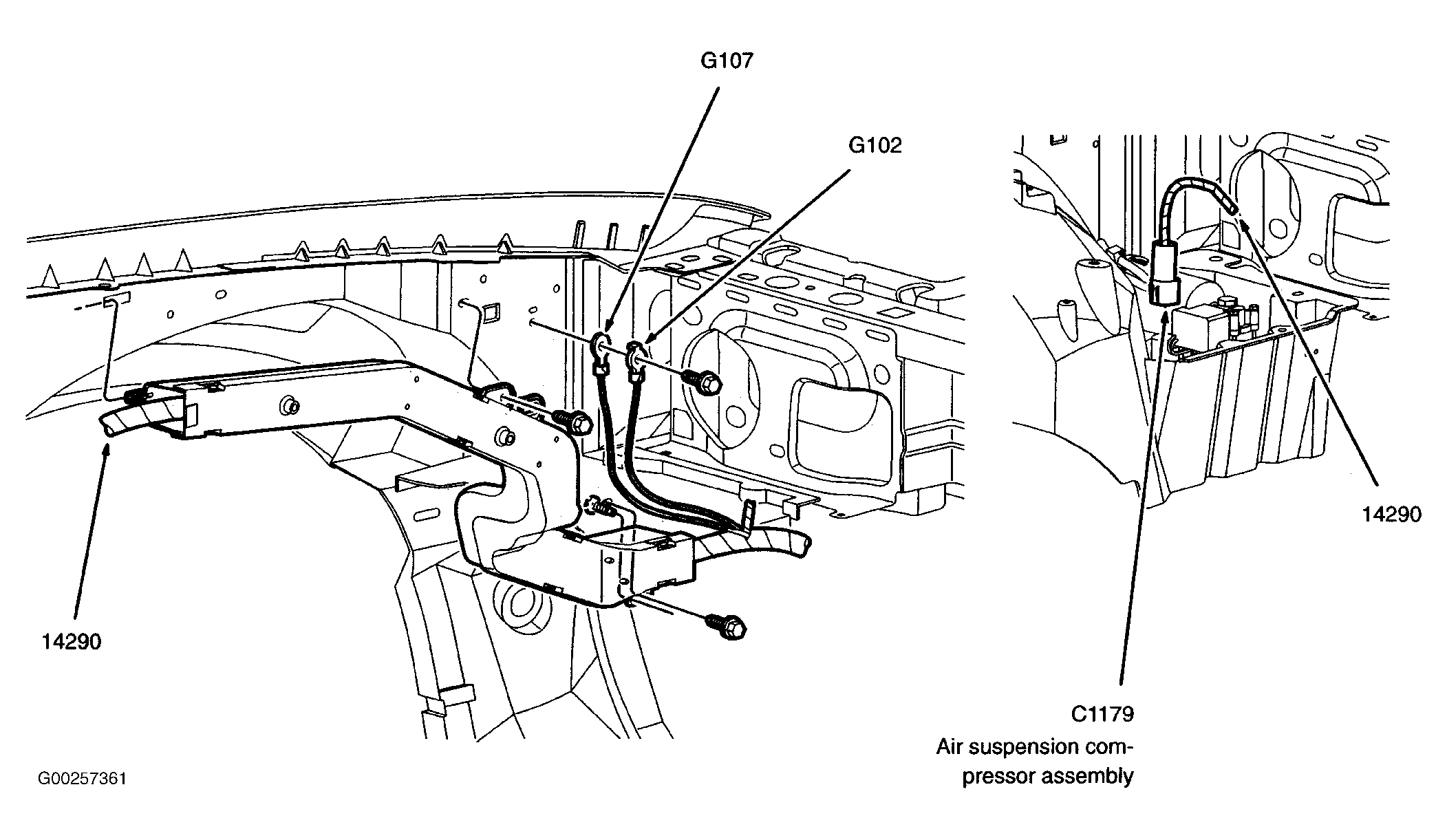

Fig 6: Left Front Of Engine Compartment

G00257361

Courtesy of FORD MOTOR CO.

Fig 7: Left Rear Of Engine Compartment

G00257362

Courtesy of FORD MOTOR CO.

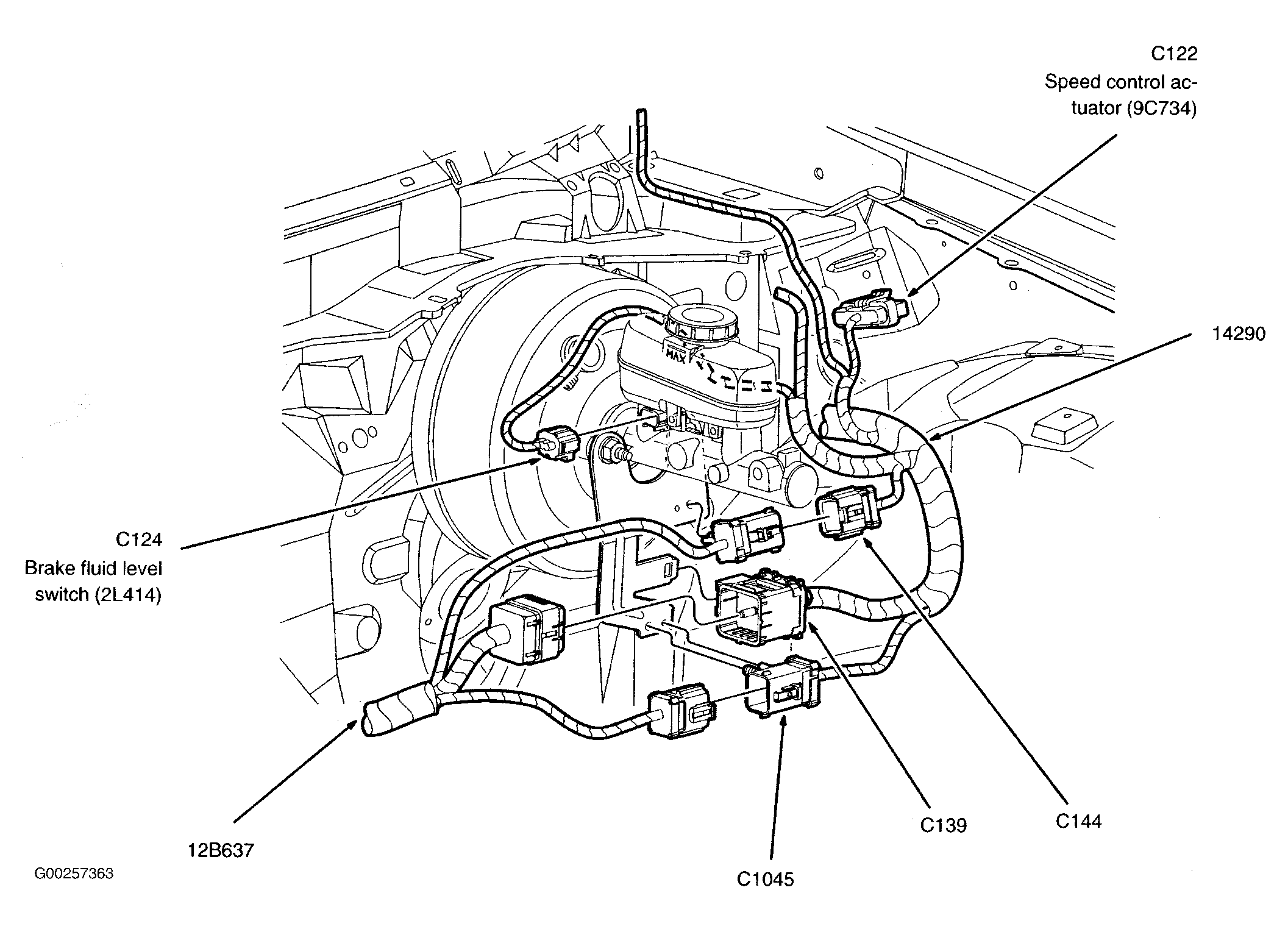

Fig 8: Left Rear Of Engine Compartment

G00257363

Courtesy of FORD MOTOR CO.

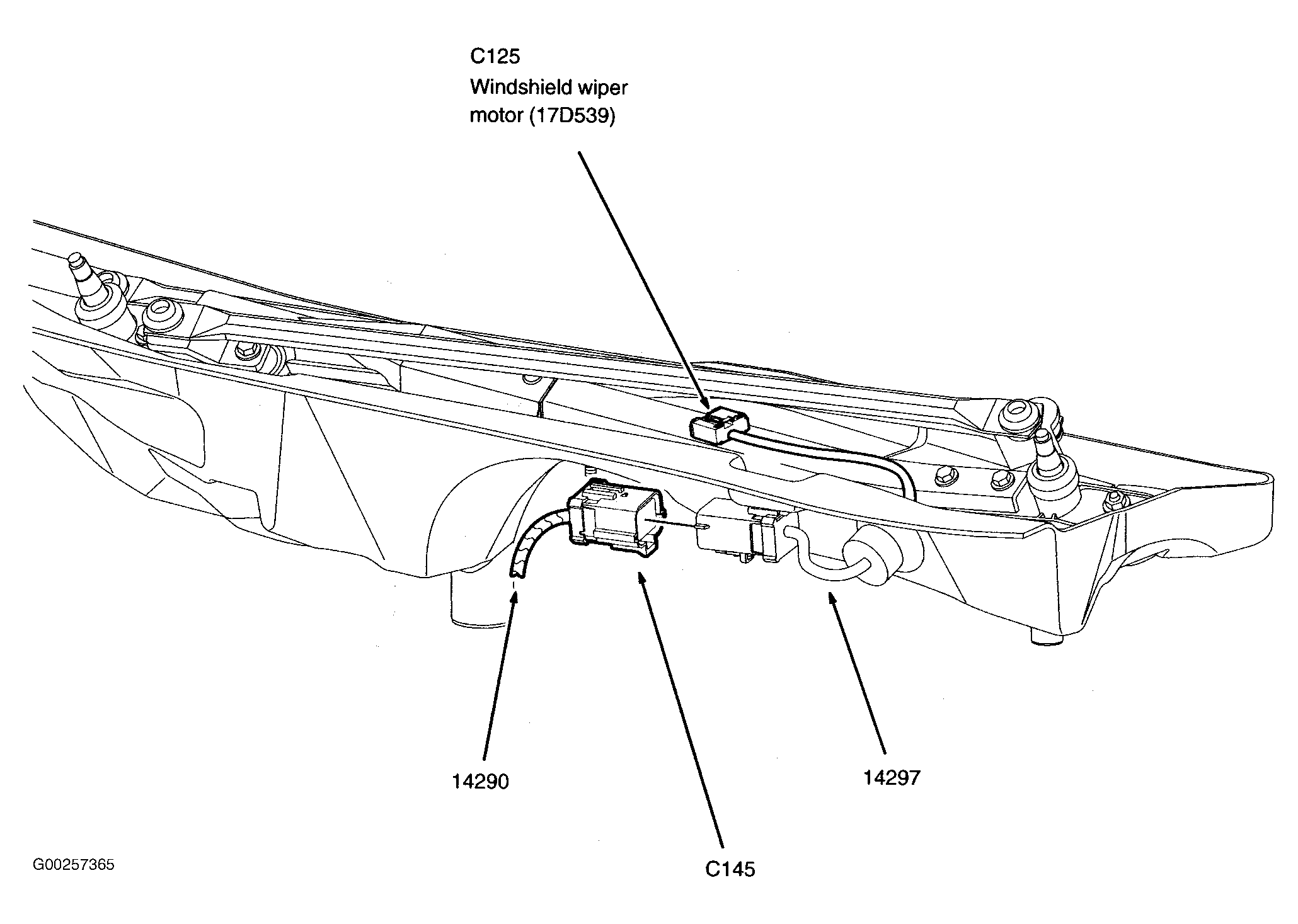

Fig 9: Rear Of Engine Compartment

G00257365

Courtesy of FORD MOTOR CO.

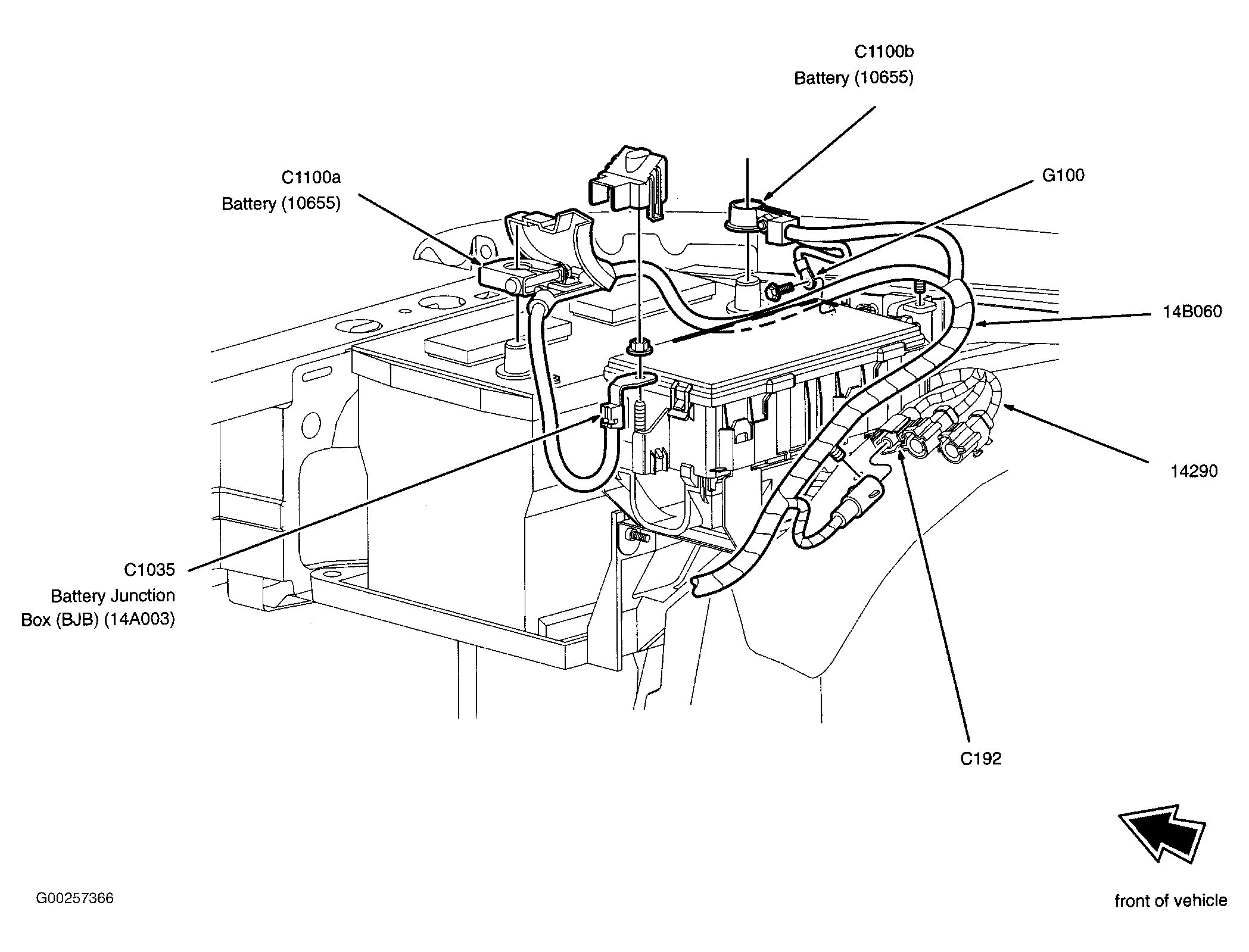

Fig 10: Right Front Of Engine Compartment

G00257366

Courtesy of FORD MOTOR CO.

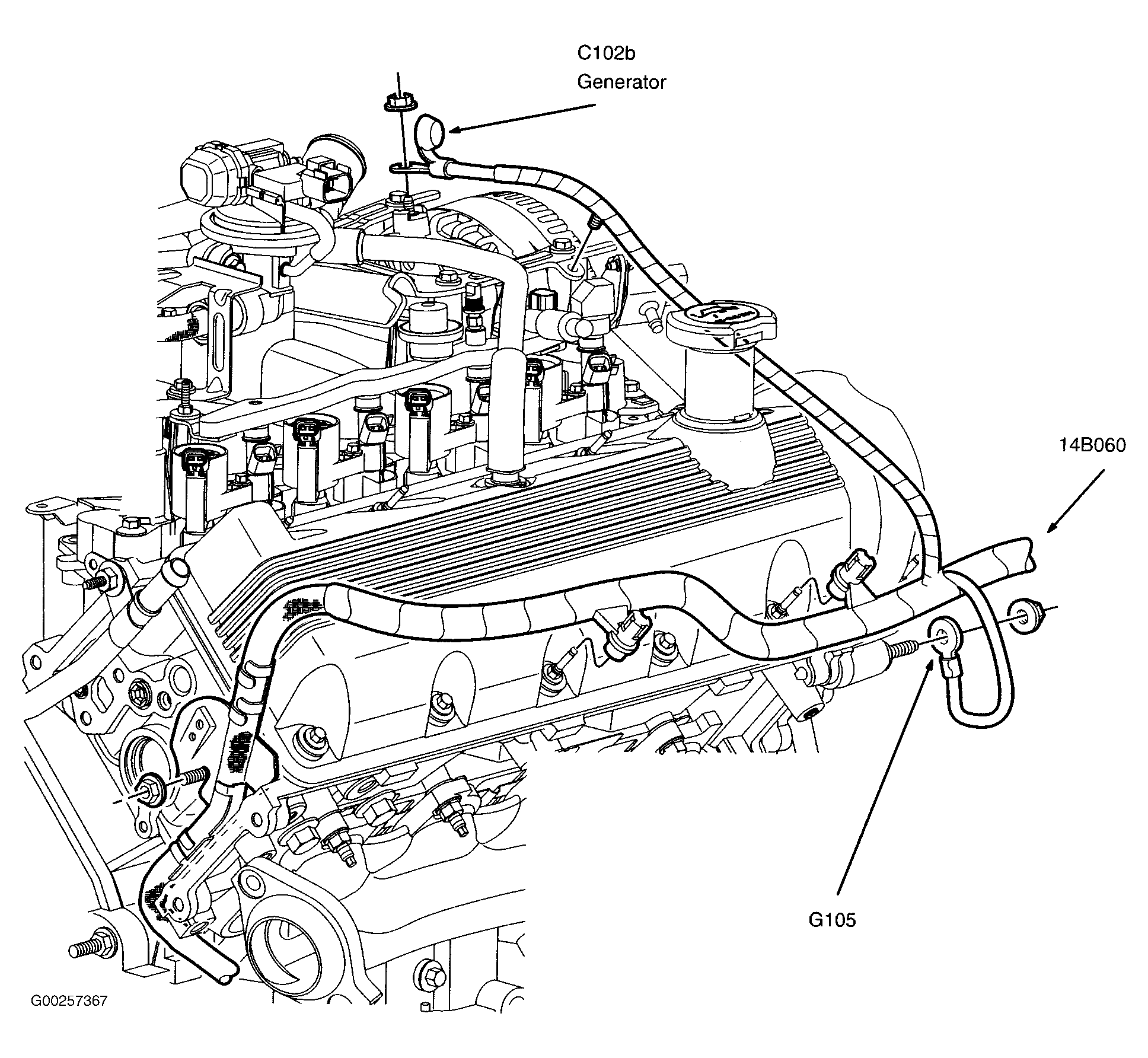

Fig 11: Right Side Of Engine

G00257367

Courtesy of FORD MOTOR CO.

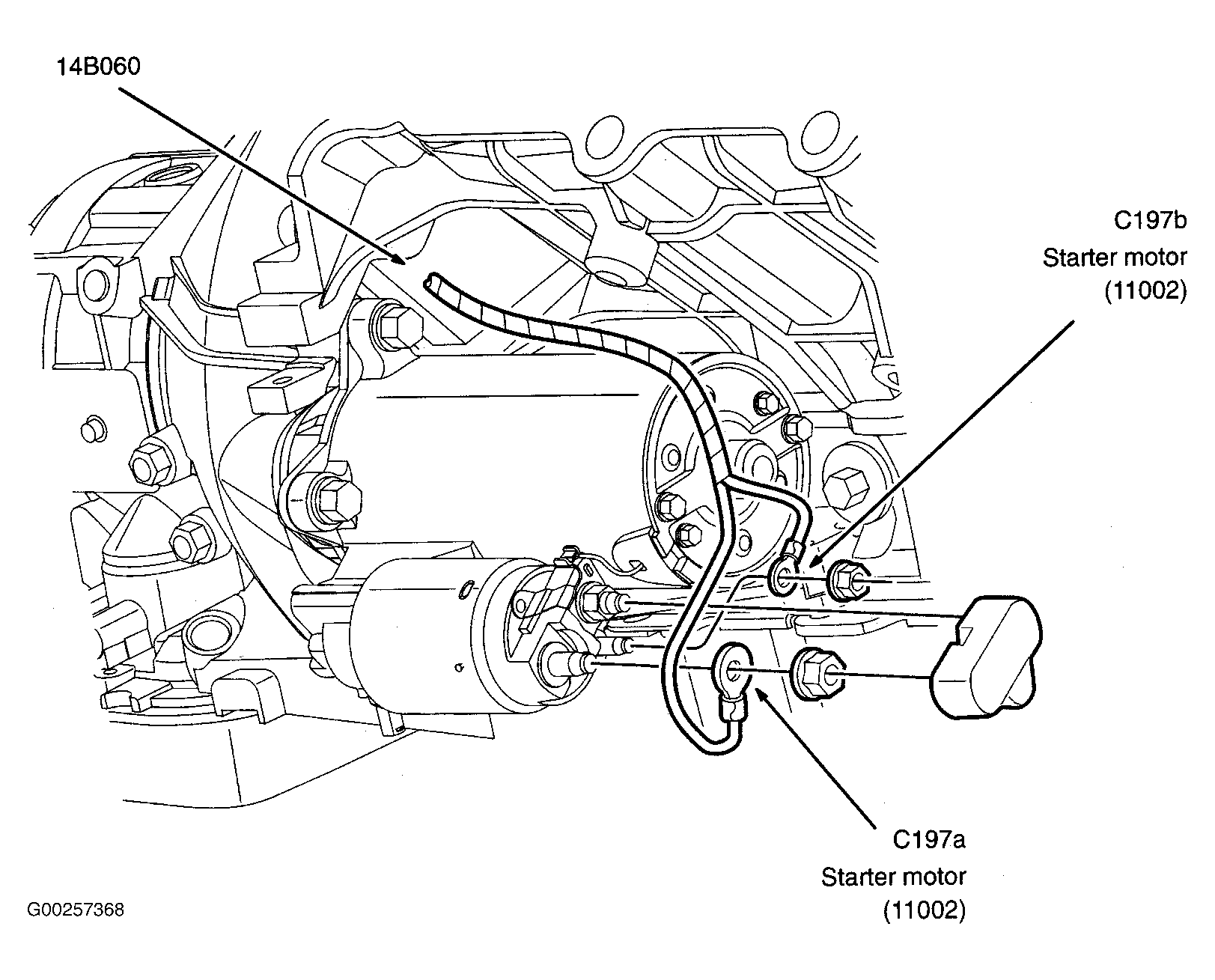

Fig 12: Right Rear Of Engine

G00257368

Courtesy of FORD MOTOR CO.

Fig 13: Right Side Of Engine

G00257369

Courtesy of FORD MOTOR CO.

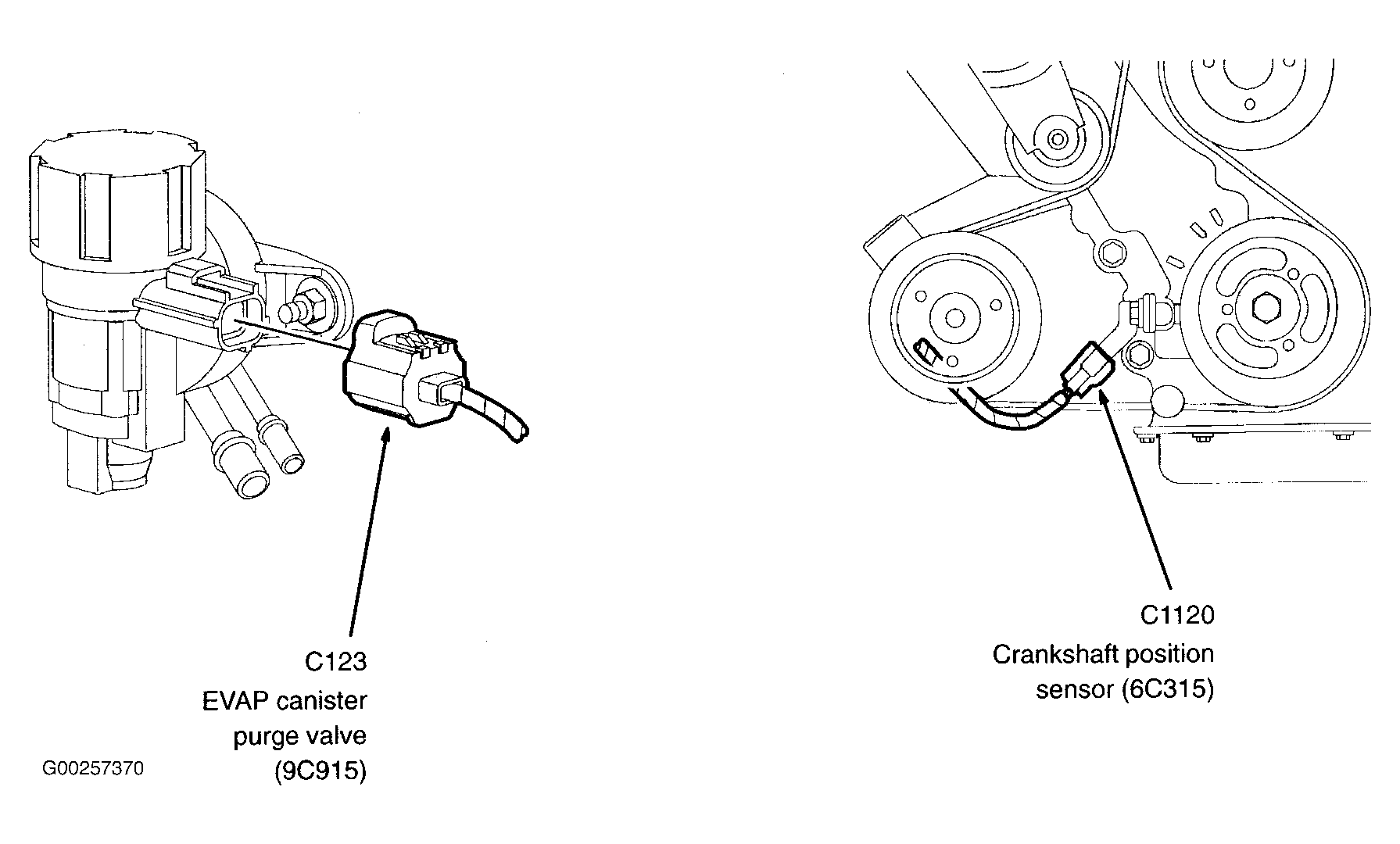

Fig 14: Engine Compartment

G00257370

Courtesy of FORD MOTOR CO.

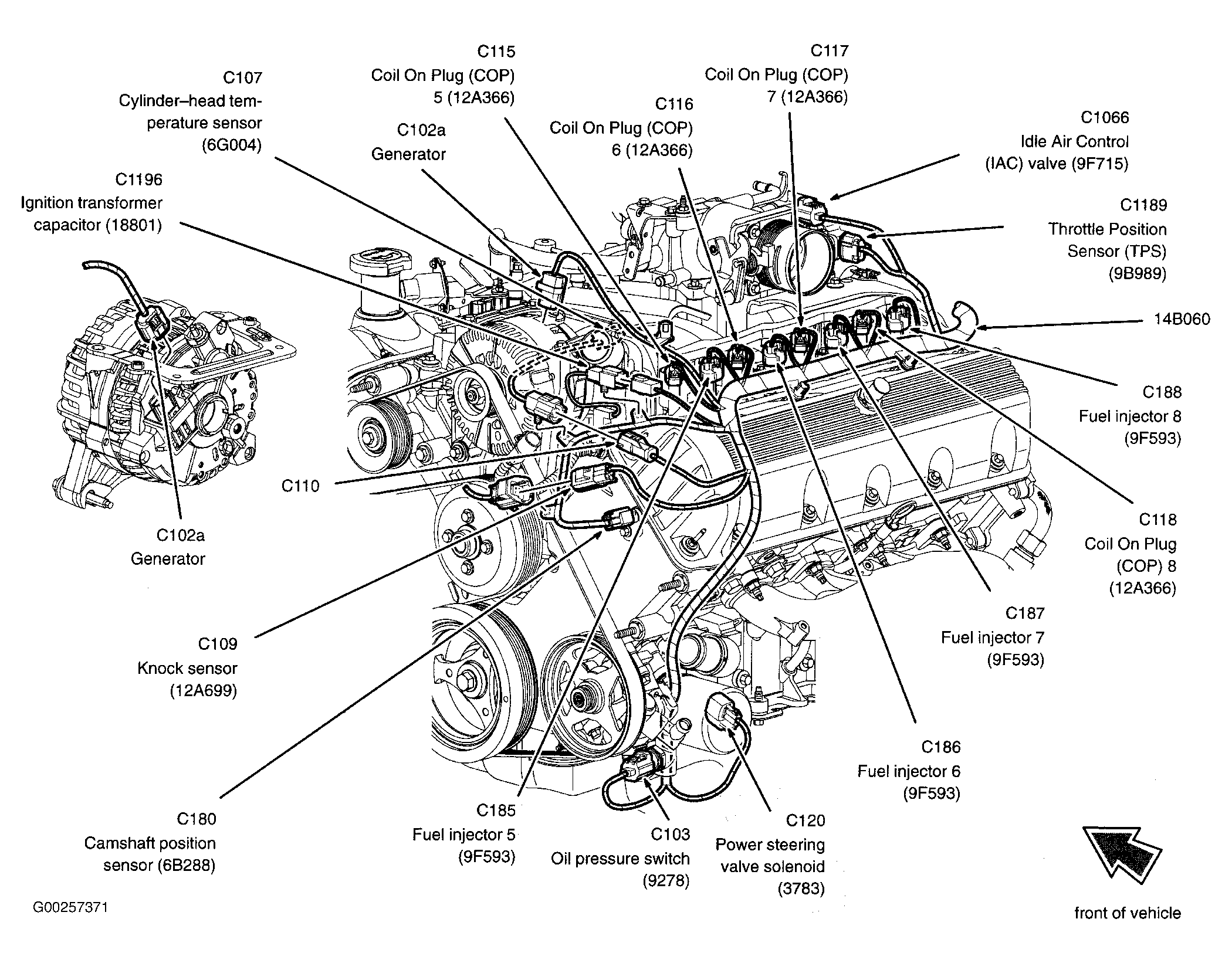

Fig 15: Left Front Of Engine

G00257371

Courtesy of FORD MOTOR CO.

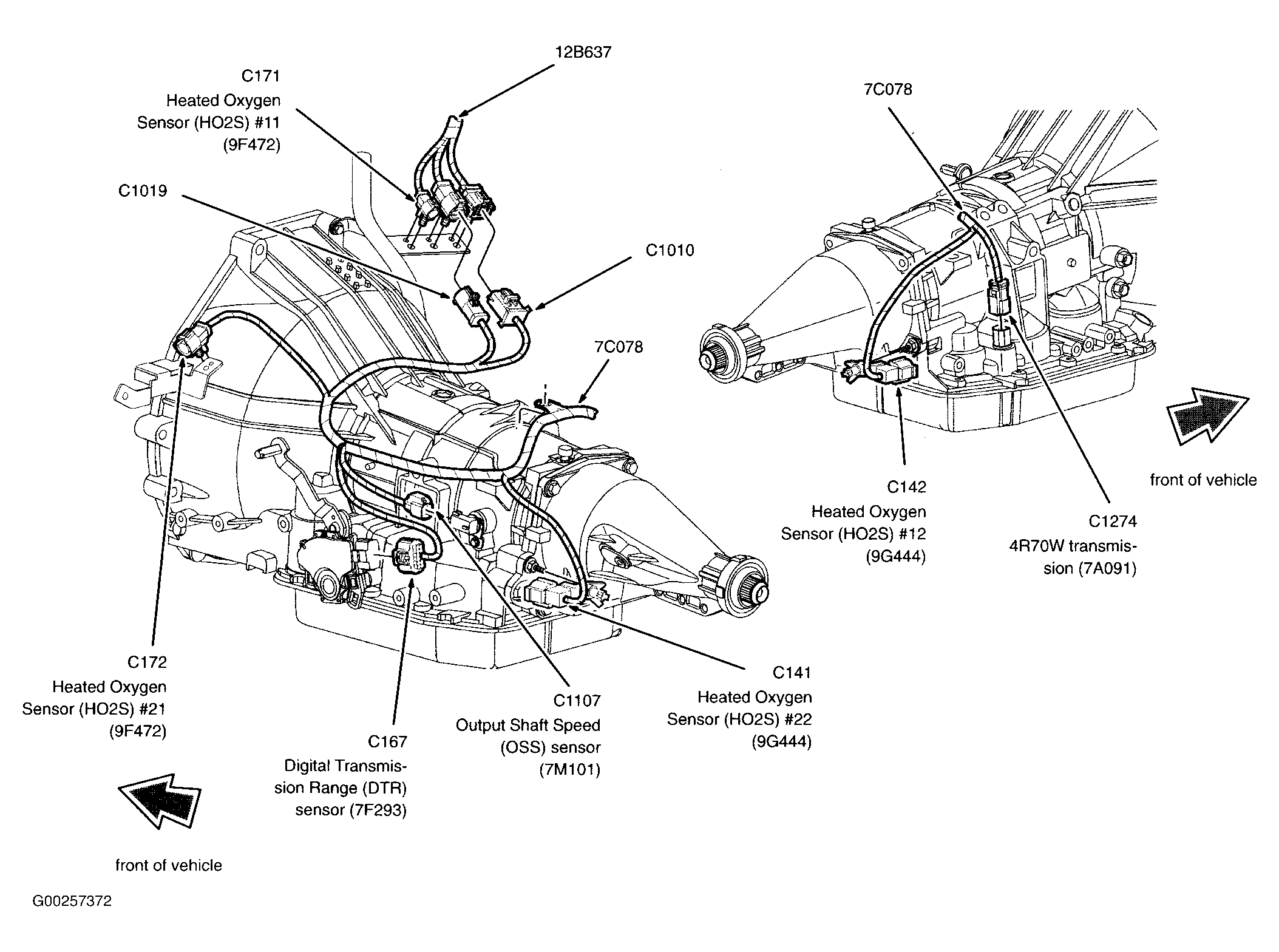

Fig 16: Transmission

G00257372

Courtesy of FORD MOTOR CO.

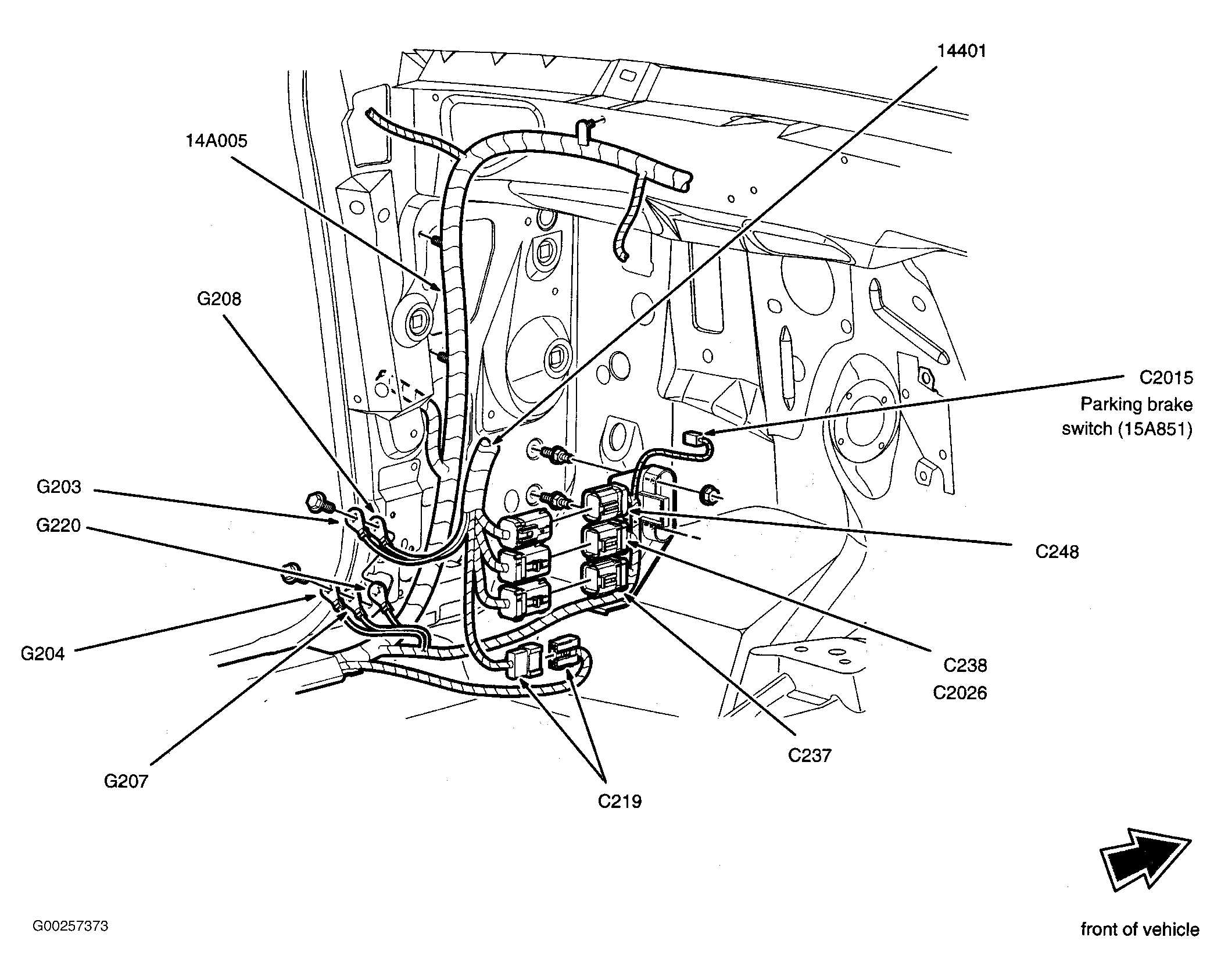

Fig 17: Left "A" Pillar

G00257373

Courtesy of FORD MOTOR CO.

Fig 18: Behind Dashboard

G00257374

Courtesy of FORD MOTOR CO.

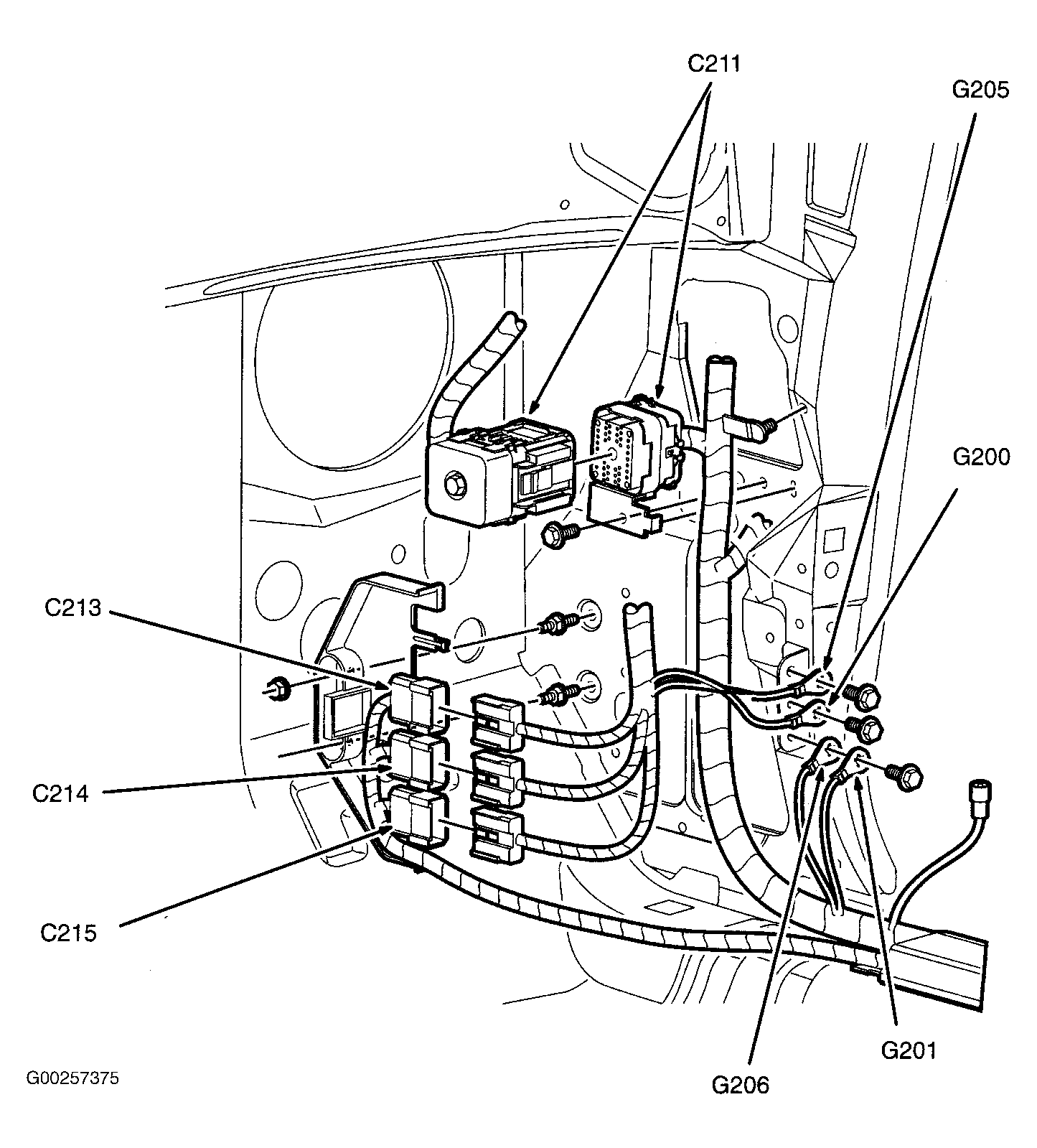

Fig 19: Right "A" Pillar

G00257375

Courtesy of FORD MOTOR CO.

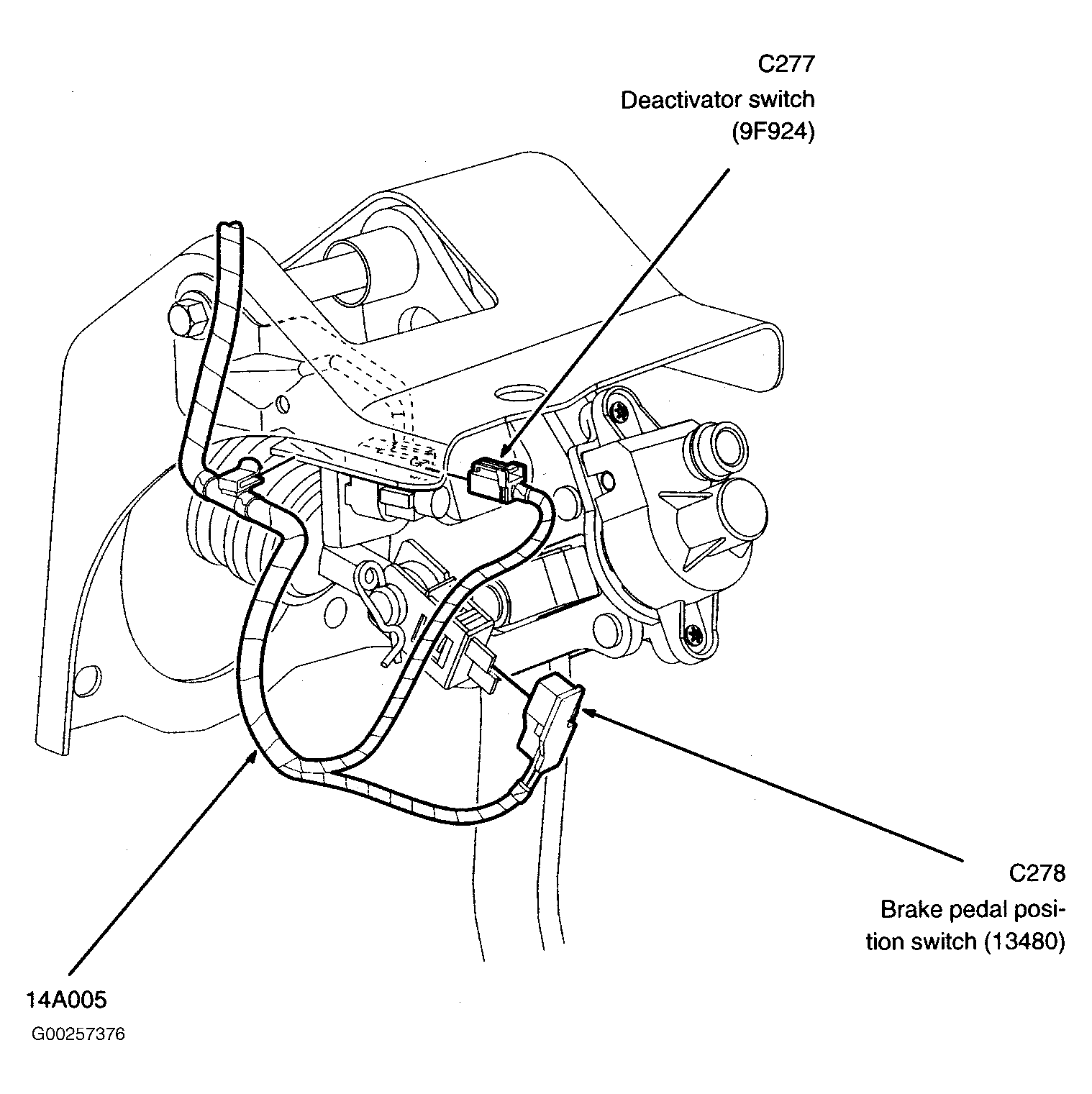

Fig 20: Brake Pedal Support

G00257376

Courtesy of FORD MOTOR CO.

Fig 21: Behind Dashboard

G00257377

Courtesy of FORD MOTOR CO.

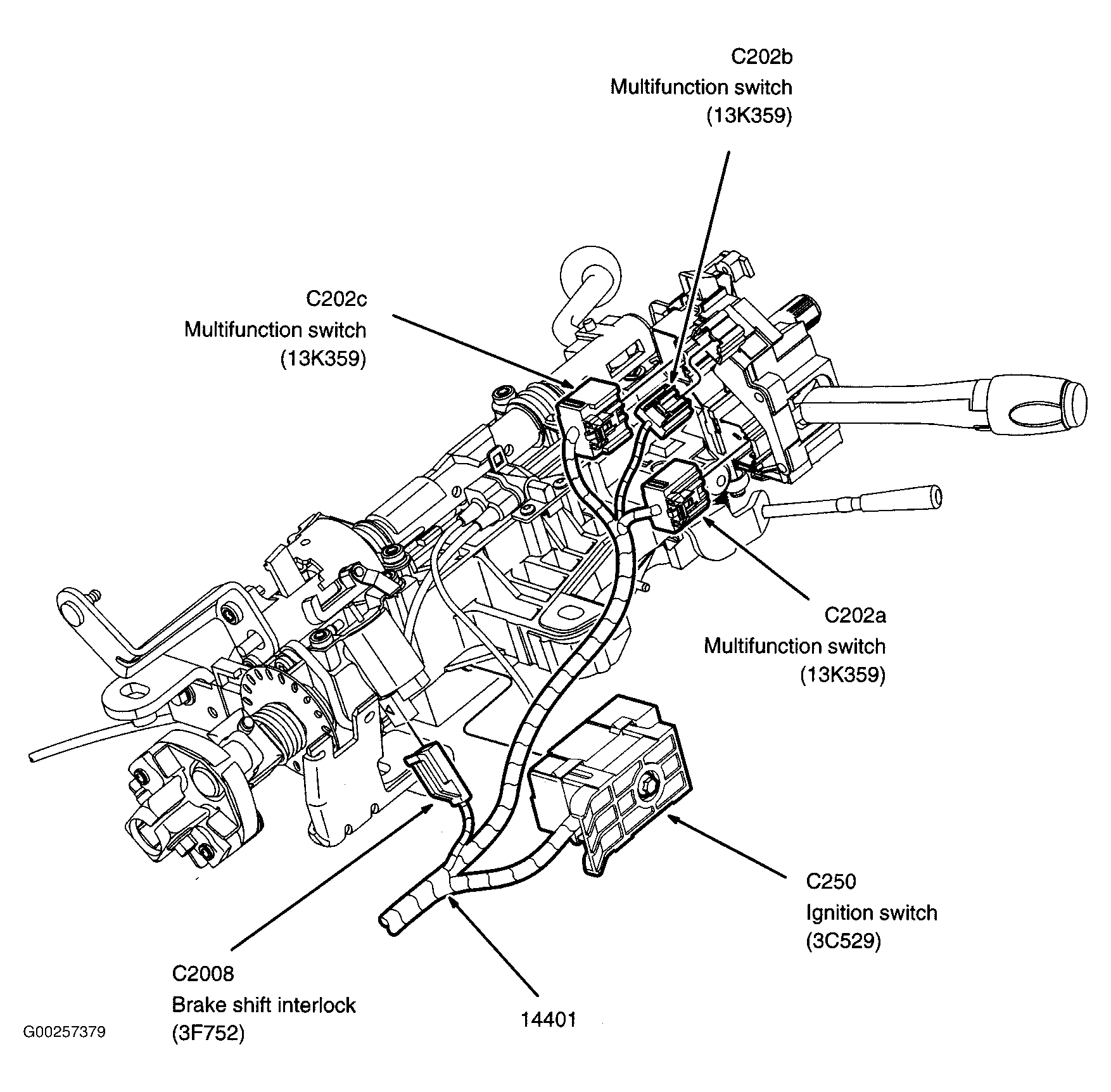

Fig 22: Steering Column

G00257379

Courtesy of FORD MOTOR CO.

Fig 23: Steering Column

G00257380

Courtesy of FORD MOTOR CO.

Fig 24: Center Of Floor Pan

G00257382

Courtesy of FORD MOTOR CO.

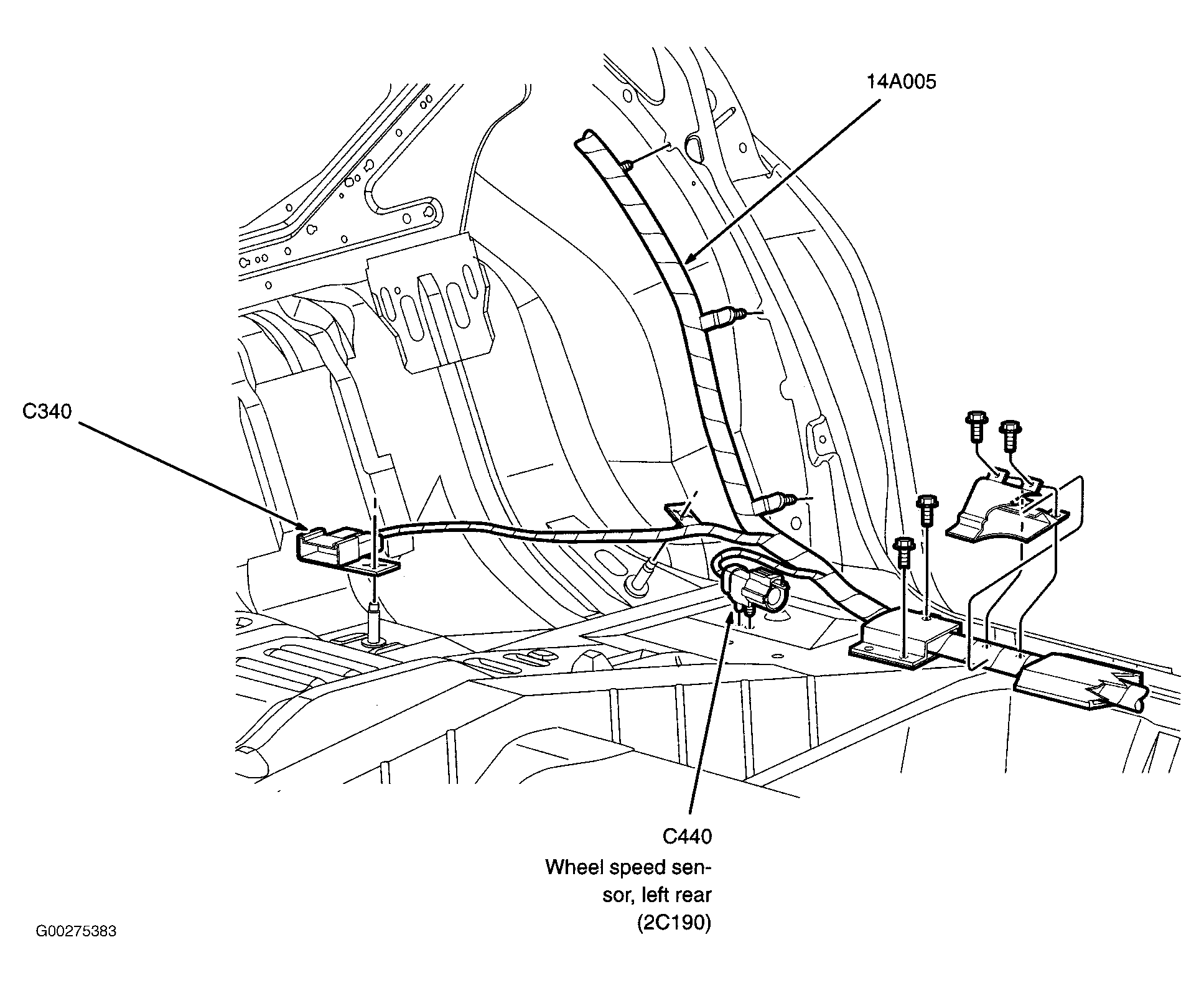

Fig 25: Left "C" Pillar

G00257383

Courtesy of FORD MOTOR CO.

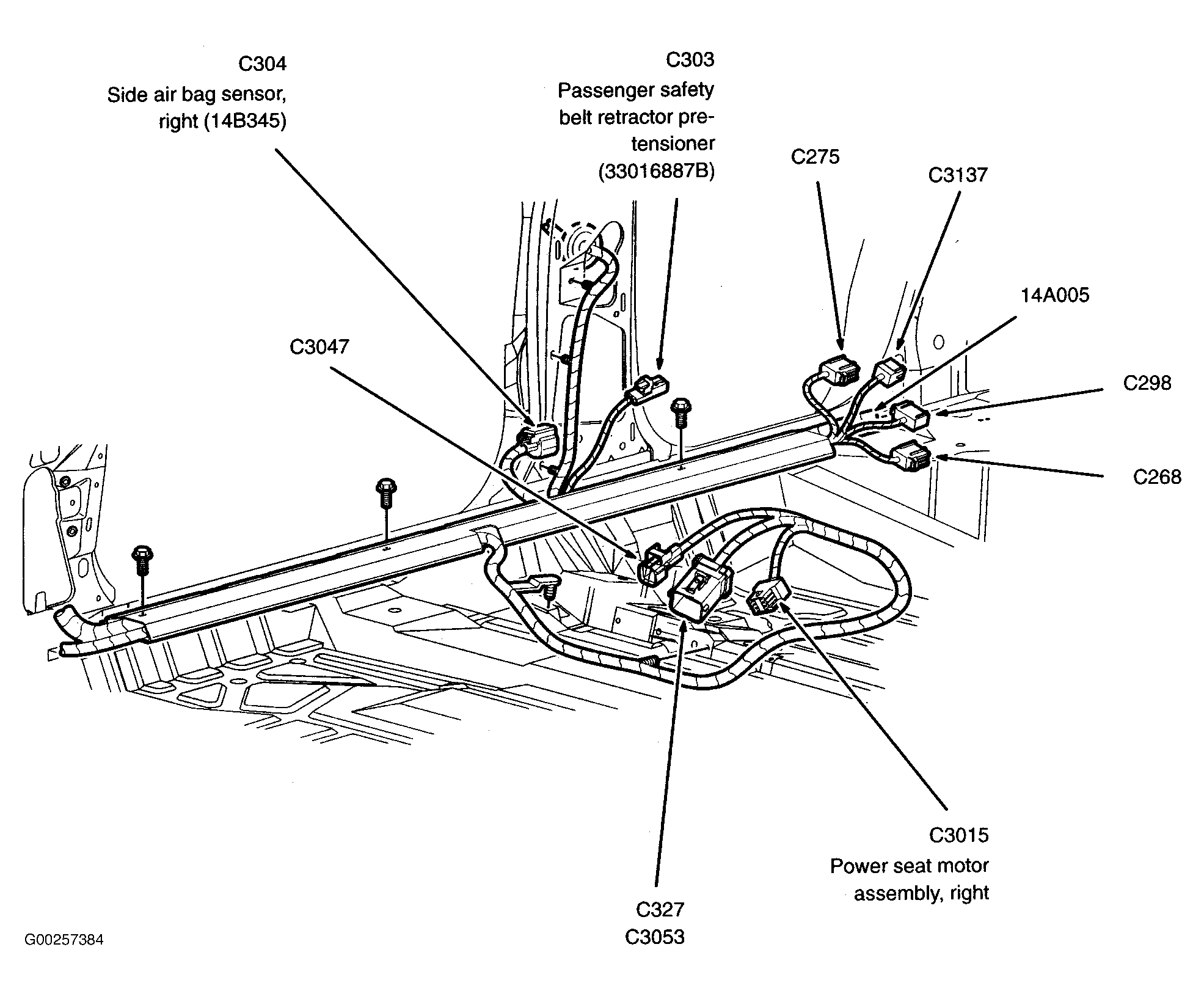

Fig 26: Right "B" Pillar

G00257384

Courtesy of FORD MOTOR CO.

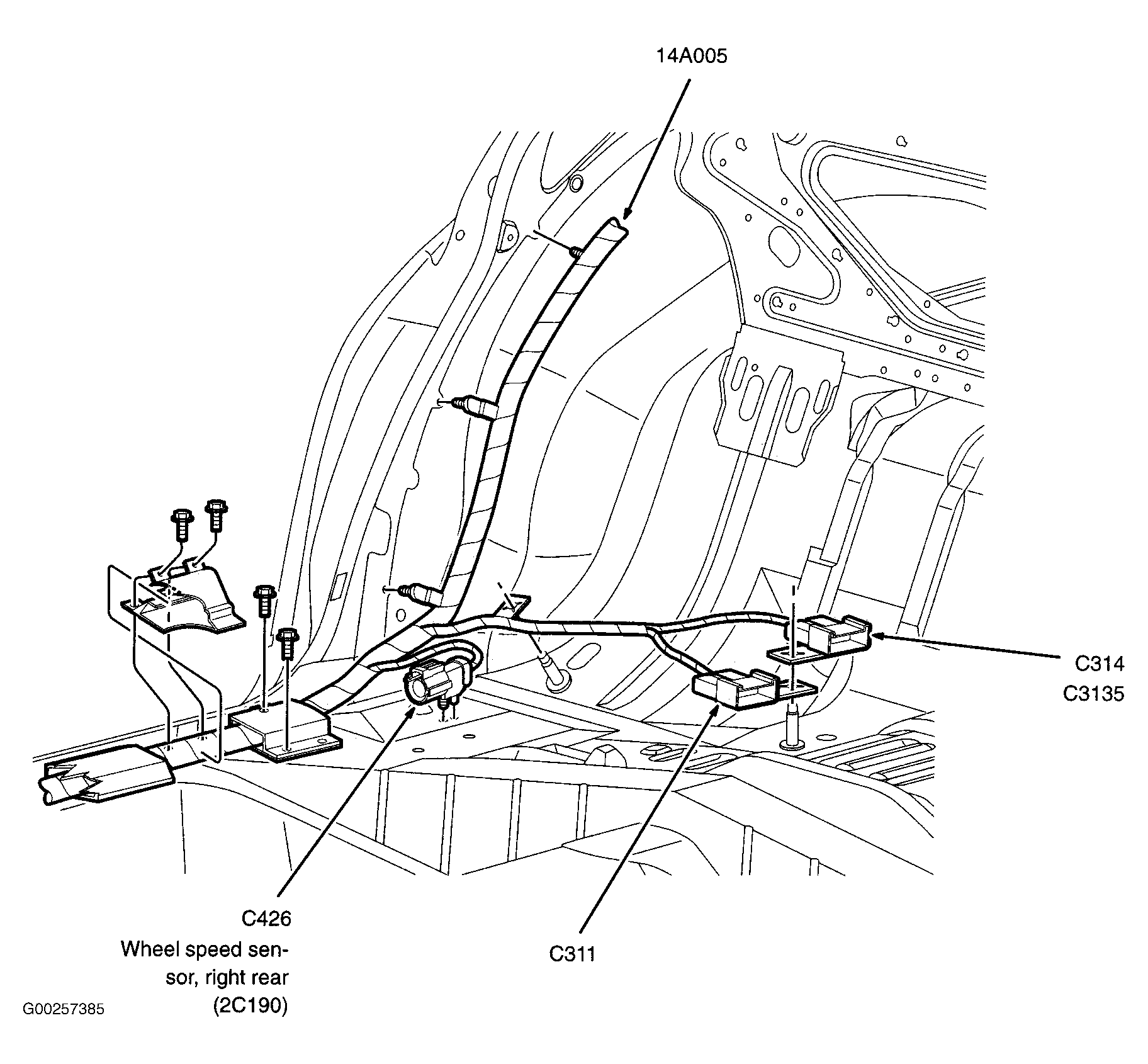

Fig 27: Right "C" Pillar

G00257385

Courtesy of FORD MOTOR CO.

Fig 28: Driver's Seat

G00257386

Courtesy of FORD MOTOR CO.

Fig 29: Passenger's Seat

G00257387

Courtesy of FORD MOTOR CO.

Fig 30: Rear Seat

G00257388

Courtesy of FORD MOTOR CO.

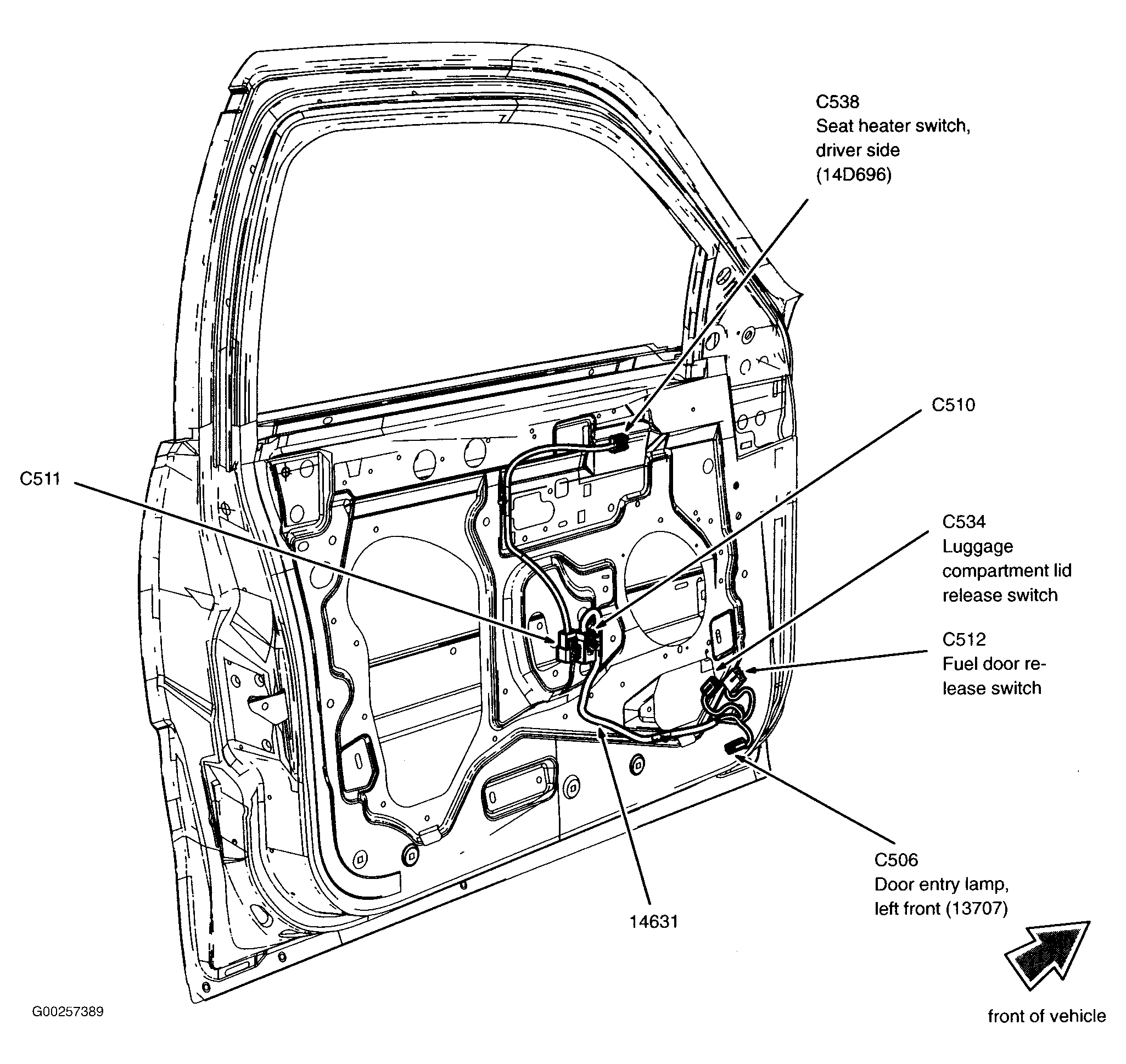

Fig 31: Left Front Door

G00257389

Courtesy of FORD MOTOR CO.

Fig 32: Left Front Door

G00257390

Courtesy of FORD MOTOR CO.

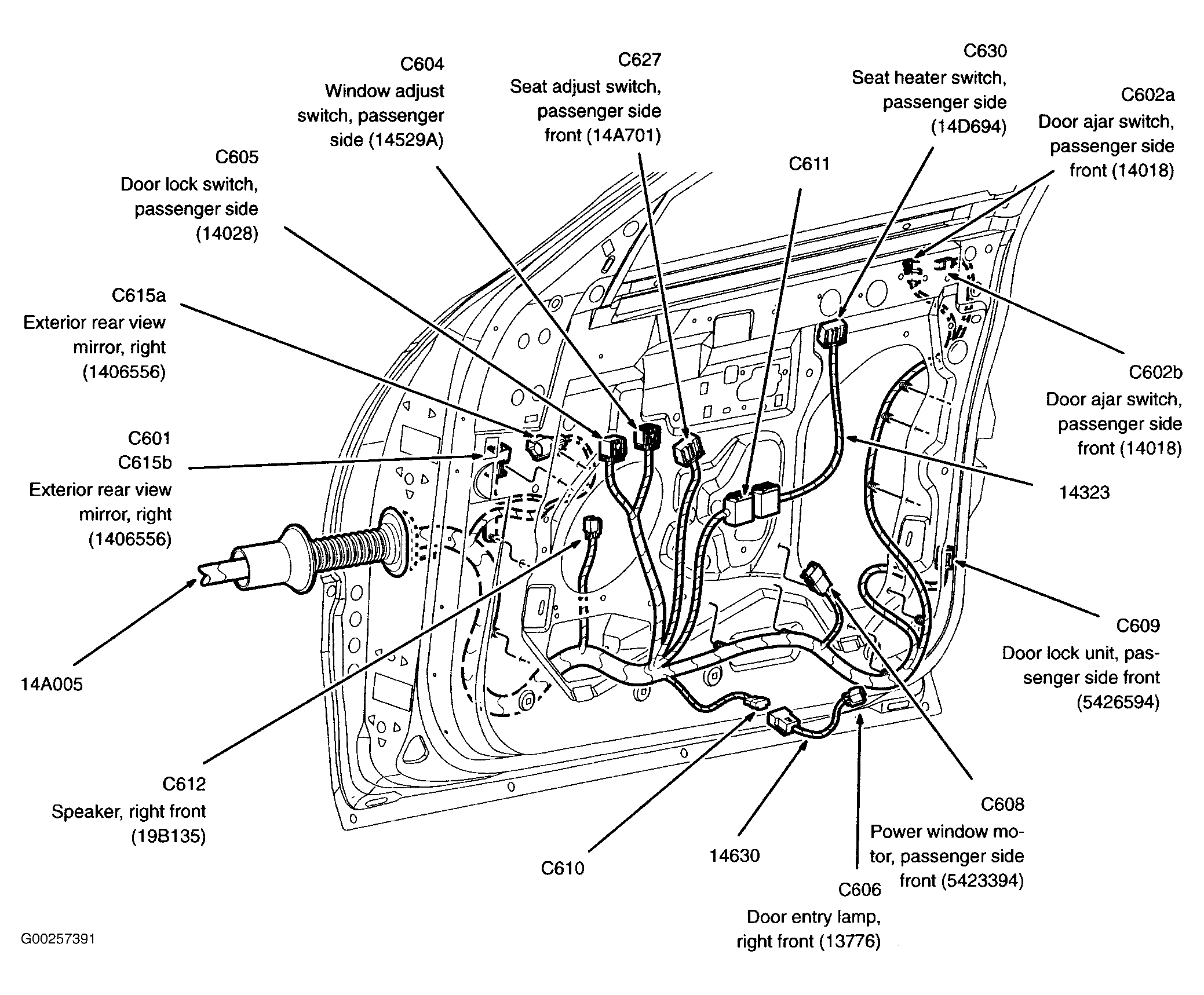

Fig 33: Right Front Door

G00257391

Courtesy of FORD MOTOR CO.

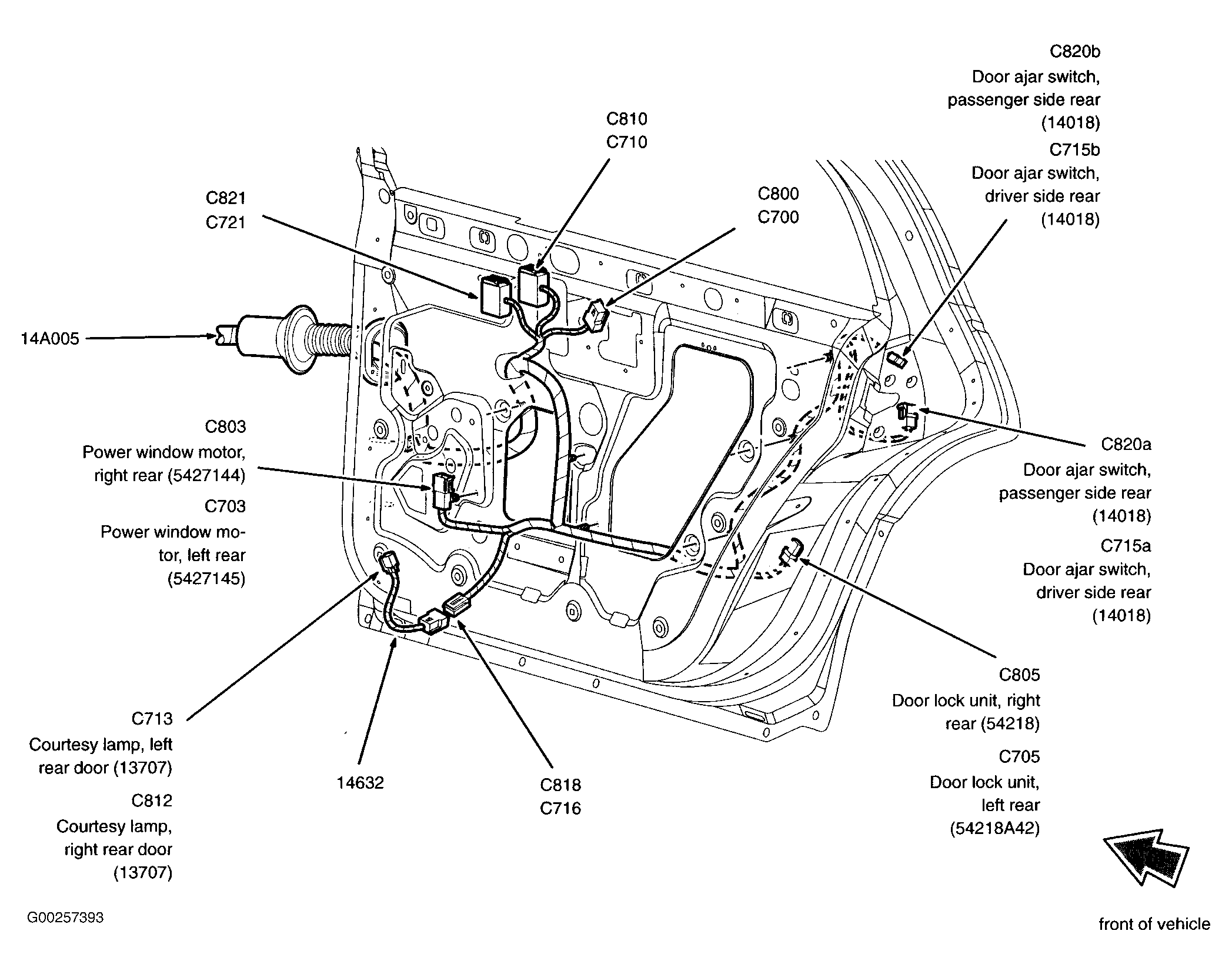

Fig 34: Right Rear Door (Left Similar)

G00257393

Courtesy of FORD MOTOR CO.

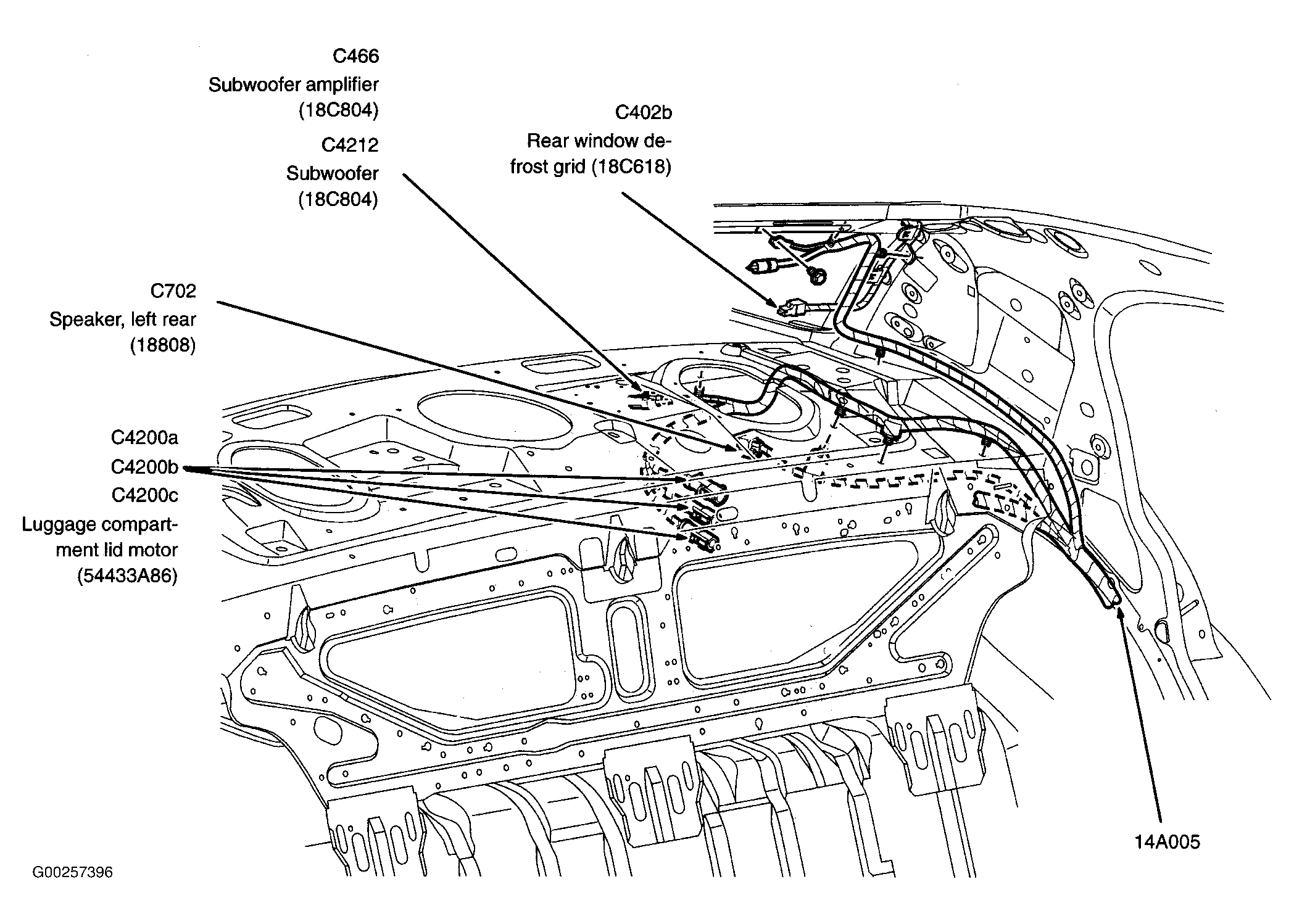

Fig 35: Left Package Tray

G00257396

Courtesy of FORD MOTOR CO.

Fig 36: Left Side Of Trunk

G00257397

Courtesy of FORD MOTOR CO.

Fig 37: Right Package Tray

G00257398

Courtesy of FORD MOTOR CO.

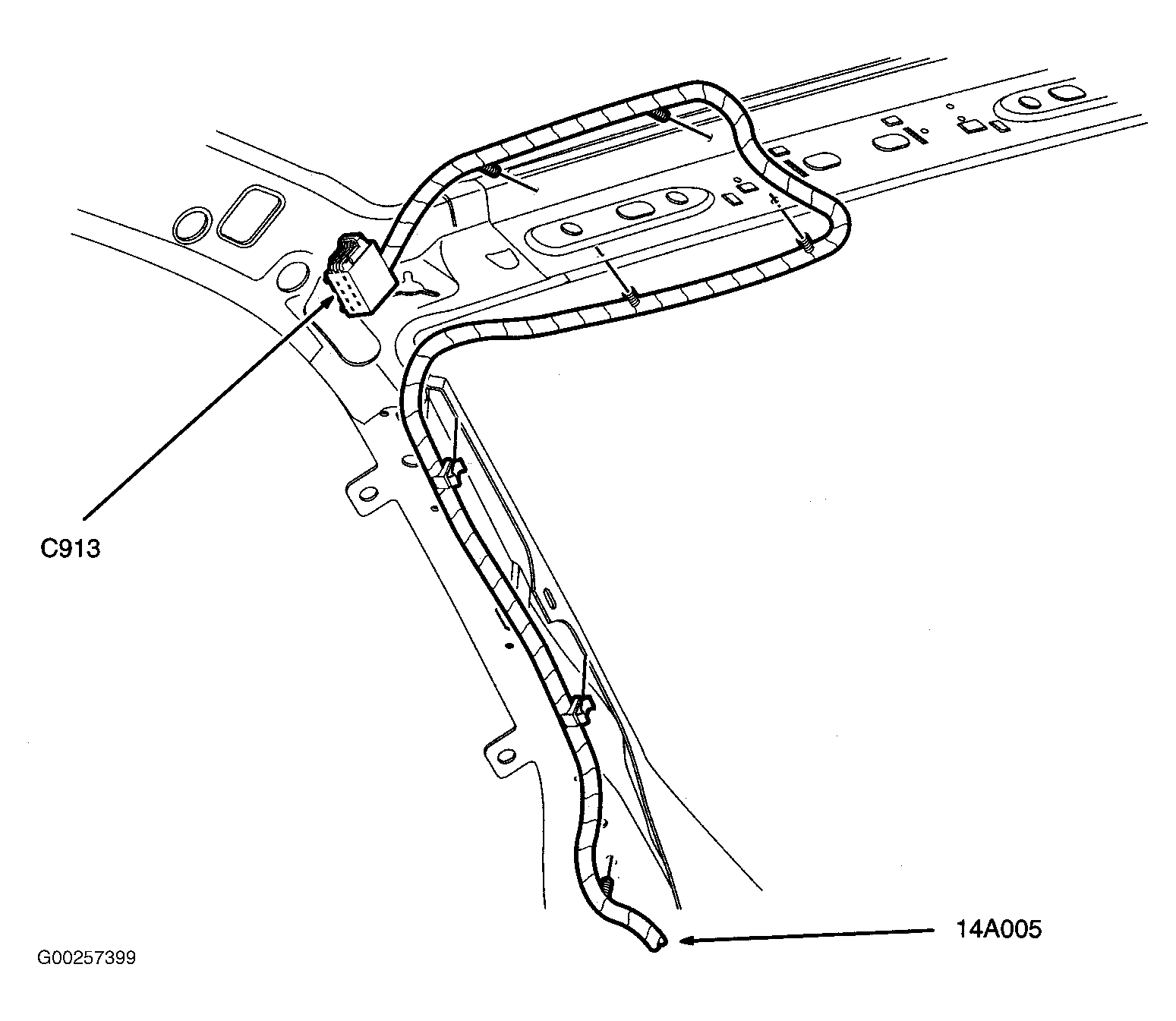

Fig 38: Left Front Of Roof

G00257399

Courtesy of FORD MOTOR CO.

Fig 39: Right Front Of Roof

G00257400

Courtesy of FORD MOTOR CO.

Fig 40: Left Side Of Trunk

G00257401

Courtesy of FORD MOTOR CO.

Fig 41: Trunk

G00257402

Courtesy of FORD MOTOR CO.

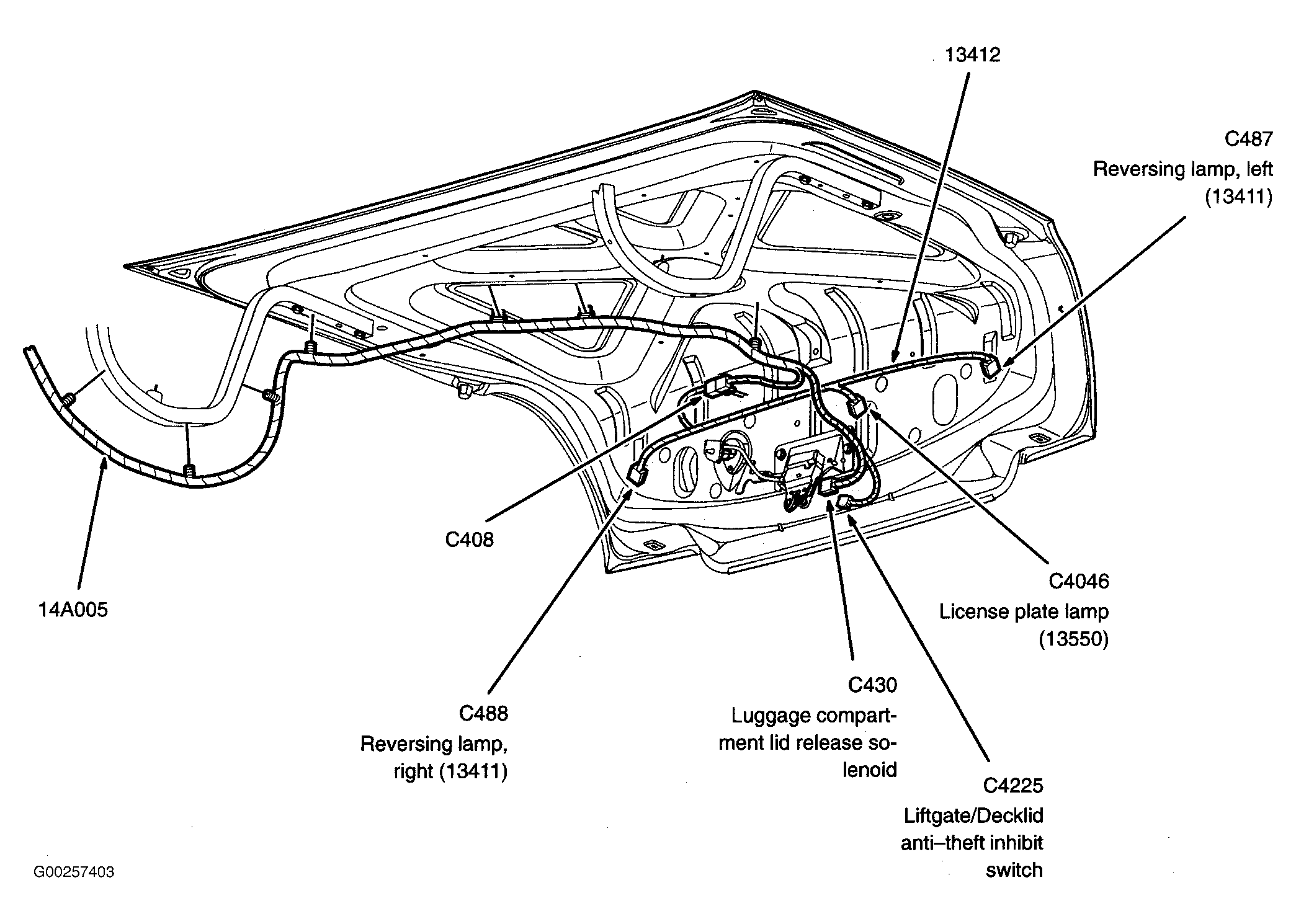

Fig 42: Trunk Lid

G00257403

Courtesy of FORD MOTOR CO.

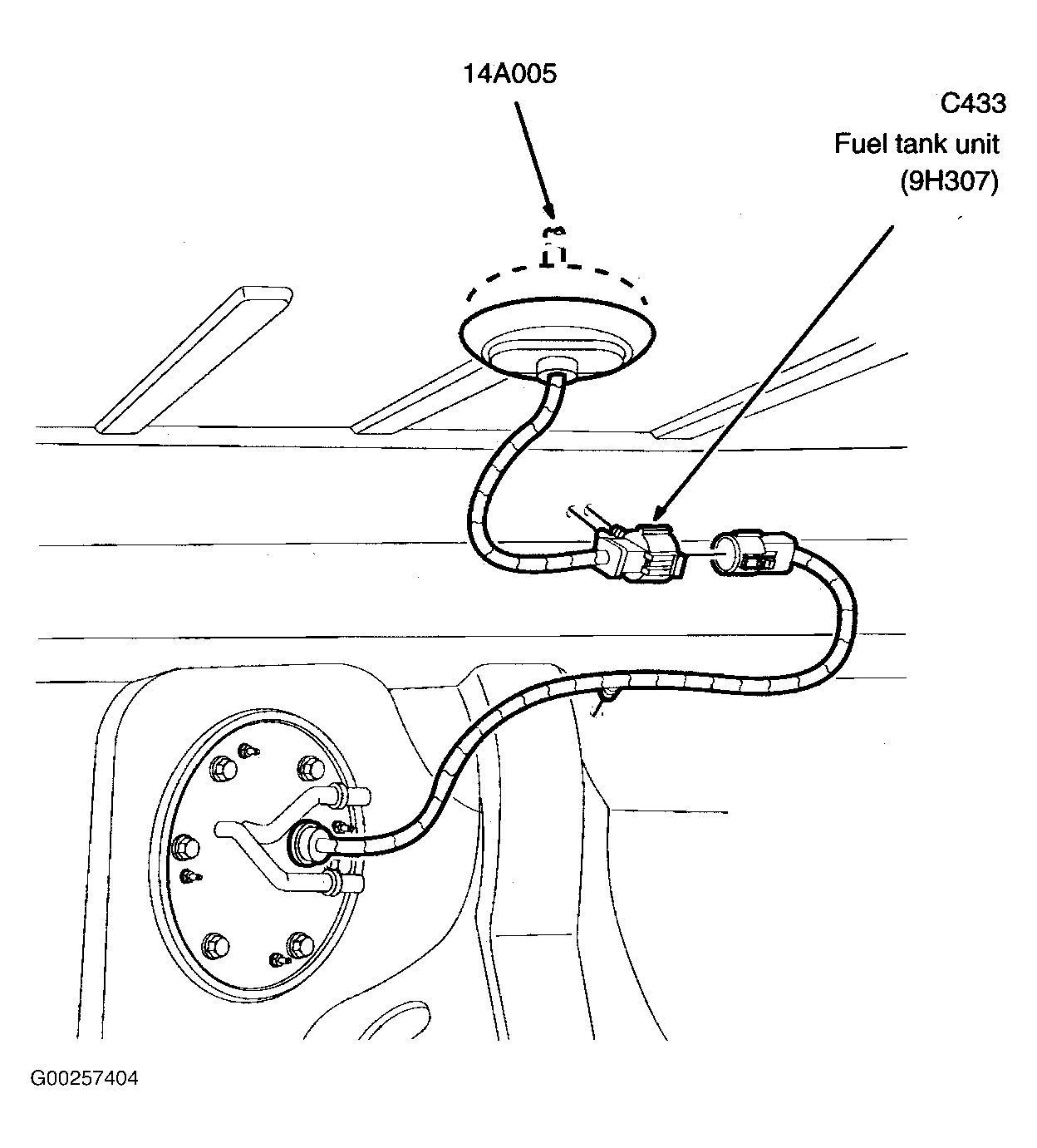

Fig 43: Rear Underbody

G00257404

Courtesy of FORD MOTOR CO.

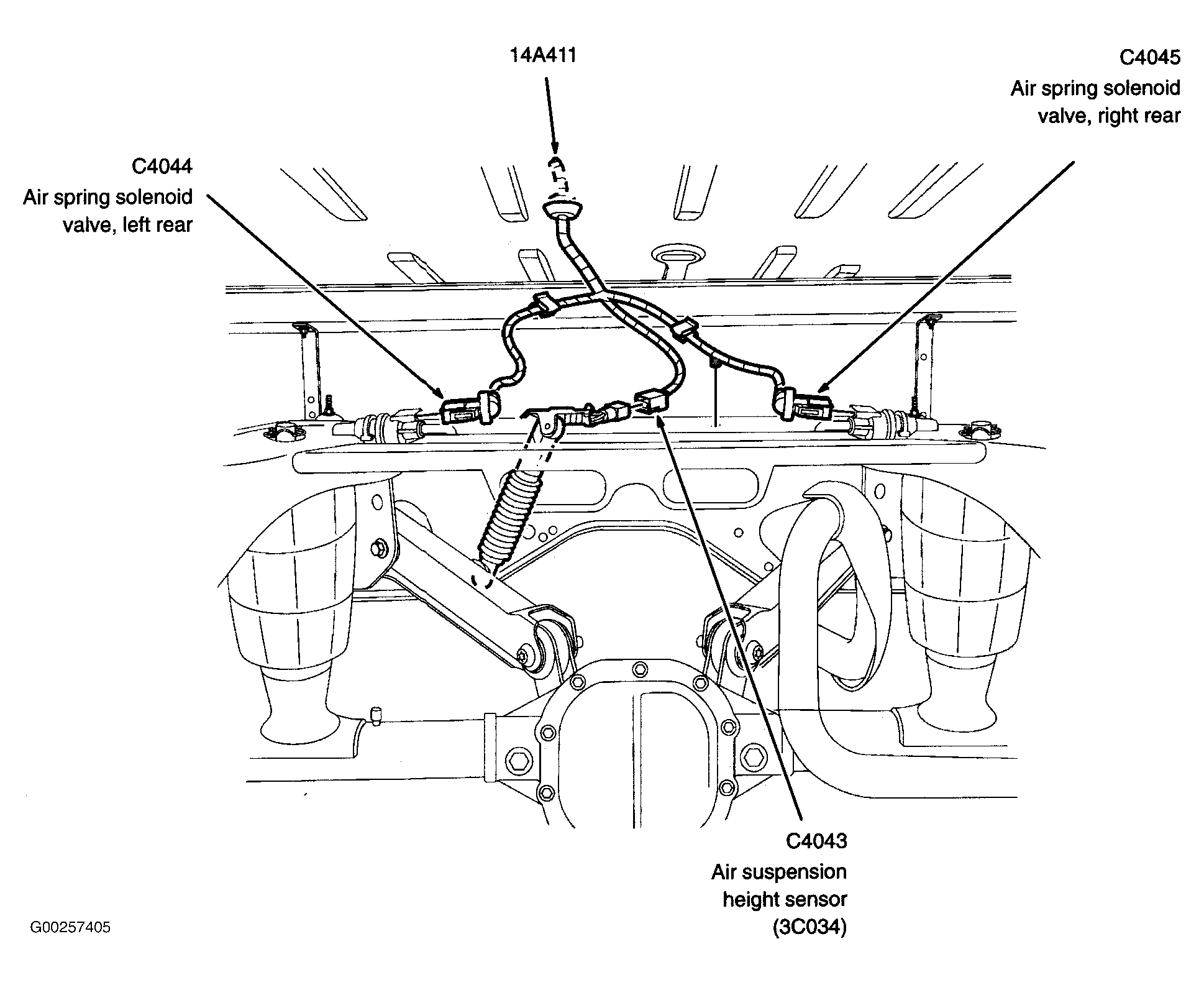

Fig 44: Rear Underbody

G00257405

Courtesy of FORD MOTOR CO.

Fig 45: Center Of Roof

G00257407

Courtesy of FORD MOTOR CO.

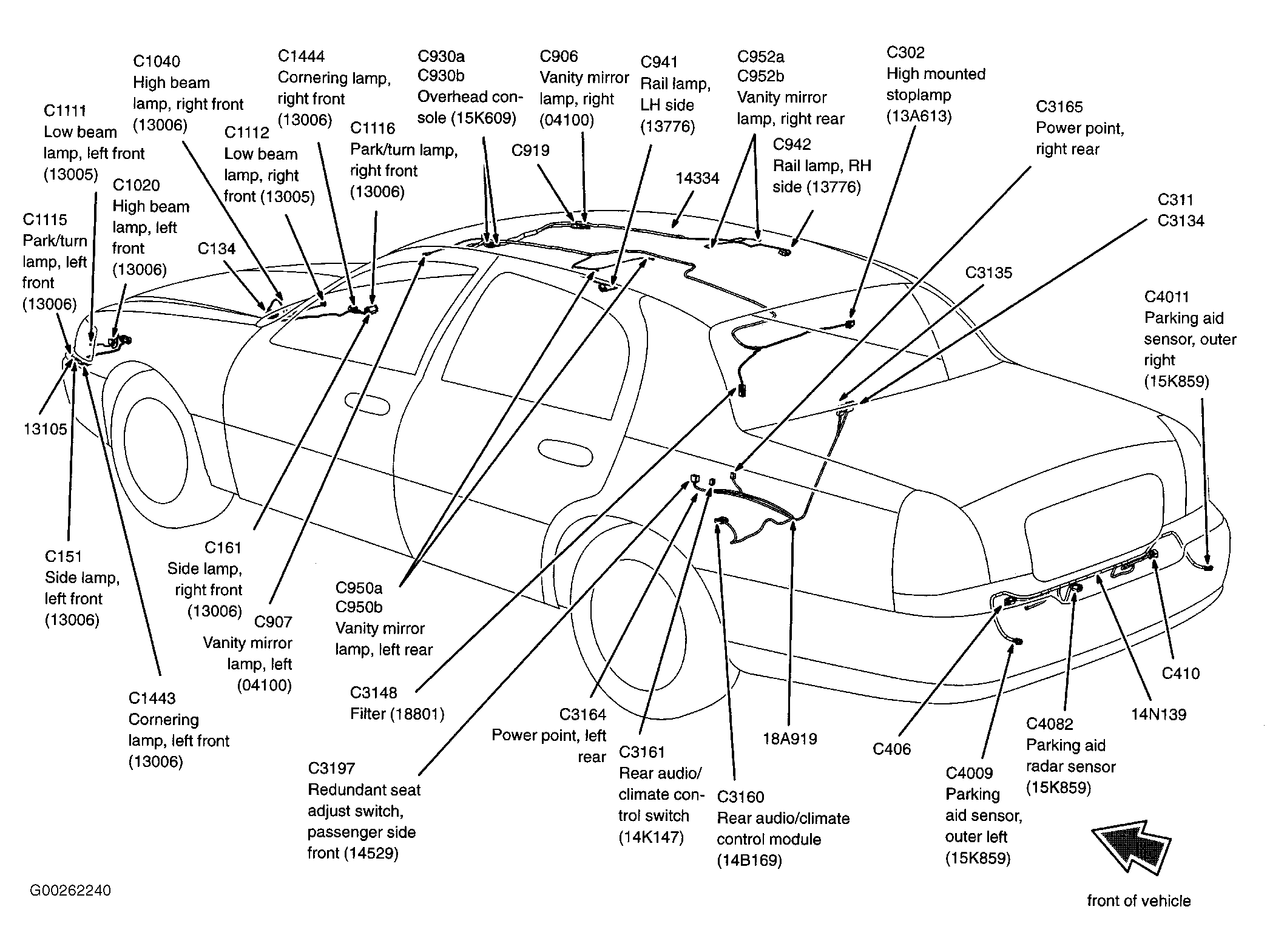

Fig 46: Vehicle Overview

G00262240

Courtesy of FORD MOTOR CO.

Fig 47: Left "B" Pillar

G00257381

Courtesy of FORD MOTOR CO.
