Home >> Lincoln >> 2004 >> Town Car Protection Series >> Repair and Diagnosis >> Engine Mechanical >> Mechanical >> Engine >> In-Vehicle Repair >> Flexplate >> Installation

In-Vehicle Repair: Flexplate: Installation

  1. Position the flexplate and loosely install the bolts. Tighten the bolts in the sequence shown.

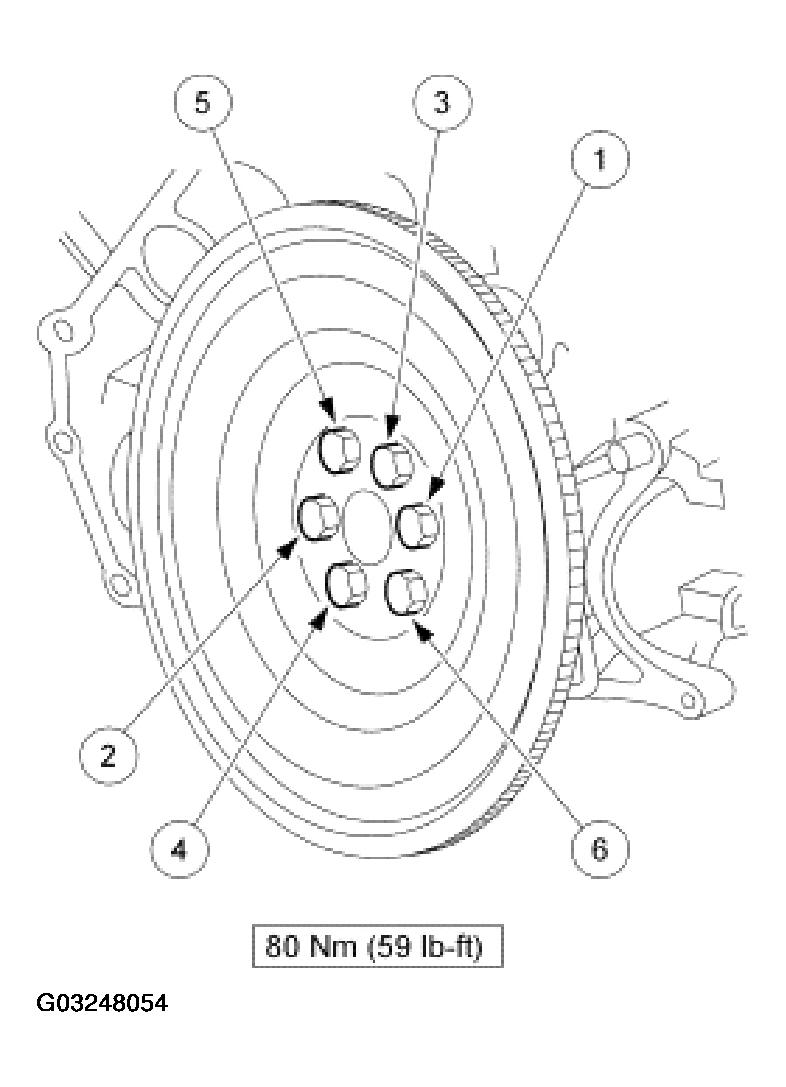

    Fig 1: Identifying Flexplate Bolts Tightening Sequence
    G03248054Courtesy of FORD MOTOR CO.
  2. Install the transmission. For additional information, refer to AUTOMATIC TRANSAXLE/TRANSMISSION .
