Timing Drive Components: Installation

Engines With Ratcheting Timing Chain Tensioners

Fig 1: Compressing Tensioner Plunger

Courtesy of FORD MOTOR CO.

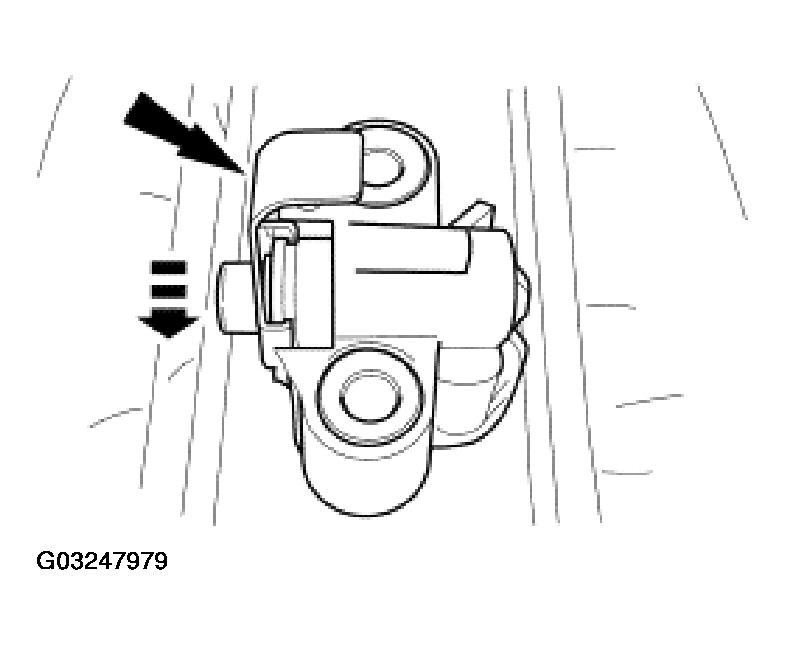

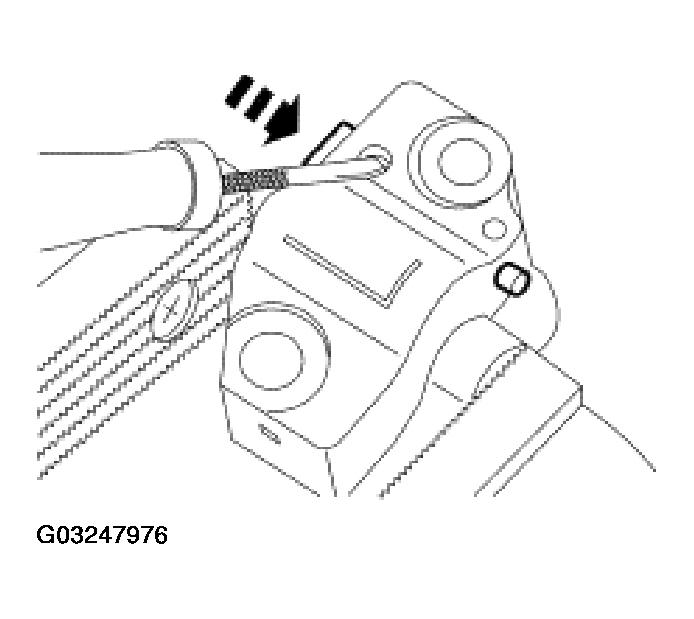

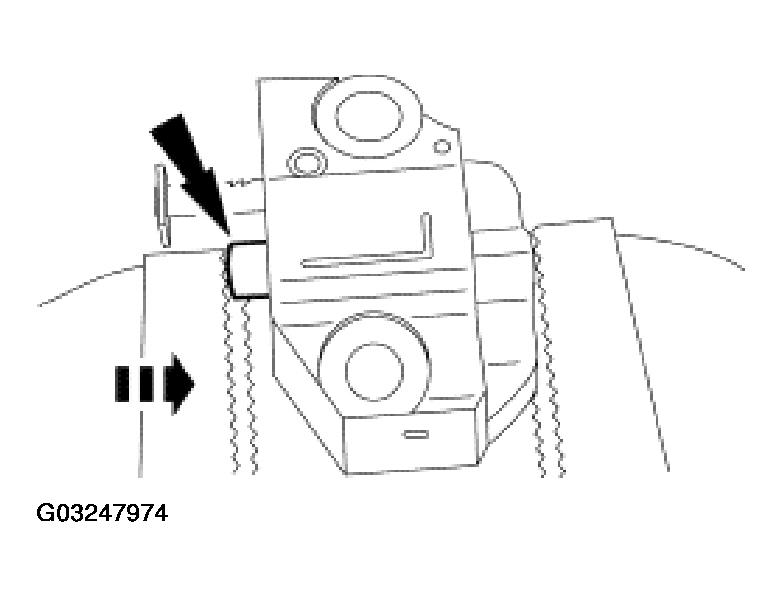

Using a small screwdriver or pick, push back and hold the ratchet mechanism.

Fig 2: Pushing Back And Holding Ratchet Mechanism

Courtesy of FORD MOTOR CO.

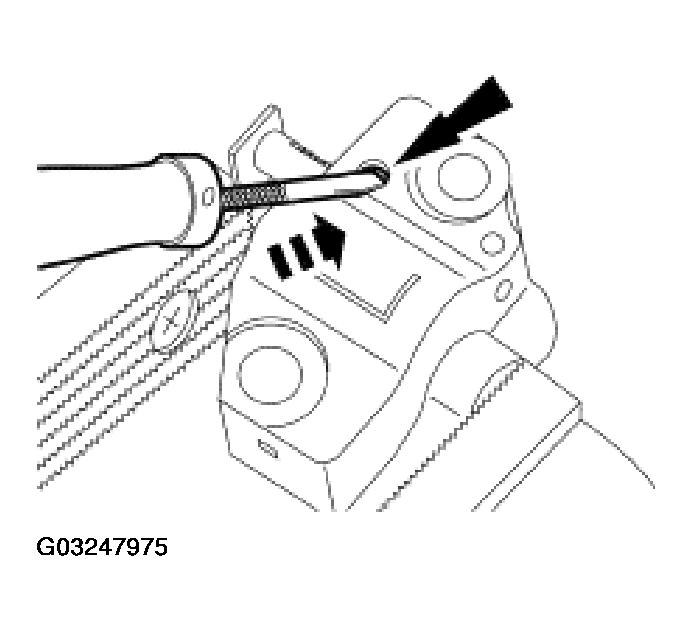

While holding the ratchet mechanism, push the ratchet arm back into the tensioner housing.

Fig 3: Pushing Ratchet Arm Back Into Tensioner Housing

Courtesy of FORD MOTOR CO.

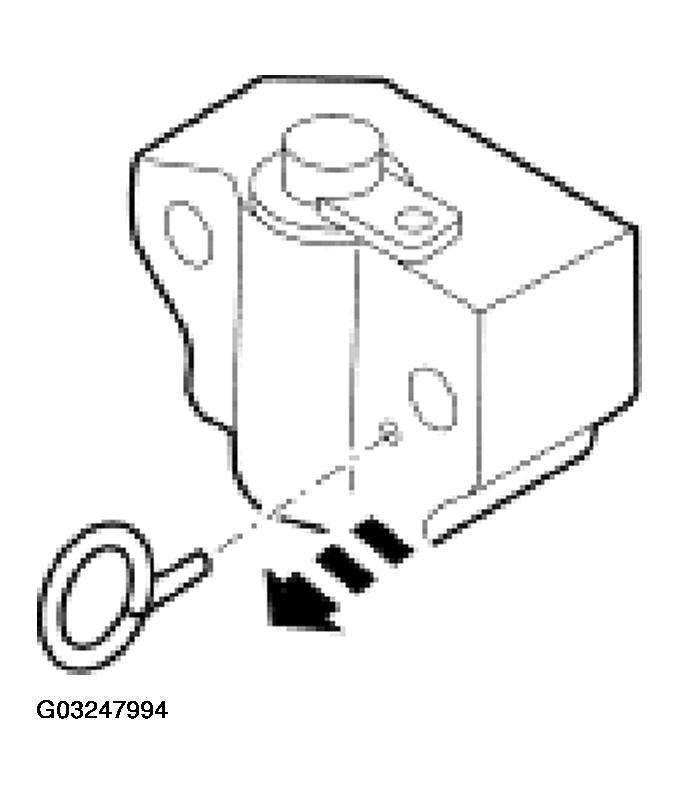

Install a paper clip into the hole of each tensioner housing to hold the ratchet assembly and plunger in during installation.

• Remove the tensioner from the vise.

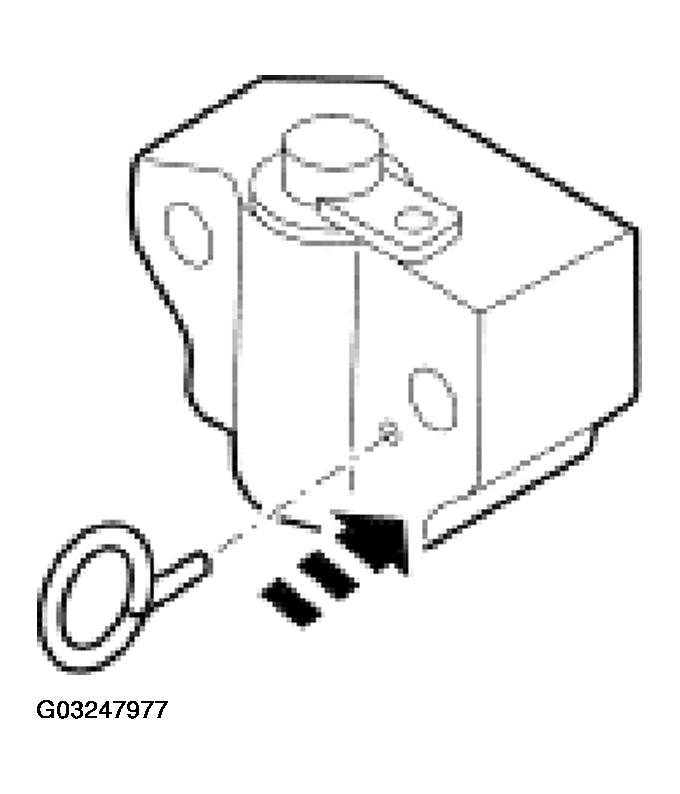

Fig 4: Retaining Ratchet Assembly & Plunger

Courtesy of FORD MOTOR CO.

Engines With Non-Ratcheting Timing Chain Tensioners

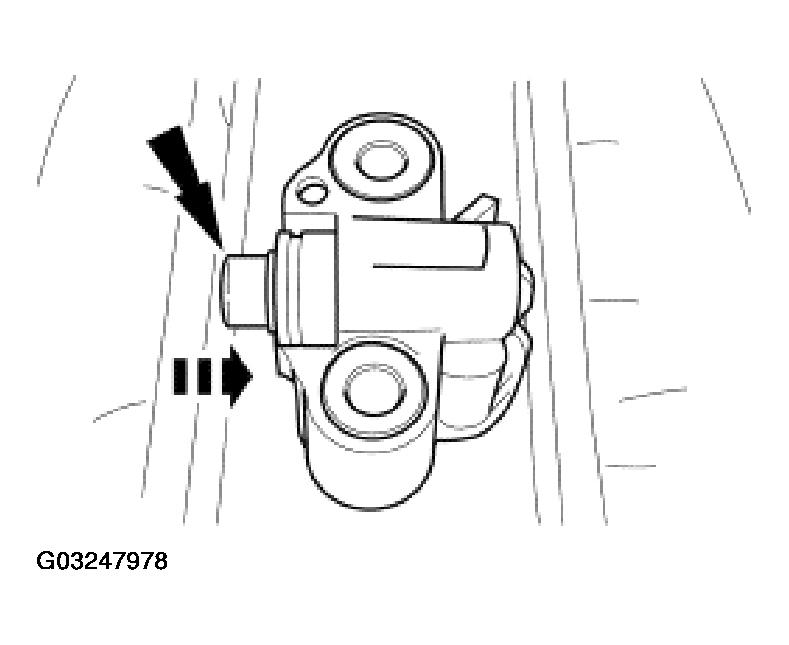

Fig 5: Compressing Tensioner Plunger

Courtesy of FORD MOTOR CO.

Install a retaining clip on each tensioner to hold the plunger in during installation.

Fig 6: Installing Retaining Clip On Tensioner

Courtesy of FORD MOTOR CO.

All Engines

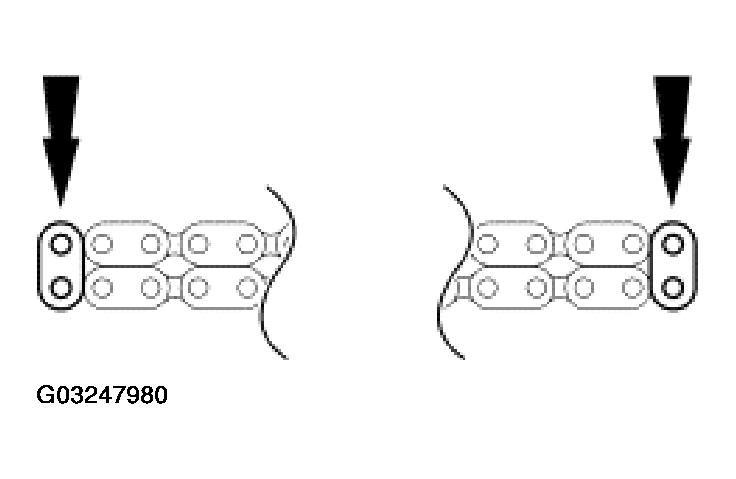

If the copper links are not visible, mark one link on one end and one link on the other end, and use as timing marks.

Fig 7: Locating/Marking Timing Chain Links

Courtesy of FORD MOTOR CO.

Install the camshaft sprockets and new bolts. Tighten the bolts in two stages.

• Stage 1: Tighten the bolt to 40 Nm (30 lb-ft).
• Stage 2: Tighten the bolt an additional 90 degrees (1/4 turn).

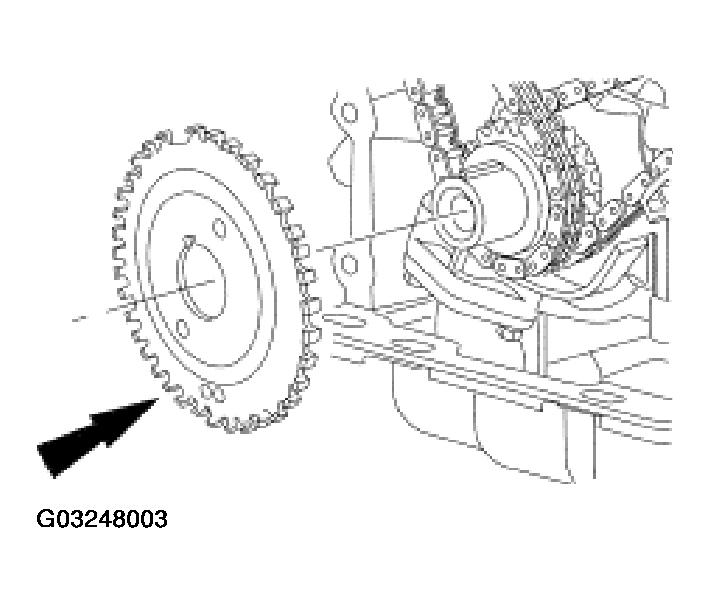

Fig 8: Installing Camshaft Sprockets And Bolts

Courtesy of FORD MOTOR CO.

Using the special tool, position the crankshaft so the number one cylinder is at top dead center (TDC).

Fig 9: Positioning Crankshaft To Cylinder No. 1 TDC

Courtesy of FORD MOTOR CO.

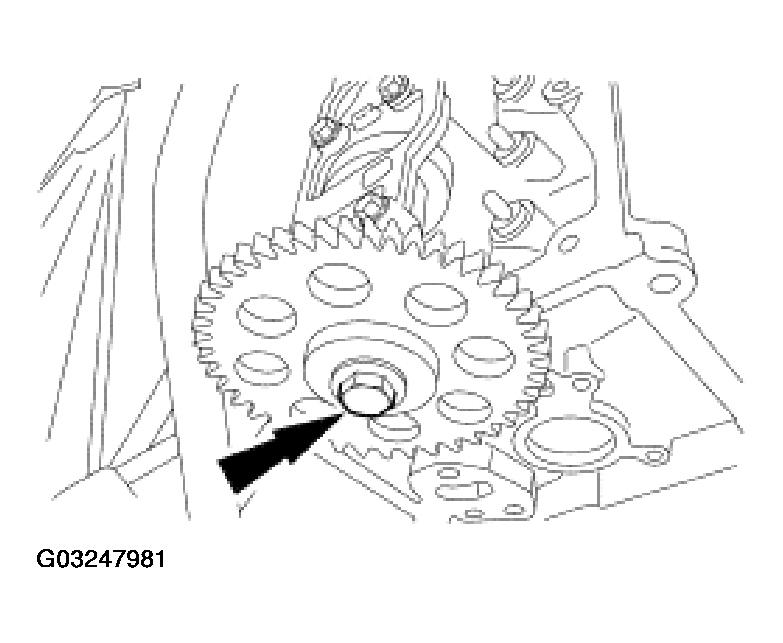

Install the crankshaft sprocket, making sure the flange faces forward.

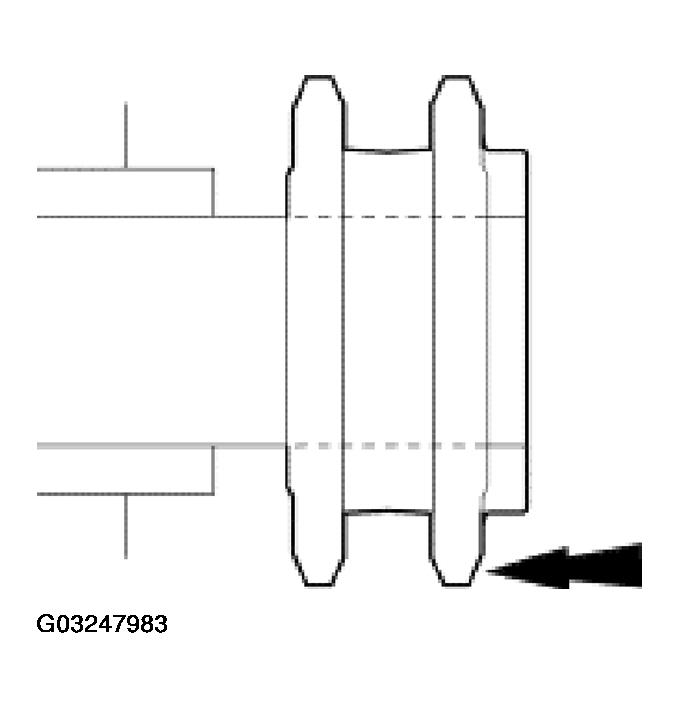

Fig 10: Identifying Correct Crankshaft Sprocket Installation

Courtesy of FORD MOTOR CO.

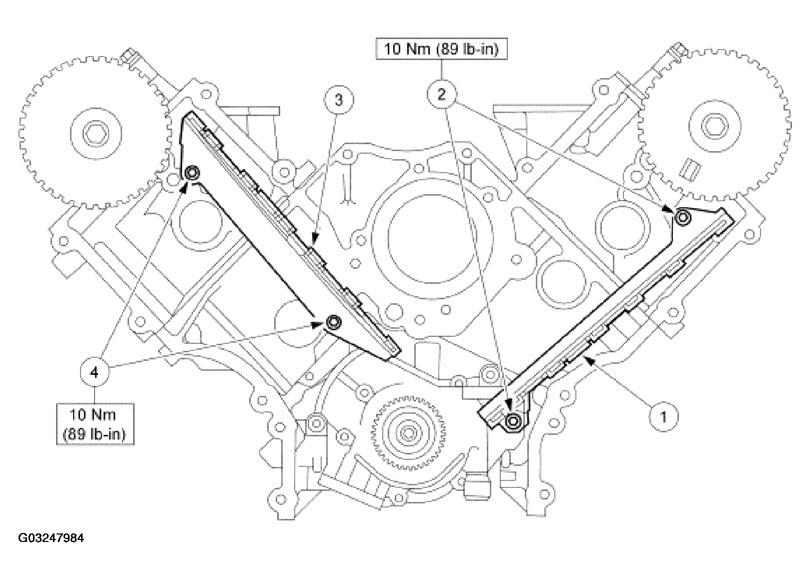

Install the timing chain guide.

1. Position the LH timing chain guide.
2. Install and tighten the LH bolts.
3. Position the RH timing chain guide.
4. Install and tighten the RH bolts.

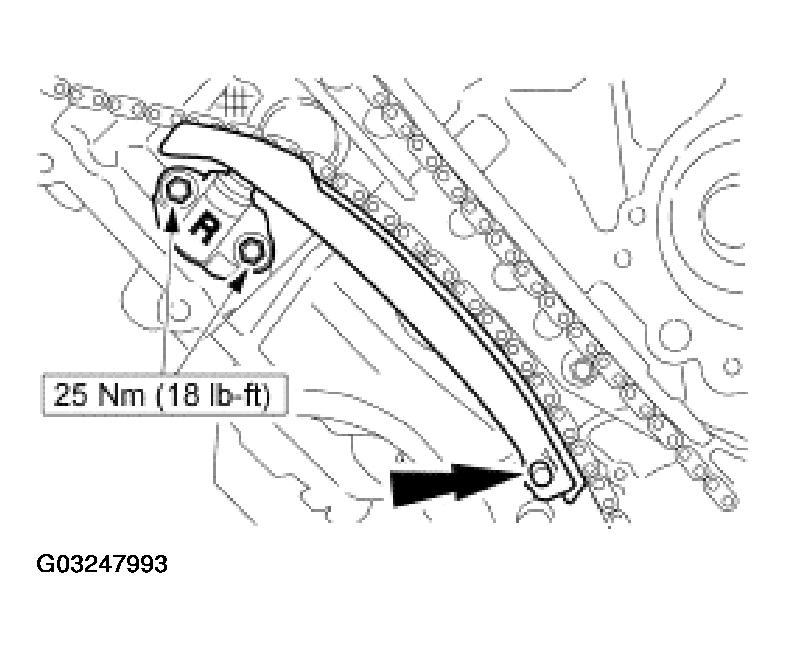

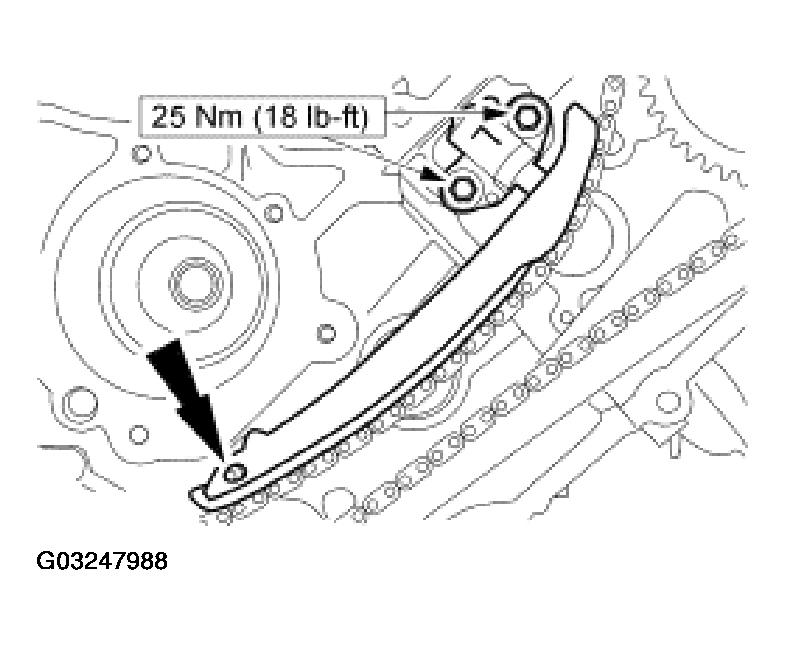

Fig 11: Installing Timing Chain Guide

Courtesy of FORD MOTOR CO.

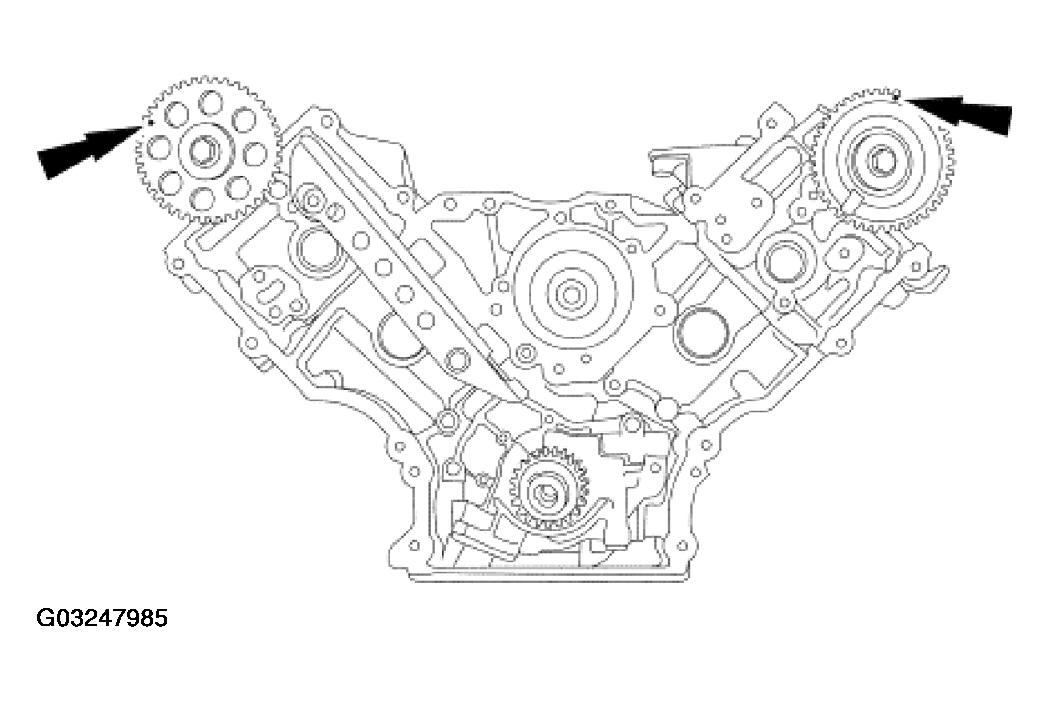

Rotate the RH camshaft sprocket until the timing mark is approximately at the 11 o'clock position. Rotate the LH camshaft sprocket until the timing mark is approximately at the 12 o'clock position.

Fig 12: Identifying Proper Camshaft Sprocket Timing Mark Positions

Courtesy of FORD MOTOR CO.

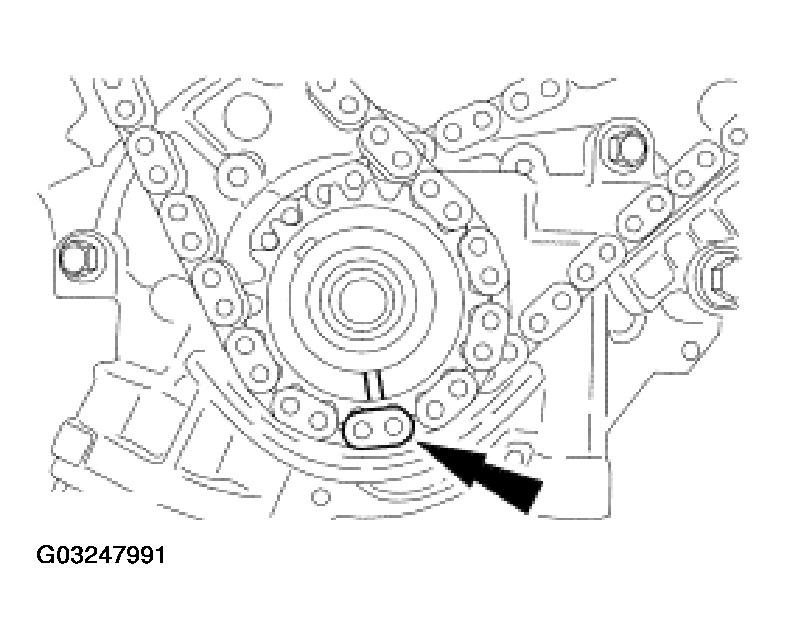

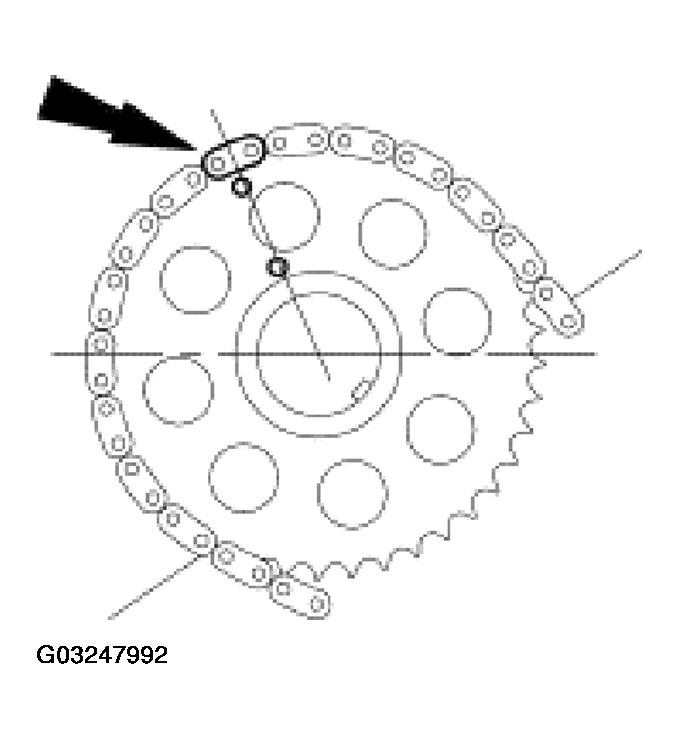

Position the LH (inner) timing chain on the crankshaft sprocket, aligning the copper (marked) link with the timing mark on the sprocket.

Fig 13: Aligning Copper (Marked) Link With Timing Mark On Crankshaft Sprocket

Courtesy of FORD MOTOR CO.

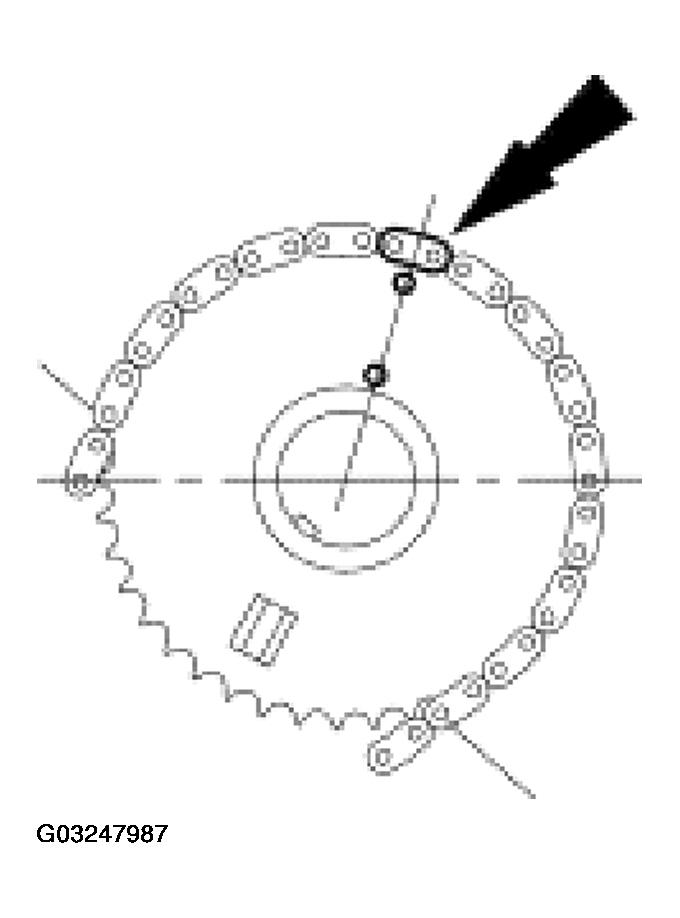

Install the LH timing chain on the sprocket, aligning the copper (marked) link with the timing marks on the sprocket.

Fig 14: Aligning Copper (Marked) Link With Timing Marks On Camshaft Sprocket

Courtesy of FORD MOTOR CO.

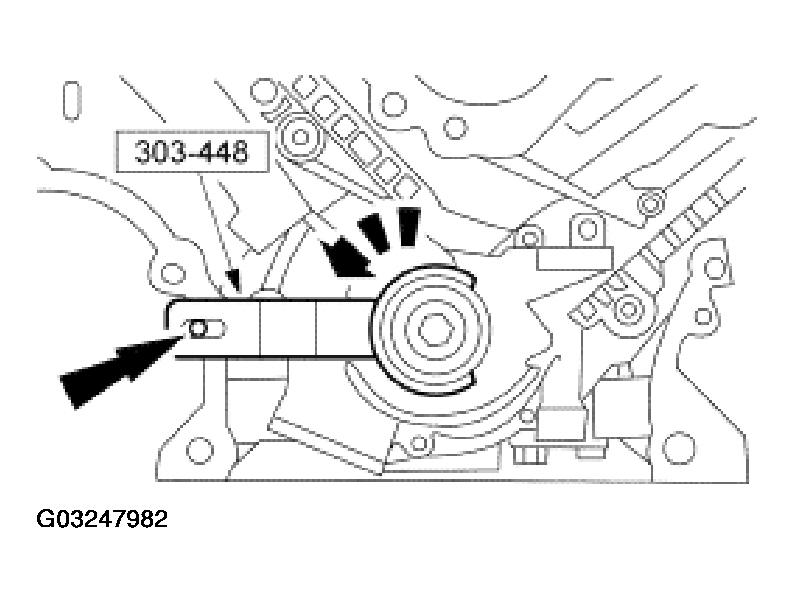

Fig 15: Installing LH Timing Chain Tensioner

Courtesy of FORD MOTOR CO.

Engines With Ratcheting Timing Chain Tensioners

Remove the retaining clip from the LH timing chain tensioner.

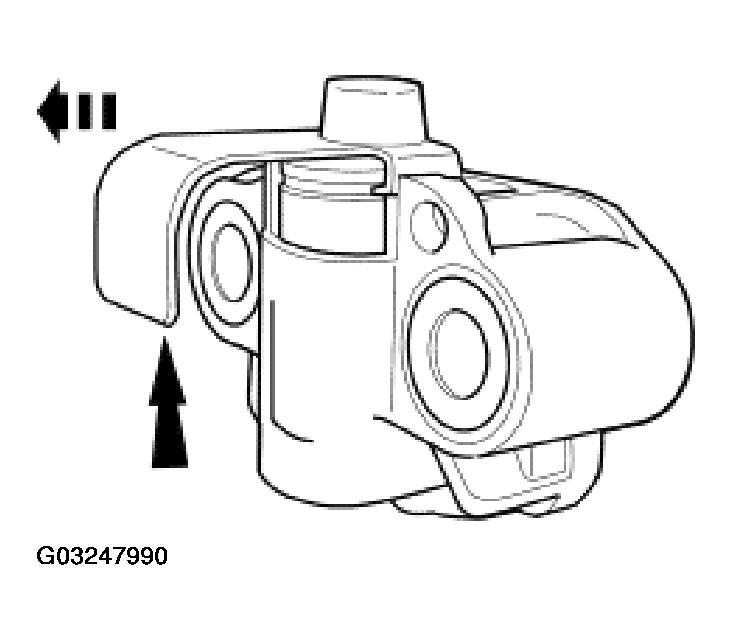

Fig 16: Removing Retaining Clip From LH Timing Chain Tensioner

Courtesy of FORD MOTOR CO.

Engines With Non-Ratcheting Timing Chain Tensioners

Remove the retaining clip from the LH timing chain tensioner.

Fig 17: Removing Retaining Clip From LH Timing Chain Tensioner

Courtesy of FORD MOTOR CO.

All Engines

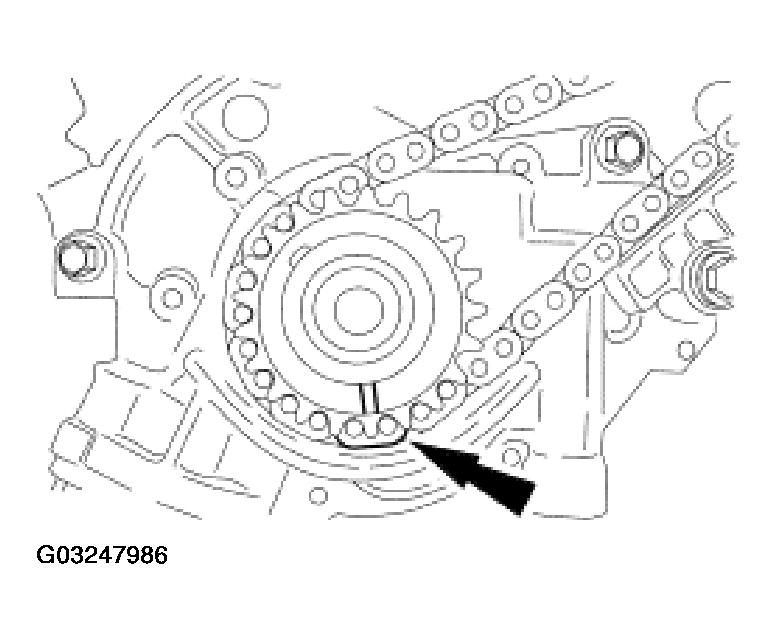

Position the RH (outer) timing chain on the crankshaft sprocket, aligning the copper (marked) link with the timing mark on the sprocket.

Fig 18: Aligning Copper (Marked) Link With Timing Mark On Crankshaft Sprocket

Courtesy of FORD MOTOR CO.

Install the RH timing chain on the camshaft sprocket, aligning the copper (marked) link with the timing marks on the sprocket.

Fig 19: Aligning Copper (Marked) Link With Timing Marks On Camshaft Sprocket

Courtesy of FORD MOTOR CO.

Position the RH timing chain tensioner arm on the dowel pin and install the RH timing chain tensioner.

Fig 20: Installing RH Timing Chain Tensioner

Courtesy of FORD MOTOR CO.

Engines With Ratcheting Timing Chain Tensioners

Remove the retaining clip from the RH timing chain tensioner.

Fig 21: Removing Retaining Clip From RH Timing Chain Tensioner

Courtesy of FORD MOTOR CO.

Engines With Non-Ratcheting Timing Chain Tensioners

Remove the retaining clip from the RH timing chain tensioner.

Fig 22: Removing Retaining Clip From RH Timing Chain Tensioner

Courtesy of FORD MOTOR CO.

All Engines

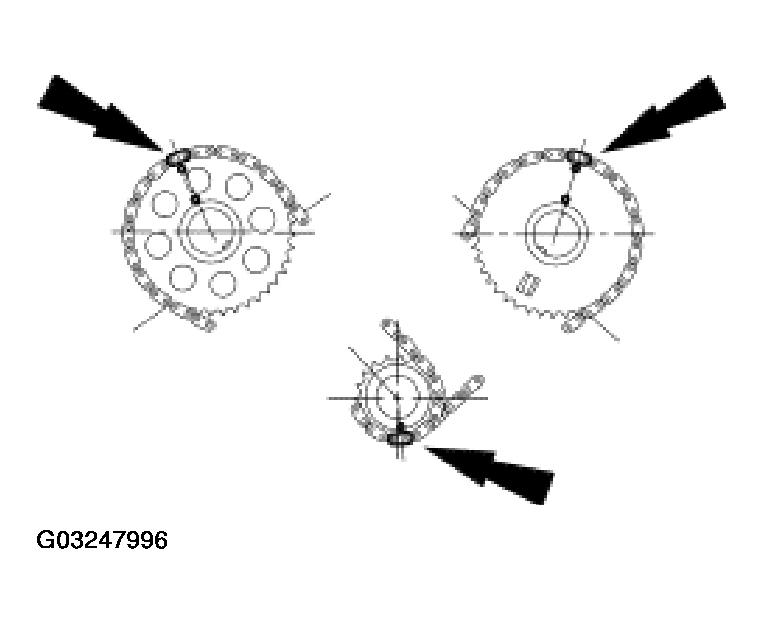

Make sure that the copper (marked) chain links are lined up with the dots on the crankshaft sprocket and the camshaft sprockets.

Fig 23: Verifying Copper (Marked) Chain Links Positions

Courtesy of FORD MOTOR CO.

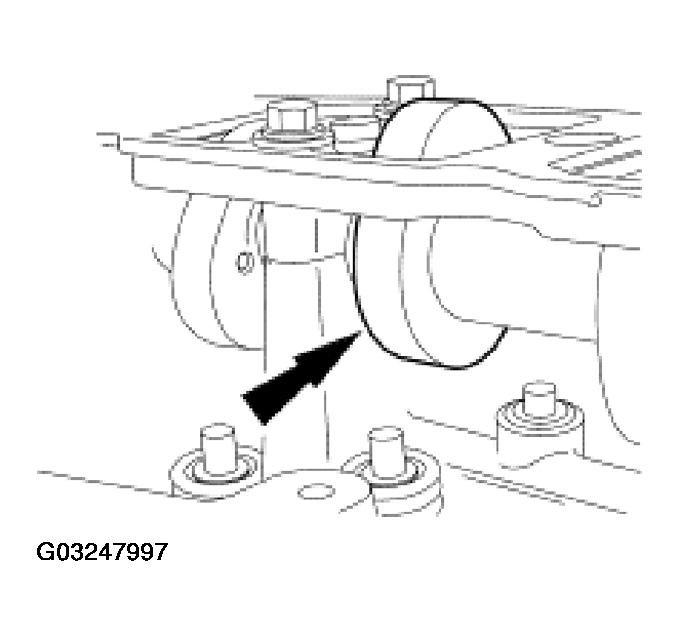

Rotate the camshaft until the lobe is in the up position.

Fig 24: Identifying Camshaft Lobe Position

Courtesy of FORD MOTOR CO.

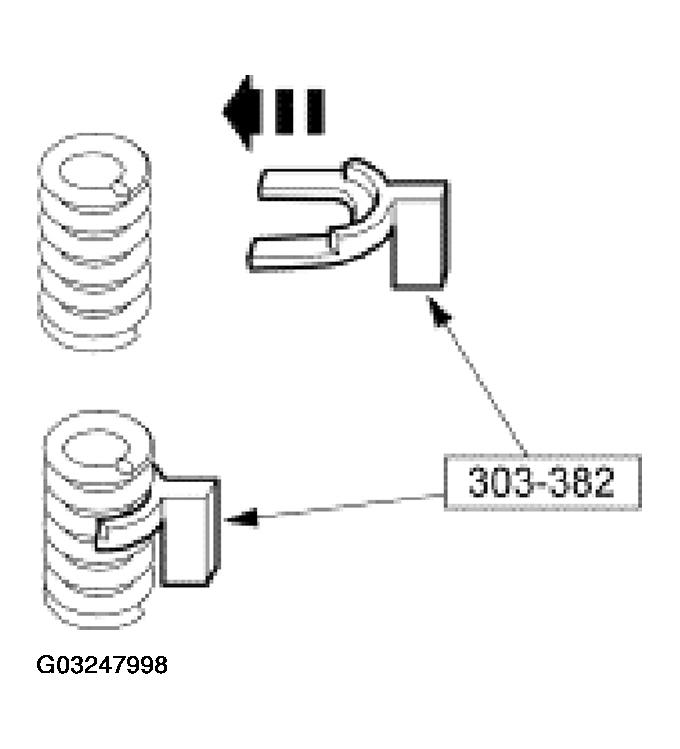

Install the special tool between the valve spring coils to prevent valve stem seal damage.

Fig 25: Installing Special Tool Between Valve Spring Coils

Courtesy of FORD MOTOR CO.

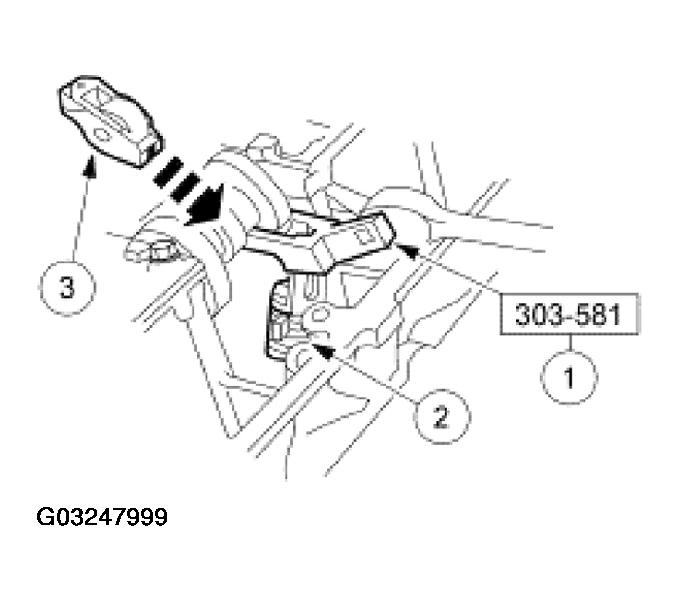

Fig 26: Installing Camshaft Roller Followers

Courtesy of FORD MOTOR CO.

Install the eight spark plugs.

Fig 27: Installing Spark Plugs

Courtesy of FORD MOTOR CO.

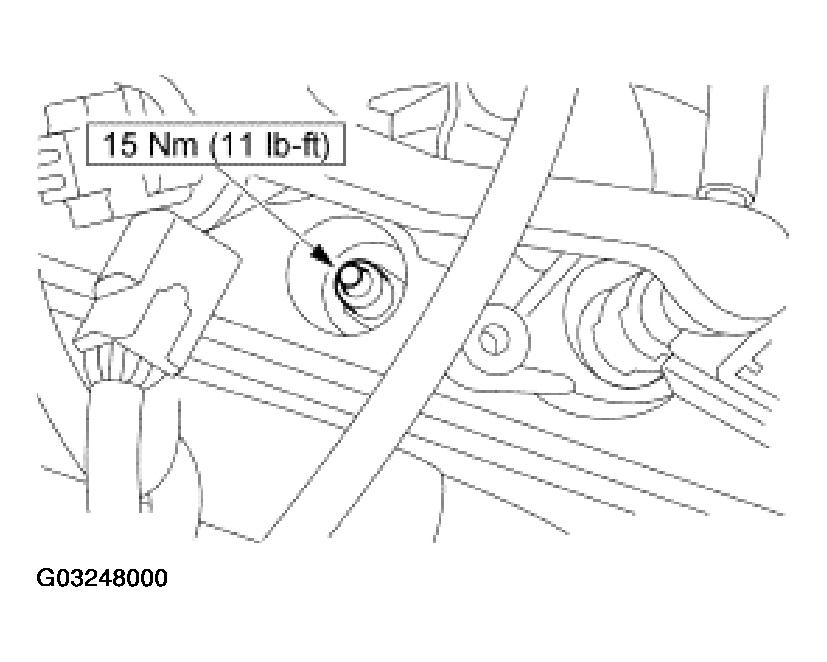

Install the eight ignition coils and bolts.

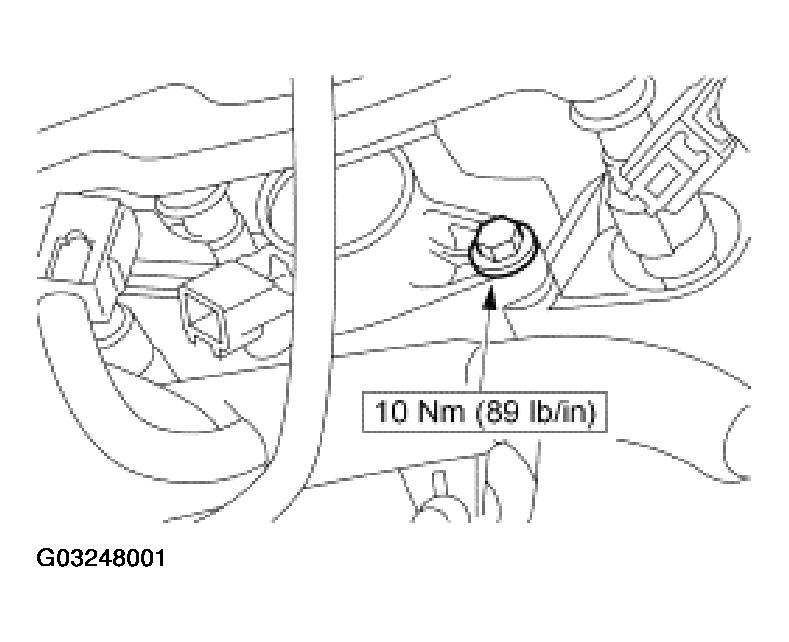

Fig 28: Installing Ignition Coils

Courtesy of FORD MOTOR CO.

Connect the eight ignition coil electrical connectors.

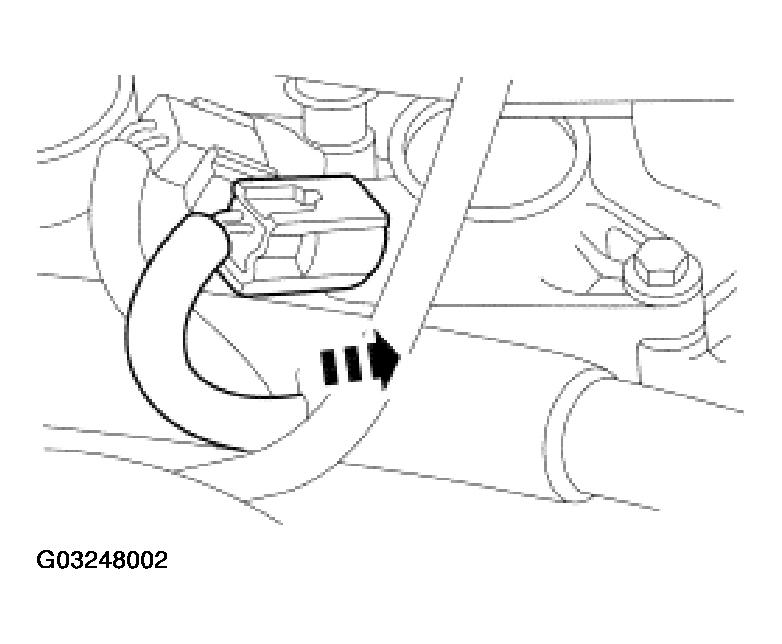

Fig 29: Connecting Ignition Coil Electrical Connectors

Courtesy of FORD MOTOR CO.

Install the crankshaft sensor ring on the crankshaft.

Fig 30: Installing Crankshaft Sensor Ring On Crankshaft

Courtesy of FORD MOTOR CO.
