Navigation System Module: Notes

CAUTION: Electronic modules are sensitive to electrical charges. If exposed to these charges, damage may result.
NOTE: Prior to removal of the navigation system module, it is necessary to remove the digital versatile disc (DVD) from the navigation system module and store it in the customer case.

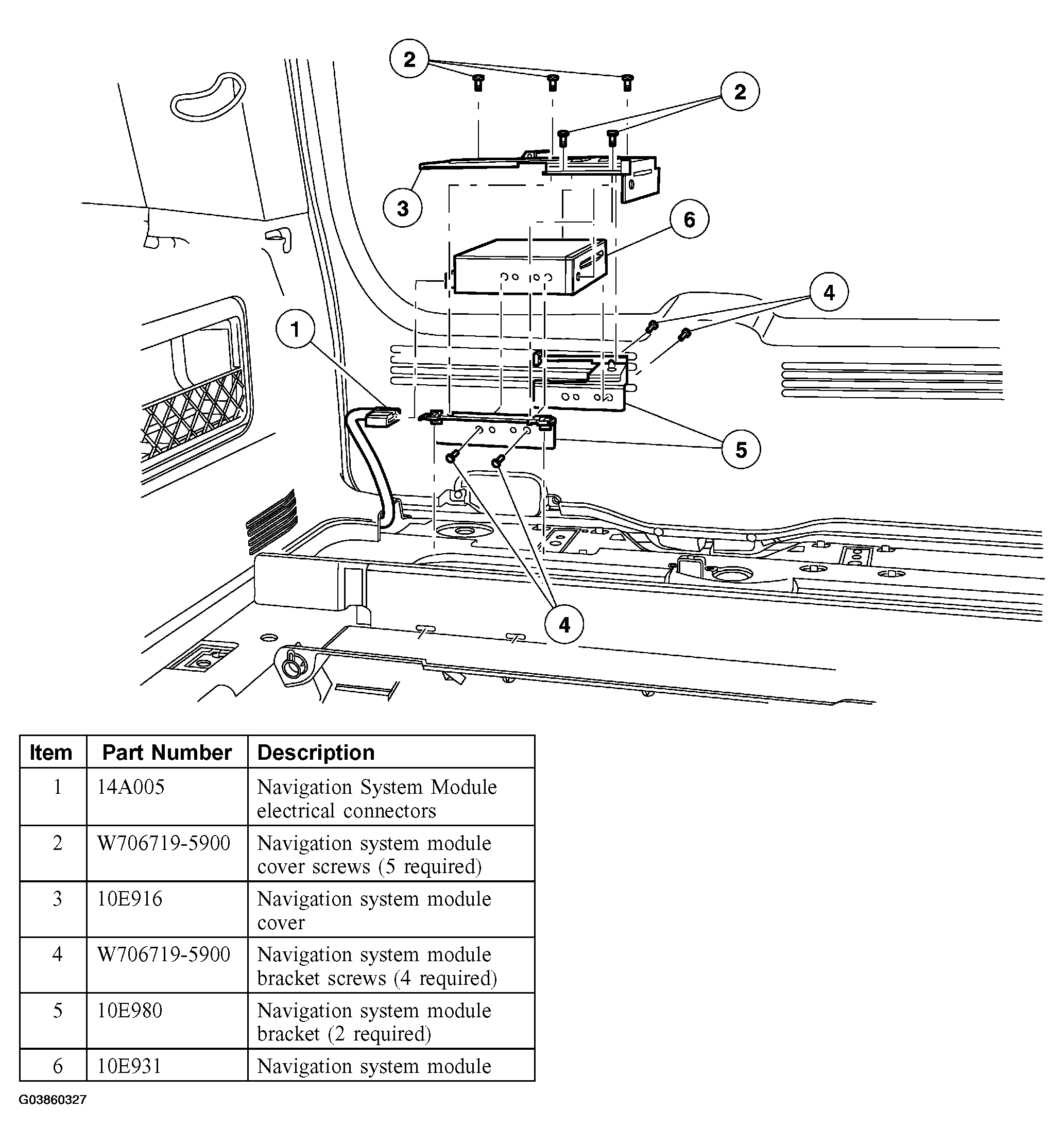

Fig 1: Identifying Navigation System Module Components
G03860327Courtesy of FORD MOTOR CO.
