Front Seat Backrest
>>
Notes
Front Seat Backrest: Notes
NOTE:
Driver side shown, passenger side similar.

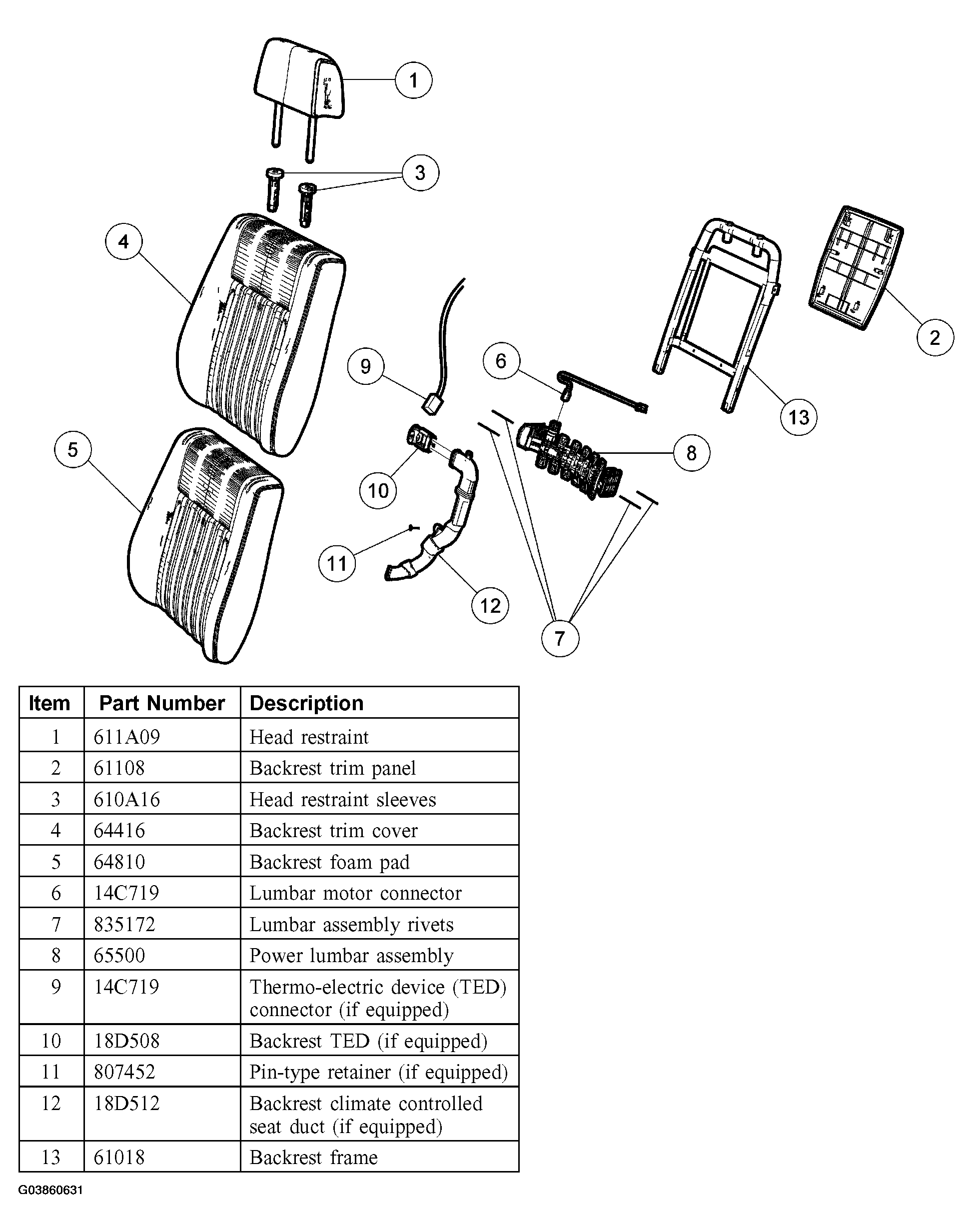

Fig 1: Disassembling Front Seat Backrest (Driver Side)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
