Home >> Lincoln >> 2005 >> Aviator AWD >> Repair and Diagnosis >> Electrical >> Starter >> Starting System >> Removal And Installation >> Starter Motor >> Notes

Starter Motor: Notes

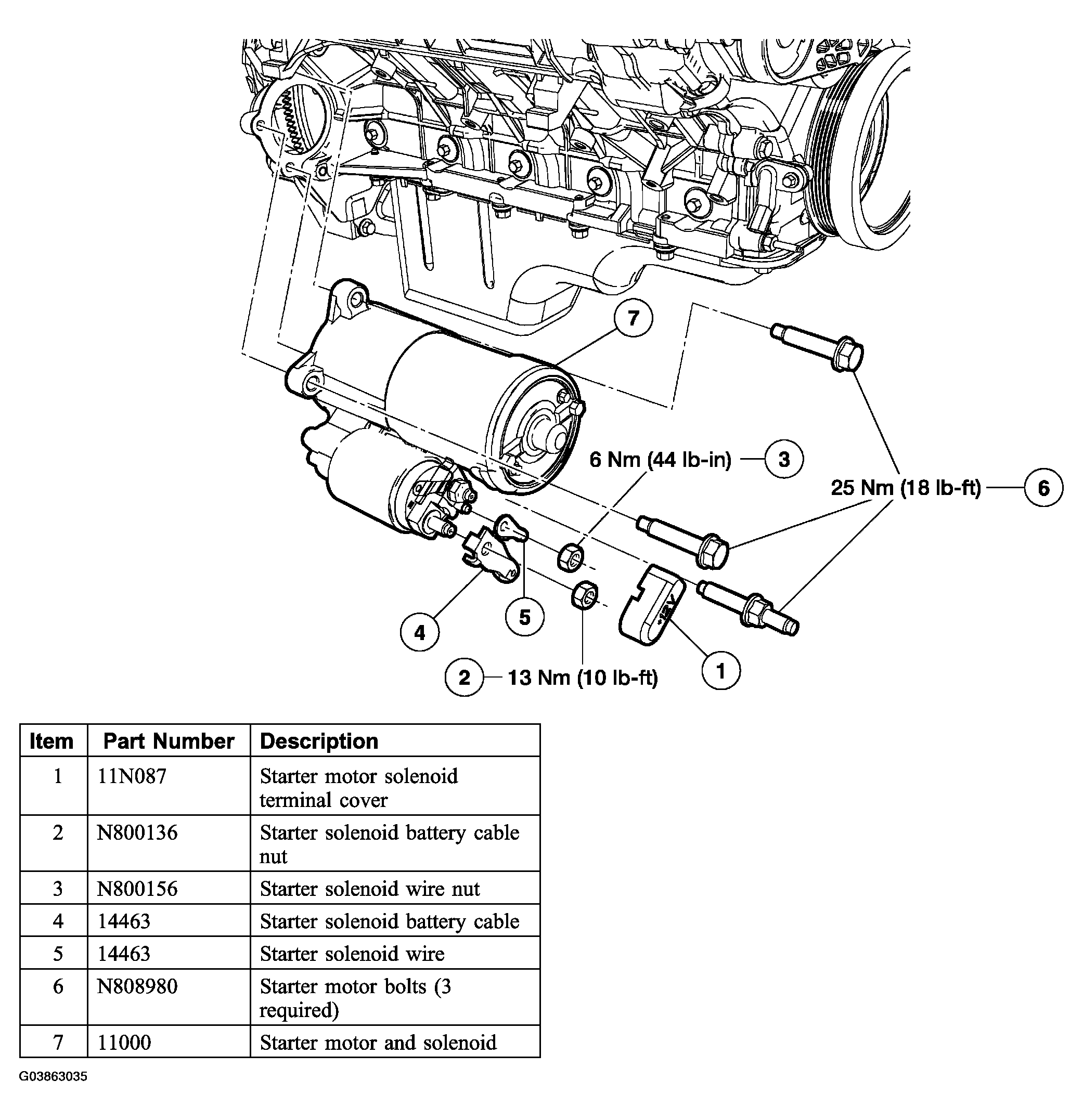

Fig 1: Locating Starter Motor Components (Torque Specs)

G03863035

Courtesy of FORD MOTOR CO.
