Accelerator Control System Components - Exploded View

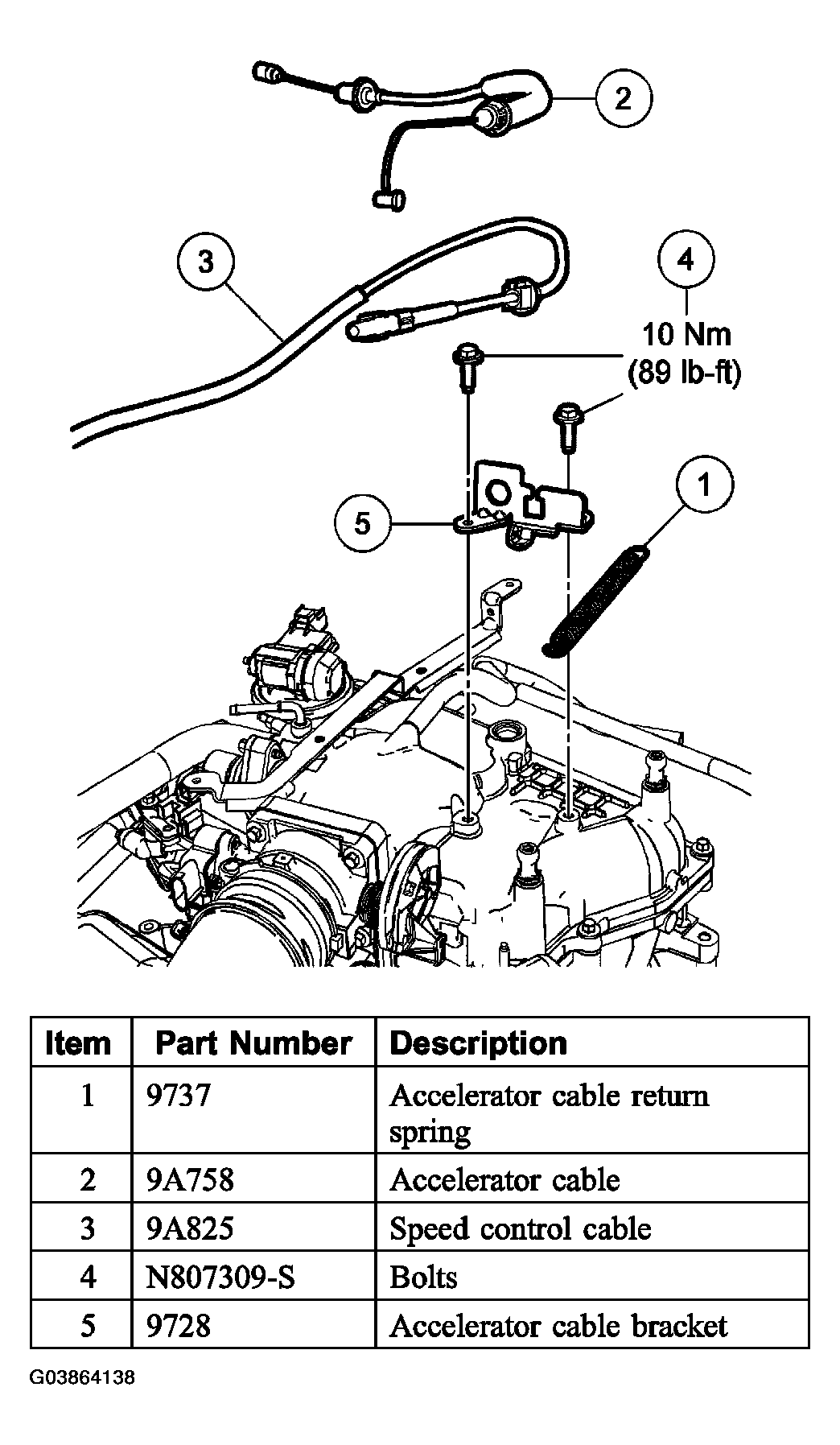

Fig 1: Accelerator Control System Replacement Components - With Torque Specification

Courtesy of FORD MOTOR CO.

1. For additional information, refer to the procedures in this article.
