Intermediate Shaft Speed Sensor: Removal

All vehicles

Raise and support the vehicle. For additional information, refer to the JACKING & LIFTING .

4x4 vehicles

Disconnect the front driveshaft from the transfer case.

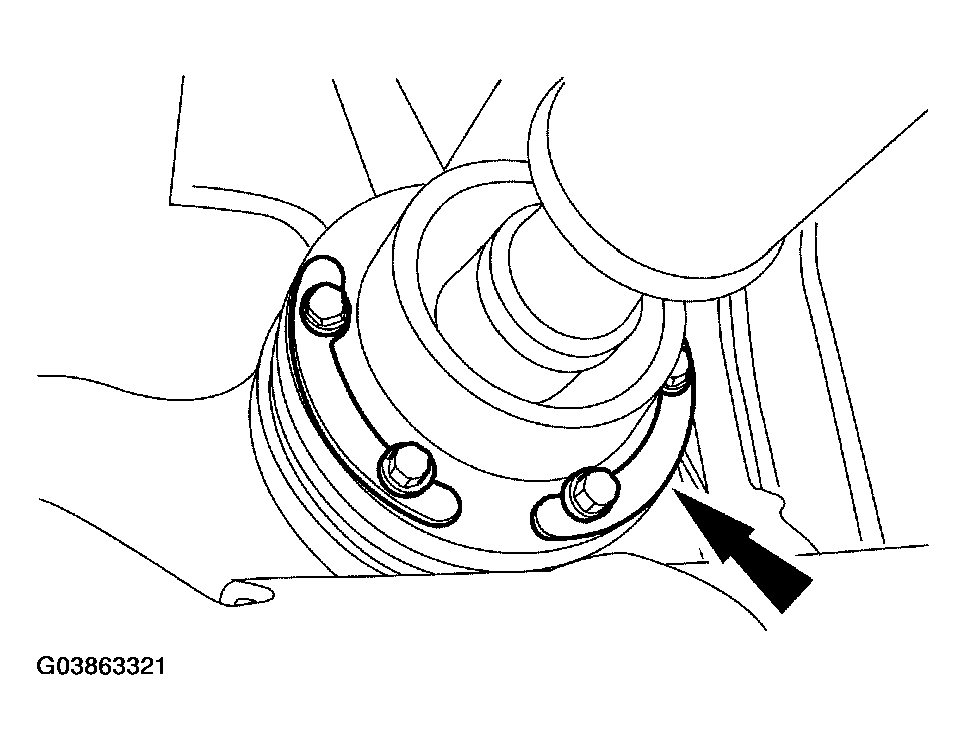

Fig 1: Disconnecting Front Driveshaft From Transfer Case
Courtesy of FORD MOTOR CO.
Disconnect the front driveshaft from the front differential.

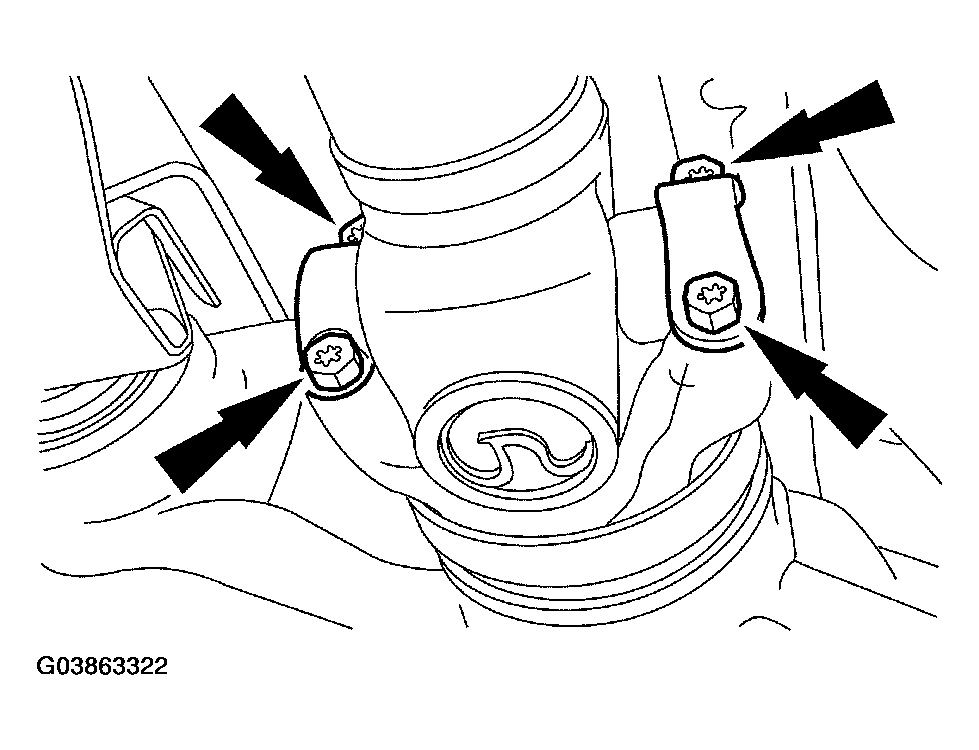

Fig 2: Disconnecting Front Driveshaft From Front Differential
Courtesy of FORD MOTOR CO.
Remove the front driveshaft from the vehicle.

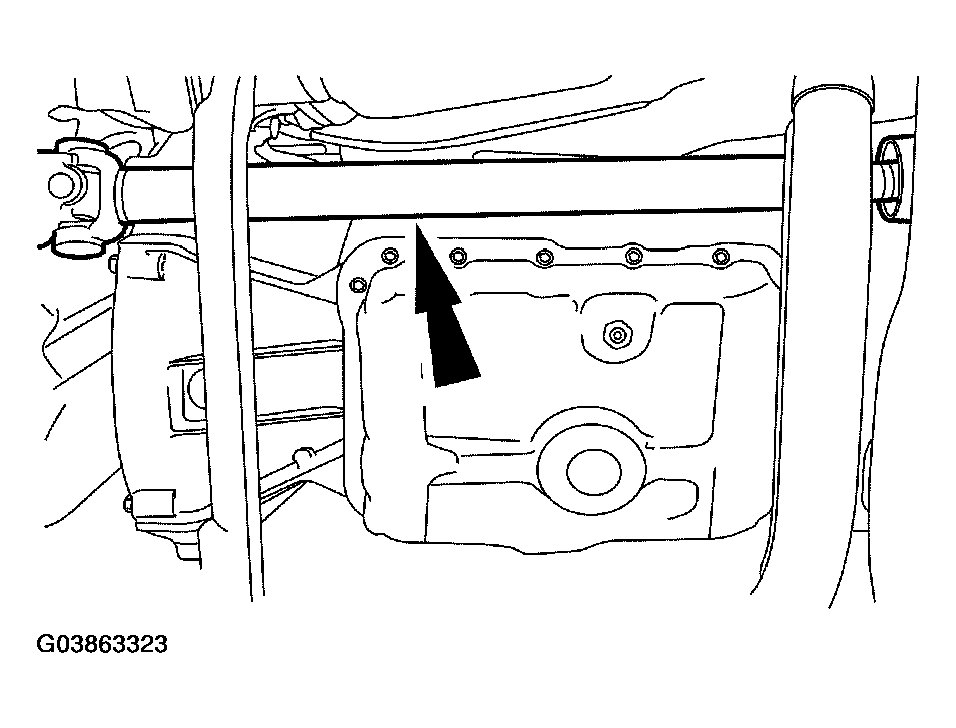

Fig 3: Removing Front Driveshaft From Vehicle
Courtesy of FORD MOTOR CO.

All vehicles

Remove the shift cable and bracket.

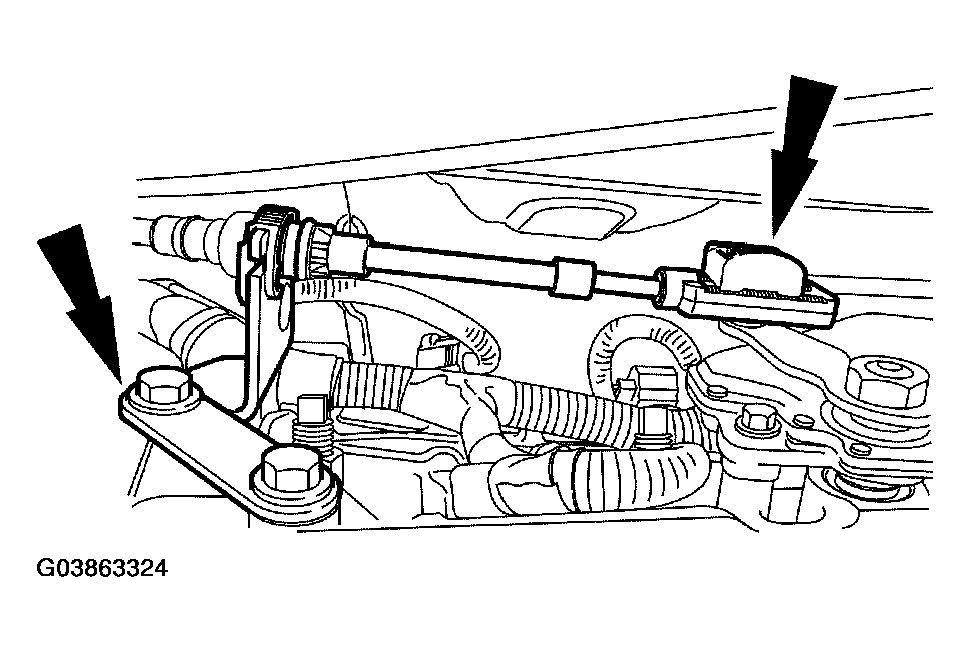

Fig 4: Removing Shift Cable And Bracket
Courtesy of FORD MOTOR CO.
Disconnect the intermediate shaft speed (ISS) sensor electrical connector.

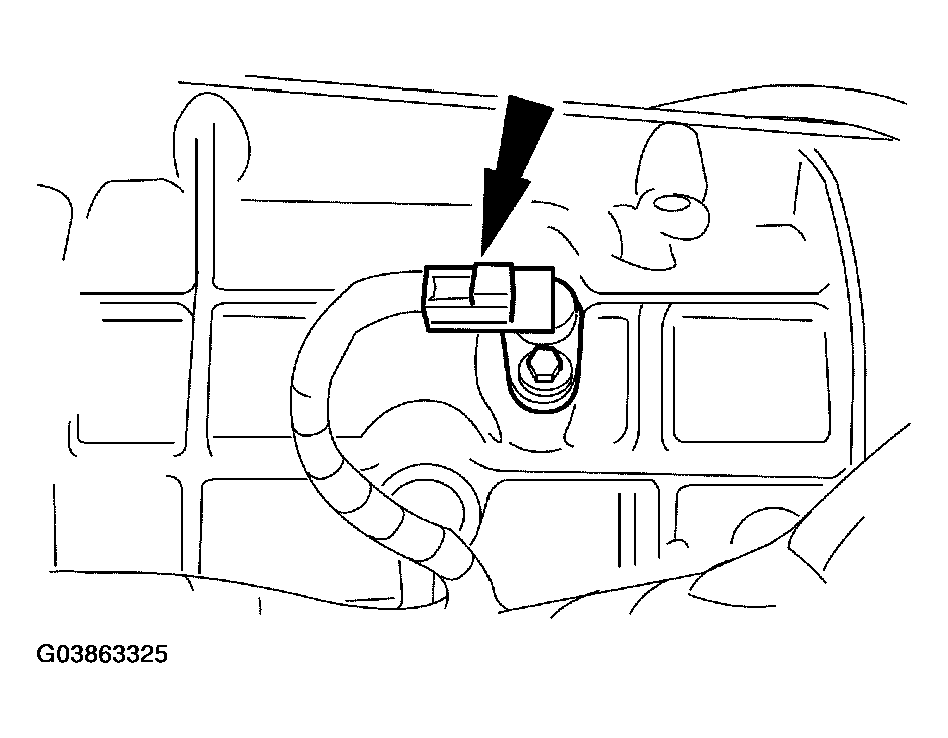

Fig 5: Disconnecting Intermediate Shaft Speed (ISS) Sensor Electrical Connector
Courtesy of FORD MOTOR CO.
Remove the ISS sensor.
1. Remove the ISS sensor screw.
2. Remove the ISS sensor from the transmission.
  - Inspect the ISS sensor O-ring for damage. If damaged, install a new O-ring.

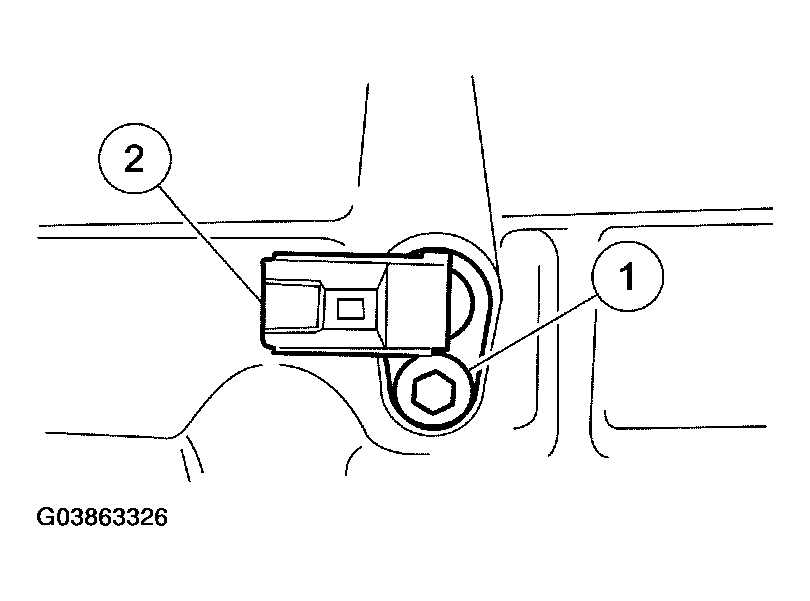

Fig 6: Removing ISS Sensor From Transmission
Courtesy of FORD MOTOR CO.
