Main Control Valve Body: Removal

Raise and support the vehicle. For additional information, refer to JACKING & LIFTING .
If equipped, remove the drain plug and drain the fluid.

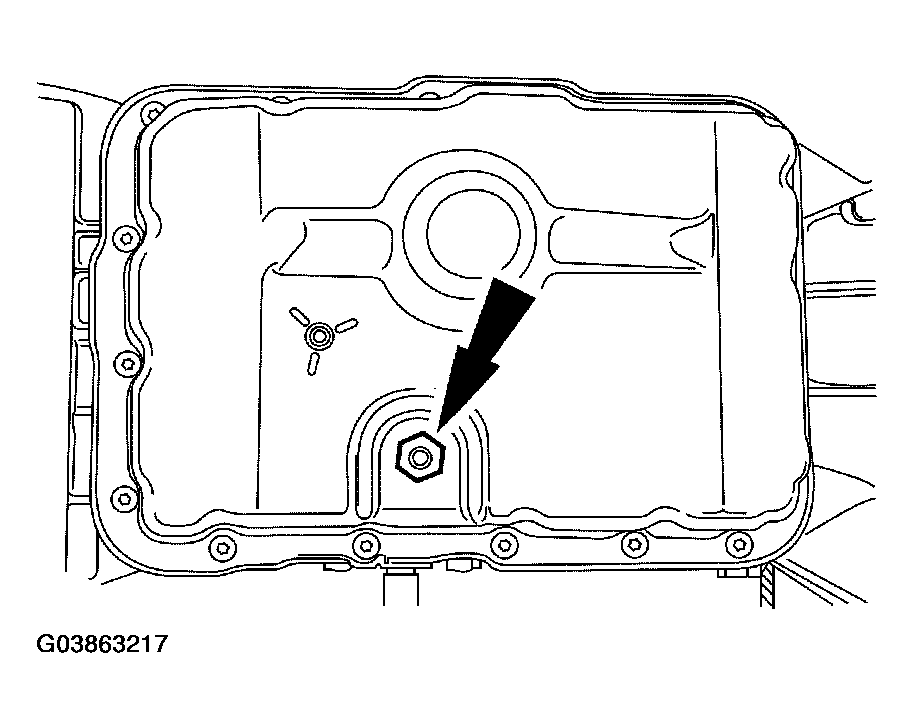

Fig 1: Removing Drain Plug
Courtesy of FORD MOTOR CO.

NOTE: Clean the area around connector to prevent contamination of the solenoid body connector.

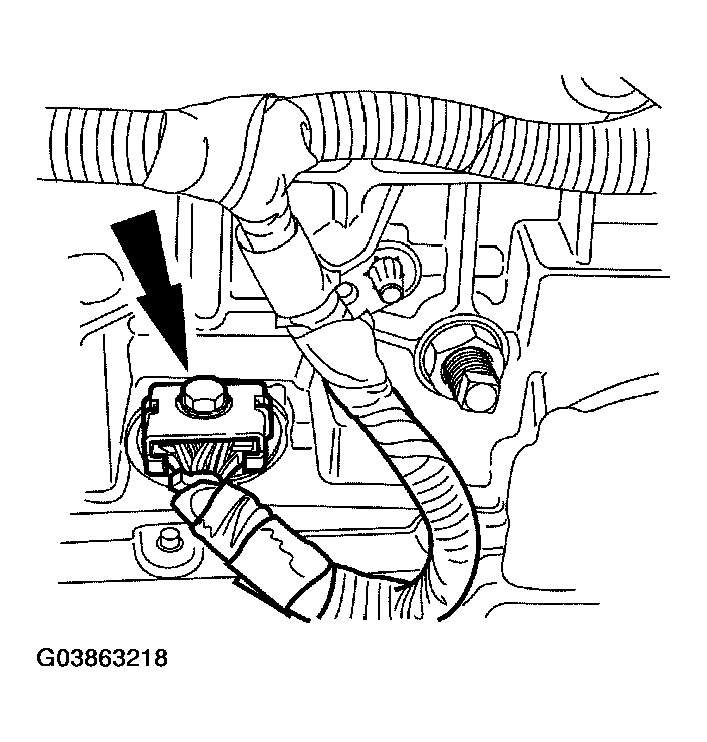

Fig 2: Disconnecting Solenoid Body Harness Connector

Courtesy of FORD MOTOR CO.

NOTE: The transmission fluid pan gasket is reusable. Clean and inspect for damage. If not damaged, the gasket should be reused.

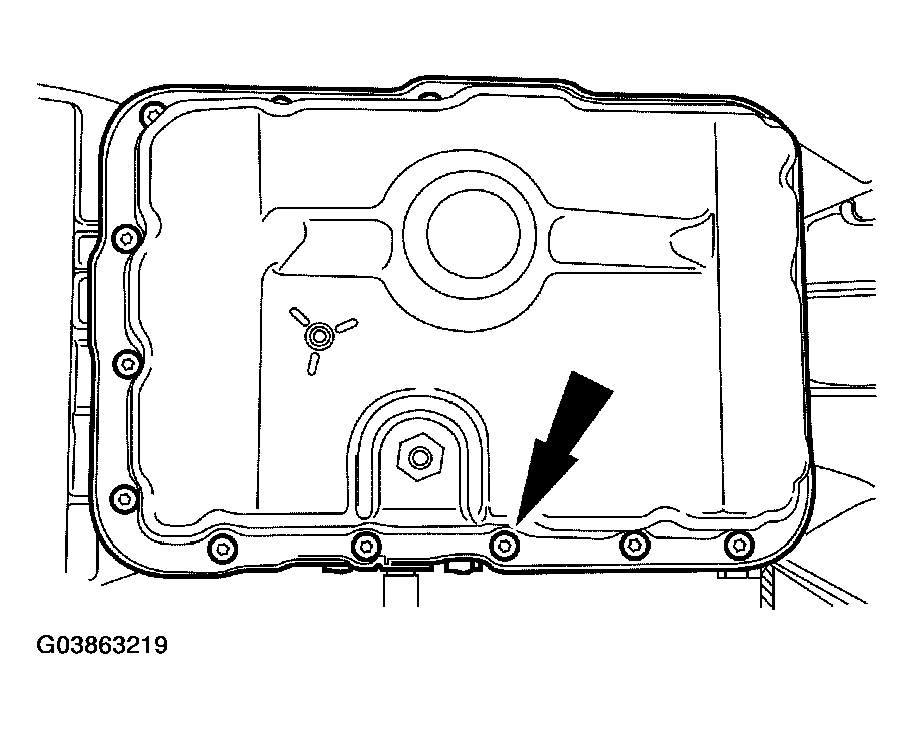

Fig 3: Removing 16 Transmission Fluid Pan Screws

Courtesy of FORD MOTOR CO.

Remove the 16 transmission fluid pan screws, fluid pan and gasket.
Remove the transmission fluid filter.

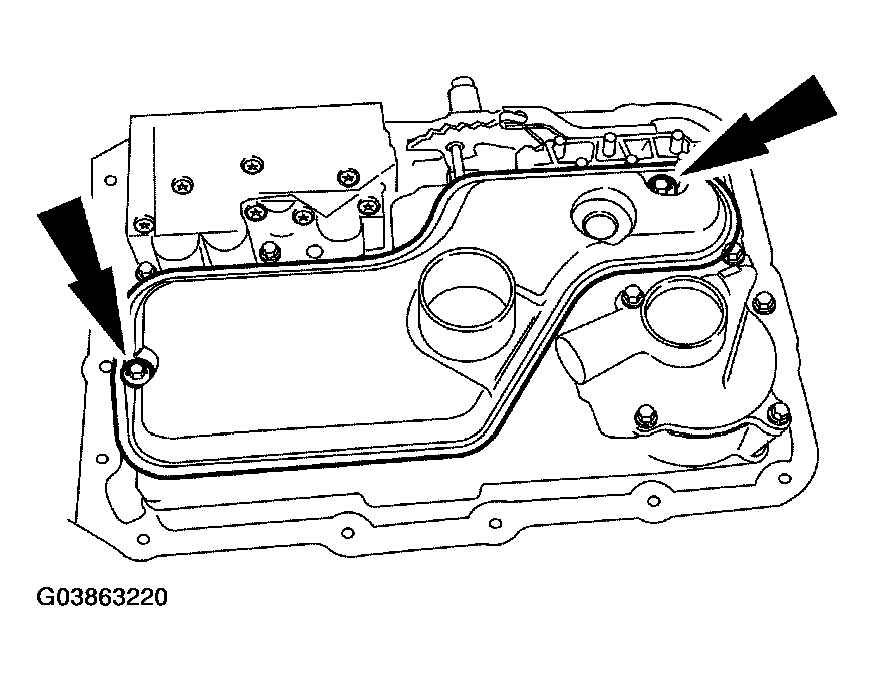

Fig 4: Removing Transmission Fluid Filter
Courtesy of FORD MOTOR CO.
Remove the solenoid body.

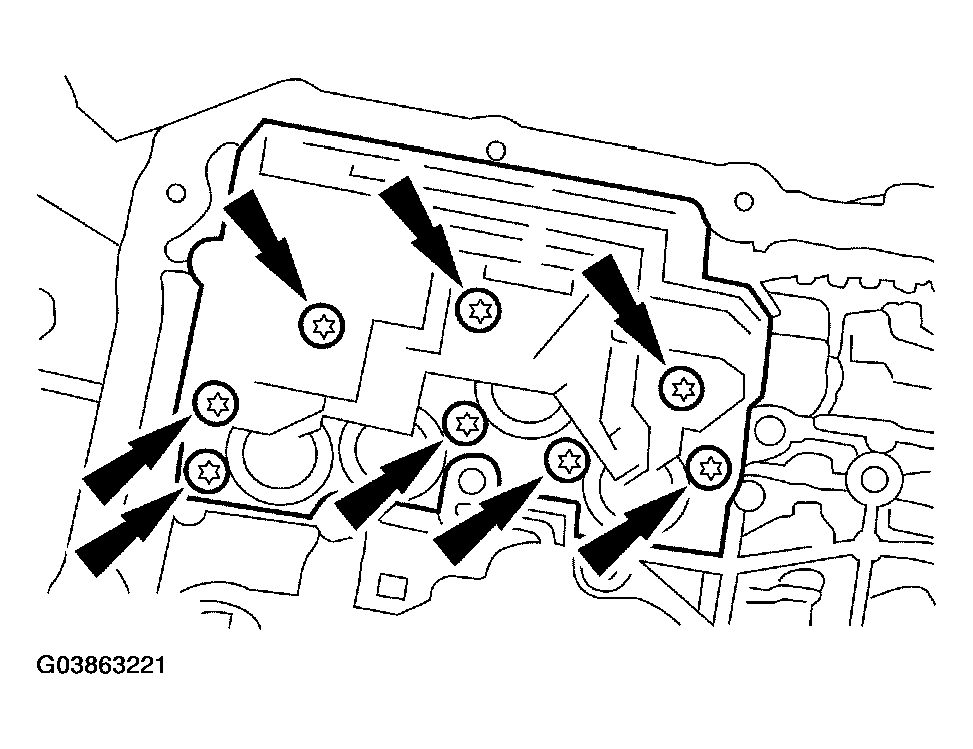

Fig 5: Removing Solenoid Body
Courtesy of FORD MOTOR CO.
Remove the reverse servo.

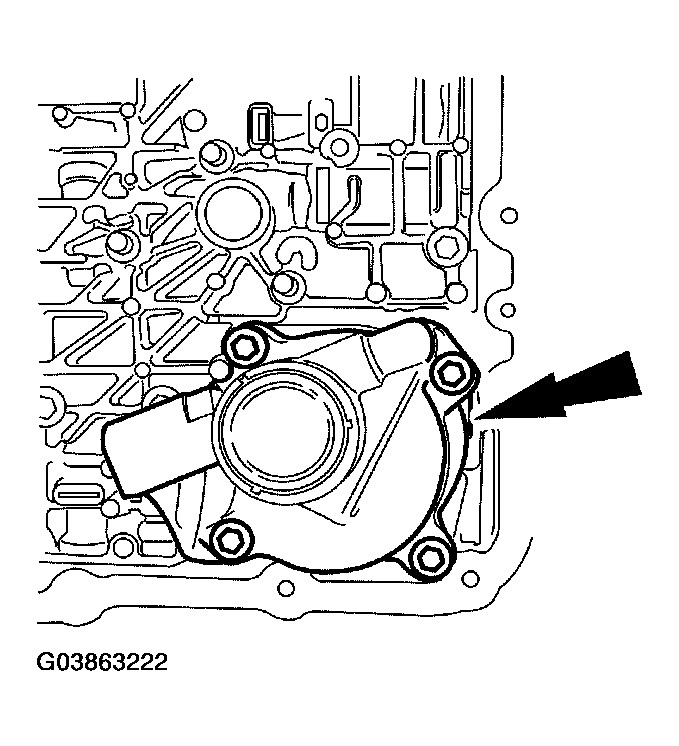

Fig 6: Removing Reverse Servo
Courtesy of FORD MOTOR CO.
Remove the manual control valve detent spring.

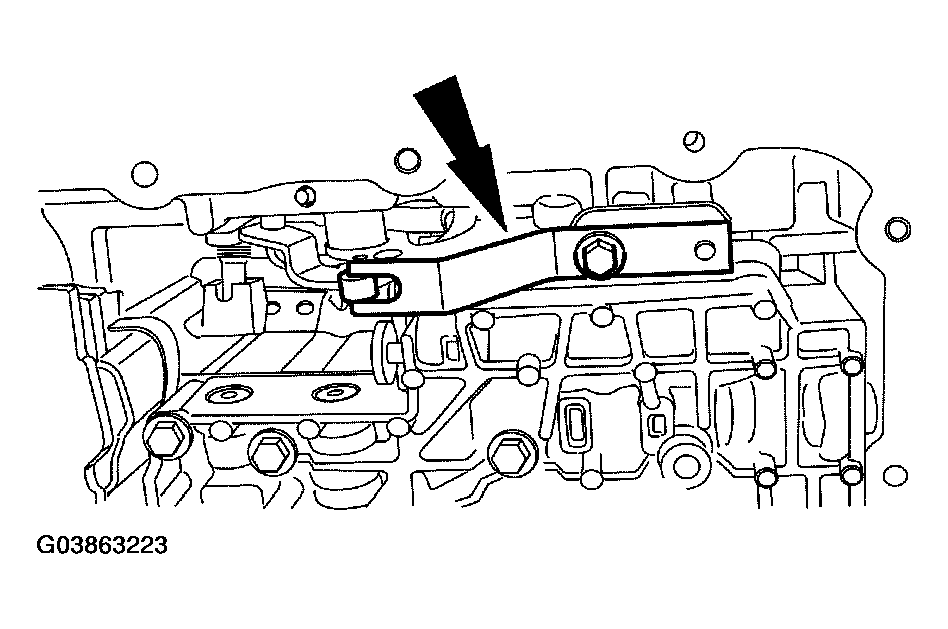

Fig 7: Removing Manual Control Valve Detent Spring
Courtesy of FORD MOTOR CO.
Remove the main control valve body.

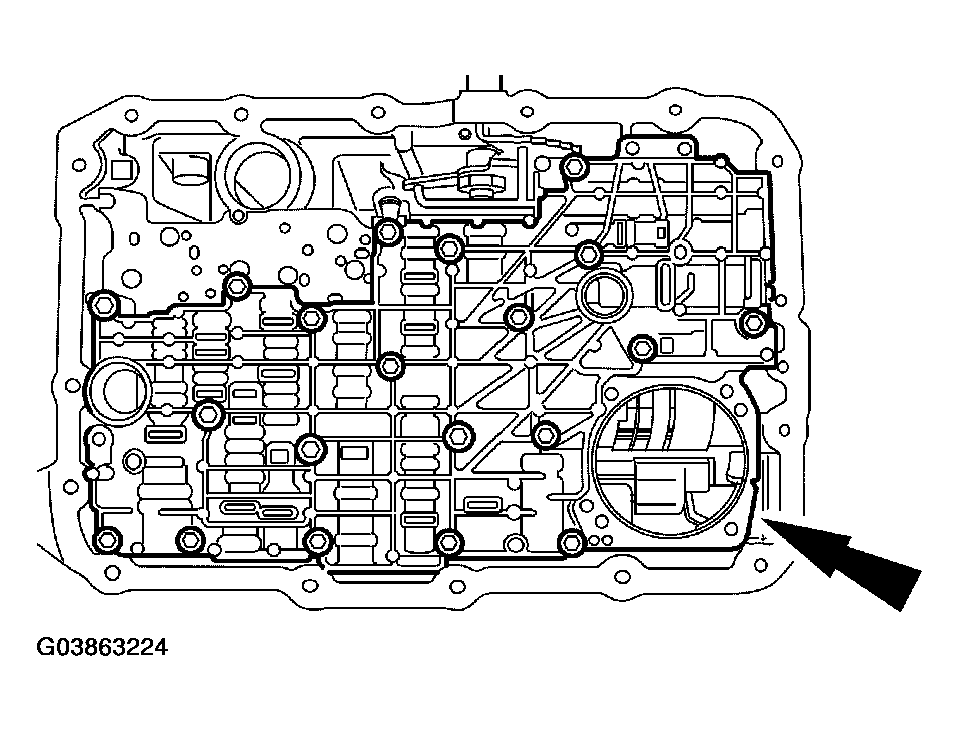

Fig 8: Removing Main Control Valve Body
Courtesy of FORD MOTOR CO.
