Home >> Lincoln >> 2005 >> Aviator RWD >> Repair and Diagnosis >> Engine Mechanical >> Mechanical >> Engine >> Disassembly And Assembly Of Subassemblies >> Piston >> Notes

Disassembly And Assembly Of Subassemblies: Piston: Notes

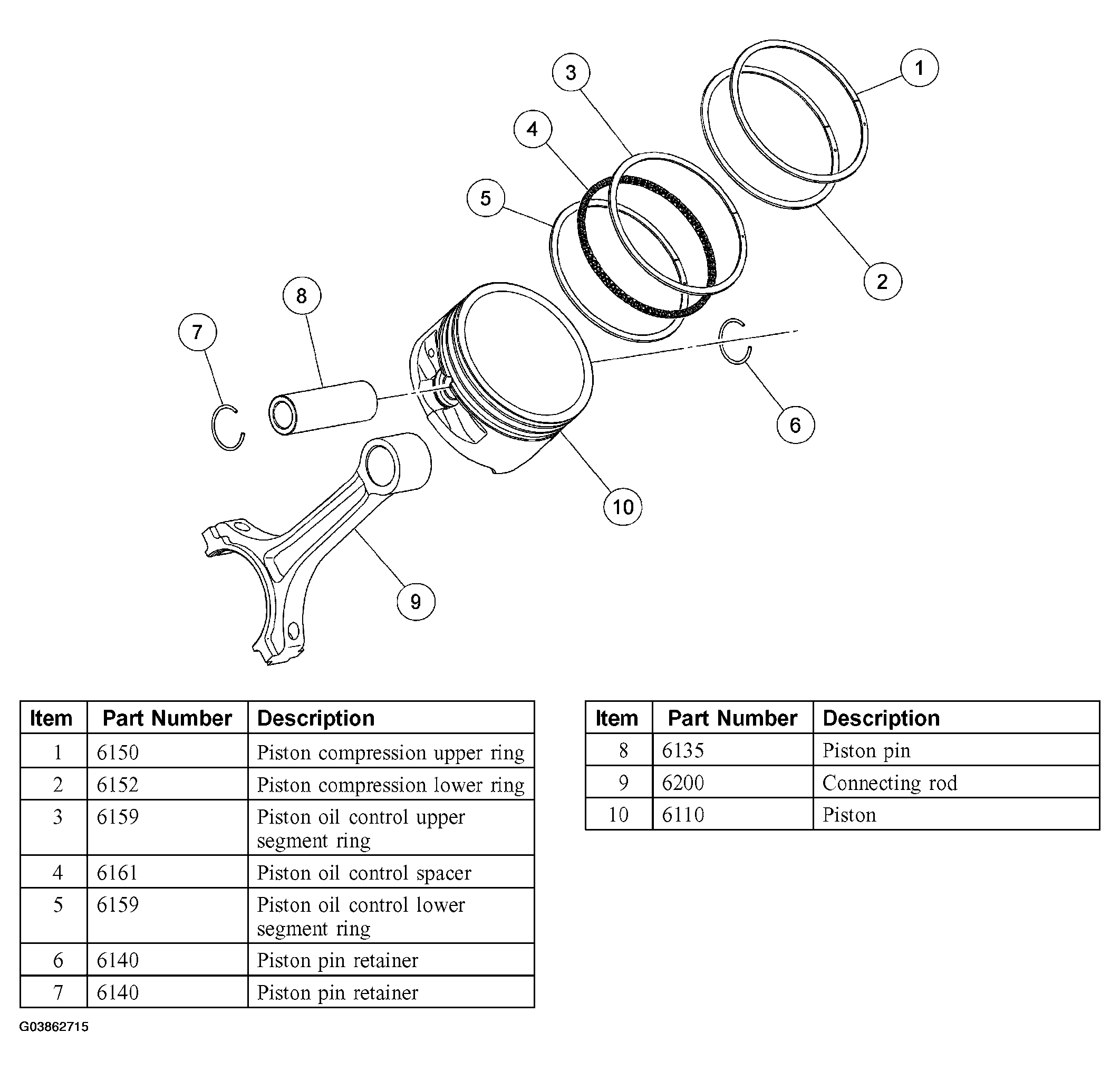

Fig 1: Identifying Piston Components

G03862715

Courtesy of FORD MOTOR CO.
