Home >> Lincoln >> 2005 >> Aviator RWD >> Repair and Diagnosis >> Engine Mechanical >> Mechanical >> Engine >> In-Vehicle Repair >> Engine Front Cover >> Notes

Engine Front Cover: Notes

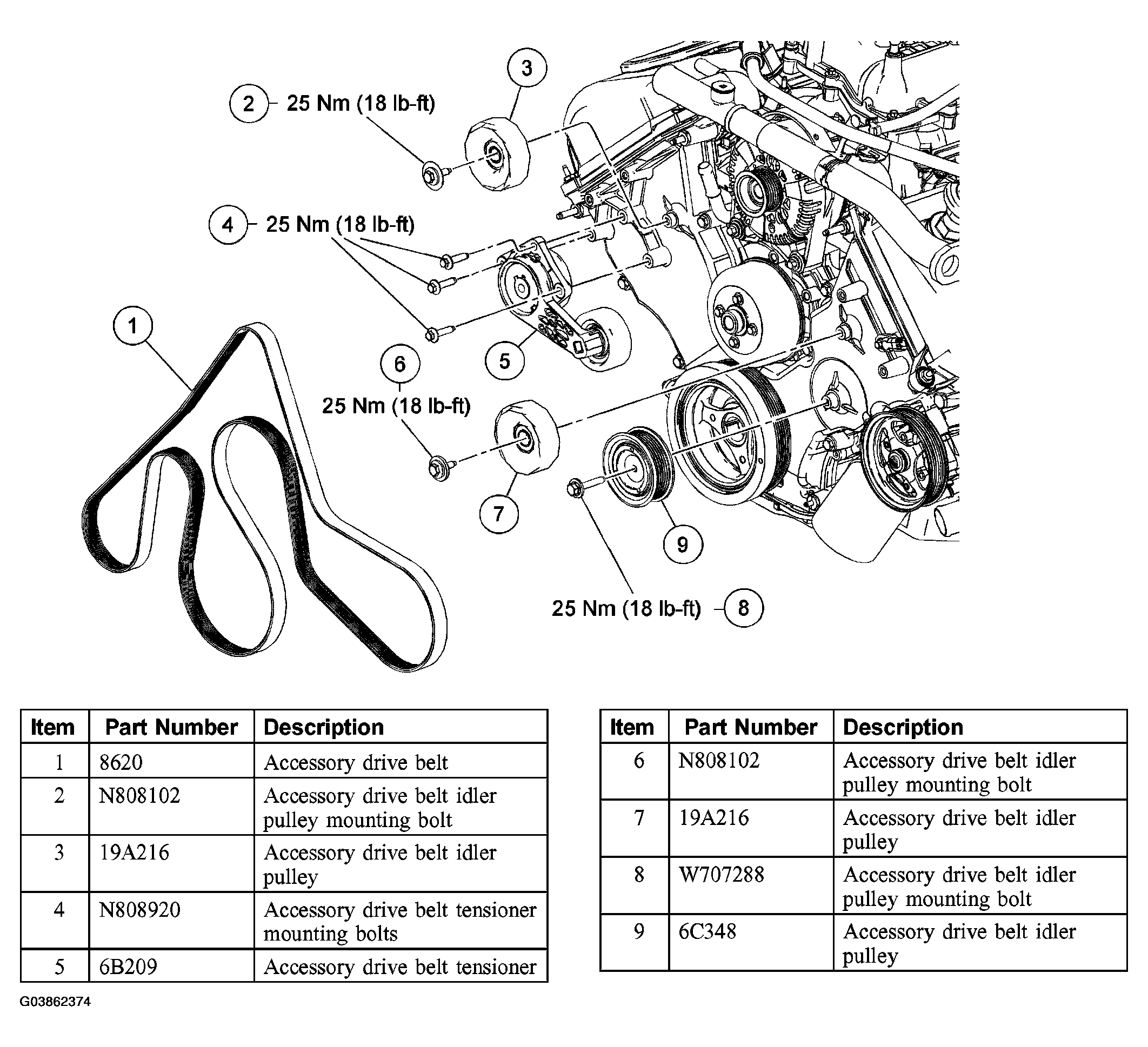

Fig 1: Drivebelt Replacement Components (Torque Specs)
G03862374Courtesy of FORD MOTOR CO.

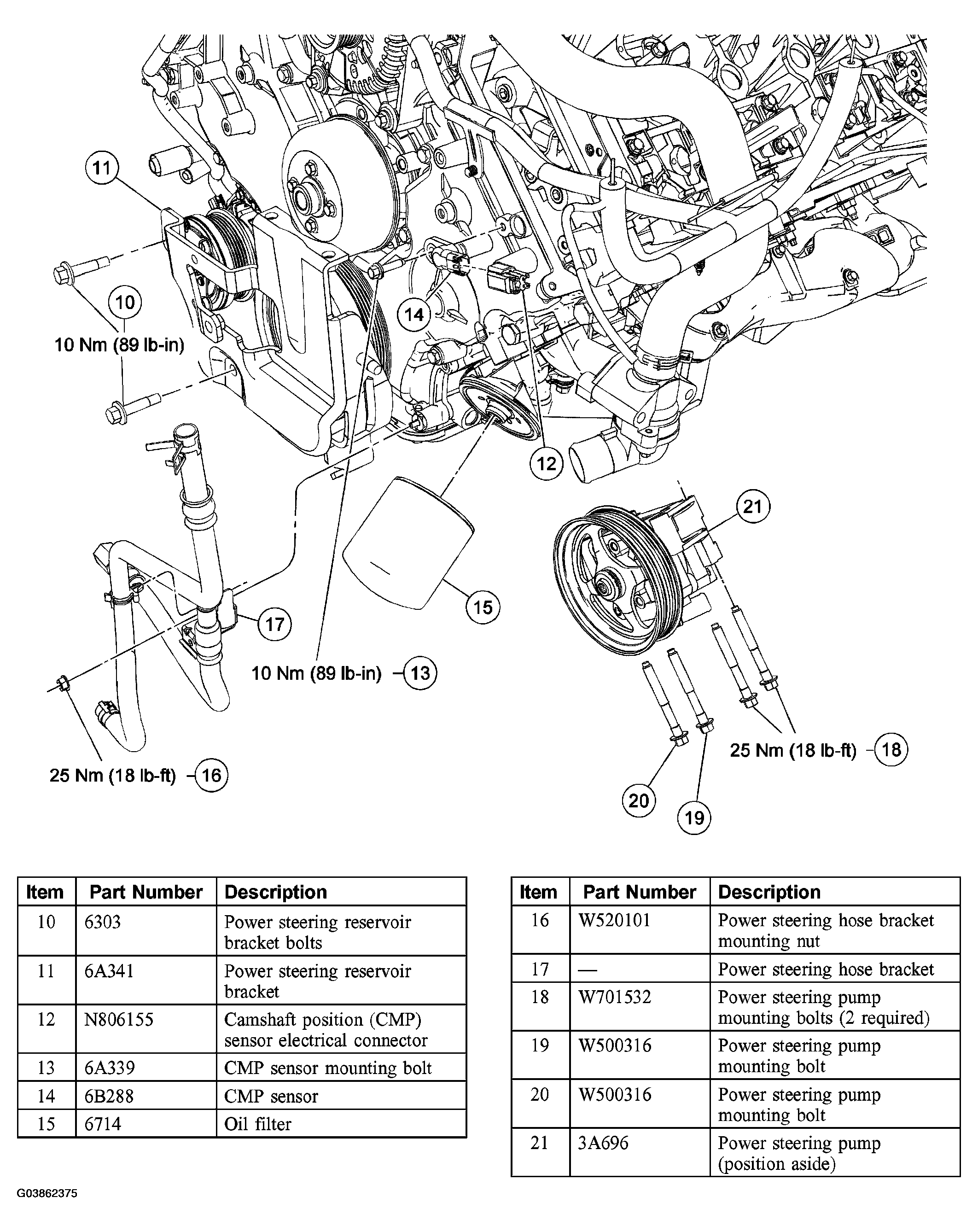

Fig 2: Power Steering Reservoir Bracket Bolts (Torque Specs)
G03862375Courtesy of FORD MOTOR CO.

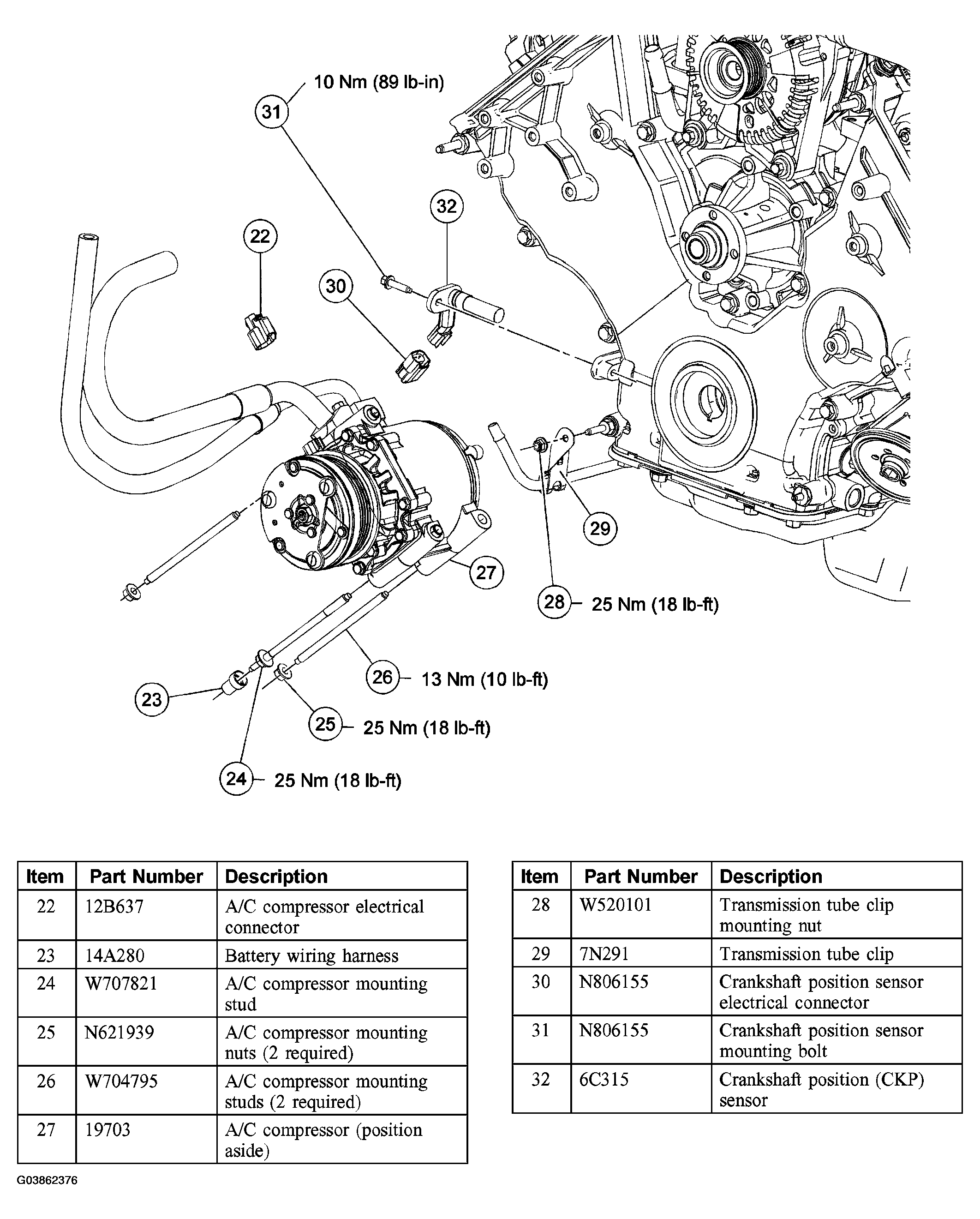

Fig 3: A/C Compressor Electrical Connector (Torque Specs)
G03862376Courtesy of FORD MOTOR CO.

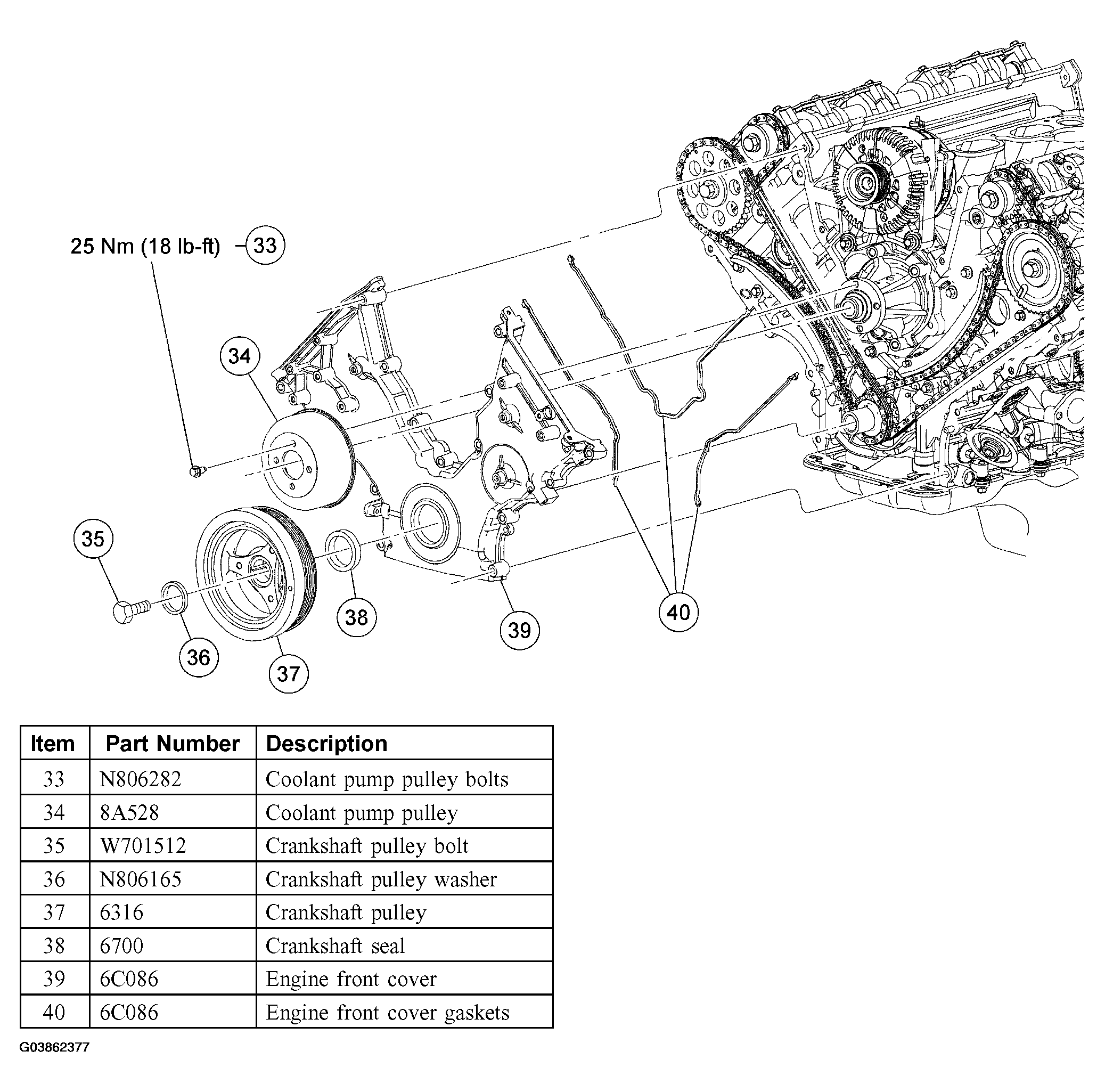

Fig 4: Coolant Pump Replacement Components (Torque Specs)
G03862377Courtesy of FORD MOTOR CO.
