Home >> Lincoln >> 2005 >> LS 3.0 S >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transaxle/Transmission >> Disassembly And Assembly Of Subassemblies >> Main Control Valve Body >> Notes

Main Control Valve Body: Notes

MAIN CONTROL VALVE BODY SPECIAL TOOL

G03974982
 Aligner, Valve Body (2 required) 307-334 (T95L-70010-C)
Fig 1: Identifying Components Main Control Valve Body (1 Of 2)
G03985312Courtesy of FORD MOTOR CO.

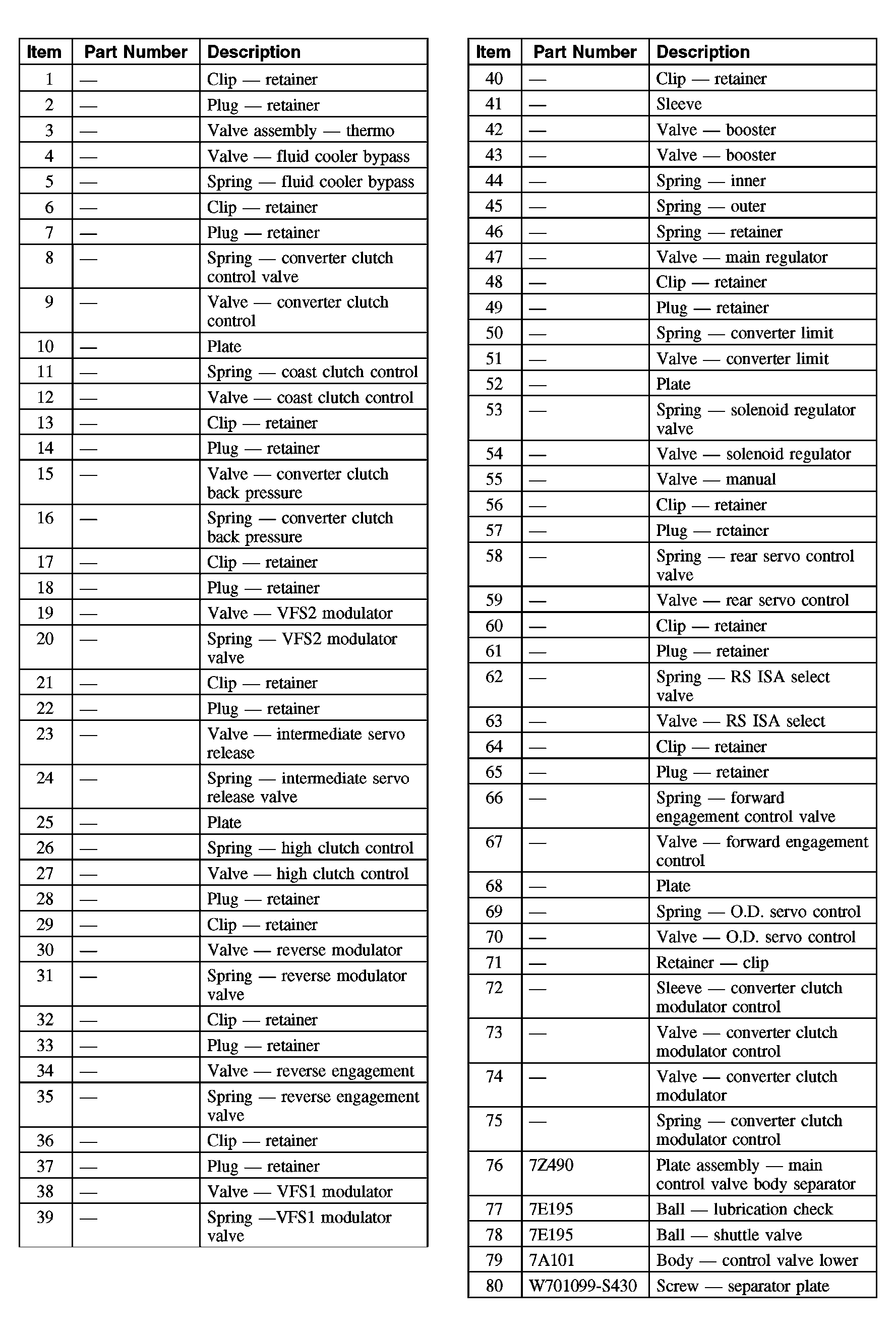

Fig 2: Identifying Components Main Control Valve Body (2 Of 2)
G03997472Courtesy of FORD MOTOR CO.
