Direct Clutch Assembly: Assembly

  1. Install the direct clutch plates, starting with the wave spring then a steel plate and alternating between steel and friction plates, and ending with the pressure plate on the top.

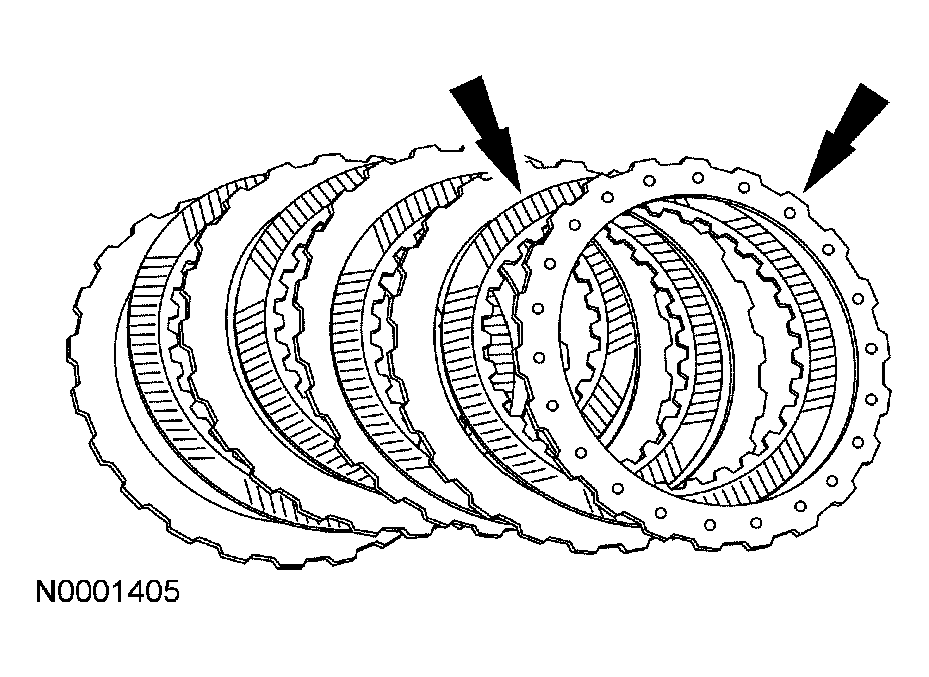

    Fig 1: Installing Direct Clutch Plates
    G03929355Courtesy of FORD MOTOR CO.
  2. Install the direct clutch snap ring.

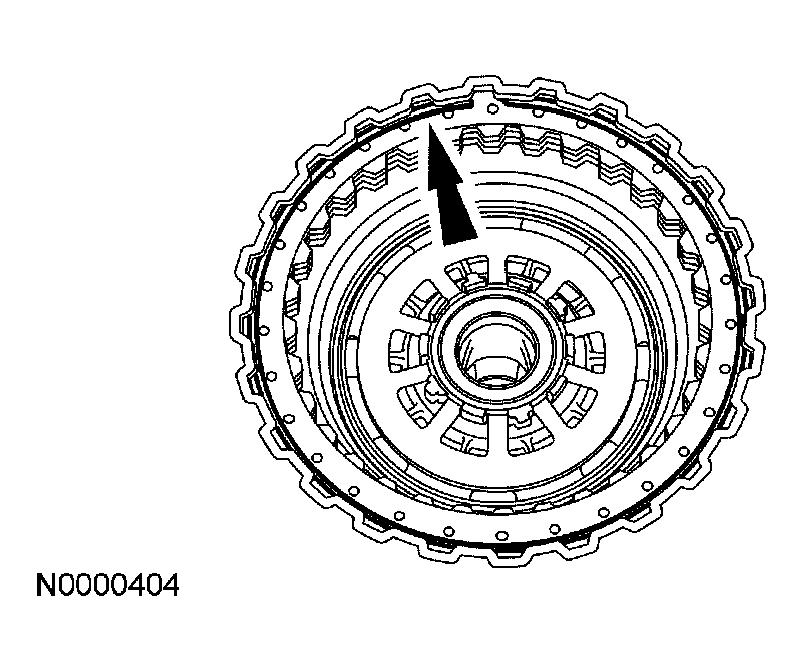

    Fig 2: Installing Direct Clutch Snap Ring
    G03929353Courtesy of FORD MOTOR CO.
  3. Install the roller bearing.

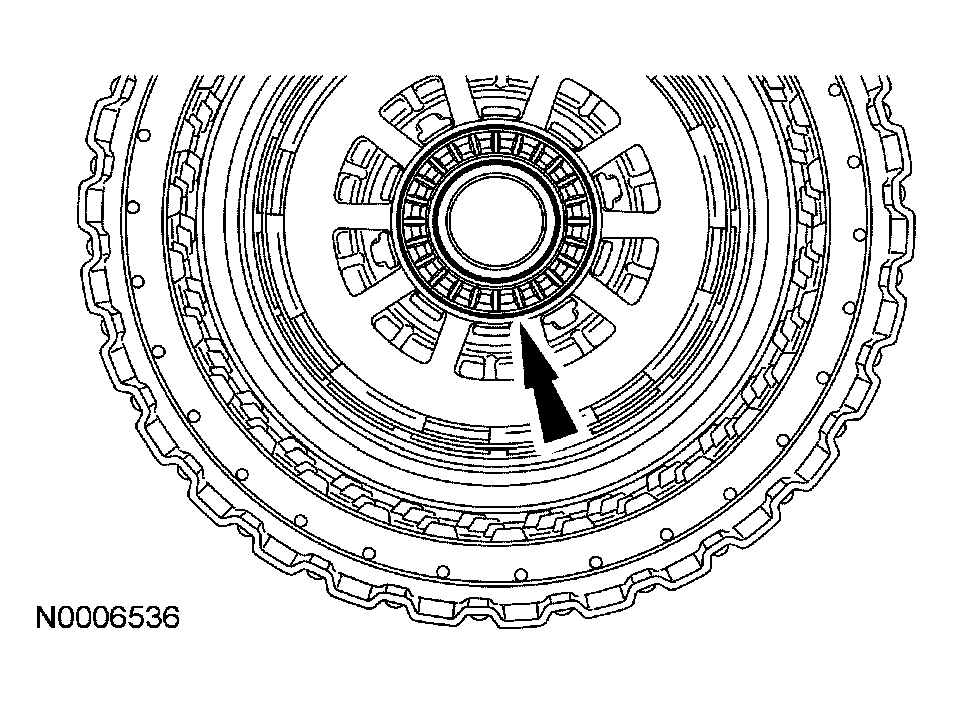

    Fig 3: Installing Roller Bearing
    G03929352Courtesy of FORD MOTOR CO.
