Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

Fig 1: Engine Compartment

G00360896

Courtesy of FORD MOTOR CO.

Fig 2: Front Of Engine Compartment

G00360897

Courtesy of FORD MOTOR CO.

Fig 3: Front Of Engine

G00360898

Courtesy of FORD MOTOR CO.

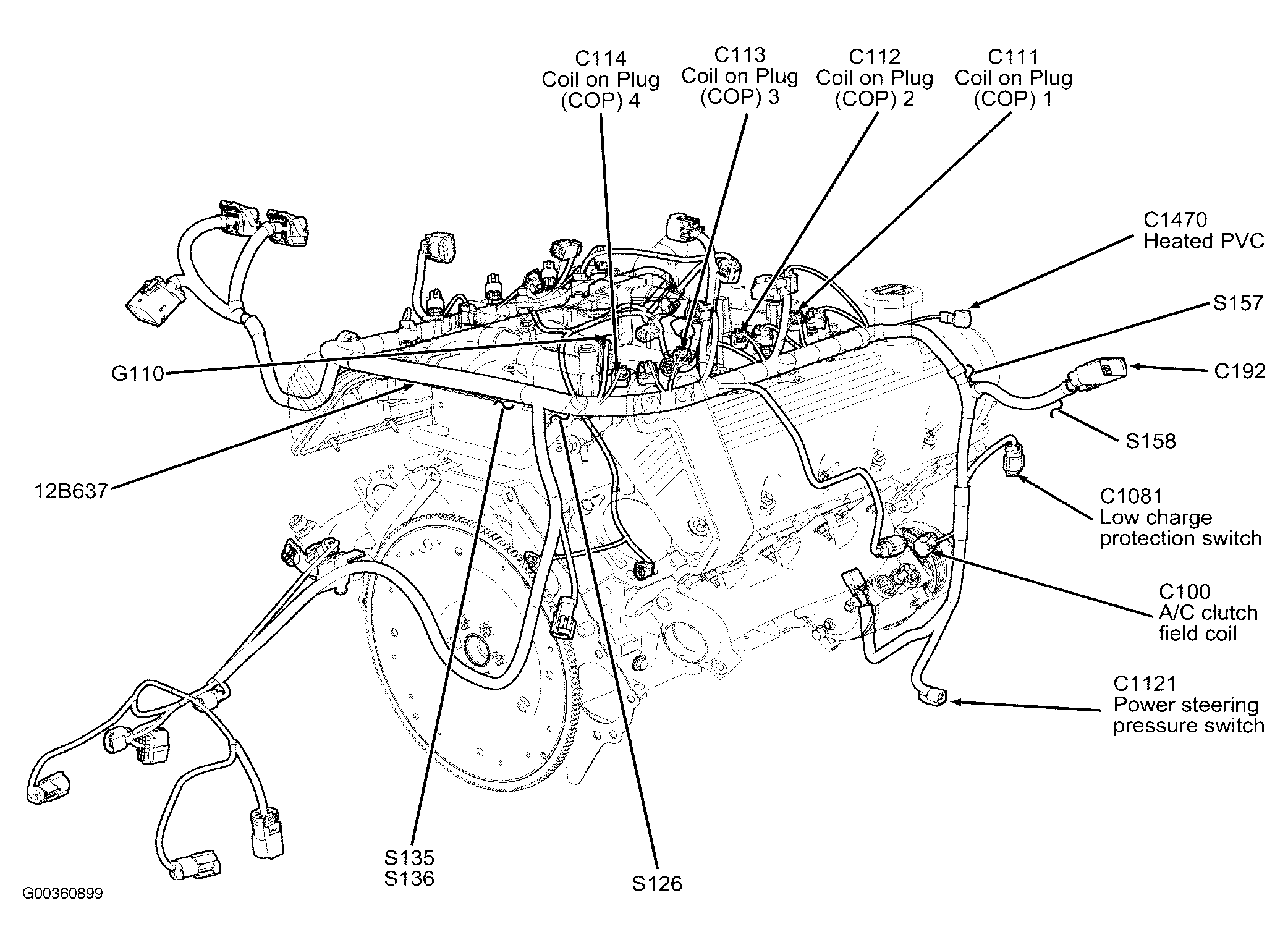

Fig 4: Rear Of Engine

G00360899

Courtesy of FORD MOTOR CO.

Fig 5: Rear Of Engine

G00360900

Courtesy of FORD MOTOR CO.

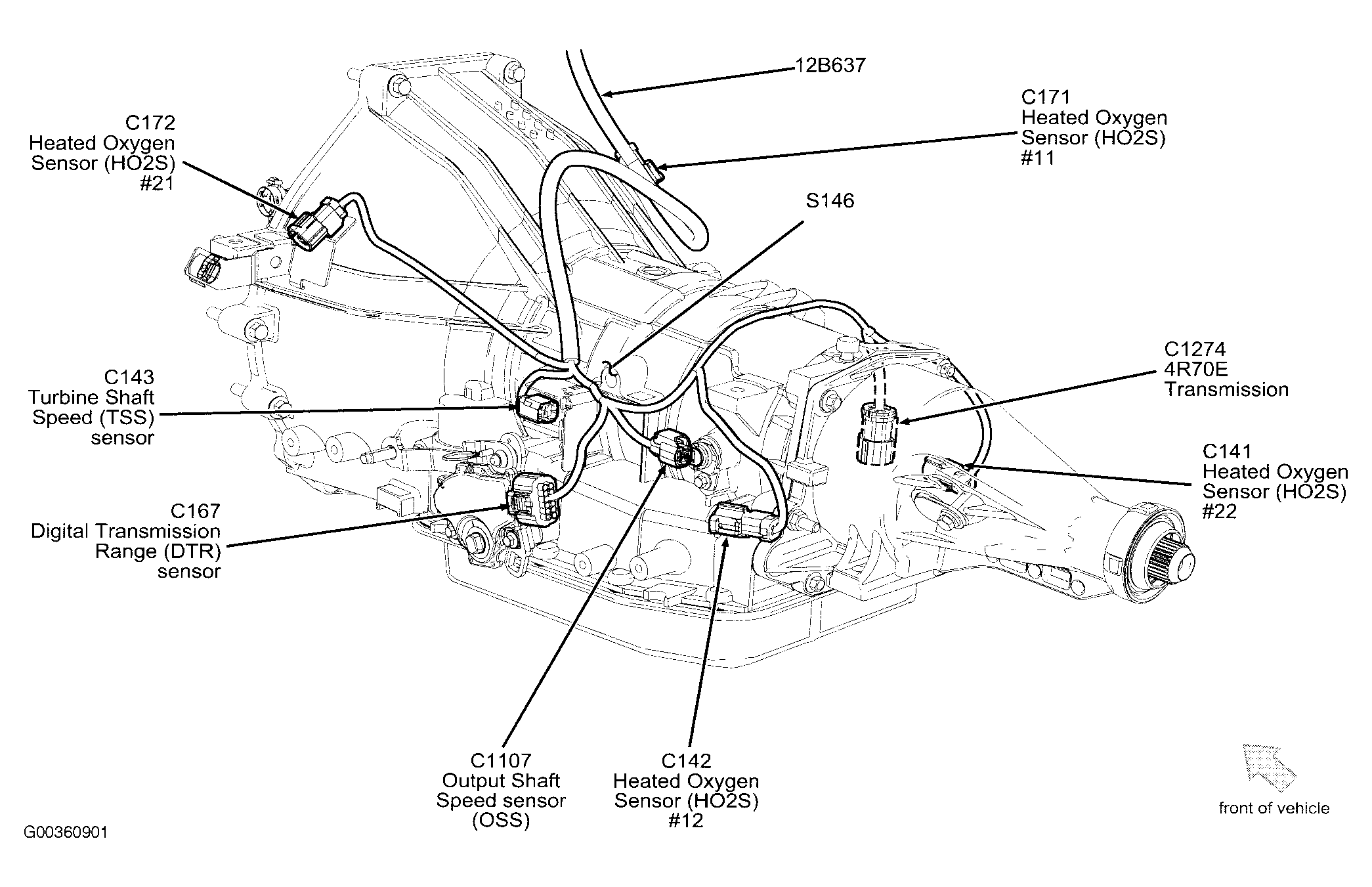

Fig 6: Transmission Assembly

G00360901

Courtesy of FORD MOTOR CO.

Fig 7: Rear Of Engine Compartment

G00360902

Courtesy of FORD MOTOR CO.

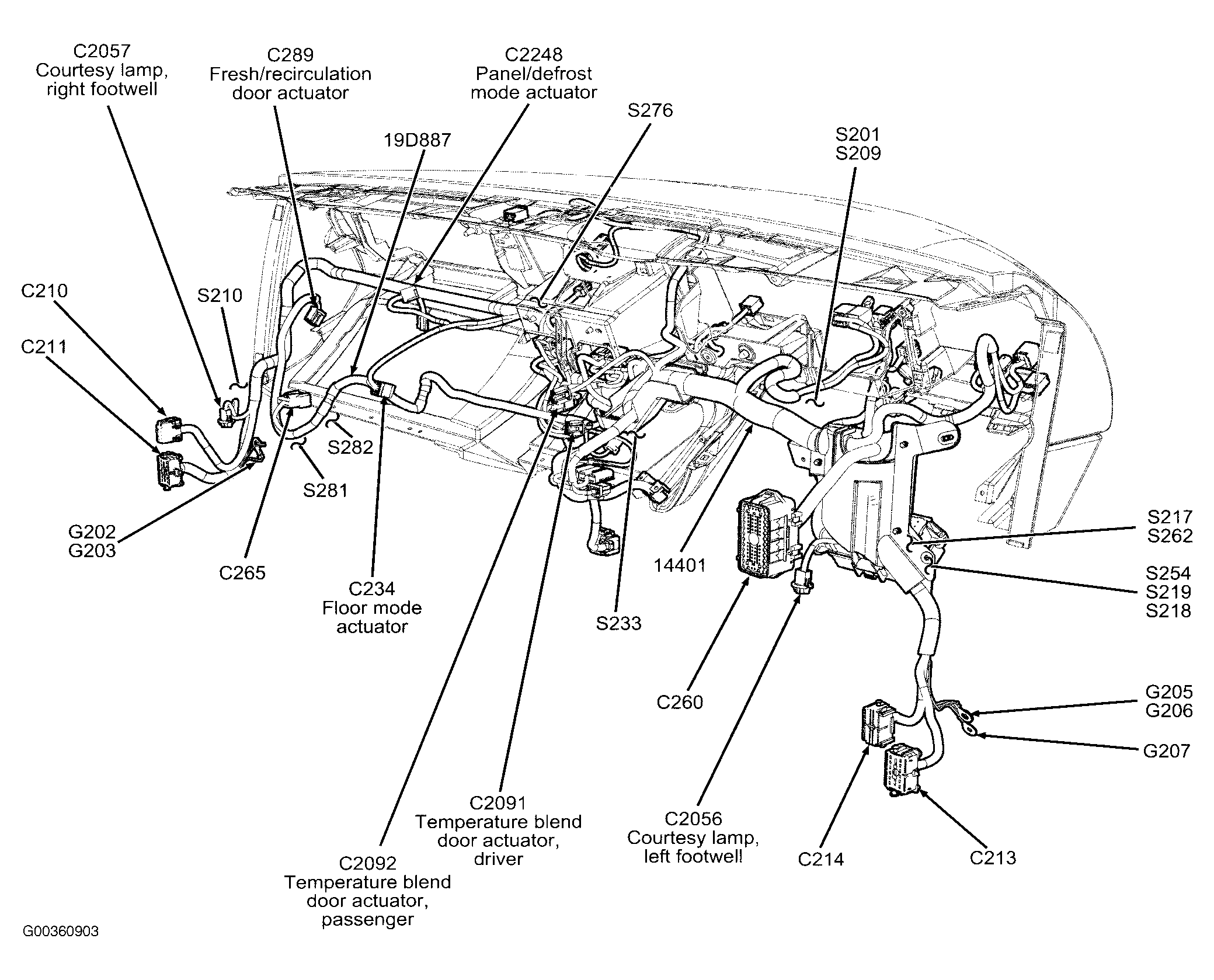

Fig 8: Dash Panel

G00360903

Courtesy of FORD MOTOR CO.

Fig 9: Dash Panel

G00360904

Courtesy of FORD MOTOR CO.

Fig 10: Dash Panel

G00360905

Courtesy of FORD MOTOR CO.

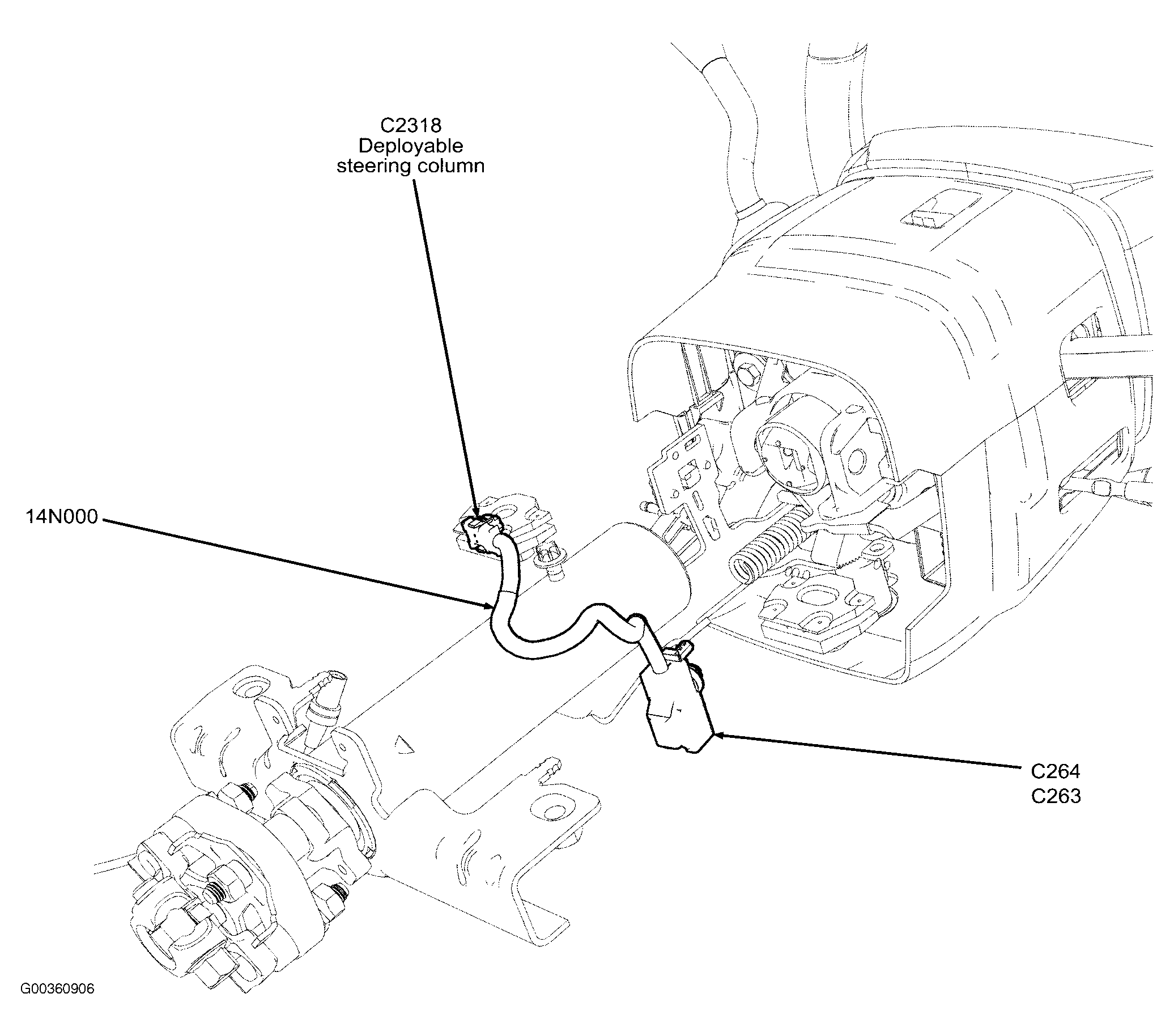

Fig 11: Steering Column Assembly

G00360906

Courtesy of FORD MOTOR CO.

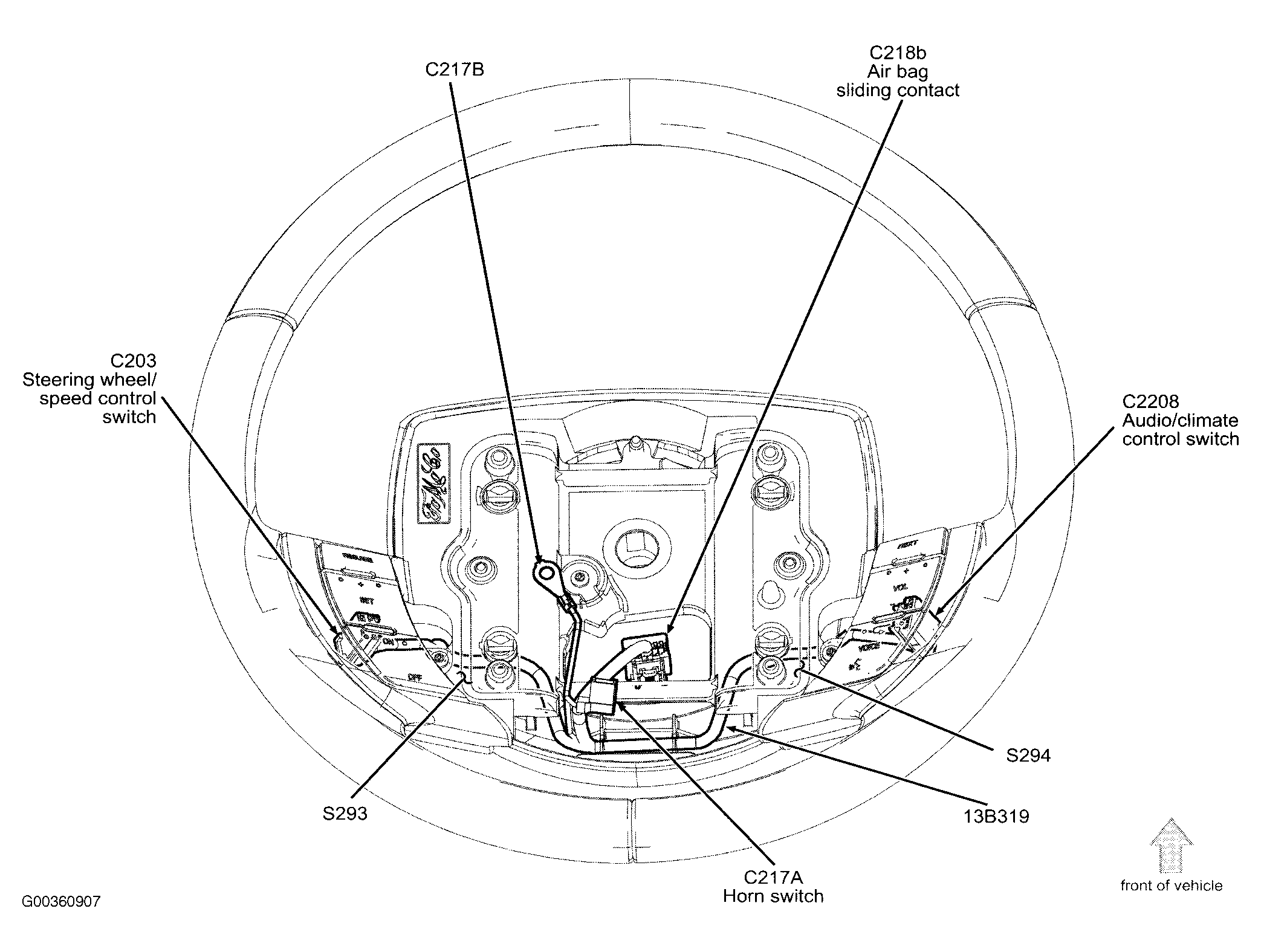

Fig 12: Steering Wheel Assembly

G00360907

Courtesy of FORD MOTOR CO.

Fig 13: Left Front Of Passenger Compartment

G00360908

Courtesy of FORD MOTOR CO.

Fig 14: Left Rear Body

G00360909

Courtesy of FORD MOTOR CO.

Fig 15: Right Rear Body

G00360910

Courtesy of FORD MOTOR CO.

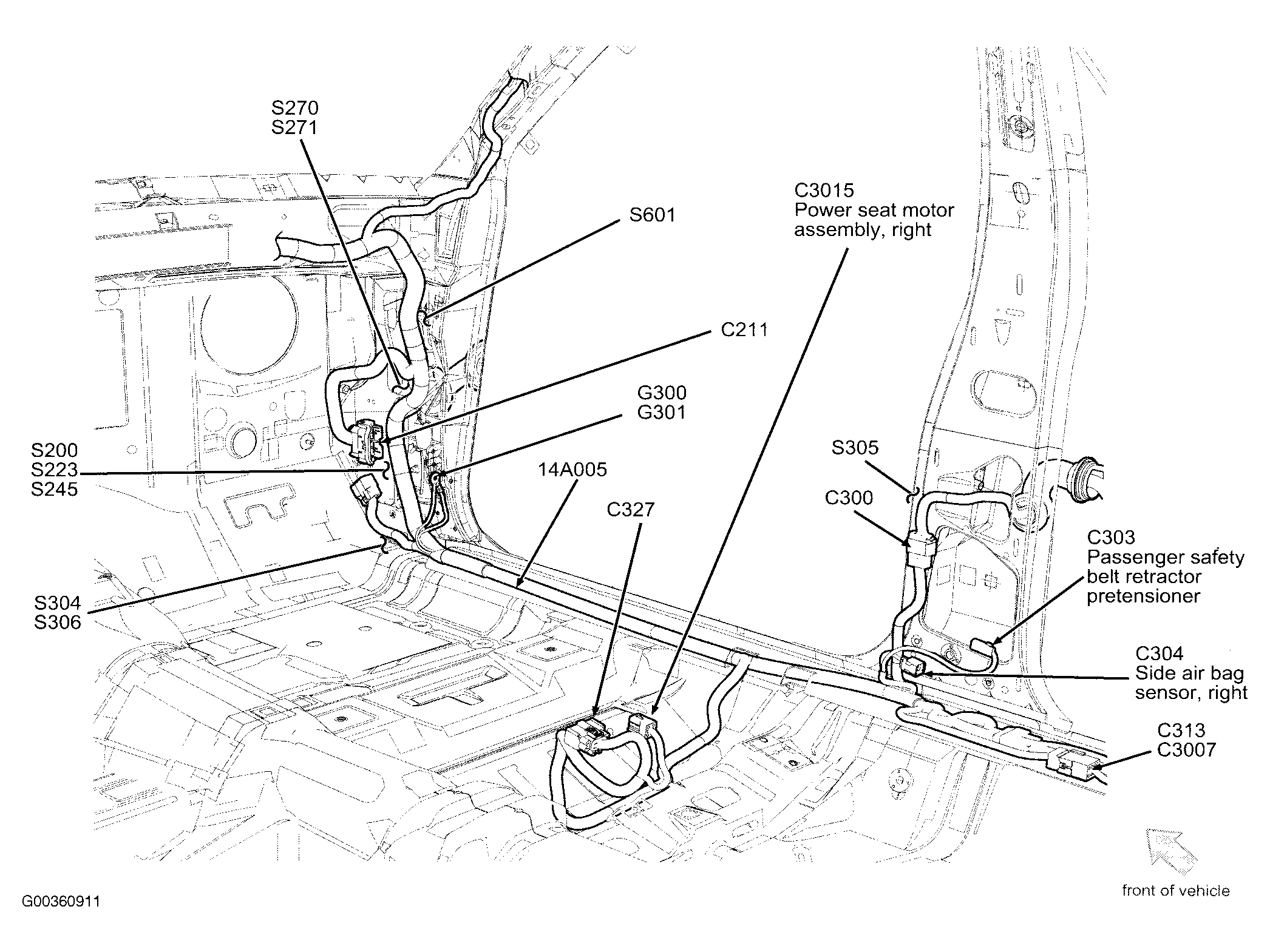

Fig 16: Right Front Body

G00360911

Courtesy of FORD MOTOR CO.

Fig 17: Left Front Seat

G00360912

Courtesy of FORD MOTOR CO.

Fig 18: Right Front Seat

G00360913

Courtesy of FORD MOTOR CO.

Fig 19: Rear Seats

G00360914

Courtesy of FORD MOTOR CO.

Fig 20: Left Front Door

G00360915

Courtesy of FORD MOTOR CO.

Fig 21: Right Front Door

G00360916

Courtesy of FORD MOTOR CO.

Fig 22: Left Rear Door

G00360917

Courtesy of FORD MOTOR CO.

Fig 23: Left Rear Door

G00360918

Courtesy of FORD MOTOR CO.

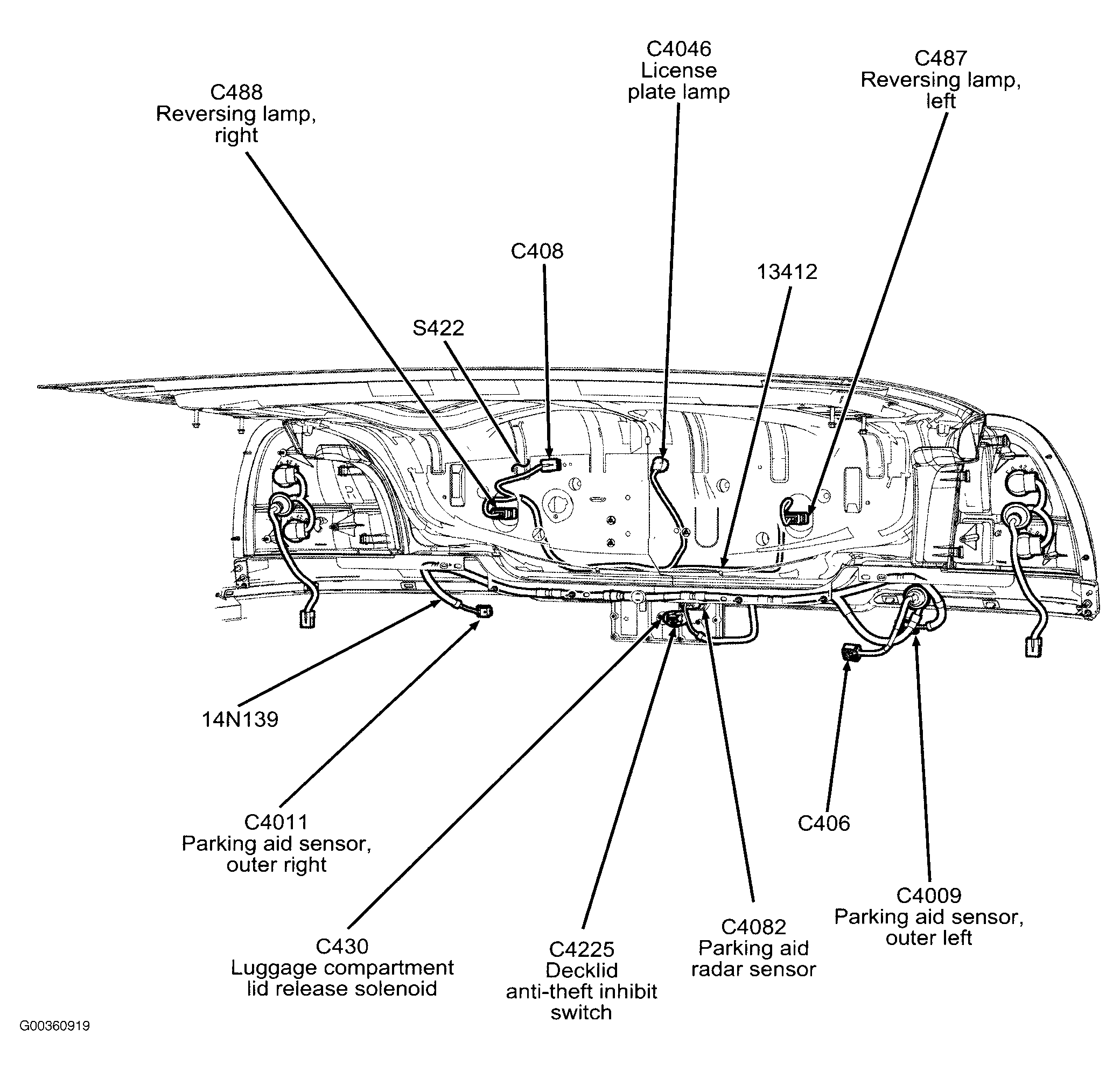

Fig 24: Trunk lid

G00360919

Courtesy of FORD MOTOR CO.

Fig 25: Roof

G00360920

Courtesy of FORD MOTOR CO.

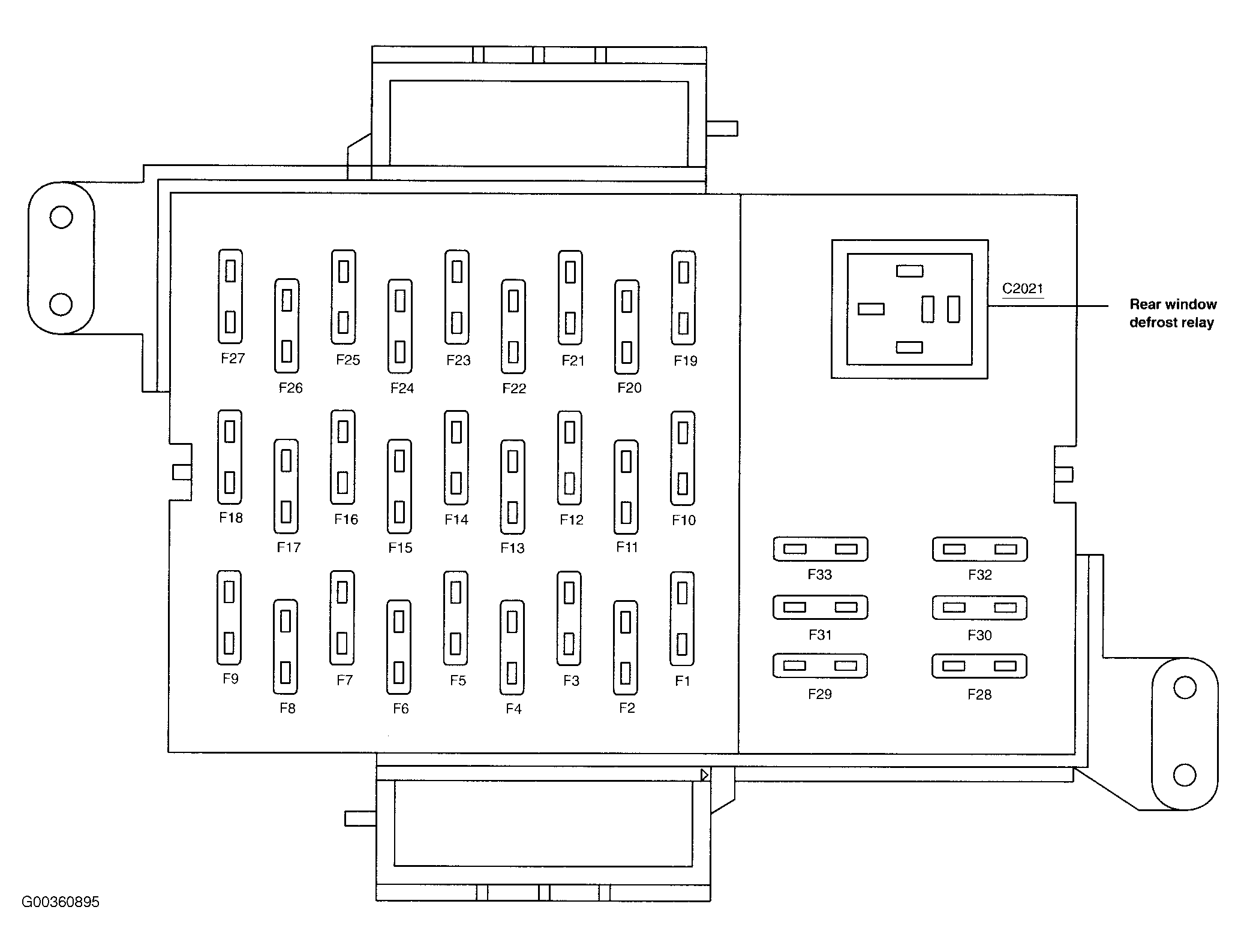

Fig 26: Central Junction Box (CJB)

G00360895

Courtesy of FORD MOTOR CO.

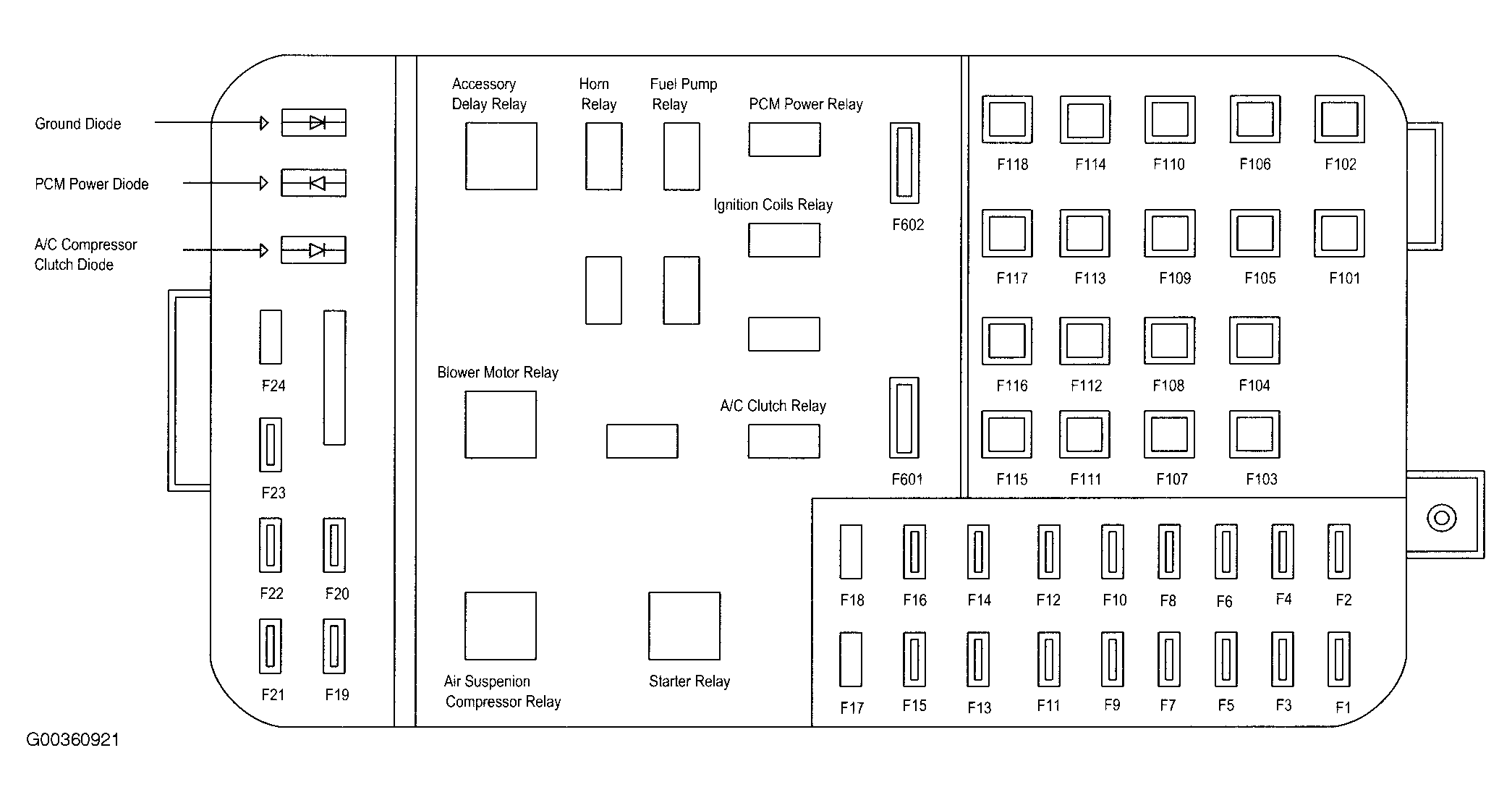

Fig 27: Battery Junction Box (BJB)

G00360921

Courtesy of FORD MOTOR CO.
